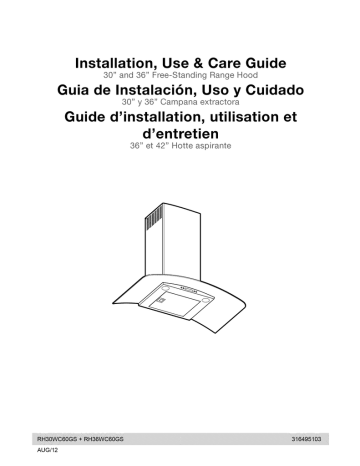

Installation,
Use & Care Guide
30" and 36" Free-Standing
Guia de Instalacibn,
30" y 36" Campana
Range Hood
Uso y Cuidado
extractora
Guide d'installation,
utilisation
d'entretien
36" et 42" Hotte aspirante
AUG/12
et
Finding Information
Please read and save this guide
Thank you for choosing Electrolux, the new premium brand in home appliances. This Use & Care Guide is
part of our commitment to customer satisfaction and product quality throughout the service life of your new
appliance.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you,
please use this page to record important product information.
Keep a record for quick reference
Purchase date
Model number
Serial number (see picture for location)
For toll-free telephone support in the U.S. and Canada:
(1-877-435-3287)
For online support and Internet product information visit http://www.electroluxappliances.com
Table of contents
Important Safety Instructions .............................3-4
Electrical & Installation requirements ............... 5
Electrical requirements ...........................................5
IMPORTANT ............................................................5
Before installing the hood ...................................... 5
List of Materials ..................................................... 6
Parts Included with your hood .............................. 6
Optional Accessories ............................................. 6
Tools/Materials required .........................................6
Installing the hood ................................................7-14
Installing preparation ...............................................7
Wall framing for adequate support .........................7
Removing the packaging .......................................7
Examples of possible ducting ................................ 8
Ductwork installation guidelines ............................ 8
Ductwork and wiring locations .............................. 8
Mounting the duct cover bracket .......................... 9
Ceiling ducting ......................................................... 10
Wall ducting ..............................................................10
House wiring location .............................................. 10
Install framing for hood support ..............................10
Mounting the hood .................................................. 11
Connecting the ductwork ........................................12
@2007 Electrolux Home Products, Inc.
Air deflector installation
(Recirculating accessories) .....................................12
Making the electrical connections .......................... 13
Mounting the glass canopy. .................................... 13
Mounting the duct cover......................................... 14
Features ...................................................................15
Control buttons .....................................................16
Special functions ................................................... 17
Clock programming ................................................17
Grease filter saturation alarm .................................. 17
Charcoal filter saturation alarm
(Recirculating accesories) ........................................17
Audible signal activation and deactivation ........... 17
Charcoal filter inclusion and exclusion
(Recirculating accessories) .....................................17
Heat sensor .............................................................17
For Best results ........................................................18
Care and cleaning .................................................19
Filters .......................................................................19
Lights .......................................................................19
Optional Charcoal Filters .......................................20
Hood Surface ..........................................................20
Warranty Information .............................................. 21
All rights reserved. Printed in Mexico
Important
Impo ant
Safety Instructions
Safety Instructions
Read all instruclions before using this
appliance.
Save lhese instruclions for future
references
Approved for residenlial appliances
For residential use only
Do not attempt to install or operate your appliance
until you have read the safety precautions in this
manual. Safety items throughout this manual are
labeled with a WARNING or CAUTION based on the
risk type.
WARNING
This symbol alerts you to
situations that may cause
serious body harm, death
or property damage.
This symbol alerts you to
situations that may cause
bodily injury or property
damage.
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
INSTALLATION MUST COMPLY WITH ALL LOCAL CODES.
IMPORTANT: Save these Instructions for the Local Electrical Inspector's use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Safety Warning: Turn off power circuit at service panel and lock out panel, before wiring this appliance.
Requirement: 120 V AC, 60 Hz. 15 or 20 A Branch Circuit
,m0ortantsafety,nstractions
ililililililililililililililililililililililililililililililililililililililili
READ AND SAVE THESE INSTRUCTIONS
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Impo£ant safety Instructions
CAUTION
FOR GENERAL VENTILATING USE ONLY. DO NOT USE
TO EXHAUST HAZARDOUS OR EXPLOSIVE
MATERIALS OR VAPORS.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
A.
B.
C.
D.
E.
F.
Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer
Before servicing or cleaning the unit, switch power off
at service panel and lock service panel disconnecting
means to prevent power from being switched on
accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
Installation Work and Electrical Wiring Must Be Done By
Qualified Person(s) In Accordance With all Aplicable
Codes & Standards, Including Fire-rated Construction.
Sufficient air is needed for proper combustion and ex
hausting of gases through the flue (Chimney) of fuel
burning equipment to prevent back- drafting. Follow
the heating equipment manufacturers guideline
and safety standards such as those published by
the National Fire Protection Association (NFPA),
the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code
authorities.
When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
Ducted systems must always be vented to the
outdoors.
To reduce risk of fire and to properly exhaust air, be sure to
duct air outside - do not vent exhaust air into spaces within
walls, ceilings, attics, crawl spaces, or garages.
TO REDUCE THE RISK OF FIRE, USE ONLY METAL
DUCT WORK.
Install this hood in accordance with all requirements
specified.
WARNING
To Reduce The Risk Of Fire Or Electric Shock, Do Not
Use This Hood With Any External Solid State Speed
Control Device.
Automatically Operated Device - To Reduce The
Risk Of Injury Disconnect From Power Supply Before
Servicing.
This unit is equpeed with integral disconnecting switch
located inside the blower housing.
TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE.
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that
may ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or
when flambeing food (I.e. Crepes Suzette, Cherries
Jubilee, Peppercorn Beef Flambe').
c) Clean ventilating fans frequently. Grease should not
be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate
for the size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS, IN
THE EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING:
a) SMOTHER FLAMES with a close- fitting lid, cookie
sheet, or other metal tray, then turn off the gas burner
or the electric element. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - you may be
burned.
c) DO NOT USE WATER, including wet dishcloths or
towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a class ABC extinguisher,
and you already know how to operate it.
2) The fire is small and contained in the area
where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit.
OPERATION
Always leave safety grills and filters in place.Without these
components, operating blowers could catch onto hair,
fingers and loose clothing.
The manufacturer declines all responsibility in the event
of failure to observe the instructions given here for
installation,maintenance and suitable use of the product.
The manufacturer further declines all responsibility for injury
due to negligence and the warranty of the unit automatically
expires due to improper maintenance.
Important safety Instructions
- Electrical & Installation
requirements
READ AND SAVE THESE INSTRUCTIONS
Electrical & Installation requirements
Electrical requirements
IMPORTANT
Before installing the hood
1.
For the most effcient air flow exhaust, use a
straight run or as few elbows as possible.
Observe all governing codes and ordinances.
It is the customer's responsibility:
To contact a quali!ed electrical installer.
To assure that the electrical installation is adequate
and in conformance with National Electrical Code,
ANSI/NFPA 70 -- latest edition*, or CSA Standards
C22.1-94, Canadian Electrical Code, Part 1 and
C22.2 No.0-M91 - latest edition** and all local codes
and ordinances.
If codes permit and a separate ground wire is used, it
is recommended that a quali!ed electrician determine
that the ground path is adequate.
Vent unit to outside of building and recirculating.
.
3.
.
5.
Do not ground to a gas pipe.
Check with a quali!ed electrician if you are not sure
range hood is properly grounded.
Do not have a fuse in the neutral or ground circuit.
IMPORTANT
Save Installation Instructions for electrical inspector's
use.
The range hood must be connected with copper wire
only.
The range hood should be connected directly to the
fused disconnect (Or circuit breaker) box through
metal electrical conduit.
Wire sizes must conform to the requirements of the
National Electrical Code ANSI/NFPA 70 -- latest
edition*,or CSA Standards C22.1-94, Canadian
Electrical Code Part 1 and C22.2 No. 0-M91 - latest
edition**and all local codes and ordinances.
A U.L- or C.S.A.-listed conduit connector must be
provided at each end of the power supply conduit (at
the range hood and at the junction box).
Copies of the standards listed may be obtained from:
* National Fire Protection Association Batterymarch Park
Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road Cleveland,
Ohio 44131-5575
.
At least two people are necessary for installation.
The hood is fitted with Screws and Drywall
Anchors suitable for most surfaces, consult a
Qualified Installer, check if they perfectly fit with
your cabinet/wall.
Do not use flex ducting.
COLD WEATHER installations should have an
additional backdraft damper that is already
installed to minimize backward cold air flow and a
nonmetallic thermal break to minimize
conduction of outside temperatures as part
of the ductwork. The damper should be
onthecoldairsideofthethermalbreak,
Thebreakshouldbeascloseaspossible
towheretheductingenterstheheatedportion
ofthehouse,
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Makeupair:Localbuildingcodesmayrequirethe
useofMake-UpAirSystemswhenusingUucted
VentilationSystemsgreaterthanspecifiedCFMof
airmovement,
ThespecifiedCFMvariesfromlocaletolocale.
ConsultyourHVACprofessionalforspecific
requirementsinyourarea,
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
List of Materials
List of Materials
Parts included in your hood
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
°
•
•
•
•
Hood structure assembly with blower, transition.
Lamps already installed.
Grease filter.
Duct cover
• Bottom.
• Top.
Hardware bag with:
• Plastic Gasket
• Template
• Top duct cover wall support bracket (1 piece)
• Use, care and installation guide
•
•
°
Wood screws (6 pieces - 3/16" x 1" 3/4)
Hood attachment anchors screws (6 pieces
3/8" x 13/8")
Assembly screws (8 pieces)
Optional accessories
°
•
Recirculation KIT
Charcoal filter
•
Replacement grease filter
Upper
_Lamp
_(_
•
•
•
•
•
•
•
°
•
•
•
•
•
•
•
•
•
Duct tape
Wire nuts
Tape to mount template
1/2" electrical connector (junction box)
8" rounded metal duct (length to suit installation)
Gloves to protect against sharp edges
Safety glasses
Hammer
Electric drill with 5/16" bit
Pliers
Measuring tape
Saw, jig saw
Level
Knife
Wire cutter
Phillips (Pozidrive) # 2 screwdriver
Torx # 2 screwdriver
Duct cover
supports
Duct
Covers
Vertical
supports
.j./j_
"
. ...
Duct cover
--support
@
Tools/Materials required
--
--
Grease
Filter
Installing the hood
the hood
•
For the most eficient air flow exhaust, use a
straight run or as few elbows as possible.
Vent unit to outside of building and recirculating.
On avarage 2 to 3 hours are necessary to complete installation (without considering cut to be
done on wall and or on cabinet, installation of
ducts, conduit and electrical connections to the
mains).
The hood is fitted with Screws and Drywall
Anchors suitable for most surfaces, consult a
Qualified Installer, check if they perfectly fit with
your cabinet/wall.
The hood may be installed vented to the outdoors, or
it can be installed for recirculating operation
(recirculating accessories not supplied with the
hood).
This hood can be installed over any electric and
gas cooktop/range.
It can not be installed over any professional
cooktop / range.
Installing preparation
Advance planning
•
Determine the exact location of the vent hood.
•
•
Do not use flex ducting.
COLD WEATHER installations should have an
additional backdraft damper that is already in
stalled backward cold air flow and a nonmetallic
thermal to minimize break to minimize conduction
of outside temperatures as part of the ductwork.
The damper should be on the cold air side of the
thermal break.
The break should be as close as possible to
where the ducting enters the heated portion of
the house.
Make up air: Local building codes may require
the use of Make-Up Air Systems when using
Ducted Ventilation Systems greater than specified
CFM of air movement.
The specified CFM varies from locale to locale.
Consult your HVAC professional for specific
requirements in your area.
Typical installation
Min installation height from the range top to the
bottom of the hood is 30" if a gas range is used
or 24" to 30" if an electric range is used.
These hoods are not recommended to be used
over indoor grills.
•
•
Plan the route for venting exhaust to the
outdoors.
Use the shortest and straightest duct route
possible.
Refer to" Ductwork installation guidelines"
paragraph for further informations.
Install a wall cap with damper or roof cap at the
exterior opening. Order the wall or roof cap and
anytransition needed in advance.
Use 8" round metal ductwork only.
Wall framing for adequate support
•
This vent hood is heavy.
Adequate structure and support must be
provided in all types of installations. The hood
must be secure to vertical studs in the wall, or to
a horizontal support.
•
The vent hood should be on site before $nal
framing and wall $nishing. This will help to
accurately locate the duct work and electrical
service.
•
Installation will be easier if the vent hood is
installed before the cook-top and countertop are
installed.
Removing the packaging
Remove carton carefully, Wear gloves to protect
against sharp edges.
WARNING
Remove the protective film covering the product
before putting into operation.
iiiiiiiiii_1i_i_!_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_iii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i_i_!!!!!!i
Installing the hood
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
_lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll
Examples of possible ducting
_lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll
fl_ao_inP_hndW/ca
p
_lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll
_lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll
_lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll
_lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll
_lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll
_lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll
Zrton_
n, Zr n,
\
Sidewalk cap w/
gravity damper
Recirculatinc
Vertical discharge
Ductwork installation guidelines
Ductwork and wiring locations
For safety reasons, ducting should vent directly
outdoors (not into an attic, underneath the house,
into the garage or into any enclosed space).
Keep duct runs as short and straight as possible.
Duct fittings (elbows and transitions) reduce air flow
efficiency.
Back to back elbows and "S" turns give very poor
delivery and are not recommended.
A short straight length of duct at the inlet of the
remote blower gives the best delivery.
Transition to duct from the integral blower or remote
duct transition as close to the downdraft as is possible.
In order of preference, use
1st. 10" round duct
2nd. 8" round duct
3rd. 3-1/4" x 14" duct
4th. 7" round duct
5th. 3-1/4" x 10"duct
6th. 6" round duct
•
Determine the exact location of the vent hood.
•
•
Locate the template packed with the literature.
The height installation is determined by the
following image. Mark the location.
Installation height: 30" gas cooktop/range or 24"
to 30" electric cooktop/range.
The use of flexible metal round duct should only be
used when no other duct fitting exists. Limit use to
short lengths and do not crush when making
corners
•
o
Sidewalk cap w/
gravity damper
Installation height
IL___C
Use a level to draw a horizontal straight pencil line
on the wall, which is your desired
installation height.
Find the centerline of the cooktop. Use a level to
draw a vertical straight pencil line on the wall.
CHECK TO BE SURE THE LINE IS PERFECTLY
PERPERNDICULAR.
Installing the hood
Mounting the duct cover bracket
Ceiling ducting
The duct bracket should be installed against the
back wall and flush with the ceiling. This bracket will
hold the telescopic duct cover in place at the top
If the duct will vent straight up to the ceiling:
•
Use level to draw a line straight up, from the
centerline on the template to the ceiling.
•
Measure at least 4 -3/4 "from the back wall to
the circle center of an 8-1/2"hole on the ceiling.
Secure the bracket to the wall:
•
•
•
•
•
•
Align the marked centerline on the bracket with
the centerline on the wall.
Mark 2 screw hole locations in the wall.
Drill 5/16" pilot holes in the marked locations.
Install wall fastener anchors.
Drive wood screws, by hand, into the fastener to
allow anchors to expand. Remove the screws.
Secure the bracket to the wall with wood screws
and/or fasteners.
Wall ducting
If ductwork will vent to rear:
•
Use a level to draw a line straight up from the
centerline on the template.
•
Measure at least 23 - 3/4" (the measure might
vary depending on the elbow used) above the
pencil line that indicates the bottom installation
height, to the circle center of an 8-1/2'' diameter
duct hole (Hole may be elongated for duct elbow).
House wiring location
•
The junction box is located on the top left side of
the hood.
•
Wiring should enter the back wall at least 20"
above the bottom of the installation height, and
within 5-7/8" and 4-7/8"of the left side of the
centerline.
4-3/4" circle ___FORCEILING
DUCT VENTING
centertowall__ce,hng
8-1/2"diahole/i
!
WALL
_''
[
\
VENT --_
DUCT
)
Circle center at
23 3/4" above
the marked bottom pencil line
cd
_,_,_
Horizontal straight
"_pencil line
Installing the hood
Install supporlnstall framing for hood support
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Mounting the hood
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
•
If drywall is present, mark the screw hole
locations. Remove the template.
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
•
Cut away enough drywall to expose 2 vertical
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
studs at the holes location indicated by the
template.
Install two horizontal supports at least 4 X 2"
between two wall studs at the bottom and upper
mounting holes installation location.
•
The horizontal support must be flush with the
room side of the studs.
•
Use cleats behind both sides of the support to
secure to wall studs.
° Reinstalll drywall and refinish
IMPORTANT- Framing must be capable of
supporting 100 Ibs.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Install the 8" round transition as shows the image below.
The installation screws and the 8" round transition are
included on the hood package.
_
8 -1/2" min. opening for ductwork
View from rear
1" x 6" min
Mounting
Support
WARNING: 2 people are required to lift and position
the hood onto the mounting screws.
•
Place the template on the wall along the horizontal
line, make sure the template is leveled and
centered with the centerline.
•
Mark "upper" screw holes locations in the wall.
•
IMPORTANT. Check to be sure that hole locations
are leveled and correctly centered by the vertical
centerline.
•
Drive "upper" wood screws by hand. Leave 1A"of
distance between the screw head and the wall.
•
Remove the grease filter and mount the hood
onto the "upper" screws.
-.
J
Installing the hood
Mark "lower" wood screw holes locations in the
wall using a pencil.
•
•
Remove the hood.
Drive "lower" wood screws by hand. Remove
screws.
Mount the hood onto the "upper" screws.
Drive and tighten the "upper" wood screws, by
hand.
Drive and tighten the "lower" wood screws, by
hand.
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
Installing the hood
Connecting the ductwork
Air deflector installation
•
(Recirculating accessories)
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
•
•
•
Install ductwork, making connections in the
direction of airflow as illustrated.
Push duct over the exhaust outlet.
Wrap all duct joints and the flange connections
with duct tape for an airtight seal.
Make the same connection in the wall or ceiling
vent exit.
•
Assemble the air deflector with the duct cover
bracket with 4 assembly screws provided as
shown.
Airflow
Duct tape
over seam
Airflow
Ductwork
Measure from the bottom of the air deflector to
the bottom of the hood outlet, as shown.
over seam
hood
Dimension
•
•
•
•
•
to measure
Cut the duct at the measured size.
Uninstall the air deflector removing the 4
assembly screws.
Slip the duct onto the bottom of the deflector.
Place the assembled deflector and duct over the
exhaust outlet from the hood.
Assemble the air deflector to the duct cover
bracket with 4 assembly screws provided as
shown.
Installing the hood
Metal electrical
conduit
Making the electrical connections
WARNING
Electrical Shock Hazard
Warning: Turn off at the service panel before wiring
this unit.
120 V AC, 15 or 20 Amp circuit required.
ELECTRICAL GROUNDING INSTRUCTIONS
THIS APPLIANCE IS FI-I-rED WITH AN ELECTRICAL
JUNCTION BOX WITH _, WIRES, ONE OF WHICH
6GREEN/YELLOWl _ SERVES TO GROUND THE
APPLIANCE. TO PROTECT YOU AGAINST
ELECTRIC SHOCK, THE GREEN AND YELLOW
WIRE MUST BE CONNECTED TO THE
GROUNDING WIRE IN YOUR
HOME ELECTRICAL SYSTEM, AND IT MUST
UNDER NO CIRCUMSTANCES BE CUT OR
REMOVED.
Failure to do so can result in death or electrical
shock.
•
Remove junction box cover and knockout on the
top left side.
House
wiring
UL listed
wire nut
•
°
•
•
Knockout
Junction box
cover
If not already done, install 1/2" conduit connector
in junction box.
NOTE: This connector is not included with vent
hood.
Run black (live), white (neutral), and green
(earth) wires (#14 AWG) according to the
National Electrical Code or CSA Standards and
local codes and ordinances in 1/2" conduit from
power supply to junction box.
Connect black, white, and green wires from
power supply to black, white, and green/yellow
wires in junction box respectively.
These connections should be done always
making reference to the electrical diagram found
inside the hood.
Close junction box cover and reapply screws.
Control buttons
•
Mounting the duct cover
Secure the bottom of the duct with 2 assembly
screws provided.
Position the duct cover over the mounted hood.
Slide the bottom of the duct onto the glass area.
Position the top of the duct over the duct
mounting bracket. If a telescopic duct cover is
used, grab the upper part of the telescopic duct
cover, pull it and place it in the duct cover
mounting bracket.
Secure the top of the duct with 2 assembly
screws provided.
Remove Protective
Install the grease filter and turn power on at service
panel. Check operation of the hood.
\\
\\\\
\\
Features
1.
2.
3.
4.
Blower and light controls
Lamp housings
Grease Filter Handle
Grease Filter
5.
6.
Canopy
Duct cover
°
*
7.
Top
Bottom
Louver holes (User for Recirculating accessories)
®
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
Control buttons
Control buttons
This hood is equipped with an electronic motor and
lamp control.
The control is able to set 4 diferent fan speeds, turn
ON/OFF light and has a timer function.
°
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
°
°
In the following drawing are described the main key
functions.
1
2
/
/
3
4
\
/
5
°
/
If the fan is at second speed and the "V"
button is pressed, the fan will be set to first speed.
If the fan is at third speed and the "V" key is
pressed, the fan will be set to second speed.
If the fan is at fourth speed and the "V"
button is pressed, the fan will be set to third
speed.
If the fan is OFF and the "V" button is
pressed, the control backlight will light up.
5. "/_" Button. Speed Increase/ON
•
°
1. Light Button
°
°
Press lamp button to turn ON the light (Lamp
state previously OFF).
Press lamp button to turn OFF the light (Lamp
state previously ON).
°
°
2. "l_merButton
•
°
°
°
°
The default timer setting is 10 minutes, and it
can be adjusted between 20 minutes and
1 minute.
After pressing the timer button, the control
enters to a timer setup mode, and user can
adjust the timer countdown time with the
"V" and "/_" buttons within 5 seconds.
The timer can be initiated immediately
pressing the timer button, after setting the
timer duration or pressing the timer button
twice (default 10 minutes setting).
If no action occurs within 5 seconds, the
countdown will start.
During the timer setup the "V" and "A"
buttons are dedicated to the timer and no
motor action will occur.
Once the timer is initiated, it can be cancelled
by pressing the timer button again.
3. Display
•
Shows the hood settings.
4. "V"
Button. Speed Decrease/OFF
•
This button is used to decrease the fan speed,
or turn OFF the fan.
°
The fan will turn OFF if the "V"
button is
°
°
This button is used to increase the fan speed,
or turn ON the fan.
The fan will turn ON if the "/_" button is
pressed and the hood was OFR
If the fan is at first speed and the "/_" button
is pressed, the fan will be set to second
speed.
If the fan is at second speed and the "/_"
button is pressed, the fan will be set to third
speed.
If the fan is at third speed and the "/_"
button is pressed, the fan will be set to fourth
speed.
If the fan is at fourth speed and the "/_"
button is pressed, a beep will sound.
Control buttons - Special functions
Special functions
Clock programming
°
•
•
°
°
°
The clock can be reprogrammed at any time except during an active timed function.
The clock can be displayed in a twelve hour format and valid clock times are from 1:00 to 12:59.
The clock can be reprogrammed pressing the "Timer" button for 5 seconds, and after, the clock can be
adjusted with the "/_" and "/_" buttons. Colon ":" will flash indicating clock programming mode.
The user can have minute increments / decrements of 1 minute, but if the user keep pressing the "/_"/
"/_" buttons for more than 1 second, the increments / decrements will be of 5 minutes.
During this option the control will round to the nearest 5 minutes.
The user can finish on reprogramming the clock pressing the "Timer" button.
After 1 minute of no button pressed the control will accept the programmed clock time and will add one
minute to the set clock.
Grease filter saturation alarm
•
°
After thirty fan functional
When this icon is shown
To reset the grease filter
action the icon "Grease
hours, the display will show "Grease Filter" if the fan is active.
in the display, the grease filters installed are required to be washed.
saturation alarm the user must press the "/_" button for 5 seconds, after this
Filter" is not displayed, and the hood has the normal display operation.
Charcoal filter saturation alarm (Recirculating accessories)
•
•
After one hundred and twenty functional hours of the fan, the display will show "Charcoal Filter" if the fan
is active. When this icon flashes on display, the charcoal filters installed are required to be replaced or
reactivated.
To reset the charcoal filter saturation indication the user must press the "/_" button for 5 seconds, after
this time the icon "Charcoal filter" is not displayed and the hood has the normal display operation.
Audible signal activation and deactivation
•
°
The audible signals can be activated or deactivated pressing the "Light" button for 5 seconds.
If the audible signal is activated, a tone must sound and the "Snd" symbol must appear on the display for
2 seconds.
°
If the audible signal is deactivated, the "Snd" symbol must appear on the display for 2 seconds and no
tone must sound.
Charcoal filter inclusion and exclusion (Recirculaling accessories)
•
The charcoal filter inclusion or exclusion can be set by pressing the "/_"
time for 5 seconds.
and "/_"
buttons at the same
°
°
The Inclusion or exclusion of charcoal filter must be selected while the lamps and the motor are OFE
When the charcoal filter has been excluded, the charcoal filter alarm is disabled.
Heat sensor
•
•
•
•
The control is equipped with a heat sensor that will turn on the blower at second speed if excessive heat
occurs (over 158° F or 70°C) surrounding the control area.
If the blower is OFF or if it is operating at first speed, the blower will be set automatically to second speed,
the display shows the word "CARE" to indicate that heat sensor has detected an excessive heat.
During this state, the user may raise the blower speed to third speed but can not decrease the speed.
When the temperature level on the hood drops to normal, the blower will operate in the setting defined by
the user before the alarm occured.
Care and cleaning
For Best results
•
•
•
°
•
•
•
•
•
•
•
•
•
•
Continuous use of the fan system while cooking helps keep the kitchen comfortable and less humid.
It also reduces cooking odors and soiling moisture that create a frequent need for cleaning.
Turn the blower on before starting to cook.
Use a rear burner when browning or pan frying meat.
Open a window or inside door slightly.
Clean the filters and the wall behind the filters frequently.
The blower should be turned on for a few minutes before cooking in order to establish air currents upward
through the hood. Thus when heat, smoke, moisture, grease and cooking odors are produced, they will
be carried outside instead of drifting into other rooms.
Use the low speeds for normal use and the higher speeds for strong odors or fumes.
Drafts across the range or cooktop will cause the escape of heat, smoke, moisture, grease and cooking
odors from the hood. Such drafts should be prevented in so far as possible.
The best job of ventilation in the kitchen is done where the only air currents are those created by the
blower itself.
For Gas Cooktops, a lower blower speed should be used if:
the gas flame is being distorted by the air movement.
the burner continually sparks (clicks)
the burner flame repeatedly blows out.
Care and cleaning
Care and Cleaning
The eficiency of the range hood system depends on
the cleanliness of the intake and filters.
The frequency of cleaning depends on the amount
and type of cooking.
•
Do not use the ventilating system without the
filters in place or with grease-laden filters or
surfaces.
WARNING
To avoid risk of fire and explosion do not use
flammable liquids or solvents.
Always unplug or disconnect the appliance from the
power supply before servicing.
WARNING
Be sure the entire hood (including the filters and light
bulbs) has cooled and grease has solidified before
attempting to clean any part of the appliance.
Lights
Before replacing the lamps, switch power off at
service panel and lock service panel disconnecting
means to prevent power from being switched on
accidentally.
NOTE: Turn off the lights and fan. Allow the
lights to cool before handling. Replace lights
per instructions. If new lights do not operate,
be sure lights are inserted correctly before
calling service.
Replace Lights
•
Remove the inner lamp lens cover by inserting a
small flat blade screwdriver into each of the three
slots and gently prying it free.
NOTE: Do not remove the outer trim ring (lamp
assembly).
Outer
Filters
The metal grease #1tersare made of stainless steel
anodized aluminum and are long lasting.
Inner
ring
ring
\
To Remove The Metal Grease Filter
•
Turn the fan and lights o%.
•
Pull the spring release handle.
.°°_,
....
The glass lens and inner trim ring are 2 pieces
loose fitting. Be careful when removing the trim
ring that the glass lens does not fall out.
..***
•
•
/
Grasp the bulb and pull it straight out from the
lamp socket.
Replace with 120 volt, 40 watt halogen bulbs with
a G9 base SUITABLE FOR USE IN OPEN
LUMINAIRES.
Follow package directions, wear gloves, do not
touch bulb with your bare fingers.
_
To Replace The Metal Grease Filters
•
Reverse procedure.
To Clean Filters
•
It is recommended that the filters be washed at
Bulb
•
Replace inner cover by
inserting the three
retaining tabs into the
three slots and pressing
them firmly in place.
least once a month; they can be washed by hand
or in the dishwasher.
•
Drain water through edge holes and let each filter
dry thoroughly before replacing it.
NOTE: Once you have replaced the light bulb,
make sure to put back the glass in its place.
Clear and Cleaning
Optional Charcoal Filters
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
If the model is not vented to the outside, the air will be recirculated through disposable charcoal filters that
help remove smoke and odors.
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiThe charcoal filters cannot be cleaned.
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
They must be replaced.
The charcoal filters are clipped inside of each metal grease filter (mounting instructions included with charcoal
filters kit).
The charcoal filters should be replaced every 4-6 months (depending on hood usage).
NOTE: DO NOT rinse, or put charcoal filters in an automatic dishwasher.
NOTE: Charcoal filters are not included with the hood.
They must be ordered from your supplier.
Order the needed kit specifying your hood model and width size.
Char coal filter placement (Recirculating accessories)
Fit the charcoal filter mattress on the upper side of each grease filter.
Use provided springs to fix it in place.
Note: When removing for replacing for a new one do not remove Fixing Springs, simply pull out and rotate
outwards.
Fixing
Spring
Side
Cleaning
• Always use the mildest cleaner that will do the
job. Use clean, soft cloths, sponges or paper
towels.
•
Rub stainless steel finishes in the direction of the
grain. Wipe area dry to avoid water marks.
After cleaning, place all parts in their proper
positions before using.
The cleaners recommended below indicate a type
and do not constitute an endorsement. Use all
•
products according to package directions.
Hood Surface
Painted Surfaces: For general care, wipe the outside
of the hood with sudsy water or household cleaners
such as Fantastic ®or Formula 409®,rinse well and dry
with a clean soft cloth to avoid water marks.
Stainless Steel Surfaces: Wipe and dry stainless
steel in the same direction as the grain. Avoid using
too much pressure, which may mar the surface. To
remove finger prints and give added shine, use
cleaners such as Stainless Steel Magic. Do not allow
any cleaning compounds to remain in contact with
stainless steel for extended periods.
Plastic surfaces: Wipe with a moist soapy sponge.
Rinse and dry.
Aluminum Mesh Filters: Clean filters in the dishwasher or by agitating in sudsy water. Ensure that
there is no soil trapped in the fine mesh. Dry the
filters before reinstalling them.
Anodized Aluminum surfaces: Top cap is not removable. Wash top and underside with hot sudsy water.
Rinse and wipe dry or apply Fantastic ®or Formula
409® first to a clean sponge or paper towel and
wipe clean. DO NOT USE powdered cleaners or
steel wool pads.
Warranty Information
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay
all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such
appliance is installed, used and maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA
or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to
doors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
If You Need
Service
DISCLAIMEROFIMPLIEDWARRANTIES;LIMITATIONOFREMEDIESCUSTOMER'SSOLEAND
EXCLUSIVE REMEDYUNDERTHIS LIMITEDWARRANTYSHALLBE
PRODUCT REPAIR OR
REPLACEMENTAS PROVIDED HEREIN. CLAIMS BASED ON IMPLIEDWARRANTIES, INCLUDING
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
WARRANTIESOFMERCHANTABILITYORFITNESSFORAPARTICULARPURPOSE,
ARELIMITEDTO
ONEYEARORTHESHORTESTPERIODALLOWEDBYLAW,
BUTNOTLESSTHANONEYEAR.
ELEOTROLUXSHALLNOTBELIABLEFOROONSEQUENTIALORINOIDENTALDAMAGESSUOHAS
PROPERTYDAMAGEANDINCIDENTALEXPENSESRESULTINGFROMANYBREACHOFTHIS
WRI-I-I-EN LIMITEDWARRANTYORANY
IMPLIEDWARRANT_. SOME STATESAND PROVINCES DO
NOTALLOWTHE EXCLUSION OR LIMITATION OF INCIDENTALOR CONSEQUENTIALDAMAGES, OR
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
LIMITATIONSONTHEDURATIONOFIMPLIEDWARRANTIES,
SOTHESELIMITATIONSOR
EXCLUSIONSMAYNOTAPPLYTOYOU.
THISWRI-I-I-ENWARRANTYGIVESYOUSPECIFICLEGAL
RIGHTS. YOUMAYALSOHAVEOTHERRIGHTSTHATVARYFROMSTATETOSTATE.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Keepyourreceipt,
deliveryslip, orsome otherappropriate
paymentrecord to establish thewarranty
period
shouldserviceberequired.
Ifserviceisperformed,
itisinyourbestinteresttoobtainand
keepallreceipts,
S_rvic__n__rthisw_rr_ntym_stb__bt_in__byc_nt__tingE___tr___x_tth____r_ss_s_rph_n_n_mb_rs
below.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
ThiswarrantyonlyappliesintheUSAandCanada.
IntheUSA, yourapplianceiswarrantedbyElectroluxUajorAppliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.
Electroluxauthorizesnopersontochangeoraddtoanyobligationsunderthiswarranty._bligationsforserviceandparts
iiiiiiiiiiiiiiiii__!_!!iiiiiiiiiiiiiii
i:iiiiiiiiiiiiiiiiiii_ii_ii!iiiiiiiiiiii
_:__
underthiswarrantymustbeperformedbyElectroluxoranauthorizedservicecompany.
describedorillustratedaresubjecttochangewithoutnotice.
__JJ_
USA
1.800.944.9044
ElectroluxMajorAppliances
NorthAmerica
RO. Box212378
Augusta, GA30907
Productfeaturesorspecicationsas
Canada
1.800.265.8352
....
l lectrolux
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
EectrouxCanadaCorp
5855TerryFoxWay
Uississauga Ontario Canada
L5V3E4
_}_i_i_i_i_ii_i!i!ii_ii_ii_
__
_!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
Installation,
Use & Care Guide
30" and 36" Free-Standing
Guia de Instalacibn,
30" y 36" Campana
Range Hood
Uso y Cuidado
extractora
Guide d'installation,
utilisation
d'entretien
36" et 42" Hotte aspirante
AUG/12
et
Finding Information
Please read and save this guide
Thank you for choosing Electrolux, the new premium brand in home appliances. This Use & Care Guide is
part of our commitment to customer satisfaction and product quality throughout the service life of your new
appliance.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you,
please use this page to record important product information.
Keep a record for quick reference
Purchase date
Model number
Serial number (see picture for location)
For toll-free telephone support in the U.S. and Canada:
(1-877-435-3287)
For online support and Internet product information visit http://www.electroluxappliances.com
Table of contents
Important Safety Instructions .............................3-4
Electrical & Installation requirements ............... 5
Electrical requirements ...........................................5
IMPORTANT ............................................................5
Before installing the hood ...................................... 5
List of Materials ..................................................... 6
Parts Included with your hood .............................. 6
Optional Accessories ............................................. 6
Tools/Materials required .........................................6
Installing the hood ................................................7-14
Installing preparation ...............................................7
Wall framing for adequate support .........................7
Removing the packaging .......................................7
Examples of possible ducting ................................ 8
Ductwork installation guidelines ............................ 8
Ductwork and wiring locations .............................. 8
Mounting the duct cover bracket .......................... 9
Ceiling ducting ......................................................... 10
Wall ducting ..............................................................10
House wiring location .............................................. 10
Install framing for hood support ..............................10
Mounting the hood .................................................. 11
Connecting the ductwork ........................................12
@2007 Electrolux Home Products, Inc.
Air deflector installation
(Recirculating accessories) .....................................12
Making the electrical connections .......................... 13
Mounting the glass canopy. .................................... 13
Mounting the duct cover......................................... 14
Features ...................................................................15
Control buttons .....................................................16
Special functions ................................................... 17
Clock programming ................................................17
Grease filter saturation alarm .................................. 17
Charcoal filter saturation alarm
(Recirculating accesories) ........................................17
Audible signal activation and deactivation ........... 17
Charcoal filter inclusion and exclusion
(Recirculating accessories) .....................................17
Heat sensor .............................................................17
For Best results ........................................................18
Care and cleaning .................................................19
Filters .......................................................................19
Lights .......................................................................19
Optional Charcoal Filters .......................................20
Hood Surface ..........................................................20
Warranty Information .............................................. 21
All rights reserved. Printed in Mexico
Important
Impo ant
Safety Instructions
Safety Instructions
Read all instruclions before using this
appliance.
Save lhese instruclions for future
references
Approved for residenlial appliances
For residential use only
Do not attempt to install or operate your appliance
until you have read the safety precautions in this
manual. Safety items throughout this manual are
labeled with a WARNING or CAUTION based on the
risk type.
WARNING
This symbol alerts you to
situations that may cause
serious body harm, death
or property damage.
This symbol alerts you to
situations that may cause
bodily injury or property
damage.
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
INSTALLATION MUST COMPLY WITH ALL LOCAL CODES.
IMPORTANT: Save these Instructions for the Local Electrical Inspector's use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Safety Warning: Turn off power circuit at service panel and lock out panel, before wiring this appliance.
Requirement: 120 V AC, 60 Hz. 15 or 20 A Branch Circuit
,m0ortantsafety,nstractions
ililililililililililililililililililililililililililililililililililililililili
READ AND SAVE THESE INSTRUCTIONS
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Impo£ant safety Instructions
CAUTION
FOR GENERAL VENTILATING USE ONLY. DO NOT USE
TO EXHAUST HAZARDOUS OR EXPLOSIVE
MATERIALS OR VAPORS.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
A.
B.
C.
D.
E.
F.
Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer
Before servicing or cleaning the unit, switch power off
at service panel and lock service panel disconnecting
means to prevent power from being switched on
accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
Installation Work and Electrical Wiring Must Be Done By
Qualified Person(s) In Accordance With all Aplicable
Codes & Standards, Including Fire-rated Construction.
Sufficient air is needed for proper combustion and ex
hausting of gases through the flue (Chimney) of fuel
burning equipment to prevent back- drafting. Follow
the heating equipment manufacturers guideline
and safety standards such as those published by
the National Fire Protection Association (NFPA),
the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code
authorities.
When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
Ducted systems must always be vented to the
outdoors.
To reduce risk of fire and to properly exhaust air, be sure to
duct air outside - do not vent exhaust air into spaces within
walls, ceilings, attics, crawl spaces, or garages.
TO REDUCE THE RISK OF FIRE, USE ONLY METAL
DUCT WORK.
Install this hood in accordance with all requirements
specified.
WARNING
To Reduce The Risk Of Fire Or Electric Shock, Do Not
Use This Hood With Any External Solid State Speed
Control Device.
Automatically Operated Device - To Reduce The
Risk Of Injury Disconnect From Power Supply Before
Servicing.
This unit is equpeed with integral disconnecting switch
located inside the blower housing.
TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE.
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that
may ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or
when flambeing food (I.e. Crepes Suzette, Cherries
Jubilee, Peppercorn Beef Flambe').
c) Clean ventilating fans frequently. Grease should not
be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate
for the size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS, IN
THE EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING:
a) SMOTHER FLAMES with a close- fitting lid, cookie
sheet, or other metal tray, then turn off the gas burner
or the electric element. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - you may be
burned.
c) DO NOT USE WATER, including wet dishcloths or
towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a class ABC extinguisher,
and you already know how to operate it.
2) The fire is small and contained in the area
where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit.
OPERATION
Always leave safety grills and filters in place.Without these
components, operating blowers could catch onto hair,
fingers and loose clothing.
The manufacturer declines all responsibility in the event
of failure to observe the instructions given here for
installation,maintenance and suitable use of the product.
The manufacturer further declines all responsibility for injury
due to negligence and the warranty of the unit automatically
expires due to improper maintenance.
Important safety Instructions
- Electrical & Installation
requirements
READ AND SAVE THESE INSTRUCTIONS
Electrical & Installation requirements
Electrical requirements
IMPORTANT
Before installing the hood
1.
For the most effcient air flow exhaust, use a
straight run or as few elbows as possible.
Observe all governing codes and ordinances.
It is the customer's responsibility:
To contact a quali!ed electrical installer.
To assure that the electrical installation is adequate
and in conformance with National Electrical Code,
ANSI/NFPA 70 -- latest edition*, or CSA Standards
C22.1-94, Canadian Electrical Code, Part 1 and
C22.2 No.0-M91 - latest edition** and all local codes
and ordinances.
If codes permit and a separate ground wire is used, it
is recommended that a quali!ed electrician determine
that the ground path is adequate.
Vent unit to outside of building and recirculating.
.
3.
.
5.
Do not ground to a gas pipe.
Check with a quali!ed electrician if you are not sure
range hood is properly grounded.
Do not have a fuse in the neutral or ground circuit.
IMPORTANT
Save Installation Instructions for electrical inspector's
use.
The range hood must be connected with copper wire
only.
The range hood should be connected directly to the
fused disconnect (Or circuit breaker) box through
metal electrical conduit.
Wire sizes must conform to the requirements of the
National Electrical Code ANSI/NFPA 70 -- latest
edition*,or CSA Standards C22.1-94, Canadian
Electrical Code Part 1 and C22.2 No. 0-M91 - latest
edition**and all local codes and ordinances.
A U.L- or C.S.A.-listed conduit connector must be
provided at each end of the power supply conduit (at
the range hood and at the junction box).
Copies of the standards listed may be obtained from:
* National Fire Protection Association Batterymarch Park
Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road Cleveland,
Ohio 44131-5575
.
At least two people are necessary for installation.
The hood is fitted with Screws and Drywall
Anchors suitable for most surfaces, consult a
Qualified Installer, check if they perfectly fit with
your cabinet/wall.
Do not use flex ducting.
COLD WEATHER installations should have an
additional backdraft damper that is already
installed to minimize backward cold air flow and a
nonmetallic thermal break to minimize
conduction of outside temperatures as part
of the ductwork. The damper should be
onthecoldairsideofthethermalbreak,
Thebreakshouldbeascloseaspossible
towheretheductingenterstheheatedportion
ofthehouse,
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Makeupair:Localbuildingcodesmayrequirethe
useofMake-UpAirSystemswhenusingUucted
VentilationSystemsgreaterthanspecifiedCFMof
airmovement,
ThespecifiedCFMvariesfromlocaletolocale.
ConsultyourHVACprofessionalforspecific
requirementsinyourarea,
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
List of Materials
List of Materials
Parts included in your hood
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
°
•
•
•
•
Hood structure assembly with blower, transition.
Lamps already installed.
Grease filter.
Duct cover
• Bottom.
• Top.
Hardware bag with:
• Plastic Gasket
• Template
• Top duct cover wall support bracket (1 piece)
• Use, care and installation guide
•
•
°
Wood screws (6 pieces - 3/16" x 1" 3/4)
Hood attachment anchors screws (6 pieces
3/8" x 13/8")
Assembly screws (8 pieces)
Optional accessories
°
•
Recirculation KIT
Charcoal filter
•
Replacement grease filter
Upper
_Lamp
_(_
•
•
•
•
•
•
•
°
•
•
•
•
•
•
•
•
•
Duct tape
Wire nuts
Tape to mount template
1/2" electrical connector (junction box)
8" rounded metal duct (length to suit installation)
Gloves to protect against sharp edges
Safety glasses
Hammer
Electric drill with 5/16" bit
Pliers
Measuring tape
Saw, jig saw
Level
Knife
Wire cutter
Phillips (Pozidrive) # 2 screwdriver
Torx # 2 screwdriver
Duct cover
supports
Duct
Covers
Vertical
supports
.j./j_
"
. ...
Duct cover
--support
@
Tools/Materials required
--
--
Grease
Filter
Installing the hood
the hood
•
For the most eficient air flow exhaust, use a
straight run or as few elbows as possible.
Vent unit to outside of building and recirculating.
On avarage 2 to 3 hours are necessary to complete installation (without considering cut to be
done on wall and or on cabinet, installation of
ducts, conduit and electrical connections to the
mains).
The hood is fitted with Screws and Drywall
Anchors suitable for most surfaces, consult a
Qualified Installer, check if they perfectly fit with
your cabinet/wall.
The hood may be installed vented to the outdoors, or
it can be installed for recirculating operation
(recirculating accessories not supplied with the
hood).
This hood can be installed over any electric and
gas cooktop/range.
It can not be installed over any professional
cooktop / range.
Installing preparation
Advance planning
•
Determine the exact location of the vent hood.
•
•
Do not use flex ducting.
COLD WEATHER installations should have an
additional backdraft damper that is already in
stalled backward cold air flow and a nonmetallic
thermal to minimize break to minimize conduction
of outside temperatures as part of the ductwork.
The damper should be on the cold air side of the
thermal break.
The break should be as close as possible to
where the ducting enters the heated portion of
the house.
Make up air: Local building codes may require
the use of Make-Up Air Systems when using
Ducted Ventilation Systems greater than specified
CFM of air movement.
The specified CFM varies from locale to locale.
Consult your HVAC professional for specific
requirements in your area.
Typical installation
Min installation height from the range top to the
bottom of the hood is 30" if a gas range is used
or 24" to 30" if an electric range is used.
These hoods are not recommended to be used
over indoor grills.
•
•
Plan the route for venting exhaust to the
outdoors.
Use the shortest and straightest duct route
possible.
Refer to" Ductwork installation guidelines"
paragraph for further informations.
Install a wall cap with damper or roof cap at the
exterior opening. Order the wall or roof cap and
anytransition needed in advance.
Use 8" round metal ductwork only.
Wall framing for adequate support
•
This vent hood is heavy.
Adequate structure and support must be
provided in all types of installations. The hood
must be secure to vertical studs in the wall, or to
a horizontal support.
•
The vent hood should be on site before $nal
framing and wall $nishing. This will help to
accurately locate the duct work and electrical
service.
•
Installation will be easier if the vent hood is
installed before the cook-top and countertop are
installed.
Removing the packaging
Remove carton carefully, Wear gloves to protect
against sharp edges.
WARNING
Remove the protective film covering the product
before putting into operation.
iiiiiiiiii_1i_i_!_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_iii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i_i_!!!!!!i
Installing the hood
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
_lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll
Examples of possible ducting
_lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll
fl_ao_inP_hndW/ca
p
_lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll
_lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll
_lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll
_lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll
_lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll
_lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll
Zrton_
n, Zr n,
\
Sidewalk cap w/
gravity damper
Recirculatinc
Vertical discharge
Ductwork installation guidelines
Ductwork and wiring locations
For safety reasons, ducting should vent directly
outdoors (not into an attic, underneath the house,
into the garage or into any enclosed space).
Keep duct runs as short and straight as possible.
Duct fittings (elbows and transitions) reduce air flow
efficiency.
Back to back elbows and "S" turns give very poor
delivery and are not recommended.
A short straight length of duct at the inlet of the
remote blower gives the best delivery.
Transition to duct from the integral blower or remote
duct transition as close to the downdraft as is possible.
In order of preference, use
1st. 10" round duct
2nd. 8" round duct
3rd. 3-1/4" x 14" duct
4th. 7" round duct
5th. 3-1/4" x 10"duct
6th. 6" round duct
•
Determine the exact location of the vent hood.
•
•
Locate the template packed with the literature.
The height installation is determined by the
following image. Mark the location.
Installation height: 30" gas cooktop/range or 24"
to 30" electric cooktop/range.
The use of flexible metal round duct should only be
used when no other duct fitting exists. Limit use to
short lengths and do not crush when making
corners
•
o
Sidewalk cap w/
gravity damper
Installation height
IL___C
Use a level to draw a horizontal straight pencil line
on the wall, which is your desired
installation height.
Find the centerline of the cooktop. Use a level to
draw a vertical straight pencil line on the wall.
CHECK TO BE SURE THE LINE IS PERFECTLY
PERPERNDICULAR.
Installing the hood
Mounting the duct cover bracket
Ceiling ducting
The duct bracket should be installed against the
back wall and flush with the ceiling. This bracket will
hold the telescopic duct cover in place at the top
If the duct will vent straight up to the ceiling:
•
Use level to draw a line straight up, from the
centerline on the template to the ceiling.
•
Measure at least 4 -3/4 "from the back wall to
the circle center of an 8-1/2"hole on the ceiling.
Secure the bracket to the wall:
•
•
•
•
•
•
Align the marked centerline on the bracket with
the centerline on the wall.
Mark 2 screw hole locations in the wall.
Drill 5/16" pilot holes in the marked locations.
Install wall fastener anchors.
Drive wood screws, by hand, into the fastener to
allow anchors to expand. Remove the screws.
Secure the bracket to the wall with wood screws
and/or fasteners.
Wall ducting
If ductwork will vent to rear:
•
Use a level to draw a line straight up from the
centerline on the template.
•
Measure at least 23 - 3/4" (the measure might
vary depending on the elbow used) above the
pencil line that indicates the bottom installation
height, to the circle center of an 8-1/2'' diameter
duct hole (Hole may be elongated for duct elbow).
House wiring location
•
The junction box is located on the top left side of
the hood.
•
Wiring should enter the back wall at least 20"
above the bottom of the installation height, and
within 5-7/8" and 4-7/8"of the left side of the
centerline.
4-3/4" circle ___FORCEILING
DUCT VENTING
centertowall__ce,hng
8-1/2"diahole/i
!
WALL
_''
[
\
VENT --_
DUCT
)
Circle center at
23 3/4" above
the marked bottom pencil line
cd
_,_,_
Horizontal straight
"_pencil line
Installing the hood
Install supporlnstall framing for hood support
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Mounting the hood
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
•
If drywall is present, mark the screw hole
locations. Remove the template.
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
•
Cut away enough drywall to expose 2 vertical
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
studs at the holes location indicated by the
template.
Install two horizontal supports at least 4 X 2"
between two wall studs at the bottom and upper
mounting holes installation location.
•
The horizontal support must be flush with the
room side of the studs.
•
Use cleats behind both sides of the support to
secure to wall studs.
° Reinstalll drywall and refinish
IMPORTANT- Framing must be capable of
supporting 100 Ibs.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Install the 8" round transition as shows the image below.
The installation screws and the 8" round transition are
included on the hood package.
_
8 -1/2" min. opening for ductwork
View from rear
1" x 6" min
Mounting
Support
WARNING: 2 people are required to lift and position
the hood onto the mounting screws.
•
Place the template on the wall along the horizontal
line, make sure the template is leveled and
centered with the centerline.
•
Mark "upper" screw holes locations in the wall.
•
IMPORTANT. Check to be sure that hole locations
are leveled and correctly centered by the vertical
centerline.
•
Drive "upper" wood screws by hand. Leave 1A"of
distance between the screw head and the wall.
•
Remove the grease filter and mount the hood
onto the "upper" screws.
-.
J
Installing the hood
Mark "lower" wood screw holes locations in the
wall using a pencil.
•
•
Remove the hood.
Drive "lower" wood screws by hand. Remove
screws.
Mount the hood onto the "upper" screws.
Drive and tighten the "upper" wood screws, by
hand.
Drive and tighten the "lower" wood screws, by
hand.
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
___________________________________
__
Installing the hood
Connecting the ductwork
Air deflector installation
•
(Recirculating accessories)
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
•
•
•
Install ductwork, making connections in the
direction of airflow as illustrated.
Push duct over the exhaust outlet.
Wrap all duct joints and the flange connections
with duct tape for an airtight seal.
Make the same connection in the wall or ceiling
vent exit.
•
Assemble the air deflector with the duct cover
bracket with 4 assembly screws provided as
shown.
Airflow
Duct tape
over seam
Airflow
Ductwork
Measure from the bottom of the air deflector to
the bottom of the hood outlet, as shown.
over seam
hood
Dimension
•
•
•
•
•
to measure
Cut the duct at the measured size.
Uninstall the air deflector removing the 4
assembly screws.
Slip the duct onto the bottom of the deflector.
Place the assembled deflector and duct over the
exhaust outlet from the hood.
Assemble the air deflector to the duct cover
bracket with 4 assembly screws provided as
shown.
Installing the hood
Metal electrical
conduit
Making the electrical connections
WARNING
Electrical Shock Hazard
Warning: Turn off at the service panel before wiring
this unit.
120 V AC, 15 or 20 Amp circuit required.
ELECTRICAL GROUNDING INSTRUCTIONS
THIS APPLIANCE IS FI-I-rED WITH AN ELECTRICAL
JUNCTION BOX WITH _, WIRES, ONE OF WHICH
6GREEN/YELLOWl _ SERVES TO GROUND THE
APPLIANCE. TO PROTECT YOU AGAINST
ELECTRIC SHOCK, THE GREEN AND YELLOW
WIRE MUST BE CONNECTED TO THE
GROUNDING WIRE IN YOUR
HOME ELECTRICAL SYSTEM, AND IT MUST
UNDER NO CIRCUMSTANCES BE CUT OR
REMOVED.
Failure to do so can result in death or electrical
shock.
•
Remove junction box cover and knockout on the
top left side.
House
wiring
UL listed
wire nut
•
°
•
•
Knockout
Junction box
cover
If not already done, install 1/2" conduit connector
in junction box.
NOTE: This connector is not included with vent
hood.
Run black (live), white (neutral), and green
(earth) wires (#14 AWG) according to the
National Electrical Code or CSA Standards and
local codes and ordinances in 1/2" conduit from
power supply to junction box.
Connect black, white, and green wires from
power supply to black, white, and green/yellow
wires in junction box respectively.
These connections should be done always
making reference to the electrical diagram found
inside the hood.
Close junction box cover and reapply screws.
Control buttons
•
Mounting the duct cover
Secure the bottom of the duct with 2 assembly
screws provided.
Position the duct cover over the mounted hood.
Slide the bottom of the duct onto the glass area.
Position the top of the duct over the duct
mounting bracket. If a telescopic duct cover is
used, grab the upper part of the telescopic duct
cover, pull it and place it in the duct cover
mounting bracket.
Secure the top of the duct with 2 assembly
screws provided.
Remove Protective
Install the grease filter and turn power on at service
panel. Check operation of the hood.
\\
\\\\
\\
Features
1.
2.
3.
4.
Blower and light controls
Lamp housings
Grease Filter Handle
Grease Filter
5.
6.
Canopy
Duct cover
°
*
7.
Top
Bottom
Louver holes (User for Recirculating accessories)
®
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
Control buttons
Control buttons
This hood is equipped with an electronic motor and
lamp control.
The control is able to set 4 diferent fan speeds, turn
ON/OFF light and has a timer function.
°
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
°
°
In the following drawing are described the main key
functions.
1
2
/
/
3
4
\
/
5
°
/
If the fan is at second speed and the "V"
button is pressed, the fan will be set to first speed.
If the fan is at third speed and the "V" key is
pressed, the fan will be set to second speed.
If the fan is at fourth speed and the "V"
button is pressed, the fan will be set to third
speed.
If the fan is OFF and the "V" button is
pressed, the control backlight will light up.
5. "/_" Button. Speed Increase/ON
•
°
1. Light Button
°
°
Press lamp button to turn ON the light (Lamp
state previously OFF).
Press lamp button to turn OFF the light (Lamp
state previously ON).
°
°
2. "l_merButton
•
°
°
°
°
The default timer setting is 10 minutes, and it
can be adjusted between 20 minutes and
1 minute.
After pressing the timer button, the control
enters to a timer setup mode, and user can
adjust the timer countdown time with the
"V" and "/_" buttons within 5 seconds.
The timer can be initiated immediately
pressing the timer button, after setting the
timer duration or pressing the timer button
twice (default 10 minutes setting).
If no action occurs within 5 seconds, the
countdown will start.
During the timer setup the "V" and "A"
buttons are dedicated to the timer and no
motor action will occur.
Once the timer is initiated, it can be cancelled
by pressing the timer button again.
3. Display
•
Shows the hood settings.
4. "V"
Button. Speed Decrease/OFF
•
This button is used to decrease the fan speed,
or turn OFF the fan.
°
The fan will turn OFF if the "V"
button is
°
°
This button is used to increase the fan speed,
or turn ON the fan.
The fan will turn ON if the "/_" button is
pressed and the hood was OFR
If the fan is at first speed and the "/_" button
is pressed, the fan will be set to second
speed.
If the fan is at second speed and the "/_"
button is pressed, the fan will be set to third
speed.
If the fan is at third speed and the "/_"
button is pressed, the fan will be set to fourth
speed.
If the fan is at fourth speed and the "/_"
button is pressed, a beep will sound.
Control buttons - Special functions
Special functions
Clock programming
°
•
•
°
°
°
The clock can be reprogrammed at any time except during an active timed function.
The clock can be displayed in a twelve hour format and valid clock times are from 1:00 to 12:59.
The clock can be reprogrammed pressing the "Timer" button for 5 seconds, and after, the clock can be
adjusted with the "/_" and "/_" buttons. Colon ":" will flash indicating clock programming mode.
The user can have minute increments / decrements of 1 minute, but if the user keep pressing the "/_"/
"/_" buttons for more than 1 second, the increments / decrements will be of 5 minutes.
During this option the control will round to the nearest 5 minutes.
The user can finish on reprogramming the clock pressing the "Timer" button.
After 1 minute of no button pressed the control will accept the programmed clock time and will add one
minute to the set clock.
Grease filter saturation alarm
•
°
After thirty fan functional
When this icon is shown
To reset the grease filter
action the icon "Grease
hours, the display will show "Grease Filter" if the fan is active.
in the display, the grease filters installed are required to be washed.
saturation alarm the user must press the "/_" button for 5 seconds, after this
Filter" is not displayed, and the hood has the normal display operation.
Charcoal filter saturation alarm (Recirculating accessories)
•
•
After one hundred and twenty functional hours of the fan, the display will show "Charcoal Filter" if the fan
is active. When this icon flashes on display, the charcoal filters installed are required to be replaced or
reactivated.
To reset the charcoal filter saturation indication the user must press the "/_" button for 5 seconds, after
this time the icon "Charcoal filter" is not displayed and the hood has the normal display operation.
Audible signal activation and deactivation
•
°
The audible signals can be activated or deactivated pressing the "Light" button for 5 seconds.
If the audible signal is activated, a tone must sound and the "Snd" symbol must appear on the display for
2 seconds.
°
If the audible signal is deactivated, the "Snd" symbol must appear on the display for 2 seconds and no
tone must sound.
Charcoal filter inclusion and exclusion (Recirculaling accessories)
•
The charcoal filter inclusion or exclusion can be set by pressing the "/_"
time for 5 seconds.
and "/_"
buttons at the same
°
°
The Inclusion or exclusion of charcoal filter must be selected while the lamps and the motor are OFE
When the charcoal filter has been excluded, the charcoal filter alarm is disabled.
Heat sensor
•
•
•
•
The control is equipped with a heat sensor that will turn on the blower at second speed if excessive heat
occurs (over 158° F or 70°C) surrounding the control area.
If the blower is OFF or if it is operating at first speed, the blower will be set automatically to second speed,
the display shows the word "CARE" to indicate that heat sensor has detected an excessive heat.
During this state, the user may raise the blower speed to third speed but can not decrease the speed.
When the temperature level on the hood drops to normal, the blower will operate in the setting defined by
the user before the alarm occured.
Care and cleaning
For Best results
•
•
•
°
•
•
•
•
•
•
•
•
•
•
Continuous use of the fan system while cooking helps keep the kitchen comfortable and less humid.
It also reduces cooking odors and soiling moisture that create a frequent need for cleaning.
Turn the blower on before starting to cook.
Use a rear burner when browning or pan frying meat.
Open a window or inside door slightly.
Clean the filters and the wall behind the filters frequently.
The blower should be turned on for a few minutes before cooking in order to establish air currents upward
through the hood. Thus when heat, smoke, moisture, grease and cooking odors are produced, they will
be carried outside instead of drifting into other rooms.
Use the low speeds for normal use and the higher speeds for strong odors or fumes.
Drafts across the range or cooktop will cause the escape of heat, smoke, moisture, grease and cooking
odors from the hood. Such drafts should be prevented in so far as possible.
The best job of ventilation in the kitchen is done where the only air currents are those created by the
blower itself.
For Gas Cooktops, a lower blower speed should be used if:
the gas flame is being distorted by the air movement.
the burner continually sparks (clicks)
the burner flame repeatedly blows out.
Care and cleaning
Care and Cleaning
The eficiency of the range hood system depends on
the cleanliness of the intake and filters.
The frequency of cleaning depends on the amount
and type of cooking.
•
Do not use the ventilating system without the
filters in place or with grease-laden filters or
surfaces.
WARNING
To avoid risk of fire and explosion do not use
flammable liquids or solvents.
Always unplug or disconnect the appliance from the
power supply before servicing.
WARNING
Be sure the entire hood (including the filters and light
bulbs) has cooled and grease has solidified before
attempting to clean any part of the appliance.
Lights
Before replacing the lamps, switch power off at
service panel and lock service panel disconnecting
means to prevent power from being switched on
accidentally.
NOTE: Turn off the lights and fan. Allow the
lights to cool before handling. Replace lights
per instructions. If new lights do not operate,
be sure lights are inserted correctly before
calling service.
Replace Lights
•
Remove the inner lamp lens cover by inserting a
small flat blade screwdriver into each of the three
slots and gently prying it free.
NOTE: Do not remove the outer trim ring (lamp
assembly).
Outer
Filters
The metal grease #1tersare made of stainless steel
anodized aluminum and are long lasting.
Inner
ring
ring
\
To Remove The Metal Grease Filter
•
Turn the fan and lights o%.
•
Pull the spring release handle.
.°°_,
....
The glass lens and inner trim ring are 2 pieces
loose fitting. Be careful when removing the trim
ring that the glass lens does not fall out.
..***
•
•
/
Grasp the bulb and pull it straight out from the
lamp socket.
Replace with 120 volt, 40 watt halogen bulbs with
a G9 base SUITABLE FOR USE IN OPEN
LUMINAIRES.
Follow package directions, wear gloves, do not
touch bulb with your bare fingers.
_
To Replace The Metal Grease Filters
•
Reverse procedure.
To Clean Filters
•
It is recommended that the filters be washed at
Bulb
•
Replace inner cover by
inserting the three
retaining tabs into the
three slots and pressing
them firmly in place.
least once a month; they can be washed by hand
or in the dishwasher.
•
Drain water through edge holes and let each filter
dry thoroughly before replacing it.
NOTE: Once you have replaced the light bulb,
make sure to put back the glass in its place.
Clear and Cleaning
Optional Charcoal Filters
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
If the model is not vented to the outside, the air will be recirculated through disposable charcoal filters that
help remove smoke and odors.
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiThe charcoal filters cannot be cleaned.
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
They must be replaced.
The charcoal filters are clipped inside of each metal grease filter (mounting instructions included with charcoal
filters kit).
The charcoal filters should be replaced every 4-6 months (depending on hood usage).
NOTE: DO NOT rinse, or put charcoal filters in an automatic dishwasher.
NOTE: Charcoal filters are not included with the hood.
They must be ordered from your supplier.
Order the needed kit specifying your hood model and width size.
Char coal filter placement (Recirculating accessories)
Fit the charcoal filter mattress on the upper side of each grease filter.
Use provided springs to fix it in place.
Note: When removing for replacing for a new one do not remove Fixing Springs, simply pull out and rotate
outwards.
Fixing
Spring
Side
Cleaning
• Always use the mildest cleaner that will do the
job. Use clean, soft cloths, sponges or paper
towels.
•
Rub stainless steel finishes in the direction of the
grain. Wipe area dry to avoid water marks.
After cleaning, place all parts in their proper
positions before using.
The cleaners recommended below indicate a type
and do not constitute an endorsement. Use all
•
products according to package directions.
Hood Surface
Painted Surfaces: For general care, wipe the outside
of the hood with sudsy water or household cleaners
such as Fantastic ®or Formula 409®,rinse well and dry
with a clean soft cloth to avoid water marks.
Stainless Steel Surfaces: Wipe and dry stainless
steel in the same direction as the grain. Avoid using
too much pressure, which may mar the surface. To
remove finger prints and give added shine, use
cleaners such as Stainless Steel Magic. Do not allow
any cleaning compounds to remain in contact with
stainless steel for extended periods.
Plastic surfaces: Wipe with a moist soapy sponge.
Rinse and dry.
Aluminum Mesh Filters: Clean filters in the dishwasher or by agitating in sudsy water. Ensure that
there is no soil trapped in the fine mesh. Dry the
filters before reinstalling them.
Anodized Aluminum surfaces: Top cap is not removable. Wash top and underside with hot sudsy water.
Rinse and wipe dry or apply Fantastic ®or Formula
409® first to a clean sponge or paper towel and
wipe clean. DO NOT USE powdered cleaners or
steel wool pads.
Warranty Information
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay
all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such
appliance is installed, used and maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA
or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to
doors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
If You Need
Service
DISCLAIMEROFIMPLIEDWARRANTIES;LIMITATIONOFREMEDIESCUSTOMER'SSOLEAND
EXCLUSIVE REMEDYUNDERTHIS LIMITEDWARRANTYSHALLBE
PRODUCT REPAIR OR
REPLACEMENTAS PROVIDED HEREIN. CLAIMS BASED ON IMPLIEDWARRANTIES, INCLUDING
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
WARRANTIESOFMERCHANTABILITYORFITNESSFORAPARTICULARPURPOSE,
ARELIMITEDTO
ONEYEARORTHESHORTESTPERIODALLOWEDBYLAW,
BUTNOTLESSTHANONEYEAR.
ELEOTROLUXSHALLNOTBELIABLEFOROONSEQUENTIALORINOIDENTALDAMAGESSUOHAS
PROPERTYDAMAGEANDINCIDENTALEXPENSESRESULTINGFROMANYBREACHOFTHIS
WRI-I-I-EN LIMITEDWARRANTYORANY
IMPLIEDWARRANT_. SOME STATESAND PROVINCES DO
NOTALLOWTHE EXCLUSION OR LIMITATION OF INCIDENTALOR CONSEQUENTIALDAMAGES, OR
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
LIMITATIONSONTHEDURATIONOFIMPLIEDWARRANTIES,
SOTHESELIMITATIONSOR
EXCLUSIONSMAYNOTAPPLYTOYOU.
THISWRI-I-I-ENWARRANTYGIVESYOUSPECIFICLEGAL
RIGHTS. YOUMAYALSOHAVEOTHERRIGHTSTHATVARYFROMSTATETOSTATE.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Keepyourreceipt,
deliveryslip, orsome otherappropriate
paymentrecord to establish thewarranty
period
shouldserviceberequired.
Ifserviceisperformed,
itisinyourbestinteresttoobtainand
keepallreceipts,
S_rvic__n__rthisw_rr_ntym_stb__bt_in__byc_nt__tingE___tr___x_tth____r_ss_s_rph_n_n_mb_rs
below.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
ThiswarrantyonlyappliesintheUSAandCanada.
IntheUSA, yourapplianceiswarrantedbyElectroluxUajorAppliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.
Electroluxauthorizesnopersontochangeoraddtoanyobligationsunderthiswarranty._bligationsforserviceandparts
iiiiiiiiiiiiiiiii__!_!!iiiiiiiiiiiiiii
i:iiiiiiiiiiiiiiiiiii_ii_ii!iiiiiiiiiiii
_:__
underthiswarrantymustbeperformedbyElectroluxoranauthorizedservicecompany.
describedorillustratedaresubjecttochangewithoutnotice.
__JJ_
USA
1.800.944.9044
ElectroluxMajorAppliances
NorthAmerica
RO. Box212378
Augusta, GA30907
Productfeaturesorspecicationsas
Canada
1.800.265.8352
....
l lectrolux
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
EectrouxCanadaCorp
5855TerryFoxWay
Uississauga Ontario Canada
L5V3E4
_}_i_i_i_i_ii_i!i!ii_ii_ii_
__
_!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
