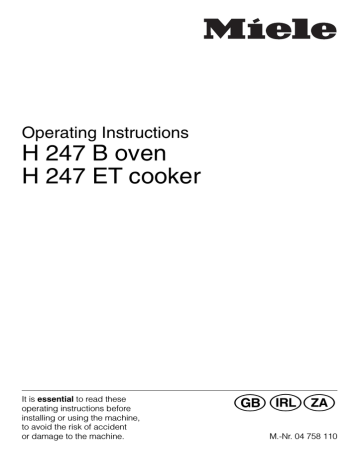

Operating Instructions
H 247 B oven
H 247 ET cooker
It is essential to read these
operating instructions before
installing or using the machine,
to avoid the risk of accident
or damage to the machine.
Q\}
M.-Nr. 04 758 110
Contents
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Use
Oven
– Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
– Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
– Selecting a function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
– Selecting a temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
– Altering a temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
– Interrupting a process, switching off the oven. . . . . . . . . . . . . . . . . . . . . . . . . . 20
– Pre-heating the oven, energy-save option. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
– Baking carriage, rack with non-tip feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
– Minute minder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
– Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Applications
– Baking and chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
– Roasting, roasting with the roast probe and chart. . . . . . . . . . . . . . . . . . . . . . . 36
– Defrosting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
– Casseroles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
– Grilling and chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Maintenance
Cleaning and care
– Appliance front, controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
– Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
– Oven interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Correcting minor faults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Installation / Electrical connection
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Installation
– Oven with integrated hob controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
– Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
– Installation situations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Extra accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Description of the appliance
H 247 ET
Control panel
Oven interior
b Oven function selector and
g Heating element for top heat
function setting display
c Display and pushbuttons - oven
d Display and pushbuttons - timer
e – /+ Button with indicator light
f Hob zone controls
(not applicable to “B” oven models)
and grilling with guard plate
h Grill motor
i Halogen lamp change slide
j Connection socket for core
temperature probe (roast probe)
k Air inlet for fan
l Baking carriage with runner heights
1, 2, 3, 4, 5 (depending on model)
m Door contact switch
n Oven door with ventilation
4
Description of the appliance
Please note
Accessories
The illustration on the previous page
shows the control panel of the
H 247 ET. The H 247 B has no controls
f for a hob.
– 2 baking trays
For “B” model ovens, only the instructions in this book relating to ovens are
applicable.
The instructions for hobs relate to “E”
model ovens with hob controls, or to
the hob of a free-standing cooker.
– dual purpose grill pan / oven tray
– Non-tip rack for baking, roasting
or grilling
– Roasting filter
To be attached in front of the fan
aperture before fan grilling, and fan
oven roasting, when open roasting
on the rack or in a dish.
Hob use and installation
For “E” models a separate set of instructions is supplied with the hob
which covers its use and installation.
The droplets of fat caught up in the
circulating air are deposited on the
roasting filter. This helps to keep the
oven and especially behind the interior back wall cleaner.
– Core temperature probe
(Roast probe), for temperature controlled roasting and fan grilling
– Rotisserie
for grilling on the spit
(depending on model)
5
Caring for the environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials
which are environmentally friendly for
disposal and can normally be recycled.
Rather than just throwing these materials away, please ensure they are offered for recycling.
6
Disposal of your old machine
Old machines contain materials which
can be reclaimed or recycled. Please
contact your dealer, your local waste
collection centre or scrap merchant
about potential recycling schemes, before disposing of the appliance.
Ensure that the machine presents no
danger to children.
Warning and Safety instructions
This appliance complies with all relevant legal safety requirements. Improper use of the appliance can,
however, present a risk of both personal injury and material damage.
Before installation and before using
the appliance for the first time, read
the operating instructions carefully.
They contain important notes on safety, on the operation and care of
the appliance. This way you will
avoid the risk of accidents and damage to the appliance.
Do not let children access the appliance or its controls. Supervise its
use by the elderly or infirm.
Keep these instructions in a safe
place and pass them on to any future user.
Correct usage
The appliance is intended for domestic use to cook food, and in
particular to bake, roast, defrost, cook,
dry fruit etc, and to grill. Any other usage is at the owner’s risk and could be
dangerous. The manufacturer cannot
be held responsible for damage
caused by improper use of the appliance.
Technical safety
Before connecting the appliance
to the mains supply make sure that
the voltage and frequency correspond
to the rating on the data plate. Consult
a competent person if in doubt.
The electrical safety of this appliance can only be guaranteed when
continuity is complete between the appliance and an effective earthing system, which complies with local and national regulations. It is most important
that this basic safety requirement is tested by a qualified electrician. The manufacturer cannot be held responsible
for the consequences of an inadequate
earthing system.
This appliance must only be operated as a built-in appliance. This is
necessary to ensure that all electrical
components are shielded.
Never open the casing of the appliance.
Tampering with electrical connections or
components and mechanical parts is highly dangerous to the user and can cause
operational faults.
7
Warning and Safety instructions
Installation work and repairs may
only be carried out by suitably qualified and competent persons to ensure
safety. Repairs and other work by unqualified persons could be dangerous.
The appliance is only completely
isolated from the electricity supply
when:
– it is switched off at the wall socket
– or the mains fuse is withdrawn
– or the screw-out fuse is removed (in
countries where this is applicable).
Do not pull on the lead to remove the
plug from the socket.
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance.
Use
Oven
Caution, danger of burning.
High temperatures are produced by
the oven.
Great care should be taken to ensure that small children do not
touch the appliance when it is being
used. The hob and also external parts
of the oven such as the door glass,
vents and control panel can become
quite hot.
8
Use of heat-resistant oven gloves
is recommended:
– when placing food in the oven, turning or removing it.
When working with “Conventional” heating or when grilling, the element in the
roof of the oven and the guard plate become very hot, and there is a danger of
being burnt.
Wait until the grill element has cooled down before lowering it for cleaning, to avoid the danger of burning.
Do not use force to pull it down as
this can cause the element to break.
Use only a Miele roast probe (core
temperature probe) as supplied
with this appliance. If a replacement is
necessary it can be obtained from the
Miele Spare Parts dept or a Miele
specialist dealer.
After using do not remove the roast probe until the oven interior is cool.
When not in use do not leave the
roast probe in the oven, especially
when grilling. High grill temperatures
could damage it.
Do not heat up unopened tins or
jars of food in the oven, as pressure will build up and they will explode.
Warning and Safety instructions
Do not use plastic containers.
They may melt at high temperatures.
Do not push pots and pans around
on the oven floor as this could damage the surface.
Do not lean or sit on the open oven
door, or place heavy items on it.
This could damage the appliance. Take
care in the region of the hinges. The
oven door can support a maximum
load of 10 kg.
Cover any food which is left in the
oven to be kept hot. This avoids
the food drying out. It also prevents
steam condensing and possibly leading to moisture damage in the oven.
If food is left in the oven after cooking, e.g. to take advantage of the
residual heat, select the lowest temperature available. Leave the function selector switch at the position set.
Do not switch the appliance off until the
food has been removed. Otherwise there may be a build-up of condensation
which could adversely affect the oven
interior, and externally the control panel, the worktop surface or surrounding
kitchen furniture.
Put any deep frozen products such
as pizza on baking paper on the
rack. Do not place them on the baking
tray or grill pan. This could cause the
metal to distort to such an extent that it
might be difficult to remove the
tray/pan from the oven. The distortion
would increase with subsequent use.
General notes
Under no circumstances use a
steam cleaner to clean this appliance. Pressurised steam could give rise
to a short circuit, or cause permanent
damage to the surface and to components, for which the manufacturer of
the oven cannot accept any responsibility.
Do not leave the appliance unattended when cooking with oils and
fats as these can be a fire hazard if allowed to overheat.
Do not use the oven to heat up the
room. Due to the high temperatures radiated, objects left near the oven
or hob could catch fire.
When using kitchen appliances
connected to sockets near the
oven, ensure that the cable cannot
come in contact with the hot cooking
zones or get trapped in a hot oven
door, which could melt the cable insulation and be dangerous.
Always ensure that food is sufficiently cooked or reheated. Many
factors will affect the overall cooking
time, including the size and amount of
food, its temperature, changes to the
recipe and the shape and size of cooking container. Some foods may contain micro organisms which are only destroyed by thorough cooking, therefore
when cooking or reheating foods, e.g.
poultry, it is particularly important that
food is fully cooked through. If in doubt
select a longer cooking or reheating
time.
9
Warning and Safety instructions
It is important that the heat is allowed to spread evenly throughout
the food being cooked.
This can be achieved by stirring and/or
turning the food, and by observing a
sufficiently long standing time, which
should be added to the time needed
for cooking, reheating or defrosting.
Disposal of your old machine
In countries which may be subject
to infestation by cockroaches or
other vermin, pay particular attention to
keeping the appliance and its surroundings in a clean condition at all times.
Any damage which might be caused
by cockroaches or other vermin will not
be covered by the appliance guarantee.
The manufacturer cannot be held
liable for damage caused by noncompliance with safety instructions.
10
Before discarding an old machine
switch off and disconnect it from
the power supply. Cut off and render
any plug useless.
Cut off the cable directly behind the
machine to prevent misuse.
Safety features
Operating lock for oven and
hob cooking zones
The operating lock can be activated to
prevent the oven or hob being switched on unintentionally, by children for
example.
The operating lock is activated as follows:
The oven function selector must be
at the “0" setting.
Press the “p” button until the key
symbol appears in the display field.
The oven (and cooking zones if applicable) can now not be switched on.
To cancel the operating lock:
Turn the oven function selector to any
oven function.
Press the “p” until the key symbol in
the display field disappears.
11
Before using for the first time
Timer
Oven
After the appliance has been switched
on “12:00" and the symbols ”f“ and
”)“ flash in the display.
Wipe out the oven interior using
warm water and a little washing up
liquid. Polish dry with a dry cloth.
Setting the time of day
(24 hour display)
Do not close the oven door until the
oven interior is dry.
Rinse the accessories.
Depending on the model fit the side
rails or the telescopic carriage.
Press the buttons “f” and “)” at
the same time.
“12:00" and the control light for the – /+
button now stay on without flashing.
Use the – /+ button to enter the time
of day in hours : minutes.
When the control light for the – /+ button goes out, the time of day has been
set, and the clock display changes at
one minute intervals. The colon flashes.
12
Side rails
Before using for the first time
Telescopic carriage
New appliances have a slight smell on
first use. Running the oven for at least
an hour at a high temperature will dissipate this more quickly.
Turn the oven function selector to
“Fan Heat D”.
Select the highest temperature with
the “ - /+” button.
The timer can also be used to set the finish time.
Fit the guide rails in the oven.
Ensure the room is well ventilated
during this process.
Put the carriage frame on to the guide rails.
Fit the side rails.
13
Description of the oven systems
Fan Heat D
Auto Roast E
This system works by the circulation of
heated air.
This setting offers the fan heat with
Auto Roast. The oven heats initially to a
high temperature which seals the meat
to keep it succulent and tasty.
A fan situated on the back wall of the
oven sucks in the air, heats it over a
ring element and blows the heated air
through the carefully spaced openings
in the rear panel of the oven.
The oven does not usually need to be
pre-heated as the heated air reaches
the food straight away.
Exception: Pre-heat the oven when roasting sirloin or baking bread used with
dark flour.
Using the fan heating system you can
bake and roast on different levels at the
same time.
The heated air used by this system is
of a lower temperature than that used
with the Conventional heating system.
14
As soon as the high temperature has
been reached, the oven temperature is
automatically returned to the preselected setting.
Conventional heating A
With this conventional method of heating, radiant heat is directed on the
food from above and below.
Pre-heating the oven is only necessary
when
– baking biscuits or cakes with a short
cooking time, (up to approx. 30 minutes).
– baking some types of doughs,
or baking bread used with dark flour.
– roasting a joint of meat.
Description of the oven systems
Defrost G
Grill 1 ,
Defrost can be operated without heating, or at a temperature of up to 50°C.
When the defrost system is used
without heating the air is circulated by
the fan at room temperature.
The inner part of the upper heating element acts as the grill. This will glow red
for a few minutes after being switched
on, and it is then ready for use. Use the
Grill 1 setting for small quantities.
Intensive bake F
Grill 2 J
This method combines “Fan Heat” with
“Conventional” heating, and is particularly useful for dishes that require a
moist topping and crisp base like pizza
and quiche lorraine.
The entire upper heating element acts
as the grill.
Fan grill I
The hot air from the grill is distributed
over the food by the fan on the rear
wall of the oven. This enables a lower
temperature to be selected than for
conventional grilling.
With this method the inner part of the
grill will glow red a few minutes after
being switched on. The outer part of
the grill will remain noticeably darker,
but will still produce the heat necesary
to grill.
This method is particularly good for grilling large quantities of food using the
grill pan to its full extent.
15
Oven - use
Controls
Pushbuttons
The oven controls consist of the oven
function selector and push buttons.
With the pushbuttons you can:
Function selector
– change the oven temperature.
– change the core temperature.
– activate the minute minder.
Each pushbutton has a matching symbol in the display field.
With this control you select the oven
function required.
The selector can be turned clockwise
or anti-clockwise.
16
Oven - use
The – /+ button is used to enter or alter oven temperature, time of day and
minute minder times.
Temperature or time can be altered in
single steps, by pressing the – /+ button briefly, or more quickly by holding
the button pressed in.
– button:
selects a lower temperature, earlier
time or shorter period.
+ button:
selects a higher temperature, later time
or longer period.
The increase / decrease is effected
– for the oven temperature
in 5°C-steps,
– for the core temperature in 1°Csteps,
– for the minute minder in 1 min.-steps.
Press the required button.
Enter the time / temperature immediately with the – /+ button.
While the indicator light at the centre of
the – /+ button is lit up, a time or temperature can be entered or altered.
The indicator light in the – /+ button
lights up:
– when an oven function has been chosen, (except for “light”),
– if the “p” button is pressed during a
cooking process,
– if the “e” button is pressed when
cooking with the core temperature
(roast) probe,
– if the “l” button is pressed.
Each time the – /+ button or one of the
other buttons is pressed, this gives
more time for data input.
When the indicator light goes out, the
data input or alteration has been registered.
Symbols and figures which appear in
the oven display field:
– “e“,whenever the core temperature
probe is connected.
– “e” and the core temperature always take precedence when the probe is connected.
– The oven temperature and “p”
when the probe is not being used
– “l” always appears when a short
time has been entered for the minute minder.
– “l” and the time counting down
when only the minute minder has
been selected.
17
Oven - use
Selecting an oven setting
With the oven function selector the following settings can be chosen:
– Light H
Turns on the oven light independently.
All oven settings are illuminated.
– Fan Heat D
For baking or roasting on several levels at the same time.
– Top heat C
For browning dishes, finishing dishes with a cheese topping.
– Conventional A
Top and bottom heat together, for baking / roasting traditional recipes, for
soufflés.
– Bottom heat B
Use this setting towards the end of
baking, to brown the base of a cake.
18
– Intensive Bake F
for recipes which require a moist topping, and a crisp base, e.g. pizzas
and quiche lorraine, German style
open fruit cakes and cheesecake.
Not suitable for roasting or shallow
baking, (the base will brown too
much).
– Auto Roast E
Initial high temperature to seal meat
followed by normal roasting temperature.
Not suitable for baking, except for
baking freshly prepared wholemeal
or rye doughs, (not packet mixes).
– Fan Grill I
Ideal for grilling thicker items such
as stuffed meat, kebabs and pieces
of poultry etc. Grilling takes place
with the oven door closed.
– Defrost G
For gentle defrosting of deep frozen
foods.
– Grill 1 ,
For grilling flat items, small quantities, and for browning small dishes.
Grilling takes place with the oven
door closed.
– Grill 2 J
For grilling flat items, large quantities, and for browning larger dishes.
Grilling takes place with the oven
door closed.
Oven - use
Selecting a temperature
If you wish to retain the temperature
suggested by the system this will be automatically adopted when the indicator
light in the – /+ button goes out.
The actual temperature in the oven is
now displayed.
The rise in temperature is shown in 1°C
steps, until the required temperature is
reached, which is then displayed constantly.
A recommended temperature is assigned to each oven cooking setting.
This appears in the oven display field.
If the oven door is opened, or a lower
temperature set, the decrease is shown
in 1°C steps.
Fan Heat. . . . . . . . . . . . . . . . . . . 160°C
Top Heat. . . . . . . . . . . . . . . . . . . 190°C
Conventional . . . . . . . . . . . . . . . 190°C
Bottom Heat . . . . . . . . . . . . . . . . 190°C
Intensive Bake . . . . . . . . . . . . . . 170°C
Auto Roast* . . . . . . . . . . . . . . . . 160°C
Fan Grill . . . . . . . . . . . . . . . . . . . 200°C
Defrost . . . . . . . . no temperature given
Grill 1 (small) . . . . . . . . . . . . . . . 240°C
Grill 2 (large) . . . . . . . . . . . . . . . 240°C
* continuation temperature,
the initial boosted temperature is
approx. 230°C
When an oven cooking function is selected this switches on the oven heating elements.
19
Oven - use
Altering the temperature
To cancel a process
The temperatures suggested by the system can be altered in the range:
When the oven function selector is
turned to “0" this cancels any previously entered oven or probe core temperature.
Time entered with the minute minder is
not affected.
Fan Heat. . . . . . . . . . . . . . . . . 30-250°C
Top Heat. . . . . . . . . . . . . . . . . 30-250°C
Conventional . . . . . . . . . . . . . 30-280°C
Bottom Heat . . . . . . . . . . . . . 100-250°C
Intensive bake . . . . . . . . . . . . 50-250°C
Auto Roast . . . . . . . . . . . . . . 100-230°C
Fan grill . . . . . . . . . . . . . . . . . 50-260°C
Defrost . . . . . . . . . . . . . . . . . . . 30-50°C
Grill 1 (small) . . . . . . . . . . . . 200-300°C
Grill 2 (large) . . . . . . . . . . . . 200-300°C
To alter while the indicator light is lit:
Enter the required temperature with
the – /+ button.
To alter when the indicator light has
gone out:
Press the “p” button.
Enter the required temperature with
the – /+ button.
20
To switch off the oven
When the oven function selector is
turned to “0" this switches off the oven.
All the display symbols go out.
Exception: When the roast probe is connected the “e” symbol remains lit.
If a time has been entered, "l" and the
short time (counting down) appear in
the display field.
Oven - use
Pre-heating the oven
The oven usually only needs to be
pre-heated in the following cases:
With “Fan Heat”:
– for baking bread made with dark
flour,
– when roasting meat.
Energy-save function
If you are programming a cooking
process using the timer, or if you are
cooking with the roast probe, the residual heat is automatically used to save
energy.
With “Conventional” heat:
– for baking biscuits and cakes with a
short cooking time,
– for baking some doughs,
– for baking bread made with dark
flour,
– for roast meat.
To pre-heat
Turn the oven selector to the required function.
Select the required temperature.
When the required temperature has
been reached:
Put the food to be roasted or baked
into the oven.
The letters “EC” in the display field indicate that the energy-save function is in
operation.
Shortly before the end of the cooking
time the oven heating switches off.
The cooling fan continues to run, as
does the hot air fan if a “fan” setting
had been chosen.
The residual heat in the oven is sufficient to complete the cooking process.
21
Oven - use
Telescopic carriage
Rack with safety feature
(depending on model)
The non-tip runners prevent the rack
from being pulled right out when it only
needs to be partially pulled out.
When pushing the baking trays, grill
pan or rack into the oven, make
sure that the telescopic carriage is
pushed completely in.
If you wish to use only the lowest runner level for cooking, the side rails can
be taken out.
When using the rack push it into the
oven so that the safety notches (illustrated) go to the rear of the oven,
to meet the notches on the runners.
This has the advantage of:
– making more space available inside
the oven, for larger roasting tins.
– keeping the side rails clean.
The rack can then only be taken out of
the oven by raising it upwards and then
pulling it out.
22
Oven - use
Short time (Minute minder)
At the end of the short time:
The minute minder can be used to time
any activity in the kitchen, e.g. boiling
eggs.
– an audible tone sounds for approx. 5
seconds.
The short time can be entered independently of another entered process.
To enter the short time
– The “l” symbol also flashes for approx. 1 minute.
The audible tone and the flashing symbol can be cancelled at any time by
pressing the “l” button.
(1 min. - 23 hrs. 59 mins.)
To change the short time set:
Press the “l” button.
Enter the required time in hours and
minutes with the – /+ button.
When the – /+ button control light goes
out, the time set starts counting down
in minutes.
If the oven is being used at the same
time, the minute minder time period
only shows for a short time. Then the
oven or probe core temperature shows
again in the display field. The “l” continues to be visible as a reminder that
the minute minder is working.
Do this in the same way as entering the
short time:
Press the “l” button. This will halt
the minute minder.
Use the – /+ .button to enter the new
time required in hours : minutes.
To cancel the minute minder
Press the “l” button.
Use the – button to set the short time
to “0:00".
This cannot be done using the “+” button, as it is impossible to go beyond
the maximum setting.
23
Timer - use
Push buttons
With the push buttons you can:
– enter the start of a cooking process.
– enter the duration of a cooking
process.
The timer can:
– enter the end of a cooking process.
– show the time of day,
The Time of day is entered with the
“f” and “)” buttons.
– switch the oven (and separately,
where applicable, the hob front cooking zones) off, or on and off automatically.
A corresponding symbol for each push
button appears in the display when appropriate.
The Symbol lights up when an oven
function has been selected, (or a hob
zone control switched on), and the relevant button pressed in.
24
Timer - use
All data input or alteration is done with
the – /+ button .
Changes to the start, duration or end of
cooking time, or time of day are effected in 1 minute steps.
Press the required button.
Enter the time immediately with the
– /+ button.
While the indicator light at the centre of
the – /+ button is lit up, a time can be
entered or altered.
The – /+ button indicator light comes
on when one of the buttons has been
pressed.
Each time the – /+ button or one of the
other buttons is pressed, this gives
more time for data input.
When the indicator light goes out the
data input or alteration has been registered.
Symbols that appear in the timer display field:
– the symbols for the oven time entered, when the oven is being programmed.
– the relevant symbol for the hob zone
programmed:
“*” front left hob zone
“#” front right hob zone
“t” both front hob zones.
25
Timer - use
Time of day – 24 hour display
To alter the time of day
When the colon in the time display:
This is the same procedure as for setting the time of day
– flashes:
Once the time has been entered it
proceeds in minute intervals.
– is on constantly:
Time of day has been halted and
can be entered or altered.
When the appliance is first connected to the power supply, or after a
power cut "12:00" and the symbols
“f” and “)” flash in the display.
If a process has been pre-programmed, the time of day can not be altered or cancelled.
Press buttons “f” and “)” at the
same time.
This halts the time of day.
Use the – /+ button to enter the new
time of day in hours : minutes.
To cancel the time of day display
To enter the time of day:
Press the buttons “f” and “)”
twice in succession.
Press the buttons “f” and “)” at
the same time.
“12:00" will show constantly in the display.
Pressed once, the time display colon
stays on constantly. Pressed twice the
display clears. The time of day continues to run unseen.
To bring back the visible time display
Using the -/+ button enter the time of
day in hours : minutes.
Press buttons “f” and “)”
together once.
26
Timer - use
Programming cooking time
With the timer it is possible for the oven
(and both the front hob cooking zones)
to be switched off automatically, or set
to come on at a later time and then also
be switched off.
The oven, the left and right front hob
cooking zones can be programmed independently of each other.
Programming cooking time in the
oven
Use the oven function selector to
choose a setting.
The indicator light in the centre of the
“ - /+” button lights up.
Enter the times for the automatic cooking process, (see appropriate section below).
When a cooking process is pre-selected, the setting chosen and the symbol p are displayed, as well as the time
of day and the symbols for the time entered.
During a process the temperature is
shown in the oven display. The time of
day continues to be shown.
Shortly before the end of cooking time
the oven heating switches off automatically.
The Energy-save function (as described under “Ovens - Use”) comes into
action.
“EC” now appears in the oven display
instead of the actual oven temperature.
The oven temperature will switch on
again if:
– the oven temperature is altered.
– the cooking time is lengthened significantly.
When the end of cooking time has
been reached
– an audible tone sounds for approx. 5
seconds,
– and at the same time the “)” symbol flashes.
If the audible tone is not switched off it
will continue to sound at 5 minute intervals as a reminder that cooking has finished. This reminder continues for up
to an hour.
Both the audible tone and the visual
display can be cancelled by:
– Pressing the “)” button.
If the food is not sufficiently cooked
to your taste, a further cooking time
can be entered.
– Turning the oven function selector to
“0".
27
Timer - use
Programming hob zone cooking
times
When the end of cooking time is reached
A symbol in the display shows which
hob zone is being programmed.
– the hob switches off automatically,
– an audible tone sounds for approx. 5
seconds.
– The symbol for the selected hob
zone and the symbol “)” both
flash. The symbol “)” does not
flash when a cooking end time is entered for the oven.
* = front left zone
# = front right zone
t = both front zones
Make sure the correct symbol is showing in the display before programming in times.
Turn the hob zone control to the setting required.
The corresponding symbol will flash for
a short time.
Enter the times for the automatic
process (see the relevant Section below).
When a cooking process has been preselected the hob zone symbol flashes,
and the time of day is displayed. The
hob control light goes out.
When the process starts running, the
symbol for the chosen hob zone lights
up.
28
If the audible tone is not switched off,
as described earlier, it will repeat at 5
minute intervals as a reminder that the
end time has been reached. This reminder continues for up to an hour.
Both the audible tone and the visual
display can be cancelled by:
– Pressing the “)” button.
To use the oven again, the hob zone
selector switch must first of all be
turned to “0".
– Turning the hob zone selector
switch to “0".
Timer - use
To enter the times for an automatic process:
To end a cooking time automatically –
entering the duration
(1 min. to 23 hours 59 mins.)
Turn the oven function selector or the
hob zone control to the required setting.
Press the “g” button.
“0:00" appears in the display field.
With the + button enter the required
time in hours:minutes.
The end of cooking time is automatically calculated from the time entered.
To switch a cooking process on and
off automatically –
Enter the start and the duration
(The start can be postponed for up to
23 hrs 59 mins)
Turn the oven function selector or the
hob zone control to the required setting.
First enter start of cooking time:
Press button “f”.
“0:00" appears in the display field.
Use the + button to postpone the
start of cooking.
First the time of day appears.
Now enter the cooking time:
Press the “g” button.
“0:00" appears in the display field.
With the + button enter the required
time in hours:minutes.
29
Timer - use
Switching the cooking process on
and off automatically
To enter duration and end
(The end can be postponed by up to
23 hours 59 mins)
Turn the oven function selector or the
hob zone control to the required setting.
First enter the cooking time:
Press the “g” button.
“0:00" appears in the display field.
With the + button enter the required
cooking time in hours:minutes.
Now postpone the end of cooking time:
Please note the following:
If only a start of cooking time is programmed, the oven / hob zone will start
straight away, without any delay.
Exception: When cooking with the roast
probe the oven does not start straight
away.
Do not pre-programme with too long a
delay. Cake mixtures will dry out and
the raising agent will work less effectively.
Checking and changing
times entered:
It is possible at any time to call up the times entered. The corresponding button for the time to be checked or changed has to be pressed.
If times are programmed for several
processes, each process can be seen
by pressing briefly more than once on
the relevant button.
The number of times to press the button depends on the number of programme steps entered:
Press button “)”.
“0:00" appears in the display field.
Postpone the end of cooking time
with the + button.
First the time of day will appear.
30
Press once and the time entered for the
oven appears.
Press twice and the time entered for
the front left hob zone appears. This is
indicated by the “*” symbol.
Press 3 times and the time entered for
the front right hob zone appears. This
is indicated by the symbol “#”.
Timer - use
To check
Press the button for the time to be
checked.
“f”
The start time of the cooking process is
displayed. This goes out as soon as
the process begins.
“g”
The display shows the duration of cooking time, or the time left if the programme has started.
“)”
The end of the cooking process is displayed.
To cancel times entered
To cancel, press the appropriate button
and use the “ - ” button to set the time
to “0:00".
If the cooking time is cancelled, this automatically cancels the start / end time,
and vice versa.
To cancel programmed
processes
Turn the oven function selector or the
hob zone control(s) to “0".
If there is a power cut all programmes
entered will be deleted.
To change
Press the corresponding button.
Use the – /+ button to enter the required time.
When the indicator light in the centre of
the – /+ button goes out, the newly selected time is registered. The time of
day appears in the display.
Please note the following:
If a button is pressed, where the time
was not entered, but calculated automatically by the system, the indicator
light in the centre of the – /+ button
does not come on.
This time cannot be altered.
31
Baking in the oven
The following settings are recommended for baking:
Baking with the
“Intensive baking F”setting
– Fan Heat D
– Intensive Bake F
– Conventional A
This method of heating is particularly
useful for:
Baking with the “Fan Heat D”
setting
Most types of heat-resistant tins or dishes are suitable, including thin-walled
and bright, non-reflective metal moulds.
Several levels can be used at the same
time for baking. The recommended positions are:
1 tray = 1st runner from the bottom
2 trays = 1st and 3rd runners from the
bottom
3 trays = 1st, 2nd and 5th runners from
the bottom
When baking moist biscuits, cakes
or bread, do not bake on more than
two levels.
With the “Fan D” setting lower baking
temperatures are needed than with the
“Conventional A” setting. See the baking charts.
– dishes that require a moist topping
and crisp base, such as pizzas and
quiche lorraine, or where the base
has not been pre-baked.
Any heat-resistant baking tin can be
used.
Put the cake in on the 1st runner from
the bottom. If the base is overcooked,
use a higher level runner next time.
Baking with the
“Conventional A” setting.
The following baking tins give an evenly browned result:
Dark metal or enamel tins with a matt finish are preferable. Heat resistant
glass or thermoplastic dishes can be
used.
Avoid thin-walled and bright, nonreflective metal moulds. These will
give uneven browning results.
Pre-heat the oven only for:
– cakes / biscuits with a very short baking time,
– victoria sponge and similar mixtures.
Select runner height 1 or 2.
32
Baking in the oven
General notes
The Baking Chart gives suggestions for temperature, runner height
and timing.
For even browning – in general select the middle temperature.
Increasing the temperature and reducing the time can have an adverse effect on even browning.
Place oblong tins in the oven as shown
in the illustration.
Deep-frozen products such as pizzas
should be placed on baking paper on
the rack.
Use the deeper roasting tray for moist
fruit cakes and multi-layer cakes, to
minimize splashes in the oven.
– Select the runner height according
to the recipe and the setting chosen.
– Just before the end of baking time
test to see if the cake is done.
Insert a metal or wooden skewer into
the centre.
If it comes out clean, without dough
or crumbs sticking to it, the cake is
ready.
33
Baking in the oven
Fan Heat
Temperature
in °C
rec. runner
from bottom
Time
in mins.
Creamed mixture
Sand cake
Dried fruit cake
Nut cake (tray)1)
Nut cake (tin)
Fresh fruit cake with topping (tray)
Fresh fruit cake (tray)
Fresh fruit cake (tin)
Flan base 1)
Small cakes 1)
150-170
150-170
150-170
150-170
150-170
150-170
150-170
150-170
150-170
1
1
1
1
1
1
1
1
1, 2, 5
50-60
70-80
20-25
60-70
45-50
35-45
45-55
25-30
20-25
Whisked mixture
Tart 1)
Flan base 1)
Swiss roll 1)
160-180
160-180
160-180
1
1
1
25-30
20-25
15-20
Rubbed-in mixture
Tart / flan base
Nut ring
Crumble cake
Small cakes 1)
Cheesecake
Apple pie1)
Apricot flan with topping
Savoury pastry 2)
Meat pie
150-170
150-170
150-170
150-170
150-170
150-170
150-170
190-210
170-190
1
1
1
1, 2, 5
1
1
1
1
1
20-25
40-50
40-50
15-25
70-80
45-55
40-60
25-35
60-70
Yeast mixtures
Crumble cake
Fresh fruit cake (tray)
Stollen
White bread
Wholemeal bread 1)3)
Pizza (tray) 1)
Onion cakes
Apple turnovers
150-170
160-180
150-170
160-180
190-210
170-190
160-180
150-170
1
1
1
1
1
1
1
1, 3
35-45
40-50
45-65
40-50
60-70
40-50
30-35
25-30
Choux pastry 1)
Eclairs
160-180
1, 3
25-30
170-190
1, 3
20-25
120-140
1, 2, 5
30-50
Flaky pastry
Meringues 1)
Macaroons
1)
The times given are calculated on the basis of an oven which has not been pre-heated.
With a pre-heated oven shorten times by approx. 10 minutes.
1) Pre-heat the oven with ’Conventional’ heat.
2) Pre-heat the oven with ’Fan Heat’ and ’Conventional’ heat.
34
Baking in the oven
Conventional heat
Intensive baking
Temperature
in °C
rec. runner
from bottom
Time
in mins.
Temperature
in °C
rec. runner
from bottom
Time
in mins.
160-180
160-180
180-200
160-180
180-200
180-200
160-180
180-200
180-200
1
1
1/2
1
1/2
1/2
1
1/2
2
50-60
70-80
15-20
60-70
45-50
35-45
45-55
15-20
12-15
150-170
-
1
-
30-35
-
180-200
180-200
190-210
1
2
1/2
20-25
15-20
12-15
-
-
-
180-200
180-200
180-200
180-200
180-200
180-200
180-200
230-250
190-200
1/2
2
1/2
2
1
2
1
1/2
1
15-20
40-50
40-50
10-15
70-80
40-50
40-60
25-35
60-70
150-170
150-170
150-170
190-210
170-190
1
1
1
1
1
65-75
50-60
50-60
25-30
50-55
180-200
180-200
170-190
190-210
210-230
190-210
190-210
170-190
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
35-45
40-50
45-65
40-50
60-70
40-50
25-30
20-25
170-190
160-180
-
1
1
-
40-50
30-35
-
-
-
-
190-210
1/2
25-35
200-220
1/2
15-20
-
-
-
-
-
-
130-150
2
30-50
3) Instead of “Fan Heat” select “Auto Roast”.
Pre-heat the oven with “Auto Roast”.
Data given are for guidelines only.
Values obtained from a machine designed for the German market.
35
Roasting in the oven
We recommend the following settings
for roasting in the oven:
– Auto Roast D
– Conventional heat A
The core temperature probe (roast probe) can be used with either of the above settings. See Section on “Roasting
with the roast probe”.
Auto Roast:
Always remember to fit the roasting
filter in front of the fan in the back of
the oven before starting.
Place the covered pot on the rack.
The meat should be put into a cold
oven.
Exception: Pre-heat the oven to the temperature recommended in the recipe
when cooking roast beef.
Use shelf position 1 for roasting.
Exception: Use shelf position 2 when
roasting poultry weighing up to 1 kg,
sirloin, or fish.
When using “Auto Roast” a temperature of approx. 40°C lower can be used
for roasting than with the “Conventional” setting.
The bigger the quantity to be roasted,
the lower the temperature.
When roasting more than 3 kg select a
temperature about 10°C lower than the
one given in the “Roasting” chart.
The roasting process will take a little
longer, but the meat will be cooked
evenly and the exterior will become
crisp.
We recommend roasting in a covered
pot:
– This ensures that sufficient stock remains for making gravy.
– The oven stays cleaner, too.
The following containers are suitable:
Roasting tins, heat-resistant glass, roasting foil, earthenware.
Make sure that the pot and lid have
heat-resistant handles.
36
For roasting directly on the rack K
the temperature needs to be about
20°C lower than for roasting in a covered pot L.
The roasting time will depend on the
type of meat, the size and thickness of
the cut.
Dear Customer,
Congratulations on the purchase of your new Miele oven.
We trust you will be delighted with the wide range of
programmes and applications it has to offer.
To help you make the most of your oven, we would be
pleased to send you, free of charge, a copy of the
MIELE COOKBOOK
This prestigious book contains over a hundred delicious
recipes, all tested on Miele ovens.
Furthermore, it offers comprehensive advice on cooking,
using the different cooking techniques to best advantage.
Please fill in the slip below and send it to:
Miele Company Limited, Fairacres,
Marcham Road, Abingdon, Oxon OX14 1TW
Please note, this offer applies only to new Miele ovens purchased in the UK.
.....................................................................................................................................
I have purchased a Miele oven, model .......................
from (name of retailer)..................................................town.......................................
Please send me the MIELE COOKBOOK.
Name:..........................................................................................................................
Address:............................................................................................................
.....................................................................................................................................
.....................................................................................................................................
............................................................................................................................
Signed:..............................................................................Date...................................
Roasting in the oven
Calculating roasting time:
The traditional British method is to allow 15 to 20 minutes to the lb, according to type of meat, plus approx. 20
minutes, adjusting length of time as roasting proceeds, to obtain the required
result.
Alternatively, multiply the height of the
joint by the time per cm for the type of
meat, as in the chart.
Useful hints
Roasting in a covered pot L
Season the meat and place in the pot.
Add some knobs of butter or margarine
or a little oil or cooking fat. Add about
1/8 litre of water when roasting a big
lean joint of meat (2-3 kg) or roasting
poultry with a high fat content.
Roasting on the rack K
Type of meat
Beef / Venison
Pork / Veal / Lamb
Sirloin fillet
time per cm
height of meat
15-18 mins.
12-15 mins.
8-10 mins.
Example:
Beef roast, 8 cm high
8 x 15 mins. per cm = 120 mins. roasting time
Please note:
Do not select a roasting temperature
which is higher than that recommended. The meat will become brown, but
will not be cooked properly.
Place a little water in the tray. Add a little fat or oil to very lean meat or place a
few strips of bacon on the top. Do not
add too much liquid to the tray during
cooking as this will hinder the browning
process.
Roasting poultry
For a crisp finish, baste the poultry ten
minutes before the end of cooking time
with slightly salted water.
Roasting deep frozen meat
Deep frozen meat should be defrosted
first.
Browning only occurs towards the end
of the roasting time. Remove the lid
about halfway through the roasting time
if a more intensive browning effect is
desired.
After the roasting process is finished
take the roast out of the oven, wrap in
aluminium foil and leave to stand for
about 10 minutes.
This helps retain juices when the meat
is carved.
37
Roasting in the oven
Roasting with the Roast Probe
Using the roast probe enables the roasting process to be monitored simply
and reliably.
When roasting with the probe it is a
good idea to take the frame off the pullout carriage. The telescopic carriage
can then be pulled right out.
The tip of the probe measures the core
temperature at the centre of the meat
continuously.
When the pre-selected core temperature is reached, the oven heating is automatically switched off.
Using the roast probe for best effect:
Prepare the meat in the usual manner, and put it into the oven, (in a pot
or on the rack).
Roasting bags or aluminium foil may
also be used, but only when left open
at the ends. Insert the probe through
the foil or bag.
When roasting poultry the best place to
insert the probe is the thickest part between thigh and body.
Insert the probe into the middle of
the meat.
Ensure that it does not touch a bone,
and that it is not inserted into a fatty
piece of meat. If fat or bone come into
contact with the probe, this can lead to
the oven being switched off too early.
Push the probe into the socket until it
is felt to engage.
38
Roasting in the oven
Choose the required function with
the oven selector:
– Auto Roast
– Conventional
– Fan Heat
– Fan Grill
Please see the notes under “Grilling
in the oven”.
A suggested core temperature of
60°C appears in the display field.
If the core temperature suggested by
the system is appropriate for your recipe, this is automatically adopted once
the indicator light goes out. The core
temperature can however be changed.
(see Section on “Changing the core
temperature”).
The core temperature to be set depends on the food to be cooked. Please consult the roasting chart.
When the light in the – /+ button goes
out, the actual core temperature appears in the display. N.B. The lowest temperature that can be displayed is 20°C,
so this will also be shown until the roast
probe registers 20°C.
Time left display
The suggested temperature for the
oven now appears in the display field.
The oven temperature can however be
altered, (see “To alter the temperature”).
After a specific time the estimated time
left until the cooking process has finished is shown in the oven display.
From now on the actual temperature is
no longer displayed, and cannot be called up.
39
Roasting in the oven
The residual time is calculated from the
oven temperature selected, the required core temperature and the pattern of
the increasing core temperature.
The residual time figure first shown is
an estimate. As the cooking process
continues the figure is continuously revised, and a more accurate revised figure shown.
If, when the residual time is displayed:
– the oven or core temperature is altered,
– or a different oven function is chosen,
this will cancel all the residual time information, and the actual temperature
will reappear.
If the oven door is held open for some
time, the residual time will be recalculated.
Cooking time is completed automatically.
Shortly before the end of cooking time
the oven heating switches off.
The Energy-save function (as described under “Oven - use”) comes into
action. The time left continues to be
shown in the display. If the “p” button is
pressed, “EC” appears.
If the oven temperature is altered or the
core temperature increased, the oven
heating will switch on again.
End of cooking time
When the chosen core temperature has
been reached
– an audible tone sounds for approx. 5
seconds, and
– the “e” symbol flashes.
If the audible tone is not cancelled, it
will continue to sound every 5 minutes
for an hour as a reminder that the
process has finished.
The audible tone can be cancelled by:
– pressing the “e” button.
If the food is not sufficiently cooked,
a new core temperature can be entered.
– turning the oven function selector to
“0".
Any temperatures entered will also
be cancelled.
40
Roasting in the oven
Altering the core temperature
Please note:
The temperature can be altered between 20°C and 99°C.
This process can also be programmed
through the timer with delayed start.
When the indicator light is on:
If the temperature probe is left in the
food at the end of the cooking process,
the oven display will show the core temperature first rising and then sinking.
Enter the required temperature with
the – /+ button.
When the indicator light has gone out:
Press the “e” button.
Enter the required temperature with
the – /+ button.
Insert the probe in a different place and
start again:
– if the cut of meat was too large (3 kg
or more) for the probe to be inserted
right to the centre.
– if the meat is not sufficiently roasted
when the set temperature is reached.
The time taken to roast meat by temperature using the probe is similar to that
when cooking by time.
When finished, cover the meat with aluminium foil and allow to stand for
approx. 10 minutes. During this time
the core temperature rises another
5 - 10°C.
41
Oven roasting chart
Oven roasting chart
Auto Roast 1)
rec.
runner
from
bottom
Temp. in
°C 2)
Time
in mins.
Temp. in
°C 2)
1
180-200
100-120
220-240
100-120
75-85
1 5)
190-210
35-45
240-260
35-45
50-70 6)
1
180-200
90-120
220-240
90-120
65-75
Leg of pork,
(apprx. 1 kg)
1
170-190
100-120
210-230
100-120
80-90
Rolled pork
(apprx. 1 kg)
1
170-190
100-120
200-220
110-130
80-90
Meat loaf (apprx. 1 kg)
1
170-190
50-60
200-220
50-60
70-75
Veal (apprx. 1 kg)
1
170-190
100-120
210-230
100-120
75-85
Shoulder of lamb
(ca. 1.5 kg)
1
170-190
90-120
210-230
90-120
80-85
Poultry (0.8-1 kg)
1 5)
170-190
50-60
200-220
50-60
80-85
Poultry (apprx. 2 kg)
ditto (stuffed)
1
1
170-190
170-190
90-110
120-150
200-220
200-220
90-110
120-150
80-85
Poultry (apprx. 4 kg)
1
160-180
150-180
190-210
150-180
80-85
1 5)
160-180
35-55
200-220
35-55
75-80
Rib of beef (apprx. 1 kg)
Sirloin, steak 4)
(apprx. 1 kg)
Venison/game
(apprx. 1 kg)
Whole fish
(apprx. 1.5 kg)
Conventional
Core
Time
temperature
in mins.
in °C 3)
Unless otherwise stated, the times given are for an oven which has not been pre-heated.
1) Fit the grease filter in place when using “Auto Roast”.
2) Roasting in a pot L
When roasting on the rack K, set the temperature 20°C lower than given.
3) Roasting using the core temperature probe (Roast Probe) e
4) Pre-heat the oven when using “Auto Roast” and “Conventional” settings.
5) 2nd runner from the bottom when using the “Conventional” setting.
6) very rare: 40-45°C, medium-rare: 50-55°C, medium: 60-65°C, well done 70-75°C
The information given in this chart is intended only as a guide.
42
Defrosting in the oven
We recommend defrosting at room temperature, i.e. without selecting an oven
temperature.
However, an oven temperature of up to
50°C can be selected.
– Where possible remove the packaging and put the food to be defrosted on a baking tray or into a dish.
– All meat and poultry should be fully
defrosted before cooking. Do not
use the liquids from defrosting.
– When defrosting poultry put it on the
rack, one level higher than a tray put
in to catch the defrosted liquid, so
that the meat is not lying in this liquid.
It is particularly important to observe food hygiene rules when defrosting poultry. Do not use the liquid
from the defrosted poultry. Pour it
away, and wash the tray, the sink
and your hands.
N.B. Put the tray back in the oven if roasting on the rack.
– Fish does not need to be fully defrosted before cooking. Defrost so that
the surface is sufficiently soft to take
herbs and seasoning.
Do not refreeze food once it has thawed.
The time needed for defrosting depends on the type and weight of the
food, and at what temperature it was
deep frozen.
43
Casseroles
The following oven settings are recommended:
– Fan Heat D
– Conventional A
The following dishes are suitable for
this type of slower cooking:
covered pots made of ovenproof glass
and china, and earthenware pots,
which could also be used as serving
dishes. They should have heat-resistant handles and knobs.
Put the rack in at the 1st runner
height from the bottom, and place
the prepared casserole with the food
for braising or stewing on this.
Select the oven setting and the
temperature.
Please note:
Cover dishes which are to be cooked
in their own juice and/or steam, eg
duchesse potatoes or vegetables, so
that they do not dry out. If there is no
lid use aluminium foil or damp cooking
parchment.
Cook without a lid when a crusty finish or topping is required, eg for meat
or dishes au gratin.
Useful hint
One dish can be placed on top of the
other. Invert the lid of the bottom dish.
Put dishes to be browned at the top.
Poaching
Fan Heat D . . . . . . . . . . . . . 170-190°C
Conventional A . . . . . . . . . . 190-210°C
Fish or fruit can be poached in the
oven in a covered dish.
Cooking times
Bottling
Consult your cook book.
Bottling should only be undertaken by
an experienced cook who has received
proper training in this method of preserving fruit and vegetables, and understands the implications of the chemical
reactions involved.
44
Grilling in the oven
The oven has three grill settings:
Grill 1
The whole of the grill element is switched on. The inner part of the grill
glows red when heated, but the outer
part stays darker, while at the same
time creating the heat radiation
necessary for grilling.
Fan Grill
For grilling larger items, for example,
poultry, rolled meat.
With this method the core temperature
probe can also be used to monitor the
temperature. See ,,Roasting in the
oven: Roasting with the core temperature probe".
For grilling small quantities of thin cuts
and for browning small dishes of food.
The inner part of the grill glows red
when heated.
Grill 2
Pre-heat the grill for approx. 5 minutes with the oven door shut.
Grilling with the oven door shut saves energy and minimizes cooking
smells.
Fan grill:
Always put the roasting filter back in
place on the back panel fan grille
when using this setting.
For grilling large quantities of thin cuts
and for browning food in large shaped
dishes.
45
Grilling in the oven
Preparing food for grilling
Clean, wipe and season. Do not salt
slices of meat beforehand as this detracts from the taste.
Add a little oil if necessary. Other fats
quickly become black or cause the
food to smoke. A little butter can be added to chicken if desired.
Clean flat fish and slices of fish in the
normal way. To enhance the taste add
a little salt or squeeze a little lemon
juice over the fish.
Insert the grill pan at the appropriate level for the height of the food to be grilled:
thin cuts =
level 3, 4 or 5
thicker cuts =
level 1 or 2
It is best to grill food of a similar thickness at the same time so that the grilling time for each item does not vary
too greatly.
Most items should be turned half way
through cooking.
Grilling on the rack
Grilling on the spit
For grilling thicker items such as stuffed meat, poultry, kebabs.
Assemble the grill pan, anti-splash
tray and rack as shown.
Place the food on the rack.
Select the method of grilling .
Assemble the rotisserie as shown.
46
Grilling in the oven
Grilling time
Two special accessories for rotisserie
grilling, a meat and poultry clamp, and
a kebab grilling device are available
from your Miele dealer or the Miele Spare Parts Department.
Select the method of grilling .
Put the grill pan holding the assembled rotisserie in the oven, using the
1st runner from the bottom.
The spit fits into the motor slot at the
back of the oven.
Temperature
Food to be grilled
temperature
Flat pieces of fish and meat usually
need about 5-6 minutes a side depending on their texture. Thicker pieces
need longer. With rolled meat allow approx. 10 minutes per cm diameter.
Useful grilling hint
One way of finding out how far through
a piece of meat has been cooked is to
press down on it with a spoon.
– If there is very little resistance to the
pressure of the spoon, it is still red
on the inside (“rare”).
– If there is some resistance, the inside will be pink (“medium”).
– If there is great resistance, it is thoroughly cooked through (“well
done”).
Thin cuts
such as chops, steak
275°C
Basting brush
Thicker cuts
such as chicken,
kebabs
240°C
To grill thicker pieces of food more gradually, select an initial high temperature, and then continue grilling at a lower
temperature setting to allow the food to
cook through to the centre.
A basting brush with an angled handle
for convenient basting under the grill is
available from the Miele Spare Parts
Department.
47
Grilling
Pre-heat the grill for about 5 minutes with the door shut before using.
Food to be grilled
Runner
from
bottom
Fan Grill 4)
Grill 1 / Grill 2
temperature
in °C
total
grill time
in mins. 1)
temperature
in °C
total
grill time
in mins. 1)
3/4/5
290
3-5
250
5-10
Flat items of food
Beef steaks
Kebabs
4
260
8-12
240
8-12
Escalope
4/5
290
5-10
240
10-12
Liver
4/5
275
8-12
245
8-12
Burgers
4
210
10-15
200
10-15
Sausages
4
240
8-10
220
10-12
Chops
4
275
12-18
250
10-15
4/5
250
10-15
220
12-16
Trout / Mackerel
4
275
16-20
220
20-25
Toast
5
240
3-6
220
5-10
4/5
240
4-6
220
5-7
4
240
7-10
225
10-12
Fish fillet
Open toasted sandwich
Tomatoes
Bananas
5
240
6-10
225
6-10
2/3
230
6-8
210
6-8
Chicken pieces (approx. 1 kg) 3)
1
240
50-60
-
-
Chicken pieces (approx. 1 kg) 2)
1/2
220
50-60
200
50-60
Mixed grill 2)
2
260
20-25
230
20-25
Piece of pork, Ø 7 cm
(approx. 1 kg) 2)
1
240
70-80
200
70-80
Kebabs
1
250
25-35
230
25-35
Peach halves
Thicker grilling cuts
1) Turn half way through the grilling time.
2) Grilling on the rack
3) Grilling on the spit (where this feature is included).
4) Fit the roasting filter when ”Fan grilling”.
All times given in the chart are approximate and can vary.
48
Cleaning and care
Appliance front, decor strips,
and control panel
Use a mild cleaning agent or a dash of
washing up liquid in hot water. Wipe
dry with a soft cloth.
Accessories
Roast probe, telescopic frame (if fitted),
Wipe with a damp cloth.
Do not put the roast probe or the baking carriage runners into water,
and do not put them in the dishwasher.
Runners
Wash in hot water with washing up liquid, or clean with a stainless steel cleaner.
Baking tray, roasting/grill pan, rack,
spit and frame:
wash and dry after each use.
Remove stubborn residues that do not
wash away
– from stainless steel:
with a stainless steel cleaner.
– from enamel:
Soften residues by soaking with hot
water, then brushing with a soft nylon
brush or sponge.
Roasting filter
Clean in washing up liquid and hot water, or in the dishwasher.
49
Cleaning and care
Oven interior
Different surfaces of the oven interior
are coated with either
b “Clean-Enamel”, or
c catalytic enamel.
Important: Remove any soiling from
the “Clean-Enamel” areas before
carrying out the extra cleaning
process for catalytic enamel described below.
Never use hard brushes, wire wool
or scourers, scouring pads, hard
sponges or other scouring agents
on the enamel coatings.
These scratch and damage enamel.
b “Clean-Enamel”
This is a specially hardened enamel
with an extremely smooth surface.
Most baking and roasting residues can
be easily removed using a sponge
cloth, washing up liquid and hot water.
The oven cavity and door interior are finished in “Clean-Enamel”. The rear panel which protects the fan is more subject to oil and fat splashes, and has a
catalytic coating.
With some models, side panels with catalytic coating are fitted, and the removable guard plate above the grill has a
catalytic coating. With this arrangement
most of the interior “Clean-Enamel” is
protected, except for the floor and
door, which should be cleaned after
each use.
The oven should be cleaned regularly, preferably after each use.
If left too long cleaning becomes unnecessarily difficult and in extreme
cases impossible.
50
If something bakes on harder, it can be
loosened with a shielded razor blade
scraper. It is easier to remove splashes
of fruit or cake mixture from the oven
and racks while they are still warm.
Fruit juice may cause lasting discolouration.
Dull patches may remain permanently
in the oven tray after roasting or grilling.
If an oven spray is used on the “Clean-Enamel”, follow the manufacturer’s instructions carefully.
Important: Oven spray must not
come into contact with catalytic enamel. It can damage the enamel.
Cleaning and care
c Catalytic Enamel
Because circulating air in the oven deposits oil and fat splashes predominantly on the rear wall of the oven, this is
coated in catalytic enamel.
With some models, side panels with catalytic coating are also fitted, and the
removable guard plate above the grill
has a catalytic coating.
When this catalytic enamel is heated to
temperatures above 200°C, oil and
grease deposits are removed, except
for deposits of spices and syrups. The
higher the temperature the more effective the process.
To take further advantage of the catalytic properties for cleaning, the “Extra
cleaning process” can be used, (see
that section below). For slight soils the
oven can be cleaned manually.
Do not wait too long between cleaning
sessions as further baking and roasting
will cause oil and grease deposits to
burn on even harder.
Cleaning the catalytic enamel
manually
Where cooking is carried out at lower
temperatures splashes of oil and grease can collect on the catalytic coating.
This slight soiling can be cleaned manually as follows:
Let the oven cool down and remove the
runners or telescopic frame. Wipe
down the surface(s) using a cloth, soft
sponge or soft nylon brush with warm
water to which a little washing up liquid
has been added.
Do not use oven spray or abrasive
cleaning agents.
Do not wash these panels in the dishwasher. Any mechanical handling
would damage the catalytic enamel.
Clean the oven floor (Clean-Enamel) after each use.
51
Cleaning and care
Cleaning catalytic enamel using the
extra cleaning process
Before carrying out the extra cleaning
process, take out the rack and runners,
or telescopic frame remove any soiling
from the “Clean-Enamel” areas.
To operate the extra cleaning process:
Turn the oven function selector to
“Fan Heat D”.
With the + button select the highest
temperature setting.
Let the oven operate for about one
hour. The length of time will depend on
the degree of soiling. It is a good idea
to set the finish time for the process
using the timer. This way you will not
forget to switch the oven off at the end.
Wipe over all the visible surfaces which
are not protected by the catalytic liners, especially the oven floor.
Every time the oven is used at high temperatures any remaining soiling will gradually disappear.
52
Should the catalytic coating on the
back panel or any other catalytic panels fitted become ineffective
through improper use or heavy soiling, for example, a replacement
can be obtained from your Miele
dealer or Miele Spare Parts dept.
Cleaning and care
For ease of cleaning the oven door can
be taken off, the runners or the telescopic frame, side panels and the back panel removed and the top grill element
lowered.
Please note : the oven door is quite
heavy. It should be gripped firmly at
the sides when being removed or refitted.
To remove the oven door:
Open the door fully.
Lift up the door until the hinges
disengage. Remove door.
To re-fit the oven door:
Hold the door as shown above and
carefully put the locked hinges into
the guide holes until they engage.
Open the door fully.
Still supporting the door, flip the locking clamps up.
Flap down the locking clamps on
each door hinge. This locks the hinges.
It is essential that the locking
clamps are flipped up when the
door is refitted after cleaning. Otherwise the door could come loose on
its hinges.
53
Cleaning and Care
Removing the telescopic carriage
(according to model)
Select the “Light” setting.
Make sure the oven heating elements are switched off and cool, to
avoid the danger of being burnt.
Pull on the fixing knob to release it.
Draw out the telescopic carriage
and remove the side runners.
Take the guide rails out of the oven.
Reassemble in reverse order, carefully
ensuring all parts are correctly in place.
Remove the frame from the guide
rails.
54
Cleaning and care
To remove the runners
(according to model)
Select the “Light H” setting.
Make sure the oven heating elements are switched off and cool, to
avoid the danger of being burnt.
Take the runners out of the oven.
Reassemble in the reverse order, carefully ensuring all parts are correctly in
place.
Pull on the fixing knob to release it.
55
Cleaning and care
To remove the catalytic side panels
Select the “Light ” setting.
The oven heater elements must be
switched off, to avoid the danger of
being burnt.
Take the runners or the telescopic
frame out of the oven.
Gently lift and pull out the catalytic
side panels.
Reassemble in the reverse order, carefully ensuring all parts are correctly in
place.
When reassembling the catalytic side
panels, ensure they sit correctly.
Ease the back lug into the opening
in the rear wall.
56
Lift the front locating hole on to the
guide pin behind the collar.
Put the runners or the guide rails of
the telescopic frame back into place.
Cleaning and care
To remove the back panel
To lower the (upper heating) grill
element:
Select the “Light H” setting.
The oven heating elements must be
switched off, to avoid the danger of
burning.
Wait until the grill element has cooled down enough to touch to avoid
being burnt.
Take out the runners.
Loosen the screws in the back panel
and take it out.
The oven must not be used without
the back panel fitted. This could
lead to injuries.
Reassemble in the reverse order, carefully ensuring all parts are correctly in
place.
Pull (and turn if necessary) on the fixing knob for the grill element to release it.
57
Cleaning and care
If the guard plate is dirty it can also be
removed for cleaning:
Hold the guard plate firmly and
unscrew the knurled knob.
Take out the guard plate.
Gently lower the grill element.
Do not use force to lower it, as this
could cause damage.
58
Reassemble in the reverse order, carefully ensuring all parts are correctly in
place.
Correcting minor faults
Installation, maintenance and repairs to the electrical components
of this appliance should only be carried out by a fully competent person.
Unauthorised repairs can be dangerous.
. . . The heating elements in the oven
function, but not the light.
Some minor problems however can be
dealt with as follows:
There is a slide flap in each side trim to
the oven.
The halogen lights are faulty. Change
as follows:
Turn off the electricity supply to the
oven. Switch off at the isolator, or
withdraw the mains fuse.
What to do if . . .
. . . The oven does not heat up.
Check whether,
the selector switch is set to the function required, and the temperature
control is set at the correct temperature.
the operating lock is activated.
the main fuse has blown. Contact a
qualified electrician or the Miele Service Department.
Slide the relevant flap upwards.
59
Correcting minor faults
. . . a noise can be heard after baking, roasting or grilling.
This is not a fault.
The cooling fan continues to run for a
short time. When the temperature has
fallen sufficiently the fan switches off
automatically.
. . . the cakes and biscuits are not
cooked after following the times given in the chart?
Check whether,
the correct temperature was set.
Pull out the metal strip.
Pull out the halogen lamp:
12 V, 20 W,
heat resistant up to 300°C, G4
socket, Osram, Type 64428.
Fit the bulb and reassemble in the reverse order, carefully ensuring all parts
are in place.
. . . no noise is heard when the oven
door is opened during operation?
This is not a fault.
If the door is opened during operation,
the door contact switch causes the
oven heating, and the fan if on “Fan”
setting, to be switched off.
60
there has been a change to the recipe. The addition of more liquid or
more eggs makes a moister mix
which would need longer to cook.
the roasting filter had been left in
place in front of the fan when cooking with “Fan D” heat. In this case
baking times might be lengthened
by 10 to 15 minutes.
Correcting minor faults
. . . The browning effect is uneven
There will always be a slight unevenness. Product information sheets give a
percentage result for standard browning tests. These refer to results for
one tray.
If the item being baked is browning
very unevenly, check:
– when baking with Fan Heat D:
whether the temperature was set too
high,
whether the roasting filter was in
place.
– when baking with the Conventional
setting A
the colour and composition of the baking tins being used. Light coloured,
shiny, or thin walled tins are less suitable.
. . . “F” and a number appear in the
oven display field.
This combination indicates a fault
When “F3" appears the core temperature (roast) probe has a fault.
Remove the probe from its socket
and the message will disappear.
When “F6" appears the oven has automatically switched itself off during
use. This is a safety feature to protect the oven if it has been operating
for an exceedingly long period. The
timing is different depending on the
oven setting selected.
The oven can be used again immediately by simply turning the oven function selector to “0" and then entering the process again.
. . . spots like rust appear on the interior catalytic walls?
When roasting on the rack, the circulating air sometimes picks up spices,
which are then deposited on the oven
interior walls. Such residues are not removed by catalytic cleaning, they are
best removed while fresh with a mild
washing up liquid and a soft brush.
61
Correcting minor faults
If “F7", appears in the display, this
may mean that the cooling fan has
stopped turning.
The Service dept must be called to
put this right. Please quote the fault
message.
If “F8", appears in the display, this
may mean that on a fan heat setting
the fan has stopped turning.
The Service dept must be called to
put this right. Please quote the fault
message.
If “F9", appears in the display, this
may mean that the maximum temperature of the appliance has been
exceeded.
The appliance switches itself off automatically. As soon as the temperature has fallen to an acceptable level
the fault message disappears. The
appliance switches itself on again
automatically.
. . . the timer display is dark when
the appliance is first switched on.
This is not a fault.
If the time of day has been switched
off, the display stays dark.
If the “f” and “)” buttons are pressed at the same time “12.00" appears
in the display field.
. . . the time of day cannot be entered
after a power cut.
This is not a fault.
Check whether the oven function selector was still set to one of the functions. If it was, turn it to “0".
The time of day can now be entered.
. . . The residual time indicator is not
activated when cooking with the
roast probe;
the energy-save function is not activated when cooking with the roast
probe or the timer.
If this fault message occurs repeatedly, This is not a fault.
please inform the Service dept. Plea- Certain conditions must be fulfilled bese quote the fault message.
fore the system controlling residual
time or the energy-save function comes
If any other fault message appears
into operation. Sometimes these do not
in the display, this will need a service
occur.
visit. Please quote the fault message.
62
After sales service
In the event of faults which you cannot
remedy yourself, please contact:
– your Miele Dealer
or
– the nearest Miele Service Department, (see address on the back
page).
When contacting the Service dept,
please quote the Model and Serial number of your appliance, both of which
are shown on the data plate, visible below the control panel, with the oven
door open.
If you have an oven and hob combination also give the number of your hob.
Space for hob data plate
63
Electrical connection U.K.
All electrical work should be undertaken by a competent person in
strict accordance with national and
local safety regulations.
The voltage and rated load are given
on the data plate, located to the right
underneath the oven control panel, visible when the oven door is open. Please
ensure that these match the household
mains supply. Please quote these data,
and the model and serial number when
contacting the Miele Service dept.
Connection of this appliance should be
made either via a fused connection unit
(rated load under 3000 W), or via a suitable isolator (rated load over 3000 W),
which complies with national and local
regulations, and which is accessible after the appliance has been built in.
Important
The “B” model is supplied with a 3-core
cable for connection to a 230-240 volt
50 Hz supply, with 20 amp fusing.
The wires are coloured in accordance
with the following code:
Green/yellow
Blue
Brown
64
= earth
\}
WARNING
THIS APPLIANCE MUST BE
EARTHED.
Non-rewireable plugs BS 1363
If this machine or appliance is fitted
with a non-rewireable plug, the following information applies:
If the socket outlets are not suitable for
the plug supplied with this product, it
must be cut off and an appropriate
plug fitted.
The plug cut from the flexible cord
should be disposed of and on no account be inserted into any socket elsewhere in the house (electric shock hazard).
The fuse cover must be refitted when
changing the fuse, and if the fuse cover is lost, the plug must not be used
until a suitable replacement is obtained. The colour of the correct replacement is that of the coloured insert
in the base of the plug, or the colour
that is embossed in words in the base
of the plug (as applicable to the design
of plug fitted). The correct fuse rating
of the replacement fuses that are ASTA
approved to BS 1362 should be fitted.
Replacement fuse covers may be
purchased from your local electrical
suppliers, or Miele Service Agent.
= neutral
= live
In other countries check these details
with your supplier.
Electrical connection U.K.
Oven with integrated
hob controls “E” model
This is not available in all countries.
For some countries the version of the
oven with integral hob controls is supplied for connection to a 3N ~ 400 v power supply.
Any adaptations must only be carried
out in consultation with the relevant
Miele Service Dept.
Possible combinations
The version of the built-in oven with
hob controls may only be combined
with one of the hobs listed below, and
the correct KSE electronic control for
that hob, (not all units are available in
every country):
Hob
Hob electronic
control unit
KM 240
KM 242
KM 243
KM 245
KM 246
KM 247
KM 248
KSE 202-1
KM 251
KSE 204-1
\
The voltage and rated load are given on
the data plate, visible when the oven
door is open. Please ensure that these
match the household mains supply.
The appliance is supplied with a 3-core
cable for connection to a 230-240 volt
50 Hz supply.
\}
The fuse rating is 32 amps for the “E”model with hob.
The fuse rating is 16 amps for the “B”model.
The wires are coloured in accordance
with the following code:
Green/yellow = earth
Blue = neutral
Brown
= live
WARNING
THIS APPLIANCE MUST BE
EARTHED.
}
Data relating to electrical connection
will be found on the data plate, visible
when the oven door is open. Make sure
that these figures comply with the main
voltage. Connection should be made
via a suitable isolator which complies
with national and local regulations.
The appliance is supplied with a 3-core
cable for connection to a 230-240 volt
50 Hz supply.
The fuse rating is 32 amps for the “E”model with hob.
The fuse rating is 16 amps for the “B”model.
The wires are coloured in accordance
with the following code:
Green/yellow = earth
Blue = neutral
Brown
= live
WARNING
THIS APPLIANCE MUST BE
EARTHED.
65
Installation instructions
"E" model underbench-oven
with hob controls (cooker),
and KSE hob electronic control unit
Pull the control knobs for the hob
and the cooker plugs out of the insert retainers.
Turn off the mains electricity supply
to the isolator.
Install the hob, see separate instructions.
Connect the oven to the electricity
supply by the isolator.
Align the cooker in front of the base
unit.
66
Fit the KSE hob electronic unit into
place.
Installation instructions
The plugs on the cooker / hob and
the sockets on the hob electronic
control are coded with the same colour for matching.
Loosen the screws in the decor
strips and remove the decor strips.
Do not unscrew the screws completely.
Place the oven into the oven housing
unit as far as the oven trim and align.
Insert the hob control knobs into the
control facia.
Fit the cooker plugs into their
sockets.
Open the oven door and using two
screws secure the oven to the side
walls of the housing unit through the
holes in the oven trim.
Then fit the hob plugs into their
sockets.
Put the decor strips back in place
and screw in.
The appliance must only be operated when it has been built-in.
67
Installation instructions
Wall Oven
Turn off the mains electricity supply
to the isolator or fused unit.
Connect the oven to the electricity
supply by the isolator or fused unit.
Loosen the screws in the decor
strips and remove the decor strips.
Open the oven door and using two
screws secure the oven to the side
walls of the housing unit through the
holes in the oven trim.
Do not unscrew the screws completely.
Put the decor strips back in place
and screw in.
Place the oven into the oven housing
unit as far as the oven trim and align.
The appliance must only be operated when it has been built in.
68
Installation situations
Pay particular attention to the distances necessary in the following installation
situations for appliances H 247 ET and H 247 B:
69
Extra accessories
These are available at extra cost from
your Dealer or the Miele Domestic Sales dept.
– Anti-splash tray
to be placed in the grill pan
when grilling
– handle
The juices from the food being grilled
are gathered under the anti-splash tray,
rather than being dried out, and they
can then be used in sauces etc.
To take the baking trays or the roasting / grill pan out of the oven, or to
put them into it.
70
71
Alteration rights reserved / 22 / 000
GB / IRL / ZA – 2197
M.-Nr. 04 758 110
This paper consists of cellulose which has been bleached without the use of chlorine.
