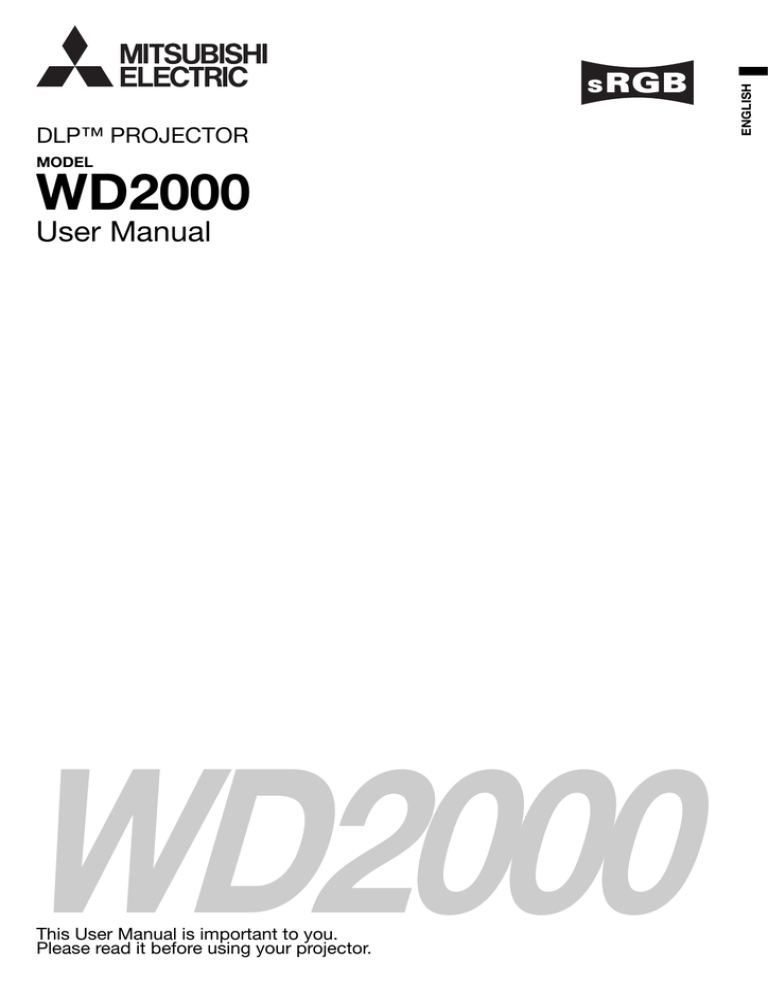

MODEL
WD2000
User Manual
WD2000
This User Manual is important to you.
Please read it before using your projector.
ENGLISH
DLP™ PROJECTOR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert
the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
NOTE:
SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE
EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.
WARNING
Use the attached specified power supply cord. If
you use another power-supply cord, it may cause
interference with radio and television reception.
Use the attached RGB cable and RS-232C cable with
this equipment so as to keep interference within the
limit of a FCC Class B device.
This apparatus must be grounded.
DO NOT LOOK DIRECTLY INTO THE LENS WHEN
THE PROJECTOR IS IN THE POWER ON MODE.
CAUTION
Not for use in a computer room as defined in the
Standard for the Protection of Electronic Computer/
Data Processing Equipment, ANSI/NFPA 75.
EN-2
When using the projector in Europe:
COMPLIANCE NOTICE
This Projector complies with the requirements of the
EC Directive 89/336/EEC “EMC Directive” as amended
by Directive 92/31/EEC and 93/68/EEC, and 73/23/
EEC “Low Voltage Directive” as amended by Directive
93/68/EEC.
The electro-magnetic susceptibility has been chosen
at a level that gains proper operation in residential
areas, on business and light industrial premises and
on small-scale enterprises, inside as well as outside of
the buildings. All places of operation are characterised
by their connection to the public low voltage power
supply system.
WARNING
Use the attached RGB cable and RS-232C cable with
this equipment so as to keep interference within the
limits of an EN55022 Class B device.
Please follow WARNING instructions.
Important safeguards ........................................................................................................................4
Preparing your projector....................................................................................................................6
Using the remote control ...................................................................................................................9
Setting up your projector.................................................................................................................10
Viewing computer images ...............................................................................................................13
Viewing video images ......................................................................................................................17
Menu operation ...............................................................................................................................22
Adjusting projected images .............................................................................................................25
Advanced features ..........................................................................................................................28
Indicators.........................................................................................................................................31
Replacing the lamp .........................................................................................................................32
Troubleshooting ...............................................................................................................................34
Specifications ..................................................................................................................................37
Note: This symbol mark is for EU countries only.
This symbol mark is according to the directive 2002/96/EC Article 10
Information for users and Annex IV.
Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components
which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from
your household waste.
Please, dispose of this equipment at your local community waste collection/recycling centre.
In the European Union there are separate collection systems for used electrical and electronic product.
Please, help us to conserve the environment we live in!
Declaration of Conformity
Model number :
WD2000
Trade name :
MITSUBISHI ELECTRIC
Responsible party : Mitsubishi Digital Electronics America, Inc.
9351 Jeronimo Road, Irvine, CA 92618 U.S.A
Telephone number : +1-(949) 465-6000
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Trademark, Registered trademark
• DLP™, Digital Micromirror Device, DMD and BrilliantColor™ are all trademarks of Texas Instruments.
• Microsoft or Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States
and/or other countries.
• The trademark of PJLink is trademark applied for registration or registered trademark in Japan, the United States,
and other countries and areas.
• Other brand or product names are trademarks or registered trademarks of their respective holders.
EN-3
ENGLISH
Contents
Important safeguards
Please read all these instructions regarding your
projector and retain them for future reference. Follow
all warnings and instructions marked on the projector.
1. Read instructions
All the safety and operating instructions should be
read before the appliance is operated.
2. Retain instructions
The safety and operating instructions should be
retained for future reference.
3. Warnings
All warnings on the appliance and in the operating
instructions should be adhered to.
4. Instructions
All operating instructions must be followed.
5. Cleaning
Unplug this projector from the wall outlet before
cleaning it. Do not use liquid aerosol cleaners. Use
a damp soft cloth for cleaning.
6. Attachments and equipment
Never add any attachments and/or equipment
without the approval of the manufacturer as such
additions may result in the risk of fire, electric
shock or other personal injury.
7. Water and moisture
Do not use this projector near water or in contact
with water.
8. Accessories
Do not place this projector on an unstable cart,
stand, tripod, bracket or table. Use only with a
cart, stand, tripod bracket, or table recommended
by the manufacturer or sold with the projector.
Any mounting of the appliance should follow
the manufacturer’s instructions and should use
a mounting accessory recommended by the
manufacturer.
An appliance and cart combination should be
moved with care. Quick stops, excessive force and
uneven surfaces may cause the appliance and cart
combination to overturn.
9. Ventilation
Slots and openings in the cabinet are provided
for ventilation, ensuring reliable operation of the
projector and to protect it from overheating. Do not
block these openings or allow them to be blocked
by placing the projector on a bed, sofa, rug, or
bookcase. Ensure that there is adequate ventilation
and that the manufacturer’s instructions have been
adhered to.
EN-4
10. Power sources
This projector should be operated only from the
type of power source indicated on the marking
label. If you are not sure of the type of power,
please consult your appliance dealer or local
power company.
11. Power-cord protection
Power-supply cords should be routed so that
they are not likely to be walked on or pinched
by items placed upon or against them. Pay
particular attention to cords at plugs, convenience
receptacles, and points where they exit from the
appliance. Do not put the power cord under a
carpet.
12. Overloading
Do not overload wall outlets and extension cords
as this can result in a fire or electric shock.
13. Objects and liquids
Never push objects of any kind through openings
of this projector as they may touch dangerous
voltage points or short-out parts that could result
in a fire or electric shock. Never spill liquid of any
kind on the projector.
14. Servicing
Do not attempt to service this projector by yourself.
Refer all servicing to qualified service personnel.
15. Damage requiring service
Unplug this projector from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
(a) If the power-supply cord or plug is damaged.
(b) If liquid has been spilled, or objects have fallen
into the projector.
(c) If the projector does not operate normally after
you follow the operating instructions. Adjust
only those controls that are covered by the
operating instructions. An improper adjustment
of other controls may result in damage and
may often require extensive work by a qualified
technician to restore the projector to its normal
operation.
(d) If the projector has been exposed to rain or
water.
(e) If the projector has been dropped or the
cabinet has been damaged.
(f) If the projector exhibits a distinct change in
performance - this indicates a need for service.
16. Replacement parts
When replacement parts are required, be sure
that the service technician has used replacement
parts specified by the manufacturer or parts
having the same characteristics as the original
part. Unauthorized substitutions may result in fire,
electric shock or other hazards.
17. Safety check
Upon completion of any service or repair to this
projector, ask the service technician to perform
safety checks determining that the projector is in a
safe operating condition.
Do not look into the air outlet grille when
projector is operating.
Heat, dust, etc. may blow out of it and hurt your eyes.
Do not operate if smoke, strange noise or odor comes
out of your projector. It might cause fire or electric
shock. In this case, unplug immediately and contact
your dealer.
Do not block the air inlet and outlet grilles.
Never remove the cabinet.
Place of installation
This projector contains high voltage circuitry. An
inadvertent contact may result in an electric shock.
Except as specifically explained in the User Manual do
not attempt to service this product by yourself. Please
contact your dealer when you want to fix, adjust or
inspect the projector.
For safety’s sake, refrain from setting the projector
at any place subjected to high temperature and high
humidity. Please maintain an operating temperature,
humidity, and altitude as specified below.
• Operating temperature: between +41°F (+5°C) and
+104°F (+40°C)
• Operating humidity: between 30% and 90%
• Never put any heat-producing device under the
projector so that the projector does not overheat.
• Do not attach the projector to a place that is
unstable or subjected to vibration.
• Do not install the projector near any equipment that
produces a strong magnetic field. Also refrain from
installing near the projector any cable carrying a
large current.
• Place the projector on a solid, vibration free surface;
otherwise it may fall, causing serious injury to a
child or adult, and serious damage to the product.
• Do not stand the projector; it may fall, causing
serious injury and damage to the projector.
• Slanting the projector more than ±10°(right and
left) or ±30°(front and rear) may cause trouble or
explosion of the lamp. When you use the projector
in a tilted position, however, secure it to prevent it
from slipping down.
• Do not place the projector near air-conditioning
unit or heater to avoid hot air to the exhaust and
ventilation hole of the projector.
Do not modify this equipment.
It can lead to fire or electric shock.
Do not keep using the damaged projector.
If the projector is dropped and the cabinet is damaged, unplug the projector and contact your dealer
for inspection. It may lead to fire if you keep using the
damaged projector.
Do not face the projector lens to the sun.
It can lead to fire.
Use correct voltage.
If you use incorrect voltage, it can lead to fire.
Do not place the projector on uneven
surface.
Place the projection on a leveled and stable surface
only. Please do not place equipment on unstable
surfaces.
Do not look into the lens when it is
operating.
It may hurt your eyes. Never let children look into the
lens when it is on.
If they are blocked, heat may be generated inside the
projector, causing deterioration in the projector quality
and fire.
Do not touch the air outlet grille and
bottom plate, which become hot.
Do not touch them or put other equipment in front
of the air outlet grille. The air outlet grille and bottom
plate, when heated, may cause injury or damage to
other equipment. Also, do not set the projector on the
desk which is easily affected by heat.
COMPLIANCE NOTICE OF FCC
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
•
•
•
•
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced Radio / TV technician for help.
Changes or modifications not expressly approved by Mitsubishi could void the user’s authority to operate this
equipment.
COMPLIANCE NOTICE OF INDUSTRY CANADA
This Class B digital apparatus complies with Canadian ICES-003.
EN-5
ENGLISH
WARNING:
Unplug immediately if there is something
wrong with your projector.
Preparing your projector
Checking accessories
The following accessories are provided with this projector. Check to be sure that all of the accessories are packed in
the package.
Cables
Mini D-SUB
15-pin
USB 4-pin
(type B)
USB 4-pin
(type A)
Audio/Video cable
(246C381-10)
USB cable
(246C509-10)
D-SUB 9-pin
Mini D-SUB
15-pin
D-SUB 9-pin
RGB cable for PC
(246C521-10)
RS-232C cable
(246C548-10)
• Used for projector control
by computer.
Power supply parts
Remote control parts
Remote control
cable
(246C424-10)
Others
• Lens cap (Attached to the
projector)
• Terminal cover (750A561-10)
• CD-ROM (919C151-20)
• Safety Manual / Quick Start up
(871D468-20)
Power cord (two)
(246C483-10, 246C383-20)
Remote control
(290P136-30)
R6 (size-AA)
battery (two)
Important:
• The attached power cords are to be used exclusively for this product. Never use them for other products.
Inserting the batteries into the remote control
1
3
2
1. Remove the rear lid of the remote control.
2. Check the polarity (+), (-) of the batteries, and set them
correctly, inserting their (-) side first.
• If the battery is inserted from the (+) side first, inserting
the (-) side is difficult because the coil spring end hits on
the battery side. If the battery is forced to insert in this
way, the outer label of the battery may get ripped and it
may cause a short-circuit and heating.
3. Attach the rear lid.
Important:
• Use two size-AA batteries (R6).
• Replace the 2 batteries with new ones when the remote
control is slow to operate.
CAUTION:
• Use of a battery of wrong type may cause explosion.
• Only Carbon-Zinc or Alkaline-Manganese Dioxide type batteries should be used.
• Dispose of used batteries according to your local regulations.
• Batteries may explode if misused. Do not recharge, disassemble, or dispose of them in fire.
• Be sure to handle the batteries according to the instructions.
• Load the batteries with its positive (+) and negative (-) sides correctly oriented as indicated on the remote control.
• Keep batteries out of reach of children and pets.
• Remove the batteries, if the remote control is not used for a long time.
• Do not combine a new battery with an old one.
• If the solution of batteries comes in contact with your skin or clothes, rinse with water. If the solution comes in
contact with your eyes, rinse them with water and then consult your doctor.
EN-6
1
2
6
3
5
4
7
11
POWER STATUS
10
2
AUTO POSITION
3
KEYSTONE
ENTER
COMPUTER
4
5
VIDEO
6
9
8
VOLUME
MENU
ZOOM/FOCUS
Speaker
Control panel (inside the cover)
Air outlet grille
Remote control sensor (Front)
Air inlet grille
Remote control sensor (Rear)
Terminal board
Air outlet grille
1
2
3
4
5
6
7
8
9
10
11
POWER button
AUTO POSITION / button
COMPUTER / button
KEYSTONE / ENTER button
MENU button
ZOOM/FOCUS button
LENS SHIFT button
VOLUME / button
VIDEO / button
POWER indicator
STATUS indicator
8
Control panel
1
1
2
3
4
5
6
7
8
ENGLISH
Overview
7
LENS SHIFT
Important:
• While the menu or the screen for the keystone, lens shift and zoom/focus adjustment, or password entry is being
displayed, the COMPUTER, VIDEO, AUTO POSITION and VOLUME buttons function as the , , and buttons respectively.
• While the menu is on the screen, the KEYSTONE button functions as the ENTER button.
Terminal board
1
8
9
2
3
4
5
10 11 12 13 1415
6
7
16
1 LAN terminal
• Used for projector control by computer.
2 COMPUTER/COMPONENT VIDEO DVI-D(HDCP)
terminal (DVI-D 24-pin)
3 COMPUTER/COMPONENT VIDEO IN-2 terminals
(R/PR, G/Y, B/PB, H/HV, V) (BNC)
4 COMPUTER/COMPONENT VIDEO IN-1 terminal
(Mini D-SUB 15-pin)
5 AUDIO IN-1 terminal (Mini jack)
6 Power terminal for wireless LAN unit (DC OUT 5V
1.5A MAX)
• Do not use the power terminal as a power for
other devices than the specified wireless LAN
unit. (Wireless LAN unit isn’t packaged together
with the projector.)
7 Kensington Security Lock Standard connector
8 Main power switch
O : OFF
I : ON
9 Power jack
10 USB terminal
11 SERIAL terminal (D-SUB 9-pin)
• Used for projector control by computer. Contact your dealer for details.
12 REMOTE IN and OUT terminals
13 MONITOR OUT terminal (Mini D-SUB 15-pin)
14 AUDIO OUT terminal (Mini jack)
15 AUDIO IN-2 terminal (Mini jack)
16 VIDEO IN and AUDIO IN terminals
EN-7
Preparating your projector (continued)
Bottom side
1 Lamp cover
2 Adjustment feet
1
Caution:
Do not replace the lamp immediately after using the
projector because the lamp would be extremely hot
and it may cause burns.
2
Remote control
1
3
2
4
5
6
7
8
9
COMPUTER
1
2
VIDEO
S-VIDEO
HOME
Page Up
AUTO POSITION
END
Page Down
LASER
DVI-D(HDCP)
22
10
11
12
13
14
MENU
R-CLICK
ZOOM / FOCUS LENS SHIFT
VOLUME
CE
15
27
26
25
24
23
MUTE
ENTER
KEYSTONE
ASPECT
STILL
21
20
19
18
17
28
1 Laser aperture
2 Transmission window
3 Wired remote control jack
4 Indicator
5 POWER button
6 VIDEO button
7 DVI-D(HDCP) button
8 HOME button
9 END button
10 Mouse pointer
11 LENS SHIFT button
12 MENU button
13 ZOOM/FOCUS button
14 + , - (VOLUME) buttons
15 COLOR ENHANCER (CE) button
16 MUTE button (Audio/Video)
17 STILL button
18 ASPECT button
19 KEYSTONE button
20 ENTER button
21 R-CLICK button
22 Direction buttons
23 LASER button
24 AUTO POSITION button
25 Page Up and Page Down buttons
26 S-VIDEO button
27 COMPUTER 1, 2 buttons
28 Left click button
16
• The + and - buttons are used in the KEYSTONE adjustment in addition to the volume control.
• The direction buttons are also used for keystone and lens shift adjustments. The and buttons are also used
for zoom/focus adjustment.
• Pressing the LASER button emits a laser beam. Even when you keep holding down the LASER button, it is emitted
only one minute. To keep emitting it longer, press the LASER button again.
• You can disable the LASER button to prevent laser radiation due to misuse of the button.
How to disable the LASER button
While holding the LASER button down, press the button 3 times.
How to enable the LASER button
While holding the LASER button down, press the button 3 times.
• Whenever the batteries are replaced, the LASER button is enabled.
About the laser beam
This remote control is a Class 2 laser product. (Max. output : 1 mW, Wavelength : 620-640 nm)
Beam Divergence : 6 m distance about 10.0 mm x 10.0 mm (±6.0 mm)
CAUTION:
• Pressing the LASER button on the remote control emits a laser beam. Do not look into the laser beam directly. Do
not point the laser beam at anyone. Looking at the laser beam directly may damage eyesight.
• Use of controls or adjustments or procedures other than those specified herein may result in hazardous radiation exposure.
• This remote controller cannot be repaired.
EN-8
Using the remote control
Rear of projector
Front of projector
30°
30°
30°
Operate the remote
control within a distance
of 10 m from the projector,
pointing the light beam at
the remote control photosensor (front or rear) of
the projector.
30°
• Keep the remote control photo-sensor out of direct
sunlight or fluorescent lamp light.
• Keep the remote control photo-sensor at least 2 m
away from fluorescent lamps. Otherwise, the remote
control may malfunction.
• If there is an inverter-operated fluorescent lamp
near the remote control, the remote control operation may become unstable.
• When you use the remote control too close to the
remote control sensor, the remote control may not
work correctly.
When operating the remote control, keep the
distance from the remote control to the projector
via the screen within about 7 m. The operable
range of the remote control, however, depends
on the characteristics of the screen.
Reception angle
Vertical directions
20°
20°
5°
5°
Vertical directions (ceiling mount)
20°
20°
Using the wired remote control
Attached remote control for this projector can be used as a wired remote control with remote control cable. Wired
remote control is useful for operating in a distance or outside of the operation area.
• When the remote control is connected with remote control cable, it does not function as a wireless remote control.
• When using the wired remote control, the laser beam may be darker. It is normal.
• When REMOTE OUT terminal on
this projector is connected to the
REMOTE IN terminal on the other
projector, the two projectors can
be controlled together by using
the remote control. (Up to two
projectors can be controlled.)
REMOTE IN
REMOTE OUT
EN-9
ENGLISH
Operational range of the remote control
Setting up your projector
Setting up the screen
Install the screen perpendicularly to the projector. If the screen can not be installed in such a way, adjust the
projection angle of the projector. (See below.)
• Install the screen and projector so that the projector’s lens is placed at the same height and horizontal position of
the screen center.
• Do not install the screen where it is exposed to direct sunlight or lighting. Light directly reflecting on the screen
makes the projected images whitish and hard to view.
Basic setup
Determine the distance from the screen to the projector according to the size of the images to be projected. (See
page 12.)
W
A
B
A=B
• Do not place this projector on a carpet or blanket because the exhaust vent and the intake vent on the bottom
surface are blocked and the inside of the projector is heated, causing a breakdown or fire.
• Depending on the installation conditions, warm air that is emitted from the exhaust vents may flow into the intake
vent, causing the projector to display “TEMPERATURE!!” and then stop projecting images.
Adjusting the projection angle
This projector is provided with 2 feet for adjusting
the projection angle on the bottom surface. Adjust
the projection angle depending on the position of
the projector.
Adjustment of the projection angle
For the best projection, project images on a flat
screen installed at 90 degrees to the floor. If
necessary, tilt the projector using 2 adjustment feet
on the bottom of the projector.
Screen
Adjustment feet
1. Tilt up the projector to the appropriate angle.
2. Rotate the adjustment feet for fine adjustment.
After using the projector:
3. Put the adjustment feet back into the projector
by rotating the adjustment feet.
• You can adjust the vertical and horizontal position
of the displayed image using the LENS SHIFT button. See page 11.
Keystone adjustment
• To correct vertical and horizontal keystone distortion, press the KEYSTONE button on the projector
or the remote control to display KEYSTONE, and
adjust the image by pressing the , , or button (or VOLUME + or - button on the remote
control).
EN-10
Press the button.
Press the button.
Press the (or -) button.
Press the (or +) button.
• You can correct the vertical and horizontal keystones at the same time. However, their adjustment ranges are limited in such correction.
• When the keystone adjustment is carried out, the
adjustment value is indicated. Note that this value
doesn’t mean a projection angle.
• The allowable range of the adjustment value in
the keystone adjustment varies depending on the
installation conditions.
• When the keystone adjustment takes effect, the
resolution decreases. In addition, stripes may
appear or straight lines may bend in images with
complicated patterns. They are not due to product
malfunctions.
• Noise may appear on the screen during the keystone adjustment because of the type of the video
signal being projected and the setting values of
the keystone adjustment. In such cases, set the
keystone adjustment values in the range where
the image is displayed without noise.
• When the keystone adjustment is carried out, the
image may not be displayed correctly because of
the type of input signal.
• Displayed image may be distorted during keystone
adjustment.
• For proper keystone adjustment results, reset the
lens to the factory-adjusted position using LENS
SHIFT RESET in the INSTALLATION menu before
carrying out keystone adjustment. (See page 23.)
• When using the projector mounted on the ceiling,
set IMAGE REVERSE in the INSTALLATION menu to
MIRROR INVERT. See page 23.
• When the projector is mounted on the ceiling, images may appear darker than those projected in
the case of tabletop mounting. This isn’t a product
malfunction.
• Ask your installation specialist to provide a breaker.
When you do not use the projector, be sure to shut
down the main power by the breaker.
• Do not install the projector where the exhaust vents
are exposed to air emitted by an air conditioning.
Such installation may cause a breakdown.
• Do not install the projector near a fire alarm because
it emits hot air from its exhaust vents.
Rear projection
Ask a specialist for installation. For details, consult
your dealer.
• For rear projection, set IMAGE REVERSE in the
INSTALLATION menu to MIRROR. See page 23.
Caution:
• Placing the projector directly on a carpet impairs
ventilation by the fans, causing damage or failure.
Put a hard board under the projector to facilitate
ventilation.
• Place the projector at least 50 cm (or 20 inches)
away from the wall to prevent the air inlet grille and
the air outlet grilles that emit hot air from being
blocked.
• Do not use the projector in the following locations
and manners, which may cause fire or electric
shock.
• In a dusty or humid place.
• In a sideways or upside-down position.
• Near a heater.
• In an oily, smoky, or damp place such as a kitchen.
• In direct sunlight.
• Where the temperature rises high, such as in a
closed car.
• Where the temperature is lower than +41ºF (or
+5ºC) or higher than +104ºF (or +40ºC ).
Important:
• We don’t recommend using the projector at an altitude of 1500 meters or higher. Use at an altitude of
1500 meters or higher may affect the projector’s life.
LENS SHIFT button
To adjust the positions of the projector and the screen,
use LENS SHIFT button.
1. Press the LENS SHIFT button.
2. Press the , , or button to move the image
position.
• Every time the button is pressed, the image
moves down.
• Every time the button is pressed, the image
moves up.
• Every time the button is pressed, the image
moves to the right.
• Every time the button is pressed, the image
moves to the left.
• When you hold down these buttons for 2 seconds
or longer, the displayed image moves fast in the
corresponding directions.
• Be careful not to be caught in the opening in the
lens while the lens is moving.
EN-11
ENGLISH
Front projection, ceiling mounting
For ceiling mounting, you need the ceiling mount kit
designed for this projector. Ask a specialist for installation. For details, consult your dealer.
• The warranty on this projector does not cover any
damage caused by use of any non-recommended
ceiling mount kit or installation of the ceiling mount
kit in an improper location.
Setting up your projector (continued)
Screen size and projection distance
Refer to the following table to determine the screen size.
W1
B
Hd
H1
A
H2
W1
L
When the aspect ratio of the screen is 16:9
Screen size
Diagonal size Height A
inch cm inch cm
40 102 20
50
60 152 29
75
80 203 39 100
100 254 49 125
150 381 74 187
200 508 98 249
250 635 123 311
275 699 135 342
•
•
Projected distance (L)
Width B
inch cm
35
89
52 133
70 177
87 221
131 332
174 443
218 553
240 609
Hd
inch cm
3.4
9
5.2
13
6.9
17
8.6
22
12.9 33
17.2 44
21.5 55
23.7 60
Min.
Max.
inch m inch m
59
1.5
82
2.1
91
2.3 124 3.2
122 3.1 166 4.2
153 3.9 209 5.3
230 5.9 314 8.0
308 7.8 420 10.7
386 9.8 525 13.3
425 10.8 578 14.7
Lens movable range
(H1)
inch
cm
13
33
20
50
26
66
33
83
49
125
65
166
82
208
90
228
(H2)
inch
cm
2
6
4
9
5
12
6
16
9
23
12
31
15
39
17
43
(W1)
inch
cm
3
9
5
13
7
18
9
22
13
33
17
44
22
55
24
61
The above figures are approximate and may be slightly different from the actual measurements.
The lens movable range shows distances from the factory default position.
W1
W1
A
H1
D
C
D
When the aspect ratio of the screen is 4:3, the positional
relation between the projected image and the screen is as
shown on the right. Refer to the following table for installation.
H2
When the aspect ratio of the screen is 4:3
B
When the aspect ratio of the image is 16:9
Screen size
Diagonal size
inch cm
40 102
60 152
80 203
100 254
150 381
200 508
250 635
300 762
Height C
inch cm
24
61
36
91
48 122
60 152
90 229
120 305
150 381
180 457
Size of the projected image
Width B
inch cm
32
81
48 122
64 163
80 203
120 305
160 406
200 508
240 610
Height A
inch cm
18
46
27
69
36
91
45 114
68 171
90 229
113 286
135 343
Width B
inch cm
32
81
48 122
64 163
80 203
120 305
160 406
200 508
240 610
Black
space (D)
inch
3
5
6
8
11
15
19
23
cm
8
11
15
19
29
38
48
57
Projected distance (L)
Hd
inch
3.2
4.7
6.3
7.9
11.9
15.8
19.8
23.7
cm
8
12
16
20
30
40
50
60
Min.
inch
m
54
1.4
82
2.1
110
2.8
138
3.5
208
5.3
279
7.1
349
8.9
419 10.6
Max.
inch
m
74
1.9
112
2.8
150
3.8
189
4.8
284
7.2
380
9.7
476 12.1
571 14.5
Lens movable range
(H1)
inch
cm
12
30
18
46
24
61
30
76
45
114
60
152
75
191
90
229
(H2)
inch
cm
2
6
3
9
4
11
6
14
8
21
11
28
14
36
17
43
(W1)
inch
cm
3
8
5
12
6
16
8
20
12
30
16
41
20
51
24
61
When the aspect ratio of the image is 15:9 (WXGA)
Screen size
Diagonal size
inch cm
40 102
60 152
80 203
100 254
150 381
200 508
250 635
300 762
•
•
Height C
inch cm
24
61
36
91
48 122
60 152
90 229
120 305
150 381
180 457
Size of the projected image
Width B
inch cm
32
81
48 122
64 163
80 203
120 305
160 406
200 508
240 610
Height A
inch cm
19
49
29
73
38
98
48 122
72 183
96 244
120 305
144 366
Width B
inch cm
32
81
48 122
64 163
80 203
120 305
160 406
200 508
240 610
Black
space (D)
inch
2
4
5
6
9
12
15
18
cm
6
9
12
15
23
30
38
46
Projected distance (L)
Hd
inch
2.6
3.8
5.1
6.4
9.6
12.8
16.0
19.2
cm
7
10
13
16
24
33
41
49
Min.
inch
m
54
1.4
82
2.1
110
2.8
138
3.5
208
5.3
279
7.1
349
8.9
419 10.6
Max.
inch
m
74
1.9
112
2.8
150
3.8
189
4.8
284
7.2
380
9.7
476 12.1
571 14.5
The above figures are approximate and may be slightly different from the actual measurements.
The lens movable range shows distances from the factory default position.
EN-12
Lens movable range
(H1)
inch
cm
12
30
18
46
24
61
30
76
45
114
60
152
75
191
90
229
(H2)
inch
cm
2
6
3
9
4
11
6
14
8
21
11
28
14
36
17
43
(W1)
inch
cm
3
8
5
12
6
16
8
20
12
30
16
41
20
51
24
61
Viewing computer images
Preparation:
• Make sure that the power of the projector and that of the computer are turned off.
• When connecting the projector to a desktop computer, disconnect the RGB cable that is connected to the monitor.
Computer
COMPUTER/COMPONENT
VIDEO IN-1
1
2
To monitor port
For analog connection:
(For using the COMPUTER/COMPONENT VIDEO IN-1
terminal.)
1. Connect one end of the supplied RGB cable to the
COMPUTER/COMPONENT VIDEO IN-1 terminal of the
projector.
2. Connect the other end of the RGB cable to the monitor
port of the computer.
RGB cable
• When viewing images supplied from an analog-connected
computer, press the COMPUTER 1 button on the remote
control.
For analog connection:
(For using the COMPUTER/COMPONENT VIDEO IN-2
terminal.)
1. Connect one end of a commercially available BNC cable to
the COMPUTER/COMPONENT VIDEO IN-2 terminal of the
projector.
Computer
COMPUTER/COMPONENT
VIDEO IN-2
R/PR G/Y B/PB H/HV V
1
To monitor port
(5 BNC)
2
• When viewing images supplied from an analog-connected
computer, press the COMPUTER 2 button on the remote
control.
V H/HV B/PB G/Y R/PR
BNC cable (option)
Computer
For digital connection:
1. Connect one end of a commercially available DVI cable
to the COMPUTER/COMPONENT VIDEO DVI-D(HDCP)
terminal of the projector.
COMPUTER/COMPONENT
VIDEO DVI-D(HDCP)
1
2
2. Connect the other end of the BNC cable to the 5 BNC
terminals of the monitor port of the computer.
2. Connect the other end of the DVI cable to the DVI terminal
of the computer.
To DVI
• When viewing images supplied from a digital-connected
computer, press the DVI-D(HDCP) button on the remote
control.
• Turn on the main power switch of the projector before
starting the computer.
DVI cable (option)
For audio connection:
1. Connect one end of a commercially available PC audio
cable to the AUDIO IN-1/2 terminal of the projector.
Computer
2. Connect the other end of the PC audio cable to the audio
output terminal of the computer.
1
AUDIO IN
AUDIO OUT
PC audio cable (option)
2
To audio output
terminal
• This projector uses stereo pin jack for its audio input. Check
the type of the audio output terminal of the connected
computer and prepare a proper cable for connection. Some
computers don’t have the audio output terminal.
• Speaker output is mono.
• Additional devices, such as a conversion connector and an analog RGB output adapter, are required depending
on the type of the computer to be connected.
• Use of a long cable may decrease the quality of projected images.
• Images may not be projected correctly, depending on the type of the connected computer.
• When DVI-D signal is input, some signal setting menus are unavailable.
• Also read the instruction manual of the equipment to be connected.
• Contact your dealer for details of connection.
EN-13
ENGLISH
A. Connecting the projector to a computer
Viewing computer images (continued)
For monitor connection:
1. Connect one end of the RGB cable that is connected to the
MONITOR OUT terminal of the projector.
Monitor
1
MONITOR OUT
RGB cable
1
To audio input
terminals
AUDIO OUT
2
Audio cable (option)
For audio output connection:
1. Connect one end of a commercially available audio cable
to the AUDIO OUT terminal of the projector.
2. Connect the other end (white and red) of the audio cable to
the audio input terminals (L, R) of the audio equipment.
• When the audio cable is connected to the AUDIO OUT terminal, the speaker output is muted.
About DDC
The COMPUTER/COMPONENT VIDEO IN-1 terminal of this projector complies with the DDC1/2B standard and the
COMPUTER/COMPONENT VIDEO DVI-D(HDCP) terminal complies with the DDC2B standard. When a computer
supporting this standard is connected to this terminal, the computer will automatically load the information from this
projector and prepare for output of appropriate images.
• When connecting a DDC-supporting computer to the projector, turn on the main power switch of the projector
before starting the computer.
B. Plugging the power cord
1. Plug the attached power cord into the power cord inlet of
this projector.
Earthing terminal
1
2. Plug the other end of the power cord into a power outlet.
2
Power cord (Example)
• The power cords for use in the U.S. and Europe are included with this projector. Use the appropriate one for your
country.
• This projector uses the power plug of 3-pin grounding type. Do not take away the grounding pin from the power
plug. If the power plug doesn’t fit your wall outlet, ask an electrician to change the wall outlet.
• The provided power cord for the U.S. is rated at 120 V. Never connect this cord to any outlet or power supply
using other voltages or frequencies than rated. If you use a power supply using other voltage than rated, prepare
an appropriate power cord separately.
• Use 100-240 V AC 50/60 Hz to prevent fire or electric shock.
• Do not place any objects on the power cord or do not place the projector near heat sources to prevent damage to
the power cord. If the power cord should be damaged, contact your dealer for replacement because it may cause
fire or electric shock.
• Do not modify or alter the power cord. If the power cord is modified or altered, it may cause fire or electric shock.
Caution:
• Plug in the power cord firmly. When unplugging, hold and pull the power plug, not the power cord.
• Do not plug in or out the power cord with your hand wet. It may cause electric shock.
Terminal cover
This projector includes a terminal cover. If necessary, install the terminal cover to the projector.
Install the terminal cover
1. Fit two hooks of the terminal cover into the
projector.
2. Tighten the attachment screws (a) firmly.
• Don’t carry the projector by the terminal cover.
(a)
EN-14
ENGLISH
C. Projecting images
Preparation:
• Remove the lens cap.
COMPUTER 1, 2 buttons
POWER button
DVI-D(HDCP) button
POWER button
POWER STATUS
AUTO POSITION
KEYSTONE
COMPUTER button
ENTER
COMPUTER
VIDEO
VOLUME
MENU
ZOOM/FOCUS button
LENS SHIFT button
ZOOM/FOCUS
LENS SHIFT
Main power switch
1. Put the projector into standby mode by pressing the main power switch. The POWER indicator lights up red.
• If the projector was turned off before the lamp was cooled down sufficiently last time, the fan may start rotating
and the POWER button may not work after the main power switch is turned ON. (The STATUS indicator blinks
green.) After the fan stops rotating, press the POWER button to turn back on the POWER indicator.
2. Turn on the power of the connected computer.
3. Press the POWER button.
• It may take about 1 minute for the lamp to light up.
• The lamp fails to light up on rare occasions. In such a case, wait for a few minutes and then try again.
• Do not cover the lens with the lens cap while the lamp is on. Do not strip off the aluminium sheet inside the
lens cap.
• After the POWER button is pressed, the image may flicker before the lamp becomes stable. This is not a product malfunction.
• Regardless of the setting of LAMP MODE in the INSTALLATION menu, the STANDARD lamp mode is activated
by default whenever the projector is turned on. When LAMP MODE has been set to LOW, the lamp mode
changes from STANDARD to LOW about 1 minute after turn-on.
• The projector starts warming up when the POWER button is pressed. During the warm-up process, images
may appear dark and no commands are accepted.
• By blinking red, the STATUS indicator indicates that the lamp should be replaced soon. Replace the lamp when
the STATUS indicator blinks red. (See page 31.)
4. Press the ZOOM/FOCUS button on the projector or on the remote control to display “FOCUS”.
5. Adjust with the or button to get a fine picture.
6. Select an input source.
• Press the COMPUTER button on the projector or the COMPUTER 1, COMPUTER 2 or DVI-D(HDCP) button on
the remote control that is corresponding to the terminal in use.
• The input source is switched from COMPUTER 1 to COMPUTER 2 to DVI at every press of the COMPUTER
button on the projector.
• The projector automatically selects the appropriate signal format. The selected signal format is displayed on
the screen.
• The COMPUTER, COMPUTER 1, COMPUTER 2 and DVI-D(HDCP) buttons don’t function while the menu is
being displayed.
• Though it may take some time before an image is displayed on the screen depending on the type of the input
signal, such symptom is not a malfunction.
• Images may not be projected in the correct position, depending on the type of the input signal. In such a case,
press the AUTO POSITION button. (See page 16.)
• When COMPUTER 1 or COMPUTER 2 is chosen as the source, images supplied from the computer may flicker.
Press the or button on the remote control to reduce flicker, if it occurs.
7. Adjust the position of the projector to keep an appropriate projection distance with which images are projected in
their specified sizes.
8. Adjust the position of the projector so that the projector and the screen are perpendicular to each other. (See page 10.)
• When the projector cannot be positioned perpendicularly to the screen, adjust the projection angle. (See page 10.)
9. Press the ZOOM/FOCUS button on the projector or on the remote control to display “FOCUS” and then press the
button again to display “ZOOM.”
10.Adjust with the or button to get an approximate size.
11.Press the LENS SHIFT button. “LENS SHIFT” will appear on the display.
12.Press the or button to adjust the vertical position and or button to adjust the horizontal position of the
displayed image.
Repeat steps 4, 5 and 9 to 12, if necessary.
Important:
• Focus, zoom and lens shift adjustment is possible in the normal picture mode only.
• When you press the ZOOM/FOCUS button or LENS SHIFT button while no signal is supplied, a blue background
screen is displayed.
• When a 16:9 image is kept displayed for a long time before displaying 4:3 image, the afterimages of the black bars
may appear on the 4:3 image screen. Consult your dealer in this case.
EN-15
Viewing computer images (continued)
POWER button
POWER STATUS
POWER button
AUTO POSITION
KEYSTONE
ENTER
COMPUTER
VIDEO
VOLUME
MENU
Main power switch
ZOOM/FOCUS
LENS SHIFT
To stop projecting:
13.Press the POWER button.
• A confirmation message is displayed.
• To cancel the procedure, leave the projector for a while or press any button except the POWER button.
14.Press the POWER button again.
• The lamp goes out and the projector goes into a standby mode. In this standby mode, the STATUS indicator
blinks green.
15.Wait about 2 minutes for the STATUS indicator to be turned off.
• During this period of 2 minutes in the standby mode, the intake fan and exhaust fan rotate to cool the lamp.
16.Turn off the main power switch.
• The POWER indicator will go out.
• Cover the lens with the lens cap to protect it from dust.
• For safety’s sake, unplug the power cord from the outlet.
• When you repeat turning off the main switch within 30 minutes from the lamp illumination, an error may occur
in the clock function of this product.
Instant Shut Down
You can turn off this projector just by turning off the power switch or unplugging the power cord without pressing the
POWER button.
• Don’t shut down the projector while the STATUS indicator is blinking after the lamp lights up because the lamp’s
life may be shortened.
• Don’t turn the projector back on right after shutting it down because the lamp’s life may be shortened. (Wait about
10 minutes before turning the projector back on.)
• Before shutting down the projector, be sure to close the menu screen. If you shut down the projector without
closing the menu, the setting data of the menu may not be saved.
• If you shut down the projector while controlling the projector using the network function, the application software
such as ProjectorView may fail. For details, see the “User Manual for LAN Control Utility” contained in the CDROM.
AUTO POSITION button
When the image supplied from the computer is displaced, carry out the following procedure.
1. Display a bright image (such as a full-screen display of the Recycle Bin window).
2. When the screen saver has been enabled, disable it.
3. Press the AUTO POSITION button.
The projector automatically makes optimum positional settings for the input signal.
• If the image is not projected in the correct position even after you press the AUTO POSITION button several times,
change the settings in the SIGNAL menu to put the image in the correct position. (See page 27.)
• When you carry out this procedure with a dark image, the image may be displaced.
When connecting to a notebook computer:
When the projector is connected to a notebook computer, images may not be projected in some cases. In such
cases, set the computer so that it can output signals externally. The setting procedure varies depending on the type
of the computer. See the instruction manual of your computer.
Example of the setting procedure for external output
Press the [Fn] key and any of the keys [F1] to [F12] at the same time. (The key to be pressed depends on the type of
the computer you use.)
EN-16
Viewing video images
ENGLISH
A. Connecting the projector to video equipment
Preparation:
• Make sure that the power of the projector and that of the video equipment are turned off.
Connecting to a video player, etc.
Video player, or the like
To audio
output
terminals
3
To video
output
terminal
4
VIDEO
1 To
IN terminal
Audio/video
cable
1. Connect one end (yellow) of the supplied audio/video cable
to the VIDEO IN terminal of the projector.
2. Connect one end (white and red) of the supplied audio/
video cable to the audio input terminals (L/MONO, R) of the
projector.
3. Connect the other end (yellow) of the audio/video cable to
the video output terminal of the video equipment.
4. Connect the other end (white and red) of the audio/video
cable to the audio output terminals (L, R) of the video
equipment.
To audio input
2 terminals
Video player, or the like
S-video cable (option)
1 To S-VIDEO
To S-video
output
terminal
2
IN terminal
To audio
output
terminals
4
To audio
input
terminals
3
Audio/video
cable
Video player, or the like
To video
output
terminal
BNC cable
(option)
When the video equipment is equipped with the S-video
output terminal, make the connection as follows:
1. Connect one end of a commercially available S-video cable
to the S-VIDEO IN terminal of the projector.
2. Connect the other end of the S-video cable to the S-video
output terminal of the video equipment.
3. Connect one end (white and red) of the supplied audio/
video cable to the audio input terminals (L/MONO, R) of the
projector.
4. Connect the other end (white and red) of the audio/video
cable to the audio output terminals (L, R) of the video
equipment.
When using the BNC connector:
(For VIDEO input)
• When the video output terminal of the connected video
equipment is BNC type, use the VIDEO IN terminal (BNC
type).
• Select VIDEO as the input source.
• When using the VIDEO IN terminal (BNC type) and the
VIDEO IN terminal (RCA type) at the same time, the video
signal input to the VIDEO IN terminal (RCA type) takes
priority.
To VIDEO IN
terminal (BNC)
Video player, or the like
To S-video (Y/C)
output terminals
To S-VIDEO IN
(Y and C) terminals
(BNC)
BNC cable (option)
When using the BNC connector:
(For S-VIDEO input)
• When the video output terminals of the connected video
equipment are BNC (Y/C) type, connect Y and C to the
S-VIDEO IN (Y and C) terminals (BNC type) respectively.
• Select S-VIDEO as the input source.
• When using the S-VIDEO IN (Y and C) terminals (BNC type)
and the S-VIDEO IN terminal (S type) at the same time, the
video signal input to the S-VIDEO IN terminal (S type) takes
priority.
• When connecting a monophonic video device, use the white (L) terminal to connect the audio cable. (The same
audio signal is output from the channels L and R of the AUDIO OUT terminal.)
• Also read the instruction manual of the equipment to be connected.
• Contact your dealer for details of connection.
When a TV tuner or VCR is connected:
When you use this projector with a TV tuner or VCR connected, no image may appear or a message of “NO SIGNAL”
may appear on the screen when you change the channel via any channel that is not being received. In such a case,
set the channels of the TV tuner or VCR again. To avoid such symptom, use the TV tuner or VCR with its channel skip
function (that is a function not to display channels that are not being received) enabled.
EN-17
Viewing video images (continued)
Projector + DVD player or HDTV decoder
Some DVD players have an output connector for 3-line fitting (Y, CB, CR). When connecting such DVD player with this
projector, use the COMPUTER/COMPONENT VIDEO IN-2 terminals.
BNC cable (option)
G
B
R
COMPUTER/COMPONENT
VIDEO IN-2
BNC-RCA connector (option)
Y
Audio cable (option)
CB(PB) CR(PR)
AUDIO IN-2
DVD player or HDTV decoder
•
•
•
•
•
To audio output terminals
The terminal’s names Y, PB, and PR are given as examples of when a HDTV decoder is connected.
The terminal’s names vary depending on the connected devices.
Use BNC cables for connection.
Image may not be projected correctly with some DVD players.
If colors aren’t displayed correctly when the projector is connected to a high-definition video device having R, G,
and B output terminals, set COMPUTER INPUT to RGB in the SIGNAL menu.
Connecting to video equipment having a DVI-D terminal
You can project high-quality images by connecting the DVI-D terminal of this projector to video equipment having a
DVI-D output terminal. In addition, this projector supports HDCP and is able to receive encrypted digital video data
that are output from DVD players.
Equipment having a
DVI-D terminal
Audio cable (option)
To audio output
To audio input
terminals
terminals
To DVI-D terminal
COMPUTER/COMPONENT
VIDEO DVI-D(HDCP)
DVI cable (option)
•
•
•
•
Use DVI cable for connection.
Select DVI as the input source.
Only RGB signals are supported. Component video signals are not supported.
HDCP (High-bandwidth Digital Content Protection), developed by Intel Corporation, is a method to encrypt digital
video data for the purpose of copy protection.
• When DVI-D signal is input, some signal setting menus are unavailable.
When you connect this projector and a DVI-Digital device (such as a DVD player) via the DVI-D (HDCP)
terminal, black color may appear dark and deep, depending on the type of the connected device.
• This depends on the black level setting of the connected device. There are 2 kinds of methods to digitally transfer
image data, in which different black level settings are employed respectively. Therefore, the specifications of the
signals output from DVD players differ, depending on the type of the digital data transfer method they use.
• Some DVD players are provided with a function to switch the methods to output DVI-Digital signals. When your
DVD player is provided with such function, set it as follows.
EXPAND or ENHANCED → NORMAL
• See the users guide of your DVD player for details.
• When your digital device does not have such function, adjust the BRIGHTNESS to +16 and CONTRAST to -17
in the IMAGE menu of this projector, or adjust the black color by viewing the image.
B. Plugging in the power cord
Plug the power cord in the same way as in the case of “Viewing computer images.” (See page 14.)
EN-18
ENGLISH
C. Projecting images
Preparation:
• Remove the lens cap.
COMPUTER 1, 2 buttons
POWER button
DVI-D(HDCP) button
POWER button
S-VIDEO button
VIDEO button
POWER STATUS
VIDEO button
AUTO POSITION
KEYSTONE
COMPUTER button
ENTER
COMPUTER
VIDEO
VOLUME
MENU
ZOOM/FOCUS button
ZOOM/FOCUS
LENS SHIFT
LENS SHIFT button
Main power switch
1. Put the projector into standby mode by pressing the main power switch. The POWER indicator lights up red.
• If the projector was turned off before the lamp was cooled down sufficiently last time, the fan may start rotating
and the POWER button may not work after the main power switch is turned ON. (The STATUS indicator blinks
green.) After the fan stops rotating, press the POWER button to turn back on the POWER indicator.
2. Turn on the power of the connected video equipment.
3. Press the POWER button.
• It may take about 1 minute for the lamp to light up.
• The lamp fails to light up on rare occasions. In such a case, wait for a few minutes and then try again.
• Do not cover the lens with the lens cap while the lamp is on. Do not strip off the aluminium sheet inside the
lens cap.
• After the POWER button is pressed, the image may flicker before the lamp becomes stable. This is not a product malfunction.
• Regardless of the setting of LAMP MODE in the INSTALLATION menu, the STANDARD lamp mode is activated
by default whenever the projector is turned on. When LAMP MODE has been set to LOW, the lamp mode
changes from STANDARD to LOW about 1 minute after turn-on.
• The projector starts warming up when the POWER button is pressed. During the warm-up process, images
may appear dark and no commands are accepted.
• By blinking red, the STATUS indicator indicates that the lamp should be replaced soon. Replace the lamp when
the STATUS indicator blinks red. (See page 31.)
4. Press the ZOOM/FOCUS button on the projector or on the remote control to display “FOCUS”.
5. Adjust with the or button to get a fine picture.
6. Select an input source.
• Press the VIDEO button on the projector or the VIDEO or S-VIDEO button on the remote control that is
corresponding to the terminal in use.
• The input source is switched between VIDEO and S-VIDEO at every press of the VIDEO button on the projector.
• The VIDEO and S-VIDEO buttons don’t function while the menu is being displayed.
• Though it may take some time before an image is displayed on the screen depending on the type of the input
signal, such symptom is not a malfunction.
• Some images become easier to view when the setting of aspect ratio is changed. (See page 21.)
• When projecting images from a DVD player that is connected to the DVI connector, press the COMPUTER
button on the projector to select DVI or press the DVI-D(HDCP) button on the remote control.
• When projecting images from a DVD player that is connected to the COMPUTER/COMPONENT VIDEO IN-1
or COMPUTER/COMPONENT VIDEO IN-2 connector, press the COMPUTER button on the projector or the
COMPUTER 1 or COMPUTER 2 button on the remote control.
7. Adjust the position of the projector to keep an appropriate projection distance with which images are projected in
their specified sizes.
8. Adjust the position of the projector so that the projector and the screen are perpendicular to each other. (See page 10.)
• When the projector cannot be positioned perpendicularly to the screen, adjust the projection angle. (See page 10.)
9. Press the ZOOM/FOCUS button on the projector or on the remote control to display “FOCUS” and then press the
button again to display “ZOOM.”
10.Adjust with the or button to get an approximate size.
11.Press the LENS SHIFT button. “LENS SHIFT” will appear on the display.
12.Press the or button to adjust the vertical position and or button to adjust the horizontal position of the
displayed image.
Repeat steps 4, 5 and 9 to 12, if necessary.
Important:
• Focus, zoom and lens shift adjustment is possible in the normal picture mode only.
• When you press the ZOOM/FOCUS button or LENS SHIFT button while no signal is supplied, a blue background
screen is displayed.
EN-19
Viewing video images (continued)
POWER button
POWER STATUS
POWER button
AUTO POSITION
KEYSTONE
ENTER
COMPUTER
VIDEO
VOLUME
MENU
Main power switch
ZOOM/FOCUS
LENS SHIFT
To stop projecting:
13.Press the POWER button.
• A confirmation message is displayed.
• To cancel the procedure, leave the projector for a while or press any button except the POWER button.
14.Press the POWER button again.
• The lamp goes out and the projector goes into a standby mode. In this standby mode, the STATUS indicator
blinks green.
15.Wait about 2 minutes for the STATUS indicator to be turned off.
• During this period of 2 minutes in the standby mode, the intake fan and exhaust fan rotate to cool the lamp.
16.Turn off the main power switch.
• The POWER indicator will go out.
• Cover the lens with the lens cap to protect it from dust.
• For safety’s sake, unplug the power cord from the outlet.
• When you repeat turning off the main switch within 30 minutes from the lamp illumination, an error may occur
in the clock function of this product.
Instant Shut Down
You can turn off this projector just by turning off the power switch or unplugging the power cord without pressing the
POWER button.
• Don’t shut down the projector while the STATUS indicator is blinking after the lamp lights up because the lamp’s
life may be shortened.
• Don’t turn the projector back on right after shutting it down because the lamp’s life may be shortened. (Wait about
10 minutes before turning the projector back on.)
• Before shutting down the projector, be sure to close the menu screen. If you shut down the projector without
closing the menu, the setting data of the menu may not be saved.
• If you shut down the projector while controlling the projector using the network function, the application software
such as ProjectorView may fail. For details, see the “User Manual for LAN Control Utility” contained in the CDROM.
Volume from the speaker
Press the VOLUME + or - button to change the volume from the speaker.
The volume control bar will appear on the screen.
VOLUME
10
• The volume control bar will disappear about 10 seconds after the VOLUME button is released.
• The VOLUME buttons don’t function while the menu selection bar or the menu is being displayed.
• When a high-level audio signal, such as a DVD audio signal, is supplied to the AUDIO IN terminals, the output from
the speaker may be distorted.
AV mute
The video and audio signals are temporarily muted when the MUTE button is pressed. To cancel muting, press the
MUTE button again.
• It takes several seconds before muting is completely canceled.
EN-20
You can change the aspect ratio of the input video signal (or the ratio of width to height of the image). Change the
setting according to the type of the input video signal.
How to change the settings:
With the remote control:
1. Press the ASPECT button.
• Every time the ASPECT button is pressed, the aspect mode changes from AUTO to 16:9, to REAL, to FULL,
and back to AUTO.
• When the keystone adjustment is applied, the REAL mode can not be selected.
With the FEATURE menu:
(See page 22 for menu setting.)
1. Display the FEATURE menu.
2. Select ASPECT by pressing the or button.
3. Select your desired aspect ratio by pressing the or button.
opt.
XGA60
FEATURE
ASPECT
AUTO
When 16:9 is selected:
4. Press the ENTER button.
5. Select your desired position by pressing the or button.
To cancel the menu:
6. Press the MENU button.
Important :
• When a 16:9 image is kept displayed for a long time before displaying 4:3 image, the afterimages of the black bars
may appear on the 4:3 image screen. Consult your dealer in this case.
Still
To stop the motion in the image temporarily (or to display a still image):
Press the STILL button on the remote control.
• The image will freeze temporarily.
To resume the motion in the image:
Press the STILL button on the remote control again.
Important:
• Do not display a still picture for a long time because the afterimages may persist on the screen.
EN-21
ENGLISH
Setting the aspect ratio
Menu operation
• Menus are not displayed when no signal is supplied to the projector.
COLOR ENHANCER
CONTRAST
BRIGHTNESS
COLOR TEMP. *1
COLOR *1 *2
TINT
*1 *2
*2
SHARPNESS
INSTALLATION
LAMP MODE
AUTO POWER ON
AUTO POWER OFF
SPLASH SCREEN
BACK COLOR
IMAGE REVERSE
TEST PATTERN
ZOOM/FOCUS LOCK
LENS SHIFT LOCK
LENS SHIFT RESET
ASPECT
FEATURE
PASSWORD FUNCTION
MENU POSITION
CINEMA MODE *3
VIDEO SIGNAL *8
*4
WXGA
*2 *7
SETUP
SCART INPUT *4
LANGUAGE
RESET ALL
SIGNAL
*
*
*
*
AUTO
PRESENTATION
STANDARD
THEATER
sRGB
USER
±30
±30
STANDARD
LOW
HIGH
USER
±10
±10
±5
GAMMA MODE
BrilliantColorTM
CONTRAST R
CONTRAST G
CONTRAST B
BRIGHTNESS R
BRIGHTNESS G
BRIGHTNESS B
STANDARD, LOW
ON , OFF
OFF, 5, 10, 15, 30, 60 min
ON , OFF
BLUE, BLACK
OFF, MIRROR, INVERT, MIRROR INVERT
CROSS HATCH
ON , OFF
ON , OFF
OK
AUTO
CENTER, UPPER, LOWER
16:9
REAL
FULL
DISPLAY INPUT , MENU ACCESS
LOCK
OK
UNLOCK
OK
1 (Upper left), 2(Lower right)
AUTO , OFF
AUTO , NTSC , PAL , SECAM , 4.43NTSC , PAL-M , PAL-N , PAL-60
AUTO, 1280x768, 1360x768, 1366x768, OFF
AUTO, OFF, 3.75%, 7.5%
ON , OFF
, English, Español, Deutsch, Français, Italiano,
,
,
OK
0 - 999
*5
0 - 999
*5
0 - 31
0 - 9999
*5
AUTO, RGB, YCBCR / YPBPR
BEGIN
OFF
ON
END
USER
OK
CLAMP POSITION *6 *7
CLAMP WIDTH *6 *7
1: Not available when COLOR ENHANCER is set to sRGB.
VERT. SYNC
2: Not available with certain signals.
OVER SCAN
3: Available only when the input signal is TV50, TV60, 480i or 576i.
*6 *7
LPF
4: Available only when the source is a COMPUTER/COMPONENT
SHUTTER (U) *2
VIDEO IN-1.
SHUTTER (L) *2
5: Setting range differs depending on the input signals.
SHUTTER (LS) *2
6: Not available when the source is VIDEO IN or S-VIDEO IN.
SHUTTER (RS) *2
HORIZ.POSITION *7
VERT.POSITION
*7
FINE SYNC. *6 *7
TRACKING *2 *6 *7
*6
COMPUTER INPUT
*2 *6 *7
HOLD
*
*
* 7: Not available when the source is DVI.
* 8: Available only when the input signal is from the VIDEO IN or S-VIDEO IN terminal.
How to set the menus:
Following describe how to set AUTO POWER OFF
time.
1. Press the MENU button.
• When no signal is input, the menu does not appear.
opt.
XGA60
DYNAMIC, NATURAL, DETAIL
0 - 10
±30
±30
±30
±30
±30
±30
0 - 99
0 - 99
1 - 63
1 - 63
AUTO, OFF
100 - 90%
ON , OFF
0 - 38
0 - 38
0 - 63
0 - 63
,
*2 *5
4. Press the or button to select an item to adjust.
AUTO POWER
ON
AUTO POWER
OFF
OFF
OFF
5. Set the selected item by pressing the or button.
AUTO POWER
ON
AUTO POWER
OFF
OFF
30min
2. Press the or button to select a menu to use.
opt.
XGA60
INSTALLATION
3. Press the ENTER button (or button).
AUTO POWER
ON
AUTO POWER
OFF
EN-22
OFF
OFF
To cancel the menu:
6. Press the MENU button several times.
Important:
• If the menu operation is not working, turn off the
main power, wait about 10 minutes, and turn on the
main power again.
• After selecting the items marked with , press the
ENTER button.
Set the following items on their relevant menus.
1. IMAGE menu
opt.
2. INSTALLATION menu
opt.
XGA60
COLOR
ENHANCER
AUTO
CONTRAST
0
BRIGHTNESS
0
COLOR TEMP.
LAMP MODE
AUTO POWER
ON
AUTO POWER
OFF
STANDARD
COLOR
ON
SPLASH
SCREEN
OFF
MENU POSITION
BLUE
0
REVERSE
0
TEST PATTERN
CROSS HATCH
ZOOM/FOCUS
LOCK
OFF
LENS SHIFT LOCK
OFF
LENS SHIFT
RESET
OK
sRGB
CONTRAST
BRIGHTNESS
COLOR TEMP.
COLOR
TINT
USER
±30
±30
4 options
±10
±10
SHARPNESS
±5
2. INSTALLATION menu
ITEM
SETTING
LAMP MODE
STANDARD
LOW
AUTO POWER ON
ON / OFF
AUTO POWER OFF
OFF / 5 - 60min
SPLASH SCREEN
BACK COLOR
IMAGE REVERSE
ON / OFF
BLUE / BLACK
OFF
MIRROR
INVERT
MIRROR INVERT
TEST PATTERN CROSS HATCH
ZOOM/FOCUS LOCK
ON / OFF
LENS SHIFT LOCK
ON / OFF
LENS SHIFT RESET
OK
•
PASSWORD
FUNCTION
OFF
?
WXGA
XGA60
SIGNAL
AUTO
HORIZ. POSITION
DISPLAY INPUT
1.
0
VERT.POSITION
0
FINE SYNC.
0
CINEMA MODE
AUTO
VIDEO SIGNAL
AUTO
WXGA
AUTO
HOLD
OFF
SET UP
AUTO
USER
OK
SCART INPUT
AË
opt.
XGA60
ASPECT
OFF
SHARPNESS
PRESENTATION
STANDARD
THEATER
•
STANDARD
TINT
1. IMAGE menu
ITEM
SETTING
COLOR ENHANCER AUTO
4. SIGNAL menu
FEATURE
ON
BACK COLOR
0
opt.
XGA60
INSTALLATION
3. FEATURE menu
LANGUAGE
RESET ALL
R
RG
GB
B
TRACKING
0
COMPUTER
INPUT
RGB
OFF
English
OK
FUNCTION
Select to optimize the settings automatically depending on the input signal.
(Select this option for normal use.)
Select to make the displayed image look bright and crisp.
Select to make the displayed image look natural.
This option, suitable for viewing movies, makes the displayed image look soft
and smooth.
Select to give priority to the color reproducibility.
• When COLOR ENHANCER is sRGB, COLOR TEMP., COLOR and TINT can’t
be adjusted.
Select to set the gamma curve and BrilliantColorTM as desired. (See page 26.)
Use to adjust the contrast of the projected image. (See page 25.)
Use to adjust the brightness of the projected image. (See page 25.)
Use to adjust the color temperature. (See page 26.)
Use to adjust the color thickness of the projected image. (See page 25.)
Use to adjust the color tint of the projected image. (See page 25.)
• When the TV50 (PAL, SECAM) signal is input, TINT can’t be adjusted.
Use to adjust the sharpness of the projected image. (See page 25.)
FUNCTION
Select this option when you want to view images in a well-lit room.
Select to moderate the intensity of the lamp. The operating sound is reduced
and the lamp lifetime becomes longer.
• When the lamp mode is switched, the projected image may flicker. This is
not a product malfunction.
• Frequent switching of the lamp mode may damage the lamp.
When ON is chosen, the lamp is automatically lit when the power cord is
plugged in the wall outlet. Choose ON when using the projector mounted on
the ceiling.
• The projector is in the stand-by mode when the lamp is off. Use the remote
control to turn on the lamp.
Use to set the time elapsed before the projector enters the stand-by mode
when there is no signal input from the source.
Choose ON to display the splash screen when the power is turned on.
Use to change the color of the screen that appears when no signal is supplied.
Select when viewing images from the front with the projector installed on the
floor.
Select when viewing images projected from the behind of the screen with the
projector installed on the floor.
Select when viewing images projected from the behind of the screen with the
projector installed on the ceiling.
Select when viewing images from the front with the projector installed on the
ceiling.
Use to show the test pattern of the crossing hatch.
Use to enable or cancel the FOCUS LOCK and ZOOM LOCK.
Use to enable or cancel the LENS SHIFT LOCK.
Use to reset the position of the lens to the factory setting.
Regardless of the setting of LAMP MODE in the INSTALLATION menu, the STANDARD lamp mode is activated by default
whenever the projector is turned on. When LAMP MODE has been set to LOW, the lamp mode changes from STANDARD to
LOW about 1 minute after turn-on.
To cancel the test pattern, press any button.
EN-23
ENGLISH
Available settings in the menus
Menu operation (continued)
3. FEATURE menu
ITEM
SETTING
ASPECT
AUTO
16:9
REAL
FULL
PASSWORD FUNCTION
MENU POSITION
CINEMA MODE
VIDEO SIGNAL
WXGA
2 options
AUTO
OFF
8 options
AUTO
1280 x 768 etc.
OFF
SET UP
SCART INPUT
LANGUAGE
RESET ALL
AUTO
OFF
3.75% / 7.5%
ON / OFF
10 languages
OK
FUNCTION
Select to change the aspect ratio automatically depending on the input signal.
(Select this option for normal use.)
This option allows you to select the display position of squeezed (or horizontally
compressed) images stored on DVD discs. By pressing the ENTER button, you
can select the display position among CENTER, UPPER, and LOWER.
Select to project images in their original size as input. Not available when the
keystone adjustment is applied.
Select to project images in full size (1280 x 768 pixels) irrespective of type of
input signal.
Use to enable or cancel the password lock. See page 28 for details.
Use to change the position of the menu.
The film mode will be automatically activated when a film source signal is input.
The film mode will not be activated.
When AUTO is selected, the appropriate video format is automatically selected
depending on the input signal. If the image isn’t displayed correctly, select the
desired video format manually.
Use to detect WXGA signal automatically.
If WXGA signal isn’t displayed correctly when AUTO is selected, select the
appropriate display size depending on the type of input signal.
When a signal other than WXGA is input, it may take abnormally long time to
display an image, or an image may not be displayed correctly. In such cases,
select OFF.
Select to change the SET UP mode automatically.
Select to make black lighter.
Select to make black thicker.
• When 7.5% is chosen, the brightness is decreased by set-up cancel function for U.S. Choose OFF when the image is dark.
Choose ON when connecting the projector with a device equipped with the
SCART terminal that can output RGB signal. SCART terminal is used mainly
in Europe. Choose OFF normally. (Available only for the input signal from the
COMPUTER/COMPONENT VIDEO IN-1 terminal.)
Use to select the language used in the menus.
Use to reset the settings of the menu (excluding PASSWORD FUNCTION and
LANGUAGE) to the factory setting values.
• When WXGA in the FEATURE menu is set to other than OFF, it takes a little while to display images of WXGA and
XGA60 signals.
• Even if WXGA is set to AUTO, some images of WXGA signal may not be displayed correctly. See page 36 for details.
• When WXGA is set to other than AUTO and OFF, TRACKING isn’t adjusted automatically. When wide strips appear, adjust TRACKING in the SIGNAL menu. (See page 27.)
• When SCART INPUT is set to ON, nothing is output to the external monitor.
• When SCART INPUT is set to ON, normal computer signals aren’t projected.
• Use a SCART-BNC (or SCART-Mini D-SUB 15P) cable (option) when connecting this projector with an AV device
equipped with the SCART terminal.
• Some AV devices equipped with the SCART terminal aren’t compatible with this projector.
• It may take a little while to carry out RESET ALL in the FEATURE menu.
4. SIGNAL menu
ITEM
HORIZ. POSITION
VERT. POSITION
FINE SYNC.
TRACKING
COMPUTER INPUT
SETTING
0-999
0-999
0-31
0-9999
AUTO
RGB
YCBCR / YPBPR
HOLD
USER
CLAMP POSITION
CLAMP WIDTH
VERT.SYNC
OFF / ON
OK
1-63
1-63
AUTO / OFF
OVER SCAN
LPF
SHUTTER (U)
SHUTTER (L)
SHUTTER (LS)
SHUTTER (RS)
100%-90%
ON / OFF
0-38
0-38
0-63
0-63
EN-24
FUNCTION
Use to adjust the horizontal position of the projected image.
Use to adjust the vertical position of the projected image.
Use to eliminate flickering or blur, if appears, viewing the projected image.
Use to eliminate vertical wide stripes, if appears, viewing the projected image.
The proper setting is automatically selected.
Select this option if colors aren’t displayed correctly when a high-definition video
device having R, G, and B outputs is connected.
Select this option if colors aren’t displayed correctly when 480p (525p) signal is
input from a DVD player having Y, CB, and CR component video output terminals
or a high-definition digital tuner having Y, PB, and PR component video output
terminals.
Use to adjust the image when flagging occurs near the top of the screen.
Use to correct solid white or solid black in the projected image.
Use to correct solid black in the projected image.
Use to adjust the image when its motion doesn’t run smoothly. Select AUTO
for normal use.
Use to adjust the display area of projected image.
Use to select whether or not to enable the LPF.
Use to adjust the image when noise appears on the top part of the image.
Use to adjust the image when noise appears on the bottom part of the image.
Use to adjust the image when noise appears on the left half of the image.
Use to adjust the image when noise appears on the right half of the image.
Adjusting projected images
ENGLISH
To adjust the brightness (CONTRAST and BRIGHTNESS):
You can make adjustments for the brightness of the projected image using the menu.
(See page 22 for menu setting.)
1. Display the IMAGE menu.
2. Select CONTRAST or BRIGHTNESS by pressing the or button.
3. Adjust the selected item by pressing the or button.
To cancel the menu:
4. Press the MENU button.
CONTRAST
Select to adjust the contrast of the image. Every time the button is pressed, the image becomes brighter and more
defined. Every time the button is pressed, the image becomes darker and less defined.
BRIGHTNESS
Every time the button is pressed, the image becomes brighter. Every time the button is pressed, the image
becomes darker.
To adjust the color (COLOR and TINT):
You can adjust the color of the projected image using the menu.
(See page 22 for menu setting.)
1. Display the IMAGE menu.
2. Select COLOR or TINT by pressing the or button.
• COLOR or TINT is not available with certain signals.
• TINT is available only when the NTSC signal is input.
3. Adjust the selected item by pressing the or button.
To cancel the menu:
4. Press the MENU button.
COLOR
Use to adjust the color thickness of the projected image. Every time the button is pressed, the color becomes
thicker. Every time the button is pressed, the color becomes lighter.
TINT
Use to adjust the tint of the projected image. Every time the button is pressed, the image appears more greenish.
Every time the button is pressed, the image appears more reddish.
To sharpen or soften the projected image (SHARPNESS):
You can adjust the sharpness of the projected image using the menu.
(See page 22 for menu setting.)
1. Display the IMAGE menu.
2. Select SHARPNESS by pressing the or button.
• SHARPNESS is not available with certain signals.
3. Adjust the selected item by pressing the or button.
To cancel the menu:
4. Press the MENU button.
EN-25
Adjusting projected images (continued)
To adjust the tone of white (COLOR TEMP.):
You can select a preset color temperature (white tone) using the menu.
(See page 22 for menu setting.)
1. Display the IMAGE menu.
2. Select COLOR TEMP. by pressing the or button.
3. Select your desired color temperature by pressing the or button.
To cancel the menu:
4. Press the MENU button.
To adjust the tone of white (To customize the color temperature):
To customize (and store) the color temperature to your preference, carry out the following procedure.
(See page 22 for menu setting.)
1. Select COLOR TEMP. in the IMAGE menu.
COLOR TEMP.-USER
2. Press the or button to select USER .
CONTRAST R
3. Press the ENTER button.
4. Press the or button to select the desired item.
CONTRAST G
5. Press the or button to adjust the selected item.
CONTRAST B
6. Repeat steps 4 and 5 for optimum adjustment results.
BRIGHTNESS R
To cancel the menu:
BRIGHTNESS G
7. Press the MENU button.
BRIGHTNESS B
To enable the stored color temperature:
1. Set COLOR TEMP. to USER in the IMAGE menu.
0
0
0
0
0
0
About color temperature
There are different kinds of white color. Color temperature is a way to show the differences in white. White of which
temperature is low appears reddish. When the color temperature rises, white appears bluish. For example, you can
change the color temperature using the following procedures.
To raise the color temperature: Increase the CONTRAST B (blue) and decrease the CONTRAST R (red).
To reduce the color temperature: Decrease the CONTRAST B (blue) and increase the CONTRAST R (red).
• If you set all of CONTRAST R, G, and B to negative values, the original brightness of the image can’t be
obtained even when you maximize CONTRAST in the IMAGE menu.
Color Enhancer
You can set the user-defined balance between the brightness and hue using the menu. (See page 22 for menu
setting.)
With the IMAGE menu:
1. Display the IMAGE menu.
COLOR
2. Select COLOR ENHANCER by pressing the or button.
AUTO
ENHANCER
3. Select USER by pressing the or button.
4. Press the ENTER button.
COLOR ENHANCER-USER
5. Select an item you want to set.
GAMMA MODE
DYNAMIC
GAMMA mode
BrilliantColor
10
Use this item to set the gamma optimally.
DYNAMIC ……Select when viewing images supplied from the computer.
NATURAL …… Select when viewing images supplied from the video device.
DETAIL ……… Select when viewing images of which brightness should be kept relatively low, such as movies and
music performance.
TM
BrilliantColor
Use this item to make the colors having medium brightness such as yellow and skin tone look natural. Press the button to decrease the value to lessen the effect. Press the button to increase the value to heighten the effect.
(BrilliantColor™ doesn’t work at value 0.)
6. Select a setting value by pressing the or button.
• You can adjust Color Enhancer also by pressing the CE button on the remote control.
• For more enhanced color reproduction, set BrilliantColorTM to 0. The white portion of the color wheel will be disabled and you can reproduce true-to-life images.
With the remote control:
1. Press the CE button on the remote control.
A window for color enhancer adjustment appears on the upper right of the screen.
2. Press the or button to select USER .
3. Press the ENTER button.
4. Press the or button to select GAMMA MODE or BrilliantColor™.
5. Press the or button to adjust the selected item.
TM
EN-26
How to adjust the image supplied from the computer using the menu:
Carry out the following procedures according to the symptoms.
Wide strips appear. ……………………………………… Adjust TRACKING in the SIGNAL menu.
The projected image flickers.
The projected image is blurred. ………………………… Adjust FINE SYNC. in the SIGNAL menu.
The projected image is displaced horizontally. ……… Adjust HORIZ.POSITION in the SIGNAL menu. Every time the
button is pressed, the image moves to the right. Every time
the button is pressed, the image moves to the left.
The projected image is displaced vertically. ………… Adjust VERT.POSITION in the SIGNAL menu. Every time the button is pressed, the image moves down. Every time the button is pressed, the image moves up.
The top part of the image flags. ……………………… Change the setting of HOLD in the SIGNAL menu. Select ON ,
press the ENTER button, and adjust BEGIN or END to minimize
the flagging.
A solid black or solid white appears in the image. … Adjust CLAMP POSITION or CLAMP WIDTH in the SIGNAL USER menu.
The motion doesn’t run smoothly. ……………………… Adjust VERT. SYNC in the SIGNAL - USER menu. Select
AUTO for normal use.
Noise appears on the right or left half of the image. … Adjust SHUTTER (LS) or SHUTTER (RS) in the SIGNAL - USER
menu.
Noise appears on the top or bottom part of the image. … Adjust SHUTTER (U) or SHUTTER (L) in the SIGNAL - USER
menu.
1. Display the SIGNAL menu.
2. Press the or button to select an item to adjust.
3. Adjust the selected item by pressing the or button.
To cancel the menu:
4. Press the MENU button.
• Do not change the settings of the SIGNAL menu in normal use.
Simple method to adjust the image position
To adjust the horizontal position:
1. Align the left edge of the image with the left side of the screen by adjusting HORIZ.POSITION. Then, align the
right edge of the image with the right side of the screen by adjusting TRACKING.
2. Repeat step 1 above to complete the adjustment of the horizontal position.
To adjust the vertical position:
3. Align the upper edge of the image with the upper side of the screen by adjusting VERT.POSITION.
LPF
You can select whether or not to enable the LPF. This item is set to OFF normally.
Vertical or horizontal streak noise may appear on the projected image, depending on the type of the DVD player or
game console you use. In such a case, you can reduce such streak noise by enabling the LPF. However, projected
images become softened slightly.
1.
2.
3.
4.
5.
Display the SIGNAL menu.
Press the or button to select USER.
Press the ENTER button.
Press the or button to select LPF.
Press the or button to choose ON or OFF.
LPF
OFF
To cancel the menu:
6. Press the MENU button.
EN-27
ENGLISH
This projector automatically and properly projects video signals supplied from the computer. However, some video
signals may not be projected, depending on the type of the computer. In such a case, press the AUTO POSITION
button. (See page 16.) When the signal is still not projected properly, adjust the projected image using the SIGNAL
menu.
Advanced features
Password function
This projector is equipped with the password function
that is designed for prevention of wrong operation by
children and restriction on operation by other than
specified users.
DISPLAY INPUT ...........When the projector is turned
on, the startup screen (or splash screen) will appear
and stay on the screen until the password is entered.
When the password is entered, the startup screen
will switch to the regular operation screen.
MENU ACCESS........... All the buttons except for the
POWER button on the projector are disabled. (The
buttons on the remote control are enabled.) You can
use this mode as a measure of prevention of wrong
operation by children and restriction on operation
by other than specified users.
To enable the password function:
1. Display the FEATURE menu.
2. Press the or button to select PASSWORD
FUNCTION.
3. Press the or button to change the mode among
DISPLAY INPUT and MENU ACCESS .
• When there is a password already set, the password cancel menu is automatically selected. To
set a new password, disable the password lock
function.
4. Press the ENTER button.
• The screen for setting the password function will
appear.
opt.
XGA60
FEATURE
MENU ACCESS
LOCK
OK
UNLOCK
OK
5. Press the ENTER button.
• The screen for entering a password will appear.
PASSWORD
CONFIRM
OK
CANCEL
6. Press the or button to select a number from 0
to 9.
7. Press the button.
• You can set the next digit.
8. Repeat steps 6 and 7 to set a 4-digit password.
9. Enter the password again for confirmation using the
same steps.
EN-28
10.Select OK, and press the ENTER button.
• If the entered passwords don’t match, an error
message will appear.
• To cancel the procedure, select CANCEL and
press the ENTER button.
• You can cancel the procedure by pressing the
MENU button alternatively.
To cancel the password function:
1. Display the FEATURE menu.
2. Press the or button to select PASSWORD
FUNCTION.
3. Press the ENTER button.
• The screen for canceling the password function
will appear.
opt.
XGA60
FEATURE
MENU ACCESS
LOCK
OK
UNLOCK
OK
4. Press the ENTER button.
• The screen for entering the password will
appear.
PASSWORD
OK
CANCEL
5. Press the or button to select a number from 0
to 9.
6. Press the button.
• You can set the next digit.
7. Repeat steps 5 and 6 to enter the four-digit
password.
8. Press the button, select OK, and press the
ENTER button.
• If you enter a wrong password, an error message
will appear.
• To cancel the procedure, press the button,
select CANCEL, and press the ENTER button.
• You can cancel the procedure by pressing the
MENU button alternatively.
Important:
• Disable the password by pressing the MENU and
ENTER buttons on the control panel at the same
time.
By connecting to personal computer through the USB port, you can operate your computer with the projector remote
control.
Projector + computer with USB connector
USB
USB cable
USB 4-pin
(type B)
To USB port
USB 4-pin
(type A)
• You can use the mouse remote control function with a computer supporting USB only.
• When the lamp is turned ON, the computer connected with the USB cable may not work correctly. In this case,
restart the computer.
• The mouse doesn’t function for a while after the power is turned on.
Operation
HOME button
Press to jump back
to the first page.
END button
Press to jump to the
last page.
Mouse pointer
Use to move the cursor on
the image, instead of the
computer mouse.
COMPUTER
1
2
VIDEO
S-VIDEO
HOME
Page Up
AUTO POSITION
END
Page Down
LASER
DVI-D(HDCP)
Page Up button
Press to go back to
the previous page.
Page Down button
Press to go to the
next page.
MENU
R-CLICK
ZOOM / FOCUS LENS SHIFT
ENTER
KEYSTONE
R-CLICK button
This operates in the
same way as the right
button on the computer mouse.
Left click button
This operates in the
same way as the left
button on the computer mouse.
EN-29
ENGLISH
Mouse remote control
Advanced features (continued)
Supervising and controlling by computer
You can supervise and control the projector’s operation using a personal computer via a LAN network.
• To supervise and control the projector, install the software “Mitsubishi Projector Control Device Installer *” contained in the attached CD-ROM. For the installation procedure and usage of the software, see the “User Manual for
LAN Control Utility” contained in the attached CD-ROM.
*) Functions
•
•
•
•
Setting of the projector’s IP address
Setting of password, display language, and LAN control
PJLink™ certification setting (telnet function)
Startup of the controlling /supervising tool (ProjectorView) using the Web browser
Major functions
ProjectorView
The controlling/supervising tool using the Web browser
PJLink™
This projector supports standard protocol PJLink™ for projector control and you can control and monitor projector’s
operations using the same application among projectors of different models and different manufacturers.
About PJLink™
• To use PJLink™ function, the PJLink™ application software is required.
• For the specifications of PJLink™, access to the Web site of Japan Business Machine and Information System
Industries Association (JBMIA).
• This projector is fully compliant to the specifications of JBMIA PJLink™ Class 1. It supports all the commands
defined by PJLink™ Class 1, and the compliance has been verified with the PJLink™ standard specifications
Version 1.0
Connection
Computer
LAN cable (option)
(100BASE-TX or 10BASE-T
should be supported.)
To LAN terminal
LAN cable (option)
(100BASE-TX or 10BASE-T should be supported.)
External HUB
• Use a straight-through category-5 cable for LAN connection.
• Don’t touch the metal parts of the LAN connector and LAN cable because static electricity may be discharged from
your body, causing damage to the projector.
Using the User Manual
The “User Manual for LAN Control Utility” is prepared in the Portable Document Format (PDF) in the CD-ROM.
Opening the User Manual:
1. Load the CD-ROM into the CD-ROM drive.
2. Open CD-ROM “WD2000.”
3. Double-click on “MANUAL_LAN.HTML” within the CD-ROM. A language selection list for the User Manual will be
displayed.
4. Move the mouse pointer to the desired language and click.
EN-30
This projector has 2 indicators, each of which shows the operation condition of the projector.
The following offer solutions to possible problems. If these problems persist, turn the projector off and consult your
dealer.
POWER indicator
STATUS indicator
Normal condition
POWER
STATUS
Steady
red
Off
Steady
green
Blinking
green
Steady
green
Steady
green
CONDITION
NOTE
Stand-by
Lamp stand-by
The POWER button cannot be used to
switch between on and off.
The power is on. (Normal condition)
Abnormal condition
POWER
STATUS
Steady
green
or
CONDITION
POSSIBLE SOLUTION
Abnormal temperature
• The ventilation grilles are clogged with dust or dirt.
• The room temperature is high.
• Clean the ventilation grilles.
• Relocate the projector to a cooler place.
Blinking orange
Steady red
Steady red
The protection circuit is working or the lamp is in an
abnormal condition.
• Wait until the STATUS indicator goes out,
then press the POWER button.
• If the above solution is not effective,
replace the lamp.
Replace the lamp.
Change with a new lamp if this problem
recurs.
Blinking green
Steady
green
Blinking green/red
Lamp operation time warning. (Total lamp operation time
reached 3750 hours*1 while the power was on.)
Steady red
Blinking red
Lamp operation time wa rning. (Total lamp operation time
reached 3750 hours*1 while the power was off.)
Steady red
Steady red
Lamp operation time warning. (Total lamp operation time
reached 5000 hours*1 *2 while the power was off.)
Blinking
green/red
Off
The lamp cover isn’t closed.
Close the cover correctly.
Abnormal.
Contact your dealer.
Steady
or
Blinking
green/red
Blinking
*1 Duration when LAMP MODE of the INSTALLATION menu is set to LOW. When it is set to STANDARD, this duration will be
shorted.
*2 Duration when LAMP MODE is set to STANDARD, this duration will be shorted up to 2000 hours.
EN-31
ENGLISH
Indicators
Replacing the lamp
This projector is equipped with a lamp to project images. This lamp is a consumable. It may burn out or its brightness
may decrease during use. In such cases, replace the lamp with a new one as soon as possible. Be sure to replace the
lamp with a new lamp separately sold that is exclusive to this projector. Contact your dealer for purchase of the lamp.
WARNING:
• Be careful not to drop the lamp fixing screws into the inside of the projector. Don’t put a metal piece or flammable
object into the projector. Using the projector with any foreign object present inside may result in electric shock or
fire. When you can’t remove the foreign object from the inside, contact your dealer for removal.
• Be sure to install the lamp securely. When the lamp isn’t installed properly, it won’t illuminate. Improper installation
may also result in fire.
• Don’t shake the removed lamp or don’t lift it above your face. You may be injured in your eye by flying or falling
glass fragments.
• Don’t replace the lamp immediately after use because the lamp cover is very hot. You may get burned. Turn off the
power using the POWER button. After the lamp goes out, wait about 2 minutes until the intake and exhaust fans
for cooling the lamp stop rotating. Then turn off the main power switch and unplug the power cord, and wait at
least 1 hour to allow the lamp to cool down enough to the touch.
• Do not touch the lamp directly. It may break and cause injury or burn.
Interval of lamp replacement
The recommended interval of lamp replacement is about 5000 hours*1 *2 of consecutive use. Such interval differs
depending on the operating environment and may be shorter than 5000 hours*1 *2. Decrease in luminescence and/or
color brightness indicates that the lamp needs to be replaced. When the lamp operation time exceeds 3750 hours*1,
the indicator will blink alternately between green and red (while the lamp is lit; when the lamp is not lit, the indicator
will be lit red only) and the lamp replacement message will appear on the screen for 1 minute everytime the lamp is
turned on. When the lamp has been used for about 4750 hours*1, the replacement message (LAMP EXCHANGE) will
appear on the screen for 1 minute every 25 hours*1 thereafter.
When the lamp operation time exceeds 5000 hours*1 *2, the projector automatically shuts off and can’t be used
until the lamp is replaced and the lamp operation time is reset.
*1
Duration when LAMP MODE of the INSTALLATION menu is set to LOW. When it is set to STANDARD, this duration
will be shorted.
*2
Duration when LAMP MODE is set to STANDARD, this duration will be shorted to 2000 hours.
Caution:
• Don’t remove the lamp for any purpose other than replacement. Unnecessary removal of the lamp may result in a
breakdown.
• This projector uses a high-pressure mercury lamp as the light source. The high-pressure mercury lamp may
explode or fail to illuminate permanently because of an impact, scratch, or deterioration through use. The period
of time until explosion or permanent failure to illuminate varies considerably from lamp to lamp, depending on
operation conditions. Therefore, the lamp may explode soon after the start of use.
• The possibility of explosion of the lamp increases if you use it beyond its replacement period. When the instruction
of lamp replacement appears, replace it with a new one immediately even if the lamp is still lighting normally.
• When the high-pressure mercury lamp explodes, glass fragments will scatter inside or outside the lamp box and
the gas charged inside the lamp will diffuse inside or outside the projector. The gas inside the lamp contains
mercury. Be careful not to breathe it or avoid it from entering your eye or mouth. If you should breathe it or if it
should enter your eye or mouth, see a doctor immediately.
• In the event that the high-pressure mercury lamp exploded, glass fragments may have been scattered inside the
projector. Ask your dealer to replace the lamp and to inspect the inside of the projector. When you clean or replace
the lamp by yourself, be sure to hold the handle of the lamp. You may get injured by glass fragments.
• Don’t replace the lamp while the projector is installed on the ceiling. Glass fragments may fall from the projector,
entering your eye or mouth causing injury.
• When placing the projector upside down to replace the lamp or conduct maintenance, ensure that the projector is
securely placed before working with it.
EN-32
1. Reverse the projector gently.
(a)
(b)
2. Loosen the screw (a) using a Phillips screwdriver (+), and
remove the lamp cover (b).
3. Loosen the screws (c) using a Phillips screwdriver (+).
4. Pull up the handle.
5. Pull out the lamp box by the handle while holding the
projector.
• Pull the lamp box out of the projector slowly. If it is
pulled out quickly, the lamp may break scattering glass
fragments.
• Do not spill liquid on the removed lamp box or do not
place it near any flammable object or where children
can reach to prevent injury or fire.
(c)
6. Load a new lamp box securely into the projector in the right
orientation.
7. Put the handle back to the original position.
• Make sure that the handle is locked.
(c)
8. Tighten up the screws (c) using a Phillips screwdriver (+).
9. Tighten up the screw (a) using a Phillips screwdriver (+) to
secure the lamp cover.
Reset of the lamp operation time
10.Plug the power cord into the wall outlet and turn on the main power switch.
11.Press the , , and POWER button on the control panel at the same time.
Important:
• Unless these 3 buttons are pressed at the same time, the lamp operation time isn’t reset.
• Make sure that the STATUS indicator is lit twice and the lamp operation time is reset successfully.
• The projector doesn’t turn on if the lamp cover isn’t attached securely.
• Be sure to reset the lamp operation time whenever you replace the lamp.
• Do not reset the lamp operation time unless you replace the lamp.
• The lamp is fragile. If it is broken, be careful not to cut yourself with glass fragments.
• Contact your dealer for a new lamp.
• This projector uses a lamp that contains mercury. Disposal of the lamp or the projector with the lamp may be
regulated due to environmental considerations. For disposal or recycling information, please contact your local
authorities or the Electronic Industries Alliance: www.eiae.org. (For the U.S. only.)
Maintenance
Caution:
Be sure to turn off the lamp and unplug the power cord from the wall outlet before you perform any maintenance on
the projector.
Cleaning of the projector and the ventilation slots
Use a soft cloth to clean the projector and the ventilation grilles. When the grilles become dirty, wipe them with a soft
cloth dampened with diluted mild detergent, and then wipe them with a dry cloth.
To protect the surface of the projector from fading or deteriorating:
• Do not spray insecticide on or inside the projector.
• Do not use benzine or thinner to clean it.
• Do not let rubber or plastic materials contact with projector.
Cleaning of the lens
Use a standard lens-cleaning brush or a piece of lens tissue dampened with lens cleaning fluid. The lens surface is
fragile. Use only recommended, nonabrasive lens-cleaning materials. Do not touch the lens with your fingers.
EN-33
ENGLISH
To replace the lamp:
Troubleshooting
Before asking for repair of the projector, check the following. If the symptom persists, stop using the projector, be
sure to unplug the power plug, and then contact your dealer.
No image appears on the screen.
Problem
Power can not be
turned on.
Solution
• Check whether the indicators are on or off and how they are lightning.
POWER
Off
STATUS
Off
Off
Steady red
Blinking
orange
Solution
• Connect the power cord to the projector.
• Plug the power cord into a wall outlet.
• Turn on the main power swich.
• If any objects are blocking the air inlet or outlet grille, remove them and carry
out the following.
1.
2.
3.
4.
Turn off the main power swich.
Make sure that the projector has cooled off.
Turn on the main power swich.
Press the POWER button.
• If any objects are blocking the air inlet or outlet grille, remove them.
• Don't expose the air outlet grilles to hot air emitted from a heating appliance.
• After the STATUS indicator stops blinking, press the POWER button.
Blinking
green
• If the main power switch is turned off while the fan is rotating, the lamp may not turn on about 2 minutes
when the main power switch is turned on next time.
• The lamp can't turn on again for 2 minutes after it goes out.
• Press the POWER button several times.
• Replace the lamp. (The lamp is at the end of its life.)
Steady red
Off
Blinking
red / green
• Attach the lamp cover on the bottom.
• Unplug the power cord from the wall outlet and contact your dealer.
Steady
or
Blinking
No image appears on
the screen.
•
•
•
•
•
•
•
•
•
•
Cancel the AV mute by pressing the MUTE button.
Check that the lens cap is removed.
It may take about 1 minute for the lamp to light up.
The lamp fails to light up on rare occasions. In such a case, wait for a few minutes
and then try again.
If the projector was turned off before the lamp was cooled down sufficiently last
time, the fan may start rotating and the POWER button may not work after the main
power switch is turned on. After the fan stops rotating, press the POWER button to
turn back on the POWER indicator.
Set SCART INPUT in the FEATURE menu to OFF. (See page 24.)
Check that the intake vent is clean.
Check that the lamp cover is closed. (See page 33.)
Check that the cables connected to the external devices are not broken.
When an extension cable is being used, replace it with the supplied cable for check.
When images are displayed correctly, add an RGB signal amplifier to the extension
cable.
Projected images
suddenly disappear.
• This problem may occur when the intake vent and/or exhaust vents are blocked. (In
such a case, the STATUS indicator brinks orange.)
Remove the objects blocking the intake vent and/or exhaust vents and then carry
out the following procedure.
1. Wait for the intake fan and/or exhaust fan to stop. (Wait until the STATUS
indicator goes out.)
2. Turn off the main power switch.
3. Wait about 10 minutes.
4. Turn on the main power switch.
5. Press the POWER button.
• When the STATUS indicator is steady red, it is indicating that the lamp should be
replaced. Replace the lamp in this case.
The screen for entering
the password appears.
• PASSWORD FUNCTION in the FEATURE menu has been set to DISPLAY INPUT to
enable the password lock.
Enter the password or contact the person in charge of management of the projector. (See page 28.)
EN-34
Problem
“NO SIGNAL” is
displayed.
Solution
• Turn on the power of the connected device, or check whether there is something
wrong with the connected device.
• Check whether the external device output signals. (Check this especially when the
external device is a notebook computer.)
• Check that the cable connected to the external device isn’t defective.
• Check that the projector is connected to the external device using the correct
terminals.
• Check that the connected device is correctly selected as the input source.
• When an extension cord is being used, replace it with the supplied cable and check
whether images are projected correctly. If images are projected correctly, use an RGB
signal amplifier along with the extension cord.
Images are not displayed correctly.
Problem
Solution
Projected images are
shaking.
Projected images are
displaced.
•
•
•
•
Projected images are
distorted.
Projected images are
dark.
Projected images are
blurred.
•
White dots are seen
on projected images.
Black dots are seen on
projected images.
Rainbow effect is seen
on projected images.
Fine streaks are seen
on projected images.
Projected images
become wavy.
Hue is not appropriate.
Tint in projected
images is incorrect.
Only the motion areas
in the images supplied
from the computer
aren’t displayed.
Projected images are
obscured.
•
•
•
•
•
•
•
•
•
Check that the cable connected to the external device isn’t intermittent.
Connect the cable’s plug with the external device’s connector firmly.
Press the AUTO POSITION button.
Some computers output out-of-spec signals on rare occasion. Adjust the SIGNAL
menu. (See page 27.)
Adjust the projector and the screen so that they are perpendicular to each other. (See
page 10.)
Adjust BRIGHTNESS and CONTRAST in the IMAGE menu. (See page 25.)
Replace the lamp. (See page 32.)
Adjust the focus. (See pages 15 and 19.)
Clean the lens.
Press the or button on the remote control to eliminate flicker.
Adjust TRACKING and FINE SYNC. in the SIGNAL menu. (See page 27.)
Adjust BRIGHTNESS and CONTRAST in the IMAGE menu. (See page 25.)
Adjust the projector and the screen so that they are perpendicular to each other. (See
page 10.)
This symptom is normal for a DLP™ projector and is not a malfunction. (A very small
number of pixels may stay lit or out, but such symptom is not a malfunction. Pixels of
99.99% or more are effective.)
• This is due to color breaking noise that occurs in a DLP™ system and is not a
malfunction.
• This is due to interference with the screen surface and is not a malfunction. Replace
the screen or displace the focus a little.
• Vertical or horizontal streak noise may appear on the projected image, depending on
the type of the DVD player or game console you use. In such a case, you can reduce
such streak noise by enabling the LPF.
• Connect the plugs of the cables to external devices securely.
• Keep the projector away from devices that emit interfering radio waves.
• When the keystone adjustment is carried out, the image may not be displayed
correctly depending on the type of input signal. This isn’t a product malfunction. In
this case, readjust the keystone so that the amount of keystone correction is as small
as possible.
• Check that the cables connected to the external devices are not broken.
• Check that COMPUTER INPUT in the SIGNAL menu is correctly set. (See page 24.)
• Check that the cable connected to the external device isn’t broken.
• This is caused by the computer being used. Contact the manufacturer of your
computer.
• Match the output resolution of your computer with the resolution of the projector. For
the method to change the output resolution of the computer, contact the manufacturer
of your computer. (See page 38.)
• Some images and texts appear obscured during the keystone adjustment. In such
cases, use the projector without applying the keystone adjustment. (See page 10.)
EN-35
ENGLISH
No image appears on the screen. (continued)
Troubleshooting (continued)
Images are not displayed correctly. (continued)
Problem
Solution
Images of WXGA
signal are not
displayed correctly.
• Some signals may be recognized wrongly as XGA60 signal. In such cases, carry out
the following procedure.
1. Set WXGA in the FEATURE menu to AUTO.
2. Display an image with many characters such as HELP menu.
3. Press the AUTO POSITION button.
If images are still recognized wrongly:
• Set WXGA in the FEATURE menu manually depending on input signal. (See page 24.)
• The input signal may be an inapplicable signal. Change the signal format of the
computer.
It takes abnormally
long time to display
images of signals
other than WXGA, or
the images are not
displayed correctly.
• When WXGA in the FEATURE menu is set to other than OFF, it may take long time to
detect WXGA signal or may cause misclassification of signals. In such cases, set it to
OFF.
Others
Problem
Solution
The exhaust vents
emit warm air.
• This air comes out after cooling the inside of the projector. You may feel hot, but this is
not a malfunction.
No audio is output.
• Check that the volume isn’t set to low.
The menu can’t be
used.
• The microcomputers inside the projector may be wrongly operating because of noise.
Turn off the main power, wait about 10 minutes, and turn on the main power again.
“TEMPERATURE!!” is
displayed.
• This indication appears when the ambient temperature rises high. When the ambient
temperature stays high, the lamp goes out.
Eliminate any causes of the rise in the ambient temperature.
• This indication appears when the air inlet or outlet grille is blocked. When they are kept
blocked, the lamp goes out.
Remove the objects blocking the air inlet or outlet grille.
The
mark appears.
• This mark appears when ineffective operation is carried out. This isn’t a product
malfunction.
The remote control
doesn’t function easily
or at all.
• Check that the batteries are loaded in the remote control or the batteries are not weak.
(See page 6.)
• Check that the remote control sensor isn’t exposed to direct sunlight or fluorescent
light. (See page 9.)
• Use the remote control within its operation range. (See page 9.)
• Use the remote control at least 10 cm away from the projector.
The buttons on the
control panel (except
for the POWER
button) don’t function.
• PASSWORD FUNCTION in the FEATURE menu has been set to MENU ACCESS to enable the password lock.
Cancel the password lock or contact the person in charge of management of the
projector. (See page 28.)
Abnormal sound is
heard.
• Because the color wheel spins at a high speed, metallic sounds may be heard in rare
occasions. Such symptom is not a malfunction.
If the following problem occurs after the lamp is replaced, check the following first.
Problem
Solution
The projector does not
turn on.
• Fit the lamp cover securely. (See pages 32 and 33.)
• Reset the lamp operating time. (See page 33.)
The STATUS indicator
blinks.
• Reset the lamp operating time. (See page 33.)
Kensington Lock
This projector has a Kensington Security Standard connector for use with Kensington MicroSaver Security System.
Refer to the information that came with the Kensington System for instructions on how to use it to secure the
projector. Please contact Kensington Technology Group below.
Kensington Technology Group
2855 Campus Drive
San Mateo, CA 94403, U.S.A.
Phone : +1- (650)572-2700
EN-36
Fax : +1- (650)572-9675
Specifications
Type
Model
Display Technology
DLP™ projector
WD2000
0.65-inch Single chip DMD
Pixel: 1280 x 768 = 983040 pixels
Projection lens
Light-source lamp
Image size (Projection distance)
Maximum
Computer signal
resolution
Video signal
Component
signal
F 2.0 - 2.4 f= 24.5 - 33.1 mm
300 W
40” min. to 275” max. (Projection distance 1.4 to 10.6 m)
Maximum resolution: 1280 x 1024 dots (Analog) / compressed
Panel resolution: 1280 x 768 dots
Computer/Component video input
Video input
Audio input
Monitor output
Audio output
Speaker
Control terminal / Others
Operating temperatures
Rated voltage
Power consumption
Dimensions (Not including protrusion)
Weight
Others
S-video input
Video input
Analog input
Digital input (DVI)
Audio input
DC OUT
*1
ENGLISH
The specifications and outside appearance of the projector are subject to change without prior notice.
NTSC / PAL / SECAM / NTSC 4.43 / PAL-M / PAL-N / PAL-60
480i, 480p, 576i, 576p, 720p, 1080i
Panel resolution: 1280 x 768 dots
[Signal type]
[Terminal type]
[Line]
Analog RGB
Mini D-SUB 15-pin
1
Analog RGB
5 BNC
1
Digital RGB
DVI
1
[Signal type]
[Terminal type]
[Line]
Video input
RCA / BNC
1
S-video input
S / 2 BNC
1
[Signal type]
[Terminal type]
[Line]
RGB/Component
Stereo mini jack (ø3.5) 2
Video
RCA (L, R)
1
S-video
RCA (L, R)
1
[Signal type]
[Terminal type]
[Line]
Analog RGB
Mini D-SUB 15-pin
1
[Signal type]
[Terminal type]
[Line]
RGB/Component
Stereo mini jack (ø3.5) 1
3 W Mono Round type ø5 cm x 1
RS-232C (D-SUB 9-pin), USB, LAN (RJ-45), REMOTE IN/OUT
+41°F (+5°C) to +104°F (+40°C)
AC100 - 240 V, 50/60 Hz
4.2 A
430 mm (W) x 166 mm (H) x 330 mm (D) (Projector only)
430 mm (W) x 166 mm (H) x 425 mm (D) (Including the terminal cover)
8.5 kg (Projector only), 8.8 kg (Including the terminal cover)
Luminance signal: Vp-p=1.0 V 75 Ω (negative sync)
Chrominance signals: Vp-p=0.286 V 75 Ω (burst signal)
Vp-p=1.0 V 75 Ω (negative sync)
RGB: Vp-p=0.7 V 75 Ω (negative sync)
YCBCR: Vp-p=1.0 V (Y) (negative sync) Vp-p=0.7 V (CB, CR)
HD/CS: TTL-level (negative or positive polarity)
VD: TTL-level (negative or positive polarity)
DVI-D interface (TMDS single link) with HDCP
350 mVrms, 10 kΩ or more
5 V 1.5 A (max) (For wireless LAN unit *1)
: Wireless LAN unit isn’t packaged together with the projector.
Replacement part
(Option / Not included in the box)
Spare lamp
(VLT-XD2000LP)
EN-37
Specifications (continued)
Specification of RGB signals in each computer mode of the projector
Signal mode
TV60, 480i (525i)
TV50, 576i (625i)
1080i 60 (1125i 60)
1080i 50 (1125i 50)
480p (525p)
576p (625p)
720p 60 (750p 60)
720p 50 (750p 50)
1080p 60
1080p 50
CGA70
CGA84
CGA85
VGA60
VGA72
VGA75
VGA85
SVGA56
SVGA60
SVGA72
SVGA75
SVGA85
SVGA95
XGA43i
XGA60
XGA70
XGA75
XGA85
WXGA60
WXGA60a
WXGA60b
WXGA60c
SXGA70a
SXGA75a
SXGA85a
SXGA60b
SXGA75b
SXGA43i
SXGA60
SXGA75
MAC13
MAC16
MAC19
HP75
HP72
SUN66a
SUN76a
SUN66
SUN76
SGI72
SGI76
*1 :
*2 :
*3 :
Resolution
(H x V)
640 x 400
640 x 400
640 x 400
640 x 480
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1280 x 768
1280 x 800
1360 x 768
1366 x 768
1152 x 864
1152 x 864
1152 x 864
1280 x 960
1280 x 960
1280 x 1024
1280 x 1024
1280 x 1024
640 x 480
832 x 624
1024 x 768
1024 x 768
1280 x 1024
1152 x 900
1152 x 900
1280 x 1024
1280 x 1024
1280 x 1024
1280 x 1024
Horizontal
frequency (kHz)
15.73
15.63
33.75
28.13
31.47
31.25
45.00
37.50
67.50
56.25
31.47
37.86
37.86
31.47
37.86
37.50
43.27
35.16
37.88
48.08
46.88
53.67
59.97
35.52
48.36
56.48
60.02
68.68
47.77
49.70
47.71
47.50
63.85
67.50
77.49
60.00
75.00
46.43
63.98
79.98
35.00
49.72
60.24
62.94
78.13
61.85
71.81
71.68
81.13
76.92
82.01
Available only when the input signal is YCBCR.
Available with the signal for the DVI-D terminal.
Available for the signal from the COMPUTER/COMPONENT
VIDEO IN terminals. Images are displayed simply with some
pixels dropped, so the original image quality is not obtained.
*4 : Set WXGA in the FEATURE menu to AUTO for these signals.
Some signals may not display images of WXGA signal correctly. See page 36 for details.
*5 : Not available when ASPECT in the FEATURE menu is set to FULL.
•
When ASPECT in the FEATURE menu is set to REAL, images are
displayed in their original size. In the REAL mode, images are
black-framed when the image resolution is lower than 1280 x 768.
Important:
• Some computers aren’t compatible with the projector.
• The projector’s maximum resolution is 1280 x 768 pixels. It may
not display images of higher resolutions than 1280 x 768 correctly.
• Images with SYNC on G (Green) signal may jitter.
• Images with SYNC on G (Green) signal may be tinged with
green.
EN-38
Vertical
frequency (Hz)
59.94
50.00
60.00
50.00
59.94
50.00
60.00
50.00
60.00
50.00
70.09
84.13
85.08
59.94
72.81
75.00
85.01
56.25
60.32
72.19
75.00
85.06
94.89
86.96
60.00
70.07
75.03
85.00
59.87
59.81
60.02
59.75
70.01
75.00
85.06
60.00
75.00
86.87
60.02
75.02
66.67
74.55
75.02
74.92
72.00
66.00
76.64
66.68
76.11
72.30
76.00
•
•
•
•
•
•
Normal mode
(H x V)
1024 x 768
1024 x 768
1280 x 720
1280 x 720
1024 x 768
1024 x 768
1280 x 720
1280 x 720
1280 x 720
1280 x 720
1228 x 768
1228 x 768
1228 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1280 x 768
1228 x 768
1280 x 722
1280 x 720
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
960 x 768
960 x 768
960 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
960 x 768
980 x 768
980 x 768
960 x 768
960 x 768
960 x 768
960 x 768
Real mode
(H x V)
640 x 400
640 x 400
640 x 400
640 x 480
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1280 x 768
1228 x 768
1280 x 722
1280 x 720
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
960 x 768
960 x 768
960 x 768
640 x 480
832 x 624
1024 x 768
1024 x 768
960 x 768
980 x 768
980 x 768
960 x 768
960 x 768
960 x 768
960 x 768
*1
*1
*2
*2
*2
*2
*3
*3
*2
*2
*5
*2
*2, *4
*2, *4
*2, *4
*2, *4
*2
If the resolution and frequency of your computer aren’t shown
on the table, find the compatible resolution and frequency by
changing the resolution of your computer.
If colors aren’t displayed correctly when the projector is connected to a high-definition video device having R, G, and B output
terminals, set COMPUTER INPUT to RGB in the SIGNAL menu.
In the case of SXGA, the right side of the image may not appear.
In this case, adjust TRACKING in the SIGNAL menu.
TV60 and TV50 are equivalent to 480i and 576i respectively.
When these signals are supplied to the VIDEO IN or S-VIDEO IN
terminals, the signal mode is indicated as TV60 or TV50. When
they are supplied to the COMPUTER/COMPONENT VIDEO IN
terminals, the signal mode is indicated as 480i or 576i.
Video signals having resolution exceeding the maximum resolution supported by this projector are reduced to the maximum
resolution size of the projector even in the REAL mode.
This projector doesn’t support 480i, 576i and 480p signals from
video devices having 5 lines (R, G, B, H, V) or 4 lines (R, G, B,
CS*).
* : Composite Sync
5
5
9
6
6
15
Pin No.
1
Name
-
I/O
-
2
TXD
IN
3
RXD
OUT
4
-
-
5
GND
-
6
-
-
7
-
-
8
-
-
9
-
-
11
9
16
1
1
10
17
Pin No.
Spec.
1
2
R(RED)/CR
G(GREEN)/Y
3
B(BLUE)/CB
8
PIN No.
1
1
SPEC
DATA 2-
PIN No.
13
SPEC
+5V Power
4
GND
2
DATA 2+
14
5
GND
3
DATA 2 Shield
15
Ground
6
GND
4
-
16
Hot Plug Detect
7
GND
5
-
17
DATA 0-
8
GND
6
DDC Clock
18
DATA 0+
9
DDC 5V
7
DDC Data
19
DATA 0 Shield
10
GND
8
-
20
-
11
GND
9
DATA 1-
21
-
12
DDC Data
10
DATA 1+
22
Clock Shield
13
HD/CS
11
DATA 1 Shield
23
Clock+
14
VD
12
-
24
Clock-
15
DDC Clock
Dimension Drawings (unit : mm)
Without terminal cover
With terminal cover
430
215*
*
Factory-defaults
166
93*
166
93*
330
425
430
215*
*
Factory-defaults
EN-39
ENGLISH
SERIAL (D-SUB 9-pin)
24
DVI-D(HDCP)
(DVI-D 24-pin)
COMPUTER/COMPONENT VIDEO IN-1
(Mini D-SUB 15-pin)
Connectors
MITSUBISHI Projector Contact Information
North America
MESCA (Mitsubishi Electric Sales Canada Inc.)
http://www.mitsubishielectric.ca
Information Technologies Group, 4299 14th Avenue,
Markham, Ontario L3R 0J2, Canada
Sales & Technical Inquires
Phone
:+1-(800) 450-6487
Fax
:+1-(905) 475-7958
E-mail
:projectors@mitsubishielectric.ca
Customer Care
E-mail
:support@mitsubishielectric.ca
MEU-SP (Mitsubishi Electric Europe B.V. Spanish Branch)
http://www.mitsubishielectric.es/
Ctra. de Rubi, 76-80, 08173 Sant Cugat del Valles,
Barcelona, Spain
Sales Inquiries
Phone
:+34-93.565.31.54
Fax
:+34-93.589.43.88
E-mail
:mitsubishi.profesional@sp.mee.com
Technical Inquiries
Phone
:+34-93.586.27.51
Fax
:+34-93.588.53.87
E-mail
:mitsubishi.profesional@sp.mee.com
MDEA (Mitsubishi Digital Electronics America, Inc.)
(Warranty Registration)
http://www.mitsubishi-presentations.com/
Presentation Products Division, 9351 Jeronimo Road,
Irvine, CA 92618 U.S.A
Sales & Inquires
Phone
:+1(888) 307-0349 or +1(949)465-6000
E-mail
:ppdinfo@mdea.com
Technical Inquires
Phone
:+1-(888) 307-0309
E-mail
:TSUPPORT@mdea.com
MEU-SWE (Mitsubishi Electric Europe B.V Scandinavian
Branch)
Hammarbacken 14, Box 750, S-19127, Sollentuna, Sweden
Sales Inquiries
Phone
:+46-(0)8-6251070
Fax
:+46-(0)8-6251036
Technical Inquiries
Phone
:+46-(0)8-6251052
Fax
:+46-(0)8-6251036
Europe
MEU-FRA (Mitsubishi Electric Europe B.V French Branch)
25, Boulevard des Bouvets 92 741, Nanterre CEDEX,
France
Sales Inquiries
Phone
:+33 (0)1 55-68-55-53
Fax
:+33 (0)1 55-68-57-31
Techinical Inquireis
Phone
:+33 (0)1 55-68-56-42
Fax
:+33 (0)1 55-68-57-31
MEU-GER (Mitsubishi Electric Europe B.V. German Branch)
http://www.mitsubishi-evs.de/
Gothaer Strasse 8, 40880 Ratingen, Germany
Sales Inquires
Phone
:0049 - 2102 - 486 9250
Fax
:0049 - 2102 - 486 7320
Techinical Inquires
Phone
:0049 - 2102 - 486 1330
Fax
:0049 - 2102 - 486 1340
MEU-IR (Mitsubishi Electric Europe B.V. Irish Branch)
http://www.mitsubishi.ie/
Westgate Business Park, Ballymount, Dublin 24, Ireland
Sales Inquiries
Phone
:+353-1-4198807
Fax
:+353-1-4198890
Technical Inqiries
Phone
:+353-1-4198808
Fax
:+353-1-4198895
MEU-IT (Mitsubishi Electric Europe B.V. Italian Branch)
Centro Direzionale Colleoni, Palazzo Persero-Ingresso 2,
Via Paracelso 12, 20041 Agrate Brianza, Italy
Sales & Technical Inquiries
Phone
:+39-(0)39-60531
Fax
:+39-(0)39-6053214
E-mail
:info.projector@it.mee.com
MEU-NL (Mitsubishi Electric Europe B.V. Benelux Branch)
http://www.mitsubishi.nl/LCD/ProdFrame.html
Nijverheidsweg 23A, 3641 RP Mijdrecht, The Netherlands
Sales Inquiries
Phone
:+31-297-282461
Fax
:+31-297-283936
E-mail
:info@mitsubishi.nl
Techinical Inquiries
Phone
:+31-297-282461
Fax
:+31-297-283936
E-mail
:info@mitsubishi.nl
Russia (Mitsubishi Electric Europe B.V Moscow
Representative Office)
http://www.mitsubishi-projector.ru/
Moscow Representative Office, 52/5 Kosmodamianskaya
Nab., 115054, Moscow, Russia
Sales & Techinical Inquiries
Phone
:(7095) 721-2068
Fax
:(7095) 721-2071
MEU-UK (Mitsubishi Electric Europe)
http://www.mitsubishi.co.uk/evs/
Visual Information Systems Division, Travellers Lane,
Hatfield, Hertfordshire, AL10 8XB U.K.
Sales Inqiries
Phone
:+44 (1707) 278684
Fax
:+44 (1707) 278541
E-mail
:projector.info@meuk.mee.com
Technical Inquiries
Phone
:+44 (870) 606 5008
Fax
:+44 (1506) 431927
E-mail
:projector.info@meuk.mee.com
Asia
CHINA (Mitsubishi Electric Air-Conditioning & Visual
Information Systems (Shanghai) Ltd.)
26/F .,Oriental Center ,699 Nanjing Rd(W),Shanghai,
200041,China
Sales Inquiries
Phone
:+86(21) 5211-0882-3010
Fax
:+86(21) 5211-0576
Technical Inquiries
Phone
:+86(21) 5211-0882-3018
Fax
:+86(21) 5211-0576
HONG KONG (Mitsubishi Electric Ryoden Air-Conditioning
& Visual Information Systems (HongKong) Ltd.)
7th Floor, Manulife Tower, 169 Electric Road, North Point,
Hong Kong
Sales Inquiries
Phone
:+852-2510-1505
Fax
:+852-2510-0463
Technical Inquiries
Phone
:+852-2422-0161
Fax
:+852-2487-0181
SINGAPORE (Mitsubishi Electric Asia Pte. Ltd.)
http://www.mitsubishielectric.com.sg
307, Alexandra Road, #05-01/02 Mitsubishi Electric
Building, Singapore 159943
Sales Inquiries
Phone
:+65-6473-2308
Fax
:+65-6475-9503
E-mail
:Peripherals@asia.meap.com
Technical Inquiries
Phone
:+65-6470-2666
Fax
:+65-6475-9503
INDIA (Mitsubishi Electric Asia Pte. Ltd.)
307, Alexandra Road, #05-01/02 Mitsubishi Electric
Building, Singapore 159943
Sales Inquiries
Phone
:+65-6473-2308
Fax
:+65-6475-9503
E-mail
:Peripherals@asia.meap.com
Technical Inquiries
Phone
:+65-6470-2666
Fax
:+65-6475-9503
INDONESIA (Mitsubishi Electric Asia Pte. Ltd.)
307, Alexandra Road, #05-01/02 Mitsubishi Electric
Building, Singapore 159943
Sales Inqiries
Phone
:+65-6473-2308
Fax
:+65-6475-9503
E-mail
:Peripherals@asia.meap.com
Technical Inquiries
Phone
:+65-6470-2666
Fax
:+65-6475-9503
PHILLIPINES (Mitsubishi Electric Asia Pte. Ltd.)
http://www.mitsubishielectric.com.sg
307, Alexandra Road, #05-01/02 Mitsubishi Electric
Building, Singapore 159943
Sales Inquiries
Phone
:+65-6473-2308
Fax
:+65-6475-9503
E-mail
:Peripherals@asia.meap.com
