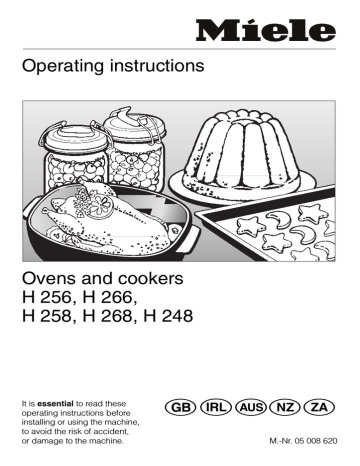

Miele S 248i Operating instructions

Operating instructions
Ovens and cookers
H 256, H 266,
H 258, H 268, H 248
It is essential to read these
operating instructions before
installing or using the machine,
to avoid the risk of accident,
or damage to the machine.
Q\@ä}
M.-Nr. 05 008 620
Contents
Contents
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Safety feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
To set the time of day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cleaning the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Description of the oven systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Oven - use
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Function selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Push buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting an oven setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting a temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recommended temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Altering the temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pre-heating the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interrupting the process / switching off the oven . . . . . . . . . . . . . . . . . . . . . . . . . .
Rapid heat-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To switch off "rapid heat-up" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Energy-save function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oven lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Night dimming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
19
20
21
22
22
23
23
24
24
25
25
26
26
26
Setting the minute minder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Altering oven settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Contents
Accessories
Baking tray, roasting / grill pan and rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roasting filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti-splash tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Telescopic carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Catalysor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
30
31
31
31
31
Timer - use
Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Push buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Timer display field. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To enter the time of day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programming cooking time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programming cooking time in the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programming hob zone cooking times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To end a cooking time automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To switch a cooking process on and off automatically . . . . . . . . . . . . . . . . . . . . .
To enter duration and end. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Enter the start and the duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking, changing and cancelling times entered . . . . . . . . . . . . . . . . . . . . . . . .
To cancel programmed processes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
32
33
34
35
35
36
37
37
37
38
38
39
Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Baking chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Roasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Roasting with the Roast Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Oven roasting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Casseroles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Contents
Grilling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Grill chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Cleaning and care
Appliance front and control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oven interior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
"Clean-Enamel" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Catalytic Enamel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning each type of enamel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To remove the oven door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To remove the telescopic carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To remove the runners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To remove the catalytic side panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To remove the back panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To lower the (upper heating) grill element . . . . . . . . . . . . . . . . . . . . . . . . . . . .
57
57
58
58
58
59
60
61
62
63
64
64
Correcting minor faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Extra accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Electrical connection Q\} . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Electrical connection @ä . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Installation - cooker and hob control unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Installing the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Installation situations H 248 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Description of the appliance
Description of the appliance
General view - cooker with hob controls
"E"-model:
Control panel *
Oven interior
b Oven function selector and
g Heating element for top heat
function setting display
c Oven: display and pushbuttons
d Timer: display and pushbuttons
e "+/–" Button with indicator light
f Hob zone controls *
h Grill motor *
i Halogen lamp change slide
j Connection socket for core
and grilling with guard plate
temperature probe (roast probe) *
k Air inlet for fan
l Telescopic carriage with runner
heights 1, 2, 3, 4, 5 *
m Door contact switch
n Oven door
* depending on the model
6
Description of the appliance
General view - oven only
"B"-model:
Control panel *
Oven interior
b Oven function selector and
f Heating element for top heat
function setting display
c Oven: display and pushbuttons
d Timer: display and pushbuttons
e "+/–" Button with indicator light
g Grill motor *
h Halogen lamp change slide
i Connection socket for core
and grilling with guard plate
temperature probe (roast probe) *
j Air inlet for fan
k Telescopic carriage with runner
heights 1, 2, 3, 4, 5 *
l Door contact switch
m Oven door
* depending on the model
7
Description of the appliance
Accessories
Hob use and installation
The following accessories are supplied
with all ovens:
For "E" models a separate set of instructions is supplied with the hob which
covers its use and installation.
– 2 baking trays
– dual purpose grill pan / oven tray
– non-tip rack
– roasting filter
Depending on model, your appliance
may also have the following:
– built-in catalysor
– telescopic carriage
– grill motor and rotisserie
– core temperature probe (roast probe)
– a handle
– an anti-splash tray.
8
Caring for the environment
Caring for the environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials
which are environmentally friendly for
disposal and can normally be recycled.
Rather than just throwing these materials away, please ensure they are offered for recycling.
Disposal of your old machine
Old machines contain materials which
can be reclaimed or recycled. Please
contact your dealer, your local waste
collection centre or scrap merchant
about potential recycling schemes,
before disposing of the appliance.
Ensure that the machine presents no
danger to children while being stored
for disposal. See the appropriate advice in the "Warning and Safety instructions".
9
Warning and Safety instructions
Warning and Safety instructions
This appliance complies with all relevant legal safety requirements. Improper use of the appliance can,
however, present a risk of both personal injury and material damage.
Before installation and before using
the appliance for the first time, read
the operating instructions carefully.
They contain important notes on
safety, on the operation and care of
the appliance. This way you will
avoid the risk of accidents and damage to the appliance.
Do not let children access the appliance or its controls. Supervise its
use by the elderly or infirm.
Keep these instructions in a safe
place and pass them on to any future user.
Correct usage
The appliance is intended for domestic use to cook food, and in
particular to bake, roast, defrost, cook,
dry fruit etc, and to grill. Any other
usage is at the owner’s risk and could
be dangerous. The manufacturer cannot be held responsible for damage
caused by improper use of the appliance.
10
Technical safety
Before connecting the appliance to
the mains supply make sure that
the voltage and frequency correspond
to the rating on the data plate, otherwise the appliance could be damaged.
Consult a competent person if in doubt.
The electrical safety of this appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system, which complies with local and
national regulations. It is most important that this basic safety requirement is
tested by a qualified electrician. The
manufacturer cannot be held responsible for the consequences of an inadequate earthing system.
This appliance must only be operated as a built-in appliance. This is
necessary to ensure that all electrical
components are shielded.
Never open the casing of the appliance.
Tampering with electrical connections or
components and mechanical parts is
highly dangerous to the user and can
cause operational faults.
Warning and Safety instructions
Installation work and repairs may
only be carried out by suitably
qualified and competent persons to ensure safety. Repairs and other work by
unqualified persons could be dangerous. The manufacturer cannot be
held responsible for unauthorized work.
The appliance is only completely
isolated from the electricity supply
when:
– it is switched off at the wall socket
– or the mains fuse is withdrawn
– or the screw-out fuse is removed (in
countries where this is applicable).
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance, (e.g.
danger of overheating).
The oven is designed to be built
into a tall unit. If you wish to install
it in a base unit, the stainless steel rail
above the control panel must be replaced by a sealing strip. The sealing
strip offers additional protection from
any liquids that might spill down from
the worktop, and can be purchased
from the Miele Spare Parts dept.
Use
Caution, danger of burning.
High temperatures are produced by
the oven.
Great care should be taken to ensure that small children do not
touch the appliance when it is being
used. The hob and also external parts
of the oven such as the door glass,
vents and control panel can become
quite hot.
For cookers with a hob turn handles inwards, and ensure children cannot pull
pans down on themselves.
Oven
Use of heat-resistant oven gloves
is recommended, when placing
food in the oven, turning or removing it.
When working with "Conventional" heating or when grilling, the element in the
roof of the oven and the guard plate
become very hot, and there is a danger
of being burnt.
Wait until the grill element has
cooled down before lowering it for
cleaning, to avoid the danger of burning.
Do not use force to pull it down as
this can cause the element to
break.
11
Warning and Safety instructions
Use only a Miele roast probe (core
temperature probe) as supplied
with this appliance. If a replacement is
necessary it can be obtained from the
Miele Spare Parts dept or a Miele specialist dealer.
After using do not remove the roast
probe until the oven interior is cool.
When not in use do not leave the
roast probe in the oven, especially
when grilling. High grill temperatures
could damage it.
Do not use plastic containers.
They may melt at high temperatures. The oven could be damaged.
Do not heat up unopened tins or
jars of food in the oven, as pressure can build up and they may explode. This could result in injury or
damage.
Do not push pots and pans around
on the oven floor as this could
damage the surface.
Do not lean or sit on the open oven
door, or place heavy items on it.
This could damage the appliance. Take
care in the region of the hinges. The
oven door can support a maximum
load of 10 kg.
12
Cover any food which is left in the
oven to be kept hot. This avoids
the food drying out. It also prevents
steam condensing and possibly leading to moisture damage in the oven.
If food is left in the oven after cooking, e.g. to take advantage of the
residual heat, select the lowest temperature available. Leave the function
selector switch at the position set.
Do not switch the appliance off until the
food has been removed.
Otherwise there may be a build-up of
condensation which could adversely affect the oven interior, and externally the
control panel, the worktop surface or
surrounding kitchen furniture.
Put any deep frozen products such
as pizza on baking paper on the
rack. Do not place them on the baking
tray or grill pan. This could cause the
metal to distort to such an extent that it
might be difficult to remove the
tray/pan from the oven. The distortion
would increase with subsequent use.
Warning and Safety instructions
General notes
Do not leave the appliance unattended when cooking with oils and
fats as these can be a fire hazard if
allowed to overheat.
Do not use the oven to heat up the
room. Due to the high temperatures radiated, objects left near the
oven or hob could catch fire.
When using kitchen appliances
connected to sockets near the
oven, ensure that the cable cannot
come in contact with the hot cooking
zones or get trapped in a hot oven
door, which could melt the cable insulation and be dangerous.
Danger of electric shock.
Always ensure that food is sufficiently cooked or reheated. Many
factors will affect the overall cooking
time, including the size and amount of
food, its temperature, changes to the
recipe and the shape and size of cooking container. Some foods may contain
micro organisms which are only destroyed by thorough cooking. Therefore
when cooking or reheating foods, e.g.
poultry, it is particularly important that
food is fully cooked through. If in doubt
select a longer cooking or reheating
time.
It is important that the heat is allowed
to spread evenly throughout the food
being cooked.
This can be achieved by stirring and/or
turning the food, and by observing a
sufficiently long standing time, which
should be added to the time needed
for cooking, reheating or defrosting.
13
Warning and Safety instructions
Under no circumstances use a
steam cleaner to clean this appliance. Pressurised steam could give
rise to a short circuit.
Using alcohol in your recipes:
often alcoholic drinks such as rum,
cognac, wine etc are used when preparing dishes and oven-cooking them.
The high temperatures can cause the
alcohol to separate out.
Please take note that under adverse circumstances the alcohol can catch light
on the hot elements.
In countries which may be subject
to infestation by cockroaches or
other vermin, pay particular attention to
keeping the appliance and its surroundings in a clean condition at all times.
Any damage which might be caused
by cockroaches or other vermin will not
be covered by the appliance guarantee.
14
Disposal of your old machine
Before discarding an old machine
switch off and disconnect it from
the power supply. This should be done
by a competent person. Cut off and
render any plug useless.
Cut off the cable directly behind the
machine to prevent misuse.
The manufacturer cannot be held
liable for damage caused by noncompliance with safety instructions.
Safety feature
Safety feature
Operating lock for oven and
hob cooking zones
The operating lock can be activated to
prevent the oven or hob being
switched on unintentionally, by children
for example.
To cancel the operating lock:
Turn the oven function selector to any
oven function.
Press the " p" until the key symbol in
the display field disappears.
The operating lock is activated as follows:
The oven function selector must be
at the "0" setting.
Press the " p" button until the key
symbol appears in the display field.
The oven (and cooking zones if applicable) can now not be switched on.
15
Before using for the first time
Before using for the first time
To set the time of day
When the appliance is first connected
to the power supply, or after a power
cut "12:00" and the symbols "f" and
")" flash in the display.
Cleaning the appliance
Oven interior
Wipe out the oven interior using
warm water and a little washing up
liquid. Dry with a clean, dry cloth.
Do not close the oven door until the
oven interior is dry.
Press the buttons "f" and ")" at
the same time.
The following light up
– "12:00" in the display,
– the "+/–" button indicator light.
Rinse the accessories.
New appliances have a slight smell on
first use. Running the oven for at least
an hour at a high temperature will dissipate this more quickly.
Turn the oven function selector to
"Fan Heat D".
Now immediately, while the indicator
light for the "+/–" button is still on,
enter the time in hours:minutes with
the "+" or "–" buttons.
Now immediately, while the indicator
light for the "+/–" button is still on, alter
the oven temperature.
When the indicator light for the "+/–" button goes out, the time of day has been
set and the display will change at oneminute intervals. The colon flashes.
Select the highest temperature with
the "+" button.
If your appliance is also fitted with the
receiver for the radio controlled clock
signal, the time is set automatically
(see separate operating instructions for
the radio controlled clock).
16
Depending on model, the timer can
also be used to set the finish time.
Ensure the room is well ventilated
during this process.
Description of the oven systems
Description of the oven systems
Fan Heat D
Auto Roast E
This system works by the circulation of
heated air.
This setting offers the "Fan Heat" with
"Auto Roast". The oven heats initially to
a high temperature which seals the
meat to keep it succulent and tasty.
A fan situated on the back wall of the
oven sucks in the air, heats it over a
ring element and blows the heated air
through the carefully spaced openings
in the rear panel of the oven.
The oven does not usually need to be
pre-heated as the heated air reaches
the food straight away.
Exception: Pre-heat the oven when
roasting meat or baking bread made
with dark flour.
Using the fan heating system you can
bake and roast on different levels at the
same time.
The heated air used by this system is
of a lower temperature than that used
with the "Conventional" heating system.
If a temperature of at least 140°C is selected, the "rapid heat-up" feature is activated.
The "Top Heat" heating element is also
switched on automatically so that the
appliance heats up more rapidly. This
saves energy.
As soon as the high temperature has
been reached, the oven temperature is
automatically returned to the preselected setting.
If a temperature of at least 140°C is selected, the "rapid heat-up" feature is activated.
The "Top Heat" heating element is also
switched on automatically so that the
appliance heats up more rapidly. This
saves energy.
Conventional heating A
With this conventional method of heating, radiant heat is directed on the food
from above and below.
Pre-heating the oven is only necessary
when
– baking biscuits or cakes with a
short cooking time (up to approx.
30 minutes),
– baking some types of doughs,
– baking bread made with dark flour,
– roasting a joint of meat.
If a temperature of at least 150°C is selected, the "rapid heat-up" feature is activated.
The fan and its heating element are
also switched on automatically so that
the appliance heats up more rapidly.
This saves energy.
17
Description of the oven systems
Defrost G
Grill 1 ,
Defrost can be operated without heating, or at a temperature of up to 50°C.
When the defrost system is used without heating the air is circulated by the
fan at room temperature.
The inner part of the upper heating element acts as the grill. This will glow red
for a few minutes after being switched
on, and it is then ready for use. Use the
Grill 1 setting for small quantities.
Intensive bake F
Grill 2 J
This method combines "Fan Heat" with
heat from the lower heating element,
and is particularly useful for dishes that
require a moist topping and crisp base
like pizza and quiche lorraine.
The entire upper heating element acts
as the grill.
Fan grill I
The hot air from the grill is distributed
over the food by the fan on the rear wall
of the oven. This enables a lower temperature to be selected than for conventional grilling.
18
This method is particularly good for grilling large quantities of food using the
grill pan to its full extent.
Oven - use
Oven - use
Controls
Function selector
The oven controls consist of the oven
function selector and pushbuttons.
(depending on the model)
With this control you select the oven
function required.
The selector can be turned clockwise
or anti-clockwise.
19
Oven - use
Push buttons
With the push buttons you can:
– change the oven temperature.
– change the core temperature, if the
core temperature (roast) probe is
used (depending on model).
– activate the minute minder.
Each push button has a matching symbol in the oven display.
All temperature and time entries or alterations to temperature and time are
made via the "+" or "–" buttons.
Temperatures / times can be entered in
stages (short pushes on the button)
and quickly (hold button down).
In this way the following alterations can
be made
– oven temperature in 5°C stages
– core temperature in 1°C stages
– minute minder in 1 min. stages.
If one of the buttons (p,e, l) is
pressed the indicator light between
the "+" and "–" buttons lights up.
While this light is on, times / temperatures can be entered or altered.
Each time the "+/–" button or one of the
other buttons is pressed this gives
more time for data input.
When the indicator light goes out, the
data input or alteration has been registered.
20
Oven - use
Selecting an oven setting
With the oven function selector the following settings can be chosen:
– Light H
Turns on the oven light independently.
H 248: All oven functions are displayed as soon as the function selector is switched to "light H".
– Fan Heat D
For baking or roasting on several levels at the same time.
– Top heat C
For browning dishes, finishing
dishes with a cheese topping.
– Conventional A
Top and bottom heat together, for
baking / roasting traditional recipes,
for soufflés.
– Bottom heat B
Use this setting towards the end of
baking, to brown the base of a cake.
– Auto Roast E
Initial high temperature to seal meat
followed by normal roasting temperature.
Not suitable for baking, except for
baking freshly prepared wholemeal
or rye doughs, (not packet mixes).
– Defrost G
For gentle defrosting of deep frozen
foods.
– Intensive Bake F
For recipes which require a moist
topping, and a crisp base, e.g.
pizzas and quiche lorraine, German
style open fruit cakes and cheesecake.
Not suitable for roasting or shallow
baking, (the base will brown too
much).
– Fan Grill I
Ideal for grilling thicker items such
as stuffed meat, kebabs and pieces
of poultry etc. Grilling takes place
with the oven door closed.
– Grill 1 ,
For grilling flat items, small quantities, and for browning small round
dishes. Grilling takes place with the
oven door closed.
– Grill 2 J
For grilling flat items, large quantities, and for browning larger oval
dishes. Grilling takes place with the
oven door closed.
21
Oven - use
Selecting a temperature
Recommended temperature
As soon as a heating system is selected, the recommended temperature for that system appears in the
oven display and the oven heating
comes on.
Fan Heat . . . . . . . . . . . . . . . . . . . 160°C
Auto Roast* . . . . . . . . . . . . . . . . . 160°C
Top Heat . . . . . . . . . . . . . . . . . . . 190°C
Conventional . . . . . . . . . . . . . . . . 190°C
Bottom Heat . . . . . . . . . . . . . . . . 190°C
Defrost . . . . . . . . . no temperature given
Intensive Bake . . . . . . . . . . . . . . . 170°C
Fan Grill . . . . . . . . . . . . . . . . . . . . 200°C
Grill 1 (small) . . . . . . . . . . . . . . . . 240°C
Grill 2 (large) . . . . . . . . . . . . . . . . 240°C
* the initial boosted temperature is
approx. 230°C,
continuation temperature 160°C
If you wish to retain the temperature
suggested by the system this will be
automatically adopted when the indicator light in the "+/–" button goes out.
The actual temperature in the oven is
now displayed.
The increase of temperature can be
followed in the display.
If the oven door is opened, or a lower
temperature set, the decrease is shown
in 1° steps.
22
Oven - use
Altering the temperature
Using the oven
Place food to be cooked in the oven.
Press the "p" button.
Enter the required temperature with
the "+/–" button.
The temperatures recommended by
the system can be altered in the range:
Fan Heat. . . . . . . . . . . . . . . . . 30-250°C
Auto Roast . . . . . . . . . . . . . . 100-230°C
Top Heat. . . . . . . . . . . . . . . . . 30-250°C
Conventional . . . . . . . . . . . . . 30-280°C
Bottom Heat . . . . . . . . . . . . . 100-250°C
Defrost . . . . . . . . . . . . . . . . . . . 30-50°C
Intensive bake . . . . . . . . . . . . 50-250°C
Fan grill. . . . . . . . . . . . . . . . . . 50-260°C
Grill 1 (small) . . . . . . . . . . . . 200-300°C
Grill 2 (large) . . . . . . . . . . . . 200-300°C
Turn oven function selector to the required function.
The following will light up
– recommended temperature in the
oven display,
– the indicator light for the "+/–" button.
Now alter the temperature if the recommended temperature differs from that
given in the recipe.
Press the " p" button.
Using the "+/–" button enter the
desired temperature.
The oven will start to heat up as soon as
the indicator light for the "+/–" button
goes out.
Heating is automatically interrupted if
the oven door is opened. The door
contact switch trips and switches the
heating systems off automatically.
When "Fan Heat" is being used, the fan
is also switched off.
You can also delay the start of cooking
processes; see "Programming cooking
time".
23
Oven - use
Pre-heating the oven
The oven usually only needs to be preheated in the following cases:
With "Fan Heat D":
– for baking bread made with dark
flour,
– when roasting meat.
With "Conventional heat A":
– for baking biscuits and cakes with a
short cooking time, (up to approx.
30 minutes),
– for baking some doughs,
– when baking bread made with dark
flour,
– for roast meat.
To pre-heat
Turn the oven function selector to the
required function.
Select the required temperature.
When the required temperature has
been reached: Put the food to be
roasted or baked into the oven.
24
Interrupting the process /
switching off the oven
Turn the oven function selector to "0"
The oven is switched off:
all processes / symbols are cancelled.
Exceptions:
– If the roast probe is being used, the
symbol"e" is lit.
– If a minute minder time has been
entered, the "l" symbol is lit and the
display shows the time counting
down.
Oven - use
Rapid heat-up
To switch off "rapid heat-up"
With the "Fan Heat D", "Auto RoastE"
and "Conventional A" heating systems,
"rapid heat-up" is switched on automatically if the temperature required is
– at least 140°C with "Fan Heat D"
and "Auto Roast E".
– at least 150°C with "Conventional A".
For some dishes it may be desirable to
switch off "rapid heat-up" (biscuits,
small cakes).
The rotating "C" beside the required
temperature shows that "rapid heat-up"
is switched on.
During the heat-up phase, the "Fan
Heat" heating element and the fan as
well as the "Top Heat" heating element
come on simultaneously to heat up the
oven as rapidly as possible. This saves
energy.
As soon as the required temperature is
reached, the extra heating element is
switched off.
Once the required temperature is
reached, the extra heating element
does not switch on again even when
the temperature is later increased.
Exception: if the temperature is increased before the required temperature is reached, "rapid heat-up" remains
switched on.
Select the oven system and temperature for the cooking process.
As soon as the actual temperature appears in the display, "rapid heat-up"
can be switched off.
Press the "–" button and hold until
the "C" in the display stops rotating.
"Rapid heat-up" is now switched off for
this particular cooking process.
After the oven function selector has
been turned to "0" at the end of the programme, "Rapid heat-up" will be available for the next programme.
In addition to this, you can also use a
programmable function for the "rapid
heat-up" feature for the three oven systems to normally be switched off, (see
section on "Altering oven settings, Programmable function 06").
25
Oven - use
Energy-save function
Oven lighting
If you are programming a cooking process using the timer, or if you are cooking with the roast probe, the residual
heat is automatically used to save energy.
When the oven is in operation the oven
lighting goes out approx. 15 seconds
after pressing the last button, to save
electricity.
Shortly before the end of the cooking
time the oven heating switches off.
If you wish to switch the lighting
back on for a short time, press one
of the buttons.
The oven lighting goes on automatically
when an oven function has been selected and the oven door is opened.
If preferred, you can set the oven lighting to come on automatically as soon
as an oven function has been selected,
(see the Section on Programmable
functions).
Night dimming
The letters "EC" in the display field indicate that the energy-save function is in
operation.
The residual heat in the oven is sufficient to complete the cooking process.
The cooling fan continues to run, as
does the hot air fan if a "fan" setting
had been chosen.
26
Between the hours of 22:00 and 6:00
the lighting in the clock / timer display
is dimmed automatically to give a slight
energy saving.
Setting the minute minder
Setting the minute minder
The minute minder can be used to time
any activity in the kitchen, e.g. boiling
eggs.
The short time can be entered independently of another entered process.
To enter / to change the short time
(1 min. - 23 hrs. 59 mins.)
At the end of the short time:
– an audible tone sounds for approx.
5 seconds.
– At the same time the "l" symbol
flashes for approx. 1 minute.
The audible tone and the flashing symbol can be cancelled at any time by
pressing the "l" button.
To cancel the minute minder
Press the "l" button.
Press the "l" button.
Enter the required time in hours and
minutes with the "+" button.
When the "+/–" button indicator light goes
out, the time set starts counting down in
minutes.
Use the "–" button to set the short
time to "0:00".
If the oven is being used at the same
time, the minute minder time period
only shows for a short time. Then the
oven or probe core temperature shows
again in the display. The "l" symbol
continues to be visible as a reminder
that the minute minder is working.
27
Altering oven settings
Altering oven settings
Programmable functions
Additional functions can be programmed.
Please consult the Chart for the different possibilities.
To switch a programmable function on
or off:
Proceed as follows:
Turn the oven function selector to "0".
Open the oven door fully.
Turn the oven function selector to the
"Light H" position.
Press the " p" button.
"01:0" or the most recently altered function appears in the oven display.
Use the "+/–" button to select the programmable function required, (see
chart).
Press the "l" button.
The programmable function is switched
on or off.
The following appears after the colon:
– 1 when the function is switched on,
– 0 when the function is switched off.
Turn the oven function switch to the
"0" position.
The setting is stored in memory.
You may alter as many settings as you
wish, as long as the oven function
selector has not been turned to the
"0" position.
28
Altering oven settings
The programmable function is (* marks the standard setting as delivered.)
switched off:
01:0* The oven function and temperature can
be changed at any time.
01:1
switched on:
The locking function for the oven is activated: after oven function and temperature have been chosen, and the indicator light in the "+/–" button has gone
out, the oven function set can no longer
be altered. The target temperature can
only be lowered.
Oven function, target temperature, and
any automatic cooking time programming can only be altered after the oven
function has been turned back to the
"Light H" or "0" position.
02:0* The recommended temperatures
displayed match those in the Operating
Instructions.
02:1
All recommended temperatures are
increased by 10°C (approx. 20°F). This
alteration is advisable if you generally
work with higher temperatures.
03:0* The oven lighting goes on, as soon as an
oven function has been selected.
03:1
The oven lighting goes on as soon as the
oven door is opened, even when the
function selector is set at "0". The oven
lighting comes on automatically, e.g. for
cleaning.
04:0* The temperature is displayed in °C. The
clock/timer has a 24-hour display.
04:1
The temperature is displayed in °F. The
clock/timer has a 12-hour display.
05:0* To save energy, the oven light switches
off after approx.15 seconds when the
oven is in operation. It can be switched
back on again for a short time if required
by pushing any button.
05:1
The oven lighting stays on for the whole
time when the oven is in operation.
06:0* Rapid heat-up is on; during the heat-up
phase of the "Fan Heat D", "Auto
Roast E" and "Conventional A" heating
systems, the Fan Heat heating element
and the fan as well as the Top Heat
heating element are switched on at the
same time to heat the appliance as
rapidly as possible. This saves energy.
06:1
"Rapid heat-up" is off.
07:0* The time of day originally entered
appears in the display.
07:1
08:0* The time of day originally entered
appears in the display.
08:1
The time is advanced by 1 hr (useful when
changing from summer to winter time and
vice versa).
The time is put back by 1 hr (useful when
changing from summer to winter time
and vice versa).
29
Accessories
Accessories
Baking tray, roasting / grill pan
and rack
The baking tray, roasting /grill pan and
rack are fitted with non-tip safety notches which prevent them being pulled
right out when they only need to be partially pulled out.
When pushing the tray, pan and
rack back in, always ensure that the
safety notches are at the rear of the
oven. (See illustration)
The tray, pan and rack can then only
be taken out of the oven by raising
them upwards and then pulling out.
30
Roasting filter
When roasting on the rack , in an open
pot or using "Fan Heat D" and "Auto
Roast E" make sure that you fit the
roasting filter in front of the fan opening.
The droplets of fat caught up in the
circulating air are deposited on the
roasting filter. This helps to keep the
oven and the area behind the interior
back panel cleaner.
Accessories
Handle
Telescopic carriage
(depending on model)
(depending on model)
When pushing the baking trays, grill
pan or rack into the oven, make
sure that the telescopic carriage is
pushed completely in.
To take the baking trays or the roasting / grill pan out of the oven, or to put
them into it.
Anti-splash tray
(depending on model)
If you wish to use only the lowest runner level for cooking, the side rails can
be taken out.
This has the advantage of:
– making more space available inside
the oven, for larger roasting tins.
– keeping the side rails clean.
Catalysor
Depending on model your appliance
may be fitted with a catalysor.
The catalysor is built in to the oven’s
cooling system.
To be placed in the grill pan when grilling.
The juices from the food being grilled
are gathered under the anti-splash tray,
rather than being dried out, and they
can then be used in sauces etc.
The catalysor filters fatty vapours and
reduces food smells.
31
Timer - use
Timer - use
Functions
Push buttons
With the push buttons you can:
– enter the Time of day.
– enter the start of a cooking process.
The timer can:
– show the time of day,
– switch the oven (and separately,
where applicable, the hob front cooking zones) off, or on and off automatically.
– enter the duration of a cooking process.
– enter the end of a cooking process.
A corresponding symbol for each push
button appears in the display when appropriate.
The Symbol lights up when an oven
function has been selected, (or a hob
zone control switched on), and the relevant button pressed in.
32
Timer - use
Timer display field
All data input or alteration is done with
the "+" or "–" button.
Changes to the start, duration or end of
cooking time, or time of day are effected in 1 minute steps.
As soon as one of the (f, g, ))
buttons is operated, the indicator light
between the "+" and "–" buttons
lights up.
Symbols that appear in the timer display field:
– the symbols for the oven time entered, when the oven is being programmed.
– the relevant zone symbol when the
hob is being programmed:
"*" front left hob zone
"#" front right hob zone
"t" both front hob zones.
While this light is still on, times can be
entered or altered.
Each time the "+" or "–" button or one of
the other buttons is pressed, this gives
more time for data input.
When the indicator light goes out the
data input or alteration has been registered.
33
Timer - use
To enter the time of day
To cancel the time of day display
(24 hour display)
The time of day display can be
switched off to save energy.
When the appliance is first connected
to the power supply, or after a power
cut "12:00" and the symbols "f" and
")" flash in the display.
Press the buttons "f" and ")"
twice in succession.
Press the buttons "f" and ")" at
the same time.
The following light up:
– "12:00" in the display
– the indicator light for the "+/–" button.
The time of day continues to run unseen.
If a process has been pre-programmed, the time of day display
can not be switched off.
To bring back the visible time display
While the indicator light for the
"+/–" button is still on, enter the time
in hours and minutes using the "+" or
"–" button.
When the indicator light for the "+/–" button goes out, the time of day has been
set and the and the display will change
at one-minute intervals. The colon
flashes.
If a process has been pre-programmed, the time of day can not
be altered or cancelled.
The programmable functions 07 and 08
can be used to adjust the time from
winter to summer time and vice versa
(see section on "Altering oven settings").
34
Press buttons "f" and ")"
together once.
Timer - use
Programming cooking time
With the timer it is possible for the oven
and both the front hob cooking zones
to be switched off automatically, or set
to come on at a later time and then also
be switched off.
The oven, the left and right front hob
cooking zones can be programmed independently of each other.
Programming cooking time in the
oven
When a cooking process is pre-selected, the setting chosen and the symbol " p" are displayed, as well as the
time of day and the symbols for the
time entered. (f, g, )).
During a process the temperature is
shown in the oven display. The time of
day continues to be shown.
Shortly before the end of cooking
time the oven heating switches off automatically.
The Energy-save function (as described under "Ovens - Use") comes
into action.
"EC" now appears in the oven display
instead of the actual oven temperature.
The oven temperature will switch on
again if:
– the oven temperature is altered.
– the cooking time is lengthened significantly.
At the end of cooking time
– an audible tone sounds for approx.
5 seconds,
– and at the same time the ")" symbol flashes.
Both the audible tone and the visual
display can be cancelled by:
– Pressing the ")" button.
If the food is not sufficiently cooked
to your taste, a further cooking time
can be entered.
– Turning the oven function selector to
"0".
If the audible tone is not switched off it
will continue to sound at 5 minute intervals as a reminder that cooking has finished. This reminder continues for up
to an hour.
35
Timer - use
Programming hob zone cooking
times
Please note it is not possible to use
this programme for hobs which
have the KSE 200 control unit.
A symbol in the display shows which
hob zone is being programmed.
At the end of cooking time
– the hob switches off automatically,
– an audible tone sounds for approx.
5 seconds.
– The symbol for the selected hob
zone and the symbol ")" flash. The
symbol ")" does not flash when a
cooking end time is entered for the
oven.
* = front left zone
# = front right zone
t = both front zones
Both the audible tone and the visual
display can be cancelled by:
Make sure the correct symbol is showing in the display before programming
in times.
– Pressing the ")" button.
To use the oven again, the hob zone
selector switch must first of all be
turned to "0".
When a cooking process has been
pre-selected the hob zone symbol
flashes, and the time of day is displayed. The hob control light goes out.
When the process starts running, the
symbol for the chosen hob zone lights
up.
36
– Turning the hob zone selector switch
to "0".
If the audible tone is not switched off,
as described earlier, it will repeat at
5 minute intervals as a reminder that
the end time has been reached. This
reminder continues for up to an hour.
Timer - use
To end a cooking time automatically
Turn the oven function selector or the
hob zone control to the required setting.
Heating up begins.
Press the "g" button.
The heating is switched off, and "0:00"
appears in the display field.
With the "+" button enter the required
cooking time in hours:minutes.
(up to 23 hours 59 mins).
The cooking process starts as soon as
the indicator light on the "+/–" button
goes out.
The end of cooking time is automatically calculated from the time entered.
To switch a cooking process
on and off automatically
There are several options for delaying
the start of a cooking process.
Either the beginning or the end of the
cooking process can be postponed.
To enter duration and end
Turn the oven function selector or the
hob zone control to the required setting.
First enter the cooking time:
Press the "g" button.
"0:00" appears in the display field.
With the "+" button enter the required
cooking time in hours:minutes.
(up to 23 hours 59 mins).
Now postpone the end of cooking
time:
Press button ")".
The time of day plus the entered cooking time appear in the display.
Postpone the end of cooking time
with the "+" button.
First the time of day will appear.
37
Timer - use
Enter the start and the duration
Turn the oven function selector or the
hob zone control to the required setting.
First enter start of cooking time:
Press the "g" button.
"0:00" appears in the display field.
Use the "+" button to postpone the
start of cooking.
First the time of day appears.
Now enter the cooking time:
Press the "g" button.
"0:00" appears in the display field.
With the "+" button enter the required
cooking time in hours:minutes.
If only a start of cooking time is programmed, the oven / hob zone will start
straight away.
Exception: When cooking with the roast
probe the oven does not start straight
away.
Please note the following
In addition to the options given, you
can also enter the beginning and end,
or just the end, using the appropriate
buttons.
Do not pre-programme with too long a
delay. Cake mixtures will dry out and
the raising agent will work less effectively.
38
Checking, changing and
cancelling times entered
It is possible at any time to call up the
times entered. The corresponding button for the time to be checked or
changed has to be pressed.
If times are programmed for several
processes, each process can be seen
by pressing briefly more than once on
the relevant button.
The number of times to press the button depends on the number of programme steps entered:
Press once and the time entered for the
oven appears.
Press twice and the time entered for
the front left hob zone appears. This is
indicated by the "*" symbol.
Press 3 times and the time entered for
the front right hob zone appears. This
is indicated by the symbol "#".
Timer - use
To check
Press the button for the time to be
checked.
"f"
The start time of the cooking process is
displayed. This goes out as soon as
the process begins.
"g"
The display shows the duration of
cooking time, or the time left if the
programme has started.
")"
The end of the cooking process is displayed.
To cancel times entered
To cancel, press the appropriate button
and use the "–" button to set the time to
"0:00".
If the cooking time is cancelled, this
automatically cancels the start / end
time, and vice versa.
To cancel programmed
processes
Turn the oven function selector or the
hob zone control(s) to "0".
If there is a power cut all programmes
entered will be deleted.
To change
Press the corresponding button.
The indicator light in the "+/–" button
comes on.
Use the "+/–" button to enter the required time.
When the indicator light in the centre of
the "+/–" button goes out, the newly selected time is registered. The time of
day appears in the display.
Please note the following:
If a button is pressed, where the time
was not entered, but calculated automatically by the system, the indicator
light in the centre of the "+/–" button
does not come on.
This time cannot be altered.
39
Baking
Baking
The following settings are recommended for baking:
– Fan Heat D
– Intensive Bake F
– Conventional A
Baking tins
For the best baking results make sure
that you choose baking tins or dishes
of a material suitable for the particular
heating system.
– "Fan Heat D", "Intensive baking F"
Most types of heat-resistant tins or
dishes are suitable, including thinwalled and bright, non-reflective metal moulds.
– "Conventional A"
The following baking tins give an
evenly browned result:
Dark metal or enamel tins with a matt
finish are preferable. Heat resistant
glass or thermoplastic dishes can be
used.
Avoid thin-walled and bright, non-reflective metal moulds.
These will give uneven browning results.
Fan Heat D
Several levels can be used at the same
time for baking. The recommended positions are:
1 tray = 1st runner from the bottom
2 trays = 1st and 3rd runners
from the bottom
3 trays = 1st, 2nd and 5th runners
from the bottom
When baking moist biscuits, cakes
or bread, do not bake on more than
two levels.
Remember to remove the roasting
(grease) filter from in front of the fan
opening. Otherwise the baking time
will be longer.
With the "Fan D" setting lower baking
temperatures are needed than with the
"Conventional A" setting. See the baking charts.
Intensive baking F
Remember to remove the roasting
(grease) filter from in front of the fan
opening. Otherwise the baking time
will be longer.
This method of heating is particularly
useful for:
– dishes that require a moist topping
and crisp base, such as pizzas and
quiche lorraine, or where the base
has not been pre-baked.
Put the cake in on the 1st runner from
the bottom. If the base is overcooked,
use a higher level runner next time.
40
Baking
Conventional A
Avoid thin-walled and bright, non-reflective metal moulds. These will
give uneven browning results.
Pre-heat the oven only for:
– cakes / biscuits with a very short baking time (up to approx. 30 minutes),
– victoria sponge and similar mixtures,
– bread made with dark flour.
Select runner height 1 or 2.
General notes
Deep-frozen products such as pizzas
should be placed on baking paper on
the rack.
Use the deeper roasting tray for moist
fruit cakes and multi-layer cakes, to
minimize splashes in the oven.
The Baking Chart gives suggestions for temperature, runner height
and timing.
For even browning – in general select the middle temperature.
Increasing the temperature and reducing the time can have an
adverse effect on even browning.
– Select the runner height according
to the recipe and the setting chosen.
– Just before the end of baking time
test to see if the cake is done.
Insert a metal or wooden skewer into
the centre.
If it comes out clean, without dough
or crumbs sticking to it, the cake is
ready.
Place oblong tins in the oven as shown
in the illustration.
41
Baking chart
Baking chart
+
Fan Heat D
Temperature
in °C
rec. runner
from bottom
Time
in mins.
150 – 170
150 – 170
150 – 170
150 – 170
150 – 170
150 – 170
150 – 170
150 – 170
150 – 170
1
1
1
1
1
1
1
1
1, 2, 5
50 – 60
70 – 80
20 – 25
60 – 70
45 – 50
35 – 45
45 – 55
25 – 30
20 – 25
160 – 180
160 – 180
160 – 180
1
1
1
25 – 30
20 – 25
15 – 20
150 – 170
150 – 170
150 – 170
150 – 170
150 – 170
150 – 170
150 – 170
190 – 210
170 – 190
1
1
1
1, 2, 5
1
1
1
1
1
20 – 25
40 – 50
40 – 50
15 – 25
70 – 80
45 – 55
40 – 60
25 – 35
60 – 70
Yeast mixtures
Crumble cake
Fresh fruit cake (tray)
Stollen
White bread
Wholemeal bread 1) 3)
Pizza (tray) 1)
Onion cakes
Apple turnovers
150 – 170
160 – 180
150 – 170
160 – 180
190 – 210
170 – 190
160 – 180
150 – 170
1
1
1
1
1
1
1
1, 3
35 – 45
40 – 50
45 – 65
40 – 50
60 – 70
40 – 50
30 – 35
25 – 30
Choux pastry 1) 4)
Eclairs
160 – 180
1, 3
25 – 30
170 – 190
1, 3
20 – 25
120 – 140
1, 2, 5
30 – 50
Creamed mixture
Sand cake
Dried fruit cake
Nut cake (tray)1)
Nut cake (tin)
Fresh fruit cake with topping (tray)
Fresh fruit cake (tray)
Fresh fruit cake (tin)
Flan base 1)
Small cakes 1) 4)
Whisked mixture 4)
Tart 1)
Flan base 1)
Swiss roll 1)
Rubbed-in mixture
Tart / flan base
Nut ring
Crumble cake
Small cakes 1) 4)
Cheesecake
Apple pie1)
Apricot flan with topping
Savoury pastry 2)
Meat pie
Flaky pastry 1)
Meringues 1)
Macaroons
The times given are calculated on the basis of an oven which has not been pre-heated.
With a pre-heated oven shorten times by approx. 10 minutes.
1) Pre-heat the oven with "Conventional A" heat.
2) Pre-heat the oven with "Fan Heat D" and "Conventional A" heat.
3) Instead of "Fan Heat" select "Auto Roast E".
Pre-heat the oven with "Auto Roast E".
4) Switch off "rapid heat-up".
42
Baking chart
Conventional heat A
Intensive baking F
Temperature
in °C
rec. runner
from bottom
Time
in mins.
Temperature
in °C
rec. runner
from bottom
Time
in mins.
160 – 180
160 – 180
180 – 200
160 – 180
180 – 200
180 – 200
160 – 180
180 – 200
180 – 200
1
1
1 or 2
1
1 or 2
1 or 2
1
1 or 2
2
50 – 60
70 – 80
15 – 20
60 – 70
45 – 50
35 – 45
45 – 55
15 – 20
12 – 15
–
–
–
–
150 – 170
–
–
–
–
–
–
–
–
1
–
–
–
–
–
–
–
–
30 – 35
–
–
–
–
180 – 200
180 – 200
190 – 210
1
2
1 or 2
20 – 25
15 – 20
12 – 15
–
–
–
–
–
–
–
–
–
180 – 200
180 – 200
180 – 200
180 – 200
180 – 200
180 – 200
180 – 200
230 – 250
190 – 200
1 or 2
2
1 or 2
2
1
2
1
1 or 2
1
15 – 20
40 – 50
40 – 50
10 – 15
70 – 80
40 – 50
40 – 60
25 – 35
60 – 70
–
–
–
–
150 – 170
150 – 170
150 – 170
190 – 210
170 – 190
–
–
–
–
1
1
1
1
1
–
–
–
–
65 – 75
50 – 60
50 – 60
25 – 30
50 – 55
180 – 200
180 – 200
170 – 190
190 – 210
210 – 230
190 – 210
190 – 210
170 – 190
1 or 2
1 or 2
1 or 2
1 or 2
1 or 2
1 or 2
1 or 2
1 or 2
35 – 45
40 – 50
45 – 65
40 – 50
60 – 70
40 – 50
25 – 30
20 – 25
–
–
–
–
–
170 – 190
160 – 180
–
–
–
–
–
–
1
1
–
–
–
–
–
–
40 – 50
30 – 35
–
190 – 210
1 or 2
25 – 35
–
–
–
200 – 220
1 or 2
15 – 20
–
–
–
130 – 150
2
30 – 50
–
–
–
Data given are for guidelines only.
Values obtained from a machine designed for the German market.
43
Roasting
Roasting
We recommend the following settings
for roasting in the oven:
– Auto Roast E
– Conventional A
See also notes on use of Roast probe
(for models where this is applicable).
Auto Roast:
When roasting on the rack or in an
open dish, always remember to fit
the roasting filter in front of the fan
in the back of the oven before starting.
We recommend roasting in a covered
pot L:
– This ensures that sufficient stock remains for making gravy.
– The oven stays cleaner, too.
Place the covered pot on the rack into
the cold oven.
Exception: Pre-heat the oven to the temperature recommended in the recipe
when cooking roast beef.
Use shelf position 1 for roasting.
Exception: With "Conventional A" for
roasting poultry up to a weight of 1 kg,
roast beef, fillet or fish use shelf position 2.
When using "Auto Roast E" a temperature of approx. 40°C lower can be
used for roasting than with the "Conventional A" setting.
The bigger the quantity to be roasted,
the lower the temperature.
When roasting more than 3 kg select a
temperature about 10°C lower than the
one given in the "Roasting" chart.
The roasting process will take a little
longer, but the meat will be cooked
evenly and the exterior will become
crisp.
For roasting directly on the rack K
the temperature needs to be about
20°C lower than for roasting in a
covered pot L.
The following containers are suitable:
Roasting tins, heat-resistant glass,
roasting foil, earthenware.
Make sure that the pot and lid have
heat-resistant handles.
44
For roasting on the rack always slide in
the rack and the roasting tin together.
The roasting time will depend on the
type of meat, the size and thickness of
the cut.
Roasting
Calculating roasting time:
The traditional British method is to allow
15 to 20 minutes to the lb, according to
type of meat, plus approx. 20 minutes,
adjusting length of time as roasting proceeds, to obtain the required result.
Useful hints
Roasting in a covered pot L
Alternatively, multiply the height of the
joint by the time per cm for the type of
meat, as in the chart.
Season the meat and place in the pot.
Add some knobs of butter or margarine
or a little oil or cooking fat. Add about
1/8 litre of water when roasting a big
lean joint of meat (2-3 kg) or roasting
poultry with a high fat content.
Type of meat
Roasting on the rack K
Beef / Venison
Pork / Veal / Lamb
Sirloin fillet
time per cm
height of meat
15-18 mins.
12-15 mins.
8-10 mins.
Example:
Beef roast, 8 cm high
8 x 15 mins. per cm = 120 mins. roasting time
Please note:
Do not select a roasting temperature
which is higher than that recommended. The meat will become brown,
but will not be cooked properly.
Browning only occurs towards the end
of the roasting time. Remove the lid
about halfway through the roasting time
if a more intensive browning effect is
desired.
Place a little water in the tray. Add a
little fat or oil to very lean meat or place
a few strips of bacon on the top. Do not
add too much liquid to the tray during
cooking as this will hinder the browning
process.
Roasting poultry
For a crisp finish, baste the poultry ten
minutes before the end of cooking time
with slightly salted water.
Roasting deep frozen meat
Deep frozen meat should be defrosted
first.
After the roasting process is finished
take the roast out of the oven, wrap in
aluminium foil and leave to stand for
about 10 minutes.
This helps retain juices when the meat
is carved.
45
Roasting with the Roast Probe
Roasting with the Roast Probe
Depending on model a roast probe
(core temperature probe) may be supplied.
Using the roast probe enables the
roasting process to be monitored simply and reliably.
The tip of the probe measures the core
temperature at the centre of the meat
continuously.
When the pre-selected core temperature is reached, the oven heating is
automatically switched off.
The tip of the probe must reach the central area of the meat.
When roasting poultry the best place to
insert the probe is the thickest part between thigh and body.
Ensure that it does not touch a bone,
and that it is not inserted into a fatty
piece of meat. If fat or bone come into
contact with the probe, this can lead to
the oven being switched off too early.
The roast probe can be used with the
following functions:
– Auto Roast E
– Conventional A
– Fan Heat D
– Fan Grill I
Using the roast probe for best effect:
Prepare the meat in the usual manner, and put it into the oven, (in a pot
or on the rack).
Roasting bags or aluminium foil may
also be used, but only when left open
at the ends. Insert the probe through
the foil or bag.
Insert the probe into the middle of
the meat.
46
When roasting with the probe it is a
good idea to take the frame off the pullout carriage. The telescopic carriage
can then be pulled right out.
Roasting with the Roast Probe
In order to do this:
Press the "e" button.
Enter the desired temperature using
the "+" or "–" buttons.
When the light in the "+/–" button goes out
Insert the plug of the roast probe into
the socket until you feel it engage.
– the oven heating switches on.
Turn the function selector to the required oven function.
The following light up:
– the recommended oven temperature in the oven display,
– the indicator light for the "+/–" button.
The recommended oven temperature
can be altered if required with the
"+/–" button.
Next, a food core temperature of
60°C appears in the oven display, and
the indicator light for the "+/–" button is
on.
If necessary this food core temperature can be altered with the "+/–" button according to the type of food being
cooked, (see "Oven roasting chart" for
suitable choice of temperatures) and
can be altered within a range of 20°C
to 99°C.
– the actual core temperature appears in the oven display. N.B. The
lowest temperature that can be displayed is 20°C, so this will also be
shown until the roast probe registers
20°C.
47
Roasting with the Roast Probe
Time left display
If, when the residual time is displayed:
– the oven or core temperature is altered,
– or a different oven function is chosen,
this will cancel all the residual time information, and the actual temperature will
reappear.
If the oven door is held open for some
time, the residual time will be recalculated.
Cooking time is completed automatically.
After a certain time the estimated residual time (i.e. the time left to run), appears in the oven display. The actual
core temperature is no longer visible
and cannot be called up.
The residual time is calculated from the
oven temperature selected, the required core temperature and the pattern of the increasing core temperature.
The residual time figure first shown is
an estimate. As the cooking process
continues the figure is continuously revised, and a more accurate revised figure shown.
48
Shortly before the end of cooking time
the oven heating switches off.
The Energy-save function (as described under "Oven - use") comes into
action. The time left continues to be
shown in the display. If the " p" button is
pressed, "EC" appears.
If the oven temperature is altered or the
core temperature increased, the oven
heating will switch on again.
Roasting with the Roast Probe
End of cooking time
Please note:
As soon as the chosen core temperature has been reached
– an audible tone sounds for approx.
5 seconds, and
– the "e" symbol flashes.
The timer can be used to delay the
start of the cooking process.
If the audible tone is not cancelled
early, it will continue to sound every
5 minutes for an hour as a reminder
that the process has finished.
The audible tone can be cancelled by:
– pressing the "e" button.
If the food is not sufficiently cooked,
a new core temperature can be entered.
– turning the oven function selector to
"0".
Any temperatures entered will also
be cancelled.
When finished, cover the meat with
aluminium foil and allow to stand for
approx. 10 minutes. During this time
the core temperature rises another
5 – 10°C.
If the temperature probe is left in the
food at the end of the cooking process,
the oven display will show the core temperature first rising and then sinking.
Insert the probe in a different place and
start again:
– if the cut of meat was too large (3 kg
or more) for the probe to be inserted
right to the centre.
– if the meat is not sufficiently roasted
when the set temperature is reached.
The time taken to roast meat by temperature using the probe is similar to
that when cooking by time.
49
Oven roasting chart
Oven roasting chart
rec.
runner
from
bottom
Rib of beef (apprx. 1 kg)
Sirloin, steak 4)
(apprx. 1 kg)
Auto Roast E 1)
Conventional A
Temp. in
°C 2)
Time
in mins.
Temp. in
°C 2)
Time
in mins.
Core
temperature
in °C 3)
1
180-200
100-120
220-240
100-120
75-85
1 5)
190-210
35-45
240-260
35-45
50-70 6)
Venison/game
(apprx. 1 kg)
1
180-200
90-120
220-240
90-120
65-75
Leg of pork, (apprx. 1 kg)
Rolled pork (apprx. 1 kg)
1
1
170-190
170-190
100-120
100-120
210-230
200-220
100-120
110-130
80-90
80-90
Meat loaf (apprx. 1 kg)
1
170-190
50-60
200-220
50-60
70-75
Veal (apprx. 1 kg)
Shoulder of lamb
(ca. 1.5 kg)
Poultry (0.8-1 kg)
1
170-190
100-120
210-230
100-120
75-85
1
1 5)
170-190
170-190
90-120
50-60
210-230
200-220
90-120
50-60
80-85
80-85
1
1
1
170-190
170-190
160-180
90-110
120-150
150-180
200-220
200-220
190-210
90-110
120-150
150-180
80-85
80-85
1 5)
160-180
35-55
200-220
35-55
75-80
Poultry (apprx. 2 kg)
ditto (stuffed)
Poultry (apprx. 4 kg)
Whole fish (apprx. 1.5 kg)
Unless otherwise stated, the times given are for an oven which has not been pre-heated.
1) Fit the grease filter in place when using "Auto Roast E".
2) Roasting in a pot L
When roasting on the rack K, set the temperature 20°C lower than given.
3) Roasting using the core temperature probe (Roast Probe) e .
4) Pre-heat the oven when using "Auto Roast E" and "Conventional A" settings.
5) 2nd runner from the bottom when using the "Conventional A" setting.
6) Very rare: 40-45°C, medium-rare: 50-55°C, medium: 60-65°C, well done 70-75°C
The information given in this chart is intended only as a guide.
50
Defrosting
Defrosting
We recommend defrosting at room temperature, i.e. without selecting an oven
temperature.
However, an oven temperature of up to
50°C can be selected.
– Where possible remove the packaging and put the food to be defrosted on a baking tray or into a
dish.
Do not refreeze food once it has
thawed.
The time needed for defrosting depends on the type and weight of the
food, and at what temperature it was
deep frozen.
– All meat and poultry should be fully
defrosted before cooking. Do not
use the liquids from defrosting.
– When defrosting poultry put it on the
rack, one level higher than a tray put
in to catch the defrosted liquid, so
that the meat is not lying in this liquid.
It is particularly important to observe food hygiene rules when defrosting poultry. Do not use the liquid from the defrosted poultry. Pour
it away, and wash the tray, the sink
and your hands.
N.B. Put the tray back in the oven if
roasting on the rack.
– Fish does not need to be fully defrosted before cooking. Defrost so
that the surface is sufficiently soft to
take herbs and seasoning.
51
Casseroles
Casseroles
When choosing which oven level to
use, take into account the size of the
casserole dish with its lid.
Casseroles
The following oven settings are recommended:
– Fan Heat D
– Conventional A
The following dishes are suitable for
this type of slower cooking:
covered pots made of ovenproof glass
and china, and earthenware pots,
which could also be used as serving
dishes. They should have heat-resistant
handles and knobs.
Please note:
Cover dishes which are to be cooked
in their own juice and/or steam, eg duchesse potatoes or vegetables, so that
they do not dry out. If there is no lid use
aluminium foil or damp cooking parchment.
Cook without a lid when a crusty finish or topping is required, eg for meat
or au gratin dishes.
Useful hint
One dish can be placed on top of the
other. Invert the lid of the bottom dish.
Put dishes to be browned at the top.
Put the rack in at the 1st runner
height from the bottom, and place
the prepared casserole with the food
for braising or stewing on this.
Poaching
Select the oven setting and the temperature.
Bottling
Fan Heat D . . . . . . . . . . . . . 170-190°C
Conventional A . . . . . . . . . . 190-210°C
Cooking times
Consult your cook book.
Fish or fruit can be poached in the
oven in a covered dish.
Bottling should only be undertaken by
an experienced cook who has received
proper training in this method of preserving fruit and vegetables, and understands the implications of the chemical
reactions involved.
Instructions for bottling in this oven are
available from the Miele Home Economist.
52
Grilling
Grilling
Pre-heat the grill for approx.
5 minutes with the oven door shut.
Grill 2 J
Grilling with the oven door shut
saves energy and minimizes cooking smells.
The oven has three grill settings:
Grill 1 ,
For grilling large quantities of thin cuts
and for browning food in large shaped
dishes. The whole of the grill element is
switched on. The inner part glows red.
The outer part stays darker than the
inner part but creates sufficient radiant
heat for grilling.
Fan Grill I
For grilling small quantities of thin cuts
and for browning small dishes of food.
The inner part of the grill element is
switched on and glows red.
Always put the roasting filter in front
of the fan grille in the back of the
oven when using this setting.
For grilling larger items, for example,
poultry, rolled meat.
The roast probe can also be used to
monitor the temperature. See the appropriate section
The roast probe cannot be used at
the same time as the rotisserie. The
cable would wind round the rotisserie and be damaged.
53
Grilling
Preparing food for grilling
Clean, wipe and season. Do not salt
slices of meat beforehand as this detracts from the taste.
Add a little oil if necessary. Other fats
quickly become black or cause the
food to smoke. A little butter can be
added to chicken if desired.
Clean flat fish and slices of fish in the
normal way. To enhance the taste add
a little salt or squeeze a little lemon
juice over the fish.
Insert the grill pan at the appropriate
level for the height of the food to be
grilled:
thin cuts =
level 3 or 4
thicker cuts =
level 1 or 2
It is best to grill food of a similar thickness at the same time so that the grilling time for each item does not vary
too greatly.
Most items should be turned half way
through cooking.
Grilling on the rack
Grilling on the spit
(depending on model)
For grilling thicker items such as
stuffed meat, poultry, kebabs.
Assemble the grill pan, anti-splash
tray (if available) and rack as shown.
Place the food on the rack.
Select the method of grilling.
Assemble the rotisserie as shown.
54
Grilling
Grilling time
Flat pieces of fish and meat usually
need about 5-6 minutes a side depending on their texture.
Thicker pieces need longer.
Two special accessories for rotisserie
grilling, a meat and poultry clamp, and
a kebab grilling device are available
from your Miele dealer or the Miele
Spare Parts Department.
Select the method of grilling.
Put the grill pan holding the assembled rotisserie in the oven, using the
1st runner from the bottom.
The spit fits into the motor slot at the
back of the oven.
Temperature
Food to be grilled
temperature
Thin cuts
such as chops, steak
275°C
Thicker cuts
such as chicken, kebabs
240°C
With rolled meat allow approx.
10 minutes per cm diameter.
Useful grilling hint
One way of finding out how far through
a piece of meat has been cooked is to
press down on it with a spoon.
– If there is very little resistance to the
pressure of the spoon, it is still red
on the inside ("rare").
– If there is some resistance, the inside
will be pink ("medium").
– If there is great resistance, it is
thoroughly cooked through ("well
done").
To grill thicker pieces of food more
gradually, select an initial high temperature, and then continue grilling at a
lower temperature setting to allow the
food to cook through to the centre.
55
Grill chart
Grill chart
Pre-heat the grill for about 5 minutes with the door shut before using.
Food to be grilled
Runner
from
bottom
Grill 1 / Grill 2
temperature
in °C
total
grill time
in mins. 1)
Fan Grill 4)
temperature
in °C
total
grill time
in mins. 1)
Flat items of food
Beef steaks
3/4/5
290
3-5
250
5-10
Kebabs
Escalope
4
4/5
260
290
8-12
5-10
240
240
8-12
10-12
Liver
4/5
275
8-12
245
8-12
Burgers
4
210
10-15
200
10-15
Sausages
4
240
8-10
220
10-12
Chops
4
275
12-18
250
10-15
4/5
4
250
275
10-15
16-20
220
220
12-16
20-25
Fish fillet
Trout / Mackerel
Toast
Open toasted sandwich
Tomatoes
Bananas
Peach halves
5
240
3-6
220
5-10
4/5
4
240
240
4-6
7-10
220
225
5-7
10-12
5
240
6-10
225
6-10
2/3
230
6-8
210
6-8
1
1/2
240
220
50-60
50-60
200
50-60
2
260
20-25
230
20-25
Thicker grilling cuts
Chicken pieces (approx. 1 kg) 3)
Chicken pieces (approx. 1 kg) 2)
Mixed grill 2)
Piece of pork, Ø 7 cm (approx. 1 kg) 2)
1
240
70-80
200
70-80
Kebabs
1
250
25-35
230
25-35
1) Turn half way through the grilling time.
2) Grilling on the rack.
3) Grilling on the spit (where this feature is included).
4) Fit the roasting filter when "Fan grilling".
All times given in the chart are approximate and can vary.
56
Cleaning and care
Cleaning and care
Appliance front and control
panel
Wipe down the appliance front, the control panel and, on the H 248, the decorative trims with a mild detergent or a
solution of warm water with a little washing up liquid. Wipe dry with a soft cloth.
Glass front
Do not use a scouring agent, as this
would scratch the glass front.
For ovens with a white finish we recommend after each use wiping:
– the oven door handle and
– the control panel
with a damp cloth and some washing
up liquid. This will avoid spillages
being burnt on and becoming impossible to remove.
Stainless steel front
Never use cleaners containing
sand, soda or scouring agents,
These will leave scratches.
Use an appropriate non-scouring stainless steel cleaner. Apply with an even
pressure. Wipe over with a damp cloth
and rub dry with a soft cloth.
Accessories
Roast probe, telescopic frame (if
fitted)
Wipe with a damp cloth.
Do not put the roast probe or the
baking carriage telescopic runners
into water, and do not put them in
the dishwasher.
Runners
Wash in hot water with washing up
liquid, or clean with a stainless steel
cleaner.
Baking tray, roasting/grill pan, rack,
spit and frame:
wash and dry after each use.
Remove stubborn residues that do not
wash away
– from stainless steel:
with a stainless steel cleaner.
– from enamel:
Soften residues by soaking with hot
water, then brushing with a soft nylon
brush or sponge.
Roasting filter
Clean in washing up liquid and hot
water, or in the dishwasher.
57
Cleaning and care
Cleaning and care
Oven interior
The oven interior surfaces have been
designed to make cleaning easier.
The oven cavity and door interior are
finished in "Clean-Enamel". The rear
panel which protects the fan is more
subject to oil and fat splashes and has
a catalytic enamel coating.
With some models, side panels with
catalytic coating are fitted and the removable guard plate above the grill
has a catalytic coating. With this arrangement most of the interior "CleanEnamel" is protected, except for the
floor and the door, which should be
cleaned after each use.
"Clean-Enamel"
This is a specially hardened enamel
with an extremely smooth surface.
Most baking and roasting residues can
be easily removed using a sponge
cloth, washing up liquid and hot water.
If something bakes on harder, it can be
loosened with a shielded blade
scraper, and cleaned off with a sponge
and a suitable proprietary non-abrasive
cream cleaner. It is easier to remove
splashes of fruit or cake mixture from
the oven and racks while they are still
warm.
Fruit juice may cause lasting discoloration.
Dull patches may remain permanently
in the oven tray after roasting or grilling.
58
If an oven spray is used on the
"Clean-Enamel", follow the manufacturer’s instructions carefully.
Important: Oven spray must not
come into contact with catalytic enamel. It can damage the enamel.
Catalytic Enamel
Because circulating air in the oven deposits oil and fat splashes predominantly on the rear wall, this is coated in
catalytic enamel.
With some models, side panels with
catalytic coating are also fitted, and the
removable guard plate above the grill
has a catalytic coating.
When this catalytic enamel is heated to
temperatures above 200°C, oil and
grease deposits are removed, except
for deposits of spices, syrups and similar substances. The higher the temperature the more effective the process.
Do not use an oven spray on the
catalytic enamel. Do not wash the
panels in a dishwasher. Any mechanical handling would damage the
catalytic enamel.
Do not wait too long between cleaning
sessions as further baking and roasting
will cause oil and grease deposits to
burn on even harder.
Cleaning and care
Cleaning each type of enamel
Allow the oven to cool down before
cleaning. Danger of burning.
Clean the oven floor ("Clean-Enamel) after each use.
The oven should also be cleaned
regularly, preferably after each use.
Waiting too long will make cleaning
very difficult and in extreme cases
not very effective.
Never use hard brushes, scouring
cloths, steel wool, knives or other
abrasive materials. The enamel
would be damaged.
Remove the accessories and the runners from the oven. (See following
pages for release).
Clean the "Clean-Enamel" surfaces.
A mild proprietary cleaner, without
sand or scouring agents, may be
used.
Normally the catalytic liners can be
left in place and wiped over. Use a
solution of warm water and a little
washing up liquid and a soft brush to
clean catalytic surfaces.
The catalytic liners should rarely
need to be removed. See following
pages for procedure.
In addition, heating the oven to a high
temperature will help remove soiling on
the catalytic surfaces which has been
caused by grease and oil splashes.
Turn the oven function selector to
"Fan heat D".
Turn the temperature selector to the
highest setting.
Let the oven operate for about one
hour. The length of time will depend on
the degree of soiling. It is a good idea
to set the finish time for the process
using the timer. This way you will not forget to switch the oven off at the end.
Every time the oven is used at high temperatures any remaining soiling will
gradually disappear.
Should the catalytic coating on the
back panel or any other catalytic
panels fitted become ineffective
through improper use or heavy soiling, for example, a replacement can
be obtained from your Miele dealer
or Miele Spare Parts dept.
Do not use oven spray or abrasive
cleaning agents on the catalytic surfaces. Do not wash the panels in a
dishwasher. Any mechanical handling would damage the catalytic enamel.
59
Cleaning and care
Cleaning and care
To make cleaning easier
– remove the oven door,
– take out the telescopic carriage or
the runners,
– take out the back panel
– lower the Top Heat heating element.
To remove the oven door
Please note : the oven door is quite
heavy. It should be gripped firmly at
the sides when being removed or refitted.
Open the door fully.
Before the door can be removed,
the door hinges need to be locked
so that they do not damage the
door when it is taken out.
Lift up the door until the hinges
disengage. Remove the door.
To re-fit the oven door
Hold the door as shown above and
carefully put the locked hinges into
the guide holes until they engage.
Open the door fully.
Still supporting the door, flip the locking clamps up.
Flip down the locking clamps on
each door hinge. This locks the
hinges.
60
It is essential that the locking
clamps are flipped up when the
door is re-fitted after cleaning.
Otherwise on closing the door, the
hinges could work loose from the
guide holes and this could result in
damage to the door.
Cleaning and care
To remove the telescopic carriage
(according to model)
Select the "Light" setting.
Make sure the oven heating elements are switched off and cool, to
avoid the danger of being burnt.
Pull on the fixing knob to release it.
Draw out the telescopic carriage and
remove the side runners.
Take the guide rails out of the oven.
Reassemble in reverse order, carefully
ensuring all parts are correctly in place.
Remove the frame from the guide
rails.
61
Cleaning and care
To remove the runners
(according to model)
Select the "Light H" setting.
Make sure the oven heating elements are switched off and cool, to
avoid the danger of being burnt.
Take the runners out of the oven.
Reassemble in the reverse order, carefully ensuring all parts are correctly in
place.
Pull on the fixing knob to release it.
62
Cleaning and care
To remove the catalytic side panels
Select the "Light" setting.
The oven heating elements must be
switched off, to avoid the danger of
being burnt.
Take the runners or the telescopic
frame out of the oven.
Gently lift and pull out the catalytic
side panels.
Reassemble in the reverse order, carefully ensuring all parts are correctly in
place.
When reassembling the catalytic side
panels, ensure they sit correctly.
Ease the back lug into the opening
in the rear wall.
Lift the front locating hole on to the
guide pin behind the collar.
Put the runners or the guide rails of
the telescopic frame back into place.
63
Cleaning and care
To remove the back panel
To lower the (upper heating) grill
element
Select the "Light H" setting.
The oven heating elements must be
switched off, to avoid the danger of
burning.
Wait until the grill element has
cooled down enough to touch to
avoid being burnt.
Take out the runners.
Loosen the screws in the back panel
and take it out.
The oven must not be used without
the back panel fitted. This could
lead to injuries.
Reassemble in the reverse order, carefully ensuring all parts are correctly in
place.
Pull (and turn if necessary) on the fixing knob for the grill element to release it.
64
Cleaning and care
If the guard plate is dirty it can also be
removed for cleaning:
Hold the guard plate firmly and unscrew the knurled knob.
Take out the guard plate.
Gently lower the grill element.
Do not use force to lower it, as this
could cause damage.
Reassemble in the reverse order, carefully ensuring all parts are correctly in
place.
65
Correcting minor faults
Correcting minor faults
Installation, maintenance and repairs to the electrical components
of this appliance should only be carried out by a fully competent person
to ensure safety. Repairs and other
work by unqualified persons could
be dangerous. The manufacturer
cannot be held responsible for unauthorized work.
Some minor problems however can be
dealt with as follows:
What to do if . . .
Slide the relevant flap upwards.
. . . The oven does not heat up.
Check whether,
the selector switch is set to the function required, and the temperature
control is set at the correct temperature.
the operating lock is activated.
the main fuse has blown. Contact a
qualified electrician or the Miele Service Department.
. . . The heating elements in the oven
function, but not the light.
The halogen lights are faulty. Change
as follows:
Turn off the electricity supply to the
oven. Switch off at the isolator, or
withdraw the mains fuse.
There is a slide flap in each side trim to
the oven.
66
Pull out the metal strip.
Pull out the halogen lamp:
12 V, 20 W,
heat resistant up to 300°C, G4
socket, Osram, Type 64428.
Fit the bulb and reassemble in the
reverse order, carefully ensuring all
parts are in place.
Correcting minor faults
. . . no noise is heard when the oven
door is opened during operation.
This is not a fault.
If the door is opened during operation,
the door contact switch causes the
oven heating, and the fan if on "Fan"
setting, to be switched off.
. . . a noise can be heard after baking, roasting or grilling.
This is not a fault.
The cooling fan continues to run for a
short time after the oven has been
switched off to prevent any humidity
building up in the oven, on the control
panel or in the oven housing unit. When
the temperature has fallen sufficiently
the fan switches off automatically.
The temperature will fall faster when the
oven door is opened partially or fully.
. . . the cakes and biscuits are not
cooked after following the times
given in the chart.
Check whether,
the correct temperature was set.
there has been a change to the
recipe. The addition of more liquid or
more eggs makes a moister mix
which would need longer to cook.
the roasting filter had been left in
place in front of the fan when cooking with "Fan heat D" or "Intensive
Bake F" or was in place for "Auto
Roast E". In this case baking times
might be lengthened by 10 to 15
minutes.
. . . The browning effect is uneven.
There will always be a slight unevenness. Product information sheets give a
percentage result for standard browning tests. These refer to results for one
tray.
If the item being baked is browning
very unevenly, check:
– when baking with "Fan Heat D":
whether the temperature was set too
high,
whether the roasting filter was in
place.
– when baking with the "Conventional
setting A":
the colour and composition of the
baking tins being used. Light coloured, shiny, or thin walled tins are
less suitable.
67
Correcting minor faults
. . . spots like rust appear on the interior catalytic walls.
When roasting on the rack, the circulating air sometimes picks up spices,
which are then deposited on the oven
interior walls. Such residues are not
removed by catalytic cleaning, they are
best removed while fresh with a mild
washing up liquid and a soft brush.
. . . The display light does not come
on when a hob control is switched
on (depending on the model).
The lamp needs changing.
The lamp must be changed by Miele
customer service.
. . . "F" and a number appear in the
oven display field.
This combination indicates a fault
When "F3" appears the core temperature (roast) probe has a fault.
Remove the probe from its socket
and the message will disappear.
When "F6" appears the oven has
automatically switched itself off during use. This is a safety feature to
protect the oven if it has been operating for an exceedingly long period.
The timing is different depending on
the oven setting selected.
The oven can be used again immediately by simply turning the oven function selector to "0" and then entering
the process again.
– If "F9" appears in the display, this
may mean that the maximum temperature of the appliance has been
exceeded.
The appliance automatically switches
itself off temporarily. As soon as the
temperature has fallen to an acceptable level the fault message disappears. The appliance switches itself
on again automatically.
If this fault message occurs repeatedly, please inform the Service dept.
Please quote the fault message.
– If any other fault message appears
in the display, this will need a service
visit. Please quote the fault message.
68
Correcting minor faults
. . . the timer display is dark when
the appliance is first switched on.
This is not a fault.
If the time of day has been switched
off, the display stays dark.
If the "f" and ")" buttons are
pressed at the same time "12:00" appears in the display field.
. . . the time of day cannot be entered
after a power cut.
This is not a fault.
Check whether the oven function selector was still set to one of the functions.
If it was, turn it to "0".
The time of day can now be entered.
. . . The energy-save function is not
activated when cooking with the
roast probe or the timer.
This is not a fault.
Certain conditions must be fulfilled before the system controlling the energysave function comes into operation.
Sometimes these do not occur.
. . . The residual time indicator is not
activated when cooking with the
roast probe.
This is not a fault.
Certain conditions must be fulfilled before the system controlling residual time
comes into operation. Sometimes these
do not occur.
69
After sales service
After sales service
In the event of faults which you cannot
easily remedy yourself, please contact:
– your Miele Dealer
or
– the nearest Miele Service Department, (see address on the back
page).
70
When contacting the Service dept,
please quote the Model and Serial number of your appliance, both of which
are shown on the data plate, visible
below the oven interior, with the oven
door open.
If you have an oven and hob combination also give the number of your hob.
Extra accessories
Extra accessories
(May come as standard items with
some appliances).
These are available at extra cost from
your Dealer or the Miele Domestic
Sales dept.
Handle
To take the baking trays or the roasting / grill pan out of the oven, or to put
them into it.
Anti-splash tray
To be placed in the grill pan when grilling.
The juices from the food being grilled
are gathered under the anti-splash tray,
rather than being dried out, and they
can then be used in sauces etc.
Telescopic carriage
The appliances H 248, H 258 und
H 268 can also be retrospectively fitted
with
– a receiver for the radio controlled
clock signal,
– the Miele Info Control.
Radio controlled clock
A receiver for the radio controlled clock
signal is connected to the cooker or
oven. Time of day adjustment occurs
automatically on receipt of the signal.
Miele Info Control
A transmitter unit may be connected to
the cooker or oven. This is used to
transmit information at any time about a
cooking process (e.g. temperature,
delay start, time remaining) to the
mobile receiver.
The telescopic carriage with 5 levels of
runners can be drawn right out of the
oven.
This gives a good overview of all the
cooking in progress.
Catalysor
A catalysor can be built into the cooling
system of the cooker or oven to filter
fatty vapours and reduce food smells.
71
Q\}
Q\}
Important U.K.
Electrical connection
Electrical connection
All electrical work should be undertaken by a suitably trained and competent person in strict accordance
with national and local safety regulations.
The voltage and rated load are given
on the data plate, visible below the
oven interior, with the oven door open.
Please ensure that these match the
household mains supply. Please quote
these data, and the model and serial
number when contacting the Miele Service dept.
Connection of this appliance should be
made either via a fused connection unit
(rated load under 3000 W), or via a suitable isolator (rated load over 3000 W),
which complies with national and local
regulations, and which is accessible
after the appliance has been built in.
72
The "B" model is supplied with a 3-core
cable for connection to a single phase
230-240 volt 50 Hz supply, with 20 amp
fusing.
The wires are coloured in accordance
with the following code:
Green/yellow
= earth
Blue
= neutral
Brown
= live
WARNING
THIS APPLIANCE MUST BE
EARTHED.
In other countries check these details
with your supplier.
Electrical connection
Oven with integrated
hob controls "E" model
This is not available in all countries.
For some countries the version of the
oven with integral hob controls is supplied for connection to a 3N ~ 400 V
power supply.
Any adaptations must only be carried
out in consultation with the relevant
Miele Service Dept.
Q\}
Possible combinations
The version of the built-in oven with
hob controls may only be combined
with one of the hobs listed below, and
the correct KSE electronic control for
that hob, (not all units are available in
every country):
"E"-Model
Hob
H 256 E
H 256 ET/KAT
H 266 ET/KAT
KM 220
KM 221
KM 222
KM 230
KM 232
KM 239
KM 240
KM 242
KM 243
KM 245
KM 246
KM 247
KM 248
KM 251
H 268 ET/KAT
H 256 E
H 256 ET/KAT
H 266 ET/KAT
H 258 ET/KAT
H 268 ET/KAT
H 248 ET/KAT
Hob electronic
control unit
KSE 200
KSE 202-1
KSE 204-1
KM 260
KM 262
KM 263
KM 267
KM 290
KSE 203
KM 280
KM 282
KM 283
KSE 205
73
Electrical connection
Q\}
\
}
The voltage and rated load are given
on the data plate, visible when the
oven door is open. Please ensure that
these match the household mains supply.
Data relating to electrical connection
will be found on the data plate, visible
when the oven door is open. Make sure
that these figures comply with the main
voltage. Connection should be made
via a suitable isolator which complies
with national and local regulations.
The appliance is supplied with a 3-core
cable for connection to a 230-240 volt
50 Hz supply.
The fuse rating is 32 amps for the "E"model with hob.
The fuse rating is 16 amps for the "B"model.
The wires are coloured in accordance
with the following code:
Green/yellow
= earth
Blue
= neutral
Brown
= live
WARNING
THIS APPLIANCE MUST BE
EARTHED.
74
The appliance is supplied with a 3-core
cable for connection to a 230-240 volt
50 Hz supply.
The fuse rating is 20 amps for the "B"model.
The wires are coloured in accordance
with the following code:
Green/yellow
= earth
Blue
= neutral
Brown
= live
WARNING
THIS APPLIANCE MUST BE
EARTHED.
Electrical connection
@ä
Electrical connection
All electrical work should be undertaken by a competent person in
strict accordance with national and
local safety regulations.
The voltage and rated load are given
on the data plate, visible when the
oven door is open. Please ensure that
these match the household mains supply. Please quote these data, and the
model and serial number when contacting the Miele Service dept.
Connection of this appliance should be
made via a suitable isolator which complies with national and local regulations, and which is accessible after the
appliance has been built in.
@ä
@
Wall oven
The wall oven is suitable for connection
to an a.c. single phase 240 V, 50 Hz
electricity supply.
The fuse rating is 16 A.
ä
Wall oven
The wall oven is suitable for connection
to an a.c. single phase 230 V, 50 Hz
electricity supply.
The fuse rating is 16 A.
WARNING
THIS APPLIANCE MUST BE
EARTHED.
Test marks . . . . . . . . . . Electrical Safety
. . . . . . . . . . . . . . . . . . . . . . C-Tick Mark
Electrically suppressed
according to . . . . . . . . . . . AS/NZS 1044
75
Installation - cooker and hob control unit
Installation - cooker and hob control unit
Follow the relevant instructions for your
specific model.
There are particular installation requirements for the H 248.
Installation of the hob control
unit
Turn off the mains electricity supply
to the isolator.
Install the hob, see separate instructions.
Connect the oven to the electricity
supply by the isolator.
Align the cooker in front of the base
unit.
With some models there is a yellow
and green earth lead on the cooker
which must also be secured to the
base of the hob.
Pull the control knobs for the hob
and the cooker plugs out of the insert retainers.
76
Fit the KSE hob electronic unit into
place.
Installation - cooker and hob control unit
H 256, H 266, H 268
H 258, H 248
The plugs on the cooker / hob and
the sockets on the hob electronic
control are coded with the same colour for matching.
The plugs on the cooker / hob and
the sockets on the hob electronic
control are coded with the same colour for matching.
Insert the hob control knobs into the
control facia.
Fit the cooker plugs into their
sockets.
Insert the hob control knobs into the
control facia.
Fit the cooker plugs into their
sockets.
Then fit the hob plugs into their
sockets.
Then fit the hob plugs into their
sockets.
77
Installation - cooker and hob control unit
Installation of cooker
Place the oven into the oven housing
unit as far as the oven trim and align.
H 256, H 266, H 258, H 268
Open the oven door and using two
screws secure the oven to the side
walls of the housing unit through the
holes in the oven trim.
The appliance must only be operated when it has been built-in.
78
Installation - cooker and hob control unit
H 248
Place the oven into the oven housing
unit as far as the oven trim and align.
Loosen the screws in the decor
strips and remove the decor strips.
Do not unscrew the screws completely.
Open the oven door and using two
screws secure the oven to the side
walls of the housing unit through the
holes in the oven trim.
Put the decor strips back in place
and screw in.
The appliance must only be operated when it has been built-in.
79
Installing the oven
Installing the oven
The oven is designed to be built
into a tall unit. If you wish to install it
in a base unit, the stainless steel rail
above the control panel must be replaced by a sealing strip. The sealing strip offers additional protection
from any liquids that might spill
down from the worktop, and can be
purchased from the Miele Spare
Parts dept.
Turn off the mains electricity supply
to the isolator.
Connect the oven to the electricity
supply by the isolator.
Place the oven into the oven housing
unit as far as the oven trim and align.
Follow the relevant instructions for your
specific model.
There are particular installation requirements for the H 248.
H 256, H 266, H 258, H 268
Open the oven door and using two
screws secure the oven to the side
walls of the housing unit through the
holes in the oven trim.
The appliance must only be operated when it has been built in.
80
Installing the oven
H 248
Turn off the mains electricity supply
to the isolator.
Connect the oven to the electricity
supply by the isolator.
Place the oven into the oven housing
unit as far as the oven trim and align.
Loosen the screws in the decor
strips and remove the decor strips.
Do not unscrew the screws completely.
Open the oven door and using two
screws secure the oven to the side
walls of the housing unit through the
holes in the oven trim.
Put the decor strips back in place
and screw in.
The appliance must only be operated when it has been built in.
81
Installation situations H 248
Installation situations H 248
Pay particular attention to the distances necessary in the following installation
situations for the H 248:
82
83
Alteration rights reserved / 22 / 001
GB / IRL / AUS / NZ / ZA – 2398
M.-Nr. 05 008 620 (H 256, H 266, H 258, H 268, H 248)
This paper consists of cellulose which has been bleached without the use of chlorine.
