C

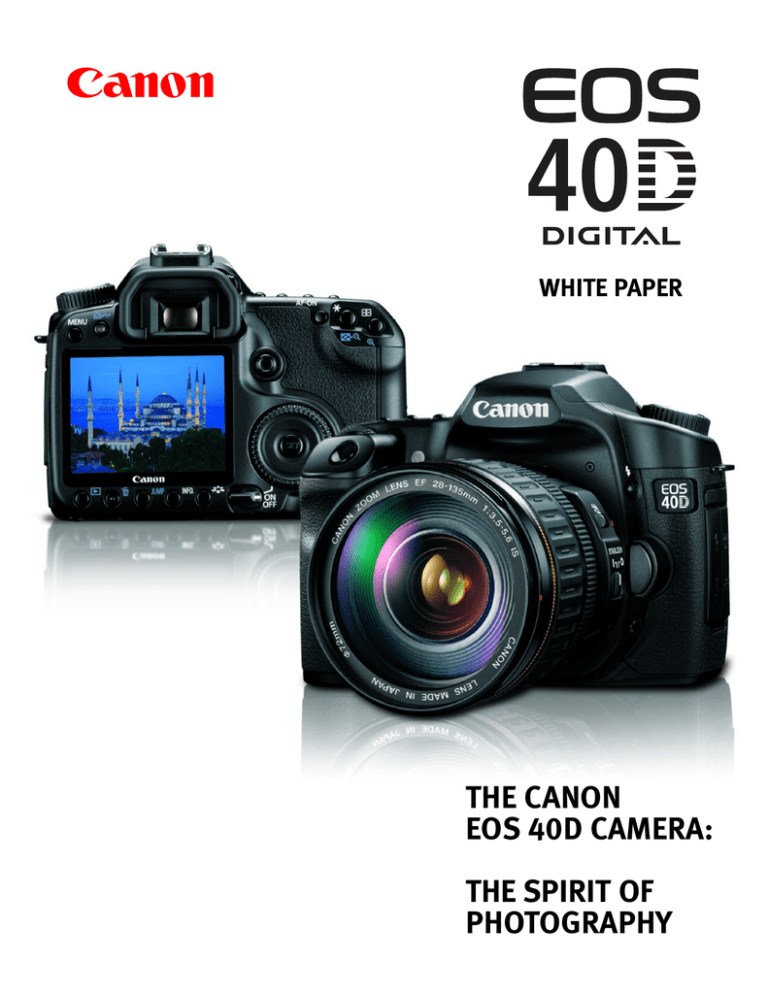

WHITE PAPER
THE CANON
EOS 40D CAMERA:
THE SPIRIT OF
PHOTOGRAPHY
Table of Contents
I.
OVERVIEW
II. SUMMARY OF NEW AND IMPROVED FEATURES
3
4
III. PERFORMANCE
New 10.1 Megapixel Sensor
DIGIC III and 14-bit A/D Conversion
Image Recording and Processing
Auto ISO
High ISO Noise Reduction
Highlight Tone Priority
White Balance
Auto Brightness and Contrast Correction
EOS Integrated Cleaning System
AF and New Autofocus Sensor
Drive
Shutter
New Viewfinder and Interchangeable Focusing Screens
Live View Function
Exposure Control
Flash
LCD Monitor
Design and Construction
5
5
6
6
7
8
8
9
9
9
10
12
13
13
14
18
18
19
19
IV. CONVENIENCE
Basic Operation Concepts
Camera Setting Display
Menu Setting Display
Playback Display
My Menu
Camera User Settings
AF-ON Button
Picture Style Button
Customization
Camera Direct Printing
Interface
Power: Sources and Management
22
22
22
23
23
24
24
24
24
24
25
25
25
V.
26
26
SOFTWARE
Settings that can be adjusted in Picture Style Editor
VI. ACCESSORIES AND LENS
• Battery Grip BG-E2N
• Wireless File Transmitter WFT-E3A
• Focusing Screen Ef
• New IS Lens
31
31
32
33
34
VII. SPECIFICATIONS
37
VIII. FEATURE COMPARISON CHART
41
IX. CONCLUSION
44
Contents ©2007 by Canon U.S.A., Inc. All Rights Reserved. Excerpts from this material may be quoted in
published product reviews and articles. For further information, please contact Canon U.S.A.,
Inc. Public Relations Dept., (516) 328-5000
I. OVERVIEW
The new Canon EOS 40D welcomes users to the next generation of Digital SLR photography
by continuing the Canon traditions of exceptional performance, quality and value. The
EOS 40D has a newly-enhanced 10.1 megapixel CMOS sensor that takes advantage of
Canon-developed manufacturing techniques to achieve fine detail, high image quality,
and low noise. The output from the sensor is converted to 14 bits, rather than 12, for
finer color gradation. Highlight Tone Priority improves exposures in difficult lighting conditions.
The EOS 40D is really fast, too. It fires those 10.1 megapixel, 14-bit files at 6.5 frames
per second, shooting continuously with 75 shot bursts of Large/Fine JPEGs or 17 RAW
images. The speed comes from the powerful combination of the new DIGIC III processor,
DDR SDRAM high-speed memory, 4-channel per line sensor readout, and 2 separate
motors for shutter and mirror operation. The EOS 40D has a top shutter speed of
1/8000 sec., X-sync at 1/250 sec., a 0.15 sec. startup time and ISOs to 3200 (using the
extension feature). High ISO noise reduction maintains image quality with low-light shooting.
The EOS 40D is accurate. It has a completely new AF sensor with 9 cross-type AF points
and an innovative center AF point sensitive to vertical and horizontal lines at f/2.8.
Live View Function opens up a whole range of new possibilities for camera operation
and placement, either looking at the camera’s new, large 3.0-in. LCD monitor, or viewing
and firing remotely using the new Wireless File Transmitter WFT-E3A.
The EOS 40D is easy to use and eminently convenient. It has a bright, high-magnification
viewfinder with a broad field of view. The Self Cleaning Sensor Unit with Dust Delete
Data takes care of most dust-related problems. Image display and navigation are now
simpler and have more options, and Camera Direct printing has been enhanced.
The EOS 40D is remarkable in its ability to be configured according to the taste and
requirements of the user. It has new, interchangeable focusing screens, Picture Style
settings, camera setting registration, an AF Start button, and a host of Custom
Functions. Moreover, the EOS 40D’s magnesium alloy body and stainless steel chassis
make it rugged and feel great in the hand.
The 40D is a camera that will appeal to a vast range of photographers from advanced
amateurs to working photojournalists and wedding photographers. All will appreciate its
exceptional image quality, ease of operation, speed, modest weight and size, compatibility
with the vast Canon system and very reasonable price. This paper will examine the EOS
40D in detail and show exactly why it is such an important and appealing product.
I. OVERVIEW
3
II. SUMMARY OF NEW AND
IMPROVED FEATURES
• 10.1-megapixel CMOS sensor (APS-C size) with improved microlenses for superior
image quality
• DIGIC III with 4-channel reading for fine image detail, natural colors and faster processing and writing
• 14 bit A/D conversion yields finer gradation, more colors
• Approx. 6.5 fps continuous shooting, maximum burst 75 shots in JPEG (Large/Fine,
high-speed continuous mode) or 17 shots in RAW
• Newly-developed AF sensor with 9 cross-type AF points
• Center AF point sensitive to vertical and horizontal lines at f/2.8
• New AF Start button
• Live View Function (Silent shooting mode provided)
• Brighter, sharper viewfinder optics and larger pentaprism yield 0.95x magnification,
26.4° angle of view and 22mm eyepoint
• New interchangeable focusing screens, one with grid lines and one with easy-to-see
point of focus
• 3.0-in., fine-detail LCD monitor with 230,000 pixels, a wide viewing angle (approx.
140° vertical and horizontal), larger menu text size and 7 levels of brightness adjustment
• Support for convenient sRAW file format
• New Picture Style button
• Improved noise reduction, especially with long exposures and high ISO speeds
• Auto ISO in Creative Zone modes
• Auto brightness and contrast correction in Basic Zone modes
• Data writing continues even if one opens the CF card slot cover while data is being
written to the CF card
• High degree of customization with up to 3 sets of camera user settings, 24 Custom
Functions with 62 settings, My Menu and Flash Custom Functions
• More advanced PictBridge features preview of printing effects and tilt correction (±10°
in 0.5° increments)
• Highlight Tone Priority function
• Self Cleaning Sensor Unit
• Dust Delete Data obtained and appended to image
• Upgraded dust and weather seals
• Self-timer now 10 sec. or 2 sec.
• Compatible with external recording media and GPS device (via accessory WFT-E3A)
• With external recording media, image recording can switch automatically between different recording media, can be recorded separately to different media or can be
recorded simultaneously to multiple recording media
• Images in the CF card can be backed up to external recording media
• Compatible with original data verification system (via WFT-E3A)
• Set Speedlite settings with the camera (with 580EX II Speedlite)
• New, compact EF-S 18–55 mm f/3.5–5.6 IS lens with in-lens Optical Image Stabilizer
II. SUMMARY OF NEW AND IMPROVED FEATURES
4
The CMOS sensor in the EOS 40D has been
designed and developed by Canon, and is made by
Canon using semiconductor manufacturing equipment that was also designed and manufactured by
Canon. The performance and value benefits that
result from this integration are enormous. The EOS
40D boasts the highest performance in its class:
approximately 10.1 megapixels, ISOs from
28.0mm
New 10.1 Megapixel
Sensor
14.8mm
III. PERFORMANCE
22.2mm
42.0mm
100–1600* in 1/3 steps plus 3200, high-speed
(Actual Size)
signal reading with 6.5 fps shooting, Live View Function silent shooting mode with
electronic 1st-curtain shutter, and much more.
* Standard output sensitivity. Recommended exposure index.
Although the EOS 40D’s single-piece CMOS sensor is based on the Canon EOS Digital
Rebel XTi’s sensor design and manufacturing technology, new processes were incorporated
in the CMOS semiconductor fabrication and microlens-forming process. By improving
light-collecting efficiency, the same ISO range and low noise (S/N ratio) as that of the
EOS 30D were attained even though the pixels on the 30D are larger.
ISO Speed and Pixel Size
Camera
Pixels Size
ISO Speed
EOS 40D
5.7µm
100–1600, 3200
EOS 30D
6.4µm
100–1600, 3200
EOS DIGITAL
REBEL XTi/
400D DIGITAL
5.7µm
100–1600
6.4µm
50, 100–1600, 3200
7.2µm
50, 100–1600, 3200
EOS-1Ds Mark III
EOS-1Ds Mark II
The combination of 4-channel reading per line and high-speed signal reading (about
twice as fast as the EOS 30D, which also has 4-channel reading), together with a
redesigned 2 motor system for charging the reflex mirror and shutter independently (see
page 13), enables approximately 6.5 fps continuous shooting.
III. PERFORMANCE
5
DIGIC III and 14-bit A/D
Conversion
Following its appearance on the EOS-1D Mark III (in tandem form), the EOS 40D also
uses Canon’s latest image processor, the DIGIC III. It retains the DIGIC II's widely
admired image detail, natural colors and high speed, while providing 1.7 times faster
signal processing speed.
The analog output signal from the imaging element is converted into a digital signal
with 14 bits (16,384 colors) per channel instead of the previous 12 bits (4,096 colors).
The result is digital data with finer gradation. With RAW/sRAW images recorded at 14
bits, one can use Canon DPP (Digital Photo Professional) software to process and save
the image as a 16-bit TIFF image. This yields the maximum range of colors afforded by
14-bit processing. Also, because images recorded in JPEG (8 bits per color) are also
generated from 14-bit RAW data, there are fewer blown highlights than before and
gradation is excellent. Even in the case of highly saturated subjects or subjects with
high contrast and clear differences between light and dark features, high quality color
reproduction and smooth tone rendition from highlights to shadows are possible.
Image Recording and
Processing
When compared to the EOS 30D, the image quality of the EOS 40D is appreciably better.
Resolution is now higher, with approximately 10.1 megapixels versus the 8.2 megapixels
of the EOS 30D. Image quality is higher because of the DIGIC III and 14-bit image processing. Noise reduction of high ISO shots, first offered on the EOS-1D Mark III, is
enabled via C.Fn II-2. Highlight Tone Priority (ISO range 200-1600*), makes gradation
finer from grays to highlights, reducing the likelihood of blown high values. This feature,
too, first appeared on the EOS-1D Mark III. It is set on the EOS 40D via C.Fn II-3.
* Standard output sensitivity. Recommended exposure index.
On the image-recording quality selection screen, when one
QualityFig.
Selection
37 QualityScreen
selection screen
selects the image-recording quality, the respective pixel
Selected image-recording quality and
the respective pixels are displayed
count (horizontal x vertical) and the number of shots possible
Possible shots
with the current CF card are now displayed as well. Also,
sRAW (approximately 2.50 megapixels), another feature
from the EOS-1D Mark III, has been added as a highly useful
image-recording quality option.
Small RAW can also be recorded simultaneously with any JPEG recording quality.
For image size and number of possible
shots with their respective image-recording
settings, see the chart given here.
Image-recording
Quality
L (Large/Fine)
L (Large/Fine)
M (Medium/Fine)
M (Medium/Fine)
S (Small/Fine)
S (Small/Fine)
RAW
L (Large)
L (Large)
RAW+
M (Medium)
M (Medium)
S (Small)
S (Small)
sRAW
L (Large)
L (Large)
sRAW+ M (Medium)
M (Medium)
S (Small)
S (Small)
Image File Size
[Approx. MB]
3.5
1.8
2.1
1.1
1.2
0.7
12.4
12.4+3.5
12.4+1.8
12.4+2.1
12.4+1.1
12.4+1.2
12.4+0.7
7.1
7.1+3.5
7.1+1.8
7.1+2.1
7.1+1.1
7.1+1.2
7.1+0.7
Possible Shots
[Approx.]
274
523
454
854
779
1451
76
59
66
65
70
69
72
135
90
107
103
116
115
124
Maximum Burst
[Approx.]
HighLowSpeed Speed
75
171
140
303
271
625
17
14
14
14
14
14
20
17
17
17
17
17
17
17
205
523
454
854
779
1451
20
16
16
16
16
16
16
34
21
22
22
23
24
25
The number of possible shots (battery life) and continuous shooting speed are based on Canon’s testing
standards and a 1GB CF card. The size of one image, number of possible shots (battery life), and continuous shooting speed are based on JPEG quality 8, ISO 100, and the Standard Picture Style. (These figures vary depending on the subject, memory card brands, ISO speed, Picture Style, etc.)
III. PERFORMANCE
6
The Picture Style function has the same specifications as
Picture Style Screen
those of the EOS 30D, but the EOS 40D is also compatible
with Canon’s new Picture Style Editor software, which allows
even more control over image quality (see page 26 for
details). The EOS 40D has a separate Picture Style selection
button to the left of the power switch to make selection easier.
Next to the Picture Style button is the INFO. button which accesses the parameter setting
screen. The buttons improve the ease of selecting and adjusting the Picture Style.
CF card access speed is now 1.7 times faster, thanks to
DIGIC III Image Processor, and additional measures have
been taken to keep image data intact while it is being written
to the memory card. With the EOS 30D, if one opens the CF
card slot cover while data is being written to the CF card,
image data would be erased. However, with the EOS 40D
Open-cover Warning Screen
(and the EOS-1D Mark III), data writing continues even if the CF card slot cover is
opened. If the slot cover is opened, the beeper will sound and a warning screen will be
displayed until the cover is closed.
Also, if the power switch is turned off while data is being written to the CF card, a warning
screen is displayed during the writing. When the writing ends, the camera turns off.
During image deletion, images to be discarded are marked with checks. A useful new
function permits the deletion of all checked images simultaneously.
As with the EOS-1D Mark III, image recording can be set to
Recording Function
[Standard], [Auto switch media], [Rec. separately], or [Rec. to
multiple]. The optional settings are used when an additional
USB storage device is connected to the EOS 40D via
Wireless File Transmitter WFT-E3A (see page 32).
Images in the CF card can be backed up to external media
via the WFT-E3A as mentioned above. Besides the quick
backup feature also found in the EOS-1D Mark III, the folder
to back up the images can be created or selected. Only
Backup
checkmarked images can be backed up.
Auto ISO
A new feature, Auto ISO speed, is enabled in the Creative
Zone modes. When the ISO is set to [Auto], ISO 400 is set initially. Then, depending
upon the lighting conditions, ISO speed is selected automatically (in 1/3-stop or wholestop increments) as shown in the accompanying table. The resulting shutter speed is a
function of the brightness level such with an aim towards reducing blur caused by camera
shake, and also to ensure that the subject does not appear too bright or too dark
because of overexposure or underexposure.
III. PERFORMANCE
7
[Auto] ISO Speed Settings
ISO Speed Settings
Shooting mode
P/Av/
A-DEP
Set within ISO 400-800 so that the respective shutter speed will not cause camera
shake under the current lighting conditions.
If overexposure will result at ISO 400, a lower ISO speed, as low as ISO 100, is set.
Tv
If overexposure or underexposure will result at ISO 400, the ISO speed is shifted
within 100-800. (=EOS-1D Mark III's. C.Fn I -8-2)
M
Fixed at ISO 400.
Creative Zone
modes
Basic Zone
modes
7/l/
c/N/
s
p
With flash
Automatically set within ISO 100-800, according to the brightness.
Automatically set within ISO 100-800, according to the brightness.
Fixed at ISO 100.
Set to ISO 400 in all shooting modes. If overexposure would result in fill-in flash, a
lower ISO speed, as low as ISO 100, will be set.
The automatically-set ISO speed is displayed in the viewfinder and on the LCD panel
while the metering is active. In the Basic Zone modes, the automatically-set ISO speed
range is 100-800,* 1 stop greater on the high end than with the EOS 30D.
* Standard output sensitivity. Recommended exposure index.
High ISO Noise Reduction
Long exposure noise reduction is equal on the EOS 40D and 30D cameras. [Off], [Auto],
or [On/always applied] can be selected. The time required for noise reduction processing is equal to the duration of the original exposure; the next photograph cannot be
shot until noise reduction processing in progress is complete.
High ISO noise reduction (C.Fn II-2) can be used for images taken at a high ISO speed,
as with the EOS-1D Mark III. Although some noise reduction is applied at all ISO speeds,
it is particularly effective at high ISO speeds. However, at low ISO speeds, noise in the
shadow areas is, in fact, further reduced. Also, when [High ISO speed noise reduction]
is set, the maximum burst during continuous shooting will decrease to 8, regardless of
the image-recording quality.
Highlight Tone Priority
Highlight Tone Priority seeks to improve highlight detail. The range is extended between
18% (“middle”) gray and the maximum highlight tone. This makes the gradation finer
from the grays to the highlights and reduces blown highlights. The function limits the
settable ISO speed range to 200-1600.*
* Standard output sensitivity. Recommended exposure index.
III. PERFORMANCE
8
White Balance
Auto Brightness and
Contrast Correction
The white balance settings are basically the same as those of the EOS 30D. Only the
color temperature (P) as a preset WB is new. The lowest manually selectable color
temperature has been lowered from 2800K to 2500K in order to cover tungsten light
more effectively. One can now register one setting of personal white balance under <O>
with the provided software. WB correction and WB bracketing settings can now be
canceled with the INFO. button.
In Basic Zone modes, when the image is processed internally (i.e. not RAW or sRAW),
image characteristics are detected and are now adjusted automatically during processing
to obtain optimized brightness and contrast.
Sample Adjustment of Brightness and Contrast
Table 13 Sample adjustment of brightness and contrast
Underexposed AE
Underexposed flash
* In bright scenes such as at the beach and on ski slopes,
underexposure tends to result. The automatic adjustment
makes the highlights brighter, resulting in a more natural
looking brightness.
* When the subject is beyond the range of the flash and becomes
underexposed, the automatic adjustment makes the highlights
brighter. This results in a standard flash exposure.
Low contrast
* In the case of low-contrast, hazy scenes, the contrast is adjusted to
obtain a clearer and more distinct image.
EOS Integrated
As in the examples of the EOS-1D Mark III and the EOS Digital Rebel XTi, the EOS 40D
Cleaning System
incorporates the highly practical EOS Integrated Cleaning System to help prevent dust
generation and adhesion of dust to the low-pass filter. Although it is basically the same
system as the one employed in the EOS-1D Mark III, the Self Cleaning Sensor Unit is a
3rd-generation design that uses only 1 piezoelectric element instead of 2, and the unit
is optimized for the smaller APS-C size instead of the larger APS-H size.
The self-cleaning operation can be executed automatically during power on/off, with an
operation time of approximately 1 sec., or manually with an operation time of approximately 3.5 sec. Dust Delete Data is acquired when the coordinates of dust adhering to
the low-pass filter are detected by a test shot and appended to subsequent images. The
dust coordinate data appended to the image is used by the provided software DPP to
erase dust spots automatically. Dust removal performance and Dust Delete Data
specifications are the same as those of the EOS-1D Mark III.
III. PERFORMANCE
9
The [Sensor cleaning] menu is basically the same as the one in the EOS-1D Mark III.
However, there are slight differences such as the shutter operation sequence for [Clean
now]. For the EOS-1D Mark III, it is: Cleaning operation -> Shutter cocking -> Cleaning
operation -> Shutter cocking -> Cleaning operation. In the EOS 40D, it is: Cleaning operation -> Shutter release -> Cleaning operation.
Unit Construction Diagram
Fig. 41 Unit construction diagram
Fig. 41 Unit construction diagram
Self Cleaning Sensor Unit
Photo 9 Self Cleaning Sensor Unit
Photo 9 Self Cleaning Sensor Unit
Sealing material
Sealing material
Piezoelectric
element
Piezoelectric
element
Low-pass filter -2
CMOS sensor
Low-pass filter -2
Phaser CMOS
layer sensor
Infrared-absorption glass
Phaser layer
Low-pass
filter -1
glass
Infrared-absorption
Support material
Low-pass filter -1
Support material
The option of manual sensor cleaning by raising the mirror and using a blower to
remove dust is the same as other EOS Digital SLR cameras.
AF and New Autofocus
Sensor
A newly-developed AF sensor with 9 cross- type AF points
greatly boosts AF performance, improving both AF detection
AF Sensor
precision and extreme-defocus subject detection capability.
AF sensitivity is now EV -0.5 to EV 18. All AF points work as
cross-type points at f/5.6 or better. Both vertical- and horizontal-line sensitive focus detection thus works with any AF point for stable focusing.
High-precision AF is attained with fewer AF failures with hard-to-focus subjects. Also, with
the sensor pitch reduced from 16µm to 14.4µm, detection performance is more accurate.
Sensor
Configuration
Fig. 43
Sensor configuration
AF Points
AF Sensor Arrangement
Cross-type sensor at f/2.8
Two-line sensors
in zigzag pattern
Focusing sensors
for extreme defocus
Sensor with F2.8 Support
Sensor with F5.6 Support
In sum, the newly-developed AF sensor has appreciably higher performance than the
EOS 30D's AF sensor.
III. PERFORMANCE
10
Fig.
42 AFPosition
point position
and spacing
AF Point
and Spacing
Specifications Comparison of AF Sensors
Extreme-defocus
compatibility
30D
1 (Center)
Vertical-line
cross-type sensor
sensitive at center
at center
Yes
-0.5 - 18
EV range [EV]
Sensor pitch [µm]
–
3.2
high-precision f/2.8
compatibility
40D
9 (All cross-type)
1.7
Cross-type sensor
14.4
16
3.7
5.9
The positioning of the AF points is almost the same as with the EOS 30D's AF sensor.
The center AF point has a cross-type AF sensor sensitive to vertical and horizontal lines
at f/2.8. This is a first in an EOS camera. Previously, the central sensor for f/2.8 or better
was only vertical-line sensitive. Because the f/2.8 sensor is a diagonal, cross-type sensor,
it does not obstruct the f/5.6 sensor positioned vertically at the center.
The upper center, center, and bottom 3 horizontal-line sensitive sensors are in a 2-line,
zigzag configuration. With this double focusing system, inconsistent focusing detection
is reduced. By using the 2-line focusing sensors described above, a subject in extreme
defocus can be detected and AF control is quick and easy.
To attain more stable AF performance than before, the
AF unit has more precise AF optics and environmentresistant construction and materials.
Fig. 44 AF unit
AF Unit
Main mirror
Secondary mirror
AF unit
The AF modes are the same as those of the EOS 30D:
One-Shot AF, AI Focus AF, and AI SERVO AF. Any of
these settings can be selected in Creative Zone shooting
modes. One-Shot AF is set automatically in the Portrait,
Landscape, Close-up, and Night Portrait modes. AI Focus AF (switches between One-Shot
AF and AI SERVO AF automatically) is set automatically in Full Auto and Flash Off modes.
Predictive AI Servo AF is set automatically in Sports mode. The EOS 40D can, of course,
also be focused manually in any shooting mode.
AF Performance
Predictive
Fig. 45 Predictive AF performance
100
[m]
S ubje c t dista nc e
Compared to the EOS 30D, the EOS 40D’s focusing calculation
speed is 1.3 times faster, and the AF data-processing time is
shorter. Predictive AF can track a subject approaching at 50
kph/31 mph up to about 26.2 ft./8m away with an EF
300mm f/2.8L IS USM lens.
20
10
8
Because subject detection has been improved with all
cross-type AF points, high-speed continuous shooting in
the AI SERVO AF mode is more stable than with the EOS 30D, and it is also done at a
faster framing rate (6.5 fps vs. 5.0 fps).
1
III. PERFORMANCE
5
10
50
100
500
Subject’s speed [Km/h]
11
The algorithm for automatic AF point selection in the EOS 40D is the same as the EOS
30D's. However, because all the AF points are now cross-type sensors, subject detection
is improved, making the AI SERVO AF subject-tracking performance better. Also, in the
One-Shot AF mode, the probability of capturing the subject as intended is increased.
The EOS 40D can use its built-in flash
as an AF Assist beam, by emitting a
AF-assist Beam with External Speedlites
Speedlite
Automatic
Selection
Center
Manual Selection
left/
Top/
Bottom
Bottom
Yes
Yes
Yes
Yes
Mid-left/
Mid-right
series of flashes in low light. The
Yes
580EX II
Yes
Yes
effective range is approximately
Yes
580EX
Yes
Yes
N/A
550EX, ST-E2
Yes
Yes
Yes
Yes
13.1 ft./ 4m at the center AF point
430EX, 420EX
Yes
Yes
Yes
Yes
Yes
and approximately 11.5 ft./ 3.5m at
380EX, 220EX
Yes*
Yes
N/A
N/A
N/A
the eight off-center AF points.
*Focus can be achieved only with the center AFpoint.
Alternatively, certain accessory
Canon Speedlites, listed in the accompanying table, can emit an AF-assist beam that is
more discreet and covers a greater distance range.
As with the EOS 30D, one can use the Multi-controller or Main/Quick Control dial (C.Fn
III-3-1/2) to select the AF point while looking at the superimposed AF point in the
viewfinder or the LCD panel's AF point selection display. Also as with the EOS 30D, the
AF mode (One-Shot AF, AI Focus AF, AI SERVO AF) is selectable even in the Creative Zone
modes. The provision of an <AF-ON> button is a feature from the EOS-1D Mark III.
Alternately, one can press the shutter button half way to activate the AF.
Drive
The EOS 40D has the highest continuous shooting speed in its class†, approximately
6.5 fps in both One-Shot AF and AI SERVO AF modes. Despite increased resolution and
its concomitant increase in file size, this exceptional speed and a stable viewfinder
image are attained by combining several technologies. The powerful new DIGIC III
processor and 4-channel sensor readout have been mentioned here already. The buffer
memory of the EOS 40D is DDR SDRAM (double data rate, synchronous dynamic random
access memory) for high-speed reading and writing, whereas the EOS 30D used the
slower SDRAM.
† As of August 2007.
Two-Motor System
Of considerable importance, the EOS
40D uses a 2-motor system, one
dedicated to driving the mirror, and
one dedicated to cocking the shutter
speedily. Also, a stopper is incorporated to prevent the rebounding or
bouncing of the main mirror and
secondary mirror. This results in shorter
viewfinder blackout and a more stable
viewfinder image during continuous shooting.
III. PERFORMANCE
12
With DIGIC III Image Processor, DDR SDRAM and a circuit design to take advantage of
their maximum performance, the maximum burst at approximately 6.5 fps is approximately 75 shots in JPEG Large/Fine and approximately 17 shots in RAW. By comparison,
the maximum bursts for the EOS 30D were 30 Large/Fine JPEGs and 11 RAW. (These figures
are based on Canon's testing standards with a 1GB CF card. The maximum burst during
continuous shooting varies depending on such factors as subject, CF card brand, ISO
speed, and Picture Style.)
In Low-speed continuous drive mode, the EOS 40D fires at approximately 3 fps. The
drive mode selection loop now includes a 2-sec. self-timer.
Shutter
While it is based on the EOS 30D's mechanical shutter unit, the shutter of the EOS 40D
is now more reliable with a contactless switch instead of a contact switch for running
the 1st and 2nd curtains. Shutter durability is approximately 100,000 cycles, the same
as the EOS 30D's shutter. The shutter release lag time with SW-1 ON is approximately
0.059 sec. between SW-2 ON and start of exposure. The time lag between simultaneous
SW-1/SW-2 ON and the start of exposure is approximately 0.126 sec. Time lag is calculated
with the aperture stopped down 3.5 stops or less and excludes AF operation time.
Viewfinder blackout time is about 0.1 sec.
The self-timer now offers a choice of
2 sec. or 10 sec. delay. The shorter
time is useful for eliminating blur
caused by the camera shake associated
Shutter-Release Stroke and Pressure
State
Stroke
Pressure
Shutter button protrusion
1.3mm
–
Standby position to SW-1 ON
0.55mm
140g
SW-1 ON to SW-2 ON
0.3mm
330g
with release technique in situations
such as landscape or close-up photography. With a fully-charged Battery Pack BP-511A,
a bulb exposure can be as long as about 2.5 hours.
In addition to the mechanical shutter, the EOS 40D has a 1st curtain electronic shutter
that is a key component in the Live View Function.
New Viewfinder and
Interchangeable Focusing
Screens
The EOS 40D has a new, enlarged and optimized
pentaprism and a larger diameter eyepiece lens.
The viewfinder looks bigger with less vignetting
(edge cut-off). To make the viewfinder clearer and
Fig. 46 Viewfinder
coverage
comparison
Viewfinder
Coverage
Comparison
--- : EOS 30D viewfinder coverage
easier to see, the magnification is 0.95x, the angle
of view is 26.4°, and the eyepoint is 22mm. By
comparison, the EOS 30D's viewfinder gave 0.9x
magnification, a 25.1° angle of view, and a 20mm
eyepoint. On both cameras, the coverage is 95%
and the dioptric adjustment is -3 to +1.
III. PERFORMANCE
13
The EOS 40D's 22mm eyepoint is the distance
at which the viewfinder image area can be
viewed without any vignetting of the viewfinder
on all 4 edges. Normally, most manufacturers
define the eyepoint as the distance at which
both the viewfinder image area and information
display are visible. The 22mm specification for
Viewfinder OpticsFig. 47 Viewfinder Optics
Pentaprism
SI lens
Eyepiece lens 1
Eyepiece lens 2
Eyepiece lens 3
SI reflective plate
LCD in the viewfinder
Focusing
screen
Main mirror
the 40D meets both criteria, absence of cut-off
as well as visibility of both image and information. The basic configuration of the superimposed display optics is the same as that of the EOS 30D.
Interchangeable focusing screens are a new and significant feature of the EOS 40D. The
Ef-series focusing screens have been newly developed. 3 screens, the Ef-A Standard
Precision Matte, the Ef-D Precision Matte with Grid, and the Ef-S Super Precision Matte
are available. All 3 focusing screens have a fresnel lens area and are produced by a new
molding method (first used on the EOS-1D Mark III’s focusing screen Ec-C IV) that provides
excellent transfer characteristics. Consequently, even the Standard Precision Matte
Ef-A Standard
Precision Matte
Ef-D Precision
Matte Grid
Ef-S Super
Precision Matte
screen offers improved performance. The Grid Type screen is particularly convenient for
controlling horizontal positioning and as an aid to overall composition. The Super-Precision
screen makes it easier to find the “sweet spot” of focus when using a lens that is faster
than f/2.8 and is also effective in difficult, manual focus conditions.
The information display inside the finder has been enhanced in several ways: the ISO is
always displayed, even when Auto ISO is set; a Black and White setting alert has been
added; and the maximum burst possible is displayed in two digits instead of one. The
LCD monitor can also be used to display the settings of the shooting functions.
Live View Function
One of the major aspects of the EOS-1D Mark III is the inclusion of a fully-functional Live
View Function. The EOS 40D has it as well, along with some useful improvements. In
addition to the Live View Function found in the EOS-1D Mark III, the EOS 40D enables
"AF during Live View Function" and "Silent shooting." (Note: Live View Function is only
possible with the Creative Zone modes.)
The EOS 40D's CMOS sensor has an electronic 1st-curtain shutter function, enabling
shooting with the mechanical shutter completely open. With Live View Function image
displayed, the 40D can shift seamlessly to slit exposures with the electronic 1st-curtain
shutter, enabling silent shooting which is not possible with a mechanical 1st-curtain
shutter. This electronic 1st-curtain shutter uses a unique high-speed scanning and electronic reset system that accurately mimics the EOS 40D's high-speed mechanical shutter
III. PERFORMANCE
14
operation. It synchronizes with the mechanical 2nd-curtain shutter to obtain a slit exposure.
(Note that with CMOS, it is difficult to have an electronic 2nd-curtain shutter. Therefore,
only the 1st-curtain shutter is electronic.)
As a result of the electronic 1st-curtain shutter, the [Silent shoot] Modes 1 and 2 make
the shutter-release time lag shorter and reduce shutter-cocking noise. Mode 1 enables
continuous shooting at approximately 6 fps and is quieter than ordinary, non-Live View
shooting. Continuous shooting is not possible with Mode 2. With Mode 2, shutter cocking
does not occur after shutter release, but only when the shutter button is SW-2 OFF. At
most, only the shutter curtains make noise, and the shutter sound during the exposure
can be limited to the quieter mechanical 2nd-curtain
Silent Shooting
shutter. Live View Function with the EOS-1D Mark III had
the shutter closing after the shutter release before the
start of the exposure. This caused shutter-release time
lag and shutter-cocking noise.
Pressing the AF-ON button pauses the Live View
Function; the reflex mirror goes down and the camera
executes AF. Letting go of the AF-ON button resumes the
Live View Function. With C.Fn III-6, the set AF mode and
AF point (automatic selection possible) will be applied
during AF while one holds down the AF-ON button.
C.Fn III-6
Note that during this time, there will be no Live View Function image displayed since the
reflex mirror will be down. Since no AF points are displayed on the screen with Live View
Function, positioning the magnified display's focusing
AF During Live View Function
frame at the center and selecting the center AF point for
autofocusing is recommended. During AF operation, shutter release is not possible. One must first release the AFON button and wait until the image with Live View
Function is displayed, then shoot.
With the CMOS sensor's electronic 1st-curtain shutter, shooting is possible while the
image with Live View Function is displayed and the mechanical 1st curtain is open. The
mechanical 1st curtain need not be closed in order to shoot. This eliminates the
mechanical 1st curtain's shutter sound at SW-2 ON which occurs with the EOS-1D Mark III
during Live View Function. Silent shooting is therefore possible.
As in the case of the EOS-1D Mark III's Live View Function, the exposure is controlled
with the mechanical shutter's 1st and 2nd curtains. Set to "Disable" when using a TS-E
lens shifted up or down or when using an Extension Tube. If one sets Mode 1 or Mode 2
when using a TS-E lens and a shutter speed of 1/2000 sec. or faster, the small slit created
between the electronic 1st-curtain shutter and mechanical 2nd-curtain shutter will be in
the same orientation as the optical axis, resulting in underexposure or overexposure.
III. PERFORMANCE
15
Similarly, with an Extension Tube and a shutter speed of 1/2000 sec. or higher, the
exposure will be uneven at the top and bottom of the image.
When using an EX-series Speedlite, the
shooting sequence will be the same as
the EOS-1D Mark III's Live View
Function in either silent shooting Mode
TS-E LensPhoto
+ 1/8000
sec.Lens + 1/8000 sec.
12 TS-E
1 or 2. In other words, after pressing
11mm shift up
No shift movement
the shutter button all the way down to
initiate an exposure, the reflex mirror will drop down briefly in order to register the E-TTL
II preflash data, then the mirror will be moved out of the optical path during the actual
exposure.
Live View Function Metering Timer
The Live View Function metering timer is geared mainly
for still-life subjects. Live View Function enables the
metering timer to be changed to one of 6 settings from 4
sec. to 30 min.
Two useful features of Live View Function in the EOS-1D Mark III that appear in the
EOS 40D are:
Grid Display
• Live View Function exposure simulation (via C.Fn IV-7)
that displays images on the LCD monitor, simulating
the shooting exposure used during Live View Function,
with the same shutter speed, aperture and other expo
sure settings.
• A grid display that can be selected from the Live View
function setting menu
During Live View Function,
58 Live View information display
Live View FunctionFig.
Information
approximately 170 shots are
possible at 73°F/23°C and
Live View exposure
simulation
approximately 130 shots are
(C.Fn IV -7)
possible at 32°F/0°C with flash
Battery check
used on 50% of the exposures.
Picture Style
Without using flash, approxiFlash-ready
AE lock
mately 180 shots can be made
at 73°F/23°C and approximately
Shutter speed
Aperture
140 shots can be made at
Flash exposure compensation
32°F/0°C (in both cases, a fullycharged Battery Pack BP-511A
is used and CIPA testing standards are observed).
Histogram
Focusing
frame
ISO speed
Shots remaining
Exposure level
An icon has been added to indicate that exposure simulation has been enabled.
III. PERFORMANCE
16
Although this series of white papers generally confines itself to new and improved features,
the following summary of Live View Function may be useful:
• Shoot while watching the camera LCD monitor instead of the finder
• Excellent for precise macro focus
• No need to stoop or stretch to look in the finder
• 100% field of view helps control composition
• Short lag time captures near-instantaneous movements
• Type: electronic viewfinder with imaging sensor
• Coverage: approx. 100% vertically and horizontally
• Frame rate: 30 fps
• Focusing:
° Manual focus: magnify the image by 5x or 10x for precise manual focusing
° Autofocus: with C.Fn III-6-1, press the <AF-ON> button and the reflex mirror will go
back down (Live View Function interrupted). The same phase detection AF measurement as during normal shooting is executed. After focus is achieved, let go of the
<AF-ON> button and Live View Function will resume.
• Metering:
° Real-time evaluative metering with the imaging element
° AE lock possible
° Metering range: EV 0–20 (At 73°F/23°C, 50mm f/1.4 lens, ISO 100)
° The active metering time can be changed
• Exposure confirmation: exposure compensation and AEB simulation possible (C.Fn IV-7-1)
• Depth-of-field preview: possible with Depth-of-field preview button
• Magnified view: magnify by 5x or 10x initially at the center of the picture area; focus
frame can be moved to any location in the picture area by scrolling with the multicontroller.
• Grid display: two vertical and two horizontal lattice lines displayable
• On-screen information display:
° Focus information: Focus Frame
° Exposure information: Shutter speed, aperture, AE lock, ISO speed, exposure level
° Captured image information: Picture Style, histogram, shots remaining
° Battery check icon
• Silent shooting: provided (Mode 1 and Mode 2)
• Possible shooting time: approx. 30 continuous min. (with fully-charged Battery Pack)
• Shutter-release time lag:
° (1) With SW-1 ON, time lag from SW-2 ON to the start of the exposure: 0.059 sec.
° (2) With SW-1 and SW-2 pressed simultaneously, time lag until the start of the exposure: 0.126 sec.
° Time lag figures above apply with the aperture stopped down by up to 3 stops (reflex
mirror operation time excluded).
• Remote Live View Function: enabled with EOS Utility, outputs Live View Function video
for viewing on computer monitor, improves remote shooting by making it possible to
check such things as composition, focus, moiré, and false colors
III. PERFORMANCE
17
Exposure Control
The EOS 40D uses the same 35-zone metering sensor as in the
EOS 30D. The metering modes are evaluative, partial (approximately
9% of viewfinder area), spot (approximately 3.8% of viewfinder
area), and center-weighted average metering.
Metering Sensor
Previously, during automatic AF point selection and AF point-centered
evaluative metering, there was a tendency for slightly excessive compensation. The
compensation is now looser so that exposure is more consistent.
The E-TTL II autoexposure algorithm of the EOS 40D is the same as the EOS-1D Mark III's
E-TTL II autoexposure algorithm. By optimizing the method of using lens distance
information, exposure becomes more accurate for highly reflective subjects. With the
EOS 30D, the selected metering mode was used to meter the ambient light. This sometimes
resulted in inaccurate exposures when the selected metering mode was not evaluative
metering. Therefore, as with the EOS-1D Mark III, evaluative metering is now used at all
times to meter the ambient light.
The EOS 40D uses the same exposure control system as the EOS 30D, with eleven AE
modes and manual mode. While based on the EOS 30D's shutter unit, the 40D’s shutter
is now more reliable with a contactless switch instead of a contact switch for running
the 1st and 2nd curtains. Shutter durability is approximately 100,000 cycles, the same
as with the EOS 30D’s shutter. With a fully-charged Battery Pack BP-511A, the shutter
supports a bulb exposure as long as about 2.5 hours.
Flash
A new feature, shared with the EOS-1D Mark III, and a considerable convenience, is that
both built-in flash and external Speedlite settings can be set on the EOS 40D from the
camera with the menu screen. With external, EX-series Speedlites, this includes Flash
mode, sync setting, FEB, flash exposure compensation, E-TTL II, zoom, wireless flash,
and clear settings. The EOS 40D can make communication settings as well, such as
communication channel, flash group, and flash brightness
when the Speedlite 580EX II is used. Also, with the 580EX II
attached to the camera, one can set or cancel the Speedlite's
Custom Function settings (C.Fn-0 to 13) with the camera. With
an EX-series Speedlite other than the 580EX II, the camera cannot be used to set the Speedlite's Custom Functions.
External flash Custom Function
The flash unit in the EOS 40D is the same as the unit in the EOS 30D. Its Guide Number
is 43/13 at ISO 100 in feet/meters. Flash coverage is effective for focal lengths 18mm
and higher, with some limitations based on the size of the lens. If the built-in flash is
fired rapidly in succession, the flash firing will be stopped to prevent heat damage to
the built-in flash cover and fresnel lens (diffuser). In the case of the EOS Digital Rebel
XTi, which has similar specifications, if the built-in flash is fired 20 times successively at
10 sec. or shorter intervals, the firing will be stopped. With the EOS 40D, the flash control
is more precise, so the flash stoppage is less likely to occur than with the EOS Digital
Rebel XTi.
III. PERFORMANCE
18
[Built-in flash func. setting] is a group with [Flash exp. comp], [Shutter sync], and [E-TTL II]
(Evaluative/Averaged metering). The latter 2 were previously Custom Functions.
[External flash func. setting] now includes [Wireless set.] from the EOS-1D Mark III's
[Flash function settings]. This is to enable wireless, multi-Speedlite control. Also, C.Fn
items related to the internal flash, such as flash activation, E-TTL II metering method and
flash synch
Flash Control
Built-in Flash Control
Wireless Flash Control
timing, have
been collected
in the flash
setting menu.
LCD Monitor
The EOS 40D has a 3.0-in. TFT liquid-crystal color LCD monitor with approximately
230,000 pixels and a wide, 140º viewing angle, both horizontally and vertically. Note
that the viewing angle has actually been reduced from 170º on the EOS 30D to improve
ease of viewing outdoors, and that the screen’s brightness level has been increased for
the same reason. Also, the color gamut has
Comparison with EOS 30D Screen
been broadened. Brightness is adjustable to
any of seven levels. The larger monitor size
means a larger font size can be used for
menu display. In all, the LCD monitor is easier
to use and more accurate than before.
Design and Construction
Like the EOS 30D, the main exterior covers (top, front, and rear) are made of magnesium
alloy for light-weight and high strength. The grip portion is integrated with the front
cover, enhancing body rigidity further. The body's basic construction is the same as that
of the EOS 30D, employing a stainless steel chassis and a mirror box made of highstrength engineering plastic. As with the EOS 30D, the exterior has a high-quality, black
satin finish with a non-slip texture. The EOS 40D also
has sealing material lining the CF card slot cover and
Exterior Covers and Internal Construction
battery compartment cover (which is not found in the
30D) to improve dust- and water-resistance. The EOS
40D has sealing material lining the CF card slot cover
and battery compartment cover to improve dust- and
water-resistance. The battery compartment covers of
both the Battery Grip BG-E2N and the Wireless File
Transmitter WFT-E3A have sealing material to improve
resistance to dust and water.
The configuration of the major components is basically the same as in the EOS 30D,
with the exception of the following units which have been added or changed:
• Self Cleaning Sensor Unit
• LCD monitor made bigger from 2.5 in. to 3.0 in.
• Two driving motors to attain approximately 6.5 fps continuous shooting speed
• Extension system terminal
III. PERFORMANCE
19
The major circuit boards are as follows:
• Main board (digital control circuit and camera control circuit)
• Bottom board (flash circuit and actuator drive circuit)
• Power circuit board
These boards efficiently integrate various control circuits. There are also 23 flexible
boards outfitted with the sensor, switches, and so forth.
The main board is a highly integrated, 10-layer unit containing the digital control circuit
and the camera control circuit. It includes the following:
• The image signal-processing circuit consisting of ICs such as the A/D IC that converts
the CMOS sensor output to a digital signal
• The TG (Timing Generator) that generates the CMOS sensor's drive pulse
• The digital image-processing circuit that has DIGIC III
• The memory circuit that has DDR-SDRAM as the buffer memory
• The TFT liquid-crystal control circuit
• The USB terminal
• The video OUT terminal
• The extension system terminal
• The Main CPU that controls various sensors and mechanical parts for camera operations,
viewfinder display, and drive control circuit
• EEPROM memory to store saved data such as adjustment data (AE, AF, etc.)
The bottom board is a highly integrated, 4-layer board containing:
• The flash circuit and actuator drive circuit
• The flash circuit which controls the built-in flash's recycling and firing and the external
Speedlite control circuit
• The 2-motor control circuit that drives the mirror and shutter-driving actuator
• The lens power supply control circuit
• The Self Cleaning Sensor Unit's actuator drive control circuit
Major Hard Boards
Main board
Power supply board
Bottom board
III. PERFORMANCE
20
The power circuit board has the circuit
that generates and supplies the voltage required by the camera's circuits.
The RoHS directive restricts the use
of 6 toxic substances: lead, mercury,
cadmium, hexavalent chromium,
polybrominated biphenyl, and polybrominated diphenyl ether. It
applies to products sold in the EU
(effective from July 1, 2006). All of
the EOS 40D's parts conform to this
directive.
62 Cross section at center
Center
Cross Section at Fig.
SI lens
Pentaprism
Built-in flash
Metering sensor
Eyepiece lens 1
Eyepiece lens 2
Eyepiece lens 3
SI reflective
plate
LCD in the viewfinder
Shutter
LCD monitor
Focusing
screen
Main board
Image sensor
Main mirror
Secondary mirror
AF mirror
Infrared-absorption filter
III. PERFORMANCE
Metering lens
AF sensor
Secondary
image-forming lens
21
IV. CONVENIENCE
Basic Operation Concepts
While it is grounded in the EOS 30D's basic operation concepts, the EOS 40D has
improvements that make it easier to use. The shooting buttons above the LCD panel
have been reassigned; an AF Start button (AF-ON) is provided (as with the EOS-1D Mark III),
and the Picture Style selection button is new. As much as possible, though, the operation
method, screen design, and specifications were kept the same as those of the EOS-1D Mark III.
Shooting functions are now assigned to 3 buttons above the
LCD panel. Through these buttons, the most frequently-
Layout of Shooting Buttons
changed settings are now accessible near the Main Dial. As
with the EOS-1D Mark III, one uses the Main Dial to change
ISO speed, AF mode, and metering mode. The Quick Control
Dial is used to change flash exposure compensation, drive
mode, and white balance. The menu operation method is also now the same as with the
EOS-1D Mark III. Canon is making camera operation methods as uniform as possible
throughout their professional and advanced amateur ranges.
The new interchangeable focusing screens, 2-sec. self-timer, sRAW file format, My Menu,
camera setting registration, Live View Function, 3.0-in. LCD monitor with wider color
gamut and enhanced information display (ISO always displayed, LCD monitor also used
to display settings of shooting functions) all make the EOS 40D easier to use, more flexible
and more controllable in an unlimited range of conditions and circumstances.
Camera Setting Display
The EOS 40D has a shooting function setting
display on the LCD monitor. Setting details
can be verified in the large text display. This
feature is also effective when the upper display
panel is difficult to see, such as when it is in
an elevated position during tripod use.
Shooting Function Setting
Press the INFO. button to change
the screen as follows:
1. Camera settings display
2. LCD panel display
3. Display off
INFO Display
IV. CONVENIENCE
1.
2.
LCD monitor OFF
22
Setting Screens
With the LCD panel display that appears after
pressing the INFO. Button twice, pressing one
of the top buttons, such as ISO speed/flash
exposure compensation, will display the
respective setting screen, as in the manner of
the EOS Digital Rebel XTi.
Because the EOS 40D does not have a display-off
sensor, press the INFO. button to turn on/off
the INFO display. If auto power off is [Off] and the camera is left idle, the LCD monitor
will turn off automatically after 30 min., but the camera power does not turn off.
Menu Setting Display
As in the case of the EOS-1D
Mark III, one turns the Main
Dial to select the menu tab
Menu Options
Fig. 17 Menu options
and turns the Quick Control
Dial to select menu options.
The Multi-controller can also
be used for menu operations.
The menus are: Shooting,
Playback, Set-up, Custom
Function and My Menu. They
are now available in 18 different
languages with the addition of Greek, Polish and Portuguese.
Playback Display
Changes in playback display follow
60 Information
display sequence
InformationFig.
Display
Sequence
features introduced with the EOS-1D
Mark III. During single-image playback,
pressing the <INFO.> button switches the
shooting information screen in the
sequence shown here.
One can also set the menu option to
display the overexposed highlight
warning and now, as well, the AF point
that achieved focus. There are 2 types of
single-image full display and, also new,
2 types of shooting information display.
Single image display
Histogram display
Single image display +
Image-recording quality
Shooting information display
In addition to the 9-image index display, a 4-image
index display is now provided.
Jump Display
Press the <JUMP> button, then turn the Quick Control Dial to select
the jump method (jump by 1 image, 10 images, 100 images, 1
screen, or shooting date).
IV. CONVENIENCE
23
With the [Erase images] menu, select [Select and
erase images] and checkmark the images to be
erased. Then all the checkmarked images can be
erased at one time.
My Menu
Camera User Settings
Erase Images Screen
The My Menu feature keeps track of frequently modified menu items for quick and easy
setting. One can register up to 6 of the most frequently-set menu options and Custom
Functions under My Menu. Also, when [Display from My Menu: Enable] is set, pressing
the Menu button will first display the My Menu screen (tab). One can also use EOS
Utility to set My Menu and register it to the camera.
The EOS 40D’s shooting function settings and menu settings can be registered to the
Mode Dial's C1, C2, or C3 positions. Except for date/time and other settings which need
not be registered, almost all the camera settings can be set here.
Camera User Settings
Register Camera User Settings
AF-ON Button
The EOS 40D has several functions that were added to support
the wide variety of shooting styles expected of users of this camera.
The AF button is placed in a convenient position for access by the
AF-ON
frequently-used right thumb. The button is effective when users want
to focus and decide exposure separately. The AF-ON button is used to
operate AF, and pressing the shutter halfway down can fix the exposure.
Pressing the AF-ON button also pauses Live View Function (reflex mirror goes down) and
executes AF. Letting go of the AF-ON button resumes the Live View Function.
Picture Style Button
Customization
The EOS 40D’s Picture Styles have the same
specifications as those of the EOS 30D. The
EOS 40D has a separate Picture Style selection
button positioned conveniently at the bottom
right of the LCD monitor to make selection easier.
Picture Style Button
Picture Style Selection Screen
The EOS 40D can be configured with speed, convenience and assurance in many, many
ways. The EOS 40D has 24 Custom Functions with 62 settings selectable with the camera.
Current camera user settings can be registered under the Mode Dial's C1, C2, and C3
settings. Up to 6 top-tier menu options and Custom Function settings can be registered
in My Menu. With the Speedlite 580EX II attached to the camera, one can set or cancel
all the Speedlite's Custom Function settings (C.Fn-0 to 13) with the camera.
IV. CONVENIENCE
24
Camera Direct Printing
Two useful additions have been made to printing direct
from the camera. First, a preview display shows effects
such as B/W, Vivid, Brightness correction, Hue, and
Adjust levels before printing. The feature is not enabled
for face brightener or red-eye correction.
Then, tilt angle correction adjusts the angle of images
shot with a tilt to print horizontally. With the trimming
screen, turn the Quick Control Dial to tilt the image up to
±10 degrees in 0.5° increments.
Printing Effects
Tilt Correction
As with the EOS-1D Mark III, RAW, sRAW and JPEG printing
and Red-Eye 1 are provided. Camera Direct Printing is
now compatible only with PictBridge. Bubble Jet Direct
and CP Direct are not supported.
Print order (DPOF) and direct image transfer are the same as with EOS 30D.
Interface
USB 2.0 Hi-Speed is provided for the interface with personal computers and camera
direct printing. Additionally, the camera
bottom has an extension system terminal,
principally for the Wireless File Transmitter
Terminals
Extension System Terminal
WFT-E3A. The other terminals, including PC
socket for non-dedicated external flash units, as well as video out and N3-type remote
control, are the same as those on the EOS 30D.
Power: Sources and
The power source system is the same as the EOS 30D's and
Management
uses the Battery Pack BP-511A. With a fully-charged battery,
Battery Compartment Cover
the number of possible shots without flash use is about
1100 at 73°F/23°C. With 50% flash use, it is about 800
shots. As with the EOS 30D, the date/time backup battery is
the lithium battery CR2016 installed in the battery compartment.
Detaching and attaching the battery compartment cover is now
easier. One pulls it out or puts it back at a 45º angle.
With the Battery Grip BG-E2N, 2 battery packs or 6 AA-size batteries can be used.
To minimize the higher power consumption required by 4-channel, high-speed signal
reading, the output amp's power usage has been kept to an absolute minimum. Also, as
in the case of the EOS Digital Rebel XTi, to save energy during long exposures, power to
the output amp is turned off and the standard current driving the circuit is also cut off.
During Live View Function, power distribution for the signal-reading operation is optimized,
as with the EOS-1D Mark III. Such measures enable more precise power-saving control.
IV. CONVENIENCE
25
V. SOFTWARE
Consistent with Canon’s practice of providing a complete software package at no additional
expense to purchasers of its Digital SLR cameras, the EOS Digital Solution Disk Ver.15 is
included with the EOS 40D camera. It includes Picture Style Editor Ver.1.0 a new program
discussed here. The other software on the disk has been upgraded for EOS 40D compatibility, including RAW files. EOS Utility Ver.2.1 allows folder monitoring with the Wireless
File Transmitter WFT-E3A and link-ups with Picture Style Editor.
“Picture Style” was first included as part of EOS Digital in the fall of 2005. Since then, it
has become a standard feature in EOS Digital and will be incorporated into the entire
current EOS product range in the latter half of 2007. These features, namely:
• the standardization of image characteristics across all EOS Digital models
• optimized support for photographic expression according to purpose
• support for RAW images shot on older models in DPP
• support for web downloading of Picture Style files according to purpose,
have been very well received by users. That said, there have also been calls from
advanced users with particularly stringent demands in terms of image processing for
even more flexible adjustments that go beyond the preset characteristics supplied by Canon.
The Picture Style Editor, as the name suggests, is software that allows users to create
their own Picture Style files. To create his or her own Picture Style file, the user selects
and loads a sample RAW image and then adjusts the image characteristics based on
one of the existing Picture Style settings (Standard, Portrait, Landscape, Neutral or
Faithful) except for Monochrome. The created Picture Style file can then be registered in
the camera using EOS Utility or used in the DPP or RAW Image Task applications.
Settings that can be
adjusted in Picture Style
Editor:
a. Existing Picture Style Detail settings: Color Tone, Color saturation, Contrast and
Sharpness adjustments
b. Color specification and individual minute adjustments to specified colors: selection
of a specific color in the sample image and adjustment of the hue, saturation and
Luminosity, as well as minute adjustments to the gamma characteristics (tone curve)
V. SOFTWARE
26
The settings in a. were previously available either on the camera or in EOS Utility, so
that the results of any adjustments had
PSE Main Window and Tool Palette
to be checked later after the picture had
actually been taken. With Picture Style
Editor, the results of adjustment can be
checked in real time. The adjustments in
b. are available for the first time (with
real time checking) with Picture Style
Editor. Up to 100 color points can be
selected in the color specifications
provided in b.
Picture Style Editor ver.1.0 supports RAW images shot
only on the EOS 40D. (Future versions will support future
EOS models, but no reverse compatibility to older EOS
Preliminary Adjustment Window
models is planned.) Picture Style Editor has a Preliminary
Adjustment window for images that need supplementary
adjustment.
For images shot with the correct exposure/white balance, there is no need to use
preliminary adjustment.
The editing window consists of 3 components:
Main Windows in PSE
• Main window: Displays the sample image
• Navigator window: Displays the position of a magnified
image and also displays histograms
• Tool palette: Provides the adjustment functions
Because the adjustments made using the tool palette
functions are applied immediately to the sample
image shown in the main window, one can check the
results in real time.
Main window
Tool palette
Navigator window
The functions of the main window are as follows:
• Display mode switching: Normal view (single image display) and before and after
adjustment comparison display (top/bottom split or left/right split)
• Image rotation: Left or right in 90° increments
• Display magnification switching: Full view, 12.5%, 25%, 50%, 100% and 200%
• Cursor coordinates position and RGB values (8-bit
conversion) display
• Work color space display
Note that the sample image is processed and displayed
using the camera settings used when the picture was
taken. Adjustments made in DPP or RAW Image Task
after shooting are not applied to the sample image.
Main window before and after adjustment comparison display, top/bottom split)
V. SOFTWARE
27
The Navigator window supplements the operations
performed in the main window and tool palette and
offers the following functions:
a. Enlargement display position shows the position
displayed when the sample image in the main window
is enlarged. One can also use this window to drag the
enlargement display position around. The sample
Navigator Window
Enlargement
display position
image in the main window changes in response.
b. Histogram display shows the distribution of luminance
and color components in the sample image displayed
in the main window. The histogram display can be
switched using the [Y] (luminance), [RGB], [R], [G]
and [B] buttons.
c. Warning indicator flashes if one enters or sets upper
and lower limits in these fields and there are areas
Switches the
histogram
display
Warning
indicator setting
in the sample image displayed in the main window
with values that exceed those limits.
One can choose either [Y] (luminance) or [RGB] (color value) as the warning to be used.
The functions of the tool palette are as follows:
• Selecting the Picture Style used as the basis for one’s
new Picture Style
• Adjusting the color tone, color saturation, contrast
Tool Palette
Figure-7 Tool palette
Selects a Picture Style
Adjusts the Color Tone, Color saturation,
Contrast and Sharpness
and sharpness
• Making minute adjustments to a specified color (hue,
Makes minute adjustments to the
specified color
saturation and luminosity)
• Adjusting the gamma characteristics
Note that Picture Style Editor uses the DPP algorithms
for image processing. This means that the color tones
produced by tool palette adjustments tend to be the
same as those made in DPP.
Adjusts the gamma characteristics
One can choose any of the Picture Style settings (Standard, Portrait, Landscape, Neutral
or Faithful, but not Monochrome) as the starting point for Picture Style to be used as a
basis. One can also download and
Panel for Minute
Color
Adjustment
Figure-10
Panel for
minute color adjustment
Eye-dropper button
select one of the purpose-made
Picture Style files (e.g. Emerald)
Luminosity
Hue and saturation
from the Canon website. One can
adjustment
adjustment points
point
then adjust the color tone, color
saturation, contrast and sharpness.
H (hue) adjustment slider
A panel is provided for minute color
adjustment. The panel permits the
user to set the range of possible
adjustment.
V. SOFTWARE
S (saturation) adjustment slider
L (luminosity) adjustment slider
28
One can specify up to 100 color adjustment points, and the adjusted colors will be
displayed on the adjustment color list. The adjustment color list displays and their
functions are as follows:
• Colors before and after adjustment
• Apply/Do not apply checkbox
• Range of effect overlap indicator
The range of effect overlap indicator is displayed if the range of effect of an adjusted
color overlaps the range of effect of another adjusted color. Colors in overlapping ranges
are displayed in gray on the color wheel and adjusted using an aggregated value for the
Adjustment
Color Listcolor list
respective adjustments. To avoid overlapping
Figure-12 Adjustment
Color before adjustment
ranges, one must reset the ranges of effect
Color after adjustment
so that they no longer overlap. Also, one
can delete an adjusted color by selecting
the color in the adjustment color list and
Range of effect overlap indicator
pressing the <Del> key on the keyboard.
Apply/Do not apply checkbox
There are 3 color display modes from which to choose: HSL, Lab or RGB. Color values
are displayed in the appropriate panel.
Color Display Modes and Color
Figure-13
ColorColor
display
modes
and color
valuevalue
displays
Figure-13
display
modes
and color
displays
Value
Displays
Display with Each Color Display Mode
Figure-14
Display
with each
colorcolor
display
modemode
Figure-14
Display
with each
display
Switches
the color
mode mode
Switches
thedisplay
color display
HSL mode
HSL mode
Color value
adjustment
Colorbefore
value before
adjustment
Color value
Colorafter
valueadjustment
after adjustment
One can adjust the gamma characteristics of an image
using the tone curve. By creating up to 10 adjustment
points anywhere along the tone curve, one can freely
adjust brightness and contrast. The results of the
adjustments are applied to the sample image in the
main window in real time.
V. SOFTWARE
Lab mode
Lab mode
by the by the
A colorAmode
which
colordeveloped
mode developed
colorin
mode
in colors
which are
colors are A color Amode
Internatiorepresented
in terms
3 factors:
CIE (Commission
Internatiorepresented
inof
terms
of 3 factors:CIE (Commission
nale
d’Eclairage)
where
“L”
H (Hue),
S
(Saturation)
and
L
nale
d’Eclairage)
where
“L”
H (Hue), S (Saturation) and L
denotes
lightness,
“a” “a”
(Luminosity).
denotes
lightness,
(Luminosity).
denotes
the
color
elements
denotes the color elements
from green
“b”and
denotes
fromand
green
“b” denotes
the color
to magenta
theelements
color elements
to magenta
from blue
toblue
yellow.
from
to yellow.
RGB mode
RGB mode
A colorAmode
which
color in
mode
in which
colors colors
are represented
are represented
using the
three
using
theprimary
three primary
colors colors
(and the
additive
(and
the additive
color mixtures)
of the of the
color mixtures)
visiblevisible
light spectrum:
red red
light spectrum:
(R), green
and(G)
blue
(R), (G)
green
and(B).
blue (B).
Adjusting the Gamma Characteristics
29
One can save all the adjustments one has made with the tool palette as an original
Picture Style file (with the .PF2 extension). (Because adjustments made in Picture Style
Editor are saved in Picture Style files, they are not saved in the sample image used for
the adjustment process.) Adjustments are saved in the save window, which appears
when you click the save window display button in the tool palette. When one saves the
file, there is a [Disable subsequent editing] checkbox that prevents disclosure of the
adjustments made in Picture Style Editor as well as any captions or copyright information. Picture Style files that have been saved with the [Disable subsequent editing]
checkbox ticked can be used in cameras and in DPP in the same way as ordinary Picture
Style files. However, because they can no longer be opened in Picture Style Editor, one
cannot check the adjustments. (We recommend also saving a separate copy of the
Picture Style file without the [Disable subsequent editing] checkbox ticked.)
Like purpose-made Picture Style files downloaded from the Canon website, saved
Picture Style files can be registered and used in cameras and used in the DPP and RAW
Image Task applications.
(1) Using Picture Style files in cameras: One can use EOS Utility to register a Picture
Style file in a camera equipped with the Picture Style function and then apply the file
to photographed images.
(2) Using Picture Style files with DPP: One can use DPP to apply Picture Style files to any
compatible RAW image.
(3) Using Picture Style files with RAW Image Task: One can use RAW Image Task to apply
Picture Style files to RAW images shot on cameras equipped with the Picture Style
function.
Picture Style Editor will be included on EOS Digital Solution Disk ver.15. Later this year,
Picture Style Editor will be available as a download for all EOS users from the Canon
website.
V. SOFTWARE
30
VI. ACCESSORIES AND LENS
Battery Grip BG-E2N
The BG-E2N is a high-capacity battery grip dedicated to the EOS 40D. It was developed to
enable high-volume shooting and easier vertical shooting. It can accommodate the BP-511A
as well as AA-size batteries.
In terms of function, the BG-E2N is the same as Battery Grip BG-E2 for EOS 30D, 20D, and
20Da. However, the battery compartment cover now has sealing material to make it more
resistant to dust and water than the BG-E2. The power source and method are the same
as with the BG-E2. With the introduction of the BG-E2N, the BG-E2 will be discontinued.
Therefore, the BG-E2N will be the battery grip for the EOS 30D, 20D, and 20Da henceforth.
When the BG-E2N is attached to these cameras, the continuous shooting speed and
number of possible shots will be the same as with the BG-E2.
Features:
(1) The EOS 40D
(with BP-511A x 2) enables
about twice as many shots to
Electrical contacts
be taken when compared with
shooting with one battery
(2) Compatible with size-AA
Attachment screw
Guide pin
Battery compartment
release lever
batteries
(3) Makes vertical shooting as
easy as horizontal shooting
(4) AC power can be supplied
via the ACK-E2 AC power
adapter or the CA-PS400 +
DR-400
(5) The battery compartment
cover has new sealing material
to improve resistance to dust
and water
(6) Hand Strap E1 (sold separately) attachable
VI. ACCESSORIES AND LENS
Attach/detach knob
Vertical-grip AE lock/FE lock/
Index/Reduce button
Battery release
levers
DC coupler cord mount
Vertical-grip AF point selector/
Magnify button
Battery compartment
Battery compartment cover
Vertical-grip shutter
button
Camera battery
compartment cover slot
Tripod socket
Vertical-grip ON/OFF
switch
Hand strap mount
Vertical-grip main dial
Battery magazine BGM-E2
31
Wireless File Transmitter
WFT-E3A
The WFT-E3A is a dedicated EOS 40D accessory
similar to the WFT-E2A (the wireless file transmitter
unit for the EOS-1D Mark III) offering wireless or
wired network functions (via FTP, PTP, or HTTP)
and support for USB peripherals (specifically,
external storage devices and GPS units). There
are 2 main differences from WFT-E2A: inclusion
WFT-E3A
of controls for vertical shooting and inclusion of
the unit’s own power supply. Compared with the
WFT-E1A, communication speed is 1.5x faster
(wireless) and 3x faster (wired).
For better control of the EOS 40D when shooting
with the WFT-E3A attached, the unit provides
vertical grip functions. In the same way as when
a battery grip such as a BG-E2N, is attached, the
WFT-E3A feels well integrated with the camera.
The internal antenna offers a wireless range
equivalent to that of the WFT-E2A, up to about
492 ft./150m. Like the battery grip, the WFT-E3A
attaches to the camera’s tripod socket.
Wireless and wired LAN function specifications
are the same as for WFT-E2A. Note that the camera
graphic on the WFT Server screen during HTTP
connections has been updated from EOS-1D
Mark III to EOS 40D. Requirements for external
media or GPS devices that can be connected are
the same as for the WFT-E2A. Note that images
cannot be copied between media.
Features:
• Ideally shaped; does not interfere with shooting:
° Attaches directly to the bottom of the EOS 40D (cordless)
° Internal antenna (wireless range: approx. 492 ft./150m)
• Faster image transfer:
° Wireless networks: 1.5 times faster than WFT-E1A (IEEE 802.11g)
° Wired networks: 3 times faster than WFT-E1A (Ethernet 100 Base-TX)
VI. ACCESSORIES AND LENS
32
• Offers FTP, PTP, and HTTP communication modes:
° FTP: Image transfer over wireless or wired networks to an FTP server
° PTP: Communication between EOS Utility and the camera over wireless or wired networks
° HTTP: Remote capture over wireless or wired networks using a web browser
• Better user support in configuring wireless or wired network settings:
° Wizard-based configuration of transfer settings through the camera GUI
° Includes features for network detection and automatic setup (access point detection
and automatic acquisition of IP address)
° Supporting software for PTP connections
• Compatible with external storage devices and GPS units (USB connection):
° Users can connect external hard disks or other external storage devices
° GPS data can be added to images
• Includes controls for vertical shooting
Focusing Screen Ef
The Ef-series focusing screens are interchangeable focusing
screens developed for the EOS 40D. 3 types are available: Ef-A
Standard Precision Matte, Ef-D Precision Matte with Grid, and Ef-S
Super Precision Matte to make it easy to see the point of focus.
The optical characteristics of the Ef-A and Ef-D focusing screens
are the same as the Ee-A and Ee-D focusing screens. The optical
characteristics of the Ef-S focusing screen are the same as the
Ef-A Standard Precision Matte
Ef-D Precision Matte Grid
Ec/Ee-S focusing screens. The focusing screen can be installed in
the same way as previous focusing screens. However, to make
Ef-S Super Precision Matte
them easier to install, a dedicated tool has been newly developed.
The tool case is the same as the one for Ec/Ee focusing screens
and has a paper partition matching the Ef-series focusing screen.
The Ef-series focusing screens are smaller than the old focusing
screens. The new installation tool is longer than the old one with the lever more toward
the rear, making it easier to install and remove the new focusing screen.
Photo 1 Comparison of focusing screen size
Comparison of Focusing
Screen Size
Comparison of Tools
Ec-A
Ef-A
Photo 2 Comparison of tools
Top view
Side view
Photo 1 Comparison of focusing screen size
Lever
For Ef focusing
screens
For Ec/Ee focusing
screens
Lever
Ec-A
Ef-A
Photo 2 Comparison of tools
Top view
Side view
Lever
For Ef focusing
screens
For Ec/Ee focusing
screens
Lever
VI. ACCESSORIES AND LENS
33
New IS Lens
The Canon EF-S 18-55mm f/3.5-5.6 IS is a standard zoom
lens specifically for cameras that take EF-S lenses. It was
developed in response to market demand for a zoom
lens equipped with Image Stabilizer technology at a
reasonable price.
The advantages of IS in the lens are, first, that each IS
system can be designed and optimized for its specific
application, yielding a level of performance unattainable
by the in-body, shifting sensor technique. Second, one
can see the image stabilization effect in the finder. The
image is steady; accurate framing is possible; the AF
point can be placed precisely, and the photographer can
concentrate on the shot and capture the best moment.
Panning is also easier and more effective than with the
Image Stabilization with Shifting Elements
External View and Cross Section of
EF-S 18-55mm f/3.5-5.6 IS
External view and cross section of EF-S18-55mm f/3.5-5.6 IS
Hood Mount (Bayonet)
Focusing Ring
Silver ring
Zoom Ring
Zoom Index
Minimum focusing distance mark
Rubber ring
Focus mode switch
in-body approach.
While it is roughly equivalent in weight and size to the
EF-S 18-55mm f/3.5-5.6 II/ f/3.5-5.6 II USM, it offers
an image stabilization effect equivalent to a shutter
speed of 4 stops faster, giving it superb specifications as
well as a modest and attractive price.
Lens mount index
Image stabilizer switch
IS unit
EMD
The EF-S 18-55mm f/3.5-5.6 IS lens features:
• Light and compact IS-equipped standard zoom lens specifically for cameras that take
EF-S lenses (For EOS 40D, EOS 30D, EOS 20D, EOS 20Da, EOS Digital Rebel XTi, EOS
Digital Rebel XT and EOS Digital Rebel only, as of August 2007)
• Uses smaller circuit boards and a downsized IS unit to make a Canon Image Stabilizer
lens that is roughly the same size and weight as the EF-S 18-55mm f/3.5-5.6 II/ f/3.55.6 II USM
• High-speed autofocus features high-speed
CPU and optimized AF algorithm
• Image Stabilizer effect equivalent to a
shutter speed about 4 stops faster
• Uses a high-precision PMo aspherical
element to correct aberration for excellent
image quality throughout the zoom range
EF-S 18-55mm f/3.5-5.6 IS Lens
Movement During Zooming
R2:CONFIDENTIAL
EF-S18-55mm
Lens group 1
(Focusing lens group)
f/3.5-5.6 IS lens movement during zooming.
Lens group 2
Lens
group 3
Lens group 4
Image plane
Diaphragm
Compensation optics
18mm
PMo aspherical lens
at 18mm :84.5mm/at 55mm:55.4mm
at 18mm:35.3mm
/at 55 mm:65.8mm
Optical Construction
EF-S 18-55mm f/3.5-5.6 IS
30mm
55mm
Revisions:
VI. ACCESSORIES AND LENS
34
TI-07201-6-00
• Compensation optics lens barrel suspended by 3 springs that hold it in place in the
center, making it possible to eliminate the compensation optics retaining mechanism
in this IS unit
• Orientation of the compensation optics lens barrel along
the optical axis maintained using the force exerted by
angle-mounted springs and ceramic ball bearings (The
rotation of these ceramic ball bearings ensures that the
corrective optics are driven smoothly)
• Silicone resin damper fitted between the compensation
optics lens barrel and the supporting component (lens
Structural Diagram of the IS
Unit Used in the
EF-S 18-55mm f/3.5-5.6 IS
(schematic)
Spring
Ceramic ball
Compensation optics
lens barrel
Compensation optics
Compensation optics
movement
group 2 lens barrel) damps harmful vibrations caused by
Damper
the extension and contraction of the springs and
improves IS performance
• Drive actuator for the compensation optics lens barrel constructed using the same
permanent magnets and coils used in existing IS units
• Construction of the new unit is based on the IS mechanism used in the PowerShot
SD700 IS Digital ELPH with design optimized for the characteristics of this lens
• Incorporating part of the lens group 2 lens barrel as a component of the IS unit makes
it possible to install the IS mechanism in a very limited space
• Automatically distinguishes between normal shooting and panning shots and selects
the optimum Image Stabilizer mode, a first for Canon IS lenses—vibration gyro used to
detect the difference between normal camera shake and panning movement—MODE
1/Normal and MODE 2/panning eliminated
• A tripod can be used with IS left ON (but switching OFF will still reduce power consumption)
• Minimum focusing distance of 0.25m at all zoom settings
• Maximum magnification is 0.34x (at 55mm)
• Uses round EMD diaphragm for very good background blur quality (bokeh) and round
points of light
VI. ACCESSORIES AND LENS
35
• Flare and ghosting minimized by optimized lens configuration and coating
• Optical system constructed using only lead-free glass
• Improved feel and handling from new exterior design
with L-series type paint finish, finer zoom ring grip
pattern and re-shaped switch panel
• 5 types of EOS-dedicated information signal transmission: lens status, lens type, metering information,
focal length, AF drive info
• Rubber ring on rearmost lens surface to prevent damage
to lens or camera
• Back of lens mechanically configured to prevent
mounting mistakenly on cameras that do not accept
EF-S lenses
• Made in Japan by Oita Canon
VI. ACCESSORIES AND LENS
Zoom Ring Pattern
Change to the grip pattern used in EF lenses.
EF-S 18-55mm
f/3.5-5.6 II
EF-S 18-55mm
f/3.5-5.6 IS
SW Panel
To prevent accidental switch operation, the
shape of the switch has been changed.
EF-S 18-55mm
f/3.5-5.6 II
EF-S 18-55mm
f/3.5-5.6 IS
36
VII. SPECIFICATIONS
Type of Camera
Image Sensor
Type: Digital AF/AE SLR
Recording Media: CF Card Type I and II and external media (USB v.2.0 hard drive, via
optional Wireless File Transmitter WFT-E3A)
Image Sensor Size: 0.87 x 0.58 in./22.2 x 14.8mm (APS-C size sensor)
Compatible Lenses: Canon EF, EF-S, TS-E, and MP-E lenses
Lens Mount: Lens Mount: Canon EF mount
Lens FocaL Length Conversion Factor: 1.6x
Type: High-sensitivity, high-resolution, single-plate, CMOS sensor
Effective Pixels: Approx. 10.10 megapixels
Total Pixels: Approx. 10.50 megapixels
Aspect Ratio: 3:2 (Horizontal : Vertical)
Color Filter System: RGB primary color filters
Low-pass Filter: Fixed position in front of the CMOS sensor
Dust Delete Feature: (1) Self Cleaning Sensor Unit, (2) Dust Delete Data, (3) Manual
Sensor Cleaning
Recording System
Recording Format: DCF 2.0 (Exif 2.21): JPEG, RAW and RAW+JPEG simultaneous recording
possible. Multiple options for recording images on a memory card, and onto compatible
external USB hard drives (via optional Wireless File Transmitter WFT-E3A)
File Size on CF Card: (1) JPEG/Large: Approx. 3.5MB (3,888 x 2,592), (2) JPEG/Medium:
Approx. 2.1MB (2,816 x 1,880), (3) JPEG/Small: Approx. 1.2MB (1,936 x 1,288), (4)
RAW: Approx. 12.4MB (3,888 x 2,592), (5) sRAW: Approx. 7.1MB (1,936 x 1,288)
File Numbering: (1) Continuous numbering (2) Auto reset (3) Manual reset (the image
numbering is reset to 0001, a new folder is created and selected automatically)
Color Space: Selectable between sRGB and Adobe RGB
Picture Style: Six preset Picture Style settings plus three user-defined custom Picture
Style settings with individual adjustments for Sharpness, Contrast, Saturation, Color
tone; Filter effect, Toning effect for black & white images
White Balance
Settings: Auto, Daylight, Shade, Cloudy, Tungsten Light, White Fluorescent Light, Flash,
Custom WB setting, user-set Color Temperature (2,500~10,000K)
Auto White Balance: Auto white balance, taken from imaging sensor
Color Temperature Compensation: White balance bracketing:Three consecutive files
written from one exposure: Up to +/- 3 levels in 1-step increments; White balance
shift: blue/amber bias and/or magenta/green bias +/- 9 levels; manually set by user
VII. SPECIFICATIONS
37
Viewfinder
Type: Eye-level SLR with fixed pentaprism
Coverage: Approx. 95% horizontally and vertically
Magnification: 0.95x (-1 dpt with 50mm lens at infinity)
Eyepoint: Approx. 22mm
Dioptric Adjustment Correction: -3.0 to +1.0 diopter
Mirror: Quick-return half mirror (Transmission: reflection ratio of 40:60)
Viewfinder Information: AF (AF points, focus confirmation light), Exposure (shutter
speed, aperture, ISO speed, AE lock, exposure level, spot metering circle, exposure
warning), Flash (flash ready, flash exposure compensation, high-speed sync, FE lock,
red-eye reduction light), Image (monochrome shooting, maximum burst, white balance
correction, CF card information)
Depth-of-Field Preview: Enabled with depth-of-field preview button; possible in Live
View Function
Autofocus
Type: TTL-CT-SIR AF-dedicated CMOS sensor
AF points: 9 cross-type AF points (f/2.8 at center)
AF Working Range: EV -1 ~18 (ISO 100 at 73°F/23°C)
Focusing Modes: Autofocus (One-Shot AF, Predictive AI Servo AF, AI Focus AF), Manual
Focus (MF)
AF Point Selection: Automatic selection, Manual AF point selection
AF-assist Beam: Intermittent firing of built-in flash
Exposure Control
Metering Modes: 35-zone TTL full aperture metering: (1) Evaluative metering (linked to
all AF points), (2) Partial metering (approx. 9% of viewfinder), (3) Spot metering (approx.
3.8% of viewfinder), (4) Center-weighted average metering
Metering Range: EV 0–20 (ISO 100 at 73°F/23°C with EF 50mm f/1.4 USM lens, ISO 100)
Exposure Control Systems: Program AE (shiftable), Shutter-priority AE, Aperture-priority
AE, Auto Depth-of-field AE (non-shiftable), Full auto (non-shiftable), Programmed image
control modes, Manual exposure, E-TTL II autoflash program AE
ISO Speed Range: Equivalent to ISO 100–1600* (in 1/3-stop or whole stop increments),
ISO speed can be expanded to ISO 3200 (* Standard output sensitivity. Recommended
exposure index)
Exposure Compensation: Exposure Compensation (user-set): +/-3 stops in 1/3- or
1/2-Stop increments
AE Lock: Auto: Applied in One-Shot AF mode with evaluative metering when focus is
achieved; Manual (user-set): By AE lock button in all metering modes
Shutter
Type: Vertical-travel, mechanical, focal-plane shutter with all speeds electronically controlled
Shutter Speeds: 1/8000 to 30 sec. (1/3-stop increments), X-sync at 1/250 sec.
Shutter Release: Soft-touch electromagnetic release
Self-Timer: 10 sec. delay, 2 sec. delay
Remote Control: Canon N3 type terminal
VII. SPECIFICATIONS
38
Built-in Flash
Type: Auto pop-up, retractable, built-in flash in the pentaprism
Guide Number: 43 (feet)/13 (meters), at ISO 100
Recycling Time: Approx. 3 sec.
Flash-ready Indicator: Flash-ready indicator lights in viewfinder
Flash Coverage: 17mm lens focal length (equivalent to 27mm in 35mm format)
Flash Metering System: E-TTL II autoflash
Flash Exposure Compensation: +/-2 stops in 1/3- and 1/2-stop increments
Drive System
Drive Modes: Single, silent, high-speed continuous (approx. 6.5 fps), low-speed continuous
(approx. 3 fps), 10- or 2-sec. self-timer
Continuous Shooting Speed: Approx. 6.5 fps (in One-Shot AF and AI Servo AF modes)
Max. Burst During Continuous Shooting: JPEG: approx. 75 frames (Large/Fine); RAW:
approx. 17 frames (both during high-speed continuous shooting)
LCD Monitor
Playback
Type: TFT color, liquid-crystal monitor
Monitor Size: 3.0 in.
Pixels: Approx. 230,000 pixels
Coverage: Approx. 100%
Brightness Control: 7 levels provided
Image Display Format: Single image, 4-image index, 9-image index, Jump, Magnified
zoom (approx. 1.5x to 10x), Histogram, AF point display, Auto rotate, Rotate
Live View Function: View image before shooting on LCD monitor; live histogram and live
simulation of exposure level possible with C.Fn IV-7-1
Highlight Alert: In the single image display and (INFO) display, over-exposed highlight
areas will blink
Image Protection and Erase
Menus
Protection: Single image or all images in the memory card can be protected or cancel
the image protection
Erase: Single image, select images, all images in a CF card or unprotected images
Direct Printing from the Camera: Enabled with the Print/Share button
Compatible Printers: CP and SELPHY Compact Photo Printers, PIXMA Photo Printers and
PictBridge compatible printers (via USB Interface Cable IFC-200U, included with camera kit)
Settings: Print quantity, style (image, paper size, paper type, printing effects, layout),
trimming, tilt correction
Menu Categories: (1) Shooting (2) Playback (3) Setup (4) Custom function/My Menu
LCD Monitor Languages: 18 (English, German, French, Dutch, Danish, Portuguese,
Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish,
Simplified/Traditional Chinese, Korean, Japanese)
VII. SPECIFICATIONS
39
Power Source
Battery: One dedicated Battery Pack BP-511A, AC power can be supplied via the optional
AC Adapter Kit ACK-E2
Number of Possible Shots: Normal shooting: approx. 1,100 shots (approx. 800 shots
with 50% flash use) at 73°F/23°C, Approx. 950 shots (approx. 700 shots with 50% flash
use) at 32°F/0°C. Tests comply with CIPA test standards
Battery Check: Automatic
Power Saving: Provided. Power turns off after 1, 2, 4, 8, 15, 30 min.
Back-up Battery: One CR2016 lithium battery. Battery life approx. 5 years
Dimensions and Weight
Operating Conditions
Dimensions (W) x (H) x (D): 5.7 x 4.2 x 2.9 in./145.5 x 107.8 x 73.5mm
Weight (Body only): 26.1 oz./740g
Operating Temperature Range: 32–104°F/0–40°C
Operating Humidity Range: 85% or less
• All the specifications above are based on Canon's Standard Test Method.
• The camera’s specifications and physical appearance are subject to change without
notice.
• TFT monitor images shown in this white paper are simulated.
VII. SPECIFICATIONS
40
VIII. FEATURE COMPARISON CHART
EOS 40D vs. EOS 30D
Comparison Chart
Item
Image Sensor
EOS 40D
EOS 30D
Effective pixels [Approx. pixels]/Image sensor
10.1 million/CMOS
8.2 million/CMOS
Effective sensor size [mm]
22.2mm x 14.8mm
22.5mm x 15.0mm
Lens crop factor
1.6x
Color filter type
Primary colors
Low pass filter
3 layers fixed inside
EOS Integrated Cleaning System
Yes
—
Image processor
DIGIC III
DIGIC II
A/D conversion
14-bit
12-bit
Recording media/Slot type/Quantity
CF card/CF type I, II
Supporting 2 GB or greater CF card
Number of recorded
pixels [million]
Recording
Yes
Large/Fine
10.1
8.2
Middle/Fine
5.3
4.3
Small/Fine
2.5
2.0
RAW
10.1
8.2
sRAW
2.5
—
JPEG image quality
Fine/Normal
Picture Styles
Yes (6 types, 3 styles registered)
Color space
RAW + JPEG simultaneous recording
Noise reduction function
sRGB/Adobe RGB
RAW + JPEG
sRAW + JPEG
Yes
Yes
—
No/Auto/Yes
Long exposure
Yes
—
Highlight Tone Priority
Yes
—
Auto correction of brightness and contrast
Yes
High-sensitivity shooting
—
9999
Number of images stored per folder
Serial number/Auto reset/Forced reset
Image number
Yes
2GB or greater CF card
Yes (also for WFT-E3A)
External recording media
—
Yes
Auto white balance (WB)
6
Preset white balance (type)
White Balance
Yes/Yes
WB correction/WB bracketing
Manual WB
Yes/Yes
Image registration in card
Color temperature [K]
Magnification [-1dpt.•50mm•∞]
2500 ~ 10,000
Coverage [%]
Viewfinder
0.9
95
Standard focusing screen
Focusing screen replacement
2800 ~ 10,000
0.95
Precision matte
Yes (2 types)
Focusing brightness range superimpose display
—
Yes (9)
ISO sensitivity display
Yes
—
Monochrome shooting mode display
Yes
—
Maximum number of continuous shots display
2 digits
1 digit
Eye point
22mm
Dioptric adjustment [dpt.]
20mm
-3 to +1
AF points
9
Cross-type AF points
9
Support of central AF points f/2.8
Vertical and horizontal cross detection
AF frame selection
Autofocus
1
Horizontal detection
Multi-controller
Focusing brightness range [EV]
-0.5~18
AF mode type
3(ONE SHOT/AI SERVO/AI FOCUS)
AF speed
Predictive AF short-distance limit (50Km/h,300/2.8L)
AF start button
AF assist light
VIII. FEATURE COMPARISON CHART
8m
Yes
—
Intermittent flashing
41
EOS 40D vs. EOS 30D
Comparison Chart
(cont.)
Item
EOS 40D
35
Sensor zones
Metering mode
Evaluative
Yes
Partial
Yes
Spot
Yes
Yes
Center-weighted average
Exposure Control
1–20
Metering range [EV]
Simple shooting zone
Auto
Applied shooting zone
ISO sensitivity
1/3-step
Setting increment
H:3200
Manual/AEB
System
1/2, 1/3 • ±2
Increments and range
1/8000–30, Bulb
Speed [sec]
1/250
Max sync. speed [sec]
Release time lag [ms]
59
Silent live view shooting
Yes
65
—
Yes
One shot > Half-press standby > One shot
Flash
Internal flash/GNo.[ISO100 • m]
Yes/13
Automatic metering
E-TTL II
Yes
Flash exposure compensation/FE lock
Flash function setting
from menu
Internal flash
Yes
—
External flash
Yes
—
High speed: H
6.5
Yes
Single/Continuous/Self-timer
Continous shooting
[max. approx. fps]
Drive
Max. burst
Live View Function
5
3
Low speed: L
JPEG L/Fine
75
30
RAW
17
11
RAW + JPEG
14
9
Remote Live View
Yes
—
(Camera) Live View
Yes
—
TFT
Type
Screen size [inches]
LCD Monitor
3
2.5
23
Number of pixels [About x 10,000]
Intensity adjustment [levels]
7
Panel-like shooting information display
Yes
5
—
Yes
1
Display format
1 + information [types]
3
1
4 + index
Yes
—
Yes
9 + index
Playback
Histogram display (Intensity/RGB)
Yes
Highlight warning display
Yes
Yes
AF fame display
1.5–10
Zoom-in magnification factor
Jump display unit
Yes
10/100/Shooting date
Index (one screen)
Yes
—
Yes
Enlarged frame feed
Auto/Manual
Rotational display
1
Unit of image protection
Image Protection
and Erasure
Unit of image erasure
Yes
One/All
Selective
Number of Menu Display Languages
Yes
—
18
15
Yes
Easy print function
Print
CP Direct and BJ Direct
—
Yes
(Extended function)
PictBridge
DCF/Exif [ver.]
Yes
Custom function [types/items]
24/62
19/53
Camera user setting
Yes (3)
—
My Menu setting
Yes
Addition of Data for Original Image Judgment
Error Display
Yes
2.0/2.21
Direct Image Transfer to PC
Customize Function
—
100–1600
Extended (C.Fn)
Compensation
Yes (100–400)
Yes (100–800)
Normal
Setting
range
Shutter
EOS 30D
12
Shooting mode [type]
—
Yes
Number display (Display panel)
Yes
Message display (LCD monitor)
Yes
VIII. FEATURE COMPARISON CHART
42
EOS 40D vs. EOS 30D
Comparison Chart
(cont.)
Item
EOS 40D
EOS 30D
2.0 Hi-Speed
USB Ver.
External Interface
Yes
Video output [NTSC/PAL]
Yes
Extension system terminal
Exterior/Chassis
Yes/Yes
Remote control terminal/PC terminal
—
Magnesium alloy
Top, front, and rear cover material
Stainless steel
Chassis materia
100,000
Shooting endurance [times]
BP-511A (BP-511, BP-512, BP-514 acceptable)
Battery
Shutter count (room temperature)
Power Source
1100
AE100%
AE50% FA50%
800
4
Battery level display [levels]
Battery grip/AA dry cell
BG-E2N/Yes
BG-E2/Yes
ACK-E2 + DR400
AC drive
Size and weight
750
0.15
Startup time [sec]
Size (W x H x D) [mm]
145.5 x 107.8 x 73.5
144 x 105.5 x 73.5
Weight (exc. battery) [g]
740
700
=EOS 40D is superior to EOS 30D
VIII. FEATURE COMPARISON CHART
43
IX. CONCLUSION
No product can be perfect for everyone, but the EOS 40D comes pretty close. It has
immense appeal to advanced amateurs because of its exceptional image quality
combined with an unintimidating and convenient operating system. Its reasonable size
and weight will travel well (a plus for professionals, too) and fit smaller hands comfortably.
All prospective EOS 40D owners will see a 10.1-megapixel camera that fires long bursts
compatible with a vast system of existing pro-grade gear, and makes superb images in
almost any light. The heart of the argument? The EOS 40D costs thousands of dollars
less than other cameras with fewer features and inferior image quality. It is certain to
become a mainstay for entry-level professional photographers and advanced amateurs
of virtually every description, as well as a reliable back-up for other pros, who for
business and common sense reasons, would prefer less expensive hardware that still
gets the job done superbly.
The Canon EOS 40D is a great camera at a great price and is certain to satisfy legions of
photographers worldwide.
Contents ©2007 by Canon U.S.A., Inc. All Rights Reserved. Canon, EOS, DIGIC, PIXMA and SELPHY are registered
trademarks of Canon Inc. in the United States, and may also be registered trademarks or trademarks in other
countries. All other products and brand names are registered trademarks, trademarks or service marks of their
respective owners.
Excerpts from this material may be quoted in published product reviews and articles. For further information,
please contact Canon U.S.A., Inc. Public Relations Dept., (516) 328-5000
IX. CONCLUSION
44
