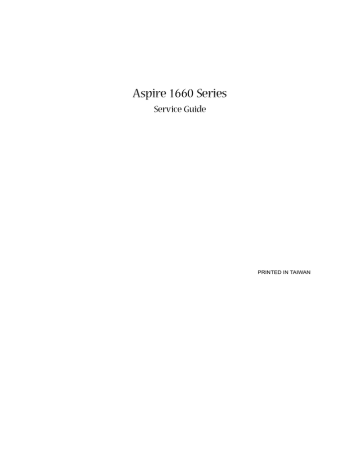

Aspire 1660 Series
Service Guide
PRINTED IN TAIWAN
II
Revision History
Please refer to the table below for the updates made on Aspire 1660 service guide.
Date Chapter Updates
Copyright
Copyright © 2004 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.
Intel is a registered trademark of Intel Corporation.
Pentium and Pentium II/III are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.
III
Conventions
The following conventions are used in this manual:
Screen messages
NOTE
WARNING
CAUTION
IMPORTANT
Denotes actual messages that appear on screen.
Gives bits and pieces of additional information related to the current topic.
Alerts you to any damage that might result from doing or not doing specific actions.
Gives precautionary measures to avoid possible hardware or software problems.
Reminds you to do specific actions relevant to the accomplishment of procedures.
IV
Preface
Before using this information and the product it supports, please read the following general information.
1.
This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details.
2.
Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service
Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.
V
VI
Table of Contents
Chapter 1 System Introduction 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Left view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Special keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Hot Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Hardware Specifications and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Chapter 2 System Utilities 32
BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
BIOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Chapter 3 Machine Disassembly and Replacement 46
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Disassembly Procedure Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Removing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Removing the Memory Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Removing the Wireless LAN Board and the Modem Board . . . . . . . . . . . . . . . . . . . .52
Removing the Hard Disk Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Disassembling the Hard Disk Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Removing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Removing the Middle Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Removing the Launch Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Removing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Disassembling the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Removing the LCD Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Removing the Inverter Board (15” LCD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Removing the 15” TFT LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Removing the LCD Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Removing the LCD Coaxial Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Removing the LCD Hinges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Disassembling the Main Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Removing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Removing the RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
VII
Table of Contents
Removing the Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Removing the Thermal Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Removing the Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Installing the Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Removing the Upper Case Assemly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Removing the Touchpad Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Removing the Touchpad Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Removing the VGA Thermal Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Removing the CPU Heatsink Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Removing the Second Fan Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Removing the ODD Module(1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Removing the ODD Module(2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Removing the HDD Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Removing the Main Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Removing the DC Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Removing the I/O Port Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Removing the PCMCIA Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Removing the Speaker Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
System Upgrade Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Base Unit to Wireless Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Chapter 4 Troubleshooting 72
System Check Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
External Diskette Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
External CD-ROM Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Keyboard or Auxiliary Input Device Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Memory check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Power System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Touchpad Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Power-On Self-Test (POST) Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Index of Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
POST Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Index of Symptom-to-FRU Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
How to Build NAPP Master Hard Disc Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
CD to Disk Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Disk to Disk Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Chapter 5 Jumper and Connector Locations 98
Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98
Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99
Chapter 6 FRU (Field Replaceable Unit) List 100
Aspire 1660 Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Appendix A Model Definition and Configuration 112
Model Name Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Appendix B Test Compatible Components 114
Microsoft Windows XP Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
Appendix C Online Support Information 120
VIII
IX
Chapter 1
System Introduction
Features
This computer was designed with the user in mind. Here are just a few of its many features:
Performance
T
T
T
T
Intel
®
Pentium
®
4 Processor 2.80 Ghz and above
Intel
®
Hyper-Threading
TM
Technology
256/512MB of DDR333 SDRAM, upgradeable to 2048 MB with dual soDIMM modules
30GB and above high-capacity, Enhanced-IDE hard disk
Display
T
T
T
T
T
T
T
The 15.0” XGA (1024x768 resolution), or SXGA+ (1400x1050 resolution) TFT LCD panel providing a large viewing area for maximum efficiency and ease-of-use
ATI Mobility TM Radeon 9700 with external 64/128 MB DDR memory buffer
3D graphics support
Support simultanesous display between LCD and CRT
S-video for output to a television or display device that supports S-video input
“Automatic LCD dim” feature, automatically selecting the best setting for the display in order to conserve power
DualView
TM
support
Multimedia
T
High-speed built-in optical drive:
DVD/CD-RW Combo, or DVD-Dual or DVD Super-Multi
T
T
MS DirectSound compatible
Built-in dual speakers
Connectivity
T
T
T
T
T
T
Integrated 10/100 Mbps Fast Ethernet connection
Built-in 56Kbps fax/data modem
Four Universal Serial Bus (USB) 2.0 ports
One IEEE 1394 port
IEEE 802.11b or IEEE 802.11g Wireless LAN (manufacturing option)
Bluetooth (manufacturing option)
Expansion
T
T
One Type III or two Type II CardBus PC Card slots
Upgradeable hard disk and memory modules
Chapter 1
1
Human-centric design
T
Rugged, yet extremely portable, construction
T
T
T
Stylish appearance
Full-size keyboard with four programmable launch keys
Comfortable palm rest area with well-positioned touchpad
I/O Ports
T
T
T
T
T
T
T
T
T
T
T
T
Two Type II or one Type III PC CardBus (PCMCIA) slot
One IEEE 1394 port
One FIR port
One RJ-11 modem jack (V.92, 56K)
One RJ-45 network jack(Ethernet 10/100 Base-T)
One DC-in jack
One parallel port (ECP/EPP)
One S-video port
One external monitor port
One microphone-in jack (3.5mm mini jack)
One headphone jack (3.5mm mini jack)
Four USB 2.0 ports
2
Chapter 1
System Block Diagram
Chapter 1
2.0
USB
SIDE
3
Board Layout
Top View
4
9
10
11
12
13
14
7
8
5
6
3
4
1
2
Line-in Port
Line-out Port
RJ45+RJ11
LCD Inverter Cable Connector
USB Port
USB Port
USB Port
USB Port
VGA Port
S-Video Port
LCD Coaxial Cable Connector
Parallel Port
DC-in Port
LCD Lid Switch
23
24
25
26
27
28
19
20
21
22
15
16
17
18
CPU Socket
North Bridge
Fan Connector
Second Fan Connector
Touchpad Cable Connector
HDD Connector
Keyboard Connector
Speaker Cable Connector
Optical Drive Connector
South Bridge
RTC Battery Connector
Launch Board Cable Connector
SW5 (Please see Chapter 5 for its settings)
PCMCIA Slot
Chapter 1
Bottom View
3
4
1
2
Wireless LAN Card Connector
Modem Board Connector
Modem Cable Connector
IEEE 1394 Port
7
8
5
6
FIR Port
DIMM Socket 1
DIMM Socket 2
Chapter 1
5
Panel
Ports allow you to connect peripheral devices to your computer as you would with a desktop PC.
Front View
6
3
4
5
6
1
2
7
8
9
#
Display screen
Status indicators
Item
Power button
Launch Keys
Palmrest
Click buttons (left, center and right)
Touchpad
Keyboard
Ventilation Slot
Description
Also called LCD (Liquid Crystal Display), displays computer output.
LEDs (Light Emitting Diodes) that turn on and off to show the status of the computer and its functions and components.
Turns the computer on and off.
Buttons for launching frequently used programs.
Comfortable support area for your hands when you use the computer.
The left and right buttons function like the left and right mouse buttons, the center button serves as a scroll up/ down button.
Touch-sensitive pointing device which functions like a computer mouse.
Inputs data into your computer.
Enables the computer to stay cool, even after the prolonged use.
Chapter 1
Left view
8
9
6
7
4
5
2
3
1
# Icon
PC Card slots
Item/ Port
Eject button
Optical drive
IEEE 1394 port
Infrared port
LED indicator
Emergency eject slot
Eject button
Speaker
Description
Supports two Type II or one Type III CardBus PC
Card(s).
Eject PC cards from the card slots.
Internal optical drive; accepts CDs or DVDs depending on the optical drive type.
Connects to IEEE 1394 devices.
Interfaces with infrared devices (e.g., infrared printer, IR-aware computer).
Lights up when the optical drive is active.
Ejects the optical drive tray when the computer is turned off. There is a mechancial eject button on the CD-ROM or DVD-ROM drive. Simply insert the tip of a pen or paperclip and push to eject the tray.
Ejects the optical drive tray from the drive.
Delivers stereo audio output.
Chapter 1
7
Right View
1
2
3
# Item/ Port
Speaker
Ventilation slots
Security keylock
Description
Delivers stereo audio output.
Enable the computer to stay cool, even after prolonged use.
Connects to a Kensington-compatible computer security lock.
8
Chapter 1
Rear Panel
l
7
8
9
2
3
4
5
6
1
#
10
Icon Port
Power Jack
Description
Connects to an AC adapter
Parallel port Connects to a parallel device (e.g., parallel printer)
Ventilation slots
S-video port
External display port
Enable the computer to stay cool, even after prolonged use.
Connects to a television or display device with S-video input.
Connects to a display device (e.g., external monitor, LCD projector).
Four USB 2.0 ports Connects to any Universal Serial Bus devices(e.g., USB mouse, USB camera).
Network jack Connects to an Ethernet LAN network
Modem jack Connects to the phone line
Speaker/line-out/ headphone jack
Connects to audio line-out devices (e.g., speakers and headphones).
Line-in/mic-in jack Accepts audio line-in devices (e.g., audio
CD player and stereo walkman).
Chapter 1
9
Bottom View
1
2
3
# Item
Battery bay
Battery release latch
Memory compartment
Description
Houses the computer’s battery pack.
Unlatches the battery to remove the battery pack.
Houses the computer’s main memory.
10
Chapter 1
Indicators
The computer provides an array of seven indicators located below the display screen, showing the status of the computer and its components.
1
2
3
4
5
6
The Power and Sleep status icons are visible even when you close the display cover so you can see the status of the computer while the cover is closed.
# Icon Function
InviLink
Power
Description
Indicates status of wireless or Bluetooth
(optional) communications.
Orange--WLAN; Blue--Bluetooth
Lights when the computer is on.
Sleep
Media Activity
Battery Charge
Caps Lock
Num Lock
Lights when the computer enters Standby mode and blinks when it enters into or resumes from hibernation mode.
Lights when the floppy drive, hard disk or optical drive is active.
Lights when the battery is being charged.
Lights when Caps Lock is activated.
Lights when Numeric Lock is activated.
Chapter 1
11
Keyboard
The keyboard has full-sized keys and an embedded keypad, separate cursor keys, two Windows keys and twelve function keys.
Special keys
Lock keys
The keyboard has three lock keys which you can toggle on and off.
Lock key
Caps Lock
@
Num Lock (Fn-F11)
]
Scroll Lock (Fn-F12)
[
Description
When
@
is on, all alphabetic characters typed are in uppercase.
When
]
is on, the embedded keypad is in numeric mode. The keys function as a calculator (complete with the arithmetic operators ), -, *, and /). Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.
When
[
is on, the screen moves one line up or down when you press the up or down arrow keys respectively.
[
does not work with some applications.
12
Chapter 1
Embedded numeric keypad
The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.
Desired access
Number keys on embedded keypad
Cursor-control keys on embedded keypad
Main keyboard keys
Num lock on
Type numbers using embedded keypad in a normal manner.
Hold Shift while using cursor-control keys.
Hold Fn while typing letters on embedded keypad.
Num lock off
Hold Fn while using cursor-control keys.
Type the letters in a normal manner.
Chapter 1
13
Windows keys
The keyboard has two keys that perform Windows-specific functions.
Keys
Windows logo key
Application key
Description
Start button. Combinations with this key perform shortcut functions. Below are a few examples:
+ Tab (Activates next taskbar button)
+ E (Explores My Computer)
+ F (Finds Document)
+ M (Minimizes All)
j
+ + M (Undoes Minimize All)
+ R (Displays the Run... dialog box)
Opens a context menu (same as a right-click).
14
Chapter 1
Hot Keys
The computer employs hot keys or key combinations to access most of the computer’s controls like screen contrast and brightness, volume output and the BIOS Utility.
To activate hot keys, press and hold the Fn key before pressing the other key in the hot key combination.
Fn-
o
Fn-
p
Fn-
q
Fn-
r
Fn-
s
Hot Key
Fn-
l
Fn-
m
Fn-
n
Fn-
w
Fn-
y
Fn-
x
Icon Function
Hotkey help
Setup
Description
Displays a list of the hotkeys and their functions.
Accesses the notebook configuration utility.
Power Management
Scheme Toggle
Sleep
Switches the power management scheme used by the computer (function available if supported by operating system).
Puts the computer in Sleep mode.
Display toggle
Screen blank
Touchpad toggle
Speaker toggle
Switches display output between the display screen, external monitor (if connected) and both the display screen and external monitor.
Turns the display screen backlight off to save power.
Press any key to return.
Turns the internal touchpad on and off.
Turns the speakers on and off; mutes the sound.
Volume up Increases the sound volume.
Volume down
Brightness up
Decreases the sound volume.
Increases the screen brightness.
Chapter 1
15
Hot Key
Fn-¨
z
Fn-
Fn-
{
} a
Gr-Euro
Icon Function
Brightness down
Home
Description
Decreases the screen brightness.
Functions as the
g
key.
End
Euro
Functions as the
d
key.
Types the Euro symbol.
The Euro symbol
If your keyboard layout is set to United States-International or United Kingdom or if you have a keyboard with a
European layout, you can type the Euro symbol on your keyboard.
16
NOTE: for US keyboard users: The keyboard layout is set when you first set up Windows. For the Euro symbol to work, the keyboard layout has to be set to United States-international.
To verify the keyboard type:
1.
Click on Start, Control Panel.
2.
Double-click on Regional and Language Options.
3.
Click on the Language tab and click on Details.
4.
Verify that the keyboard layout used for “En English (United States) is set to United States-International.
If not, select and click on ADD; then select United States-International and click on OK.
5.
Click on OK.
To type the Euro symbol:
1.
Locate the Euro symbol on your keyboard.
2.
Open a text editor or word processor.
3.
Hold
a
Gr and press the Euro symbol.
Chapter 1
Launch Keys
Located at the top of the keyboard are six buttons. These buttons are called lauch keys. They are designated as mail button, Web browser button, P1, P2, Bluetooth and Wireless buttons. The Wireless and Bluetooth buttons cannot be set by the user. To set the other four launch keys, run the Acer Launch Manager.
2
3
4
5
1
#
6
Icon
Function
Web browser
P1
P2
Bluetooth (optional)
InviLink (optional)
Description
Launches email application
Launches Internet browser application
User-programmable
User-programmable
Enables your Bluetooth (manufacturing option).
Enables your 802.11b or 802.11b/g Wireless
LAN.
Chapter 1
17
Hardware Specifications and Configurations
System Board Major Chips
Item
System core logic
Super I/O controller
Audio controller
Video controller
Hard disk drive controller
Keyboard controller
CardBus Controller
RTC
Processor
CPU type
CPU package
CPU core voltage
CPU I/O voltage
Item
Controller
ATI RC300M+ATI IXP150
NS PC87392
Realtek ALC655
ATI Radeon 9700
Embedded in ATI IXP 150
Mitsubish LPC keyboard controller M38857
TI 1520
ATI IXP 150
Specification
Intel
®
Pentium
®
4 Processor 2.80 Ghz and above
FC-PGA2
1.2V
High speed: 1.525V or 1.55V
Low speed: 1.2V
BIOS
Item
BIOS vendor
BIOS Version
BIOS ROM type
BIOS ROM size
BIOS package
Supported protocols
Specification
Phoenix BIOS
Flash ROM
512KB
32 Pin PLCC
ACPI 1.0b, SMBIOS 2.3, PCI 2.2, Boot Block, PXE 2.0, Mobile PC2001,
Hard Disk Password, INT 13h Extensions, PCI Bus Power Management interface Specification, EI Torito-Bootable CD-ROM Format Specification
V1.0, Simple Boot Flag 1.0
Set by switch, see SW5 settings on chapter 5 BIOS password control
Second Level Cache
Item
Cache controller
Cache size
1st level cache control
2nd level cache control
Cache scheme control
Specification
Built-in CPU
512KB for Intel Northwood CPU and Mobile Pentium 4; 1MB for Intel Prescott
CPU
Always Enabled
Always Enabled
Fixed-in write back
18
Chapter 1
System Memory
Item
Memory controller
Onboard memory size
DIMM socket number
Supports memory size per socket
Supports maximum memory size
Supports DIMM type
Supports DIMM Speed
Supports DIMM voltage
Supports DIMM package
Memory module combinations
Specification
ATI RC300M
0MB
2 Sockets
128/256/512/1024MB (if available)
2048MB (Please confirm if 1024MB has passed the test or not)
DDR-DRAM
333 MHz
2.5 V
200-pin so-DIMM
You can install memory modules in any combinations as long as they match the above specifications.
Memory Combinations
Slot 1
0MB
512MB
256MB
128MB
512MB
256MB
512MB
0MB
128MB
128MB
256MB
0MB
256MB
128MB
256MB
512MB
128MB
512MB
512MB
256MB
128MB
512MB
128MB
0MB
128MB
0MB
256MB
128MB
256MB
256MB
Slot 2
128 MB
128 MB
256 MB
256MB
256MB
384MB
384MB
512MB
512MB
640MB
768MB
640MB
768MB
384MB
1024MB
Total Memory
Above table lists some system memory configurations. You may combine DIMMs with various capacities to form other combinations.
LAN Interface
Specification
Chipset
Supports LAN protocol
LAN connector type
LAN connector location
Item
RealTek RTL8100C
10/100Mbps
RJ45
Rear side
Modem Interface
Item
Chipset
Fax modem data baud rate (bps)
Data modem data baud rate (bps)
Chapter 1
Built-in ATI IXP150
14.4K
56K
Specification
19
20
Modem Interface
Item
Supports modem protocol
Modem connector type
Modem connector location
.
Hard Disk Drive Interface
Item
Vendor & Model
Name
HGST Moraga
IC25N030ATMR04
Fujitsu V-40 MHT2030AT
Seagate N1 ST93015A
V.90/V.92MDC
RJ11
Rear side
Specification
HGST Moraga
IC25N040ATMR04-
TOSHIBA Pluto 40G
MK4025GAS
Fujitsu V40+ MHT2040AT
Seagate N1 ST94019A
40000
512
16
63
Capacity (MB)
Bytes per sector
Logical heads
Logical sectors
Drive Format
Logical cylinders
Physical read/write heads
30000
512
16
63
16383
2/Not show/2
Disks 1/Not show/1
Spindle speed (RPM) 4200RPM
Performance Specifications
Buffer size 2MB
Interface ATA-5 for other vendors /ATA-
6 for HGST and Toshiba
350 Data transfer rate
(disk-buffer, Mbytes/ s)
Data transfer, rate
(host~buffer, Mbytes/ s)
100 MB/Sec
DC Power Requirements
Voltage tolerance 5 +/- 5%
16383
2/Not show/2/2
1/Not show/1/1
4200RPM
2MB/8MB for Toshiba
ATA-5 for other vendors /ATA-
6 for HGST
350
100 MB/Sec
5 +/- 5%
HGST Moraga
IC25N060ATMR04-0
TOSHIBA Neptune
MK6021GAS
60000
512
16
63
16383
3/4
2
4200RPM
2MB/8MB for HGST
ATA-5/ATA-6 for HGST
350
100MB/Sec
5 +/- 5%
CD-ROM Interface
Items
Vendor & Model Name
Specification
QSI SCR242
Mitsumi SR244W1
Performance Specification
Brust Data Transfer rate PIO mode 4:
16.7 MB/sec Max. (Mode 0~4)
Multi-word DMA mode 2:
16.7 MB/sec Max. (Mode 0~2)
Ultra DMA mode 2:
33.3MB/sec Max.
Chapter 1
CD-ROM Interface
Items
Access time (typ.)
Rotation speed
Data Buffer Capacity
Interface
Applicable disc format
Loading mechanism
Power Requirement
Input Voltage
DVD-ROM Interface
Item
Vendor & model name
Performance Specification
Transfer rate (KB/sec)
Specification
QSI-
Random: 90 ms
Full Stroke: 180 ms
Mitsumi-
Random: 100 ms
Full Stroke: 240 ms
5100 rpm for QSI
5400 rpm for Mitsumi 24X CAV mode
128 KB (built-in)
Compliant to ATA/ATAPI-6
QSI:
CD-DA, CD-ROM Mode-1, CD-ROM/XA Mode-2, Form-1 and Mode-2 Form-2, CD-i
Ready, Video-CD (MPEG-1), Karaoke CD, Photo-CD, Enhanced CD, CD Plus, CD
Extra, i-trax CD, CD-Text, CD-R and CD-RW
Mitsumi:
CD-DA, CD-ROM (Mode 1 and Mode2) CD-ROM XA (Mode 2 Form 1 and Form2),
CD-I (Mode2 Form 1 and Form 2), CD-I Bridge (Photo CD, CD EXTRA), Enhanced
CD, CD-RW, CD-R, CD-TEXT
Drawer with soft eject and emergency eject hole
+5V[DC]+/-5%
Specification
MKE SR-8177
With CD Diskette
Average Sustained:
CAV mode
775~1800 blocks/sec
(10.3X to 24X)
1550~3600kBytes/sec (Mode 1)
1768~4106 kBytes/sec (Mode 2)
With DVD Diskette
DVD-5:
Normal Speed (1X) 11.08 Mbits/sec
CAV mode 36.67~88.64 Mbits/sec
DVD-9/DVD-R:
Normal Speed (1X) 11.08 Mbits/sec
CAV mode 36.67~88.64 Mbits/sec
Chapter 1
21
22
DVD-ROM Interface
Item
Average Full Access time (typ.)
Data Buffer Capacity
Interface
Applicable disc format
Loading mechanism
Power Requirement
Input Voltage
Combo Drive Interface
Item
Vendor & model name
Performance Specification
Specification
Random
CAV mode 110 msec typical 150 msec average max
Full Stroke
CAV mode 200 msec typical 260 msec average max
DVD-5:
Random
120 msec typical
160 msec average max
Full Stroke
270 msec typical
350 msec average max
DVD-9:
Random
150 msec typical
200 msec average max
Full Stroke
340 msec typical
450 msec average max
DVD-RAM (2.6G)
Random
200 msec typical
300 msec average max
Full Stroke
300 msec typical
600 msec average max
DVD-RAM (4.7G)
Random
180 msec typical
300 msec average max
Full Stroke
320 msec typical
700 msec average max
512 kBytes
IDE
DVD: DVD-5, DVD-9, DVD-10, DVD-R (3.95G), DVD-RAM (2.6G), DVD-
RAM (4.7G)
CD: CD-Audio, CD-ROM (mode 1 and mode 2), CD-ROM XA (mode 2, form
1 and form 2), CD-I (mode 2, form 1 and form 2), CD-I Ready, CD-I Bridge,
CD-WO, CD-RW, Photo CD, Video CD, Enhanced Music CD, CD-TEXT
Soft eject (with emergency eject hole)
+5V[DC]+/-5%
Specification
KME UJDA750
Chapter 1
Combo Drive Interface
Item
Transfer rate (KB/sec)
Buffer rate
Access time
Start up time
Stop time
Acoustic noise
Interface
Master/Slave
PC compatible
Applicable disc format
Slope
Dimensions, Weight
Eject
DVD Dual Interface
Item
Vendor & model name
Disc type for read/write application
Applicable Formats
Applicable Media Type
Specification
Read Sustained:
DVD-ROM MAX 8X CAV (MAX 10800 KB/sec)
CD-ROM MAX 24X CAV (MAX 3600 KB/sec)
Write:
CD-R 4X, 8X (CLV), Max 16X, MAX 24X (ZCLV)
CD-RW 4X (CLV)
HS-RW 4X,8X, 10X (CLV)
ATAPI Interface:
PIO mode 16.6 MB/sec :PIO Mode 4
DMA mode 16.6 MB/sec:Multi word mode 2
Ultra DMA mode 33.3MB/sec: Ultra DMA mode 2
2MB
DVD-ROM 180 ms typ. (1/3 stroke)
CD-ROM 130 ms typ. (1/3 stroke) less than 15s less than 6s less than 50 dBA
Enhanced IDE (ATAPI) compatible
Set by Cable Select (By host)
PC2001 compatible
CD:
CD-DA, CD-ROM, CD-ROM XA, CD-R, CD-RW, PhotoCD (multiSession),
Video CD, CD-Extra(CD+), CD-text
DVD: DVD-ROM, DVD-R, DVD-RW (Ver.1.1), DVD-VIDEO, DVD-RAM
(2.6GB, 4.7GB)
15 degree (Any direction)
128X129X12.7mm (WXDXH)
(except protrusion)
200g+- 10g
Soft Eject (with emergency eject hole)
Liteon DVD-Dual SDW-431S
Specification
CD-DA, CD-TEXT, CD ROM Mode-1, CD-ROM/XA Mode-2 Form-1 and
Form-2, CD-I Ready, Video-CD (MPEG-1), Karaoke-CD, Photo-CD,
Enhance CD, CD extra, I-Trax CD and UDF DVD-ROM, DVD-Video, DVD-
Audio,
DVD-R single/multi border(s)
DVD+R single/multi session(s)
DVD-RW
DVD+RW
CD-ROM, CD-R and CD-RW
DVD-ROM (4.7G/8.54G) single layer on single/double side (read only),
DVD-ROM dual layer (PTP/OTP) on single/double side (read only)
DVD-R (3.9G, 4.7G for General and Authoring),
DVD-RW, DVD+RW (4.7G)
DVD+R
Chapter 1
23
24
DVD Dual Interface
Disc Diameter
Capacity
Item Specification
12cm and 8cm
2048 bytes/sector (DVD)
2048 bytes/block (CD Mode-1 and Mode-2 Form-1)
2336 bytes/block (Mode-2)
2328 bytes/block (Mode-2 Form-2)
Operation environment for “write/rewrite” application
Host Machine IBM compatible PC (Pentium 166 MHz or above)
OS
Memory
Hard Disk
MS-Windows 90/ME/2000/XP/NT 4.0
Min. 128MB required
Disc Diameter
Recommended Media
Empty Storage Capacity:100 MB or more
Average access time: 20ms or less
12cm and 8cm
CD-R:
AMT, CMC, Csita, Delphi, EverMedia, Imation, LeadData(Silver-Sil),
Maxell, MCC (Bagdad), Mirage, Mitsui, MoserBaer(India), MPO, NanYa,
Plasmon, Prodisc, RAMedia, Ricoh, Ritek(JS, S, Richodye), SAST (ultra green), SKC(Korea), TDK, TY (DX dye)
Low Speed CD-RW:
CMC, Daxon, Fornet, Gigastorage, Imation, Infodisc, LeadData, MCC,
Nanya, Princo, Prodisc, Ricoh, Ritek
High Speed CD-RW:
AMT, CMC, Infodisc, Nanya, Postech, Prodisc, Ritek, Ricoh, MCC,
SKC(Korea)
Ultra Speed CD-RW:
Daxon, Imation, Infodisc, MCC, Prodisc, Ritek
DVD+R:
BEALL, CMC, Daxon, Fuji, HP, Maxell, MCC, Memorex, OPTODISC,
PRODISC, Ricoh, RICOH, Ritek, SONY, TDK, TYUDE
DVD+RW:
CMMC, Daxon, Imation, MCC, Philips, Ricoh, Ritek, Sony
DVD-R:
BeAll, CMMC, DAXON, DVSN Fornex, GSC, Imation, LeadData, Maxell,
Mitsubishi, Nanya, Pioneer, Princo, Prodisc, Ritec, Ritek, SKC, Sony,
That’s
DVD-RW:
CMC, Mitsubishi, Princo Ritek
Mechanism
Pick-up
Traverse mechanism
Spindle motor
NA: CD: 0.51
DVD: 0.65
Focusing: Astigmatism
Tracking: CD: DPP
DVD-ROM: DPD
DVD+R/RW: DPP
Wave length: CD: 785+/- 5 nm
DVD: 650+/- 15 nm
Output power:
Read CD: 1.5 mw max@objective lens
DVD: 1.0 mw max
Write CD: 65 mw max2@objective lens
DVD: 20 mw max
DC Stepping motor driven
DC burshless motor
Chapter 1
DVD Dual Interface
Item
Loading mechanism
Specification
Manual load/DC brushless mortor system
Audio Interface
Item
Audio Controller
Audio onboard or optional
Mono or Stereo
Resolution
Compatibility
Mixed sound source
Voice channel
Sampling rate
Internal microphone
Internal speaker / Quantity
Supports PnP DMA channel
Specification
RTL ALC655
Built-in
Stereo
20 bit stereo Digital to Analog converter
18 bit stereo Analog to Digital converter
Microsoft PC98/PC99, AC97 2.1
Line-in, CD, Video, AUX
8/16 bit, mono/stereo
44.1 KHz
Yes
Yes/2
DMA channel 0
DMA channel 1
IRQ10, IRQ11 Supports PnP IRQ
Video Interface
Item
Vendor & Model Name
Chip voltage
Supports ZV (Zoomed Video) port
Graph interface
Maximum resolution (LCD)
Maximum resolution (CRT)
VGA Display Resolution
Display device
800x600 LCD
1024x768 LCD
1280x1024 LCD
1400x1050 LCD
1600x1200 LCD
640x480 CRT
800x600 CRT
1024x768 CRT
1280x1024 CRT
1600x1200 CRT
640x480
Expanded
Expanded
Expanded
Expanded
Expanded
True image
True image
True image
True image
True image
Specification
ATI Radeon 9700(M11-P)
N/A
NO
8X AGP (Accelerated Graphic Port) Bus
1024 x768 (32bit colors)
1600x1200 (32 bit colors)
800x600
True image
Expanded
Expanded
Expanded
Expanded
Partial image
True image
True image
True image
True image
Source image in the frame buffer
1024x768 1280x1024 1400x1050
Partial image Partial image Partial image
True image
Expanded
Expanded
Expanded
Partial image
Partial image
True image
True image
True image
Partial image
True image
Expanded
Expanded
Partial image
Partial image
Partial image
True image
True image
Partial image
Partial image
True image
Centered
Partial image
Partial image
Partial image
Partial image
True image
1600x1200
Partial image
Partial image
Partial image
Partial image
True image
Partial image
Partial image
Partial image
Partial image
True image
Chapter 1
25
26
Video Memory
Fixed or upgradeable
Item
Video memory size
LCD Display Resolution
Resolution
640x480
720x480
800x600
848x480
1024x768
CRT Display Resolutions
Resolution
640x480
720x480
800x600
848x480
1024x768
1152x864
1280x1024
1400x1050
1600x1200
8 bit
(256colors)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
8 bit
(256colors)
Yes
Yes
Yes
Yes
Yes
Fixed (on daughter board)
Specification
64B(128MB optional)
Yes
Yes
16 bits
(Hi color)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
16 bits
(Hi color)
Yes
Yes
Yes
24 bits
(True color)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
24 bits
(True color)
Yes
Yes
Yes
Yes
Yes
32 bits
(True color)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
32 bits
(True color)
Yes
Yes
Yes
Yes
Yes
Parallel Port
Item
Parallel port controller
Number of parallel port
Location
Connector type
Parallel port function control
Supports ECP/EPP
Optional ECP DMA channel
(in BIOS Setup)
Optional parallel port I/O address
(in BIOS Setup)
Optional parallel port IRQ
(in BIOS Setup)
USB Port
Item
USB Compliancy Level
Specification
NS PC87392
1
Rear side
25-pin D-type
Enable/Disable by BIOS Setup
Yes (set by BIOS setup)
DMA channel 1 and 3
378, 278
IRQ5, IRQ7
1.1/2.0 support
Specification
Chapter 1
USB Port
OHCI
Number of USB port
Item
USB 2.0
4
5V/500 mA per slot
Specification
Other Remarks 3 independent OHCI USB1.1 Host Controller and 1 EHCI USN2.0
Host Controller.
PCMCIA Port
Item
PCMCIA controller
Supports card type
Number of slots
Access location
Supports ZV (Zoomed Video) port
Supports 32 bit CardBus
TZ 1520
Type II, Tpye III
Two type II, one type III
Left side
Yes
Yes (IRQ17)
Keyboard
Item
Keyboard controller
Keyboard vendor & model name
Total number of keypads
Windows keys
Internal & external keyboard work simultaneously
Specification
Specification
Mitsubishi LPC keyboard controller M38857
Darfon/Sunrex
84-/85-/88-key
Yes
Yes
Battery
Item
Vendor & model name
Battery Type
Pack capacity
Number of battery cell
Package configuration
Output voltage
LCD
Item
Vendor & model name
Screen Diagonal (mm)
Active Area (mm)
Display resolution (pixels)
Pixel Pitch
Pixel Arrangement
Display Mode
Sanyo/Simplo
Li-ION
4000mAH
8
4 serial 2 parallel
14.4Vdc (nominal)
Specification
LCD 15.4" WXGA QDI LCD 15.4" WXGA AU
B154EW01
390.1
391
331.2x207.0
1280x800 WXGA
0.2588x0.2588
331.2x207.0
1280x800 WXGA
0.2588x0.2588
LCD 15.4" WXGA
HITACHI
391
331.2x207.0
1280x800 WXGA
0.25875x0.25875
R.G.B. Vertical Stripe R.G.B. Vertical Stripe R.G.B. Vertical Stripe
Normally White Normally White Normally White
Chapter 1
27
28
LCD
Item
Typical White Luminance (cd/m
2
) also called Brightness
Luminance Uniformity
185
1.4 (5pts)
195 min (5 point average)
220 Typ. (5 point average)
1.25 max. (5pts)
1.50 max. (13pts)
400
18/7
Contrast Ratio
Response Time (Optical Rise Time/Fall
Time)
Nominal Input Voltage VDD
Typical Power Consumption (watt)
Weight
Physical Size(mm)
Electrical Interface
Support Color
400
5/20
+3.3V Typ.
4.38
+3.3V Typ.
6.5
585 580
344x222.0x6.35 max 344x222.0x6.5 max
1 channel LVDS
262K colors (RGB 6bit data driver)
1 channel LVDS
262K colors (RGB 6bit data driver)
Viewing Angle (degree)
Horizontal: Right/Left
Vertial: Upper/Lower
15/35
45/45
70/70
60/60
185
N/A
200
30/20
+3.3V Typ.
N/A
620
344.5x222.5x6.5 max
1 channel LVDS
262K colors (RGB 6bit data driver)
60/60
35/65
Operating
Storage (shipping)
0 to +50
-25 to +60
0 to +50
-20 to +60
0 to +50
-20 to +60
AC Adapter
Item
Vendor & model name
Input Voltage
Low Range
High Range
Input current
Nominal frequency (Hz)
Frequency variation range (Hz)
Efficiency
Output Requirements
DC output voltage
Noise + Ripple
Peak Load
Dynamic Output Characteristics
Turn-on delay time
Hold up time
Over Voltage Protection (OVP)
Short circuit protection
Electrostatic discharge (ESD)
Dielectric Withstand Voltage
Primary to secondary
Liteon, 135W power supply
Specification
90(min.)/137(max.)/100-127(nominal)
180(min.)/265(max.)200-240(nominal)
2.2A(max)
50-60
47-63
It should provide an efficiency of 85% minimum, when measured at maximum load under 115Vac.
19V
380mV as output voltage is 19V
18.5V-19.71V
5 sec (@ 115Vac)
5ms (@115Vac, Full load)
29V
9.5A @19V output voltage
15KV (at air discharge)
8KV (at contact discharge)
2150VDC for 1 sec.
Chapter 1
AC Adapter
Item
Ground leakage current
Power Management
less than 250uA
Power Saving Mode
Standby Mode
Enter Standby Mode when
1.Standby/Hibernation hot-key is pressed and system is not ready to enter Hibernation mode.
2.System standby/ Hibernation timer expires and system is not ready to enter Hibernation mode.
Hibernation Mode
Enter Hibernation Mode (suspend to HDD) when
1.Hibernation hot-key is pressed and system is ready to enter Hibernation mode
2.System Hibernation timer expires and system is ready to enter Hibernation mode.
Display Standby Mode
Keyboard, built-in touchpad, and an external
PS/2 pointing device are idle for a specified period.
Hard Disk Standby Mode
Hard disk is idle within a specified period of time.
T
T
T
T
T
Specification
Phenomenon
The buzzer beeps
The Sleep indicator lights up
All power shuts off
The display shuts off
Hard disk drive is in standby mode.
(spindle turned-off)
Environmental Requirements
Temperature
Operating
Non-operating
Humidity
Operating
Item
Non-operating
Non-operating
Vibration
Operating
Non-operating (unpacked)
Non-operating (packed)
+5~+35
-20~+60
°
C
°
C
Specification
10% to 95% RH, non-condensing without disktte
10% to 80% RH, non-condensing with disktte
20% to 80% RH, non-condensing (Unpacked)
20% to 90% RH, non-condensing (Storage package)
5~250Hz 0.5Grms, 15mins per axis
1.04 Grms, 2-200Hz 15 mins per axis
1.04 Grms, 2-200Hz 15 mins per axis
Mechanical Specification
Item
Dimensions
Weight
361(W) x 292.5(D) x 47.3(H)mm
3.6kg (8lbs)
Specification
Chapter 1
29
Mechanical Specification
Item
I/O Ports
Drive Bays
Material
Indicators
Switch
Specification
Two Type II or one Type III PC CardBus (PCMCIA) slot
One IEEE 1394 port
One FIR port
One RJ-11 modem jack (V.92, 56K)
One RJ-45 network jack
One DC-in jack
One parallel port (ECP/EPP)
One S-video port
One external monitor port
One microphone-in jack (3.5mm mini jack)
One headphone jack (3.5mm mini jack)
Four USB 2.0 ports
One
Plastic
Power-on, Standby, Battery Status, Media Access, CapsLock and NumLock
Power
30
Chapter 1
Chapter 1
31
Chapter 2
System Utilities
BIOS Setup Utility
The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/
Output System).
Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4
Troubleshooting when problem arises.
To activate the BIOS Utility, press
m
during POST (when “Press <F2> to enter Setup” message is prompted on the bottom of screen).
Press m to enter setup. The default parameter of F12 Boot Menu is set to “disabled”. If you want to change boot device without entering BIOS Setup Utility, please set the parameter to “enabled”.
Press <F12> during POST to enter multi-boot menu. In this menu, user can change boot device without entering BIOS SETUP Utility.
Chapter 2 32
Navigating the BIOS Utility
There are six menu options: Info., Main, System Devices, Security, Boot, and Exit.
Follow these instructions:
T
T
To choose a menu, use the cursor left/right keys (zx).
To choose a parameter, use the cursor up/down keys ( wy).
T
T
T
T
To change the value of a parameter, press por q.
A plus sign (+) indicates the item has sub-items. Press e to expand this item.
Press ^ while you are in any of the menu options to go to the Exit menu.
In any menu, you can load default settings by pressing t. You can also press u to save any changes made and exit the BIOS Setup Utility.
NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a particular menu are shown on the bottom of the screen. Help for parameters are found in the Item
Specific Help part of the screen. Read this carefully when making changes to parameter values.
This menu provides you the information of the system.
33 Chapter 2
Information
NOTE: The system information is subject to different models.
Parameter
Floppy Disk Drive
HDD Model Name
HDD Serial Number
ATAPI Model Name
ATAPI Serial Number
Serial Number
UUID Number
Description
Shows floppy drive type informaiton.
Note: Aspre 1620, Extensa 2700, TravelMate 2500 and Extnesa 2500 series products do not have floppy disk drive; Extensa 2000 and TravelMate 2000 series have floppy disk drive.
This field shows the model name of HDD installed on primary IDE master.
This field displays the serial number of HDD installed on primary IDE master.
This field displays the mofel name of devices installed on secondary IDE master. The hard disk drive or optical drive model name is automatically detected by the system.
This field shows the serial number of devices installed on secondary IDE master.
This field displays the serial number of this unit.
This will be visible only when an internal LAN device is presenting.
UUID=32bytes
Chapter 2 34
Main
The Main screen displays a summary of your computer hardware information, and also includes basic setup parameters. It allows the user to specify standard IBM PC AT system parameters.
35
NOTE: The screen above is for reference only. Actual values may differ.
Chapter 2
The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.
Parameter
System Time
System Date
System Memory
Extended Memory
VGA Memory
Fast Boot
Power on display
LCD Auto Dim
Network Boot
F12 Boot Menu
Description
Sets the system time. The hours are displayed with 24-hour format.
Sets the system date.
Format/Option
Format: HH:MM:SS
(hour:minute:second) System Time
Format MM/DD/YYYY (month/day/ year)
System Date
This field reports the memory size of the system.
Memory size is fixed to 640MB
This field reports the memory size of the extended memory in the system.
Extended Memory size=Total memory size-1MB
Shows the VGA memory size. VGA Memory size=64/128MB
Determines if Customer Logo will be displayed or not; shows Summary Screen is disabled or enabled.
Enabled: Customer Logo is displayed, and
Summary Screen is disabled.
Disabled: Customer Logo is not displayed, and
Summary Screen is enabled.
Auto: During power process, the system will detect if any display device is connected on external video port. If any external display device is connected, the power on display will be in CRT
(or projector) only mode. Otherwise it will be in
LCD only mode.
Both: Simultaneously enable both the integrated
LCD screen and the system’s external video port
(for an external CRT or projector).
Determines if the system will automatically dim the LCD brightness in order to save power when
AC is not present.
The system will support an automatic dimming of the LCD backlight when the AC power is NOT available (running on battery power).
Enables, disables the system boot from LAN
(remote server).
Enables, disables Boot Menu during POST.
Option:
Enabled
or Disabled
Option:
Auto
or Both
Option:
Enabled
or Disabled
Option:
Enabled
or Disabled
Option:
Disabled
or Enabled
NOTE: The sub-items under each device will not be shown if the device control is set to disable or auto. This is because the user is not allowed to control the settings in these cases.
Chapter 2 36
Advanced
The Advanced menu screen contains parameters involving your hardware devices. It also provides advanced settings of the system.
37
The table below describes the parameters in the screen. Settings in boldface are the default and suggested parameter settings.
.
Parameter
Hyper-Threading
Technology
Infrared Port
Parallel Port
Mode
Base I/O address
Interrupt
Description
The function is supported only when the CPU installed is 3.06G or above. The system will automatically hide this selection when detecting the
CPU frequency is below 3.06G or the CPU does not support Hyper-Threading Technoloty.
Enables, disables or auto detects the infrared port.
Enables, disables or auto detects the parallel port.
Sets the operation mode of the parallel port.
Sets the I/O address of the parallel port.
Sets the interrupt request of the parallel port.
Options
Enabled
/Disabled
Disabled
/Disabled/Auto
Enabled
/Disabled/Auto
ECP
, EPP, Output only or Bidirectional
378
/278
IRQ7
/IRQ5
Chapter 2
Parameter
DMA channel
Legacy USB Support
Hard Disk Recovery
Description
Sets a DMA channel for the printer to operate in
ECP mode. This parameter is enabled only if Mode is set to ECP.
Enables, disables USB interface devices support.
(Enable for use with a non-USB aware Operating
System such as DOS or UNIX).
Enables or disables Hard Disk to Hard Disk system
Recovery by pressing Fn+F10 key during POST.
DMA3
/DMA1
Options
Option:
Disabled
or Enabled
Option:
Disabled
or Enabled
Chapter 2 38
Security
The Security screen contains parameters that help safeguard and protect your computer from unauthorized use.
39 Chapter 2
The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.
Parameter
User Password is
Supervisor Password is
Set User Password
Set Supervisor Password
Primary Harddisk Security
Password on Boot
Description
Shows the setting of the user password.
Shows the setting of the Supervisor password
Press Enter to set the user password. When set, this password protects the BIOS Setup
Utility from unauthorized access.
Press Enter to set the supervisor password.
When set, this password protects the BIOS
Setup Utility from unauthorized access.
This feature is available to user when
Supervisor password is set. Password can be written on HDD only when Supervisor password or user password is set and password on HDD is set to enabled.
Supervisor Password is written to HDD only when Supervisor password is being set. User password is written to HDD when both passwords are set. When both Supervisor and user password are present, both passwords can unlock the HDD.
Defines whether a password is required or not while the events defined in this group happened. The following sub-options are all requires the Supervisor password for changes and should be grayed out if the user password was used to enter setup.
Option
Clear
or Set
Clear
or Set
Disabled
Disabled
or Enabled
or Enabled
NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget your password. If you forget your password, you may have to return your notebook computer to your dealer to reset it.
Setting a Password
Follow these steps as you set the user or the supervisor password:
1.
Use the w andy keys to highlight the Set Supervisor Password parameter and press the e key. The
Set Supervisor Password box appears:
2.
Type a password in the “Enter New Password” field. The password length can not exceeds 8 alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New
Password” field.
IMPORTANT:Be very careful when typing your password because the characters do not appear on the screen.
3.
Press e.
After setting the password, the computer sets the User Password parameter to “Set”.
4.
If desired, you can opt to enable the Password on boot parameter.
5.
When you are done, press u to save the changes and exit the BIOS Setup Utility.
Chapter 2 40
Removing a Password
Follow these steps:
1.
Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The
Set Password box appears:
2.
Type the current password in the Enter Current Password field and press e.
3.
Press e twice without typing anything in the Enter New Password and Confirm New Password fields.
The computer then sets the Supervisor Password parameter to “Clear”.
4.
When you have changed the settings, press u to save the changes and exit the BIOS Setup Utility.
Changing a Password
1.
Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The
Set Password box appears:
2.
Type the current password in the Enter Current Password field and press e.
3.
Type a password in the Enter New Password field. Retype the password in the Confirm New Password field.
4.
Press e. After setting the password, the computer sets the User Password parameter to “Set”.
5.
If desired, you can enable the Password on boot parameter.
6.
When you are done, press u to save the changes and exit the BIOS Setup Utility.
If the verification is OK, the screen will display as following.
41
The password setting is complete after the user presses u.
Chapter 2
If the current password entered does not match the actual current password, the screen will show you the
Setup Warning.
If the new password and confirm new password strings do not match, the screen will display the following message.
Chapter 2 42
Boot
This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices includes the distette drive in module bay, the onboard hard disk drive and the CD-ROM in module bay.
43 Chapter 2
Exit
The Exit screen contains parameters that help safeguard and protect your computer from unauthorized use.
The table below describes the parameters in this screen.
Parameter
Exit Saving Changes
Exit Discarding Changes
Load Setup Default
Discard Changes
Save Changes
Description
Exit System Setup and save your changes to CMOS.
Exit utility without saving setup data to CMOS.
Load default values for all SETUP item.
Load previous values from CMOS for all SETUP items.
Save Setup Data to CMOS.
Chapter 2 44
BIOS Flash Utility
The BIOS flash memory update is required for the following conditions:
T
New versions of system programs
T
T
New features or options
Restore a BIOS when it becomes corrupted.
Use the Phlash utility to update the system BIOS flash ROM.
NOTE: If you do not have a crisis recovery diskette at hand, then you should create a Crisis Recovery
Diskette before you use the Phlash utility.
NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Phlash.
NOTE: Please use the AC adaptor power supply when you run the Phlash utility. If the battery pack does not contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not completely loaded.
Fellow the steps below to run the Phlash.
1.
Prepare a bootable diskette.
2.
Copy the Phlash utilities to the bootable diskette.
3.
Then boot the system from the bootable diskette. The Phlash utility has auto-execution function.
45 Chapter 2
Chapter 3
Machine Disassembly and Replacement
This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting.
To disassemble the computer, you need the following tools:
T
Wrist grounding strap and conductive mat for preventing electrostatic discharge
T
T
T
T
Flat-bladed screw driver
Phillips screw driver
Tweezers
Plastic Flat-bladed screw driver
T
Hexed Screw Driver
NOTE: The screws for the different components vary in size. During the disassembly process, group the screws with the corresponding components to avoid mismatch when putting back the components.
NOTE: This chapter has been revised from previous model (TravelMate 240/250). Please refer to the disassembling procedures instead of the images. Some of the images below contain the parts used in
TravelMate 240/250, but not in Aspire 1660.
Chapter 3 46
General Information
Before You Begin
Before proceeding with the disassembly procedure, make sure that you do the following:
1.
Turn off the power to the system and all peripherals.
2.
Unplug the AC adapter and all power and signal cables from the system.
47 Chapter 3
Disassembly Procedure Flowchart
The flowchart on the succeeding page gives you a graphic representation on the entire disassembly sequence and instructs you on the components that need to be removed during servicing. For example, if you want to remove the main board, you must first remove the keyboard, then disassemble the inside assembly frame in that order.
Start
Battery
HDD
HDD Module
G*2
HDD Holder
*2
DIMM Cover
Memory
Wireless LAN
Board
*2
Modem Cover Hinge Caps
D*2
Modem Board
J*2
Middle Cover
RTC Battery Keyboard
F*6
LCD Module
*2
Launch Board
Second Fan
Bracket
J*3
Lower Case
Assembly
J*2
FDD Module
J*5
F*10
D*4
D*4
Wireless LAN
Antenna
Upper Case
Assembly
Touchpad
Cover
J*3
Second Fan
*4
Thermal
Module
CPU
D*2
ODD Bracket
ODD Module
J*4
HDD Bracket
F*1
ODD Support
Bracket
*1
CPU Heatsink
Plate
J*7
VGA Thermal
Plate
ODD
D*2
DC Board
*4
Main Board
D*4
PCMCIA Slot
Touchpad
Touchpad
Button Pad
Touchpad
Cable
Touchpad
Scroll Key
Upper Case
*2
Speaker Set
Chapter 3 48
49
LCD Module
4 LCD
Cushions
E*4
LCD Bezel
L*1
Inverter
L*4
LCD
LCD Coaxial
Cable
H*8 for 14.1"
H*6 for 15.0"
LCD Brackets
Screw List
I
H
J
F
G
D
E
B
C
A
Item Description
SCREW MAC FLAT M2.5*L4 NI NYLOK
(86.00123.630)
SCREW M2.0*L10 NYLOK(86.9A352.100)
SCREW M2*3 NYLON 1JMCPC-
420325(86.9A352.3R0)
SCREW M2.5X6(86.9A353.6R0)
SCREW M3x4 (86.9A524.4R0)
SCREW M2X2.0 (86.9A552.2R0)
SCREW WAFER NYLOK NI 2ML3 (86.9A552.3R0)
SCRW M2*4 WAFER NI (86.9A552.4R0)
SCRW M2.5*3 WAFER NI (86.9A553.3R0)
SCREW M2.5*4L NI (86.9A553.4R0)
LCD Panel
Chapter 3
Removing the Battery
1.
To remove the battery, push the battery release latch.
2.
Then slide the battery out from the machine.
Chapter 3 50
Removing the Memory Module
1.
See “Removing the Battery” on page 50.
2.
To remove the memory module from the machine, first remove the two screws holding the dimm cover.
3.
Remove the dimm cover.
4.
Pop up the memory.
5.
Then remove the memory.
51 Chapter 3
Removing the Wireless LAN Board and the Modem Board
1.
See “Removing the Battery” on page 50.
2.
To remove the wireless LAN board, first remove the two screws holding the modem cover.
3.
Remove the modem cover from the machine.
4.
Disconnect the wireless antennae.
5.
Pop out the wireless LAN board.
6.
To remove the modem board, first remove the two screws fastening the modem board.
7.
Detach the modem board and disconnect the modem cable carefully, then remove the modem board.
Chapter 3 52
Removing the Hard Disk Drive Module
1.
See “Removing the Battery” on page 50.
2.
To remove the hard disk drive, pull the hard disk dirve carefully.
3.
Then take the hard disk drive out of the main unit.
Disassembling the Hard Disk Drive Module
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Hard Disk Drive Module” on page 53.
3.
Remove the two screws that fasten the HDD holder.
4.
Detach the hard disk drive from the HDD holder.
53 Chapter 3
Removing the LCD Module
Removing the Middle Cover
1.
See “Removing the Battery” on page 50.
2.
To remove the middle cover, first use a plastic flat screwdriver to remove the right hinge cap.
3.
Remove the screw that secures the middle cover.
4.
Remove the left hinge cap.
5.
Then remove the screw holding the middle cover on the other side.
6.
Detach the middle cover from the machine.
.
7.
Disconnect the launch board cable then remove the middle cover off the main unit.
Removing the Launch Board
1.
See “Removing the Battery” on page 50.
Chapter 3 54
2.
See “Removing the Middle Cover” on page 54.
3.
Remove the two screws and then detach the launch board from the middle cover.
Removing the LCD Module
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Launch Board” on page 54.
4.
Remove the screw that fastens the LCD coaxial cable and disconnect the cable. Then disconnect the
LCD inverter cable.
5.
Remove the four screws holding the LCD hinge; two on the right and two on the left.Remove the four screws holding the LCD hinge; two on the right and two on the left.
6.
Remove the two screws on the bottom; one on the right and the other on the left.
55
7.
Then you can remove the entire LCD module from the main unit.
Chapter 3
Chapter 3 56
Disassembling the LCD Module
Removing the LCD Bezel
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Launch Board” on page 54.
4.
See “Removing the LCD Module” on page 55.
5.
Use plastic tweezers to remove the four screw pads, and then remove the four screws that fasten the LCD bezel.
6.
Snap off the bezel carefully, and then remove the LCD bezel from the LCD module.
Removing the Inverter Board (15” LCD)
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Launch Board” on page 54.
4.
See “Removing the LCD Module” on page 55.
5.
See “Removing the LCD Bezel” on page 57.
6.
To remove the inverter board, first remove one screw from the inverter board.
57
7.
Disconnect the LCD power cable then disconnect the inverter cable from the inverter board.
Chapter 3
NOTE: Please arrange the LCD inverter cable well to the LCD panel as the picture below shows when you reassemble the LCD module.
Removing the 15” TFT LCD
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Launch Board” on page 54.
4.
See “Removing the LCD Module” on page 55.
5.
See “Removing the LCD Bezel” on page 57.
6.
See “Removing the Inverter Board (15” LCD)” on page 57.
7.
To remove the LCD, first remove the four screws that secure the LCD hinges.
8.
Then take the LCD out of the LCD panel.
Chapter 3 58
Removing the LCD Brackets
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Launch Board” on page 54.
4.
See “Removing the LCD Module” on page 55.
5.
See “Removing the LCD Bezel” on page 57.
6.
See “Removing the Inverter Board (15” LCD)” on page 57.
7.
See “Removing the 15” TFT LCD” on page 58.
8.
Remove the four screws holding the right LCD bracket.Then remove the right bracket.
9.
Remove the four screws holding the left LCD bracket. Then remove the left bracket..
Removing the LCD Coaxial Cable
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Launch Board” on page 54.
4.
See “Removing the LCD Module” on page 55.
5.
See “Removing the LCD Bezel” on page 57.
6.
See “Removing the Inverter Board (15” LCD)” on page 57.
7.
See “Removing the 15” TFT LCD” on page 58.
8.
Tear off the mylar fastening the LCD coaxial cable, then disconnect the coaxial cable.
59 Chapter 3
Removing the LCD Hinges
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Launch Board” on page 54.
4.
See “Removing the LCD Module” on page 55.
5.
See “Removing the LCD Bezel” on page 57.
6.
See “Removing the Inverter Board (15” LCD)” on page 57.
7.
See “Removing the 15” TFT LCD” on page 58.
8.
Remove the screw holding the right hinge, then remove the right hinge.
9.
Remove the screw holding the left hinge, then remove the left hinge.
Chapter 3 60
Disassembling the Main Unit
Removing the Keyboard
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
To remove the keyboard, carefully pull the keyboard out and upwards as the pticute shows.
4.
Use a plastic tweezers or a plastic flat screwdriver to disconnect the keyboard cable from the main board carefully, then remove the keyboard.
Removing the RTC Battery
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Keyboard” on page 61.
4.
Disconnect the RTC battery cable then remove it.
Removing the Fan
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Keyboard” on page 61.
4.
Disconnect the fan cable and remove the three screws fastening the fan. Then remove the fan.
61 Chapter 3
Removing the Thermal Module
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Keyboard” on page 61.
4.
See “Removing the Fan” on page 61.
5.
Disconnect the fan cable then remove the four screws fastening the thermal module.
6.
Then remove the thermal module.
Removing the Processor
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Keyboard” on page 61.
4.
See “Removing the RTC Battery” on page 61.
5.
See “Removing the Fan” on page 61.
6.
See “Removing the Thermal Module” on page 62.
7.
Lift up the CPU socket lever. Then remove the CPU. Remember to press down the lever as the video shows after you remove the CPU.
Chapter 3 62
Installing the Processor
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Keyboard” on page 61.
4.
See “Removing the RTC Battery” on page 61.
5.
See “Removing the Fan” on page 61.
6.
See “Removing the Thermal Module” on page 62.
7.
Lift up the CPU lever, then place the CPU back to the CPU socket. Please remember to press the CPU lever after you put the CPU back to the socket.
Removing the Upper Case Assemly
1.
See “Removing the Keyboard” on page 61.
2.
Disconnect the touchpad cable.
63
3.
Remove the 5 screws that secure the upper case to the lower case. Then turn over the main unit and remove the 15 screws holding the lower case to the upper case.
Chapter 3
4.
Then take the upper case assembly off the main unit.
Removing the Touchpad Board
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Keyboard” on page 61.
4.
See “Removing the Upper Case Assemly” on page 63.
5.
To detach the touch pad board, first disconnect the touch pad cable from the touch pad board with a plastic tweezers.Then release the touchpad cover lock on the back as the picture shows.
6.
Remove the touchpad cover, the remove the touchpad button pad. Finally remove the touchpad board from the upper case.
Removing the Touchpad Cable
1.
See “Removing the Battery” on page 50.
Chapter 3 64
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the LCD Module” on page 55.
4.
See “Removing the Keyboard” on page 61.
5.
See “Removing the Upper Case Assemly” on page 63.
6.
See “Removing the Touchpad Board” on page 64.
7.
Remove the touchpad scroll key then remove the touchpad cable.
Removing the VGA Thermal Plate
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Keyboard” on page 61.
4.
See “Removing the Fan” on page 61.
5.
See “Removing the Thermal Module” on page 62.
6.
Remove the seven screws holding the VGA thermal plate then remove it.
Removing the CPU Heatsink Plate
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Keyboard” on page 61.
4.
See “Removing the Fan” on page 61.
5.
See “Removing the Thermal Module” on page 62.
6.
Remove the screw that fastens the CPU heatsink plate then remove it.
65 Chapter 3
Removing the Second Fan Bracket
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the LCD Module” on page 55.
4.
See “Removing the RTC Battery” on page 61.
5.
See “Removing the Fan” on page 61.
6.
See “Removing the Thermal Module” on page 62.
7.
Remove the three screws that fasten the second fan bracket then remove the bracket.
Removing the ODD Module(1)
1.
See “Removing the Battery” on page 50.
2.
Remove the screw that fastens the ODD bracket on the bottom. Push the ODD module at the point the red arrow indicates hard.Then remove the ODD module from the lower case.
NOTE: If you need to replace the ODD module only, you can remove the ODD module as the steps above.
Removing the ODD Module(2)
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Keyboard” on page 61.
4.
See “Removing the Upper Case Assemly” on page 63.
Chapter 3 66
5.
See “Removing the Thermal Module” on page 62.
6.
See “Removing the VGA Thermal Plate” on page 65.
7.
Push the ODD module outwards then take the ODD out of the support bracket. Remove the screw that fastens the ODD support bracket then remove it.
Removing the HDD Bracket
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Keyboard” on page 61.
4.
See “Removing the Upper Case Assemly” on page 63.
5.
Remove the four screws holding the HDD bracket, then remove the HDD bracket.
Removing the Main Board
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Keyboard” on page 61.
4.
See “Removing the Upper Case Assemly” on page 63.
5.
See “Removing the Fan” on page 61.
6.
See “Removing the Thermal Module” on page 62.
7.
See “Removing the VGA Thermal Plate” on page 65.
8.
See “Removing the CPU Heatsink Plate” on page 65.
9.
See “Removing the Second Fan Bracket” on page 66.
10. See “Removing the ODD Module(2)” on page 66.
11. See “Removing the HDD Bracket” on page 67.
12. Disconnect the launch board cable. Tear off the tape that fastens the speaker set cable. Then disconnect the speaker set cable.
67 Chapter 3
.
13. Remove the two screws holding the main board as the picture shows. Remove another two screws that fasten the main board. Then detach the main board from the lower case carefully.
Removing the DC Board
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Keyboard” on page 61.
4.
See “Removing the Upper Case Assemly” on page 63.
5.
See “Removing the Fan” on page 61.
6.
See “Removing the Thermal Module” on page 62.
7.
See “Removing the VGA Thermal Plate” on page 65.
8.
See “Removing the CPU Heatsink Plate” on page 65.
9.
See “Removing the Second Fan Bracket” on page 66.
10. See “Removing the ODD Module(2)” on page 66.
11. See “Removing the HDD Bracket” on page 67.
12. See “Removing the Main Board” on page 67.
13. Remove the two screws that fasten the DC board. Then detach the DC board from the lower case.
Removing the I/O Port Bracket
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
Chapter 3 68
3.
See “Removing the Keyboard” on page 61.
4.
See “Removing the Upper Case Assemly” on page 63.
5.
See “Removing the Fan” on page 61.
6.
See “Removing the Thermal Module” on page 62.
7.
See “Removing the VGA Thermal Plate” on page 65.
8.
See “Removing the CPU Heatsink Plate” on page 65.
9.
See “Removing the Second Fan Bracket” on page 66.
10. See “Removing the ODD Module(2)” on page 66.
11. See “Removing the HDD Bracket” on page 67.
12. See “Removing the Main Board” on page 67.
13. Remove the four hex screws to detach the I/O port bracket from the main board.
Removing the PCMCIA Slot
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Keyboard” on page 61.
4.
See “Removing the Upper Case Assemly” on page 63.
5.
See “Removing the Fan” on page 61.
6.
See “Removing the Thermal Module” on page 62.
7.
See “Removing the VGA Thermal Plate” on page 65.
8.
See “Removing the CPU Heatsink Plate” on page 65.
9.
See “Removing the Second Fan Bracket” on page 66.
10. See “Removing the ODD Module(2)” on page 66.
11. See “Removing the HDD Bracket” on page 67.
12. See “Removing the Main Board” on page 67.
13. Remove the four screws that secure the PCMCIA slot, then remove the PCMCIA slot from the lower case.
69 Chapter 3
Removing the Speaker Set
1.
See “Removing the Battery” on page 50.
2.
See “Removing the Middle Cover” on page 54.
3.
See “Removing the Keyboard” on page 61.
4.
See “Removing the Upper Case Assemly” on page 63.
5.
See “Removing the Fan” on page 61.
6.
See “Removing the Thermal Module” on page 62.
7.
See “Removing the VGA Thermal Plate” on page 65.
8.
See “Removing the CPU Heatsink Plate” on page 65.
9.
See “Removing the Second Fan Bracket” on page 66.
10. See “Removing the ODD Module(2)” on page 66.
11. See “Removing the HDD Bracket” on page 67.
12. See “Removing the Main Board” on page 67.
13. See “Removing the DC Board” on page 68.
14. Tear off the tape fastening the speaker set cable. Then remove the four screws that secure the speaker set. Remove the speaker set from the lower case.
Chapter 3 70
System Upgrade Procedure
Base Unit to Wireless Unit
1.
Turn out the two screws fastening the modem cover then open the cover.
2.
Connect the wirless antennae.
3.
Insert the wireless LAN board to the wireless socket on the main board.
4.
Close the modem cover and fasten the cover with the two screws.
NOTE: You must connect the wireless antennae before you insert the wireless LAN board to the socket. If you insert the wireless LAN card first, the pressure you press to fasten the wireless antennae may damage the main board.
71 Chapter 3
Chapter 4
Troubleshooting
Use the following procedure as a guide for computer problems.
NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or modified options can give false errors and invalid system responses.
1.
Obtain the failing symptoms in as much detail as possible.
2.
Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating the same operation.
3.
Use the following table with the verified symptom to determine which page to go to.
Symptoms (Verified)
Power failure. (The power indicator does not go on or stay on.)
POST does not complete. No beep or error codes are indicated.
POST detects an error and displayed messages on screen.
Other symptoms (i.e. LCD display problems or others).
Symptoms cannot be re-created (intermittent problems).
Go To
“Power System Check” on page 74.
“Power-On Self-Test (POST) Error Message” on page 77
“Undetermined Problems” on page 89
“Error Message List” on page 78
“Power-On Self-Test (POST) Error Message” on page 77
Use the customer-reported symptoms and go to
“Power-On Self-Test (POST) Error Message” on page 77
“Intermittent Problems” on page 88
“Undetermined Problems” on page 89
Chapter 4 72
System Check Procedures
External Diskette Drive Check
Do the following to isolate the problem to a controller, driver, or diskette. A write-enabled, diagnostic diskette is required.
NOTE: Make sure that the diskette does not have more than one label attached to it. Multiple labels can cause damage to the drive or cause the drive to fail.
Do the following to select the test device.
1.
Boot from the diagnostics diskette and start the diagnostics program.
2.
See if FDD Test is passed as the program runs to FDD Test.
3.
Follow the instructions in the message window.
If an error occurs with the internal diskette drive, reconnect the diskette connector on the system board.
If the error still remains:
1.
Reconnect the external diskette drive/DVD-ROM module.
2.
Replace the external diskette drive/CD-ROM module.
3.
Replace the main board.
External CD-ROM Drive Check
Do the following to isolate the problem to a controller, drive, or CD-ROM. Make sure that the CD-ROM does not have any label attached to it. The label can cause damage to the drive or can cause the drive to fail.
Do the following to select the test device:
1.
Boot from the diagnostics diskette and start the diagnostics program.
2.
See if CD-ROM Test is passed when the program runs to CD-ROM Test.
3.
Follow the instructions in the message window.
If an error occurs, reconnect the connector on the System board. If the error still remains:
1.
Reconnect the external diskette drive/CD-ROM module.
2.
Replace the external diskette drive/CD-ROM module.
3.
Replace the main board.
Keyboard or Auxiliary Input Device Check
Remove the external keyboard if the internal keyboard is to be tested.
If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable extending from the keyboard is correctly seated in the connector on the system board.
If the keyboard cable connection is correct, run the Keyboard Test.
If the tests detect a keyboard problem, do the following one at a time to correct the problem. Do not replace a non-defective FRU:
1.
Reconnect the keyboard cables.
2.
Replace the keyboard.
3.
Replace the main board.
The following auxiliary input devices are supported by this computer:
T
Numeric keypad
T
External keyboard
73 Chapter 4
If any of these devices do not work, reconnect the cable connector and repeat the failing operation.
Memory check
Memory errors might stop system operations, show error messages on the screen, or hang the system.
1.
Boot from the diagnostics diskette and start the doagmpstotics program (please refer to main board.
2.
Go to the diagnostic memory in the test items.
3.
Press F2 in the test items.
4.
Follow the instructions in the message window.
NOTE: Make sure that the DIMM is fully installed into the connector. A loose connection can cause an error.
Power System Check
To verify the symptom of the problem, power on the computer using each of the following power sources:
1.
Remove the battery pack.
2.
Connect the power adapter and check that power is supplied.
3.
Disconnect the power adapter and install the charged battery pack; then check that power is supplied by the battery pack.
If you suspect a power problem, see the appropriate power supply check in the following list:
T
“Check the Power Adapter” on page 75
T
“Check the Battery Pack” on page 76
Chapter 4 74
Check the Power Adapter
Unplug the power adapter cable from the computer and measure the output voltage at the plug of the power adapter cable. See the following figure
Pin 1: +19 to +20.5V
Pin 2: 0V, Ground
1.
If the voltage is not correct, replace the power adapter.
2.
If the voltage is within the range, do the following:
T
T
Replace the System board.
If the problem is not corrected, see “Undetermined Problems” on page 89.
T
If the voltage is not correct, go to the next step.
NOTE: An audible noise from the power adapter does not always indicate a defect.
3.
If the power-on indicator does not light up, check the power cord of the power adapter for correct continuity and installation.
4.
If the operational charge does not work, see “Check the Battery Pack” on page 76.
75 Chapter 4
Check the Battery Pack
To check the battery pack, do the following:
From Software:
1.
Check out the Power Management in control Panel
2.
In Power Meter, confirm that if the parameters shown in the screen for Current Power Source and Total
Battery Power Remaining are correct.
3.
Repeat the steps 1 and 2, for both battery and adapter.
4.
This helps you identify first the problem is on recharging or discharging.
From Hardware:
1.
Power off the computer.
2.
Remove the battery pack and measure the voltage between battery terminals 1(+) and 6(ground). See the following figure
3.
If the voltage is still less than 7.5 Vdc after recharging, replace the battery.
To check the battery charge operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.
If the battery status indicator does not light up, remove the battery pack and let it return to room temperature.
Re-install the battery pack.
If the charge indicator still does not light up, replace the battery pack. If the charge indicator still does not light up, replace the DC/DC charger board.
Touchpad Check
If the touchpad doesn’t work, do the following actions one at a time to correct the problem. Do not replace a non-defective FRU:
1.
Reconnect the touchpad cables.
2.
Replace the touchpad.
3.
Replace the system board.
After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting pointer movement can occur when a slight, steady pressure is applied to the touchpad pointer. This symptom is not a hardware problem. No service actions are necessary if the pointer movement stops in a short period of time.
Chapter 4 76
Power-On Self-Test (POST) Error Message
The POST error message index lists the error message and their possible causes. The most likely cause is listed first.
NOTE: Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU replacement does not solve the problem, put the original part back in the computer. Do not replace a non-defective FRU.
This index can also help you determine the next possible FRU to be replaced when servicing a computer.
If the symptom is not listed, see “Undetermined Problems” on page 89.
The following lists the error messages that the BIOS displays on the screen and the error symptoms classified by function.
NOTE: Most of the error messages occur during POST. Some of them display information about a hardware device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the way it has been configured.
NOTE: If the system fails after you make changes in the BIOS Setup Utility menus, reset the computer, enter
Setup and install Setup defaults or correct the error.
77 Chapter 4
Index of Error Messages
Error Code List
006
010
070
071
072
110
<No error code>
<No error code>
Error Codes Error Messages
Equipment Configuration Error
Causes:
1. CPU BIOS Update Code Mismatch
2. IDE Primary Channel Master Drive Error
(THe causes will be shown before “Equipment Configuration
Error”)
Memory Error at xxxx:xxxx:xxxxh (R:xxxxh, W:xxxxh)
Real Time Clock Error
CMOS Battery Bad
CMOS Checksum Error
System disabled.
Incorrect password is specified.
Battery critical LOW
In this situation BIOS will issue 4 short beeps then shut down system, no message will show.
Thermal critical High
In this situation BIOS will shut down system, not show message.
Error Message List
Error Messages
Failure Fixed Disk
Stuck Key
Keyboard error
Keyboard Controller Failed
Keyboard locked - Unlock key switch
FRU/Action in Sequence
Reconnect hard disk drive connector.
“Load Default Settings” in BIOS Setup Utility.
Hard disk drive
System board
Unlock external keyboard
Monitor type does not match CMOS - Run Setup Run “Load Default Settings” in BIOS Setup Utility.
Shadow RAM Failed at offset: nnnn BIOS ROM
System board
System RAM Failed at offset: nnnn
Extended RAM Failed at offset: nnnn
DIMM
System board
DIMM
System board
System battery is dead - Replace and run Setup Replace RTC battery and Run BIOS Setup Utility to reconfigure system time, then reboot system.
System CMOS checksum bad - Default configuration used
RTC battery
Run BIOS Setup Utility to reconfigure system time, then reboot system.
System timer error RTC battery
Run BIOS Setup Utility to reconfigure system time, then reboot system.
System board
Chapter 4 78
79
Error Message List
CMOS
Error Messages
Real time clock error
Previous boot incomplete - Default configuration used
Memory size found by POST differed from
Diskette drive A error
Incorrect Drive A type - run SETUP
System cache error - Cache disabled
CPU ID:
DMA Test Failed
Software NMI Failed
Fail-Safe Timer NMI Failed
Device Address Conflict
Allocation Error for device
Failing Bits: nnnn
Fixed Disk n
Invalid System Configuration Data
I/O device IRQ conflict
Operating system not found
FRU/Action in Sequence
RTC battery
Run BIOS Setup Utility to reconfigure system time, then reboot system.
System board
Run “Load Default Settings” in BIOS Setup Utility.
RTC battery
System board
Run “Load Default Settings” in BIOS Setup Utility.
DIMM
System board
Check the drive is defined with the proper diskette type in BIOS
Setup Utility
See “External Diskette Drive Check” on page 73.
Check the drive is defined with the proper diskette type in BIOS
Setup Utility
System board
System board
DIMM
System board
DIMM
System board
DIMM
System board
Run “Load Default Settings” in BIOS Setup Utility.
RTC battery
System board
Run “Load Default Settings” in BIOS Setup Utility.
RTC battery
System board
DIMM
BIOS ROM
System board
None
BIOS ROM
System board
Run “Load Default Settings” in BIOS Setup Utility.
RTC battery
System board
Enter Setup and see if fixed disk and drive A: are properly identified.
Diskette drive
Hard disk drive
System board
Chapter 4
Error Message List
No beep, power-on indicator turns off and LCD is blank.
No beep Error Messages
No beep, power-on indicator turns on and LCD is blank.
No beep, power-on indicator turns on and LCD is blank. But you can see POST on an external
CRT.
FRU/Action in Sequence
Power source (battery pack and power adapter). See “Power
Ensure every connector is connected tightly and correctly.
Reconnect the DIMM.
LED board.
System board.
Power source (battery pack and power adapter). See “Power
Reconnect the LCD connector
Hard disk drive
LCD inverter ID
LCD cable
LCD Inverter
LCD
System board
Reconnect the LCD connectors.
LCD inverter ID
LCD cable
LCD inverter
LCD
System board
No beep, power-on indicator turns on and a blinking cursor shown on LCD during POST.
Ensure every connector is connected tightly and correctly.
System board
No beep during POST but system runs correctly. Speaker
System board
Chapter 4 80
POST Code
Code
28h
29h
2Ah
2Ch
2Eh
20h
22h
24h
26h
17h
18h
1Ah
1Ch
12h
13h
14h
16h
08h
09h
0Ah
0Bh
02h
03h
04h
06h
0Ch
0Eh
0Fh
10h
11h
2Fh
30h
3Ah
3Ch
3Dh
42h
45h
32h
33h
36h
38h
81
1-2-2-3
1-3-1-1
1-3-1-3
1-3-4-1
1-3-4-3
1-4-1-1
Beeps POST Routine Description
Verify Real Mode
Disable Non-Maskable Interrupt (NMI)
Get CPU type
Initialize system hardware
Initialize chipset with initial POST values
Set IN POST flag
Initialize CPU registers
Enable CPU cache
Initialize caches to initial POST values
Initialize I/O component
Initialize the local bus IDE
Initialize Power Management
Load alternate registers with initial POST values
Restore CPU control word during warm boot
Initialize PCI Bus Mastering devices
Initialize keyboard controller
BIOS ROM checksum
Initialize cache before memory autosize
8254 timer initialization
8237 DMA controller initialization
Reset Programmable Interrupt Controller
Test DRAM refresh
Test 8742 Keyboard Controller
Set ES segment register to 4 GB
Enable A20 line
Autosize DRAM
Initialize POST Memory Manager
Clear 215 KB base RAM
RAM failure on address line xxxx
RAM failure on data bits xxxx of low byte of memory bus
Enable cache before system BIOS shadow
RAM failure on data bits xxxx of high byte of memory bus
Test CPU bus-clock frequency
Initialize Phoenix Dispatch Manager
Warm start shut down
Shadow system BIOS ROM
Autosize cache
Advanced configuration of chipset registers
Load alternate registers with CMOS values
Initialize interrupt vectors
POST device initialization
Chapter 4
7Eh
80h
81h
82h
70h
72h
76h
7Ch
83h
84h
85h
86h
87h
88h
89h
8Ah
8Bh
67h
68h
69h
6Ah
60h
62h
64h
66h
6Bh
6Ch
6Eh
59h
5Ah
5Bh
5Ch
51h
52h
54h
58h
4Bh
4Ch
4Eh
50h
46h
48h
49h
4Ah
Chapter 4
Code
2-1-2-3
Beeps
2-2-3-1
POST Routine Description
Check ROM copyright notice
Check video configuration against CMOS
Initialize PCI bus and devices
Initialize all video adapters in system
QuietBoot start (optional)
Shadow video BIOS ROM
Display BIOS copyright notice
Display CPU type and speed
Initialize EISA board
Test keyboard
Set key click if enabled
Test for unexpected interrupts
Initialize POST display service
Display prompt “Press F2 to enter SETUP”
Disable CPU cache
Test RAM between 512 and 640 KB
Test extended memory
Test extended memory address lines
Jump to User Patch1
Configure advanced cache registers
Initialize Multi Processor APIC
Enable external and CPU caches
Setup System Management Mode (SMM) area
Display external L2 cache size
Load custom defaults (optional)
Display shadow-area message
Display possible high address for UMB recovery
Display error messages
Check for configuration errors
Check for keyboard errors
Set up hardware interrupt vectors
Initialize coprocessor if present
Disable onboard Super I/O ports and IRQs
Late POST device initialization
Detect and install external RS232 ports
Configure non-MCD IDE controllers
Detect and install external parallel ports
Initialize PC-compatible PnP ISA devices
Re-initialize onboard I/O ports
Configure Motherboard Configurable Devices
(optional)
Initialize BIOS Area
Enable Non-Maskable Interrupts (NMIs)
Initialize Extended BIOS Data Area
Test and initialize PS/2 mouse
82
83
C3h
C4h
C5h
C6h
BFh
C0h
C1h
C2h
B5h
B6h
B9h
BAh
BBh
BCh
BDh
BEh
C7h
C8h
C9h
A4h
A8h
AAh
ACh
AEh
B0h
B2h
B4h
9Eh
9Fh
A0h
A2h
99h
9Ah
9Ch
9Dh
92h
93h
95h
96h
8Ch
8Fh
90h
91h
97h
98h
Code
1-2
1
Beeps POST Routine Description
Initialize floppy controller
Determine number of ATA drives (optional)
Initialize hard-disk controllers
Initialize local-bus hard-disk controllers
Jump to UserPatch2
Build MPTABLE for multi-processor boards
Install CD ROM for boot
Clear huge ES segment register
Fixup Multi Processor table
Search for option ROMs. One long, two short beeps on checksum failure.
Check for SMART drive (optional)
Shadow option ROMs
Set up Power Management
Initialize security engine (optional)
Enable hardware interrupts
Determine number of ATA and SCSI drives
Set time of day
Check key lock
Initialize Typematic rate
Erase F2 prompt
Scan for F2 key stroke
Enter SETUP
Clear Boot flag
Check for errors
POST done- prepare to boot operating system
One short beep before boot
Terminate QuietBoot (optional)
Check password (optional)
Prepare Boot
Initialize DMI parameters
Initialize PnP Option ROMs
Clear parity checkers
Display MultiBoot menu
Clear screen (optional)
Check virus and backup reminders
Try to boot with INT 19
Initialize POST Error Manager (PEM)
Initialize error logging
Initialize error display function
Initialize system error handler
PnPnd dual CMOS (optional)
Initialize notebook docking (optional)
Initialize notebook docking late
Force check (optional)
Extended checksum (optional)
Chapter 4
D2h
Code
E8h
E9h
EAh
EBh
ECh
EDh
EEh
EFh
E4h
E5h
E6h
E7h
E0h
E1h
E2h
E3h
F4h
F5h
F6h
F7h
F0h
F1h
F2h
F3h
Code
1
Beeps
Beeps
POST Routine Description
Unknown interrupt
For Boot Block in Flash ROM
Initialize the chipset
Initialize the bridge
Initialize the CPU
Initialize the system timer
Initialize system I/O
Check force recovery boot
Checksum BIOS ROM
Go to BIOS
Set Huge Segment
Initialize Multi Processor
Initialize OEM special code
Initialize PIC and DMA
Initialize Memory type
Initialize Memory size
Shadow Boot Block
System memory test
Initialize interrupt vectors
Initialize Run Time Clock
Initialize video
Initialize System Management Mode
Output one beep before boot
Boot to Mini DOS
Clear Huge Segment
Boot to Full DOS
Chapter 4 84
Index of Symptom-to-FRU Error Message
LCD-Related Symptoms
Symptom / Error
LCD backlight doesn't work
LCD is too dark
LCD brightness cannot be adjusted
LCD contrast cannot be adjusted
Unreadable LCD screen
Missing pels in characters
Abnormal screen
Wrong color displayed
LCD has extra horizontal or vertical lines displayed.
Action in Sequence
Enter BIOS Utility to execute “Load Setup Default Settings”, then reboot system.
Reconnect the LCD connectors.
Keyboard (if contrast and brightness function key doesn't work).
LCD inverter ID
LCD cable
LCD inverter
LCD
System board
Reconnect the LCD connector
LCD inverter ID
LCD cable
LCD inverter
LCD
System board
LCD inverter ID
LCD inverter
LCD cable
LCD
System board
Indicator-Related Symptoms
Symptom / Error
Indicator incorrectly remains off or on, but system runs correctly
Action in Sequence
Reconnect the inverter board
Inverter board
System board
Power-Related Symptoms
Symptom / Error
Power shuts down during operation
The system doesn’t power-on.
The system doesn’t power-off.
Action in Sequence
Power source (battery pack and power adapter). See “Power
Battery pack
Power adapter
Hard drive & battery connection board
System board
Power source (battery pack and power adapter). See “Power
Battery pack
Power adapter
Hard drive & battery connection board
System board
Power source (battery pack and power adapter). See “Power
Hold and press the power switch for more than 4 seconds.
System board
85 Chapter 4
Power-Related Symptoms
Symptom / Error
Battery can’t be charged
Action in Sequence
See “Check the Battery Pack” on page 76.
Battery pack
System board
PCMCIA-Related Symptoms
Symptom / Error
System cannot detect the PC Card (PCMCIA) PCMCIA slot assembly
System board
PCMCIA slot assembly
Action in Sequence
PCMCIA slot pin is damaged.
Memory-Related Symptoms
Symptom / Error
Memory count (size) appears different from actual size.
Action in Sequence
Enter BIOS Setup Utility to execute “Load Default Settings, then reboot system.
DIMM
System board
Speaker-Related Symptoms
Symptom / Error
In Windows, multimedia programs, no sound comes from the computer.
Audio driver
Speaker
System board
Internal speakers make noise or emit no sound.
Speaker
System board
Action in Sequence
Power Management-Related Symptoms
Symptom / Error
The system will not enter hibernation
The system doesn't enter hibernation mode and four short beeps every minute.
The system doesn’t enter standby mode after closing the LCD
The system doesn't resume from hibernation mode.
The system doesn't resume from standby mode after opening the LCD.
Action in Sequence
Keyboard (if control is from the keyboard)
Hard disk drive
System board
See “Hibernation Mode” on page 29.
Press Fn+
o
and see if the computer enters hibernation mode.
Touchpad
Keyboard
Hard disk connection board
Hard disk drive
System board
See “Hibernation Mode” on page 29.
LCD cover switch
System board
See “Hibernation Mode” on page 29.
Hard disk connection board
Hard disk drive
System board
See “Hibernation Mode” on page 29.
LCD cover switch
System board
Chapter 4 86
87
Power Management-Related Symptoms
Symptom / Error
Battery fuel gauge in Windows doesn’t go higher than 90%.
System hangs intermittently.
Action in Sequence
Remove battery pack and let it cool for 2 hours.
Refresh battery (continue use battery until power off, then charge battery).
Battery pack
System board
Reconnect hard disk/CD-ROM drives.
Hard disk connection board
System board
Peripheral-Related Symptoms
Symptom / Error
System configuration does not match the installed devices.
External display does not work correctly.
USB does not work correctly
Print problems.
Serial or parallel port device problems.
Action in Sequence
Enter BIOS Setup Utility to execute “Load Default Settings”, then reboot system.
Reconnect hard disk/CD-ROM/diskette drives.
Press Fn+F5, LCD/CRT/Both display switching
System board
System board
Ensure the “Parallel Port” in the “Onboard Devices Configuration” of
BIOS Setup Utility is set to Enabled.
Onboard Devices Configuration
Run printer self-test.
Printer driver
Printer cable
Printer
System Board
Ensure the “Serial Port” in the Devices Configuration” of BIOS Setup
Utility is set to Enabled.
Device driver
Device cable
Device
System board
Keyboard/Touchpad-Related Symptoms
Symptom / Error
Keyboard (one or more keys) does not work.
Touchpad does not work.
Action in Sequence
Reconnect the keyboard cable.
Keyboard
System board
Reconnect touchpad cable.
Touchpad board
System board
Modem-Related Symptoms
Symptom / Error
Internal modem does not work correctly.
Modem phone port modem combo board
System board
Action in Sequence
Chapter 4
Intermittent Problems
Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a recurring problem exists.
When analyzing an intermittent problem, do the following:
1.
Run the advanced diagnostic test for the system board in loop mode at least 10 times.
2.
If no error is detected, do not replace any FRU.
3.
If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.
Chapter 4 88
Undetermined Problems
The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect, whether a short circuit is suspected, or whether the system is inoperative.
Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).
NOTE: Verify that all attached devices are supported by the computer.
1.
Power-off the computer.
2.
Visually check them for damage. If any problems are found, replace the FRU.
3.
Remove or disconnect all of the following devices:
T
Non-Acer devices
T
T
T
T
Printer, mouse, and other external devices
Battery pack
Hard disk drive
DIMM
T
T
CD-ROM/Diskette drive Module
PC Cards
4.
Power-on the computer.
5.
Determine if the problem has changed.
6.
If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.
7.
If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:
T
T
System board
LCD assembly
89 Chapter 4
How to Build NAPP Master Hard Disc Drive
CD to Disk Recovery
1.
Prepare NAPP CD, Recovery CD and System CD.
2.
Put NAPP CD into the optical drive. Then boot up the system.
3.
The system will ask you if you want to build NAPP Master HDD. Please press any key to continue.
4.
NAPP CD will start to preload the system, please click [Y].
5.
Select CD to Disk Revocery.
Chapter 4 90
6.
Put the Recovery CD to the optical drive. This step is to create image files to the system, you do not have to put the Recovery CD to the optical drive in order. Place one Recovery CD to the drive at one time till you finish all Recovery CDs.
91
After you place the Recovery CD to the optical drive, you will see the display below.
Chapter 4
7.
Then insert the System CD to the optical drive.
8.
You will see the screen displaying “PASS” when the system has buit NAPP Master hard disc drive.
Chapter 4 92
Disk to Disk Recovery
1.
Prepare NAPP CD, Recovery CD and System CD.
2.
Put NAPP CD into the optical drive. Then boot up the system.
3.
The system will ask you if you want to build NAPP Master HDD. Please press any key to continue.
93
4.
NAPP CD will start to preload the system, please click [Y].
Chapter 4
5.
Select Disk to Disk Recovery. Then choose Single Language or Multi-Languages Recovery.
NOTE: For Multi-Languages Recovery, not more than five languages could be loaded to the system.
6.
Put the Recovery CD to the optical drive. This step is to create image files to the system, you do not have to put the Recovery CD to the optical drive in order. Place one Recovery CD to the drive at one time till you finish all Recovery CDs.
Chapter 4 94
After you place the Recovery CD to the optical drive, you will see the display below.
95
7.
Then insert the System CD to the optical drive.
Chapter 4
8.
You will see the screen displaying “PASS” when the system has buit NAPP Master hard disc drive.
Chapter 4 96
97 Chapter 4
Jumper and Connector Locations
Top View
Chapter 5
9
10
11
12
13
14
7
8
5
6
3
4
1
2
Line-in Port
Line-out Port
RJ45+RJ11
LCD Inverter Cable Connector
USB Port
USB Port
USB Port
USB Port
VGA Port
S-Video Port
LCD Coaxial Cable Connector
Parallel Port
DC-in Port
LCD Lid Switch
23
24
25
26
27
28
19
20
21
22
15
16
17
18
CPU Socket
North Bridge
Fan Connector
Second Fan Connector
Touchpad Cable Connector
HDD Connector
Keyboard Connector
Speaker Cable Connector
Optical Drive Connector
South Bridge
RTC Battery Connector
Launch Board Cable Connector
SW5 (Please see Chapter 5 for its settings)
PCMCIA Slot
Chapter 5 98
Bottom View
99
3
4
1
2
Wireless LAN Card Connector
Modem Board Connector
Modem Cable Connector
IEEE 1394 Port
SW Settings
Chkpw
Enable
Bootblock
Enable
ON
SW1-8
X
X
SW2-7
ON
7
8
5
6
FIR Port
DIMM Socket 1
DIMM Socket 2
SW3-6
Chapter 5
Chapter 6
FRU (Field Replaceable Unit) List
This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of Aspire 1660. Refer to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).
Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available on your regional web or channel. For whatever reasons a part number change is made, it will not be noted on the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a
DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer machines.
NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to dispose it properly, or follow the rules set by your regional Acer office on how to return it.
Chapter 6 100
Aspire 1660 Exploded Diagram
101 Chapter 6
Adapter
Battery
Picture No.
Partname And Description Part Number
ADAPTER 135W 19V 3PIN LITEON PA-
1131-08AC
AP.13503.001
ADAPTER 135W 19V 3PIN HIPRO
OW135F13
RTC BATTERY LONGTRUM
AP.1350A.001
23.T30V1.101
18 BATTERY MODULE LI-ON 8CELL LI-
ON
6M.A20V1.004
BATTERY LI-ON 8CELL 2.0MAH
SIMPLO BTP-58A1
BATTERY LI-ON 8CELL 2.0MAH
SANYO BTP-60A1
BT.T3007.003
BT.T3003.001
CASE/COVER/BRACKET ASSEMBLY
BATTERY COVER
(The cover should be silver not black)
42.T30V1.001
Boards
VGA DAUGHTER BOARD 55.A20V1.001
DC-DC CHARGER BOARD 55.T30V1.001
Chapter 6 102
Cables
Picture No.
Partname And Description
WIRELESS LAN BOARD AMBIT
802.11B T60H656.02 REV.03
WIRELESS LAN BOARD 802.11G WNC
RM8
Part Number
54.03096.022
54.A16V1.001
MODEM BOARD AMBIT
T60M283.10(01)
MODEM/BLUETOOTH BOARD AMBIT
T60M665.00
54.09011.544
54.09061.001
LAUNCH BOARD
COVER SWITCH CABLE TBD
LAUNCH BOARD CABLE 50.T30V1.011
Case/Cover/Bracket Assembly
MODEM CABLE 2PIN 2CONNECTOR
55MM
50.41T11.002
POWER CORD 3 PIN 125V
MODEM COVER
27.01618.051
42.A20V1.001
HINGE CAP RIGHT 42.A30V1.002
103 Chapter 6
Chapter 6
Picture No.
Partname And Description
HINGE CAP LEFT
Part Number
42.A30V1.003
2ND FAN BRACKET 33.A30V1.003
OPTICAL DEVICE SUPPORT
BRACKET
33.A30V1.001
HDD HOLDER 33.A30V1.002
TOUCHPAD COVER 42.A30V1.004
MIDDLE COVER W/LAUNCH BOARD &
NAME PLATE
60.A30V1.003
LOWER CASE W/DIMM COVER&
SPEAKER W/O MDC COVER
60.A30V1.001
UPPER CASE W/COVERSWITCH
CABLE & TOUCHPAD CABLE &
SCROLL KEY
60.A30V1.002
104
Picture No.
Partname And Description
DIMM COVER TBD
Part Number
Communication Module
WIRELESS ANTENNA RIGHT (BLACK) 50.A20V1.001
WIRELESS ANTENNA LEFT (GRAY) 50.A20V1.002
CPU
HDD/ Hard Disk Drive
CPU 3.0GMHZ 800FSB INTEL
CPU 2.8GMHZ 800FSB INTEL
CPU P4 2.87GMHZ 400FSB INTEL
CPU P4 3.4GMHZ 800FSB INTEL
CPU P4 3.2GMHZ 800FSB INTEL
CPU 3.0GMHZ 800FSB INTEL
HDD MODULE 30G HITACHI
IC25N030ATMR04
KC.DPP01.30C
KC.DPP01.28C
KC.DP001.28A
KC.DP001.34C
KC.DP001.32C
KC.DP001.30C
KH.03007.005
16
HDD 40G HITACHI IC25N040ATMR04
HDD 40G FUJITSU MHT2040AT 0022
A3
HDD 40G 4200PRM SEAGATE
ST94019A
HDD 60G HITACHI C25N060ATMR04
HDD 60G HITACHI DK23FA-60 A0A0
HDD 60G TOSHIBA MK6021GAS
HDD 80G HITACHI IC25N080ATMR04
HDD 80G TOSHIBA MK8025GAS
KA023A
HDD HOLDER
KH.04007.009
KH.04006.004
KH.04001.010
KH.06007.006
KH.06007.005
KH.36004.001
KH.08007.002
KH.08004.001
33.E02V1.001
105 Chapter 6
Heatsink
Picture No.
Partname And Description
VGA THERMAL PLATE
Part Number
33.A20V1.003
CPU THERMAL PLATE 34.A30V1.001
CPU FAN SINK 34.A20V1.102
Keyboard
2 KEYBOARD DARFON NSK-ACD00
SWISS
TBD
KEYBOARD DARFON NSK-ACD02
TAIWAN
KEYBOARD DARFON NSK-ACD03
THAILAND
KEYBOARD DARFON NSK-ACD06
PORTUGUES
KEYBOARD DARFON NSK-ACD0A
ARABIC
KEYBOARD DARFON NSK-ACD0C
CZECH
KEYBOARD DARFON NSK-ACD0D
DANISH
KEYBOARD DARFON NSK-ACD0E
ITALIAN
KEYBOARD DARFON NSK-ACD0F
FRENCH
KEYBOARD DARFON NSK-ACD0G
GERMAN
KEYBOARD DARFON NSK-ACD0J
JAPANESE
KEYBOARD DARFON NSK-ACD0K
KOREAN
KEYBOARD DARFON NSK-ACD0G
GREEK
KEYBOARD DARFON NSK-ACD0M
FRENCH/CANADIAN
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
Chapter 6 106
LCD
Picture No.
Partname And Description
KEYBOARD DARFON NSK-ACD0N
NORWEGIAN
KEYBOARD DARFON NSK-ACD0Q
HUNGARIAN
KEYBOARD DARFON NSK-ACD0R
RUSSIAN
TBD
TBD
TBD
KEYBOARD DARFON NSK-ACD0S
SPANISH
KEYBOARD DARFON NSK-ACD0T
TURKISH
TBD
TBD
KEYBOARD DARFON NSK-ACD0U UK TBD
KEYBOARD DARFON NSK-ACD0W
SWEDISH/FINNISH
TBD
TBD KEYBOARD DARFON NSK-ACD1A
BELGIAN
KEYBOARD DARFON NSK-ACD1B
BRAZILIAN
TBD
KEYBOARD DARFON NSK-ACD1D US
IN
TBD
LCD MODULE 15.4" WXGA W/
ANTENNA(QDI)
LCD MODULE 15.4" WXGA W/
ANTENNA(AU)
LCD MODULE 15.4" WXGA W/
ANTENNA(HITACHI)
LCD MODULE 15.4" WXGA W/O
ANTENNA(QDI)
LCD MODULE 15.4" WXGA W/O
ANTENNA(AU)
LCD MODULE 15.4" WXGA W/O
ANTENNA(HITACHI)
LCD 15.4" WXGA QDI
LCD 15.4" WXGA AU
LCD 15.4" WXGA HITACHI
Part Number
6M.A30V1.001
6M.A30V1.002
6M.A30V1.003
6M.A30V1.005
6M.A30V1.006
6M.A30V1.007
LK.15409.001
LK.15405.001
LK.15404.001
INVERTER BOARD 15.4" SUMIDA 19.A30V1.001
LCD BRACKET 15.4" RIGHT 33.A30V1.004
107 Chapter 6
Main Board
Picture No.
NS
Partname And Description
LCD BRACKET 15.4" LEFT
Part Number
33.A30V1.005
INVERTER CABLE 50.A30V1.001
LCD COAXIAL CABLE 15.4" 50.A30V1.003
NS LCD PANEL 15.4" W/HINGE & LOGO 60.A30V1.005
NS LCD BEZEL 15.4" W/ICON PLATE 60.A30V1.004
Miscellaneous
HINGE PACK LEFT/RIGHT TBD
MAINBOARD YUHINA 4 W/LAUNCH
BOARD CABLE & MODEM CABLE &
RTC BATTERY (DISCREET VGA-M11P)
LB.A2001.001
PCMCIA SLOT
LCD SCREW CAP LOWER
LCD SCREW RUBBER UPPER
TOUCHPAD BUTTON
22.T30V1.001
47.A16V1.001
47.A16V1.002
42.A30V1.005
Chapter 6 108
Memory
Optical Drive
Picture No.
Partname And Description
ICON PLATE
LOGO PLATE
TBD
TBD
Part Number
NS
NAME PLATE TBD
SDIMM 256M MICRON
MT8VDDT3264HDG-335
SDIMM 256M NANYA
NT256D64SH8BAGM-6KE
SDIMM 128M INFINEON
HYS64D16000GDL-6-B
SDIMM 256M INFINEON
HY64D32000GDL-6-B
SDIMM 256M SAMSUNG
M470L3224FT0-CB3
SDIMM 512M INFINEON
HYS64D64020GBDL-6-
SDIMM 512M NANYA
NT512D64S8HBAFM-6K
SDIMM 1G ELPIDA EBD11UD8ADDA-
6B
KN.25604.009
KN.25603.014
KN.12802.006
KN.25602.009
KN.2560B.008
KN.51202.007
KN.51203.005
KN.1GB09.002
CDRW/DVD COMBO MODULE 24X
DVD-ROM MODULE 8X
DVD-RW MODULE 4X
6M.A20V1.003
6M.T45V1.006
6M.T45V1.007
CDRW/DVD COMBO DRIVE 24x QSI
SBW-242B
CDRW/DVD COMBO DRIVE 24X
PANASONIC UJDA750WS4-A
DVD-ROM DRIVE 8X MATSUSHITA
SR-8177
DVD-RW 4X LITEON SDW-431S
DVD-RW 2X PANASONIC UJ-820B-A
DVD-RW 4X PIONEER DVR-K13RA
OPTICAL BRACKET
KO.02407.012
KO.02403.002
KV.08X02.004
KU.00404.002
KU.00407.003
KU.00405.012
33.T30V1.004
PCMCIA slot/PC card slot
109 Chapter 6
Picture No.
Partname And Description
PCMCIA SLOT
Part Number
22.T30V1.001
Pointing Device
NS TOUCHPAD BOARD SYNAPTICS
TM41P-357
56.17001.001
Speaker
SPEAKER SET 23.A20V1.002
Screws
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
SCW HEX NYL I#R-40/O#4-40 L5.5
SCRW M4H MSN +CBZ M2*L3 #1
34.00015.081
86.00C14.520
SCRW CPU SCREW FORCE 5KGS 86.T30V1.001
SCREW M2*3 NYLON 1JMCPC-420325 86.9A352.3R0
SCREW M2.5X6
SRW M2.5*8L B/ZN NYLOK 700
SCREW M3x4(86.9A524.4R0)
SCREW WAFER NYLOK NI 2ML3
86.9A353.6R0
86.9A353.8R0
86.9A524.4R0
86.9A552.3R0
SCRW M2*4 WAFER NI
SCRW M2.5*3 WAFER NI
SCREW M2.5*4L NI
86.9A552.4R0
86.9A553.3R0
86.9A553.4R0
Chapter 6 110
111 Chapter 6
Appendix A
Model Definition and Configuration
Model Name Definition
Model
Number
1661WLC
1661WLCi
1661FWLCi
15.4"W
XGA
15.4"W
XGA
1661WLM
LCD
15.4"W
XGA
1662WLC
1662WLM
1663WLMi
1664WLMi
15.4"W
XGA
15.4"W
XGA
15.4"W
XGA
15.4"W
XGA
15.4"W
XGA
CPU
DTP4-
2.8GHz
FSB400MHz
DTP4-
2.8GHz
FSB400MHz
DTP4-
2.8GHz
FSB400MHz
DTP4-
2.8GHz
FSB400MHz
DTP4-
3.0GHz(1M)
DTP4-
3.0GHz(1M)
DTP4-
3.2GHz(1M)
DTP4-
3.4GHz(1M)
Memory
2*256MB
1*256MB
1*256MB
2*256MB
2*256MB
2*256MB
2*256MB
2*512MB
HDD
40GB
40GB
40GB
40GB
ODD
24x
CDRW+DVD
24x
CDRW+DVD
24x
CDRW+DVD
4xDVD-Dua
60GB
60GB
60GB
80GB
24x
CDRW+DVD
4x DVD-Dual
4x DVD-Dual
4x DVD-Dual
Wireless
LAN
N
OS
Windows
11g
11g
N
N
N
11g
11g
Windows
DOS
Windows
Windows
Windows
Windows
Windows
Appendix A 112
113 Appendix A
Appendix B
Test Compatible Components
This computer’s compatibility is a test plan released by Acer Internal Testing Department. Once the final report is available, this chapter will be revised accordingly.
Appendix B 114
Microsoft Windows XP Environment Test
Item
Processor
Memory
LCD
Hard Disk Drive
DVD-ROM Drive 8X
CD-ROM Drive 24X
Specifications
Northwood 2.60GHz/.13m/512K L2/400Mhz FSB
Northwood 2.80GHz/.13m/512K L2/533Mhz FSB/HT
Northwood 3.06GHz/.13m/512K L2/533Mhz FSB/HT
Northwood 3.0GHz/.13m/512K L2/800Mhz FSB/HT
Northwood 3.20GHz/.13m/512K L2/800Mhz FSB/HT
Northwood 3.4Ghz/.13m/512K/800FSB/HT
Precott 3 GHz/1MB L2/800 FSB/HT
Precott 3.2GHz/1MB L2/800 FSB/HT
Precott 3.4GHz/1MB L2/800 FSB/HT
Precott 3.6GHz/1MB L2/800 FSB/HT
Precott 3.8GHz/1MB L2/800 FSB/HT
Mobile Pentium 4 3.06GHz/512K/533 Mhz/HT
Mobile Pentium 4 3.20 GHz/512K/533 Mhz/HT
128MB Infineon SO-DIMM HY64D16000GDL-6-B
256MB Infineon SO-DIMM HY64D32000GDL-6-B
256MB Nanya SO-DIMM NT256D64SH8BAGN-6KE
256MB Micron SO-DIMM MT8VDDT3264HDG-35C3
512MB Infineon SO-DIMM HYS64D64020GBDL-6-B
512MB Nanya SO-DIMM NT512D64S8HBAFM-6K
15” XGA TFT
AUO B150XG01
AUO B150XG02
LG LP150X08-A5
Hitachi TX38D81VC1CAB Rev. B
SAMSUNG LTN150XB-L03/6XXX
15” SXGA+ TFT
AUO B150PG01 V0
20G HGST Moraga IC25N020ATMR04 f/w:AD4A
20GB Toshiba Neptune MK2023GAP
30GB HGST Moraga IC25N030ATMR04
30GB Toshiba Neptune MK3021GAS
30G Fujitsu V-40 MHT2030AT
30G Seagate N1 ST93015A
40GB IBM HGST Moraga IC25N040ATMR04-0
40GB TOSHIBA Pluto 40G MK4025GAS
40G Fujitsu V40+ MHT2040AT
40G Seagate N1 ST94019A
60G HGST Moraga IC25N060ATMR04-0
60G HGST Fresno DK23FA-60 HT
60G TOSHIBA Neptune MK6021GAS
80G HGST Moraga IC25N080ATMR04
80G Pluto MK8025GAS
MKE SR-8177
Mitsumi SR-224W1
QSI SCR242
115 Appendix B
Modem Adapters
Modem (up to 56K)
ISDN
I/O Peripheral
I/O - Display
I/O - IR Printer
Appendix B
Item
DVD/CD-RW Combo
DVD-dual
DVD-RW
DVD-Super Multi
AC Adapter (3 pin)
Power Cord
Battery Li-Ion, 8 cells
Network Adapters
LAN Ethernet/10baseT/100base
Multifunction Card (Combo)
LAN Token Ring
Wireless LAN Card
I/O - Projector
I/O - Legacy (Parallel) Printer/
Scanner
Specifications
KME UJDA750
QSI SBW-242B
DVD-Dual SDW-042
DVD-Dual SDW-431S
DVD-Dual GWA-4040N
DVD-Dual DVR K13RA
DVD-RW SD-R6112
UJ820 DVD super multi
Liteon Adapter 135W
ADT 135W 3P 19V 0317A19135
HiPro Adapter 135W
King Cord
SANYO BTP-60A1
SIMPLO BTY PK Panasonic
3Com Etherlink III 3C589D
IBM EtherJet CardBus Adapter 10/100
Intel Ether Express Pro/100 Mobile Adapter MBLA3200
Xircom CardBus Ethernet 10/100 32 Bit CBE-10/100BTX
3Com Megahertz 10/100 LAN + 56K Modem PC Card
Xircom RealPort CardBus Ethenet 10/100 + Modem 56
IBM Token Ring 16/4 Adapter II
IBM Wireless LAN Cardbus Adapter
Intel Pro-Wireless LAN PC Card
Proxim Skyline 802.11a Cardbus PC Card
Cisco Aironet 350 series Wireless Lan Card
NeWeb Wireless Lan Card 802.11b
3Com Megahertz 56K Modem PC Card
Xircom Credit Card Modem 56
IBM 56K Double Jack Modem
US Robotics Megahertz 128K ISDN Card 405R17T7117M
IBM OBI International ISDN PC Card
Acer 211c 21”
Viewsonic PF790 19”
Acer FP751 17” TFT LCD
IBM Color TFT LCD 14”
Compaq Color Monitor
NET Color Monitor 20”
Mozo 17” TFT LCD (DVI)
NEC MultiSync MT-1040
Canon BJC-600J
Epson Stylus Color 740 Parallel Interface
HP DeskJet 890C
HP DeskJet 880C Parallel Interface
HP LaserJet 6MP
HP LaserJet 2200
HP LaserJet 6MP use IR
HP LaserJet 2200 use IR
116
117
Item
I/O - USB Keyboard/Mouse
I/O - Legacy (PS2/Serial) Keyboard/
Mouse
I/O - USB (Printer/Scanner)
I/O - USB (Speaker/Joystick))
I/O - USB Camera
I/O - USB Storage Drive
I/O-USB Flash Drive
I/O - USB Hub
I/O - Access Point (802.11b)
I/O Acess Point (802.11a/b)
I/O Acess Point (802.11a)
Specifications
Chicony USB Keyboard KU-8933
Microsoft Natural Keyboard Pro
Acer Aspire USB mouse
Logicool US Mouse
Logitech Cordless Mouseman Wheel USB Interface
Logitech USB Wheel Mouse M-BB48
Microsoft IntelliMouse Optical USB Interface
IBM 101 key keyboard
IBM 109 key keyboard
Acer PS2 keyboard
Acer KB-101A
IBM Numeric Keypad III
IBM Numeric Keypad
Acer Mouse
IBM PS2 Mini Mouse
IBM PS2 Mouse
Logitech Cordless MouseMan Wheel PS2 interface
Logitech Serial Mouse M-M35
Microsoft InteliMouse PS2 interface
Microsoft InteliMouse Optical PS2 interface
Logitech First Mouse Three Button Serial Mouse
Epson Stylus Color 740 USB interface
HP DeskJet 880C USB interface
Canon CanonScan D1250 (USB 2.0, JP OS only)
HP ScanJet 3300C Color Scanner
JS USB Digital Speaker
Panasonic USB Speaker EAB-MPC57USB
AIWA Multimedia Digital Speaker
Microsoft SideWinder Precision Pro Joystick
Logitech WingMan RumblePad
Intel Easy PC Camera
Logitech QuickCam Express Internet
Logitech QuickCam Home PC Video Camera
Orange Micro USB 2.0 Web Cam
Logitech CDRW +DVDROM combo USB interface
Iomega USB Zip 250MB
IBM 32MB USB Memory key
Apacer USB Handy Drive 32MB
Apacer USB Handy Drive 256MB
Belkin 4 Port USB Hub
Eizo I Station USB Hub
Elecom USB Hub 4 Port
Sanwa USB Hub 4 Port
4 Port Hub USB 2.0
Hitachi DC-CN3300
Lucent RG-1000
Lucent WavePoint-II
Cisco Aironet 350
Orinoco AP-500
Intel Dual Pro/Wireless 5000
Intel Pro/Wireless 5000
Appendix B
PCMCIA
PCMCIA - ATA
Item
PCMCIA - USB 2.0
PCMCIA - 1394
PCMCIA-SCSI
PCMCIA - Bluetooth
Specifications
IBM Microdrive 340MB
IBM Microdrive 1G
Iomega Click! 40MB
Sony Memory Stick 64MB
Sandisk Flash Card 20MB
Apacer SD Flash Card 128MB
Apacer SD Flash Card 256MB
Transcend SD Card 32MB
Transcend SD Card 256MB
Hagiwara sys-com SD Card 256MBT
Apricorn EZ-USB2.0 Cardbus PC Card
DTK USB 2.0 2Port CardBus Host Controller
Adaptec USB2CONNECT
Buffalo 1394 Interface Cardbus IFC-ILCB/DV
I-O Data 1394 Interface Cardbus CB1394/DVC
Pixela 1394 Cardbus PC Card PIX-PCMC/FW1
Adaptec 1408 or B SCSI CB
NewMedia Bus Toaster SCSI II
IBM Community Bluetooth PC Card
Toshiba Bluetooth PC Card
Appendix B 118
119 Appendix B
Appendix C
Online Support Information
This section describes online technical support services available to help you repair your Acer Systems.
If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch office. Acer Branch Offices and Regional Business Units may access our website. However some information sources will require a user i.d. and password. These can be obtained directly from Acer CSD Taiwan.
Acer's Website offers you convenient and valuable support resources whenever you need them.
In the Technical Information section you can download information on all of Acer's Notebook, Desktop and
Server models including:
T
T
T
T
T
T
T
T
Service guides
User's manuals
Training materials
Main manuals
Bios updates
Software utilities
Spare parts lists
Chips
T
TABs (Technical Announcement Bulletin)
For these purposes, we have included an Acrobat File to facilitate the problem-free downloading of our technical material.
Also contained on this website are:
T
Detailed information on Acer's International Traveller’s Warranty (ITW)
T
T
Returned material authorization procedures
An overview of all the support services we offer, accompanied by a list of telephone, fax and email contacts for all your technical queries.
We are always looking for ways to optimize and improve our services, so if you have any suggestions or comments, please do not hesitate to communicate these to us.
Appendix C 120
121 Appendix C
A
B
AFLASH Utility 45
Audio 18
Battery 27
BIOS 18 package 18
ROM size 18
ROM type 18 vendor 18
Version 18
BIOS Setup Utility 32
BIOS Supports protocol 18
BIOS Utility 32
Basic System Settings 37
Navigating 33
Onboard Device Configuration 40
Startup Configuration 39
System Information 33
System Security 44
Board Layout
Bottom View 5, 99
Top View 4, 98 brightness hotkeys 15
C
CardBus 27
CD-ROM Interface 20
Chipsets 18 contrast hotkeys 15
Controllers 18
Core logic 18
CPU core voltage 18
I/O voltage 18 package 18 type 18
D
Disassembly Flowchart 48 display hotkeys 15
Display Standby Mode 29
DVD-ROM Interface 21
Index
E
Environmental Requirements 29
Error Symptom-to-Spare Part Index 77
External CD-ROM Drive Check 73
F
Features 1
Flash Utility 45
FRU (Field Replaceable Unit) List 100
H
Hard disk 18, 20
Hard Disk Drive Module
Disassembly 53
Hard Disk Standby Mode 29
Hardware Specifications and Configurations 18
HDD 18, 20
Hibernation Mode 29
Hibernation mode hotkey 15
Hot Keys 15
I
Intermittent Problems 88
J
Jumper and Connector Locations
SW2 Settings 99
K
L
M
L2 cache 18
Mechanical Specification 29
Memory Check 74
Modem 19
N
Keyboard 18, 27
Keyboard or Auxiliary Input Device Check 73
Notebook Manager hotkey 15
Index
122
O
Online Support Information 120
P
Panel 5, 99
Bottom 10
Parallel Port 26
PC Card 27
PCMCIA 27
Power Management 29
Power System Check 74
Battery Pack 76
Power Adapter 75
R
Removing the Battery Pack 50
RTC 18
S
Second Level Cache 18 speakers hotkey 15
Standby Mode 29
Super I/O 18
System Check Procedures 73
System Diagnostic Diskette 45
System Memory 19
System Utility Diskette 45
T
Temperature 29
Touchpad 18 touchpad hotkey 15
Touchpad Check 76
U
Undetermined Problems 89
USB 26 utility
BIOS 32
V
W
Video 26
Resolutions 26
Video controller 18
123
Windows XP Environment Test 115
Index
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- PC Black 300 W
- Intel® Core™ i5 i5-11400 4.4 GHz
- 8 GB DDR4-SDRAM 3200 MHz
- 512 GB SSD
- NVIDIA® GeForce® GT 730 2 GB Intel UHD Graphics 730
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 5 (802.11ac) Bluetooth
- Windows 10 Home 64-bit
Related manuals
advertisement
Table of contents
- 1 Aspire 1660 Series
- 2 Revision History
- 3 Copyright
- 3 Disclaimer
- 4 Conventions
- 5 Preface
- 7 Table of Contents
- 10 Ch.1 System Introduction
- 10 Features
- 12 System Block Diagram
- 13 Board Layout
- 13 Top View
- 14 Bottom View
- 15 Panel
- 15 Front View
- 16 Left view
- 17 Right View
- 18 Rear Panel
- 19 Bottom View
- 20 Indicators
- 21 Keyboard
- 21 Special keys
- 24 Hot Keys
- 27 Hardware Specifications and Configurations
- 41 Ch.2 System Utilities
- 41 BIOS Setup Utility
- 42 Navigating the BIOS Utility
- 43 Information
- 44 Main
- 46 Advanced
- 48 Security
- 52 Boot
- 53 Exit
- 54 BIOS Flash Utility
- 55 Ch.3 Machine Disassembly and Replacement
- 56 General Information
- 56 Before You Begin
- 57 Disassembly Procedure Flowchart
- 59 Removing the Battery
- 60 Removing the Memory Module
- 61 Removing the Wireless LAN Board and the Modem Board
- 62 Removing the Hard Disk Drive Module
- 62 Disassembling the Hard Disk Drive Module
- 63 Removing the LCD Module
- 63 Removing the Middle Cover
- 63 Removing the Launch Board
- 64 Removing the LCD Module
- 66 Disassembling the LCD Module
- 66 Removing the LCD Bezel
- 66 Removing the Inverter Board (15” LCD)
- 67 Removing the 15” TFT LCD
- 68 Removing the LCD Brackets
- 68 Removing the LCD Coaxial Cable
- 69 Removing the LCD Hinges
- 70 Disassembling the Main Unit
- 70 Removing the Keyboard
- 70 Removing the RTC Battery
- 70 Removing the Fan
- 71 Removing the Thermal Module
- 71 Removing the Processor
- 72 Installing the Processor
- 72 Removing the Upper Case Assemly
- 73 Removing the Touchpad Board
- 73 Removing the Touchpad Cable
- 74 Removing the VGA Thermal Plate
- 74 Removing the CPU Heatsink Plate
- 75 Removing the Second Fan Bracket
- 75 Removing the ODD Module(1)
- 75 Removing the ODD Module(2)
- 76 Removing the HDD Bracket
- 76 Removing the Main Board
- 77 Removing the DC Board
- 77 Removing the I/O Port Bracket
- 78 Removing the PCMCIA Slot
- 79 Removing the Speaker Set
- 80 System Upgrade Procedure
- 80 Base Unit to Wireless Unit
- 81 Ch.4 Troubleshooting
- 82 System Check Procedures
- 82 External Diskette Drive Check
- 82 External CD-ROM Drive Check
- 82 Keyboard or Auxiliary Input Device Check
- 83 Memory check
- 83 Power System Check
- 85 Touchpad Check
- 86 Power-On Self-Test (POST) Error Message
- 87 Index of Error Messages
- 90 POST Code
- 94 Index of Symptom-to-FRU Error Message
- 97 Intermittent Problems
- 98 Undetermined Problems
- 99 How to Build NAPP Master Hard Disc Drive
- 99 CD to Disk Recovery
- 102 Disk to Disk Recovery
- 107 Ch.5 Jumper and Connector Locations
- 107 Top View
- 108 Bottom View
- 109 Ch.6 FRU (Field Replaceable Unit) List
- 110 Aspire 1660 Exploded Diagram
- 121 App.A Model Definition and Configuration
- 121 Model Name Definition
- 123 App.B Test Compatible Components
- 124 Microsoft Windows XP Environment Test
- 129 App.C Online Support Information
- 131 Index
