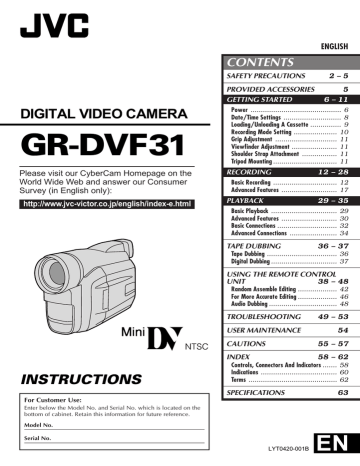

JVC GR-DVF31 Digital Camera User Manual

DIGITAL VIDEO CAMERA

GR-DVF31

Please visit our CyberCam Homepage on the

World Wide Web and answer our Consumer

Survey (in English only):

http://www.jvc-victor.co.jp/english/index-e.html

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which is located on the bottom of cabinet. Retain this information for future reference.

Model No.

Serial No.

ENGLISH

CONTENTS

SAFETY PRECAUTIONS

2 – 5

PROVIDED ACCESSORIES

GETTING STARTED

5

6 – 11

Power ............................................ 6

Date/Time Settings ............................ 8

Loading/Unloading A Cassette ............... 9

Recording Mode Setting ..................... 10

Grip Adjustment .............................. 11

Viewfinder Adjustment ...................... 11

Shoulder Strap Attachment ................. 11

Tripod Mounting ............................... 11

RECORDING

12 – 28

Basic Recording ............................... 12

Advanced Features ........................... 17

PLAYBACK

29 – 35

Basic Playback ................................ 29

Advanced Features ........................... 30

Basic Connections ............................. 32

Advanced Connections ....................... 34

TAPE DUBBING

36 – 37

Tape Dubbing .................................. 36

Digital Dubbing ................................ 37

USING THE REMOTE CONTROL

UNIT

38 – 48

Random Assemble Editing ................... 42

For More Accurate Editing ................... 46

Audio Dubbing ................................. 48

TROUBLESHOOTING

49 – 53

USER MAINTENANCE

CAUTIONS

54

55 – 57

INDEX

58 – 62

Controls, Connectors And Indicators ....... 58

Indications ..................................... 60

Terms ........................................... 62

SPECIFICATIONS

63

LYT0420-001B

EN

2

EN

Dear Customer,

Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product.

Using This Instruction Manual

•All major sections and subsections are listed in the Table Of Contents on the cover.

•Notes appear after most subsections. Be sure to read these as well.

•Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

.... refer to the Index (

Z

pgs. 58 – 62) and familiarize yourself with button locations, etc. before use.

.... read thoroughly the Safety Precautions and Safety Instructions that follow. They contain extremely important information regarding the safe use of this product.

You are recommended to carefully read the cautions on pages 55 through 57 before use.


CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Warning on lithium cell battery

(for remote control unit)

The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C (212°F) or incinerate.

Replace the battery with Maxell, Panasonic

(Matsushita Electric), Sanyo or Sony CR2025; use of another battery may present a risk of fire or explosion.

n Dispose of used battery promptly.

n Keep away from children.

n Do not disassemble and do not dispose of in fire.

The AA-V20U AC Power Adapter/Charger should be used with:

AC 120 V`, 60 Hz in the USA and Canada,

AC 110 – 240 V`, 50/60 Hz in other countries.

CAUTION (applies to the AA-V20U)

TO PREVENT ELECTRIC SHOCK MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION (s’applique à l’AA-V20U)

POUR ÉVITER LES CHOCS ÉLECTRIQUES,

INTRODUIRE LA LAME LA PLUS LARGE DE LA

FICHE DANS LA BORNE CORRESPONDANTE DE

LA PRISE ET POUSSER JUSQU’AU FOND.

WARNING:

TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE

THIS UNIT TO RAIN OR

MOISTURE.

NOTES:

● The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.

● The rating plate (serial number plate) of the AC

Power Adapter/Charger is on its bottom.

This camcorder is designed to be used with

NTSC-type color television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor/viewfinder playback are possible anywhere. Use BN-V207U/V214U battery packs and, to recharge them, the provided multivoltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of

AC outlets in different countries.)

IMPORTANT PRODUCT

SAFETY INSTRUCTIONS

Electrical energy can perform many useful functions.

But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.

ATTENTION:

Follow and obey all warnings and instructions marked on your product and its operating instructions. For your safety, please read all the safety and operating instructions before you operate this product and keep this manual for future reference.

EN

3

5. Ventilation

Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

• Do not block the openings by placing the product on a bed, sofa, rug or other similar surface.

• Do not place the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

6. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

INSTALLATION

1. Grounding or Polarization

(A) Your product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature.

If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

(B) Your product may be equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature.

If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

2. Power Sources

Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.

3. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

4. Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

ANTENNA INSTALLATION

INSTRUCTIONS

1. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

2. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

3. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ANTENNA

LEAD IN WIRE

GROUND CLAMP

ANTENNA

DISCHARGE UNIT

(NEC SECTION

810-20) ELECTRIC SERVICE

EQUIPMENT

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM

(NEC ART 250. PART H)

NEC – NATIONAL ELECTRICAL CODE

4

EN

USE

1. Accessories

To avoid personal injury:

•Do not place this product on an unstable cart, stand, tripod, bracket or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.

•Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.

•Use a mounting accessory recommended by the manufacturer and follow the manufacturer’s instructions for any mounting of the product.

•Do not try to roll a cart with small casters across thresholds or deep-pile carpets.

2. Product and Cart

Combination

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

PORTABLE CART WARNING

(Symbol provided by RETAC)

3. Water and Moisture

Do not use this product near water—for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.

4. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

5. Attachments

Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.

6. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

7. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

SERVICING

1. Servicing

If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or damaged in any way.

f. When the product exhibits a distinct change in performance—this indicates a need for service.

3. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

4. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating condition.


Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.

CAUTION! The following notes concern possible physical damage to the camcorder and to the user.

When carrying, be sure to always securely attach and use the provided shoulder strap. Carrying or holding the camcorder by the viewfinder and/or the

LCD monitor can result in dropping the unit, or in a malfunction.

Take care not to get your finger caught in the cassette cover. Do not let children operate the camcorder, as they are particularly susceptible to this type of injury.

Do not use a tripod on unsteady or unlevel surfaces.

It could tip over, causing serious damage to the camcorder.

CAUTION! Connecting cables (Audio/Video,

S-Video, Editing, DC, etc.) to the camcorder and leaving the unit on top of the TV is not recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage.

n This camcorder is designed exclusively for the digital video cassette. Only cassettes marked can be used with this unit.

Before recording an important scene . . .

.... make sure you only use cassettes with the Mini

DV mark .

.... remember that this camcorder is not compatible with other digital video formats.

.... remember that this camcorder is intended for private consumer use only. Any commercial use without proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)

T W

PROVIDED

ACCESSORIES

• AC Power

Adapter/Charger

AA-V20U

EN

5

•Remote Control Unit

RM-V711U

•Battery Pack

BN-V207U

• Lithium Battery CR2025

(for remote control unit)

•Shoulder Strap

•Editing Cable

•DC Cord

•PC Connection

Cable

•CD-ROM

The CD ROM contains the following 5 software programs:

•JLIP Video Capture

•JLIP Video Producer

Presto!

•Mr. Photo

•PhotoAlbum

•ImageFolio

6

EN

Battery pack BN-V207U or BN-V214U

CHARGE indicator

POWER indicator

To AC outlet

DC OUT connector

AC Power

Adapter/Charger

AA-V20U

Battery pack

BN-V207U

BN-V214U (optional)

Charging time

approx. 1 hr. 30 min.

approx. 3 hrs.

GETTING STARTED

Power

This camcorder’s 2-way power supply system lets you choose the most appropriate source of power. Do not use provided power supply units with other equipment.

CHARGING THE BATTERY PACK

1

Make sure you unplug the camcorder’s DC cord from the AC Power Adapter/Charger. Plug the AC Adapter/

Charger’s power cord into an AC outlet. The POWER indicator lights.

2

Remove the battery pack’s protective cap. Attach the battery pack with its long groove pointing toward the indicator side of the battery pack mount on the AC

Power Adapter/Charger. The CHARGE Indicator begins blinking to indicate charging has started.

3

4

When the CHARGE indicator stops blinking but stays lit, charging is finished.

Slide the battery in the opposite direction of the arrow and lift off. Remember to unplug the AC Adapter/

Charger’s power cord from the AC outlet.

NOTES:

● Perform charging where the temperature is between 10° and 30°C (50°F and 86°F). 20° to 25°C (68°F to

77°F) is the ideal temperature range for charging. If the environment is too cold, charging may be incomplete.

● Charging times noted above are for a fully discharged battery pack.

● Charging time varies according to the ambient temperature and the status of the battery pack.

● To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.

● If you connect the camcorder’s DC cord to the adapter during battery charging, power is supplied to the camcorder and charging stops.

● Since the AC Power Adapter/Charger processes electricity internally, it becomes warm during use. Be sure to use it only in well-ventilated areas.

● When charging the battery pack for the first time or after a long storage period, the CHARGE indicator may not light. In this case, remove the battery pack from the AC Power Adapter/Charger, then try charging again.

● If the battery operation time remains extremely short even after having been fully charged, the battery is worn out and needs to be replaced. Please purchase a new one.

Lithium-ion is vulnerable in colder temperatures.

About Batteries

DANGER! Do not attempt to take the batteries apart, or expose them to flame or excessive heat, as it may cause a fire or explosion.

WARNING! Do not allow the battery or its terminals to come in contact with metals, as this can result in a short circuit and possibly start a fire.

The Benefits Of Lithium-Ion Batteries

Lithium-ion battery packs are small but have a large power capacity. However, when one is exposed to cold temperatures

(below 10° C/50° F), its usage time becomes shorter and it may cease to function. If this happens, place the battery pack in your pocket or other warm, protected place for a short time, then re-attach it to the camcorder. As long as the battery pack itself is not cold, it should not affect performance.

(If you’re using a heating pad, make sure the battery pack does not come in direct contact with it.)

BATTERY RELEASE Switch

A Hook on.

B Push in.

ATTENTION:

Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction.

To DC IN connector

EN

7

USING THE BATTERY PACK

1

Hook the non-terminal end of the battery pack to the camcorder and push the battery pack in until it locks in place .

•If the battery pack is attached in the wrong position, a malfunction may occur.

To Detach The Battery Pack. . .

.... slide BATTERY RELEASE and pull out the battery pack.

Approximate recording time

Battery pack

BN-V207U

BN-V214U

(optional)

BN-V856U

(optional)

LCD monitor on/

Viewfinder off

50 min.

(25 min.)

1 hr. 55 min.

(1 hr.)

7 hrs.

(4 hrs.)

LCD monitor off/

Viewfinder on

1 hr.

(30 min.)

2 hrs. 20 min.

(1 hr. 10 min.)

8 hrs. 30 min.

(4 hrs. 30 min.)

( ) : when the video light is on.

NOTES:

● Recording time is reduced significantly under the following conditions:

• Zoom or Record-Standby mode is engaged repeatedly.

• The LCD monitor is used repeatedly.

● Before extended use, it is recommended that you prepare enough battery packs to cover 3 times the planned shooting time.

INFORMATION:

VU-V856KIT is a set composed of the BN-V856U battery pack and AA-V80U AC Power Adapter/Charger.

Read the VU-V856KIT’s instruction manuals before using.

It is impossible to charge the BN-V856U battery pack using the provided AC Power Adapter/Charger. Use the optional AA-V80U AC Power Adapter/Charger.

Core filter

AC Power Adapter/Charger

AA-V20U

To AC outlet

DC cord

USING AC POWER

Use the AC Power Adapter/Charger (connect as shown in the illustration).

NOTES:

● The provided AC Power Adapter/Charger features automatic voltage selection in the AC range from 110 V to 240 V.

● For other notes,

Z

pg. 6.

To DC OUT connector

8

EN

Power lamp

M

A

OF

Y

P LA

Power Switch

Display

FOCUS

EXPOSURE

W. BALANCE

FADER

/ WIPE

P. AE

4

/ EFFECT

TO MODE MENU

AUTO

AUTO

AUTO

OFF

OFF

0

END

MENU/BRIGHT

Dial

Recording Menu

REC MODE

WIDE MODE

ZOOM

SP

OFF

64X

DIS

GAIN UP

OFF

AGC

4

TO DATE / TIME MENU

TO SYSTEM MENU

END

– – – – –

6

– – – – –

Mode Menu

DATE/TIME

INDICATION

ON SCREEN

DISPLAY

4

DATE / TIME

ON

OFF

ON

DEC 25 ’ 99

PM 5 : 30

Date/Time Menu

RETURN

GETTING STARTED

(cont.)

Date/Time Settings

The date/time is recorded onto the tape at all times, but its

( display can be turned on or off during playback

Z

pg. 31).

1

2

3

Set the Power Switch to “ ”. The power lamp lights and the camcorder is turned on.

Press MENU/BRIGHT. The Recording Menu appears.

Move the highlight bar to “TO MODE MENU” by rotating MENU/BRIGHT. Press it and the Mode Menu appears.

4

Move the highlight bar to “TO DATE/TIME MENU” by rotating MENU/BRIGHT. Press it and the Date/

Time Menu appears.

5

Move the highlight bar to “DATE/TIME” by rotating

MENU/BRIGHT. Press it and “month” is highlighted and begins blinking.

Rotating MENU/BRIGHT, input the month. Press it.

Repeat to input the day, year, hour and minute.

Press MENU/BRIGHT twice when the highlight bar is set to “RETURN” to exit.

Built-in Clock’s Rechargeable Lithium Battery

To store the date/time in memory, the clock’s rechargeable lithium battery is integrated in the camcorder. While the camcorder is connected to an AC outlet using the AC

Power Adapter/Charger, or while the battery pack attached to the camcorder continues to supply power, the clock’s rechargeable lithium battery is always charged. However, if the camcorder is not used for approx. 3 months, the clock’s lithium battery will become discharged and the date/time stored in memory will be lost. When this occurs, first connect the camcorder to an AC outlet using the AC

Power Adapter/Charger for over 24 hours to charge the clock’s rechargeable lithium battery. Then perform the date/time setting before using the camcorder.

Note that the camcorder can be used without setting the date/time.

NOTE:

Even if you select “DATE/TIME”, if the parameter is not highlighted the camcorder’s internal clock continues to operate. Once you move the highlight bar to the first date/ time parameter (month), the clock stops. When you finish setting the minute and press MENU/BRIGHT, the date and time begin operation from the date and time you just set.

OPEN/EJECT Switch

Cassette holder

Erase protection switch*

PUSH OPEN

Button

Cassette cover

PUSH HERE

Make sure the window side is facing out.

*

To Protect Valuable Recordings . . .

.... slide the erase protection switch on the back of the tape in the direction of “SAVE”.

This prevents the tape from being recorded over. To record on this tape, slide the switch back to “REC” before loading it.

Loading/Unloading A Cassette

The camcorder needs to be powered up to load or eject a cassette.

EN

9

1

2

Press PUSH OPEN and open the LCD monitor.

Slide OPEN/EJECT in the direction of the arrow then swing the cover open until it locks. The holder opens automatically.

•Do not touch internal components.

3

Insert or remove a tape and press “PUSH HERE” to close the cassette holder.

•Once the cassette holder is closed, it recedes automatically. Wait until it recedes completely before closing the cassette cover.

•When the battery’s charge is low, you may not be able to close the cover. Do not apply force. Replace the battery with a fully charged one before continuing.

4

Close the cassette cover firmly until it locks into place. Close the LCD monitor.

Approximate recording time

Tape

DVM-30

DVM-60

SP

30 min.

60 min.

Recording mode

LP

45 min.

90 min.

NOTES:

● It takes a few seconds for the cassette holder to open. Do not apply force.

● If you wait a few seconds and the cassette holder does not open, close the cassette cover and try again. If the cassette holder still does not open, turn the camcorder off then on again.

● If the tape does not load properly, open the cassette cover fully and remove the cassette. A few minutes later, insert it again.

● When the camcorder is suddenly moved from a cold place to a warm environment, wait a short time before opening the cover.

● Closing the cassette cover before the cassette holder comes out may cause damage to the camcorder.

● Even when the camcorder is switched off, a cassette can be loaded or unloaded. After the cassette holder is closed with the camcorder switched off, however, it may not recede. It is recommended to turn the power on before loading or unloading.

● When resuming recording after opening the cassette cover, a blank portion will be recorded on the tape or a previously recorded scene will be erased (recorded over) regardless of whether the cassette holder came out or not. See page 16 for information about recording from the middle of a tape.

10

EN

Power lamp

M

A

OF

Y

P LA

MENU/BRIGHT

Dial

Power Switch

Display

FOCUS

EXPOSURE

W. BALANCE

FADER

/ WIPE

P. AE

4

/ EFFECT

TO MODE MENU

AUTO

AUTO

AUTO

OFF

OFF

0

END

Recording Menu

GETTING STARTED

(cont.)

Recording Mode Setting

Set depending on your preference.

1

2

3

Set the Power Switch to “ ”. The power lamp lights and the camcorder is turned on.



4

First move the highlight bar to “REC MODE” by rotating MENU/BRIGHT. Press it and the parameter

“SP” or “LP” is highlighted. Select “SP” or “LP” by rotating MENU/BRIGHT. Press it twice to exit from the Recording Menu.

•Audio Dubbing is impossible on a tape recorded in the LP mode.

•“LP” (Long Play) is more economical, providing

1.5 times the recording time.

NOTES:

● If the recording mode is switched during recording, the playback picture will be blurred at the switching point.

● It is recommended that tapes recorded in the LP mode on this camcorder be played back on this camcorder.

● During playback of a tape recorded on another camcorder, blocks of noise may appear or there may be momentary pauses in the sound.

4

REC MODE

WIDE MODE

ZOOM

DIS

GAIN UP

SP

OFF

64X

OFF

AGC


TO SYSTEM MENU

END

– – – – –

6

– – – – –

Mode Menu

4

REC MODE

WIDE MODE

SP

OFF

ZOOM

DIS

GAIN UP

64X

OFF

AGC


TO SYSTEM MENU

END – – – – –

6

– – – – –

SP

SP LP

Recording mode indicator

– – – – –

6

– – – – –

Power Zoom Lever

Recording

Start/Stop Button

Diopter

Adjustment

Control

Power Switch

3

2

1

4

EN

11

Grip Adjustment

1

2

3

Separate the Velcro strip.

Pass your right hand through the loop and grasp the grip.

Adjust so that your thumb and fingers can easily operate the Recording Start/Stop Button and the

Power Zoom Lever. Refasten the Velcro strip.

Viewfinder Adjustment

1

Set the Power Switch to “ ” or “ ”.

The power lamp comes on and the camcorder is turned on.

2

Slide the Diopter Adjustment Control until the indications in the viewfinder are clearly focused.

Shoulder Strap Attachment

1

Following the illustration, thread the strap through the eyelet

1

, then fold it back and thread it through the buckle

2

. Repeat the procedure to attach the other end of the strap to the other eyelet

3

, making sure the strap is not twisted.

2

Adjust as shown in the illustration

4

.

Tripod Mounting

1

Align the screw and camera direction stud on the tripod with the camera’s mounting socket and stud hole. Then tighten the screw.

CAUTION:

When using a tripod, be sure to open and extend its legs fully to stabilize the camcorder. To prevent damage to the unit caused by falling over, do not use a small-sized tripod.

12

EN

Recording

Start/Stop Button

Power Switch

Display

25 min

During shooting min

90 min

(Now calculating)

0 min

(Blinking)

Tape remaining time indicator (Approximate)

89 min

3 min

1 min

(Blinking)

2 min

(Blinking)

RECORDING

Basic Recording

Shooting While Watching The

Viewfinder

NOTE:

You should already have performed the procedures listed below. If not, do so before continuing.

● Power (

Z

pg. 6)

● Load A Cassette (

● Recording Mode Setting (

● Grip Adjustment (

Z

Z

pg. 9)

● Viewfinder Adjustment (

Z

pg. 11)

Z

pg. 10)

pg. 11)

1

Make sure the LCD monitor is closed and locked.

Press in the tabs on the lens cap to remove it, then set the Power Switch to “ ” or “ ”. The power lamp lights and the camcorder enters the Record-Standby mode. “PAUSE” is displayed in the viewfinder.

2

3

Press the Recording Start/Stop Button. “ ” appears in the viewfinder while recording is in progress.

Press the Recording Start/Stop Button again to stop recording. The camcorder re-enters the Record-

Standby mode.

180

°

90

°

BRIGHT

– – – – –

6

– – – – –

MENU/

BRIGHT Dial

Power Switch

Recording Start/Stop

Button

To Adjust The Brightness Of The Display

.... rotate MENU/BRIGHT until the brightness indicator on the display moves and the appropriate brightness is reached.

•It is also possible to adjust the brightness of the viewfinder.

Shooting While Watching The

LCD Monitor

Before the following steps, perform the procedures listed in the above note.

1

Make sure the LCD monitor is fully open. Press in the tabs on the lens cap to remove it, then set the Power

Switch to “ ” or “ ”. The power lamp lights and the camcorder enters the Record-Standby mode.

“PAUSE” is displayed in the LCD monitor.

2

Tilt the LCD monitor upward/downward for best viewability and press the Recording Start/Stop Button.

“ ” appears in the LCD monitor while recording is in progress.

3

Press the Recording Start/Stop Button again to stop recording. The camcorder re-enters the Record-

Standby mode.

NOTE:

When you use the LCD monitor outdoors in direct sunlight, the LCD monitor may be difficult to see. If this happens, use the viewfinder instead.

Power Switch Position

A

FF

M

AY

PL

(Full Auto mode):

Suitable for standard recording using NO special effects or manual adjustments. When set to this mode, “F.AUTO” appears.

M

A

(Manual mode):

OF

Y

PLA

Allows you to set recording functions using the menus for more creative capabilities.

When set to this mode,

“MANUAL” appears.

OFF:

O

FF

A

Switches off the camcorder.

Setting to this position resets

Manual Focus and Exposure

Control to “AUTO”.

PLAY:

AY

OF

F

M

Allows you to play back your recordings.

EN

13

NOTES:

● The image will not appear simultaneously in the LCD monitor and the viewfinder.

● The cassette holder cannot be opened unless a power supply is attached.

● There may be a delay after you open the cassette cover until the holder opens. Do not use force.

● Once the cassette holder is closed, it recedes automatically. Wait until it recedes completely before closing the cassette cover.

● The time required to calculate and display the remaining tape length, and the accuracy of the calculation, may vary according to the type of tape used.

● “TAPE END” appears when the tape reaches its end, and the power goes off automatically if left in this condition for 5 minutes. “TAPE END” also appears when a cassette at its end is loaded.

● If the Record-Standby mode continues for 5 minutes, the camcorder’s power shuts off automatically. To turn the camcorder on again, set the Power Switch to “OFF”, then back to “ ” or “ ”.

● When a blank portion is left between recorded scenes on the tape, the time code is interrupted and errors may occur when editing the tape. To avoid this, refer to

“Recording from the middle of a tape” (

Z

pg. 16).

● During recording, sound is not heard from the speaker.

Self-Recording

JOURNALISTIC SHOOTING

In some situations, different shooting angles may provide more dramatic results. Hold the camcorder in the desired position and tilt the LCD monitor in the most convenient direction. It can rotate 270° (90° downward, 180 upward).

SELF-RECORDING

You can shoot yourself while viewing your own image in the LCD monitor. Open the LCD monitor and tilt it upward 180° so that it faces forward, then point the lens toward yourself and start recording.

14

EN

Zoom in (T: Telephoto)

D

T

1X

W

D

T

10X

W

Digital zoom zone

16X (optical) zoom zone

D

T

D

T

16X

W

W

16X

D

T

64X

W

Zoom out (W: Wide angle)

Zoom display

Approximate zoom ratio

Power Zoom Lever

RECORDING

Basic Recording (cont.)

FEATURE:

Zooming

PURPOSE:

To produce a zoom in/out effect, or an instantaneous change in image magnification.

OPERATION:

Zoom In

Slide the Power Zoom Lever towards “T”.

Zoom Out

Slide the Power Zoom Lever towards “W”.

n

The further you slide the Power Zoom Lever, the quicker the zoom action.

NOTES:

● Focusing may become unstable during Zooming. In this case, set the zoom while in Record-Standby,

( lock the focus by using the manual focus

Z

pg. 25), then zoom in or out in Record mode.

● In Full Auto mode (when the Power Switch is set to

“ ”), zoom magnification of up to 64X is possible.

In Manual mode (when the Power Switch is set to

“ ”), zooming is possible to a maximum of 400X, or 16X magnification offered by optical zoom.

● Zoom magnification of over 16X is done through digital image processing, and is therefore called

Digital Zoom.

● During Digital Zoom, the quality of the image may suffer.

● Digital Zoom cannot be used while functions done through digital image processing (Picture Wipe/

Dissolve function,

Z

pg. 22, Video Echo,

Z

pg. 24, etc.) are activated.

● Macro shooting (as close as approx. 5 cm (2") to the subject) is possible when the Power Zoom Lever is set all the way to “W”. See also “TELE MACRO” in the System Menu on page 20.

Power Switch

LIGHT OFF/AUTO/ON Switch

DANGER

n The video light can become extremely hot. Do not touch it either while in operation or soon after turning it off, otherwise serious injury may result.

n Do not place the camcorder into the carrying case immediately after using the video light, since it remains extremely hot for some time.

n When operating, keep a distance of about 30 cm (11-13/16") between the video light and people or objects.

n Do not use near flammable or explosive materials.

n It is recommended that you consult your nearest JVC dealer for replacing the video light.

EN

15

FEATURE:

Video Light

PURPOSE:

To brighten the scene when natural lighting is too dim.

OPERATION:

Set LIGHT OFF/AUTO/ON as required:

OFF

: Turns off the light.

AUTO : Automatically turns on the light when the camcorder senses insufficient lighting on the subject.

ON

: Always keeps the light on as long as the camcorder is turned on.

n

The video light can only be used with the n n camcorder’s power on.

(

It is recommended to set the white balance

Z

pg. 28) to when you use the video light.

When not using the video light, turn it off to save battery power.

NOTES:

● Even if the battery indicator (

) does not blink due to low battery charge, the camcorder may turn off automatically when you turn on the video light, or when you start recording with the video light turned on.

● When LIGHT OFF/AUTO/ON is set to “AUTO”:

• Depending on the lighting conditions, the video light may keep turning on and off. In this case, manually switch the light on or off using LIGHT

OFF/AUTO/ON.

• While the “SHUTTER” mode (

Z

pg. 24) is engaged, the light is likely to stay on.

• While the “TWILIGHT” mode (

Z

pg. 24) is engaged, the light will not activate.

16

EN

RECORDING

Basic Recording (cont.)

NOTE: Recording From The Middle Of A Tape

Time Code

During recording, a time code is recorded on the tape. This code is to confirm the location of the recorded scene on the tape during playback.

If recording starts from a blank portion, the time code begins counting from “00:00:00”

(minute:second:frame). If recording starts from the end of a previously recorded scene, the time code continues from the last time code number.

To perform Random Assemble Editing (

Z

pg. 42 – 47), time code is necessary. If during recording a blank portion is left partway through the tape, the time code is interrupted. When recording is resumed, the time code starts counting up again from “00:00:00”. This means the camcorder may record the same time codes as those existing in a previously recorded scene. To prevent this, perform “Recording From The

Middle of A Tape” below in the following cases;

•When shooting again after playing back a recorded tape.

•When power shuts off during shooting.

•When a tape is removed and re-inserted during shooting.

•When shooting using a partially recorded tape.

•When shooting on a blank portion located partway through the tape.

•When shooting again after shooting a scene then opening/closing the cassette cover.

Display

TC 12 : 34 : 24

Time code is displayed during playback.

Minutes

Seconds

Frames

(30 frames = 1 second)

Recording From The Middle Of A Tape

1. Play back a tape to find the spot at which you want to start recording, then engage the Still Playback mode (

Z

pg. 29).

2. Set the Power Switch to “ ” or “ ”, then start recording.

NOTES:

● The time code cannot be reset.

● During fast-forwarding and rewinding, the time code indication does not move smoothly.

When a blank portion is recorded on a tape

Time code

00:00:00

Time code

05:43:21

Time code

00:00:00

Tape Already recorded scene Blank

Shooting stop point

Newly recorded scene

Shooting start point Shooting start point

Proper recording

Time code

00:00:00

Time code

05:43:21

Time code

05:44:00

Tape Already recorded scene New scene Latest scene

Shooting start point Shooting start point Shooting start point

RECORDING

Advanced Features

SNAPSHOT

Button

EN

17

Snapshot

Use your camcorder like a regular camera to take a snapshot, or several of them in succession.

MODE Button

SNAPSHOT MODE SELECTION

1

2

Set the Power Switch to “ ” or “ ”.

Choose the appropriate Snapshot mode from the 5 available by repeatedly pressing MODE until the desired snapshot mode indicator appears.

Power Switch

Display

FULL


,,

,,,

,,,

PIN-UP

Pin-Up mode*

,,,

Snapshot mode

During snapshot

MULTI-4

Multi-Analyzer 4

SNAPSHOT RECORDING

1

Press SNAPSHOT.

If you press during Record-Standby . . .

.... “PHOTO” appears and a still image will be recorded for approx. 6 seconds, then the camcorder re-enters the Record-Standby mode.

If you press during Recording . . .

.... “PHOTO” appears and a still image will be recorded for approx. 5 seconds, then normal recording resumes.

Motor Drive Mode

Keeping SNAPSHOT pressed provides an effect similar to serial photography. (Interval between still images: approx.

1 second)

NOTES:

● Even if “MULTI-4” or “MULTI-9” is engaged, Snapshot recording will be performed in the FULL mode during

Digital Zoom.

● If Snapshot recording is not possible, “PHOTO” blinks when SNAPSHOT is pressed.

● Even if Program AE with special effects (

Z

pg. 24) is engaged, certain modes of Program AE with special effects are disabled during Snapshot recording. In such a case, the icon blinks.

● During playback as well, all Snapshot modes are available. The shutter sound is not heard.

,,,,

,,,

FRAME

Snapshot mode with frame*

,,,,

,,,,

,,,

FULL

,,,,

Snapshot mode with no frame*

MULTI-9

Multi-Analyzer 9

* :There is a momentary camera shutter-type blackout together with the sound effect of a shutter closing, which is recorded together with the image.

18

EN

END

Display

4

FOCUS

EXPOSURE

W. BALANCE

FADER

/ WIPE

P. AE

/ EFFECT

TO MODE MENU

MANUAL

AUTO

AUTO

OFF

OFF

0

END

4

REC MODE

WIDE MODE

SP

OFF

ZOOM

DIS

GAIN UP

64X

OFF

AGC


TO SYSTEM MENU

– – – – –

6

– – – – –

MENU/BRIGHT

Dial

Power Switch

RECORDING

Advanced Features (cont.)

Using Menus For Detailed

Adjustment

This camcorder is equipped with an easy-to-use, on-screen menu system that simplifies many of the more detailed camcorder settings.

Recording Menu

1

2

3

Set the Power Switch to “ ”.


Rotate MENU/BRIGHT to move the highlight bar to the desired function.

•If the setting you want cannot be found in the Menu

Screen, place the highlight bar on “END”, then go to step 7.

Mode Menu

4

DATE/TIME

INDICATION

ON SCREEN

DISPLAY

DATE / TIME

ON

OFF

ON

DEC 25 ’ 99

PM 5 : 30

RETURN

Date/Time Menu

4

SYSTEM MENU

TELE MACRO

WIND CUT

SOUND MODE

ID NUMBER

DEMO. MODE

OFF

OFF

32kHz

06

OFF

RETURN

System Menu

4

Press MENU/BRIGHT. The setting procedure depends on the function you select.

If you select “FOCUS”, “EXPOSURE”,

“W.BALANCE”, “FADER/WIPE” or “P.AE/EFFECT” . . .

.... see respective pages (FOCUS:

EXPOSURE:

Z

pg. 25,

Z

pg. 26, W.BALANCE:

Z

pg. 28,

FADER/WIPE:

Z

pg. 22, P.AE/EFFECT:

Z

pg. 24) and do each procedure from step 4.

If you select “TO MODE MENU” . . .

.... the Mode Menu appears. Go to step 5.

5

Rotate MENU/BRIGHT to move the highlight bar to the desired function and press it.

If you select a function other than “TO DATE/TIME

MENU” or “TO SYSTEM MENU” . . .

.... its parameter starts blinking. Rotate MENU/

BRIGHT until the desired parameter appears. Go to step 7.

If you select “TO DATE/TIME MENU” . . .

.... the Date/Time Menu appears. Go to step 6.

If you select “TO SYSTEM MENU” . . .

.... the System Menu appears. Go to step 6.

FOCUS

EXPOSURE

W. BALANCE

FADER

/ WIPE

P. AE

/ EFFECT

TO MODE MENU

MANUAL

AUTO

AUTO

OFF

OFF

0

4

END

REC MODE

WIDE MODE

ZOOM

SP

OFF

64X

DIS

GAIN UP

OFF

AGC


4

TO SYSTEM MENU

END

DEC 25 ’ 98

: 30

– – – – –

6

– – – – –

Normal Screen

6

Rotate MENU/BRIGHT to move the highlight bar to the desired function, then press it.

If you select “DATE/TIME” . . .

Z

pg. 8

If you select other functions . . .

.... rotate MENU/BRIGHT until the desired parameter appears, then press it. The highlight bar automatically moves to “RETURN”. Go to step 7.

7

Press MENU/BRIGHT as many times as necessary to return to the normal screen.

EN

19

Recording Menu Explanations

FOCUS

EXPOSURE

W.BALANCE

FADER/WIPE

P.AE/EFFECT

TO MODE MENU

Refer to “Focusing” (

Z

pg. 25).

Refer to “Exposure Control” and “Iris Lock” (

Z

pg. 26, 27).

Refer to “White Balance Adjustment” and “Manual White Balance Operation” (

Z

pg. 28).

Refer to “Fade/Wipe Effects” (

Z

pg. 22, 23).

Refer to “Program AE With Special Effects” (

Z

pg. 24).

Refer to “Mode Menu Explanations” below.

Mode Menu Explanations

REC MODE

WIDE MODE

Allows you to set the recording mode (SP or LP) depending on your preference (

Z

pg. 10).

OFF

Select “OFF” when you want to use neither “SQUEEZE” nor “CINEMA”.

SQUEEZE

For playback on TVs with an aspect ratio of 16:9. Naturally expands the image to fit the screen without distortion. appears. When using this mode, refer to your wide-screen TV’s instruction manual. During playback/ recording on 4:3 TVs/LCD monitor/viewfinder, the image is elongated vertically.

ZOOM

DIS

GAIN UP

TO DATE/TIME MENU

TO SYSTEM MENU

CINEMA

16X

64X

400X

OFF

ON

AGC

AUTO

Inserts black bands at the top and bottom of the screen. During playback on wide-screen TVs, the black bands at the top and bottom of the screen are cut and the screen ratio becomes 16:9. When using this mode, refer to your wide-screen TV’s instruction manual. During playback/recording on 4:3 TVs/

LCD monitor/viewfinder, black bands are inserted at the top and bottom of the screen and the image appears like a letterboxed 16:9 movie.

When set to “16X” while using Digital Zoom, the zoom magnification will reset to 16X since Digital Zoom will be disengaged.

Allows you to use the Digital Zoom. By digitally processing and magnifying images, zooming is possible from 16X (the optical zoom limit), to a maximum of 64X digital magnification.

Allows you to use the Digital Zoom. By digitally processing and magnifying images, zooming is possible from 16X (the optical zoom limit), to a maximum of 400X digital magnification.

To compensate for unstable images caused by camera-shake, particularly at high magnification.

NOTES:

● Accurate stabilization may not be possible if hand shake is excessive, or under the following conditions:

• When shooting subjects with vertical or horizontal stripes.

• When shooting dark or dim subjects.

• When shooting subjects with excessive backlighting.

• When shooting scenes with movement in various directions.

• When shooting scenes with low-contrast backgrounds.

● Switch off the Digital Image Stabilizer (DIS) when recording with the camcorder on a tripod.

● The “

” indicator appears blinking if the Stabilizer cannot be used.

This is automatically activated during Full Auto mode. The overall appearance may be grainy, but the image is bright.

The shutter speed is automatically adjusted (1/30 — 1/200 sec.). Shooting a subject in low or poor lighting at 1/30 sec. shutter speed provides a brighter image than in the AGC mode, but the subject’s movements are not smooth or natural. When set to this mode, “ ” is displayed.

OFF

Allows you to shoot dark scenes with no picture brightness adjustment.

Refer to “Date/Time Menu Explanations” (

Z

pg. 20).

Refer to “System Menu Explanations” (

Z

pg. 20).

: Factory preset

CONTINUED ON NEXT PAGE

20

EN

Date/Time Menu Explanations

INDICATION

ON SCREEN

*

ON

OFF

OFF

RECORDING


Makes all the indications appear in the camcorder (

Z

pg. 21).

Keeps all the indications (except the tape running indicator, warnings, etc.) from appearing in the camcorder (

Z

pg. 21).

Keeps the camcorder’s display from appearing on the connected TV screen.

DISPLAY

DATE/TIME

ON

ON

Makes the camcorder’s display appear on screen when the camcorder is connected to a TV.

Makes the date/time settings appear in the camcorder (

Z

pg. 21).

OFF

Keeps the date/time settings from appearing in the camcorder.

Allows you to set the current date and time (

Z

pg. 8).

* You can also change “ON SCREEN” to “ON” or “OFF” by pressing the DISPLAY button on the RM-V711U remote control.

System Menu Explanations

TELE MACRO

WIND CUT

SOUND MODE

ID NUMBER

DEMO. MODE

OFF

ON

OFF

ON

Usually the distance to a subject where the lens is in focus depends on the zoom magnification. Unless there is a distance more than 1m (3.25

ft) to the subject, the lens is out of focus at the maximum telephoto setting. When set to “ON”, you can shoot a subject as large as possible at a distance of approx. 60 cm (23-5/8”).

•Depending on the zoom position, the lens may go out of focus.

Disengages the function which cuts down on noise created by wind.

Helps cut down on noise created by wind.

•“ ” appears.

•The quality of the sound will change. This is normal.

32 kHz

Enables recording of stereo sound on four separate channels, and is recommended for use when performing audio dubbing.

Enables recording of stereo sound on two separate channels.

48 kHz

This number is necessary when connecting the camcorder to a device such as a computer using the J terminal (JLIP). The numbers range from 01 to 99. Factory setting is 06.

OFF

Automatic demonstration will not take place.

ON

Demonstrates certain functions such as Program AE with special effects, etc., and can be used to confirm how these functions operate. When

“DEMO. MODE” is set to “ON” and the Recording Menu is closed, demonstration starts.

NOTES:

● If a tape is in the camcorder, the demonstration cannot be turned on.

● By turning off the camcorder, “DEMO. MODE” is set to “OFF” automatically.

: Factory preset

MENU/BRIGHT Dial

Power Switch

NOTES:

● The Date/Time is always displayed when the

Power Switch is set to “ ”.

● Connect the camcorder to a TV and set “ON

SCREEN” to “ON” in the Date/Time Menu.

The display appears on the connected TV .

● Even if “ON SCREEN” is set to “ON”, the indications are removed from the TV if

“INDICATION” is set to “OFF”.

Date/Time Display During Recording

EN

21

You should already have set the date and time (“Date/Time

Settings”,

Z

pg. 8).

1

2

3




4

Move the highlight bar to “TO DATE/TIME MENU” by rotating MENU/BRIGHT. Press it and the Date/

Time Menu appears.

5

6

Move the highlight bar to “DISPLAY” by rotating

MENU/BRIGHT, then press it.

Move the highlight bar to “ON” or “OFF” by rotating

MENU/BRIGHT. Press it and the highlight bar automatically moves to “RETURN”.

7

Press MENU/BRIGHT twice. Selection is complete and the menu disappears.

NOTES:

● It is impossible to make the tape running indicator “444”, warnings, etc. disappear from the LCD monitor or the viewfinder. For indications that can be removed,

Z

pg. 60.

● If “INDICATION” is set in the Date/Time

Menu, “INDICATION” in the Playback Menu

( will also be set to the same setting

Z

pg. 31).

LCD Monitor/Viewfinder Indications

You can make the LCD monitor/Viewfinder indications appear/disappear.

Before the following steps, perform steps 1 through 4 above.

5

6

Move the highlight bar to “INDICATION” by rotating

MENU/BRIGHT, then press it.

Rotate MENU/BRIGHT to display the desired setting.

OFF : To make the indications disappear.

ON : To make the indications appear.

Then press it and the highlight bar automatically moves to “RETURN”.

7

Press MENU/BRIGHT twice. Selection is complete and the menu disappears.

22

EN

Fade/Wipe Effects

These effects let you make pro-style scene transitions. Use them to spice up the transition from one scene to the next. You can also vary transitions from scene to scene.

RECORDING


FADE/WIPE SELECTION ( , , , ,

, , , , , and )

Fade or Wipe works when recording is started or when you stop recording.


IMPORTANT:

Some Fade/Wipe Effects cannot be used with certain modes of Program AE with special effects (

Z

pg. 24). If an unusable Fade/Wipe

Effect is selected, its indicator blinks.


1

2

3

4


Rotate MENU/BRIGHT to move the highlight bar to

“FADER/WIPE”, then press it.

Rotate MENU/BRIGHT to move the highlight bar to the desired function, then press it.

•The FADER/WIPE Menu disappears and the effect is reserved. The indicator representing the selected effect appears.

Power Switch

5

Press the Recording Start/Stop Button to activate the

Fade-in/out or Wipe-in/out.

Recording Start/Stop Button

NOTES:

● You can extend the length of a Fade or Wipe by pressing and holding the Recording Start/

Stop Button.

● If the power is turned off after a scene is finished recording, the stored point is erased, disabling the Picture Wipe/Dissolve combination. When this happens, the Picture Wipe/

Dissolve indicator blinks. Also note that power shuts off automatically if 5 minutes elapse in the Record-Standby mode.

● The sound at the end of the last recorded scene is not stored.

PICTURE WIPE OR DISSOLVE SELECTION

( , , , , , and )

The Picture Wipe or Dissolve works when recording is started.

1

2

Follow steps 1 through 4 above.

Engage the Record-Standby mode.

If you select Picture Wipe/Dissolve during recording . . .

.... press the Recording Start/Stop Button when one scene is finished. The point at which the scene ended is stored in memory.

If you select Picture Wipe/Dissolve during Record-

Standby mode . . .

.... press the Recording Start/Stop Button to start recording and press it again when one scene is finished. The point at which the scene ended is stored in memory.

If you select Picture Wipe/Dissolve during Record-

Standby mode after performing a Picture Wipe/

Dissolve . . .

.... the point at which the scene ended is already stored in memory.

3

If you start recording a new scene within 5 minutes of the end of the previous recording (without having turned the camcorder’s power off), the previous scene wipes out, revealing the new scene.

EN

23

Fader And Wipe Menu

Menu Effect

Fade in or out with a white screen.

FADER — WHITE

FADER — BLACK

Fade in or out with a black screen.

FADER — MOSAIC

Fade in or out with a full-screen mosaic effect.

FADER — B.W

WIPE — CORNER

WIPE — WINDOW

Fade in to a color screen from a black and white screen, or fade out from color to black and white.

Wipe in on a black screen from the upper right to the lower left corner, or wipe out from lower left to upper right, leaving a black screen.

The scene starts in the center of a black screen and wipes in toward the corners, or comes in from the corners, gradually wiping out to the center.

Wipe in from right to left, or wipe out from left to right.

WIPE — SLIDE

WIPE — DOOR

WIPE — SCROLL

WIPE — SHUTTER

Wipe in as the two halves of a black screen open to the left and right, revealing the scene, or wipe out and the black screen reappears from left and right to cover the scene.

The scene wipes in from the bottom to the top of a black screen, or wipes out from top to bottom, leaving a black screen.

Wipe in from the center of a black screen toward the top and bottom, or wipe out from the top and bottom toward the center leaving a black screen.

The new scene gradually appears as the old one gradually disappears.

DISSOLVE

WIPE — CORNER

WIPE — WINDOW

WIPE — SLIDE

WIPE — DOOR

WIPE — SCROLL

WIPE — SHUTTER

RANDOM

The new scene wipes in over the previous one from the upper right corner to the lower left corner.

The next scene gradually wipes in from the center of the screen toward the corners, covering the previous scene.

The next scene gradually wipes in over the previous one from right to left.

The previous scene wipes out from the center to the right and left, like a door being pushed open to reveal the next scene.

The new scene wipes in over the last one from the bottom of the screen to the top.

The new scene wipes in over the previous one from the center toward the top and bottom of the screen.

When this function is activated, the camcorder randomly selects the effect used in scene transition (from , , , , , , , ,

, and ). The Picture Wipe/Dissolve function is not available.

24

EN

IMPORTANT:

Some modes of Program AE with special effects

( cannot be used with certain Fade/Wipe Effects

Z

pg. 23). If an unusable mode is selected, its indicator blinks.

RECORDING


Program AE With Special Effects

1


MENU/BRIGHT

Dial

Power Switch

2

3

4



“P.AE/EFFECT”, then press it.

Move the highlight bar to the desired mode by rotating MENU/BRIGHT, then press it.

The P.AE/EFFECT Menu disappears and the selected mode is activated. The selected mode indicator appears.

Display

P. AE / EFFECT

1/500 SHUTTER 1/500

TWILIGHT

SEL.

4

B/W

1

SEPIA

MONOTONE

CLASSIC FILM

STROBE

SLOW 4X

PAUSE

5

To turn off the selected mode, re-access the P.AE/

EFFECT Menu and move the highlight bar to “OFF” by rotating MENU/BRIGHT. Then press it.

NOTE:

Program AE with special effects can be changed during recording or during Record-Standby.

P.AE/EFFECT Menu

SHUTTER (Variable Shutter Speed)

1/60–The shutter speed is fixed at 1/60th of a second. Black bands that usually appear when shooting a TV screen become narrower.

1/100–The shutter speed is fixed at 1/100th of a second. The flickering that occurs when shooting under a fluorescent light or mercury-vapor lamp is reduced.

1/250, 1/500–These settings allow fast-moving images to be captured one frame at a time, for vivid, stable slow-motion playback. The faster the shutter speed, the darker the picture becomes. Use the shutter function under good lighting conditions.

TWILIGHT

Makes evening scenes look more natural.

White Balance (

Z

pg. 28) is initially set to , but can be changed to your desired setting. When

Twilight is chosen, the camcorder automatically adjusts the focus from approx. 10 m (32 ft) to infinity. From less than 10 m (32 ft), adjust the focus manually.

SEPIA

Recorded scenes have a brownish tint like old photos. Combine this with the Cinema mode for a classic look.

MONOTONE

Like classic black and white films, your footage is shot in B/W. Used together with the Cinema mode, it enhances the “classic film” effect.

CLASSIC FILM

Gives recorded scenes a strobe effect.

STROBE

Your recording looks like a series of consecutive snapshots.

SLOW (Slow Shutter)

You can light dark subjects or areas even brighter than they would be under good natural lighting.

SLOW 4X

The Shutter Speed is set to 1/15th of a second to quadruple the sensitivity.

SLOW 10X

The Shutter Speed is set to 1/6th of a second to provide 10 times the sensitivity.

NOTES:

● When using “SLOW”, the image takes on a strobe-like effect.

● Use “SLOW” only in dark areas.

● The Manual Focus indication may appear and flash when “SLOW” is in use.

● If the image is out of focus, adjust manually. It is also recommended that you use a tripod, if possible.

VIDEO ECHO

Adds a “ghost” to the subject, giving your recording a “fantasy” feeling.

Focus detection zone

NOTES:

● If the lens is smeared or blurred, accurate focusing is not possible. Keep the lens clean, wiping with a piece of soft cloth if it gets dirty. When condensation occurs, wipe with a soft cloth or wait for it to dry naturally.

● When shooting a subject close to the lens, zoom out first (

Z

pg. 14). If zoomed-in in the auto focus mode, the camcorder may automatically zoom out depending on the distance between the camcorder and the subject. This will not occur when “TELE

MACRO” (

Z

pg. 20) is activated.

FOCUS

MENU/BRIGHT

Dial

Power Switch

FOCUS

NOTES:

● When the power is turned off, Manual Focus will be reset to “AUTO”.

● Be sure to focus the lens in the maximum telephoto position when you use the Manual

Focus mode. If you focus in on a subject in the wide-angle position, sharply focused images cannot be obtained when zoomed up because the depth-of-field is reduced at longer focal lengths.

● When the focus level cannot be adjusted any further or closer, “ ” or “ ” will blink.

EN

25

Focusing

AUTO FOCUS

The camcorder’s Full Range AF system offers continuous shooting ability from close-up (as close as approx. 5 cm

(2") to the subject) to infinity. However, correct focus may not be obtainable in the situations listed below (in these cases use manual focusing):

•When two subjects overlap in the same scene.

•When illumination is low.*

•When the subject has no contrast (difference in brightness and darkness), such as a flat, one-color wall, or a clear, blue sky.*

•When a dark object is barely visible in the viewfinder.*

•When the scene contains minute patterns or identical patterns that are regularly repeated.

•When the scene is affected by sunbeams or light reflecting off the surface of a body of water.

•When shooting a scene with a high-contrast background.

* The following low-contrast warnings appear blinking:

, , and

MANUAL FOCUS

If you are using the viewfinder, you should already have made the necessary viewfinder adjustments (

Z

pg. 11).

3

4

1

2




“FOCUS”, then press it.

Rotate MENU/BRIGHT to display “MANUAL”, then press it. The Recording Menu disappears and

“FOCUS” is displayed in the upper left corner. The focus is locked at this point.

5

To focus on a farther subject, rotate MENU/BRIGHT downward. “ ” appears and blinks.

To focus on a nearer subject, rotate MENU/BRIGHT upward. “ ” appears and blinks.

6

Press MENU/BRIGHT. Focus adjustment is complete.

The indication changes from “FOCUS” to

“MANUAL”.

•If you want to reset the focus, repeat from step 2.

To Change To Auto Focus . . .

.... rotate MENU/BRIGHT to display “AUTO” then press it in step 4. The manual focus indicators disappear. Or, set the Power Switch to “ ”.

26

EXP.

6

EXP.

0

EXP.

6

EN


Power Switch

Exposure control indicator

To darken the image

RECORDING


Exposure Control

This feature automatically adjusts the iris for the best available picture quality, but you can override it and make the adjustment manually. Manual exposure adjustment is recommended in the following situations:

• When shooting using reverse lighting or when the background is too bright.

• When shooting on a reflective natural background such as at the beach or when skiing.

• When the background is overly dark or the subject light.

1

2

3

4




“EXPOSURE”, then press it.

Rotate MENU/BRIGHT to display “MANUAL”, then press it. The Recording Menu disappears. “EXP.” and the highlight bar on the exposure control indicator are displayed.

5

To brighten the image, rotate MENU/BRIGHT downward. The exposure control indicator increases

(maximum +6).

To darken the image, rotate MENU/BRIGHT upward.

The exposure control indicator decreases (maximum

–6).

6

Press MENU/BRIGHT. Exposure adjustment is complete. The indication “EXP.” changes to

“MANUAL” and the highlight bar on the exposure control indicator goes out.

•If you want to reset the exposure, repeat step 2.

To brighten the image

To Return To Automatic Exposure Control . . .

.... rotate MENU/BRIGHT to display “AUTO” then press it in step 4. The exposure control indicator disappears.

Or, set the Power Switch to “ ”.

NOTE:

When the power is turned off, Exposure Control will be reset to “AUTO”.


EXP.

0 L

Power Switch

Iris lock indicator

EN

27

Iris Lock

Use this function in the following situations:

● When shooting a moving subject.

● When the distance to the subject changes (so its size in the LCD monitor or the viewfinder changes), such as when the subject is backing away.

● When shooting on a reflective natural background such as at the beach or when skiing.

● When shooting objects under a spotlight.

● When zooming.

When the subject is close, keep the iris locked. Even when the subject moves away from you, the image will not darken or brighten.

(

Before the following steps, perform steps 1 through 4

Z

pg. 26).

5

Adjust zoom so that the subject fills the LCD monitor or the viewfinder, then press and hold MENU/

BRIGHT for over 2 seconds. The exposure control indicator and “ ” appear, indicating that the iris is locked.

Press MENU/BRIGHT. The indication displayed in the upper left corner changes from “EXP.” to

“MANUAL”.

To Return To Automatic Iris Control . . .

.... rotate MENU/BRIGHT to display “AUTO” then press it in step 4. The exposure control indicator and “ ” disappear. Or, set the Power Switch to “ ”.

To Lock The Exposure Control And The Iris . . .

.... after step 4, adjust the exposure rotating MENU/

BRIGHT. Then lock the iris in step 5. For automatic locking, rotate MENU/BRIGHT to display “AUTO ”, then press it in step 4. The iris becomes automatic after about 2 seconds.

Iris

Like the pupil of the human eye, it contracts in well-lit environments to keep too much light from entering, and dilates in dim environments to allow in more light.

1

2

3

4

28

EN

White Balance Adjustment

A term that refers to the correctness of color reproduction under various lighting. If the white balance is correct, all other colors will be accurately reproduced.

The white balance is usually adjusted automatically.

However, more advanced camcorder operators control this function manually to achieve a more professional color/tint reproduction.


RECORDING


Manual White Balance Operation

Perform Manual White Balance when shooting under various types of lighting.

1

2

Follow steps 1 through 5 of the white balance adjustment, and select “ MAN.”.

Hold a sheet of plain white paper in front of the subject. Adjust zoom or position yourself so that the white paper fills the screen.


Rotate MENU/BRIGHT to move the highlight bar to “W.BALANCE”, then press it.

The Recording Menu disappears. “W.BAL.” appears in the upper left corner and the currently selected mode indication is also displayed.

3

4

Press MENU/BRIGHT until begins blinking.

When the setting is completed, stops blinking.

Press MENU/BRIGHT. The indication “W.BAL.” changes to “MANUAL” and only the Manual

White Balance indicator is displayed.


5


“AUTO” – White balance is adjusted automatically (factory preset).

“ ” – White balance is set manually.

“ ” – Outdoors on a sunny day.

“ ” – Outdoors on a cloudy day.

“ ” – A video light or similar type of lighting is used.

6

Press MENU/BRIGHT again. Selection is complete. The indication “W.BAL.” changes to

“MANUAL”.

To Return To Automatic White Balance . . .

.... select “AUTO” in step 5. Or, set the Power

Switch to “ ”.

NOTE:

White balance cannot be used when Sepia or

Monotone (

Z

pg. 24) is activated.

Power Switch

White paper

To Change The Tint For Recording . . .

.... in step 2, substitute colored paper for white. The white balance is adjusted based on the color, changing the tint. Red paper = deeper green; blue paper = orange; yellow paper = deeper purple.

NOTES:

● In step 2, it may be difficult to focus on the white paper. In such a case, adjust focus manually

(

Z

pg. 25).

● A subject can be shot under various types of lighting conditions indoors (natural, flourescent, candlelight, etc.). Because the color temperature is different depending on the light source, the subject tint will differ depending on the white balance settings. Use this function for a more natural result.

● Once you adjust white balance manually, the setting is retained even if the power is turned off or the battery removed.

PLAYBACK

Basic Playback

Power Zoom Lever (VOL.)

Power lamp

PL

AY

OF

F

M

Power Switch

Speaker

Rewind Button

Fast-Forward Button

Play/Pause Button

Stop Button

EN

29

1

2

Load a tape (

Z

pg. 9).

Set the Power Switch to “ press 4/6.

”. To start playback,

•To stop playback, press 5.

•Press 2 to rewind, or 3 to fast-forward the tape during Stop mode.

To Control The Speaker Volume . . .

.... slide the Power Zoom Lever (VOL.) towards “+” to turn up the volume, or towards “–” to turn down the volume.

Still Playback: Pauses during playback.

1) Press 4/6 during playback.

2) To resume normal playback, press 4/6 again.

● If still playback continues for more than about 3 minutes, the camcorder’s Stop mode is automatically engaged. After 5 minutes in the Stop mode, the camcorder’s power is automatically turned off.

● When 4/6 is pressed, the image may not pause immediately while the camcorder stabilizes the still image. During this time, if PAUSE (6) on the remote control is pressed, Slow-Motion Playback will start. This is not a malfunction.

Shuttle Search: Allows high-speed search in either direction.

1) Press 3 for forward or 2 for reverse search during playback.

2) To resume normal playback, press 4/6.

● During playback, press and hold 2 or 3. The search continues as long as you hold the button.

Once you release it, normal playback resumes.

● A slight mosaic effect appears on screen during Shuttle Search. This is not a malfunction.

Slow-Motion Playback, Frame-By-Frame Playback, Playback Zoom and

Playback Special Effects

Available only with the RM-V711U remote control (provided) (

Z

pg. 40, 41).

NOTES:

● If Stop mode continues for 5 minutes when power is supplied from a battery, the camcorder shuts off automatically. To turn on again, set the Power Switch to “OFF”, then to “ ”.

● The playback picture can be viewed in the LCD monitor, viewfinder or on a connected TV (

Z

pg. 32, 33).

● You can also view the playback picture on the LCD monitor with it flipped over and retracted.

● LCD monitor/viewfinder indications:

• When power is supplied from a battery: the “ ” battery pack remaining power indicator is displayed.

When power is supplied through the DC cord: “ ” does not appear.

• During Stop mode, none of the indications are displayed.

● Copyguarded tapes cannot be played back. Only a blue screen is displayed.

30

EN


Power Switch

4

48kHz MODE

32kHz MODE

SYNCHRO

INDICATION

DISPLAY

TIME CODE

FULL SOUND

SOUND1

0 . 0

ON

ON

OFF

Playback Menu

END

Display

48kHz MODE

32kHz MODE

SYNCHRO

INDICATION

DISPLAY

TIME CODE

FULL SOUND

SOUND1

0 . 0

ON

ON

OFF

4

END

ON

OFF

ON

OFF

ON

OFF

FULL SOUND

SOUND1

SOUND2

FULL SOUND

SOUND1

SOUND2

PLAYBACK

Advanced Features

Playback Menu

The Playback Menu allows you to set the following functions:

Playback Sound (32 kHz, 48 kHz), Synchro Comp,

Indication, Display and Time Code. The following procedure applies to all except

Synchro Comp (

Z

pg. 46,

47).

1

2

3

4


Press MENU/BRIGHT. The Playback Menu appears.

Move the highlight bar to the desired function by rotating MENU/BRIGHT. Press it to activate.


Then press MENU/BRIGHT, and the highlight bar automatically moves to “END”.

•To set parameters for other functions, repeat steps 3 and 4.

5

Press MENU/BRIGHT again. The menu disappears.

EN

31

Playback Sound

During playback, the camcorder detects the sound mode in which the recording was made, and plays the sound back. Select the type of sound to accompany your playback picture. (32 kHz is preset to “SOUND 1” and 48 kHz is preset to “FULL SOUND”.)

Recording sound

32 kHz

48 kHz

Display

FULL SOUND

SOUND 1

SOUND 2

FULL SOUND

SOUND 1

SOUND 2

Stereo sound

Output sound

Stereo sound

“L” sound is output on both channels

“R” sound is output on both channels

If you want to change the output sound of a tape recorded at 32 kHz, access the Playback Menu and, in step 3 on page 30, select “32 kHz MODE” and set it for “FULL SOUND”, “SOUND 1” or “SOUND 2”. For tapes recorded at 48 kHz, set in the same manner.

NOTES:

● You can also use the provided RM-V711U remote control’s AUDIO MONITOR button to change the output sound (without having to access the Playback Menu). Make sure you point the remote control at the camcorder’s remote sensor.

● The camcorder cannot detect the sound mode in which the recording was made during fast-forward or rewind. During playback the sound mode is displayed in the upper left corner.

INDICATION

You can make the playback sound, time code and date indications disappear.

This function overrides the “TIME CODE” and “DISPLAY” settings in the Playback

Menu. To change this setting, select “INDICATION” in the Playback Menu

(

Z

pg. 30).

OFF– The playback sound, time code and date indications do not appear on the

Playback Screen.

ON– The playback sound, time code and date indications are displayed according to how “TIME CODE” and “DISPLAY” are set in the Playback

Menu (factory preset).

NOTE:

If “INDICATION” is set in the Date/Time Menu, “INDICATION” in the Playback

Menu will also be set to the same setting (

Z

pg. 18, 20).

DISPLAY (Displaying the Date During Playback)

If the time has been set, the date is automatically recorded separately from the recorded video signal. You can display or remove the date anytime during

( playback. To change this setting, select “DISPLAY” in the Playback Menu

Z

pg. 30).

ON– The date is displayed on the playback screen (factory preset).

OFF– The date is not displayed.

TIME CODE (Displaying The Time Code During Playback)

You can display the time code on screen during playback. This is especially useful

( for editing. To change this setting, select “TIME CODE” in the Playback Menu

Z

pg. 30).

ON– The time code is displayed on the playback screen.

OFF– The time code does not appear (factory preset).

Display

32kHz/SOUND1

TC 12 : 34 : 24

TC 12 : 34 : 24

TC 12 : 34 : 24

DEC 25 ’ 99

PM 5 : 30

DEC 25 ’ 99

PM 5 : 30

DEC 25 ’ 98

PM 5 : 30

Minutes Seconds Frames*

*30 frames = 1 second

32

EN

PLAYBACK

Basic Connections

These are some basic types of connections. When making the connections, refer also to your VCR and TV instruction manuals.

A. Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input connectors

Use optional S-Video and Audio cables.

The connectors are located beneath the cover.

Yellow: Not connected

White to

Audio

Output L

Audio/Video cable (optional)

Yellow: Not connected

To TV or VCR

White to

AUDIO L IN

Red to

Audio Output R

Red to

AUDIO R IN

To S-Video

Output

S-Video cable

(optional)

To S-VIDEO IN

TV

VCR

B. Connection to a TV or VCR equipped only with A/V input connectors

Use optional Video and Audio cables.

To Video Output To VIDEO IN

White to

Audio

Output L

Red to

Audio Output R



To TV or VCR

White to

AUDIO L IN

Red to

AUDIO R IN

TV

VCR

1

2

Make sure all units are turned off.

Connect the camcorder to a TV or VCR as shown in the illustration (

Z

pg. 32).

If using a VCR . . . go to step 3.

If not . . . go to step 4.

3

4

5

Connect the VCR output to the TV input, referring to your VCR’s instruction manual.

Turn on the camcorder, the VCR and the TV.

Set the VCR to its AUX input mode, and set the

TV to its VIDEO mode.

To choose whether or not the following displays appear on the connected TV . . .

•Date/Time

.... set “DISPLAY” to “ON” or “OFF” in the

Playback Menu (

Z

pg. 30).

•Time Code

.... set “TIME CODE” to “ON” or “OFF” in the

Playback Menu (

Z

pg. 30).

•Playback Sound Mode Display

.... set the Power Switch to “ ”. Press MENU/

“

BRIGHT and set “ON SCREEN” in the Date/

Time Menu (

Z

pg. 18 – 20) to “ON” or

“OFF”. Then, set the Power Switch back to

”.

EN

33

NOTES:

● It is recommended to use the AC Power Adapter/

Charger as the power supply instead of the battery pack (

Z

pg. 7).

● To monitor the picture and sound from the camcorder without inserting a tape, set the camcorder’s Power Switch to “ ” or “ ”, then set your TV to the appropriate input mode.

● Make sure you adjust the TV sound volume to its minimum level to avoid a sudden burst of sound when the camcorder is turned on.

● If you have a TV or speakers that are not specially shielded, do not place the speakers adjacent to the

TV as interference will occur in the camcorder playback picture.

34

EN

Power Switch

To DV

IN/OUT

Connector cover*

To PC

DV cable

(optional)

PC connection cable (provided)

To DV connector

To RS-232C

PLAYBACK

Advanced Connections

Connection To A Personal

Computer

This camcorder can transfer still images to a PC by using the provided software when connected as shown in the illustration. It is also possible to transfer still images to a PC with a DV connector-equipped capture board installed.

1

2

3

Make sure the camcorder and PC are turned off.

Connect the camcorder to your PC using the appropriate cable as shown in the illustration.

Turn the camcorder’s Power Switch to “ turn on the PC.

” and

NOTES:


Charger as the power supply instead of the battery pack

(

Z

pg. 7).

● Never connect the PC connection cable and the DV

cable simultaneously to the camcorder. Connect only the cable you wish to use to the camcorder.

● The date/time information cannot be captured into the

PC.

● Refer to the instruction manuals of the provided

Software.

● Also refer to the manufacturer’s instruction manual for the DV connector-equipped capture board.

PC with DV connector-equipped capture board

PC

* When connecting cables, open this cover.

To DV IN connector

Power Switch

Connector cover*

To DV IN/OUT

DV cable

(optional)

To DV connector

Video unit equipped with a DV input connector

EN

35

Connection To A Video Unit Equipped With

A DV Connector

Connection to the GV-DT3 Digital Printer (optional) allows you to print out images or transfer them to a PC. It is also possible to copy recorded scenes from the camcorder onto another video unit equipped with a DV connector. This function is called Digital Dubbing (

Z

pg. 37), which offers virtually no image or sound deterioration.

1

2

3

Make sure all units are turned off.

Make connections to the device you want to connect to using a DV cable, as shown in the illustration.

If necessary, connect the PC connection cable

(provided) to the printer’s PC connector and the PC’s

RS-232C connector.

4

Turn the camcorder’s Power Switch to “ turn on the other units.

” and

NOTES:


Charger as the power supply instead of the battery pack

Z

pg. 7).

(

● For Digital Dubbing, this camcorder can be connected only to one device at a time. This camcorder can also be used as a recorder (

Z

pg. 37).

● If Still Playback, Slow-Motion Playback, Fast-Forward or

Rewind is attempted with the camcorder connected to a video unit via the DV connector, the image will take on an effect similar to a colored mosaic pattern or it will become black.

● Also refer to the instruction manuals of the connected units.

To PC connector

Digital Printer

PC connection cable (provided)

To RS-232C

PC

* When connecting cables, open this cover.

36

EN

To Video

Output*

White to Audio

Output L


TV


To S-Video

Output

Red to Audio

Output R

S-Video cable

(optional)

White to

AUDIO L IN

Red to

AUDIO R IN

To S-VIDEO IN

To VIDEO IN*

VCR (Recording deck)

Tape Dubbing

1

2

Following the illustration, connect the camcorder and the VCR. Also refer to pg. 32 and 33.

Set the camcorder’s Power Switch to “ ”, turn on the VCR’s power, and insert the appropriate cassettes in the camcorder and the VCR.

3

4

Engage the VCR’s AUX and Record-Pause modes.

Engage the camcorder’s Play mode to find a spot just before the edit-in point. Once it is reached, press 4/

6

on the camcorder.

5

6

7

Press 4/6 on the camcorder and engage the VCR’s

Record mode.

Engage the VCR’s Record-Pause mode and press

4

/6 on the camcorder.

Repeat steps 4 through 6 for additional editing, then stop the VCR and camcorder when finished.

NOTES:

● You can use Playback Zoom (

Special Effects (

Z

Z

pg. 40) or Playback

pg. 41) in step 5.

● Before you start dubbing, make sure that the indications do not appear on the connected TV. If they do, they are being recorded onto the new tape.


•Date/Time

.... set “DISPLAY” to “ON” or “OFF” in the Playback

Menu (

Z

pg. 30).

•Time Code

.... set “TIME CODE” to “ON” or “OFF” in the Playback

Menu (

Z

pg. 30).


.... set the Power Switch to “ ”. Press MENU/BRIGHT and set “ON SCREEN” in the Date/Time Menu (

Z pg. 18 – 20) to “ON” or “OFF”. Then, set the Power

Switch back to “ ”.

* Connect when an S-Video cable is not used.

Power Switch

To DV IN/OUT


DV cable (optional)

To DV IN/OUT

Video unit equipped with DV connector

PLAY (4)

STOP (5)

RM-V711U (provided)

T W

EN

37

Digital Dubbing

It is also possible to copy recorded scenes from the camcorder onto another video unit equipped with a DV connector. Since a digital signal is sent, there is little if any image or sound deterioration.

1

2

Make sure the camcorder’s power is off.

Connect the camcorder to your video unit equipped with a DV connector using a DV cable as shown in the illustration.

3

4

Press 4 to play back the source tape.

While watching the playback on the monitor, engage the DV connector-equipped video unit’s record mode from the spot on the source tape you want to begin recording.

NOTES:

● It is recommended to use the AC Power Adapter/ Charger

as the power supply instead of the battery pack (

Z

pg. 7).

● If the remote control is used when both the player and recorder are JVC video units, both units will perform the same operation. To prevent this from happening, press the buttons on both units.

● For Digital Dubbing, this camcorder can be connected only to one device at a time. This camcorder can also be used as a recorder.

● If a blank portion or disturbed image is played back on the player during dubbing, the dubbing may stop so that an unusual image is not dubbed.

● Even though the DV cable is connected correctly, sometimes the image may not appear in step 3. If this occurs, turn off the power and make connections again.

● If “Playback Zoom” (

Effects” (

Z

Z

pg. 40), “Playback Special

pg. 41) or “Snapshot” is attempted during playback, only the original playback image recorded on the tape is output from the DV IN/OUT connector.

To Use This Camcorder As A Recorder . . .

1. Turn the Power Switch to “ ”.

2. Connect the DV cable as shown in the illustration and load a cassette to record on.

3. Press the Recording Start/Stop button to engage the Record-Pause mode. “DV IN” appears on the screen.

4. Press the Recording Start/Stop button to start recording. “DV IN” changes to “

DV IN

”.

5. Press the Recording Start/Stop button again to engage the Record-Pause mode. “

DV IN

” returns to

“DV IN”.

NOTES:

● The image is dubbed using the recording mode selected in the Mode Menu (

Z

pg. 20).

Z

pg. 10).

● Digital Dubbing is performed in the sound mode recorded on the original tape, regardless of the current

“SOUND MODE” setting (

● During Digital Dubbing, no signals are output from the video or audio connectors.

38

EN

2

Knob

1

1

3

USING THE REMOTE CONTROL UNIT

Installing The Battery

The Full-Function Remote Control Unit can operate this camcorder from a distance as well as the basic operations (Playback, Stop, Pause, Fast-Forward and

Rewind) of your VCR. It also makes additional playback functions possible.

The remote control uses one lithium battery

(CR2025).

1

2

3

Pull out the battery holder while pressing the knob as shown.

Insert the battery in the holder, and be sure to have the “+” mark visible.

Slide the holder back in until you hear a click.

•Read the caution concerning lithium batteries

(

Z

pg. 2).

Remote sensor

Transmitted beam effective area

5m (16 ft)

30

°

When using the remote control, be sure to point it at the remote sensor. The illustration shows the approximate transmitted beam effective area for indoor use.

The transmitted beam may not be effective or may cause incorrect operation outdoors or when the remote sensor is directly exposed to sunlight or powerful lighting.

30

°

EN

39

4

1

2

3

6

8

5

7

9

RM-V711U

(provided)

T W

0

!

@

$

%

&

(

#

^

*

)

Buttons

1

PAUSE IN Connector

2

Zoom (T/W) Buttons

3

DISPLAY Button

4

SHIFT Button

5

SLOW Rewind/Forward Buttons

Left/Right Buttons

6

FADE/WIPE Button

7

REW Button

8

EFFECT Button

9

EFFECT ON/OFF Button

0

Infrared beam transmitting window

!

START/STOP Button

@

AUDIO MONITOR Button

#

MBR SET Button

$

Down Button

A. DUB Button

%

Up Button

INSERT Button*

^

FF Button

&

PLAY Button

*

PAUSE Button

(

STOP Button

)

R.A.EDIT Buttons

* This function is unavailable.

Functions

With the camcorder’s Power

Switch set to the camera position

(“ ” or “ ”).

With the camcorder’s Power

Switch set to “ ”.

—

Zoom in/out (

Z

pg. 14)

—

—

—

—

—

—

—

—

Z

pg. 43

Zoom in/out (

Z

pg. 40)

Z

pg. 20

Z

pg. 40

Z

pg. 40

pg. 40

Z

pg. 43

(

Rewind, Reverse Shuttle Search

Z

pg. 29)

Z

pg. 41

Z

pg. 41

Transmits the beam signal.

Functions same as the Recording Start/Stop button on the camcorder.

—

—

—

—

—

—

Z

pg. 31

Z

pg. 42

Z

pg. 40

pg. 48

Z

pg. 40

—

—

—

—

—

—

Fast-Forward, Forward Shuttle

Search (

Z

pg. 29)

Playback start (

Z

pg. 29)

Pause (

Z

pg. 29)

Stop (

Z

pg. 29)

Z

pg. 42 – 47

40

EN


(cont.)

Remote sensor

FEATURE:

Slow-Motion Playback

Zoom Buttons

SHIFT

Left or SLOW

Rewind Button

Right or SLOW

Forward Button

T W

RM-V711U

(provided)

Up Button

Down Button

PLAY

PAUSE

STOP

PURPOSE:

To allow slow-speed search in either direction.

OPERATION:

1) To change from normal to Slow-Motion Playback, press

PAUSE (6) at the desired point.

2) Press SLOW (9 or 0). After approx. 1 minute in Slow

Rewind or approx. 2 minutes in Slow Forward, normal playback resumes.

n To stop Slow-Motion Playback, press PLAY (4).

NOTES:

● During Slow-Motion Playback, due to digital image processing, the picture may take on a mosaic effect.

● After SLOW (9 or 0) is pressed, the still image may be displayed for a few seconds, followed by a blue screen for a few seconds. This is not a malfunction.

● There may be a small margin between the slow-motion playback start point you chose and the actual start point for Slow-Motion Playback.

● During Slow-Motion Playback, there will be disturbances in video and the picture may seem unstable, especially with steady images. This is not a malfunction.

● During Slow-Motion Playback, press PAUSE (6) to pause playback.

Normal playback Press T

To move image, press (Right) while keeping

SHIFT held down.

FEATURE:

Frame-By-Frame Playback

PURPOSE:

To allow frame-by-frame search.

OPERATION:

1) To change from normal to Frame-By-Frame Playback, press PAUSE (6) at the desired point.

2) Press PAUSE (6) repeatedly. Each time it is pressed, the frame is played back.

FEATURE:

Playback Zoom

PURPOSE:

To magnify the recorded image up to 4X at any time during playback.

OPERATION:

1) Press PLAY (4) to find the scene of interest.

2) Press the Zoom Buttons (T/W) on the remote control.

Make sure the remote control is pointed at the camcorder's remote sensor. Pressing T zooms in.

3) You can move the image on screen around to find a particular portion of the picture. While holding down

SHIFT, press (Left), (Right), (Up) and

(Down).

n To end zoom, press and hold W until magnification returns to normal. Or, press STOP (5) and then press

PLAY (4).

NOTES:

● Zoom can also be used during slow-motion and still playback.

● Due to digital image processing, the quality of the image may suffer.

PLAYBACK EFFECT

4

OFF

1

2

3

4

5

B/W

CLASSIC FILM

MONOTONE

SEPIA

STROBE

VIDEO ECHO

PLAYBACK EFFECT

Select Menu

Remote sensor

PLAY

EFFECT

T W

RM-V711U

(provided)

EFFECT

ON/OFF

EN

41

FEATURE:

Playback Special Effects

PURPOSE:

To allow you to add creative effects to the playback image.

OPERATION:

1) To start playback, press PLAY (4).

2) Point the remote control at the camcorder's remote sensor and press EFFECT. The PLAYBACK EFFECT

Select Menu appears.

3) Move the highlight bar to the desired effect by n pressing EFFECT. The selected function is activated and after 2 seconds the menu disappears.

To deactivate the selected effect, press EFFECT ON/

OFF on the remote control. Pressing it again ren activates the selected effect.

To change the selected effect, repeat from step 2 above.

NOTES:

● When some Playback Special Effects are used, the

Multi-Analyzer 4 and Multi-Analyzer 9 Snapshot modes (

Z

pg. 17) are not available.

● The effects that can be used during playback are

Classic Film, Monotone, Sepia, Strobe and Video

Echo. The effects work the same in playback as they did in recording. Refer to page 24 for more information.

42

3

SHIFT

1

6

RM-V711U

(provided)

VCR (Recording deck)

T W


(cont.)

Random Assemble Editing [R.A.Edit]

Create edited videos easily using your camcorder as the source player. You can select up to 8 “cuts” for automatic editing, in any order you like. R.A.Edit is more easily performed when the RM-V711U MBR

(Multi-Brand Remote) is set to operate with your brand of VCR (see VCR CODE LIST), but can also be performed by operating the VCR manually.

Before operation, make sure the lithium battery is installed in the remote control RM-V711U (

Z

pg. 38).

SET REMOTE/VCR CODE

VCR CODE LIST

VCR BRAND

NAME

GE

EN

HITACHI

JVC A

B

C

MAGNAVOX

MITSUBISHI

NEC

PHILIPS

7 8 9 `

BUTTONS

(A) (B)

1 1

9 2

9 `

9 4

6 6

6 3

9 1

9 6

9 3

9 5

1 1

7 1

7 6

6 7

6 8

3 7

3 8

1 9

9 5

1 1

9 4

9 1

9 6

1 2

MBR SET

VCR BRAND

NAME

PHILIPS

PANASONIC

RCA

SANYO

SHARP

SONY

TOSHIBA

ZENITH

2

4

5

BUTTONS

(A) (B)

3 6

3 5

1 5

1 `

6 5

6 `

3 9

3 1

6 9

6 1

1 6

3 3

7 2

1 3

1 7

1 1

9 4

1 8

9 2

9 4

6 6

6 3

9 `

1

Turn off the power to the VCR and point the remote towards the VCR’s infrared sensor. Then, referring to the VCR CODE LIST, press and hold

MBR SET, and press button (A) and then (B).

The code is automatically set once you release

MBR SET, and the VCR’s power comes on.

2

Make sure the VCR’s power is on. Then, while holding SHIFT, press the button on the remote for the desired function. The functions the remote can control are PLAY, STOP, PAUSE, FF,

REW and VCR REC STBY (you do not need to press SHIFT for this one).

You are now ready to try Random Assemble

Editing.

IMPORTANT

Although the MBR is compatible with JVC VCRs and those of many other makers, it may not work with yours or may offer limited functions.

NOTES:

● If the VCR’s power does not come on in step 1, try another code from the VCR CODE LIST.

● Some brands of VCR do not come on automatically. In this case, turn the power on manually and try step 2.

● If the remote control is not able to control the VCR, use the controls on the VCR.

● When the remote control’s battery runs out, the

VCR brand you have set will be erased.

In that case, replace the old battery with a new one to reset the VCR brand.

Connector cover**

Connector cover**

To

JLIP

To Video

Output*

To S-Video

Output

Red to Audio

Output R

White to Audio

Output L

S-Video cable

(optional)


Editing cable

(provided)

White to

AUDIO L IN

Yellow to

VIDEO IN*

Red to

AUDIO R IN

To

S-VIDEO IN

To Remote

PAUSE or

R.A.EDIT

VCR

To PAUSE IN

DISPLAY

FADE/WIPE

RM-V711U

(provided)

T W

PLAY

R.A.EDIT

ON/OFF

TV

* Connect when an S-Video cable is not used.

** When connecting cables, open this cover.

EN

43

MAKE CONNECTIONS

Also refer to pg. 32 and 33.

1

To connect to:

A JVC VCR equipped with a remote pause connector . . .

... connect the editing cable to the Remote

PAUSE connector.

A JVC VCR not equipped with a remote pause connector but equipped with an R.A.

EDIT connector . . .

... connect the editing cable to the R.A.EDIT

connector.

A VCR other than above . . .

... connect the editing cable to the RM-V711U’s

PAUSE IN connector.

2

3

Insert a recorded tape and set the Power Switch to

“ ”.

Turn the power on, insert a recordable tape and engage the AUX mode (refer to the VCR’s instructions).

SELECT SCENES

4

Press PLAY (4) and then press R.A.EDIT ON/OFF on the remote control. Make sure to point the remote control at the camcorder’s remote sensor.

The Random Assemble Editing Menu appears.

5

If using a Fade/Wipe at the beginning of the scene, press FADE/WIPE on the remote control.

•Cycle through the effects by pressing repeatedly, and stop when the one you want is displayed.

•You cannot use a Picture Wipe/Dissolve at the beginning of Program 1.

NOTE:

Before Random Assemble Editing, make sure the indications do not appear on the TV monitor. If they do, they will be recorded onto the new tape.


•Date/Time

.... set “DISPLAY” to “ON” or “OFF” in the Playback

Menu (

Z

pg. 30).

•Time Code

.... set “TIME CODE” to “ON” or “OFF” in the Playback

Menu (

Z

pg. 30).


.... set the Power Switch to “ ”. Press MENU/BRIGHT

( and set “ON SCREEN” in the Date/Time Menu

Z

pg. 18 – 20) to “ON” or “OFF”. Then, set the

Power Switch back to “ ”.


44

EN

Program

3

4

5

6

I N

1 – – – – : – – ~

2

OUT

~

~

~

~

7

8

TIME CODE

TOTAL

~

~

– – : – –

0 0 : 0 0

MODE

4

RM-V711U

(provided)

FADE/WIPE

EFFECT

EDIT IN/OUT

Remote sensor

T W


(cont.)

SELECT SCENES (cont.)

Random Assemble

Editing Menu

PLAY

R.A.EDIT

ON/OFF

6

At the beginning of the scene, press EDIT IN/OUT on the remote control. The Edit-In position appears in the Random Assemble Editing Menu.

7

At the end of the scene, press EDIT IN/OUT. The

Edit-Out position appears in the Random Assemble

Editing Menu.

8

If using a Fade/Wipe at the end of the scene, press

FADE/WIPE.

•Cycle through the effects by pressing repeatedly, and stop when the one you want is displayed.

•If you select a Fade/Wipe effect for an Edit-Out point, the effect is automatically applied to the following Edit-In point.

•You cannot use a Picture Wipe/Dissolve at the end of the last scene.

•When you use Fade/Wipe effects, that time is included in the total time (this does not apply to

Picture Wipe/Dissolve).

1

9

(

If using Playback Special Effects, press EFFECT

Z

pg. 41).

10

Repeat steps 6 through 9 to register additional scenes.

•To change previously registered points, press

CANCEL on the remote control. The registered points disappear, one at a time, from the most recently registered point.

•If you are not using Fade/Wipe or Program AE with special effects, repeat steps 6 and 7 only.

CANCEL

NOTES:

● When choosing a scene, set Edit-In and Edit-Out points so that there is a relatively large difference between them.

● If the search time for an in-point exceeds 5 minutes, the recording deck’s Record-Standby mode will be canceled and editing will not take place.

● If there are blank portions before or after the Edit-In and Edit-Out points, a blue screen may be included in the edited version.

● Since time codes register time only as accurately as seconds, the time code total time may not match the total program time exactly.

● Turning off the camcorder’s power erases all registered Edit-In and Edit-Out points.

● If you select Sepia or Monotone mode from Program AE with special effects, you cannot use the Dissolve or

Black & White Fader. In this case the Dissolve or Black & White indicator begins blinking. Once the next

Edit-In point is registered, the effect is turned off. To combine these effects, use Sepia or Monotone during recording, then use the Dissolve or Black & White Fader during Random Assemble Editing.

Recording Start/Stop Button

1

W

H

I N OUT

0 0 : 2 5 ~ 0 2 : 0 5

MODE

P

– –

2 P 0 7 : 1 8 ~ 0 8 : 3 1 – –

3 – – 0 3 : 3 3 ~ 0 5 : 5 3 B/W

4

5

0 9 : 3 0 ~ 1 3 : 1 5

1 5 : 5 5 ~ 1 6 : 2 0 – – – –

6 – – – – : – – ~

7 ~

8

TIME CODE

~

TOTAL

1 6 : 3 0

9 : 3 9

4

Random Assemble

Editing Menu

Remote Sensor

EN

45

AUTOMATIC EDITING TO VCR

11

Rewind the tape in the camcorder to the beginning of the scene you want to edit and press PAUSE (6).

12

Point the remote control towards the VCR’s remote sensor and press VCR REC STBY (q6), or manually engage the VCR’s Record-Pause mode.

13

Press the Recording Start/Stop Button on the camcorder. Editing proceeds as programed, right through to the end of the last registered scene.

•Pressing START/STOP on the remote control does not start editing.

•When dubbing is complete, the camcorder enters the Pause mode, and the recording deck enters its

Record-Standby mode.

•If you do not register an Edit-Out point, the tape will be dubbed all the way to the end automatically.

1

14

Engage the Stop modes for the camcorder and the

VCR.

To make the R.A.Edit counter display disappear, press

R.A.EDIT ON/OFF on the remote control.

NOTES:

● Pressing R.A.EDIT ON/OFF on the remote control clears all settings registered during Random Assemble Editing.

● When the editing cable is connected to the remote control’s Pause In connector during dubbing, make sure the remote control is pointed at the VCR’s sensor, and the path between the two is unobstructed.

● Random Assemble Editing may not function properly when using a tape including several duplicated time codes (

Z

pg. 16).

RM-V711U

(provided)

REW

FADE/WIPE

EFFECT

EDIT IN/OUT

T W

CANCEL

STOP

PAUSE

R.A.EDIT

ON/OFF

VCR REC

STBY

46

EN


(cont.)

Program 1

For More Accurate Editing

I N

1 – – – – : – – ~

OUT

3

4

5

6

7

8

TIME CODE

TOTAL

~

~

~

~

~

~

– – : – –

0 0 : 0 0

MODE

4

Random Assemble

Editing Menu

Some VCRs make the transition from Record-Standby to

Record mode faster than others. Even if you begin editing for the camcorder and the VCR at exactly the same time, you may lose scenes you wanted, or find that you have recorded scenes you did not want. For a cleanly edited tape, confirm and adjust the timing of the camcorder against your VCR.

DIAGNOSING VCR/CAMCORDER TIMING

VCR

(Recording deck)

Remote sensor

TV

1

Play back the tape in the camcorder, then point the remote control at the camcorder’s remote sensor and press R.A.EDIT ON/OFF.

The Random Assemble Editing Menu appears.

2

Perform Random Assemble Editing on Program 1 only. In order to check VCR and camcorder timing, select the beginning of a scene transition as your Edit-

In point.

3

Play back the dubbed scene.

•If any images from the scene prior to the transition you chose for your Edit-In point were recorded, that means your VCR moves too quickly from Record-Pause to Record mode.

•If the scene you tried to dub starts in progress, the

VCR is slow to start recording.

T W

RM-V711U

(provided)

R.A.EDIT ON/OFF


4

48kHz MODE

32kHz MODE

SYNCHRO

INDICATION

DISPLAY

TIMECODE

FULL SOUND

SOUND1

0 . 0

ON

ON

OFF

Playback Menu

END

Display

4

48kHz MODE

32kHz MODE

SYNCHRO

INDICATION

DISPLAY

TIMECODE

FULL SOUND

SOUND1

0 . 0

ON

ON

OFF

END

ADJUSTMENT OF VCR/CAMCORDER

TIMING

EN

47

4

Point the remote control at the camcorder’s remote sensor and press R.A.EDIT ON/OFF to make the

Random Assemble Editing menu disappear, then press MENU/BRIGHT. The Playback Menu appears.

5

Move the highlight bar to “SYNCHRO” by rotating

MENU/BRIGHT, then press it. The value for

“SYNCHRO” is highlighted.

6

Based on the diagnostics performed (

Z

pg. 46), you can now increase the VCR’s speed by rotating

MENU/BRIGHT downward. You can also slow down the VCR’s speed by rotating MENU/BRIGHT upward.

The adjustment range is from –1.3 to +1.3 seconds, in

0.1-second increments.

7

Press MENU/BRIGHT twice.

Now perform Random Assemble Editing beginning with step 4 on page 43.

NOTES:

● Before performing actual Random Assemble Editing, do a few Random Assemble Editing trial runs to check whether the value you have input is appropriate or not, and make adjustments accordingly.

● Depending on the recorder, there may be situations where the timing difference cannot be fully corrected.

VCR

(Recording deck)

TV

48

EN


(cont.)

Display

Audio Dubbing

Audio Dub Standby mode

The audio track can be customized only when recorded in the 32 kHz mode (

Z

pg. 20).

NOTES:

● Audio Dubbing is not possible on a tape recorded at

48 kHz, on a tape recorded in the LP mode or on a blank portion of a tape.

● To perform Audio Dubbing while watching on the television, make connections (

Z

pg. 32).

1

2

3

Play back the tape to locate the point where editing will start, then press PAUSE (6).

While holding A.DUB (e) on the remote control, press PAUSE (6). “6e” appears.

Press PLAY (4) , then begin “narrating”.

Speak into the microphone.

•To pause dubbing, press PAUSE (6).

Power Switch

Speaker

4

To end Audio Dubbing, press PAUSE (6), then STOP

(5).

Remote sensor

AUDIO

MONITOR

DISPLAY

PLAY

T W

Stereo microphone

A.DUB

PAUSE

NOTES:

● When editing onto a tape that was recorded at 32 kHz, the old and new soundtracks are recorded separately.

● To select the desired sound for playback, press AUDIO

MONITOR on the remote control.

● If you dub onto a blank space on the tape, the sound may be disrupted. Make sure you only edit recorded areas.

● If feedback or howling occurs during TV Playback, move the camcorder’s microphone away from the TV, or turn down the TV’s volume.

● Sound is not heard from the speaker during Audio

Dubbing.

● If you change from 32 kHz to 48 kHz in mid-recording and then use the tape for Audio Dubbing, it is not effective from the point where 48 kHz recording began.

● During Audio Dubbing, when the tape moves to scenes recorded in the LP mode, scenes recorded at 48 kHz or a blank portion, Audio Dubbing stops and “ERROR! REFER

MANUAL” appears.

RM-V711U

(provided)

STOP

Recording sound

32 kHz

Display

FULL SOUND

SOUND 2

SOUND 1

Output sound

Original and new tracks are combined and output in stereo.

New track is output on both “L” and “R” channels in stereo.

Original track is output on both “L” and “R” channels in stereo.

TROUBLESHOOTING

EN

49

If, after following the steps in the chart below, the problem still exists, please consult your nearest JVC dealer.

The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Power Adapter/Battery Charger, etc.) and wait a few minutes; and then re-connect it and proceed as usual from the beginning.

SYMPTOM

1. No power is supplied.

2. “SET DATE/TIME!” appears.

3. Recording cannot be performed.

4. There is no picture.

5. Some functions are not available using MENU/

BRIGHT.

6. The focus does not adjust automatically.

7. The cassette will not load properly.

8. Snapshot mode cannot be used.

9. The Snapshot color looks strange.

POSSIBLE CAUSES

1. •The power is not connected properly.

•The battery is dead.

2. •The built-in clock’s rechargeable lithium battery is discharged.

•The previously set date/time is erased.

3. •The tape’s erase protection switch is set to “SAVE”.

•The Power Switch is set to

“ ”.

•“TAPE END” appears.

•The cassette’s cover is open.

4. •The camcorder is not getting power, or some other malfunction exists.

5. •The Power Switch is set to

“ ”.

6. •Focus is set to “MANUAL”.

•The recording was done in a dark place, or the contrast was low.

•The lens is dirty or covered with condensation.

7. •The cassette is in the wrong position.

•The battery’s charge is low.

8. •The Squeeze mode is selected.

9. •The light source or the subject does not include white. Or there are various different light sources behind the subject.

CORRECTIVE ACTION

1. •Connect the AC Power

(

Adapter/Charger securely

Z

pg. 7).

•Replace the dead battery

( with a fully charged one

Z

pg. 6, 7).

2. •Connect the camcorder to an AC outlet using the AC

Power Adapter/Charger for over 24 hours to charge the

( clock’s lithium battery

Z

pg. 8).

3. •Set the tape’s erase

( protection switch to “REC”

Z

pg. 9).

•Set the Power Switch to any

( position except “

“OFF” (

Z

pg. 13).

•Replace with new cassette

Z

pg. 9).

” or

•Close the cassette’s cover.

4. •Turn the camcorder’s power

( off and on again

Z

pg. 12).

5. •Set the Power Switch to

“ ” (

Z

pg. 13).

6. •Set Focus to “AUTO”

(

Z

pg. 25).

•Clean the lens and check the focus again (

Z pg. 54).

7. •Set it in the right position

(

Z

pg. 9).

•Install a fully charged battery (

Z

pg. 6, 7).

8. •Disengage the Squeeze mode (

Z

pg. 19).

9. •Find a white subject and compose your shot so that it also appears in the frame

(

Z

pg. 17).


50

EN

SYMPTOM

10. Digital Zoom does not work.

TROUBLESHOOTING

(cont.)

POSSIBLE CAUSES

10. •16X optical zoom is selected.

•The Video Echo mode is activated.

•Picture Wipe or Dissolve are being used in a scene transition.

11. •The Power Switch is set to

“ ”.


10. •Turn off the Video Echo mode (

Z

pg. 24).

•Wait until the Picture Wipe or Dissolve effects are completed (

Z

pg. 22, 23).

11. •Set the Power Switch to

“ ”.

11. Program AE with special effects and Fade/Wipe

Effects do not work.

12. The Black & White Fader does not work.

13. The Dissolve function does not work.

12. •The Sepia or Monotone mode is activated.

13. •The Sepia, Monotone or

Slow Shutter mode of

Program AE with special effects is activated.

•The Squeeze mode is selected.

•The previously selected mode of Program AE with special effects was changed after the last selected scene for editing was registered.

14. The Picture Wipe and

Dissolve functions do not work.

15. The picture wipe function doesn’t work.

14. •The last selected editing scene is ending.

•At the end of the last selected scene for editing, the Power Switch was set to

“OFF”.

•The power is off.

15. •The Slow Shutter mode is activated.

•The Squeeze or Cinema mode is selected in the

Mode Menu.

12. •Turn off Sepia and

Monotone (

Z

pg. 24).

13. •Turn off Sepia, Monotone or

Slow Shutter before adding

Dissolve to a scene transition (

Z

pg. 24).

•Make sure that the Squeeze mode in the Mode Menu is set to “OFF” (

Z

pg. 19).

•Make sure you have selected the mode of

Program AE with special effects you want before starting editing

(

Z

pg. 24).

14. •Select Picture Wipe or

Dissolve before beginning recording. The effects are

( then automatically activated

Z

pg. 22).

•Do not turn off the camcorder’s power after setting Edit-In and Edit-Out points, as they will all be erased (

Z

pg. 22).

•The camcorder automatically shuts off after 5 minutes have elapsed in the

Record-Standby mode.

Make sure you continue operations within 5 minutes after engaging Record-

Standby mode (

Z

pg. 22).

15. •Make sure the Squeeze mode, Cinema mode, or

Slow Shutter mode is not activated when preparing to use the Picture Wipe function (

Z

pg. 19, 24).

16.

EN

51

CORRECTIVE ACTION SYMPTOM

16. Scene transition does not go as expected.

17. The Video Echo mode does not work.

18. Even when Slow Shutter is not selected, the image looks like it is activated.

19. There is no strobe when the Classic Film or Strobe mode is activated.

20. White Balance cannot be activated.

POSSIBLE CAUSES

16. •When using “Picture Wipe/

Dissolve” (

Z

pg. 22), there is a delay of a fraction of a second between the previous record stop-point and the Dissolve start-point.

This is normal, but this slight delay becomes especially noticeable when shooting a fast-moving subject or during rapid panning.

17. •The Picture Wipe or

Dissolve functions are in use.

•The Squeeze mode is selected in the Mode Menu.

•A Fade-In or Fade-Out is in progress.

18. •When shooting in the dark, the unit becomes highly sensitive to light and the image takes on an effect similar to Slow Shutter.

19. •The Picture Wipe or

Dissolve function is in use.

20. •The Sepia or Monotone mode is activated.

————

17. •Make sure the Squeeze

( mode is set to “OFF”

Z

pg. 18, 19).

•Do not try to use the Video

Echo mode during a Fade-In or Fade-Out (

Z

pg. 24).

18. •If you want the lighting to look more natural, set GAIN

UP to “AGC” or “OFF” in the Mode Menu (

Z

pg. 18,

19).

19. •Do not try to use the Classic

Film or Strobe mode during

( a scene transition

Z

pg. 24).

20. •Turn off Sepia or Monotone before setting White

Balance (

Z

pg. 24).

21.

————

21. When shooting a subject illuminated by bright light, vertical lines appear.

22. When the screen is under direct sunlight during shooting, the screen becomes red or black for an instant.

23. During recording, the date/ time does not appear.

21. •This is a result of exceedingly high contrast, and is not a malfunction.

22. •This is not a malfunction.

23. •“DISPLAY” is set to “OFF” in the Date/Time Menu.

•Self-Recording is performed.

22.

————

24. The indicators and messages do not appear.

24. •“ON SCREEN” is set to

“OFF” in the Date/Time

Menu.

•You have made the indicators disappear.

23. •Set “DISPLAY” to “ON” in

( the Date/Time Menu

Z

pg. 21).

•During Self-Recording, the

( date/time does not appear

Z

pg. 13).

•Set “INDICATION” to “ON”

( in the Date/Time Menu

Z

pg. 21).

24. •Set “ON SCREEN” to “ON”


Z

pg. 21).

•Set “INDICATION” to “ON”


Z

pg. 21).


52

EN

SYMPTOM

25. Images on the LCD monitor appear dark or whitish.

26. The rear of the LCD monitor is hot.

27. The indicators and the image color on the LCD monitor are not clear.

28. The LCD monitor or viewfinder indications blink.

29. Colored bright spots appear all over the LCD monitor or the viewfinder.

30. During recording, sound cannot be heard.

31. Play, Rewind and Fast-

Forward functions do not work.

32. The tape is moving, but there is no picture.

TROUBLESHOOTING

(cont.)

POSSIBLE CAUSES

25. •In places subject to low temperature, images become dark due to the characteristics of the LCD monitor. When this happens, the displayed colors differ from those that are actually recorded. This is not a defect of the camcorder.

•When the LCD monitor’s fluorescent light reaches the end of its service life, images on the LCD monitor become dark. Consult your nearest JVC dealer.

26. •The light used to illuminate the LCD monitor causes it to become hot.


25. •Adjust the brightness and

( angle of the LCD monitor

Z

pg. 12).

26. •Close the LCD monitor to turn it off or set the Power

Switch to “OFF”, and let the unit cool down.

27.

————

27. •This may occur when the surface or the edge of the

LCD monitor is pressed.

28. •Certain Fade/Wipe effects, certain modes of Program AE with special effects, “DIS” and other functions that cannot be used together are selected at the same time.

29. •The LCD monitor and the viewfinder are made with high-precision technology.

However, black spots or bright spots of light (red, green or blue) may appear constantly on the LCD monitor or the viewfinder.

These spots are not recorded on the tape. This is not due to any defect of the unit.

(Effective dots: more than

99.99%)

30. •This is normal.

28. •Re-read the sections covering Fade/Wipe effects,

Program AE with special

( effects and “DIS”

Z

pg. 19, 22 – 24).

29.

————

31. •The Power Switch is not set to “ ”.

30.

————

31. •Set the Power Switch to

“ ” (

Z

pg. 29).

32. • Your TV has AV input terminals, but is not set to its

VIDEO mode.

•The cassette’s cover is open.

32. •Set the TV to the mode or channel appropriate for video playback (

Z

pg. 32,

33).

•Close the cassette’s cover

(

Z

pg. 9).

33.

EN

53

CORRECTIVE ACTION SYMPTOM

33. The LCD monitor indications are distorted.

34. Images on the LCD monitor are jittery.

35. The LCD monitor, the viewfinder and the lens have become dirty (ex.

fingerprints).

36. An unusual mark appears.

37. An error indication

(E01 — E06) appears.

POSSIBLE CAUSES

33. •During playback of an unrecorded portion, Highspeed Search and still playback, LCD monitor indications appear distorted.

This is not a defect.

34. •The speaker volume is too great.

35.

————

36.

————

37. •A malfunction of some kind has occurred. In this case the camcorder’s functions become unusable.

38. The charger indicator on the AC Power Adapter/

Charger does not light.

39. The recording mode indicator “LP” blinks.

40. Picture does not appear on the LCD monitor.

38. •The temperature of the battery is extremely high/low.

•Charging is difficult in places subject to extremely high/low temperatures.

39. •This occurs when recording in the LP mode is not available. After the indicator blinks, the recording mode switches to “SP” and recording goes on.

40. •The lens cap is attached.

•␣ The LCD monitor is not open at an angle of over 45 degrees.

• The LCD monitor’s brightness setting is too dark.

41. When the image is printed from the printer, a black bar appears at the bottom of the screen.

42. When the camcorder is connected via the DV connector, the camcorder does not operate.

41. •This is not a malfunction.

42. •The DV cable was plugged/ unplugged with power turned on.

————

34. •Turn the speaker volume down (

Z

pg. 29).

35. •Wipe them gently with a soft cloth. Wiping strongly can cause damage.

36. •Check the section of the manual that explains LCD monitor/viewfinder indications (

Z

pg. 60, 61).

37. •Remove the power supply

(battery pack, etc.) and wait a few minutes for the indication to clear. When it does, you can resume using the camcorder. If the indication remains even though you repeat the above two or three times, please consult your nearest JVC dealer.

38. •To protect the battery, it is recommended to charge it in places with a temperature of 10°C to 35°C (50°F to

95°F) (

Z

pg. 55).

39.

————

40. •Remove the lens cap

(

Z

pg. 12).

•␣ Open the LCD monitor to an angle of over 45 degrees.

•␣ Adjust the brightness of the

LCD monitor (

Z

pg. 12).

•␣ If the monitor is tilted upward to 180 degrees, open it fully (

Z

pg. 12).

41. •By recording with “DIS” activated (

Z

pg. 19) this can be avoided.

42. •Turn the camcorder’s power off and on again, then operate it.

54

EN

After Use

1

2

Turn off the camcorder.

Press PUSH OPEN and open the LCD monitor.

Slide OPEN/EJECT in the direction of the arrow, then swing the cassette cover open until it locks.

The cassette holder opens automatically.

Remove the cassette.

3

4

5

6

Press “PUSH HERE” to close the cassette holder, then close the cassette cover.

Close and lock the LCD monitor.

Slide BATTERY RELEASE and remove the battery pack.

Replace the lens cap over the lens.

PUSH OPEN Button

OPEN/EJECT Switch

PUSH HERE

USER MAINTENANCE

Cleaning The Camcorder

1

To clean the exterior, wipe gently with a soft cloth.

Put the cloth in diluted mild soap and wring it well to wipe off heavy dirt. Then wipe again with a dry cloth.

2

Open the LCD monitor and wipe gently with a soft cloth. Be careful not to damage the monitor. Close the LCD monitor.

3

4

To clean the lens, blow it with a blower brush, then wipe gently with lens cleaning paper.

To clean the viewfinder, raise it to the vertical position. Carefully lift the plastic tab on the bottom of the viewfinder, and open the cover

1

.

5

Insert a lens blower or soft cloth into the gap at the bottom of the viewfinder and clean the interior of the viewfinder with it

2

.

6

Replace the lens cap, making sure it locks in place. Tilt the viewfinder back to the horizontal position.

NOTES:

● Avoid using strong cleaning agents such as benzine or alcohol.

● Cleaning should be done only after the battery pack has been removed or other power units have been disconnected.

● Mold may form if the lens is left dirty.

● When using a cleaner or chemically treated cloth refer to the cautions of each product.

Cassette holder

Remove.

Bottom of viewfinder

Blower brush

2

BATTERY RELEASE Switch

1

Cover

CAUTIONS

When using the AC Power Adapter/Charger in areas other than the USA

n The provided AC Power Adapter/Charger features automatic voltage selection in the AC range from

110 V to 240 V.

USING HOUSEHOLD AC PLUG ADAPTER

In case of connecting the unit’s power cord to an

AC wall outlet other than American National

Standard C73 series type use an AC plug adapter, called a “Siemens Plug”, as shown.

For this AC plug adapter, consult your nearest JVC dealer.

Plug adapter

Video Light

DANGER

n The video light can become extremely hot. Do not touch it either while in operation or soon after turning it off, otherwise serious injury may result.

n Do not place the camcorder into the carrying case immediately after using the video light, since it remains extremely hot for some time.

n When operating, keep a distance of about 30 cm

(11-13/16”) between the video light and people or objects.

n Do not use near flammable or explosive materials.

n It is recommended that you consult your nearest

JVC dealer for replacing the video light.

Battery Packs

Terminals

Battery cap

The supplied battery pack is a lithium-ion battery.

Before using the supplied battery pack or an optional battery pack, be sure to read the following cautions:

1. To avoid hazard . . .

.... do not burn.

.... do not short-circuit the terminals. When transporting, make sure the provided battery cap is attached to the battery. If the battery cap is misplaced, carry the battery in a plastic bag.

.... do not modify or disassemble.

.... do not expose the battery to temperatures exceeding 60°C (140°F), as this may cause the battery to overheat, explode or catch fire.

.... use only specified chargers.

EN

55

2. To prevent damage and prolong service life . . .

.... do not subject to unnecessary shock.

.... charge in an environment where temperatures are within the tolerances shown in the chart below. This is a chemical reaction type battery—cooler temperatures impede chemical reaction, while warmer temperatures can prevent complete charging.

.... store in a cool, dry place. Extended exposure to high temperatures will increase natural discharge and shorten service life.

.... fully charge and then fully discharge the battery every 6 months when storing the battery pack over a long period time.

.... remove from charger or powered unit when not in use, as some machines use current even when switched off.

NOTES:

● It is normal for the battery pack to be warm after charging, or after use.

Temperature Range Specifications

Charging ............... 10°C to 35°C (50°F to 95°F)

Operation ............. 0°C to 40°C (32°F to 104°F)

Storage ................. –10°C to 30°C (–14°F to 86°F)

● Recharging time is based on room temperature of

20°C (68°F).

● The lower the temperature, the longer recharging takes.

Cassettes

To properly use and store your cassettes, be sure to read the following cautions:

1. During use . . .

.... make sure the cassette bears the Mini DV mark.

.... be aware that recording onto prerecorded tapes automatically erases the previously recorded video and audio signals.

.... make sure the cassette is positioned properly when inserting.

.... do not load and unload the cassette repeatedly without allowing the tape to run at all. This slackens the tape and can result in damage.

.... do not open the front tape cover. This exposes the tape to fingerprints and dust.

2. Store cassettes . . .

.... away from heaters or other heat sources.

.... out of direct sunlight.

.... where they won’t be subject to unnecessary shock or vibration.

.... where they won’t be exposed to strong magnetic fields (such as those generated by motors, transformers or magnets).

.... vertically, in their original cases.

56

EN

LCD Monitor

1. To prevent damage to the LCD monitor,

DO NOT . . .

.... push it strongly or apply any shocks.

.... place the camcorder with the LCD monitor on the bottom.

2. To prolong service life . . .

.... avoid rubbing it with coarse cloth.

3. Be aware of the following phenomena for LCD monitor use.

These are not malfunctions:

•While using the camcorder, the surface around the

LCD monitor and/or the back of the LCD monitor may heat up.

•If you leave power on for a long time, the surface around the LCD monitor becomes hot.

CAUTIONS

(cont.)

4. To protect the unit, DO NOT . . .

.... allow it to become wet.

.... drop the unit or strike it against hard objects.

.... subject it to shock or excessive vibration during transportation.

.... keep the lens directed at extremely bright objects for long periods.

.... expose the lens to direct sunlight.

.... carry it by holding the LCD monitor or the viewfinder.

.... swing it excessively when using the shoulder strap or the grip.

5. Dirty heads can cause the following problems:

Main Unit

1. For safety, DO NOT . . .

.... open the camcorder’s chassis.

.... disassemble or modify the unit.

.... short-circuit the terminals of the battery pack.

Keep it away from metallic objects when not in use.

.... allow inflammables, water or metallic objects to enter the unit.

.... remove the battery pack or disconnect the power supply while the power is on.

.... leave the battery pack attached when the camcorder is not in use.

2. Avoid using the unit . . .

.... in places subject to excessive humidity or dust.

.... in places subject to soot or steam such as near a cooking stove.

.... in places subject to excessive shock or vibration.

.... near a television set.

.... near appliances generating strong magnetic or electric fields (speakers, broadcasting antennas, etc.).

.... in places subject to extremely high (over 40°C or 104°F) or extremely low (under 0°C or 32°F) temperatures.

3. DO NOT leave the unit . . .

.... in places of over 50°C (122°F).

.... in places where humidity is extremely low

(below 35%) or extremely high (above 80%).

.... in direct sunlight.

.... in a closed car in summer.

.... near a heater.

•No picture during playback.

•Blocks of noise appear during playback.

•During recording, the Head Clog Warning indicator “ ” appears.

In such cases, use an optional Cleaning Cassette.

Insert it and play back. If the cassette is used more than once consecutively, damage to the video heads may result. After the camcorder plays back for about 20 seconds, it stops automatically. Also refer to the Cleaning

Cassette’s instructions.

If, after using the Cleaning Cassette, the problems still exist, consult your nearest JVC dealer.

Mechanical moving parts used to move the video heads and video tape tend to become dirty and worn out over time. In order to maintain a clear picture at all times, periodic check-ups are recommended after using the unit for about

1,000 hours. For periodic check-ups please consult your nearest JVC dealer.

How To Handle A CD-ROM

•Take care not to soil or scratch the mirror surface

(opposite to the printed surface). Do not write anything or put a sticker on either the front or back surface. If the CD-ROM gets dirty, gently wipe it with a soft cloth outward from the center hole using a circular motion.

•Do not use conventional disc cleaners or cleaning spray.

•Do not bend the CD-ROM or touch its mirror surface.

•Do not store your CD-ROM in a dusty, hot or humid environment. Keep it away from direct sunlight.

Declaration of Conformity

Model Number

Trade Name

: GR-DVF31U

: JVC

Responsible party

: US JVC CORP.

Address

: 1700 Valley Road Wayne,

N. J. 07470

Telephone Number : 973-315–5000

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Change or modifications not approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/

TV technician for help.

EN

57

About moisture condensation . . .

● You have observed that pouring a cold liquid into a glass will cause drops of water to form on the glass‘ outer surface. This same phenomenon occurs on the head drum of a camcorder when it is moved from a cool place to a warm place, after heating a cold room, under extremely humid conditions or in a place directly subjected to the cool air from an air conditioner.

● Moisture on the head drum can cause severe damage to the video tape, and can lead to internal damage to the camcorder itself.

Serious malfunctioning

If malfunctioning occurs, stop using the unit immediately and consult your local JVC dealer.

The camcorder is a microcomputer-controlled device. External noise and interference (from a

TV, a radio, etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Power

Adapter/Battery Charger, etc.) and wait a few minutes and then re-connect it and proceed as usual from the beginning.

This Class B digital apparatus complies with

Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

58

EN

1 y

INDEX

Controls, Connectors And Indicators

t

^ & * ( u i o

2

3 p

4 Q 5 6 7 q w e

0 Q 9 W

8

) r

R T

%

E

!

@

#

$

Controls

1

Battery Release Switch

[BATTERY RELEASE] ..............................

2

PUSH OPEN Button ...............................

Z

pg. 7

Z

pg. 9

3

Video Light Switch

[LIGHT OFF/AUTO/ON] ......................

4

OPEN/EJECT Switch ...............................

5

Snapshot Button [SNAPSHOT] .............

Z

pg. 15

Z

pg. 9

Z

pg. 17

6

•Power Zoom Lever [T/W] ..................

•Speaker Volume Control [VOL.] ........

Z

pg. 14

Z

pg. 29

7

•MENU/BRIGHT Dial

[+, –, PUSH] .................................

•LCD Monitor/Viewfinder Brightness

0

Power Switch [

Z

Control .............................................

8

Snapshot Mode Button [MODE] ...........

9

Recording Start/Stop Button ..................

, OFF, , ] ......

!

Rewind Button [REW] ..........................

@

Stop Button [STOP] ..............................

#

Fast-Forward Button [FF] ......................

$

Play/Pause Button [PLAY/PAUSE] .........

%

Diopter Adjustment Control .................

pg. 8, 18

Z

pg. 12

Z

pg. 17

Z

pg. 12

Z

pg. 13

Z

pg. 29

Z

pg. 29

Z

pg. 29

Z

pg. 29

Z

pg. 11

EN

59

Connectors

The connectors

^

to

e

are located beneath a cover.

^

Video Output Connector ......................

Z

pg. 32

&

Audio Output Connector [L] ................

*

S-Video Output Connector ...................

(

Audio Output Connector [R] ................

)

DC IN Connector ...................................

Z

pg. 32

Z

pg. 32

Z

pg. 32

Z

pg. 7

q

J Terminal [JLIP (Joint Level Interface Protocol)

Connector] ..........................................

Z

pg. 43

•Connect the editing cable when performing

Random Assemble Editing (

Z

pg. 42 – 47).

•It is used to connect the camcorder to a device such as a personal computer.

For further details, consult your nearest JVC dealer.

•JLIP-controlled editing from the camcorder to a

VCR is not possible if the VCR is not equipped with a J terminal.

w

PC Connector ......................................

Z

pg. 34

It is used to connect the camcorder to the serial port of a personal computer.

For further details, consult your nearest JVC dealer.

e

Digital Video Connector

[DV IN/OUT] (i.link*) ....................

Z

pg. 35, 37

* i.Link refers to the IEEE1394-1995 industry specification and extensions thereof. The logo is used for products compliant with the i.Link

standard.

Indicators

r

Power Lamp ........................................

Z

pg. 13

Other Parts

t

Battery Pack Mount ...............................

Z

pg. 7

y

•Camera Sensor

Be careful not to cover this area; a sensor necessary for shooting is built-in here.

•Remote Sensor ..................................

u

Video Light ..........................................

i

Stereo Microphone ..............................

o

Viewfinder ...........................................

p

Speaker ...............................................

Q

Shoulder Strap Eyelets ..........................

W

Grip Strap ............................................

E

LCD Monitor .......................................

R

Tripod Mounting Socket .......................

T

Stud Hole ............................................

Z

pg. 38

Z

pg. 15

Z

pg. 48

Z

pg. 11

Z

pg. 29

Z

pg. 11

Z

pg. 11

Z

pg. 12

Z

pg. 11

Z

pg. 11

60

EN

LCD Monitor/Viewfinder Indications During Recording

INDEX

Indications a

D

T

W

200X

q

b

)

(

*

&

^

%

1* 2 3 4 5* 6* 7*

MANUAL

W

H

A

1/250 PAUSE

LP 35 min

PS

0

L

0

PHOTO E01

TAPE !

160 X SET DATE / TIME !

REC

444

6w

5S MODE

SOUND 32kHz

TC 12 : 34 : 24

BRIGHT

DEC 25 ’ 99

PM 5 : 30

– – – – –

6

– – – – –

8

9

0

!

@

#*

$

No.

Function

1*

Displays the operation mode position.

2

3

4

Appears when Auto Slow Shutter is engaged (“GAIN UP” is set to “AUTO”).

Appears when in the Squeeze or Cinema mode.

Appears when Digital Image Stabilizer (“DIS”) is engaged.

5*

Appears when in the Record-Standby mode.

6*

Displays the recording mode (SP or LP).

7*

Displays the tape remaining time.

8

9

0

&

*

(

) q

Appears during recording.

Appears while the tape is running.

Appears when taking a Snapshot.

Appears when the exposure is adjusted.

Appears when the white balance is adjusted.

Displays the selected Program AE with special effects.

Displays the selected Fade/Wipe effect.

Appears during zooming.

(

Z

pg. 13)

(

Z

pg. 19)

(

Z

pg. 19)

(

Z

pg. 19)

(

Z

pg. 12)

(

Z

pg. 10)

(

Z

pg. 12)

(

Z

pg. 12)

(

Z

pg. 12)

(

Z

pg. 17)

!

@

#*

Displays the date/time.

$

%

^

Appears when the wind cut mode is engaged to cut down on noise created by wind. (

Z

pg. 20)

Displays the sound mode for approx. 5 seconds after turning on the camcorder.

(

Z

pg. 20)

Displays the brightness of the LCD monitor or the viewfinder.

Appears when the iris is locked.

Appears when the focus is adjusted manually.

(

Z

pg. 21)

(

Z

pg. 12)

(

Z

pg. 27)

(

Z

pg. 25)

(

Z

pg. 26)

(

Z

pg. 28)

(

Z

pg. 24)

(

Z

pg. 22)

(

Z

pg. 14)

Zoom level indicator

Approximate zoom ratio

* :Setting “INDICATION” to “OFF” in the Date/Time Menu lets you remove indications marked with * from the screen (

Z

pg. 21).

EN

61

LCD Monitor/Viewfinder Indications During Playback

6

1

32kHz SOUND1 LP

4

PS WIDE

6e

HIGH SPEED

DEC 25 ’ 99

TC 01 : 28 : 15 PM 5 : 30

VOLUME

– – – – –

6

– – – – –

5

2 3

4

No.

Function

1

Displays the sound mode.

2

Displays the tape speed.

(

Z

pg. 31)

3

Appears while a tape is running.

4

: Playback

3

: Fast-Forward/Shuttle search

2

: Rewind/Shuttle search

6

: Pause

64

: Forward slow-motion

16

: Reverse slow-motion

e

: Audio Dubbing

6e

: Audio Dubbing Pause

4

Displays the date/time.

(

Z

pg. 31)

5

BRIGHT: Displays the brightness of the LCD monitor or the viewfinder. (

Z

pg. 12)

VOLUME: Displays the speaker volume.

(

Z

pg. 29)

6

Displays the time code.

(

Z

pg. 31)

Warning Indications

Indications

Displays the battery remaining power.

Remaining power level: high

Function

Remaining power level: exhausted

As the battery power comes close to nil, the battery indicator blinks.

When the battery power is exhausted, power turns off automatically.

Appears when no tape is loaded, or when the erase protection tab is set to “SAVE”.

(

Z

pg. 9)

Appears if dirt is detected on the heads during recording.

(

Z

pg. 56)

TAPE!

LENS COVER

TAPE END

SET DATE/TIME!

ERROR!

REFER MANUAL

E01 — E06

Appears if condensation occurs. When this indication is displayed, the camcorder turns off automatically.

Appears for 10 seconds after power is turned on if there is no tape loaded.

Appears for 5 seconds after power is turned on if the lens cap is attached.

Appears when the tape ends during recording or playback.

(

Z

pg. 13)

● Appears when the date/time is not set.

● Appears when the clock (lithium) battery is discharged and the previously set date/

time is erased.

(

(

Z

Z

pg. 8)

pg. 8)

Appears when Audio Dubbing is unavailable.

(

Z

pg. 48)

The error indications (E01 — E06) show what type of malfunction has occured. When an error indication appears, the camcorder turns off automatically. Remove the power supply (battery, etc.) and wait a few minutes for the indication to clear. When it does, you can resume using the camcorder. If the indication remains, consult your nearest JVC dealer.

(

Z

pg. 53)

62

EN

A

AC Power Adapter/Charger ....................

Audio Dubbing ........................................

Auto Focus ...............................................

Auto Shut off ......................................

pg. 6, 7

Z

Z

pg. 48

pg. 25

Z

pg. 13, 29

B

Battery Low ..............................................

Battery Pack .....................................

Z

pg. 61

Z

pg. 6, 7, 55

Brighten The LCD Monitor .......................

Built-in Clock’s Lithium Battery ..................

Z

pg. 12

Z

pg. 8

C

Charge The Battery Pack ............................

Cinema ....................................................

Classic Film .............................................

Clean The Camcorder ..............................

Connections ...........................

Z

Z

Z

pg. 6

pg. 19

pg. 24

pg. 54

Z

pg. 7, 32 – 37, 43

D

Darken The LCD Monitor ........................

Date/Time Display .............................

Z

Z

pg. 12

pg. 21, 31

Date/Time Settings .....................................

Demonstration Mode ...............................

Z

pg. 8

pg. 20

Digital Dubbing .......................................

Digital Zoom .....................................

Z

Z

pg. 37

pg. 14, 19

DIS (Digital Image Stabilizer) ...................

Diopter Adjustment ..................................

Dubbing ..................................................

Z

pg. 19

pg. 11

Z

pg. 36

E

Erase Protection .........................................

Exposure Control .....................................

Z

pg. 9

Z

pg. 26

F

Fade-In/Out .............................................

Fast-Forward The Tape .............................

Z

pg. 22

pg. 29

G

Gain Up ...................................................

Grip Adjustment .......................................

Z

pg. 19

pg. 11

I

Iris ...........................................................

Iris Lock ...................................................

Z

pg. 27

Z

pg. 27

J

Journalistic Shooting ................................

Z

pg. 13

L

LCD Monitor/Viewfinder Indications ...

Z

pg. 60, 61

Load A Tape ...............................................

Z

pg. 9

M

Manual Focus ..........................................

Mode Menu .............................................

Monotone ................................................

Motor Drive Mode ...................................

Z

pg. 25

pg. 19

Z

pg. 24

pg. 17

INDEX

Terms

P

Picture Wipe/Dissolve ..............................

Playback Menu ........................................

Playback Special Effects ...........................

Playback Zoom ........................................

Power Switch Position .............................

Program AE With Special Effects ..............

Provided Accessories .................................

Z

pg. 22

pg. 30

Z

pg. 29

pg. 29

Z

pg. 13

pg. 24

Z

pg. 5

R

Random Assemble Editing ................

Z

pg. 42 – 47

Record-Standby .......................................

Recording Menu ......................................

Z

pg. 12

Z

pg. 19

Recording Mode ......................................

Remote Control ........................................

Rewind The Tape .....................................

Z

Z

pg. 10

pg. 38

pg. 29

S

Self-Recording .........................................

Sepia ........................................................

Set Remote Control/VCR Code .................

Shoulder Strap Attachment .......................

Shuttle Search ..........................................

Shutter Speed ...........................................

Slow-Motion Playback .............................

Slow Shutter .............................................

Snapshot Mode ........................................

Sound Mode ............................................

Specifications ...........................................

Squeeze ...................................................

Still Playback ...........................................

Strobe ......................................................

System Menu ...........................................

Z

pg. 13

pg. 24

Z

pg. 42

pg. 11

Z

pg. 29

pg. 24

Z

pg. 29

pg. 24

Z

pg. 17

pg. 31

Z

pg. 63

pg. 19

Z

pg. 29

pg. 24

Z

pg. 20

T

Tele Macro ...............................................

Time Code ...............................................

Tripod Mounting ......................................

Twilight ....................................................

Z

pg. 20

Z

pg. 16

Z

pg. 11

Z

pg. 24

U

Unload A Tape ...........................................

Z

pg. 9

V

Video Echo ..............................................

Video Light ..............................................

Z

pg. 24

Z

pg. 15

W

White Balance .........................................

Wide Mode ..............................................

Wind Cut .................................................

Wipe In/Out .............................................

Z

pg. 28

Z

pg. 19

Z

pg. 20

Z

pg. 22

Z

Zooming ..................................................

Z

pg. 14

SPECIFICATIONS

Camcorder

General

Power supply

: DC 6.3 V (Using AC Power Adapter/Charger)

DC 7.2 V (Using battery pack)

Power consumption

LCD monitor off, viewfinder on : Approx. 4.6 W

LCD monitor on, viewfinder off : Approx. 5.7 W

Video light

: Approx. 3.9 W

Format

Signal format

Video signal recording format

Cassette

Tape Speed

Maximum recording time

: DV Format (SD mode)

: NTSC Standard

: Digital Component Recording

: Mini DV Cassette

: SP: 18.8 mm/s

LP: 12.5 mm/s

: SP: 60 min.

LP: 90 min. (using M-DV60ME cassette)

Pickup

Lens

Filter diameter

LCD monitor

Viewfinder

Speaker

Operating temperature

Operating humidity

Storage temperature

Dimensions

Weight

: 1/4" CCD

: F 1.6, f = 3.9 to 62.4 mm, 16:1 Power Zoom Lens

: ø40.5 mm

: 3.0" diagonally measured, LCD panel/TFT active matrix system

: Electronic viewfinder with 0.55" color LCD

: Monaural

: 0°C to 40°C (32°F to 104°F)

: 35% to 80%

: –20°C to 50°C (–4°F to 122°F)

: 188 (W) x 118 (H) x 88 (D) mm (7-7/16" x 4-11/16" x 3-1/2")

(with the LCD monitor closed and the viewfinder pushed down)

: Approx. 700 g (1.6 lbs)

Connectors

S-Video

JLIP

PC

Video output

Audio output

DV input/output

: Y: 1 Vp-p, 75

Ω

, analog output

C: 0.29 Vp-p, 75

Ω

, analog output

: ø3.5 mm, 4-pole, mini-head jack (compatible with RC-5325 plug)

: ø2.5 mm, 3-pole

: 1 Vp-p, 75

Ω

unbalanced, analog output

: –8 dBs, 1 k

Ω

analog output, stereo

: 4-pin, IEEE1394 compliant

EN

63

AC Power Adapter/Charger AA-V20U

Power requirement

U.S.A. and Canada

Other countries

Power consumption

Output

Charge

VTR

Dimensions

Weight

: AC 120 V`, 60 Hz

: AC 110 V to 240 V`, 50/60 Hz

: 23 W

: DC 7.2 V , 0.77 A

: DC 6.3 V , 1.8 A

: 68 (W) x 38 (H) x 110 (D) mm (2-11/16" x 1-1/2" x 4-3/8")

: Approx. 255 g (0.57 lbs)

Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject to change without notice.

VICTOR COMPANY OF JAPAN, LIMITED

COPYRIGHT© 1999 VICTOR COMPANY OF JAPAN, LTD.

U

Printed in Japan

0699MKV * UN * YP

EN

No results
