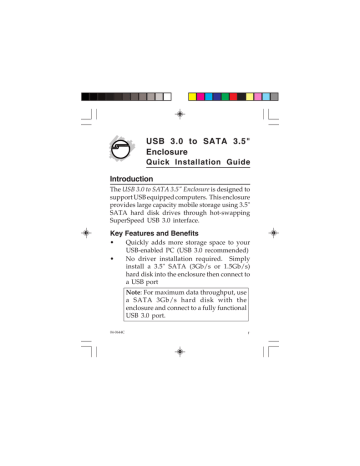

USB 3.0 to SATA 3.5"

Enclosure

Quick Installation Guide

Introduction

The USB 3.0 to SATA 3.5" Enclosure is designed to support USB equipped computers. This enclosure provides large capacity mobile storage using 3.5"

SATA hard disk drives through hot-swapping

SuperSpeed USB 3.0 interface.

Key Features and Benefits

• Quickly adds more storage space to your

USB-enabled PC (USB 3.0 recommended)

• No driver installation required. Simply install a 3.5" SATA (3Gb/s or 1.5Gb/s) hard disk into the enclosure then connect to a USB port

Note: For maximum data throughput, use a SATA 3Gb/s hard disk with the enclosure and connect to a fully functional

USB 3.0 port.

04-0644C 1

System Requirements

• Notebook or desktop PC with an available

USB 2.0/3.0 port (USB 3.0 recommended)

• Windows ® 8 (32-/64-bit) / 7 (32-/64-bit) /

Vista (32-/64-bit) / XP (32-/64-bit) / Server

2003 & 2008 (32-/64-bit) / Server 2008 R2

Package Contents

• USB 3.0 to SATA 3.5" Enclosure

• Power adapter & USB 3.0 cable

• Installation kit & stand

• Quick installation guide

Layout

Mounting screws

USB 3.0

connector

Power (on)/ Activity

(blinking) LED

On / Off switch

Upper cover

Lower cover

Power Adapter Jack

Figure 1: Layout

Mounting screws

2

Hardware Installation

The following section guides you through the installation of your drive kit.

Installing a 3.5" Hard Drive

1.

Remove the 2 screws in each side, see Figure

2. Slide the top cover out of the case, then slide the lower cover out of the case, see

Figure 3.

Screws

Screws

Figure 2

Figure 3

3

2.

Slide in the hard disk drive so the connector properly fits into the backplane, see Figure

4.

Figure 4

3.

Hold onto the hard disk drive and turn the hard disk drive tray over. Secure the hard disk drive with four mounting screws, see

Figure 5.

Screw holes

Screw holes

Figure 5

4

4.

Slide the lower cover back into the case and secure it with the two mounting screws, then slide the upper cover back into the case and secure it with two mounting screws.

5.

Plug the included switching power adapter into the enclosure's power adapter jack, then plug the switching power adapter into a reliable power source.

6.

Use the included USB 3.0 data cable to plug the USB 3.0 to SATA 3.5" Enclosure into the computer.

7.

Switch on the USB 3.0 to SATA 3.5"

Enclosure. Make sure that the LED is lit.

Go to Driver Installation to complete the installation.

Driver Installation

Windows will automatically detect and install drivers for the USB 3.0 to SATA 3.5" Enclosure.

No additional driver installation is needed. Note:

In order to get USB 3.0 performance, make sure your USB 3.0 controllers have the correct drivers installed.

5

6

Using the USB to SATA 3.5" Enclosure

An additional drive icon will appear in My

Computer when the enclosure is plugged into a

USB port. The drive acts just like a conventional hard drive in your system.

Disconnecting From The Computer

Before unplugging the USB 3.0 to SATA 3.5"

Enclosure from the computer, follow the steps below for your version of Windows. The same rule applies when turning off the Enclosure. Not following the instructions may result in data corruption or damage to the hard drive.

Windows 8 / 7 / Server 2008 R2

1.

Verify that the LED is not flashing before proceeding.

2.

Click Show hidden icons, click the Safely

Remove Hardware and Eject Media icon located in the system tray by the system clock.

3.

Click Eject USB Mass Storage Device.

4.

You can now unplug or turn off the USB 3.0 to SATA 3.5" Enclosure.

Windows Vista / Server 2008

1.

Verify that the LED is not flashing before proceeding.

2.

Click the Safely Remove Hardware icon located in the system tray by the system clock.

3.

Click Safely remove USB Mass Strorage

Device, then click OK.

4.

You can now unplug or turn off the USB 3.0

to SATA 3.5" Enclosure.

Windows XP / Server 2003

1.

Verify that the LED is not flashing before proceeding.

2.

Double click the Safely Remove Hardware icon located in the system tray by the system clock.

3.

Highlight Mass Storage Device, click Stop,

OK, OK then Close.

4.

You can now unplug or turn off the USB 3.0

to SATA 3.5" Enclosure.

7

8

Blank Page

Blank Page

9

10

Blank Page
