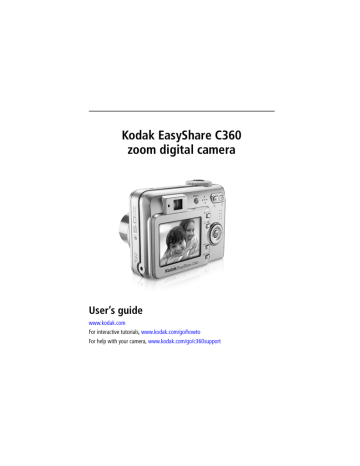

Kodak EasyShare C360 zoom digital camera
User’s guide
www.kodak.com
For interactive tutorials, www.kodak.com/go/howto
For help with your camera, www.kodak.com/go/c360support
Eastman Kodak Company
Rochester, New York 14650
© Eastman Kodak Company, 2005
All screen images are simulated.
Kodak, EasyShare, and Retinar are trademarks of Eastman Kodak Company.
P/N 4J3325
Front, top view
1 2 3
4
5
6
7
Product features
1 Shutter button
2 Mode dial
3 Power light
4 Viewfinder
5 Flash button
6 Self-timer/Burst button
8
12
11
10
7 Flash
8 DC-In (3V)
9 Microphone
10 Lens
11 Light sensor
12 Self-timer light
9
,for optional AC adapter www.kodak.com/go/support i
Product features
Side, back, bottom view
2
3 4 5 6 7
1
8 9
19
18
17 ii
1 LCD
2 Ready light
3 Viewfinder
4 LCD/Info button
5 Share button
6 Delete button
7 Speaker
8 Wide angle button
9 Telephoto button
10 Wrist strap post
10
11
12
13
16 15 14
11 Slot for optional SD or MMC card
12 OK button
13 USB, A/V Out
14
15 Battery compartment
16 Menu button
17 Review button
18 Dock connector
19 Tripod socket www.kodak.com/go/support
Table of contents
1
1 Setting up your camera .........................................................................1
Storing pictures on an SD or MMC card ......................................................... 3
2 Taking pictures and videos ....................................................................4
Reviewing pictures and videos on your camera .............................................. 8
3 Transferring and printing pictures .......................................................11
Transferring pictures with the USB cable...................................................... 12
Dock compatibility for your camera.............................................................. 15
4 Doing more with your camera .............................................................16
Viewing picture/video information ............................................................... 30
www.kodak.com/go/support iii
Table of contents
Computer/connectivity problems.................................................................. 40
Direct printing (PictBridge enabled printer) problems.................................... 42
Upgrading your software and firmware........................................................ 52
Additional care and maintenance ................................................................ 52
iv www.kodak.com/go/support
1
Setting up your camera
Attaching the wrist strap
Loading the batteries
CRV3 lithium
(non-rechargeable)
Ni-MH
(rechargeable)
2 AA lithium or Ni-MH
For information on replacing batteries and extending battery life, see
www.kodak.com/go/support 1
Setting up your camera
Turning on the camera
Setting the date/time, first time
1 At the prompt, press OK.
2 to change.
for previous/next field.
OK to accept.
Setting the date/time and language, other times
1
2
3
Press Menu.
to highlight Setup Menu then press OK.
to highlight Language or Date/Time , then press OK.
If setting the date/time,
2 to change, for previous/next, OK to accept.
www.kodak.com/go/support
Setting up your camera
Storing pictures on an SD or MMC card
Your camera has 32 MB of internal memory. You can purchase an SD or MMC card to conveniently store more pictures and videos.
NOTE: We recommend Kodak SD or MMC cards. When using the card for the first time, format it in this camera before taking pictures (see
32 MB internal memory
(built-in)
Notched corner
SD or MMC card (optional)
CAUTION:
A card can only be inserted one way; forcing it may cause damage. Inserting or removing a card when the Ready light is blinking may damage the pictures, the card, or the camera.
See page 49 for storage capacities. Purchase SD or MMC cards at a dealer of Kodak
products or www.kodak.com/go/c360accessories.
www.kodak.com/go/support 3
4
2
Taking pictures and videos
Taking a picture
1
3
Press Shutter button halfway to focus and set exposure.
When the Ready light turns green, press Shutter button completely down.
2
Press LCD/Info for:
• LCD on, status icons on
• LCD on, status icons off
• LCD off
Taking a video
1
2
Press the Shutter button completely down and release.
To stop recording, press and release the Shutter button again.
www.kodak.com/go/support
Taking pictures and videos
Reviewing the picture or video just taken
After you take a picture or video, the LCD displays a quickview for approximately 5 seconds.
If you press no buttons, the picture/ video is saved.
Tag a picture/video for email or as a favorite, or tag a picture for print.
Delete
Play a video.
( to adjust volume.)
To review pictures and videos anytime, see
Understanding quickview blur warning icons
If the feature is turned on (see Blur Warning, page 28 ), a picture blur warning icon
is displayed during quickview.
Green—Picture is sharp enough for an acceptable 4 x 6-inch print.
Yellow—Picture may be sharp enough for an acceptable 4 x 6-inch print or sharpness is not determined. (You may want to view on a computer monitor before printing.)
Red—Picture is not sharp enough for an acceptable 4 x 6-inch print.
White—Printability is still being determined.
www.kodak.com/go/support 5
Taking pictures and videos
Understanding picture-taking icons
In capture mode—no buttons pressed
Self-timer Flash Picture size
Date stamp
Album name
Zoom: digital telephoto wide
Blur warning
Pictures/time remaining
Storage location
AF mode
Focus zone
Exposure metering
White balance
ISO
Low battery
Camera mode
Exposure compensation
In capture mode—shutter pressed halfway
Album
Auto Exposure/
Auto Focus warning
Aperture
Shutter speed
Low battery
Exposure compensation
6 www.kodak.com/go/support
Taking pictures and videos
Using the auto-focus framing marks (to take pictures)
When using the LCD as a viewfinder, framing marks indicate the camera focus area.
The camera attempts to focus on foreground subjects, even if the subjects are not centered in the scene.
1 Press the Shutter button halfway.
When the framing marks turn green, focus is accomplished.
Framing marks
Center focus
Center wide focus
Side focus
Center and side focus
Left and right focus
2 If the camera is not focusing on the desired subject (or if the framing marks disappear), release the Shutter button and recompose the scene.
3 Press the Shutter button completely down to take the picture.
NOTE: Framing marks do not appear in Landscape or Video mode. When you use Focus
Zone (
) and set Center Zone, the framing marks are fixed at Center Wide. www.kodak.com/go/support 7
Taking pictures and videos
Reviewing pictures and videos on your camera
Press the Review button to view and work with your pictures and videos.
2
1 for previous/next.
Review.
(Press again to exit.)
Videos:
OK Play/pause.
Adjust the volume.
Rewind to beginning (during playback).
Next picture/video (during playback).
To save battery power, use an optional Kodak EasyShare dock or Kodak 3-volt AC adapter. (See www.kodak.com/go/c360accessories .)
NOTE: Pictures taken at the 4.4 MP (3:2) quality setting are displayed at a 3:2 aspect ratio with a black bar at the top of the screen. A video’s duration is displayed at the top of the LCD.
Magnifying a picture during review
W/T
OK magnify 1X - 8X.
view other parts of the picture.
return to 1X.
8 www.kodak.com/go/support
Understanding review icons
Pictures
Print tag/number of prints
Favorite tag
Email tag
Taking pictures and videos
Viewing multi-up (thumbnails) during review
view multi-up thumbnails.
view previous/next row of thumbnails.
view previous/next thumbnail.
Blur warning
Picture number
Image storage location
Scroll arrows
Videos
Video length
Favorite tag
Email tag
Protected
Review mode
Video number
Image storage location
Play or Pause
Scroll arrows www.kodak.com/go/support view single picture.
Protected
Review mode
9
Taking pictures and videos
Deleting pictures and videos during review
4 Follow the screen prompts.
3 Press Delete.
2 for previous/next.
1 Press Review.
NOTE: To delete protected pictures and videos, remove protection before deleting.
Protecting pictures and videos from deletion
Press Menu.
3
Press to highlight Protect then press OK.
4
2 for previous/next.
1 Press Review.
The picture or video is protected and cannot be deleted. The Protect icon appears with the protected picture or video.
Press the Menu button to exit the menu.
CAUTION:
Formatting internal memory or an SD or MMC card deletes all
(including protected) pictures and videos. (Formatting internal memory also deletes email addresses, album names, and favorites. To restore them, see EasyShare software Help.)
10 www.kodak.com/go/support
3
Transferring and printing pictures
Installing the software
CAUTION:
Install EasyShare software before connecting the camera to the computer. Failure to do so may cause the software to load incorrectly.
1 Close all software applications that are open on your computer (including anti-virus software).
2 Place the EasyShare software CD into the CD-ROM drive.
3 Load the software:
Windows OS— if the install window does not appear, choose Run from the Start menu and type d:\setup.exe where d is the drive letter that contains the CD.
Mac OS X— double-click the CD icon on the desktop, then click the Install icon.
4 Follow the on-screen instructions to install the software.
Windows OS— select Complete to automatically install the most commonly used applications, or Custom to choose the ones you wish to install.
Mac OS X— follow the on-screen instructions.
5 If prompted, restart the computer. If you turned off anti-virus software, turn it back on. See the anti-virus software manual for details.
For information on the software applications included on the EasyShare software CD, click the Help button in EasyShare software.
www.kodak.com/go/support 11
Transferring and printing pictures
Transferring pictures with the USB cable
1 Turn off the camera.
2 Plug the labeled end of the USB cable into the labeled USB port on your computer. See your computer user’s guide for details.
3 Plug the other end of the USB cable into the USB port on the camera. The arrow icon on the cable should face you.
4 Turn on the camera.
EasyShare software opens on your computer. The software prompts you through the transfer process.
NOTE: Visit www.kodak.com/go/howto for an online tutorial on connecting.
Also available for transferring
You can also use these Kodak products to transfer your pictures and videos.
■ Kodak EasyShare camera dock, Kodak EasyShare printer dock (see
■ Kodak multi-card reader, Kodak SD multimedia card reader-writer
Purchase these and other accessories at a dealer of Kodak products or www.kodak.com/go/c360accessories .
Printing pictures
Printing with a Kodak EasyShare printer dock
Dock your camera to the EasyShare printer dock and print directly—with or without a computer. Purchase this and other accessories at a dealer of Kodak products or www.kodak.com/go/c360accessories .
12 www.kodak.com/go/support
Transferring and printing pictures
Direct printing with a PictBridge enabled printer
Your camera is compatible with PictBridge technology, so you can print directly to
PictBridge enabled printers. You need:
■ Camera with fully charged batteries, or with optional Kodak 3-volt AC adapter
■
■
PictBridge enabled printer
USB cable included with your camera
Connecting the camera to a PictBridge enabled printer
1 Turn off the camera and printer.
2 Optional: If you have a Kodak 3-volt AC adapter (optional accessory), plug it into the camera and into an electrical outlet.
IMPORTANT: Do not use the AC adapter included with the EasyShare camera dock or printer dock to power your camera.
3 Connect the appropriate USB cable from the camera to the printer. See your printer user guide for details or www.kodak.com/go/c360accessories to order cables.
Printing from a PictBridge enabled printer
1 Turn on the printer. Turn on the camera.
The PictBridge logo is displayed, followed by the current picture and menu. If the menu interface turns off, press any button to redisplay it.
2 Press to choose a printing option, then press the OK button.
Current Picture— Press to choose a picture. Choose the number of copies.
Tagged Pictures— If your printer is capable, print pictures that you tagged for printing and choose a print size.
Index Print— Print thumbnails of all pictures. This requires one or more sheets of paper. If the printer is capable, choose a print size.
All Pictures— Print all pictures in internal memory, on a card, or in Favorites.
Choose the number of copies.
Image Storage— Access internal memory, a card, or Favorites.
NOTE: During direct printing, pictures are not permanently transferred or saved to the computer or printer.
www.kodak.com/go/support 13
Transferring and printing pictures
Disconnecting the camera from a PictBridge enabled printer
1 Turn off the camera and printer.
2 Disconnect the USB cable from the camera and the printer.
Using a printer that is not PictBridge enabled
For details on printing pictures from your computer, click the Help button in Kodak
EasyShare software.
Ordering prints online
Kodak EasyShare gallery ( www.kodakgallery.com
) is one of the many online print services offered in Kodak EasyShare software. You can easily:
■ Upload your pictures.
■
■
Edit, enhance, and add borders to your pictures.
Store pictures, and share them with family and friends.
■ Order high-quality prints, photo greeting cards, frames, and albums—and have them delivered to your door.
Printing from an optional SD or MMC card
■ Automatically print tagged pictures when you insert your card into a printer with an SD/MMC slot. See your printer user’s guide for details.
■ Make prints at an SD/MMC-capable Kodak picture maker. (Contact a location prior to visiting. See www.kodak.com/go/picturemaker .)
■ Take the card to your local photo retailer for professional printing.
14 www.kodak.com/go/support
Transferring and printing pictures
Dock compatibility for your camera
Docking configuration Kodak EasyShare dock
■ series 3 printer docks and camera docks Custom dock insert
Dock
■
■
■
■ printer dock printer dock plus printer dock 6000 camera dock 6000
Custom dock insert
Kodak dock adapter D-22
Dock
■
■
■ printer dock 4000 camera dock II
LS420, LS443 camera dock
Not compatible
Purchase camera docks, printer docks, and other accessories at a dealer of Kodak products or www.kodak.com/go/c360accessories .
www.kodak.com/go/support 15
4
Doing more with your camera
Using optical zoom
Use optical zoom to get up to 3X closer to your subject. Optical zoom is effective when the lens is no closer than 24 in. (60 cm) to the subject or 2 in. (5 cm) in
Close-up mode. You can change optical zoom before (but not during) video recording.
1 Use the viewfinder or LCD to frame your subject.
2 Press Telephoto (T) to zoom in. Press Wide Angle
(W) to zoom out.
The zoom indicator shows zoom status.
3 Take the picture or video.
Zoom indicator
Digital zoom range
Optical zoom range
Using digital zoom
Use digital zoom in any Still mode to get up to 5X magnification beyond optical zoom.
1 Press the Telephoto (T) button to the optical zoom limit (3X). Release the button, then press it again.
2 Take the picture or video.
NOTE: You cannot use digital zoom for video recording. You may notice decreased image quality when using digital zoom. The blue slider on the zoom indicator pauses and turns red when the picture quality reaches the limit for an acceptable 4 x 6-in. (10 x 15 cm) print.
16 www.kodak.com/go/support
Doing more with your camera
Changing the flash settings
Press the flash button repeatedly to scroll through flash modes.
The current flash mode is shown in the LCD status area.
Flash modes Flash fires
Auto
Flash
When the lighting conditions require it.
Fill Every time you take a picture, regardless of the lighting conditions. Use when the subject is in shadow or is “backlit” (when the sun is behind the subject). In low light, hold the camera steady or use a tripod.
Redeye
■
■
If the Red-eye Pre-flash feature is turned off:
The flash fires once.
The camera then automatically corrects red-eye in the picture.
If the Red-eye Pre-flash feature is turned on:
■
■
The flash fires once so the eyes become accustomed to the flash, then fires again when the picture is taken.
The camera then automatically corrects red-eye in the picture.
To turn the Red-eye Pre-flash feature on/off, see Red-eye Pre-flash, page 27 .
Off Never
For flash settings in each mode, see
NOTE: Rear-curtain-flash sync (a feature found only in Night Portrait mode) activates automatically when the flash is fired and the shutter speed is set at 1/30 second or longer. The flash fires just before the shutter closes to create a stream-of-light effect behind a moving object for a more natural appearance. www.kodak.com/go/support 17
Doing more with your camera
Picture-taking modes
Choose the mode that best suits your subjects and surroundings.
Use this mode For
Auto General picture-taking—offers an excellent balance of image quality and ease of use.
Scene Point-and-shoot simplicity when taking pictures under special conditions.
(See
.)
Portrait Full-frame portraits of people. Allows the subject to be sharp and the background to be indistinct. For best results, position your subject at least
6 ft (2 m) away and fill the frame with a head and shoulder pose. Use
Telephoto to exaggerate background blur.
Sport Subjects that are in motion. Shutter speed is fast.
Landscape Far-away scenes. The camera uses infinity auto-focus. Auto-focus framing marks are not available in Landscape.
Close-up Close range. Use available light instead of flash if possible. The camera automatically sets the focus distance depending on the zoom position.
Video Capturing video with sound. (See
18 www.kodak.com/go/support
Doing more with your camera
Scene modes
1 Turn the Mode dial to Scene .
2 Press to display Scene mode descriptions.
NOTE: If the Help text turns off, press the OK button.
3 Press the OK button to choose a Scene mode.
Use this SCN mode For
Children Action pictures of children in bright light.
Party
Beach
People indoors. Minimizes red eye.
Bright beach scenes.
Snow Bright snow scenes.
Fireworks Flash does not fire. Place the camera on a flat, steady surface or use a tripod.
Flower Close-ups of flowers or other small subjects in bright light.
Self-
Portrait
Close-ups of yourself. Assures proper focus and minimizes red eye.
Backlight Subjects that are in shadow or “backlit” (when light is behind the subject).
Night
Portrait
Reduces red eye of people in night scenes or low-light conditions. Place the camera on a flat, steady surface or use a tripod.
Night
Landscape
Distant scenery at night. Flash does not fire. Place the camera on a flat, steady surface or use a tripod.
Manner/
Museum
Quiet occasions, like a wedding or lecture. Flash and sound are disabled.
www.kodak.com/go/support 19
Doing more with your camera
Use this SCN mode For
Text Documents.
Using the self-timer
1 Place camera on a tripod or flat surface.
2
In any still mode, press
• Once for a 10-second delay (so you have time to get into the scene)
• Once more for a 2-second delay (for a steady, auto-shutter release on a tripod)
3 Compose the scene.
4
Press the Shutter button halfway, then completely down.
The picture is taken in 10 or 2 seconds.
To cancel the Self-timer before the picture is taken, press the Self-timer button. (The
Self-timer setting remains active.)
Use the same procedure to take a video, but:
■
■
Turn the Mode dial to Video .
Press the Shutter button completely down.
NOTE: The video stops when no storage space remains.
20 www.kodak.com/go/support
Doing more with your camera
Using burst
Option Description
Camera takes up to 5 pictures (2 per second) while the
Shutter button is pressed.
First
Burst
First 5 pictures are saved.
Purpose
Capture an expected event.
Example:
A person swinging a golf club.
Last
Burst
Camera takes up to 30 pictures (2 per second for up to
15 seconds) while the Shutter button is pressed. When the Shutter button is released, only the last 4 pictures are saved.
Last 4 pictures are saved.
Capture an event when the precise timing is uncertain.
Example:
A child blowing out birthday candles.
1 In most Still modes, press the Burst button repeatedly to choose an option.
2 Press the Shutter button halfway to focus and set exposure.
3 Press the Shutter button completely down and hold it to take pictures.
The camera stops taking pictures when you release the Shutter button, when the pictures are taken, or when there is no more storage space.
NOTE: During quickview, you can delete all pictures in the burst series. To delete selectively, do so in
Review (see
).
www.kodak.com/go/support 21
Doing more with your camera
Changing picture-taking settings
You can change settings to get the best results from your camera:
1 Press the Menu button.
2 Press to highlight a setting, then press the OK button.
3 Choose an option, then press the OK button.
4 Press the Menu button to exit.
NOTE: Some settings are unavailable in some modes.
Setting
Exposure Bracketing
Determine the best exposure level for your conditions based on your evaluation of 3 pictures.
This setting remains until you turn the mode dial.
Icon Options
Off
+/- 0.3
+/- 0.7
+/- 1.0
The camera takes 3 pictures—at +, at 0, and at - exposure.
Exposure Compensation
Control how much light enters the camera.
This setting remains until you turn the mode dial.
-0.2 to +2.0 (in 1/3 increments)
22 www.kodak.com/go/support
Doing more with your camera
Setting
Picture Size
Choose a picture resolution.
This setting remains until you change it.
White Balance
Choose your lighting condition.
This setting remains until you turn the Mode dial.
Icon Options
5.0 MP (default)—for printing up to 20 x 30 in.
(51 x 76 cm); pictures are highest resolution and largest file size.
4.4 MP (3:2)— ideal for printing 4 x 6 in. (10 x 15 cm) prints without cropping. Also for printing up to 20 x 30 in. (51 x 76 cm).
4.0 MP— for printing up to 20 x 30 in. (51 x 76 cm); pictures are medium resolution with smaller file size.
3.1 MP—for printing up to 11 x 14 in. (28 x 36 cm); pictures are medium resolution with smaller file size.
1.8 MP—for printing 4 x 6 in. (10 x 15 cm), emailing,
Internet, screen display, or for conserving space.
Auto (default)—automatically corrects white balance. Ideal for general picture taking.
Daylight—for pictures in natural lighting.
Tungsten—corrects the orange cast of household light bulbs. Ideal for indoor pictures under tungsten or halogen lighting without flash.
Fluorescent—corrects the green cast of fluorescent lighting. Ideal for indoor pictures under fluorescent lighting without flash.
Open Shade—for pictures in the shade in natural lighting.
www.kodak.com/go/support 23
Doing more with your camera
Setting
AF Control
Choose an auto-focus setting.
This setting remains until you change it.
Icon Options
Exposure Metering
Evaluate light levels at specific areas of a scene.
This setting remains until you turn the Mode dial.
ISO Speed
Control the sensitivity of the camera sensor.
This setting remains until you turn the Mode dial.
Focus Zone
Select a large or concentrated area of focus.
This setting remains until you turn the Mode dial.
ISO
Multi-pattern (default)—evaluates lighting conditions throughout the image to give an optimum picture exposure. Ideal for general picture taking.
Center-weight—evaluates the lighting conditions of the subject centered in the viewfinder. Ideal for backlit subjects.
Center-spot—similar to Center-weight, except the metering is concentrated on a smaller area of the subject centered in the viewfinder. Ideal when you need an exact exposure of a specific area in the picture.
Auto (default)
ISO 80, 100, 200, 400, 800
Multi-zone (default)—evaluates 3 zones to give an even picture focus. Ideal for general picture taking.
Center-zone—evaluates the small area centered in the viewfinder. Ideal when precise focus of a specific area in the picture is needed.
NOTE: For the best pictures, the camera is set to Multi-zone when in Landscape mode.
Continuous AF—uses external AF sensor and TTL
(Through The Lens) AF. Because the camera is always focusing, there is no need to press the Shutter button halfway down to focus.
Single AF (default)—uses external AF sensor and
TTL-AF when the Shutter button is pressed halfway down.
24 www.kodak.com/go/support
Doing more with your camera
Setting
Color Mode
Choose color tones.
This setting remains until you turn the Mode dial.
Sharpness
Control picture sharpness.
This setting remains until you turn off the camera.
Long Time Exposure
Choose how long the shutter stays open.
This setting remains until you turn off the camera.
Set Album
Choose Album names.
This setting remains until you change it. You can apply different Set Album choices to videos and to pictures.
Image Storage
Choose a storage location for pictures/videos.
This setting remains until you change it.
Icon Options
High Color
Natural Color (default)
Low Color
Black & White
Sepia—for pictures with a reddish-brown, antique look.
NOTE: EasyShare software also lets you change a color picture to black-and-white or sepia.
Unavailable in Video mode.
High
Normal (default)
Low
0.5, 0.7, 1, 1.5, 2, 3, 4, 6, or 8 seconds
On or Off.
Pre-select album names before you take pictures or videos. Then, all the pictures or videos you take are
tagged with those album names. See page 31 .
Auto (default)—the camera uses the card if one is in the camera. If not, the camera uses internal memory.
Internal Memory—the camera always uses internal memory, even if a card is installed.
www.kodak.com/go/support 25
Doing more with your camera
Setting
Setup Menu
Choose additional settings.
Icon Options
.
Customizing your camera
Use Setup to customize your camera settings.
1 In any mode, press the Menu button.
2 Press to highlight Setup , then press the OK button.
3 Press to highlight the setting you wish to change, then press the OK button.
4 Choose an option, then press the OK button.
5 Press the Menu button to exit.
NOTE: These settings remain until you change them.
Setting
Return to previous menu.
Icon Options
Liveview
Change liveview default to on or off.
NOTE: In some modes, the LCD turns on even if the liveview option is set to
Off. (To turn the LCD on/off any time, press the LCD/Info button.)
Camera Sounds
Choose sound effects
On (default)
Off
Theme—applies the same sound effect set to all functions.
Individual—choose a sound effect for each function.
26 www.kodak.com/go/support
Doing more with your camera
Setting
Sound Volume
Auto Power Off
Choose inactivity time until camera turns off.
Date & Time
Icon Options
Off
Low (default)
Medium
High
10 minutes (default)
5 minutes
3 minutes
1 minute
.
Video Out
Choose the regional setting that lets you connect the camera to a television or other external device.
Orientation Sensor
Orient pictures so that they are displayed with the correct side up.
Red-eye Pre-flash
Choose if the Red-eye flash fires automatically before a picture is taken.
NOTE: The camera automatically corrects red-eye, even if the Red-eye Pre-flash is set to Off.
Date Stamp
Imprint the date on pictures.
Video Date Display
Display Date/Time at the start of video playback.
NTSC (default)—used in North America and Japan; most common format.
PAL—used in Europe and China.
On (default)
Off
On
Off (default)
Choose a date option, or turn off the feature. (Default is off.)
On (default)—choose from date formats.
Off www.kodak.com/go/support 27
Doing more with your camera
Setting
Blur Warning
Language
Icon Options
On (default)
Off See
.
Format
CAUTION:
Formatting deletes all pictures/videos, including those that are protected.
Removing a card during formatting may damage the card.
About
View camera information.
Memory Card—deletes everything on the card; formats the card.
Cancel—exits without making a change.
Internal Memory—deletes everything in internal memory including email addresses, album names, and favorites; formats the internal memory.
Running a slide show
Use the Slide Show to display your pictures/videos on the LCD. To run a slide show on a television or on any external device, see
page 29 . To save battery power, use an
optional Kodak 3V AC adapter. (Visit www.kodak.com/go/c360accessories.
)
Starting the slide show
1 Press the Review button, then press the Menu button.
2 Press to highlight Slide Show , then press the OK button.
3 Press to highlight Begin Show, then press the OK button.
Each picture and video is displayed once.
To interrupt the Slide Show, press the OK button.
28 www.kodak.com/go/support
Doing more with your camera
Changing the slide show display interval
The default interval setting displays each picture for 5 seconds. You can set the display interval from 3 to 60 seconds.
1 On the Slide Show menu, press button.
to highlight Interval, then press the OK
2 Select a display interval.
To scroll through the seconds quickly, press and hold
3 Press the OK button.
The interval setting remains until you change it.
.
Running a continuous slide show loop
When you turn on Loop, the slide show is continuously repeated.
1 On the Slide Show menu, press to highlight Loop, then press the OK button.
2 Press to highlight On, then press the OK button.
The slide show repeats until you press the OK button or until battery power is exhausted. The Loop feature remains until you change it.
Displaying pictures and videos on a television
You can display pictures/videos on a television, computer monitor, or any device equipped with a video input. (Image quality on a television screen may not be as good as on a computer monitor or when printed.)
NOTE: Ensure that the Video Out setting (NTSC or PAL) is correct (see
page 27 ). The slide show stops if you
connect a cable while the slide show is running.
1 Connect the audio/video cable (included) from the camera USB, A/V Out port to the television video-in port (yellow) and audio-in port (white). See your television user’s guide for details.
2 Review pictures/videos on the television.
www.kodak.com/go/support 29
Doing more with your camera
Cropping pictures
1
2
Press Review. for previous/next.
3 Press Menu, choose Crop
4 Press Telephoto (T) to zoom in, or
, then press OK.
to move the crop box.
5 Follow the screen prompts.
The picture is copied, then cropped. The original picture is saved.
Press the Menu button to exit the menu.
Viewing picture/video information
1 Press Review.
2 Press LCD/Info.
To exit Review, press the Review button.
Copying pictures and videos
You can copy pictures/videos from a card to internal memory or from internal memory to a card.
Before you copy, make sure that:
■
■
A card is inserted in the camera.
The camera’s picture storage location is set to the location from which you are copying. See
.
30 www.kodak.com/go/support
Doing more with your camera
Copy pictures or videos:
1 Press the Review button, then press the Menu button.
2 Press to highlight Copy , then press the OK button.
3 Press to highlight an option.
4 Press the OK button.
NOTE: Pictures/videos are copied, not moved. To remove pictures/videos from the original location after copying, delete them (see
Tags that you applied for print, email, and favorites are not copied. Protection settings are not
copied. To apply protection to a picture or video, see page 10
.
Pre-tagging for album names
Use the Set Album (Still or Video) feature to pre-select album names before you take pictures or videos. Then, all the pictures or videos you take are tagged with those album names.
First—on your computer
Use the EasyShare software that was packaged with your camera to create album names on your computer. The next time you connect the camera to the computer, copy up to 32 albums to the album name list. See EasyShare software Help for details.
Second—on your camera
1 In any mode, press the Menu button.
2 Press to highlight Set Album , then press the OK button.
3 Press to highlight an album name, then press the OK button. Repeat to mark pictures or videos for albums.
Selected albums are noted with a check mark.
4 To remove a selection, highlight an album name and press the OK button. To remove all album selections, select Clear All.
www.kodak.com/go/support 31
Doing more with your camera
5 Highlight Exit, then press the OK button.
Your selections are saved. If you turn on the LCD, your album selection is displayed on the screen. A plus (+) after the album name means more than one album is selected.
6 Press the Menu button to exit the menu.
Third—transfer to your computer
When you transfer the tagged pictures or videos to your computer, EasyShare software opens and categorizes your pictures in the appropriate album. See EasyShare software Help for details.
Tagging pictures/videos for albums
Use the Album feature in Review mode to tag the pictures/videos in your camera with album names.
First—on your computer
Use EasyShare software to create albums on your computer, then copy up to 32 album names to the camera’s internal memory. See EasyShare software Help for details.
Second—on your camera
1 Press the Review button, then locate the picture or video.
2 Press the Menu button.
3 Press to highlight Album , then press the OK button.
4 Press to highlight an album folder, then press the OK button.
To add other pictures to the same album, press to scroll through the pictures.
When the picture you want is displayed, press the OK button.
To add the pictures to more than one album, repeat step 4 for each album.
The album name appears with the picture. A plus (+) after the album name means the picture was added to more than one album.
To remove a selection, highlight an album name and press the OK button. To remove all album selections, select Clear All.
32 www.kodak.com/go/support
Doing more with your camera
Third—transfer to your computer
When you transfer the tagged pictures/videos to your computer, EasyShare software opens and categorizes your pictures/videos in the appropriate album folder. See
EasyShare software Help for details.
Sharing your pictures
Press the Share button to “tag” your pictures/videos.
When they are transferred to your computer, you can share them.
Print (
)
Favorites (
) for easy organization on your computer and for sharing on your camera
When can I tag my pictures and videos?
Press the Share button to tag pictures/videos:
■
■
Any time. (The most recent picture/video taken is then displayed.)
Just after you take a picture/video, during quickview (see
■ After pressing the Review button.
Tagging pictures for printing
1 Press the Share button. Press to locate a picture.
2 Press to highlight Print , then press the OK button.* www.kodak.com/go/support 33
Doing more with your camera
3 Press picture.
to select the number of copies (0-99). Zero removes the tag for that
Optional: You can apply a print quantity to other pictures. Press to locate a picture. Press to change the print quantity. Repeat until the desired print quantity is applied to pictures.
4 Press the OK button.
The Print icon appears in the status area.
5 Press the Share button to exit the menu.
* To tag all pictures in the storage location, highlight Print All, press the OK button, then indicate the number of copies. Print All is not available in quickview. To remove print tagging for all pictures in the storage location, highlight Cancel Prints, then press the OK button. Cancel Prints is not available in quickview.
Printing tagged pictures
When you transfer the tagged pictures to your computer, Kodak EasyShare software print screen opens. For details, click the Help button in EasyShare software.
For more information on printing from your computer, printer dock, PictBridge enabled printer, or card, see
NOTE: For the best 4 x 6 in. (10 x 15 cm) prints, set the camera to the 4.4 MP (3:2) print quality setting.
Tagging pictures and videos for emailing
First—on your computer
Use Kodak EasyShare software to create an email address book on your computer.
Then copy up to 32 email addresses to the camera’s internal memory. For details, click the Help button in EasyShare software.
34 www.kodak.com/go/support
Doing more with your camera
Second—tag pictures/videos on your camera
1 Press the Share button. Press to locate a picture/video.
2 Press to highlight Email , then press the OK button.
The Email icon appears in the status area.
3 Press to highlight an email address, then press the OK button.
To tag other pictures/videos with the same address, press to scroll through them. When the picture you want is displayed, press OK.
To send the pictures/videos to more than one address, repeat step 3 for each address.
Selected addresses are checked.
4 To remove a selection, highlight a checked address and press the OK button. To remove all email selections, highlight Clear All.
5 Press to highlight Exit, then press the OK button.
6 Press the Share button to exit the menu.
Third—transfer and email
When you transfer the tagged pictures/videos to your computer, the Email screen opens and lets you send them to the addresses you specified. For details, click the
Help button in Kodak EasyShare software.
Tagging pictures as favorites
You can preserve your favorite pictures in the Favorites section of your camera’s internal memory, then share them with friends and family.
NOTE: When you transfer pictures from your camera to your computer, all pictures (including favorites) are stored on your computer at full size. Favorite pictures - smaller copies of your originals - are loaded back to your camera, so you can share and enjoy more.
www.kodak.com/go/support 35
Doing more with your camera
1. Tag pictures as favorites
1 Press the Share button. Press to locate a picture.
2 Press to highlight Favorite , then press the OK button.
2. Transfer pictures to your computer
The Favorite icon appears in the status area. To remove the tag, press the OK button again.
Press the Share button to exit the menu.
1 To enjoy full functionality, load and use the EasyShare software that
was packaged with this camera. (See page 11 .)
2 Connect the camera to the computer using the USB cable (see
) or an EasyShare dock.
3. View favorites on your camera
1
The first time you transfer pictures, the software helps you make choices about your favorite pictures. Then, your pictures are transferred to the computer. Favorite pictures (smaller versions of the originals) are loaded to the Favorites section of your camera’s internal memory.
Turn the Mode dial to Favorites .
2 Press to scroll through favorites.
NOTE: The camera holds a limited number of favorites. Use Camera Favorites in the EasyShare software to customize the size of your camera Favorites section. Videos tagged as favorites remain in the
Favorites folder in the EasyShare software. For details, click the Help button in Kodak EasyShare software.
Optional settings
In Favorites mode, press the Menu button to access optional settings.
Slide Show (
)
Remove all favorites ( page 37 )
Multi-up (
Setup Menu (
NOTE: Pictures taken at the 4.4 MP (3:2) quality setting are displayed at a 3:2 aspect ratio with a black bar at the top of the screen.
36 www.kodak.com/go/support
Doing more with your camera
Removing all favorites from your camera
1 Turn the Mode dial to Favorites .
2 Press the Menu button.
3 Highlight Remove Favorites , then press the OK button.
All pictures stored in the Favorites section of internal memory are removed. Favorites are restored the next time you transfer pictures to the computer.
4 Press the Menu button to exit the menu.
Preventing favorites from transferring to the camera
1 Open Kodak EasyShare software. Click the My Collection tab.
2 Go to the Albums view.
3 Click the Camera Favorites Album for your camera.
4 Click Remove Album.
The next time you transfer pictures from your camera to the computer, use the Camera
Favorites Wizard/Assistant to either recreate your Camera Favorites Album or to turn off the Camera Favorites feature.
Printing and emailing favorites
1 Turn the Mode dial to Favorites . Press to locate a picture.
2 Press the Share button.
3 Highlight Print or Email , then press the OK button.
NOTE: Favorites that were taken on this camera (not imported from another source) are good for prints up to 4 x 6 in. (10 x 15 cm).
www.kodak.com/go/support 37
5
Troubleshooting
Camera problems
Status
Camera does not turn on
Solution
■
■
Camera does not turn off and the lens does not retract
■
Remove battery and verify that it’s the correct type, then reinsert it.
Insert a new or charged battery.
Connect the camera to a Kodak 3-volt AC adapter (sold separately),
then try again. See page 51 for more battery information.
Camera buttons and controls do not function
Lens does not extend when camera turns on or does not retract
■
■
■
LCD is black or does not turn on
■
Confirm that the battery in camera is charged.
Turn camera off, then on again. (Lens does not extend in Favorites mode.)
If problem still exists, get help (
).
Push the LCD button to change the display.
In Review, a blue or black screen is displayed instead of a picture
■
■
■
Transfer the picture to the computer.
Transfer all pictures to the computer ( page 11 ).
Take another picture. If problem continues, try internal memory and/or another memory card.
Pictures remaining number does not decrease after taking a picture
■ Continue taking pictures. The camera is operating normally.
(The camera estimates the number of pictures remaining after each picture is taken, based on picture size and content.)
Picture orientation is not accurate
■ Set the Orientation Sensor to ON (
).
38 www.kodak.com/go/support
Troubleshooting
Status Solution
Flash does not fire ■ Check the flash setting and change as needed (
).
NOTE: The flash does not fire in all modes.
Storage location is almost or entirely full
■
■
Transfer pictures to the computer (
page 11 ). Delete pictures from
) or insert a new card.
Change image storage location to internal memory (
).
Battery life is short ■ Make sure the correct battery type is installed (
■ Wipe the contacts with a clean, dry cloth before inserting a battery in the camera.
■ Insert a new or charged battery.
You cannot take a picture
■
■
■
■
■
Turn the camera off, then on again. Make sure the camera is not in
Favorites mode.
Depress shutter button all the way (
Insert a new or charged battery (
Wait until the Ready light turns green before attempting to take another picture.
Memory full. Transfer pictures to the computer (
pictures (
page 10 ), change image storage location, or insert
another card.
Error message appears on LCD
■
■
■
■
■
Turn the camera off, then on again.
Remove memory card from the camera.
Remove the battery and wipe the contacts with a clean, dry cloth.
Insert a new or charged battery (
If problem still exists, get help (
).
Memory card not recognized or camera freezes with card.
■
■
Card may be corrupted. Format card in camera ( page 28 ).
Use another memory card.
www.kodak.com/go/support 39
Troubleshooting
Computer/connectivity problems
Status Solution
Computer does not communicate with the camera
■
■
■
■
Insert a charged battery (
Turn on the camera.
Make sure the proper USB cable is connected on camera and computer port (
). (If using an EasyShare dock, check all cable connections. Make sure the camera is seated on the dock.)
Make sure the EasyShare software is installed (
Pictures do not transfer to computer
■ Click the Help button in the EasyShare software.
Slide Show does not run on an external video device
■
■
Adjust the camera Video Out setting (NTSC or PAL,
Make sure the external device settings are correct (see the device’s user’s guide).
Picture quality problems
Status Solution
Picture is not clear ■ To automatically set exposure and focus, press the Shutter button
halfway. When the Ready light turns green, press the Shutter button
completely down to take the picture.
■ Clean the lens (
■
■
Make sure camera is not in Close-up mode if you are more than 21 in. (0.7 m) from your subject.
Place the camera on a flat, steady surface or use a tripod, especially in high-zoom settings or in low light.
40 www.kodak.com/go/support
Troubleshooting
Status Solution
Picture is too dark or underexposed
■
■
■
■
■
Reposition camera for more available light.
Use Fill flash (
page 17 ) or change your position so light is not behind
the subject.
Move so that the distance between you and the subject is within the effective flash range (
).
To automatically set exposure and focus, press the Shutter button
halfway. When the Ready light turns green, press the Shutter button completely down to take the picture.
Adjust exposure compensation ( page 22 ).
Picture is too light ■ Reposition the camera to reduce the amount of available light.
■
■
Turn off the flash ( page 17 ).
Move so that the distance between you and the subject is within the effective flash range (
).
■
■
To automatically set exposure and focus, press the Shutter button
halfway. When the Ready light turns green, press the Shutter button
completely down to take the picture.
Adjust exposure compensation ( page 22 ).
www.kodak.com/go/support 41
Troubleshooting
Direct printing (PictBridge enabled printer) problems
Status
Cannot locate desired picture.
Solution
■
■
Turn on the camera.
Use the Direct print menu to change the image storage location.
■ Press any button to redisplay the menu.
The Direct print menu interface turns off.
Cannot print pictures.
■
■
Ensure that there is a connection between the camera and the printer (
).
Ensure the printer and camera have power.
Camera or printer display an error message.
■ Follow the prompts to resolve the issue.
42 www.kodak.com/go/support
6
Getting help
Helpful links
Camera
Get support for your product (FAQs, troubleshooting information, arrange for repairs, etc.) www.kodak.com/go/c360support
Purchase camera accessories (camera docks, printer docks, lenses, cards, etc.) www.kodak.com/go/c360accessories
Download the latest camera firmware and software
See online demonstrations of your camera www.kodak.com/go/c360downloads www.kodak.com/go/howto
Software
Get information on EasyShare software www.kodak.com/go/easysharesw (or click the Help button in EasyShare software)
Get help with the Windows operating system and working with digital pictures www.kodak.com/go/pcbasics
Other
Get support for other cameras, software, accessories www.kodak.com/go/support
Get information on Kodak EasyShare printer docks www.kodak.com/go/printerdocks
Get information on Kodak inkjet products www.kodak.com/go/inkjet
Optimize your printer for truer, more vibrant colors www.kodak.com/go/onetouch
Register your camera www.kodak.com/go/register www.kodak.com/go/support 43
Getting help
Telephone customer support
If you have questions concerning this product, you may speak with a customer support representative:
Australia
Austria
Belgium
Brazil
Canada
China
Denmark
Ireland
Finland
France
Germany
Greece
Hong Kong
India
Italy
Japan
Korea
1800 147 701
0179 567 357
02 713 14 45
0800 150000
1 800 465 6325
800 820 6027
3 848 71 30
01 407 3054
0800 1 17056
01 55 1740 77
069 5007 0035
00800 44140775
800 901 514
91 22 617 5823
02 696 33452
03 5540 9002
00798 631 0024
Netherlands
New Zealand
Norway
Philippines
Poland
Portugal
Singapore
Spain
Sweden
Switzerland
Taiwan
Thailand
Turkey
020 346 9372
0800 440 786
23 16 21 33
1 800 1 888 9600
00800 4411625
021 415 4125
800 6363 036
91 749 76 53
08 587 704 21
01 838 53 51
0800 096 868
001 800 631 0017
00800 448827073
United Kingdom
United States
0870 243 0270
1 800 235 6325
Outside the US 585 726 7260
International Toll Line +44 131 458 6714
International Toll Fax +44 131 458 6962
For the most up-to-date listings, visit: www.kodak.com/US/en/digital/contacts/DAIInternationalContacts.shtml
44 www.kodak.com/go/support
7
Appendix
Camera specifications
For more specifications, visit www.kodak.com/go/c360support .
CCD—1/2.5 in. CCD, 4:3 aspect ratio
Output image size—
5.0 MP: 2576 x 1932 pixels
4.4 MP (3:2): 2576 x 1716 pixels
4.0 MP: 2304 x 1728 pixels
3.1 MP: 2048 x 1536 pixels
1.8 MP: 1552 x 1164 pixels
Color display—2.0 in. (5 cm) color hybrid LCD; 110 K pixels
Color electronic viewfinder—LCD
Preview (LCD)—Frame rate: 24 fps
Taking lens—3X optical zoom, aspheric all-glass Retinar lens, f/2.7-5.2
(35 mm equivalent: 34-102 mm)
Lens protection—Built-in
Digital zoom—Combined zoom settings 3.2 to 15X in 0.2X increments. (Not supported for movie capture.)
Focus system—TTL-AF; auto, multi-zone, center-spot. Working range:
24 in. (0.6 m)-infinity @ wide
6.6 ft (2 m)-infinity @ telephoto
2-27.6 in. (5-70 cm) @ wide close-up
3.9-6.9 ft (1.2-2.1 m) @ telephoto close-up www.kodak.com/go/support 45
Appendix
Exposure metering—TTL-AE; Multi-pattern, Center-spot, Center-weighted
Exposure compensation—+/-2.0 EV with 1/3 EV step
Shutter speed—
Auto: 1/60-1/1400 sec.
Long time exposure: 0.7-8 sec.
ISO speed—
Auto: 80-160
Selectable: 80, 100, 200, 400, 800 (800 available only in Good picture quality.)
Electronic flash—Auto flash with photo sensor
Working range @ ISO 140: 2-11.8 ft (0.6-3.6 m) @ Wide; 2-6.9 ft (0.6-2.1 m) @ Tele
Flash modes—Auto, Fill, Red-eye, Off
Capture modes—Auto, Portrait, Sport, Landscape, Close-up, Video, Scene modes.
Burst mode—Maximum 5 pictures @ 2.4 fps (4 pictures @ ISO 400/800); AE, AF,
AWB executed for first shot only
Video capture—
VGA (640 x 480) @ 24 fps
QVGA (320 x 240) @ 24 fps
Image file format—
Still: EXIF 2.21 (JPEG compression); file organization DCF
Video: QuickTime (CODEC MPEG4)
Image storage—Optional MMC or SD Card the SD Card Association.)
(The SD logo is a trademark of
Internal storage capacity—32 MB internal memory
Quickview—Yes
Video output—NTSC or PAL
46 www.kodak.com/go/support
Appendix
Power—CRV3; 2-AA lithium; 2-AA Ni-MH; Kodak EasyShare Ni-MH rechargeable battery pack (KAA2HR); 3V AC adapter
Communication with computer—USB 2.0 (PIMA 15740 protocol), via USB cable,
EasyShare camera dock or printer dock
PictBridge printer support—Yes
Self-timer—2 or 10 seconds
White balance—Auto, Daylight, Open Shade, Tungsten, Fluorescent
Color modes—High, Natural, Low, Black & White, Sepia
Date stamp—None, YYYYMMDD, MMDDYYYY, DDMMYYYY
Tripod mount—1/4 inch
Size—4 in. (102.5 mm) x 2.1 in. (65 mm) x 1.5 in. (38 mm) @ power off
Weight—10.1oz (286 g) without card or battery
Flash settings in each mode
Flash settings are pre-set for each picture-taking mode.
Capture modes
Auto
Default setting Available settings
Auto* Auto, Off, Fill Flash, Red-eye
Portrait Auto* Auto, Off, Fill Flash, Red-eye
Sports
Landscape
Close-up
Video
Auto*
Off
Off
Off
Auto, Off, Fill Flash, Red-eye
Off
Auto, Off, Fill Flash
Off www.kodak.com/go/support 47
Appendix
Capture modes
First burst
Last burst
Default setting Available settings
Off Off
Off Off
Scene modes
Children
Party
Auto*
Red-eye*
Beach
Snow
Fireworks
Flower
Auto*
Auto*
Off
Off
Self-Portrait
Backlight
Red-eye*
Fill
Night Portrait Red-eye*
Night Landscape Off
Manner/Museum Off
Text Off
Auto, Off, Fill Flash, Red-eye
Auto, Off, Fill Flash, Red-eye
Auto, Off, Fill Flash, Red-eye
Auto, Off, Fill Flash, Red-eye
Off
Auto, Off, Fill Flash
Auto, Off, Fill Flash, Red-eye
Fill
Auto, Off, Fill Flash, Red-eye
Off
Off
Auto, Off
* When you change to Auto or Red-eye in these modes, it becomes the default until you change it.
48 www.kodak.com/go/support
Appendix
Storage capacities
File sizes vary. You may be able to store more or fewer pictures and videos.
Picture storage capacity
Number of pictures
5.0 MP 4.4 MP (3:2) 4.0 MP 3.1 MP 1.8 MP
32 MB internal memory 17
32 MB SD/MMC 19
64 MB SD/MMC
128 MB SD/MMC
39
79
256 MB SD/MMC
512 MB SD/MMC
159
319
19
22
44
88
178
356
21
24
48
97
196
392
27
30
60
121
242
485
43
48
97
195
391
783
Video storage capacity
32 MB internal memory
32 MB SD/MMC
64 MB SD/MMC
128 MB SD/MMC
256 MB SD/MMC
512 MB SD/MMC
Minutes/seconds of video
VGA (640 x 480) QVGA (320 x 240)
1 min. 47 sec.
1 min. 52 sec.
3 min. 59 sec.
3 min. 23 sec.
3 min. 46 sec.
7 min. 32 sec.
7 min. 59 sec.
15 min. 58 sec.
31 min. 57 sec.
15 min. 4 sec.
30 min. 8 sec.
60 min. 17 sec.
Important safety instructions
■ Read and follow these instructions before using Kodak products. Always follow basic safety procedures.
■ The use of an accessory attachment that is not recommended by Kodak, such as an
AC adapter, may cause fire, electric shock, or injury.
■ If using this product in an airplane, observe all instructions of the airline.
www.kodak.com/go/support 49
Appendix
■
■
RISK OF ELECTRIC SHOCK:
Do not disassemble this product; there are no user-serviceable parts inside. Refer servicing to qualified service personnel. Do not expose this product to liquid, moisture, or extreme temperatures. Kodak AC adapters and battery chargers are intended for indoor use only. The use of controls, adjustments, or procedures other than those specified herein may result in exposure to shock and/or electrical or mechanical hazards.
When removing batteries, allow them to cool first; batteries may be hot.
Read and follow all warnings and instructions supplied by the battery manufacturer.
■
■
Use only batteries that are approved for this product.
Keep batteries out of the reach of children.
■ Do not allow batteries to touch metal objects, including coins. Otherwise, a battery may short circuit, discharge energy, become hot, or leak.
■ Do not disassemble, install backward, or expose batteries to liquid, moisture, fire, or extreme temperature.
■
■
Replace all batteries of a set at the same time. Do not mix new batteries with used ones. Do not mix rechargeable and non-rechargeable batteries. Do not mix lithium,
Ni-MH, and Ni-Cd batteries together. Do not mix batteries of different chemistry types, grades, or brands. Failure to observe this precaution may cause leakage.
Remove batteries when the product is stored for an extended period of time. In the unlikely event that battery fluid leaks inside the product, contact your local Kodak
Customer Service representative.
■
■
In the unlikely event that battery fluid leaks onto your skin, wash immediately with water and contact your local health provider. For additional health-related information, contact your local Kodak Customer Service representative.
Dispose of batteries according to local and national regulations.
50 www.kodak.com/go/support
Appendix
■
■
If the battery contacts touch metal objects, the battery may short-circuit, discharge energy, become hot, or leak.
Do not charge non-rechargeable batteries.
For more information on batteries, see www.kodak.com/global/en/service/batteries/batteryUsage.jhtml
Battery life
Use these Kodak batteries. (Battery types are also molded into battery door.)
CRV3 lithium battery 350 - 500
AA (2) lithium batteries
250 - 350
Ni-MH rechargeable battery pack
(per charge) 200 - 300
AA (2) Ni-MH rechargeable batteries (per charge)
200 - 300
0 500
Battery life per CIPA testing method (Approx. number of pictures).
Actual life may vary based on usage.
We do not recommend or support alkaline batteries. For acceptable battery life, and to make sure your camera operates dependably, use the batteries listed.
Extending battery life
■ Limit the following activities that quickly deplete battery power:
■
– Reviewing your pictures on the LCD (see page 8
)
– Using the LCD as a viewfinder (see page 4 )
– Excessive use of the flash
Dirt on the battery contacts can affect battery life. Wipe the contacts with a clean, dry cloth before loading batteries in the camera.
www.kodak.com/go/support 51
Appendix
■ Battery performance is reduced at temperatures below 41
°
F (5
°
C). When using your camera in cold weather, carry spare batteries and keep them warm. Do not discard cold batteries that do not work; when they return to room temperature, they may be usable.
Power-saving features
If no action for
1 minute
The camera
Screen turns off.
To turn it back on
Press the OK button.
10, 5, 3, 1 minutes (See
.)
Enters auto power off.
Press a button or insert/remove card.
Upgrading your software and firmware
Download the latest versions of the software included on the Kodak EasyShare software CD and the camera firmware (the software that runs on the camera). See www.kodak.com/go/c360downloads.
Additional care and maintenance
■ If the camera has been subjected to inclement weather or you suspect water has gotten inside the camera, turn off the camera and remove the batteries and card.
Allow all components to air-dry for at least 24 hours before using the camera again.
■ Blow gently on the lens or LCD to remove dust and dirt. Wipe gently with a soft, lint-free cloth or an untreated lens-cleaning tissue. Do not use cleaning solutions unless designed specifically for camera lenses. Do not allow chemicals, such as suntan lotion, to contact painted surfaces.
■ Service agreements may be available in your country. Contact a dealer of Kodak products for more information.
52 www.kodak.com/go/support
Appendix
■ For digital camera disposal or recycling information, contact your local authorities.
In the US, visit the Electronics Industry Alliance Web site at www.eiae.org
or the
Kodak Web site at www.kodak.com/go/c360support .
Warranty
Limited warranty
Kodak warrants Kodak EasyShare digital cameras and accessories (excluding batteries) to be free from malfunctions and defects in both materials and workmanship for one year from the date of purchase.
Retain the original dated sales receipt. Proof of the date of purchase will be required with any request for warranty repair.
Limited warranty coverage
This limited warranty will be honored only within the geographical location that
Kodak digital cameras and accessories were purchased.
Kodak will REPAIR or REPLACE Kodak EasyShare digital cameras and accessories if they fail to function properly during the warranty period, subject to any conditions and/or limitations stated herein. Such repair service will include all labor as well as any necessary adjustments and/or replacement parts. Such repair or replacement is the sole remedy under this warranty.
If replacement parts are used in making repairs, these parts may be remanufactured, or may contain remanufactured materials. If it is necessary to replace the entire product, it may be replaced with a remanufactured product.
Limitations
Request for Warranty service will not be accepted without proof of date of purchase, such as a copy of the original dated Kodak EasyShare digital camera or accessory sales receipt. (Always keep the original for your records.) www.kodak.com/go/support 53
Appendix
This warranty does not apply to the battery(s) used in digital cameras or accessories.
This warranty does not cover circumstances beyond Kodak’s control, nor problems caused by failure to follow the operating instructions in the Kodak EasyShare digital cameras and accessories User’s Guides.
THIS WARRANTY DOES NOT APPLY WHEN FAILURE IS DUE TO SHIPPING DAMAGE,
ACCIDENT, ALTERATION, MODIFICATION, UNAUTHORIZED SERVICE, MISUSE,
ABUSE, USE WITH INCOMPATIBLE ACCESSORIES OR ATTACHMENTS, FAILURE TO
FOLLOW KODAK’S OPERATION, MAINTENANCE OR REPACKING INSTRUCTIONS,
FAILURE TO USE ITEMS SUPPLIED BY KODAK (SUCH AS ADAPTERS AND CABLES), OR
CLAIMS MADE AFTER THE DURATION OF THIS WARRANTY.
Kodak makes no other express or implied warranty for this product. In the event that the exclusion of any implied warranty is ineffective under the law, the duration of the implied warranty will be one year from the purchase date.
The option of replacement is Kodak’s only obligation. Kodak will not be responsible for any special, consequential or incidental damages resulting from the sale, purchase, or use of this product, regardless of the cause. Liability for any special, consequential or incidental damages (including but not limited to loss of revenue or profit, downtime costs, loss of the use of the equipment, cost of substitute equipment, facilities or services, or claims of your customers for such damages resulting from the purchase, use or failure of the product), regardless of cause or for breach of any written or implied warranty is expressly disclaimed and excluded herefrom.
Your rights
Some states or jurisdictions do not allow exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
Some states or jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
This warranty gives you specific rights, and you may have other rights which vary from state to state or by jurisdiction.
54 www.kodak.com/go/support
Appendix
Outside the United States and Canada
In countries other than the United States and Canada, the terms and conditions of this warranty may be different. Unless specific Kodak warranty is communicated to the purchaser in writing by a Kodak company, no warranty or liability exists beyond any minimum requirements imposed by law, even though defect, damage, or loss may be by negligence or other act.
Regulatory compliance
FCC compliance and advisory
Kodak EasyShare C360 zoom digital camera
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for additional suggestions.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulation .
www.kodak.com/go/support 55
Appendix
Canadian DOC statement
DOC Class B Compliance— This Class B digital apparatus complies with Canadian
ICES-003 .
Observation des normes-Class B— Cet appareil numérique de la classe B est conforme
à la norme NMB-003 du Canada .
Waste Electrical and Electronic Equipment labeling
In the European Union, the crossed-out dustbin symbol indicates that this product should not be discarded as municipal waste. Contact your local authorities or go to www.kodak.com
for recycling program information.
VCCI Class B ITE
English translation:
This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.
MPEG-4
Use of this product in any manner that complies with the MPEG-4 visual standard is prohibited, except for use by a consumer engaging in personal and non-commercial activities .
56 www.kodak.com/go/support
Index
A
album
B
batteries
expected life, 51 extending life, 51
www.kodak.com/go/support
button
self-timer, self-timer button, i
C cable
camera screen
caution
1
57
Index
copy pictures
card to memory, 30 memory to card, 30
CRV3 battery
customizing camera settings, 26
D
deleting
pictures, videos, 10 protecting pictures, videos, 10
dock
doing more with your camera, 16
E
EasyShare software
58
exposure
exposure bracketing, 22 exposure compensation, 22
external video device
F favorites
flash
flash off, 17 flash settings, 17
focus
formatting
G
www.kodak.com/go/support
H
I icon
icons
information
installing
internal memory
K
Kodak EasyShare software
L
www.kodak.com/go/support
Index
loading
M
Macintosh, installing software on, 11
memory
modes
59
Index
N
night landscape, 19 night portrait, 19
O
P
pictures
power
60
printing
from a card, 14 from computer, 14
with EasyShare printer dock, 12
protecting pictures, videos, 10
Q quickview
R
reviewing pictures
reviewing pictures, videos
reviewing videos
www.kodak.com/go/support
S
SD/MMC card
self-timer
service and support telephone numbers, 44
setting
exposure bracketing, 22 exposure compensation, 22
exposure metering, 24 focus zone, 24
www.kodak.com/go/support
sound volume, 27 video date display, 27 video out, 27
settings
setup menu, 26 setup mode, using, 26
shutter
slide show
continuous loop, 29 interval, 29
software
Index
61
Index
status
T tagging
taking a picture, 4 taking a video, 4
transferring pictures, videos, 11
U
upgrading software, firmware, 52
62
V
video
videos
viewing picture
W
Windows OS-based computers
Z zoom
www.kodak.com/go/support
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 1 Kodak EasyShare C360 zoom digital camera
- 3 Product features
- 5 Table of contents
- 7 Setting up your camera
- 7 Attaching the wrist strap
- 7 Loading the batteries
- 8 Turning on the camera
- 8 Setting the date/time, first time
- 8 Setting the date/time and language, other times
- 10 Taking pictures and videos
- 10 Taking a picture
- 10 Taking a video
- 11 Reviewing the picture or video just taken
- 11 Understanding quickview blur warning icons
- 13 Using the auto-focus framing marks (to take pictures)
- 14 Magnifying a picture during review
- 15 Viewing multi-up (thumbnails) during review
- 15 Understanding review icons
- 16 Deleting pictures and videos during review
- 16 Protecting pictures and videos from deletion
- 17 Transferring and printing pictures
- 17 Installing the software
- 18 Also available for transferring
- 18 Printing pictures
- 18 Printing with a Kodak EasyShare printer dock
- 19 Direct printing with a PictBridge enabled printer
- 19 Connecting the camera to a PictBridge enabled printer
- 19 Printing from a PictBridge enabled printer
- 20 Disconnecting the camera from a PictBridge enabled printer
- 20 Using a printer that is not PictBridge enabled
- 20 Ordering prints online
- 20 Printing from an optional SD or MMC card
- 22 Doing more with your camera
- 22 Using optical zoom
- 22 Using digital zoom
- 26 Using the self-timer
- 27 Using burst
- 32 Customizing your camera
- 34 Running a slide show
- 34 Starting the slide show
- 35 Changing the slide show display interval
- 35 Running a continuous slide show loop
- 35 Displaying pictures and videos on a television
- 36 Cropping pictures
- 36 Viewing picture/video information
- 36 Copying pictures and videos
- 37 Pre-tagging for album names
- 37 First-on your computer
- 37 Second-on your camera
- 38 Third-transfer to your computer
- 38 Tagging pictures/videos for albums
- 38 First-on your computer
- 38 Second-on your camera
- 39 Third-transfer to your computer
- 39 Sharing your pictures
- 39 When can I tag my pictures and videos?
- 39 Tagging pictures for printing
- 40 Printing tagged pictures
- 40 Tagging pictures and videos for emailing
- 40 First-on your computer
- 41 Third-transfer and email
- 41 Tagging pictures as favorites
- 42 Optional settings
- 43 Preventing favorites from transferring to the camera
- 43 Printing and emailing favorites
- 44 Troubleshooting
- 44 Camera problems
- 46 Computer/connectivity problems
- 46 Picture quality problems
- 49 Getting help
- 49 Helpful links
- 49 Camera
- 49 Software
- 49 Other
- 51 Appendix
- 51 Camera specifications
- 53 Flash settings in each mode
- 55 Storage capacities
- 55 Picture storage capacity
- 55 Video storage capacity
- 55 Important safety instructions
- 57 Battery life
- 57 Extending battery life
- 58 Power-saving features
- 58 Upgrading your software and firmware
- 58 Additional care and maintenance
- 59 Warranty
- 59 Limited warranty
- 59 Limited warranty coverage
- 59 Limitations
- 60 Your rights
- 61 Regulatory compliance
- 61 FCC compliance and advisory
- 62 Canadian DOC statement
- 62 Waste Electrical and Electronic Equipment labeling
- 62 VCCI Class B ITE
- 62 MPEG-4
- 63 Index
