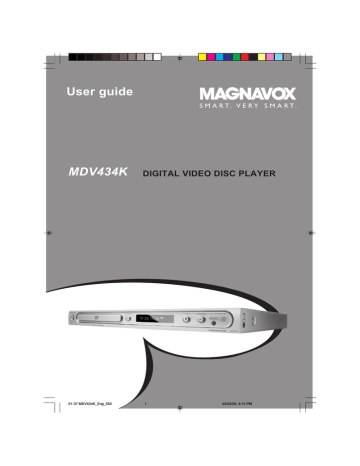

User guide
S M A R T . V E R Y S M A R T .
MDV434K
DIGITAL VIDEO DISC PLAYER
01-37 MDV434K_Eng_552 1 04/02/05, 4:13 PM
General Information
Environmental Information
All unnecessary packaging has been omitted. The packaging has been made easy to separate into three materials: cardboard (box), polystyrene foam
(buffer) and polyethylene (bags, protective foam sheet).
Your DVD player consists of materials which can be recycled and reused if disassembled by a specialised company.
Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of
Dolby Laboratories.
Laser safety
This unit employs a laser. Due to possible eye injury, only a qualified service person should remove the cover or attempt to service this device.
NOTE:
PICTURES SHOWN MAYBE
DIFFERENT BETWEEN
COUNTRIES.
CAUTION
(WARNING LOCATION: ON THE
BACKPLATE OF THE SET)
NEVER MAKE OR CHANGE
CONNECTIONS WITH THE
POWER SWITCHED ON.
For Customer Use:
Read carefully the information located at the rear of your DVD VIDEO player and enter below the Serial No. Retain this information for future reference.
Model No. MDV 434K
Serial No. _______________
LASER
Type
Wave length
Semiconductor laser
GaAlAs
650 nm (DVD)
780 nm (VCD/CD)
Output Power 7 mW (DVD)
10 mW (VCD/CD)
Beam divergence 60 degree
01-37 MDV434K_Eng_552 2 04/02/05, 4:13 PM
Index
English --------------------------------------- 6
Español ------------------------------------ 38
Português --------------------------------- 72
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.
Due to the inconsistency of disc formats provided by various disc manufacturers, your
DVD system may require a playability enhancement or upgrade. As DVD technology advances, these enhancements will become common and will be easy to complete.
01-37 MDV434K_Eng_552 3
‘CONSUMERS SHOULD NOTE THAT NOT
ALL HIGH DEFINITION TELEVISION SETS
ARE FULLY COMPATIBLE WITH THIS
PRODUCT AND MAY CAUSE ARTIFACTS
TO BE DISPLAYED IN THE PICTURE. IN
CASE OF 525 OR 625 PROGRESSIVE SCAN
PICTURE PROBLEMS, IT IS RECOMMENDED
THAT THE USER SWITCH THE
CONNECTION TO THE ‘STANDARD
DEFINITION’ OUTPUT. IF THERE ARE
QUESTIONS REGARDING OUR TV SET
COMPATIBILITY WITH THIS MODEL 525p
AND 625p DVD PLAYER, PLEASE CONTACT
OUR CUSTOMER SERVICE CENTER.’
3
04/02/05, 4:13 PM
Contents
Introduction
Supplied accessories ....................................... 6
Care and safety information .......................... 6
Connections
Connecting TV .............................................. 7-8
Using Composite Video jacks (CVBS) ........
7
Using Component Video jacks (Pr Pb Y) ...
7
Using an accessory RF modulator ..............
8
Connecting the power cord .......................... 8
Optional : Connecting to an Audio System .
............................................................................. 9
Stereo system has Dolby Pro Logic or Right
/ Left Audio In jack .........................................
9
Optional: Connecting Digital AV Receiver ...
............................................................................. 9
Receiver has a PCM, Dolby Digital, or
MPEG2 decoder ..............................................
9
Functional Overview
Front and Rear Panels .................................. 10
Remote Control ............................................ 11
Getting Started
Step 1: Inserting batteries into the
Remote Control ............................................ 12
Using the Remote Control to operate the
Player ...............................................................
12
Step 2: Setting up the TV ........................ 12-14
Setting up Progressive Scan feature (for
Progressive Scan TV only) ...........................
13
To deactivate Progressive manually ..........
14
Selecting the colour system that corresponds to your TV ..............................
14
Step 3: Setting language preference ........... 15
Setting the OSD Language ..........................
15
Setting the Audio, Subtitle and Disc menu language ..........................................................
15
Disc Operations
Playable Discs ................................................. 16
Region Codes ................................................. 16
Playing discs ..................................................... 16
Basic playback controls ................................. 17
Selecting various repeat/shuffle functions 17
Repeat play mode .........................................
17
Repeating a section within a chapter/track .
.........................................................................
17
Operations for video playback ................... 18
Using the Disc Menu ....................................
18
Zooming in .....................................................
18
Resuming playback from the last stopped point ................................................................
18
Slow motion ...................................................
18
Using the OSD menu ..................................
18
Special DVD features .................................... 19
Playing a Title .................................................
19
Camera Angle ................................................
19
Changing the Audio Language ....................
19
Subtitles ..........................................................
19
Special VCD & SVCD Features ............. 19-20
Playback Control (PBC) ..............................
19
Preview ...........................................................
20
Playing MP3/JPEG/Kodak Picture CD ........ 21
General Operation .......................................
21
Selecting a folder and track/file .................
21
Special picture disc features ........................ 22
Preview Function ..........................................
22
Zoom picture ................................................
22
Playback with multi-angles ..........................
22
Scan Effect ......................................................
22
Karaoke Operations
Playing Karaoke discs .................................... 23
General Operation .......................................
23
Key setting ......................................................
23
Vocal ................................................................
23
Mode ...............................................................
23
4
01-37 MDV434K_Eng_552 4 04/02/05, 4:13 PM
DVD Menu Options
General Setup menu ............................... 24-25
Locking/Unlocking the disc for viewing ...
24
Dimming system’s display screen ..............
24
Programming disc tracks .......................
24-25
OSD Language ...............................................
25
Screen Saver - turning on/off .....................
25
Sleep ................................................................
25
Audio Setup Menu ................................... 26-28
Analogue output ...........................................
26
Digital Audio Setup ................................
26-27
Sound Mode ...................................................
27
Night Mode - turning on/off .......................
28
Video Setup Menu ................................... 28-30
TV Type ...........................................................
28
Setting the TV Display .................................
29
Progressive - turning on/off ........................
29
Picture Setting ...............................................
30
Preference Page ........................................ 31-33
Audio, Subtitle, Disc Menu ..........................
31
Restricting playback by Parental Control .....
..................................................................
31-32
PBC ..................................................................
32
Changing the Password ...............................
33
Restoring to original settings .....................
33
Troubleshooting
......................... 34–35
Specifications
...................................... 36
Glossary
......................................................................
37
Language Code
............................................
106
Contents
01-37 MDV434K_Eng_552 5 04/02/05, 4:14 PM
5
Introduction
Supplied accessories
Composite video cable (yellow)
●
Do not block the vents
– Do not operate the DVD Player in an enclosed cabinet, allow about 10 cm (4 inch) of free space all around the player for adequate ventilation.
10 cm
(4 inches)
10 cm
(4 inches)
PHILIPS
10 cm
(4 inches)
Audio cable
(white, red)
Remote Control and two AA batteries
Care and safety information
●
Power consumption
– When the system is switched to
Standby mode, it is still consuming power.
To disconnect the system from the power supply completely, remove the AC power plug from the wall jack.
●
Avoid high temperatures, moisture, water and dust
– Do not expose the player, batteries or discs to humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight.)
●
Avoid condensation problem
– The lens may cloud over when the player is suddenly moved from cold to warm surroundings, making it impossible to play a disc. Leave the player in the warm environment until the moisture evaporates.
●
Care of the cabinet
– Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.
●
Finding a suitable location
– Place the player on a flat, hard, and stable surface.
●
Disc handling
– To clean a CD, wipe it in a straight line from the center towards the edge using a soft, lint-free cloth. A cleaning agent may damage the disc!
– Write only on the printed side of a CDR(W) and only with a soft felt-tipped pen.
– Handle the disc by its edge, do not touch the surface.
6
01-37 MDV434K_Eng_552 6 04/02/05, 4:14 PM
Connections
Connecting TV
S-VIDEO
IN
COMPONENT
VIDEO IN
V (Pr/Cr) AUDIO
OUT
U (Pb/Cb)
VIDEO IN
1
S-VIDEO
IN
COMPONENT
VIDEO IN
V (Pr/Cr)
AUDIO
IN
U (Pb/Cb)
VIDEO IN
Y
2
S-VIDEO
IN
COMPONENT
VIDEO IN
V (Pr/Cr)
VIDEO IN
U (Pb/Cb)
1
S-VIDEO
IN
COMPONENT
VIDEO IN
V (Pr/Cr)
AUDIO
IN
U (Pb/Cb)
VIDEO IN
Y
2
IMPORTANT!
– You only need to make one video connection from the following options, depending on the capabilities of your TV system.
– Connect the DVD system directly to the TV.
IMPORTANT!
– The progressive scan video quality is only possible when using Y
Pb Pr and a progressive scan TV is required.
Using Composite Video jacks
(CVBS)
1
Use the composite video cable (yellow) to connect the DVD Player’s CVBS (VIDEO) jack to the video input jack (or labeled as
A/V In, Video In, Composite or Baseband) on the TV (cable supplied).
2
To hear the sound of this DVD Player through your TV, use the audio cables
(white/red) to connect AUDIO OUT (L/
R) jacks of the DVD Player to the corresponding AUDIO IN jacks on the TV
(cable supplied).
Using Component Video jacks
(Y Pb Pr)
1
Use the component video cables (red / blue / green) to connect the DVD system’s
Y Pb Pr jacks to the corresponding
Component video input jacks (or labeled as Y Pb Pr) on the TV (cable not supplied).
2
To hear the sound of this DVD Player through your TV, use the audio cables
(white/red) to connect AUDIO OUT (L/
R) jacks of the DVD Player to the corresponding AUDIO IN jacks on the TV
(cable supplied).
3
Proceed to page 13 for detailed
Progressive Scan set up.
7
01-37 MDV434K_Eng_552 7 04/02/05, 4:14 PM
Connections
RF coaxial cable to TV
2
INT IN
Back of RF Modulator
(example only)
TO TV
VIDEO
IN
AUDIO IN
R L
CH3 CH4
Antenna or
Cable TV signal
1
Connecting the power cord
AUDIO
OUT
S-VIDEO
IN
COMPONENT
VIDEO IN
V (Pr/Cr)
U (Pb/Cb)
VIDEO IN
Y
~ AC MAINS
IMPORTANT!
– If your TV only has a single
Antenna In jack (or labeled as 75 ohm or RF In,) you will need an RF modulator in order to view the DVD playback on the TV. See your electronics retailer for details on RF modulator availability and operations.
Using an accessory RF modulator
1
Use the composite video cable (yellow) to connect the DVD Player’s CVBS jack to the video input jack on the RF modulator.
2
TANDBY ON
Use the RF coaxial cable (not supplied) to connect the RF modulator to your TV’s
RF jack.
After everything is connected properly, plug in the AC power cord to the power outlet.
Never make or change any connections with the power switched on.
When no disc is loaded,
press
STANDBY ON on the DVD Player front panel,
“
NO DISC” may appear on the
display panel.
NO DISC
MIC LEVEL
8
01-37 MDV434K_Eng_552 8 04/02/05, 4:14 PM
S -
Optional: Connecting to an
Audio System
STEREO
AUDIO
IN
DIGITAL
Connections
Optional: Connecting Digital AV
Receiver
AV Receiver
AUDIO
IN
DIGITAL
Stereo system has Dolby Pro Logic or Right / Left Audio In jack
1
Select one of the video connections
(CVBS VIDEO IN, SCART or
COMPONENT VIDEO IN) depending on the options available on your TV.
2
Use the audio cables (white/red) to connect AUDIO OUT (L/R) jacks of the DVD Player to the corresponding
AUDIO IN jacks on the stereo system
(cable supplied).
Receiver has a PCM, Dolby Digital, or MPEG2 decoder
1
Select one of the video connections
(CVBS VIDEO IN, SCART or
COMPONENT VIDEO IN) depending on the options available on your TV.
2
Connect the COAXIAL jack of the DVD
Player to the corresponding Digital Audio
In jack on your Receiver
(cable not
supplied).
3
Set the DVD Player’s Digital Output to
PCM-ONLY or ALL depending on the capabilities of your Receiver
(see page 26
“Digital Output”).
Helpful Hint:
– If the audio format of the Digital Output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.
9
01-37 MDV434K_Eng_552 9 04/02/05, 4:14 PM
Functional Overview
Front and Rear Panels
STANDBY-ON B
– To switch the DVD Player to Standby mode or ON
Disc tray
OPEN/CLOSE /
– Open/Close the disc tray
Display
– Shows the current status of the DVD
Player
IR Sensor
– Point the remote control towards this sensor
2;
PLAY/PAUSE
– To start or interrupt playback
9
STOP
– To stop playback
PLAY/ PAUSE
LEVEL
– Microphone volume control
MIC
– For connecting microphone
Mains (AC Power Cord)
– Connect to a standard AC outlet
CVBS (VIDEO Out)
– Connect to CVBS Video input of a TV
YPbPr (Component Video Out)
– Connect to YPbPr input of a TV
Audio Out (Left/Right)
– Connect to AUDIO inputs of an amplifier, receiver or stereo system
COAXIAL (Digital audio out)
– Connect to coaxial AUDIO input of a digital audio equipment
10
Caution: Do not touch the inner pins of the jacks on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
01-37 MDV434K_Eng_552 10 04/02/05, 4:14 PM
Remote Control
POWER B
– To switch the DVD player to standby mode or ON
0-9 numerical key pad
– Selects numbered items in a menu
RETURN/TITLE
– To go back to previous menu/show title menu
S
– To search or select previous chapter or track
PLAY ( B )
– To start playback
STOP ( 9 )
– To stop playback
SEARCH
– Not available for this model
OK
– Acknowledge menu selection
DISC MENU
– Enters or exits the disc contents menu
– Switches on or off the playback control mode (for VCD version
2.0 only)
REPEAT
– Selects various repeat modes
REPEAT (A-B)
– Repeats playback a specific section on a disc
AUDIO
– To access audio language system menu
Helpful Hint:
Press “STOP” for about 2 seconds to
OPEN or CLOSE disc tray.
01-37 MDV434K_Eng_552 11
Functional Overview
PREVIEW
– To search chapter/track during playback
OPEN
– Open the disc tray
DISPLAY
– Displays information on TV screen during playback
T
– To search or select next chapter or track
PAUSE ( ; )
– To pause playback temporarily / frame-by-frame playback
MUTE
– Disables or enables sound output
1 2 3 4
– Selects an item in the menu/ fast forward/backward, slow forward/ backward
SYSTEM MENU
– Access or exit DVD Player’s system menu
SUBTITLE
– To access subtitle language system menu
ANGLE
– Selects a DVD camera angle
ZOOM
– Enlarge a picture on the TV screen
MIC ON/OFF
– Display karaoke menu to set MIC on or off
VOCAL
– Choose audio channels or karaoke methods
MODE
– Display karaoke menu
11
04/02/05, 4:14 PM
STANDBY-ON
Getting Started
Step 1: Inserting batteries into the Remote Control
3
1
2
1
Open the battery compartment.
2
Insert two batteries type R06 or AA, following the indications (+-) inside the compartment.
3
Close the cover.
Using the Remote Control to operate the Player
1
Aim the Remote Control sensor (IR) on the front panel.
2
Do not put any objects between the Remote
Control and the DVD
Player while operating the
DVD Player.
Step 2: Setting up the TV
IMPORTANT!
Make sure you have completed all the necessary connections. (See pages 7-8 “Connecting TV”).
1
Turn on the TV and set to the correct video-in channel. You should see the DVD background screen on the TV.
2
Usually these channels are between the lowest and highest channels and may be called FRONT, A/V IN, or VIDEO. See your
TV manual for more details.
➜
Or, you may go to channel 1 on your
TV, then press the Channel down button repeatedly until you see the Video In channel.
➜
Or, the TV Remote Control may have a button or switch that chooses different video modes.
➜
Or, set the TV to channel 3 or 4 if you are using an RF modulator.
3
If you are using external equipment, (eg.
audio system or receiver), turn it on and select the appropriate input source for the DVD Player output. Refer to the equipment owner’s manual for detail.
CAUTION!
– Remove batteries if they are exhausted or if the Remote Control is not being used for a long time.
– Do not use old and new or different types of batteries in combination.
– Batteries contain chemical substances, so they should be disposed properly.
12
01-37 MDV434K_Eng_552 12 04/02/05, 4:14 PM
Setting up Progressive Scan feature
(for Progressive Scan TV only)
The progressive scan display twice the number of frames per seconds than interlaced scanning (ordinary normal TV system). With nearly double the number of lines, progressive scan offers higher picture resolution and quality.
IMPORTANT!
Before enabling the progressive scan feature, you must ensure:
1) Your TV can accept progressive signals, a progressive scan TV is required.
2) You have connected the DVD player to your TV using Y Pb Pr (see page 7.)
1
Turn on your TV.
2
Turn off your TV progressive scan mode or turn on interlaced mode (refer to your
TV user manual.)
3
Press POWER on the remote control to turn on the DVD player.
4
Select the correct Video Input channel.
(See page 12).
➜
The DVD background screen appears on the TV.
5
Press SYSTEM MENU.
6
Press 2 repeatedly to select {VIDEO
SETUP PAGE}.
Getting Started
7
Select {PROGRESSIVE} to {ON}, then
OK
to confirm.
➜
The instruction menu appears on the
TV.
ACTIVATING PROGRESSIVE:
1) ENSURE YOUR TV HAS PROGRESSIVE SCAN.
2) CONNECT WITH YPBPR (GBR) VIDEO CABLE.
3) IF THERE IS A DISTORTED PICTURE, WAIT
15 SECONDS FOR AUTO RECOVERY.
OK
Cancel
8
Press
1 to highlight
OK
in the menu and press OK to confirm.
There will be a distorted picture on your TV at this state until you turn on the progressive scan mode on your TV.
9
Turn on your TV progressive scan mode
(refer to your TV user manual.)
➜
The below menu appears on the TV.
CONFIRM AGAIN TO USE PROGRESSIVE
SCAN. IF THE PICTURE IS GOOD,
PRESS OK BUTTON ON REMOTE
OK
Cancel
0
Press
1 to highlight
OK
in the menu and press OK to confirm.
➜
The set up is complete now and you can start enjoy the high quality picture.
- - Video Setup Page - -
TV Type
TV Display
Progressive
Picture Setting
On
Off
Set Interlace TV Mode
TIPS:
To return to the previous menu, press
1.
To remove the menu, press
SYSTEM MENU
.
01-37 MDV434K_Eng_552 13 04/02/05, 4:14 PM
13
Getting Started
To deactivate Progressive manually
●
When the distorted picture still
appears on the TV, it may be due to the connected TV does not accept progressive signals, and progressive is set by mistake. You must reset the unit to interlace format.
1
Turn off your TV progressive scan mode or turn on to interlaced mode (refer to your TV user manual.)
2
Press OPEN/CLOSE on the DVD player to open the disc tray.
3
Press numeric keypad ‘1’ on the remote control for few seconds.
➜
The DVD blue background screen will appear on the TV.
Selecting the colour system that corresponds to your TV
This DVD Player is compatible with both
NTSC and PAL. In order for a DVD disc to play on this Player, the colour system of the Disc, the TV and the DVD Player should match.
4
Press
3 4 to highlight one of the options below:
PAL – Select this if the connected TV is
PAL system. It will change the video signal of a NTSC disc and output in PAL format.
NTSC – Select this if the connected TV is NTSC system. It will change the video signal of a PAL disc (VCD only) and output in NTSC format.
Multi – Select this if the connected TV is compatible with both NTSC and PAL
(multi-system). The output format will be in accordance with the video signal of the disc.
5
Select an item and press OK.
Helpful Hints:
– Before changing the current TV
Standard setting, ensure that your TV supports the ‘selected TV Type’ system.
– If there is no proper picture on your TV, wait for 15 seconds for auto recovery.
- - Video Setup Page - -
TV Type
TV Display
Progressive
Picture Setting
PAL
Multi
NTSC
CHANGING PAL TO NTSC:
1. ENSURE THAT YOUR TV SUPPORTS
NTSC STANDARD.
2. IF THERE IS A DISTORTED PICTURE
DISPLAYED ON THE TV, WAIT 15
SECONDS FOR AUTO RECOVER.
OK CANCEL
CONFIRM AGAIN TO USE NEW TV
TYPE SETTING.
OK CANCEL
NTSC TV
1
Press SYSTEM MENU.
2
Press 2 repeatedly to select {VIDEO
SETUP PAGE}.
3
Press
3 4 to highlight {TV TYPE}, then press
2.
14
TIPS:
01-37 MDV434K_Eng_552
To return to the previous menu, press
1.
To remove the menu, press
SYSTEM MENU
.
14 04/02/05, 4:14 PM
Step 3: Setting language preference
You can select your preferred language settings. This DVD Player will automatically switch to the language for you whenever you load a disc.
Setting the OSD Language
The On-screen language for the system menu will remain as you set it, regardless of various disc languages.
Getting Started
Setting the Audio, Subtitle and Disc menu language
You can choose your own preferred language or soundtrack from audio, subtitles and disc menu languages. If the language selected is not available on the disc, the disc’s default language will be used instead.
- - General Setup Page - -
Disc Lock
Display Dim
Program
OSD Language
Screen Saver
Sleep
ENGLISH(UK)
ESPAÑOL
PORTUGUÊS
Set OSD Language English(UK)
1
Press SYSTEM MENU.
2
Press 2 to select {GENERAL SETUP
PAGE}.
3
Press
3 4 to highlight {OSD
LANGUAGE}, then press
2.
4
Press 3 4
to select a language and press
OK.
- - Preference Page - -
Audio
Subtitle
Disc Menu
Parental
PBC
Password
Default
English
French
Spanish
Chinese
Japanese
Korean
Russian
Set Preference To English
1
Press STOP twice then, press SYSTEM
MENU.
2
Press 2 repeatedly to select
{PREFERENCE PAGE}.
3
Press 3 4
to highlight one of the options below at a time, then press
2.
– ‘Audio’ (disc’s soundtrack)
– ‘Subtitle’ (disc’s subtitles)
– ‘Disc Menu’ (disc’s menu)
4
Press
3 4
to select a language and press
OK.
If the language you want is not in the
list, then select {OTHERS}, then use the
numeric keypad (0-9) on the remote to enter the 4-digit language code ‘XXXX’ (see page 106 “Language
Code”) and press OK.
5
Repeat steps
3
~
4
for other language settings.
TIPS:
To return to the previous menu, press
1.
To remove the menu, press
SYSTEM MENU
.
01-37 MDV434K_Eng_552 15 04/02/05, 4:14 PM
15
Disc Operations
IMPORTANT!
– If the inhibit icon (ø) appears on the TV screen when a button is pressed, it means the function is not available on the current disc or at the current time.
– Depending on the DVD or VIDEO
CD, some operations may be different or restricted.
– Do not push on the disc tray or put any objects other than disc on the disc tray. Doing so may cause the disc player malfunction.
Playable Discs
Your DVD Player will play:
– Digital Video Discs (DVDs)
– Video CDs (VCDs)
– Super Video CDs (SVCDs)
– Digital Video Discs +
Recordable[Rewritable] (DVD+R[W])
– Compact Discs (CDs)
– MP3 discs, picture (Kodak, JPEG) files on CD-R(W).
– JPEG/ISO 9660 format
– Maximum 30 characters display.
– Supported sampling frequencies :
32 kHz, 44.1 kHz, 48 kHz (MPEG-1)
16 kHz, 22.05 kHz, 24 kHz (MPEG-2)
– Supported Bit-rates : 32~256 kbps
(MPEG-1), 8~160 kbps (MPEG-2) variable bitrates
SUPER VIDEO
Region Codes
DVD discs must be labeled for ALL regions or Region 4 in order to play on this Player. You cannot play
Discs that are labeled for other regions.
ALL
4
Helpful Hints:
– It may not be possible to play CD-R/RW or DVD-R/RW in all cases due to the type of disc or condition of the recording.
– If you are having trouble playing a certain disc, remove the disc and try a different one. Improper formatted disc will not play on this DVD Player.
Playing discs
1
Connect the power cords of the DVD
Player and TV (and any optional stereo or
AV receiver) to a power outlet.
2
Turn on the TV power and set to the correct Video In channel. (See page 12
“Setting up the TV”).
3
Press
STANDBY-ON on the DVD Player front panel.
➜
You should see the DVD background screen on the TV.
4
Press
OPEN/CLOSE
0 button to open the disc tray and load in a disc, then press the same button again to close the disc tray.
➜
Make sure the label side is facing up.
For double-sided discs, load the side you want to play facing up.
5
Playback will start automatically. If not press PLAY B.
➜
If a disc menu appears on the TV, see page 18 “Using the Disc Menu”.
➜
If the disc is locked by parental control, you must enter your six-digit password.
(See page 33).
16
TIPS:
The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
01-37 MDV434K_Eng_552 16 04/02/05, 4:14 PM
Disc Operations
1
During playback, press PAUSEÅ.
2
Basic playback controls
Unless otherwise stated, all operations described are based on Remote Control use.
Pausing playback
➜
Playback will pause and sound will be muted.
To resume normal playback, press
PLAY B.
Selecting track/chapter
●
Press S / T or use the numeric keypad (0-9) to key in a track/chapter number.
➜
If repeat mode is active, pressing S /
T will replay the same track/chapter.
Searching backward/forward
●
Press and hold 1 / 2, then press
PLAY
B
to resume normal playback.
➜
While searching, pressing 1 / 2 repeatedly again will decrease/increase the search speed.
Stopping playback
●
Press Ç.
Selecting various repeat/shuffle functions
Repeat play mode
●
While playing a disc, press
REPEAT
continuously to choose a ‘Play Mode’.
CHAPTER (DVD)
– to repeat playback of the current chapter.
TRACK/TITLE (CD/SVCD/VCD/DVD)
– to repeat playback of the current track (CD/SVCD/VCD)/title (DVD).
ALL
– to repeat playback of all the disc and all the programmed tracks.
SHUFFLE
– to repeat playback at random order.
OFF
– to cancel the repeat mode.
Helpful Hint:
– For VCD, repeat playback is not possible if the PBC mode is switched on.
Repeating a section within a chapter/track
1
While playing a disc, press
REPEAT A-B
at your chosen starting point.
2
Press REPEAT A-B again at your chosen end point.
➜
The section A and B can be set only within the same chapter/track.
➜
The section will now repeat continuously.
3
To exit the sequence, press
REPEAT
A-B.
TIPS:
The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
17
01-37 MDV434K_Eng_552 17 04/02/05, 4:14 PM
Disc Operations
Operations for video playback
(DVD/VCD/SVCD)
Using the Disc Menu
Depending on the disc, a menu may appear on the TV screen once you load in the disc.
To select a playback feature or item
●
Use 1 2 3 4 keys or numeric keypad
(0-9) on the remote, then press OK to start playback.
To access or remove the menu
●
Press DISC MENU on the remote.
Zooming in
This function allows you to enlarge the picture on the TV screen and to pan through the enlarged picture.
1
During playback, press
ZOOM
repeatedly to display the picture with different scales.
➜
Use 1 2 3 4 keys to pan through the enlarged picture.
➜
Playback will continue.
2
Press ZOOM repeatedly to return to the original size.
Slow Motion
1
Press 3 4 during playback to select the required speed: 1/2, 1/4, 1/8 or 1/16
(backward or forward).
➜
Sound will be muted.
2
To return to normal speed, press
PLAY B.
Helpful Hint:
– Slow backward is not possible on VCDs.
Using the OSD menu
OSD menu shows the disc playback information (for example, title or chapter number, elapsed playing time, audio/ subtitle language), a number of operations can be done without interrupting disc playback.
1
During playback, press DISPLAY.
➜
A list of available disc information appears on the TV screen.
Menu
Title 01/01
Chapter 09/12
Audio 2CH CHI
Subtitle Off
Bitrate 61 Title Remain 0:48:59
Resuming playback from the last stopped point
Resume playback of the last 5 discs is possible, even if the disc was ejected or the power switched off.
●
Load one of the last 5 discs.
➜
“
LOAD” appears.
●
Press PLAY B and the disc will be played back from the last point.
To cancel resume mode
●
In stop mode, press STOP 9 again.
Menu
Track 01/01
Disc Time 0:48:53
Track Time 0:48:53
Repeat Off
Bitrate 71 Total Elapsed 0:01:32
2
Press 3 4 to view the information and press OK to access.
3
Press 2 or OK to select an option.
4
Use the numeric keypad (0-9) to input the number/time or press 3 4 to make the selection, then press OK to confirm.
➜
Playback will change to the chosen time or to the selected title/chapter/ track.
18
TIPS:
The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
01-37 MDV434K_Eng_552 18 04/02/05, 4:14 PM
Disc Operations
Special DVD Features Special VCD & SVCD Features
Playing a Title
1
Press DISC MENU.
➜
The disc title menu appears on the TV screen.
2
Use
3 4 1 2 keys or numeric keypad
(0-9) to select a play option.
3
Press OK key to confirm.
Camera Angle
●
Press ANGLE repeatedly to select different desired angle.
Changing the Audio Language
For DVD
●
Press AUDIO repeatedly to select different audio languages.
Changing the Audio Channel
For VCD
●
Press AUDIO to select the available audio channels provided by the disc (LEFT
MONO, RIGHT MONO, MIX-MONO,
STEREO).
Subtitles
●
Press SUBTITLE repeatedly to select different subtitle languages.
Playback Control (PBC)
For VCD with Playback Control (PBC) feature (version 2.0 only)
●
Press DISC MENU to toggle between
‘PBC ON’ and ‘PBC OFF’.
➜
If you select ‘PBC ON’, the disc menu
(if available) will appear on the TV.
➜
Use the
S
/ T
or the numeric keypad (0-9) to select a play option.
●
During playback, pressing
RETURN/
TITLE will return to the menu screen (if
PBC is on).
If you want to skip the index menu and playback directly from the beginning,
●
Press DISC MENU key on the remote control to switch to PBC off.
TIPS:
The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
19
01-37 MDV434K_Eng_552 19 04/02/05, 4:14 PM
Disc Operations
Preview Function (DVD/VCD)
The preview function allows you to reduce the picture of 6 tracks enough to display in a full screen.
1
Press PREVIEW.
➜
The preview menu appears on the TV screen.
Select Digest Type:
Title Digest
Chapter Digest
Title Interval
Chapter Interval
Select Digest Type:
Track Digest
Disc Interval
Track Interval
(DVD example)
(Video CD example)
2
Press
3 4 to select the PREVIEW type, then press OK.
➜
The picture of each segment will appear on the screen.
3
Press
3 4 1 2 to select a track and input your selected track number using the numeric keypad (0-9), then press OK.
➜
Playback will start automatically on the selected track.
●
For CDDA (Musical CD)
➜
Press PREVIEW to listen to the first
10 seconds of each sound track in the disc.
A
D
B
E
C
F
(example for 6 thumbnail pictures display)
20
TIPS:
The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
01-37 MDV434K_Eng_552 20 04/02/05, 4:14 PM
Disc Operations
Playing MP3/JPEG/Kodak Picture
CD
IMPORTANT!
You have to turn on your TV and set to the correct Video In channel. (See page
12 “Setting up the TV”).
General Operation
1
Load a disc.
➜
The disc reading time may exceed 30 seconds due to the complexity of the directory/file configuration.
➜
The data disc menu appears on the TV screen.
2
Playback will start automatically. If not press
PLAY B.
01:42 04:40
001/020
Coco Lee
--
MP3
MP3
MP3
Coco - Before
Coco - I love
Coco - Jazz
Before
- - - - - -
ALBUM - - - - - -
2002
Selecting a folder and track/file
1
Press 3 4 to select the folder and press
OK to open the folder.
2
Press 3 4 to select a track/file.
3
Press
S / T to go to previous/next page.
4
Press OK to confirm.
➜
Playback will start from the selected file to the end of the folder.
●
To select another folder from the current disc, press 1 to return to the root menu, then press 3 4 to make your selection and press OK to confirm.
During playback, you can;
●
Press
S / T to select another track/ file in the current folder.
●
Press REPEAT continuously to access different ‘Play Mode’.
➜
FOLDER: files will be played back once.
➜
REPEAT ONE: one file being played repeatedly.
➜
REPEAT FOLDER: all files in one folder being played repeatedly.
➜
SHUFFLE: all files in the current folder being played at random order.
●
Press Å to pause playback.
Helpful Hints:
– It may not be possible to play certain
MP3/JPEG disc due to the configuration and characteristics of the disc or condition of the recording.
– It is normal to experience an occasional
“skip” while listening to your MP3 disc.
– For multi-session discs with different formats, only the first session will be available.
TIPS:
The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
21
01-37 MDV434K_Eng_552 21 04/02/05, 4:14 PM
Disc Operations
Special picture disc features
IMPORTANT!
You have to turn on your TV and set to the correct Video In channel. (See page
12 “Setting the TV”).
●
Load a Picture disc (Kodak Picture CD,
JPEG).
➜
For Kodak disc, the slide show will begin.
➜
For JPEG disc, the picture menu appears on the TV screen. Press PLAY B to start the slide-show playback.
2
Zoom picture
1
During playback, press ZOOM repeatedly to display the picture with different scales.
Use 1 2 3 4 keys to view the zoomed picture.
Playback with multi-angles
●
During playback, press
3
4 1 2
to rotate the picture on the TV screen.
3
: flip the picture vertically
4
: flip the picture horizontally
1
: rotate the picture anti-clockwise
2
: rotate the picture clockwise
Preview Function (JPEG)
This function shows the content of the current folder or the whole disc.
1
Press PREVIEW during playback.
➜
12 thumbnail pictures will appear on the TV screen.
Scan Effect
●
Press ANGLE repeatedly to choose different scan effect.
➜
Various scan effect appears on the top left hand corner on the TV screen.
2
Press
S / T
to display the other pictures on the previous/next page.
3
Use
1
2 3 4
to highlight one of the picture and press OK to start playback.
4
Press DISC MENU to return to Picture
CD menu.
22
TIPS:
The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
01-37 MDV434K_Eng_552 22 04/02/05, 4:14 PM
Karaoke Operations
Playing Karaoke discs
IMPORTANT!
You have to turn on your TV and set to the correct Video In channel. (See page
12 “Setting up the TV”).
Vocal
●
You can fade out the original vocal from a karaoke disc.
●
Press VOCAL repeatedly to choose different audio modes.
Helpful Hint:
– This function and on screen display depends on the availability of the disc.
General Operation
1
Connect a microphone (not supplied) to
MIC on the side panel of the DVD player.
2
Press KARAOKE repeatedly.
➜
‘MIC ON/OFF’ appears on the TV screen.
3
Load a karaoke disc and press
PLAY
B
.
4
Adjust the microphone volume using
LEVEL button on the side panel of the
DVD player.
Helpful Hint:
– Before connecting the microphone, set the microphone volume to the minimum level to prevent howling.
Mode
●
Press MODE repeatedly to toggle between ‘Vol’, ‘Echo’ or ‘Key’.
1
When ‘Vol’ is selected, press 1 2 to adjust the vocal value between 0 and 20.
2
When ‘Echo’ is selected, press 1 2 to adjust the echo value between 0 and 20.
3
When ‘Key’ is selected, press 1 2 to adjust the pitch value between -16 and 16.
Key setting
●
This function allows you to adjust the key tone level to match with your vocal.
●
Press KEY and use
1
2
to adjust the pitch to adopt your voice.
04/02/05, 4:14 PM
23
01-37 MDV434K_Eng_552 23
DVD Setup Menu Options
This DVD Player setup is carried out via the TV, enabling you to customise the
DVD Player to suit your particular requirements.
General Setup menu
1
In disc mode, press SYSTEM MENU.
2
Press
1 2 to select ‘General Setup’ icon.
3
Press OK to confirm.
Dimming player’s display panel
You can select different levels of brightness for the display screen.
1
In ‘GENERAL SETUP PAGE’, press
3 4 to highlight {DISPLAY DIM}, then press
2.
100% – Select this for full brightness.
70% – Select this for medium brightness.
40% – Select this for dimming the display.
2
Press
3 4 to select a setting, then press
OK to confirm your selection.
- - General Setup Page - -
Disc Lock
Display Dim
Program
OSD Language
Screen Saver
Sleep
Go to General Setup Page
Locking/Unlocking the disc for viewing
Not all discs are rated or coded by the disc maker. You can prevent a specific disc from playing by locking the disc. Up to 40 discs can be locked.
1
In ‘GENERAL SETUP PAGE’, press
3 4 to highlight {DISC LOCK}, then press
2.
LOCK
Select this to block the playback of the current disc. Subsequent access to a locked disc requires six-digit password.
The default password is ‘136 900’ (see page 33 “Changing the password”).
UNLOCK
Select this to unlock the disc and allow future playback.
2
Press
3 4 to select a setting, then press
OK to confirm your selection.
Programming disc tracks (not for
Picture CD/MP3)
You can play the contents of the disc in the order you want by programming the tracks to be played. Up to 20 tracks can be stored.
1
In ‘GENERAL SETUP PAGE’, press
3 4 to highlight {PROGRAM}, then press
2 to select {INPUT MENU}.
2
Press OK to confirm.
Programme : Track (01 - 17)
1 04
2 10
3 11
4 __
5 __
6 __
7 __
8 __
9 __
10 __
Exit START NEXT
To input your favourite tracks/chapter
3
Use the numeric keypad (0-9) to enter a valid track/chapter number.
4
Use 1
2 3 4 keys to move the cursor to the next position.
➜
If the track number is more than ten, press
T to open the next page and proceed with programming or,
➜
Use 1 2 3 4 keys to highlight {NEXT} on the programme menu, then press OK.
5
Repeat steps
3
~
4
to input another track/chapter number.
24
TIPS:
01-37 MDV434K_Eng_552
To return to the previous menu, press
1.
To remove the menu, press
SYSTEM MENU
.
24 04/02/05, 4:14 PM
DVD Setup Menu Options
If you want to remove a track
6
Use 1 2 3 4 keys to move the cursor to the track you want to remove.
7
Press OK to remove this track from the programme menu.
To start programme playback
8
Use 1 2 3 4 keys to highlight {START} on the programme menu, then press OK.
➜
Playback will start with the selected tracks under the programmed sequence.
To exit programme playback
9
Use 1 2 3 4 keys to highlight {EXIT} on the programme menu, then press OK.
OSD Language
This menu contains various language options for display language on the screen.
For details, see page 15.
Sleep
Sleep function allows you to turn off the
DVD Player automatically after a preset time.
1
In ‘GENERAL SETUP PAGE’, press
3 4 to highlight {SLEEP}, then press
2.
15 Mins
Turn off the DVD Player after 15 minutes.
30 Mins
Turn off the DVD Player after 30 minutes.
45 Mins
Turn off the DVD Player after 45 minutes.
60 Mins
Turn off the DVD Player after 60 minutes.
OFF
Turn off the sleep function.
2
Press
3 4 to select a setting, then press
OK to confirm your selection.
Screen Saver - turning on/off
The screen saver will help to prevent your
TV display device from becoming damaged.
1
In ‘GENERAL SETUP PAGE’, press
3 4 to highlight {SCREEN SAVER}, then press
2.
ON
Select this if you wish to turn off the TV screen when disc playback is stopped or paused for more than 5 minutes.
OFF
Select this to disable the screen saver function.
2
Press
3 4 to select a setting, then press
OK to confirm your selection.
TIPS:
To return to the previous menu, press
1.
To remove the menu, press
SYSTEM MENU
.
01-37 MDV434K_Eng_552 25 04/02/05, 4:14 PM
25
DVD Setup Menu Options
Audio Setup Menu
1
In disc mode, press SYSTEM MENU.
2
Press
1 2 to select ‘Audio Setup’ icon.
3
Press OK to confirm.
- - Audio Setup Page - -
Analog Output
Digital Audio Setup
Sound Mode
Night Mode
Go to Audio Setup Page
Analog Output
This options allows you to set the stereo analog output of your DVD Player.
1
In ‘AUDIO SETUP PAGE’, press
3 4 to highlight {ANALOG OUTPUT}, then press
2.
Stereo
Select this option when output delivers sound from only the two front speakers.
LT/RT
Select this option if your DVD Player is connected to a Dolby Pro Logic decoder.
V SURR
Allows the DVD player to use virtual surround sound effects.
2
Press
3 4 to select a setting, then press
OK to confirm your selection.
Digital Audio Setup
The options included in Digital Audio
Setup are: ‘Digital Output’ and ‘LPCM
Output’.
1
In ‘AUDIO SETUP PAGE’, press
3 4 to highlight {DIGITAL AUDIO SETUP}, then press
2.
2
Press the
3 4 keys to highlight an option.
3
Enter its submenu by pressing
2.
4
Press
3 4 to select a setting, then press
OK to confirm your selection.
Digital Output
Set the Digital output according to your optional audio equipment connection.
➜
Off: Turn off the digital output.
➜
All: If you have connected your
DIGITAL AUDIO OUT to a multi-channel decoder/receiver.
➜
PCM Only: Only if your receiver is not capable of decoding multi-channel audio.
Helpful Hints:
– If DIGITAL OUTPUT is set to ‘All’, all audio settings except MUTE are invalid.
26
TIPS:
01-37 MDV434K_Eng_552
To return to the previous menu, press
1.
To remove the menu, press
SYSTEM MENU
.
26 04/02/05, 4:14 PM
DVD Setup Menu Options
LPCM Output
If you connect the DVD Player to a PCM compatible receiver via the digital terminals, such as coaxial or optical etc, you may need to adjust ‘LPCM Output’.
Discs are recorded at a certain sampling rate. The higher the sampling rate, the better the sound quality.
➜
48kHz: Playback a disc recorded at the sampling rate of 48kHz.
➜
96kHz: Playback a disc recorded at the sampling rate of 96kHz that can only be achieved in Stereo-Classic (Flat) mode.
Helpful Hint:
– LPCM Output can be selected only when
PCM Only is activated.
Sound Mode
The options included in Sound Mode
Setup are: ‘3D’, ‘Movie Mode’ and ‘Music
Mode’.
1
In ‘AUDIO SETUP PAGE’, press
3 4 to highlight {SOUND MODE}, then press
2.
2
Press the
3 4 keys to highlight an option.
3
Enter its submenu by pressing
2.
4
Press
3 4 to select a setting, then press
OK to confirm your selection.
3D
This function provides a virtual surround sound experience using just two speakers.
➜
Off, Living Room, Hall, Arena and
Church
Movie Mode
Select a Sound Mode that matches the type of music you are playing. These preset Sound Modes adjust the frequency bands of the video to enhance your favourite movie sound track.
➜
Off, Sci-Fic, Action, Drama and
Concert
Music Mode
Select a Sound Mode that matches the type of music you are playing. These preset Sound Modes adjust the frequency bands of the audio to enhance your favourite music.
➜
Off, Digital, Rock, Classic and Jazz
TIPS:
To return to the previous menu, press
1.
To remove the menu, press
SYSTEM MENU
.
01-37 MDV434K_Eng_552 27 04/02/05, 4:14 PM
27
DVD Setup Menu Options
Night Mode - turning on/off
In this mode, the high volume outputs are softened and low volume outputs are brought upward to an audible level. It is useful for watching your favourite action movie without disturbing others at night.
1
In ‘AUDIO SETUP PAGE’, press
3 4 to highlight {NIGHT MODE}, then press
2.
ON
Select this to level out the volume. This feature is only available for movies with
Dolby Digital mode.
OFF
Select this when you want to enjoy the surround sound with its full dynamic range.
2
Press
3 4 to select a setting, then press
OK to confirm your selection.
Video Setup Menu
1
In disc mode, press SYSTEM MENU.
2
Press
1 2 to select ‘Video Setup’ icon.
3
Press OK to confirm.
- - Video Setup Page - -
TV Type
TV Display
Progressive
Picture Setting
Go To Video Setup Page
TV Type
This menu contains the options for selecting the colour system that matches the connected TV. For details, see page
14.
28
TIPS:
01-37 MDV434K_Eng_552
To return to the previous menu, press
1.
To remove the menu, press
SYSTEM MENU
.
28 04/02/05, 4:14 PM
DVD Setup Menu Options
Setting the TV Display
Set the aspect ratio of the DVD Player according to the TV you have connected.
The format you select must be available on the disc. If it is not, the setting for TV display will not affect the picture during playback.
1
In ‘VIDEO SETUP PAGE’, press
3 4 to highlight {TV DISPLAY}, then press
2.
2
Press
3 4 to highlight one of the options below:
4:3 PAN SCAN –
Select this if you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your TV screen.
4:3 LETTER BOX –
Select this if you have a normal TV. In this case, a wide picture with black bands on the upper and lower portions of the TV screen will be displayed.
16:9 – Select this if you have a widescreen TV.
3
Select an item and press OK.
Progressive - turning on/off
In the progressive scan mode, you can enjoy the high quality picture with less flickers. It only works when you have connected the DVD player’s Y Pb Pr jacks to your TV that supports the progressive video input. Otherwise, the a distorted picture will appear on the TV. For proper progressive scan set up, see page 13.
1
In ‘VIDEO SETUP PAGE’, press
3 4 to highlight {PROGRESSIVE}, then press
2.
OFF
To disable Progressive Scan function.
ON
To enable Progressive Scan function.
2
Press
3 4 to select a setting, then press
OK to confirm your selection.
➜
Follow the instructions shown on the
TV to confirm the selection (if any).
➜
If a distorted picture appears on the TV screen, wait for 15 seconds for auto recovery.
TIPS:
To return to the previous menu, press
1.
To remove the menu, press
SYSTEM MENU
.
01-37 MDV434K_Eng_552 29 04/02/05, 4:14 PM
29
DVD Setup Menu Options
Picture Setting
This DVD Player provides three predefined sets of picture colour settings and one personal setting which you can define yourself.
1
In ‘VIDEO SETUP PAGE’, press
3 4 to highlight {PICTURE SETTING}, then press
2.
STANDARD
Select this for standard picture setting.
BRIGHT
Select this will make the TV picture brighter.
SOFT
Select this will make the TV picture softer.
PERSONAL
Select this to personalise your picture colour by adjusting the brightness, contrast, tint and colour (saturation).
2
Press
3 4 to select a setting, then press
OK to confirm your selection.
3
If you select {PERSONAL}, then proceed to steps
4
~
7
.
➜
The ‘PERSONAL PICTURE SETUP’ menu appears.
Personal Picture Setup
Brightness
Contrast
TINT
COLOR
0
0
0
0
4
Press
3 4 to highlight one of the following options.
BRIGHTNESS
Increase the value will brighten the picture or vice versa. Choose zero (0) for average setting.
CONTRAST
Increase the value will sharpen the picture or vice versa. Choose zero (0) to balance the contrast.
TINT
Increase the value will darken the picture or vice versa. Choose zero (0) for average setting.
COLOUR
Increase the value will enhance the colour in your picture or vice versa. Choose zero
(0) to balance the colour.
5
Press
1 2 to adjust the setting that best suit your personal preference.
6
Repeat steps
4
~
5
for adjusting other colour features.
7
Press OK to confirm.
30
TIPS:
01-37 MDV434K_Eng_552
To return to the previous menu, press
1.
To remove the menu, press
SYSTEM MENU
.
30 04/02/05, 4:14 PM
DVD Setup Menu Options
Preference Page
1
Press Ç twice to stop playback (if any), then press SYSTEM MENU.
2
Press
1 2 to select the ‘Preference Setup’ icon.
3
Press OK to confirm.
- - Preference Page - -
Audio
Parental
PBC
Password
Default
Subtitle
Disc Menu
Go To Preference Page
Restricting playback by Parental
Control
Some DVDs may have a parental level assigned to the complete disc or to certain scenes on the disc. This feature lets you set a playback limitation level.
The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children or have certain discs played with alternative scenes.
1
In ‘PREFERENCE PAGE’, press
3 4 to highlight {PARENTAL}, then press
2.
Audio, Subtitle, Disc Menu
These menus contain various language options for audio, subtitle and disc menu which may be recorded on the DVD. For details, see page 15.
- - Preference Page - -
Audio
Subtitle
Disc Menu
Parental
PBC
Password
Default
1 KID SAFE
2 G
3 PG
4 PG 13
5 PGR
6 R
7 NC17
Set KID SAFE
TIPS:
To return to the previous menu, press
1.
To remove the menu, press
SYSTEM MENU
.
01-37 MDV434K_Eng_552 31 04/02/05, 4:14 PM
31
DVD Setup Menu Options
Restricting playback by Parental
Control - cont’d
2
Press
3 4 to highlight a rating level for the disc inserted and press OK.
➜
To disable Parental controls and have all Discs play, select {8 ADULT}.
3
Use the numeric keypad (0-9) to enter the six-digit password (see page 33
“Changing the password”).
➜
DVDs that are rated above the level you selected will not play unless you enter your six-digit password.
Helpful Hints:
– VCD, SVCD, CD have no level indication, so parental control function has no effect on these type of discs. This applies to most illegal DVD discs.
– Some DVDs are not encoded with a rating though the movie rating may be printed on the Disc cover. The rating level feature does not work for such Discs.
PBC
You can set the PBC to ON or OFF. This feature is available only on Video CD 2.0
with playback control (PBC) feature. For details, see page 19.
32
TIPS:
01-37 MDV434K_Eng_552
To return to the previous menu, press
1.
To remove the menu, press
SYSTEM MENU
.
32 04/02/05, 4:14 PM
Changing the Password
The same password is used for both
Parental Control and Disc Lock. Enter your six-digit password when prompted on the screen. The default password is
136 900.
1
In ‘PREFERENCE PAGE’, press
3 4 to highlight {PASSWORD}, then press
2 to select {CHANGE}.
DVD Setup Menu Options
Restoring to original settings
Setting the DEFAULT function will reset all options and your personal settings to the factory defaults, except your password for Parental Control and Disc
Lock.
1
In ‘PREFERENCE PAGE’, press
3 4 to highlight {DEFAULT}, then press
2 to select {RESET}.
2
Press OK to confirm.
➜
All settings will now reset to factory defaults.
Old Password
New Password
Confirm PWD
OK
2
Use the numeric keypad (0-9) to enter your old six-digit password.
➜
When doing this for the first time, key in ‘136 900’.
➜
If you forget your old six-digit password, key in ‘136 900’.
3
Enter the new six-digit password.
4
Enter the new six-digit password a second time to confirm.
➜
The new six-digit password will now take effect.
5
Press
OK to confirm.
TIPS:
To return to the previous menu, press
1.
To remove the menu, press
SYSTEM MENU
.
01-37 MDV434K_Eng_552 33 04/02/05, 4:14 PM
33
Troubleshooting
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer.
Problem
No power
No picture
Distorted picture
Completely distorted picture or black/white picture with DVD
No sound or distorted sound
No audio at digital output
Solution
– Check if the AC power cord is properly connected.
– Press the STANDBY ON on the front of the DVD system to turn on the power.
– Refer to your TV’s manual for correct Video In channel selection. Change the TV channel until you see the DVD screen.
– Check if the TV is switched on.
– If the progressive scan feature is activated but the connected TV does not support progressive signals or the cables are not connected accordingly, see page 13 for proper progressive scan set up or deactivate the progressive scan feature as below:
1) Turn off your TV progressive scan mode or turn on to interlaced mode.
2) Press OPEN/CLOSE to open the disc tray.
3) Press numeric keypad ‘1’ on the remote control for few seconds.
– Sometimes a small amount of picture distortion may appear depending on the disc being played back. This is not a malfunction.
– Connect DVD Player directly to the TV.
– Make sure the disc is compatible with the DVD/
Player.
– Ensure that the DVD Player’s TV Type is set to match that of the Disc and your TV.
– Adjust the volume.
– Check that the speakers are connected correctly.
– Check the digital connections.
– Check if your receiver can decode MPEG-2 or DTS and if not, please make sure the digital output is set to PCM.
– Check if the audio format of the selected audio language matches your receiver capabilities.
34
01-37 MDV434K_Eng_552 34 04/02/05, 4:14 PM
Troubleshooting
Problem Solution
Disc can’t be played
Picture freezes momentarily during playback
No return to start-up screen when disc is removed
The player does not respond to the Remote Control
– The DVD+R/CD-R must be finalised.
– Ensure the disc label is facing up.
– Check if the disc is defective by trying another disc.
– If you have recorded a Picture CD or MP3 CD yourself, ensure that your disc contains at least 10 pictures or 5 MP3 tracks.
– Region code incorrect.
– Check the disc for fingerprints/scratches and clean with a soft cloth wiping from centre to edge.
– Reset the unit by switching the player off, then on again.
– Aim the Remote Control directly at the sensor on the front of the player.
– Reduce the distance to the player.
– Replace the batteries in the Remote Control.
– Re-insert the batteries with their polarities (+/– signs) as indicated.
Buttons do not work
Player does not respond to some operating commands during playback.
DVD Player cannot read
CDs/DVDs
Menu items cannot be selected
– To completely reset the player, unplug the AC cord from the AC outlet for 5-10 seconds.
– Operations may not be permitted by the disc.
Refer to the instructions of the disc jacket.
– Use a commonly available cleaning CD/DVD to clean the lens before sending the DVD Player for repair.
– Press STOP twice before selecting System Menu.
– Depending on the disc availability, some menu items cannot be selected.
Unable to select Progressive Scan on/off – Check that the output of the video signal is switch to
‘YUV’.
01-37 MDV434K_Eng_552 35 04/02/05, 4:14 PM
35
Specifications
TV STANDARD (PAL/50Hz) (NTSC/60Hz)
Number of lines
Playback
625 525
Multistandard (PAL/NTSC)
VIDEO PERFORMANCE
Video DAC
YPbPr
Video Output
12 bit, 108mHz
0.7 Vpp — 75 ohm
1Vpp — 75 ohm
VIDEO FORMAT
Digital Compression MPEG 2 for DVD,SVCD
MPEG 1 for VCD
DVD
Horiz. resolution
Vertical resolution
VCD
Horiz. resolution
Vertical resolution
50Hz
720 pixels
576 lines
50Hz
352 pixels
288 lines
60Hz
720 pixels
480 lines
60Hz
352 pixels
240 lines
AUDIO FORMAT
Digital MPEG/ AC-3/ compressed Digital
PCM 16, 20, 24 bits fs, 44.1, 48, 96 kHz
MP3(ISO 9660) 96, 112, 128, 256 kbps & variable
Analog Sound Stereo
Dolby Surround compatible downmix from Dolby Digital multi-channel sound bit rate fs, 32, 44.1,
48 kHz
AUDIO PERFORMANCE
DA Converter
DVD
SVCD
24 bit, 192 kHz fs 96 kHz fs 48 kHz fs 48 kHz fs 44.1kHz
fs 44.1kHz
CD/VCD
Signal-Noise (1kHz)
Dynamic range(1kHz)
Crosstalk (1kHz)
Distortion/noise (1kHz)
MPEG MP3 MPEG Audio L3
4Hz- 44kHz
4Hz- 22kHz
4Hz- 22kHz
4Hz- 20kHz
4Hz- 20kHz
> 95 dB
> 85 dB
> 90 dB
> 80 dB
CONNECTIONS
YPbPr Output Cinch 3x
Video Output Cinch (yellow)
Audio Output(L+R) Cinch (white/red)
Digital Output 1 coaxial
IEC60958 for CDDA / LPCM
IEC61937 for MPEG 1/2,
Dolby Digital
CABINET
Dimensions (w x h x d)
Weight
360 x 37 x 265 mm
Approximately 2.0 kg
POWER CONSUMPTION
Power Supply Rating 110-240V;
Power consumption
50/60Hz
< 10 W
Power consumption in Standby mode < 0.8 W
Specifications subject to change without prior notice
36
01-37 MDV434K_Eng_552 36 04/02/05, 4:14 PM
Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right.
Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs. is 4:3, and that of widescreens is 16:9.
AUDIO OUT Jacks: Jacks on the back of the DVD
System that send audio to another system (TV, Stereo, etc.).
Bit Rate: The amount of data used to hold a given length of music; measured in kilobits per seconds, or kbps. Or, the speed at which you record. Generally, the higher the bit rate, or the higher the recording speed, the better the sound quality. However, higher bit rates use more space on a Disc.
Chapter: Sections of a picture or a music piece on a
DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.
Component Video Out Jacks: Jacks on the back of the DVD System that send high-quality video to a TV that has Component Video In jacks (R/G/B, Y/Pb/Pr, etc.).
Disc menu: A screen display prepared for allowing selection of images, sounds, subtitles, multi-angles, etc recorded on a DVD.
Digital: Sound that has been converted into numerical values. Digital sound is available when you use the DIGITAL AUDIO OUT COAXIAL or
OPTICAL jacks. These jacks send audio through multiple channels, instead of just two channels as analog does.
Dolby Digital:
A surround sound system developed by Dolby Laboratories containing up to six channels of digital audio (front left and right, surround left and right, center and subwoofer).
DTS: Digital Theatre Systems. This is a surround sound system, but it is different from Dolby Digital.
The formats were developed by different companies.
JPEG: A very common digital still picture format. A still-picture data compression system proposed by the
Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio.
MP3: A file format with a sound data compression system. “MP3” is the abbreviation of Motion Picture
Experts Group 1 (or MPEG-1) Audio Layer 3. By using
MP3 format. one CD-R or CD-RW can contain about
10 times as much data volume as a regular CD can.
Glossary
Multichannel: DVD is specified to have each sound track constitute one sound field. Multichannel refers to a structure of sound tracks having three or more channels.
Parental Control: A function of the DVD to limit playback of the disc by the age of the users according to the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback will be prohibited if the software’s level is higher than the user-set level.
PCM (Pulse Code Modulation): A system for converting analog sound signal to digital signal for later processing, with no data compression used in conversion.
Playback control (PBC): Refers to the signal recorded on video CDs or SVCDs for controlling reproduction. By using menu screens recorded on a
Video CD or SVCD that supports PBC, you can enjoy interactive-type software as well as software having a search function.
Progressive Scan: It displays all the horizontal lines of a picture at one time, as a signal frame. This system can convert the interlaced video from DVD into progressive format for connection to a progressive display. It dramatically increases the vertical resolution.
Region code: A system for allowing discs to be played back only in the region designated beforehand.
This unit will only play discs that have compatible region codes. You can find the region code of your unit by looking on the product label. Some discs are compatible with more than one region (or ALL regions).
Surround: A system for creating realistic threedimensional sound fields full of realism by arranging multiple speakers around the listener.
Title: The longest section of a picture or music feature on DVD, music, etc., in video software, or the entire album in audio software. Each title is assigned a title number enabling you to locate the title you want.
VIDEO OUT jack: Jack on the back of the DVD
System that sends video to a TV.
04/02/05, 4:14 PM
37
01-37 MDV434K_Eng_552 37
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 6 Supplied accessories
- 6 Care and safety information
- 7 Connecting TV
- 8 Connecting the power cord
- 10 Front and Rear Panels
- 11 Remote Control
- 12 Step 2: Setting up the TV
- 15 Step 3: Setting language preference
- 16 Playable Discs
- 16 Region Codes
- 16 Playing discs
- 17 Basic playback controls
- 18 Operations for video playback
- 19 Special DVD features
- 19 Special VCD & SVCD Features
- 21 Playing MP3/JPEG/Kodak Picture CD
- 22 Special picture disc features
- 23 Playing Karaoke discs
