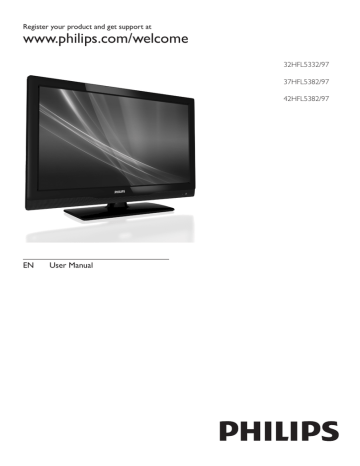

Register your product and get support at
www.philips.com/welcome
32HFL5332/97
37HFL5382/97
42HFL5382/97
EN User Manual
China RoHS 7/29/2010
Contents
1 Notice
2 Important
3 Your TV
4 Use your TV 8
Switch your TV on / off or to standby 8
5 Use more of your TV 10
Change picture and sound settings
Use advanced teletext features 13
Create and use list of favorite channels 14
View photos and play music from a
Reset the TV to factory settings
6 Install channels
Automatically install channels
20
2
3
5
7 Professional mode instruction 23
Professional Setup Remote control
Activating the Professional mode setup menu
8 Connect devices
9 Product information
Tuner / Reception / Transmission
39
32
10 Troubleshooting
41
EN 1
2 EN
1 Notice
2010 © Koninklijke Philips Electronics N.V. All rights reserved.
Specifications are subject to change without notice. Trademarks are the property of
Koninklijke Philips Electronics N.V or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.
The material in this manual is believed adequate for the intended use of the system.
If the product, or its individual modules or procedures, are used for purposes other than those specified herein, confirmation of their validity and suitability must be obtained. Philips warrants that the material itself does not infringe any United States patents. No further warranty is expressed or implied.
Warranty
• Risk of injury, damage to TV or void of warranty! Never attempt to repair the
TV yourself.
• Use the TV and accessories only as intended by the manufacturer.
• The caution sign printed on the back of the TV indicates risk of electric shock.
Never remove the TV cover. Always contact Philips Customer Support for service or repairs.
• Any operation expressly prohibited in this manual, or any adjustments and assembly procedures not recommended or authorised in this manual shall void the warranty.
Pixel characteristics
This LCD product has a high number of color pixels. Although it has effective pixels of 99.999% or more, black dots or bright points of light (red, green or blue) may appear constantly on the screen.
This is a structural property of the display
(within common industry standards) and is not a malfunction.
Compliance with EMF
Koninklijke Philips Electronics N.V. manufactures and sells many products targeted at consumers which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals.
One of Philips’ leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.
Philips is committed to develop, produce and market products that cause no adverse health effects. Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.
Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardisation for early integration in its products.
Copyright
®
Kensington and Micro Saver are registered US trademarks of ACCO World corporation with issued registrations and pending applications in other countries throughout the world.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
All other registered and unregistered trademarks are the property of their respective owners.
2 Important
Read and understand all instructions before you use your TV. If damage is caused by failure to follow instructions, the warranty does not apply.
Safety
Risk of electric shock or fire!
• Never expose the TV to rain or water.
Never place liquid containers, such as vases, near the TV. If liquids are spilt on or into the TV, disconnect the TV from the power outlet immediately. Contact
Philips Consumer Care to have the TV checked before use.
• Never place the TV, remote control or batteries near naked flames or other heat sources, including direct sunlight.
To prevent the spread of fire, keep candles or other flames away from the
TV, remote control and batteries at all times.
• Never insert objects into the ventilation slots or other openings on the TV.
• When the TV is swivelled ensure that no strain is exerted on the power cord.
Strain on the power cord can loosen connections and cause arcing.
Risk of short circuit or fire!
• Never expose the remote control or batteries to rain, water or excessive heat.
• Avoid force coming onto power plugs.
Loose power plugs can cause arcing or fire.
Risk of injury or damage to the TV!
• Two people are required to lift and carry a TV that weighs more than 25 kg.
• When stand mounting the TV, use only the supplied stand. Secure the stand to the TV tightly. Place the TV on a flat, level surface that can support the combined weight of the TV and the stand.
• When wall mounting the TV, use only a wall mount that can support the weight of the TV. Secure the wall mount to a wall that can support the combined weight of the TV and wall mount. Koninklijke Philips
Electronics N.V. bears no responsibility for improper wall mounting that result in accident, injury or damage.
Risk of injury to children!
Follow these precautions to prevent the
TV from toppling over and causing injury to children:
• Never place the TV on a surface covered by a cloth or other material that can be pulled away.
• Ensure that no part of the TV hangs over the edge of the surface.
• Never place the TV on tall furniture (such as a bookcase) without anchoring both the furniture and TV to the wall or a suitable support.
• Educate children about the dangers of climbing on furniture to reach the TV.
Risk of overheating!
• Never install the TV in a confined space.
Always leave a space of at least 4 inches or 10 cm around the TV for ventilation.
Ensure curtains or other objects never cover the ventilation slots on the TV.
Risk of damage to the TV!
• Before you connect the TV to the power outlet, ensure that the power voltage matches the value printed on the back of the TV. Never connect the TV to the power outlet if the voltage is different.
EN 3
Risk of injury, fire or power cord damage!
• Never place the TV or any objects on the power cord.
• To disconnect the TV power cord easily from the power outlet, ensure that you have full access to the power cord at all times.
• When you disconnect the power cord, always pull the plug, never the cable.
• Disconnect the TV from the power outlet and antenna before lightning storms. During lightning storms, never touch any part of the TV, power cord or antenna cable.
Risk of hearing damage!
• Avoid using earphones or headphones at high volumes or for prolonged periods of time.
Low temperatures
• If the TV is transported in temperatures below 5°C, unpack the TV and wait until the TV temperature matches room temperature before connecting the TV to the power outlet.
Screen care
• Avoid stationary images as much as possible. Stationary images are images that remain on-screen for extended periods of time. Examples include: on-screen menus, black bars and time displays. If you must use stationary images, reduce screen contrast and brightness to avoid screen damage.
• Unplug the TV before cleaning.
• Clean the TV and frame with a soft, damp cloth. Never use substances such as alcohol, chemicals or household cleaners on the TV.
• Risk of damage to the TV screen! Never touch, push, rub or strike the screen with any object.
• To avoid deformations and color fading, wipe off water drops as soon as possible.
Disposal of your old product and batteries
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive
2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products.
Please act according to your local rules and do not dispose of your old products with your normal household waste.
Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.
Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.
Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.
4 EN
3 Your TV
Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your TV at www.philips.com/welcome.
This section gives you an overview of commonly used TV controls and functions.
Please read section 3 to 6 to set the basic consumer menu first, then follow the instructions in section 7 to set the Professional mode menu.
Side controls and indicators
1116 a VOL +/- : Increases or decreases volume.
1
2222
3333
4444
5 b
CH o
/œ
: Switches to the previous or next channel (source).
c MENU: Toggles the home menu or confirm selected item.
d
INPUT: Selects connected devices.
e
(Power): Switches the product on or off. The product is not powered off completely unless it is physically unplugged.
f Remote control sensor.
EN 5
Remote control
6 EN
22
21
20
19
18
17
16
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14 a
(Standby-On)
• Switches the TV to standby if it is on.
• Switches on the TV if it is in standby.
b
MENU
Toggles the main menu on or off.
c
TELETEXT
Toggles teletext on or off.
Note
• Teletext is not applicable for China (/93) models and only for selected models.
d SOURCE
Selects connected devices.
e
Color buttons
• Selects tasks or options.
f SLEEP
Switches the TV to standby after a pre-defined period of time.
g OPTIONS
Accesses options relating to the current activity or selection.
h OK
Confirms an entry or selection and displays the channel grid, when watching
TV.
i
(Navigation buttons)
Navigates menus.
j INFO
Displays program information, when available. If the information spans multiple pages, press OPTIONS to go to the next page.
k (Mute)
Mutes or restores volume.
l
CH +/- (Channel +/-)
Switches to the previous or next channel.
When the TV menu is on, this functions as Page Up / Down.
When PBS setup menu is on, it switches to the previous or next channel or source.
m
0-9 (Numeric buttons)
Selects a channel or setting.
n
PICTURE (Smart Picture)
Launches the picture menu.
o
SOUND (Smart Sound)
Launches the sound menu.
p
+/- (Volume +/-)
Increases or decreases volume.
q
BACK A/CH (Previous channel)
• Returns to a previous screen.
• Returns to the previously viewed channel.
r
BROWSE
Switches between channel grid and program list.
s
DUAL I-II
Selects audio languages if dual sound broadcast is available.
t
DEMO (Used in selected models only)
Toggles the demonstration menu on or off.
u
FORMAT
Selects a picture format.
v
INCR. SURR
Enables Incredible Surround for stereo sources. Enables spatial mode for mono sources.
Remote control usage
When using the remote control, hold it close to the TV and point it at the remote control sensor. Make sure that the line-of-sight between the remote control and TV is not blocked by furniture, walls or other objects.
~5m
~30˚
EN 7
8 EN
4 Use your TV
This section helps you perform basic TV operations.
Switch your TV on / off or to standby
To switch on
• If the standby indicator is off, press
(Power) at the side of the TV.
• If the standby indicator is red, press
(Standby-On) on the remote control.
To switch to standby
• Press (Standby-On) on the remote control.
» The standby indicator switches to red.
To switch off
• Press (Power) at the side of the TV.
» The standby indicator switches off.
Tip
• Though your TV consumes very little power when in standby, energy continues to be consumed. When not in use for an extended period of time, disconnect the TV power cable from the power outlet.
Note
• If you cannot locate your remote control and want to switch on the TV from standby, press
CH o
/œ
on the side of the TV.
Switch channels
• Press CH +/- on the remote control or
CH o
/œ
on the side of the TV.
• Enter a channel number using the
Numeric buttons.
• Press OK to use the channel grid.
• Press BACK A/CH on the remote control to return to the previous channel.
Note
• When you use a favourite list, you can only select those channels in the list.
Switch channels with the channel grid
The channel grid allows you to view all available channels in a grid format.
1
Press OK.
»
The channel grid appears.
2
Press to browse the channel grid.
3
Press OK to select a channel.
Watch connected devices
Note
• Switch on the device before selecting it as a source on the TV.
Use the source button
1
Press SOURCE.
»
The source list appears.
2
Press to select a device.
3
Press OK to confirm your choice.
» The TV switches to the selected device.
Adjust TV volume
To increase or decrease volume
• Press +/-.
To mute or unmute sound
• Press to mute the sound.
• Press again to restore the sound.
Use teletext
Note
• Teletext is not applicable for China (/93) models and only for selected models.
1
Press TELETEXT.
» The main index page appears.
2
Select a page as follows:
• Press the Numeric buttons to enter a page number.
• Press CH +/- to view the next or previous page.
• Press the Color buttons to select a color coded item.
• Press BACK to return to a previously viewed page.
3
Press TELETEXT to exit teletext.
EN 9
10 EN
5 Use more of your TV
Access TV menus
Menus help you to install channels, change picture and sound settings and access other features.
1
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
» The consumer menu appears.
Sound
Features
Installation
Software update
Smart picture
Video contrast
Contrast
Brightness
Color
Hue
Sharpness
Noise reduction
2
Press to select and navigate through one of the following menus.
• [Picture] : Adjusts the picture setting for optimal viewing.
• [Sound] : Adjusts the sound setting.
• [Features] : Accesses different features like timer and TV lock.
• [Installation] : Selects channel installation menu, adjusts preferences and resets the TV to factory settings.
• [Software update] : Updates the TV software.
3
Press OK to confirm your choice.
4
Press MENU to exit.
Note
• In PBS mode, the Guest Menu simply provides
Picture, Sound, Feature, and Multimedia (Only available if USB device is plugged.) items.
Change picture and sound settings
Change picture and sound settings to suit your preferences. You can apply pre-defined settings or change settings manually.
Note
• When watching TV or using external devices, press OPTIONS then select [Picture and sound] for quick access to picture and sound settings.
Use smart picture
Use smart picture to apply pre-defined picture settings.
1
Press PICTURE.
»
The [Smart picture] menu appears.
2
Press to select one of the following settings.
• [Vivid]: Applies rich and dynamic settings.
• [Standard]: Adjusts picture settings to suit most environments and types of video.
• [Cinema]: Applies settings for movie viewing.
• [Game]: Applies settings for games.
• [Energy saving]: Applies low-energy settings.
• [Natural]: Applies the best picture quality.
• [Custom]: Lists customized picture settings.
3
Press OK to confirm your choice.
»
The selected smart picture setting is applied.
Manually adjust picture settings
1
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
»
The consumer menu appears.
2
Select [Picture] and press OK.
3
Press to select the following settings.
• [Smart picture]: Accesses pre-defined smart picture settings.
• [Video contrast]: Adjusts the intensity of video contents, keeping backlight unchanged.
• [Contrast]: Adjusts the intensity of backlight areas, keeping video contents unchanged.
• [Brightness]: Adjusts the intensity and details of dark areas.
• [Color]: Adjusts color saturation.
• [Hue]: Compensates for color variations.
• [Sharpness]: Adjusts sharpness in the image.
• [Noise reduction]: Filters and reduces noise in an image.
• [Color Temperature]: Sets the color temperature to cool, normal, or warm.
• [Digital Crystal Clear]: Fine-tunes each pixel to match surrounding pixels. This produces a brilliant, high-definition image.
• [Dynamic contrast]: Enhances contrast. A [Medium] setting is recommended.
• [Dynamic backlight]: Adjusts brightness of the TV backlight to match lighting conditions.
• [Color enhancement]: Makes colors more vivid and improves the details in bright colors. You can switch this feature on or off.
• [PC mode]: Adjusts the picture when a
PC is connected to the TV via HDMI or
DVI.
• [Picture format]: Changes the picture format.
• [Picture size]: Adjusts the viewing area.
(When set to maximum, you might see noise or a rough edge of an image.)
• [Horizontal shift]: Adjusts the picture horizontally for PC-VGA or HDMI input.
• [Vertical shift]: Adjusts the picture vertically for PC-VGA or HDMI input.
EN 11
Change picture format
1
Press FORMAT.
» A picture format bar appears.
2
Press to select a picture format.
» The selected picture format is activated.
3
Press OK to confirm your choice.
Summary of picture formats
The following picture settings can be configured.
Note
• Depending on the format of the picture source, some picture settings are not available.
[Super zoom]: (Not for HD and PC mode.)
Removes the black bars on the side of 4:3 broadcasts.
There is minimal distortion.
[4:3]: Shows the classic 4:3 format.
[Subtitle zoom]: (Not for HD and PC mode.)
Displays 4:3 pictures over the full area of the screen, with sub-titles visible. Part of the top of the picture is clipped off.
[Movie expand 14:9]: (Not for HD and PC mode.)
Scales 4:3 format to 14:9.
[Movie expand 16:9]:
(Not for HD and PC mode.) Scales 4:3 format to 16:9.
[Wide screen]: Scales 4:3 format to 16:9.
[Unscaled]: For HD and PC mode only, and in selected models only. Allows maximum sharpness. Some distortion may be present due to the broadcaster’s systems. Set your PC resolution to wide screen mode for best results.
Use smart sound
Use smart sound to apply pre-defined sound settings.
1
Press SOUND.
»
The [Smart sound] menu appears.
2
Press to select the following settings.
• [Standard] : Adjusts sound settings to suit most environments and types of audio.
• [News] : Applies settings for spoken audio, such as news.
• [Movie] : Applies settings for movies.
• [Custom] : Applies the settings that were customized in the sound menu.
3
Press OK to confirm your choice.
»
The selected smart sound setting is applied.
12 EN
Manually adjust sound settings
1
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
» The consumer menu appears.
2
Press to select [Sound] and press
OK.
3
Press to select the following settings.
• [Smart sound] : Accesses pre-defined smart sound settings.
• [Bass] : Adjusts the bass level.
• [Treble] : Adjusts the treble level.
• [Volume] : Adjusts the volume.
• [Balance] : Adjusts the balance of the right and left speakers.
• [Dual I-II] : Selects audio languages if dual sound broadcast is available.
• [Mono/Stereo] : Selects mono or stereo if stereo broadcast is available.
• [Surround] : Enables spatial sound.
• [Auto volume levelling] :
Automatically reduces sudden volume changes, for example, when switching channels.
• [Delta volume] : Levels out volume differences between channels or connected devices. Switch to the connected device before you change the delta volume.
Use advanced teletext features
Note
• Teletext is not applicable for China (/93) models and only for selected models.
Access the teletext options menu
Access the teletext features through the teletext options menu.
1
Press TELETEXT.
»
The teletext screen appears.
2
Press OPTIONS.
» The teletext options menu appears.
3
Press to select one of the following options.
• [Freeze page] : Freezes the current page.
• [Reveal] : Hides or reveals hidden information on a page, such as solutions to riddles or puzzles.
• [Cycle subpage] : Cycles through subpages automatically if subpages are available.
• [Menu language] : Switches to a different language group to display a language correctly when it uses a different character set.
4
Press to make a selection, then press OK to confirm.
5
Press BACK to exit the teletext options menu.
Select teletext subpages
A teletext page can hold several subpages.
Subpages are displayed on a bar next to the main page number.
1
Press TELETEXT.
»
The teletext screen appears.
2
Press CH +/- to select a teletext page.
3
Press to enter a subpage.
EN 13
Select T.O.P. teletext broadcasts
Table Of Pages (T.O.P.) teletext broadcasts allow you to jump from one subject to another without using page numbers. T.O.P. teletext is not broadcast on all TV channels.
1
Press TELETEXT.
»
The teletext screen appears.
2
Press INFO.
» The T.O.P. overview appears.
3
Press to select a subject.
4
Press OK to view the page.
Create and use list of favorite channels
You can create a list of your preferred TV channels so that you can find those channels easily.
Note
• The function is only available when PBS mode is off.
Select a favorite list
1
When watching TV, press OK to display the channel grid.
2
Press OPTIONS.
» The channel options menu appears.
3
Press to select [Select list], then press OK to enter.
» The channel list options appear.
4
Select [Favorite], then press OK.
» Only channels in the favorite list appear in the channel grid.
Note
• The favorite channel grid is empty until you add channels into the favorite lists.
View all channels
You can exit a favourite list, and view all installed channels.
1
When watching TV, press OK.
»
The channel grid appears.
2
Press OPTIONS.
» The channel options menu appears.
3
Press to select [Select list], then press OK or to enter.
4
Select [All], then press OK.
»
All channels are displayed in the channel grid.
Note
• All favorite channels are marked by an asterisk when you view the channel grid.
Add a channel to a favorite list
1
When watching TV, press OK.
»
The channel grid appears.
2
Press to select a channel to add to a favorite list.
3
Press OPTIONS.
»
The channel options menu appears.
4
Select [Mark as favorite], then press OK.
» The channel is added to the favorite list.
Note
• All favorite channels are marked by an asterisk in the channel grid.
14 EN
Remove a channel from a favorite list
1
When watching TV, press OK.
»
The channel grid appears.
2
Press to select a channel to remove.
3
Press OPTIONS.
4
Select [Unmark as favorite], then press
OK.
»
The channel is removed from the favorite list.
Use the TV clock
You can display a clock on the TV screen.
Set the TV clock
1
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
»
The consumer menu appears .
2
Press to select [Features] >
[Clock]
»
The [Clock] menu appears.
3
Press to enter time.
4
Select [Done] and press OK to confirm.
5
Press MENU to exit.
Display the TV clock
1
When watching TV, press OPTIONS.
» The TV option menu appears.
2
Select [Clock].
3
Press OK.
Use timers
You can set timers to switch the TV to standby at a specified time.
Tip
• Set the TV clock before you use timers.
Automatically switch the TV to standby (sleep timer)
Sleep timer switches the TV to standby after a pre-defined period of time.
Tip
• You can switch off your TV earlier or reset the sleep timer during the countdown.
1
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
»
The consumer menu appears.
2
Press to select [Features] > [Sleep timer].
»
The [Sleep timer] menu appears.
3
Press to select a value between zero and 240 minutes.
»
The sleep timer can be set in steps of five minutes. If set to zero, the sleep timer is switched off.
4
Press OK to switch on the sleep timer.
» The TV switches to standby after the specified time.
EN 15
Automatically switch the TV on (on timer)
You can switch on the TV from standby to a specific channel at a specified time.
1
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
»
The consumer menu appears.
2
Press to select [Features] > [On timer].
3
Press to enter the [On timer] menu.
• [Activate]: Selects how often the TV is switched on.
• [Time]: Sets the time to switch on the
TV.
• [Program no.]: Selects the channel or the connected device.
4
Press MENU to exit.
Tip
• Select [On timer] > [Activate] > [Off] to disable this feature.
• When [On timer] is switched off, only
[Activate] option is available.
Use TV locks
You can prevent your children from watching certain programs or channels by locking the TV controls.
Set or change your PIN code
1
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
» The consumer menu appears.
2
Press to select [Features] > [Set code] / [Change code].
» The [Set code] / [Change code] menu appears.
3
Enter your code using the Numeric buttons.
»
Follow the on-screen instructions to create or change your PIN code.
Tip
• If you forget your code, enter ‘8888’ to override any existing codes.
Lock or unlock the TV
Lock the TV to prevent access to all channels and connected devices.
1
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
»
The consumer menu appears.
2
Press to select [Features] > [TV lock].
»
You are prompted to enter your PIN code.
3
Enter your code using Numeric buttons.
»
The [TV lock] menu appears.
4
Press to select [Lock] or [Unlock].
16 EN
5
Press OK to confirm.
» All channels and connected devices are locked or unlocked.
6
Press MENU to exit.
Note
• Switch the TV off and on again for the change to take effect.
• If you select [Lock], you have to enter your code every time you turn on your TV.
Lock or unlock one or more channels
1
When watching TV, press OK to display the channel grid.
2
Press to select a channel to lock or unlock.
3
Press OPTIONS.
4
Press to select [Lock channel] or
[Unlock channel].
5
For each selection, press OK to lock or unlock the channel.
»
You are prompted to enter your PIN code.
6
Enter your code and press OK.
»
If the channel is locked, a lock icon is displayed.
7
Repeat the process to lock or unlock more channels.
Note
• Switch the TV off and on again for the change to take effect.
• If you access the locked channels by pressing
CH +/- on the remote control or from the channel grid, you are prompted to enter your
PIN code.
View photos and play music from a USB storage device
Caution
• Philips is not responsible if the USB storage device is not supported, nor is it responsible for damage or loss of data from the device.
Use the USB connector to view photos or listen to music stored on a USB storage device.
1
Turn on the TV.
2
Press SOURCE and select [USB], then press OK.
» The USB menu appears.
3
Press OK to enter the USB content menu.
» The USB file browser appears.
View a slide show of your photos
1
In the USB file browser view, press to select a picture, then press OK.
» A slide show begins from the selected photo.
2
Press the following buttons to control the slide show:
Button Function
OPTIONS Selects [Stop slideshow] to
/ pause the slideshow.
When the slideshow is
BACK stopped, press to go back or move forward to the next image.
Stops the slideshow.
EN 17
Change slide show settings
1
When viewing a slide show, press
»
OPTIONS.
The slide show options menu appears.
2
Press to select one of the following.
• [Start Slideshow] / [Stop Slideshow]:
Starts or pause a slide show.
• [Slideshow transitions]: Sets the transition from one picture to the next.
• [Slideshow frequency]: Sets the amount of time that a picture is shown.
• [Rotate image]: Rotates a picture.
• [Show info]: Displays the picture information.
3
Press OK to confirm your setting.
Listen to music
1
In the USB file browser view, press to select a music track, then press OK.
»
The selected music starts to play.
2
Press the following buttons to control the slide show:
Button Function
OPTIONS Selects [Stop playback] to pause the music playback.
BACK
Stops music playback.
Note
• To play other tracks, stop the music playback first, then press to select other tracks from the file browser view.
Music settings
When listening to music, press OPTIONS to access one of the following music settings.
• [Start playback] / [Stop playback]: Starts or stops the music.
• [Repeat] / [Play once]: Repeats a song. /
Disables repeat play and plays a song or album once.
• [Shuffle on] / [Shuffle off]: Enables or disables random play of songs.
• [Show info]: Displays the file name.
Disconnect a USB storage device
Caution
• Follow this procedure to avoid damage to your
USB storage device.
1
Press BACK to exit the USB browser.
2
Wait for five seconds then disconnect the
USB storage device.
Update the TV software
Philips continuously tries to improve its products and we recommend that you update the TV software when updates are available.
Check www.philips.com/support for availability.
Check the current software version
1
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
» The consumer menu appears.
2
Press to select [Software update]
> [Current software info].
» The TV displays the current software information.
18 EN
Download the software
1
On your PC, open a web browser and go to www.philips.com/support.
2
Download the latest software upgrade file to your PC.
3
Decompress the ZIP-file.
4
Copy the autorun.upg file to the root directory of the USB device.
Update using a USB device
1
Connect your USB device to the USB port at the side of your TV.
2
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
»
The consumer menu appears.
3
Press to select [Software update]
> [Local updates] > [USB].
4
Press OK to update the TV software manually.
5
Follow the on-screen instructions to complete the update.
Note
• The TV restarts after the software update is complete.
Disconnect a USB storage device
Caution
• Follow this procedure to avoid damage to your
USB storage device.
1
Wait for five seconds before you disconnect the USB storage device.
Change TV preferences
Use the preferences menu to customise your
TV settings.
1
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
» The consumer menu appears.
2
Press to select [Installation] >
[Preferences].
• [Location]: Optimises TV settings for your location - home or shop.
• [Volume bar]: Displays the volume bar when you adjust the volume.
• [EasyLink]: Enables one-touch play, one-touch standby, and one-touch audio between EasyLink-compliant devices.
3
Press to select your preference.
4
Press OK.
5
Press MENU to exit.
Reset the TV to factory settings
You can restore the default picture and sound settings of your TV. The channel installation settings remain the same.
1
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
»
The consumer menu appears.
2
Press to select [Installation] >
[Factory settings].
3
Press to enter [Factory settings].
4
Select [Reset] to start resetting.
5
Press OK.
6
Press MENU to exit.
EN 19
6 Install channels
The first time you set up your TV, you are prompted to select a menu language and to install TV and digital radio channels (if available).
This chapter provides instructions on how to re-install and fine tune channels.
Automatically install channels
This section describes how to search and store channels automatically.
Step 1 Select your menu language
Note
• Skip this step if your language settings are correct.
1
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
»
The consumer menu appears.
2
Press to select [Installation] >
[Menu language].
3
Press to enter [Menu language].
4
Press to select a language.
5
Press OK to confirm.
6
Press MENU to exit.
Step 2 Install channels
1
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
» The consumer menu appears.
2
Press to select [Installation] >
[Channel installation] > [Auto install].
» The [Auto install] menu appears.
3
Select [Yes] and then press OK to enter.
4
Select [Start], then press OK to re-install channels.
• To stop searching, select [Stop] and press OK.
5
Press OK when installation is complete.
Manually install channels
This section describes how to search and store analogue TV channels manually.
Step 1 Select your color and sound system
1
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
»
The consumer menu appears.
2
Press to select [Installation] >
[Channel installation] > [Analog: manual install].
» The [Analog: manual install] menu appears.
3
Press to select [Color system], then press to enter.
»
A list of available color systems appears.
4
Press to select your color system, then press OK.
» Returns to the [Analog: manual install] menu.
5
Press to select [Sound system], then press to enter.
»
A list of available sound systems appears.
6
Press to select your sound system, then press OK.
7
Press MENU to exit.
20 EN
Step 2 Search and store new TV channels
1
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
» The consumer menu appears.
2
Press to select [Installation] >
[Channel installation] > [Analog: manual install].
» The [Analog: manual install] menu appears.
3
Press to select [Search], then press to enter.
4
Press Numeric buttons to manually enter the three-digit frequency.
5
Press OK to begin search.
» If a channel is unavailable at the selected frequency, the system searches for the next available channel.
6
When the new channel appears, press to return to the [Analog: manual install] menu.
7
Press to select [Store as new channel], , then press to enter.
8
Select [Yes], then press OK to store the new channel.
9
Press MENU to exit.
Step 3 Fine-tune analog channels
1
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
»
The consumer menu appears.
2
Press to select [Installation] >
[Channel installation] > [Analog: manual install].
» The [Analog: manual install] menu appears.
3
Press to select [Fine tune], then press
to enter.
4
Press to adjust frequency.
5
Press OK to confirm.
6
Press to select [Store current channel] to store channel number.
7
Press to enter [Store current channel].
8
Select [Yes], then press OK to store current channel.
9
Press MENU to exit.
Skip channels
1
When watching TV, switch to the channel that you want to skip.
2
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
» The consumer menu appears.
3
Press to select [Installation] >
[Channel installation] > [Analog: manual install].
»
The [Analog: manual install] menu appears.
4
Press to select [Skip channel], then press to enter.
5
Press to select [Yes], then press OK to skip current channel.
»
The selected channel is skipped when you press CH +/- on your remote control or view from the channel grid.
6
To skip more channels, repeat the procedure.
Tip
• To access the skipped channels, press Numeric buttons.
• To restore a skipped channel, repeat steps 1 to 4, and then select [No] in step 5.
EN 21
Rename channels
You can rename channels. The name appears when you select the channel.
1
When watching TV, press OK to display the channel grid.
2
Press to select the channel to rename.
3
Press OPTIONS.
» The channel options menu appears.
4
Press to select [Rename channel], then press OK.
» A text input box appears.
5
Press to select characters.
6
Press OK to confirm each character.
7
Select [Done], then press OK to finish renaming channels.
Tip
• The device name can be up to six characters long.
• Press [Aa] to change an uppercase letter to a lowercase letter and vice versa.
Rearrange channels
After you install channels, you can rearrange the order in which they appear.
1
When watching TV, press OK to display the channel grid.
2
Press OPTIONS.
»
The channel options menu appears.
3
Press to select [Reorder], then press
OK.
4
Select the channel to rearrange, then press OK.
» The selected channel is highlighted.
5
Press to move the highlighted channel to the desired location, then press OK.
6
Press OPTIONS.
» [Done reordering] appears on the screen.
7
Press OK to confirm.
8
Press BACK to exit the channel grid.
22 EN
7 Professional mode instruction
Introduction
Included in this TV is a special functional mode that allows the TV to be configured for commercial application. This feature is called
Professional mode.
This section has been designed to help install and operate this TV in Professional mode.
Before reading this section, please read section
3 to 6 to set the basic functionality of this TV.
Benefits of Professional mode
This TV is specially designed to operate in
Professional Mode. Professional Mode offers the following benefits:
• Access to the [Consumer Menu] can be blocked. This prevents users (e.g. guests) from deleting or changing channel settings and / or modifying picture and sound settings. This ensures that TVs are always set up correctly.
• A switch-on volume and channel can be selected. After switching on, the TV will always start on the specified volume level and channel.
• The maximum volume level of the TV can be limited in order to prevent disturbance to other guest.
• Channels can be blanked (Video only).
• The TV local buttons can be locked.
• Screen information can be suppressed.
Professional Setup Remote control (2573 optional) c b
0
a a
C button (OPTIONS)
Accesses options relating to the current activity or selection. (Equals to the function of OPTIONS on Guest remote control).
b
E button (OK)
Confirms an entry or selection.
c
(Enters Professional setup menu)
• Selects SETUP mode first.
• Press M button to enter the
Professional setup menu.
Note
• SETUP mode should be selected for hotel installer.
EN 23
Activating the Professional mode setup menu
1
Switch on the TV and select a TV channel.
2
Press the following buttons to access
Professional mode setup menu:
• [3, 1, 9, 7, 5, 3+ ¬(MUTE)] on Guest remote control.
• M button on Professional setup remote control. (When SETUP mode is selected on the Professional setup remote control.)
3
Press ▲▼◄► on the remote control to select and change any of the settings.
4
When done, select [PBS setting] >
[Store] > [Yes] to save the changes.
Press MENU to exit without saving.
5
For Professional mode settings to take effect, you must restart the TV mains power.
24 EN
Professional mode options
This paragraph describes the functionality of each item in the Professional mode setup menu.
Layer 1
PBS Settings
Switch on Setting
Welcome Msg
Control Settings
Layer 2
PBS Mode
Consumer Setup
Store
Reset
Maximum volume
Picture format
Power on
Smart power
Switch on Vol
Switch on Ch
Display message
Line 1
Line 2
Line 3
Line 4
Line 5
Clear
Message Time-out
Local KB Lock
RC Lock
OSD Display
High Security Mode
HDMI-CEC in
USB break in
Enable teletext
(Only for selected models)
Blue Mute
Digit Timeout
Selectable AV
Monitor Out
ESP
Layer 3
Off / On
Yes
Yes
Yes
0~100
Super zoom / 4:3 / Subtitle zoom / Movie expand 14:9 / Movie expand 16:9 / Wide screen / Unscaled
On / Standby / Last status
Off / Low / Medium / High
Last Status
User Defined
Last Status
User Defined
Off / On / Chinese
Edit
Edit
Edit
Edit
Edit
Yes
20 sec / 25 sec / 30 sec
Off / On / All
Off / On
Off / On
Off / On
Off / On
Off / On
Off / On
Off / On
0.5 ~ 10 seconds
List of selectable external sources.
Off / On
0~24 hours
EN 25
Layer 1
Speaker Settings
Installation
PayTV Setup
Smart Clone
Layer 2
TV Speaker Enable
Bathroom Speaker Volume
Blank Channel
Multi RC
Smart RC
R0
R1
R2
USB to TV
TV to USB
Layer 3
Off / On
0 ~ 10
Off / On
Blue / Off
Green
Yellow
Red
Off / On
All available channels
Pay TV channel list
Pay TV channel list
Load
Load
26 EN
PBS settings
[PBS Mode]
Enables / disables the Professional mode.
• [On]: All settings in the Professional mode Setup menu are in effect.
• [Off]: The TV operates as a normal
(consumer) TV.
[Consumer Setup]
A shortcut to enter the full TV menu. This allows the installers to do all the TV setup settings.
[Store]
Selects [Yes] to save the changes in Professional mode. Restarts the TV mains power for the changes to take effect.
[Reset]
Selects [Yes] to reset all settings in Professional mode and consumer mode to factory default.
Switch on setting
[Maximum volume]
This option specifies the maximum allowable volume level of the TV.
[Picture format]
Sets available picture format when the TV is switched on.
[Power on]
The power on function allows the TV to enter a specific mode ([On], [Standby], or [Last status]) of operation after the mains power is activated.
• [On]: When set, the TV will always turn on after the mains power is activated.
• [Standby]: When set, the TV will always turn to standby after the mains power is activated.
• [Last status]: When set, the TV will always turn to the last status (either
On or Standby) whenever the mains power is activated.
[Smart power]
Adjusts the picture backlight to achieve the following power saving mode.
• [Off]: Smart power is disabled.
• [Low]: The picture backlight is at low power saving mode.
• [Medium]: The picture backlight is at medium power saving mode.
• [High]: The picture backlight is at high power saving mode.
[Switch on Vol]
When the installer switches the TV on, it will play at the specified volume level.
• [Last status]: If [On] is selected, the TV will be automatically switched to the last volume status whenever the mains power is turned on. (The volume level can not exceed the [Maximum volume] level).
• [User defined]: (Only appears when you select [Last status] ≥ [Off]). The installer can adjust his/her preferred switch on volume level.
[Switch on Ch]
When the installer switches the TV on, it will play at the specified channel.
• [Last status]: If [On] is selected, the TV will be automatically switched to the last channel status whenever the mains power is turned on.
• [User defined]: (Only appears when you select [Last status] ≥ [Off]). The installer can choose his / her preferred switch on channel.
EN 27
Welcome message
The Welcome message function allows the TV to show a customized greeting to the hotel guest whenever the TV is switched on. This helps to personalize the hotel experience for guests. The Welcome message can consist of 5 lines of text, with each line containing a maximum of 25 alphanumeric characters. Use
▲▼◄► on the remote control to compose the Welcome message.
Note
• Welcome message is always disabled if you select [Control settings] > [OSD display]
> [Off.]
• [Display message]:
• [Off]: Closes welcome message.
• [On]: Displays customized welcome message. (Sets customized messages from Line 1 to Line 5 below mentioned).
• [Chinese]: Displays a Chinese
Welcome Message.
• [Line 1]: Sets the characters of the first line message.
• [Line 2]: Sets the characters of the second line message.
• [Line 3]: Sets the characters of the third line message.
• [Line 4]: Sets the characters of the fourth line message.
• [Line 5]: Sets the characters of the fifth line message.
• [Clear]: Clear the settings in Line 1 to
Line 5.
• [Message Time-out]: Sets the period of time to display the welcome message on the screen when TV is turned on from standby / Off.
Control settings
[Local KB lock]
• [Off]: The TV local buttons will function normally.
• [On]: The TV local buttons are locked except
B
(POWER) button.
• [All]: All TV local buttons are locked, including
B
(POWER) button.
[RC lock]
Disables the operation of the Guest remote control.
• [Off]: All buttons on Guest remote control will function normally.
• [On]: All buttons on the Guest remote control are disabled. (It is still possible to enter the Professional setup menu by pressing [3, 1, 9, 7, 5, 3
+ ¬(MUTE)]).
[OSD display]
Sets this function to show or hide screen information.
• [Off]: Screen information is suppressed.
• [On]: Normal screen information is displayed.
[High security]
• [Off]: Professional mode setup menu can be accessed by both Guest remote control (Press [3, 1, 9, 7, 5, 3
+ ¬(MUTE)]. )and the Professional setup remote control
(Press M button)
• [On]: Professional mode setup menu can only be accessed by the
Professional setup remote control.
28 EN
[HDMI-CEC in]
HDMI-CEC (Philips EasyLink) enables onetouch play, one touch standby, and one-touch audio between HDMI-CEC compliant devices.
Note
• Before activating HDMI-CEC in function, make sure the HDMI-CEC compliant devices are turned to on.
• Selects [EasyLink] > [On] first before enabling
[HDMI-CEC in] in Professional mode.
• Refer to page 37 “Use Philips EasyLink” for more details about HDMI-CEC function.
• [Off]: Disables HDMI-CEC feature in
Professional mode.
• [On]: Enables HDMI-CEC feature in
Professional mode.
[USB break-in]
Enables or disables USB break-in feature in
Professional mode.
• [Off]: When USB is plugged in, the [Multimedia] menu will not appear automatically, but users can access [Multimedia] menu from the
[Consumer setup] menu.
• [On]: When USB is plugged in, the [Multimedia] menu appears automatically.
[Enable teletext] (Only for selected models)
• [Off]: Disables teletext in Professional mode.
• [On]: Enables teletext in Professional mode.
[Blue mute]
Sets the background color when there is no signal on TV.
• [Off]: The background color is set to black.
• [On]: The background color is set to blue.
[Digit Timeout]
Defines the time interval between numeric buttons when users press digits on the remote control. The duration is from 0.5 to 10 seconds.
When digit is pressed, the timer refreshes.
[Selectable AV]
Allows the installer to define which external sources to be displayed on the source list when pressing SOURCE button on the Guest remote control.
Only the sources marked with [X] appear in the source list.
[ESP] (Energy saving program)
Selects the period of time to switch the TV off automatically when TV does not receive any user input. The time is between 0 to 24 hours.
Selects “0” to disable this feature.
Speaker Settings
[TV Speaker Enable]
• [Off]: Disables the TV speaker. The headphone volume functions normally.
• [On]: The TV speaker is enabled.
(Default setting).
Note
•
When the headphone is plugged in, the TV speaker is muted automatically.
[Bathroom Speaker Volume]
• [0 ~ 10]: When the PBS mode is on, adjust the volume from 0 to 10.
Note
•
When the PBS mode is off, the volume is fixed.
EN 29
Installation
[Blank Channel]
The Blank channel function disables the display of video on the TV, but does not affect the audio output. This function can be used for audio applications (example: music-only channels, and so on) which do not necessarily require the display of video.
1
Switch to the channel you want to set as blank channel.
2
Select [Blank Channel] > [On].
»
Current channel will not display video on the TV.
Tip
• To restore a blank channel, switch to the blank channel and select [Blank Channel] > [Off].
Note
•
When PBS setup menu is on, press CH +/- to switch the channel or source.
[Multi RC]
Note
• A special remote control is needed. Please contact your local Philips sales person for more information.
Remote control supports up to four televisions operating in one room without interference from each other’s remote controls. Each TV and the Guest remote control can be set to match each others.
1
Enters [Multi remote control] and
2 designate one color (Blue/Off, Green,
Yellow, Red) to the TV.
Sets the Guest remote control to the corresponding color by pressing
MENU and one of the color button simultaneously for more than 4 seconds.
3
The Guest remote control can operate the TV with the corresponding color.
Note
•
•
EXAMPLE: Press MENU and Red button simultaneously on the Guest remote control for more than 4 seconds to operate the TV with [Red] color selected in [Multi remote control] menu.
Guest remote control will be set to default
Blue color after replacing batteries.
[Smart RC]
• [Off]: PayTV channels are accessible via the Guest remote control.
• [On]: PayTV channels are only accessible via a special low-cost PayTV remote control from Philips.
PayTV Setup
This function allows you to create customized
PayTV channel lists.
1
Enters [PayTV Setup] in the Professional setup menu.
2
Sets PayTV channels from the following
TV channel lists:
• [R1]: If [Smart RC] is [On], R1 channels marked with [X] are only accessible via a special low-cost PayTV remote control 1 from Philips.
• [R2]: If [Smart RC] is [On], R2 channels marked with [X] are only accessible via a special low-cost PayTV remote control 2 from Philips.
• [R0]: All available channels. Enters to unmark the channels you have marked in [R1] and [R2] to prevent users from watching full PayTV channels via Guest remote control.
Note
• All non-PayTV channels are listed in [R0].
30 EN
SmartClone
[USB to TV]
Loads the TV configuration data (including the video, audio, channel Table, and Professional mode settings) from a USB device to the TV set.
[TV to USB]
Loads the TV configuration data (including the video, audio, channel Table, and Professional mode settings) from the TV set to a USB device.
EN 31
8 Connect devices
32 EN
This section describes how to connect devices with different connectors.
Note
• You can use different types of connectors to connect a device to your TV.
k
Back connectors
IR LINK
j i
CVI
h
BATHROOM
SPEAKER 8
a
HDMI 1
Digital audio and video input from highdefinition digital devices such as Blu-ray players.
Connections via DVI require an additional audio cable.
SERIAL
EXPRESS
AV-OUT AV-IN
SPDIF OUT
b
SPDIF OUT
Digital audio output to home theaters and other digital audio systems.
c
SERIAL EXPRESS
For Serial Express communication and use by service personnel.
SERIAL
EXPRESS
RX TX GND
RC_IR_OUT d TV ANTENNA
Signal input from an antenna, cable or satellite.
ITV_VDD (5V)
e
AV-IN
Audio or composite video input from analog devices connected to VIDEO or
VCRs.
g BATHROOM SPEAKER 8
Audio output to a bathroom speaker
(1W) via a stereo jack.
(Before you connect the bathroom speaker, make sure to turn off the TV mains power.)
AWG < 16
AV-IN
AV-OUT
VIDEO: Analog video output to external devices such as another TV set.
AV-OUT
BATHROOM
SPEAKER 8
f
AV-OUT
Audio L/R: Analog audio output to home theaters or other audio systems.
BATHROOM
SPEAKER 8
h
CVI (Y Pb Pr and AUDIO L/R)
Analog audio and video input from analog or digital devices such as DVD players or game consoles.
CVI
EN 33
Speaker Terminal “-”
Speaker Terminal “+”
NC
i
IR LINK
Connector for an IR Link compliant device. (e.g. set-up box). It allows the IR command from a Remote Control to be passed on by the TV to the external device, which then sends an action command back to the TV.
IR LINK
IN
IR LINK
34 EN
IR LINK
Remote Control signal processed by Compliant device (e.g. STB) then passed to TV.
Remote Control signal from compliant device received by TV IR then passed to compliant device.
j
PC IN (VGA and AUDIO)
Audio and video input from a computer.
PC IN (AUDIO)
VGA
GND k
SERV. U
For use by service personnel only.
VGA
e
Side connectors
2W 8
EXT. SPKR. OUT
R
AUDIO
L
VOL. CTRL.
SELECT
USB
VIDEO
HDMI
f g h a
USB
Data input from USB storage devices.
b
USB
Stereo audio output to headphones or earphones.
Note
•
When the headphone is plugged in, the TV speaker is muted automatically.
c
AUDIO L/R
Audio input from analog devices connected to VIDEO.
d
VIDEO
Composite video input from analog devices such as VCRs.
f
VOL SPKR SELECT
Selects between rotary and tact to operate the volume controller connected with “EXT SPKR VOL CRTL”.
Tact Type
VOL
Rotary Type g
2W 8 EXT SPKR OUT
Audio output to a bathroom speaker via a stereo jack. (Before you connect the bathroom speaker, make sure to turn off the TV mains power.)
AWG < 16
e
HDMI
Digital audio and video input from highdefinition digital devices such as Blu-ray players.
2W 8
EXT. SPKR. OUT
2W 8
EXT. SPKR. OUT
Speaker Terminal “+”
Speaker Terminal “-”
NC
EN 35
36 EN h
EXT SPKR VOL CRTL
Connector for volume controller via a stereo jack. To adjust the volume of bathroom speaker connected with “2W
8 EXT SPKR OUT”.
Rotary Type
EXT. SPKR.
VOL. CTRL.
EXT. SPKR.
VOL. CTRL.
Tact Type
VOL
Rotary-A → volume -
Tact-A → volume +
Rotary-B → volume +
Tact-B → volume -
GND
Connect a computer
Before you connect a computer to the TV
• Set the screen refresh rate on your computer to 60Hz.
• Select a supported screen resolution on your computer.
Connect a computer with one of the following connectors:
Note
PC IN (AUDIO)
HDMI 1/ HDMI
• Connections via DVI or VGA require an additional audio cable.
HDMI 1/ HDMI
• HDMI cable
• DVI-HDMI cable
DVI
• HDMI cable and HDMI-DVI adaptor
PC IN (AUDIO)
HDMI 1/ HDMI
PC IN (AUDIO)
VGA
• VGA cable
DVI
VGA
Use Philips EasyLink
Your TV supports Philips EasyLink, which uses the HDMI CEC (Consumer Electronics
Control) protocol. EasyLink-compliant devices that are connected through HDMI connectors can be controlled by a single remote control.
Note
• The EasyLink-compliant device must be switched on and selected as the source.
• Philips does not guarantee 100% interoperability with all HDMI CEC devices.
Enable or disable EasyLink
Note
• Do not enable Philips EasyLink if you do not intend to use it.
1
Press MENU > [PBS Settings] >
[Consumer Setup] > [Yes].
» The consumer menu appears.
2
Press to select [Setup] >
[Installation] > [Preferences] >
[EasyLink].
3
Select [On] or [Off].
Use one-touch play
1
After enabling EasyLink, press play on your device.
»
The TV automatically switches to the correct source.
Use one-touch standby
1
Press (Standby-On) on the TV’s or device’s remote control.
» The TV and all connected HDMI devices switch to standby.
EN 37
Use System audio control (Onetouch audio)
When you connect your TV to HDMI CEC compliant amplifier (such as, a Home theater system or an AV receiver), your TV can switch automatically to play audio from the connected amplifier. To use one-touch audio, you must map the audio input from the connected amplifier to your TV. You can use the remote control of the connected amplifier or your TV to adjust the volume.
Enable or disable remote control pass-through
Enable one-touch play and one-touch standby between easylink compliant devices.
Note
• Easylink compliant device must be connected to the TV via HDMI connector.
There is a Kensington security slot at the back of the TV. Prevent theft by looping a Kensington lock between the slot and a permanent object, such as a heavy table.
Use a Kensington lock
38 EN
9 Product information
Product information is subject to change without notice. For detailed product information, go to www.philips.com/support.
Supported display resolutions
Computer formats
• Resolution - refresh rate:
• 640 x 480 - 60Hz
• 800 x 600 - 60Hz
• 1024 x 768 - 60Hz
• 1280 x 768 - 60Hz
• 1360 x 768 - 60Hz
Video formats
• Resolution - refresh rate:
• 480i - 60Hz
• 480p - 60Hz
• 576i - 50Hz
• 576p - 50Hz
• 720p - 50Hz, 60Hz
• 1080i - 50Hz, 60Hz
• 1080p - 24Hz, 25Hz, 30Hz, 50Hz,
60Hz.
Multimedia
• Supported storage device: USB (Only
FAT or FAT 32 USB storage devices are supported.)
• Supported multimedia file formats:
• Images: JPEG, BMP, GIF
• Audio: MP3
Tuner / Reception /
Transmission
• Aerial input: 75ohm coaxial (IEC75)
• TV system: PAL I, B/G, D/K; SECAM B/G,
D/K; NTSC
• Video playback: NTSC, SECAM, PAL
• Tuner Bands: Hyperband, S-channel, UHF,
VHF
Remote control
• Type: PF01A09B (APAC model)
PF01C09B (China model)
• Batteries: 2 x AAA (LR03 type)
Power
• Mains power: 110-240V, 50Hz
• Standby power: < 1 W
• Ambient temperature: 5 to 35 degrees
Celsius
EN 39
Supported TV mounts
To mount the TV, purchase a Philips TV mount.
To prevent damage to cables and connectors, be sure to leave a clearance of at least 2.2 inches or 5.5cm from the back of the TV.
Warning
• Follow all instructions provided with the TV mount. Koninklijke Philips Electronics N.V. bears no responsibility for improper TV mounting that results in accident, injury or damage.
32
37
42
TV screen size (inches)
Required pitch (mm)
Required mounting bolts
(≥ 12mm)
200 x 200 4 x M6
200 x 200 4 x M6
400 x 200 4 x M6
Product specification
Design and specifications are subject to change without notice.
32HFL5332
• Without TV stand
• Dimension (WxHxD): 778.5 x 509 x
79.6 (mm)
• Weight: 10 kg
• With TV stand
• Dimension (WxHxD): 778.5 x 553 x
222 (mm)
• Weight: 11.8 kg
37HFL5382
• Without TV stand
• Dimension (WxHxD): 901.5 x 579.7 x
89.5 (mm)
• Weight: 12.5 kg
• With TV stand
• Dimension (WxHxD): 901.5 x 623.75 x 237 (mm)
• Weight: 14.5 kg
42HFL5382
• Without TV stand
• Dimension (WxHxD): 1011.4 x 650.1 x 90.6 (mm)
• Weight: 15.6 kg
• With TV stand
• Dimension (WxHxD): 1011.4 x 699.1 x 256.6 (mm)
• Weight: 18.8 kg
40 EN
10 Troubleshooting
This section describes commonly encountered issues and accompanying solutions.
General TV issues
The TV does not switch on:
• Disconnect the power cable from the power outlet. Wait for one minute then reconnect it.
• Check that the power cable is securely connected.
The remote control is not working properly:
• Check that the remote control batteries are correctly inserted according to the
+/- orientation.
• Replace the remote control batteries if they are flat or weak.
• Clean the remote control and TV sensor lens.
The standby light on the TV blinks red:
• Disconnect the power cable from the power outlet. Wait until the TV cools down before reconnecting the power cable. If the blinking reoccurs, contact
Philips Consumer Care.
You forgot the code to unlock the TV lock feature
• Enter ‘8888’.
The TV menu is in the wrong language.
• Change the TV menu to your preferred language.
When turning the TV on / off / to standby, you hear a creaking sound from the TV chassis:
• No action is required. The creaking sound is normal expansion and contraction of the TV as it cools down and warms up.
This does not impact performance.
TV channel issues
Previously installed channels do not appear in the channel list:
• Check that the correct channel list is selected.
Picture issues
The TV is on, but there is no picture:
• Check that the antenna is properly connected to the TV.
• Check that the correct device is selected as the TV source.
There is sound but no picture:
• Check that the picture settings are correctly set.
There is poor TV reception from an antenna connection:
• Check that the antenna is properly connected to the TV.
• Loudspeakers, unearthed audio devices, neon lights, high buildings and other large objects can influence reception quality.
If possible, try to improve the reception quality by changing the antenna direction or moving devices away from the TV.
• If reception on only one channel is poor, fine tune this channel.
There is poor picture quality from connected devices:
• Check that the devices are connected properly.
• Check that the picture settings are correctly set.
The TV did not save your picture settings:
• Check that the TV location is set to the home setting. This mode offers you the flexibility to change and save settings.
The picture does not fit the screen; it is too big or too small:
• Try using a different picture format.
The picture position is incorrect:
• Picture signals from some devices may not fit the screen correctly. Check the signal output of the device.
EN 41
Sound issues
There is a picture but sound quality is poor:
Note
• If no audio signal is detected, the TV automatically switches the audio output off — this does not indicate malfunction.
• Check that all cables are properly connected.
• Check that the volume is not set to 0.
• Check that the sound is not muted.
There is a picture but the sound quality is poor:
• Check that the sound settings are correctly set.
There is a picture but sound comes from one speaker only:
• Verify that sound balance is set to the center.
HDMI connection issues
There are problems with HDMI devices:
• Note that HDCP (High-bandwidth Digital
Content Protection) support can delay the time taken for a TV to display content from a HDMI device.
• If the TV does not recognize the HDMI device and no picture is displayed, try switching the source from one device to another and back again.
• If there are intermittent sound disruptions, check that output settings from the HDMI device are correct.
• If you use an HDMI-to-DVI adapter or HDMI-to-DVI cable, check that an additional audio cable is connected to
AUDIO (mini-jack only).
Computer connection issues
The computer display on the TV is not stable:
• Check that your PC uses the supported resolution and refresh rate.
• Set the TV picture format to unscaled.
Contact us
If you cannot resolve your problem, refer to the
FAQs for this TV at www.philips.com/support.
If the problem remains unresolved, contact
Philips Consumer Care in your country as listed in this user manual.
Warning
• Do not attempt to repair the TV yourself. This may cause severe injury, irreparable damage to your TV or void your warranty.
Note
• Make a note of your TV model and serial number before you contact Philips. These numbers are printed on the back of the TV and on the packaging.
42 EN
11 Index
A
Analogue
ANTENNA
B
Batteries
Blank Channel
Blue mute
C
Channels
Channel grid
Favourite channels
Fine-tune
Install
Automatic
Manual
Lock or unlock
PayTV
Rearrange
Rename
Skip channels
Troubleshooting
Computer
Connect
Display resolutions
Troubleshooting
Consumer Setup
D
Default setting
Display resolutions
Dispose
E
EasyLink
Disable
Enable one-touch play one-touch standby
ESP
L
Language menu language
Troubleshooting
List
Favourite
PayTV
Location home or shop
Lock
Kensington lock
Local KB lock
Lock channel
RC lock
TV lock
M
Menu consumer menu teletext
Multimedia
Multi RC
F
Factory settings
Favourite channels
Fine-tune
H
HDMI
Troubleshooting
HDMI-CEC in
High security
Home mode
I
Install channels
Automatic
Manual
K
Kensington lock
EN 43
O one-touch play one-touch standby
On timer
OSD display
P
Picture formats picture settings
Troubleshooting
PIN code
Power consumption
Preferences
Product specification
Professional mode
Options
PBS Mode
Store
R
Rearrange channels
Reception
Remote control
Consumer remote control
Multi RC
Product information
Professional Setup Remote control
Rename channels
Resolution
S
Safety
Selectable AV
Setting
Sound
Shop mode
Skip channels
SmartClone
Smart power
Smart RC
Software
Download
Update
Version
Specification
Switch channels on / off
Source
T
Teletext
Timer
On timer
Sleep timer
Troubleshooting
TV overview
U
USB
Disconnect
File formats
Music slide show
SmartClone
USB break-in
V
Video formats
Volume
Adjust
Mute
W
Wall mount
Welcome message
44 EN
EN 45
© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
Document order number: Z41G320181305A
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- 81.3 cm (32")
- 1366 x 768 pixels
- 450 cd/m² 8 ms
Related manuals
advertisement
