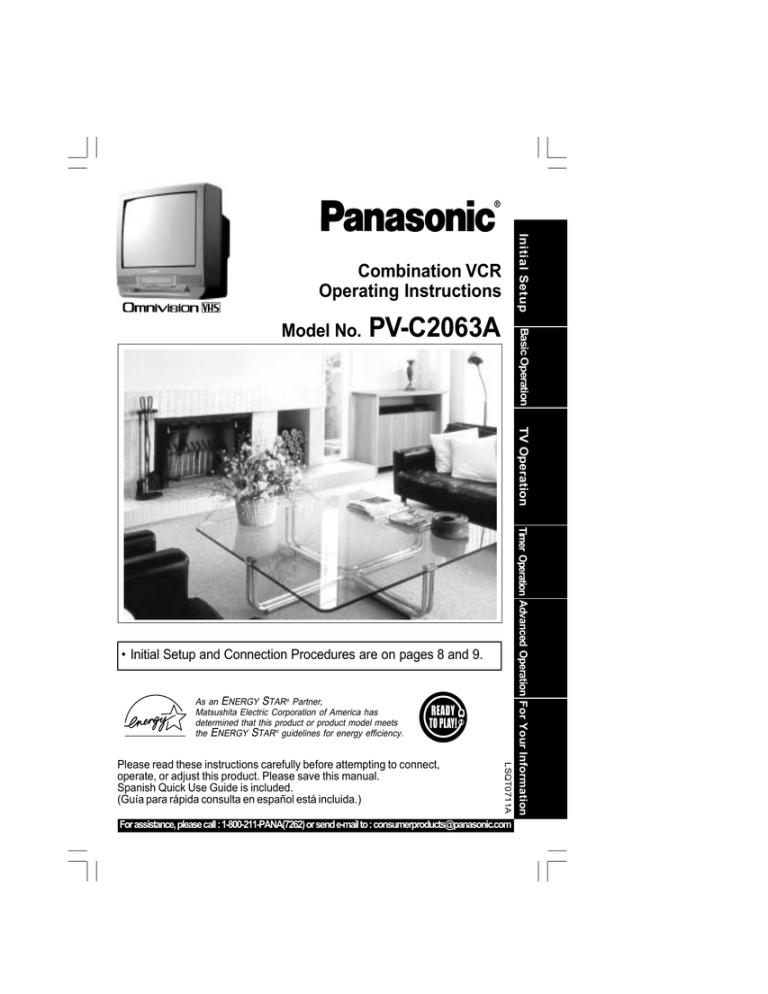

Combination VCR

Operating Instructions

Model No.

PV-C2063A

• Initial Setup and Connection Procedures are on pages 8 and 9.

As an

E

NERGY

S

TAR

®

Partner,

Matsushita Electric Corporation of America has determined that this product or product model meets the

E

NERGY

S

TAR ® guidelines for energy efficiency.

Please read these instructions carefully before attempting to connect, operate, or adjust this product. Please save this manual.

Spanish Quick Use Guide is included.

(Guía para rápida consulta en español está incluida.)

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Important Safeguards and Precautions

READ AND RETAIN ALL SAFETY AND

OPERATING INSTRUCTIONS. HEED ALL

WARNINGS IN THE MANUAL AND ON UNIT

INSTALLATION

1 POWER SOURCE CAUTION

Operate only from power source indicated on unit or in this manual. If uncertain, have your Electric

Utility Service Company or Video Products Dealer verify your home power source.

2 POWER CORD PLUG

For safety, this unit has a polarized type plug (one wide blade), or a three-wire grounding type plug.

Always hold the plug firmly and make sure your hands are dry when plugging in or unplugging the

AC power cord. Regularly remove dust, dirt, etc.

on the plug.

POLARIZED PLUG CAUTION:

The plug fits into outlet one way. If it cannot be fully inserted, try reversing it. If it still will not fit, have an electrician install the proper wall outlet. Do not tamper with the plug.

OUTDOOR ANTENNA INSTALLATION

1 SAFE ANTENNA AND CABLE CONNECTION

An outside antenna or cable system must be properly grounded to provide some protection against built up static charges

NEC - NATIONAL

ELECTRICAL CODE

ANTENNA LEAD

IN WIRE

and voltage. Section 810 of the National Electrical Code,

ANSI/NFPA 70 (in Canada, part 1 of the Canadian

GROUND

CLAMP

ELECTRIC

SERVICE

EQUIPMENT

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING

CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

Electrical Code) provides

information regarding proper

POWER SERVICE

GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

2 KEEP ANTENNA CLEAR OF HIGH VOLTAGE

POWER LINES OR CIRCUITS

Locate an outside antenna system well away from power lines and electric light or power circuits so it will never touch these power sources should it ever fall. When installing antenna, absolutely never touch power lines, circuits or other power sources as this could be fatal.

GROUNDING PLUG CAUTION:

The plug requires a three-hole grounding outlet.

If necessary, have an electrician install the proper outlet. Do not tamper with the plug.

3 POWER CORD

To avoid unit malfunction, and to protect against electrical shock, fire or personal injury:

-Keep power cord away from heating appliances and walking traffic. Do not rest heavy objects on, or roll such objects over the power cord.

-Do not tamper with the cord in any way.

-An extension cord should have the same type plug (polarized or grounding) and must be securely connected.

-Overloaded wall outlets or extension cords is a fire hazard.

-Frayed cords, damaged plugs, and damaged or cracked wire insulation are hazardous and should be replaced by a qualified electrician.

4 DO NOT BLOCK VENTILATION HOLES

Ventilation openings in the cabinet release heat generated during operation. If blocked, heat build-up may result in a fire hazard or heat damage to cassettes.

For your protection: a. Never cover ventilation slots while unit is ON, or operate unit while placed on a bed, sofa, rug, or other soft surface.

b. Avoid built-in installation, such as a book case or rack, unless properly ventilated.

USING THE UNIT

Before unit is brought out of storage or moved to a new location, refer again to the INSTALLATION section of these safeguards.

1 KEEP UNIT WELL AWAY FROM WATER OR

MOISTURE, such as vases, sinks, tubs, etc.

2 IF EXPOSED TO RAIN, MOISTURE, OR STRONG

IMPACT, unplug unit and have it inspected by a qualified service technician before use.

3 ELECTRICAL STORMS

During a lightning storm, or before leaving unit unused for extended periods of time, disconnect all equipment from the power source as well as the antenna and cable system.

4 WHEN UNIT IS PLUGGED IN

• DO NOT OPERATE IF:

- liquid has spilled into unit.

- unit was dropped or otherwise damaged.

- unit emits smoke, malodors, or noises.

Immediately unplug unit, and have it inspected by a service technician to avoid potential fire and shock hazards.

• Never drop or push any object through openings in unit.

Touching internal parts may cause electric shock or fire hazard.

• Keep magnetic objects, such as speakers, away from unit to avoid electrical interference.

5USING ACCESSORIES

Use only accessories recommended by the manufacturer to avoid risk of fire, shock, or other hazards.

6 CLEANING UNIT

Unplug unit. Use a clean, dry, chemically untreated cloth to gently remove dust or debris. DO NOT USE cleaning fluids, aerosols, or forced air that could over-spray, or seep into unit and cause electrical shock. Any substance, such as wax, adhesive tape, etc.

may mar the cabinet surface. Exposure to greasy, humid, or dusty areas may adversely affect internal parts.

5 AVOID EXTREMELY HOT LOCATIONS OR

SUDDEN TEMPERATURE CHANGES

Do not place unit over or near a heater or regulator, in direct sunlight, etc. If unit is suddenly moved from a cold place to a warm place, moisture may condense in unit and on the tape causing damage.

6 TO AVOID PERSONAL INJURY

• Never place unit on support or stand that is not firm, level, and adequately strong.

The unit could fall causing serious injury to a child or adult and damage to the unit.

• Move any appliance and cart combination with care. Quick stops, excessive force, and uneven surfaces may cause objects to overturn.

• Carefully follow all operating instructions.

SERVICE

1 DO NOT SERVICE PRODUCT YOURSELF

If, after carefully following detailed operating instructions, the unit does not operate properly, do not attempt to open or remove covers, or make any adjustments not described in the manual. Unplug unit and contact a qualified service technician.

2 REPLACEMENT OF PARTS

Make sure the service technician uses only parts specified by the manufacturer, or have equal safety characteristics as original parts. The use of unauthorized substitutes may result in fire, electric shock, or other hazards.

3 SAFETY CHECK AFTER SERVICING

After unit is serviced or repaired, request that a through safety check be done as described in the manufacturer’s service literature to insure video unit is in safe operating condition.

2

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Safety Precautions/Mesures de sécurité

Warnin g :

To prevent fire or shock hazard, do not expose this equipment to rain or moisture.

Caution :

To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Avertissement :

Afin de prévenir tout risque d’incendie ou de chocs électriques, ne pas exposer cet appareil à la pluie ou à une humidité excessive.

Attention :

Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

This video recorder, equipped with the HQ (High Quality) System, is compatible with existing VHS equipment. Only use those tapes with the mark. It is recommended that only cassette tapes that have been tested and inspected for use in 2, 4, 6, and 8 hour

VCR machines be used. This television receiver provides display of television closed captioning in accordance with §15.119 of the FCC rules.

FCC WARNING :

Any unauthorized changes or modifications to this equipment would void the user’s authority to operate.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS

INSIDE REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included.

Therefore, it should be read carefully in order to avoid any problems.

This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead.

Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the

Electronics Industries Alliance: <http://www.eiae.org.>

Congratulations

on your purchase of one of the most sophisticated and reliable products on the market today. Used properly, it will bring you and your family years of enjoyment. Please fill in the information below.

The serial number is on the tag located on the back of your unit.

Accessories

Remote Control

LSSQ0319

Date of Purchase

Dealer Purchased From

Dealer Address

Dealer Phone No.

Model No.

PV-C2063A

Serial No.

Batteries

2 “AA”

Loading the Batteries

To order accessories, call toll free 1-800-332-5368.

Prevent Accidental Tape Erasure

Break off the tab to prevent recording.

To record again.

Battery replacement caution

• Do not mix old and new batteries.

• Do not mix alkaline with manganese batteries.

Record

Tab

Screwdriver

Cover the hole with cellophane tape.

3

Unit Information

Head Cleaning

Playing older or damaged tapes may eventually cause video heads to become clogged.

Head Clog Sensor

During playback this screen appears if clogging is detected. To remove screen, press PLAY on the remote or unit.

V I DEO HEADS MAY

NEED CLEAN I NG

PL EASE I NSERT HEAD

CLEAN I NG CASSETTE

OR REFER TO MANUAL

Use “dry” type head

cleaning cassette only.

END : PLAY KEY

(Part No. NV-TCL30PT is recommended.)

• Follow cleaning tape directions carefully.

Excessive use of head cleaning tape can shorten the video head life.

Features for a Quality Picture

Digital Auto Tracking

Continuously analyzes the signal and adjusts for optimum picture quality.

Manual Tracking Control (to reduce picture noise)

Use during Playback and Slow Motion mode to reduce picture noise. Press the 3 or 6 number key on the remote control or CH on the unit until the picture clears up. To return to Auto Tracking, press

POWER off, then on again a few seconds later.

V-Lock Control

In Still mode, the 3 or 6 number key on the remote control or CH on the unit operate as a V-Lock control to reduce jitter.

Specifications

Display

Picture Tube: 20 inch measured diagonal

90° deflection Picture Tube

VCR

Video Recording

System:

Audio Track:

Tuner

Broadcast Channels:

CABLE Channels:

4 rotary heads helical scanning system

1 track

VHF 2 ~ 13, UHF 14 ~ 69

Midband A through I (14 ~ 22)

Superband J through W (23 ~ 36)

Hyperband AA ~ EEE (37 ~ 64)

Lowband A-5 ~ A-1 (95 ~ 99)

Special CABLE channel 5A(01)

Ultraband 65 ~ 94, 100 ~ 125

FM Radio

Band Range:

General

Power Source:

Power Consumption:

87.5 ~ 108.1 MHz

120 V AC, 60 Hz

Approx. 110 watts (Power On)

Approx. 2.5 watts (Power Off)

Television System:

Speaker:

EIA Standard NTSC color

1 piece

Operating Temperature: 5 °C ~ 40 °C (41 °F ~ 104 °F)

Operating Humidity: 10 % ~ 75 %

Weight: 23 Kg (50.6 lbs.)

Dimensions: 515 (W) X 505 (H) X 474 (D) mm

20-5/16” (W) X 19-7/8” (H) X

18-11/16” (D)

Note: Designs and specifications are subject to

change without notice.

Record/Playback Time

Only use tapes with the mark in this unit.

Tape Speed

Setting

SP (Standard Play)

LP (Long Play)

Type of Video Cassette

T60

1 Hour

2 Hours

T120

2 Hour

4 Hours

T160

2 Hours

40 Minutes

5 Hours

20 Minutes

SLP (Super Long Play) 3 Hours 6 Hours 8 Hours

DST (Daylight Saving Time)

Unit auto adjusts clock for DST (Daylight Saving Time.)

Spring (First Sunday in April)

DST : ON => Sets clock ahead one hour.

Autumn (Last Sunday in October)

DST : ON => Turns clock back one hour.

• If your area does not observe Daylight Saving

Time, select DST:OFF.

• Keep these time changes in mind when programming the unit for timer recordings.

4

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Table of Contents

Important Safeguards and Precautions / Safety Precautions ... 2,3

Before Using ....................................................................................... 4

Unit Information ................................................................................. 4

Table of Contents ............................................................................... 5

Location of Controls ........................................................................... 6

Connections / Initial Setup (Ready to Play) .................................. 8,9

Reset Language, Channels, Clock, Time Zone Adjust ............. 10,11

Playback a Tape .................................................................................12

Record On a Tape ..............................................................................12

Copy Your Tapes (Dubbing) .............................................................13

TV Operation .................................................................................... 14

MTS Broadcast / TV Stereo System................................................. 15

TV Timer Features ........................................................................ 16,17

Closed Caption System ............................................................... 18,19

FM Radio ............................................................................................ 20

Picture Adjustment .......................................................................... 21

Timer Recording ........................................................................... 22,23

Tape Operation ........................................................................... 24~26

Special VCR Features ................................................................. 27,28

V-Chip Control Feature .............................................................. 29~31

Cable Box Universal Remote Control Feature ......................... 32,33

On-Screen Display (OSD) ..................................................................34

Before Requesting Service ............................................................... 35

Limited Warranty............................................................................36,37

Customer Services Directory.............................................................37

Spanish Quick Use Guide / Guía para rápida consulta ........... 38,39

Index .................................................................................................. BC

5

Location of Controls

Remote Control Buttons

(Light Tower™ Illuminated Remote Control)

EJECT

Ejects tape.

POWER

Turns on or off.

FM/TV

Receives FM radio signal.

MUTE

Mutes the sound instantly.

CHANNEL UP/DOWN

Selects a channel.

SELECT UP/DOWN

Controls navigation around on-screen menu.

ACTION

Displays Main Menu.

NUMBER Keys

Selects a channel directly.

PLAY

Begins playback.

REWIND/SEARCH

Rewinds tape, and searches reverse scene.

PAUSE/SLOW

Pauses and slow motion and frame advance picture.

COMBO

Returns to COMBO mode.

LIGHT

See below.

DSS/CABLE

Sets the remote to control some basic DSS or Cable box functions.

RAPID TUNE

Displays the last channel you were watching.

VOLUME UP/DOWN

Adjusts volume.

SET/BACK SPACE

Sets a selected menu, or goes back to correct.

PROGRAM

Displays SET PROGRAM screen.

You can set Timer Program and

On-Timer.

TRACKING UP/DOWN

Reduces picture noise during

Playback and Slow Motion.

ADD/DELETE

Adds or deletes a channel.

FAST FORWARDS/

SEARCH

Fast forwards tape, and searches forward scene.

DISPLAY/ENTER

Displays the VCR status and clock.

In DSS or CABLE mode, it may be necessary after channel selection.

SLEEP

Turns off the unit automatically.

AUDIO

Selects the desired auio mode.

CM SKIP/ZERO SEARCH

In Stop mode, goes to the counter “0:00:00.“ In Play mode, skips over 1 to 3 minutes of tape.

NITE

Color and picture intensity level are adjusted during night time use.

SPEED

Selects recording speed.

STOP

Stops recording or playback.

TAPE POSITION

Finds out present tape position and amount of tape remaining.

REC

Records the program.

SEARCH

Goes directly to the desired recording. Locates end point of recording.

Notes

COUNTER RESET

Resets to “0:00:00” at the desired position.

• When LIGHT is pressed, available buttons in the selected mode light up and the selected mode button (COMBO or DSS/CABLE) flashes for 5 seconds. If no button is pressed, light goes out in 5 seconds to conserve batteries.

Also, by holding down a button, you can confirm the selected mode (mode button will flash) in the dark.

• When EJECT is pressed, the tape is ejected from Cassette Compartment.

If EJECT is pressed during recording, the unit will not respond to the command.

6

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Front View of the Unit and Indicators

Built-In Speaker

AUDIO VIDEO IN Jack

For dubbing.

POWER

See previous page.

VOLUME UP/DOWN

SET/BACK SPACE

See previous page.

CHANNEL UP/DOWN

TRACKING UP/DOWN

SELECT UP/DOWN

See previous page.

STOP/EJECT

See previous page.

ACTION

Press together with REW.

Rear View of the Unit

REWIND/SEARCH

See previous page.

ACTION

Press together with STOP.

PLAY

See previous page.

REPEAT

Repeats a recording.

FAST FORWARD/

SEARCH

See previous page.

REC

See previous page.

TIMER/FM

Sets a timer alarm up 60 min.

Enables FM Radio.

PHONES Jack

Connect an earphone or headphones.

PROG TIMER

Indicator

Lights when the unit is set for

Timer Recording.

ON TIMER

Indicator

Lights when the

On-Timer is set.

REC Indicator

Lights during recording.

Remote Sensor

AC Power Plug

When plugged into an AC outlet, the unit consumes 2.5 W of electric power in

OFF condition.

VHF/UHF

VHF/UHF Antenna Input Terminal

In from your Antenna or Cable.

Page 8

7

Connections/ Initial Setup

(Ready to Play)

Please make all cable or antenna connections before powering on.

For ANT./Cable

Connect the cable from

Antenna/Cable to the VHF/UHF terminal on the unit.

For DSS/Cable Box

Connect the OUT jack on your cable box to the VHF/UHF terminal on the unit with a RF cable.

WARNING:

Overtightening "Nut type" RF coaxial cables may damage jacks. Finger tighten only.

UNIT

VHF/UHF

VHF/UHF

VHF/UHF

VHF/UHF

IN from

ANT./CABLE

Cable TV

Converter Box

2

Initial Setup (Ready to Play)

Press Combo on the remote for Combo mode.

1

Plug the unit power cord into an

AC wall outlet.

Press POWER* on the remote or unit. The unit comes on and auto channel and clock set starts.

VHF/UHF

IN from

ANT./CABLE

3

Settings are made automatically. When setup is done, this screen appears.

2 / 6 / 2002 WED 12 : 00PM

DST : ON

SETT I NG : CH 1 0

AUTO CLOCK SET

COMPLETED

CH AUTO SET PROCEEDING

• If you use a cable box, turn it on and set it to the

Public Broadcasting Service (PBS) channel in your time zone. If you use a DSS reciever, it must be turned off.

If AUTO CLOCK SET IS

INCOMPLETE screen appears, set the clock using

MANUAL CLOCK SET procedure on next page.

AUTO CLOCK SET

I S I NCOMPLETE

AUTO CLOCK SET

PROCEEDING

PLEASE SET CLOCK BY

PRESS I NG ACT I ON KEY

CANCEL : PRESS STOP KEY

8

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

*Important: If a remote control button does not work when pressed, press the COMBO button on the remote and try the button again.

Manual Clock Set

If AUTO CLOCK SET was incomplete, manually set the clock as follows.

1

Press ACTION on the remote to

display SET CLOCK Menu screen.

1 / /

SET CLOCK

:

DST : ON

SELECT :

SET :

END : ACT I ON

2

Press to select the month

and press to set. In the same manner, select and set the date, year, time, and DST. (Daylight

Saving Time)

2 / 6/

SET CLOCK

2002 12 00

PM

DST : ON

Reset all unit Memory Functions

When moving unit to a new location, or if a mistake was made in the Initial Setup section.

• Make sure a tape is not inserted in the unit.

REC ON TIMER

PROG TIMER

REC ON TIMER PROG TIMER

1

2

Turn the unit

Power on.

Press and hold both PLAY and

FF on the unit for more than 5

seconds.

• The power will shut off.

• Please ignore “NO CASSETTE” warning.

3

Do “Initial Setup” on page 8.

SET :

START : ACT I ON

3

Press ACTION twice to start

CLOCK and exit.

POWER

ACTION

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

Note to CABLE System Installer

This reminder is provided to call the

CABLE (Cable TV) System Installers attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

9

Reset Language, Channels, Clock,

1

M A I N MENU

T V VCR LANGUAGE

Press ACTION*

to display MAIN MENU.

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

2

Language

1) Press

to

select language icon.

M A I N MENU

Channels

1) Press select “CH.”

to

M A I N MENU

Clock

1) Press to select “CLOCK.”

M A I N MENU

T V

VCR

LANGUAGE

T V VCR LANGUAGE

VCR LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

2) Press ACTION repeatedly.

MENU PR I NC I PAL

HO L A

VCR IDIOMA

CANAL REL OJ

ELEG I R :

F I JAR : ACT I ON

SAL I R

For Spanish

MENU

BONJOUR

T ELE MAGNET .

LANGUE

CANAL HORLOGE SORT I E

SEL. :

REGLER : ACT I ON

For French

M A I N MENU

HELLO

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

2) Press ACTION.

SET UP CHANNEL

ANT ENNA :

AUTO SET

CHANNEL CAPT I ON

WEAK S I GNAL D I SPLAY : OFF

SELECT :

SET : SET

END : ACT I ON

3) Press to select

“ANTENNA,” then

press to set your

antenna system

(“TV” or “CABLE”).

4) Press to select

“AUTO SET,” then

press .

• After Channel Auto Set is finished, Clock Auto Set will be performed. (If clock is set manually, Clock

Auto Set will not be performed.)

CLOCK

SELECT :

SET : ACT I ON

EX I T

2) Press ACTION.

SET CLOCK

AUTO CLOCK SET

T I ME ZONE ADJUST : 0

SELECT :

SET :

END : ACT I ON

(“TIME ZONE ADJUST” appears only when auto clock is set.)

3) Press to select

“MANUAL” or

“AUTO CLOCK

SET” and press .

• For Auto Clock Set, select “AUTO CLOCK

SET,” then press .

SET CLOCK

2 / 6/ 2002

:

DST : ON

PM

VCR LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

For English

3) Press

to

select “EXIT.”

Press ACTION to

exit.

SELECT :

SET :

START : ACT I ON

4) Press and

press to select

and set the month, date, year, time, and DST (Daylight

Saving Time).

5) Press ACTION twice to start the clock and exit this mode.

10

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Time Zone Adjust

*Important:

If a remote control button does not work when pressed, press the

COMBO button on the remote and try the button again.

Time Zone Adjust

(Only when Auto Clock is set.)

1) Press

to

select “CLOCK.”

M A I N MENU

T V VCR LANGUAGE

CLOCK

SELECT :

SET : ACT I ON

EX I T

2) Press ACTION.

SET CLOCK

AUTO CLOCK SET

MANUAL

T I ME ADJUS T : 0

SELECT :

SET :

END : ACT I ON

3) Press to select TIME ZONE

ADJUST and

press or to

subtract or add hour(s) as necessary.

SET CLOCK

AUTO CLOCK SET

MANUAL

T I ME ZONE +1

SELECT :

SET :

END : ACT I ON

4) Press ACTION twice to exit.

• “TIME ZONE ADJUST” returns to “0” if clock is set manually.

POWER

ACTION

ACTION key on the unit

Using

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

NUMBER Keys

ADD/DLT

keys

On Unit

You can operate the menu screen using unit buttons. To display the menu, press STOP/

EJECT and REW together with no tape inserted. To exit the menu, repeat above with or without tape inserted until normal screen appears.

On Remote

On Unit

: CH UP

: CH DOWN

: VOLUME UP

: VOLUME DOWN

Whenever the menu or program screen is displayed,

CHANNEL UP/DOWN function as and VOLUME UP/

DOWN function as only.

Add or Delete a Channel

To add channel:

Select channel with number keys and press ADD/DLT.

To delete channel:

Select channel with

CH or number keys and press ADD/DLT.

CHANNEL 08 ADDED

CHANNEL 08 DELE TED

11

Playback a Tape

1

Ready Check List

All connections are made.

Your unit is plugged in.

Insert a cassette.

• The unit power comes on automatically.

Record tab

To prevent tape jam,

remove loose or peeling labels from tapes.

2

Press PLAY*

• Playback begins if cassette has no record tab.

Forward/Reverse scene search

=> Press FF or REW

=> Press again or PLAY to release.

Still (Freeze) picture

=> Press PAUSE/SLOW

=> Press PLAY to release.

Slow Motion picture

=> Hold down PAUSE/SLOW in

Still mode

=> Press PLAY to release.

Frame by Frame picture

=> Press PAUSE/SLOW in Still mode

=> Press PLAY to release.

Notes

• These features work best in SLP mode.

• After the unit is in Still or Slow mode for 3 minutes, it will switch to Stop mode automatically to protect the tape and the video head.

Record On a Tape

1

Insert a cassette with record tab.

• The unit power comes on automatically.

2

Press CH

or number keys

to select a channel.

• For “LINE” input, see bottom of next page.

3

Press SPEED to select recording

speed

(see page 4).

SP = Standard Play

LP = Long Play

SLP = Super Long Play

• Selected speed is displayed.

4

Press REC to start recording.

• To edit out unwanted portions, press

PAUSE/SLOW to pause and resume recording.

• You cannot view another channel during recording.

Stop => Press STOP

One Touch Recording (OTR)

Press REC repeatedly

Normal Rec to set the recording length (30 min - 4 hours).

4:00 3:00

0:30

2:00

1:00

1:30

• The unit stops recording at a preset time.

• PROG TIMER indicator lights on the unit.

Notes

• After the unit has been in Rec Pause mode for

5 minutes, it will stop automatically to protect the tape and the video head.

• The remaining recording time of an OTR can be displayed by pressing DISPLAY.

Stop => Press STOP

Rewind tape => Press REW in Stop mode

Fast forward tape => Press FF in Stop mode

Eject tape => Press EJECT on the remote or

STOP/EJECT on the unit.

You can operate on the unit

CH

Insert a cassette.

PLAY

REC

PROG TIMER

REC ON TIMER PROG TIMER

Press to stop and/or eject tape REC Indicator

12

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Copy Your Tapes (Dubbing)

*Important: If a remote control button does not work when pressed, press the COMBO button

on the remote and try the button again.

Connections you’ll need to make.

Recording (Editing) unit

Playing (Source) VCR

AUDIO

OUT

VIDEO

IN

IN FROM ANT.

OUT TO TV

VIDEO IN AUDIO IN

AUDIO IN

2

3

1

4

Playback (Source)

Our Vacation

Insert prerecorded tape.

Recording (Editing) unit

Insert blank tape with record tab.

• Dubbing tapes protected with Copy Guard will have poor quality results.

Select “LINE” mode.

See “Selecting Input Mode” below.

Press PLAY then

PAUSE at starting

point to put in

Standby mode.

Press REC, then

PAUSE/SLOW

immediately to put in

Standby mode.

(Perform operation of steps 4 and 5 on both units at same time.)

Press PLAY

to start dubbing.

Press PAUSE/SLOW

to start dubbing.

5

STOP

Press STOP

to stop dubbing.

Press STOP

to stop dubbing.

Caution

Unauthorized exchanging

and/or copying of copyrighted recordings may be copyright infringement.

Selecting Input Mode

Method 1:

Press CH

. The display will change as follows.

1 2 3

Method 2:

LINE

(CABLE)

125 or

a Press ACTION for MAIN MENU.

(TV)

69

b Press

to select “TV”, then press

ACTION for SET UP TV screen.

c Press

to select “INPUT SELECT,” and then press to select “TUNER” or “LINE.”

d Press ACTION twice to exit this mode.

13

TV Operation

*Important: If a remote control button does not work when pressed, press the COMBO button

on the remote and try the button again.

1

Press POWER* on the remote or unit.

2

0 8

ABC

Use CH or

number keys to

select a channel.

Ready Check List

All connections are made.

Your unit is plugged in.

3

Press VOL + or VOL

- to adjust volume.

24

NIGHT (NITE) Mode

Color and picture intensity levels are adjusted so the screen is easier on your eyes during night time use.

N I GHT

Press NITE to set

NIGHT mode.

• NIGHT mode may be selected when watching TV or playing a tape, or while in FM mode.

Press NITE to cancel.

• Previous settings are restored.

• NIGHT mode is canceled when power is turned off or power failure occurs.

VOL + / VOL-

PLAY/REPEAT FF/

PLAY/REPEAT FF/

CH

POWER

PHONES

Jack

Using the 100 key

When selecting CABLE channels 100 to 125 with the number keys, first press the 100 key, and then enter the remaining two digits.

Rapid Tune

Press R-TUNE to display the last channel you were watching.

Audio Mute

Press MUTE to instantly mute the sound. Press again to restore the previous sound level.

Phones

Connect an earphone (not supplied) or headphones (not supplied) to the Phones Jack.

14

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

MTS Broadcast/TV Stereo System

Equipped with

®

-TV Noise

Reduction for true MTS

®

reproduction. -TV Noise

Reduction is required for good stereo separation and audio fidelity.

®

is a registered trademark, and is licensed by

Technology Licensing.

POWER

MUTE

VOL

UP/DOWN

RAPID

TUNE

CH

®

NUMBER

Keys

Receivable Broadcast Types

The following are possible audio broadcast types and on-screen displays. The signal being received is indicated with an “ ” mark while the selected audio mode is indicated with an arrow. To change the audio mode for these broadcasts, see the

“Select Audio Mode for TV Viewing” section (below.)

Press DISPLAY to display

the broadcast signal being received.

STOP 1 2 : 0 0AM

STEREO

SAP

MONO

ABC

MTS Stereo and SAP broadcast

Multi-channel Television Sound Stereo

(main language) and Secondary Audio

Program (sub language) broadcasts are being received simultaneously. Select the STEREO or SAP audio mode.

STOP 1 2 : 0 0AM ABC

0 : 0 0 : 0 0

SP

STEREO

SAP

MONO

MTS Stereo broadcast

Multi-channel Television Sound Stereo broadcast. Select STEREO audio mode.

• If stereo broadcast is weak and the display flickers, select MONO audio mode for possibly better results.

100 KEY

NITE

DISPLAY

STOP 1 2 : 0 0AM

STEREO

SAP

MONO

ABC

SAP broadcast

Secondary Audio Program

(sub language).

Select SAP audio mode for the sub language.

AUDIO

STOP 1 2 : 0 0AM

STEREO

SAP

MONO

ABC

MONO broadcast

Normal monaural sound broadcast.

Select Audio Mode for TV Viewing

Press AUDIO to select the desired audio mode as described above.

(Arrow shows selection.)

• Each press of AUDIO will change the audio mode as shown below.

• “SAP” is selected with first press of AUDIO.

< Example >

ABC

Press AUDIO

STOP 1 2 : 0 0AM

STEREO

SAP

MONO

STOP 1 2 : 0 0AM

STEREO

SAP

MONO

ABC

STOP 1 2 : 0 0AM

ABC

0 : 0 0 : 0 0

SP STEREO

SAP

MONO

Press AUDIO

Press AUDIO

IMPORTANT NOTE:

• This stereo system is designed for TV viewing only. Recording and playback will always be in monaural.

15

TV Timer Features

ON-TIMER with Alarm

This unit can be set to automatically power on in one of 2 modes (TV, Playback, or FM radio).

You can also combine the On-Timer with a one minute alarm that gradually increases in volume.

1

Press PROG* to display SET PROGRAM

screen.

2

SET T I MER

S LEEP T I MER : 00

1) Press to select

“ON TIMER.”

2) Press to display

ON TIMER screen.

SELECT :

SET : SET

END : T I MER

Ready Check List

The clock is set to the correct time.

3

ON T I MER

6:---

ALARM : ON

SELECT :

SET :

END : PROG

• ON-TIMER mode selection order

CH02 CH03

CH01

FM9 FM8

CH125

PLAY

FM1

1) Press to select desired settings.

2) Press to set the

ON-TIMER TIME or

ON-TIMER mode.

• Make sure a tape is inserted if Playback mode is selected.

• See

“FM Radio”

on page

20 for instructions on how to preset FM stations.

4

ON T I MER

6:00 AM CH

ALARM : ON ABC

Press

to select

ALARM “ON” or

“OFF.”

CANCEL : ADD / DLT

SELECT :

SET :

END : PROG

When “ON” is selected,

an alarm will gradually increase in volume for one minute or until canceled by pressing any button

(including VOL + -).

To Make Corrections,

use and to move back and correct.

VIDEO IN

VIDEO IN

AUDIO IN

AUDIO IN

CH

TIMER/FM

ON TIMER indicator

5

Press PROG to set ON TIMER.

• “ON TIMER SET” is displayed.

• ON TIMER Indicator lights on the unit.

To Cancel ON-TIMER,

Repeat steps 1 and 2. Then, press ADD/DLT to clear the time in step 3. Now, press PROG to end.

“ON TIMER END” briefly appears on-screen.

Note

If no button on the remote or unit

(including a button used to turn off the alarm) is pressed within 60 minutes after unit turns itself on, it will turn itself back off.

16

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

*Important: If a remote control button does not work when pressed, press the COMBO button on the remote and try the button again.

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

PROG

ADD/DLT

DISPLAY

SLEEP

Sleep Timer

This unit can be set for auto power off.

Press SLEEP repeatedly

to set SLEEP TIMER.

Pressing DISPLAY with sleep timer set displays remaining time.

Press SLEEP repeatedly

until “SLEEP TIMER 00” appears to cancel.

SLEEP TIMER 30

SLEEP TIMER 60

SLEEP TIMER 90

SLEEP TIMER 00

1:00 (one minute)

2:00

3:00 one-minute increase until 10:00

9:00

10:00

15:00

20:00

25:00 five-minute increase until 30:00

30:00

40:00

50:00 ten-minute increase until 60:00

60:00 (Max)

Instant Alarm

You can set a timer alarm up to 60 min. Useful when you are cooking, etc.

1

Press TIMER/FM on the unit to display the

instant alarm CANCEL/SET screen.

2

5 : 20PM

Press CH

on the unit with CANCEL/SET screen displayed to set alarm.

(Time changes in the order shown left.)

CANCEL : ADD / DLT 02 : 00

SET : CH KEY ON UN I T

Remaining Time

• Pressing TIMER/FM repeatedly on the unit will change display as follows.

FM

Note

• While timer function is in progress, you can change channels on the unit with CH while “CANCEL/SET” screen is not displayed.

FM

To cancel, press TIMER/FM then press ADD/DLT on the remote while CANCEL/SET screen is displayed.

To increase timer in progress, repeat step 2. Time will be rounded up to next 1, 5, or 10 minute interval.

(See chart left.)

<Example>

• If current time remaining is 12:15, countdown will restart from 15:00.

• If current time remaining is 9:15, countdown will restart from 10:00.

3

Alarm will sound at 0: 00.

Press any button to stop.

• The volume of the alarm gradually increases for one minute and then continues to beep until any button is pressed.

17

Closed Caption System

Closed Caption is ...

This multi-use system not only allows the hearing impaired to enjoy selected programs, but also makes useful information from TV stations available to everyone.

Closed Caption Mode Feature

1

Press ACTION*

to display MAIN MENU.

2

T V

M A I N MENU

VCR LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

1) Press select “TV.”

to

2) Press ACTION to display SET UP

TV screen.

3

4

SET UP TV

LOCK

CA PT I ON

I NPUT SELECT : TUNER

V I DEO ADJUST

FM ANTENNA : EXT

SELECT :

SET :

END : ACT I ON

1) Press to select “

CAPTION

”.

2) Press to display

CAPTION screen.

CAPT I ON

CA PT I ON MODE CAP C1

CC ON MUTE : CAP C1

SELECT :

SET : SET

END : ACT I ON

TEXT C2

OFF

CAP C2

CAP C1

TEXT C1

1) Press to select CAPTION

MODE.

2) Press repeatedly to select mode.

(See left.)

5

Press ACTION three times to return to the normal screen.

Closed Caption Mode

Selections

Caption Mode: CAP C1 or C2

A narration of selected TV programs is displayed.

Check TV program listings for

CC(Closed Caption) broadcasts.

Caption Mode: TEXT C1 or C2

The lower half of the screen will be blocked out. When the

TV station broadcasts information, such as program listings, it will appear in this space.

Caption Mode: OFF

Closed Caption / Text narration will not be displayed.

NOTE :

The closed caption or text signal may be broadcast over

C1, C2, or both. Also, text contents can vary so you may wish to try different settings.

Recording and Playing Back a Closed Caption/Text Program

Record:

Record normally.

Closed Caption/ Text signal, if present, is recorded automatically.

Playback: Start playback. Do above steps to select desired caption mode.

18

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

*Important: If a remote control button does not work when pressed, press the COMBO button on the remote and try the button again.

Caption On Mute Feature

Closed Caption narration, if available, is displayed when MUTE button is pressed for silence.

MUTE

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

1 Press ACTION to display MAIN MENU.

2

T V

M A I N MENU

VCR LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

1) Press select “TV.”

to

2) Press ACTION to display SET UP TV screen.

ACTION

3

SET UP TV

LOCK

CA PT I ON

I NPUT SELECT : TUNER

V I DEO ADJUST

FM ANTENNA : EXT

SELECT :

SET :

END : ACT I ON

1) Press to select “CAPTION”.

2) Press to display

CAPTION screen.

4

CAPT I ON

CA PT I ON MODE OFF

CC ON MUTE : CAP C1

SELECT :

SET : SET

END : ACT I ON

1) Press to select CAPTION

MODE.

2) Press repeatedly to select “OFF.”

5

NO CAP C1

CAP C2

1) Press to select

CC ON MUTE.

2) Press repeatedly to select desired mode.

• Each press of will change the display as shown left.

• The caption may be broadcast over CAP C1 or C2.

6

Press ACTION three times to return to

the normal screen.

7

Press MUTE to mute the sound and display closed captioning.

• To cancel, press MUTE again.

19

FM Radio

*Important: If a remote control button does not work when pressed, press the COMBO button on the remote and try the button again.

FM Radio is ...

This unit has an FM radio with built-in antenna, 9 station preset, and a band range of 87.5 ~ 108.1 MHz. You can even set the On-Timer (page 16) to wake up to your favorite radio station.

FM Radio Setup

1

Press FM/TV* on the remote or

press TIMER/FM twice on the unit

to display FM radio mode.

2

1 2 : 0 0PM

FM 1 87. 5MHz

Press a number

key (1~9) to

select the FM number.

FM ANTENNA Setup

Make sure FM tuning is done correctly (see FM Radio Setup).

1

Press ACTION to display MAIN MENU.

2

T V

M A I N MENU

VCR

LANGUAGE

1) Press to select “TV.”

2) Press ACTION to display SET UP TV screen.

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

3

1 2 : 0 0PM

FM 1 8 7. 7MHz

MEMORY : PUSH ADD / DLT KEY

1 2 : 0 0PM

FM 1 8 7. 7MHz

MEMOR I ZED

1) Press CH to select the desired radio station.

(Each press changes frequency 200

KHz.)

2) Press ADD/

DLT to set the

radio station.

Hold down CH

or for a few seconds, then release to quickly scan for FM stations in your area.

• To cancel, press

CH or while in search mode.

To Make Corrections,

select station with a number key, then do step 3 again.

To exit FM mode,

press FM/TV on the remote or TIMER/FM twice on the unit.

Note

• FM radio cannot be recorded on a Video cassette.

• You may get better reception by repositioning the unit.

• You cannot select FM Radio mode during playback or record, or while a blue back screen

(PROG, ACTION, MENU) is displayed.

• Once stations are set, the selected station and current time are displayed when FM Radio mode is entered. To remove time, press

DISPLAY. If DISPLAY is pressed again, the unit status screen appears.

3

SET UP TV

LOCK

CAPT I ON

INPUT SELECT : TUNER

V I DEO ADJUST

ANTENNA : I NT

SELECT :

SET :

END : ACT I ON

1) Press select FM

ANTENNA.

to

2) Press to select “INT

(INTERNAL)” or “EXT

(EXTERNAL)” whichever sounds the best.

For cable TV users

=> “INT”

For antenna users

=> “EXT”

4

Press ACTION twice to end setup.

How to use the FM radio

1

Press FM/TV on the remote or press

TIMER/FM twice on the unit to display FM radio mode.

2

1 2 : 0 0PM

FM 1 87. 5MHz

1 2 : 0 0PM

STEREO

MONO

FM 1 8 7. 7MHz

Press a Number

key (1~9) to select a preset FM number (see steps

2 and 3 of FM Radio

Setup on this page).

To cancel, press FM/TV on the remote or

TIMER/FM twice on the unit.

Press AUDIO repeatedly to select

“STEREO” or “MONO” in FM Radio mode.

20

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Picture Adjustment

Picture Adjustment

COLOR Control

Adjust color intensity.

TINT Control

Adjust for natural flesh tones.

BRIGHTNESS Control

Adjust picture brightness.

PICTURE Control

Adjust picture intensity by adjusting both contrast and color level in the proper balance.

SHARPNESS Control

Adjust picture sharpness.

1

Press ACTION to display MAIN MENU.

2

T V VCR LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

1) Press select “TV.”

to

2) Press ACTION to display SET UP TV screen.

3

SET UP TV

LOCK

CAPT I ON

I NPUT SELECT : TUNER

ADJUST

FM ANTENNA : EXT

SELECT :

SET :

END : ACT I ON

1) Press to select

VIDEO ADJUST.

2) Press to display screen.

4

T I NT

BR I GHTNESS

P I CTURE

SHARPNESS

NORMAL

SELECT :

ADJUST :

END : ACT I ON

COLOR

T I NT

BR I GHTNESS

P I CTURE

SHARPNESS

NOR

SELECT :

SET :

END : ACT I ON

1) Press to select an adjustment item.

(See below left.)

2) Press to adjust.

To Reset Picture

Controls.

Press

and to select and set

“NORMAL.”

All controls return to their factory settings.

5

Press ACTION three times to exit.

21

Timer Recording

You can set up to 8 programs to be recorded while you are away.

1

2

Press PROG* to display SET PROGRAM screen.

SET PROGRAM

SELECT :

SET :

END : PROG

1) Press to select

TIMER

PROGRAMMING

.

2) Press to display screen.

• If a program is already in memory, press , and

to select an unused program number.

3

DATE START STOP CH

FR I --:--

TODAY

SLP

- - - - - - - - -- - - - - - - -- - - - - - -

SELE CT

SELECT :

SET :

END : PROG / ACT I ON

Press

to select and or to set the recording DATE.

• 1~31 = One time

• DAILY = MON~FRI

• WEEKLY SUN~SAT

= Same time once a week

Example

Today’s

Date

7

8 9

31

1

2

6

SELECT / Selection Order

WEEKLY

(SAT)

WEEKLY

(MON)

WEEKLY

(SUN)

DAILY

Repeat step 3 to set:

• start time, stop time

• Channel (or LINE for outside source)

• Speed (SP, LP, SLP)

4

P DT START STOP CH SPD

1 day 00a 08

2 -- -- : -- -- : -- -- --

3 -- -- : -- -- : -- -- --

4 -- -- : -- -- : -- -- --

CANCEL : ADD / DLT

SELECT 1 - 8 :

ENTER :

END : PROG / ACT I ON

Press PROG (or

ACTION) to end the

program.

To Enter More Programs, press

to select and to set a blank program number, and then repeat step 3.

Ready Check List

All connections are made.

Your unit is plugged in.

The clock is set to correct time.

The tape is long enough.

The record tab is in place.

PROG TIMER indicator

Timer Recording Using

unit Buttons

You can set a Timer Recording using ACTION key on the unit.

(See page 11.)

5

Press PROG twice (or ACTION)

to exit this mode.

• If you’re using a cable box, make sure that it is tuned to the desired channel and the power is left on for timer recording.

• PROG TIMER indicator lights on the unit.

Press STOP/EJECT and REW together without a tape inserted to display MAIN MENU.

Press + - to select “VCR” and STOP/EJECT and REW together to display SET UP

VCR screen.

Press to select “TIMER

PROGRAM” and + to display the TIMER PROGRAM screen.

Repeat main steps 3 ~ 5.

22

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

*Important: If a remote control button does not work when pressed, press the COMBO button

on the remote and try the button again.

Cancel a Timer Recording:

(Recording is in progress)

Hold down STOP for a few seconds to cancel the Timer Recording.

• Any future daily or weekly recordings will be performed as programmed.

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

PROG

ADD/DLT

STOP

Review, Replace or Clear Program

Contents :

(Recording is not in progress)

1

2

Repeat steps 1 and 2 on page 22.

P DT START STOP CH SPD

1 day 00a 08

2 8 10 : 00a 12 : 00p 125 SP

3 10 8 : 00p 9 : 00p 10 SP

4 SU 9 : 00p 10 : 00p L LP

CANCEL : ADD / DLT

SELECT 1 - 8 :

ENTER :

END : PROG / ACT I ON

Press

to select the desired program.

3

To Replace program...

DATE START STOP CH

TODAY

00P 12: 00 08

ABC

SP

----------------------------------------------

SELE CT ATE

SELECT :

SET :

END : PROG / ACT I ON

1) Press to display.

2) Press to select and press or to set new program contents.

3) Press PROG (or

ACTION).

To Clear program...

Press ADD/DLT.

P DT START STOP CH SPD

1 -- -- : --- : --- --

2 8 10 : 00p 12 : 00a 125 SP

3 10 8 : 00p 9 : 00p 10 SP

4 SU 9 : 00p 10 : 00p L LP

SELECT 1 - 8 :

ENTER :

END : PROG / ACT I ON

4

Press PROG twice (or ACTION)

to exit this mode.

Notes

• 2 minutes before Timer recording is performed,

“PLEASE PREPARE FOR TIMER REC” appears and/ or the PROG TIMER Indicator flashes. Be sure a cassette with record tab is loaded and the unit is in

Stop mode.

• If the start times of two programs overlap, the lower numbered program will have priority.

• If the start time for a Timer Recording comes up during a normal recording or One Touch Recording (page 12), the Timer Recording will not be performed.

• If there is a power interruption of more than one minute, the recording may not be performed or continued.

• If “INCOMPLETE” appears after all items have been set, check all entries and make necessary corrections.

23

Tape Operation

Search System is ...

Each time a recording is made, an invisible index mark is placed on the tape.

When timer recordings are made, program index and information are also included.

These index marks can be used to access or scan recordings.

Index Search

Go directly to the desired recording.

1

I NDEX SEARCH

ENTER I NDEX NUMBER : 1

US I NG 1- 9 KEYS

FORWARD SEARCH : FF

REVERSE SEARCH : REW

NEXT : SEARCH

EX I T : STOP

Press SEARCH*

in Playback or

Stop mode to display INDEX

SEARCH screen, and then press

NUMBER Keys to select the recording number.

• To calculate number, see below.

Press FF or REW to start search.

2

I NDEX SEARCH

FORWARD SEARCH : FF

REVERSE SEARCH : REW

Play begins at search end. To search forward or back 1 index,

press FF or REW while screen left in displayed (10 sec.).

To calculate the Index Number

Example 1:

To go to rec. 2 from rec. 4, enter 3 and press REW.

Program End Search

Locates end point of recording for continuity.

1

2

Press SEARCH twice in Playback or Stop mode to display

.

PROGRAM END SEARCH screen

PROGRAM END SEARCH

Press FF to start search.

SEARCH START : FF

EX I T : SEARCH

Example of Program End Search operation.

Fig.1

Program 1

PLAYBACK DIRECTION

Program 2 or BLANK

Press SEARCH button

FF

Fig.2

Program 1

BLANK

End Point

Program 2

BLANK

Press SEARCH button

Fig.3

If search exceeds a few seconds in BLANK area.

Press SEARCH button

Program 1

BLANK

Program 2

FF

FF

End Point

End Point

1 2 3 5 4 6

Example 2:

To go to rec. 6 from rec. 2, enter 4 and press FF.

7

Upon locating end point...

The unit searches slightly past end point, reverse searches, and plays the last few seconds of the program, then stops.

1 2 3 4 5 6 7

NOTE: indicates start points of each recording.

Press SEARCH button

Notes

• Make each entry within 10 seconds, or the Index

Search mode will be canceled.

• If Index Search is started very close to an index mark, that index mark may not be counted in the search.

Notes

• If Program End Search is started very close to an index mark, that mark may be skipped over.

• To cancel, press PLAY or STOP.

24

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

*Important: If a remote control button does not work when pressed, press the COMBO button

on the remote and try the button again.

FF

REW

Auto Operation Functions

Auto Shut Off

No broadcast signal in TV (Only when

Weak Signal Display is set to OFF), blank tape is Played for 5 minutes

=> Power turns off

• This feature is canceled if any button is pressed during above mode.

Auto Playback

Insert a tape in Power off mode

=> Power turns on

• Playback begins if tape has no record tab.

Auto Rewind (except for Recording)

Tape reaches its end

=> Rewind => Stop

Playback Auto Eject

(Repeat Play is “OFF”)

Tape with no record tab reaches its end

Rewind => Stop => Eject

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

NUMBER

Keys

FF

REW

TAPE

POSITION

SEARCH

Tape Position Display

To find out present tape position and amount of tape remaining.

Tape position is displayed for VHS-C Cassettes type, tapes under 30 minutes, and some other tapes, but the position is not correct.

1

Press TAPE POSITION to detect

current tape position.

DETECT I NG TAPE POS I T I ON

• “DETECTING TAPE POSITION” is displayed only when a cassette is first inserted and it takes several seconds for correct tape position to appear.

• The present tape position indication and amount of tape remaining (according to tape speed) is displayed.

• Tape remaining time display may not be precise.

BEG I N END

SLP

R 120 MIN.

2

Press TAPE POSITION (or wait 5

seconds) to return to normal screen.

Note

• This function cannot display exact amount of tape remaining for tapes 30 minutes or less, or for tapes over 120 minutes in length.

25

Tape Operation

(continued)

*Important: If a remote control button does not work when pressed, press the COMBO button

on the remote and try the button again.

4

5

Zero Search

To quickly return to a specific tape counter location.

1

Press DISPLAY* during playback to

display the Counter.

2

0 : 00 : 00

Press COUNTER

RESET at the

desired position to reset to “0:00:00.”

BEG I N END

3

Continue playback, rewind, or fast forward.

Press STOP.

1 : 23 : 45

BEG I N END

Press CM/ZERO

in stop mode to start ZERO

SEARCH.

• : Present position mark

: Zero position mark

• Unit goes into FF or REW mode and stops at the last point the Counter was set to 0:00:00.

Note

• If a blank portion exists on the tape, and depending on the position of the mark, the

mark display may be out of position.

Repeat Play

Set to see a recording over and over.

1

Press ACTION to display

MAIN MENU.

2

M A I N MENU

T V VCR

LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

1) Press to select “VCR.”

2) Press

ACTION to

display SET

UP VCR screen.

3

SET UP VCR

REPEAT PLAY : OFF

T I MER PROGRAM

REMOTE WARN I NG : ON

SELECT : KEY

SET : KEY

END : ACT I ON KEY

4

Press ACTION twice

to end setup.

1) Press to select

“REPEAT

PLAY.”

2) Press to set REPEAT

PLAY “ON” or

“OFF.”

Notes

• Playback repeats when tape end is reached or unrecorded portion over 30 seconds is detected.

• During playback, you may also press PLAY/

REPEAT repeatedly on the unit to select

REPEAT “ON” or “OFF.”

Commercial Skip

By pressing the CM/ZERO button in Playback mode you can skip over 1 to 3 minutes of recorded tape in just a few seconds.

1

Press CM/ZERO repeatedly to

select skip time in Play mode.

• No indication appears.

26

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Special VCR Features

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

ACTION

CM/ZERO

DISPLAY

COUNTER

RESET

POWER

POWER

VOL

VOL

CH

CH

STOP/EJECT REW/

STOP/EJECT REW/

REC TIMER/FM

REC TIMER/FM

REC

Weak Signal Display ON/OFF

When “ON” is selected, the picture is displayed even when a broadcast signal is weak or non-existent.

1

2

Press ACTION to display MAIN

MENU.

M A I N MENU

T V

C H

VCR

CLOCK

LANGUAGE

SELECT :

SET : ACT I ON

EX I T

1) Press to select “CH.”

2) Press ACTION to display SET

UP CHANNEL screen.

3

SET UP CHANNEL

ANTENNA : CABLE

AUTO SET

CHANNEL CAPT I ON

WEAK S

SELECT :

SET :

END : ACT I ON

1) Press to select WEAK

SIGNAL

DISPLAY .

2) Press to set

“ON” or “OFF.”

Notes

• “ON” = Picture is displayed regardless of signal condition, and may not always be clearly visible.

“OFF” = Screen turns solid blue when signal is absent or weak.

• If unit is connected to equipment which has blue back feature, selecting “ON” will have no effect on the other equipment.

4

Press ACTION twice

to return to the normal screen.

VCR Lock

All operations are prohibited except Timer recording and tape eject. Useful for families with small children.

VCR LOCK ACT I VATED

VCR LOCK OFF

In stop mode, hold

down REC on the unit without a cassette inserted for 7 seconds to turn “ON.” Please ignore NO CASSETTE warning.

Repeat above with or without cassette to turn “OFF.”

• VCR Lock is canceled automatically

after about 24 hours if clock is set.

Auto Power On

is not prohibited when

VCR Lock is activated.

27

Special VCR Features

(continued)

*Important: If a remote control button does not work when pressed, press the COMBO button

on the remote and try the button again.

Channel Caption is ...

Station names, e.g. ABC, TNN, etc. are set so they will appear when a channel is selected. Choose 24 preset names.

1

Press ACTION* to display MAIN MENU.

2

M A I N MENU

T V

C H

VCR

CLOCK

LANGUAGE

SELECT :

SET : ACT I ON

EX I T

1) Press to select “CH.”

2) Press ACTION to display SET

UP CHANNEL screen.

3

SET UP CHANNEL

ANTENNA : CABLE

AUTO SET

NNEL CAP

WEAK S I GNAL D I SPLAY : OFF

SELECT :

SET :

END : ACT I ON

4

Channel Caption

CHANNEL CAPT I ON

CBS

FOX

NBC

- -

- -

- -

- -

PBS

CNN

ESPN

HBO

- -

- -

- -

- -

SELECT :

SET :

END : ACT I ON

CHANNEL CAPT I ON

TNT

UPN

4 2

- -

CBC

CTV

WB

DSC

3 5

- -

TSN

GLOB

CLEAR : ADD / DLT

SELECT :

SET :

END : ACT I ON

6 2

2 1

5 2

1 2 3

1) Press to select CHANNEL

CAPTION.

2) Press to display screen.

1) Press to select a station.

2) Press to move cursor to the right.

3) Press to select channel number.

4) Press to set preset captions.

• Repeat step 4 until the

Caption List is complete.

To Make Corrections

Press , then to select channel number.

Press to change, or ADD/DLT to delete.

When Universal Remote Control (page 32) is used, and this feature is set to “ON,” a warning appears whenever an invalid key is pressed in

DSS or Cable mode.

1

2

Press ACTION to display MAIN

MENU.

M A I N MENU

T V

C H

VCR

CLOCK

LANGUAGE

EX I T

1)Press to select “VCR.”

2)Press ACTION to display SET

UP VCR screen.

SELECT :

SET : ACT I ON

3

4

SET UP VCR

REPEAT PLAY : OFF

T I MER PROGRAM

RE WARN

1)Press to select REMOTE

WARNING.

2)Press to set

“ON” or “OFF.”

SELECT : KEY

SET : KEY

END : ACT I ON

“REMOTE WARNING : OFF”

-> Remote warning will not appear even if invalid key is pressed.

Press ACTION twice to return to

normal screen.

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

ACTION

ADD/DLT

5

Press ACTION four times to end setup.

28

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

V-Chip Control Feature

Process of V-Chip Control

Setup Blocking

V-Chip Control Feature is...

This unit has a built-in V-Chip Control which allows you to block unwanted TV usage based on US

MOVIES and US TV PROGRAMS Ratings.

Enter Secret Code

A 4-digit code must be entered to view a blocked program or change rating settings.

1

Press ACTION to display MAIN MENU.

2

M A I N MENU

T V VCR

LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

1) Press select “TV.”

to

2) Press ACTION to display SET UP TV screen.

3

SET UP TV

LOCK

CAPT I ON

I NPUT SELECT : TUNER

V I DEO ADJUST

SELECT :

SET :

END : ACT I ON

1) Press to select

LOCK.

2) Press to display screen.

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

ACTION

NUMBER Keys

ADD/DLT

4

LOCK

ENTER 4-D I G I T CODE

---

1) Press NUMBER

Keys to enter your

secret code.

2) Enter same code again for confirmation.

ENTER : 0

-

9

END : ACT I ON

To Make Corrections

Press repeatedly to move the cursor. Press number keys to make the correction.

• Step 2) not necessary when changing rating or secret code.

• Take care that you are not observed entering the secret code.

5

LOCK

CONF I RM 4-D I G I T CODE

****

RECOGN I ZED

CHANGE CODE : ADD / DLT

CONT I NUE :

END : ACT I ON

Press to display US

Ratings menu

(see page 30).

Or

Press ACTION

three times to exit.

Changing your secret code

• You will need your current code. Do steps 1 ~ 4. In step

5, press ADD/DLT to clear current code. Repeat steps 4 and 5 to enter new code.

Notes

• DO NOT forget your secret code.

• Once ratings are set, restricted tapes or programs cannot be accessed unless the secret code is entered.

29

V-Chip Control Feature

(continued)

If LOCK menu is not displayed, do

“Enter Secret Code” steps on page 29.

Process of V-Chip Control Feature

Enter Code Setup Blocking

Setup US MOVIES Ratings Setup US TV PROGRAMS Ratings

1

LOCK

US MOVIES : OFF

CHANGE SETT I NGS

US TV PROGRAMS : OFF

CHANGE SETT I NGS

NEXT PAGE

SELECT :

SET :

END : ACT I ON

1) Press

* to

select US

MOVIES.

2) Press to set

“ON” or “OFF.”

1

LOCK

US MOVIES : OFF

CHANGE SETT I NGS

US TV PROGRAMS : OFF

CHANGE SETT I NGS

NEXT PAGE

SELECT :

SET :

END : ACT I ON

1) Press

to

select US TV

PROGRAMS.

2) Press to set

“ON” or “OFF.”

“ON” => V-Chip Control is activated.

“OFF” => V-Chip Control is deactivated.

Note

• “NEXT PAGE” displays CANADIAN V-Chip setting menu. Not necessary except when viewing Canadian tapes or broadcasts.

“ON” => V-Chip Control is activated.

“OFF” => V-Chip Control is deactivated.

Note

• “NEXT PAGE” displays CANADIAN V-Chip setting menu. Not necessary except when viewing

Canadian tapes or broadcasts.

2

LOCK

US MOVIES : OFF

CHANGE SET NGS

US TV PROGRAMS : OFF

CHANGE SETT I NGS

NEXT PAGE

SELECT :

SET :

END : ACT I ON

1) Press to select

CHANGE

SETTINGS.

2) Press to display screen.

2

LOCK

US MOVIES : OFF

CHANGE SETT I NGS

US TV PROGRAMS : OFF

CHANGE SETT I NGS

NEXT PAGE

SELECT :

SET :

END : ACT I ON

1) Press to select

CHANGE

SETTINGS.

2) Press to display screen.

3

V I EW NR PROGRAMS

G

PG

PG-13

R

NC-17

X

CONTA I NS NO RAT I NG

SELECT : SET :

END : ACT I ON

1) Press to select

VIEW NR

PROGRAMS?.

2) Press to set

“YES” or “NO.”

NR (Not Rated) PROGRAMS

Some movies, such as old movies or foreign movies usually have no ratings.

3

V I EW NR PROGRAMS

TV-Y

TV-Y7 FV

UNLOCKED

TV-G

TV-PG

TV-1 4

TV-MA

V S L D

V S L D

V S L

CONTA I NS NO RAT I NG

SELECT : SET :

END : ACT I ON

1) Press to select

VIEW NR

PROGRAMS?.

2) Press to set

“YES” or “NO.”

NR (Not Rated) PROGRAMS

Some TV shows, such as news, sports, weather, bulletins, a n d emergency information usually have no ratings.

4

V I EW NR PROGRAMS? : YES

G

PG

PG-13

R

NC-17

X

GENERAL AUD I ENCE

SELECT : SET :

END : ACT I ON

Press

to select and to set ratings to be blocked.

(See ratings chart next page.)

4

V I EW NR PROGRAMS? : YES

TV-Y

TV-Y7

FV

UNLOCKED

TV-G

TV-PG

TV-1 4

TV-MA

FOR ALL CH

V S L D

V S L D

V S L

LDREN

SELECT : SET :

END : ACT I ON

Press

to select and to set ratings to be blocked.

(See ratings charts next page.)

Note

5

Press ACTION to redisplay LOCK

menu and continue with US TV

PROGRAMS Ratings Setup (this page).

• You may select from standard TV ratings

(chart 1), or customize to a specific content rating

(chart 2).

• Ratings highlighted in Green will be blocked. Ratings in white letters will not be blocked.

Or, press ACTION four times to exit.

5

Press ACTION four times

to exit this mode.

30

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

inued)

*Important: If a remote control button does not work when pressed, press the COMBO button

on the remote and try the button again.

Process of V-Chip Control Feature

Enter Code Setup Blocking

Blocking Message

<When V-Chip Control is activated>

RAT I NG : PG-1 3

ACCESS CODE ----

ENTER : 0-9

CH08

PROGRAM RAT I NG EXCEEDED

• If a program or movie exceeds the ratings you have set, a message will appear on a black background and sound is muted.

To View a Blocked Program / Movie

[Temporarily Deactivate V-Chip Control]

Enter your secret code (ACCESS CODE) in the Blocking Message screen.

• V-Chip Control is reactivated when power is turned off or power failure occurs.

[Deactivate V-Chip Control]

Enter your secret code (steps 1-4 page 29).

Then, set US MOVIES and/or US TV

PROGRAMS to “OFF” using and keys. (Ratings set on page 30 is retained and will be in effect when V-Chip Control is activated again.)

US MOVIES RATINGS

G

PG

PG-13

R

NC-17

X

GENERAL AUDIENCE:

All ages admitted.

PARENTAL GUIDANCE:

Some material may not be suitable for children.

PARENTS CAUTIONED:

Some material may be inappropriate for children under 13.

RESTRICTED:

Children under 17 must be accompanied by a parent or adult.

OVER AGE 17 ONLY:

No one 17 and under admitted.

ADULTS ONLY:

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

ACTION

DISPLAY

US TV PROGRAMS RATINGS:Chart 1

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

FOR ALL CHILDREN:

Content specifically geared to young viewers ages 2-6.

FOR AGE 7 AND OLDER:

May contain mild physical or comedic violence which may frighten children under 7.

GENERAL AUDIENCE:

Contains little or no violence, strong language, or sexual dialogue or situations.

PARENTAL GUIDANCE:

May contain infrequent coarse language, limited violence, some suggestive sexual dialogue and situations.

PARENTS CAUTIONED:

May contain sophisticated themes, sexual situations, strong language, and more intense violence.

MATURE AUDIENCE:

May contain mature themes, profane language, graphic violence, and sexual situations.

FV

V

S

L

D

US TV PROGRAMS RATINGS: Chart 2

Fantasy Violence

Violence

Sexual Situations

Adult Language

Sexually Suggestive Dialogue

31

Cable Box Universal Remote Control Feature

Universal Remote Control is...

The Remote Control may be set up to control some basic DSS or Cable box functions.

The Universal Remote Control Setup

1

Find your DSS box or Cable box

Brand Code Number from one of the charts on the next page.

2

Setup remote.

Hold down DSS CABLE and press

number keys to enter code.

• For code 100 or greater, first press 100 key, then the remaining digits. E.g. for 102, press

100, then press 0, and then press 2.

POWER

COMBO

DSS/ CABLE

3

Confirm code entry.

Press POWER* to turn selected unit

ON or OFF.

• See below for controllable functions in each mode.

Notes

• Please repeat the Universal Remote Control Setup after replacing remote control batteries.

• The remote control will not operate all DSS receivers or

Cable Boxes made by the manufactures listed. If you get no results, your particular brand cannot be controlled.

NUMBER Keys

ENTER

Using the Universal Remote Control

Once the remote control has been properly set up, you can select COMBO, DSS or CABLE mode depending on which functions you wish to control. (See below.)

Press COMBO or DSS CABLE

on the remote control to select the desired mode. (See below for buttons available in each mode.)

Set to COMBO:

• All TV and VCR functions.

Set to DSS CABLE:

• Basic VCR functions, e.g. PLAY, REC, etc.

• CABLE/DSS functions, e.g. POWER, ENTER, number keys (except 100 key), CH UP/DOWN.

32

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

*Important: If a remote control button does not work when pressed, press the COMBO button

on the remote and try the button again.

DSS Brand Code Numbers

Toshiba .......................... 92

Hitachi/Hughes .............. 93

Magnavox/Uniden 1 ....... 94

Magnavox/Uniden 2 ........ 95

Panasonic ....................... 96

RCA ............................... 97

Sony ........................ 98, 105

Cable Box Brand Code Numbers

Archer ..... 05, 06, 01, 44, 63,

91, 126

Cabletenna ... 01, 44, 63, 91,

126

Cableview ..... 63, 44, 42, 30,

52, 04, 124, 126

Century .. 51, 44, 59, 75, 126

Citizen .......... 63, 44, 42, 30,

52, 04, 124, 126

Curtis ....... 08, 09, 61, 53, 87

Diamond .. 01, 44, 63, 91, 126

Drake .............................. 67

Eagle ...... 13, 22, 58, 62, 20,

40, 26, 107

Eastern .................... 28, 130

GC Brand ...... 63, 44, 42, 30,

52, 04,124, 126

Gemini ..................... 04, 124

General Electric ......... 57,01

General Instruments .. 01,02,

03, 04, 34, 55, 83, 106, 65,

67, 68, 115, 117, 118, 124, 91

Hamlin .. 14, 15, 28, 41, 102,

103,104, 108, 130

Hitachi ............................ 31

Jasco ...................... 04, 124

Jerrold .... 01, 02, 03, 04, 34,

55, 83, 106, 65, 67, 68,

115, 117, 118, 124, 91

Macom ........................... 31

Magnavox .............. 26, 112

Matsushita ..... 16, 17, 97, 109

Movietime ............. 32, 39, 42,

44, 126, 38, 40

NEC ..................... 38, 40, 32

NOVAVISION ............ 08, 09,

61, 53, 87

NSC ..................... 38, 40, 32

Oak .................... 46, 11, 129

Oak Sigma ......... 46, 11, 129

Panasonic ..... 16, 17, 97, 109

Philips ....... 07, 13, 20, 23, 24,

50, 128, 129

Pioneer ...................... 05, 06

Pulsar ............ 63, 44, 42, 30,

52, 04, 124, 126

Quest ......................... 05, 06

Radio Shack .............. 51, 44,

59, 75, 126

RCA .............. 16, 17, 97, 109

Realistic ... 51, 44, 59, 75, 126

Recoton ... 51, 44, 59, 75, 126

Regal ...... 14, 15, 28, 41, 102,

103, 104, 108, 130

Regency .................. 28, 130

Rembrandt ........... 01, 32, 39,

42, 44, 63, 126

Salora .............................. 68

Samsung ... 05, 32, 40, 42, 06

Scientific Atlanta ........ 08, 09,

61, 53, 87

Sheritech .......................... 27

Signal ....................... 26, 112

SL Marx ......... 32, 40, 42, 06,

43, 44, 52, 63, 126

Sprucer ......... 16, 17, 97, 109

Standard Components ..... 32,

39, 42, 44, 126

Stargate .... 32, 40, 63, 44, 42,

30, 52, 04, 06, 124, 126

Sylvania ........................... 19

Teknika ............................ 74

Telecaption ............... 77, 127

Teleview .......... 32, 40, 42, 06

Texscan ..................... 18, 19

Tocom .. 33, 34, 01, 42, 66, 91

Toshiba ............................ 36

Uniden Satellite ................ 65

Unika ....... 01, 44, 63, 91, 126

Universal .............. 42, 43, 44,

52, 63, 126

Videoway ...... 07, 23, 50, 129

Vid Tech ........................... 64

Vidtek ............................... 64

Viewstar ......... 13, 22, 58, 62,

20, 40, 26, 107

Zenith ............ 07, 23, 50, 129

Notes

• In DSS or CABLE mode, it may be necessary to press ENTER after pressing number keys for channel selection.

• In DSS or CABLE mode, POWER, CH Up/Down, number Keys, ACTION, PROG, DISPLAY,

SEARCH, R-TUNE, FM/TV, or ADD/DLT are not available. Press COMBO to use these functions.

• Depending on your DSS receiver or Cable box brand, some of the functions listed may not be remote controllable.

• Some DSS receiver or Cable box brands require you to turn on the power manually.

• Due to changes in infra-red commands used by manufacturers, some brands have several codes. If your unit does not respond to the first code, please try the next one.

33

On-Screen Display (OSD)

VCR Status & Clock Display

Press DISPLAY

to display or remove the overlay.

Channel Caption

(See page 28.)

Function Status

Current Time

Counter

Rec Time

Remaining

(OTR mode only, see page 12.)

REC 1 2 : 0 0PM

0 : 25

ABC

-0 : 1 2 : 3 4

SP

STEREO

SAP

MONO

Blue Screen Display

Whenever a blank section of a tape comes up in Play mode, or when the selected channel has no broadcast signal with the

Weak Signal Display set to “OFF” (see page 27), the screen will turn solid blue.

Channel & Function Display

When a function button is pressed (PLAY,

FF, etc.) or you change channels, the unit mode or channel number will be displayed.

(Some station names may also appear if

Channel Caption is set. See page 28.)

0 8

ABC

Receivable Broadcast

Types (See page 15.)

Tape Speed

Warning and Instruction Displays

OSD

PLEASE SET CLOCK BEFORE

PROGRAMMING

These displays will alert you to a missed operation or provide further instructions.

Page

Caution

• If you attempt to set or review a Timer Recording, or set the On-Timer and the Clock is not set...

8 - 11

CHECK CASSETTE RECORD TAB

3, 12

• If you press REC, and a cassette is inserted with no record tab...

• If you press STOP during a Timer Recording...

23

TO CANCEL TIMER REC HOLD

DOWN STOP KEY FOR APPROX 3

SEC

NO CASSETTE

PLEASE INSERT A CASSETTE

• If you press PLAY, FF, REW, or REC without a cassette inserted...

12

PLEASE PREPARE FOR TIMER REC

VIDEO HEADS MAY NEED

CLEANING PLEASE INSERT HEAD

CLEANING CASSETTE OR REFER

TO MANUAL END: PLAY KEY

VCR LOCK ACTIVATED

• If the unit is not in Stop mode or a cassette with record tab is not inserted two minutes before a

Timer Recording is about to begin...

• If head cleaning becomes necessary while playing back a tape...

• If you press a function button other than STOP/EJECT or POWER while the unit is in VCR Lock mode...

22, 23

4

27

34

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Before Requesting Service

Check the following points once again if you are having trouble with your unit.

Power

No power…

Correction

• Completely insert Power Plug into an AC outlet.

• Set POWER button to ON.

Monitor

No picture or sound...

Poor picture with normal sound...

Poor sound with normal picture...

Poor TV reception...

No color or poor color...

Ghost (multiple) images...

TV programs cannot be watched...

Channel cannot be selected...

Correction

• Make sure your antenna system (TV or CABLE), is correctly set. (P. 8)

• Completely insert Power Plug into an AC outlet.

• Set POWER button to ON.

• Adjust BRIGHTNESS, SHARPNESS, and PICTURE controls in the SET UP TV menu. (P. 21)

• Adjust VOLUME control. (P. 14)

• Adjust SHARPNESS and PICTURE controls in the SET UP TV menu. (P. 21)

• Adjust TINT and COLOR controls in the SET UP TV menu. (P. 21)

• Install a directional antenna.

• Make sure the selected channel is in unit’s memory. (P. 10, 11)

• Only the channel being recorded can be viewed on this unit.

VCR

TV program cannot be recorded...

Timer recording cannot be performed…

No playback picture, or the playback picture is noisy or contains streaks...

VCR cannot be controlled...

Correction

• Make sure your antenna system (TV or CABLE), is correctly set. (P. 8)

• Make sure cassette record tab is intact. (P.3)

• Check that clock is set to current time and date.

• Make sure DSS/CABLE box (if used) is left on and tuned to channel to be recorded.

• Set recording Start/Stop times correctly. (P. 22-23)

• Timer recording may not be performed or continued if a power interruption of more than 1 minute occurs before or during a Timer recording even after power is restored.

• Adjust TRACKING control in either direction. (P. 4)

• Try Head Cleaning. (P. 4)

• Make sure VCR LOCK is set to off. (P. 27)

• Make sure unit is not in a Timer Record operation.

Remote Control

Unit cannot be controlled...

Correction

• Aim remote at remote sensor on unit (P. 7) so that signal is unobstructed.

• Inspect the remote batteries. (P. 3)

• Make sure VCR LOCK is set to off. (P. 27)

• Exposing unit remote sensor to direct fluorescent or outdoor light may cause signal interference.

• Check remote batteries.

ACTION, PROG and FM/TV buttons cannot be selected...

Miscellaneous

Video cassette cannot be inserted...

Video cassette cannot be removed...

Tape cannot be ejected or inserted...

Video cassette ejects when a recording is started, or the power is turned off for timer recording...

In Stop mode, the VCR motor

(CYLINDER) continues to rotate...

VCR cannot be controlled...

Correction

• Insert the cassette window side up; record tab facing you.

• Completely insert Power Plug into an AC outlet.

• Try ejecting or inserting the tape again after turning POWER off, then back on.

• Make sure cassette record tab is intact. (P. 3)

• To enable Quick Play mechanism, the VCR cylinder will rotate for about 3 minutes. This reduces response time from Stop to Play mode and from Play to Rewind Search mode.

• Make sure VCR LOCK is set to off. (P. 27)

If you cannot resolve the problem, please call the Customer Satisfaction Center for product assistance at 1-800-211-PANA(7262).

To locate an authorized servicenter call toll free 1-800-211-PANA(7262) or send e-mail to : [email protected].

35

Limited Warranty

PANASONIC CONSUMER ELECTRONICS

COMPANY, DIVISION OF MATSUSHITA ELECTRIC

CORPORATION OF AMERICA

One Panasonic Way Secaucus, New Jersey 07094

PANASONIC SALES COMPANY, DIVISION OF

MATSUSHITA ELECTRIC OF PUERTO RICO, INC.,

AVE. 65 de Infantería, Km. 9.5 San Gabriel Industrial

Park, Carolina, Puerto Rico 00985

Panasonic/Quasar Video Products

Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic

Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, or

(b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

Labor

Ninety (90) Days

Service

Carry-In or Mail-In

Contact Number

1-800-211-PANA(7262)

Product

Camcorder

Parts

One (1) Year (except

CCD Image Sensor)

CCD Image Sensor - 6

(Six) Months

One (1) Year DVD/VCR Deck,

A/V Mixer

TV/VCR, TV/DVD,

TV/DVD/VCR

Combination

One (1) Year (except

CRT)

CRT - Two (2) Years

Ninety (90) Days

Ninety (90) Days Carry-In or Mail-In

Ninety (90) Days

Ninety (90) Days

Ninety (90) Days

1-800-211-PANA(7262)

Carry-In: 21

CRT and Smaller

In-Home or Carry-In:

22

CRT and Larger

1-800-211-PANA(7262)

In-Home or Carry-In 1-888-843-9788 TV/HDR

Combination

Rechargeable

Batteries

(in exchange for defective item)

Tape

(in exchange for defective item)

Memory Cards

(in exchange for defective item)

One (1) Year (except

CRT)

CRT - Two (2) Years

Ten (10) Days

Five (5) Days

Ninety (90) Days

Ninety (90) Days

Not Applicable

Not Applicable

Not Applicable

Carry-In or Mail-In

Carry-In or Mail-In

Carry-In or Mail-In

1-800-211-PANA(7262)

1-800-211-PANA(7262)

1-800-211-PANA(7262)

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. You must carry-in or mail-in your product or arrange for in-home service, as applicable, during the warranty period.

If non-rechargeable batteries are included, they are not warranted. This warranty only ap plies to products purchased and serviced in the United States or Puer to Rico. This warranty is extended only to the original purchaser of a new product which was not sold “as is.” A purchase receipt or other proof of the original purchase date is required for warranty service.

Carry-In, Mail-in or In-Home Service

For Carry-In, Mail-In or In-Home Service (as applicable) in the United States call toll free contact number listed above or visit Panasonic Web Site: http://www.panasonic.com

For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax (787)-768-2910.

In-Home service, if applicable, requires clear, complete and easy access to the product by the authorized servicer and does not include removal or re-installation of an installed product. It is possible that certain in-home repairs will not be completed in-home, but will require that the product, or parts of the product, be removed for shop diagnosis and/or repair and then re turned.

36

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT

COVER normal wear and tear or cosmetic damage, nor does it cover markings or retained images on the picture tube resulting from viewing fi xed images (including, among other things, letterbox pictures on standard 4:3 screen TV’s, or non-expanded standard 4:3 pic tures on wide screen TV’s, or onscreen data in a stationary and fi xed location). The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up ad just ments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modifi cation, or commercial use (such as in a hotel, offi ce, restaurant, or other business), rental use of the product, service by anyone other than a Factory Servicenter or other

Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY

COVERAGE.” THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL

DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH

OF THIS WARRANTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to and from the servicer, loss of media or images, data or other memory or recorded content. The items listed are not exclusive, but are for illustration only.)

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF

MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.

This warranty gives you specifi c legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the warrantor’ s Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE (INCLUDING COST OF AN IN-HOME SERVICE CALL, WHERE

APPLICABLE) WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR

RESPONSIBILITY.

Customer Services Directory

For Product Information, Operating Assistance, Literature Request, Dealer

Lo ca tions, and all Customer Service inquiries please contact:

1-800-211-PANA (7262), Monday-Friday 9 am-9 pm; Saturday-Sunday 9 am-7 pm,

EST. or send e-mail : [email protected]

For hearing or speech impaired TTY users, TTY : 1-877-833-8855

Web Site: http://www.panasonic.com

You can purchase parts, accessories or locate your nearest servicenter by vis it ing our Web Site.

Accessory Purchases:

1-800-332-5368 (Customer Orders Only)

For hearing or speech impaired TTY users, TTY : 1-866-605-1277

Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032

(Monday-Friday 6 am-5 pm; Saturday 6 am-10:30 am, PST)

(Visa, MasterCard, Discover Card, American Express, Check)

Service in Puerto Rico

Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/ Factory

Servicenter:

Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park,

Carolina, Puerto Rico 00985

Phone (787)750-4300 Fax (787)768-2910

As of August 2002

37

Spanish Quick Use Guide/Guía para rápida consulta

1

Connexiones/Configuracion Inicial

Conecte por favor todas las conexiones del cable o de la antena antes de turing potencia.

Conectando el cordon AC de la VCR en toma de pared iniciara automaticamente la

Para Ant./Cable

Conecte Ant./Cable a la entrada de antena de la TV (VHF/UHF).

Para Sistema Digital de Satelite (DSS)/

Convertidor de cable

Conecte la salida del convertidor de cable la

"VHF/UHF" con el RF cable.

Realizando Configuracion Inicial

Presione COMBO para modo del combo.

Tape el cable electrico de la unidad en el enchufe de pared de la CA. POWER de la prensa en el telecontrol o la unidad.

La unidad se adelanta y comienzo auto del canal y del reloj.

CH AUTO SET PROCEEDING

AUTO CLOCK SET

PROCEEDING

Si usa convertidor de cable, enciendala y seleccione el Servicio

Publico de Canales de

Television (PBS) en su horario de uso o tiempo de su zona. Si utiliza receptor DSS este debe de estar apagado.

CANCEL : PRESS STOP KEY

2

2 / 6 / 2002 WED 12 : 00PM

DST : ON

SETT I NG : CH 1 0

AUTO CLOCK SET

COMPLETED

AUTO CLOCK SET

I S I NCOMPLETE

PLEASE SET CLOCK BY

PRESS I NG ACT I ON KEY

Selecciones se realizaran automaticamente cuando la configuracion termine, la pantalla siguiente aparecera.

Si "AUTO CLOCK SET IS

INCOMPLETE" aparece en pantalla, coloque el tiempo usando el procedimiento manual (MANUAL CLOCK

SET), vealo enseguida.

Ajuste Manual del Reloj

Si el ajuste automático del reloj no se ha completado, ajuste el reloj manualmente de la siguiente manera:

1) Presione la tecla ACTION en el control remoto para visualizar la pantalla del menú RELOJ.

2) Presione

▲▼

para seleccionar el mes y para ajustar. De la misma forma, seleccione y ajuste la fecha, año, hora y DST

(Hora de Verano).

3) Presione dos veces la tecla

ACTION para poner el RELOJ en marcha y salir.

Ajustar de nuevo el reloj

1

Presione ACTION para exhiba el menú.

2

TV

MENU PR I NC I PAL

VCR

CANAL REL OJ

ELEG I R :

F I JAR : ACT I ON

IDIOMA

SAL I R

Presione

▲▼

para seleccionar

“RELOJ”.

Presione

ACTION.

3

F I JAR RELOJ

F I JAC I ON AUTOMAT I CA

MANUAL

AJUSTE ZONA HORA : 0

ELEG I R :

F I JAR :

TERM I NAR : ACT I ON

Presione

▲▼

para seleccionar

“MANUAL” y luego presione .

4

F I JAR RELOJ

:

VERANO : ACT

ELEG I R :

F I JAR :

TERM I NAR : ACT I ON

Presione

▲▼

y para seleccionar y ajustar la hora y la fecha.

5

Presione ACTION dos veces para que el reloj comience a funcionar y salir desde este modo.

38

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

1

Operaciones básicas para la reproducción

Inserte un casete.

• El videograbador combinado se enciende automáticamente.

2

Presione PLAY.

• La reproducción comienza automáticamente si el casete no tiene la lengüeta para prevención de grabación.

Para encontrar una escena en particular

Búsqueda hacia adelante => Presione FF

Búsqueda hacia atrás => Presione REW

Para ver una imagen fija (congelada) => Presione

PAUSE/SLOW

Para ver en cámara lenta => Mantenga pulsado el

■ botón PAUSE/SLOW en el modo de imagen fija

Para ver imágenes cuadro a cuadro => Presione

PAUSE/SLOW en el modo de imagen fija

Para parar => Presione STOP

Para rebobinar la cinta => Presione REW

Para hacer avanzar la cinta rápidamente =>

Presione FF

Para expulsar la cinta => Presione EJECT en el control remoto o STOP/EJECT en el videograbador combinado

Grabación con temporizador

1

Exhiba FIJAR PROGRAMACION.

Presione PROG.

2

F I JAR PROGRAMAC I ON

TE ZADOR

ENCENDIDO AUTOMATICO

Exhiba

TEMPORIZADOR.

1) Presione

▲▼

ELEG l R :

F I JAR :

TERM l NAR : PROG para seleccionar.

2) Presione para exhibir.

• Si ya existe un programa en la memoria, presione

▲▼

y para seleccionar un número de programa sin usar.

3

FECHA INICIO PARADA CA

7 VIE

HOY

VIE --:-- --:--

SLP

- - - - - - - - -- - - - - - - -- - - - - - -

ELEGIR FECHA DE INICIO

ELEG l R :

F I JAR :

TERM l NAR : PROG / ACTION

Ajuste la fecha de grabación.

1) Presione

▲▼ para seleccionar.

2) Presione o para ajustar.

• 1 - 31 = Grabación única

• DIARIO = a la misma hora de lunes a viernes

• SEMANAL = a la misma hora una vez a la semana

Fecha de hoy

1

2

Operaciones básicas para la grabación

Inserte un casete con la lengüeta para prevención de grabado.

• El videograbador combinado se enciende automáticamente.

Seleccione el canal.

Presione CH

▲▼

o las teclas numéricas correspondiente.

3

Seleccione la velocidad de grabación.

Presione SPEED.

SP = reproducción normal

LP = reproducción larga

SLP = reproducción super larga

• La velocidad seleccionada debe aparecer en la pantalla.

4

Comience la grabación.

Presione REC.

• Para editar partes no deseadas de una grabación, presione PAUSE/SLOW para hacer una pausa durante la grabación.

• No podrá ver otro canal durante la grabación.

Para parar

=>

Presione STOP.

El videograbador combinado deja de grabar a una hora prefijada.

(Grabación de un toque)

Presione REC repetidamente para ajustar la hora de grabación (30 min

- 4 horas.)

Grabaci—n normal

0:30 1:00

4:00 3:00 2:00 1:30

Repita el paso 3 para ajustar: hora de comienzo, hora de parada, canal

(o LINEA para una fuente exterior), velocidad

(SP, LP, SLP)

4

P FE I N I C PARADA CA VEL

1

I 9 : 00 p 12 : 00

2 -- -- : -- -- : -- -- --

3 -- -- : -- -- : -- -- --

4 -- -- : -- -- : -- -- --

CANCELAR : ADD/DLT

ELEG I R 1-8 :

ENTRAR :

TERM I NAR : PROG / ACT I ON

Termine el programa.

Presione PROG

(o ACTION.)

Para introducir más programas.

presione

▲▼

y para seleccionar y ajustar el número de programa en blanco, y luego repita los pasos 3 y 4.

5

Salga de este modo.

Presione PROG dos veces (o

ACTION.)

• Si está usando un decodificador de TV cable, asegúrese que se encuentra en el canal deseado y que la alimentación queda conectada para grabar con temporizador.

• El indicador PROG TIMER se enciende en el videograbador combinado.

39

INDEX

A

Accessories ................................................ 3

Audio Mute ................................................ 14

Auto Operation Functions ......................... 25

B

Batteries ....................................................... 3

Before Requesting Service .......................... 35

Blocking Message ....................................... 31

Blue Screen Display .................................... 34

C

Cable Box Universal Remote Feature .... 32,33

Caption On Mute ......................................... 19

Channel ............................................ 8 -13, 34

Channel Caption .......................................... 28

Clock .......................................................... 10

Closed Caption ........................................... 18

Commercial Skip ......................................... 26

Connections .................................................. 8

Connections, DSS / Cable Box ...................... 8

Connections, Antenna / Cable ....................... 8

Copy Your Tapes (Dubbing) ....................... 13

D

DST (Daylight Saving Time) .......................... 4

E

Eject tape .................................................... 12

F

Fast Forward .............................................. 12

FM Radio .................................................... 20

Forward Search .......................................... 12

Frame by Frame Advance .......................... 12

Front Panel Indicators ................................... 7

Function Display ......................................... 34

H

Head Cleaning .............................................. 4

I

Important Safeguards and Precautions ......... 2

Index Search .............................................. 24

Initial Setup ................................................... 8

Input Mode .................................................. 13

Instant Alarm ............................................... 17

L

Language .................................................... 10

Limited Warranty ......................................... 37

Location of Controls ................................ 6 - 7

M

MTS Broadcast / TV Stereo System ......... 15

N

NIGHT Mode .............................................. 14

O

100 Key ...................................................... 14

One Touch Recording ................................. 12

ON-TIMER with Alarm ................................. 16

P

Phones .................................................. 14

Playback ............................................... 12

Picture Adjustment ................................ 21

Program End Search ............................ 24

Q

Quality Picture ......................................... 4

R

Rapid Tune ............................................ 14

Rec(ord) ................................................ 12

Record/Playback Speed Settings ............. 4

Remote Control Buttons ........................... 6

Remote Warning ON/OFF ...................... 28

Repeat Play ........................................... 26

Reset Language, Channels, Clock ......... 10

Reset unit ................................................ 9

Reverse Search ..................................... 12

Rewind ................................................... 12

S

Secret Code ........................................... 29

Sleep Timer ............................................ 17

Slow Motion ............................................ 12

Spanish Quick Use Guide ................. 38, 39

Special VCR Features ....................... 27, 28

Specifications ........................................... 4

Still Picture ............................................. 12

STOP .................................................... 12

T

Tape Erasure Prevention ......................... 3

Tape Position Display ............................. 25

Time Zone Adjust ................................... 11

Timer Program Review, Replace, Clear . 23

Timer Recording .................................... 22

Timer Recording Cancellation ................ 23

TV Operation ......................................... 14

TV Timer Features ............................ 16, 17

U

Unit, Front/Rear view ............................... 7

US MOVIES/TV PROGRAMS Ratings ... 31

V

VCR Lock .............................................. 27

VCR Status & Clock Display .................. 34

V-Chip Control Feature ................... 29 - 31

W

Warning and Instruction Displays ........... 34

Weak Signal Display ON/OFF ................ 27

Z

Zero Search ........................................... 26

Panasonic Consumer Electronics Company,

Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus,

New Jersey 07094

Panasonic Sales Company (“PSC”),

Division of Matsushita Electric of Puerto Rico, Inc.

Ave. 65 de Infanteria. Km. 9.5

San Gabriel Industrial Park, Carolina, Puerto Rico 00985

P

Printed in Indonesia

LSQT0711A

M1202-0

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals
