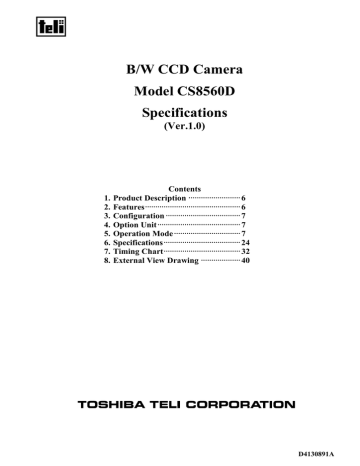

B/W CCD Camera

Model CS8560D

Specifications

(Ver.1.0)

Contents

1. Product Description ························· 6

2. Features·············································· 6

3. Configuration ···································· 7

4. Option Unit········································ 7

5. Operation Mode································ 7

6. Specifications····································· 24

7. Timing Chart····································· 32

8. External View Drawing ··················· 40

D4130891A

Important Safety Precautions

BEFORE USE - GENERAL SAFETY INSTRUCTIONS

This specifications contains important information for the operator (user) and/or people in the vicinity to avoid personal injury, or property damage.

Prior to use, read this specifications carefully to fully understand its instructions for correct use.

• After reading, keep operation manual near the equipment for future reference.

WARNINGS & CAUTIONS

Indication Meaning

WARNING

This indicates the existence of a hazard that death or catastrophic bodily injury(*1) may result from improper use.

CAUTION

This indicates the existence of a hazard that bodily injury(*2) or property damage(*3) may result from improper use.

Notes

*1 Catastrophic bodily injury means loss of eyesight, burns (high and low temperatured), shock, fracture, poisoning, etc. which leaves a sequela and repuire hospitalization or prolonged treatment.

*2 Bodily injury means injuries, burns and electric shock which does not require hospitalization or prolonged treatment.

*3 Property damage means extended harm to home, household effects, domesticated animals, and pets.

Graphic symbol definitions

Indication

Meaning

This mark indicates a prohibited action that must not be carried out. The actual prohibited action is indicated in the symbol or nearby graphically or described in text.

This mark indicates a mandatory action that must not be carried out. The actual instruction is indicated in the symbol or nearby graphically or described in text.

●Handling Precautions

WARNING

Stop operation immediately when any abnormality or defect occurs.

Use during an abnormal condition; such as emitting smoke, burning odors, damage from dropping invasion of foreign objects, etc. may cause fire and/or electric shock. Be always sure to disconnect the power plug from the electrical outlet (socket) at once and contact your dealer.

Do not operate in places with possibility of becoming wet.

This may cause fire and/or electric shock.

Do not repair, disassemble and/or modify by yourself.

This may cause fire and/or electric shock. Be always sure to contact your dealer for internal repair, check and cleaning of the product.

2

D4130891A

Don’t place things or materials on the unit.

Ingress of foreign materials such as metallic things and liquid into the unit may cause a fire or an electric shock.

Do not put the product in an unstable, slanting and/or vibrated place.

Drop and/or fail of the product may cause injury.

Do not touch the power cord or other connection cables during a thunderstorm.

This might cause electric shock.

Use the specified power supply.

Use of an unspecified power supply may result in fire or electric shock.

Do not be handled roughly, damaged, fabricated, bent forcefully, pulled, twisted, bundled, placed under heavy objects or heated the power cord , connection cable.

Otherwise, fire or electric shock may result.

CAUTION

Note the following instructions when installing.

-Do not wrap the product in an inflammable material, such as cloth.

-Do not put the product in a narrow space, since the heat generated from the product may be difficult to emanate.

If you do not follow the above, the heat generated by the product may cause fire.

Avoid setting in humid, smoky, vaporized or dusty places. A fire or an electric shock may occur in such places.

This may cause fire and/or electric shock.

Do not put the product in direct sunshine and/or high temperature.

The temperature inside the product may cause fire.

Use the specified DC power cable or connection cable.

Otherwise, a fire or an electric shock may occur.

Turn OFF the power in the case of connection.

Turn OFF the power in the case of connection of power cable or connection cable.

Otherwise, an electric shock or a malfunction may occur.

Do not expose its camera head to any intensive light (such as direct sunlight).

Otherwise, its inner image pickup device might get damaged.

Avoid short-circuiting signal output.

Otherwise, a malfunction may occur.

Avoid giving a strong shock against the camera body.

It might cause a breakdown or damage.

If your camera is used in a system where its camera connector is subjected to strong repetitive shocks, its camera connector is possible to break down. If you intend to use your camera in such a situation, if possible, bundle and fix a camera cable in the place near the camera, and do not transmit a shock to the camera connector.

Ask your dealer to perfom a periodical check and internal cleaning

(approx. once every five years).

Dust inside the product may cause fire and/or trouble. For check and cleaning cost, please consult your dealer.

3

D4130891A

DISCLAIMER (LIMITED WARRANTY)

We disclaim any responsibility and shall be held harmless for any damages or losses incurred by the user in any of the following cases; z Fire, earthquake or any other act of God; acts by third parties; misuse by the user, whether intentional or accidental; use under extreme operating conditions. z Malfunction or non-function resulting in indirect, additional or consequential damages, including but not limited to loss of expected income and suspension of business activities. z Incorrent use not in compliance with instructions in this instruction specifications and manual. z Malfunctions resulting from misconnection to other equipment. z Repairs or modifications made by the user or caused to be made by the user and carried out by an unauthorized third party. z Notwithstanding the foregoing, Teli’s liabilities shall not, in any circumstances, exceed the purchase price of the product. z About the item which does not have a publication in the specifications and manual of this product, it considers as the outside for a guarantee.

RESTRICTION FOR USE

z Should the equipment be used in the following conditions or environments, give consideration to safelty measures and inform us of such usage:

1. Use of the equipment in the conditions or environment contrary to those specified, or use outdoors.

2. Use of the equipment in applications sxpected to cause potential hazard to people or propety, which require special safety measures to be adopted. z This product can be used under diverse operating conditions. Determination of applicability of equipment or devices concerned shall be determined after analysis or testing as necessary by the designner of such equipment or devices, or personnel related to the specifications. Such designer or personnel shall assure the performance and safety of the equipment or devices. z This product is not designed or manufactured to be used for control of equipment directly concerned with human life (*1) or equipment relating to maintenance of of public services/functions involving factors of safety (*2). Therefore, the product shall not be used for such applications.

(*1): Equipment directly concerned with human life refers to.

- Medical equipment such as life-support systems, equipment for prerating theaters.

- Exhaust control equipment for exhaust gases such as toxic fumes or smoke.

- Equipment mandatory to be installed by various laws and regulations such as the Fire

Act or Building Standard Law

- Equipment related to the above.

(*2) : Equipment relating to maintenance of public services/functions involving factors of safety refers to.

- Traffic control systems for air transportations, railways, roads, or marine transportation

- Equipment for nuclear power generation

- Equipment related to the above

4

D4130891A

CAUTIONS ON USE

z Carefully handle the units.

Do not drop, or give a strong shock or vibration to the camera. This may cause problems. Treat the camera cables carefully to prevent cable problems, such as cable breakdown and loosened connections. z Operating ambient temperature and humidity.

Do not use the camera in places where temperature and humidity exceed the specifications.

Picture quality will lower and internal parts may be damaged.

Be particularly careful when using in places exposed to direct sunlight. When shooting in hot places, depending on the conditions of the object and the camera (for example when the gain is increased), noise in the form of vertical strips or white dots may occur. This is not a malfunction. z Restriction for the lens combination

This camera might form a ghost to image area depending on the combination of a lens and an illumination with this camera. But this is not a failure of this camera. Therefore, please check the combination of the lens and the illumination with this camera when use.

When mounting a lens, take extra caution so that the lens is not tilted, nor does flaw exist at the lens-mount-screw part. Also check to confirm that no dirt nor other foreign object is put inside

Improper mounting might cause the parts to become locked. z Do not shoot under intense light.

Avoid intense light such as spot light on part of the screen because it may cause blooming or smears. If intense light falls on the screen, vertical stripes may appear on the screen, but this is not a malfunction. z Do not expose the camera’s image-pickup-plane to sunlight or other intense light directly.

Its inner CCD (charge-coupled device) might be damaged. z Moire

When thin stripe patterns are shot, stripe patterns that are not actually there (moire) may appears as interference stripes. This is not a malfunction. z Undesirable noise

If the camera or the cables are located near something which emit strong magnetism or near something which emit strong electric wave, undesirable noise may appear on the screen. In such a case, try to change the location of the camera or the cable wiring. z Handling of the protection cap

When the camera is not in use, put a lens-cap onto the camera head for protection of the image-pickup-plane. z When not using the camera for a longtime.

Stop supplying power for safety. z When cleaning the camera

Always turn off the power and clean with a piece of soft dry cloth.

To remove stubborn stains, use a soft cloth soaked in diluted acid-free detergent. Do not use alcohol, benzine, thinner, etc. If used, coating and printed letters may be discolored.

In case the image-pickup-plane should be settled with fine dust, dirt, or scratched, ask your dealer for technical advice. z Wastes of this product should be separated and discarded in compliance with the various national and local ordinances.

5

D4130891A

1. PRODUCT DESCRIPTION

Model CS8560D is an integrated type B/W CCD camera with a VGA format all-pixel-data readout

CCD. This model has twice greater driving frequency of conventional cameras to achieve fast-speed data-processing. The model is suited for high-speed, high-resolution image processing use. Its compact, light-weight body is ideal for system integration.

2. FEATURES

(1) Double-speed scan

This model reads out image-data twice as fast as conventional cameras do.

(2) All pixel's data readout

With its built-in all-pixel-data-readout CCD, this model can read out image-data just in approximately 1/60 sec. A frame-shutter reads out all data even under RTS (Random Trigger

Shutter) mode.

(3) High vertical resolution

As all pixel's data are read out even under RTS mode (in 1/60 sec.), images with no deterioration in vertical resolution are obtained.

(4) Square grid pattern CCD

Pixel's in CCD are aligned in square grid pattern. This makes it easier to perform computation correctly for image processing use.

(5) External Sync.

The camera is switched over to external synchronization operation automatically when external

HD signal is input.

(6) Random trigger shutter function

With a built-in RTS, the camera’s CCD starts light-exposure in synchronization with external trigger signals. This function enables the camera to capture fast-moving subjects at constant position for precise image processing.

(7) Restart / Reset

Under the restart / reset mode, this model can capture images at an arbitrary timing cued by external VD signal.

(8) Multiple shutter

With this shutter, this model capture images at an arbitrary timing cued by external trigger signal, and then outputs video at an arbitrary timing cued by external VD signal.

(9) Partial-scan

Under the partial scan mode, only 1/2 or 1/4 screen center portion of image information is read out, resulting in a faster operation.

(10) Ultra-compact & light-weight camera head

The model features its ultra-compact and light-weight camera head, freeing you from your integration-space-problem. In addition, it has an excellent shock and vibration resistance.

6

D4130891A

3. CONFIGURATION

(1) Camera body··································································· 1

(2) Accessory

Operation Manual(Japanese) ··········································· 1

Operation Manual(English) ············································· 1

4. OPTION UNIT

(1) DC SYNC IN cable ············ Model name : CPRC3700 [2m,3m,5m,10m]

(2) Camera adapter ·················· Model name : CA170

(3) Camera-mounting kit ··········· Model name : CPT8560

(4) Camera-connector fixing hardware

*Contact your dealer / distributor for details of option units.

*Conformity of an option part and EMC conditions

About the conformity of EMC standard of this machine, it has guaranteed in the conditions combined with the above-mentioned option part.

When used combined parts other than specification of our company, I ask you to have final EMC conformity checked of a visitor with a machine and the whole equipment.

5.

OPERATION MODE

(1) GAIN selection (Camera rear-panel SW)

Switches sensitivity setting

(1-1) FIX ------------------- Factory-prefixed gain

(1-2) MANU--------------- Gain is adjustable via the manual gain potentiometer (M.GAIN)

(2) Video output mode selection (Camera rear-panel DIP SW)

Switches video format

(2-1) 1/60: 1/60s ---------- Non-interlace mode

As all pixels are read out in 1/60s, you will get images with the higher V resolution.

(2-2) 1/120: 1/120s ------- 2:1 interlace MIX mode

As vertical pixels are added in readout, the sensitivity is same as that of 1/60s non-interlace mode during electronic shutter OFF.

Twice greater sensitivity is obtained under shutter-speed range of

1/200 – 1/20000.

(3) RTS (Random Trigger Shutter) exposure selection (Camera rear-panel DIP SW)

Switches light exposure mode under RTS mode

(3-1) FIX mode ----------- Rear DIP SW

Exposure-time control via rear-panel DIP switch

(3-2) PULSE W mode---- TRIG signal pulse width control

Exposure-time control via TRIG signal pulse width

7

D4130891A

(4) Shutter mode selection (Camera rear-panel DIP SW or TRIG signal IN [Automatic])

Switches shutter mode

(4-1) NOR mode ---------- Normal electronic shutter

Exposure control via internal sync signal

High-speed shutter: From 1/20,000s through OFF (8 position)

(4-2) RTS mode ----------- Random trigger shutter

Exposure control via ext. trigger or ext. sync input

Timing charts are shown below. (TRIG timing: Positive)

Notes: * RTS selection is automatic with TRIG status

** Neither under FIX nor PULSE W mode, RTS doesn’t work if Electronic shutter speed SW is set in OFF position.

(a)Non-reset mode (Under internal sync / external sync --- Consecutive VD IN)

Exposure starts at the timing of TRIG signal IN. After each exposure is completed, the camera outputs video at each next VD IN timing.

□1/60s Non-interlace

Automatically returns to normal shutter if fixed H level (after approx. 1/6s)

TRIG IN not acceptable for

1V after mode chenge

TRIG IN

(Positive)

INT/EXT VD

CCD Exposure

VIDEO OUT

Exposure time

(E-shutter speed or pulse width)

Outputs VD,V-SYNC

during standby

Outputs video at the next VD timing after exposure

Definite

WEN OUT

(Standard)

WEN OUT

[Option]

Normal shutter Random trigger shutter Normal shutter

□1/120s 2:1 Interlace

Automatically returns to normal shutter if fixed H level (after approx. 1/6s)

TRIG IN not acceptable for

1V after mode chenge

TRIG IN

(Positive)

INT/EXT VD

CCD Exposure

EVEN ODD EVEN ODD EVEN ODD EVEN ODD EVEN ODD EVEN

VIDEO OUT

EVEN image

ODD image

Exposure time

(E-shutter speed or pulse width)

ODD EVEN ODD EVEN

Outputs VD,V-SYNC

during standby

EVEN ODD

ODD image

Outputs video at the next VD timing after exposure

EVEN ODD EVEN

EVEN image

ODD

Definite

EVEN

WEN OUT

(Standard)

WEN OUT

[Option]

Normal shutter Random trigger shutter Normal shutter

8

D4130891A

(b) Non-reset mode (Under external sync --- Single VD IN)

After TRIG IN and exposure, the camera goes into standby until next ext. VD IN.

□1/60s Non-interlace

Automatically returns to normal shutter if fixed H level (after approx. 1/6s)

TRIG IN not acceptable for

1V after mode chenge

TRIG IN

(Positive)

EXT VD

CCD Exposure

Exposure time

(E-shutter speed or pulse width)

VIDEO OUT

Definite

In sync with ext.VD during standby

(No video output)

Outputs video at the next VD timing after exposure

WEN OUT

(Standard)

WEN OUT

[Option]

Normal shutter Random trigger shutter Normal shutter

□1/120s 2:1 Interlace

Video output field (ODD/EVEN) is determined by ext. VD falling edge and ext. HD phase.

Automatically returns to normal shutter if fixed H level (after approx. 1/6s)

TRIG IN not acceptable for

1V after mode chenge

TRIG IN

(Positive)

ODD phase

EVEN phase

ODD phase

EXT VD

*Don’t provide ext. VD IN during exposure.

** After automatic return, fix ext. VD IN at Hi.

ODD EVEN EVEN ODD

CCD Exposure

VIDEO OUT

Exposure time

(E-shutter speed or pulse width)

ODD ODD EVEN

In sync with ext.VD during standby

(No video output)

Outputs video at the next VD timing after exposure

EVEN image

EVEN

ODD image

ODD EVEN

Definite

ODD

WEN OUT

(Standard)

WEN OUT

[Option]

Normal shutter Random trigger shutter Normal shutter

*Don’t provide ext. VD IN during exposure.

** After automatic return, fix ext. VD IN at Hi.

9

D4130891A

(c)V-reset mode (Under internal sync / external sync --- No VD IN)

Exposure starts at the timing of TRIG signal IN. After each exposure is completed, the camera outputs video immediately by resetting VD. (HD is not reset)

□1/60s Non-interlace

Automatically returns to normal shutter if fixed H level (after approx. 1/6s)

TRIG IN not acceptable for

1V after mode chenge

TRIG IN

(Positive)

CCD Exposure

Exposure time

(E-shutter speed or pulse width)

VIDEO OUT

Definite

VD,V-SYNC pause during standby

VD,V-SYNC output for 1V only

WEN OUT

(Standard)

WEN OUT

[Option]

Normal shutter Random trigger shutter Normal shutter

□1/120s 2:1 Interlace

Irrespective of TRIG IN phase, the camera always outputs ODD field image.

Automatically returns to normal shutter if fixed H level (after approx. 1/6s)

TRIG IN not acceptable for

1V after mode chenge

TRIG IN

(Positive)

CCD Exposure

VIDEO OUT

ODD

ODD image

EVEN image

Exposure time

(E-shutter speed or pulse width)

EVEN

VD,V-SYNC pause during standby

ODD image

ODD

VD,V-SYNC output for 1V only

ODD image

ODD

Definite

WEN OUT

(Standard)

WEN OUT

[Option]

Normal shutter Random trigger shutter Normal shutter

(d) SYNC reset mode (Under internal sync)

Exposure starts at TRIG signal input timing, resets HD, and outputs video immediately after exposure by resetting VD.

* Available under FIX mode only.

□1/60s Non-interlace

Automatically returns to normal shutter if fixed H level (after approx. 1/6s)

TRIG IN not acceptable for

1V after mode chenge

TRIG IN

(Positive)

CCD Exposure

Exposure time

(E-shutter speed)

VIDEO OUT

Definite

VD,V-SYNC pause during standby

VD,V-SYNC output for 1V only

WEN OUT

(Standard)

WEN OUT

[Option]

Normal shutter Random trigger shutter Normal shutter

10

D4130891A

□1/120s 2:1 Interlace

Irrespective of TRIG IN phase, the camera always outputs ODD field image.

Automatically returns to normal shutter if fixed H level (after approx. 1/6s)

TRIG IN not acceptable for

1V after mode chenge

TRIG IN

(Positive)

CCD Exposure

VIDEO OUT

ODD image

EVEN image

Exposure time

(E-shutter speed)

ODD EVEN

VD,V-SYNC pause during standby

ODD image

ODD

VD,V-SYNC output for 1V only

ODD image

ODD

Definite

WEN OUT

(Standard)

WEN OUT

[Option]

Normal shutter Random trigger shutter Normal shutter

(4-3) MULTIPLE SHUTTER mode

Multiple shutter operation is available by providing TRIG IN more than one time before ext. VD IN. (Non-reset mode, single VD, consecutive VD IN)

□1/60s Non-interlace

TRIG IN

(Positive)

EXT VD

CCD Exposure

Exposure time

(E-shutter speed or pulse width)

VIDEO OUT

Three exposures are mixed and output here

WEN OUT

(Standard)

WEN OUT

[Option]

□1/120s 2:1 Interlace

Video output field (ODD/EVEN) is determined by ext. VD falling edge and ext. HD phase.

TRIG IN

(Positive)

ODD phase

EVEN phase

EXT VD

CCD Exposure

Exposure time

(E-shutter speed or pulse width)

VIDEO OUT

ODD image

EVEN image

Three exposures are mixed and output here

WEN OUT

(Standard)

WEN OUT

[Option]

11

D4130891A

„ RTS TRIG IN notes

1/60s Non-interlace

INT VD

INT HD

9H

OB

1 2 3 4 5 490 492 494

OB

VIDEO OUT

WEN OUT

(Standard)

1/120s Interlace ODD Field

INT VD

INT HD

9H

OB OB 2

1 3

4

5

6

7

8

9

12

13

16

17

484

485

488

489

492

493

OB

VIDEO OUT

WEN OUT

(Standard)

TRIG invalid period

1/120s Interlace EVEN Field

INT VD

9H

INT HD

Video output time

OB 1

2

3

4

5

6

7

8

11

12

15

16

483

484

487

488

491

492

OB

VIDEO OUT

WEN OUT

(Standard)

TRIG invalid period Video output time

* TRIG becomes invalid even if TRIG (exposure start) is inputted during

TRIG invalid period.

* An image may be affected if TRIG (exposure start) is inputted during

the video output time.

* An imege may not be outputted normally if exposure is terminated during

the video output time.

„ Exposure time delay under RTS

When the RTS is active, both in FIX mode and PULSE W mode, there is a time delay of approximately 1.4 micro s until the start of exposure after the rising edge of TRIG signal

(positive).

„ Exposure time under pulse width mode

Under RTS pulse mode, the exposure time is determined by the pulse width. More exactly, the actual time is the pulse width plus approximately 8.0 micro s.

TRIG IN

Video output time

TRIG invalid period

Pulse width

CCD

Exposure

Exposure delay time = Approximately 1.4 micro s

Exposure time = Pulse width + Approx. 8.0 micro s

12

D4130891A

(5-4) Restart / Reset

The restart / reset function is available with the ext.VD signal. You can get an arbitrary slower shutter speed than normal shutter and random trigger shutter.

Here are some notes;

* The shutter speed (exposure time) is determined by ext. VD signal interval.

** This function is enabled when the rear-panel shutter speed DIP SW is OFF.

*** Supply consecutive HD.

□1/60s Non-interlace

EXT VD IN

CCD Exposure

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

The exposure time is determined by VD interval

□1/120s 2:1 Interlace

Video output field (ODD/EVEN) is determined by ext. VD falling edge and ext. HD phase.

ODD phase

EVEN phase

EXT VD IN

CCD Exposure

ODD image

EVEN image

EVEN

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

ODD

The exposure time is determined by VD interval

13

D4130891A

(5) Partial-scan mode selection (Camera rear-panel DIP SW)

Switches partial-scan mode

Note: Sometimes phenomenon called as “whiteout” occurs at the top of the screen when there is strong incident light entering in the wide area of a CCD, however, this is not a malfunction. If this occurs, reduce the amount of incoming rays.

(5-1)1/2 Partial-scan (Rear-panel SW: #8-OFF, #9-ON) --- Screen center 1/2 readout

□1/60s Non-interlace

Under 1/60s non-interlace mode, only the center portion of 227H out of the total effective lines 494H (excluding BLK time) is read out. Available both under external / internal mode.

130H

227H

137H

High-speed transfer

Normalspeed transfer

High-speed transfer

227H

Normalspeed transfer

■Under normal shutter (Electronic shutter OFF)

Notes: * Under ext. sync, the ext. VD should be 1V = 262H.

** Under normal shutter, set the rear-panel DIP SW #6, #7 in OFF.

131 357 131 357

<V-reset>

VIDEO OUT

21H

V BLK

(Include

High-speed transfer)

227H

VIDEO output time

14H

Highspeed transfer

262H

3H 3H

WEN OUT

(Standard)

WEN OUT

[Option]

3H

■Under other shutter modes

131

3H

262H

357

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

21H

V BLK

(Include

High-speed transfer)

3H

4H

14

3H

3H

<Non-reset>

227H

VIDEO output time

*2

*1:Arbitrary under ext.sync

*2:See "7.TIMING CHART (4)WEN timing".

14H

Highspeed transfer

(263H)

*1

3H

D4130891A

□1/120s 2:1 Interlace

Under 1/120s interlace mode, only the center portion of 207H out of the total effective lines 485H (excluding BLK time) is read out. Available both under external / internal mode.

ODD Field

73H

High-speed trasfer

103H

Normalspeed transfer

66.5H

High-speed transfer

103H

Normalspeed transfer

EVEN Field

72.5H

High-speed transfer

104H

Normalspeed transfer

104H

Normalspeed transfer

66H

High-speed transfer

■Under normal shutter (Electronic shutter OFF)

Notes: * Under ext. sync, the ext. VD should be 1V = 131.5H.

** Under normal shutter, set the rear-panel DIP SW #6, #7 in OFF.

154

155

ODD image

358

359

153

154

EVEN image

359

360

<V-reset>

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

21H

V BLK

(Include

High-speed transfer)

103H

VIDEO output time

131.5H

7H

Highspeed transfer

0.5H

20.5H

V BLK

(Include

High-speed transfer)

104H

VIDEO output time

7H

Highspeed transfer

131.5H

9H 8.5H

9H

9H 8.5H

9H

15

D4130891A

■Under other shutter modes

154

155

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

21H

V BLK

(Include

High-speed transfer)

9H

10H

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

20.5H

V BLK

(Include

High-speed transfer)

8.5H

9.5H

153

154

ODD image

103H

VIDEO output time

*2

EVEN image

358

359

<Non-reset>

359

360

7H

Highspeed transfer

(131.5H)

*1

8.5H

104H

VIDEO output time

7H

Highspeed transfer

(132H)

*1

9H

*2

*1:Arbitrary under ext.sync

*2:See "7.TIMING CHART (4)WEN timing".

16

D4130891A

(5-2)1/4 Partial-scan (Rear-panel SW: #8-ON, #9-ON) --- Screen center 1/4 readout

□1/60s Non-interlace

Under 1/60s non-interlace mode, only the center portion of 81H out of the total effective lines 494H (excluding BLK time) is read out. Available both under external / internal mode.

200H

High-speed transfer

81H

Normalspeed transfer

81H

Normalspeed transfer

213H

High-speed transfer

■Under normal shutter (Electronic shutter OFF)

Notes: * Under ext. sync, the ext. VD should be 1V = 131H.

** Under normal shutter, set the rear-panel DIP SW #6, #7 in OFF.

201 281 201 281

<V reset>

VIDEO OUT

28H

V BLK

(Include

High-speed transfer)

81H

Video output time

22H

High

-speed transfer

131H

3H

3H

WEN OUT

(Standard)

WEN OUT

[Option]

3H

■Under other shutter modes

201

3H

131H

281

<Non-reset>

3H

3H

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

28H

V BLK

(Include

High-speed transfer)

3H

4H

81H

Video output time

22H

High

-speed transfer

(394H)

*1

3H

*2

*1:Arbitrary under ext.sync

*2:See "7.TIMING CHART (4)WEN timing".

17

D4130891A

□1/120s 2:1 Interlace

Under 1/120s interlace mode, only the center portion of 61H out of the total effective lines 485H (excluding BLK time) is read out. Available both under external / internal mode.

ODD Field

30H

Normalspeed transfer

103H

High-speed transfer

30H

Normalspeed transfer

109.5H

High-speed transfer

EVEN Field

102.5H

High-speed transfer

31H

Normalspeed transfer

109H

High-speed transfer

31H

Normalspeed transfer

■Under normal shutter (Electronic shutter OFF)

Notes: * Under ext. sync, the ext. VD should be 1V = 65.5H.

** Under normal shutter, set the rear-panel DIP SW #6, #7 in OFF.

214

215

ODD image

272

273

213

214

EVEN image

273

274

<V reset>

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

24H

V BLK

(Include

High-speed transfer)

30H

Video output time

65.5H

11H

High

-speed transfer

0.5H

23.5H

V BLK

(Include

High-speed transfer)

31H

Video output time

11H

High

-speed transfer

65.5H

9H

9H

8.5H

8.5H

9H

9H

18

D4130891A

■Under other shutter modes

214

215

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

24H

V BLK

(Include Highspeed transfer)

9H

10H

213

214

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

23.5H

V BLK

(Include Highspeed transfer)

8.5H

9.5H

ODD image

30H

Video output time

*2

EVEN image

272

273

<Non-reset>

11H (197.5H)

*1

High

-speed transfer

8.5H

273

274

31H

Video output time

11H

High

-speed transfer

(197H)

*1

9H

*2

*1:Arbitrary under ext.sync

*2:See "7.TIMING CHART (4)WEN timing".

19

D4130891A

(5-3) Programmable partial [Option]

By designating the high-speed transfer portion with external PARTIAL signal input, the camera read out only the portion of CCD area necessary for your application. This is available under ext. sync.

EXT VD

EXT HD

PARTIAL PULSE

VIDEO OUT a(H)

[ *1 ]

1(H)

10 Line n(H) Total line = n(H) x 10 line

Start

High-speed trans. n(H)

[*1] a(H)

Finish

1/60s non-interlace

6.0

2(H)

BLK trans. 2(H) Normal-speed

1/120s Interlace

1st field 2nd field

12.0

11.5

(Conditions) z The starting point of external partial signal is [

*

1] from the falling edge of ext. VD. z The external partial signal is controlled at each ext. HD falling edge. Set the start / finish of the external partial signal in 1H increments. z The number of 1H high-speed transfer line is 10 lines. The actual lines are determined by the external partial signal “hi” period. (Minimum: 2H = 20 lines) z Set video output time more than 30H. And high-speed transfer time (the external partial signal “hi” period) before video output time is is as follows; from 2H through 22H under 1/60s non-interlace mode from 2H through 11H under 1/120s interlace mode z After high-speed transfer, 2H is allocated to blank transfer period. Normal transfer starts at the next line. z VIDEO OUT vertical blanking is;

V. blanking = [

*

1](H) + n(H) + BLK transfer [2(H)] – 1H

Example follows below.

(High-speed 2H = 20 lines (minimum), Normal-speed 70 lines + BLK 2H)

Note: Items shown as [Option] in this document is not included in your purchase as standard components. Contact our dealer / distributor for details.

20

D4130891A

□1/60s Non-interlace

OB 2ライン

The timing is as follows;

EXT.VD

1H

10H

68H

High-speed transfer

Normalspeed transfer

416H

High-speed transfer

1

VIDEO OUT

(Normal scan)

20H

V BLK

WEN OUT

(Standard)

3H

70H

Partial Pulse

2H

6H

11

VIDEO OUT

(Partial scan)

WEN OUT

(Standard)

WEN OUT

(Normal shutter mode)

[Option]

WEN OUT

(Other shutter mode)

[Option]

9H

V BLK

3H

4H

68H

VIDEO OUT

494H

78

494

*2

(448H)

*1

*3

*1:Arbitrary under ext.sync.

*2:Partial over actual line is OK.

*3:See "7.TIMING CHART (4)WEN Timing".

68H

Normalspeed transfer

21

D4130891A

□1/120s 2:1 Interlace, ODD field

OB 2ライン

13H

68H

High-speed transfer

Normalspeed transfer

161.5H

High-speed transfer

The timing is as follows;

ODD Feild

EXT.VD

1H

VIDEO OUT

(Normal scan)

WEN OUT

(Standard)

9H

20H

V BLK

8

9

Partial Pulse

12H

2H

34

35

VIDEO OUT

(Partil scan)

WEN OUT

(Standard)

WEN OUT

(Normal shutter mode)

[Option]

WEN OUT

(Other shutter mode)

[Option]

9H

15H

V BLK

10H

70H

68H

VIDEO OUT

242.5H

168

169

*2

(179.5H)

*1

*3

*1:Arbitrary under ext.sync.

*2:Partial over actual line is OK.

*3:See "7.TIMING CHART (4)WEN Timing" .

492

493

68H

Normalspeed transfer

22

D4130891A

□1/120s 2:1 Interlace, EVEN field

OB 2ライン

12.5H

68H

High-speed transfer

Normalspeed transfer

162H

High-speed transfer

68H

Normalspeed transfer

The timing is as follows;

EVEN Feild

EXT.VD

1H

VIDEO OUT

(Normal scan)

WEN OUT

(Standard)

8.5H

20H

V BLK

7

8

242.5H

491

492

Partial Pulse

11.5H

2H

70H

*2

33

34

167

168

VIDEO OUT

(Partial scan)

14.5H

V BLK

68H

VIDEO OUT

(180H)

*1

WEN OUT

(Standard)

8.5H

WEN OUT

(Normal shutter mode)

[Option]

WEN OUT

(Other shutter mode)

[Option]

9.5H

*3

*1:Arbitrary under ext.sync.

*2:Partial over actual line is OK.

*3:See "7.TIMING CHART (4)WEN Timing".

Note: Items shown as [Option] in this document is not included in your purchase as standard components. Contact our dealer / distributor for details.

23

D4130891A

6. SPECIFICATIONS

[Basic spec]

(1) Image sensor

Total pixels

Active pixel

Video output pixels

Scanning area

Unit cell size

(2) TV system

(3) Scanning lines

(4) Interlace

(5) Sync system

(6) Aspect ratio

(7) Video output

(8) Resolution

All Pixel’s Data Read-out Interline CCD

692(H) x 504(V)

659(H) x 494(V)

648(H) x 494(V) (Under non-interlace)

4.88(H) x 3.66(V) mm (=Equivalent to 1/3 type CCD size)

7.4(H) x 7.4(V) micro m (Square-grid array)

Special format (Non-conforming to EIA)

525 lines

1/60s Non-interlace mode

1/120s 2:1 Interlace mode

Switching via rear-panel DIP SW

Internal/External automatic switch-over

4:3

VS 1.0V(p-p) / 75Ω, DC coupled, 1 line (AC as [Option])

485 TV lines(H)

485 lines (350 TV lines)(V)

(9) S/N

(10) Illumination

(11) Gain

Standard: 52dB(p-p)/rms (Initial factory setting)

Standard 400 lx (F5.6)

Minimum 4 lx (F1.4) (GAIN MAX, Approx. 50% video output)

FIX (Fixed) gain: Factory-shipped preset level

(12) Gamma correction

(13) White-clip level

(14) Power source

MANU (Manual) gain: Setting through GAIN VR

FIX / MANU switching via rear-panel DIP SW

Gamma = 1 (Fixed)

Approx. 840mV(p-p) (Excluding SYNC)

DC12V

±10%

Ripple voltage: 50mV(p-p) or less

(15) Power consumption Approx. 1.5W

[Internal sync spec]

(1) Base clock frequency 24.545MHz (1CLK)

±200ppm

(2) H sync frequency

(3) V sync frequency

31.468kHz (1H = 780CLK)

59.94Hz (Under non-interlace)

119.88Hz (Under 2:1 interlace)

Note: Items shown as [Option] in this document is not included in your purchase as standard components. Contact our dealer / distributor for details.

24

D4130891A

[External sync spec]

(1) Ext. sync input signal HD/VD

(2) Input impedance 75-ohm / High impedance 10k-ohm (switching via rear-panel SW)

(Initial factory setting: High)

(3) Input level

(4) Interlace

(5) Polarity

(6) Pulse width

From 2 through 5V (p-p) under high impedance input

From 2 through 4V (p-p) under 75-ohm input

1/60s non-interlace or 1/120s 2:1 interlace

Negative

(7) Repeating frequency

(8) Phase difference

HD: 3.2 +/- 1 micro s (LOW)

VD: From 125 through 400 micro s (LOW) f

H

= 31.468kHz +/- 1% f

V

= f

H

/262.5 or f

H

/525

HD/VD: 0 +/- 5.0 micro s, 1/f

H

/2 +/- 5.0 micro s

[Shutter trigger spec]

(1) Input level

(2) Input impedance

(3) Capture timing

(4) Pulse width

Exposure-starting-cue signal in random trigger shutter mode

LOW level: From 0 through 0.5V(p-p)

HIGH level: From 4 through 5V(p-p)

High impedance (10k-ohm)

Rising edge detection (Positive)

(Falling edge detection (Negative) as [Option])

Minimum 2 micro s

Maximum 1/8s

[Sync signal spec]

(1) Readout signal

(2) Polarity

(3) Pulse width

WEN readout timing pulse

Negative (Positive under VIDEO output mode [Option])

1H output (Available under VIDEO output mode [Option])

VIDEO OUT

WEN OUT

(1H)

NEGA

WEN OUT

(VIDEO output)

[Option]

POSI

(4) Output circuit

* Set WEN termination to be high impedance.

WEN

100

5V

50

WEN OUT

Note: Items shown as [Option] in this document is not included in your purchase as standard components. Contact our dealer / distributor for details.

25

D4130891A

[Electronic shutter spec]

(1)Normal shutter Shutter-speed setting via rear-panel SW (Initial: OFF)

8 steps switch-able (= OFF, 1/200s, 1/500s, 1/1000s, 1/2000s, 1/4000s,

1/8000s, 1/20000s)

(2)RTS

(a)Operation mode

No.

1

Reset Exposure Sync

Internal

2

3

4

Non-reset

Rear SW

(FIX mode)

Consecutive HD / Consecutive VD IN

Consecutive HD / Single VD IN

Internal

5

TRIG pulse width

(PULSE width mode)

Consecutive HD / Consecutive VD IN

6 Consecutive HD / Single VD IN

7 Internal

8

V-reset

Rear SW

(FIX mode)

Consecutive HD IN

9 SYNC reset

10

11

V reset

TRIG pulse width

(PULSE width mode)

Internal

Internal

Consecutive HD IN

(b)Multiple shutter

Notes : * RTS mode automatically switches over through TRIG IN

**RTS disabled under Electronic shutter OFF

Multiple shutter via ext. trigger signal and ext. VD signal

Notes : * Operation like No.3, 6 above

(3)Restart / Reset Restart / reset available via ext. VD signal

(Switching via rear panel DIP SW, Initial OFF)

Notes : * The exposure-time (shutter-speed) is determined by ext.

VD interval.

** Enabled when rear-panel DIP SW OFF.

***Provide Consecutive HD.

[Partial scan]

(1)Operation mode

No Scan mode

1

2

1/2 partial

3

Sync

Internal

Reset E-shutter Normal

Non-reset Enabled [Option]

V-reset Disabled

4

5

Consecutive HD VD IN Non-reset Enabled [Option]

Consecutive HD (VD) IN V-reset Disabled

Internal

Non-reset Enabled [Option]

V-reset Disabled 6

7

1/4 partial

8

Consecutive HD VD IN Non-reset Enabled [Option]

Consecutive HD (VD) IN V-reset Disabled

9 Programmable Consecutive HD VD IN Non-reset Enabled [Option]

E-shutter RTS

Enabled

Enabled

Enabled

Enabled

Enabled [Option]

Note: Items shown as [Option] in this document is not included in your purchase as standard components. Contact our dealer / distributor for details.

26

D4130891A

(2) Reset mode

As shown in (1) above, non-reset and V-reset is available.

([Option]: Doesn’t come as standard. Contact our dealer / distributor for details)

(a) non-reset (Electronic shutter enabled)

VD doesn’t get reset after video readout. The interval of VD signal is as follows.

VIDEO OUT

1/60s non-interlace

1/120s interlace

1/2 partial scan 1/4 partial scan

525H

262.5H

525H

262.5H

Partial A

VD Interval

Partial B Partial C

*Note: Under normal shutter mode, when non-reset is selected on partial scan, electronic shutter is valid.

Please note that the exposure time is shortened than the setting value when the external VD is input at shorter than the above VD interval.

(b) V-reset (Electronic shutter disabled)

VD does get reset after video readout. Under internal sync, the interval of VD signal is as follows.

VIDEO OUT

1/60s non-interlace

1/120s interlace

1/2 partial scan 1/4 partial scan

262H

131.5H

131H

65.5H

Partial A Partial B Partial C Partial D Partial E

VD interval

(3) Partial signal [Option]

Programmable mode input signal

(a) Input level LOW level: From 0 through 0.5V

HIGH level: From 4 through 5V

(b) Input impedance High impedance (10k

Ω)

(c) Polarity Positive (Hi: High-speed transfer)

Note: Items shown as [Option] in this document is not included in your purchase as standard components. Contact our dealer / distributor for details.

27

D4130891A

[Mechanical spec]

(1) External dimension

(2) Weight

(3) Lens mount

(4) GND / insulation

29 x 29 x 39.5(D) mm (Not including protrusion)

Refer to the attached external view drawing

Approximately 42g

C mount

Circuit GND - Chassis electrically conducted

[Ambient condition]

(1)Environment condition

Performance guaranteed Temperature: From 0 through 40

°C

Humidity: From 30 through 90 % (No condensing)

Operation guaranteed Temperature: From -5 through 45

°C

Storage

Humidity: From 10 through 90 % (No condensing)

Temperature: From -20 through 60

°C

Humidity: From 10 through 90 % (No condensing)

(2)EMC conditions (Electro-Magnetic Compatibility)

EMI (Electro-Magnetic Interference)

EN61000-6-4 Conformity

EMS (Electro-Magnetic Susceptibility)

EN61000-6-2 Conformity

*Conformity of EMC conditions

About the conformity of the EMC standard of this machines, it has guaranteed in the conditions combined with the option part of 4th clause.

When used combining parts other than specification of our company, I ask you to have final EMC conformity checked of a visitor with a machine and the whole equipment.

28

D4130891A

[Connector pin assignment]

(1) Compatible connector HR10A-10P-12S (Supplied by HIROSE ELEC.)

(2) Pin assignment

Connector pin layout

⑪ ⑫

Picture Rear-panel camera connector

(Rear-view)

12 pin male

Pin

No.

Signal

(Standard)

2 DC12V

Signal

[Option]

8 TRIG NC

10 WEN GND

11 TRIG NC

Notes : *Before connecting / disconnecting the connector, make sure the camera power is OFF.

**For board connection, check compatibility.

Note: Items shown as [Option] in this document is not included in your purchase as standard components. Contact our dealer / distributor for details.

29

D4130891A

[Switch setting]

(1) CCU rear-panel DIP SW

No.

Function

1

GAIN selection

(GAIN)

2

3

4

E-shutter-speed

(SHUT)

5

8

9

6

7

0

Video output mode (VIDEO)

Shutter mode

(SMODE)

Partial scan

(PART)

RTS Exposure

(EXP)

OFF

Factory-set

GAIN

ON

Manual GAIN adjustable via GAIN

See shutter-speed table (Table 1)

1/60s non-interlace

See shutter-mode table (Table 3)

See partial-scan table (Table 2)

FIX mode

1/120s interlace

PULSE W mode

Notes: * Initial factory setting: All OFF

(Table 1) Electronic shutter-speed

Shutter-speed No.2

No.3

No.4

OFF

1/200s

1/500s

1/1,000s

1/2,000s

1/4,000s

1/8,000s

1/20,000s

OFF OFF OFF

ON

ON

OFF

OFF ON

ON

OFF

OFF

OFF

OFF OFF ON

ON OFF ON

OFF ON ON

ON ON ON

(Table 2) Partial-scan

Partial scan No.8 No.9

OFF OFF OFF

Not acceptable ON OFF

1/2 partial OFF ON

1/4 partial ON ON

Notes :

*Don’t set Electronic shutter-speed in OFF under RTS mode.

(Table 3) Shutter-mode

Shutter mode

Random

V reset

SYNC reset trigger

Random trigger

Non-reset

Not acceptable

Non-reset

(Multiple shutter)

Non-reset

V reset

Restart / Reset

No.6 No.7

OFF OFF

ON OFF

OFF ON

ON ON

SYNC

Internal sync

OFF OFF Single VD

ON OFF Consecutive VD

OFF ON No VD

ON ON Single VD

Ext. sync

HD IN

Notes :

* Under normal shutter mode partial-scan, set No.6,7 in OFF.

**Under PULSE W mode, SYNC reset is disabled.

GAIN

SHUT

VIDEO

SMODE

PART

EXP

5

6

3

4

1

2

9

0

7

8

(2)CCU rear-panel SW

Function SW

Ext. SYNC IN impedance

(HD/VD)

HIGH HIGH impedance (Initial factory setting)

75

Ω 75Ω

O

N

30

D4130891A

[Relative Spectrum Response]

*Including lens characteristics, Excluding light source characteristics

[Optical black characteristics]

2

Effective

Image Area

V

494 504

8

2

659

692

H

Device structure

Total pixels : 692(H) x 504(V)

Effective pixels : 659(H) x 494(V)

Optical black

Horizontal : 2pixels --- 31pixels

Vertical : 8pixels --- 2pixels

31

31

D4130891A

7. TIMING CHART

(1)H rate timing

78CLK (3

32

D4130891A

(2) 1/60s Non-interlace mode

EXT VD IN

1H delay

INT VD

9H

INT HD

VIDEO

OUT

WEN OUT

(Standard)

1H

V.Blanking

20H

OB OB OB OB OB OB OB OB

Ext. VD – Ext. HD phase difference

1 2 3 492 493 494

OB OB

EXT VD IN

EXT HD IN

TP2

TP1

INT VD

TP1 : 10.0 us

TP2 : 5.0 us

1H

33

D4130891A

(3) 1/120s 2:1 Interlace mode

ODD (1st field)

EXT VD IN

1H delay

INT VD

INT HD

VIDEO OUT

487 489 491

488 490 492

493

494

OB

OB

WEN OUT

(Standard)

EVEN (2nd field)

EXT VD IN

INT VD

INT HD

VIDEO OUT

WEN OUT

(Standard)

1H delay

486 488 490

487 489 491

492

493

494

OB

OB

9H

9H

1H

1H

OB

OB

OB

OB

OB

OB

OB

OB

1

2

3

V. Blanking

20H

OB

OB

OB

OB

OB

OB

OB

OB

1

2

V. Blanking

20H

Ext. VD – Ext. HD phase difference

3

4

4

5

5

6

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

EXT VD IN (1) (2)

EXT HD IN

TP3

TP1

TP3

INT VD

TP2

INT VD

(1) ODD

(2) EVEN

TP1 : ODD reset range

TP2 : EVEN reset range

TP3 : 5.0 us

10.0 us

10.0 us

34

D4130891A

(4) WEN timing

(a)Normal shutter mode

<1/60s Non interlace mode>

Under normal scan mode

9H

INT VD

VIDEO OUT

(Normal scan)

V.Blanking

WEN OUT

(Standard)

1H

WEN OUT

[Option]

4H

OB

1 2

521H

494

OB

3H

Under partial scan V-reset mode (Standard)

9H

INT VD

High-speed transfer

VIDEO OUT

(Partial scan)

V.Blanking

OB

WEN OUT

(Standard)

WEN OUT

[Option]

4H

1H

*

3H

* 1/2 partial scan : 258H

1/4 partial scan : 127H

V.Blanking

Under partial scan Non-reset mode [Option]

9H

INT VD High-speed transfer

VIDEO OUT

(Partial scan)

V.Blanking

OB

WEN OUT

(Standard)

WEN OUT

[Option]

4H

1H

521H

V.Blanking

3H

V.Blanking

35

D4130891A

<1/120s Interlace mode ODD Field>

Under normal scan mode

9H

INT VD

VIDEO OUT

(Normal scan)

V.Blanking

WEN OUT

(Standard)

WEN OUT

[Option]

10H

1H

8

9

492

493

OB

252.5H

Under partial scan V-reset mode (Standard)

9H

INT VD

High-speed transfer

VIDEO OUT

(Partial scan)

V.Blanking

OB

WEN OUT

(Standard)

WEN OUT

[Option]

10H

1H

*

494

OB

V.Blanking

8.5H

* 1/2 partial scan : 121.5H

1/4 partial scan : 55.5H

Under partial scan Non-reset mode [Option]

9H

INT VD

High-speed transfer

VIDEO OUT

(Partial scan)

V.Blanking

WEN OUT

(Standard)

WEN OUT

[Option]

10H

1H

252.5H

OB

494

OB

V.Blanking

8.5H

V.Blanking

8.5H

<1/120s Interlace mode EVEN Field>

Under normal scan mode

9H

INT VD

VIDEO OUT

(Normal scan)

V.Blanking

WEN OUT

(Standard)

WEN OUT

[Option]

9.5H

1H

7

8

253H

491

492

OB

OB

Under partial scan V-reset mode (Standard)

9H

INT VD

High-speed transfer

VIDEO OUT

(Partial scan)

V.Blanking

WEN OUT

(Standard)

WEN OUT

[Option]

9.5H

1H

*

* 1/2 partial scan : 122H

1/4 partial scan : 56H

OB

OB

9H

V.Blanking

Under partial scan Non-reset mode [Option]

9H

INT VD

High-speed transfer

VIDEO OUT

(Partial scan)

V.Blanking

OB

OB

WEN OUT

(Standard)

WEN OUT

[Option]

9.5H

1H

253H

V.Blanking

9H

V.Blanking

9H

36

D4130891A

(b)RTS Non-reset mode (Consecutive VD)

<1/60s Non interlace mode>

Under normal scan mode

9H

INT VD

OB

1 2

VIDEO OUT

(Normal scan)

V.Blanking

WEN OUT

(Standard)

1H

WEN OUT

[Option]

4H

Under partial scan mode

9H

INT VD

VIDEO OUT

(Partial scan)

V.Blanking

WEN OUT

(Standard)

1H

WEN OUT

[Option]

4H

<1/120s Interlace mode ODD Field>

521H

521H

High-speed transfer

OB

Under normal scan mode

9H

INT VD

VIDEO OUT

(Normal scan)

V.Blanking

WEN OUT

(Standard)

WEN OUT

[Option]

10H

1H

8

9

252.5H

Under partial scan mode

9H

INT VD

VIDEO OUT

(Partial scan)

V.Blanking

WEN OUT

(Standard)

WEN OUT

[Option]

1H

10H

<1/120s Interlace mode EVEN Field>

High-speed transfer

OB

494

OB

252.5H

Under normal scan mode

9H

INT VD

7

8

VIDEO OUT

(Normal scan)

V.Blanking

WEN OUT

(Standard)

WEN OUT

[Option]

1H

253H

9.5H

Under partial scan mode

9H

INT VD

VIDEO OUT

(Partial scan)

V.Blanking

WEN OUT

(Standard)

WEN OUT

[Option]

9.5H

1H

High-speed transfer

OB

OB

253H

494

OB

492

493

OB

491

492 OB

OB

9H

V.Blanking

9H

V.Blanking

8.5H

8.5H

3H

3H

V.Blanking

V.Blanking

V.Blanking

37

D4130891A

(c)RTS Non-reset mode (Single VD) / V-reset mode / SYNC-reset mode

<1/60s Non interlace mode>

Under normal scan mode

9H

INT VD

OB

1 2

494

OB

VIDEO OUT

(Normal scan)

V.Blanking

WEN OUT

(Standard)

1H

WEN OUT

[Option]

521H 3H

4H

Under partial scan mode

9H

INT VD

VIDEO OUT

(Partial scan)

V.Blanking

High-speed transfer

OB

WEN OUT

(Standard)

1H

WEN OUT

[Option]

4H

*

* 1/2 partial scan : 258H

3H

1/4 partial scan : 127H

Programable partial scan : Arbitrary [Option]

<1/120s Interlace mode ODD Field>

Under normal scan mode

9H

INT VD

VIDEO OUT

(Normal scan)

V.Blanking

WEN OUT

(Standard)

WEN OUT

[Option]

10H

1H

8

9

252.5H

492

493

OB

8.5H

Under partial scan mode

9H

INT VD

High-speed transfer 494

OB OB

VIDEO OUT

(Partial scan)

V.Blanking

WEN OUT

(Standard)

1H

WEN OUT

[Option]

*

8.5H

10H

* 1/2 partial scan : 121.5H

1/4 partial scan : 55.5H

Programable partial scan : Arbitrary [Option]

<1/120s Interlace mode EVEN Field>

*Under Non-reset mode (Single VD) only.

Under normal scan mode

9H

INT VD

VIDEO OUT

(Normal scan)

V.Blanking

WEN OUT

(Standard)

WEN OUT

[Option]

9.5H

1H

7

8

253H

491

492 OB

OB

V.Blanking

9H

V.Blanking

Under partial scan mode

9H

INT VD

VIDEO OUT

(Partial scan)

V.Blanking

WEN OUT

(Standard)

WEN OUT

[Option]

9.5H

1H

High-speed transfer

OB

OB

*

9H

* 1/2 partial scan : 122H

1/4 partial scan : 56H

Programable partial scan : Arbitrary [Option]

V.Blanking

38

D4130891A

(d)Restart / reset mode

<1/60s Non interlace mode>

Under normal scan mode

9H

INT VD

VIDEO OUT

(Normal scan)

V.Blanking

WEN OUT

(Standard)

1H

WEN OUT

[Option]

4H

OB

1 2

521H

Under partial scan mode

9H

INT VD

VIDEO OUT

(Partial scan)

V.Blanking

WEN OUT

(Standard)

1H

WEN OUT

[Option]

4H

<1/120s Interlace mode ODD Field>

Under normal scan mode

9H

INT VD

VIDEO OUT

(Normal scan)

V.Blanking

WEN OUT

(Standard)

WEN OUT

[Option]

10H

1H

8

9

High-speed transfer

OB

521H

252.5H

Under partial scan mode

9H

INT VD

VIDEO OUT

(Partial scan)

V.Blanking

WEN OUT

(Standard)

WEN OUT

[Option]

1H

10H

<1/120s Interlace mode EVEN Field>

High-speed transfer

OB

494

OB

252.5H

Under normal scan mode

9H

INT VD

VIDEO OUT

(Normal scan)

V.Blanking

WEN OUT

(Standard)

WEN OUT

[Option]

9.5H

1H

Under partial scan mode

9H

INT VD

VIDEO OUT

(Partial scan)

V.Blanking

WEN OUT

(Standard)

WEN OUT

[Option]

9.5H

1H

7

8

253H

High-speed transfer OB

OB

253H

494

OB

492

493

OB

491

492 OB

OB

8.5H

V.Blanking

8.5H

9H

V.Blanking

9H

3H

3H

V.Blanking

39

D4130891A

8. EXTERNAL-VIEW DRAWING

40

D4130891A

Head Office: 7-1, 4 chome, Asahigaoka, Hino-shi, Tokyo, 191-0065, Japan

(Overseas Sales Department)

Phone: +81-42-589-8771 Fax: +81-42-589-8774

URL: http://www.toshiba-teli.co.jp

The design and specification is subject to change without notice.

41

D4130891A

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
