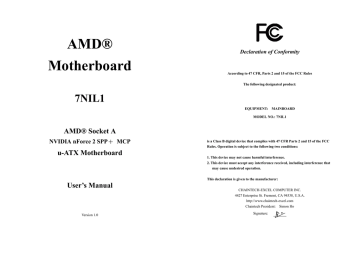

AMD®

Motherboard

7NIL1

AMD® Socket A

NVIDIA nForce 2 SPP＋ MCP

u-ATX Motherboard

User’s Manual

Version 1.0

Declaration of Conformity

According to 47 CFR, Parts 2 and 15 of the FCC Rules

The following designated product:

EQUIPMENT: MAINBOARD

MODEL NO.: 7NIL1

is a Class B digital device that complies with 47 CFR Parts 2 and 15 of the FCC

Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

This declaration is given to the manufacturer:

CHAINTECH-EXCEL COMPUTER INC.

4427 Enterprise St. Fremont, CA 94538, U.S.A. http://www.chaintech-excel.com

Chaintech President: Simon Ho

Signature:

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:

* This device may not cause harmful interference.

* This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If this equipment is not installed and used in accordance with the manufacturer's instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

* Reorient or relocate the receiving antenna.

* Increase the separation between the equipment and receiver.

* Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

* Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for audio noise emissions from digital apparatuses set out in the Radio Interference Regulations of the Canadian Department of Communications.

Manufacturer's Disclaimer Statement

The information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to the content of this document and/or the products associated with it at any time without obligation to notify any person or organization of such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. This document contains materials protected by copyright. All rights are reserved. No part of this manual may be reproduced or transmitted in any form, by any means or for any purpose without expressed written consent of it's authors. Product names appearing in this document are mentioned for identification purposes only. All trademarks, product names or brand names appearing in this document are registered property of their respective owners.

Printed in Taiwan.

100%

Oct 2002

OST-CONSUMER

RECYCLED PAPER

TABLE OF CONTENTS

Chapter 1 Introduction ............................................................. 1

1-1 Product Specifications .....................................................................................1

1-2 Package Contents.............................................................................................2

1-3 7NIL1 Motherboard Diagram..........................................................................3

1-4 7NIL1 Motherboard Layout ............................................................................4

Chapter 2 Hardware Setup....................................................... 5

2-1 Installing a CPU Processor for Socket A.........................................................5

2-2 Setting Your CPU’s Performance: ...................................................................6

2-3 Main Memory Configuration...........................................................................8

2-4 Connector and Jumper Reference Chart..........................................................9

2-5 Connector and Jumper Settings .....................................................................10

Chapter 3 BIOS Setup Program ............................................24

3-1 Standard CMOS Features ..............................................................................25

3-2 Advanced BIOS Features ..............................................................................26

3-3 Advanced Chipset Features ...........................................................................29

3-4 Integrated Peripherals ....................................................................................32

3-5 Power Management Setup .............................................................................35

3-6 PNP/PCI Configurations................................................................................38

3-7 PC Health Status............................................................................................39

3-8 Frequency/Voltage Control............................................................................40

3-9 Load Fail-Safe Defaults.................................................................................41

3-10 Load Optimized Defaults.............................................................................41

3-11 Supervisor Password & User Password Setting...................................................41

3-12 Save and Exit Setup.....................................................................................42

3-13 Exit Without Saving ....................................................................................42

Chapter 4 DRIVER Setup.......................................................43

4-1 Nvidia Driver Package Setup ........................................................................43

4-2 Audio driver...................................................................................................46

4-3 USB 2.0 Driver Setup....................................................................................50

Chapter 5 How to update your BIOS? ..................................51

Chapter 1

Chapter 1 Introduction

1-1 Product Specifications

Processor

- Supports AMD Socket A Duron / Athlon / XP processors.

- System Clock supports 200 / 266 / 333 MHz Front Side Bus

Chipset

- NVIDIA nForce2 SPP + MCP.

Main Memory

- Supports three 184-pin DDR DIMM sockets up to 3GB.

- Supports PC1600/DDR200, PC2100/DDR266, PC2700/DDR333 and

PC3200/DDR400 Dual-Channel DDR modules.

Expansion Slots

- One Universal - AGP slot for both 4X / 8X AGP.

- Three 32 - bit PCI slots (v 2.2 compliant).

4 Channel audio subsystem via AC-Link

- With external high quality Cmedia9738 4 Channels AC’97 Codec.

- Complete software driver supports for Windows® OS.

Ultra DMA – 66/100/133 PCI IDE controller

- Supports two IDE ports up to 4 ATAPI devices.

- Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 66MBps, Multi

Word Mode 5 up to 100MBps and Multi Word Mode 6 up to 133MBps with bus mastering.

- Bus Mastering software drivers for all common multi-task operating systems.

USB 2.0/1.0 Host Controller

- One EHCI USB 2.0 Controller and 2 UHCI USB 1.1 Controllers.

- Six USB ports (EHCI/UHCI v1.1 compliant) with over current protection.

- Optional USB adapter for additional USB2.0/1.1 ports.

On board Super I/O Controller

- ITE 8712 LPC I/O with system monitors hardware.

- Two UARTs support serial ports and IR function (up to 115.2Kbps) for HPSIR and

ASKIR.

- One SPP/ECP/EPP parallel port.

1 2

Chapter 1

- One floppy disk drive connector supports up to 2.88MB.

-

Integrates smart card reader function and interface, to be qualified for meeting

PC/SC standard.

Fast Ethernet/Home Networking Controller with MII Interface

- Support 10/100Mb Fast Ethernet or 1/10Mb HomePNA 2.0 with External PHY.

Embedded System Monitor Hardware

- 8 external voltage inputs.

- 1 temperature sensor for CPU.

- 1 Fan speed (CPU) monitoring with ON/OFF control in suspend.

Boot-Block Flash ROM

- Award system BIOS support PnP, APM, DMI, ACPI, & Multi-device booting features.

1-2 Package Contents

This product comes with the following components:

3. 40-Pin UDMA-100 IDE Cable

Blue to motherboard, Gray to Master and Black to Slave.

4. 34-Pin floppy Disk Drive Cable x 1 x 1

6. Driver CD

Includes:

- Award DMI Utility for DOS

- Audio drives and utility x 1

- nVidia® Chipset Software installation utility.

1-3 7NIL1 Motherboard Diagram

Chapter 1 Chapter 1

1-4 7NIL1 Motherboard Layout

3 4

Chapter 2

Chapter 2 Hardware Setup

If your motherboard has already been installed in your computer you may still need to refer to this chapter if you plan to upgrade your system's hardware.

This motherboard is electrostatic sensitive. Do not touch without wearing proper safety gadget and make sure to disconnect the power cable from the power source before performing any work on your motherboard. Not doing so may result in electrical shock!

2-1 Installing a CPU Processor for Socket A

The Socket A, designed for AMD® Athlon/Duron/XP processors, has been incorporated as a standard motherboard specification. To insert your CPU into

Socket A please do the following:

1. Locate a cut edge on the top surface of the CPU close to one if it's corners. The same corner will also be cut off, leaving a noticeable notch in the CPU's corner.

These markings indicate Pin 1 of the CPU.

2. Pull up the lever of Socket 462 so that it is perpendicular with the surface of the motherboard. Gently insert the CPU with Pin 1 at the same corner of Socket 462 that contains the end of the lever. Allow the weight of the CPU to push itself into place. Do not apply extra pressure as doing so may result in damaging your CPU.

Snap the lever back into place.

Installing an AMD® approved heat sink with cooling fan is necessary for proper heat dissipation from your CPU. Failing to install these items may result in overheating and possible burn-out of your CPU.

In order to boot up with a newly installed CPU, AC Power must be switched off before installation.

5 6

Chapter 2

2-2 Setting Your CPU’s Performance:

Frequency Configuration:

If you install a CPU on this motherboard, you must set the [Front Side Bus

Frequency] JP25 according to your processor (See Section 2.4).

* CPU Speed = Multiplier x FSB Frequency

You do not need to make voltage settings because this board will automatically set your CPU voltage.

AMD (K7) Duron CPU

FSB

Speed

Frequency

L2 Micron

Multiplier Vcore

Cache process

1.0G 1.0 10.0 1.6V

1.1G 1.1 11.0 1.6V

1.2G 1.2 12.0 1.6V

1.3G 1.3 13.0 1.6V

Chapter 2

AMD Athlon CPU (K7/Thunderbird)

FSB L2

Multiplier Vcore

Cache

Micron process

1000 1000MHz 100 10.0 1.75V

1100 1100MHz 100 11.0 1.75V

1200 1200MHz 100 12.0 1.75V

1300 1300MHz 100 13.0 1.75V

1400 1400MHz 100 14.0 1.75V

1000 1000MHz 133 7.5 1.75V

1113 1113MHz 133 8.5 1.75V

1200 1200MHz 133 9.0 1.75V

1333 1333MHz 133 10.0 1.75V

1400 1400MHz 133 10.5 1.75V

AMD Athlon XP CPU (Palomino/Thoroughbred)

FSB L2

Multiplier Vcore

Cache

Micron process

1500+ 1333MHz 133 10.0 1.7V

1600+ 1400MHz 133 10.5 1.7V

1700+ 1466MHz 133 11.0 1.7/1.6V 0.18/0.13

1800+ 1533MHz 133 11.5 1.7/1.6V 0.18/0.13

1900+ 1600MHz 133 12.0 1.7/1.6V 0.18/0.13

2000+ 1666MHz 133 12.5 1.7/1.6V 0.18/0.13

2100+ 1733MHz 133 13.0 1.7/1.6V 0.18/0.13

2200+ 1800MHz 133 13.5 1.65V

2400+ 2000MHz 133 15.0 1.65V

2600+ 2133MHz 133 16.0 1.65V

2600+ 2075MHz 166 12.5 1.65V

2700+ 2166MHz 166 13.0 1.65V

7

Chapter 2

2-3 Main Memory Configuration

This motherboards provides 3 184pin Double Data Rate (DDR) Dual Inline Memory

Modules (DIMM) slots. Which supports PC 1600/DDR200, PC2100/DDR266,

PC2700/DDR333 and PC3200/DDR400 DDR SDRAM modules up to 3GB. Install at least one DIMM module on the slots. Memory modules can be installed on the slots in any order. You can install either single- or double-sided modules to meet your own needs. The DDR SDRAM memory system consists three banks and each bank can support up to 1GB memory size. If you only use one bank it does not matter which one you use and if you use two or more banks, it does not matter which bank you install first.

DIMM Module Combination

Install at least one DIMM module on the slots. You can install either single- or double-sided modules in any order to meet your own needs. Memory modules can be installed in any combination as follows:

Location 64 MB 128 MB 256 MB 512 MB 1.0 GB

DDR X X X X X

DDR X X X X X

DDR X X X X X

To install your DDR Modules please follow the following steps:

1. Unlock a DIMM socket by pressing the retaining clips outward. The DDR

Modules has only one notch at the center of module. The DDR module will only fit in the right position.

2. Insert the DDR Module vertically into the DIMM slot, with the correct alignment.

Then push it in until the golden finger on the memory module is deeply inserted into the socket.

3. The plastic clip on each side of the DIMM slot will automatically close to hold the

DDR Modules in place.

For maximized Dual-channel (128-bit) result, you must install one of your two memory modules on DDR3.

8

Chapter 2

2-4 Connector and Jumper Reference Chart

Jump Connector

PW 1

Function

u-ATX Power Supply Connector

IDE 1/2

FAN 1/3

FAN 4

JP1

JP5

JP6

JP6A /B

JP23

JP25

CN1A

CN2 /2A

IDE Hard-Disk Connector

CPU/ Case FAN Connector (12V)

North Bridge Cooling Fan Power Connector (12V)

CMOS Clear Jumper

Keyboard Power on Function Jumper

Disable/Enable USB 0/1 Device Power ON Jumper

Disable/Enable USB 2/3,4/5 Device Power ON Jumper

Green LED Mode Jumper

Setup CPU FSB. Freq. Jumper

Front Panel (Power / Rest / SPK…etc.) Connector

CD-ROM Audio-in Connector

CN5

CN5A

CN7

CN9

CN17

CN23 /23A

COM1

IR2

Wake on LAN Connector

Wake on Modem Connector

Smart Card Reader Connector

Chassis Open Alarm Connector

Blue LED Connector (5V)

USB Connector for USB 2/3 and 4/5

Serial port / COM Headers

IR & CIR Connector

Page

15

15

16

13

13

14

14

10

11

12

12

16

17

20

20

21

21

18

18

19

19

22

22

23

9

Chapter 2

2-5 Connector and Jumper Settings

Connectors are used to link the system board with other parts of the system, including the power supply, the keyboard, and the various controllers on the front panel of the system case.

The power supply connector is the last connection to be made while installing a motherboard. Before connecting the power supply, please make sure it is not connected to the power source.

All cables are security-proof

PW 1 (u-ATX Power Supply Connector):

The power cord leading from the system's power supply to the external power source must be the very last part connected when assembling a system. The u-ATX power supply provides a single 20-pin connector interface, which incorporates standard +/-5V, +/-12V, optional 3.3V and Soft-power signals. The Soft-power signal, a 5V trickle supply is continuously supplied when AC power is available.

When the system is in the Soft-Off mode, this trickle supply maintains the system in it's minimum power state.

Software Power-Off Control

This motherboard can be powered down using Windows® 9x Software Power-Off function. To power down your computer, click the START button on the Windows®

9x task bar. Select “Shut down the computer” and the system turns off. The message

“It is now safe to turn off your computer” will not be shown when using this function.

Power-On By Modem:

While in Soft-Off state, if an external modem ring-up signal occurs, the system

10

Chapter 2 wakes up and can be remotely accessed. You may enable this function in BIOS's

Power Management Setup menu. (See section 3).

Blinking LED in Suspend Mode:

While in Suspend mode, the LED light on the front panel of your computer will flash. Suspend mode is entered by pressing the Override Power Button, pushing the

Green button on your ATX case, or enabling the Power Management and Suspend

Mode options in BIOS's Power Management menu. (See section 3).

Poly-fuse Over Current Protection:

The poly-fuse protects the system from dangerous voltages that the system might be exposed to via the keyboard or USB connector. In case of such exposure, the poly-fuse will immediately be disconnected from the circuit, just like a normal fuse.

After being disconnected for a certain period of time, the poly-fuse will return to its normal state. Then the keyboard or USB connector can function properly again.

Unlike conventional fuses, the poly-fuse does not have to be replaced, relieving the user wasted time and inconvenience.

FD1 (Floppy Connector)

Chapter 2

IDE 1/2 (IDE Hard-Disk Connector)

This connector is used for connecting 40 pins of ATAPI devices.

IDE 1 only connects two IDE devices. (Primary Master/Slave)

IDE 2 only connects two IDE devices. (Secondary Master/Slave)

FAN1 /FAN3 (CPU/Case Cooling Fan Connectors [12V]):

This motherboard provides a standard floppy disk drive connector that supports

360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector is used to connect 34 pins of Floppy drive cable.

11

The board's management extension hardware is able to detect the CPU fan speed in rpm (revolutions per minute). The wiring and plug may vary depending on the manufacturer. On standard fans, the red is positive (+12V), the black is ground, and the yellow wire is the rotation signal.

12

FAN 4 (North Bridge Cooling Fan Power)

The north bridge-cooling fan. The wiring and plug may vary depending on the manufacturer. On standard fans, the red is positive (+12V), the black is ground.

JP1 (CMOS Clear Jumper):

Pin Definition

1-2 Normal (default)

2-3 Clear CMOS Data

There is a CMOS RAM on board that has a power supply from external battery to keep the data and system configuration. To clear the contents of the CMOS, please follow the steps below.

1. Disconnect the system power supply from the power source.

2. Set the jumper cap at location [2-3] for <5 seconds>, and then set it back to the default position.

3. Connect the system's power and then start the system.

4. Enter BIOS's CMOS Setup Utility and choose Load Setup Defaults. Type [Y] and then press [Enter] to continue.

5. Set the system configuration in the Standard CMOS Setup menu.

13

Chapter 2 Chapter 2

JP5 (Keyboard Power On Function Jumper):

Pin Definition

2-3 Enable

This board can be turned on by the PS / 2 keyboard (hot key). To use this function, select a hot key of your choice at the Power On Function option under Wake Up

Events in the BIOS's Power Management setup screen. You must also set this jumper's cap to pins 2-3 to use this function.

JP6 (Enable/Disable USB 0/1 Device Power ON Jumper)

Pin Definition

2-3 Enable

A USB keyboard hot key or a USB mouse click can turn on this motherboard. To use this function, select [Enable] at the USB Resume from S3 under Wake Up

Events in the BIOS's Power Management setup screen. You must also set this jumper's cap to pins [2-3] to use this function.

14

JP6A/B (Enable/Disable USB 2/3, 4/5 Device Power ON Jumper)

Pin Definition

2-3 Enable

Chapter 2

A USB keyboard hot key or a USB mouse click can turn on this motherboard. To use this function, select [Enable] at the USB Resume from S3 under Wake Up

Events in the BIOS's Power Management setup screen. You must also set this jumper's cap to pins [2-3] to use this function.

JP23 (Green LED Mode Jumper):

Pin Definition

2-3 OEM

This motherboard provides a Green LED flash Jumper. This cap is to setup Green

LED flash mode. The default value is [1-2], which is manufacture defined. For user defend or OEM please set the jumper cap at [2-3].

15

Chapter 2

JP25 (Setup CPU FSB. Freq. Jumper)

Pin Definition

1-2 133/166 MHz (default)

This cap setups up the CPU Ext. Clock Frequency.

1-2: The default value is 133/166 MHz (The will allow the CPU’s Ext. Frequency and memory frequency to be adjusted through the BIOS.).

2-3: Set 100 MHz at CPU Ext. frequency. (The will allow the Memory frequency to be adjusted through the BIOS.).

CN1A (Front Panel Connector):

16

1. PWR-SW (Over-ride Power Button Connector):

The power button on the ATX chassis can be used as a normal power switch as well as a device to activate Advanced Power Management Suspend mode. This mode is used for saving electricity when the computer is not in use for long periods of time. The Soft-OFF by PBTN function in BIOS's Power Management Setup menu must be set to [Delay 4 Sec.] to activate this function.

When the Soft-OFF by PBTN function is enabled, pushing the power button rapidly will switch the system to Suspend mode. Any occurrence of external

Chapter 2 activities such as pressing a key on the keyboard or moving the mouse will bring the system back to Full-On. Pushing the button while in Full-On mode for more than [4 seconds] will switch the system completely off. See Over-ride Power

Button Operation diagram.

2. P-LED (Power LED Connector):

The power indicator LED shows the system's power status. It is important to pay attention to the correct cables and pin orientation. (i.e., not to reverse the order of these two connectors.)

3. G-BTN/G-LED (Green Button Switch/LED Connector):

Some ATX cases provide a Green button switch, which is used to put the system in

Suspend mode. In Suspend mode, the power supply to the system is reduced to a trickle, the CPU clock is stopped, and the CPU core is in its minimum power state.

The system is woken up whenever the keyboard or mouse is touched. The system resumes in different ways as defined by Power Management Setup screen in BIOS.

4. RESET (System Reset Switch Connector):

This connector should be connected to the reset switch on the front panel of the system case. The reset switch allows you to restart the system without turning the power off.

5. SPEAKER (Speaker Connector):

This 4-pin connector connects to the case-mounted speaker.

6. HD-LED (IDE Activity LED Connector):

The IDE activity LED lights up whenever the system reads/writes to the IDE devices.

CN2/2A (CD-ROM Audio-in Connector):

Chapter 2

CN3 (Auxiliary Audio-in Connector):

These connectors are for CD-Rom devices audio. It is for Auxiliary Audio-in Device, which will input the sounds sources into the motherboard.

CN4C (SPIDIF KIT Connector)

This connector must be connected to a SPDIF bracket. This will allow you to use the SPDIF option.

Use the audio cable enclosed with your CD-ROM disk drive to connect the

CD-ROM drive onto your motherboard. This will enable your CD-ROM's audio function.

17 18

CN5 [WOL (Wake-on-LAN) Connector]:

Chapter 2 Chapter 2

CN7 (Smart Card Reader Connector):

Enable the Wake Up On LAN selection in BIOS's Power Management Setup Menu to use this function. The capability to remotely manage PCs on a network is a significant factor in reducing administrative and ownership costs. Magic Packet technology is designed to give WOL capability to LAN controller. This header is used to connect an add-in NIC (Network Interface Card) that gives WOL capability to the motherboard.

CN5A [WOM (Wake-on-Modem) Connector]:

This connector must be connected to a Smart card reader, which allows you to transfer data through Smart Cards and Smart Card user interface software.

CN9 (Chassis Open Alarm Connector):

The Wake Up On Modem selection in BIOS's Power Management Setup Menu must be enabled to use this function. This header is used to connect an add-in modem card, which gives WOM capability to the motherboard.

19

This connector is for a chassis open alarm; it provides a buzzer sound when an attempt to open the chassis occurs.

20

CN17 (Blue LED Connector):

Chapter 2 Chapter 2

CN24 (Front Audio Connector):

These features work entirely the same as the power indicator LED, both shows the system’s power status. The only difference is that this one is blue while the other is red LED.

CN23/23A (USB Connector for USB 2/3 and 4/5)

This connector give you the option of a front panel audio jack cable ext. to be plug into a special custom designed system case. Simply remove the two jumper caps at pin [5-6] and [9-10] then plug it into the (optional) cable ext. connector. Pin [5-6] and [9-10] are shorted (default) to enable the back panel audio function.

COM 1 (Serial port / COM Headers)

If you want to use a USB Keyboard, you must enable the USB keyboard support function in BIOS's Integrated Peripherals menu (See Section 3). This board contains a USB Host controller and includes a root hub connector for optional USB Adaptor

(USB 2/3 and 4/5).

21

This is an addition 9-pin connector is for a serial port ribbon cable. This will allow you to enable an additional COM Port.

22

IR 2 (IR & CIR Connector):

Select a UART Mode in BIOS's Integrated Peripherals menu the UART port to support IR function. (See section 3 Super I/O Device of Integrated Peripherals)

Chapter 2 Chapter 3

Chapter 3 BIOS Setup Program

Phoenix-Award BIOS ROM has a built-in setup program that allows users to modify the basic system configuration. This information is stored in CMOS RAM so that it can retain the setup information, even when the power is turned off.

To enter the Phoenix-Award BIOS setup program press the [Delete key] when you

Power on or reboot the computer system. The primary screen as shown in Figure

3-1 is a list of the menus and functions available in the setup program. Select the desired item by your arrow keys and press enter to make the changes. Operating commands are located at the bottom of this and all other BIOS screens. When a field is highlighted, on-line help information is displayed on the right side of the screen.

23 24

Figure 3-1 Setup Program Initial Screen

Chapter 3

3-1 Standard CMOS Features

The Standard CMOS Features allows users to configure system components such as hard disk drive, floppy disk drive and video display as well as date, time and boot-up error signaling. This configuration menu should be changed when installing a motherboard for the first time, changing hardware in your system such as the HDD,

FDD, video display, or when the CMOS data has been lost or contaminated. Choose the Standard CMOS Features option from the CMOS Setup Utility menu (Figure 3-1) to display the following screen.

Chapter 3

3-2 Advanced BIOS Features

By choosing the Advanced BIOS Features option from the CMOS Setup Utility menu

(Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the motherboard.

Figure 3-2 Standard CMOS Feature Screen

Date/Time:

Set the date and time of the system. Do not skip this function as all of your timed events such as power management, saving files, etc are based on this timer.

IDE (Primary/Secondary; Master/Slave):

This category identifies up to four IDE hard disk drives that have been installed in the computer. This section does not show information on other IDE devices such as

CD-ROM drives or other hard drive type such as SCSI drives.

Drive A/B:

Select different Floppy device Model. Available options are [None], [360K, 5-1/4 in],

[1.2M, 5-1/4 in], [720k, 3-1/2 in], [1.44M, 3-1/2 in], and [2.88M, 3-1/2 in].

Video:

Select the type of video adapter present in your system. You can ignore this setting if you are using a VGA monitor; VGA BIOS will automatically configure this setting.

Halt On:

When the system is powered on, BIOS performs a series of diagnostic tests called

POST (Power On Self Test). This function stops the computer if BIOS detects a hardware error. You can tell BIOS to halt on all errors, no errors, or not to halt on specific errors.

25

Figure 3-3 Advanced BIOS Feature Screen

Virus Warning:

When you set as enabled, you receive a warning message if a program (specifically, a virus) attempts to write to the boot sector or the partition table of the hard disk drive.

Many disk diagnostic programs that access the boot sector table can trigger the virus-warning message. If you plan to run such a program, we recommend that you first disable the virus warning.

CPU Internal/External Cache:

Cache memory is much faster than conventional DRAM system memory. These fields allow you to enable or disable the CPUs Level 1 built-in cache and Level 2 external cache. Both settings are left enabled to significantly increase the performance of your computer.

Quick Power On Self Test (POST):

Enable this function to reduce the amount of time required to run the POST (Power

On Self Test). BIOS will save time by skipping some items during POST. It is recommended that you disable this setting. Discovering a problem during boot up is better than loosing data during your work.

First/Second/Third/Boot Other Device:

This option sets the sequence of drives BIOS attempts to boot from after POST completes. BIOS will search these drives for an operating system.

26

Chapter 3

Swap Floppy Drive

Enabling this function will swap the floppy drive assignment so that drive A will function as drive B, and drive B will function as drive A. Note that the boot sequence assignment mentioned directly above does not include booting from floppy drive B.

This function is useful if floppy drives B and A are of a different format and you want to boot from floppy drive B.

Boot up Floppy Seek:

This is a set up check for floppy power-on after starting the computer system.

Boot Up NumLock Status:

This function defines the keyboard's number pad as number keys or arrow keys. If it is set at [on] the number keys will be activated, if it is set at [off] the arrow keys will be activated.

Gate A20 Option

Enabling Gate A20 will allow access pathway to HMA (High Memory Area). Please leave the default setting at [Fast] for better system performance. Available options are

[Fast] and [Normal].

Keyboard Interface：

1. Typematic Rate Setting

When enabled, you can set the following two-typematic control items. When disabled, the keyboard controller determines keystrokes arbitrarily in your system.

2. Typematic Rate (Chars/Sec)

The typematic rate sets the rate at which characters on the screen repeat when a key is pressed and held down.

3. Typematic Delay (Msec)

The typematic delay sets how long after you press a key that a character begins repeating.

Security Option:

The Supervisor and/or User Password functions shown in Figure 3-1 must be set to take advantage of this function. See Section 3.11 for password setting information.

When the Security Option is set to System, a password must be entered to boot the system or enter the BIOS setup program. When the Security Option is set to Setup, a password is required to enter the BIOS setup program.

APIC Mode

This item can enable or disable the APIC (Advanced Programmable Interrupt

Controller). Due to compliance to PC2001 design guide, the system is able to run in

27

Chapter 3

APIC mode. Enabling APIC mode will expand available IRQs resources for the system. Available options are [Enabled] and [Disabled].

MPS Version Control For OS:

This item allows you to select which MPS (Multi-Processor Specification) version to be used for the operating system. You need to select the MPS version which is supported by your operating system. To find out which version to use, consult the vendor of your operating system. Available options are [1.4] and [1.1].

OS Select For DRAM >64MB:

If your system's DRAM is larger than 64MB and you are running OS/2 , select OS/2 as the item value. Otherwise, set the item value to Non-OS/2 for all other operating

Small Logo (EPA) Slow:

This setup allows photo that is EPA. Logo.

28

Chapter 3

3-3 Advanced Chipset Features

By choosing the [Advanced Chipset Features] option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the motherboard.

Figure 3-4 Advance Chipset Features Screen

All of the above settings have been determined by the motherboard manufacturer and should not be changed unless you are absolutely sure of what you are doing. Explanation of the DRAM timing and chipset features setup is lengthy, highly technical and beyond the scope of this manual. Below are some abbreviated descriptions of the functions in this setup menu.

System Performance.

This option allows you to configure and determine your systems performance according to your needs. Available options are: [Optimal], [Aggressive], [Turbo] and

[Expert], there details are as follows:

Optimal: Select this option will let the system automatically detect its performance.

Aggressive: Select this option for better system performance. It increases a bit of the system performance.

Turbo: Select this option for a faster system performance. It will increases the system performance, but it might result in an unstable system.

Expert: Select this option only if you are a professional user. This will allow you to set the system performance according to your choice.

FSB Frequency

This feature allows the configuration of systems FSB frequency speed. Available options include 100 MHz (200 MHz) to 200 MHZ (400 MHz).

29

Chapter 3

CPU Interface

This option allows you to determine how your CPU interface performs. Available options are: [Optimal] and [Aggressive] there details are as follows:

Optimal: Select this option will let the system automatically detect its performance.

Aggressive: Select this option for a better system performance. It increases a bit of the system performance.

Memory Frequency

This option will allow you to adjust the Memory Frequency. Avaliable options are [By

SPD] or [By Sync], there details are as follow:

By SPD: It automatically detects the memory frequency.

By Sync: This will cause the memory to detect the CPU’s Ext. frequency and function synchronically.

Memory Timing

This function allows you to enable or disable the DRAM timing by SPD. When it is set to Manual, you can select the DRAM CAS Latency, DDR SDRAM Cycle Length and Bank Interleave configuration.

Overclocking:

This motherboard is designed to support overclocking. However, please make sure your components are able to tolerate such abnormal setting, while doing overclocking. Any attempt to operate beyond product specifications is not recommended. We do not guarantee the damages or risks caused by inadequate operation or beyond product specifications.

AGP Aperture Size (MB)

This function determines the amount of system memory that is given to the AGP card.

Options range from 32MB to 512MB. This is a dynamic memory allotment in that the AGP card will only use the amount of memory that it needs. The remaining memory, which is not in use, will be available for the system. For example, if 16MB is allotted to the AGP card and the card only needs 8MB, the remaining 8MB will be available for system use.

AGP Frequency

This function determines the amount of AGP frequency that is given to the AGP card.

Options range from 50 MHz to 100 MHz. (default [Auto (66MHz)])

AGP 8X Support

Enable this setting to utilize the 8X mode (twice as fast as 4X) offered by advanced

AGP cards. Your VGA card must support 8X mode in order to take advantage of the faster speed.

30

Chapter 3

AGP Fast Write Capability

Selecting [Enabled] to allow Fast Write Protocol for 8x/4x AGP to function.

Not all AGP cards support fast write.

System BIOS Cacheable

Enabling this function allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result. Caching the system BIOS results in better performance than shadowing the system BIOS.

Video RAM Cacheable

Enabling this function will allows caching of the video RAM, resulting in better system performance. However, if any programs write to this memory area, a system error may occur.

Flash BIOS Protection

The motherboard manufacturer developed BIOS protection technology that protects the System BIOS from accidental corruption by unauthorized users or computer viruses. When enabled, the BIOS data cannot be changed when attempting to update

BIOS with the FLASH utility. When disabled, the BIOS data can be updated by using the FLASH utility.

31

Chapter 3

3-4 Integrated Peripherals

This section provides information on setting peripheral devices. By choosing the

Integrated Peripherals option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the motherboard.

Figure 3-5 Integrated Peripherals Screen

IDE Function Setup

Press [Enter] to enter the sub-menu, which contains the following items for advanced control:

1. On-Chip Primary IDE Channel 0/1:

You can set this to disable the On Chip IDE controller if you are going to add an extra higher performance IDE board.

2. IDE Primary/Secondary Master/Slave PIO:

The four IDE PIO (programmed Input/Output) fields let you set a PIO mode (0-4) for each IDE device that the internal PCI IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device.

3. IDE Primary/Secondary Master/Slave UDMA:

Ultra DMA implementation is possible only if your IDE device supports it and your operating environment contains a DMA driver. If both your hard drive and software support Ultra DMA, select [Auto] to enable BIOS support.

4. IDE Prefetch Mode:

The onboard IDE drive interfaces support s prefetching, for faster drive accesses. Set to [Disabled] if this primary or secondary.

32

Chapter 3

5. IDE HDD Block Mode:

Block mode is also called block transfer, multiple commands, or multiple sector read/write. If your IDE hard drive supports block mode, select Enabled to auto-detect the optimal number of block read/writes per sector the drive can support.

Onboard Device:

This section provides information for setting onboard device. By choosing the

Integrated Peripherals option from the CMOS Setup Utility menu (Figure 3-5) the following options will appear. Press [Enter] to enter the sub-menu, which contains the following items for advanced control:

1. AC 97 Audio:

This feature allows you to disable the on-board AC97 audio function.

2. AC 97 Modem:

This item allows you to disable the chipset’s feature to support MC97 Modem.

3. MAC LAN (nVIDIA)

This feature allows you to enable the OnChip LAN function.

Super IO Device:

This section provides information on setting Super I/O device. By choosing the

Integrated Peripherals option from the CMOS Setup Utility menu (Figure 3-5), the following options will appear. Press [Enter] to enter the sub-menu, which contains the following items for advanced control:

1. Onboard FDC Controller:

Select Enabled if your system has a floppy disk controller (FDC) installed on the system board and you wish to use it. If you install an add-in FDC or the system has no floppy drive, select Disabled in this field.

2. Onboard Serial Port 1/2:

Select an address and corresponding interrupt for the first and second serial ports.

Available options are [3F8/IRQ4], [2E8/IRQ3], [3E8/IRQ4], [2F8/IRQ3],

[Disabled], and [Auto].

3. UART Mode Select:

This function allows you to select an operating mode for the second serial port.

Available options are [Normal], [IRDA], [ASKIR] and [SCR].

4. Onboard Parallel Port:

Select a logical LPT port address and corresponding interrupt for the physical parallel port.

5. Parallel Port Mode:

Select an operating mode for the onboard parallel (printer) port. Select SPP unless you are certain your hardware and software support one of the other available

33

Chapter 3 modes.

6. ECP Mode Use DMA:

This item automatically specifies a DMA channel 1 or 3 for the parallel port when it is set to [EPP] or [ECP+EPP] mode.

7. Game Port Address:

This item disables or assigns the address of the Game port. Available options are

[Disable], [201] and [209].

8. Midi Port Address:

This item disables or assigns the address of the Midi port. Available options are

[Disable], [300] and [330].

9. Midi Port IRQ:

This item specifies an IRQ for the Midi port. Available options are [5] and [10].

Init Display First:

This function allows users to choose between [AGP] or [PCI slot] to initialize display.

OnChipUSB:

Enable the on-board Universal Serial Bus (USB V1.1 or V2.0) controller if you want to connect a USB device to your system. Note that if this setting is disabled, you can still temporarily use a USB keyboard during boot up so that you can enter BIOS and enable this setting. If you pass the boot up stage without enabling this function, your

PS/2 keyboard will no longer work.

USB Keyboard Support:

Select Enabled if your system has a USB keyboard installed on the system board. If your system has no USB keyboard, select Disabled in this field.

34

Chapter 3

3-5 Power Management Setup

This section provides information on the Green PC power management functions. By choosing the Power Management Setup option from the CMOS Setup Utility menu

(Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the motherboard.

Figure 3-6 Power Management Setup

ACPI Suspend Type:

This item specifies the power saving modes for ACPI function. Available options are:

1. S1 (POS) - The S1 state is low power state. In this state, no system context (CPU or

Chipset) is lost and the hardware maintains all system contexts.

2. S3 (STR) - The S3 state is a lower power state, where the information of system configuration and opened applications / files are saved to main memory. The remaining power of other hardware components are turn off to save energy.

3. S1&S3 – The S1&S3 state will allow the BIOS to auto detect the motherboard’s power saving mode between S1 and S3.

The information stored in memory will be used to restore the system when a [wake

up] event occurs

Power Management Option:

Power management allows the computer to save electricity when it is not in use by entering increasingly deep power saving modes.

Video Off Method:

This function serves as both a screen saver and power saver for monitors. See the next function, Video Off After, for setting the video timer.

35

Chapter 3

1. Blank Screen - BIOS will only blank the monitor's screen. The electricity saved in this mode is negligible and this function is only used as a screen saver to prevent screen damage while the screen is on but not in use.

2. V/H SYNC+Blank - The system turns off the vertical and horizontal synchronization ports, writes blanks to the VGA buffer and the monitor's electron gun turns off. This function requires a monitor with Green features in order to take advantage of the power saving function. If you enable this function and do not have a Green monitor, the result will be the same as if you had selected Blank. This function serves as both a screen saver and a power saver.

3. DPMS Support - Select this option if your video card supports the Display Power

Management Signaling (DPMS) standard (i.e., you have a monitor that supports

Green features). Use software supplied by your video subsystem to set video power management options.

HDD Power Down:

Shuts down any IDE hard disk drives in the system after a period of inactivity as set in this user configurable field. This feature does not affect SCSI hard drives.

HDD Down In Suspend

In Suspend any IDE hard disk drives in the system after a period of inactivity as set in this user configurable field. This feature does not affect SCSI hard drives.

Soft-Off by PBTN

When set to Delay 4 Sec., this function allows the power button to put the system in

Suspend, a power saving mode. When set to Instant-Off the Soft-Off by PWR-BTN function is disabled and the computer turns completely off when the power button is pressed.

PwROn After PwR-Fail

This allows you to set whether you want your system to reboot after the power has been interrupted. [Off] leaves your system off and [On] reboots your system.

[Former-Sts] sets your system back to the state it is before the power interruption.

Available options include [Off], [On], [Former-Sts].

Wake up Events

1. Power On by PME/OnBoard LAN (Nvidia):

When enabled, the nVidia LAN, which is on Board, will be able to receive a signal and wake up the system from soft off and suspend mode. You should connect the

LAN to the RJ45 port and turn on the resume event in suspend mode.

2. Power On by Ring:

When enabled, a Modem (PCI Card or Ext. Modem) will be able to receive a

36

Chapter 3 signal and wake up the system from soft off and green mode. You should connect the modem to the COM port and call your PC to power on.

3. Power On by Alarm:

When enabled, this setting allows the system to turn back on at a designated time of the month. User must designate date of month and time of day.

This function is only available when using an ATX power supply and the Software

Power-Off function to turn off the computer.

4. POWER ON Function:

This control show the PS/2 mouse or keyboard can power on the system. Available settings are [Password], [Hot KEY], [Mouse Move], [Mouse Click], [Any Key],

[BUTTON ONLY] and [Keyboard 98].

5. KB Power ON Password:

If POWER ON Function is set to [Password], then you can set a password in the field for the PS/2 keyboard to power on the system.

6. Hot Key Power ON:

If POWER ON Function is set to [Hot KEY], you can assign a hot key combination in the field for the PS/2 keyboard to power on the system.

Settings:[Ctrl-F1] through [Ctrl-F12].

37

Chapter 3

3-6 PNP/PCI Configurations

This section provides IRQ and DMA setting information. By choosing the PNP/PCI

Configuration option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This screen contains the manufacturer's default values for the motherboard.

Figure 3-7 PNP/PCI Configurations

Reset Configuration Data:

If you want to reset CMOS IRQ divide hardware device, please selected to [Enabled].

Resources Controlled By:

When set to Manual the system BIOS will not refer to the ESCD for IRQ & DMA information. Instead, it will refer to the items in the setup menu for assigning IRQ &

DMA. When set to Auto the system BIOS will refer to the ESCD for all legacy information. ESCD (Extended System Configuration Data) provides a detailed format of the configuration data structures stored in flash memory. Each data structure defines the resources used by a device or a card in the system. This includes legacy and PCI/ISA PnP devices.

PCI/VGA Palette Snoop:

When set to [Enabled], multiple VGA devices operating on different buses can handle data from the CPU on each set of palette registers on every video device. Bit 5 of the command register in the PCI device configuration space is the VGA Palette Snoop bit

(0 is disabled). Available options are [Enabled] and [Disabled].

FDD IRQ Can Be Free:

This function allows user to choose if the FDD IRQ can be freed up. The default setting is [Yes] and this does not allow the IRQ to be free.

38

Chapter 3

3-7 PC Health Status

By choosing the PC Health Status option from the CMOS Setup Utility menu (Figure

3-1), the screen below is displayed. This field shows you the current CPU temperature/external voltages input and the current CPU FAN operating speed.

Chapter 3

3-8 Frequency/Voltage Control

By choosing the Frequency/Voltage Control option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the motherboard.

Figure 3-8 PC Health Status

Shutdown Temperature:

This item allows you to set the shutdown temperature level for the processor. When the processor reaches the temperature you set, the system will shutdown. This function only works in ACPI-aware OS (such as Windows® 98 / ME / 2000).

Available options are [85°C/185°F], [90°C/194°F], [95°C/203°C] and [100°C/210°F]

39

Figure 3-9 Frequency/Voltage Control

FSB/AGP Spread Spectrum:

This item is used to enable or disable the clock generator’s Spread Spectrum feature.

When over clocking the processor, always set it to Disabled. Setting options: [0.5%],

[1.00%], and [Disabled]

OVERCLOCKING

This motherboard is designed to support overclocking. However, please make sure your components are able to tolerate such abnormal setting, while doing overclocking. Any attempt to operate beyond product specifications is not recommended. We do not guarantee the damages or risks caused by inadequate operation or beyond product specifications.

40

Chapter 3

3-9 Load Fail-Safe Defaults

Load Fail-Safe Defaults loads the default BIOS values directly from the CMOS Setup

Utility menu (Figure3-1). If the stored record created by the setup program becomes corrupted and therefore unusable, these defaults will be loaded automatically when you turn on the computer.

3-10 Load Optimized Defaults

Load Optimized Defaults loads the default system values directly from the CMOS

Setup Utility menu (Figure3-1). If the stored record created by the setup program becomes corrupted and therefore unusable, these defaults will be loaded automatically when you turn on the computer.

3-11 Supervisor Password & User Password Setting

There are four different variables that control password settings. The first two are located under the Security Option function in BIOS Features Setup Menu (Figure 3-1).

When the Security Option function is set to Setup, a password is required to enter

BIOS and change BIOS settings. When the Security Option function is set to

System, a password is required to enter both BIOS and the computer's operating system ( for example Windows® 98 ) found on the boot drive.

The third and fourth variables are user password and supervisor password selected in

BIOS (Figure 3-1). The main purpose of separating user and supervisor is to allow only the supervisor to have control over the settings in BIOS. The user, on the other hand, is only allowed to access the computer's operating system and change the user password in BIOS.

When there is no supervisor password set, the user password controls access to all BIOS settings.

41

Chapter 3

3-12 Save and Exit Setup

If you select this and type [Y] (for Yes) followed by the [Enter] key, the values entered in the setup utilities will be recorded in the CMOS memory of the BIOS chip.

3-13 Exit Without Saving

Selecting this option and pressing Y followed by the [Enter] key lets you exit the

Setup program without recording any new values or changing old ones.

42

Chapter 4 DRIVER Setup

Please insert the nVidia Serial driver CD into the CD-ROM.

Chapter 4 Chapter 4

3. Please, click [OK] to continue.

4. Please click [NEXT>] to continue.

4-1 Nvidia Driver Package Setup

1. Please, select [Nvidia Driver Package] to begin installation.

2. Please, click [NEXT>] to start installation.

43 44

5. If you want to install the NVIDIA IDE SW drive please click [Yes] to continue, or click [No] if you don’t want to install the NVIDIA IDE SW drive.

6. Please, click [Continue Anyway] to continue install Nvidia Driver.

Chapter 4 Chapter 4

7. To restart you computer now, select [Yes, I want to restart my computer now.] then Please Click [OK] to restart you computer. If you do not want to restart your computer select [No, I will restart my computer later.] then click [OK] to continue.

4-2 Audio driver

1. Please, select [Audio Drive] to begin installation.

2. Please, click [NEXT>] to start installation.

45 46

3. Please, click [Next>] to continue install the C-Media Audio driver.

Chapter 4 Chapter 4

5. Please, click [Next>] to continue install the C-Media Audio driver.

4. Please, click [Next>] to continue install the C-Media Audio driver.

6. Please, click [Next>] to continue install the C-Media Audio driver.

47 48

7. Please, click [Next>] to continue install the C-Media Audio driver.

Chapter 4 Chapter 4

9. To restart you computer now, select [Yes, I want to restart my computer now.] then Please Click [OK] to restart you computer. If you do not want to restart your computer select [No, I will restart my computer later.] then click [OK] to continue.

8. Please, click [Continue Anyway] to continue install the C-Media Audio driver.

49

4-3 USB 2.0 Driver Setup

By Choosing [USB 2.0 Driver] from the main menu it will provide the informations that you require to install the USB 2.0 Drive.

USB 2.0 only support Windows 2000 / XP operation system

For Windows XP/2000 installation:

1. Open Device Manager and open the properties for the USB 2.0 host controller.

2. Select [ Update Driver ].

3. Point the installer to the folder with the USB 2.0 drivers.

4. It should select CDROM:\NVUSB20\W2K the USB2X.inf and then install the system files.

5. The host controller should be installed correctly when Device Manager is updated after the install.

50

Chapter 5

Chapter 5 How to update your BIOS?

Embedded Flash Utility

This motherboard is equipped with an Erasable Flash ROM and an Embedded Flash

Utility, which allows the user to update the BIOS to a newer version. Embedded Flash

Utility eases BIOS upgrade and eliminate the compatibility issue etween different

Flash ROM type and version of Flash utility.

Update Your System BIOS

1. Start the computer, upon post, press ALT+F2 Keys to enter AWDFLASH setup.

2. Insert the floppy disk with the latest BIOS file into the floppy drive A or B and then press Enter to start programming.

Make sure that your floppy diskette has only one BIN file to avoid confusion.

AwardBIOS Flash Utility V X.XX

(C) Phoenix Technologies Ltd. All Right Reserved

For XXXX-XXXXXX-XXXXXXXXXX-X DATE: XX/XX/2002

Flash Type- XXXXXX XXXXXXXX / 3.xV (1MB)

File Name to Program :

XXXXXXXX.BIN

Programming Flash Memory

Write OK No Update Write Fail

Warning : Don’t Turn Off Power Or Rest System ！

3. When finished, the system will automatically restart.

Flash BIOS Protection must be set to Disable in the Advanced Chipset Feature from the CMOS Setup Utility menu.

Don’t turn off or restart your system during programming process.

51 52

NOTE

NOTE

All rights are reserved for the products and corporate names/logos that appear in this manual to their original owners.

Rights are reserved for changing this manual. All information is subject

to change without notice.
