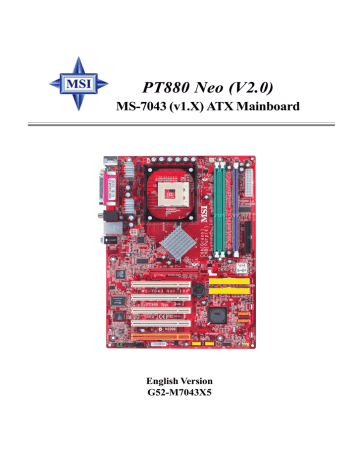

PT880 Neo (V2.0)
MS-7043 (v1.X) ATX Mainboard
English Version
G52-M7043X5
i
Manual Rev: 1.2
Release Date: April 2004
FCC-A Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU.
Micro-Star International
MS-7043
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
ii
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.
Trademarks
All trademarks are the properties of their respective owners.
Intel ® and Pentium ® are registered trademarks of Intel Corporation.
PS/2 and OS
®
/2 are registered trademarks of International Business Machines
Corporation.
Windows
®
95/98/2000/2003/NT/XP are registered trademarks of Microsoft Corporation.
Netware ® is a registered trademark of Novell, Inc.
Award ® is a registered trademark of Phoenix Technologies Ltd.
AMI
®
is a registered trademark of American Megatrends Inc.
Revision History
Revision
V1.2
Revision History
First release for PT880 Neo (V2.0)
Date
April 2004
Technical Support
If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.
Visit the MSI website for FAQ, technical guide, BIOS updates, driver updates, and other information:
http://www.msi.com.tw/program/service/faq/ faq/esc_faq_list.php
Contact our technical staff at:
iii
Safety Instructions
1.
Always read the safety instructions carefully.
2.
Keep this User’s Manual for future reference.
3.
Keep this equipment away from humidity.
4.
Lay this equipment on a reliable flat surface before setting it up.
5.
The openings on the enclosure are for air convection hence protects the equipment from overheating. DO NOT COVER THE OPENINGS.
6.
Make sure the voltage of the power source and adjust properly 110/220V before connecting the equipment to the power inlet.
7.
Place the power cord such a way that people can not step on it. Do not place anything over the power cord.
8.
Always Unplug the Power Cord before inserting any add-on card or module.
9.
All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electrical shock.
11.
If any of the following situations arises, get the equipment checked by a service personnel:
†
The power cord or plug is damaged.
† Liquid has penetrated into the equipment.
†
The equipment has been exposed to moisture.
† The equipment has not work well or you can not get it work according to
User’s Manual.
†
The equipment has dropped and damaged.
† The equipment has obvious sign of breakage.
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED, STOR-
AGE TEMPERATURE ABOVE 60 0 C (140 0 F), IT MAY DAMAGE THE EQUIPMENT.
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
iv
CONTENTS
FCC-A Radio Frequency Interference Statement .......................................................... ii
Copyright Notice ............................................................................................................ iii
Trademarks .................................................................................................................... iii
Revision History ............................................................................................................ iii
Technical Support .......................................................................................................... iii
Safety Instructions ........................................................................................................ v
Chapter 1. Getting Started .................................................................................... 1-1
Mainboard Specifications ................................................................................... 1-2
Mainboard Layout ............................................................................................... 1-4
MSI Special Features .......................................................................................... 1-5
Color Management ...................................................................................... 1-5
CoreCenter .................................................................................................. 1-6
Core CellTM Chip ......................................................................................... 1-8
Round Cable (Optional) ............................................................................... 1-9
CPU Thermal Protection .............................................................................. 1-9
Live BIOS™/Live Driver™ ......................................................................... 1-11
Live Monitor™ ........................................................................................... 1-11
D-Bracket™ 2 (Optional) ........................................................................... 1-12
S-Bracket (Optional) .................................................................................. 1-14
Chapter 2. Hardware Setup .................................................................................. 2-1
Quick Components Guide ................................................................................... 2-2
Central Processing Unit: CPU .............................................................................. 2-3
CPU Core Speed Derivation Procedure ...................................................... 2-3
Memory Speed/CPU FSB Support Matrix ................................................... 2-3
CPU Installation Procedures for Socket 478 .............................................. 2-4
Installing the CPU Fan ................................................................................. 2-5
Memory ............................................................................................................... 2-7
Memory Population Rules ............................................................................ 2-7
Installing DDR Modules ................................................................................ 2-8
Power Supply ..................................................................................................... 2-9
ATX 20-Pin Power Connector: ATX1 .......................................................... 2-9
ATX 12V Power Connector: JPW1 ............................................................. 2-9
Back Panel ......................................................................................................... 2-10
Floppy Disk Drive Connector: FDD1 .......................................................... 2-11
ATA133 Hard Disk Connectors: IDE1 & IDE2 ............................................ 2-11
Connectors ....................................................................................................... 2-11
Serial ATA RAID 0, 1 Connectors: SATA1, SATA2 ................................... 2-12
Fan Power Connector: CPUFA1 .............................................................. 2-13 v
Front Panel Audio Connector: JAUD1 ....................................................... 2-13
Chassis Intrusion Switch Connector: JCI1 (Optional) .............................. 2-14
Front Panel Connectors: JFP1 & JFP2 ...................................................... 2-14
CD-In Connector: JCD1 ............................................................................. 2-15
D-Bracket™ 2 Connector: JDB1 (Optional) .............................................. 2-15
S-Bracket (SPDIF) Connector: JSP1 (Optional) ........................................ 2-16
Front USB Connectors: JUSB1 & JUSB2 (Optional) ................................ 2-17
Jumpers ............................................................................................................ 2-18
Clear CMOS Jumper: JBAT1 ..................................................................... 2-18
Slots .................................................................................................................. 2-19
PCI Interrupt Request Routing ................................................................... 2-19
AGP (Accelerated Graphics Port) Slot ..................................................... 2-19
PCI (Peripheral Component Interconnect) Slots ....................................... 2-19
Chapter 3. BIOS Setup ............................................................................................ 3-1
Entering Setup .................................................................................................... 3-2
Selecting the First Boot Device ................................................................... 3-2
Getting Help ................................................................................................. 3-3
Control Keys ............................................................................................... 3-3
The Main Menu .................................................................................................... 3-4
Standard CMOS Features .................................................................................. 3-6
Advanced BIOS Features .................................................................................. 3-8
Advanced Chipset Features ............................................................................ 3-11
Power Management Setup ............................................................................... 3-15
PNP/PCI Configurations ..................................................................................... 3-18
Integrated Peripherals ....................................................................................... 3-20
PC Health Status ............................................................................................... 3-23
Frequency/Voltage Control ............................................................................... 3-24
Set Supervisor/User Password ....................................................................... 3-27
Load Optimal/High Performance Defaults ......................................................... 3-28
Appendix A: Using 2-, 4- & 6-Channel Audio Function ................................... A-1
Installing the Audio Driver .................................................................................. A-2
Installation for Windows 98SE/ME/2000/XP .............................................. A-2
Special Notice during Installation ............................................................... A-2
Software Configuration ..................................................................................... A-4
Playback ..................................................................................................... A-4
Recording ................................................................................................... A-4
SPDIF & Speaker Configuration ................................................................. A-5
Speaker Test .............................................................................................. A-5 vi
Information .................................................................................................. A-6
Using 2-, 4- & 6- Channel Audio Function ......................................................... A-7
Appendix B: VIA VT8237 Serial ATA RAID .......................................................... B-1
Introduction ........................................................................................................ B-2
BIOS Configuration ............................................................................................ B-4
Installing RAID Software & Drivers .................................................................. B-14
Using VIA RAID Tool ......................................................................................... B-17 vii
Getting Started
C h a p t e r 1 . G e t t i n g
Started
Getting Started
Thank you for choosing the PT880 Neo (V2.0) (MS-7043) v1.X
ATX mainboard. The PT880 Neo (V2.0) is a superior computer m a i n b o a r d b a s e d o n V I A
®
P T 8 8 0 N o r t h b r i d g e & V T 8 2 3 7
Southbridge for optimal system efficiency. Designed to fit the advanced Intel
® Pentium ®
4 processors in 478-pin package, the PT880
Neo (V2.0) delivers a high performance and professional desktop platform solution.
1-1
MS-7043 ATX Mainboard
Mainboard Specifications
CPU
h Supports Intel
® P4 Northwood/Prescott (Socket 478) processors h FSB 400 (for Northwood only), 533, 800MHz h Supports up to 3.4GHz or higher speed (Please refer to the latest online news at
h t t p : / / w w w . m s i . c o m . t w / p r o g r a m / p r o d u c t s / m a i n b o a r d / m b d / pro_mbd_cpu_support.php
)
Chipset
h VIA
® PT880 chipset
- Supports FSB 800/533/400MHz
- Supports AGP 8X interface
- Supports DDR 400/333/266 memory interface h VIA
® VT8237 chipset
- High Bandwidth V-link Client controller
- Integrated Faster Ethernet LPC
- Integrated Hardware Sound Blaster/Direct Sound AC97 audio
- Ultra DMA 66/100/133 master mode PCI EIDE controller
- ACPI
- Supports Serial ATA
- Supports USB2.0
Main Memory
h Supports six memory banks using three 184-pin DDR DIMMs h Supports dual-channel memory h Supports a maximum memory size up to 3GB h Supports 2.5v DDR SDRAM DIMM
Slots
h One AGP (Accelerated Graphics Port) slot supports 8x/4x at 0.8V (AGP 3.0) or 4x at 1.5V (3.3V not supported) h Five 32-bit Master PCI bus slots (support 3.3v/5v PCI bus interface)
Onboard IDE
h An IDE controller integrated in the VIA
® VT8237 chipset
- Supports IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes
- Can connect up to four Ultra ATA drives
Onboard Serial ATA
h Serial ATA/150 controller integrated in the VIA
® VT8237 chipset
- Up to 150MB/sec transfer rate
- Can connect up to two Serial ATA drives
1-2
Getting Started
On-Board Peripherals
h On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes
- 1 serial port (COM A)
- 1 parallel port supports SPP/EPP/ECP mode
- 8 USB 2.0 ports (Rear x 4 / Front x 4)
- 1 RJ45 LAN jack
- 1 D-Bracket2 pinheader (Optional)
- 1 S-Bracket pinheader (Optional)
- 1 Line-In / Line-Out /Mic
- 1 Coaxial SPDIF out (Optional)
Audio
h AC97 link controller integrated in VT8237 h VIA
® VT1617 6-channel audio codec
- Compliance with AC97 v2.2 Spec
- Meets PC2001 audio performance requirement
LAN
h VIA
® VT6122 Gigabit LAN controller
BIOS
h The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically h The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications
Dimension
h ATX Form Factor: 30.5cm x 20.4cm
Mounting
h 6 standard mounting holes
1-3
MS-7043 ATX Mainboard
Top: Mouse
Bottom: Keyboard
Mainboard Layout
CPUFA1
Top:
Parallel Port
Bottom:
COM A
T: SPDIF Out
B: USB Ports
T: LAN Jack
B: USB Ports
T: Line-In
M: Line-Out
B: Mic
JPW1
VIA
PT880
VIA
VT6122
Gigabit LAN
Winbond
W83697HF
BIOS
VIA
VT1617
Audio Codec
JAUD1 JSP1
JCD1
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
AGP1
BATT
+
VIA
VT8237
IDE 2
IDE 1
JBAT1
SATA2
SATA1
JUSB1 JUSB2
JDB1
JFP1 JFP2
PT880 Neo (V2.0) (MS-7043 v1.X) ATX Mainboard
1-4
Getting Started
MSI Special Features
Color Management
MSI has a unified color management rule for some connectors on the mainboards, which helps you to install the memory modules, expansion cards and other peripherals devices more easily and conveniently.
h Dual Memory DDR DIMMs: Channel A is light green, Channel B is purple h Intel spec IDE ATA133 connector: yellow h Serial ATA150 connector: orange h AGP 8X slot: red h USB 2.0 connector: yellow h Front panel connector JFP1 : HDD LED is red, Reset Switch is blue, Power
Switch is black, Power LED is light green.
h Front panel connector JFP2: Power LED is light green.
Memory DDR DIMMs
USB 2.0 connector
AGP 8X Slot
Intel spec IDE ATA 133 connectors
Serial ATA150 connectors
Front Panel connector JFP2
Front Panel connector JFP1
1-5
MS-7043 ATX Mainboard
CoreCenter
CoreCenter TM - contains OC Menu panel, users can determine their processor and memory type to optimize its memory capacity. This all-in-one hardware console is advanced combination of the popular PC Alert and Fuzzy Logic. Including powerful function with hardware monitor, system alert and instinctive UI of overclocking,
CoreCenter is just like your PC doctor that can detect, view and adjust the PC hardware and system status during real time operation.
In the left side it shows the current system status including the Vcore, 3.3V,
+5V and 12V. In the right side it shows the current PC hardware status such as the
CPU & system temperatures and all fans speeds.
When you click the red triangles in the left and right sides, two sub-menus will open for users to overclock, overspec or to adjust the thresholds of system to send out the warning messages. If you click the Core Center button in the top, a screen pops up for you to choose the “Auto mode” or “User mode” of CPU fan.
1-6
Getting Started
Left-wing: Current system status
In the left sub-menu, you can configure the settings of FSB, Vcore, Memory
Voltage and AGP Voltage by clicking the radio button in front of each item and make it available (the radio button will be lighted as yellow when selected), use the “+” and
“-” buttons to adjust, then click “OK” to apply the changes. Then you can click Save to save the desired FSB you just configured.
Also you may click Auto to start testing the maximal CPU overclocking value,
The CPU FSB will automatically increase the testing value until the PC reboots. Or you may click Default to restore the default values.
Right-wing: PC hardware status during real time operation
In the right sub-menu, you can configure the PC hardware status such as CPU
& system temperatures and fan speeds. You may use the scroll bars to adjust each item, then click “OK” to apply the changes. The values you set for the temperatures are the maximum thresholds for the system for warnings, and the value for fan speeds are the minimum thresholds.
Top-side: User mode/Auto mode
Here you may adjust the CPU fan speed. If you choose User mode, you may adjust the CPU fan speed in 8 different modes, from Low speed to High speed.
OC Menu
The exclusive OC Menu is fully developed to support DDR400+ memory modules.
By comprehensive validation of over 67 DDR400+ memory modules, MSI concluded best parameters for DRAM voltage, Vio and other BIOS settings. You can select
DDR433, DDR450, DDR466 and DDR500 from DRAM frequency in BIOS setting. Or you can just click on OC Menu button to configure in the OC Menu at CoreCenter. OC
Menu will adjust the necessary parameters of voltage and frequency simultaneously. The only limitation was t h e m a r g i n o f p r o c e s s o r f r o m overclocking.
1-7
MS-7043 ATX Mainboard
Core CellTM Chip
By diagnosing the current system utilization, the CoreCell™
Chip automatically tunes your motherboard to the optimal state, leading to less noise, longer duration, more power-saving and higher performance.
Features of CoreCell™
Speedster
-- Advanced O.C. design.
-- Superior O.C. capability.
-- Greater O.C. method.
PowerPro
-- Saves up to 65% power.
-- Assures motherboard stability.
-- Empowers O.C
Capability.
BuzzFree
-- Diagnoses current syst e m u t i l i z a t i o n & temperature.
-- Controls both CPU and
NorthBridge fans.
-- Cuts up to 50% of system noise.
LifePro
-- Prolongs motherboard, CPU and fan life.
-- Maintains motherboard & CPU in constant temperature.
- - P r e v e n t s c o m p o n e n t s f r o m o p e r a t i n g b e y o n d specifications.
1-8
Getting Started
Round Cable (Optional)
Round cable is an enhanced cable for PCI IDE and Ultra DMA controller. It has the following benefits: h Data transfer rate started by 133MB/s h Backward compatibility (ATA33/66/100/133) h Higher performance than traditional Flat cable (data rate) h Improved data robustness h Better airflow due to thinner ATA/133 cable
Connect to the system connectors on the mainboard.
Connect to the master drive.
Connect one end to the floopy disk drive connector (FDD1) and the other end to the standard flooy disk.
Connect to the slave drive.
CPU Thermal Protection
Aimed to prevent the CPU from overheating, MSI has developed a CPU Thermal
Protection mechanism for Intel ® CPU platform. This CPU Thermal Protection mechanism works on a thermal signal sensor. If the mechanism senses an abnormal temperature rise, it will automatically shut down the system and the CPU temperature will then drop down and resume normal. With this unique feature, users can better protect their CPU. Please note that this feature is for Intel
®
Pentium CPU only.
1-9
MS-7043 ATX Mainboard
Live BIOS™/Live Driver™
The Live BIOS™/Live Driver™ is a tool used to detect and update your BIOS/drivers online so that you don’t need to search for the correct BIOS/driver version throughout the whole Web site. To use the function, you need to install the “MSI Live Update 3” application. After the installation, the “MSI Live Update 3” icon (as shown on the right) will appear on the screen.
Double click the “MSI Live Update 3” icon, and the following screen will appear:
Five buttons are placed on the left column of the screen. Click the desired button to start the update process.
Ü Live BIOS – Updates the BIOS online.
Ü Live Driver – Updates the drivers online.
Ü Live VGA BIOS – Updates the VGA BIOS online.
Ü Live VGA Driver – Updates the VGA driver online.
Ü Live OSD – Updates the firmware of the OSD products online.
Ü Live Utility – Updates the utilities online.
If the product you purchased does not support any of the functions listed above, a
“sorry” message is displayed. For more information on the update instructions, insert the companion CD and refer to the “Live Update Guide” under the “Manual” Tab.
1-10
Getting Started
Live Monitor™
The Live Monitor™ is a tool used to schedule the search for the latest BIOS/drivers version on the MSI Web site. To use the function, you need to install the “MSI Live Update 3” application. After installation, the “MSI Live Monitor” icon (as shown on the right) will appear on the screen. Double click this icon to run the application.
Double click the “MSI Live Monitor” icon lower-right corner of the taskbar.
at the
Select Preference tions about MSI's products for users to inquire.
If Preference is selected, you can specify how often the system will automatically search for the BIOS/drivers version, or change the LAN settings right from the MSI
Live Monitor [Preference] dialog box .
1-11
MS-7043 ATX Mainboard
D-Bracket™ 2 (Optional)
D-Bracket™ 2 is a USB bracket integrating four Diagnostic LEDs, which use graphic signal display to help users understand their system. The LEDs provide up to
16 combinations of signals to debug the system. The 4 LEDs can detect all problems that fail the system, such as VGA, RAM or other failures. This special feature is very useful for overclocking users. These users can use the feature to detect if there are any problems or failures. D-Bracket™ 2 supports both USB 1.1 & 2.0 spec.
D-Bracket™ 2
1 2
3 4
1-12
Red Green
D-Bracket™ 2
Description
1 2
3 4
System Power ON
- The D-LED will hang here if the processor is damaged or not installed properly.
Early Chipset Initialization
Memory Detection Test
- Testing onboard memory size. The D-LED will hang if the memory module is damaged or not installed properly.
Decompressing BIOS image to RAM for fast booting.
Initializing Keyboard Controller.
Testing VGA BIOS
- This will start writing VGA sign-on message to the screen.
Getting Started
D-Bracket™ 2
Description
1 2
3 4
Processor Initialization
- This will show information regarding the processor
(like brand name, system bus, etc...)
Testing RTC (Real Time Clock)
Initializing Video Interface
- This will start detecting CPU clock, checking type of video onboard. Then, detect and initialize the video adapter.
BIOS Sign On
- This will start showing information about logo, processor brand name, etc...
Testing Base and Extended Memory
- Teting base memory from 240K to 640K and extended memory above 1MB using various patterns.
Assign Resources to all ISA.
Initializing Hard Drive Controller
- This will initialize IDE drive and controller.
Initializing Floppy Drive Controller
- This will initialize Floppy Drive and controller.
Boot Attempt
- This will set low stack and boot via INT 19h.
Operating System Booting
1-13
MS-7043 ATX Mainboard
S-Bracket (Optional)
S-Bracket is a bracket which provides 2 SPDIF jacks for digital audio transmission and 2 analog Line-Out connectors for additional 4-channel analog audio output.
With the S-Bracket, your system will be able to perform 6-channel audio operation for wonderful surround sound effect, or connect to Sony & Philips Digital Interface
(SPDIF) speakers for audio transmission with better quality.
The S-Bracket offers two types of SPDIF connectors: one for optical fiber and the other for coaxial connection. Select the appropriate one to meet your own need.
For more information on S-Bracket, refer to Appendix A: Using 4- or 6-Channel Audio
Function.
S-Bracket
SPDIF jack (optical)
SPDIF jack (coaxial)
Analog Line-Out jacks
1-14
Hardware Setup
Chapter 2. Hardware
Setup
Hardware Setup
This chapter provides you with the information about hardware setup procedures. While doing the installation, be careful in holding the components and follow the installation procedures. For some components, if you install in the wrong orientation, the components will not work properly.
Use a grounded wrist strap before handling computer components. Static electricity may damage the components.
2-1
MS-7043 ATX Mainboard
Quick Components Guide
JPW1, p.2-9
CPU, p.2-3
CPUFA1, p.2-13
DIMM1~3, p.2-7
Back Panel
I/O, p.2-10
ATX1, p.2-9
FDD1, p.2-11
AGP1, p.2-19
PCI 1~5, p.2-19
JAUD1, p.2-13
JCD1, p.2-15
JSP1, p.2-16
JDB1, p.2-15
JUSB1/2, p.2-17
IDE2/1, p.2-11
JBAT1, p.2-18
SATA2/1, p.2-12
JFP1/2, p.2-14
2-2
Hardware Setup
Central Processing Unit: CPU
The mainboard supports Intel
®
Pentium
®
4 processors in the 478 pin package.
The mainboard uses a CPU socket called PGA478 for easy CPU installation. When you are installing the CPU, make sure the CPU has a heat sink and a cooling fan
attached on the top to prevent overheating. If you do not have the heat sink and cooling fan, contact your dealer to purchase and install them before turning on the computer.
CPU Core Speed Derivation Procedure
If CPU Clock
Core/Bus ratio
then CPU core speed
=
=
=
=
=
200MHz
12
Host Clock x Core/Bus ratio
200MHz x 12
2.4 GHz
Memory Speed/CPU FSB Support Matrix
Memory
FSB
FSB400
FSB533
FSB800
DDR266 DDR333 DDR400 DDR433 DDR466
OK
OK
OK
N/A
OK
OK
N/A
N/A
OK
N/A
N/A
OK*
N/A
N/A
OK*
*: Overclocking spec.
MSI Reminds You...
Overheating
Overheating will seriously damage the CPU and system, always make sure the cooling fan can work properly to protect the CPU from overheating.
Overclocking
This motherboard is designed to support overclocking. However, please make sure your components are able to tolerate such abnormal settings while doing overclocking. Any attempt to operate beyond product specifications is not recommended. We do not guarantee the damages
or risks caused by inadequate operation or beyond product specifications.
2-3
MS-7043 ATX Mainboard
CPU Installation Procedures for Socket 478
1. Please turn off the power and unplug the power cord before installing the CPU.
Open Lever
Sliding
Plate
90 degree
2. Pull the lever sideways away from the socket. Make sure to raise the lever up to a 90-degree angle.
Gold arrow
3. Look for the gold arrow. The gold arrow should point towards the lever pivot. The CPU can only fit in the correct orientation.
4. If the CPU is correctly installed, the pins should be completely embedded into the socket and can not be seen. Please note that any violation of the correct installation procedures may cause permanent damages to your mainboard.
Gold arrow
Gold arrow
5. Press the CPU down firmly into the socket and close the lever.
As the CPU is likely to move while the lever is being closed, always close the lever with your fingers pressing tightly on top of the CPU to make sure the CPU is properly and completely embedded into the socket.
Press down the CPU
Correct CPU placement
O
Incorrect CPU placement
X
Close
Lever
2-4
Hardware Setup
Installing the CPU Fan
As processor technology pushes to faster speeds and higher performance, thermal management becomes increasingly important. To dissipate heat, you need to attach the CPU cooling fan and heatsink on top of the CPU. Follow the instructions below to install the Heatsink/Fan:
1.
Locate the CPU and its retention mechanism on the mainboard.
retention mechanism
2.
Position the heatsink onto the retention mechanism.
3.
Mount the fan on top of the heatsink.
Press down the fan until its four clips get wedged in the holes of the retention mechanism.
4.
Press the two levers down to fasten the fan. Each lever can be pressed down in only ONE direction.
levers
2-5
MS-7043 ATX Mainboard
5.
Connect the fan power cable from the mounted fan to the 3-pin fan power connector on the board.
fan power cable
MSI Reminds You...
Please refer to the Intel/AMD websites for recommended CPU cooling fans.
2-6
Hardware Setup
Memory
The mainboard provides 3 slots for 184-pin, 2.5V DDR DIMM and supports up to
3GB memory size. You can install DDR266 / DDR333 / DDR400 / DDR433 / DDR466
SDRAM modules on the DDR DIMM slots (DIMM 1~3).
To operate properly, at least one DIMM module must be installed. Please note
that DDR433/DDR466 are overclocking specs.
DDR DIMM Slots
(DIMM 1~3, from left to right)
Channel A: DIMM1 & DIMM2 (green)
Channel B: DIMM3 (purple)
Memory Population Rules
Install at least one DIMM module on the slots. Each DIMM slot supports up to a maximum size of 1GB. You can install either single- or double-sided modules to meet your own needs.
The mainboard supports both dual-channel & single-channel modes. Users may install memory modules of different types and density under single-channel mode. Under dual-channel mode, however, please make sure that you install memory
modules of the same type and density on DDR DIMMs “in pairs” -- {DIMM1 &
DIMM3} or {DIMM2 & DIMM3} to ensure system stability.
2-7
MS-7043 ATX Mainboard
Memory modules can be installed in any combination as follows:
DIMM1
128MB~1GB
DIMM2
128MB~1GB
DIMM3 System Density Mode
128MB~1GB S
128MB~1GB
128MB~1GB 128MB~1GB
S
S
128MB~1GB 128MB~1GB
128MB~1GB
256MB~2GB
128MB~1GB 256MB~2GB
128MB~1GB 128MB~1GB 256MB~2GB
128MB~1GB 128MB~1GB 128MB~1GB 384MB~3GB
S
D
D
S
S: Single-Channel Mode D: Dual-Channel Mode
Please refer to
http://www.msi.com.tw/program/products/mainboard/ mbd/pro_mbd_trp_list.php
for compatible DDR modules.
Installing DDR Modules
1.
The DDR DIMM has only one notch on the center of module. The module will only fit in the right orientation.
2.
Insert the DIMM memory module vertically into the DIMM slot. Then push it in until the golden finger on the memory module is deeply inserted in the socket.
MSI Reminds You...
You can barely see the golden finger if the module is properly inserted in the socket.
3.
The plastic clip at each side of the DIMM slot will automatically close.
Volt
Notch
2-8
Hardware Setup
Power Supply
The mainboard supports ATX power supply for the power system. Before inserting the power supply connector, always make sure that all components are installed properly to ensure that no damage will be caused.
ATX 20-Pin Power Connector: ATX1
This connector allows you to connect to an ATX power supply. To connect to the ATX power supply, make sure the plug of the power supply is inserted in the proper orientation and the pins are aligned. Then push down the power supply firmly into the connector.
ATX 12V Power Connector: JPW1
This 12V power connector is used to provide power to the CPU.
10 20
4
3
JPW1
2
1
JPW1 Pin Definition
PIN SIGNAL
3
4
1
2
GND
GND
12V
12V
1
ATX1
11
PIN
7
8
5
6
3
4
1
2
9
10
ATX1 Pin Definition
SIGNAL
3.3V
3.3V
GND
5V
GND
5V
GND
PW_OK
5V_SB
12V
PIN
15
16
17
18
11
12
13
14
19
20
SIGNAL
3.3V
-12V
GND
PS_ON
GND
GND
GND
-5V
5V
5V
MSI Reminds You...
1. Power supplies of 300watt (and up) are highly recommended for system stability.
2. Please refer to the Intel/AMD websites for recommended power supplies.
2-9
MS-7043 ATX Mainboard
Back Panel
Parallel
SPDIF Out
LAN
L-In
Mouse
Keyboard COMA
USB Ports
L-Out
MIC
Mouse/Keyboard Connector
Pin6 NC
Pin5
Mouse/KBD Clock
Pin4 VCC Pin3 GND
Serial Port
1 2 3 4 5
6 7 8 9
USB Ports
1 2 3 4
PIN
1
4
5
2
3
8
9
6
7
PIN SIGNAL
1 VCC
2 -Data
3 +Data
4 GND
Pin2 NC
SIGNAL
DCD
SIN
SOUT
DTR
GND
DSR
RTS
CTS
RI
Pin1
Mouse/KBD
DATA
RJ-45 LAN Jack
Activity Indicator
Link Indicator
8 1
Gigabit LAN
PIN
6
7
4
5
8
1
2
3
SIGNAL
D0P
D0N
D1P
D2P
D2N
D1N
D3P
D3N
DESCRIPTION
Differential Pair 0+
Differential Pair 0-
Differential Pair 1+
Differential Pair 2+
Differential Pair 2-
Differential Pair 1-
Differential Pair 3+
Differential Pair 3-
2-10
Hardware Setup
Connectors
The mainboard provides connectors to connect to FDD, IDE HDD, case, LAN,
USB Ports, IR module and CPU/System/Power Supply FAN.
Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
FDD1
ATA133 Hard Disk Connectors: IDE1 & IDE2
The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 66/100/133 controller that provides PIO mode 0~4, Bus Master, and Ultra DMA 66/100/133 function.
You can connect up to four hard disk drives, CD-ROM and other IDE devices.
The Ultra ATA133 interface boosts data transfer rates between the computer and the hard drive up to 133 megabytes (MB) per second. The new interface is onethird faster than earlier record-breaking Ultra ATA/100 technology and is backwards compatible with the existing Ultra ATA interface.
IDE2
IDE1
IDE1 (Primary IDE Connector)
The first hard drive should always be connected to IDE1. IDE1 can connect a Master and a Slave drive. You must configure second hard drive to Slave mode by setting the jumper accordingly.
IDE2 (Secondary IDE Connector)
IDE2 can also connect a Master and a Slave drive.
MSI Reminds You...
If you install two hard disks on cable, you must configure the second drive to Slave mode by setting its jumper. Refer to the hard disk documentation supplied by hard disk vendors for jumper setting instructions.
2-11
MS-7043 ATX Mainboard
Serial ATA RAID 0, 1 Connectors: SATA1, SATA2
The southbridge VIA ® VT8237 provides a hybrid solution that combines two independent SATA ports for support of up to two Serial ATA (Serial ATA RAID) drives and supports RAID levels 0 and 1 for easy management of the storage subsystems.
Both connectors support 1 st
generation serial ATA data rate of 150 MB/s and are fully compliant with Serial ATA 1.0 specifications.
7
SATA2
SATA1
7
1
1
SATA1/2 Pin Definition
PIN SIGNAL
1
3
5
7
GND
TXN
RXN
GND
PIN SIGNAL
2
4
6
TXP
GND
RXP
Take out the dust cover and connect to the hard disk devices
Optional Serial ATA cable
2-12
Connect to SATA1 or SATA2
MSI Reminds You...
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise, data loss may occur during transmission.
Hardware Setup
Fan Power Connector: CPUFA1
The CPUFA1 (processor fan) supports system cooling fan with +12V. It supports three-pin head connector. When connecting the wire to the connectors, always take note that the red wire is the positive and should be connected to the +12V, the black wire is Ground and should be connected to GND. If the mainboard has a System Hardware Monitor chipset onboard, you must use a specially designed fan with speed sensor to take advantage of the CPU fan control.
CPUFA1
MSI Reminds You...
Always consult the vendors for proper CPU cooling fans.
Front Panel Audio Connector: JAUD1
The JAUD1 front panel audio connector allows you to connect to the front panel audio and is compliant with Intel ® Front Panel I/O Connectivity Design Guide.
PIN
7
8
5
6
3
4
1
2
9
10
SIGNAL
AUD_MIC
AUD_GND
AUD_MIC_BIAS
AUD_VCC
AUD_FPOUT_R
AUD_RET_R
HP_ON
KEY
AUD_FPOUT_L
AUD_RET_L
2
1
10
9
JAUD1
JAUD1 Pin Definition
DESCRIPTION
Front panel microphone input signal
Ground used by analog audio circuits
Microphone power
Filtered +5V used by analog audio circuits
Right channel audio signal to front panel
Right channel audio signal return from front panel
Reserved for future use to control headphone amplifier
No pin
Left channel audio signal to front panel
Left channel audio signal return from front panel
MSI Reminds You...
If you don’t want to connect to the front audio header, pins
5 & 6, 9 & 10 have to be jumpered in order to have signal output directed to the rear audio ports. Otherwise, the
Line-Out connector on the back panel will not function.
6
10
5
9
2-13
MS-7043 ATX Mainboard
Chassis Intrusion Switch Connector: JCI1 (Optional)
This connector is connected to a 2-pin chassis switch. If the chassis is opened, the switch will be short. The system will record this status and show a warning message on the screen. To clear the warning, you must enter the BIOS utility and clear the record.
GND
CINTRU
JCI1
2
1
Front Panel Connectors: JFP1 & JFP2
The mainboard provides two front panel connectors for electrical connection to the front panel switches and LEDs. The JFP1 is compliant with Intel ® Front Panel I/
O Connectivity Design Guide.
JFP1
Power
LED
Power
Switch
2
1
HDD
LED
Reset
Switch
10
9
PIN
6
7
4
5
8
9
1
2
3
JFP1 Pin Definition
SIGNAL
HD_LED_P
FP PWR/SLP
HD_LED_N
FP PWR/SLP
RST_SW_N
PWR_SW_P
RST_SW_P
PWR_SW_N
RSVD_DNU
DESCRIPTION
Hard disk LED pull-up
MSG LED pull-up
Hard disk active LED
MSG LED pull-up
Reset Switch low reference pull-down to GND
Power Switch high reference pull-up
Reset Switch high reference pull-up
Power Switch low reference pull-down to GND
Reserved. Do not use.
Speaker
JFP2
2
1
Power
LED
8
7
JFP2 Pin Definition
PIN SIGNAL
1
3
5
7
GND
SLED
PLED
NC
PIN SIGNAL
2
4
6
8
SPK-
BUZ+
BUZ-
SPK+
2-14
Hardware Setup
CD-In Connector: JCD1
The connector is for CD-ROM audio connector.
JCD1
R GND L
D-Bracket™ 2 Connector: JDB1 (Optional)
The mainboard comes with a JDB1 connector for you to connect to D-Bracket™
2. D-Bracket™ 2 is a USB Bracket that supports both USB1.1 & 2.0 spec. It integrates four LEDs and allows users to identify system problems through 16 various combinations of LED signals. For definitions of 16 signal combinations, please refer to D-
Bracket™ 2 in Chapter 1.
2
1
JDB1
10
9
Pin
JDB1 Pin Definition
Signal
1 DBG1 (high for green color)
2 DBR1 (high for red color)
3 DBG2 (high for green color)
4 DBR2 (high for red color)
5 DBG3 (high for green color)
6 DBR3 (high for red color)
7 DBG4 (high for green color)
8 DBR4 (high for red color)
9 Key
10 NC
Connect to JDB1
D-Bracket™ 2
(Optional)
Connect to JUSB1/JUSB2
LEDs
2-15
MS-7043 ATX Mainboard
S-Bracket (SPDIF) Connector: JSP1 (Optional)
The connector allows you to connect a S-Bracket for Sony & Philips Digital
Interface (SPDIF). The S-Bracket offers 2 SPDIF jacks for digital audio transmission
(one for optical fiber connection and the other for coaxial), and 2 analog Line-Out jacks for 4-channel audio output.
To attach the fiber-optic cable to optical SPDIF jack, you need to remove the plug from the jack first. The two SPDIF jacks support SPDIF output only. For more information on the S-Bracket, refer to Appendix: Using 2-, 4-, or 6-Channel Audio
Function.
2
1
JSP1
12
11
JSP1 Pin Definition
7
9
11
3
5
PIN SIGNAL
1 VCC5
SPDFO
GND
LFE-OUT
CET-OUT
GND
DESCRIPTION
VCC 5V
S/PDIF output
Ground
Audio bass output
Audio center output
Ground
8
10
12
4
6
PIN SIGNAL
2 VDD3
(No Pin)
SPDFI
SOUT-R
SOUT-L
GND
DESCRIPTION
VDD 3.3V
Key
S/PDIF input
Audio right surrounding output
Audio left surrounding output
Ground
Optional S-Bracket
Analog Line-Out jack
Connect to JSP1
2-16
SPDIF jack (optical)
SPDIF jack (coaxial)
Hardware Setup
Front USB Connectors: JUSB1 & JUSB2 (Optional)
The mainboard provides two USB 2.0 pin headers JUSB1 & JUSB2 (Optional) that are compliant with Intel ® I/O Connectivity Design Guide. USB 2.0 technology increases data transfer rate up to a maximum throughput of 480Mbps, which is 40 times faster than USB 1.1, and is ideal for connecting high-speed USB interface peripherals such as USB HDD, digital cameras, MP3 players, printers, modems
and the like.
2
1
JUSB1/ JUSB2
(USB 2.0/Intel spec)
10
9
JUSB1 & JUSB2 Pin Definition
7
9
3
5
PIN SIGNAL
1 VCC
USB0-
USB0+
GND
Key (no pin)
4
6
PIN SIGNAL
2 VCC
USB1-
USB1+
8
10
GND
USBOC
4-Port USB 2.0 Bracket (Optional)
Connect to JUSB1 & JUSB2 separately
Connect to JUSB1/JUSB2
2-Port USB 2.0 Bracket (Optional)
2-17
MS-7043 ATX Mainboard
Jumpers
The mainboard provides the following jumpers for you to set the computer’s function. This section will explain how to change your mainboard’s function through the use of jumpers.
Clear CMOS Jumper: JBAT1
There is a CMOS RAM on board that has a power supply from external battery to keep the data of system configuration. With the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configuration, use the JBAT1 (Clear CMOS Jumper ) to clear data. Follow the instructions below to clear the data:
1
JBAT1
1 1
3
Keep Data
3
Clear Data
MSI Reminds You...
You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will damage the mainboard.
2-18
Hardware Setup
Slots
The mainboard provides one AGP slot and five 32-bit PCI bus slots.
AGP (Accelerated Graphics Port) Slot
The AGP slot allows you to insert the AGP graphics card. AGP is an interface specification designed for the throughput demands of 3D graphics. It introduces a
66MHz, 32-bit channel for the graphics controller to directly access main memory.
The slot supports 8x/4x AGP card.
AGP Slot
PCI (Peripheral Component Interconnect) Slots
The PCI slots allow you to insert the expansion cards to meet your needs.
When adding or removing expansion cards, make sure that you unplug the power supply first. Meanwhile, read the documentation for the expansion card to make any necessary hardware or software settings for the expansion card, such as jumpers, switches or BIOS configuration.
PCI Slot
PCI Interrupt Request Routing
The IRQ, acronym of interrupt request line and pronounced I-R-Q, are hardware lines over which devices can send interrupt signals to the microprocessor. The
PCI IRQ pins are typically connected to the PCI bus INT A# ~ INT D# pins as follows:
PCI Slot 1
PCI Slot 2
PCI Slot 3
PCI Slot 4
PCI Slot 5
Order 1
INT A#
INT B#
INT C#
INT D#
INT B#
Order 2
INT B#
INT C#
INT D#
INT A#
INT C#
Order 3
INT C#
INT D#
INT A#
INT B#
INT D#
Order 4
INT D#
INT A#
INT B#
INT C#
INT A#
2-19
BIOS Setup
Chapter 3. BIOS Setup
BIOS Setup
This chapter provides information on the BIOS Setup program and allows you to configure the system for optimum use. You may need to run the Setup program when:
An error message appears on the screen during the system booting up, and requests you to run SETUP.
You want to change the default settings for customized features.
MSI Reminds You...
1. The items under each BIOS category described in this chapter are under continuous update for better system performance.
Therefore, the description may be slightly different from the latest BIOS and should be held for reference only.
2. Upon boot-up, the 1st line appearing after the memory count is the BIOS version. It is usually in the format:
A7043MS V1.0 150304 where:
1st digit refers to BIOS maker as A = AMI, W = AWARD, and P = PHOENIX.
2nd - 5th digit refers to the model number.
6th - 7th digit refers to the customer as MS = all standard customers.
V1.0 refers to the BIOS version.
150304 refers to the date this BIOS was released.
3-1
MS-7043 ATX Mainboard
Entering Setup
Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press <DEL> key to enter
Setup.
DEL: Setup F11: Boot Menu F12: Network Boot TAB: Logo F10: Flash Recovery
If the message disappears before you respond and you still wish to enter
Setup, restart the system by turning it OFF and On or pressing the RESET button. You may also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.
Selecting the First Boot Device
You are allowed to select the 1st boot device without entering the BIOS setup utility by pressing <F11>. When the same message as listed above appears on the screen, press <F11> to trigger the boot menu.
The POST messages might pass by too quickly for you to respond in time. If so, restart the system and press <F11> after around 2 or 3 seconds to activate the boot menu similar to the following.
Floppy
IDE-0
CDROM
[Up/Dn] Select
Select First Boot Device
: 1st Floppy
: IBM-DTLA-307038
: ATAPI CD-ROM DRIVE 40X M
[RETURN] Boot [ESC] cancel
The boot menu will list all the bootable devices. Select the one you want to boot from by using arrow keys, then press <Enter>. The system will boot from the selected device. The selection will not make changes to the settings in the BIOS setup utility, so next time when you power on the system, it will still use the original first boot device to boot up.
3-2
BIOS Setup
Control Keys
<
↑
>
<
↓
>
<
←
>
<
→
>
<Enter>
<Esc>
<+/PU>
<-/PD>
<F6>
<F7>
<F10>
Move to the previous item
Move to the next item
Move to the item in the left hand
Move to the item in the right hand
Select the item
Jumps to the Exit menu or returns to the main menu from a submenu
Increase the numeric value or make changes
Decrease the numeric value or make changes
Load High Performance Defaults
Load Optimal Defaults
Save all the CMOS changes and exit
Getting Help
After entering the Setup utility, the first screen you see is the Main Menu.
Main Menu
The main menu displays the setup categories the BIOS supplies. You can use the arrow keys (
↑↓ ) to select the item. The on-line description for the selected setup category is displayed at the bottom of the screen.
Default Settings
The BIOS setup program contains two kinds of default settings: the Optimal and
High Performance Defaults. The Optimal Defaults provide stable performance settings for all devices and the system, while the High Performance Defaults provide the best system performance but may affect the system stability.
3-3
MS-7043 ATX Mainboard
The Main Menu
Once you enter the AMI BIOS New Setup Utility, the Main Menu will appear on the screen. The Main Menu displays twelve configurable functions and two exit choices. Use arrow keys to move among the items and press <Enter> to enter the sub-menu.
Standard CMOS Features
Use this menu for basic system configurations, such as time, date etc.
Advanced BIOS Features
Use this menu to setup the items of AMI
®
special enhanced features.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your system’s performance.
Power Management Features
Use this menu to specify your settings for power management.
PNP/PCI Configurations
This entry appears if your system supports PnP/PCI.
3-4
BIOS Setup
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
PC Health Status
This entry shows your PC health status.
Frequency/Voltage Control
Use this menu to specify your settings for frequency/voltage control.
Set Supervisor Password
Use this menu to set Supervisor Password.
Set User Password
Use this menu to set User Password.
Load Optimal Defaults
Use this menu to load the factory default settings for optimal & stable system performance.
Load High Performance Defaults
Use this menu to load the BIOS values for the best system performance, but the system stability may be affected.
Save & Exit Setup
Save changes to CMOS and exit setup.
Exit Without Saving
Abandon all changes and exit setup.
3-5
MS-7043 ATX Mainboard
Standard CMOS Features
The items inside Standard CMOS Features menu are divided into 8 categories.
Each category includes none, one or more setup items. Use the arrow keys to highlight the item you want to modify and use the <PgUp> or <PgDn> keys to switch to the value you prefer.
System Date
This allows you to set the system to the date that you want (usually the current date).
The format is [month] [date] [year] [day].
[month] The month from Jan. through Dec.
[date]
[year]
[day]
The date from 1 to 31 can be keyed by numeric function keys.
The year can be adjusted by users.
Day of the week, from Sun to Sat, determined by
BIOS. Read-only.
System Time
This allows you to set the system time that you want (usually the current time). The time format is [hour] [minute] [second].
Primary/Secondary IDE Master/Slave
Press PgUp/<+> or PgDn/<-> to select the hard disk drive type. The specification of hard disk drive will show up on the right hand according to your selection.
3-6
BIOS Setup
[Type]
[Cylinders]
Select how to define the HDD parameters
Enter cylinder number
[Heads] Enter head number
[Write Precompensation] Enter write precomp cylinder
[Sectors] Enter sector number
[Maximum Capacity]
[LBA Mode]
Read the maximal HDD capacity
Select [Auto] for a hard disk > 512 MB un-
[Block Mode]
[Fast Programmed I/O
Modes]
[32 Bit Transfer Mode] der Windows and DOS, or [Disabled] under Netware and UNIX
Select [Auto] to enhance the hard disk performance
Select [Auto] to enhance hard disk performance by optimizing the hard disk timing
Enable 32 bit to maximize the IDE hard disk data transfer rate
Floppy Drive A:/B:
This item allows you to set the type of floppy drives installed. Available options: [Not
Installed], [1.2 MB 5¼], [720 KB 3½], [1.44 MB 3½], and [2.88 MB 3½].
3-7
MS-7043 ATX Mainboard
Advanced BIOS Features
Quick Boot
Setting the item to [Enabled] allows the system to boot within 5 seconds since it will skip some check items. Available options: [Enabled], [Disabled].
Full Screen LOGO Show
This item enables you to show the company logo on the bootup screen. Settings are:
[Enabled]
[Disabled]
Shows a still image (logo) on the full screen at boot.
Shows the POST messages at boot.
Boot Sequence
Press <Enter> and the following sub-menu appears.
3-8
1st/2nd/3rd
These items allow you to set the sequence of boot devices where AMIBIOS attempts to load the operating system.
BIOS Setup
Boot Other Devices
Setting the option to [Yes] allows the system to try to boot from other devices if the system fails to boot from the 1st/2nd/3rd boot device.
Hard Disk S.M.A.R.T.
This allows you to activate the S.M.A.R.T. (Self-Monitoring Analysis & Reporting
Technology) capability for the hard disks. S.M.A.R.T is a utility that monitors your disk status to predict hard disk failure. This gives you an opportunity to move data from a hard disk that is going to fail to a safe place before the hard disk becomes offline.
Settings: [Enabled], [Disabled].
Boot Up Num-Lock LED
This item is to set the Num Lock status when the system is powered on. Setting to
[On] will turn on the Num Lock key when the system is powered on. Setting to [Off] will allow end users to use the arrow keys on the numeric keypad. Setting options:
[On], [Off].
Halt On Keyboard Error
This setting determines whether the system will stop if an error is detected at keyboard.
Settings: [Enabled], [Disabled].
Swap Floppy
This field is effective only in systems with two floppy drives. Selecting [Enabled] assigns physical drive B to logical drive A, and physical drive A to logical drive B.
Seek Floppy
Setting to Enabled will make BIOS seek floppy drive A: before booting the system.
Settings: [Enabled], [Disabled].
Security Option
This specifies the type of BIOS password protection that is implemented. Settings are described below:
O p t i o n
[Setup]
[Always]
Description
The password prompt appears only when end users try to run Setup.
A password prompt appears every time when the computer is powered on or when end users try to run Setup.
Save Current ROM to HDD
This allows you to save the BIOS to your hard disk drive. Setting options: [No], [Yes].
Boot OS/2 For DRAM > 64MB
This allows you to run the OS/2
®
operating system with DRAM greater than 64MB.
Setting options: [No], [Yes].
Internal Cache
Cache memory is additional memory that is much faster than conventional DRAM (system memory). When the CPU requests data, the system transfers the requested data from the main DRAM into cache memory, for even faster access by the CPU. The setting controls the internal cache (also known as L1 or level 1 cache). Setting options: [Enabled],
[Disabled].
3-9
MS-7043 ATX Mainboard
Hyper-Threading Function
The processor uses Hyper-Threading technology to increase transaction rates and reduces end-user response times. The technology treats the two cores inside the processor as two logical processors that can execute instructions simultaneously. In this way, the system performance is highly improved. If you disable the function, the processor will use only one core to execute the instructions. Settings: [Enabled],
[Disabled]. Note that this function only available when the CPU installed supports Hyper-
Threading function.
MSI Reminds You...
Enabling the functionality of Hyper-Threading Technology for your computer system requires ALL of the following platform Components:
*
CPU:
An Intel ® Pentium ® 4 Processor with HT Technology;
*
Chipset:
A Chipset that supports HT Technology;
*
BIOS:
*
OS:
A BIOS that supports HT Technology and has it enabled;
An operating system that supports HT Technology.
For more information on Hyper-threading Technology, go to: www.intel.com/info/hyperthreading
MPS Revision
This field allows you to select which MPS (Multi-Processor Specification) version to be used for the operating system. You need to select the MPS version supported by your operating system. To find out which version to use, consult the vendor of your operating system. Settings: [1.4], [1.1].
3-10
Advanced Chipset Features
BIOS Setup
MSI Reminds You...
Change these settings only if you are familiar with the chipset.
DRAM Timing Control
Press <Enter> and the following sub-menu appears.
3-11
MS-7043 ATX Mainboard
3-12
DRAM Timing
The value in this field depends on performance parameters of the installed memory chips (DRAM). Do not change the value from the factory setting unless you install new memory that has a different performance rating than the original
DRAMs.
SDRAM CAS# Latency
The field controls the CAS latency, which determines the timing delay before
SDRAM starts a read command after receiving it. Setting options: [1.5], [2.0],
[2.5], [3.0]. [1.5] (clocks) increases system performance while [3.0] (clocks) provides more stable system performance.
SDRAM Bank Interleave
This field selects 2-bank or 4-bank interleave for the installed DRAM. Disable the function if 16MB DRAM is installed. Setting options: [Enabled], [Disabled].
Precharge to Active (Trp)
This setting controls the number of cycles for Row Address Strobe (RAS) to be allowed to precharge. If insufficient time is allowed for the RAS to accumulate its charge before DRAM refresh, refresh may be incomplete and DRAM may fail to retain data. This item applies only when synchronous DRAM is installed in the system. Setting options: [2T] to [5T].
Active to CMD (Trcd)
When DRAM is refreshed, both rows and columns are addressed separately.
This setup item allows you to determine the timing of the transition from RAS
(row address strobe) to CAS (column address strobe). The less the clock cycles, the faster the DRAM performance. Setting options: [2T] to [5T].
Active to Precharge (Tras)
This setting determines the time RAS takes to read from and write to a memory cell. Setting options: [6T] to [9T].
REF to ACT/REF to REF (Trfc)
This setting determines the time RFC takes to read from and write to a memory cell. Setting options: [12T] to [15T].
ACT (0) to ACT (1) (Trrd)
This setting controls the “DDR row active to row active delay." [2T] performance is better than [3T]. Setting options: [2T], [3T].
DRAM Command Rate
This setting controls the DRAM command rate. Selecting [1T] allows DRAM signal controller to run at 1T (T=clock cycles) rate. Selecting [2T] makes
DRAM signal controller run at 2T rate. [1T] is faster than [2T]. Setting options:
[1T], [2T].
DRAM Bus Selection
This setting determines the module type of DRAM Bus. Setting options: [Auto],
[Single Channel], [Dual Channel].
AGP Timing Control
Press <Enter> and the following sub-menu appears.
BIOS Setup
AGP 2.0/3.0 Mode
AGP 2.0/3.0 Mode appears depending on the AGP card installed on the mainboard. This item sets an appropriate mode for the installed AGP card.
Setting options for AGP 2.0 Mode: [1X], [2X], [4X]. Setting options for AGP 3.0
Mode: [4X], [8X].
AGP Driving Control
This item is used to adjust the AGP driving force. Selecting [Manual] allows you to select an AGP driving force in AGP Driving Value. It is strongly recommended to select [Auto] to avoid any system error caused.
AGP Driving Value
This item specifies an AGP driving force.
AGP Fast Write
The field enables or disables the AGP Fast Write feature. The Fast Write technology allows CPU to write directly to the graphics card without passing anything through the system memory and improves the AGP 4X speed. Select
[Enabled] only when the installed AGP card supports the function.
AGP Aperture Size (MB)
This setting controls just how much system RAM can be allocated to AGP for video purposes. The aperture is a portion of the PCI memory address range dedicated to graphics memory address space. Host cycles that hit the aperture range are forwarded to the AGP without any translation. The option allows the selection of an aperture size of [32MB], [64MB], [128MB], and [256 MB]. Two extra options of [512MB] and [1GB] will be available when AGP 3.0 card is installed.
AGP Master 1 WS Write
When [Enabled] is selected, writes to the AGP bus are executed with one wait state inserted.
3-13
MS-7043 ATX Mainboard
AGP Master 1 WS Read
When [Enabled] is selected, one wait state is inserted in the AGP read cycle.
AGP Read Synchronization
The field allows you to enable or disable the AGP Read Synchronization feature.
Top Performance
Set this item to [Enabled] to increase the system performance. Setting options: [Enabled],
[Disabled].
PCI Delayed Transaction
The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select [Enabled] to support compliance with PCI specification version 2.1.
VLink 8X Supported
This item enables or disables the 8X VLink Data Rate. Setting options: [Enabled],
[Disabled].
VLink Mode Selection
This item selects the mode of VLink. Setting options: [Auto], [Mode 1], [Mode 2], [Mode
3], [Mode 4].
3-14
Power Management Setup
BIOS Setup
MSI Reminds You...
S3-related functions described in this section are available only when your BIOS supports S3 sleep mode.
Sleep State
This item specifies the power saving modes for ACPI function. Options are:
[S1/POS] The S1 sleep mode is a low power state. In this state, no system context is lost (CPU or chipset) and hardware maintains all system context.
[S3/STR]
[Auto]
The S3 sleep mode is a lower power state where the information of system configuration and open applications/files is saved to main memory that remains powered while most other hardware components turn off to save energy. The information stored in memory will be used to restore the system when a
“wake up” event occurs.
BIOS determines the best mode automatically.
Re-call VGA BIOS at S3 Resuming
Selecting [Enabled] allows BIOS to call VGA BIOS to initialize the VGA card when system wakes up (resumes) from S3 sleep state. The system resume time is shortened when you disable the function, but system will need an AGP driver to initialize
3-15
MS-7043 ATX Mainboard
the VGA card. Therefore, if the AGP driver of the card does not support the initialization feature, the display may work abnormally or not function after resuming from S3.
Suspend Time Out (Minute)
If system activity is not detected for the length of time specified in this field, all devices except CPU will be shut off. Settings: [Disabled], [1 Min], [2 Min], [4 Min], [8 Min], [10
Min], [20 Min], [30 Min], [40 Min], [50 Min], [60 Min].
Power Button Function
This feature sets the function of the power button. Settings are:
[Power Off] The power button functions as normal power off button.
[Suspend] When you press the power button, the computer enters the suspend/sleep mode, but if the button is pressed for more than four seconds, the computer is turned off.
After AC Power Lost
This setting specifies whether your system will reboot after a power failure or interrupt occurs. Available settings are:
[Off]
[On]
[Last State]
Leaves the computer in the power off state.
Leaves the computer in the power on state.
Restores the system to the previous status before power failure or interrupt occurred.
Set Wake Up Events
Press <Enter> and the following sub-menu appears.
3-16
USB Wake-Up from S3
This item allows the activity of the USB device to wake up the system from S3
(Suspend to RAM) sleep state. Settings: [Enabled], [Disabled].
Wake Up By Keyboard From S3
The item specifies how the system will be awakened from power saving mode when input signal of the keyboard is detected. Settings: [Enabled],
[Disabled].
BIOS Setup
Wake-Up Key
This setting only works When Wake Up By Keyboard From S3 is set to [Enabled]. This setting specifies how the system will be awakened from power saving mode when input signal of the keyboard is detected.
Setting options: [Any Key], [Specific Key].
Wake-Up Password
This setting specifies the keyboard wake-up Password and works only when the Wake-Up Key setting is set to [Specific Key].
Resume On PS/2 Mouse From S3
The setting determines whether the system will be awakened from the S3 power saving mode when input signal of the PS/2 mouse is detected. Setting options: [Enabled], [Disabled].
Wake Up On PME#
When setting to [Enabled], this setting allows your system to be awakened from the power saving modes through any event on PME (Power Management Event). Setting options: [Enabled], [Disabled].
Resume On RTC Alarm
This is used to enable or disable the feature of booting up the system on a scheduled time/date from the S3, S4, and S5 state. Setting options: [Enabled],
[Disabled].
Alarm Date/Hour/Minute/Second
If Resume On RTC Alarm is set to [Enabled], the system will automatically resume (boot up) on a specific date/hour/minute/second specified in these fields. Available settings for each item are:
RTC Alarm Date 01 ~ 31, Every Day
RTC Alarm Hour
00 ~ 23
RTC Alarm Minute
RTC Alarm Second
00 ~ 59
00 ~ 59
MSI Reminds You...
If you have changed this setting, you must let the system boot up until it enters the operating system, before this function will work.
3-17
MS-7043 ATX Mainboard
PNP/PCI Configurations
This section describes configuring the PCI bus system and PnP (Plug & Play) feature. PCI, or Peripheral Component Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.
Clear NVRAM
The ESCD (Extended System Configuration Data) NVRAM (Non-volatile Random Access Memory) is where the BIOS stores resource information for both PNP and non-
PNP devices in a bit string format. When the item is set to [Yes], the system wil reset
ESCD NVRAM right after the system is booted up and then set the setting of the item back to [No] automatically.
PCI VGA Palette Snoop
When set to [Enabled], multiple VGA devices operating on different buses can handle data from the CPU on each set of palette registers on every video device. Bit 5 of the command register in the PCI device configuration space is the VGA Palette Snoop bit (0 is disabled). For example, if there are two VGA devices in the computer (one PCI and one ISA) and the:
3-18
BIOS Setup
VGA Palette Snoop
Bit Setting
[Disabled]
[Enabled]
Action
Data read or written by the CPU is only directed to the PCI
VGA device’s palette registers.
Data read or written by the CPU is directed to both the PCI
VGA device’s palette registers and the ISA VGA device’s palette registers, permitting the palette registers of both VGA devices to be identical.
The setting must be set to [Enabled] if any ISA bus adapter in the system requires VGA palette snooping.
Primary Graphics Adapter
This item specifies which VGA card is your primary graphics adapter. Settings: [PCI] and [AGP].
PCI Slot1/5 IRQ, PCI Slot2 IRQ, PCI Slot3 IRQ, PCI Slot4 IRQ
These items specify the IRQ line for each PCI slot. Setting options: [3], [4], [5], [7], [9],
[10], [11], [Auto]. Selecting [Auto] allows BIOS to automatically determine the IRQ line for each PCI slot.
3-19
MS-7043 ATX Mainboard
Integrated Peripherals
OnBoard PATA-IDE
This setting controls the onboard Parallel ATA IDE controller. Setting options: [Enabled],
[Disabled].
USB Controller
This setting is used to enable/disable the onboard USB controller. Setting options:
[Enabled], [Disabled].
USB Device Legacy Support
Set to [Enabled] if you need to use any USB 1.1/2.0 device in the operating system that does not support or have any USB 1.1/2.0 driver installed, such as DOS and SCO
Unix. Set to [Disabled] only if you want to use any USB device other than the USB mouse. Setting options: [Enabled], [Disabled].
Internal SATA Controller (Optional)
This item is used to enable/disable the Internal SATA controllers. Setting options:
[Enabled], [Disabled].
Boot ROM Function (Optional)
This item enables or disables the initialization of the onboard SATA Boot ROMs during bootup. Selecting [Disabled] will speed up the boot process.
3-20
BIOS Setup
AC97 Audio
This item is used to enable or disable the onboard AC’97 (Audio Codec’97) feature.
Selecting [Auto] allows the mainboard to detect whether an audio device is used. If an audio device is detected, the onboard AC’97 controller will be enabled; if not, the controller is disabled. Disable the function if you want to use other controller cards to connect an audio device. Settings: [Disabled] and [Auto].
Onboard LAN Controller
This setting controls the onboard LAN controller. Setting options: [Enabled], [Disabled].
OnBoard LAN P.M.E. (Available only when VIA LAN chipset is
intergrated)
This setting is used to enable/disable the onboard LAN PME (Power Management Event). Setting options: [Enabled], [Disabled].
Boot ROM Function
This item enables or disables the initialization of the onboard LAN Boot ROM during bootup. Selecting [Disabled] will speed up the boot process.
Set Super I/O
Press <Enter> and the following sub-menu appears.
Floopy Controller
The item is used to enable or disable the onboard Floppy controller. Select
[Enabled] when you have installed a floppy disk drive and want to use it.
Options: [Auto], [Enabled], [Disabled].
Serial PortA
The items specify the base I/O port address and IRQ for the onboard Serial Port
A. Selecting [Auto] allows BIOS to automatically determine the correct base I/O port address. Settings: [Auto], [Disabled], [3F8/COM1], [2F8/COM2], [3E8/COM3],
[2E8/COM4].
Parallel Port
These items specify the base I/O port addresses of the onboard parallel port.
Selecting [Auto] allows AMIBIOS to automatically determine the correct base I/O port address. Settings: [Auto], [Disabled], [378], [278], [3BC].
3-21
MS-7043 ATX Mainboard
Parallel Port Mode
Select an operating mode for the onboard parallel (printer) port.
[Normal]: Standard Parallel Port
[EPP]: Enhanced Parallel Port
[ECP]: Extended Capability Port
[Bi-Dir]: Extended Capability Port + Enhanced Parallel Port
To operate the onboard parallel port as Standard Parallel Port only, choose
[Normal]. To operate the onboard parallel port in the EPP mode simultaneously, choose [EPP]. By choosing [ECP], the onboard parallel port will operate in
ECP mode only. Choosing [Bi-Dir] will allow the onboard parallel port to support both the ECP and EPP modes simultaneously.
EPP Version
The item selects the EPP version used by the parallel port if the port is set to
[EPP] mode. Settings: [1.7] and [1.9].
Parallel Port IRQ
When Onboard Parallel Port is set to [Auto], the item shows [Auto] indicating that BIOS determines the IRQ for the parallel port automatically.
Parallel Port DMA Channel
This feature needs to be configured only when Parallel Port Mode is set to the [ECP] mode. When Parallel Port is set to [Auto], the field will show
[Auto] indicating that BIOS automatically determines the DMA channel for the parallel port.
3-22
BIOS Setup
PC Health Status
This setup screen shows the status of your CPU, fan, overall system status,..
etc. Monitor function is available only if there is hardware monitoring mechanism onboard.
System/CPU Temperature, CPU Fan Speed, Vcore, +3.3V, +5.0V, +12V, -12V,
-5.0V, Battery
These items display the current status of all of the monitored hardware devices/ components such as CPU voltages, temperatures and all fans’ speeds.
3-23
MS-7043 ATX Mainboard
Frequency/Voltage Control
Use this menu to specify your settings for frequency/voltage control.
Spread Spectrum
When the motherboard’s clock generator pulses, the extreme values (spikes) of the pulses creates EMI (Electromagnetic Interference). The Spread Spectrum function reduces the EMI generated by modulating the pulses so that the spikes of the pulses are reduced to flatter curves. If you do not have any EMI problem, leave the setting at
[Disabled] for optimal system stability and performance. But if you are plagued by EMI, set to [Enabled] for EMI reduction. Remember to disable Spread Spectrum if you are overclocking because even a slight jitter can introduce a temporary boost in clock speed which may just cause your overclocked processor to lock up.
Stop Unused PCI Clock
This item enables or disables the PCI slot clock. Setting options: [Enabled], [Disabled].
Dynamic Overclocking
Dynamic Overclocking Technology is the automatic overclocking function, included in the MSI
TM
newly developed CoreCell
TM
Technology. It is designed to detect the load balance of CPU while running programs, and to adjust the best CPU frequency automatically. When the motherboard detects that the CPU is running programs, it will speed up CPU automatically to make the program run smoothly and faster. When the
CPU is temporarily suspending or staying in the low load balance, it will restore the default settings instead. Usually the Dynamic Overclocking Technology will be powered only when users' PC need to run huge amount of data like 3D games or the video
3-24
BIOS Setup
process, and the CPU frequency needs to be boosted up to enhance the overall performance. Setting options:
[Disabled]
[Private]
[Sergeant]
[Captain]
Disable Dynamic Overclocking.
1st level of overclocking.
2nd level of overclocking.
3rd level of overclocking, also the default value of "Load
High Performance Defaults".
[Colonel]
[General]
4th level of overclocking.
5th level of overclocking.
[Commander] 6th level of overclocking.
MSI Reminds You...
1.
Even though the Dynamic Overclocking Technology is more stable than manual overclocking, basically, it is still risky. We suggest that users make sure that the CPU can afford to overclocking regularly first. If you find the PC appears to be unstable or reboot incidentally, it's better to disable the Dynamic Overclocking or to lower the level of overclocking options. By the way, if you need to conduct overclocking manually, you also need to disable the Dynamic OverClocking first.
2.
Meanwhile, there are two functions to protect user's system from crashing.
There is a safe key "Ins" in BIOS. In case the overclocking fails, you can press "Ins" key while system rebooting to restore to the BIOS defaults.
If the system incidentally reboot for four times, the BIOS will also be restored to the defaults.
CPU Ratio Selection
This setting controls the multiplier that is used to determine the internal clock speed of the processor relative to the external or motherboard clock speed.
CPU FSB Clock
This setting shows the current CPU Front Side Bus clock frequency.
DRAM Clock
Use this field to configure the clock frequency of the installed DRAM. Setting options:
FSB100: [By SPD], [DDR 266 (3:4)], [DDR 333 (3:5)], [DDR 400 (1:2)], [DDR
433], [DDR 450], [DDR 466], [DDR 500]
FSB133: [By SPD], [DDR 266 (1:1)], [DDR 333 (4:5)], [DDR 400 (2:3)], [DDR
433], [DDR 450], [DDR 466], [DDR 500]
FSB200: [By SPD], [DDR 266 (3:2)], [DDR 333 (6:5)], [DDR 400 (1:1)], [DDR
433], [DDR 450], [DDR 466], [DDR 500]
MSI Reminds You...
The value plus a ratio (CPU: DDR) with parentheses means the nonsynchronous overclocking.
3-25
MS-7043 ATX Mainboard
DRAM Frequency
This setting shows the current frequency of DDR DRAM (read only).
AGP Frequency (MHz)
This item is used to configure the AGP frequency.
CPU Voltage Adjust
The setting allows you to adjust the CPU Vcore voltage, which depends on the CPU.
AGP Voltage Adjust (V)
AGP voltage is adjustable in the field, allowing you to increase the performance of your AGP display card when overclocking, but the stability may be affected.
DDR Voltage Adjust (V)
This setting is used to adjust the DRAM core voltage (Vcore), making overclocking possible.
North Bridge/South Bridge Voltage (V)
These two items configure the voltage of the North Bridge and the South Bridge for overclocking purposes.
MSI Reminds You...
The settings shown in different color in CPU Voltage, DDR Voltage,
AGP Voltage, and North Bridge/South Bridge Voltage help to verify if your setting is proper for your system.
White: Safe setting.
Yellow: High performance setting.
Red: Not recommended setting and the system may be unstable.
Changing CPU/DDR/AGP/North Bridge/South Bridge Voltage may result in the instability of the system; therefore, it is NOT recommended
to change the default settings for long-term usage.
3-26
BIOS Setup
Set Supervisor/User Password
When you select this function, a message as below will appear on the screen:
Type the password, up to six characters in length, and press <Enter>. The password typed now will replace any previously set password from CMOS memory.
You will be prompted to confirm the password. Retype the password and press
<Enter>. You may also press <Esc> to abort the selection and not enter a password.
To clear a set password, just press <Enter> when you are prompted to enter the password. A message will show up confirming the password will be disabled.
Once the password is disabled, the system will boot and you can enter Setup without entering any password.
When a password has been set, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.
Additionally, when a password is enabled, you can also have AMIBIOS to request a password each time the system is booted. This would prevent unauthorized use of your computer. The setting to determine when the password prompt is required is the Security Option of the Advanced BIOS Feature menu. If the Security
Option is set to Always, the password is required both at boot and at entry to Setup.
If set to Setup, password prompt only occurs when you try to enter Setup.
MSI Reminds You...
About Supervisor Password & User Password:
Supervisor password: Can enter and change the settings of the
User password: setup menu.
Can only enter but do not have the right to change the settings of the setup menu.
3-27
MS-7043 ATX Mainboard
Load Optimal/High Performance Defaults
The two options on the main menu allow users to restore all of the BIOS settings to High Performance Defaults or Optimal Defaults. The High Performance
Defaults are the values set by the mainboard manufacturer for the best system performance but probably will cause a stability issue. The Optimal Defaults are the default values also set by the mainboard manufacturer for stable performance of the mainboard.
When you select Load Optimal Defaults, a message as below appears:
Pressing [Enter] loads the default factory settings for stable system performance.
When you select Load High Performance Defaults, a message as below appears:
Pressing [Enter] loads the BIOS values that enable the best system performance but may lead to a stability issue.
MSI Reminds You...
The option is for power or overclocking users only. Use of high performance defaults will tighten most timings to increase the system performance. Therefore, a high-end system configuration is a must, which means you need high-quality VGA adapter, RAM and so on. We
don’t recommend that users should apply the high performance
defaults in their regular systems. Otherwise, the system may become unstable or even crash. If the system crashes or hangs after enabling the feature, please CLEAR CMOS DATA to resolve the problem. For more information, refer to “Clear CMOS Jumper:JBAT1” in Chapter 2.
3-28
Using 2-, 4-, & 6-Channel Audio Function
Appendix A: Using 2-, 4- & 6-Channel
Audio Function
The mainboard is equipped with VIA VT1617A chip, which provides support for 6-channel audio output, including 2 Front, 2 Rear, 1 Center and 1 Subwoofer channel. VT1617A allows the board to attach 4 or 6 speakers for better surround sound effect. The section will tell you how to install and use 4-/6-channel audio function on the board.
A-1
MS-7043 ATX Mainboard
Installing the Audio Driver
You need to install the driver for VIA VT1617 chip to function properly before you can get access to 4-/6-channel audio operations. Follow the procedures described below to install the drivers for different operating systems.
Installation for Windows 98SE/ME/2000/XP
For Windows ® 2000, you must install Windows ® 2000 Service Pack2 or later before installing the driver.
The following illustrations are based on Windows
®
XP environment and could look slightly different if you install the drivers in different operating systems.
1.
Insert the companion CD into the CD-ROM drive. The setup screen will automatically appear.
2.
Click VIA Smart5.1CH Sound Drivers.
Click here
Special Notice during Installation
Once you are finishing the installation of your system, please right-click on [My Computer] on the desktop, and choose [Properties] ---> [Hardware] -
--> [Device Manager]. If you can see the question mark (?) next to the <Other devices> & <Multimedia
Audio Controller>, it means the system detects the audio codec in your system item and the VIA
Smart5.1CH Sound Drivers will appear on your
CD.
A-2
Using 2-, 4-, & 6-Channel Audio Function
3.
Click Next to install the AC’97 Audio software, and click Finish to restart the system.
4. You will find the icon in the system tray and on the desktop. Double-click the icon on the desktop or right-click on the icon in the system tray. Also, you can rightclick on the icon in the system tray and choose Properties, and the following screen will appear to show some basic settings about the audio configuration.
A-3
MS-7043 ATX Mainboard
Software Configuration
After installing the audio driver, you are able to use the 4-/6-channel audio feature now. Click the audio icon from the window tray at the lower-right corner of the screen to activate the AC97 Audio Configuration.
Playback
Here you can regulate the volume of each output. Chick on Link to regulate the leftright speakers simultaneously, or uncheck it to regulate them separately. Use the bar scrolling to the right for more outputs.
Select the channels you’d like to use here.
Recording
Here you can choose the preferred recording input. Click Select to choose the one you like. Choosing Mic allows you to record the audio through the connected microphones, Line In allows you to record to record through the connected line-in device, and etc. Choosing Stereo Mixer allows you to record the audio through all inputs.
A-4
Using 2-, 4-, & 6-Channel Audio Function
SPDIF & Speaker Configuration
Here you can configure and enable the functions related to S/PDIF & speakers. Move between the items in S/PDIF Control and Advanced control and the representing description and illustrations will display.
If you’d like to use the S/PDIF function for digital audio transmission, please check the
S/PDIF Enable and/or Analog in to S/PDIF Out check boxes as wished.
While enabling Analog in to S/PDIF Out function, the volumes should be adjusted in the Mic, Line In and CD Player parts in the Recording tab.
For the expander and Center/Subwoofer speaker exchange, please check the
EXpander and/or Exchange Center/LFT check boxes as wished.
Detail description o f t h e s e l e c t e d items in the right
Speaker Test
Here you can click on each speaker to test its function, and increase/decrease the volume.
A-5
MS-7043 ATX Mainboard
Information
Here it provides the information about Vinyl Deck, including the driver version, codec type, and OS version... etc.
A-6
Using 2-, 4-, & 6-Channel Audio Function
Using 2-, 4- & 6- Channel Audio Function
Connecting the Speakers
When you have set the Multi-Channel Audio Function mode properly in the software utility, connect your speakers to the correct phone jacks in accordance with the setting in software utility.
2-Channel Mode for Stereo-Speaker Output
Refer to the following diagram and caption for the function of each phone jack on the back panel when 2-Channel Mode is selected.
4
Back Panel
1
3
2
1 Line In
2 Line Out (Front channels)
3 MIC
4 SPDIF Coaxial jack
A-7
MS-7043 ATX Mainboard
4-Channel Mode for 4-Speaker Output
The audio jacks on the back panel always provide 2-channel analog audio output function, however these audio jacks can be transformed to 4- or 6channel analog audio jacks by selecting the corresponding multi-channel operation from No. of Speakers.
Refer to the following diagram and caption for the function of each jack on the back panel when 4-Channel Mode is selected.
Back Panel
1
4
2
1 *Line Out (Rear channels)
2 Line Out (Front channels)
3 MIC
4 SPDIF Coaxial jack
3
* Line In function is converted to
Line Out function when 4-Channel
Mode for 4-Speaker Output is selected.
A-8
Using 2-, 4-, & 6-Channel Audio Function
6-Channel Mode for 6-Speaker Output
Refer to the following diagram and caption for the function of each jack on the back panel when 6-Channel Mode is selected.
Back Panel
1 * Line Out (Rear channels)
2 Line Out (Front channels)
3 * Line Out (Center and Subwoofer channel)
4 SPDIF Coaxial jack
4
* Both Line In and MIC function are converted to Line
Out function when 6-Channel
Mode for 6-Speaker Output is selected.
2
3
1
MSI Reminds You...
If the audio signals coming from the Center and Subwoofer speaker are swapped when you play video or music on the computer, a converter may be required to exchange center and subwoofer audio signals. The converter can be purchased from a speaker store.
A-9
VIA VT8237 Serial ATA RAID
Appendix B: VIA VT8237 Serial ATA
RAID
The Southbridge VT8237 provides a hybrid solution that combines two independent SATA ports for support of up to two Serial ATA (Serial ATA RAID) drives.
Serial ATA (SATA) is the latest generation of the ATA interface. SATA hard drives deliver blistering transfer speeds of up to 150MB/sec. Serial ATA uses long, thin cables, making it easier to connect your drive and improving the airflow inside your PC.
The key features of VT8237 SATA RAID are:
1.
Support two SATA + two PATA hard disk drives.
2.
Only SATA supports RAID.
3.
Supports ATA 133 high performance hard disk drive.
4.
Dual independent ATA channels and maximum connection of four hard disk drives allowed.
5.
Supports Ultra DMA mode 6/5/4/3/2/1/0, DMA mode 2/1/0, and PIO mode 4/3/2/
1/0.
6.
Supports RAID 0 and RAID 1.
7.
4 KB to 64 KB striping block size support.
8.
Bootable disk or disk array support.
9.
Windows-based RAID configure and management software tool.
(Compatible with BIOS)
10.
Supports hot-swap failed disk drive in RAID 1 array.
11.
ATA SMART function support.
12.
Microsoft Windows 98, Me, NT4.0, 2000, XP operating systems support.
13.
Event log for easy troubleshooting.
B-1
MS-7043 ATX Mainboard
Introduction
This section gives a brief introduction on the RAID-related background knowledge and a brief introduction on VIA SATA RAID Host Controller. For users wishing to install their VIA SATA RAID driver and RAID software, proceed to Driver and RAID Software
Installation section.
RAID Basics
RAID (Redundant Array of Independent Disks) is a method of combining two or more hard disk drives into one logical unit. The advantage of an Array is to provide better performance or data fault tolerance. Fault tolerance is achieved through data redundant operation, where if one drives fails, a mirrored copy of the data can be found on another drive. This can prevent data loss if the operating system fails or hangs. The individual disk drives in an array are called “members”. The configuration information of each member is recorded in the “reserved sector” that identifies the drive as a member. All disk members in a formed disk array are recognized as a single physical drive to the operating system.
Hard disk drives can be combined together through a few different methods.
The different methods are referred to as different RAID levels. Different RAID levels represent different performance levels, security levels and implementation costs.
The RAID levels which the VIA VT8237 SATA RAID Host Controller supports are RAID
0 and RAID 1. The table below briefly introduced these RAID levels.
RAID Level No. of Drives
2 RAID 0
(Striping)
Capacity Benefits
Number drives * 2 Highest performance without data protection
RAID 1
(Mirroring)
2 Smallest size Data protection
B-2
VIA VT8237 Serial ATA RAID
RAID 0 (Striping)
RAID 0 reads and writes sectors of data interleaved between multiple drives.
If any disk member fails, it affects the entire array. The disk array data capacity is equal to the number of drive members times the capacity of the smallest member. The striping block size can be set from 4KB to 64KB. RAID 0 does not support fault tolerance.
RAID 1 (Mirroring)
RAID 1 writes duplicate data onto a pair of drives and reads both sets of data in parallel. If one of the mirrored drives suffers a mechanical failure or does not respond, the remaining drive will continue to function. Due to redundancy, the drive capacity of the array is the capacity of the smallest drive. Under a RAID 1 setup, an extra drive called the .spare drive. can be attached. Such a drive will be activated to replace a failed drive that is part of a mirrored array. Due to the fault tolerance, if any
RAID 1 drive fails, data access will not be affected as long as there are other working drives in the array.
B-3
MS-7043 ATX Mainboard
BIOS Configuration
When the system powers on during the POST (Power-On Self Test) process, press <Tab> key to enter the BIOS configuration.
The Serial ATA RAID volume may be configured using the VIA Tech. RAID BIOS.
Always use the arrow keys to navigate the main menu, use up and down arrow key to select the each item and press <Enter> to call out the list of creation steps. The main interface of BIOS configuration utility is as below:
B-4
VIA VT8237 Serial ATA RAID
Create Disk Array
Use the up and down arrow keys to select the Create Array command and press <Enter>.
MSI Reminds You...
The “Channel”, “Drive Name”, “Mode” and “Size (GB)” in the following example might be different from your system.
Select Array Mode and press <Enter>, a list of array modes will appear.
Highlight the target array mode that you want to create, and press <Enter> to confirm the selection. If RAID 1 or RAID 0/1 is selected, an option list will popup and enable the users to select Create only or Create and duplicate. Create only will allow BIOS to only create an array. The data on the mirroring drive may be different from the source drive. Create and duplicate lets BIOS copy the data from the source to the mirroring drive.
B-5
MS-7043 ATX Mainboard
After array mode is selected, there are two methods to create a disk array. One method is “Auto Setup” and the other one is “Select Disk Drives”. Auto Setup allows BIOS to select the disk drives and create arrays automatically, but it does not duplicate the mirroring drives even if the user selected Create and duplicate for RAID
1. It is recommended all disk drives are new ones when wanting to create an array.
Select Disk Drives lets the user select the array drives by their requirements. When using Select Disk Drives, the channel column will be activated. Highlight the target drives that you want to use and press <Enter> to select them. After all drives have been selected, press <Esc> to go back to the creation steps menu.
If user selects a RAID 0 array in step 2, the block size of the array can also be selected. Use the arrow key to highlight Block Size and press <Enter>, then select a block size from the popup menu. The block size can be 4KB to 64KB.
B-6
VIA VT8237 Serial ATA RAID
MSI Reminds You...
Even though 64KB is the recommended setting for most users, you should choose the block size value which is best suited to your specific RAID usage model.
4KB: For specialized usage models requiring 4KB blocks
8KB: For specialized usage models requiring 8KB blocks
16KB: Best for sequential transfers
32KB: Good for sequential transfers
64KB: Optimal setting
Use the arrow key to highlight Start Create Process and press <Enter>. A warning message will appear, Press Y to finish the creation, or press N to cancel the creation.
Important note: All existing content in the hard drive will be destroyed after array creation.
B-7
MS-7043 ATX Mainboard
Delete Disk Array
A RAID can be deleted after it has been created. To delete a RAID, use the following steps:
1.
Select Delete Array in the main menu and press <Enter>. The channel column will be activated.
2.
Select the member of an array that is to be deleted and press <Enter>. A warning message will show up, press Y to delete or press N to cancel.
Deleting a disk array will destroy all the data on the disk array except RAID 1 arrays. When a RAID is deleted, the data on these two hard disk drives will be reserved and become two normal disk drives.
B-8
VIA VT8237 Serial ATA RAID
Create and Delete Spare Hard Drive
If a RAID 1 array is created and there are drives that do not belong to other arrays, the one that has a capacity which is equal to or greater than the array capacity can be selected as a spare drive for the RAID 1 array. Select Create/Delete Spare and press <Enter>, the channel column will then be activated. Select the drive that you want to use as a spare drive and press <Enter>, the selected drive will be marked as
Spare. The spare drive cannot be accessed in an OS.
To delete a spare drive, highlight Create/Delete Spare and press <Enter>. The spare drive will be highlighted, press <Enter> to delete the spare drive.
B-9
MS-7043 ATX Mainboard
View Serial Number of Hard Drive
Highlight Serial Number View and press <Enter>. Use arrow key to select a drive, the selected drive’s serial number can be viewed in the last column. The serial number is assigned by the disk drive manufacturer.
Press the F1 key to show the array status on the lower screen. If there are no disk arrays then nothing will be displayed on the screen.
B-10
VIA VT8237 Serial ATA RAID
Duplicate Critical RAID 1 Array
When booting up the system, BIOS will detect if the RAID 1 array has any inconsistencies between user data and backup data. If BIOS detects any inconsistencies, the status of the disk array will be marked as critical, and BIOS will prompt the user to duplicate the RAID 1 in order to ensure the backup data consistency with the user data.
If user selects Continue to boot, it will enable duplicating the array after booting into OS.
B-11
MS-7043 ATX Mainboard
Rebuild Broken RAID 1 Array
When booting up the system, BIOS will detect if any member disk drives of RAID has failed or is absent. If BIOS detects any disk drive failures or missing disk drives, the status of the array will be marked as broken.
If BIOS detects a broken RAID 1 array but there is a spare hard drive available for rebuilding the broken array, the spare hard drive will automatically become the mirroring drive. BIOS will show a main interface just like a duplicated RAID 1. Selecting Continue
to boot enables the user to duplicate the array after booting into operating system.
If BIOS detects a broken RAID 1 array but there is no spare hard drive available for rebuilding the array, BIOS will provide several operations to solve such problem.
1. Power off and Check the Failed Drive:
This item turns off the computer and replaces the failed hard drive with a good one. If your computer does not support APM, you must turn off your computer manually.
After replacing the hard drive, boot into BIOS and select Choose replacement drive
and rebuild to rebuild the broken array.
2. Destroy the Mirroring Relationship:
This item cancels the data mirroring relationship of the broken array. For broken
RAID 1 arrays, the data on the surviving disk will remain after the destroy operation.
However, Destroy the Mirroring Relationship is not recommend because the data on the remaining disk will be lost when the hard drive is used to create another RAID 1 array.
B-12
VIA VT8237 Serial ATA RAID
3. Choose Replacement Drive and Rebuild:
This item enables users to select an already-connected hard drive to rebuild the broken array. After choosing a hard drive, the channel column will be activated.
Highlight the target hard drive and press <Enter>, a warning message will appear. Press Y to use that hard drive to rebuild, or press N to cancel. Please note selecting option Y will destroy all the data on the selected hard drive.
4. Continue to boot:
This item enables BIOS to skip the problem and continue booting into OS.
B-13
MS-7043 ATX Mainboard
Installing RAID Software & Drivers
Install Driver in Windows OS
h
New Windows OS (2000/XP/NT4) Installation
The following details the installation of the drivers while installing Windows XP.
1. Start the installation:
Boot from the CD-ROM. Press F6 when the message "Press F6 if you need to install third party SCSI or RAID driver" appears.
2. When the Windows Setup window is generated, press S to s p e c i f y a n
Additional Device(s).
3. Insert the driver diskette VIA VT6420/VT8237 Disk Driver into drive A: and press <Enter>.
4. Depending on your operation system, choose VIA Serial ATA RAID
Controller(Windows XP), VIA Serial ATA RAID Controller(Windows 2000) or
VIA Serial ATA RAID Controller(Windows NT4) from the list that appears on
Windows XP Setup screen, press the <Enter> key.
5. Press <Enter> to continue with installation or if you need to specify any additional devices to be installed, do so at this time.
Once all devices are specified, press <Enter> to continue with installation.
6. From the Windows XP Setup screen, press the <Enter> key. Setup will now load all device files and then continue the Windows XP installation h
Existing Windows XP Driver Installation
1. Insert the MSI CD into the CD-ROM drive.
2. The CD will auto-run and the setup screen will appear.
3. Under the Driver tab, click on VIA SATA RAID Utility.
4. The drivers will be automatically installed.
h
Confirming Windows XP Driver Installation
1. From Windows XP, open the Control Panel from My Computer followed by the System icon.
2. Choose the Hardware tab, then click the Device Manager tab.
3. Click the "+" in front of the SCSI and RAID Controllers hardware type. The driver VIA IDE RAID Host Controller should appear.
B-14
VIA VT8237 Serial ATA RAID
Installation of VIA SATA RAID Utility
The VIA SATA RAID Utility is the software package that enables high-performance
RAID 0 arrays in the Windows* XP operating system. This version of VIA SATA RAID
Utility contains the following key features: h
Serial ATA RAID driver for Windows XP h
VIA SATA RAID utility h
RAID0 and RAID1 functions
Insert the MSI CD and click on the VIA SATA RAID Utility to install the software.
B-15
MS-7043 ATX Mainboard
The InstallShield Wizard will begin automatically for installation. Click on the Next button to proceed the installation in the welcoming window.
Put a check mark in the check box to install the feature you want. Then click Next button to proceed the installation.
B-16
VIA VT8237 Serial ATA RAID
Using VIA RAID Tool
Once the installation is complete, go to Start ---> Programs --->VIA --->raid_tool.
exe to enable VIA RAID Tool.
After the software is finished installation, it will automatically started every time Windows is initiated. You may double-click on the icon shown in the system tray of the tool bar to launch the VIA RAID Tool utility.
B-17
MS-7043 ATX Mainboard
The main interface is divided into two windows and the toolbar above contain the main functions. Click on these toolbar buttons to execute their specific functions.
The left windowpane displays the controller and disk drives and the right windowpane displays the details of the controller or disk drives. The available features are as following:
View by Controller
View by Devices
View Event log
Help Topics
It means that VT8237 SATA RAID only has the feature of monitoring the statuses of RAID 0 and RAID 1.
Click on or button to determine the viewing type of left window pane.
There are two viewing types: By controllers and by device. Click on the object in the left window pane to display the status of the object in the right windowpane. The following screen shows the status of Array 0---RAID 0.
B-18
VIA VT8237 Serial ATA RAID
disk.
Click on the plus (+) symbol next to Array 0---RAID 0 to see the details of each
You may also use the same or
--RAID 1.
button to view the statuses of Array 0-
B-19
MS-7043 ATX Mainboard
disk.
Click on the plus (+) symbol next to Array 0---RAID 1 to see the details of each
B-20
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 31 Chapter 1. Getting Started
- 31 Mainboard Specifications
- 31 Mainboard Layout
- 31 MSI Special Features
- 31 Color Management
- 31 CoreCenter
- 31 Core CellTM Chip
- 31 Round Cable (Optional)
- 31 CPU Thermal Protection
- 31 Live BIOS™/Live Driver
- 31 Live Monitor
- 31 D-Bracket™ 2 (Optional)
- 31 S-Bracket (Optional)
- 32 Chapter 2. Hardware Setup
- 32 Quick Components Guide
- 32 Central Processing Unit: CPU
- 32 CPU Core Speed Derivation Procedure
- 32 Memory Speed/CPU FSB Support Matrix
- 32 CPU Installation Procedures for Socket
- 32 Installing the CPU Fan
- 32 Memory
- 32 Memory Population Rules
- 32 Installing DDR Modules
- 32 Power Supply
- 32 ATX 20-Pin Power Connector: ATX
- 32 ATX 12V Power Connector: JPW
- 32 Back Panel
- 32 Floppy Disk Drive Connector: FDD
- 32 ATA133 Hard Disk Connectors: IDE1 & IDE
- 32 Connectors
- 32 Serial ATA RAID 0, 1 Connectors: SATA1, SATA
- 32 Fan Power Connector: CPUFA
- 40 Front Panel Audio Connector: JAUD
- 40 Chassis Intrusion Switch Connector: JCI1 (Optional)
- 40 Front Panel Connectors: JFP1 & JFP
- 40 CD-In Connector: JCD
- 40 D-Bracket™ 2 Connector: JDB1 (Optional)
- 40 S-Bracket (SPDIF) Connector: JSP1 (Optional)
- 40 Front USB Connectors: JUSB1 & JUSB2 (Optional)
- 40 Jumpers
- 40 Clear CMOS Jumper: JBAT
- 40 Slots
- 40 PCI Interrupt Request Routing
- 40 AGP (Accelerated Graphics Port) Slot
- 40 PCI (Peripheral Component Interconnect) Slots
- 41 Chapter 3. BIOS Setup
- 41 Entering Setup
- 41 Selecting the First Boot Device
- 41 Getting Help
- 41 Control Keys
- 41 The Main Menu
- 41 Standard CMOS Features
- 41 Advanced BIOS Features
- 41 Advanced Chipset Features
- 41 Power Management Setup
- 41 PNP/PCI Configurations
- 41 Integrated Peripherals
- 41 PC Health Status
- 41 Frequency/Voltage Control
- 41 Set Supervisor/User Password
- 41 Load Optimal/High Performance Defaults
