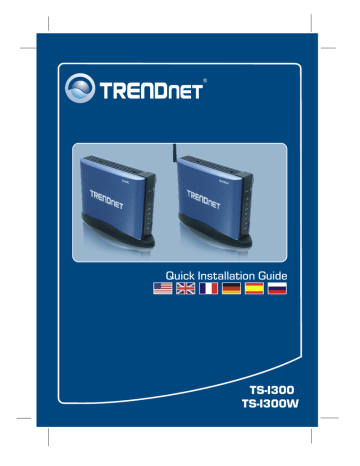

Quick Installation Guide
TS-I300
TS-I300W
Deutsch .....................................................................................................
1. Bevor Sie anfangen ...........................................................................
2. Installation der Hardware .
................................................................
3. Konfiguration des Speicherservers ........
...........................................
4. Zugriff auf die Speichergeräte im TS-I300/TS-I300W .......................
1
1
2
4
7
Troubleshooting ........................................................................................
8
Version 07.06.2006
1. Bevor Sie anfangen
Packungsinhalt
TS-I300/TS-I300W
Kurzanleitung zur Installation
CD mit Bedienungsanleitung Ständer
Netzteil (12V DC, 3,0A)
1 abnehmbare 2dBi-Antenne (TS-I300W)
Systemanforderungen
Webbrowser: Internet Explorer (5.0 oder höher)
Computer mit korrekt installiertem Netzwerkadapter
Netzwerk-Switch oder -Hub mit freiem LAN-Port
RJ-45-Netzwerkkabel
Interne IDE-Festplatte oder USB-2.0-Speichergerät (z.B. Flash-Laufwerk, externe Festplatte – nicht im Lieferumfang enthalten)
Windows XP, 2000, NT, ME, 98, Linux
Anwendung
USB 2.0 & IDE Network Storage Enclosure
(TS-I300)
Or
USB 2.0 & IDE Wireless Network Storage Enclosure
(TS-I300W)
DATA HD
1
Deutsch
2. Installation der Hardware
Hinweis: Vor Installation der IDE-Festplatte müssen die Jumpereinstellungen auf „Master“ gesetzt werden.
1. Entfernen Sie die 2 Schrauben von der Rückseite und nehmen Sie die
Abdeckung ab.
2. Kontrollieren Sie, dass die
Jumpereinstellungen auf der
Festplatte auf „Master“ stehen.
3. Verbinden Sie IDE- und
Stromkabel mit der Festplatte.
4. Setzen Sie die Festplatte in die
Metallklammer ein und befestigen
Sie sie mit 4 Schrauben.
5. Setzen Sie die Abdeckung wieder auf und ziehen Sie die beiden
Schrauben fest.
2
Deutsch
6. Befestigen Sie den Ständer am
Speicherserver.
7. Verbinden Sie den Switch/Hub
über ein RJ-45-Kabel mit dem
LAN-Port des Speicherservers und schließen Sie dann die abnehmbare 2dBi-Antenne
(TS-I300W) an.
8. Verbinden Sie das externe Netzteil mit dem Speicherserver und stecken Sie es in eine Steckdose.
9. Prüfen Sie, dass die folgenden
Anzeigen leuchten:
Stromversorgung, LAN, HDD und
WLAN (TS-I300W).
Ihre Installation ist beendet!
3
Deutsch
3. Konfiguration des Speicherservers
Hinweis: Mit dem Easy-Search-Programm können Sie alle TS-I300/TS-I300W im Netzwerk auffinden, IP-Adressen zuweisen, den Hostnamen und die
Arbeitsgruppe ändern und die Festplatte bereitstellen und deaktivieren.
Für Benutzer von Windows
1. Legen Sie die Dienstprogramm-
CD in das CD-ROM-Laufwerk Ihres
Computers ein und klicken Sie auf
Easy Search Utility.
2. Klicken Sie auf Search device
(Gerät suchen) und markieren Sie den Speicherserver.
3. Konfigurieren Sie die IP-Adresse, das Netzwerk
(Subnet Mask) und den
Gateway und klicken Sie dann auf
Modify (Ändern). Hinweis: Die
IP-Adresse muss dem
Netzwerksegment Ihres Netzwerks entsprechen.
4. Klicken Sie auf Connect to
webpage (Mit Webseite
verbinden).
4
Deutsch
Hinweis: Wenn Sie eine neue Festplatte anschließen, setzen Sie die
Konfiguration bitte mit dem nächsten Schritt fort. Falls Ihre Festplatte bereits formatiert ist, springen Sie bitte zu Schritt 9.
5. Klicken Sie auf Format Hard Drive
(Festplatte formatieren).
6.
Klicken Sie auf
OK.
7. Klicken Sie auf Restart (Neustart).
8.
Klicken Sie auf
OK.
5
Deutsch
9. Geben Sie den Benutzernamen und das Kennwort ein und klicken
Sie dann auf
Config
(Konfigurieren).
Benutzername:
admin
Kennwort:
admin
Hinweis: Wenn Sie den TS-I300 verwenden, springen Sie bitte zu Abschnitt 4.
Beim TS-I300W setzen Sie den Vorgang mit Schritt 10 fort.
10. Klicken Sie auf Advanced
(Fortgeschritten) und dort auf
Wireless (Drahtlos).
11. Klicken Sie auf Access Point und dann auf
Enable (Aktivieren).
Geben Sie eine SSID ein und klicken Sie dann auf
Apply
(Übernehmen).
Die Konfiguration ist jetzt abgeschlossen.
Weitere Informationen zu den Konfigurations- und erweiterten Einstellungen des TS-I300/TS-I300W finden Sie im Abschnitt „Problembehandlung“ der
Bedienungsanleitung auf der beiliegenden CD-ROM oder auf der Website von
Trendnet unter www.trendnet.com.
6
Deutsch
4. Zugriff auf die Speichergeräte im TS-I300/TS-I300W
1. Markieren Sie die Festplatte und klicken Sie dann auf
Mount
(Bereitstellen).
2.
Klicken Sie auf
OK.
3. Doppelklicken Sie auf My
Computer (Arbeitsplatz).
Doppelklicken Sie dann unter
Network Drives (Netzlaufwerke) auf ein bereitgestelltes
Speichergerät.
Sie können jetzt auf das Speichergerät zugreifen.
7
Deutsch
Troubleshooting
Q1: Can I connect or disconnect the USB storage device while the TS-I300/TS-I300W is on?
A1:
Yes, you can connect or disconnect any external USB device while the computer is on, because the USB interfaces are Plug-and-Play and hot-pluggable. Just press on the
Unmount button on the unit or open the utility program and press unmount for the USB device.
Q2: I specified the IP address http://192.168.1.2 in my Internet Browser's Address Bar, but an error message says “The page cannot be displayed.” How can I get into the TS-I300/TS-
I300W's web configuration page?
A2:
First, check your hardware settings again by following the instructions in section 2.
Second, make sure the LAN and WLAN (TS-I300W) lights are lit. Third, make sure the
TS-I300/TS-I300W is assigned an IP Address in the same subnet as your network. You may need to adjust the TCP/IP settings on your computer to match the storage server. Please see the steps below:
1. Go into the Control Panel and double-click the
Network Connections icon, right-click the
Local Area Connection icon and then click
Properties.
2. Click Internet Protocol (TCP/IP) and then click
Properties. Then click on Use the
following IP address, and make sure you assign your network adapter an IP address in the subnet of 192.168.1.x.
Q3: I am unable to mount or access the IDE hard drive. What should I do?
A3:
First, verify that the IDE hard drive has been properly installed (see section 2). Second, disable any software firewall programs (e.g. Norton Internet Security, McAfee). If you are running Windows XP, disable the built-in XP firewall. Third, make sure the
TS-I300/TS-I300W is assigned an IP Address in the same subnet as your network.
8
Q4: All the settings are correct, but I can not make a wireless connection to the TS-I300W.
A4:
First, double check that the WLAN light on the storage device is lit. Second, power cycle the Access Point. Unplug the power to the TS-I300W. Wait 15 seconds, then plug the power back in. Third, contact the manufacturer of your wireless network adapter. Make sure the wireless network adapter is configured with the proper SSID. The default SSID of the Access
Point is
TRENDnet.
If you still encounter problems or have any questions regarding the
TS-I300/TS-I300W, please contact TRENDnet's Technical Support Department.
Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may cause undesired operation.
Waste electrical and electronic products must not be disposed of with household waste. Please recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
9
