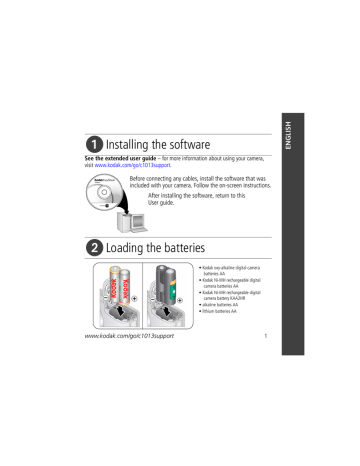

Installing the software
See the extended user guide – for more information about using your camera, visit www.kodak.com/go/c1013support .
Before connecting any cables, install the software that was included with your camera. Follow the on-screen instructions.
After installing the software, return to this
User guide.
�
Loading the batteries
• Kodak oxy-alkaline digital camera batteries AA
• Kodak Ni-MH rechargeable digital camera batteries AA
• Kodak Ni-MH rechargeable digital camera battery KAA2HR
• alkaline batteries AA
• lithium batteries AA www.kodak.com/go/c1013support 1
�
Turning on the camera
2
�
Setting the language, date/time
1
2
Language: to change.
OK to accept.
1
2
Date/Time:
At the prompt, press OK.
to change.
for previous/next field.
OK to accept.
www.kodak.com/go/easysharecenter
�
Taking a picture/video
Pictures Videos
1 1
2
2
Framing marks
Press the Shutter button halfway to focus and set exposure.
When the framing marks turn green, press the Shutter button completely down.
www.kodak.com/go/c1013support
Press the Shutter button completely down and release.
To stop recording, press and release the Shutter button again.
3
4
�
Reviewing pictures/videos
Review
1
2
Press Review. (Press again to exit.) for previous/next picture/video.
Videos: Play/pause
Play at 2X, 4X speed
Play in reverse at 2X, 4X
To hear audio, transfer the video to your computer.
�
Transferring pictures/videos
USB cable
2
Turn on camera
Kodak EasyShare printer dock or camera dock
(May be sold separately.)
For dock compatibility, visit www.kodak.com/go/dockcompatibility.
To purchase accessories, visit www.kodak.com/go/c1013accessories.
1
To use an EasyShare dock, see its
User guide.
www.kodak.com/go/easysharecenter
�
Keep learning about your camera!
Congratulations!
You have:
• set up your camera
• taken pictures
• transferred pictures to your computer
Keep learning!
Finish reading this book, so you can take and share your best pictures!
To better understand each menu option, use camera Help.
(Highlight a menu choice, then press the button.)
Visit www.kodak.com/go/c1013support for:
• the extended user guide
• interactive troubleshooting and repairs
• interactive tutorials
• FAQs
• downloads
• accessories
• printing information
• product registration
www.kodak.com/go/c1013support 5
Front view
1 2
3 4
5
6
1 Mode dial
2 Shutter button
3 Flash button
4 On/Off button
5 Flash
6
7
8
9
6 Self-timer light
7 Lens
8 USB
9 Microphone www.kodak.com/go/easysharecenter
Back view
2 3 4 5 6
1
14
13
12
11
10
9
8
7
1 L CD
2 Review button
3 Menu button
4 LCD/Info button
5 Delete button
6 Zoom button (Telephoto/Wide)
7 Strap post optional
8
9 OK button
10 Share button
11 Battery compartment
12 Slot for optional SD or SDHC card
13 Dock connector
14 Tripod socket www.kodak.com/go/c1013support 7
1
Doing more with your camera
Storing pictures on an SD or SDHC card
Your camera has internal memory. You can purchase an SD or SDHC card to store more pictures and videos ( www.kodak.com/go/c1013accessories ). We recommend Kodak
SD/SDHC cards.
1
Turn off the camera.
2
Insert or remove the optional card.
3
Turn on the camera.
8
CAUTION:
A card can only be inserted one way; forcing it may cause damage.
If you insert or remove a card while the camera is accessing it, the card, pictures, or camera may be damaged. www.kodak.com/go/easysharecenter
Doing more with your camera
Using the zoom button
Use optical zoom to get up to 3X closer to your subject.
1 Use the LCD to frame your subject.
2 Press T (Telephoto) to zoom in. Press W (Wide Angle) to zoom out.
The zoom indicator shows zoom status.
3 Take the picture or video.
NOTE: To get a focused picture every time, remember:
Zoom indicator
Optical zoom range
Digital zoom range
■
■
Always use the auto focus framing marks.
If you are using no zoom (1X, wide angle), you can be as close as 28 in. (70 cm) to your subject.
■ As you zoom, you need to move further from your subject.
To use digital zoom in any Still mode:
W T D
Press T (Telephoto) to the maximum optical zoom limit. Release the button, then press it again.
NOTE: You may notice decreased image quality when using digital zoom. The slider on the zoom indicator turns red when the picture quality reaches the limit for an acceptable 4 x 6-in. (10 x 15 cm) print.
www.kodak.com/go/c1013support 9
Doing more with your camera
Using the flash button
Use the flash when you take pictures at night, indoors, or outdoors in heavy shadows.
Press the button repeatedly to scroll through flash modes (see Flash modes below).
The current flash mode appears in the LCD screen.
Flash Distance
Wide angle: 0.6–3.2 m (2–10.5 ft) @ ISO 160
Telephoto: 0.6–1.8 m (2–5.9 ft) @ ISO 160
Flash modes
Auto
Flash
Fill
Flash fires
When the lighting conditions require it.
Every time you take a picture, regardless of the lighting conditions. Use when the subject is in shadow or is “backlit” (when the light is behind the subject). In low light, hold the camera steady or use a tripod.
Red-eye The flash fires twice—once, then again when the picture is taken.
Off Never.
10 www.kodak.com/go/easysharecenter
Doing more with your camera
Using different picture-taking modes
Choose the mode that best suits your subjects and surroundings.
Use this mode
SCN Scene
Close-up
Landscape
Auto
For
Point-and-shoot simplicity when taking pictures under special conditions. (See
.)
Close range. Use available light instead of flash if possible. The camera automatically sets the focus distance depending on the zoom position.
Far-away scenes. The camera uses infinity auto-focus. Auto-focus framing marks are not available in Landscape.
General picture taking—offers an excellent balance of image quality and ease of use.
Blur Reduction Minimizing the effects of camera shake and subject movement.
Video Capturing video with sound. (See
www.kodak.com/go/c1013support 11
Doing more with your camera
Scene modes
Choose a Scene mode—for great pictures in practically any situation!
1 Turn the Mode dial to Scene .
2 Press to display Scene mode descriptions.
If the mode description turns off before you finish reading it, press OK.
3 Press OK to choose a Scene mode.
Use this
SCN mode
Portrait
For
Night
Portrait
Night
Landscape
Sports
Snow
Beach
Text/
Document
Full-frame portraits of people.
Reducing red eye of people in night scenes or low-light conditions. Place the camera on a flat, steady surface or use a tripod.
Distant scenery at night. Flash does not fire. Place the camera on a flat, steady surface or use a tripod.
Subjects in motion.
Bright snow scenes.
Bright beach scenes.
Documents. Focus is set to Auto.
Backlight Subjects that are in shadow or “backlit” (when light is behind the subject).
Manner/
Museum
Quiet occasions, like a wedding or lecture. Flash and sound are disabled.
12 www.kodak.com/go/easysharecenter
Doing more with your camera
Use this
SCN mode
For
Fireworks Bright, colorful light displays. Flash does not fire. Place the camera on a flat, steady surface or use a tripod.
High ISO
Children
Flower
Self-
Portrait
People indoors, in low-light scenes. Minimizes red eye.
Action pictures of children in bright light.
Close-ups of flowers or other small subjects in bright light. Focus is set to Auto.
Close-ups of yourself. Assures proper focus and minimizes red eye.
Sunset Capturing the deep hues seen at sunset.
Using the menu button
You can change settings to get the best results from your camera.
1 Press the Menu button.
2 Press to highlight a setting, then press OK.
3 Choose an option, then press OK.
■ Press the Menu button to exit the menu.
NOTE: Some settings remain until you change them; others, until you change modes or turn off the camera.
Some modes offer limited settings.
www.kodak.com/go/c1013support 13
Doing more with your camera
Using camera Help
To better understand each menu option, use camera Help. Highlight a menu choice, then press the button.
Turn on/off Help
Scroll up/down
Understanding the picture-taking icons
Picture size
14
Flash
Self-timer
Date stamp
Pictures/time remaining
Storage location
Zoom: Wide
Telephoto
Digital
Exposure metering
White balance
ISO speed
Low battery
Camera mode
Exposure compensation www.kodak.com/go/easysharecenter
2
Working with pictures/videos
Viewing thumbnails (multi-up)
1 Press the Review button.
2 Press the Zoom Wide Angle (W) button to change from single-picture view to multi-up thumbnails.
3 Press Telephoto (T) to return to single-picture view.
NOTE: To select multiple pictures/videos, see
.
Selecting multiple pictures/videos
Use the multi-select feature when you have two or more pictures/videos to print,
transfer, delete, etc. Multi-select is used most effectively in Multi-Up mode, page 15 .
Selected pictures
1 Press the Review button, then picture/video.
to find a
2 Press the OK button to select pictures/videos.
A check mark appears on the picture. You can now print, transfer, delete, etc. the selected pictures. You can press
OK a second time to remove a check mark.
www.kodak.com/go/c1013support 15
Working with pictures/videos
Deleting pictures/videos
1 Press the Review button.
2 Press to find previous/next picture/video.
3 Press the Delete button.
4 Follow the screen prompts.
Protecting pictures/videos from deletion
1 Press the Review button.
2 Press to find previous/next picture/video.
3 Press the Menu button.
4 Press to highlight Protect, then press OK.
The picture/video is protected and cannot be deleted. The Protect icon with the protected picture/video.
■ Press the Menu button to exit the menu.
appears
CAUTION:
Formatting internal memory or an SD or SDHC card deletes all (including protected) pictures/videos. (Formatting internal memory also deletes email addresses, tag names, and favorites.)
16 www.kodak.com/go/easysharecenter
Working with pictures/videos
Using the menu button in review
1 Press the Review button, then the Menu button.
2 Press to highlight a tab:
■
■
■
Review to view pictures/videos
Edit Picture to edit pictures/videos
Setup for other camera settings
3 Press to highlight a setting, then press the OK button.
4 Highlight an option, then press the OK button.
Using Kodak Perfect Touch technology
Kodak Perfect Touch technology helps ensure better, brighter pictures.
1 Press the Review button, then to find previous/next picture.
2 Press the Menu button. Press to highlight Edit Picture, then press OK.
3 Press
The enhancement is previewed in a split screen. Press picture.
to highlight Perfect Touch tech., then press OK.
to view other parts of the
4 Press OK. Follow the screen prompts to replace the original picture or to save the enhanced picture as a new one.
■ Press the Menu button to exit the menu.
www.kodak.com/go/c1013support 17
Working with pictures/videos
Cropping pictures
You can crop a picture so that only the desired portion of the picture remains.
1 Press the Review button, then previous/next picture. to find
Picture Cropped picture
2 Press the Menu button. Press
Edit Picture, then press OK.
to highlight
3 Press to highlight Crop, then press OK.
4 Press Telephoto (T) to zoom in, or
5 Follow the screen prompts.
to move the crop box. Press OK.
The picture is cropped and saved. The original is saved.
■ Press the Menu button to exit the menu.
Rotating pictures
You can change a picture to display in portrait or landscape orientation.
1 Press the Review button, then to find previous/next picture.
2 Press the Menu button. Press to highlight Edit Picture, then press OK.
3 Press to highlight Rotate Picture, then press OK.
4 Press to highlight an option:
Rotate Right—rotates the picture 90 degrees clockwise .
18 www.kodak.com/go/easysharecenter
Working with pictures/videos
Rotate Left—rotates the picture 90 degrees counterclockwise .
5 Press OK. Follow the screen prompts to replace the original picture or to save the rotated picture as a new one.
■ Press the Menu button to exit the menu.
Making a picture from a video
You can choose a single frame from a video, then make a picture suitable for printing.
1 Press the Review button, then to find a video.
Video Picture
2 Press the Menu button. Press
Edit Video, then press OK.
to highlight
3 Press
OK.
to highlight Make Picture, then press
4 Press OK to select a video frame.
5 Follow the screen prompts to save the picture.
A picture is created. (The original video is saved.)
■ Press the Menu button to exit the menu.
www.kodak.com/go/c1013support 19
Working with pictures/videos
Viewing pictures by date, Favorites, or other tag
If you have many pictures on your camera or card, you can sort them so that all or only some are visible at a time. You can sort by the date a picture was taken or—if you’ve tagged pictures with a Favorites tag or tag that you created—you can sort by tag.
1 Press the Review button, then the Menu button.
2 Press to highlight View by, then press the OK button.
3 Press folder. to choose an option (All, Date, Tag, or Favorites), then to select a
Pictures are displayed in multi-up view. Press to view them. Press the T
(Telephoto) button to view the picture full-screen. Press the W (Wide Angle) button to return to multi-up view.
■
■
For more about tags, see the extended user guide at www.kodak.com/go/c1013support .
To select multiple pictures/videos, see
20 www.kodak.com/go/easysharecenter
Working with pictures/videos
Understanding the review icons
Pictures
Print tag/number of prints
Protected
Favorite tag
Email tag
Tag name
Blur warning
Kodak Perfect Touch tech.
Picture number
Image storage location
Scroll arrows
Videos
Protected
Favorite tag
Email tag
Review mode
Video length
Video number
Image storage location
Date/Time
Scroll arrows www.kodak.com/go/c1013support
Review mode
21
3
Solving camera problems
Camera problems
For step-by-step product support, visit www.kodak.com/go/c1013support and select
Interactive Troubleshooting & Repairs.
If Try one or more of the following
Camera does not turn on.
■
■
Camera does not turn off.
■
Install new batteries (see page 1
).
Charge rechargeable batteries.
Remove the battery, then reinsert or replace it. If the camera still does not function, visit www.kodak.com/go/c1013support and select Interactive Troubleshooting & Repairs.
Pictures remaining number does not decrease after taking a picture.
Short battery life with
Kodak Ni-MH rechargeable digital camera batteries.
■
■
■
■
The camera is operating normally. Continue taking pictures.
Wipe the contacts with a clean, dry cloth before loading batteries in the camera.
Limit the following activities that quickly deplete battery power: reviewing pictures/videos on the LCD; excessive use of the flash.
If you own an EasyShare camera dock series 3 or EasyShare printer dock series 3, use the Battery Refresh feature.
Memory card full.
■ Insert a new card, transfer pictures to the computer, or delete pictures.
22 www.kodak.com/go/easysharecenter
4
Appendix
CAUTION:
Do not disassemble this product; there are no user-serviceable parts inside. Refer servicing to qualified service personnel. Kodak AC adapters and battery chargers are intended for indoor use only. The use of controls, adjustments, or procedures other than those specified herein may result in exposure to shock and/or electrical or mechanical hazards. If the LCD breaks, do not touch the glass or liquid. Contact Kodak customer support.
■ The use of an accessory that is not recommended by Kodak may cause fire, electric shock, or injury. For approved accessories, visit www.kodak/go/accessories .
■
Use only a USB-certified computer equipped with a current-limiting motherboard. Contact your computer manufacturer if you have questions.
■ If using this product in an airplane, observe all instructions of the airline.
■ When removing the battery, allow it to cool; it may be hot.
■ Follow all warnings and instructions supplied by the battery manufacturer.
■ Use only batteries approved for this product to avoid risk of explosion.
■ Keep batteries out of the reach of children.
■ Do not allow batteries to touch metal objects, including coins. Otherwise, a battery may short circuit, discharge energy, become hot, or leak.
■
Do not disassemble, install backward, or expose batteries to liquid, moisture, fire, or extreme temperature.
■
Remove the battery when the product is stored for an extended period of time. In the unlikely event that battery fluid leaks inside the product, contact Kodak customer support.
■ In the unlikely event that battery fluid leaks onto your skin, wash immediately with water and contact your local health provider. For additional health-related information, contact your local Kodak customer support.
■
Dispose of batteries according to local and national regulations. Visit www.kodak.com/go/kes.
■
Do not charge non-rechargeable batteries. Visit www.kodak.com/go/batterytypes .
www.kodak.com/go/c1013support 23
Appendix
Upgrading your software and firmware
Download the latest versions of the software included on the Kodak EasyShare software CD and the camera firmware (the software that runs on the camera). See www.kodak.com/go/c1013downloads
.
Limited warranty
Kodak warrants Kodak consumer electronic products and accessories (“Products”), excluding batteries, to be free from malfunctions and defects in both materials and workmanship for one year from the date of purchase.
Retain the original dated sales receipt. Proof of the date of purchase will be required with any request for warranty repair.
Limited warranty coverage
Warranty service is only available from within the country where the Products were originally purchased. You may be required to ship Products, at your expense, to the authorized service facility for the country where the
Products were purchased. Kodak will repair or replace Products if they fail to function properly during the warranty period, subject to any conditions and/or limitations stated herein. Warranty service will include all labor as well as any necessary adjustments and/or replacement parts. If Kodak is unable to repair or replace a
Product, Kodak will, at its option, refund the purchase price paid for the Product provided the Product has been returned to Kodak along with proof of the purchase price paid. Repair, replacement, or refund of the purchase price are the sole remedies under the warranty. If replacement parts are used in making repairs, those parts may be remanufactured, or may contain remanufactured materials. If it is necessary to replace the entire Product, it may be replaced with a remanufactured Product. Remanufactured Products, parts and materials are warranted for the remaining warranty term of the original Product, or 90 days after the date of repair or replacement, whichever is longer.
Limitations
This warranty does not cover circumstances beyond Kodak's control. This warranty does not apply when failure is due to shipping damage, accident, alteration, modification, unauthorized service, misuse, abuse, use with incompatible accessories or attachments (such as third party ink or ink tanks), failure to follow Kodak's operation, maintenance or repacking instructions, failure to use items supplied by Kodak (such as adapters and cables), or claims made after the duration of this warranty. Kodak makes no other express or implied warranty for this product, and disclaims the implied warranties of merchantability and fitness for a particular purpose. In the event that the exclusion of any implied warranty is ineffective under the law, the duration of the implied warranty will be one year from the purchase date or such longer period as required by law. The option of repair, replacement, or refund is Kodak's only obligation. Kodak will not be responsible for any special, consequential
24 www.kodak.com/go/easysharecenter
Appendix or incidental damages resulting from the sale, purchase, or use of this product regardless of the cause. Liability for any special, consequential or incidental damages (including but not limited to loss of revenue or profit, downtime costs, loss of the use of the equipment, cost of substitute equipment, facilities or services, or claims of your customers for such damages resulting from the purchase, use, or failure of the Product), regardless of cause or for breach of any written or implied warranty is expressly disclaimed.
Your rights
Some states or jurisdictions do not allow exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states or jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific rights, and you may have other rights which vary from state to state or by jurisdiction.
Outside the United States and Canada
In countries other than the United States and Canada, the terms and conditions of this warranty may be different. Unless a specific Kodak warranty is communicated to the purchaser in writing by a Kodak company, no warranty or liability exists beyond any minimum requirements imposed by law, even though defect, damage, or loss may be by negligence or other act.
FCC compliance and advisory
Kodak EasyShare C1013/CD1013 digital camera
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for additional suggestions.
Any changes or modifications not expressly approved by the party responsible for compliance could void the www.kodak.com/go/c1013support 25
Appendix user’s authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulation.
MPEG-4
Use of this product in any manner that complies with the MPEG-4 visual standard is prohibited, except for use by a consumer engaging in personal and non-commercial activities.
Canadian DOC statement
DOC Class B Compliance — This Class B digital apparatus complies with Canadian ICES-003.
Observation des normes-Classe B
—
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Waste Electrical and Electronic Equipment labeling
In Europe: For human/environmental protection, it is your responsibility to dispose of this equipment at a collection facility established for this purpose (separate from municipal waste). For more information, contact your retailer, collection facility, or appropriate local authorities; or visit www.kodak.com/go/recycle . (Product weight: 137g.)
Australian C-Tick
N137
VCCI Class B ITE
Korean Class B ITE
26 www.kodak.com/go/easysharecenter
Appendix
China RoHS
Eastman Kodak Company
Rochester, New York 14650
© Eastman Kodak Company, 2008
Kodak, EasyShare, and Perfect Touch are trademarks of Eastman Kodak Company.
4H5153_en www.kodak.com/go/c1013support 27
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
