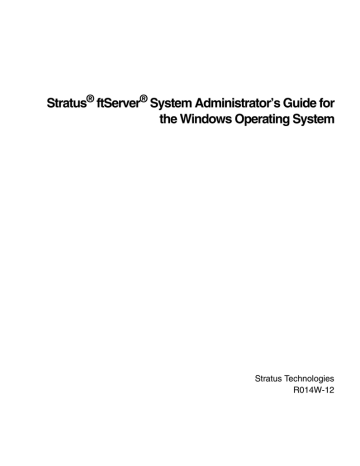

Stratus
®
ftServer
®
System Administrator’s Guide for the Windows Operating System
Stratus Technologies
R014W-12
Notice
The information contained in this document is subject to change without notice.
UNLESS EXPRESSLY SET FORTH IN A WRITTEN AGREEMENT SIGNED BY AN AUTHORIZED
REPRESENTATIVE OF STRATUS TECHNOLOGIES, STRATUS MAKES NO WARRANTY OR REPRESENTATION
OF ANY KIND WITH RESPECT TO THE INFORMATION CONTAINED HEREIN, INCLUDING WARRANTY OF
MERCHANTABILITY AND FITNESS FOR A PURPOSE. Stratus Technologies assumes no responsibility or obligation of any kind for any errors contained herein or in connection with the furnishing, performance, or use of this document.
Software described in Stratus documents (a) is the property of Stratus Technologies Bermuda, Ltd. or the third party,
(b) is furnished only under license, and (c) may be copied or used only as expressly permitted under the terms of the license.
Stratus documentation describes all supported features of the user interfaces and the application programming interfaces (API) developed by Stratus. Any undocumented features of these interfaces are intended solely for use by
Stratus personnel and are subject to change without warning.
This document is protected by copyright. All rights are reserved. No part of this document may be copied, reproduced, or translated, either mechanically or electronically, without the prior written consent of Stratus Technologies.
Stratus, the Stratus logo, ftServer, the ftServer logo, Continuum, StrataLINK, and StrataNET are registered trademarks of Stratus Technologies Bermuda, Ltd.
The Stratus Technologies logo, the Continuum logo, the Stratus 24 x 7 logo, ActiveService, ftScalable, and ftMessaging are trademarks of Stratus Technologies Bermuda, Ltd.
All other trademarks are the property of their respective owners.
Manual Name: Stratus ftServer System Administrator’s Guide for the Windows Operating System
Part Number: R014W
Revision Number: 12
Software Release Number: ftServer System Software for the Windows Operating System, Release 6.0.0
Publication Date: August 2009
Stratus Technologies, Inc.
111 Powdermill Road
Maynard, Massachusetts 01754-3409
© 2009 Stratus Technologies Bermuda, Ltd. All rights reserved.
Contents
Preface
1. Introduction to System Administration
Virtual Technician Module Console
Rapid Disk Resync Disk Mirroring
2. Operating and Monitoring Your System
Starting Up and Shutting Down A System
Enabling the Power Button on the Machine
Accessing Your System Desktop Remotely
2-6
Booting or Shutting Down a System Through VTM Console
2-6
Setting Up a VTM Administrator Account
2-6
2-6
2-7
2-1
2-2
2-2
2-3
2-4
2-4
2-5
2-5
Contents
iii
xi
1-4
1-4
1-4
1-5
1-6
1-6
1-6
1-7
1-7
1-1
1-1
1-1
1-2
1-2
1-3
1-3
1-4
Contents
Configuring Static IP Addresses for the VTM Network Ports
2-7
Using Windows System Event Logs
2-8
Setting the Size of Event Log Files
2-8
2-9
2-9
2-10
2-11
2-12
Writing to DVD-RWs on Windows Server 2003 Systems
Understanding Floppy Disk Drive Volume Letters
Understanding Uninterruptible Power Supplies
Maintaining System Power During a UPS Failure
Changing the IP Address of Systems with a UPS
Understanding Updates and Hotfixes
2-12
2-12
2-13
2-13
2-14
2-14
2-14
2-15
2-15
3. ftSys Management Console
Running ftSMC Directly on Your ftServer System
Running ftSMC on a Remote System
Adding the ftSMC Snap-in to MMC on a Windows
Opening a Previously Saved MMC Console
Performing ftSMC Tasks ftSMC Interface
Viewing and Changing Properties
Required Operational States for Commands
CPU and I/O Enclosures and Elements
Primary and Secondary CPU-I/O Enclosures
Switching the Primary CPU-I/O Enclosure
3-3
3-5
3-6
3-6
3-7
3-8
3-10
3-11
3-12
3-12
3-12
3-13
3-1
3-1
3-2
3-2
3-2
4. Disk Storage Management
Using RDR for Mirroring and Fault Tolerance
Automatic Virtual Disk Expansion
4-1
4-1
4-2
4-2
4-3 iv Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Contents
Creating a First RDR Virtual Disk
Adding a Physical Disk to an RDR Virtual Disk
Disk Failures During Resynchronization
Setting the Cache Flush Interval
Read-load (LUN Load) Balancing
Mirroring Dynamic Disks with RDR
Setting the Active RDR Disk (Plex)
Deleting the RDR Configuration on a Physical Disk
Removing a Physical Disk from an RDR Virtual Disk
Deporting a Physical Disk from an RDR Virtual Disk
Creating a Spare Bootable RDR Disk
Breaking a Physical Disk from an RDR Virtual Disk
Setting or Clearing the MTBF for Disks
Setting the Hard MTBF Threshold
Setting the MTBF Faultcount Limit
Setting the Soft MTBF Threshold
Booting a System with a Backup RDR Boot Disk
Removing the RDR Configuration from a Stored-Data
4-20
4-20
4-21
Using Resynchronize This Physical Disk From RDR
Using Resynchronize Physical Disks Of This RDR
4-22
Resynchronizing a Backup Boot RDR Disk
Recovering and Replacing RDR Disks
Making Sure You Do Not Boot from a Stale Disk
4-22
4-22
4-23
4-23
4-24
4-17
4-17
4-18
4-18
4-19
4-19
4-20
4-20
Configuring the Priority of RDR Virtual Disk
Using Volume Mirroring for Fault Tolerance
Mirrored Volume Resynchronization
Volume Resynchronization After Rebooting
4-11
4-12
4-12
4-13
4-14
4-14
4-15
4-16
4-4
4-5
4-6
4-6
4-7
4-10
4-10
4-11
4-25
4-25
4-26
4-26
4-27
4-27
4-27
4-28
Contents
v
Contents
Mirroring Disks in ftScalable Storage Systems
Finding an Internal Physical Disk
Finding an External Physical Disk
5. Troubleshooting
Taking Components Offline and Bringing Them Online
Expansion ROM Console Message During System Boot
Replacing a Failed Disk in Windows Disk Management
Replacing a Failed Disk with an Uninitialized Disk
Replacing a Failed Disk with an Initialized Disk
Determining That a Component Has Failed
Using LEDs to Troubleshoot Hardware
Using ftSMC to Troubleshoot Hardware
Diagrams of Component Locations
System Elements and Internal Storage Disk
Unresponsive Mouse and Keyboard
Remote Event Notification and Service
Event Notification on Boot Failure
Configuring System Memory Dumps
Making a Dump File Using the VTM Console
5-11
5-11
5-11
5-12
5-12
5-13
5-13
5-14
5-8
5-9
5-9
5-9
5-10
5-10
5-10
5-11
5-4
5-4
5-5
5-5
5-6
5-6
5-6
5-7
5-7
5-8
5-1
5-2
5-2
5-2
5-3
5-3
5-3
5-3
4-28
4-28
4-28
4-29
4-29
4-31 vi Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Booting From a Spare System Disk
Windows Hotfixes Distributed by Stratus
Adaptec SAS Controller BIOS RAID Option
Tape Drives and Backup on Windows Server 2008 Systems
5-14
5-14
5-15
5-16
5-17
5-17
Contents
Appendix A. Advanced Topics
Using Windows Headless Mode and Console Redirection
Enabling Multiple Login Sessions (Windows Server 2008)
A-1
A-1
A-2
Appendix B. Configuring And Managing Ethernet PCI Adapters
Using Device Manager to Manage Ethernet Adapters
Fixing Duplicate Network Adapter Names
Fault-Tolerant Ethernet Teams and IP Multicasting
Locating Ethernet PCI Adapters
Configuring Link Speed and Duplex Mode
Disabling Receive Load Balancing
Designating Primary and Secondary Adapters
Configuring Virtual LANs Over a Team
Verifying the Configuration of Teams and VLANs
Assigning an IP Address to a Team or VLAN
Removing Ethernet PCI Adapters from a Team
Physically Replacing Removed Adapters
Adding Ethernet PCI Adapters to a Team
Updating a Team’s Ethernet Address
Using ftSMC to Check Network Statistics
B-10
B-11
B-12
B-14
B-16
B-18
B-21
B-21
B-1
B-2
B-2
B-3
B-4
B-5
B-6
B-7
B-23
B-24
B-25
B-28
B-29
B-30
B-31
Index
Index-1
Contents
vii
Figures
Figures
Using What’s This? in the Details Pane
Simplexed Icon for Invalid Configuration
Warning and Inventory Error Icons
ftSMC Details Pane Refresh Options
Figure 3-10. Properties Command in Shortcut Menu
CPU-I/O Enclosure and Disk Slot Labeling
Setting the Link Speed and Duplex Mode
Network Adapters in Device Manager
Assigning Priorities to Ethernet PCI Adapters
Finding a Team’s IP Address in Windows 2003
Finding a Team’s IP Address in Windows 2008
Figure B-10. Ethernet Team Properties on a Windows Server 2003
Figure B-11. Ethernet Team Properties on a Windows Server 2003
Figure B-12. Internet Protocol (TCP/IP) Properties
Figure B-13. Removing an Ethernet PCI Adapter from a Team
Figure B-14. Confirmation Message: Removing an Ethernet PCI
Figure B-15. Icon for a Missing (Removed) Adapter
Figure B-16. Obtaining the Team Ethernet Address
Figure B-17. Updating the Team Ethernet Address
Figure B-18. Removing a Team of Ethernet PCI Adapters
Figure B-19. Confirmation Message: Removing a Team
Figure B-21. Network Statistics in ftSMC
B-18
B-19
B-20
B-22
B-22
B-24
B-26
B-27
B-28
B-29
B-30
B-31
3-11
3-11
5-6
5-7
5-9
B-7
B-9
B-10
3-5
3-7
3-8
3-8
3-9
3-10
3-10
3-10
B-12
B-13
B-14
B-15
B-17
B-17 viii Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
ftServer System Models by P-Package
ftSMC User Interface Key Elements
Operational State for Associated Commands
3-1
3-7
3-9
3-12
4-7
FC Host Bus Adapter State and Reason Property Values
4-29
5-8
Tables
Tables
Tables
ix
x Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Preface
Purpose of This Manual
The Stratus ftServer System Administrator’s Guide for the Windows Operating
System (R014W) documents tasks and information for system administrators of ftServer 2600, 4500, and 6300 systems.
Audience
This manual is intended for anyone who administers or troubleshoots ftServer 2600,
4500, and 6300 systems.
Revision Information
This manual is a revision. This revision incorporates support for ftServer System
Software (ftSSS) for the Windows Operating System, Release 6.0.0, on ftServer 2600,
4500, and 6300 systems.
As of ftSSS for the Windows Operating System, Release 6.0.0, information about
POST codes appears only in the Stratus ftServer Virtual Technician Module User’s
Guide (R642).
Notation Conventions
This document uses the notation conventions described in this section.
Warnings, Cautions, and Notes
Warnings, cautions, and notes provide special information and have the following meanings:
!
W A R N I N G
A warning indicates a situation where failure to take or avoid a specified action could cause bodily harm or loss of life.
Preface
xi
Preface
!
C A U T I O N
A caution indicates a situation where failure to take or avoid a specified action could damage a hardware device, program, system, or data.
N O T E
A note provides important information about the operation of an ftServer system.
Typographical Conventions
The following typographical conventions are used in ftServer documents:
The bold font emphasizes words in text or indicates text that you type, the name of a screen object, or the name of a programming element. For example:
Before handling or replacing system components, make sure that you are
properly grounded by using a grounded wrist strap.
In the System Properties dialog box, click the Hardware tab.
Call the RegisterDeviceNotification function.
The italic font introduces new terms and indicates programming and command-line arguments that the user defines. For example:
Many hardware components are customer-replaceable units (CRUs), which can be replaced on-site by system administrators with minimal training or tools.
copy filename1 filename2
Pass a pointer for the NotificationFilter parameter
The monospace font indicates sample program code and output, including message text. For example:
#include <iostream.h>
The operation completed successfully.
xii Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Preface
Getting Help
If you have a technical question about ftServer system hardware or software, try these online resources first:
Online support from Stratus Customer Service. You can find the latest technical
information about an ftServer system through online product support at the Stratus
Technical Support Website.
Online product support for Microsoft
®
products. Your primary source for
support is the computer manufacturer who provided your software, or an authorized Microsoft Support Provider. You can also find the latest technical information about Microsoft Windows
®
and other Microsoft products through online product support at the Microsoft Help and Support Website.
If you are unable to resolve your questions with the help available at these online sites, and the ftServer system is covered by a service agreement, please contact the Stratus
Customer Assistance Center (CAC) or your authorized Stratus service representative .
Your system administrator may have configured a Stratus Support phone number in ftSys Management Console (ftSMC), a snap-in to Microsoft Management Console
(MMC). In ftSMC, under ftServer Configuration, click ActiveService Network to display the node’s properties in the ftSMC details pane. The properties include a
Stratus Support Phone item. The value of this property, if configured, is a telephone
number you can call for support.
Preface
xiii
Preface
xiv Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Chapter 1
Introduction to System Administration
1-
The following topics provide an introduction to Stratus ftServer 2600, 4500, and 6300
“System Administration Tools” on page 1-1
“System Software Features” on page 1-4
“Initial Configuration” on page 1-6
“Windows Documentation” on page 1-7
Features of
further support system fault-tolerance for properly configured
systems.
If you have a service contract, Stratus or an authorized Stratus service representative provides continuous, remote, system monitoring and diagnosis for ActiveService
Network (ASN) management.
are also available on your ftServer system.
System Administration Tools
System administration tools enable you to monitor system performance and system-component status, diagnose errors, and identify failed components. Using the tools, you can take failed components offline and put replacement components online.
These features include
ftSys Management Console (ftSMC) ,
, Virtual Technician Module (VTM) console
, and
Active Upgrade
Optional Active Upgrade™ technology enables you to upgrade your system and application software with minimal downtime.
Instead of taking your system offline to run upgrade procedures, you can use the Active
Upgrade process to split the system into two independently-running systems, one
Introduction to System Administration
1-1
System Administration Tools
“side” of which you upgrade while the other side continues to run your applications without interruption. See the Stratus ftServer: Active Upgrade User’s Guide (R017W) or the Active Upgrade online help for more information.
ftSys Management Console
The ftSys Management Console (ftSMC) is a graphical user interface that enables you to monitor and manage your system’s fault-tolerant software and hardware. See
ActiveService Network
Your ftServer system offers an optional, secure network, the ActiveService Network
(ASN). ASN enables the CAC or your authorized Stratus service representative to provide remote monitoring, diagnosis, troubleshooting, and problem-resolution services to your systems 24 hours a day, 7 days a week. Access to the ASN requires a service contract with Stratus or an authorized Stratus service representative and is implemented across a modem or over the Internet.
Having ASN connectivity enables:
Your system to send alerts (call-home alarm messages) to the CAC or your authorized Stratus service representative when unusual events occur on the system
The CAC or your authorized Stratus service representative to access the system through a connection to the ASN
Your system can connect to the ASN through:
A modem connected to the system
The Internet
The VTM console or an ftGateway system
N O T E
An ftServer 2600, 4500, or 6300 system running ftSSS for the Windows Operating System, Release 6.0.0, provides only ftGateway slave support and cannot serve as an ftGateway master. For ftGateway master support, use an ftServer system that runs a version of ftSSS for the
Windows Operating System, Release 5.3.
Internet-based ASN connects over a secure path to your authorized Stratus service representative.
1-2 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
System Administration Tools
After verifying a hardware problem, your authorized Stratus service representative can send out a replacement CRU.
See the Stratus ActiveService Network Configuration Guide (R072) for more information, and online help for ftSys Management Console (ftSMC) for instructions in how to configure ASN alarm notification by email.
Virtual Technician Module Console
The Virtual Technician Module (VTM) console is a Web-based console that enables you, the CAC, or your authorized Stratus service representative to control, monitor, and diagnose the system. You can access the VTM console over a LAN, or the Internet, if
Internet connectivity is available. You can use the VTM console even if the host system’s operating system is unresponsive and its network connections are lost. VTM console functionality also includes:
Remote Keyboard, Video, Mouse (KVM) support
Access to attached storage
Diagnosis of a system that is powered off (however, standby power must be available)
Power-cycling of a system
Remote KVM Console enables you to manage the host computer remotely over the
Web-based console. Using Remote KVM Console, you can view the remote system desktop and redirect its local keyboard and mouse.
A VTM requires assignment of two IP addresses, either static or from a Dynamic Host
Configuration Protocol (DHCP) server. See
“Configuring Static IP Addresses for the
VTM Network Ports” on page 2-7
.
Disk-Management Tools
Disk-management tools enable you to monitor disk status, mirror entire physical disks, create logical volumes, mirror volumes across multiple disks, and perform other data-storage operations.
See also “Rapid Disk Resync Disk Mirroring” on page 1-5
.
Introduction to System Administration
1-3
System Software Features
System Software Features
ftServer System Software has features designed to support fault-tolerant operation and
high availability. These features include fault-tolerant, fail-safe software , Stratus services
,
open architecture drivers , and
Rapid Disk Resync disk mirroring
.
N O T E ftServer 2600, 4500, and 6300 systems do not support the
Windows Server 2008 BitLocker Drive Encryption feature.
Fail-Safe Software
ftServer System Software works in conjunction with lockstep technology to increase system reliability. Fail-safe software features capture issues and report them to the
CAC or your authorized Stratus service representative. Even data in memory can be constantly protected and maintained.
Stratus's hardened device drivers prevent software failures, and Stratus provides an embedded open-driver technology that enables third-party device drivers to access hardening capabilities.
Stratus Services
Stratus provides software fault-tolerant services that run on your system as
Windows-based services. These services constantly monitor for, and respond to, hardware problems. Applications do not need customization to support the services.
These services start automatically when the system boots and remain running during normal operation. If a situation requires system administrator intervention, you can use
for details.
See the Stratus ftServer Systems: Technical Reference Guide (R550) for descriptions of the Stratus services.
Open Driver Architecture
Your ftServer system supports both vendor-supplied drivers and Stratus-supplied drivers for PCI adapters. ftServer systems support vendor-supplied drivers for the PCI adapters that you supply. For PCI adapters that Stratus provides, Stratus supplies drivers that it has enhanced with support for surprise removal.
In addition, your ftServer system uses other drivers developed by Stratus. These drivers allow the system and all PCI devices to integrate with the ASN, and provide management of all system devices and device fault-tolerance.
1-4 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
System Software Features
ASN integration provides:
Automatic reporting of device failures to the CAC or your authorized Stratus service representative
Notification to you by the CAC or your authorized Stratus service representative when a device fails
Inventory reporting to the CAC or your authorized Stratus service representative that lists all PCI devices in the system
Comprehensive debug information about all devices in the system for use by the
CAC or your authorized Stratus service representative in troubleshooting your system
Management of PCI devices includes:
On your ftServer system, hot-plug support alerts the plug-and-play manager to bring a device into service or take it out of service. You can initiate bring-up or bring-down from ftSMC. Hot-plug support also initiates discovery of newly attached or removed devices.
N O T E
You must remove the CPU- I
O enclosure from the system in order to remove a PCI adapter.
Display of information so that you know whether removing a device will compromise the system. The drivers can set LEDs and values in ftSMC that let you know whether you can safely remove a component.
Display of information in ftSMC about a device’s fault-tolerance, including:
Automatic restart of failed devices. The device will be restarted after transient faults, until it falls below its mean-time-between faults (MTBF) threshold.
Tracking the MTBF of a device and management of the device when it experiences faults. You can set parameters to take the device out of service when the device experiences an unacceptable MTBF. You can configure the rules for MTBF management.
Rapid Disk Resync Disk Mirroring
Rapid Disk Resync (RDR) disk-mirroring technology provides faster resynchronization of mirrored disks than other mirroring methods after transient failures or when a single disk is briefly removed from service. For optimal performance, use RDR to mirror disks in internal storage.
Introduction to System Administration
1-5
Initial Configuration
Initial Configuration
Configure the following items before you use your system:
System software. See the Stratus ftServer System Software: Installation and
Configuration for Windows Systems (R002W) guide for software installation and configuration details.
Disk storage. Create a backup system disk and mirror the disks in your system. If
you are implementing RDR disk mirroring, see the Stratus ftServer System
Software: Installation and Configuration for Windows Systems (R002W) guide for details. If you are implementing volume mirroring, see your disk-management tool documentation.
Network connections. Configure Ethernet adapters in teams to achieve
increased throughput and fault tolerance. In a team, one adapter is primary and the other adapters in the team are secondary. See the Stratus ftServer System
Software: Installation and Configuration for Windows Systems (R002W) and
Appendix B for details about configuring Ethernet adapter teams.
Uninterruptible power supply (UPS). See your system’s hardware installation
guide for information about connecting a UPS to a system. See the Stratus ftServer
System Software: Installation and Configuration for Windows Systems (R002W) for information about how to configure a UPS for use with your system.
ASN. If you have purchased remote diagnostic, troubleshooting, and
problem-resolution services from the CAC or your authorized Stratus service representative, configure the Stratus ASN. See the Stratus ActiveService Network
Configuration Guide (R072) for details.
Documentation
The Stratus ftServer 2600, 4500, and 6300 Systems: Site Planning Guide (R638) lists ftServer system documentation. You can find additional information in ftSMC Help.
Online Documentation
The ftServer Help and Manuals folder on the ftServer desktop contains links to the
Stratus ftServer documents.
You can view the documents in the Help system or open them in PDF format for viewing or printing.
To gain access to the documents on the World Wide Web, point your browser to the ftServer StrataDOC Web site (http://stratadoc4ftserver.stratus.com) .
1-6 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Windows Documentation
Stratus Help System
The Stratus Help system consists of the following:
General Help. You can access general help from the ftServer Help and Manuals
icon on the desktop, the Help button on an application’s menu bar, or by pressing the F1 key.
Context-Sensitive Help. Context-sensitive help is available for certain items within
help-enabled applications (such as the ftSMC snap-in). To access this help, select an icon in the ftSMC system inventory tree and press F1. Alternatively, right-click an ftSMC system inventory tree icon, and in the shortcut menu, click Help.
What’s This? of ftSMC Help. What’s This? of ftSMC Help is available for items in
the details pane of the ftSMC snap-in. To access it, right-click the question mark (?) icon in front of the item, and in the shortcut menu, click What’s this? (see
for an example). What’s This? help is also available from certain dialog boxes having the What’s this? help icon (?) in their upper-right corner. For example, in a Properties dialog box in ftSMC, click the help icon (?), then click a box, and a pop-up window of ftSMC Help is displayed.
Windows Documentation
This manual documents only those system administration tasks that are required for ftServer systems in particular, not those that are required for Windows-based servers in general. General system-administration tasks for Windows systems include:
Configuring networks and managing access to network resources
Configuring Windows services
Configuring domain controllers
Implementing and managing Active Directory
Setting up user accounts and managing users
Setting up and configuring printers
Managing server security
Backing up and restoring data
For help with these kinds of tasks, see the associated Microsoft Help system and the
Windows OS documentation provided by Microsoft.
Introduction to System Administration
1-7
Windows Documentation
1-8 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Chapter 2
Operating and Monitoring Your System
2-
For information about system operation, see the following topics:
“Starting Up and Shutting Down A System” on page 2-2
“Controlling the Modem” on page 2-4
“Accessing Your System Desktop Remotely” on page 2-5
“Using Windows System Event Logs” on page 2-8
“Monitoring ftServer Services” on page 2-10
“Managing BIOS Settings” on page 2-11
“Writing to DVD-RWs on Windows Server 2003 Systems” on page 2-12
“Understanding Floppy Disk Drive Volume Letters” on page 2-12
“Using Serial Ports” on page 2-13
“Understanding Uninterruptible Power Supplies” on page 2-13
“Understanding SNMP Traps” on page 2-14
“Understanding Updates and Hotfixes” on page 2-15
“Avoiding Problems” on page 2-15
Operating and Monitoring Your System
2-1
Starting Up and Shutting Down A System
Starting Up and Shutting Down A System
For normal system startup and shutdown, and to completely remove power from the system, see the operation and maintenance guide for your system.
!
C A U T I O N
Always shut down the operating system before turning the system power off.
N O T E S
1. Give the system time to recover automatically
from problems. If the system hangs for any reason
while it is booting, wait at least ten minutes before intervening manually.
2. If a system contains failed components, it may attempt to boot for an extended period of time. This is because the system makes up to six attempts to boot, each time trying with a different combination of components. You can monitor the boot process on the screen or in a VTM console session.
You can accomplish an orderly shutdown of the system from a remote computer by accessing the Windows desktop and executing a Shut Down command.
You must physically be at the system to see the message indicating that it is safe to power off the system. To turn off power, use the power button on the machine, the standby circuit-breaker switches, or the VTM console. Note, however, that the
Windows Shut Down command automatically powers down the system.
Enabling the Power Button on the Machine
The power button on the machine performs an orderly shutdown when pressed once.
However, if no one is currently logged on to the system, the power button may not work properly on all versions of the Windows operating system. You may have to enable the power button on the machine to operate correctly in the event that no one is logged onto a system.
To enable the power button on the machine to shut down a system onto which no one has yet logged, enable the following Windows Security option:
Shutdown: Allow system to be shutdown without having to log on
2-2 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Starting Up and Shutting Down A System
To set the shutdown option on a Windows Server 2003 system
1. Refer to the Windows Help topic Opening the Local Group Policy Editor
2. Follow the instructions for a Local Computer or a Group Policy object.
To set the shutdown option on a Windows Server 2008 system
1. Click Start, Administrative Tools, and Local Security Policies.
2. Under Security Settings, expand Local Policies, and double-click Security
Options.
3. In the Policy pane on the right-hand side, scroll down to and right-click Shutdown:
Allow system to be shutdown without having to log on.
4. Select Properties.
5. Click Enabled on the Local Security Setting tab, and then click OK.
CPU Element Resynchronization
Each system houses two CPU-I/O enclosures. Each CPU-I/O enclosure includes a
CPU element and an I/O element. ftSMC represents these elements in the following
nodes:
CPU Enclosure - 0 and CPU Enclosure - 1
I/O Enclosure - 10 and I/O Enclosure - 11
Discussions of CPU enclosures and I/O enclosures apply equally to the corresponding elements of CPU-I/O enclosures, unless otherwise specified.
A CPU element returning to service must resynchronize with the functioning CPU element. A CPU element requires resynchronization:
After you bring down and then bring up a CPU element
After a transient CPU element error
After you power down a system and then power it up
During online BIOS upgrade
During part of the resynchronization period, the system does not respond to network connections. Therefore, it is important to set the timeout period and/or number of retries for network applications to be large enough to prevent timeouts during resynchronization. The length of the resynchronization period is proportional to the amount of system memory configured.
By default, resynchronization occurs as soon as the CPU element that was taken out of service is determined to be operational or the failed enclosure is replaced. However, you can defer resynchronization to a more convenient time, such as an off-peak period.
Operating and Monitoring Your System
2-3
Controlling the Modem
See
“Managing CPU Element Bringup” on page 2-4 for information about scheduling
CPU bringup.
Managing CPU Element Bringup
You can specify two times of day at which to enable, or to which to defer, the return to service of CPU elements that have been removed from service (shot). You use two commands—Enable CpuBoard Bringup and Defer CpuBoard Bringup—which the
Windows Scheduler executes. You also specify two times of day: one time when an offline CPU element can be brought up, and another time to which CPU Bringup is deferred. See ftSMC Help for instructions in setting these commands.
When Scheduler executes the commands, Enable CpuBoard Bringup changes the
CpuBringUpPolicy property under the Srabid driver to Enable Bringup. This setting enables CPU elements that were removed from service to come back into service. It also brings up any CPUs that are in the Removed from Service state for a reason of
Deferred BringUp, as long as they don't exceed the MTBF threshold.
When Scheduler executes the Defer CpuBoard Bringup command, it changes the
CpuBringUpPolicy property under the Srabid driver to Defer Bringup. With this setting, if a CPU element is removed from service, the CPU elements come back into service at different times.
For example, consider the situation in which Defer CpuBoard Bringup is scheduled for every day at 8:00 a.m., and Enable CpuBoard Bringup is scheduled for every day at
9:00 p.m. In this case, if any CPU element gets removed from service after 8:00 a.m., it will not be allowed to come back into service until after 9:00 p.m., when Scheduler executes Enable CpuBoard Bringup. At that time, Enable CpuBoard Bringup will automatically bring up any CPU element that has been deferred between 8:00 a.m. and
9:00 p.m.
Controlling the Modem
!
C A U T I O N
When you replace or install a modem, turn off power to the modem connector to prevent damaging the modem and the system.
Use the following procedure to change the power state of the modem while the system remains online. Alternatively, shut down the system and remove the power cords, as described in the operation and maintenance guide for your system.
2-4 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Accessing Your System Desktop Remotely
Powering the modem on or off while the system is online
1. In ftSMC, expand ftServer (Local) and ftServer Call Home Modem.
2. Refer to the PowerState property in the details pane, or the state of the power
(green) LED on the modem, to verify that the power is on or off.
3. If the modem power is on, select Initiate BringDown to turn it off. If the modem power is off, select Initiate BringUp to turn it on.
Accessing Your System Desktop Remotely
You can remotely access your ftServer system’s Windows desktop in different ways, depending on how your system is set up.
and
enable remote access to the Windows desktop from a remote computer.
Enabling Remote Desktop
Microsoft Remote Desktop is installed by default on your system. However, it is not enabled by default.
N O T E
Users must have passwords to access remote desktops with the Remote Desktop application. See Microsoft documentation for details.
To enable Remote Desktop on a Windows Server 2003 system
1. Right-click My Computer and select Properties.
2. Click the Remote tab.
3. Select the check box under Remote Desktop to enable users to connect remotely to the computer.
4. The Remote Sessions dialog box will appear, stating that some local accounts might not have passwords. Click OK.
To enable Remote Desktop on a Windows Server 2008 system
1. Click the Start button.
2. Right-click Computer and select Properties.
3. In the list of Tasks, click Remote settings.
4. On the System Properties menu, click the Remote tab.
5. Under Remote Desktop, click Allow connections from computers running any
version of Remote Desktop (less secure).
Operating and Monitoring Your System
2-5
Using the VTM
Running ftSMC Remotely
See
“Running ftSMC on a Remote System” on page 3-2 for details about running
ftSMC on a remote system.
Booting or Shutting Down a System Through VTM Console
!
C A U T I O N
Before using the VTM console to turn off system power, always attempt to perform an orderly shutdown of the operating system.
You can use the VTM console to remotely access the server desktop to turn off system power and boot the host system. See
“Using the VTM” on page 2-6 as well as the
Stratus ftServer Virtual Technician Module User’s Guide (R642).
Using the VTM
To use the VTM, you must set up a VTM administrator account
, and you must also log in to the VTM console
. A VTM administrator account enables you to log in to the VTM
Console. If necessary, you can assign a static IP address . See the Stratus ftServer
Virtual Technician Module User’s Guide (R642) for related information.
Setting Up a VTM Administrator Account
You set up the account from ftSMC. (Note that the VTM administrator account is separate from your Windows administrator account.)
To set up a VTM administrator account
1. In ftSMC, expand ftServer (Local), ftServer Configuration, right-click
ActiveService Network, and select Properties.
2. On the dialog box, click the SMM tab.
3. Enter values into the following fields:
– SMM Admin ID. Your VTM administrator login name.
– SMM Admin Password. Your VTM administrator password.
4. Click OK.
2-6 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Using the VTM
Logging in to the VTM Console
To log in to the VTM console, you must first determine the IP addresses of the VTM network port of the baseboard management controllers (BMCs), then use the IP address of the port on the primary BMC in an Internet Explorer browser to access and log in to the VTM console.
To determine the IP address of the VTM network ports of the BMCs
1. In ftSMC, expand ftServer (Local), ftServer I/O Enclosures, I/O Enclosure - 10,
BMC - 120.
2. Note the IP address of the primary BMC from the ftSMC details pane.
3. Expand I/O Enclosure - 11, BMC - 120.
4. Note the IP address of the secondary BMC from the ftSMC details pane.
Copy these addresses in a location other than on the ftServer system, in case you need them to log in to the VTM console when the operating system is down or not responding.
To log in to the VTM console
1. Open an Internet Explorer browser, and enter the primary BMC IP address in the
Address field.
You can use an Internet Explorer browser on the ftServer system or on a remote system. For information on software and settings required on a remote system, see the Stratus ftServer Virtual Technician Module User’s Guide (R642).
2. Log in to VTM using the login name and password that you entered when you
set up the VTM administrator account .
Configuring Static IP Addresses for the VTM Network Ports
Typically, DHCP assigns IP addresses to the VTM network ports, which are at the rear of the system. However, if your environment requires static IP addresses, you can disable DHCP for the VTM network ports and then assign a different IP address to each of the ports.
To configure static IP addresses for the VTM network ports
1. In ftSMC, expand ftServer (Local).
2. Expand ftServer Configuration.
3. Click and then right-click VTM Network Config, and click Update Network
Settings.
4. In the Enable DHCP box, select False.
Operating and Monitoring Your System
2-7
Using Windows System Event Logs
5. In the Reserved VTM IP Address 1 box and the Reserved VTM IP Address 2 box, enter two different IP address.
6. In the Default Gateway for VTMs box, enter the IP address of the default gateway.
7. In the Subnet Mask for VTMs box, enter a subnet mask.
8. Click Finish.
Using Windows System Event Logs
The system maintains logs of application, security, and system events. These event logs can help you or the CAC or your authorized Stratus service representative identify problems that have occurred on the system.
Windows Server 2003 and Windows Server 2008 include the following log files:
Application log—The application log records events about system applications.
Security log—The security log records events about system security.
System log—The system log records events about general system activity.
Windows Server 2008 also includes:
Setup log—The setup log contains events related to application setup.
ForwardedEvents log—The ForwardedEvents log stores events collected from
remote computers. See Windows online Help for more information about
ForwardedEvents logs.
You can use Event Viewer to view the logs and to set the size of the application and
system event logs. To prevent loss of event log data, maintain a regular schedule for
manually saving event log files
or obtain a third-party tool that saves event logs automatically.
Starting Computer Management
To start Computer Management
On a Windows Server 2003 or 2008 system, click Start, point to Administrative Tools, and then click Computer Management.
2-8 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Using Windows System Event Logs
Setting the Size of Event Log Files
Specify the size of the event log files on your system.
!
C A U T I O N
Data will be overwritten if one of these event logs reaches its maximum log size.
To set the size of the application and system event logs in Windows Server 2003
1.
, and click Event View to display its subnodes.
Alternatively, click Start, Administrative Tools, and Event Viewer. Then click
Event View to display its subnodes.
2. Click on the properties icon ( ).
If Event Viewer does not display the properties icon ( ), click the subnode (for example, Application) of the log file whose size you want to set. Then, click
Properties.
In the Log size section, set the maximum log size in kilobytes (KB). The system default size for the application and system event logs is 2048 KB.
To set the size of the application and system event logs in Windows Server 2008
1.
.
2. Expand Event Viewer, then Windows Logs.
3. Right-click the event log you want to manage (for example, Application) and select
Properties.
The other choices are Security, Setup, System, and Forwarded Events. (See
Windows online Help for details about these event logs).
4. In the Log Properties dialog box, set the desired value in the Maximum log size
(KB) box. The system default size for the application and system event logs is
2048 KB.
5. Click OK.
Saving Event Log Files
In the unlikely event that your system experiences problems, save the system event log and the application event log, in order to capture details relating to the problem.
Saving the log file has no effect on the current contents of the active log.
Operating and Monitoring Your System
2-9
Monitoring ftServer Services
To save log files on a Windows Server 2003 system
1.
, and click Event View to display its subnodes.
Alternatively, click Start, Administrative Tools, and Event Viewer. Then click
Event View to display its subnodes.
2. Right-click the subnode (for example, Application) of the event whose log file you want to save, and select Save Log File As... .
3. In the Save Log File As dialog box:
In the Save In: box, accept the default or enter a new path name.
In the File name: box, enter the file name.
In the Save as type: box, accept the default type, Event Log (*.evt). This allows you to view the saved file in Event Viewer.
4. Click Save to save the file.
5. After you save the log file, you can clear it. To clear the log, right-click the subnode, and then select Clear all Events.
To save log files on a Windows Server 2008 system
1.
.
2. Expand Event Viewer, then Windows Logs.
3. Right-click the log you want to save, then click Save Events As.
4. In the File name box, enter a name for the saved file.
5. In the Save as type box, select a file format, then click Save.
6. Click OK.
See the Windows Server online Help for more options to the Save Events As command.
Monitoring ftServer Services
A number of ftServer services run on your system as Windows services. If any of these services is not running, the system does not function as designed. The Stratus ftServer
Systems: Technical Reference Guide (R550) describes these services.
To check the status of a service:
1.
.
2. Expand Services and Applications, and then click Services.
Alternatively, click Start, Administrative Tools, and Services.
2-10 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Managing BIOS Settings
3. If a service’s status is Stopped or blank, attempt to start the service by right-clicking it, and then clicking Start. If the service fails to start, check the event log for any messages related to the service.
Managing BIOS Settings
To manage BIOS settings, use the ftServer (BIOS) Setup utility.
To start the ftServer (BIOS) Setup utility
1. Turn on or reboot your system. The system begins booting with Initializing
Intel(R) Boot Agent GE vn.n.nn
messages.
2. Begin pressing F2 to enter the ftServer (BIOS) Setup utility as soon as
Initializing..\
appears on the screen because initialization messages appear and disappear rapidly.
Initialization messages include the following:
Initializing Intel(R) Boot Agent GE vn.n.nn
LSI Corporation MPT SAS BIOS
Initializing..\
Press Ctrl-C to start LSI Corp Configuration Utility...
Searching for devices at HBA 0...
followed by a list of two slots
CPU = 2 Processors Detected, Cores per Processor = 4
.
[lines omitted]
.
Mouse initialized
System Configuration Data updated
SMBIOS Initialize..
Press <F2> to enter SETUP or Press <F12> to boot from
Network
After you press F2, the message Entering Setup appears.
3. After executing some power-on self-test (POST) procedures, the system displays the Setup utility’s Main menu. Use the RIGHT ARROW and LEFT ARROW keys to select different tabs. Use the UP ARROW and DOWN ARROW keys to select different settings on a page. Press the ESC key to return to a previous page. Press
Enter to save new settings.
N O T E
On the Security tab, you can set a user or supervisor password. If a user or supervisor password is not set, the user or supervisor can enter Setup and modify any value.
If a user or supervisor password is set, and a user or
Operating and Monitoring Your System
2-11
Writing to DVD-RWs on Windows Server 2003 Systems
supervisor enters Setup without the valid password, the user or supervisor can modify only the System Date and
System Time, which are on the Main tab. If the user or supervisor enters setup with the valid password, then the user or supervisor can set or modify any value.
See the Stratus ftServer Systems: Technical Reference Guide (R550) for cautions and details about using the BIOS Setup utilities. See the Stratus ftServer Virtual Technician
Module User’s Guide (R642) for information on POST codes.
Determining the BIOS Version
Use ftSMC to determine the BIOS version. In ftSMC, click a CPU Enclosure node and look at the value of the BIOS: Stratus Version property in the details pane.
Writing to DVD-RWs on Windows Server 2003 Systems
Your ftServer system supports writing to DVD-RW drives. This capability is built into
Windows Server 2008 systems. However, on Windows Server 2003 systems, you must enable the Image Mastering Applications Programming Interface (IMAPI), which is turned off by default, before writing to the DVD-RW drive.
To enable IMAPI
1. Right-click My Computer and click Manage.
2. Expand Services and Applications and click Services.
3. In the Services window, double-click IMAPI CD-Burning COM Service.
The IMAPI CD-Burning COM Service Properties dialog box appears.
4. In the dialog box, under Service Status: Stopped, click the Start button.
A message stating that Windows is attempting to start the IMAPI service appears.
When the service is started, the Service Status value changes to Started.
5. On the General tab under Startup type, select Automatic.
6. Click OK.
Understanding Floppy Disk Drive Volume Letters
The operating system generally assigns the drive letter A to the optional floppy disk drive when the drive is first connected to a USB port. If you subsequently connect the drive to a different USB port or if the I/O element or element fails over, the operating system may assign the drive letter B to the floppy disk drive.
2-12 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Using Serial Ports
Using Serial Ports
Your system has two serial ports. Serial port 2 (Windows COM2) is always available for use by the operating system and is accessible to devices connected to its serial connector at the rear of the ftServer system. However, the availability of Serial port 1
(Windows COM1) is dependent on the presence or absence of an ASN modem in the ftServer system:
If no ASN modem is installed in the ftServer system, Serial port 1 is also always available for use by the operating system and accessible to devices connected to
its serial connector at the rear of the ftServer system.
If the ASN modem is installed, Serial port 1 is normally dedicated to the ASN modem, is not available for general use by the operating system, and is not accessible to devices connected to its serial connector at the rear of the ftServer system.
You can determine the presence or absence of the ASN modem by examining the
ftServer Call Home Modem - 0 node in ftSMC, which will be shown as offline if no
modem is present.
!
C A U T I O N
Although the serial ports have a nominal maximum speed of 115,200 bps, they do not operate reliably at speeds higher than 57,600 bps; so you should not attempt to run them at higher speeds.
Understanding Uninterruptible Power Supplies
Your ftServer system supports the use of an uninterruptible power supply (UPS) to power the system without interruption during short outages, and to gracefully shut the system down during longer power outages. As part of your fault-tolerant strategy, use a UPS qualified by Stratus.
For information about qualified UPS models, see the site planning guide for your system.
For UPS installation details, see the Stratus ftServer System Software: Installation
and Configuration for Windows Systems (R002W).
If your ftServer system is not connected to a qualified UPS, the system may not have time to shut down gracefully in the event of a power failure, thus limiting your recovery procedure options. In that case, you have to reboot the system and verify that your file systems were not corrupted. Contact the Stratus CAC or your authorized Stratus service representative for further assistance.
Operating and Monitoring Your System
2-13
Understanding SNMP Traps
Maintaining System Power During a UPS Failure
When you use a UPS qualified by Stratus, you connect that UPS to one half of the system. If a failure occurs in the UPS or in the UPS power source (for example, if the
UPS is unplugged) and the backup battery runs low, the system continues to operate if the power to the non-UPS half of the system is unaffected by the failure.
Changing the IP Address of Systems with a UPS
If you change the IP address on the system, update the configuration on the UPS with the new IP address. If you do not update the UPS, and power to the system is automatically removed after a power failure, the system does not restart when power is restored.
N O T E
Assign a static IP address to the network interface that provides the connection to the UPS.
To change the IP address of systems with a UPS
1. In a Web browser, enter http:// and the IP address of the UPS; for example,
http://
xxx.xxx.xxx
.
2. Log into the APC Web site using the user name and password.
The IP address home page appears.
3. Click the UPS tab on the home page.
4. Click clients in the left-hand column beneath Power Chute®.
5. Click the IP address that you want to change.
6. In the Client IP address box, overwrite the existing IP address with the new IP address.
7. Click Apply.
Understanding SNMP Traps
Your ftServer system supports the Microsoft SNMP Agent, which enables third-party
Enterprise Management consoles to remotely monitor the systems. The ftServer
SNMP Agent provides a standard mechanism for monitoring the status of systems and for receiving alarms from the systems.
During instances of system malfunction or in response to a system event, such as a firmware update, you may see multiple traps in third-party management consoles for various devices. For instance, if a PCI adapter fails, the SNMP agent may send traps not only for the adapter but also for its slot. You may safely disregard these traps.
2-14 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Understanding Updates and Hotfixes
See the Stratus ftServer System Software: Installation and Configuration for Windows
Systems (R002W) for SNMP configuration information.
Understanding Updates and Hotfixes
See the following Web page for an up-to-date statement of Stratus’ policy on installing upgrades and hotfixes to the operating system: http://www.stratus.com/support/releasepolicy
You can greatly reduce application downtime when you upgrade software by installing and using the optional Stratus ftServer Active Upgrade software. If you do plan to install and use Active Upgrade software, be sure to keep system files on a separate disk from data files. See the Stratus ftServer: Active Upgrade User’s Guide (R017W) for more information.
Avoiding Problems
To take full advantage of your system’s fault-tolerant features and to avoid problems, observe the following when setting up and operating your system:
Do not attempt to boot the system from a network drive. Booting the system
from a network drive is not supported.
Do not use Windows Device Manager to disable devices except in
documented special situations. Using Windows Device Manager to disable
devices can interfere with the proper operation of your system. The correct way to take devices out of service and return them to service is through the ftSMC snap-in.
However, to handle special situations, the system documentation may instruct you to use Windows Device Manager.
Do not turn on the Emulex elxstor.sys LightPulse Storport Miniport driver
services; they will interfere with the fault-tolerant operation of your system.
Upon installation, these services are set to manual.
Do not install devices unless they have been tested and certified as
compatible with ftServer systems. Installing devices that have not been tested
and certified to be compatible with your ftServer system can reduce the fault tolerance of your system. If you want to install a device that has not been certified, contact your account team.
Operating and Monitoring Your System
2-15
Avoiding Problems
2-16 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Chapter 3 ftSys Management Console
3ftSys Management Console (ftSMC) is described in the following major sections:
“Performing ftSMC Tasks” on page 3-6
“CPU and I/O Enclosures and Elements” on page 3-12
For information about the Virtual Technician Module (VTM), see the Stratus ftServer
Virtual Technician Module User’s Guide (R642) and ftSMC Help.
ftSMC Overview
ftSMC, an MMC snap-in, is the system management tool you use to monitor and control the operation of your system. ftSMC presents a list of the system components in the console tree and properties of the component in the details pane.
For example, to determine which model ftServer you have, perform the following steps:
1. On the Windows Desktop, click the ftSys Management Tools icon.
2. Expand ftServer (Local), ftServer Drivers, and System ID
PROM - SystemIdProm.
In the Details pane, the ModelDesc and ModelName properties identify the system model and P-package, respectively. The ModelDesc property presents a simple model-name value, like ftServer 4500. The ModelName property presents one of the values explained in
.
Table 3-1. ftServer System Models by P-Package
ModelName Value
P2600-1S
P4500-1S
P4500-2S
P6300-2S
System Model
ftServer 2600 rack-mountable dual-core 1-way ftServer 4500 rack-mountable quad-core 1-way ftServer 4500 rack-mountable quad-core 2-way ftServer 6300 rack-mountable quad-core 2-way
ftSys Management Console
3-1
Running ftSMC
Use ftSMC to disable devices. Do not use Windows Device Manager to disable devices except in documented special situations.
N O T E
MMC snap-ins, including ftSMC, do not lock edit sessions to prevent simultaneous users from editing the same parameters.
Running ftSMC
You can run ftSMC the following ways:
Directly on your ftServer system
From a remote computer by accessing your ftServer system desktop remotely
Running ftSMC Directly on Your ftServer System
You can run ftSMC directly on your system in two ways.
To run ftSMC from the desktop of an ftServer system
Click the ftSys Management Tools shortcut on your system’s desktop.
To run ftSMC by navigating to its executable file
1. From the desktop, double-click the Computer icon (on systems running Windows
Server 2008) or the My Computer icon (on systems running Windows Server
2003).
2. Double-click Local disk (C:), Program Files, ftSys, and then management.
3. Double-click ftServer.
Running ftSMC on a Remote System
You can run ftSMC on a remote system by adding the ftSMC snap-in to a remote system that is running Windows 2000, Windows Server 2003, Windows XP, Windows
Vista, or Windows Server 2008:
1. Install ftSMC on a supported computer, using the Remote Management Installation
(RMI) procedure described in the Stratus ftServer System Software: Installation
and Configuration for Windows Systems (R002W).
2.
Add the ftSMC snap-in to MMC , specifying an ftServer system to manage and
saving the console that contains the snap-in.
3-2 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Running ftSMC
After you have added a console, you can
open a previously saved MMC console
that contains ftSMC.
(Instead of, or in addition to, adding the ftSMC snap-in, you can access the ftServer system’s desktop remotely, in order to run ftSMC from a remote system. For information, see
“Accessing Your System Desktop Remotely” on page 2-5 .)
Adding the ftSMC Snap-in to MMC on a Windows Server system
To add the ftSMC snap-in to MMC on a Windows system, you must:
1.
Modify security on the remote system using the DCOM configuration utility
(dcomcnfg.exe).
2.
Modify the Windows Firewall and Advanced Security settings on the ftServer system.
3.
Add the ftSMC snap-in on the remote system.
Modifying security on the remote system using dcomcnfg.exe
!
C A U T I O N
Modifying security on the remote system using the DCOM configuration utility can compromise the security of the system.
1. From the Start menu of the remote computer, click Run, type dcomcnfg in the
Open box, and click OK.
2. In the Component Services window, expand Component Services, Computers, and then My Computer.
3. Right-click the My Computer icon and select Properties.
4. Select the COM Security tab.
5. Under Access Permissions, select Edit Limits.
6. Select ANONYMOUS LOGIN from the Group or user names box, and then check the Allow box for Remote Access.
7. Click OK in the Access Permissions window.
8. Click OK in the My Computer window.
9. Close the Component Services window.
10. Reboot the system.
Continue by modifying the Windows Firewall and Advanced Security settings on the ftServer system.
ftSys Management Console
3-3
Running ftSMC
Modifying the Windows Firewall and Advanced Security settings on the ftServer system
!
C A U T I O N
Modifying Windows Firewall and Advanced Security settings on the ftServer system can compromise the security of the system.
1. Access Windows Firewall and Advanced Security on the ftServer system (for example, click Start, Administrative Tools, and then Windows Firewall and
Advanced Security).
2. Click Inbound Rules.
3. Find and then enable the following rules:
Remote Administration (NP-In)
Remote Administration (RPC)
Remote Administration (RPC EPMAP)
Continue by adding the ftSMC snap-in
.
Adding the ftSMC Snap-in on the remote system
1. From the Start menu of the remote computer, click Run, type mmc in the Open box, and click OK.
2. In the Console1 window of MMC, click the File menu item, and click Add/Remove
Snap-in.
3. In the Add/Remove Snap-in dialog box, click Add.
The Add Standalone Snap-in dialog box appears with a list of snap-ins.
4. Click ftServer Management Console and click Add.
The Connect dialog box appears.
5. Type the servername.domainname or the IP address of the server (for example, usbos01.wtcus.com or 192.168.57.10), and select or clear the Connect as
current user check box. If you clear the check box, type the user name and
password that will be used to make the connection.
N O T E S
1. The user name that you enter must be in the Windows
Administrators group for the computer that you want to manage.
3-4 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Running ftSMC
2. You can select any remote ftServer system to manage, as long as you have appropriate access to it.
6. Click Close in the Add Standalone Snap-in dialog box.
7. Click OK in the Add/Remove Snap-in dialog box.
The name of the system appears in MMC. The ftSMC snap-in displays information about the system and you can use the ftSMC snap-in to manage the system.
8. Save this console, with ftSMC added, for later use by clicking Save As in the
Console menu. In the Save As dialog box, type a file name in the File Name box,
and click Save.
shows an example of an ftSMC snap-in tree on a remote management computer. The ftServer system being managed includes an optional ftServer Call
Home Modem, but no optional attached storage enclosures (the Storage Enclosures
node is blank).
Figure 3-1. ftSMC Tree
Opening a Previously Saved MMC Console
1. Click Start, and then click Run.
2. In the Run window, type mmc in the Open box, and then click OK.
3. In the Console window, click the File menu, then Open.
4. In the Open window, double-click the name of the previously saved MMC console.
ftSys Management Console
3-5
Performing ftSMC Tasks
Performing ftSMC Tasks
Detailed instructions for using ftSMC are available in ftSMC Help. Before interacting with ftSMC, note the following cautions.
!
C A U T I O N
Before using ftSMC to interact with the Stratus Customer
Assistance Center (CAC) or your authorized Stratus service representative, perform the tasks described in the
Stratus ActiveService Network Configuration
Guide (R072).
!
C A U T I O N
When working in ftSMC, generally do not change the configured values of properties unless directed to do so in documentation or by the CAC or your authorized Stratus service representative.
When you click a command that does not have an ellipsis, the system performs the command immediately and a dialog box displays the status of the command, for instance, The operation completed successfully. This status does not indicate that the selected procedure has completed, but only that the command has been successfully initiated. Click OK in the dialog box to dismiss it. Monitor the state of the
or the system event log to see if the command completed successfully.
ftSMC Interface
The
used in ftSMC, and the ftSMC display
features of the ftSMC interface.
Figure 3-2 shows the ftSMC user interface.
To expand all nodes, press the asterisk (*) key on the number pad.
N O T E
In ftSSS for the Windows Operating System, Release
6.0.0, ftSMC provides functionality under the BMC - n node that ftSMC of previous ftSSS releases provided under the VTM adapter - n node.
3-6 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Figure 3-2. ftSMC User Interface
Performing ftSMC Tasks
describes the key elements in the ftSMC user interface.
Table 3-2. ftSMC User Interface Key Elements
Item Description Function
1 Action band The Action menu contains MMC snap-in commands. The View menu contains console viewing options.
2
3
4
Console tree Lists all system component nodes. Each node represents a manageable object.
Details pane Displays the properties related to the node selected in the console tree. For an explanation of a property, right-click the property and select What’s this? from the shortcut menu to display information from ftSMC Help. (Not all properties have What’s this? help.) The
Stratus ftServer Systems: Technical Reference Guide (R550) includes information about properties.
Status bar Displays ftSMC status messages.
Details Pane
The names and values of the properties of the components in the ftSMC tree are displayed in the details pane. A question mark (?) icon in front of a property name indicates that What’s this? Help is available in ftSMC Help. Right-click the property name and click in the shortcut menu that appears. See
ftSys Management Console
3-7
Performing ftSMC Tasks
Figure 3-3. Using What’s This? in the Details Pane
Icons Used in ftSMC
shows the icons used in the system inventory.
Figure 3-4. System Inventory Icons
A dimmed folder icon indicates that the node does not contain any information. It is empty.
A plain, yellow folder icon indicates that the node is online and contains information or child nodes. This icon indicates online simplex components.
A tools icon indicates that the node is offline, possibly for maintenance.
A dual-monitor icon indicates that the node is duplexed (partnered) with another node (for example, two CPU elements).
N O T E
It is safe to remove a duplexed component.
A magnifying glass icon indicates that the node is offline and undergoing diagnostic
testing.
A single-monitor icon indicates that the component is operating simplexed
(unpartnered).
3-8 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Performing ftSMC Tasks
N O T E
It is unsafe to remove a simplexed component from the system. Removing a simplexed component causes loss of that component function to the system.
The simplexed icon can also indicate an invalid configuration. For instance, the
simplexed icon next to Ethernet Controller - 2, shown in Figure 3-5 , indicates that
Network Port - 0 and Network Port - 1 beneath the Ethernet Controller - 2 are duplexed, but that Ethernet Controller - 2 is simplexed, which makes it a single point of failure, an illegal configuration.
Figure 3-5. Simplexed Icon for Invalid Configuration
ftSMC displays warning and error icons described in
.
Table 3-3. ftSMC Warning and Error Icons
Icon Type
Warning
Error
No inventory found
Threshold warning
Description
Exclamation point inside a yellow triangle
Indication
A node whose child node has an error.
White X inside a red circle The node is offline, in testing, or has failed.
White X inside a gray circle ftSMC cannot retrieve inventory information for that device. The ftSMC status bar displays a message indicating that the properties cannot be retrieved.
Exclamation point inside a red triangle
The current reading of a sensor value exceeds the specified threshold. Parent nodes display the yellow warning icon.
shows an error icon next to Network Port - 1, indicating an error on that node. Warning icons precede the names of all parent nodes that have nodes with an error.
ftSys Management Console
3-9
Performing ftSMC Tasks
Figure 3-6. Warning and Error Icons
shows a no-inventory-found icon next to the CPU Enclosure icons.
Figure 3-7. Warning and Inventory Error Icons
shows a threshold warning icon for a voltage sensor.
Figure 3-8. Threshold Warning Icon
Refreshing the ftSMC Display
You can right-click the ftServer (Local) root node to enable or disable each of three refresh options. These options cause ftSMC to refresh, or update, the information in the details pane when the specified event occurs. You should enable these options so that the details pane and the node icons update when you complete an action or when a state change occurs. When enabled, a check mark appears in front of the option, as
3-10 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Figure 3-9. ftSMC Details Pane Refresh Options
Performing ftSMC Tasks
Viewing and Changing Properties
To view the properties of a system inventory component, click the component’s node in the console tree. The names and values of that component’s properties are displayed in the details pane, as shown in
.
Some components’ properties are configurable. Components with configurable properties have a Properties command in their shortcut menu. See
.
See ftSMC Help for details.
Figure 3-10. Properties Command in Shortcut Menu
ftSys Management Console
3-11
CPU and I/O Enclosures and Elements
Required Operational States for Commands
presents the operational state that a device must be in to carry out the associated command.
Table 3-4. Operational State for Associated Commands
Valid States Command
CPU Element
Initiate BringUp
Initiate BringDown
Initiate Diagnostics
Removed, Broken, Shot, Firmware update complete,
Diagnostics passed.
Broken, Firmware update complete, Diagnostics passed,
Duplex.
Removed, Broken, Firmware update complete,
Diagnostics passed.
CPU element must be online and duplexed.
Set Priority
I/O Element
Initiate BringUp
Initiate BringDown
Initiate Diagnostics
Removed, Broken, Shot, Diagnostics passed.
Broken, Diagnostics passed, Duplex.
Removed, Broken, Diagnostics passed.
CPU and I/O Enclosures and Elements
Each system houses two CPU- I
O enclosures. Each CPU- I O enclosure contains a
CPU element and an I/O element joined to the same board. You can monitor each CPU element and I/O element separately. ftSMC represents these elements in the following nodes:
CPU Enclosure - 0 and CPU Enclosure - 1
I/O Enclosure - 10 and I/O Enclosure - 11
Descriptions of CPU elements and I/O elements apply to the elements of both
CPU- I
O enclosures, unless otherwise specified.
Primary and Secondary CPU-I/O Enclosures
Both CPU-I/O enclosures in an ftServer system process every instruction in lockstep, but only one CPU-I/O enclosure is the primary, or active, enclosure at a time. The other
CPU-I/O enclosure is the secondary enclosure; it assumes the role of primary enclosure only if the previously primary enclosure fails or is taken out of service. But,
3-12 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
CPU and I/O Enclosures and Elements
under certain circumstances, you can force the secondary enclosure to become the primary enclosure.
For example, your authorized Stratus service provider might ask you to switch the primary enclosure for troubleshooting purposes. Or, if you are about to run the Active
Upgrade process, you might want the enclosure that is connected to UPS-protected power (CPU enclosure 0, I/O enclosure 10) to be the primary enclosure, because this provides better protection for your system if power fails during the upgrade (especially while your system is in split mode).
Switching the Primary CPU-I/O Enclosure
If you need a particular CPU-I/O enclosure to be primary, first check the operational state of that enclosure. If it is currently the secondary enclosure, you can manually set that enclosure to become the primary enclosure.
To check the operational state of an I/O enclosure
1. Open ftSMC.
2. Expand ftServer (Local).
3. Expand ftServer I/O Enclosures.
4. Click I/O Enclosure - n. (To prepare for the Active Upgrade process, check the state of I/O Enclosure - 10.)
5. Verify that the value for Op State: Reason is Primary and the value for
ActiveCompatibilityFlag is True.
If the value for Op State: Reason is Secondary and the value for
ActiveCompatibilityFlag is False, you can manually set the enclosure to be the
primary enclosure.
To make an I/O enclosure the primary I/O enclosure
1. Open ftSMC.
2. Expand ftServer (Local).
3. Expand ftServer I/O Enclosures.
4. Expand I/O Enclosure - n. (To prepare for the Active Upgrade process, expand I/O
Enclosure - 10)
5. Right-click on the I/O enclosure.
6. Click Make Active Compatible.
If you are preparing for the Active Upgrade process, you might need to wait 5-10 minutes for the system components to stabilize and return to full duplex mode before running a readiness check.
ftSys Management Console
3-13
CPU and I/O Enclosures and Elements
3-14 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Chapter 4
Disk Storage Management
4-
The following disk-management topics apply to your ftServer system:
“Data Fault Tolerance” on page 4-1
“Guidelines for System Disks” on page 4-2
“Using RDR for Mirroring and Fault Tolerance” on page 4-2
“Managing RDR Disks” on page 4-4
“Using Volume Mirroring for Fault Tolerance” on page 4-25
“Using Hardware RAID Controllers For Fault Tolerance” on page 4-27
“Mirroring Disks in ftScalable Storage Systems” on page 4-29
“Finding an Internal Physical Disk” on page 4-29
“Finding an External Physical Disk” on page 4-31
“ftSMC Interface for Storage Enclosures and Subsystems” on page 4-27
Data Fault Tolerance
Your ftServer system offers these methods of ensuring data fault tolerance and continuous availability of its disk media:
Rapid Disk Resync (RDR), a disk-replicating technology, is supported on the internal disk drives.
On optional ftScalable Storage systems, you use the RAIDar graphical user interface to create virtual disks in the external storage. See the ftScalable Storage:
Getting Started Guide (R601) for details.
After creating the virtual disks using RAIDar, you must use Windows Disk
Management or another disk-management tool to initialize the virtual disks and format the volumes on them.
If you are not using RDR or RAIDar, see your disk-management tool documentation for information on how to create striped volumes across the mirrored internal disks.
Disk Storage Management
4-1
Guidelines for System Disks
N O T E
Create a backup of the system disk with which to restart the system in the unlikely event of a system failure. See the Stratus ftServer System Software: Installation and
Configuration for Windows Systems (R002W).
Guidelines for System Disks
On the system disk, the IPL procedure creates a boot partition, which contains the operating system and all of its components.
Because the system disk and boot partition hold system-critical files, such as the paging file and system event files, limit the traffic to this disk to system traffic only.
The internal storage of your ftServer system supports Serial Attached SCSI (SAS). The system’s disks are located in a disk tray that connects to the system backplane.
N O T E
You may use any slots for any disks, with the following two exceptions. First, pair disks in partner I/O elements, not within the same element, to promote fault-tolerance.
Second, use a SAS disk for the system boot disk and locate it in the bottom-most slot (Slot-1).
You can greatly reduce application downtime when you upgrade software by installing and using the optional Stratus ftServer Active Upgrade software. If you plan to install and use Active Upgrade software, be sure to keep system files on a separate disk from data files. See the Stratus ftServer: Active Upgrade User’s Guide (R017W) for more information.
Using RDR for Mirroring and Fault Tolerance
Use RDR disk mirroring to configure and create managed disks in internal storage.
With RDR disk mirroring, you mirror pairs of physical disks to create RDR virtual disks.
Each pair of mirrored disks constitutes one RDR virtual disk. RDR offers faster resynchronization of mirrored disks than other mirroring methods after transient failures or when a single disk is briefly removed from service.
4-2 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Using RDR for Mirroring and Fault Tolerance
N O T E
In RDR terminology, an individual physical disk is also called a plex, and an RDR virtual disk is also called a
LUN, for logical unit.
The data on one disk of the RDR virtual disk pair is replicated in full—that is, mirrored or duplex—on its corresponding partner disk, irrespective of volume or partition layout.
However, an RDR virtual disk may also be simplex (consisting of only one physical disk). A simplex RDR virtual disk may contain mirrored volumes created using third-party disk management facilities. If all volumes on a simplex RDR disk are mirrored with other disks in the system, then the simplex RDR disk is effectively duplex
(mirrored).
If you are upgrading a system’s disks from a non-RDR to an RDR configuration, the existing disks must provide adequate space for metadata. Metadata is “data about data” that the RDR software stores on disks to implement disk management. When you configure a disk for RDR, the system displays an error message if the disk does not have adequate space. The disk being upgraded should be a basic disk. A basic disk is one that is divided into partitions.
RDR virtual disks appear in ftSMC under the Logical Disk Information node. In this location, the details pane presents the location of the physical disks in the RDR virtual disk in these properties:
Disk Enclosure Slot: DevicePath[2]
Disk Enclosure Slot: DevicePath[1]
However, the DevicePathID property that appears at the top of the details pane, and which has a number like 39/7, does not indicate a hardware component and does not signify the physical disks’s location in the system; it merely identifies the virtual disk to system-management software.
See
for the RDR disk numbering scheme.
Automatic Virtual Disk Expansion
An RDR virtual disk includes an automatic disk-capacity expansion feature. If you replace the physical disks (plexes) of an RDR virtual disk with larger physical disks,
RDR automatically recognizes the resulting larger virtual disk, which enables the system to use the added disk capacity.
Note, however, that a virtual disk cannot be larger than the smaller of its two physical disks. For example, if each physical disk of an RDR virtual disk is 80 gigabytes (GB), the virtual disk is an 80-GB virtual disk. If you replace one 80-GB physical disk with a
Disk Storage Management
4-3
Managing RDR Disks
160-GB physical disk, the virtual disk remains an 80-GB disk, the smaller of the two physical disks. But if you replace the other 80-GB physical disk with another 160-GB physical disk, the RDR virtual disk automatically updates to 160 GB. ftSMC reports the capacity of physical disks and virtual disks in the Capacity property in two different locations:
The physical disk Capacity property appears in the ftSMC details pane under
ftServer I/O Enclosure - 10, Storage Enclosure - 40, Slot - n, Disk - n.
The virtual disk Capacity property appears in the ftSMC details pane under
Logical Disk Information, RDR Virtual Disk - n.
Automatic virtual disk expansion does not work on dynamic virtual disks—that is, RDR virtual disks that have been converted to dynamic disks by Windows Disk
Management. (A dynamic disk consists of a single partition that is divided into volumes.
Dynamic disks can be combined with other disks to form volumes that expand beyond a single disk.)
Managing RDR Disks
Managing RDR-configured disks can include any of the following tasks:
Configuring the first plex of an RDR virtual disk
Setting the active RDR disk (plex)
Making a backup of a boot disk
Deleting RDR configuration on a physical disk
Creating a Spare Bootable RDR Disk
Converting disks from dynamic to basic
Removing a physical disk from and RDR virtual disk
Deporting a physical disk from an RDR virtual disk
Breaking a Physical Disk from an RDR Virtual Disk
Setting or clearing the mean-time between failure (MTBF) threshold
Resynchronizing a physical disk from the RDR virtual disk
Setting the MTBF faultcount limit
4-4 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Managing RDR Disks
Prioritizing resynchronization
To use RDR to mirror dynamic disks, see the Stratus ftServer System Software:
Installation and Configuration for Windows Systems (R002W).
You can also set disk parameters from the SCSI Port Duplex Driver - Sradisk_Driver node shortcut menu in the ftSMC.
Creating a First RDR Virtual Disk
To create an RDR virtual disk, you use the Create RDR Virtual Disk action from the context menu of a disk. Then you add a physical disk to the RDR virtual disk on another physical disk to make the two physical disks into a single RDR virtual disk.
If you create the first RDR disk (plex) on a disk that already has data on it (for instance, a system disk), make sure that both disks have
the same capacity , that the disks are
basic disks (not dynamic), and that the second disk (the one to be the mirror) has no partitions.
To configure the first plex of an RDR virtual disk
1. In ftSMC, expand ftServer (Local), ftServer I/O Enclosures, I/O Enclosure - 10
(or 11), Storage Enclosure - 40, Slot - n, and then right-click Disk - n.
2. Click Create RDR Virtual Disk.
3. At the message about a possible system reboot, click Yes. a. On a Windows Server 2008 system, you will see the following message.
The system automatically reboots.
Disk Storage Management
4-5
Managing RDR Disks
b. On a Windows Server 2003 system, click OK on the dialog box that indicates that the command was
If necessary, follow the prompts to reboot the system.
Mirroring Disks Using RDR
The procedure used to mirror disks with RDR is the same used to upgrade a disk to
RDR. To mirror an RDR disk, you give the Add Physical Disk To RDR Virtual Disk command on an unconfigured disk (the target) and overwrite it with an existing
RDR-configured disk (the source).
If you are upgrading disks to use RDR, be sure that the disks are basic disks. (Basic
disks are divided into partitions. Dynamic disks consist of a single partition that is divided into volumes. Dynamic disks can be combined with other disks to form volumes that expand beyond a single disk.) If the disks have been configured as dynamic disks,
convert the disks to basic disks before upgrading them to RDR (refer to Windows online
help).
Although you can only create RDR disks from basic disks, you can make RDR disks dynamic if your policies require it.
If you insert a blank (having no disk signature or volume ID), non-RDR-configured disk into a slot previously occupied by an RDR disk whose partner slot is currently occupied by an RDR disk, the system automatically adds the inserted disk to the RDR virtual disk.
Not all RDR commands and procedures are valid on all physical disks. Error messages appear if you attempt an invalid RDR command. Error messages also suggest possible corrective actions, where applicable.
Some RDR configuration changes, especially those made on simplex RDR virtual disks, may require the operating system to restart in order to complete. When the
Windows restart warning appears, you can restart the system immediately or defer restarting until a more convenient time.
RDR Disk Numbering
Internal storage disks and RDR virtual disks are labeled with numerical IDs that
appear in ftSMC. See Table 4-1
for the locations of the Disk and RDR Virtual Disk nodes.
N O T E
In
Table 4-1 , the n designates a variable number. The
numbers vary because the operating system assigns
4-6 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Managing RDR Disks
them dynamically as individual disks and RDR virtual disks are removed from and returned to the system.
Table 4-1. RDR Disk Numbering ftServer (Local)\ftServer I/O
Enclosures\I/O Enclosure - n\
Storage Enclosure - 40
Slot-1, Disk-n
Slot-2, Disk-n
Slot-3, Disk-n
ftServer (Local)\Logical
Disk Information
RDR Virtual Disk n
RDR Virtual Disk n
Location in Internal
Storage Enclosure
Bottom drive
Top drive
Adding a Physical Disk to an RDR Virtual Disk
To add a physical disk to an RDR virtual disk, perform these steps.
1. In ftSMC, expand I/O Enclosure, Storage Enclosure - 40 and Slot - n, and then select the disk (the target disk) that you want to add to the RDR virtual disk.
The target disk must be an unconfigured (nonRDR-configured) disk.
2. Right-click the target disk and select Add Physical Disk to RDR Virtual Disk.
The following disk wizard appears.
Disk Storage Management
4-7
Managing RDR Disks
3. Click Next.
The Select a source disk dialog box appears, identifying the target disk and the disk or disks available for being chosen as sources.
A source disk will already be selected by default in the Select a source disk dialog box, if storage-enclosure rules allow.
4. If a source disk is not already selected in the dialog box, choose a source from the available disks listed in the right-hand box within the dialog box, and c lick
Next.
The RDR virtual source disk will overwrite the unconfigured target disk, making it a mirror of the RDR virtual source disk.
In this example, only one source disk, the disk in 10/40/2/2, is available.
The following screen appears, identifying the source and target disks.
4-8 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Managing RDR Disks
5. Click Finish.
The system mirrors the source disk to the target disk. The mirroring process may take a half-hour or more, depending on the size of the disks.
While the disks are resynchronizing, LEDs blink to indicate read and write operations, and ftSMC displays a value of OpState: State Syncing in the details pane for the disk.
To view the progress of the synchronization in ftSMC, expand Logical Disk
Information under ftServer, and select the virtual disk. In the details pane, the
progress is noted as a percentage, as follows:
Status: Resync: 20 percent
When the disks are synchronized, the LEDs on both disks are lit steady green and ftSMC displays a value of OpState: State: Duplex in the details pane for the disk and for the virtual disk. The value next to Status for the virtual disk is None.
N O T E
If you receive an error message when using the Add
Physical Disk To RDR Virtual Disk command, the disk
you are trying to add may not have sufficient free space for
Disk Storage Management
4-9
Managing RDR Disks
the metadata. Be sure the disk has a minimum of 10MB free space.
A System Shutdown message may appear, stating that the system will reboot in two minutes. If the message appears, let the system restart.
N O T E S
1. If you added a system disk to an RDR virtual disk, a message notifies you that the system will reboot. The message gives you the option of confirming or cancelling the request.
2. The system restarts if you add a data disk to an RDR virtual disk and the software cannot unmount all data volumes on the disk.
3. You cannot add a physical disk to RDR if the disk is dynamic or a nonblank data disk.
Disk Failures During Resynchronization
In RDR resynchronization, partnered RDR virtual disks relate as source and target disks. The source is the disk from which the target disk is being resynchronized.
If a source disk fails or is removed from service during resynchronization, the target disk is removed from the system and treated as a deported disk. If the target disk fails or is removed from service during resynchronization, the source disk continues operating in simplex mode.
If the system starts to shut down while an RDR virtual disk is resynchronizing, RDR records the state of the resynchronization and, upon system reboot, resumes resynchronization from that point.
Write Caching
To optimize system performance, you can enable write caching on RDR virtual disks.
By default, write caching is disabled, except during disk resynchronization, when it is automatically enabled.
Write caching does not work on a simplex RDR virtual disk (except when it is resynchronizing), even if it is enabled. However, if you enable write caching on a simplex disk that is later duplexed, write caching will work.
To enable write caching
1.
.
2. Click Device Manager, and then expand Disk Drives in the right-hand panel.
4-10 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Managing RDR Disks
3. Right-click the target disk, select Properties, and click the Policies tab.
4. Check Enable write caching on the disk, and click OK.
Setting the Cache Flush Interval
The Set Cache Flush Interval command determines the interval at which the system deletes the unaccessed contents of the cache buffer on an RDR virtual disk.
To set the cache flush interval
1. In ftSMC, expand ftServer (Local) and click Logical Disk Information.
2. Right-click the desired RDR Virtual Disk and select Set Cache Flush Interval.
3. In the Cache Flush Interval field on the dialog box, enter the value (in minutes) of the interval and press Finish.
4. Click OK on the dialog box that indicates that the command was successfully
requested.
Read-load (LUN Load) Balancing
When you enable read-load (LUN load) balancing, read operations on duplex RDR virtual disks alternate between the two physical disks, which improves performance. By default, read-load balancing is enabled on all RDR physical disks.
You can enable or disable read-load balancing either
for each physical disk or globally
, for all RDR physical disks across the system.
To enable or disable read-load balancing for a single physical disk
1. In ftSMC, expand ftServer (Local) and Logical Disk Information.
2. Right-click the target RDR Virtual Disk.
3. Select Set Rdr Lun Load Balancing.
4. In the dialog box, set the Rdr Lun Load Balancing field to On or Off, and click
Finish.
To enable or disable read-load balancing globally
1. In ftSMC, expand ftServer Drivers, right-click SCSI Port Duplex
Driver - Sradisk_Driver, and select Properties.
2. On the dialog box, click the right-most Properties tab.
3. In the GlobalRdrPlexLoadBalancing field, select On or Off, and click OK.
N O T E
Global read-load balancing settings do not overwrite read-load balancing settings on individual RDR physical disks. So, for example, if the Lun Load Balancing field for
Disk Storage Management
4-11
Managing RDR Disks
a particular RDR physical disk is set to Off, you must set it to On before a global load-balancing command can take effect on that disk.
Mirroring Dynamic Disks with RDR
This procedure explains how to turn dynamic disks into basic disks before mirroring them with RDR. To use RDR to mirror dynamic disks themselves, see Chapter 3 in the
Stratus ftServer System Software: Installation and Configuration for Windows
Systems (R002W).
Mirroring a dynamic disk with RDR involves two steps:
Converting a Dynamic Disk to a Basic Disk
!
C A U T I O N
Converting a dynamic disk to a basic disk removes all data from the disk. Before you convert the disk to a basic disk back it up so that you can recover the data.
1.
.
2. Expand Storage and click Disk Management.
3. Right-click the icon of the target disk in the lower portion of the Disk Management details pane.
4. Select Convert to Basic Disk.
5. If necessary, recover the information from backup media.
To upgrade the basic disks to RDR, see “Mirroring Disks Using RDR” on page 4-6 .
Setting the Active RDR Disk (Plex)
The Set As Active RDR Plex command makes the physical disk on which this command is issued the "active" disk. The active disk is the disk:
From which data is read
From which a partner disk is resynchronized
That survives a failover (the failure of one of two, duplex components)
To which the data traffic goes when disk utilities, like chkdsk, are run
4-12 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Managing RDR Disks
You might use Set As Active RDR Plex, for example, when using the chkdsk command to check the performance of a particular physical disk in an RDR virtual disk.
To do this, issue the Set As Active RDR Plex command for the physical disk you want to check; this makes it the active disk. Then disable read-load balancing on the RDR virtual disk, and run chkdsk on the active disk.
In the following procedure, n indicates a component number that appears in ftSMC.
1. In ftSMC, expand I/O Enclosure - 10 (or 11), Storage Enclosure - 40, Slot - n, and then right-click on Disk - n.
2. Select Set As Active RDR Plex.
A message reports that the operation was successful.
Deleting the RDR Configuration on a Physical Disk
Deleting the RDR configuration removes a physical disk from the RDR virtual disk. You delete one physical disk at a time.
After you delete the RDR configuration on a physical disk:
The RDR metadata is deleted, but other data remains on the disk.
The disk is no longer an RDR disk and is not part of an RDR virtual disk.
You can reconfigure the disk as an RDR disk again, using the Add Physical Disk
To RDR Virtual Disk command.
N O T E
If you delete the RDR configuration from a simplex data disk, then all the New Technology File System (NTFS) partitions on that data disk lose their drive letters.
You can delete the RDR configuration only from basic data disks, but not from simplexed or duplexed boot disks, dynamic disks, or data disks with one or more paging files.
To delete the RDR configuration on a physical disk
1. In ftSMC, expand I/O Enclosure - 10 (or 11), Storage Enclosure, Slot - n, and then right-click on Disk - n.
2. Select Delete RDR Configuration on Physical Disk for disk 0 (or 1 or 2).
3. Optionally, repeat steps 1 and 2 on the disk with which the deleted disk was mirrored.
When the second of the mirrored disks is removed from the RDR virtual disk, the
RDR virtual disk is removed.
Disk Storage Management
4-13
Managing RDR Disks
4. Repeat steps 1–3 for each physical disk to be removed.
N O T E
Disregard any “Unsafe Removal of Device” messages that appear when you remove an internal physical disk from the enclosure.
Changing Automount Behavior
After you use Delete RDR Configuration on Physical Disk on a Windows Server
2008 system, the target disk will appear with a new drive letter in the Windows Disk
Manager in Computer Management. This is because Windows Server 2008 uses automounting by default. (On a Windows Server 2003 system, the drive letter is simply deleted.)
To disable automounting in Windows Server 2008, so that it matches the behavior of
Windows Server 2003, open a command prompt and issue the following command:
mountvol /n
The change takes effect immediately.
To return the system to automounting, issue the following command:
mountvol /e
Removing a Physical Disk from an RDR Virtual Disk
!
C A U T I O N
Removing a physical disk from an RDR virtual disk deletes all of the data from the target disk.
Executing the Remove a Physical Disk from RDR Virtual Disk command on a partnered (duplex) RDR virtual disk (comprising two physical disks):
Erases all of the data on the disk, including all Windows Disk Management dynamic disk metadata and all RDR metadata.
Returns the physical disk to a basic, non-RDR-configured, blank disk.
The system does not warn you when you issue this command because the target disk has a surviving partner physical disk that still contains all of the data. For that reason, the system does not need to restart.
If you execute the Remove a Physical Disk from RDR Virtual Disk command on an unpartnered (simplex) RDR virtual disk (comprising one physical disk), the system
4-14 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Managing RDR Disks
prompts you to remove all partition and volume data on the disk before the command can continue. The prompt alerts you that this operation may result in the loss of all data on this virtual disk since there is only one physical disk.
You cannot remove:
The only unmirrored boot disk
The only unmirrored disk containing a paging file
An unmirrored disk containing data
A resynchronizing disk
To remove a physical disk from an RDR virtual disk
1. In ftSMC, expand I/O Enclosure - 10 (or 11), Storage Enclosure, Slot - n, and then right-click on Disk - n.
2. Select Remove Physical Disk from RDR Virtual Disk.
Deporting a Physical Disk from an RDR Virtual Disk
Deporting a physical disk from an RDR virtual disk makes the deported disk a clone of its RDR virtual disk partner. You use the Deport Physical Disk from RDR Virtual Disk command to create backup disks and spare, bootable, RDR virtual disks.
Once a disk is deported, it is hidden from the system and is inaccessible from ftSMC.
It does not become accessible again until you remove it from and reinsert it into the system. You can physically remove and then reinsert the disk, or you can issue the
InitiateBringdown and InitiateBringup commands for the disk slot.
If you insert a disk deported from one system into another system, the disk appears in ftSMC as Active, Configured, Deported.
A deported disk inadvertently left in the system or reinserted into its original slot remains an intact backup. It is not automatically resynchronized or overwritten by the primary RDR virtual disk.
You cannot deport:
The last physical disk of an RDR virtual disk if it is bootable or contains a paging file
An unmirrored boot disk
A dynamic disk
A resynchronizing disk
The Deport a Physical Disk from an RDR Virtual Disk command should be grayed out if the physical disk is not in the valid state (for example, if it is a dynamic disk or a
Disk Storage Management
4-15
Managing RDR Disks
simplex boot disk) for this command to work properly. A valid deport operation should rarely fail.
If the Deport a Physical Disk from an RDR Virtual Disk operation requires that the system reboot, a system-restart dialog box appears, giving you the option to restart the system immediately or later. If the operation succeeds without requiring a reboot, a message box indicating success appears.
If Deport a Physical Disk from an RDR Virtual Disk fails, a dialog box indicating the reason for the failure appears. In this case, the RDR virtual disk is not deported and the system does not reboot.
After a successful Deport a Physical Disk from an RDR Virtual Disk command, no drive letters or mount points associated with volumes on the deported disk are preserved.
To deport a physical disk from an RDR virtual disk
1. In ftSMC, expand I/O Enclosure - 10 (or 11), Storage Enclosure- 40, Slot - n, and then right-click on Disk - n.
2. Select Deport Physical Disk from RDR Virtual Disk.
A message reports that you may have to reboot the system if you continue with this command. You must restart only if the deport command fails. If it succeeds, a message reports the successful operation.
3. Click OK.
A message appears, telling you to remove the deported disk.
4. Remove the deported disk.
The deported disk disappears from ftSMC.
Creating a Spare Bootable RDR Disk
1. Be sure that the system (boot) disk is mirrored.
2.
that is the mirror of the system disk, as described in
Physical Disk from an RDR Virtual Disk” on page 4-15
.
3. Physically remove the deported disk from the system.
Label and store this disk, which is now the spare bootable hard disk, in a safe place.
!
C A U T I O N
If the original boot disk is still in a system into which you insert a spare (deported) boot disk, the original boot disk
4-16 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Managing RDR Disks
loses its RDR configuration and is no longer an
RDR-enabled disk.
For more details, see the discussion of creating a spare bootable disk in the Stratus
ftServer System Software: Installation and Configuration for Windows
Systems (R002W).
Breaking a Physical Disk from an RDR Virtual Disk
The following procedure isolates an RDR virtual disk plex for backup, backs up the volumes, and then resynchronizes the broken plex with its original partner, adding it back to the RDR virtual disk.
You cannot perform this procedure on:
Dynamic disks
Simplex RDR virtual disks
RDR virtual disks while they are resynchronizing
RDR virtual disks if their verify interval is set to 0; that is, if RDR verify is disabled.
1.
Verify the RDR virtual disk that you are going to backup to ensure that both plexes
of the RDR virtual disk are healthy.
2. In ftSMC, expand I/O Enclosure, Storage Enclosure - 40, and then select Slot 1,
2, or 3 to access Disk 0, 1, or 2.
3. Right click on the target disk and select Break Physical Disk from RDR Virtual
Disk.
This command splits the plex from the RDR virtual disk, creates an exact copy of its volumes, and adds them to Disk Management.
4. Use backup software to make a copy of these volumes created in Disk
Management; then remove the volumes from Disk Management.
5. To add the removed plex back to the RDR virtual disk, in ftSMC, right-click the disk you broke in step 2, and select Add Physical Disk to RDR Virtual Disk. See
“Adding a Physical Disk to an RDR Virtual Disk” on page 4-7 for the procedure to
add a disk.
The plex is now synchronized with its active partner and is again a partner in an
RDR virtual disk.
Setting or Clearing the MTBF for Disks
Clearing the MTBF resets the MTBF to infinity, the number of faults to 0, and the time of last fault to never.
Disk Storage Management
4-17
Managing RDR Disks
Setting the MTBF Threshold sets the MTBF threshold and views the current count
(seconds), number of faults, and date and time of last fault. Stratus presets the MTBF threshold; you should not change it unless instructed to do so by your support representative.
See
“MTBF Statistics” on page 5-2 for more information about MTBF.
To set or clear the MTBF for disks
1. In ftSMC, right-click the target disk.
2. Select either Set MTBF Threshold or Clear MTBF.
If you select Set MTBF Threshold, specify the desired threshold value in the
Threshold field of the dialog box that appears, and then click Finish.
A message appears, indicating a successful operation.
If you select Clear MTBF, the MTBF is cleared and a message appears, indicating a successful operation.
Setting the Hard MTBF Threshold
The Set Hard MTBF Threshold command determines the number of seconds the system waits before restoring a failed disk to service. The default is 2 seconds.
Generally, retain this setting.
1. In ftSMC, expand ftServer (Local), ftServer I/O Enclosures, I/O Enclosure - 10
(or 11), Storage Enclosure - 40, Slot - n, and right-click the target disk.
2. Right-click on a disk and select Set Hard MTBF Threshold.
The default is two seconds. Although you can set a new threshold, you generally retain the default.
3. Enter the number of Threshold seconds and click Finish.
4. Then click OK on the dialog box that indicates that the command was
requested.
Setting the MTBF Faultcount Limit
The MTBF Faultcount Limit property defines the number of times certain errors can occur before the system sends threshold events that generate alarms.
!
C A U T I O N
Do not change the MTBF Faultcount Limit value, except when advised to by the CAC.
4-18 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Managing RDR Disks
To set the MTBF faultcount limit
1. In ftSMC, expand ftServer (Local), ftServer I/O Enclosures, I/O Enclosure - 10
(or 11), Storage Enclosure - 40, Slot - n, and right-click the target disk.
2. Select Set MTBF Faultcount Limit.
3. In the dialog box, enter the desired limit value and click Finish.
4. Click OK on the dialog box that indicates that the command was successfully
requested.
Setting the Soft MTBF Threshold
The Set Soft MTBF Threshold command determines the number of seconds the system waits before restoring a failed disk to service. The default is 2 seconds.
Generally, retain this setting.
A soft MTBF refers to disk failures that are not usually fatal to disk operations.
1. In ftSMC, expand ftServer (Local), ftServer I/O Enclosures, I/O Enclosure - 10
(or 11), Storage Enclosure - 40, Slot - n, and right-click the target disk.
2. Right-click on a disk and select Set Soft MTBF Threshold.
The default is two seconds. Although you can set a new threshold, you generally retain the default.
3. Enter the number of Threshold seconds and click Finish.
4. Click OK on the dialog box that indicates that the command was successfully
requested.
Clearing MTBF Settings
Clearing the MTBF sets the MTBF (the current average) to 0 (Unknown) and erases the record of all faults.
1. In ftSMC, expand ftServer (Local) until you locate the target component.
2. Right-click the target component and on the shortcut menu, click Clear MTBF.
N O T E
Clearing the MTBF does not bring a device back into service automatically.
If the state of device that you cleared is Broken, correct the state.
User actions that can cause the broken state to change include the Initiate BringUp and Initiate BringDown commands, and removing the board.
Disk Storage Management
4-19
Managing RDR Disks
Booting a System with a Backup RDR Boot Disk
1. Remove power from the system.
2. Remove all boot disks from the internal storage enclosure, if any are installed.
3. Insert the backup boot disk.
4. Press the system power button.
Reusing Data Disks
If you have stored a copy of a data disk that was created with RDR disk mirroring, use the following procedures to reuse the disk in the system.
Reusing a Stored-Data Disk
After you perform this procedure:
The data on the stored-data disk is overwritten with the data on the disk in its companion slot.
The stored-data disk remains an RDR disk.
To reuse a stored-data disk
1. Make sure the original partner of the stored disk is in the companion slot.
2. Insert the stored disk into its original slot. The system automatically resynchronizes the stored disk with the partner disk.
Wait for the disk to be fully resynchronized before removing the stored disk or before removing power from the system.
Removing the RDR Configuration from a Stored-Data Disk
This procedure removes the RDR configuration from a stored-data disk and deletes all of its data.
N O T E
To delete the RDR configuration from a stored-data disk
but retains its data, see “Deleting the RDR Configuration on a Physical Disk” on page 4-13 .
1. Make sure no disk occupies the slot that is the partner slot to the disk whose RDR configuration you are removing.
2. If your disk was a dynamic disk, use your disk-management tool to convert the disk to basic, deleting all data on the disk.
If your disk was a basic disk, use your disk-management tool to delete all volumes and partitions.
4-20 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Managing RDR Disks
3. In ftSMC, select and right-click the disk, and click Remove Physical Disk From
RDR Virtual Disk.
!
C A U T I O N
You must complete the final step. Otherwise, if the former
RDR virtual disk partner of the newly erased disk is inserted into the partner slot of the erased (but not deleted) disk, the newly inserted disk is mirrored to the empty disk, deleting the data on the newly inserted disk.
Resynchronizing RDR Disks
The system automatically resynchronizes disks that are reinserted into the system and
when I/O elements are returned to service. In addition, two explicit methods in ftSMC can initiate resynchronization of the physical disks of an RDR virtual disk:
Resynchronize This Physical Disk From RDR Virtual Disk . This command
resynchronizes the chosen physical disk with its with partner.
Resynchronize Physical Disks Of This RDR Virtual Disk . This command simply
makes the two physical disks of an RDR virtual disk identical. The software arbitrarily chooses which disk to make the master and which the copy, irrespective of which disk was last written to.
While the disks are resynchronizing, the disk LEDs blink to indicate read and write operations. You can also use ftSMC to monitor the status of the resynchronization process.
To monitor the status of the resynchronization process
1. In ftSMC, expand ftServer (Local), ftServer I/O Enclosures, and Logical Disk
Information.
2. Click one of the RDR Virtual Disk nodes.
3. Check the value of the Status property, which displays Resync nn% (where nn is the percentage completed) while the disk is resynchronizing.
When the resync process is finished, the Status value for the RDR virtual disk is None, and the LED on each physical disk in the RDR pair is lit steady green
When RDR disks are resynchronizing, the Logical to Physical Mapping details pane shows the disk that is resynchronizing as SYNCING, and shows the partner disk as
SIMPLEX
.
Disk Storage Management
4-21
Managing RDR Disks
N O T E
If you insert a blank disk into the companion slot of an
RDR virtual disk, the blank disk is automatically configured and synchronized to the existing RDR disk.
Using Resynchronize This Physical Disk From RDR Virtual Disk
To resynchronize a targeted RDR physical disk with its partner
1. In ftSMC, expand ftServer (Local) and click Logical Disk Information.
2. Right-click the target RDR virtual disk, that is, the disk that might not be synchronized with its mirror disk.
3. Select Resynchronize This Physical Disk From RDR Virtual Disk.
A message appears, indicating a successful start of the command.
See “Disk Failures During Resynchronization” on page 4-10 for instructions on what to
do if the source RDR virtual disk fails during resynchronization.
Using Resynchronize Physical Disks Of This RDR Virtual Disk
To resynchronize RDR physical disks to guarantee that they are identical
1. In ftSMC, expand ftServer (Local) and click Logical Disk Information.
2. Right-click the target RDR Virtual Disk and select Resynchronize Physical Disks
Of This RDR Virtual Disk.
3. Click OK on the dialog box that indicates that the command was successfully
requested.
As shown in the RDR Virtual Disk icon and in the OpState: State property, the RDR
Virtual Disk changes from Duplex to Simplex.
When resynchronization completes, the RDR Virtual Disk changes from Simplex to
Duplex, as shown in the RDR Virtual Disk icon and the OpState: State property.
Resynchronizing a Backup Boot RDR Disk
To automatically resynchronize a partner RDR physical disk by insertion
1. Verify that the original partner disk of the backup boot disk is inserted into its original slot in the storage enclosure.
2. Reinsert the backup boot disk into its original slot in the storage enclosure.
The backup boot disk automatically resynchronizes with the original partner. The command takes some time to run.
4-22 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Managing RDR Disks
Recovering and Replacing RDR Disks
In your disk-management tool, if the status of an RDR disk appears as Offline,
Missing, or Online (Errors), you can try to recover the disk manually. Verify that the
disk is securely seated in the enclosure and that it has power. Perform the following procedures to recover the disk.
To recover an RDR disk
1.
Delete the RDR configuration on the disk and then physically remove it from the
enclosure.
N O T E
Disregard any “Unsafe Removal of Device” messages that appear when you remove an internal physical disk from the enclosure.
2. Replace the defective disk and add the disk to an RDR virtual disk
.
In the unlikely event of a system failure resulting from disk failures, restore the system by performing one of the following procedures, as appropriate:
Restore the system by using a backup system disk. See the discussion of creating spare bootable hard disks in the Stratus ftServer System Software: Installation and
Configuration for Windows Systems (R002W) for information.
Reload the ftServer System Software, as described in the Stratus ftServer System
Software: Installation and Configuration for Windows Systems (R002W).
To replace a failed physical RDR disk
1. Remove the failed disk.
2. Insert a blank replacement disk.
Verifying RDR Disks
RDR disk verification verifies the integrity of RDR disk mirrors. Specifically, it:
1. Reads all sectors on both disks. If it detects a read error, it recovers the degraded sector from the good partner disk. This safeguards the integrity of both disks.
2. Compares the data from each sector on both disks. If it detects a discrepancy, it logs an error to the event log. In the unlikely event that this happens, contact the
CAC or your authorized Stratus service representative, or log an issue under their maintenance contract.
Disk Storage Management
4-23
Managing RDR Disks
To verify an RDR disk
1. In ftSMC, expand ftServer (Local) and click Logical Disk Information.
2. Right-click the appropriate RDR virtual disk.
3. Select Verify RDR Virtual Disk.
A message appears, stating that the operation completed successfully .
To stop verifying an RDR disk
Use the following procedure to stop RDR verification.
1. In ftSMC, expand ftServer (Local) and click Logical Disk Information.
2. Right-click the appropriate RDR virtual disk.
3. Select Stop Verify RDR Virtual Disk.
A message appears, stating that the operation completed successfully .
To set the interval for automatic RDR disk verification
1. In ftSMC, expand ftServer Drivers, right-click SCSI Port Duplex
Driver - Sradisk_Driver, and select Properties.
2. In the dialog box, click the third Properties tab from the left.
3. Set the LunVerifyInterval property to the desired value and click OK.
The default value is 10080 minutes (7 days), meaning 10080 minutes from the time of the last verification command. The nonzero minimum value cannot be less than
60 minutes. A value of 0 disables automatic RDR disk verification.
Making Sure You Do Not Boot from a Stale Disk
If the system becomes powered off because power to both enclosures is lost, but not at the same time, RDR disks become unsynchronized. In this case, if you do not use care in rebooting the system, it can boot from a stale disk. If you experience such a power loss to the system, boot from the enclosure that was running most recently
(remove the power cord from the other enclosure, whose disks contain stale information). If you cannot be sure which enclosure to boot from, contact the Stratus
Customer Assistance Center (CAC) or your authorized Stratus service representative for help.
You may need to recover updated data if your applications start to run on a stale disk.
When you are sure that the system and data disks on the boot enclosure are updated, restore power to the second enclosure.
4-24 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Using Volume Mirroring for Fault Tolerance
Configuring the Priority of RDR Virtual Disk Resynchronization
The resynchronization priority establishes the portion, expressed in megabytes per second (Mbps) in the details pane, of I/O bandwidth that is used for the RDR disk resynchronization operation.
To prioritize resynchronization for all RDR disks in the system
1. In ftSMC, expand ftServer Drivers, right-click SCSI Port Duplex
Driver - Sradisk_Driver, and select Properties.
2. In the dialog box, click the third Properties tab from the left.
3. Set GlobalResyncPriority to Low, Normal, or High and click OK.
To prioritize resynchronization for individual RDR disks
1. In ftSMC, expand the appropriate I/O Enclosure node and click Logical Disk
Information.
2. Right-click the target RDR virtual disk.
3. Select Set Resync Priority.
4. Select Low, Medium, or Normal and click OK.
Using Volume Mirroring for Fault Tolerance
You can use Windows Disk Management to mirror volumes on disks in internal storage subsystems.
When using Windows Disk Management to implement data fault tolerance, format volumes as NTFS volumes.
Configure disks as dynamic disks. Dynamic disks organize data within volumes on a disk and support fault-tolerant operation and disk migration between systems.
Mirror each volume (the boot volume on the system disk and all data volumes) on
Assign system disks and data disks to the same disk group.
!
C A U T I O N
Failure to set up your disk storage as required results in storage that is not fault tolerant.
A mirror is an identical copy of data that you can access if your primary data becomes unavailable. Stratus requires that you mirror the boot volume on the system disk. The resulting mirrored pair of disks work together to provide a fault-tolerant volume. If one disk fails, the volume automatically uses the data from the other disk.
Disk Storage Management
4-25
Using Volume Mirroring for Fault Tolerance
Mirror all data volumes. Mirroring volumes as documented provides fault tolerance, because volumes are mirrored on separate physical disks on separate FC buses.
When mirroring volumes, pair identical physical disks (same capacity, model, and manufacturer) so that in the event of a disk failure, an entire physical disk can be replaced without any data loss. See
“Mirroring Disks in ftScalable Storage Systems” on page 4-29 for details.
Mirrored Volume Resynchronization
When a volume is mirrored across two physical disks, and one of the disks fails or is brought offline for any reason, the remaining good disk continues to operate. However, the data on the mirrored volumes is no longer synchronized.
After a disk is replaced or brought back online, the mirror between it and the disk that remained in operation must be resynchronized. During resynchronization, the system copies the format and the contents of the good mirrored volume(s) to their mirror(s) on the disk most recently brought back online.
N O T E
Because mirror resynchronization can severely affect performance, you should resynchronize mirrors when the system is least busy.
Mirror resynchronization can occur automatically, or, in some cases, you must resynchronize the mirror manually:
If you insert a replacement disk without a disk signature into the same slot as the failed disk, the system automatically attempts to resynchronize the disk.
If you replace a failed disk with a blank basic or dynamic disk that contains a signature, you must resynchronize the disks manually.
The system automatically attempts to resynchronize the disks if:
– An I/O element is removed and inserted.
– An I/O element goes offline and returns online.
Volume Resynchronization After Rebooting
After rebooting the system, and depending on the circumstances under which the system was shut down, you may need to explicitly reactivate a failed mirrored partner to resynchronize a volume.
For example, if the system was shut down normally, but it was shut down while synchronization was in progress, you need to explicitly reactivate the mirror. On the
4-26 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Using Hardware RAID Controllers For Fault Tolerance
other hand, if the system shutdown was due to an unexpected event like a power failure, the disks begin the remirroring process automatically after booting.
Before mirroring system disks with a disk management tool, make sure either that both disks are plexes of an RDR virtual disk or that neither disk is. Do not partner RDR and non-RDR system disks in a mirror. Otherwise, the disks will fully resynchronize after every reboot.
The boot disks do not require resynchronization if the RDR disk is the primary boot volume from which the system is booted.
N O T E
You may remove disks from or insert disks into the internal storage as needed.
Using Hardware RAID Controllers For Fault Tolerance
Optional ftScalable Storage systems employ redundant hardware RAID controllers.
Fault-tolerant volumes reside on virtual disks configured in a supported RAID topology.
Use the embedded RAIDar graphical user interface to create and configure the virtual disks. You use Windows Disk Management to create the volumes. See the ftScalable
Storage: Getting Started Guide (R601) and the ftScalable Storage: Operation and
Maintenance Manual (R600) for information about how to create, configure, and monitor fault-tolerant disk resources on ftScalable Storage systems.
ftSMC Interface for Storage Enclosures and Subsystems
The
node represents the internal storage subsystem, and the
ftScalable™ Storage node represents
ftScalable Storage systems . It appears only on systems to which ftScalable Storage is attached.
EMC
attached storage systems are not directly represented in ftSMC. The Fibre
Channel Controller node represents the adapter associated with an attached EMC storage subsystem.
Storage Enclosure Node
The Storage Enclosure node contains the following two nodes:
Disk Storage Management
4-27
ftSMC Interface for Storage Enclosures and Subsystems
Slot Node
The Slot node represents the slots where disks reside. System disks must reside in
certain slots (see “Mirroring Disks in ftScalable Storage Systems” on page 4-29 for
details).
N O T E
In ftSMC, the storage Slot nodes display the Start Slot
Identification and Stop Slot Identification commands.
Although these commands appear in the context menu for slots in internal storage, the driver for those slots does not support them.
Disk Node
Each Disk node represents a hard disk that resides in a slot in a storage enclosure.
You use the DevicePathID property to locate a physical disk. See “Finding an Internal
for details.
ftScalable Storage
If your system contains an optional ftScalable Storage system, ftScalable™ Storage and ftScalable™ Storage Controller nodes appear beneath the Storage Enclosures node. Also Fibre Channel Controller nodes that appear beneath the PCI Slot Info nodes represent the PCI adapters associated with the ftScalable Storage system.
N O T E
System disks cannot reside in an ftScalable Storage system.
EMC Attached Storage
If an EMC CLARiiON
®
or EMC Symmetrix
®
storage system is installed in your system,
Fibre Channel Controller nodes that appear beneath the PCI Slot Info nodes
represent the PCI adapters that connect the ftServer system to the EMC storage system.
N O T E
System disks cannot reside in an EMC attached storage system. See
“Mirroring Disks in ftScalable Storage
Systems” on page 4-29 for details.
The values that the Op State: State and Op State: Reason properties can take vary depending on whether EMC PowerPath
®
software is running. See Table 4-2
for details.
4-28 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Mirroring Disks in ftScalable Storage Systems
Table 4-2. FC Host Bus Adapter State and Reason Property Values
With PowerPath software running
Without PowerPath software running
Op State: State
Simplex
Duplex
Broken
Broken
Online
Broken
Op State: Reason
None
None
Media Disconnect
None
None
Media Disconnect
When you reattach a cable between your EMC storage system and the PCI adapters in your system, the connection state may not be immediately reflected in ftSMC. To update ftSMC, issue the command powermnt restore in PowerPath, from Run on the Start menu, or from a command prompt. The information in ftSMC will update in about 15 seconds.
Mirroring Disks in ftScalable Storage Systems
ftScalable Storage systems include hardware RAID controllers. Use the embedded
RAIDar graphical user interface to create and configure fault-tolerant virtual disks and volumes. See the ftScalable Storage: Getting Started Guide (R601) for more information.
Finding an Internal Physical Disk
You can locate
by using either the Logical to Physical Mapping node or the Disk node (beneath Storage Enclosure - 40, Slot - n).
To use the Logical to Physical Mapping node
1. In ftSMC, expand ftServer (Local) and then Logical Disk Information.
2. Click Logical to Physical Mapping.
For RDR virtual disks, the detail pane presents information in the following format:
Harddisk0-LUN1-PLEX2 (Basic) 11/40/1 (DUPLEX)
Harddisk0-LUN1-PLEX1 (Basic) 10/40/1 (DUPLEX)
Disk Storage Management
4-29
Finding an Internal Physical Disk
The information for non-RDR disks is the same, except that it does not include LUN
(RDR virtual disk) or PLEX (physical disk) information, which pertains only to RDR disks.
In the details pane:
Harddisk0
refers to the Windows disk name.
LUN1
refers to RDR virtual disk 1. The system assigns the LUN numbers dynamically. (An ftServer system can support a maximum of three RDR virtual disks.)
PLEX1
and PLEX2 refer to the two physical disks that together make up RDR virtual disk 1 (LUN 1).
Basic
refers to type of disk. The other possible value is Dynamic.
10/40/1
indicates the following:
– 10 indicates I/O element 10.
N O T E
In rack-mounted systems, I/O element 10 is in the top enclosure and I/O element 11 is in the bottom enclosure.
Pedestal systems are rotated 90 degrees clockwise
(viewed from the front), so that I/O element 11 is on the left side of the system and I/O element 10 is on the right side.
– 40 indicates the internal storage enclosure within the I/O element.
– 1 indicates the top disk slot in rack-mounted systems.
For RDR disks, Duplex indicates that the two physical disks of the RDR virtual disks are partnered. If the two physical disks were not partnered, the displayed value would be Simplex.
For non-RDR disks, the values in this position indicate the disk’s operating status.
RDR virtual disks also appear in ftSMC under the Logical Disk Information node. In this location, the details pane presents the location of the physical disks in the RDR virtual disk in these properties:
Disk Enclosure Slot: DevicePath[2]
Disk Enclosure Slot: DevicePath[1]
However, the DevicePathID property that appears at the top of the details pane, and which has a number like 39/7, does not indicate a hardware component and does not signify the physical disks’s location in the system; it merely identifies the virtual disk to system-management software.
4-30 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Finding an External Physical Disk
To use the Disk node
1. In ftSMC, expand ftServer (Local), Storage Enclosure - 40, and Slot - n.
2. Click Disk - n.
The location of the disk appears in the DevicePathID property, which presents the location information similar to the following: 10/40/1/0. This DevicePathID indicates the following:
10 indicates the I/O element number
40 indicates internal Storage Enclosure - 40
1 indicates the disk slot number
0 indicates the disk number
Finding an External Physical Disk
To find an external disk in your ftScalable Storage system, see the description of the
set led command in the ftScalable Storage: Commands Reference Manual (R599).
See the ftScalable Storage: Getting Started Guide (R601) and related documentation for information about ftScalable Storage.
The disks of EMC storage systems do not appear in ftSMC.
Disk Storage Management
4-31
Finding an External Physical Disk
4-32 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Chapter 5
Troubleshooting
5-
The following topics can help you troubleshoot your ftServer system:
“Taking Components Offline and Bringing Them Online” on page 5-3
“Expansion ROM Console Message During System Boot” on page 5-3
“Determining That a Component Has Failed” on page 5-6
“Locating Components” on page 5-7
“When Windows Does Not Respond” on page 5-9
“Delayed System Restart” on page 5-9
“Unresponsive Mouse and Keyboard” on page 5-9
“Remote Event Notification and Service” on page 5-10
“Making Dump Files” on page 5-12
“Disaster Recovery” on page 5-14
“Windows Hotfixes Distributed by Stratus” on page 5-16
“Adaptec SAS Controller BIOS RAID Option” on page 5-17
“Tape Drivers and Backup on Windows Server 2008 Systems” on page 5-17
N O T E
See the sections on reviving a nonresponsive system and the various diagnostic codes in the Stratus ftServer Virtual
Technician Module User’s Guide (R642) for more information on troubleshooting a system.
Troubleshooting
5-1
MTBF Statistics
MTBF Statistics
The fault-tolerant services software automatically maintains mean-time-between-failure (MTBF) statistics for many system components.
Administrators can view this information in ftSMC and can reconfigure the MTBF parameters that affect how the fault-tolerant services respond to component problems.
The system stores the current MTBF values associated with each device in Windows registry keys. Whenever an MTBF value changes, the registry reflects the change.
Therefore, when the driver stops and restarts, or the system restarts, the system retains the current MTBF information.
For procedures explaining how to set these settings, see ftSMC Help.
Clearing the MTBF
Clearing the MTBF sets the MTBF to 0 (Unknown) and erases the record of all faults.
N O T E
Clearing the MTBF does not bring a device back into service automatically.
If the device that you cleared is in the Broken state, you must correct the state.
User actions that can cause a transition out of the Broken state include the Initiate
BringUp and Initiate BringDown actions and removing the board.
Changing the MTBF Threshold
The MTBF threshold is expressed in seconds. If a device’s MTBF falls beneath this threshold, the system takes the device out of service and changes the device state to
Broken.
!
C A U T I O N
Stratus presets the MTBF thresholds. Do not modify them unless instructed to do so by the CAC or your authorized
Stratus service representative.
5-2 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Taking Components Offline and Bringing Them Online
Taking Components Offline and Bringing Them Online
You can use ftSMC to take a component offline or bring a component online. Before you take a component offline, verify that it is safe to do so. Taking components offline safely is discussed in ftSMC Help.
Expansion ROM Console Message During System Boot
Depending upon the number and types of PCI adapters, some ftServer systems may display the following console message while booting:
Expansion ROM not initialized - PCI network adapter in slot xxxx
You can safely ignore this message. You can avoid receiving this message by disabling
Option ROM Scan Monitoring for one or more PCI adapter slots in the Monitoring
Configuration submenu in the BIOS. See
“Managing BIOS Settings” on page 2-11
as well as the Stratus ftServer Systems: Technical Reference Guide (R550) for information about how to change BIOS settings.
Hard Disks
If a disk’s status is not healthy, you may be able to
, or you may need to
Recovering a Disk
In your disk-management tool, try to recover the disk manually if:
A failed volume (non-RDR only) appears as Failed Redundancy
The RDR or non-RDR disks appear as Offline, Missing, or Online (Errors)
Verify that the system does not have a problem that is causing the mirror to break on an internal or external disk. Ensure that the disk is securely seated in the drive and that it has power. Perform the following procedures to recover the disk.
To recover an RDR disk
1. Logically and then physically
remove the physical disk from the RDR virtual disk.
N O T E
Disregard any “Unsafe Removal of Device” messages that appear when you remove an internal physical disk from the enclosure.
2. Replace the defective disk and make the disk an RDR disk, as described in
“Mirroring Disks Using RDR” on page 4-6
.
Troubleshooting
5-3
Hard Disks
In the unlikely event of a system failure resulting from disk failures, restore the system by performing one of the following procedures, as appropriate:
Restore the system by using a backup system disk. See the discussion of creating spare bootable hard disks in the Stratus ftServer System Software: Installation and
Configuration for Windows Systems (R002W) for information.
Reload ftServer System Software (ftSSS), as described in the Stratus ftServer
System Software: Installation and Configuration for Windows Systems (R002W).
To recover a disk in Windows Disk Management
1.
and click Disk Management.
2. Right-click the disk icon corresponding to the disk that has the Offline, Missing, or
Online (Errors) status, and in the option menu, click Reactivate Disk.
3. After the mirror regenerates (this may take several minutes), verify that the status of the disk has returned to Healthy.
!
C A U T I O N
If a disk continues to have the status of Online (Errors), replace it as soon as possible.
If the recovery procedures fail to reactivate the disk, or if the status does not return to
Healthy, you must physically
Replacing a Failed Disk in Windows Disk Management
You can replace a failed disk with an uninitialized disk (a disk that has no signature
written on it). This is the quickest and easiest option. If your only spare disk is initialized
(it has a signature written on it), you can
replace the failed disk with an initialized disk .
Replacing a Failed Disk with an Uninitialized Disk
Follow this procedure to replace a failed disk with an uninitialized disk. To physically locate a disk, see
“Finding an Internal Physical Disk” on page 4-29 .
To replace a failed disk with an uninitialized disk
1. Physically remove the failed disk and replace it with an uninitialized disk.
2. Disk-management software automatically resynchronizes the replacement disk with the remaining good disk, creating volumes on the replacement disk and mirroring the disks.
5-4 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Hard Disks
Replacing a Failed Disk with an Initialized Disk
Perform the following procedure to replace a failed disk with an initialized disk using
Windows Disk Management.
To use Windows Disk Management to replace a failed disk with an initialized disk
1. Physically remove the failed disk and replace it with an initialized disk. For details, see the operation and maintenance guide for your system.
2. Examine the type of the initialized replacement disk:
If the replacement disk’s type is Foreign Dynamic, go to step
If the replacement disk’s type is Basic, go to step
.
3. In Disk Management, right-click the foreign dynamic replacement disk, and then click Convert to Basic. The replacement disk should now appear as a basic disk.
4. If the basic replacement disk has any volumes, delete them. Right-click the volume on the replacement disk, and then click Delete Partition. Repeat for each volume on the replacement disk. Verify that the basic replacement disk now appears as a single unallocated space.
5. Right-click the replacement disk and click Convert to Dynamic.
6. Remove the mirrors from the missing disk that was physically removed in step
.
Right-click a volume on the missing disk and then click Remove Mirror. In the
Remove Mirror dialog box, select the missing disk and click the Remove Mirror
button.
!
C A U T I O N
Be sure to select the missing disk, not the remaining good disk. You will lose data if you select the remaining good disk.
Repeat this step for each volume on the missing disk.
7. Right-click the missing disk, and then click Remove Disk.
8. On the remaining good disk, right-click a volume and click Add Mirror. In the Add
Mirror dialog box, select the replacement disk and click the Add Mirror button.
Repeat this step for all other volumes on the remaining good disk.
Hardware Installation Wizard
Occasionally, after a system reboot or after hot-plugging an I/O element or a disk, a hardware-installation wizard may appear, indicating that a “Stratus disk device” has been found. Continue through the wizard steps, but click Cancel at the end rather than rebooting.
Troubleshooting
5-5
Determining That a Component Has Failed
Determining That a Component Has Failed
Component
and
provide indicators that a component has failed. See the operation and maintenance guide for your system for general troubleshooting information related to system hardware. ftSMC indicates a failed component by showing a white X inside a red box ( ) next to the icon of a failed component.
Using LEDs to Troubleshoot Hardware
LEDs indicate the status of their associated components. The enclosure status LEDs are green and amber, and are located on the front and rear of each enclosure.
The enclosure LEDs represent the combined states of the CPU element, I/O element,
BMC, the internal disks, and the PCI adapters.
The LED states are described in detail in the hardware troubleshooting chapter of the operation and maintenance guide for your system. See the ftScalable Storage: Getting
Started Guide (R601) for information about the ftScalable Storage system LEDs.
Using ftSMC to Troubleshoot Hardware
You can view component icons in ftSMC to see if a component has failed.
To use ftSMC to determine that a component has failed
1. In ftSMC, expand the System Inventory by clicking the ftServer node in the console tree and pressing the asterisk (*) key on the numeric keypad.
2. Look for Warning ( ) or Error ( ) icons. If you see a Warning icon, click the plus sign (+) in front of nodes that have a Warning icon until you see an Error icon.
For example, in Figure 5-1 , a Warning icon appears in one node, and the Error
icon appears beside the port that has a problem.
Figure 5-1. Warning and Error Icons
3. Click the problem node and check the MTBF: Current value in the details pane.
If it is less than the MTBF: Threshold value, that node has failed and the system removes it from service. For example:
MTBF: Time of Last Fault
MTBF: Threshold
MTBF: Number of Faults
MTBF: Current
May 30, 2008 15:07:24
300 seconds
2
220 seconds
5-6 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Locating Components
Locating Components
ftSMC displays device IDs and device paths for system components that it monitors.
Component location diagrams show the device IDs of major elements, enclosures, and
internal disks. Two commands assist you in locating select system components:
Start Slot Identification. Causes the LEDs on the component to flash so that you
can physically locate it.
Stop Slot Identification. Stops the LEDs on the component from flashing after you
have physically located it.
CPU-I/O enclosures, PCI adapters, and modems support these slot identification commands.
Device IDs and Device Paths
Hardware components in the system inventory are organized hierarchically. Level 1 components (for example, CPU elements and I/O elements, represented by the
CPU Enclosure nodes and I/O Enclosure nodes, respectively) have Level 2 child components, such as DIMMs and processors, which may have Level 3 and Level 4 components.
Hardware devices in the system inventory have device ID numbers. For example, the
device ID of the ftScalable Storage subsystem in Figure 5-2
is 75. The figure illustrates the following hierarchically presented components and their device IDs:
Level 1: Storage Enclosures (the external storage subsystem)
Level 2: ftScalable Storage - 75
Level 3: ftScalable Storage Controller - 1
Figure 5-2. Component Levels
A device path is a slash-separated sequence of device IDs that identifies the location of a component in the system. Device paths appear in the details pane of ftSMC. They use the following syntax:
Level-1 device ID/Level-2 device ID/Level-3 device ID/Level-4 device ID
presents the system device IDs.
Troubleshooting
5-7
Locating Components
Table 5-1. System Device IDs
Device Name(s)
Call-Home Modem
Device ID(s)
0
CPU Enclosure (element)
DIMM
Processor
I/O Enclosure (element)
Serial Attached SCSI Controller
Ethernet Controller
...Network Port
Video Controller
USB Controller
PCI Slot Info
PCI to PCI Bridge
Storage Enclosure (internal)
...Slot
......Disk
BMC ftScalable Storage (optional) ftScalable Storage Controller
RDR Virtual Disk
0,1
1–12
21 and 22
10, 11
5
6
0,1
7
8, 9
1–4
10
40
1–8
n
(variable)
†
120
75
1
n
(variable)
‡
† The Windows operating system assigns these numbers.
‡ Assigned incrementally based on next available number.
Device IDs and device paths apply only to hardware components. Logical devices and software components do not have device IDs even if they appear in the ftSMC interface.
Diagrams of Component Locations
to locate I/O and CPU elements and internal-storage disk slots for your
ftServer system. If a component is shown as failed or failing in ftSMC, note its device
ID and then use the following information to locate that component within the system.
All top-level components have a physical label that includes their device ID.
System Elements and Internal Storage Disk Locations
shows the front view of an ftServer 2600, 4500, or 6300 system. It shows the locations of the CPU and I/O elements and disk slots. The internal storage is housed in an enclosure located to the right of the CPU- I
O enclosure.
5-8 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Figure 5-3. CPU-I/O Enclosure and Disk Slot Labeling
When Windows Does Not Respond
When Windows Does Not Respond
If Windows does not respond (that is, if the system appears hung), use the VTM console or the power button to restart the system. Related information can be found in the Stratus ftServer Virtual Technician Module User’s Guide (R642).
Delayed System Restart
When you restart a system that contains certain models of adapters, the system appears to hang for approximately 10 seconds while the drivers for the adapter are installed. Allow several seconds for restart to proceed.
Unresponsive Mouse and Keyboard
The mouse and keyboard may appear unresponsive at some point after the system has restarted. This is normal behavior while the operating system finds the virtual mouse and keyboard as new hardware. Responsiveness returns after a short period of time.
Troubleshooting
5-9
Remote Event Notification and Service
Remote Event Notification and Service
The ASN provides the following features:
to your supporting Stratus CAC or your authorized Stratus service representative
Remote service to your system by service support personnel
You use the ASM Web site to configure all remote event reporting and remote service features of the ASN. See the Stratus ActiveService Network Configuration
Guide (R072) for details.
Remote Reporting of Events
When the system’s fault-tolerant software detects a hardware or software problem, the
system generates alarm messages (also referred to as alerts) that can be:
Sent to the CAC or other authorized Stratus service representative
Sent to a customer contact by way of email
Written to the Windows system event log
Alarm Messages
Alarm messages placed in the system event log contain information about device state changes such as changing modes from duplex to simplex, failure of diagnostics on a device, exceeded thresholds, memory dumping, and failed device startups. Alarm messages appear with Stratus Alarms as the event source.
You can configure your system to send alarm messages by the following options:
Internet with phone line as backup
Phone line with Internet as backup
Phone line only
Internet only
Determining the Value of the Send Alarms By Property
1. In ftSMC, expand ftServer (Local) and ftServer Configuration.
2. Click ActiveService Network.
3. In the details pane, check the value of the Send Alarms By property.
See the Stratus ftServer Systems: Technical Reference Guide (R550) for descriptions of the alarm messages.
5-10 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Remote Event Notification and Service
Event Notification on Boot Failure
The VTM will send an alarm when a fault-resilient boot fails to bring up the Windows operating system.
N O T E
Starting with ftServer 2600, 4500, and 6300 systems,
VTM functionality is integrated into the baseboard management controller (BMC). In previous ftServer system models, the VTM and BMC were separate hardware components.
System Inventory Reports
An alarm message can include a full system inventory, a partial system inventory, or no inventory at all, depending on the message type. A system inventory consists of an enumeration of all of the properties of the manageable hardware devices tracked by the Inventory service.
Event-Log Entries
System software may generate an alarm in response to a sequence of several events.
To indicate what these events are, an alarm message may include event-log entries.
These event-log entries contain items that represent an event from both the system event logs (SELs) and application event logs (AELs). The number of event-log entries included with an alarm message is determined by specifying how many seconds of the event log to include. System software may configure this time differently for each type of alarm, or it may exclude some event-log entries.
The BMC on each CPU-I/O logs SELs for its CPU-I/O enclosure. The Windows System
Manager (WSM) reads the SELs from each BMC and saves them to the AELs. In the
AELs, the system events are simply interleaved with one another, not merged, so events reported on both enclosures appear in duplicate.
Remote Service
If you have a service contract with the CAC or your authorized Stratus service representative, your service representative can connect to your system through either the Internet or a phone line.
When the connection is through a phone line, the VTM validates that the phone call is from a permitted source, disconnects the incoming call, and calls back to make a connection to the validated CAC.
You can configure the system to allow the CAC or your authorized Stratus service representative to connect to your system through the Internet, using secure tunneling over IP, to diagnose problems and perform data-transfer functions. These accesses are subject to validation by the CAC database, by the VTM on your system, and by you
Troubleshooting
5-11
Making Dump Files
as the system administrator. Connecting through the Internet provides higher-speed, more reliable connections than connecting through a phone line.
The CAC or your authorized Stratus service representative may contact you to determine the seriousness of the condition. If a CRU has failed, the CAC or your authorized Stratus service representative will ship a new part to your site.
System software continuously copies a limited number of Windows system event-log messages to a log on the BMC so that support personnel can retrieve the log if your system fails.
Making Dump Files
Dump files are snapshots of either a system’s memory or a particular component’s firmware memory. Dump files enable the CAC or your authorized Stratus service representative to diagnose system or component problems. You can create dump files in the following ways:
Configure your system
In ftSMC, right-click a CPU Enclosure, and select the Dump and Go command
In ftSMC, right-click a certain component, and select either the Dump and Go
command or the
. (These commands are not available for all components.)
Use
The Dump command dumps a snapshot of the corresponding component. During a dump, the component is not available. When the dump is complete, the component returns to service.
You can also use Windows commands to configure the creation of memory dumps.
See Windows documentation.
Using the NMI (Dump) Button
!
C A U T I O N
Making a dump file of an entire system automatically takes the operating system offline and then restarts it.
Press the non-maskable interrupt (NMI) button on the primary (active) CPU-I/O enclosure. The primary enclosure is the one whose PRIMARY LED is lit. In order to see the PRIMARY LED, you must remove the system bezel. However, you can see the enclosure status in ftSMC. The NMI button is also referred to as the dump button. It is
5-12 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Making Dump Files
located on the front of the CPU-I/O enclosure, though it is obscured by a bezel. (See your operation and maintenance guide for details.)
Configuring System Memory Dumps
Memory dumps are enabled through the Board Instance driver’s DumpQuickEnabled and DumpNumberOfFilesToSave properties.
To enable system memory dumps
1. In ftSMC, expand ftServer (Local), ftServer Drivers, and then
Board Instance Driver - srabid.
2. Right click Board Instance Driver - srabid, select Properties, and set
DumpQuickEnabled to True.
3. Set DumpNumberOfFilesToSave to the number of dump files you want to save to disk.
Dump files beyond this number overwrite the existing saved dump files. For instance, if the value is 3, then the fourth saved dump file overwrites the first, existing dump file.
If, at the time of a system crash, the DumpQuickEnabled property of the Board
Instance Driver node is True and the CPU element is duplex, the system creates a
memory dump and stores the dump in the memory of one CPU element. The system restarts with the remaining CPU element. After the system restarts, the dump is automatically copied to a disk file.
After a system reboot where a dump has been generated, do not attempt to read or copy the Memory.dmp file created. After the system has completed writing the
Memory.dmp file, it renames the file Memoryn.dmp, where n is a numeral. You can read or copy the Memoryn.dmp file. It may take up to five minutes after the reboot to complete writing the Memory.dmp file before it is renamed and can be read.
!
C A U T I O N
If you attempt to read or copy the Memory.dmp file while the system is writing it, you may corrupt the file.
The normal Windows dump mechanism is used if the DumpQuickEnabled parameter is False (disabled) or if the CPU element is in simplex mode.
Dump and Go
The Dump and Go command captures a snapshot dump of a running system or a particular component without significantly interfering with the system’s or component’s operation. The system must be running duplex if you use this method.
Troubleshooting
5-13
Disaster Recovery
To capture a snapshot dump, right-click the CPU Enclosure node of interest in the ftSMC console tree and select Dump and Go from the Action menu. The system:
Takes the selected CPU element offline with its memory intact
Dumps a snapshot of the memory to C:\ftSysDump\MEMORYn.DMP
Displays the status of the operation
Returns the CPU element back to online status
Making a Dump File Using the VTM Console
Perform the following procedure to make a dump file.
1. Start a VTM session on the primary BMC: a. In ftSMC, expand ftServer (Local), ftServer I/O Enclosures,
I/O Enclosure - 10, BMC - n.
b. Copy the IP address of the primary BMC from the ftSMC details pane.
c. Enter the primary BMC IP address in the Address field of an Internet Explorer browser.
N O T E
You do not need to be on the primary BMC to perform this procedure.
2. When the VTM login window appears, log in. For information on logging in to the
VTM console, see Stratus ftServer Virtual Technician Module User’s Guide (R642).
3. Click the Remote Control tab. On the page that opens, click Dump.
!
C A U T I O N
Making a dump file of an entire system automatically takes the operating system offline and then restarts it.
Disaster Recovery
To help you to log on and access system resources after a computer disaster has
occurred, you can restart the system in safe mode
.
Safe Mode
You use the Safe Mode startup options to start the system with only the minimal necessary services. Safe Mode options include Last Known Good Configuration, Safe
Mode, Safe Mode with Networking, and Safe Mode with Command Prompt. For more information, see Safe Mode startup options in Windows Help.
5-14 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
!
C A U T I O N
You must disable the Watchdog Timer by disabling boot monitoring in the BIOS before attempting to boot in Safe
Mode. See the Stratus ftServer System Software:
Installation and Configuration for Windows
Systems (R002W) for a description of how to disable boot monitoring.
Disaster Recovery
Booting From a Spare System Disk
To boot from a spare system hard disk, you need a spare hard disk that was prepared during your initial system configuration process. Refer to the Stratus ftServer System
Software: Installation and Configuration for Windows Systems (R002W) for information about how to prepare this hard disk. Typically, you boot from a backup hard disk only to recover from an unlikely disaster situation where all redundant system disks suffered simultaneous failure.
To boot a system from an RDR boot disk, see
“Booting a System with a Backup RDR
The following procedure explains how to boot a system from a non-RDR system disk.
To boot from a previously prepared non-RDR spare system disk
1. Shut down the operating system.
2. Physically remove one of the original system disks.
3. Insert the spare system disk into the empty slot created in step
.
4. Unlatch the other original system disk.
5. Power up the system.
6. After the system has booted, insert (latch) the original disk that you unlatched in
7. Use your disk-management tool’s Delete Volume command to delete the volume on the original disk you inserted in step
. When this step is complete, the disk is set to Unallocated space.
8. Create a mirror of the spare system disk’s C: volume on the original disk you
Using Windows Disk Management, right-click the spare system disk’s C: volume.
In the shortcut menu, click Add Mirror. A wizard prompts you through the rest of the mirroring process.
Troubleshooting
5-15
Windows Hotfixes Distributed by Stratus
N O T E
When you mirror a system disk, click OK when a pop-up window with the following message is displayed:
Windows Disk Manager could not update the boot file for any boot partitions on the target disk. Verify your arcpath
listings in file boot.ini or through the bootcfg.exe utility. Do not modify the boot.ini file. This message does not apply to your ftServer system.
9. When the disk is 100% resynchronized, verify that the original system disk and the upgraded system disk are healthy, resynching, dynamic, mirrored volumes. Note that the drives are not duplexed until the resynchronization activity is complete.
10. After all resynchronization activity has finished, verify that all dynamic disks are healthy, dynamic, mirrored volumes.
11. Start all applications to verify that your system and applications are working properly.
Windows Hotfixes Distributed by Stratus
To create a file that lists the Windows hotfixes distributed with your ftSSS release and that are installed on your system by an IPL or upgrade to the release, use the following procedure.
To obtain a list of Windows hotfixes
1. Insert your ftSSS for the Windows operating system DVD into the DVD drive.
2. If the ftSSS installation wizard runs automatically and asks if you want to install ftSSS, click Cancel.
3. In a command-prompt window, change to a directory in which to save the file.
4. Enter a command in the following format:
dir dvddrive:\Bin\Hotfix\*LG* > outputfile
In the command format:
dvddrive is the drive letter for your DVD drive
On Windows Server 2003 systems, LG is the language code for your Windows version.
Windows Server 2008 systems do not have language versions of hotfixes; there is only one type of hotfix, regardless of the language. In the sample
Windows Server 2008 system command line (below), the *kb* is the prefix that marks hotfix identifiers.
5-16 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Adaptec SAS Controller BIOS RAID Option
outputfile is the name of the file to hold the results. You can specify any name for the file.
A sample Windows Server 2003 system command line follows:
dir D:\Bin\Hotfix\*EN* > hotfixlist.txt
A sample Windows Server 2008 system command line follows:
dir D:\bin\hotfix\*kb* > hotfixlist.txt
5. Eject the DVD drive.
Adaptec SAS Controller BIOS RAID Option
On an ftServer 2600, 4500, and 6300, enabling the RAID option in the Adaptec SAS controller's BIOS can make your system unbootable. If you have already encountered this problem, contact the Stratus Customer Assistance Center (CAC) or your authorized Stratus service representative for assistance.
Tape Drives and Backup on Windows Server 2008 Systems
The Windows Server 2008 built-in backup program, Windows Server Backup, does not support directly attached tape drives. To back up an ftServer Windows Server 2008 system to tape, use Symantec Backup Exec 12.5 for Windows Servers.
If you install Symantec Backup Exec 12.5 for Windows Servers, during the installation, select the Do not use Symantec device drivers option. Use Microsoft drivers for the tape devices instead.
Troubleshooting
5-17
Tape Drives and Backup on Windows Server 2008 Systems
5-18 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Appendix A
Advanced Topics
A-
This appendix presents the following advanced topics:
“Using Windows Headless Mode and Console Redirection” on page A-1
“Enabling Multiple Login Sessions (Windows Server 2008)” on page A-2
These procedures require that you change settings in the BIOS. For further information about BIOS settings, see the Stratus ftServer Systems: Technical Reference
Guide (R550).
Using Windows Headless Mode and Console Redirection
In headless mode, Windows Server 2003 and 2008 systems can run without a keyboard, mouse, and monitor. You can remotely manage and restart the system through a serial connection.
N O T E
The Remote Desktop Restrict each user to a single
session setting is set to Yes by default. To enable
multiple simultaneous logins for a single username/account, you must disable this setting, as described in
“Enabling Multiple Login Sessions (Windows
Windows Server 2008 enables Windows Firewall but not Remote Desktop or the
Firewall exception for Remote Desktop by default. You should enable Remote Desktop and the Firewall exception for Remote Desktop on your system before configuring the
BIOS, as explained below.
If your system is operating in headless mode, and if the port for both console redirection and Windows headless is set to use the same serial port, configure the BIOS to stop console redirection when the power-on self-test (POST) has finished processing.
Advanced Topics
A-1
Enabling Multiple Login Sessions (Windows Server 2008)
To configure the BIOS to stop console redirection after POST
1. When the system is booting and Initializing..\ appears on the screen, begin pressing F2 to enter the ftServer Setup utility. Wait for the BIOS setup program to run.
2. Use the RIGHT ARROW key to select the Server tab.
3. On the Server menu, use the DOWN ARROW key to select Console Redirection.
Press ENTER.
4. On the Console Redirection menu, use the DOWN ARROW key to select
Continue C.R. after POST. Use the PLUS SIGN key (+) to change the value to
OFF.
5. Press F10.
6. In the Setup Confirmation dialog box, select Yes and press ENTER to save the new settings and exit from the BIOS Setup program.
Enabling Multiple Login Sessions (Windows Server 2008)
By default, Windows Server 2008 systems are set to allow only one login session for each user account.
To enable multiple login sessions
1. Click Start, Administrative Tools, Terminal Services, and Terminal Services
Configuration. The Terminal Services Configuration snap-in is displayed.
2. Under Edit Settings, double-click Restrict each user to a single session.
3. Clear the check box next to Restrict each user to a single session.
4. Click OK to save and apply the change.
Modifying this setting changes the number of login sessions available to all users of the system (not only the current user account) up to the maximum available for your
Windows license.
A-2 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Appendix B
Configuring And Managing Ethernet PCI
Adapters
B-
You configure and manage Ethernet PCI adapters by using the Intel PROSet
®
utility
(which the Intel Web site may refer to as Advanced Networking Software). You access
PROSet from within Windows Device Manager. Using PROSet, you perform the following tasks:
Configure Ethernet PCI adapters into teams (see
“Fault-Tolerant Ethernet Teams and IP Multicasting” on page B-3 and
“Configuring Ethernet Teams” on page B-5 ).
Locate a PCI adapter (see “Locating Ethernet PCI Adapters” on page B-6
system with many Ethernet PCI adapters.
) in a
Configure the line speed and/or duplex mode of an Ethernet PCI adapter with values appropriate to the adapter and the media to which it connects (see
“Configuring Link Speed and Duplex Mode” on page B-7
).
Assign virtual LANs to a team (see
). For information
about how to configure the VLANs, see “Configuring Virtual LANs Over a Team” on page B-14
.
Manage a team by removing or adding adapters, or removing the team (see
“Managing Ethernet Teams” on page B-21
).
Modify the advanced settings of an individual Ethernet PCI adapter, a team, or a
VLAN.
Troubleshoot Ethernet PCI adapters (see
“Using Diagnostics” on page B-29
Rename an incorrectly named Ethernet team (see page B-31
).
N O T E S
1. In systems with more than one enclosure, you can physically remove an enclosure without disrupting the network only if the active Ethernet PCI adapters in
the enclosure are teamed with adapters in another
enclosure. Note that with Adaptive Load Balancing
and Link Aggregation teams, your system will
Configuring And Managing Ethernet PCI Adapters
B-1
Using Device Manager to Manage Ethernet Adapters
experience a drop in throughput while the enclosure is absent.
2. For fault tolerance, configure your Ethernet PCI adapters into teams. Although ftServer systems support unteamed Ethernet PCI adapters, an unteamed Ethernet PCI adapter is a single point of failure that can cause the loss of a network connection.
3. After you finish each configuration procedure, click
OK in the dialog box to preserve your changes. If you
do not click OK before exiting the dialog box, the configuration procedure is incomplete, and you will have to repeat it.
Using Device Manager to Manage Ethernet Adapters
You use Windows Device Manager to configure and manage Ethernet adapters and adapter teams on ftServer systems. Windows Device Manager interacts with the
PROSet utility.
N O T E
To install or use ProSet functionality within Device
Manager, you must be logged on with Administrator permissions.
To use Device Manager to manage Ethernet adapters
1.
and then Device Manager.
2. In Device Manager, expand Network adapters to select an individual adapter or adapter team to configure or manage.
Fixing Duplicate Network Adapter Names
On Windows Server 2008 systems, duplicate Network Adapter names may appear in
Device Manager after an initial program load (IPL) or when adding PCI Ethernet
Adapter cards. The duplicated names will cause incorrect reporting of network information, in which case, teamed adapters will not be duplexed.
To fix duplicate network adapter names
1.
that contain adapters with duplicate names, and uninstall the adapters with the duplicate names.
B-2 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Fault-Tolerant Ethernet Teams and IP Multicasting
2. Use the Scan for hardware changes command to reconfigure the network adapters with unique names. To use Scan for hardware changes: a.
and then Device Manager. b. In Device Manager, expand Network adapters. c. Right-click the target adapter and select Scan for hardware changes.
3.
Create any required teams again
.
Use Windows Remote Desktop if you need to start Device Manager remotely. You can then create or modify a team if it is not carrying your connection to the system.
N O T E
Do not modify the team that provides your connection to the system. Doing so will result in a loss of network connection.
Online help appears automatically as you use Device Manager to configure and manage Ethernet adapters.
Fault-Tolerant Ethernet Teams and IP Multicasting
If IP multicasting is in use on your network, consider the following restriction when choosing the type of fault-tolerant team to configure.
For an overview of the supported types of teams, see the online “ANS Teaming
Overview” that is within Device Manager.
To see the ANS teaming overview on a Windows Server 2008 system
1.
In the Network adapters node in Device Manager , right-click a target adapter and
select Properties.
2. Click the Teaming tab.
3. In the bottom panel of the dialog box, click the click here link.
To access the ANS teaming overview on a Windows Server 2003 system
1.
In the Network adapters node in Device Manager , right-click the target adapter and
select Properties.
2. Click the Teaming tab on the Properties dialog box.
3. Under Teaming options, choose the Team this with other adapters button.
4. In the bottom panel of the same dialog box, click the ANS Teaming Overview link.
5. Click the ANS Team Types link for a description of the supported team types.
Configuring And Managing Ethernet PCI Adapters
B-3
Virtual LANs
Each network host in an IP multicast group uses the Internet Group Management
Protocol (IGMP) to acknowledge and maintain its IP multicast group membership with a switch.
In an Adapter Fault Tolerance (AFT), Switch Fault Tolerance (SFT), or Adaptive Load
Balancing (ALB) team, only one Ethernet PCI adapter (the primary adapter) is registered to receive IP multicast packets. When failover to another adapter occurs, the host cannot automatically update its multicast group membership using the new primary adapter; therefore, the host stops receiving multicast packets. If the switch is configured to periodically query the host for its registration, or if static IGMP is configured on the switch for each adapter in the team, multicasting to the host will eventually resume, but possibly after an extended interruption.
If you use IP multicasting, and you want to configure an AFT, SFT, or ALB team, you should test the team on site to verify if the behavior of IP multicasting after failover is acceptable. Alternatively, you can configure either static or dynamic link aggregation teams. IP multicasting functions more reliably with qualified switches that support these modes, because all Ethernet PCI adapters in a link aggregation team are registered to receive the IP multicast packets. The team continues to receive IP multicast packets unless all links to the switch are lost and then restored (in which case, there is also an extended interruption).
For more information about IP multicasting, see the documentation for your switch, or contact your network administrator.
Virtual LANs
You can add a Virtual LAN (VLAN) to any type of Ethernet team.
N O T E
Stratus supports VLANs only over Ethernet teams, not over individual adapters. An unteamed adapter is a single point of failure that can cause the loss of a network connection.
A VLAN allows you to isolate network traffic for a specific group of network hosts. Using
VLANs, you can organize networked systems into logical workgroups, such as
Marketing or Engineering, that span a building, complex, or an entire enterprise network. Members of a particular VLAN receive traffic only from other members of the same VLAN.
VLANs are particularly useful for limiting broadcast storms, reducing security problems, and simplifying network management.
B-4 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Configuring Ethernet Teams
There are two types of VLANs:
Implicit VLANs, which are configured entirely at the switch level. The switch does not alter or tag packets to enforce an implicit VLAN.
Explicit VLANs, which are configured throughout the network, on each adapter and link partner. Switches identify and route traffic based on a four-byte tag (802.3ac) in each packet header.
To support either type of VLAN, switches on your network must support 802.1Q
VLANs. Also, to configure a VLAN on your system, you need to contact your network administrator to obtain the VLAN ID for your workgroup, which must be identical to the
VLAN ID programmed into the switches.
In an environment with many VLAN workgroups, you can optionally implement the
Generic Attribute Registration Protocol (GARP) VLAN Registration Protocol (GVRP) to dynamically create, change, and remove VLANs. To support GVRP, all adapters and switches on your network must have GVRP enabled. For more information about
GVRP, follow the links in the online help available on the VLANs tab and the documentation for your switch, or contact your network administrator.
Configuring Ethernet Teams
Use the utilities embedded in Device Manager to configure Ethernet PCI adapters into teams. Keep the following notes, guidelines, and restrictions in mind when you create a team.
Each port on a dual-port Ethernet PCI adapter appears as a separate adapter in the Network adapters node of Device Manager.
Generally, assign Ethernet PCI adapters of only one media type (fiber optic or copper) to a team.
By default, speed and duplex are autonegotiated. Autonegotiation will result in incorrect duplex settings if one side of the link is set to autonegotiate and the other side of the link is not. Always confirm how the switch ports that will be connected to the network ports on the server are configured, and configure the network ports on the server the same way. Always use the same data rate and duplex mode values for all members of a team
There is no minimum or maximum number of teams to be configured; teams are limited only by the number of adapters available on your system and how you allocate them.
One team can have a maximum of eight Ethernet PCI adapters.
For fault tolerance, create teams that contain Ethernet PCI adapters from different
I/O elements. Only teams with Ethernet PCI adapters in different I/O elements are
Configuring And Managing Ethernet PCI Adapters
B-5
Configuring Ethernet Teams
fault tolerant. (See
“Locating Ethernet PCI Adapters” on page B-6
for information about locating Ethernet PCI adapters.)
In addition, Stratus does not support the following:
Manipulation of adapter power management options.
Teaming third-party Ethernet PCI adapters with Stratus Ethernet PCI adapters.
Only Stratus Ethernet PCI adapters have been tested for compatibility and fault tolerance in ftServer systems.
To configure Ethernet PCI adapters into fault-tolerant teams, perform the procedures described in the following sections, in the order listed.
1.
“Locating Ethernet PCI Adapters” on page B-6
2.
“Configuring Link Speed and Duplex Mode” on page B-7
3.
“Creating Ethernet Teams” on page B-10
4.
“Configuring Virtual LANs Over a Team” on page B-14
5.
“Verifying the Configuration of Teams and VLANs” on page B-16
6.
“Assigning an IP Address to a Team or VLAN” on page B-18
Locating Ethernet PCI Adapters
When you create a team of Ethernet PCI adapters, you must connect the team members to adapters located in different I/O elements or the team will not be fault-tolerant, since the failure of the team’s I/O element will cause both team members to fail.
To help you verify that you are selecting adapters located in different I/O elements, use the Identify Adapter command to flash a status LED in a specific Ethernet port so you can visually locate it.
N O T E
To determine which LED on the Ethernet port will flash, see the Stratus ftServer Systems: PCI Adapter
Guide (R461).
To locate an Ethernet PCI adapter port
1.
In the Network adapters node in Device Manager , right-click the target adapter and
select Properties.
2. Click the Link Speed tab and then Identify Adapter. The Identify Adapter dialog
shows an example.
B-6 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Figure B-1. Identify Adapter Dialog Box
Configuring Ethernet Teams
3. On the Identify Adapter dialog box, click Start.
The LED on the selected adapter will flash until you click Stop on the Identify
Adapter dialog box.
4. Find the Ethernet port with the flashing LED and make note of its device name in
Device Manager (for example, Stratus 82576 2-port Copper Gigabit Adapter).
5. When you have identified the adapter, click Stop and then Close on the Identify
Adapter dialog box.
Configuring Link Speed and Duplex Mode
By default, Ethernet ports on the U104 Dual-Port Fiber Gigabit Ethernet PCI-Express
Adapter, the U105 Dual-Port 10/100/1000 Base-T Ethernet PCI-Express Adapter, and the embedded Ethernet PCI adapters are configured to autonegotiate the best speed for a connection. On a network that operates at 10 or 100 megabits per second (Mbps), automatic settings can result in unreliable connections and inaccurate reporting of link activity and duplex mode. For reliable operation, manually configure the link speed and duplex mode for all Ethernet PCI adapters connected to networks that operate at 10 or
100 Mbps.
The term duplex in duplex mode is unrelated to the term duplexed used when referring to PCI adapters that are duplexed for fault-tolerance. Duplex mode refers to the ability of a communications line (which is attached to an Ethernet PCI adapter) to send and receive data simultaneously. In full-duplex mode, the line can send and receive data simultaneously. In half-duplex mode, the line can only send or receive data at any given
Configuring And Managing Ethernet PCI Adapters
B-7
Configuring Ethernet Teams
moment. Duplex mode does not refer to whether or not a PCI adapter is one of a pair, or is teamed, for fault-tolerance.
N O T E S
1. Ethernet adapters or ports that are connected to networks running at one gigabit per second (Gbps) rely on autonegotiation. Do not manually configure
1-Gbps operation.
2. ftServer systems support 1-Gbps line speed only in full-duplex mode.
!
C A U T I O N
When you manually set these values, make sure that the values are identical for the Ethernet port and the link partner to which it connects, and that the settings for all
Ethernet ports in one team are the same.
To set the link speed and duplex mode
1.
In the Network adapters node in Device Manager , right-click the target adapter (if
necessary, expand a team to access its member adapters) and select Properties.
2. Click the Link Speed tab.
3. In the Speed and Duplex section of the dialog box, select the appropriate speed and duplex mode from the pull-down menu.
B-8 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Figure B-2. Setting the Link Speed and Duplex Mode
Configuring Ethernet Teams
4. Repeat the previous two steps for each Ethernet PCI adapter for which you need to set the link speed and duplex mode.
5. Click OK to process and preserve the changes. Allow several seconds for processing time.
6. Click OK to exit.
Configuring And Managing Ethernet PCI Adapters
B-9
Configuring Ethernet Teams
Creating Ethernet Teams
!
C A U T I O N
Creating an Ethernet team disrupts the network traffic over all Ethernet PCI adapters in the team.
To create an Ethernet team
1.
In the Network adapters node in Device Manager , right-click the adapter that you
want to team with another adapter, and select Properties.
2. On the Teaming tab, select Team this adapter with other adapters.
3. Click New Team. The New Team Wizard starts.
4. In the New Team Wizard dialog box, specify a team name under Specify a name
for the team.
Figure B-3 shows an example. Online Help, which appears in the
yellow panel at the bottom of the dialog box, automatically explains the requirements of the team name. Click Next.
Figure B-3. Naming the New Team
5. The next dialog box lists the adapters and displays a check in the box next to the adapter you selected in step
1 . Under Select the adapters to include in this
B-10 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Configuring Ethernet Teams
team, check the box next to the adapter you want to team with the adapter you
selected in step
As you select adapters for a team, follow the notes, guidelines, and restrictions
listed at the beginning of this section ( “Configuring Ethernet Teams” on page B-5 ).
Click Next.
6. In the next dialog box, under Select a team type, select the type of team you want to create (for example, Adapter Fault Tolerance), and then click Next.
Online Help provides a description of the types of teams you can create.
7. A dialog box reports that the application has the settings it needs to create the team. Depending on the teaming mode you select, the dialog box may also display information about the restrictions for the specified teaming mode.
Click Finish.
If you created an ALB team, you must disable the Receive Load Balancing setting , as
explained in the next section.
The PROSet utility begins to bind the specified PCI adapters into teams. This operation takes at least one minute per team to complete. Do not abort the process while it is running; otherwise, you must repeat the procedure.
After several seconds, the team is created and the Team Properties page appears.
Disabling Receive Load Balancing
If you created an ALB team, you must disable the Receive Load Balancing setting after you have created the ALB team.
N O T E
If you do not disable Receive Load Balancing, the I/O enclosures are not safe to pull.
To disable Receive Load Balancing
1.
In the Network adapters node in Device Manager , right-click the ALB team you just
created and select Properties.
2. Click on the Advanced tab and select Receive Load Balancing in the Settings list.
It is enabled by default.
3. In the value box, change Enabled to Disabled and click OK.
Configuring And Managing Ethernet PCI Adapters
B-11
Configuring Ethernet Teams
Designating Primary and Secondary Adapters
After creating the teams, you can manually designate a primary and secondary adapter for each team.
To designate primary and secondary adapters
1.
In the Network adapters node in Device Manager , right-click the team (not the
adapter; see
Figure B-4 ) in which you want to designate a primary and (optionally)
a secondary adapter, and select Properties.
Figure B-4. Network Adapters in Device Manager
B-12 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Configuring Ethernet Teams
2. Select the Settings tab and click Modify Team.
3. In the Team dialog box, select the adapter to make primary, click Set Primary, and click OK.
Figure B-5 shows an example. (Click Set Secondary on an adapter to
make it the secondary adapter.)
Figure B-5. Assigning Priorities to Ethernet PCI Adapters
N O T E
You can select only one primary adapter and only one secondary adapter per team. If you select another primary or secondary adapter, it overrides your initial selection.
In the Team Properties dialog box, click OK.
4. To confirm your selections, in Device Manager, right-click the team (for example,
TEAM: Team #0, select Properties, and select the Settings tab to see the Primary or Secondary indications next to the listed adapters.
Configuring And Managing Ethernet PCI Adapters
B-13
Configuring Ethernet Teams
Configuring Virtual LANs Over a Team
Configuring VLANs is optional. You can have an Ethernet team without VLANs.
!
C A U T I O N
Configuring a VLAN over an Ethernet team disrupts the network traffic over the team.
1.
In the Network adapters node in Device Manager, right-click the targeted adapter
team and select Properties.
2. Select the VLANs tab. See
Figure B-6. Adding a VLAN to a Team
3. On the VLANs tab, click New.
B-14 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Configuring Ethernet Teams
4. In the New VLAN dialog box, enter the VLAN ID.
The VLAN ID must match the VLAN ID configured on the switch.
As you enter the VLAN ID, the ID appears in the VLAN Name field, preceded by the suffix VLAN. For example, if you enter 120 in the VLAN ID field, the name
VLAN120 appears automatically in the VLAN Name field.
Figure B-7. Specifying a VLAN ID and Name
5. Click OK. The new entry for the VLAN appears in Device Manager under the
Network adapters node.
You can create up to 64 VLANs on a system.
Configuring And Managing Ethernet PCI Adapters
B-15
Configuring Ethernet Teams
Verifying the Configuration of Teams and VLANs
1. Close and then restart Device Manager. In Device manager, verify the following:
The teams and VLANs have been created as you expected.
All Ethernet PCI adapters in a team use the same Ethernet address, and that address is the permanent Ethernet address of one of the Ethernet PCI adapters in the team. (See
“Updating a Team’s Ethernet Address” on page B-25
for more information.
2. Verify that an IP address has been assigned to each team or VLAN.
If you have created a team with VLANs, each VLAN in that team requires an IP address. (The team and the Ethernet PCI adapters in the team have no IP addresses.)
If you created a team without VLANs, the team is configured to obtain an IP address automatically.
If a team requires a static IP address, or if a team or VLAN does not have an IP
address, configure the IP address as described in “Assigning an IP Address to a
Team or VLAN” on page B-18 . (Individual Ethernet PCI adapters in a team do not
have IP addresses.)
Find the IP address for a team with or without VLANs, as follows:
On a Windows Server 2003 system, click Start, All Programs, Accessories,
Communications, and then Network Connections. Click the desired Local
Area Connection icon for the VLAN or team (for example, Team #0, as shown in
Figure B-8 ), and click the Support tab on the dialog box to see the IP
address.
B-16 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Figure B-8. Finding a Team’s IP Address in Windows 2003
Configuring Ethernet Teams
On a Windows Server 2008 system, click Start, Control Panel, and then
Network And Sharing Center. Listed under Network and Connections, find
the desired Local Area Connection for the VLAN or team, and click View
Status. In the dialog box that appears, click Details, as shown in
Figure B-9. Finding a Team’s IP Address in Windows 2008
In the Details window that appears, the IP address is listed as IPv4 IP
Address.
3. Start ftSMC, select each Network Port you teamed, and in the details pane, verify that the value next to OpState: State is Duplexed.
Configuring And Managing Ethernet PCI Adapters
B-17
Configuring Ethernet Teams
Assigning an IP Address to a Team or VLAN
1. Perform one of the following steps to start to manage network connections.
– On a Windows Server 2008 system, click Start, Control Panel, Network and
Sharing Center, and then Manage Network Connections.
– On a Windows Server 2003 system, click Start, All Programs, Accessories,
Communications, and then Network Connections.
2. In the window that appears, right-click the appropriate Team #n or VLAN Name,
ID: n icon, and then click Properties.
3. In the Properties dialog box that appears, perform the following steps:
On a Windows Server 2003 system, click Internet Protocol (TCP/IP), and
click Properties. Figure B-10 shows an example.
Figure B-10. Ethernet Team Properties on a Windows Server 2003 System
B-18 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Configuring Ethernet Teams
On a Windows Server 2008 system, click either Internet Protocol Version 6
(TCP/IPv6) or Internet Protocol Version 6 (TCP/IPv6).
example.
Figure B-11. Ethernet Team Properties on a Windows Server 2003 System
In the Properties dialog box on a Windows Server 2003 or 2008 system, select whether you want to specify an IP address or to obtain the IP address
automatically. Figure B-12 shows the dialog box for a Windows Server 2003
system. If you specify an IP address, enter the IP address, subnet mask, and default gateway. Consult your network administrator for all TCP/IP property settings.
Configuring And Managing Ethernet PCI Adapters
B-19
Configuring Ethernet Teams
N O T E
Your TCP/IP property settings must match the configuration of the network to which the team or VLAN is connected. Your system can obtain the IP address automatically only if the network supports it. If you choose the option to obtain the IP address automatically and the network does not support it, the Ethernet PCI adapter may be unusable.
Figure B-12. Internet Protocol (TCP/IP) Properties
4. Click OK to accept the changes.
5. In the Properties dialog box, click Close to process the new TCP/IP settings and to close the dialog box.
B-20 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Managing Ethernet Teams
6. Return to Device Manager and verify that the new IP address appears in the Team
Configuration tab for the team or VLAN Configuration tab for the VLAN.
Managing Ethernet Teams
The following sections explain how to manage teams:
“Removing Ethernet PCI Adapters from a Team” on page B-21
“Adding Ethernet PCI Adapters to a Team” on page B-24
“Updating a Team’s Ethernet Address” on page B-25
“Removing an Ethernet Team” on page B-28
N O T E S
1. Anytime you modify an existing team, you might temporarily interrupt the flow of network traffic to the team.
2. When you add or remove Ethernet PCI adapters in an existing Static Link Aggregation team, the link to the adapters you are adding or removing must be down; otherwise, the switch forwards traffic to the adapters before the configuration is complete.
3. When you remove or replace a teamed adapter, you might need to reset the Ethernet (MAC) address of
the team as described in “Updating a Team’s Ethernet
. In addition, your network administrator must update any network filtering or security settings that might be based on the MAC address of the Ethernet adapter you removed.
Removing Ethernet PCI Adapters from a Team
N O T E
Remove Ethernet PCI adapters from only one team at a time. Complete the procedure before removing an adapter from another team.
1.
In the Network adapters node in Device Manager,
right-click the adapter team and select Properties.
2. Select the Settings tab and click the Modify Team button.
3. In the Team dialog box ( Figure B-13 ), clear the checkbox next to the adapter you
want to remove from the team and click OK.
Configuring And Managing Ethernet PCI Adapters
B-21
Managing Ethernet Teams
Figure B-13. Removing an Ethernet PCI Adapter from a Team
4. A confirmation message appears. If the team contained only two Ethernet PCI adapters, a dialog box warns that the team contains only one adapter, as shown in
. Click OK.
Figure B-14. Confirmation Message: Removing an Ethernet PCI Adapter from a Team
If desired, you can designate new primary and secondary adapters for the team as described in
“Designating Primary and Secondary Adapters” on page B-12
.
B-22 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Managing Ethernet Teams
If you remove the primary or secondary adapter in the team, the program automatically designates other team members to fill these roles, but you can optionally assign them yourself.
If you are not physically replacing the Ethernet PCI adapters that you removed, update
the Ethernet address of the team at this time. See “Updating a Team’s Ethernet
.
Physically Replacing Removed Adapters
If you intend to physically replace the adapters you removed, complete the following procedure.
To physically replace adapters in a team
1. If you intend to maintain network connectivity while removing an enclosure, verify that all active Ethernet PCI adapters in the enclosure are teamed with adapters in another enclosure. See
“Locating Ethernet PCI Adapters” on page B-6
to determine the location of Ethernet PCI adapters in the system.
2. Exit the adapter configuration program.
3. Physically remove the Ethernet PCI adapters from the system and install the new adapters. For more information about removing and replacing adapters, see the operation and maintenance guide for your system.
N O T E
If you intend to use the old Ethernet PCI adapters in other systems, do not install them in other systems until you reset the Ethernet address of the team (when you reach step 4 of
“Adding Ethernet PCI Adapters to a Team” ).
4.
In the Network adapters node in Device Manager , right-click the adapter team and
select Properties.
5. Select the Settings tab and click the Modify Team button.
6. In the Team dialog box, clear the checkbox next to the adapter you want to remove from the team and click OK.
7. Remove the entries for the Ethernet PCI adapters that you physically removed from
the system. The adapters have the status Removed adapter ( Figure B-15
).
For each adapter you want to remove, right-click the adapter entry and select
Remove Adapter. When you are finished, click Apply to process the changes.
Configuring And Managing Ethernet PCI Adapters
B-23
Managing Ethernet Teams
Figure B-15. Icon for a Missing (Removed) Adapter
8. Add the new Ethernet PCI adapters to the team, as
“Adding Ethernet PCI Adapters to a Team” describes.
Adding Ethernet PCI Adapters to a Team
N O T E S
1. Add Ethernet PCI adapters to only one team at a time.
Complete the procedure before adding an adapter to another team.
2. One team can have a maximum of eight Ethernet PCI adapters.
B-24 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Managing Ethernet Teams
1.
In the Network adapters node in Device Manager , right-click the target adapter
team and select Properties.
2. Select the Settings tab, and click the Modify Team button.
In the TEAM dialog box (
Figure B-13 ), place a check in the checkbox next to the
adapter you want to add to the team. Click OK.
Repeat this step for any adapters you want to add to the team.
The Settings tab appears, showing the newly added adapter team.
Click OK.
The Device Manager appears again, showing the newly configured adapter team in the Network adapters node.
3. If necessary, you can manually designate new primary and secondary adapters for
the team. See “Designating Primary and Secondary Adapters” on page B-12 .
(If you have not previously selected primary or secondary adapters for the team, the utility will automatically designate adapters to fill these roles.)
4. If necessary, reset the Ethernet address of the team. See “Updating a Team’s
Ethernet Address” on page B-25
.
5. If you have not already done so, connect the new Ethernet PCI adapters to the network.
6. Verify the configuration of the team. See
“Verifying the Configuration of Teams and
Updating a Team’s Ethernet Address
!
C A U T I O N
When you update a team’s Ethernet address, the network connection is disrupted.
When you replace a primary Ethernet PCI adapter, you must assign the correct
Ethernet address to the team before you connect the new primary adapter to the network.
N O T E
Assigning the correct Ethernet address to the team before you connect the new primary adapter to the network applies only to Ethernet PCI adapters that you insert into
Configuring And Managing Ethernet PCI Adapters
B-25
Managing Ethernet Teams
slots. It does not apply to embedded Ethernet adapters when you replace an I/O enclosure.
Typically, the team Ethernet address is the permanent MAC address of the primary adapter. When you replace a primary adapter, the team by default continues to use the
MAC address of the adapter you removed. Therefore, after you replace an adapter, you must assign the team an Ethernet address that matches the permanent MAC address of one of the Ethernet PCI adapters currently in the system.
As a first step, verify that the team’s current Ethernet address is identical to the permanent Ethernet address of one of the team members.
To verify the team Ethernet address
1.
In the Network adapters node in Device Manager , right-click the target adapter
team (not the adapter; see Figure B-4
) and select Properties.
2. Select the Settings tab and then click on the Details button.
The team Ethernet Address appears in the Team Details window.
shows an example. This address must match the address of one of the team’s adapters. Note this address for reference later in this procedure.
Figure B-16. Obtaining the Team Ethernet Address
3. To obtain the permanent Ethernet address of an Ethernet PCI adapter,
Network adapters node in Device Manager , right-click an adapter in the target team
and select Properties.
4. Select the Link Speed tab and click the Identify Adapter Details button. The
Identify Adapter dialog box appears.
5. Compare the value of Permanent Ethernet Address with the team Ethernet
Address obtained in step 2 of this procedure. If the addresses match, no further action is needed.
B-26 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Managing Ethernet Teams
If they do not match, then you must update the team’s current Ethernet address.
To update the team Ethernet Address
1.
In the Network adapters node in Device Manager , right-click the target team and
select Properties.
2. Select the Advanced tab and under the Settings list, select Locally Administered
Address.
shows an example.
3. In the Value field, enter the team Ethernet Address that you obtained in step 5 of
the
Ethernet address verification procedure . Click OK.
Figure B-17. Updating the Team Ethernet Address
Configuring And Managing Ethernet PCI Adapters
B-27
Managing Ethernet Teams
N O T E
Changing the team mode forces the utility to update the
Ethernet address of the team.
4. Again, right-click the team in the device tree in the left pane, and on the menu that appears, click Change Team Mode. Verify that the mode has been changed.
5. Click OK to process the procedure and to close. The update takes about 30 seconds to process.
6. Return to Device Manager and restore the team to its previous mode.
7. Click Apply to process and save the changes. Allow time for the update to process.
Removing an Ethernet Team
!
C A U T I O N
When you remove a team, you lose the connection to the network until you install and configure a new team.
If you assigned a specific IP address to the team, and if you are planning to configure a new team to use the same
IP address, note the IP address of the team when you remove it. An assigned IP address is deleted when you remove the team.
To remove a team
1.
In the Network adapters node in Device Manager , right-click the target team and
select Uninstall.
shows an example.
Figure B-18. Removing a Team of Ethernet PCI Adapters
2. In the Confirm Device Removal dialog box, click OK to uninstall the selected team.
shows an example.
B-28 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Figure B-19. Confirmation Message: Removing a Team
Using Diagnostics
Using Diagnostics
You can run connection, link, cable, and hardware diagnostics on your system’s
Ethernet infrastructure.
Running hardware diagnostic tests on the primary adapter in an AFT or SFT team stops network traffic until the secondary PCI adapter takes over. Running hardware diagnostics on the secondary adapter could reduce throughput. Running hardware diagnostics on an unteamed PCI adapter stops network traffic during the entire test.
To start PROSet diagnostics
1.
In the Network adapters node in Device Manager , right-click the target adapter and
select Properties.
2. Select the Link Speed tab and click the Diagnostics button.
3. In the Diagnostics dialog box, click the Connection, Cable, or Hardware tab for the appropriate test (
4. Click Run Test. The test results are displayed in the Diagnostics dialog box.
N O T E
Do not run the Connection test on a teamed adapter. It may return a false error report about not having valid IP information.
Configuring And Managing Ethernet PCI Adapters
B-29
Using Diagnostics
Figure B-20. Diagnostics
If you experience persistent network connectivity problems, try replacing the associated Ethernet PCI adapter(s). If that does not correct the problem, contact your authorized Stratus service representative.
Using ftSMC to Check Network Statistics
You can find network statistics for unteamed adapters in ftSMC. The statistics are located in Performance Counters under the Ethernet Controller node.
shows an example.
B-30 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Figure B-21. Network Statistics in ftSMC
Renaming Ethernet Teams
Renaming Ethernet Teams
When you create two or more teams on a new system or a system on which an IPL has just been performed, one of the teams may not have the name you assigned it. In the
PROSet utility, the team name appears to be set correctly, but in Windows Network
Connections, it is not the name you specified. Perform the following procedure to rename the incorrectly named team.
To rename a team
1.
In the Network adapters node in Device Manager,
right-click the target adapter and select Properties.
2. Select the Settings tab, click the Modify Team button and select the Name tab.
3. Enter the new team name in the Enter Team Name field and click OK. Click OK on the Settings tab.
The new name appears in the Device Manager under the Network adapters node.
Configuring And Managing Ethernet PCI Adapters
B-31
Renaming Ethernet Teams
B-32 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Index
Index-
A
active RDR virtual disk (plex), 4-12
ActiveService Network (ASN). See ASN
Add Physical Disk To RDR Virtual Disk command, 4-7
administration. See system administration
Advanced Video Redirection (AVR), 1-3
alarm messages
ALB Ethernet adapter team, B-11
application event logs, 2-8, 5-11
system and PCI adapter integration, 1-5
B
BIOS
Setup menus
disabling boot monitoring, 5-15
setup utilities
BitLocker Drive Encryption, 1-4
boot disk
booting
bringup
C
call-home alarm messages. See alarm
messages
commands
Add Physical Disk To RDR Virtual
Delete RDR Configuration on Physical
Deport Physical Disk from RDR Virtual
operational states required for, 3-12
Remove a Physical Disk from RDR Virtual
Resynchronize This Physical Disk From
Set Cache Flush Interval, 4-11
Index-1
Index
Set MTBF Faultcount Limit, 4-18
Set MTBF Threshold
Stop Verify RDR Virtual Disk, 4-24
components
Computer Management
connection status of storage media in ftSMC, 4-29
converting dynamic disks to basic RDR, 4-12
network connectivity when removing, B-1,
CpuBringUpPolicy property, 2-4
CPU-I/O enclosures. See CPU elements and
I/O elements
Create RDR Virtual Disk command, 4-5
customer-replaceable unit failures, 5-12
D
data rate of Ethernet PCI adapters, B-7
data storage
debugging information files, 5-12
Delete RDR Configuration on Physical Disk command, 4-13
deleting RDR configurations
Deport Physical Disk from RDR Virtual Disk command, 4-15 deported disks, 4-15
desktop
DevicePath property, 4-3, 4-30
DevicePathID property, 4-3, 4-30
devices
removing from, returning to, service, 2-15
disk management mirroring, 4-27
See also entries under RDR disk mirroring
and RDR virtual disks
duplex RDR, 4-3 finding in ftSMC, 4-3
finding internal in ftSMC, 4-29 mirroring in ftScalable Storage systems, 4-29
status
drivers
Emulex LightPulse Storport Miniport driver, 2-15
dual device paths, software components, 5-8
Index-2 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
Dump and Go command
dump command, 5-12 dump files, 5-12
DumpNumberOfFilesToSave property, 5-13
DumpQuickEnabled property, 5-13
duplex mode of Ethernet PCI adapters, B-7
and RDR automatic disk expansion, 4-3
Dynamic Host Configuration Protocol
E
elements. See CPU elements and I/O elements
EMC storage enclosures
Emulex LightPulse Storport Miniport driver, 2-15
enclosures
See also CPU elements and I/O elements
Ethernet address
Ethernet PCI adapter teams
adding adapters to existing, B-24
assigning IP address, B-16, B-18
configuring primary adapters, B-12, B-22,
configuring secondary adapters, B-12,
configuring teams, B-6 configuring with third-party adapters, B-6
network filtering, B-21 removing adapters from existing, B-21
Index
replacing primary adapter, B-25
restrictions and recommendations, B-5
restrictions when modifying existing, B-21
updating Ethernet (MAC) address, B-25
Ethernet PCI adapters
data rate, B-7 duplex mode, B-7
network filtering, B-21 removing from team, B-21
Ethernet teams. See Ethernet PCI adapter
teams event logs
events
F
failed component identification, 5-6
failures
FaultCountLimit property, 4-18
fault-resilient boot failure, 5-11
files boot.ini
Index-3
Index
finding components, 5-7 flashing LEDs, 5-7
ftServer model
ftSMC
console tree definition, 3-7 details pane definition, 3-7
running on remote computer, 3-3, 3-4
unteamed adapters, network statistics, B-30
updating status of storage connection state, 4-29
ftSys Management Console. See ftSMC
G
GARP VLAN Registration Protocol
H
hard MTBF, setting threshold, 4-18
hardware installation wizard, 5-5
Help in ftSMC
context-sensitive, 1-7 overview, 1-7
hotfixes
I
resynchronizing mirrored volumes, 4-26
resynchronizing RDR disks, 4-21
icons
dimmed folder, 3-8 dual monitor, 3-8
error, 3-9, 5-6 invalid configuration, 3-9
inventory, 3-8 magnifying glass, 3-8
identifiers
identifying a system model, 3-1
identifying components
Initiate BringDown command
Initiate BringUp command
Initiate Diagnostics command
internal disks
unsafe removal error message, 4-14, 4-23,
internal storage enclosures
invalid component configurations, 3-9
Index-4 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
IP address
Ethernet PCI adapter team, B-16, B-18
L
labels
LEDs
flashing to find components, 5-7
line speed of Ethernet PCI adapters, B-7
locating components
Logical to Physical Mapping node, 4-29
login
enabling multiple remote sessions, A-2
LunVerifyInterval property, 4-24
M
MAC address
mean time between failures. See MTBF
memory snapshot
Microsoft Windows. See Windows
mirroring
disks in internal storage, 4-3
recovering RDR disk, 4-23, 5-3
status
synchronizing, 4-26 volumes, 4-26
missing Ethernet PCI adapter, B-23
MMC
modems
monitoring
system
MTBF
Faultcount Limit property, 4-18
threshold
multiple Windows login sessions
N
nodes
Logical to Physical Mapping, 4-29
nonmaskable interrupts (NMI)
O
offline component identification, 5-6
Offline or Missing disk status, 5-4
Op State status
Initiate BringDown command, 3-12
Initiate BringUp command, 3-12
Initiate Diagnostics command, 3-12
optimizing system performance, 4-10
Index
Index-5
Index
P
PCI adapters
ftScalable Storage system, 4-28
pedestal systems
power button
enabling, 2-2 powering down system, 2-2
primary enclosures, 3-12, 5-12
primary Ethernet PCI adapter
configuring, B-12, B-22, B-25 replacing, B-25
procedures
changing IP address for UPS, 2-14
deleting RDR configuration on a physical disk, 4-13
deporting physical disk from RDR virtual disk, 4-16
determining component failure, 5-6
enabling IMAPI, 2-12 enabling IMAPI for DVD-RW reading and writing, 2-12
(globally), 4-11 enabling read-load balancing, single disk, 4-11
obtaining list of Windows hotfixes, 5-16
prioritizing resynchronization for all RDR disks, 4-25 prioritizing resynchronization for individual
recovering
recovering an offline non-RDR disk, 5-4
recovering an RDR disk, 4-23, 5-3
removing physical disk from RDR virtual disk, 4-15
replacing a failed physical RDR disk, 4-23
resynchronizing RDR data disks, 4-22
saving log files, 2-9, 2-10 setting size of application and system event logs, 2-9
setting the interval for automatic RDR disk verification, 4-24
starting BIOS setup utilities, 2-11
PROSet utility
removing entry for missing adapter, B-23
R
rack-mounted systems
RDR disk mirroring, 1-5, 4-6 automatic disk configuration, 4-6
boot volume with disk management tool, 4-27
breaking a physical disk from a virtual disk, 4-17
deporting physical disks, 4-15
monitoring resynchronization, 4-21
RDR virtual disks
adding a physical disk to, error message, 4-9
booting from spare (deported), 4-17 breaking, 4-17
Index-6 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
deleting RDR configuration, 4-13
failed during resynchronization, 4-10
finding physical disks of in ftSMC, 4-3
invalid procedures and error messages, 4-6
physical disk and virtual disk capacity, 4-4
resynchronization priority, 4-25
reusing stored-data disks, 4-20
verifying mirror integrity, 4-23
reboot
receive load balancing, disabling, B-11
Remote Desktop
enabling multiple login sessions, A-2
Remove a Physical Disk from RDR Virtual Disk command, 4-14
resynchronization
Resynchronize This Physical Disk From RDR
S
Safe Mode system recovery, 5-14
SCSI Port Duplex Driver - Sradisk_Driver node, 4-5 setting disk parameters, 4-5
Index
secondary Ethernet PCI adapters,
services
listing installed Stratus, 2-10 monitoring, 2-10
system, 1-4 starting and stopping, 1-4
Set Cache Flush Interval command, 4-11
Set Hard MTBF Threshold command, 4-18
Set MTBF Faultcount Limit command, 4-18
Set MTBF Threshold command
Set Priority command
Set Soft MTBF Threshold command, 4-19
Shut Down command, 2-2 shutting down system, 2-2 without logon, 2-2
snap-ins
soft MTBF, setting threshold, 4-19
Start Slot Identification command, 5-7
static IP addresses for the VTM console, 2-7
status bar
status of disks
Stop Slot Identification command, 5-7
Stop Verify RDR Virtual Disk command, 4-24
storage enclosures
storage, optional external, 4-27
subnet masks
switch (network)
system
Index-7
Index
enabling power button, 2-2 hang time, 2-2
inventory
performance optimization, 4-10
system administration tools, 1-1
system boot disk
system disks
system event logs (SELs), 2-9, 5-10, 5-11
saving, 2-9 setting maximum size, 2-9
system recovery
system shutdown without logon, 2-2
T
team types, B-3 teaming overview, B-3
teams. See Ethernet PCI adapter teams
thresholds
tools for system administration, 1-1
troubleshooting PCI adapters
U
uninterruptible power supply. See UPS
Unsafe removal of device message, 4-14, 4-23,
UPS
connecting to, 2-14 updating IP address, 2-14
V
Verify RDR Virtual Disk command, 4-24
Virtual Technician Module. See VTM
assigning IP address, B-16, B-18
GARP VLAN Registration Protocol
VTM
managing Administrator account, 2-6
VTM console
assigning static IP address, 2-7 logging in, 2-7
starting and stopping system, 2-6
W
What’s this? Help
for details pane properties, 3-7
Windows
obtaining list of hotfixes, 5-16
Windows Device Manager, disabling devices, 2-15
Windows hotfixes, installing, 2-15
Windows Server 2008 system tape driver, 5-17
Windows updates, installing, 2-15
wizard
Add Physical Disk to RDR Virtual Disk, 4-7
write caching on RDR virtual disks, 4-10
Index-8 Stratus ftServer System Administrator’s Guide for the Windows Operating System (R014W)
