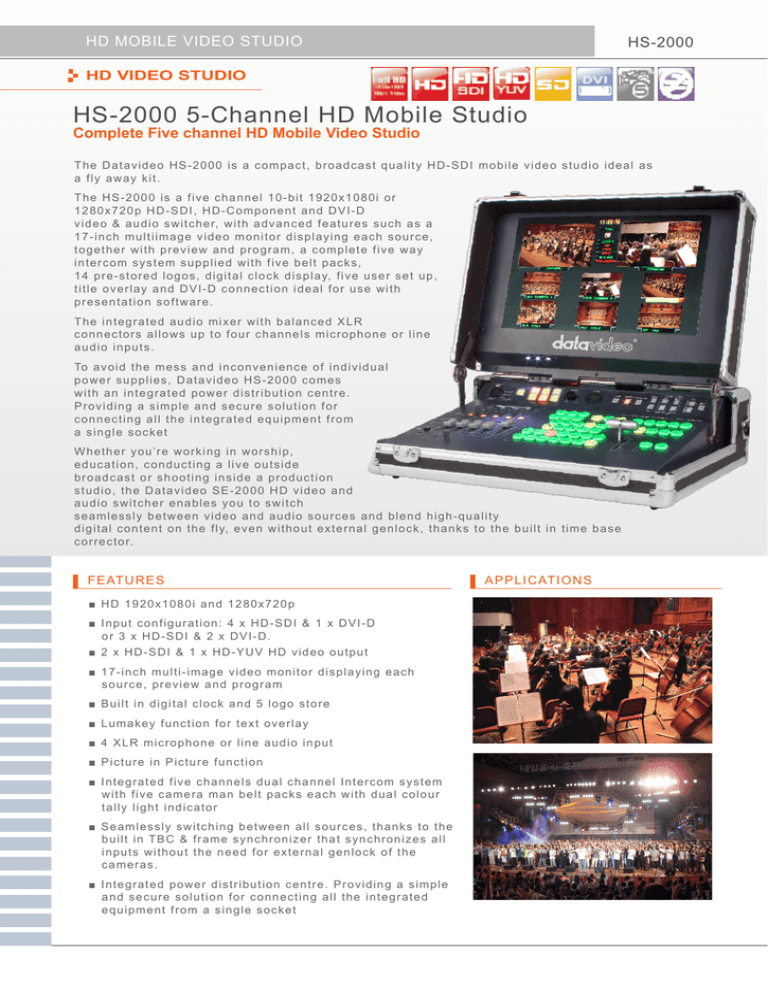

HS-2000 5-Channel HD Mobile Studio

HD MOBILE VIDEO STUDIO
HS-2000
HD VIDEO STUDIO
HS-2000 5-Channel HD Mobile Studio
Complete Five channel HD Mobile Video Studio
Th e D a t a v i d e o H S - 2 0 0 0 i s a c o m p a c t , b r oadcast quality HD-SDI mobile video studio ideal as
a fly away kit.
Th e H S - 2 0 0 0 i s a f i v e c h a n n e l 1 0 - b i t 1 9 20x1080i or
12 8 0 x 7 2 0 p H D - S D I , H D - C o m p o n e n t a n d DVI-D
vi d e o & a u d i o s w i t c h e r, w i t h a d v a n c e d f e atures such as a
17 - i n c h m u l t i i m a g e v i d e o m o n i t o r d i s p l a ying each source,
to g e t h e r w i t h p r e v i e w a n d p r o g r a m , a c o mplete five way
in t e r c o m s y s t em s u p p l i e d w i t h f i v e b e l t p acks,
14 p r e - s t o r e d l o g o s , d i g i t a l c l o c k d i s p l a y, five user set up,
tit l e o v e r l a y a n d D V I - D c o n n e c t i o n i d e a l for use with
pr e s e n t a t i o n s o f t w a r e .
Th e i n t e g r a t e d a u d i o m i x e r w i t h b a l a n c e d XLR
connectors allows up to four channels microphone or line
au d i o i n p u t s .
To a v o i d t h e m e s s a n d i n c o n v e n i e n c e o f individual
po w e r s u p p l i e s , D a t a v i d e o H S - 2 0 0 0 c o m es
w i t h a n i n t e g r a t e d p o w e r d i s t r i b u t i o n c e n tre.
P r o v i d i n g a s i m p l e a n d s e c u r e s o l u t i o n f or
co n n e c t i n g a l l t h e i n t e g r a t e d e q u i p m e n t f rom
a single socket
Whether you’re working in worship,
ed u c a t i o n , c o nd u c t i n g a l i v e o u t s i d e
br o a d c a s t o r s h o o t i n g i n s i d e a p r o d u c t i o n
st u d i o , t h e D a t a v i d e o S E - 2 0 0 0 H D v i d e o and
au d i o s w i t c h e r e n a b l e s y o u t o s w i t c h
se a m l e s s l y b e t w e e n v i d e o a n d a u d i o s o u rces and blend high-quality
digital content on the fly, even without external genlock, thanks to the built in time base
co r r e c t o r.
FEATURES
APPLICATIONS
■ HD 1920x1080i and 1280x720p
■ I n p u t c o n f i g u r a t i o n : 4 x H D - S D I & 1 x DVI-D
or 3 x HD-SDI & 2 x DVI-D.
■ 2 x H D - S D I & 1 x H D - Y U V H D v i d e o output
■ 1 7 - i n c h m u l t i - i m a g e v i d e o m o n i t o r d i splaying each
source, preview and program
■ Built in digital clock and 5 logo store
■ Lumakey function for text overlay
■ 4 X L R m i cr o p h o n e o r l i n e a u d i o i n p u t
■ Picture in Picture function
■ I n t e g r a t e d f i v e c h a n n e l s d u a l c h a n n el Intercom system
w i t h f i v e c a m e r a m a n b e l t p a c k s e a c h with dual colour
tally light indicator
■ S e a m l e s s l y s w i t c h i n g b e t w e e n a l l s o urces, thanks to the
b u i l t i n T BC & f r a m e s y n c h r o n i z e r t h at synchronizes all
i n p u t s w i t h o u t t h e n e e d f o r e x t e r n a l genlock of the
cameras.
■ I n t e g r a t e d p o w e r d i s t r i b u t i o n c e n t r e . Providing a simple
a n d s e c u r e s o l u t i o n f o r c o n n e c t i n g a ll the integrated
equipment from a single socket
1
HD/SD MOBILE VIDEO STUDIO
FRONT VIEW
REAR VIEW
TLM-170
ITC-50
Belt pack connectors
Audio input
Audio output
Monitor HDMI input
Power on/off
HD-SDI input
HD-SDI/DVI-D input
DVI-D input
TALLY output
RS-232
HD-SDI output
HD-YUV output
Power
SE-2000
Included
ITC -10 0SL
Belt Pack
CB -3
20m 5pin Cabling
SYSTEM DIAGRAM
DIAMENSION
SIZE: 460x499x139mm
POWER:100-240V AC 60 Hz
/ 50 Hz 3A 36W Max
WEIGHT:15KG.
OPTIONAL ACCESSORIES
HRS-10HD
Full HD Hand Carry
Recorder System
TLM-700HD
7" TFT LCD Monitor
AD-100
Audio Delay Box
CG-10
DVI Character
Generator software
MP-6000
DVD+R/ +RW
Recorder
DAC-8
HD-SDI to HDMI
Converter
DAC-9
HDMI to HD-SDI
Converter
DAC-50
HD/SD-SDI to YUV
Converter
