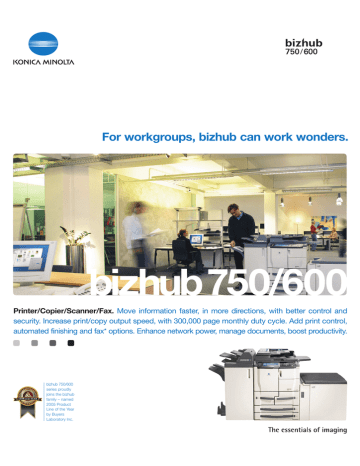

For workgroups, bizhub can work wonders.
bizhub750/600
Printer/Copier/Scanner/Fax. Move information faster, in more directions, with better control and
security. Increase print/copy output speed, with 300,000 page monthly duty cycle. Add print control,
automated finishing and fax* options. Enhance network power, manage documents, boost productivity.
bizhub 750/600
series proudly
joins the bizhub
family – named
2005 Product
Line of the Year
by Buyers
Laboratory Inc.
bizhub
ARCHITECTURE
bizhub
OPEN API
The advantage of bizhub OP.
The bizhub 750 and bizhub 600 share a significant
productivity advantage over earlier generations of digital
printer/copiers – an advantage called bizhub OP. It
improves multifunctional efficiency with new architecture
that consolidates components, simplifies print/scan/copy/fax
operation through a common user interface, incorporates
the Emperon™ Print System that empowers the
advanced IC-202 Print Controller option, and provides
future Open API to give third-party designers greater
flexibility in software integration. bizhub OP, for all-in-one
multifunctional productivity that lets you manage total
document input, output and storage – all from a
single bizhub.
EMPERON
PRINT SYSTEM
Centralize your document workflow.
In every office, department and workgroup, people must communicate. Co-workers must collaborate.
Information must reach the right destinations, available to the proper individuals and protected from
unauthorized access. And scanning, throughput, and document output must all happen at high speed
with workhorse reliability – to keep up with fast-changing business conditions and stay ahead of
fast-moving competition. That’s why you need the power of bizhub, from Konica Minolta.
User Box – a useful advantage.
Fast scanning to multiple destinations.
With optional hard drive, your bizhub 750 and bizhub 600 allow you to scan and save
printed documents directly to User Boxes – saving the trouble of re-scanning frequently
used documents and saving files to your desktop or a PC. Documents can be saved to
Public Box (for access by all users), User Box (up to 115 individual boxes), or Secure
Print Box (for confidential documents, with ID and password protection).
Scan-to-SMB
(Scan-to-Desktop)
Output
Box
Client PC
Download
Client PC
Scan-to-Email
Scan-to-FTP
Along with high-speed printing and copying, the bizhub
750/600 can scan and distribute documents more quickly
and cost-efficiently than previous multifunctional devices.
Add the IC-202 Image Controller to your system, and you
can Scan-to-Email with LDAP and User Authentication to
attach documents to Email messages, Scan-to-FTP
to save files on your FTP server for sharing or archiving,
Scan-to-SMB to send files directly to desktop PCs. You
can also Scan-to-HDD, storing documents in secure
User Box mailboxes on the optional 40 GB hard drive of
your bizhub 750 or bizhub 600 – with industry-leading
functionality to Save, Print, Route, Move and Copy
documents and files. Information flows more quickly, to
more destinations – and everyone stays in the loop.
Workhorse reliability – and total security.
You’ll be able to handle the heaviest workgroup document
traffic with output speed of 75 ppm (bizhub 750) and 60
ppm (bizhub 600). With monthly duty cycle of 300,000
impressions, your productivity will benefit from maximum
output with minimum downtime. And you’ll also have
User Authentication, Account Track and special security
enhancements to meet ISO 15408 Certification** –
because in today’s networked workflow, maintaining
document security and tracking document access are
essential to every business and professional application.
Finer detail and sharper text.
Along with speeding your workflow and protecting
your information, the bizhub 750/600 can improve your
image. Konica Minolta’s exclusive Simitri® Polymerized
Toner uses toner particles of smaller size and more
consistent shape to improve detail and definition –
making text more legible and giving graphics and
halftones greater detail. Speed, simplicity, quality,
performance – it’s a combination that can boost your
productivity and reduce your total cost of ownership.
Pulverized
Scan to FTP or HDD
Simitri®
Superior image quality.
Whether you’re printing or copying
reports, presentations, corporate
communications materials,
human resource documents,
sales literature, training manuals
or any other printed matter,
Konica Minolta’s exclusive Simitri®
Polymerized Toner technology
can make all your output look
more professional.
Scan-to-FTP: move files to network FTP servers.
Scan-to-HDD: store files in secure User Boxes.
Scan-to-SMB: send files directly to desktop PCs.
Scan-to-Email: send documents as Email attachments.
Scan to SMB
Scan-to-Email
More Ways to Print and Finish:
automatic stapling in 8 positions, 2/3-hole punching, tri-folding,
z-folding, cover and sheet insertion, even saddle-stitched booklet
making – with options, the bizhub 750 and bizhub 600 can do it all.
Print on any paper you need.
Tri-folding and Z-folding
Multi-Position Stapling
2/3-Hole Punching
The bizhub 750 and bizhub 600 are designed to handle
all the documents your business needs – in whatever
size and paper stock your application requires. You can
load up to 110 lb. index stock in all paper trays. You can
also print and copy full-bleed 11” x 17” originals on
12” x 18” paper, to preserve margins and crop marks
– and print or copy 2-page spreads, ledger-size
spreadsheets and oversized graphics without losing
information. Add an optional 4,000-sheet Large Capacity
Tray to your system, and you’ll have 7,600-sheet
maximum paper capacity – to let you work longer
without reloading.
Finish documents with automated ease.
Saddle-stitched Booklet-Making
Cover Insertion
12” x 18” Full-Bleed Printing
12” x 18” Printing & Copying:
the bizhub 750/600 can print and copy full-bleed 11” x 17” originals
on 12” x 18” paper, preserving margins and crop marks.
Individual business and professional applications have
special document needs – but one need everyone
shares is the need to save time. So the bizhub 750
and bizhub 600 offer a broad range of automatic finishing
options, allowing you to sort, staple, hole-punch for
binder insertion, half-fold and saddle-stitch staple to
make booklets, and insert pre-printed covers and pages
post-process. You can even tri-fold sheets to create
direct-mail pieces – and z-fold pages to insert oversized
charts into finished reports. A choice of finishers lets
you equip your bizhub system with exactly the options
you need – and you can also add options as document
needs change and your business grows.
Accelerate your document output.
Whatever document you’re printing, you’ll want fast output – with automated finishing, to eliminate
tedious handwork that can slow down productivity. The bizhub 750 and bizhub 600 both provide
advanced finishing options for sorting, stapling, hole-punching, post-insertion, even folding and
saddle-stitching for booklets.
Control your bizhub from any angle.
With all these capabilities for scanning, printing and
finishing, you might think the bizhub 750 or bizhub 600
would need expert handling – but anyone can control
its functions. Large function keys and simple, intuitive
touch-screen menus make operation easy, even for
first-time users or interns just passing through your
workplace. And the control panel tilts in three positions,
providing full compliance with Section 508 for easy
access by individuals with disabilities.
Customizing your print system.
FS-504 and FS-505*
Multi-Staple Finishers
provide 50-sheet and
100-sheet stapling capacity.
(Not Shown)
ZU-602 Z-Fold/Punch Kit
FS-602 Booklet Finisher
Electronic Document Handler
FK-502 Fax Kit Option*
operates at up to 75 opm,
adds Super G3 fax
holds up to 100 sheets,
capabilities to your bizhub
accepts originals up to 11”x17”.
750 or bizhub 600, with
provides half-fold and tri-fold,
transmission speed of less
with saddle-stitch-stapling for
than 3 seconds per page,
booklets of up to 80 pages.
400 one-touch dialing locations
(with HDD option) and 600
adds Z-fold and selectable
broadcast destinations.
2/3-hole punch capability to
your FS-504, FS-505 or
FS-602 Finisher.
(Not Shown)
PI-501 Post Inserter
lets you add pre-printed
covers or insert pages
post-process.
Intelligent Bypass
IC-202 Image Controller
adds selectable 2/3-hole punch
lets you load up to 100
provides 650 MHz (bizhub
capability to your FS-504,
sheets of letterhead or
750) or 400 MHz (bizhub 600)
specialty paper up to
CPU, Windows/Mac drivers,
12” x 18”.
PCL5e/PCL6 and Postscript 3
PK-505 Punch Kit
FS-505 or FS-602 Finisher.
print capability.
Main Paper Drawers (2)
hold up to 1,500 and 1,000
sheets respectively and
handle 8-1/2” x 11” paper.
LU-401 Large Capacity
Paper Tray
holds up to 4,000 sheets of
8-1/2” x 11” paper.
(Not Shown)
SF-601 Output Tray
provides an alternate output
bin to keep copies, prints and
faxes sorted separately.
LU-402 Large Capacity
Paper Tray
holds up to 4,000 sheets of
up to 12” x 18” paper.
Universal Paper Drawers (2)
hold up to 500 sheets
per drawer, handle up to
12” x 18” paper.
* Not available at time of launch.
Empower your network control.
In today’s networked office and workgroup environment, stand-alone printer/copiers can’t keep
up with interactive workflow demands. The bizhub 750 and bizhub 600 give you a simple,
intuitive interface that lets you scan to multiple addresses and scan and route in a single step.
You can print and finish with desktop control, manage print queues, even guide document traffic.
And to keep work flowing smoothly, PageScope software provides unsurpassed networked
device control and personal document management.
PageScope Job Spooler
gives you networkable
management of all your
bizhub 750/600 print jobs.
PageScope Workware*
allows you to preview documents
as thumbnail images
without opening files – then
merge, print and distribute with
drag-and-drop speed.
Print control with simple interface.
With the embedded IC-202 Image Controller option,
your bizhub 750/600 is controlled by simple print
drivers with user-friendly point-and-click commands.
Standard PCL5e/PCL6 and PostScript 3 capabilities
give you flexible power to handle print production in any
environment. Using the control panel of your bizhub
750 or bizhub 600, walk-up copying is simple enough
to prevent long lines at the copier. And when you add
Super G3 fax option*, you’ll have separate control
menus that make fax functions just as fast and easy.
With bizhub, you’ll always have connections.
PageScope Web Connection provides web-based device
control via a simple, intuitive GUI. You can monitor device
status, paper supply, toner level, copy count. No need to
get up, walk to your bizhub, and see if it’s ready to print.
PageScope Net Care gives IT administrators the power
to manage an entire fleet of multifunctional devices from a
single point – including both Konica Minolta bizhub MFPs
and MIB-compliant devices from other manufacturers.
And PageScope Data Administrator™* lets you import
one-touch Email addresses from LDAP-enabled Email
servers and maintain uniform security data throughout
your network.
PageScope Web Connection
creates a “website” for your
bizhub 750/600, for access to
status information through
standard web browsers.
PageScope Net Care
provides one-point management
capability for an entire fleet of
devices – each identified by its
own on-screen icon.
Your personal document management solution.
Konica Minolta’s PageScope Workware* software lets you
organize, search and retrieve scanned documents with
greater speed and simplicity. You can view documents
as thumbnail images without opening files or applications,
drag-and-drop images to share or print, even search your
files by filename, date, tags, or a combination of criteria.
You can also perform full-text search on documents that
have been OCR-converted. PageScope Router is another
valuable software option that automatically routes scanned
files to multiple destinations, scans and distributes in a
single step, converts file formats on the fly and provides
automatic archiving to preserve document histories and
paper trails. PageScope and bizhub were made for each
other – and together, they can make your work flow faster.
PageScope Data Administrator*
makes it easy to manage
and update address and
password information throughout
your workgroup, department
or network.
* Not available at time of launch.
bizhub 750/600 Series
General Specifications
TYPE:
Digital Printer/Copier/Scanner/Fax
IMAGING SYSTEM:
Simitri® Polymerized Toner
STANDARD PAPER SUPPLY:
1,500-sheet Paper Drawer
(letter-portrait)
1,000-sheet Paper Drawer
(letter-portrait)
500-sheet Universal Paper
Drawers (2)
100-sheet Intelligent Bypass
IC-202 Image Controller Option
FK-502 Fax Option Continued*
TYPE:
MEMORY:
Embedded
32 MB (standard)
PROCESSOR:
FAX TRANSMISSION/RECEPTION SIZE:
bizhub 750: Intel Celeron 650 MHz
bizhub 600: Intel Celeron 400 MHz
Up to 11” x 17”
DIALING:
SCANNING SYSTEM:
CCD Line Sensor
PRINT/COPY SPEED
2005
bizhub 750:
75 ppm (letter) 8-1/2” x 11”
portrait
61 ppm (letter) 8-1/2” x 11”
landscape
50 ppm (legal) 8-1/2” x 14”
42 ppm (ledger) 11” x 17”
bizhub 600:
60 ppm (letter) 8-1/2” x 11”
portrait
49 ppm (letter) 8-1/2” x 11”
landscape
40 ppm (legal) 8-1/2” x 14”
34 ppm (ledger) 11” x 17”
OPTIONAL PAPER SUPPLY:
MEMORY:
4,000-sheet Large Capacity Tray
(letter-portrait)
4,000-sheet Large Capacity Tray
(up to 12” x 18”)
512 MB (standard)
MAXIMUM PAPER CAPACITY:
7,600 sheets (total, with options)
Ethernet 10-BaseT/100-BaseTX
(standard)
Parallel (IEEE 1284 compatibility)
and USB 2.0 (with optional
EK-701 Interface Kit)*
POWER REQUIREMENTS:
MONTHLY DUTY CYCLE:
POWER CONSUMPTION:
TCP/IP, IPX/SPX, IPP (LPR/RTW
socket), Ethertalk, NDS/Bindery,
NetBEUI
Scan-to-Email (with LDAP)
Scan-to-FTP
Scan-to-HDD (with optional HDD)
Scan-to-SMB (Scan-to-Desktop)
1.92 kW (max.)
PRINT DRIVERS:
PRINT/COPY RESOLUTION:
© 2005 KONICA MINOLTA BUSINESS
SOLUTIONS U.S.A., INC. All rights
reserved. Reproduction in whole or
in part without written permission
is prohibited. Konica Minolta and
The essentials of imaging are trademarks
of KONICA MINOLTA HOLDINGS, INC.
bizhub, Data Administrator, and
PageScope are trademarks of
KONICA MINOLTA BUSINESS
TECHNOLOGIES, INC. Simitri is a
registered trademark of KONICA
MINOLTA BUSINESS SOLUTIONS.
All other brands and product names
are registered trademarks or trademarks
of their respective owners.
Design & specifications subject to
change without notice.
*Some
functions may require options,
which may or may not be available at
time of launch.
**ISO
True 600 x 600 dpi; 1200 x 600 dpi
(emulation)
DIMENSIONS (W x D x H):
HALFTONE REPRODUCTION:
WEIGHT:
256 gradations
488 lbs.
MEMORY:
OPTIONS:
512 MB (standard)
40 GB (optional HDD)
EK-701 USB 2.0/Parallel
Interface Kit* (IEEE 1284)
FK-502 Fax Kit* (requires MK-701)
FS-504 Staple Finisher
(50-sheet capacity)
FS-505 Staple Finisher*
(100-sheet capacity)
FS-602 Booklet Finisher
HD-503 Hard Disk Drive (40 GB)
IC-202 Image Controller
LU-401 Large Capacity Tray
(4000-sheet capacity, 8-1/2” x 11”)
LU-402 Large Capacity Tray
(4000-sheet capacity,
up to 12” x 18”)
MK-701 Fax Attachment Kit
PI-501 Post Inserter
PK-505 Punch Unit
(2/3-hole; for FS-504,
FS-505, FS-602)
SF-601 Shift Tray
ZU-602 Z-Fold Unit
WARM-UP TIME:
bizhub 750: 5 minutes or less
bizhub 600: 4.5 minutes or less
FIRST COPY:
bizhub 750: 3 seconds or less
bizhub 600: 3.5 seconds or less
COPY QUANTITY
1 - 9,999 copies
(countdown, interrupt capability)
MAGNIFICATION:
Zoom range:
25 - 400%, 0.1% increments
Preset reduction:
79%, 77%, 65%, 50%
Preset enlargement:
121%, 129%, 155%, 200%
25-5/8” x 31-1/8” x 44-7/8”
PostScript 3 driver:
Windows 98ME, NT4.0, 2000,
XP, Windows 2003 Server,
Mac OS 9.0 or later,
Mac OS X (10.2/10.3)
PCL6 (emulation) driver:
Windows 98ME, NT4.0, 2000,
XP, Windows 2003 Server
FK-502 Fax Option*
COMMUNICATION LINE:
Public Switched Telephone
Network (PSTN)
COMPATIBILITY:
G3, Super G3
DATA COMPRESSION:
MH, MR, MMR, JBIG
MODEM SPEED:
33.6 kbps (max; auto fallback)
TRANSMISSION SPEED:
Less than 3 seconds per page
SCANNING SPEED:
Up to 75 sheets per minute
15408 Certification pending.
EXPOSURE MODES:
Auto, Text, Photo, Text/Photo,
Manual
ORIGINAL SIZE:
Up to 11” x 17” maximum
PAPER SIZE:
5-1/2” x 8-1/2” to 12” x 18”
PAPER WEIGHT:
16 lb. to 110 lb. bond
Manual bypass: 13 lb. to 110 lb.
bond; specialty paper (thick
paper, OHP transparencies)
KONICA MINOLTA
BUSINESS SOLUTIONS U.S.A., INC.
100 Williams Drive
Ramsey, NJ 07446
www.kmbs.konicaminolta.us
www.kmbs.konicaminolta.us/solutions
BROADCAST:
600 destinations
OTHER FACSIMILE FUNCTIONS:
IP Relay Fax
PC Faxing
NETWORK PROTOCOLS:
SCANNING FUNCTIONS:
120 V, 60 Hz, 16.0 A
300,000 pages
NETWORK INTERFACE:
DOCUMENT FEEDER:
Capacity: 100 sheets
Speed: up to 75 scans per minute
Original size: up to 11” x 17”
1-sided, 2-sided originals
Mixed Original Detection
200 one-touch dialing locations
(standard)
400 (with HDD option)
PAGESCOPE APPLICATIONS:
FAX RESOLUTION:
Network & Device Management
PageScope Web Connection
PageScope Net Care
PageScope Network Setup
PageScope EMS Plug-Ins
PageScope NDPS Gateway
PageScope Data Administrator*
PageScope Job Spooler
Document Workflow Management
PageScope Workware*
PageScope Router
200 x 100 dpi
200 x 200 dpi
400 x 400 dpi
600 x 600 dpi
Text Photo (200 x 200 dpi)
Grayscale (200 x 200 dpi)
Super Grayscale (400 x 400 dpi)
Available Print/Copy Functions*
Account Track
(up to 1,000 accounts)
APS/AMS
Auto Duplex, Stackless
Auto/Manual/Photo Exposure
Auto Tray Switching
Black-White Reverse Image
Book Copy
Book Erase
Booklet Function
Box Function
(Copier, Reprint with setting
mode change, Resend)
Combined Copy Setting
(2-in-1, 4-in-1)
Copy Job Reserve (queue)
(51 jobs, including current job)
Cover Mode
Distribution Number and
Stamping
Energy Save Mode
Erase (Edge/Frame)
Face Up/Face Down Output
(selectable)
File Margin
Hole-Punching (2/3 hole)
Horizontal/Vertical Zoom Ratios
(X/Y magnification)
Image Density Shift
Image Overlay
Image Repeat
Image Reverse (mirror-image)
Image Rotation
Interrupt Mode
Job Memory (30 jobs)
Mixed Original Detection
(letter/legal)
OHP Interleave
Original Position Adjustment
Page Insertion
Proof Copy
Separate Scanning
Sleep Mode Recovery
Stapling
(single, multi-position, center)
Text, Photo, Text/Photo,
Dot Matrix Modes
Zoom
Item #: 750BRO
10/05
Open as PDF
Similar pages
