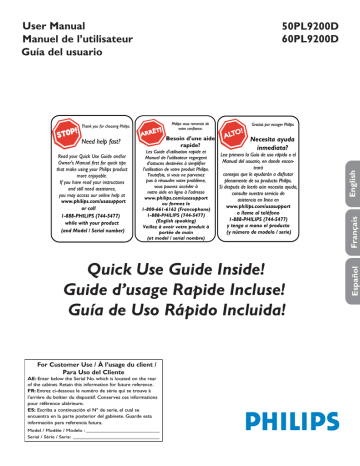

Philips 60PL9200D 60" DLP™ projection HDTV

User Manual
Manuel de l’utilisateur
Guía del usuario
50PL9200D
60PL9200D
Les Guide d'utilisation rapide et
Manuel de l'utilisateur regorgent
d'astuces destinées à simplifier
l'utilisation de votre produit Philips.
Toutefois, si vous ne parvenez
pas à résoudre votre problème,
vous pouvez accéder à
notre aide en ligne à l'adresse
www.philips.com/usasupport
ou formez le
1-800-661-6162 (Francophone)
1-888-PHILIPS (744-5477)
(English speaking)
Veillez à avoir votre produit à
portée de main
(et model / serial nombre)
Necesita ayuda
inmediata?
Lea primero la Guía de uso rápido o el
Manual del usuario, en donde encontrará
consejos que le ayudarán a disfrutar
plenamente de su producto Philips.
Si después de leerlo aún necesita ayuda,
consulte nuestro servicio de
asistencia en línea en
www.philips.com/usasupport
o llame al teléfono
1-888-PHILIPS (744-5477)
y tenga a mano el producto
(y número de modelo / serie)
Quick Use Guide Inside!
Guide d’usage Rapide Incluse!
Guía de Uso Rápido Incluida!
For Customer Use / À l’usage du client /
Para Uso del Cliente
AE: Enter below the Serial No. which is located on the rear
of the cabinet. Retain this information for future reference.
FR: Entrez ci-dessous le numéro de série qui se trouve à
l’arrière du boîtier du dispositif. Conservez ces informations
pour référence ultérieure.
ES: Escriba a continuación el Nº de serie, el cual se
encuentra en la parte posterior del gabinete. Guarde esta
información para referencia futura.
Model / Modèle / Modelo : ____________________________
Serial / Série / Serie: _________________________________
English
Besoin d'une aide
rapide?
Gracias por escoger Philips
O!
A LT
Français
www.philips.com/usasupport
or call
1-888-PHILIPS (744-5477)
while with your product
(and Model / Serial number)
Philips vous remercie de
votre confiance.
Español
A
RRÊT
How to make the optimal connection
(only RF cable is provided, for the rest of the cables, please consult your consumer electronics dealer for availability)
Comment réaliser une bonne connexion
(seulement le câble RF est inclus, pour le reste des câbles, de faveur consultez avec son distributeur d’appareils électroniques)
Cómo realizar la mejor conexión
(solo el cable RF está incluído, para el resto de los cables, favor consulte con su distribuidor de aparatos electrónicos)
Best
Supérieure
La mejor
HDMI
HDMI
HDMI
High-Definition Multimedia Interface provides an uncompressed,
all-digital audio/video connection. HDMI provides the ultimate
connection (Please use a certified
HDMI cable).
L’interface HDMI (High-Definition
Multimedia Interface) propose une
connexion décompressée audio/vidéo entièrement numérique.
HDMI propose l’ultime connexion
(Veuillez utiliser un câble HDMI
certifié).
La interfaz multimedia de alta
definición (HDMI, por sus siglas en
inglés) proporciona una conexión de
audio/video completamente digital
sin comprimir. La HDMI proporciona la mejor conexión (Sírvase
utilizar un cable HDMI certificado).
Better
Excellente
Component Video
input
Entrée vidéo composant
Provides superior picture quality
by separating the green, blue and
red luminance signals. Typically
used with red/white audio cables.
Fournit une qualité d’image
supérieure en séparant les signaux
de luminance vert, bleu et rouge.
Utilisée généralement avec les câbles
audio rouge/blanc.
Remarque: l’entrée vidéo composant
aparaît sur le tableau de connexions
comme YPbPr.
Mejor
Entrada de video
componente
Proporciona calidad de imagen
superior al separar las señales de
luminancia verde, azul y roja. Se usa
normalmente con cables de audio
rojo/blanco.
Nota: La entrada de video componente se muestra en el panel de
conexión como YPbPr.
Good
Bonne
Buena
S-Video
S-Vidéo
S-Video
Supplies a better picture than
RF and Composite connections.
Used with red/white audio
cables.
Fournit une meilleure image que
les connexions RF et composite.
Utilisée avec les câbles audio rouge/
blanc.
Brinda una mejor imagen que las
conexiones RF y compuestas. Se
usa con cables de audio rojo/blanco.
Basic
De base
Básica
Composite Audio/
Video
Audio/Vidéo
Composite
Audio/Video
Compuesto
Separate video (yellow) and audio
(red/white) cables that provide a
basic connection from the cable
box and other devices.
Note: The color of audio inputs
may differ, e.g. red/white or
red/black.
Câbles vidéo (jaune) et audio (rouge/
blanc) séparés fournissant une connexion de base à partir du boîtier de
connexion et autres dispositifs.
Remarque: La couleur des entrées
audio peut varier, par ex. rouge/blanc
ou rouge/noir.
Cables de video (amarillo) y audio
(rojo/blanco), que proporcionan una
conexión básica de la caja de cable y
otros dispositivos.
Nota: El color de las entradas de audio puede diferir, por ej., rojo/blanco
o rojo/negro.
RF
RF
RF
Provides a basic connection for
antenna or cable. Provides both
audio and video.
Fournit une connexion de base pour
l’antenne ou le service et la vidéo.
Proporciona una conexión de
antena o cable básica. Suministra
audio y video.
1
AE: Set-Top Box to TV
FR: Boîtier de décodage
vers téléviseur
ES: De la caja superior
o caja de cable al TV
HDMI
OR/OU/O
Pb
Y
CABLE/
ANTENNA
HDMI
R
VIDEO
RF
Details refer to page 22.
/Détails, consultez la page 22.
/Para detalles, consulte la pag. 22.
2
AE: DVD Player/Recorder to TV
FR: Lecteur DVD/Enregistreur
DVD vers téléviseur
ES: Del reproductor o grabador
de DVD
Pb
CABLE/
ANTENNA
HDMI
R
HDMI
Details refer to page 22.
/Détails, consultez la page 22.
/Para detalles, consulte la pag. 22.
Y
VIDEO
AE: DVD Player or Recorder to TV
FR: Lecteur DVD ou Enregistreur
vers téléviseur
ES: Del reproductor o
grabador de DVD al TV
3
Component Video Input
/Entrée vidéo composant
/Entrada de video
componente
COMP VIDEO
Y
Pr
Details refer to page 22.
/Détails, consultez la page 22.
/Para detalles, consulte la pag. 22.
4
AE: DVD Player/Recorder/VCR
to TV
FR: Lecteur DVD/Enregistreur
DVD/Magnétoscope vers
téléviseur
ES: Del reproductor/grabador de
DVD/VCR al TV
S-Video
/S-Vidéo
/S-Video
Details refer to page 23.
/Détails, consultez la page 23.
/Para detalles, consulte la pag. 23.
C
S-VIDEO
VIDEO
AUDIO
OUT
OUT
OUT
Pb
R
L
5
AE: DVD Player/Recorder/VCR
to TV
FR: Lecteur DVD/Enregistreur
DVD/Magnétoscope vers
téléviseur
ES: Del reproductor/grabador de
DVD/VCR al TV
C
Composite Audio-video
/Audio-Vidéo composite
/Audio-Video compuesto
Details refer to page 23.
/Détails, consultez la page 23.
/Para detalles, consulte la pag. 23.
6
AE: Video Camera /Games
Console to TV
FR: Caméra vidéo/Console de
jeux vers téléviseur
ES: De la cámara de video/
Consola de juegos al TV
Composite Audio-video
/Audio-Vidéo composite
/Audio-Video compuesto
C
Details refer to page 23.
/Détails, consultez la page 23.
/Para detalles, consulte la pag. 23.
7
AE: Audio to Hi-fi System (Digital)
FR: Audio vers chaîne haute fidélité (Numérique)
ES: Audio al sistema Hi-fi (Digital)
SPDIF
Details refer to page 24.
/Détails, consultez la page 24.
/Para detalles, consulte la pag. 24.
IMPORTANT SAFETY INSTRUCTIONS
Read before operating equipment
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any of the ventilation openings. Install in accordance
with the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and third grounding prong.
The wide blade or third prong are provided for your safety. When the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12.
CAUTION: This TV is for use only with Philips’ stand
ST509126G/37 (for TV 50PL9126D/37) or
ST609200G/37 (for TV 60PL9200D/37). Use with other
carts (stands) is capable of resulting in instability causing
possible injury.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15. This product may contain lead and mercury. Disposal of these
materials may be regulated due to environmental considerations. For
disposal or recycling information, please contact your local authorities
or the Electronic Industries Alliance: www.eiae.org
16. Damage Requiring Service - The appliance should be serviced by
qualified service personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a
marked change in performance; or
E. The appliance has been dropped, or the enclosure damaged.
17. Tilt/Stability- All televisions must comply with recommended
international global safety standards for tilt and stability properties
of its cabinet design.
• Do not compromise these design standards by applying exces
sive pull force to the front, or top, of the cabinet which could
ultimately overturn the product.
• Also, do not endanger yourself, or children, by placing electronic
equipment/toys on the top of the cabinet. Such items could
unsuspectingly fall from the top of the set and cause product
damage and/or personal injury.
18. Power Lines - An outdoor antenna should be located away from
power lines.
19. Outdoor Antenna Grounding- If an outside antenna is connected
to the receiver, be sure the antenna system is grounded so as to
provide some protection against voltage surges and built up static charges.
Section 810 of the National Electric Code, ANSI/NFPA No. 701984, provides information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding connectors, location of
antenna-discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode. See Figure below.
20. Object and Liquid Entry
- Care should be taken so that objects do not fall and
liquids are not spilled into the enclosure through openings.
a) Warning: To reduce the risk of fire or electric shock, this apparatus
should not be exposed to rain or moisture and objects filled with
liquids, such as vases, should not be placed on this apparatus.
21. Battery Usage CAUTION - To prevent battery leakage that may
result in bodily injury, property damage, or damage to the unit.
• Install all batteries correctly, with + and - aligned as marked on the
unit.
• Do not mix batteries (old and new or carbon and alkaline, etc.).
• Remove batteries when the unit is not used for a long time.
Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
Example of Antenna Grounding
as per NEC - National Electric Code
English
1.
2.
3.
4.
5.
6.
7.
Contents
A Guide to Digital TV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Use of the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Buttons on the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
My Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2
5
6
6
7
Select the menu language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Store TV channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weak channel installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Software upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
7
8
8
To use the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
How to navigate through the Settings menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Care of the screen
See Care and Cleaning, p. 30.
TV menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
R End of life directives
Philips is paying a lot of attention to produce
environmentally-friendly products in green
focal areas. Your new TV contains materials
which can be recycled and reused. At the
end of its life specialized companies can
dismantle the discarded TV to concentrate
the reusable materials and to minimize the
amount of materials to be disposed off.
Please ensure you dispose off your old TV
according to local regulations.
Recycling
The materials used in your set are either
reusable or can be recycled.
To minimise environmental waste,specialist
companies collect used
appliances and dismantle them after
retrieving any materials that can be used
again (ask your dealer for further details).
Picture menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sound menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Features menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Channels menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PiP (Picture-in-Picture) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Picture Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
15
16
17
20
21
Connect Accessory Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Set-Top Box to TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DVD Player/Recorder to TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DVD Player/Recorder/VCR to TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Video Camera/Games Console to TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio to Hi-fi System (Digital) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To select connected devices and audio and video functions . . . .
Multimedia Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Annex 1 - Philips TV software upgrade with portable memory .
Philips Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
22
23
23
24
24
25
27
29
30
31
32
34
As an Energy Star® Partner, Philips
Consumer Electronics has determined this
product meets the Energy Star® guidelines
for energy efficiency. Energy Star® is a
U.S. registered mark. Using products with
Energy Star® label can save energy. Saving
energy reduces air pollution and lowers
utility bills.
Manufactured under license from Dolby Laboratories.
‘Dolby’ and the double-D symbol are trademarks of Dolby Laboratories.
DLP® and the DLP logo are registered trademarks of Texas Instruments.
Active Control, Auto Picture, Auto Sound are trademarks of Philips Consumer Electronics Company. © 2001 Philips Consumer Electronics.
1
Guide to Digital Light Processing® and Digital TV
What is Digital Light Processing® (DLP)?
Digital Light Processing® is the world’s only all-digital display chip and a key ingredient in the best digital projectors available
today. DLP® technology uses an optical semiconductor to recreate source material with fidelity analog systems cannot match.
What is Digital Television (DTV)?
Digital Television (DTV) is a relatively new type of broadcasting that promises to transform television viewing into a whole new
experience. Digital technology is used to capture images and sound to deliver a better picture quality. DTV technology is also
capable of multicasting and interactive capabilities.
There are many levels of digital television quality. The most common are:
Standard Definition TV (SDTV)
SDTV is the basic level of quality display and resolution for both analog and digital. Transmission of SDTV can be in the
traditional (4:3) or widescreen (16:9) format.
Enhanced Definition TV (EDTV)
EDTV is better in picture quality than analog television. The formats for EDTV are 480p widescreen (16:9) or traditional (4:3).
EDTV is in the middle range quality between SDTV and HDTV.
High Definition TV (HDTV)
HDTV has the highest quality for digital broadcast formats. Its resolution is widescreen format (16:9). Combined with digitally
enhanced sound technology, HDTV sets new standards for sound and picture quality in television.
DTV is by far a more flexible and efficient technology than the analog broadcast system. Analog broadcasts can only provide
one program at a time. Digital television can broadcast a high definition program or more than one standard definition
program at the same time.
Preparation
Do not insert the power plug in a wall socket
before all connections are made.
The major benefit of this DLP® projection television is its large viewing
screen. To see the large screen at its best, test various locations in the
room to find the optimal spot for viewing.
Be sure to allow a minimum of 15 cm of space around the TV.
To avoid cabinet warping, cabinet colour changes, and increased chance of
set failure, do not place the TV where temperatures can become excessively
hot – for example, in direct sunlight or near a heating appliance.
Magnetic fields, such as those of external speakers, may cause the picture
to distort if the speakers are placed too close to the television. Move the
magnetic field source away from the TV until there is no picture distortion.
2
Connections to the TV
Your integrated digital TV automatically decodes and displays the four basic DTV
picture resolution standards.
- SDTV (Standard Definition TV) are broadcast as 480i (480-line interlaced) or 480p
(480-line progressive scan) video.
- HDTV (High-Definition TV) are broadcast either in the 1080i or 720p formats,
always with a widescreen picture.
Note: Progressive scan video (p) is more like that you see in a movie theater. Images are
much more distinct and free of flicker, and motion is smoother.
Next to analog NTSC broadcast reception, your TV has an integrated High Definition
TV tuner which receives, decodes and displays terrestrial ATSC and unscrambled
cable (QAM) signals.
HDTV quality is only reproduced when a broadcaster or cable provider broadcasts
HDTV signals.
Note: Ask your broadcaster or cable box provider to transmit/enable HD content to your
home.
&
There are 2 ways to get HDTV content:
- via cable,
- via antenna.
Note: This drawing is used wherever you can connect cable or antenna.
Via Cable
Connect the cable TV signal to the CABLE/ANTENNA jack at the bottom of
the TV. See page 7 for details on using "Autoprogram" to store channels in the TV’s
memory.
Note: this connection will supply stereo sound to the TV if it is being broadcast by the station
you are watching.
& Cable box with RF IN/OUT
é
CABLE
• Connect the incoming cable TV signal to the cable IN jack 1 on the back of the
cable box.
• Connect a coaxial cable (not supplied) from the TO TV jack on the back of the
cable box to the CABLE/ANTENNA jack 2 at the bottom of the TV.
Note: Your cable box may have a different label for the TO TV jack, such as
OUTPUT or OUT.
• Set the OUTPUT CH switch 3 of the cable box to CH 3 or 4 (whichever is
correct for your cable box), then tune the TV to the corresponding channel.
Once tuned, change channels at the cable box, not the TV.
Note: This connection will not supply stereo sound to the TV. The reason is that the RF
output on a cable box - labeled TO TV, OUT or OUTPUT for example - will not send
a stereo signal to the tuner (VHF/UHF) input on a TV.
é
Watching Cable TV programs that
don’t require the cable box
Since you’ve connected the cable TV signal
directly to the TV’s tuner, you can also watch the
unscrambled programs by simply tuning to the
desired channel. You must first use Autoprogram,
however, to store channels in the TV’s memory.
See page 7.
Note: This connection will supply stereo sound to the
TV if it is being broadcast by the station you are
watching.
Cable box with A/V outputs
• Connect the incoming cable TV signal 1 to a signal splitter (not supplied). The
signal splitter enables you to avoid having to use the TO TV jack on the back of
the cable box. This jack will not supply stereo sound to the TV.
Note: Your cable box may have a different label for the TO TV jack, such as
OUTPUT or OUT.
• Connect a coaxial cable (not supplied) to a connector on the signal splitter and to
the CABLE/ANTENNA jack 2 on the TV.
• Connect another coaxial cable (not supplied) to a connector on the signal splitter
and to the cable IN jack 3 on the back of the cable box.
• Connect A/V cables (not supplied) to the VIDEO and AUDIO L and R outputs
on the back of the cable box and to the AV2 video (labeled VIDEO) and
AUDIO (labeled L and R) jacks 4 on the back of the TV.
• To view programs from your cable box, first press the AV button on the remote
control.
• Press the cursor down or up buttons until the AV2 signal source is selected.
• Press the OK button to confirm your selection. The AV2 input source becomes
current for the viewing of cable TV programs through your cable box.
Note: If your cable box Audio/Video outputs will not supply video and stereo audio to the
TV, you will need to make the connection shown above in the example “Cable box with
RF IN/OUT”.
3
Cable box with S-Video, component video (YPbPr)
or HDMI connectors
See Connect Accessory Devices, p. 22-23.
Via Antenna
Via antenna you can watch whatever DTV programs being broadcast in your area
for free.
If you’re not sure what HDTV programming is available in your area, contact your
local content provider or your local electronics store retailer.
Broadcasters are in the middle of a transition from analog to digital TV. This means
that a given broadcaster will have two channels on the air, one analog and one
digital.
Connect the incoming antenna signal to the CABLE/ANTENNA jack at the
bottom of the TV. See page 7 for details on using Autoprogram to store channels
in the TV’s memory.
Note: This connection will supply stereo sound to the TV if it is being broadcast by the
station you are watching.
Direct Broadcast Satellite (DBS)
Satellite systems offer many of the same premium channels as cable systems, and
often at a lower price. To get these channels, you’ll need to install a small dish
antenna outside.
There are 2 main DBS systems: DirecTV & DishNetwork. These systems require
separate, proprietary set top receiver boxes to decode their signals and send them
to your digital TV set. These boxes may include a digital TV tuner for off-air DTV
broadcasts.
Satellite broadcasters also provide major local channels, depending on the market
in which you live.
DBS also provides service in areas not covered by cable because they are in rural
areas or other areas not passed by a cable line.
DBS also allows you to watch pay-per-view events.
Setting up the TV
Connect all your accessory devices. See p. 22-24.
Refer to the bottom of the set for the correct operation voltage. Insert the
power cord in the wall socket.
Consult your local dealer if your mains supply is different. To prevent damaging the
power cord which could cause a fire or electric shock, do not place the TV on the
cord.
Setting up the remote control
Insert the 2 batteries supplied. Be sure the (+) and (-) ends of the batteries line
up correctly (inside of case is marked.)
The batteries supplied do not contain the heavy metals mercury and cadmium. Please
check on how to dispose of exhausted batteries according to local regulations.
Turn the TV on
From main supply:
Ensure that the main supply is turned on.
Press the power switch . at the front of the TV.
An blue indicator light on the front of the TV lights up.
Note: When the TV is turned on by the main supply, the blue indicator light will blink
for 45 seconds. This is the lamp's start-up period. When the light goes off, press the
POWER button on the remote control or power switch . to turn on the TV.
From standby:
Press the POWER button on the remote control.
4
Use of the remote control
Note: For most buttons pressing a button once will activate the function. Pressing a second time will de-activate it.
When a button enables multiple options, a small list will be shown. Press repeatedly to select the next item in the list. The list will be removed automatically
after 6 seconds or press OK to remove immediately.
DVD/R CBL TV VCR AUX
POWER button
Press the SELECT button repeatedly to
select one of the mode. If no action
is taken within 60 seconds, the remote
control returns to TV mode. After a
mode is selected, it will remain for 60
seconds before it return to TV mode
again. Recommendation:
TV for TV
DVD/R for DVD Recorder
CBL for Integrated receiver decoder
VCR for Philips VCR
AUX for Analog audio tuners
Press to turn on/off the TV from or to
standby mode.
Note: When the TV is turned on by the
main supply, the blue indicator light will
blink for 45 seconds. This is the lamp’s
start-up period. When the light goes off,
press the POWER button on the remote
control or power switch . to turn on the
TV.
button
Multimedia browser functional buttons
(p.25).
Δ Æ ¢ and ∫ button
Functional buttons for audio/video (p.24)
and Multimedia browser (p. 26).
DEMO button
Demo menu on/off (p. 9).
PIP button
CLOCK button
PiP (Picture-in-Picture) functional buttons
(p.20).
On/off and Time display (for max. 10
minutes)
OK - to activate a setting
(Color) buttons
- to display the list of channels stored
(according to the selection made in
the Installation mode: Antenna or
Cable (p. 7).
When functions attached to the color
buttons, the color buttons are shown
on screen.
button
MY CONTENT button
"My Content" menu on/off (p. 6).
No function.
• (cursor) buttons
CH/PAGE +/– Channel selection button
- To browse through the TV channels or
sources stored in the preferred channel
list (p. 19).
- To select between Antenna or Cable TV
channels, first make your selection in the
Settings menu (p. 7).
Note: You don’t have to start the installation
again once you have searched for and stored
the available TV channels.
Press the cursor buttons up/down,
left/right to navigate through the menus.
MENU button
Settings menu on/off (p.9).
VOL +/– button
Press + or - to adjust the volume.
0 to 9 (NUMERIC) buttons
To select TV channels or enter values in
the on-screen menu. For single channel
entries, press the numbered button
for the channel you desire. The TV
will pause for a second or two before
changing to the chosen channel.
MUTE button
To turn on/off sound.
ACTIVE CTRL (CONTROL) button
Press this button turn on/off
Active Control function.
CC (CLOSED CAPTION) button
Press to display the transmitted closed
caption text on the screen.
– button
To enter values for minor channels e.g.
36.4
AV button
Press this button repeatedly to select
AV1, AV2, AV3, HDMI, SIDE or TV
when in TV mode, according to where
you connected the accessory devices
(p. 22-24).
*INFO
Display information: Press to display
(when available) information about the
selected TV channel and program or
accessory device.
A/CH
Press to alternate between the currently
viewed channel and the previously viewed
channel.
* The quality and accuracy of the
information on the information
banner are transmitted from broadcasters. You may see a difference in
broadcast time if the broadcaster is
from a different time zone area.
· button
Audio/video functional button (p. 24).
FORMAT
Press this button to display a list of
available display formats (depending on
the receiving signal). Refer to the section
on "Picture format"(p. 21).
5
Control Buttons on the TV
Should your remote be lost or broken you can still change some of the basic
settings with the buttons on your TV.
Press the power switch . to switch the TV on.
Press:
• the VOLUME + or − button to adjust the volume;
• the CHANNEL ≤ or ≥ button to select the TV channels or sources.
The MENU button can be used to summon the Settings menu without the
remote control.
Use:
• the VOLUME + or − button to select left/right menu items and the CHANNEL
≤ or ≥ button to select up/down menu items;
• the MENU button to confirm your selection.
Note:
• If the lamp indicator is red, this means that the lamp has failed.
• If the temperature indicator is red, this means that the internal temperature is too
high.
Refer to the "Troubleshooting Tips" on p. 28 for steps you could take.
• At power off, the power standby button flashes quickly for 10 seconds (at which you
could switch TV on again via power button on the remote control or TV), flashes slowly
for approximately 50 seconds and then turns off.
My Content
Television
TV Channels
Multimedia USBDevice
The My Content menu (and the underlying Multimedia browser) is intended to
contain all content, services, applications you are interested to consume.
& Press the MY CONTENT button to activate.
é Press the cursor up/down to move the highlight up and down in the list of
menu items.
“ Press the cursor right to go deeper into the structure.
• Television:
TV channels leading to the list of TV channels; the left panel will contain
the analog channel numbers, the one-part channel numbers and the major
channel numbers in case of two-part digital channels. The right panel will
contain the available subchannels associated with the major channel that is
currently highlighted on the left panel. If there are no subchannels associated
with the currently selected channel in the left panel, the right panel will
remain empty.
• Multimedia
Contains the locally connected devices on which content (pictures, audio
files) is stored. See Multimedia browser, p. 25.
6
Installation
Settings
Installation
Language
Autoprogram
Select the menu language
4
Language
English
Francais
Weak channel installation
Espanol
Software upgrade
3
& Press the MENU button on the remote control.
é Use the cursor down button to select Installation in the Settings menu.
“ Use the cursor right button to enter the Installation menu.
‘ Select Language and enter the list of available languages with the cursor
right button.
( Select your language with the cursor up/down buttons and press OK to
confirm your selection.
Press the cursor right to select your menu language.
§ Proceed with the Installation menu.
Store the TV channels
Television installation
Installation mode
Antenna
Cable
& Select Autoprogram in the Installation menu.
Please select your
installation mode.
é Use the cursor right button to enter the Autoprogram menu.
“ Press the OK.
‘ Select Cable or Antenna in the Installation mode.
Previous
Next
Television installation
You can now start automatic installation. This
procedure can take more than half an hour.
Previous
Start
When Antenna is selected, the TV will detect antenna signals and will
search for antenna TV (NTSC and ATSC) channels available in your local
area.
When Cable is selected, the TV will detect cable company supplied signals
and will search for cable TV (NTSC, ATSC, QAM modulated) channels
available in your area.
Make sure you complete registration with your cable TV provider and
connection of equipment.
( Press the green button “Next” on the remote control.
Note: All channels must be unlocked in order to autoprogram. If requested, enter
your PIN code to unlock all channels. See section on Menu preferences under
Settings, TV menu.
§ Press the green button “Start” to start autoprogramming.
The menu screen disappears and the progress of autoprogramming is
displayed. The progress bar indicates the number of analog and digital TV
channels found.
When Autoprogramming is complete, a message appears confirming the
completion. Press the red button "Finish" and the screen returns to the
Installation menu.
Tips:
• When you have locked TV channels while initiating autoprogram, a message appears asking to enter your PIN code in order to complete autoprogramming.
• When interrupted, the updated channel information is retained as well as the old channel information that were not updated.
• Background autoprogramming occurs only when the TV is turned on.
• Channel information of an ATSC channel is updated only for the ATSC channel currently tuned.
• If an NTSC channel is tuned, then in Background Autoprogramming the TV will scan all the possible ATSC frequencies and update information.
• Weak channel installation : This allows you to manually tune weak ATSC channels in order to adjust the antenna and thus optimize signal quality for that
channel. (See Installation menu, Weak channel installation, p. 8.)
• Once you have searched for the available Antenna as well as the Cable TV channels, they are stored in the memory.
7
Digital Channel selection delay
Due to the tuning complexity of subchannel digital
programming, the time to select and view a digital
channel may take slightly longer than what the viewer
is normally accustomed to (as compared to analog
channel programs).
Digital channel broadcasts contain program and
system data information that must be processed
before the channel selection can be displayed.
When you tune an audio-only digital subchannel, a display appears with the
message Audio only.
Subchannel selections
The new standards employed with digital broadcasting make it possible to receive
multiple program channels under a single major channel number which can be
selected by pressing the digit remote control direct-access channel number entry.
Television installation
Channel search completed.
Digital channels found :
Analog channels found :
Channel tuning
Available channels:
- Cable (analog NTSC or digital QAM): max. from 1 to 135
- Antenna (analog NTSC or digital ATSC): max. from 2 to 69
If a tuned channel is not yet in the master channel map, the TV will attempt
to tune the channel and it will be added to the map.
If the channel is not acquired, a message will appear that the channel is not
available.
0
3
Tip:
After the installation of the TV channels has been done, always make a selection
in the Installation menu between Antenna or Cable whether you want to watch
Antenna TV channels or Cable TV channels.
If you make use of a signal splitter do not forget to put the switch in the
corresponding position.
Finish
Weak channel installation
Settings
Installation
Language
Autoprogram
4
Weak channel installation
2
3
This enables you to do a weak ATSC digital channel installation. This is only
available for TV channels installed via an antenna connection (see section on
Preparation, under Antenna).
Weak channel installation 4
5
6
7
8
9
Software upgrade
This allows you to maximize the signal quality of weak channels by
manually rotating the antenna.
Settings
Installation
Language
Autoprogram
“ The signal strength is displayed and updated continuously as you rotate the
antenna.
Software upgrade
4
Software upgrade
2
Current software info
Local upgrades/app...
Weak channel installation
Software upgrade
This allows you to upgrade new TV software if available.
8
& If a certain channel you expect to see is not tuned or is weak, you can install
it manually. Call your local broadcasting station to check what channel is
being transmitted to.
é Select that channel in the displayed list of TV channels (in the antenna mode).
This menu allows you to upgrade your TV software using a USB device.
USB upgrade
It is possible to initiate an upgrade procedure from a USB portable memory.
The memory device must be stored with the appropriate upgrade image (and
structure) which can be found on the www.philips.com/usasupport website.
How to upload a new software version on your portable memory device, see
Annex 1, under Philips TV software upgrade with portable memory.
To use the menus
Introduction
A lot of guiding instructions, help texts and messages will be displayed on your TV when using the menus or when trying to execute an action.
Please, follow the instructions and read the help text which are being displayed on the specific item highlighted.
The color buttons refer to different actions which may be executed depending on the activated device. Press the corresponding color button
on the remote control to perform the required action.
Settings
TV
Setup
Installation
5
Demo
Exit
TV
Sound
Features
Channels
4
How to navigate through the Settings menus
The Settings menu allows you to access and change settings and preferences.
&
-
This gives you an overview of the menus you can select.
-
Settings
TV
Sound
Features
4
Auto picture
Contrast
13
Brightness
Color
Sharpness
Color temperature
Digital processing
Dynamic contrast
Channels
é
-
Press the MENU button on the remote control to call up the Settings
menu.
On the left panel the highlight can be set on a menu item with the cursor
up/down button.
The right panel shows the content of the highlighted menu item in the left
panel.
Note: Sometimes not all the menu items are visible on the screen. The numbers
at the top of the menus indicate the number of items on the menu. Use the
cursor down button to reveal all items.
Use the cursor right button to enter the right panel.
The contents of the right panel are displayed on the left panel and the
right panel shows the contents of the newly highlighted items in the left
panel.
Note: In some cases it is important that the picture can be viewed while
adjusting the settings. This means when the highlight bar is on the right panel,
the other menu items are hidden. When the cursor left key is pressed again,
the hidden menu items re-appear and the highlight bar is displayed on the left
panel.
Press the cursor left button to go one menu level up again.
Press the OK button on the highlighted item to activate and to exit the
menu.
Press the MENU button again to exit the Settings menu.
Note: You can exit the menu by pressing one of the color buttons (if present)
referring to certain actions which may be executed.
The picture menu contains the settings that affect the quality
of the picture.
Demo
Settings
TV
Setup
Installation
Demo
Exit
5
Demo
Pixel Plus
Active Control
2
The Demo menu gives you an idea of the features that come with the
television set.
& Select Demo in the Settings menu or press the DEMO button. Press the
cursor right button to enter Demo mode.
é Highlight a desired demo with the cursor up/down buttons.
“ Press OK button to start playing the highlighted demo.
Press the green button to automatically run all demos in sequence.
Note: The selected demo is played continuously until you press the DEMO button.
Press the red button to stop the auto run function.
Press the red button again to exit the demo and to return to TV mode.
This menu demonstrates TV feature.
9
Setup menu
Settings
Settings
This menu is used to control the settings of special TV functions, features and
accessory devices.
5
Setup
4
Preferences
Source
TV
Setup
Installation
Demo
Exit
Clock
Convergence
The Preferences menu allows you to change settings that will be accessed
only occasionally.
The Source menu allows you to select a source.
The Clock menu allows you to use your TV as a clock. This setup is
necessary for the correct working of the Lock after feature.
This menu is used to control settings of special TVfunctions,
features and accessory devices.
Preferences
Settings
Setup
4
Preferences
Source
Clock
Convergence
Preferences
4
Picture/sound prefe...
Features preferences
Menu preferences
Reset AV settings
& Press the MENU button.
é Select Setup with the cursor down button and press the cursor right
button to select the Preferences menu.
“ Press the cursor right button again to select Picture/sound preferences.
‘ Press the cursor right button again to enter the Picture/sound
preferences menu.
This contains items that can set or adjust various special TV
functions.
Picture/sound preferences
Settings | Setup
Preferences
4
Picture/sound prefere... 1
Picture/sound prefere... Auto surround
Features preferences
Menu preferences
Reset AV settings
Auto surround
Sometimes the broadcaster may transmit special signals for Surround
sound encoded programs. The TV automatically switches to the best
surround sound mode when Auto surround is turned On.
This menu allows you to setup or to select some picture and
sound related setting preferences.
Features preferences
Settings | Setup
Preferences
4
Picture/sound prefere...
Features preferences
Menu preferences
Reset AV settings
Features preferences 3
Caption service
Digital caption service
Digital caption options
This menu allows you to setup or to select some feature
related setting preferences.
10
Caption service
This allows you to select the closed caption service levels of analog
broadcasting to be displayed.
Closed captioning allows you to read the voice content of television
programs on the TV screen. Designed to help the hearing impaired, this
feature uses on-screen ‘text boxes’ to show dialogue and conversations
while the TV program is in progress. Captions will appear on the screen
during captioned broadcasts.
The captions are not necessarily always correct in spelling and grammar. Not
all TV programs and product commercials are made for broadcast with Closed
Caption information included. Refer to your area’s TV program listings for the TV
channels and schedule of Closed Caption shows. The captioned programs are
usually noted in the TV listings with service marks such as ‘CC’.
Settings | Setup | Preferences
Features preferences 3
Caption service
Digital caption service
Digital caption options
Caption service
CC-1
CC-2
CC-3
CC-4
T-1
T-2
T-3
T-4
8
You can choose the Closed captions service level to be displayed.
& Select Caption service.
é Press the cursor right button.
“ Select the desired Caption service:
• CC-1, CC-2, CC-3, CC-4
Dialogue (and descriptions) for the action on the captioned TV program
shows on screen.
Usually CC 1 is the most frequently used. CC 2 may be used for alternate
languages if they are being transmitted.
• T-1, T-2, T-3 or T-4
Often used for channel guide, schedules, bulletin board information for
Closed captioned programs, news, weather information or stock market
reports.
Not all Captioned services are necessarily being used by a TV channel during
the transmission of a closed caption program.
Note: This television provides display of television closed captioning conforming with
the EIA-608 standard and in accordance with Sections 15.119 of the FCC rules.
Digital caption service
This allows you to configure the way you choose to view the digital captioning.
Select one of the digital service channels made available by the caption provider.
There are 6 standard services. Service 1 is designated as the Primary Caption
Service. This service contains the verbatim, or near-verbatim captions for the
primary language being spoken in the accompanying program audio.
Service 2 is designated as the Secondary Language Service. This service contains
captions in a secondary language which are translations of the captions in the
primary Caption Service. The other service subchannels are not pre-assigned. It
is up to the discretion of the individual caption provider to utilize the remaining
service channels.
Settings | Setup | Preferences
Features preferences 3
Caption service
Digital caption service
Digital caption options
Digital caption service 6
CS-1
CS-2
CS-3
CS-4
CS-5
CS-6
Digital caption options
This allows you to modify how digital captions are displayed on your TV.
Select from the following options to change the visual characteristics of your
TV’s digital captioning.
• Reset to default
Select this option to reset the digital caption options back to the captions
provider default settings.
Press OK to confirm.
• Size
Select this option to choose the size of of caption display according to your
own preference.
Select Default (Automatic), Small, Standard or Large and press OK
to confirm.
• Style
Select this option to select the font style of caption display according to
your own preference. Select from Default, Monospaced serif, Serif,
Monospaced sans serif, Sans serif, Casual, Cursive or Small caps...
• Text
Select this option to choose the text color or the opacity of the text box
of caption display according to your own preference.
Select a color and one of the opacity options.
• Background
Select this option to choose the character background color or one of
the background opacity options of caption display according to your own
preference.
Select a color and one of the opacity options.
This allows you to select one of the digital service channels made
available by the individual caption provider.
Settings | Setup | Preferences
Features preferences 3
Caption service
Digital caption service
Digital caption options
Digital caption options 5
Reset to default
Size
Style
Text
Background
These options allow you to select a variety of character font representations, text color and sizes and other attributes.
Settings
TV
TV
Sound
Features
Channels
4 Features
2
Closed captions
Sleeptimer
Settings | TV
Features
Closed captions
Sleeptimer
2 Closed captions
Off
On
On during mute
3
The features menu gives you control over special, additional
functions.
This displays the transmitted CC-text on the TV screen according
to your chosen CC service. This text can either be permanently
displayed, or only when mute is active.
&
é
“
‘
(
To display the transmitted CC-CS-text on the screen according to your chosen
CC or CS service, use the Closed captions option in the Feature menu. This
text can either be permanently displayed (assuming that the service is available
in the broadcast) or only when mute is active.
Select Features in the TV Settings menu.
Press the cursor right to enter the features menu.
Select the menu items with the cursor up/down and adjust the settings with the
cursor left/right.
Press the cursor right after having selected Closed captions.
Select On, Off or On during mute.
11
Menu preferences
Settings | Setup
Preferences
4
Picture/sound prefere...
Features preferences
Menu preferences
Menu preferences
On Screen display
3
OSD
Show emergency al...
Change PIN
Reset AV settings
Settings | Setup | Preferences
Preferences
3 OSD
Normal
OSD
Show emergency alerts Minimum
This menu allows you to setup or to select some menu
Change PIN
related setting preferences.
2
You can select the display of the volume bar and a reduced or an
extended on screen display of program and channel information.
Settings | Setup | Preferences
Menu preferences
3 Show emergency al... 3
Always
OSD
Show emergency alerts Skip low priority
Change PIN
Skip medium/low pri...
You can select the display of the volume bar and a reduced or an
extended on screen display of program and channel information.
Tips:
Emergency Alert Signalling is not possible:
- when content browsing;
- with analogue video sources.
- You always have the possibility to remove the message from the
screen.
- The message display will overlap whatever menu element or other
message is on the screen.
Caution! If you have forgotten your PIN!
& Select Change PIN in the Menu preferences menu and
& Select OSD.
é Press the cursor right button to select Normal or Minimum.
Normal to activate the continuous display of the channel number (for max.
10 minutes) and extended display of TV channel and program information
on screen. E.g. information on the main or auxiliary program, input signal
quality of connected accessory devices, the display format, sound mode,
availability of Closed Caption service, the audio language, the rating,
sleeptimer setup.
Minimum to activate the display of reduced channel information.
Note: When Closed Captions is turned on, continuous display of the channel
number and clock is not possible.
Show emergency alerts (EAS)
This allows you to select the alert priority level of the information
disseminated by the cable operator. The standard SCTE18 defines an
Emergency Alert signalling method for use by cable TV systems to signal
emergencies to digital devices such as digital set-top boxes, digital TVs and
digital VCRs.
The Emergency alert signalling scheme defined in the standard allows a
cable operator to disseminate emergency alert information related to state
and local-level emergencies and warnings in a cost-effective and efficient way,
while minimizing disruption of programming.
An Emergency alert message will have one of the following priorities:
Low, Medium, High or Maximum.
The Emergency alert message with priority High or Maximum will always
be presented. Low or Medium will be present or ignored depending on
the selected setting.
Caution! When the TV clock is undefined (See section on Clock), the Emergency
Alerts will be ignored.
The Emergency Alert message display will contain following information:
- The Emergency Alert text
- The start time + date
- The end time + date.
& Select Show Emergency Alerts in the Menu preferences menu.
é Press the cursor right button and select one of the Emergency alerts
options:
- Always, when you always want the Emergency alert messages to be
displayed when available;
- Skip low priority, when you want the messages with low level to be
ignored;
- Skip low/medium priority, when you only want the messages with high
priority to be displayed.
press the cursor right.
é Press the cursor right to enter the overriding PIN code
0-7-1-1.
“ Press the cursor again and enter a new personal 4-digit
PIN code. The previous code is erased and the new PINcode is stored.
Settings | Setup
Preferences
4
Picture/sound prefere...
Features preferences
Menu preferences
Reset AV settings
Reset AV settings
Start now
This resets the picture and sound settings to their predefined
factory values, but maintains the channel installation settings.
12
Set/Change PIN
& Select Set or Change PIN with the cursor down button.
é If no PIN-code exists, the menu item is set to Set PIN. Follow the
instructions on screen.
If a PIN-code has previously been entered, the menu item is set to Change
PIN. Follow the instructions on screen.
All number combinations from 0000 to 9999 are valid numbers.
“ The Menu preferences menu reappears with a message confirming that
the PIN has been created.
Reset AV settings
This function allows you to reset most of the picture and sound settings to
their predefined factory states.
& Select Reset AV settings with the cursor down button.
é Press the cursor right button.
“ Press OK button to erase settings and reset them to their default values.-
Source
Settings
Setup
4
Source
This menu allows you to identify the accessory devices you have connected to the
external input/output.
6
AV 1
AV 2
Preferences
Source
Clock
Convergence
& Select Source in the Setup menu.
é Press the cursor right button to enter the list of types of devices connected to the
AV 3
HDMI
Side
Analog Audio In
selected input.
“ Select the accessory device with the cursor up/down buttons.
DVD
SAT
When you select AV1, AV2, AV3, HDMI, Side or Analog Audio In, a list appears
allowing you to identify which type of accessory device is attached to this input. The
TV detects the presence of the connected device and the signal is routed accordingly.
Once you have selected the source type, e.g. DVD, this source will automatically be
selected when your remote control is in DVD mode, (see section on Use of the
remote control), and when you press the AV button on the remote control.
Game
Digital STB
PVR
HD
Cable
The TV can output Digital audio via the DIGITAL AUDIO OUT(SPDIF OUT)
connector to an external amplifier or receiver.
If your amplifier or receiver has a matching connector for Digital Audio In, you can
connect it with a single cable to the TV’s DIGITAL AUDIO OUT(SPDIF OUT).
See section on Digital Surround Receiver.
Settings | Setup
Source
6
AV 1
AV 2
AV 3
HDMI
Side
Analog Audio In
AV 1
8
Other
Clock
Settings
Setup
Preferences
Source
Clock
Convergence
4
Clock
6
Auto clock mide
Auto clock channel
Time
Day
Time zone
Daylight saving
This allows you to use your TV as a clock.
- Adjusting the clock is necessary for the correct working of Lock after features.
(See section on TV settings, under Channels menu)
- Closed captioning will not be displayed when the clock is being displayed. Press the clock
button again to switch off the clock if you want to see closed caption.
Auto clock mode
& Select Clock in the Setup menu.
é Press the cursor right button to select the Auto clock mode.
“ Press the cursor right button to instruct the TV to get the time automatically or
manually.
Auto clock channel (only available when Auto clock mode is set to Automatic)
With the cursor buttons, select the channel number where time can be found by the
TV.Typically time can be found on PBS as well as some other channels.
Note: If Manual has been selected in the Auto clock mode, the Auto clock channel menu
item can not be selected.
Time - Day (only available when Auto clock mode is set to Manual)
With the cursor buttons, select and enter the correct time and day.
If Auto clock mode Manual has been selected, and no clock search has been done,
the system will retain the entered time and day.
Most of the TV channels do not transmit clock
information. There are a few cable channels that do
but they are at the end of the channel ring. There is
no clock transmission in antenna channels. In such
cases, either clock extraction takes a long time, or
there is no clock.
Time zone (only available when Auto clock mode is set to Automatic)
This function allows you to select your local time zone. Broadcast time information
will auto correct the clock display for your local time.
& Select Time zone with the cursor down button.
é Press the cursor right button to select your local time zone.
Daylight saving (only available when Auto clock mode is set to Automatic)
Daylight saving time is automatically set by specially broadcast signals. This menu item
allows you to disable the automatic setting of daylight saving time. This is useful if you
live in an area or state where daylight saving is not applied, but you receive channels
from other areas where daylight saving signals are broadcast.
& Select Daylight saving with the cursor down button.
é Press the cursor right button to select Automatic for automatic clock correction
for daylight saving time, based on specially broadcast signals.
“ Select Off to disable automatic clock correction based on the specially broadcast
signals.
13
TV menu
Press the MENU button on the remote control to display the Settings menu. The
TV menu gives you an overview of the menus you can select.
Note: Depending on the input signal, one or more menu items may not be selectable.
Settings
TV
Setup
Installation
5
TV
Sound
4
Settings
Channels
4
Auto picture
Contrast
Press the cursor right button to select Picture.
Press the cursor right button again to enter the Picture menu.
Select the menu items with the cursor up/down buttons.
Adjust the settings with the cursor left/right buttons or enter the list of
submenu items with the cursor right button. Select a submenu item with the
cursor up/down buttons.
Auto picture
This gives you an overview of the menus you can select.
TV
Sound
Features
Note: Some menu items are not available in case of HD sources.
&
é
“
‘
Features
Channels
Demo
Exit
Picture menu
13
Brightness
Color
Sharpness
Color temperature
Digital processing
Dynamic contrast
The picture menu contains the settings that affect the quality
of the picture.
Select Auto picture to display a list of predefined picture settings, each
corresponding with specific factory settings.
Personal refers to the personal preference settings of picture in the picture
menu.
Note: This Philips TV has been set at the factory to look best in bright store
environments which typically use fluorescent lighting. As your home will likely not be
as well lit as a store, we recommend that you cycle through the various auto picture
modes to find the one that best suits your own viewing conditions. Most consumers
will find that Natural is the correct choice.
Contrast
This will adjust the intensity of bright areas of the picture but keep the dark
areas unchanged.
Brightness
This will adjust the light output of the complete picture, which will mainly affect
the darker areas of the picture.
Color
This will adjust the saturation level of the colors to suit your personal
preference.
Sharpness
This will adjust the sharpness of fine details in the picture.
Color temperature
This will increase or decrease Warm (red) and Cool (blue) colors to suit
personal preferences.
Select Cool to give the white colors a blue tint, Normal to make the white
colors neutral, Warm to give the white colors a red tint.
Digital processing
• Standard = line doubling eliminates the flicker.
• Pixel Plus = for everyday viewing, Pixel Plus is the most ideal setting, as it
fully processes the image to enhance every single pixel, improving contrast,
sharpness, picture depth, and color reproduction and brilliance from every
source, including High Definition.
Standard mode is recommended only for very noisy or poorly mastered
sources or for those who find the smoothness of Pixel Plus (which eliminates
judder in the picture) unsettling.
Dynamic contrast
Automatically makes the contrast in the darker and the brighter picture areas
more noticeable as the image on the screen changes.
Normally you would select Maximum. Or you may be prefer to select
Minimum or Off.
& Press the cursor right button to enter the list.
é Select one of the settings with the cursor up/down buttons.
“ Press the cursor left to return to the picture menu.
14
DNR (Digital Noise Reduction)
Settings | TV
Brightness
Color
Sharpness
13 DNR
Off
50
Minimum
67
4
Color temperature
Digital processing
Dynamic contrast
DNR
Color enhancement
4
Medium
Maximum
Automatically filters out and reduces the image noise and improves picture
quality when receiving weak video signals.
& Press the cursor right button to enter the list.
é Select Off, Minimum, Medium or Maximum according to the image
noise.
“ Press the cursor left button to return to the picture menu.
Color enhancement
This sets the level at which noise is measured and reduced in
the picture.
When activated, this feature automatically controls green enhancement and
blue stretch. It makes the colors more vivid.
& Press the cursor right button.
é Select On or Off in order to activate/de-activate Color enhancement with
the cursor right button.
Tint
Allows you to select the color mix (hue) of the picture.
Picture format
This menu item performs the same as the FORMAT button on the remote
control. See section on Use of the remote control.
Active Control
Settings | TV
13
Color temperature
Digital processing
Dynamic contrast
DNR
Color enhancement
Tint
0
Picture format
Active control
Active Control
Off
Minimum
4
&
é
“
Medium
Maximum
‘
The TV continuously measures and corrects all incoming signals in order to
provide the best picture possible.
Select Active Control.
Press the cursor right button to enter the list of Active Control values.
Press the cursor right button repeatedly to select the Active Control values
Off, Minimum, Medium or Maximum.
The picture settings are being optimized continuously. These menu items
cannot be selected.
Press OK button or wait for timeout to exit the Active Control display.
With Active Control the TV continuously measures and corrects
all incoming signals in order to provide the best picture possible.
Select the Active Control level.
Sound menu
Settings
TV
Sound
Features
Channels
4 Sound
8
Auto sound
Volume
Balance
Sound mode
Alternate audio
Digital audio language
Mono/Stereo
AVL
& Select Sound in the TV Settings menu.
é Press the cursor right button to enter the sound menu.
“ Select the menu items with the cursor up/down buttons and adjust the
settings with the cursor left/right buttons.
Control settings are at normal mid-range levels when the bar scale is
entered.
Auto sound
Select Auto sound to display a list of predefined sound settings, each
corresponding to specific factory settings of Treble and Bass.
& Press the cursor right button to enter the list.
é Press the cursor up/down buttons to select a predefined sound setting.
Personal refers to the personal preference settings of sound in the sound
menu.
The moment you are in a predefined Auto sound setting and you modify a setting
in the Sound menu, all values of the menu will overwrite the previously made
personal setting.
Volume
This will adjust the sound output level.
Balance
This will adjust the output of the right and left speakers to obtain the best
stereo reproduction for your listening position.
15
Sound mode
Settings | TV
Sound
9
Volume
25
Balance
0
Sound mode
Alternate audio
Digital audio language
Mono/stereo
AVL
Delta volume
This selects the modes for stereo or surround sound reproduction dependent on
the broadcast signals or signals from external inputs received.
Sound mode
2
Stereo
Virtual Dolby Surround
Alternate audio (only selectable with analog broadcast signals)
This gives you the possibility to swap between the Main and Second Audio
Program (SAP) when it is available.
Digital audio language (only selectable with digital broadcast signals)
This allows you to select your language preference in case of multilingual audio
track programs.
Note: The default language for the digital channels is the installed menu
language.
This selects the modes for more spatial or surrouns sound
reproduction.
Mono/Stereo (only selectable with digital broadcast signals)
This selects, per TV channel, Mono or Stereo sound.
Settings | TV
Sound
9
AVL (Automatic Volume Leveler) (only available with analog
broadcast and non- Digital signals)
Delta volume
Volume
14
Balance
0
Sound mode
Alternate audio
Digital audio language
Mono/stereo
AVL
Delta volume
This automatically reduces the volume differences between channels and programs,
providing a more constant overall level. This will also reduce the dynamics of
sound.
Delta volume
This allows you to correct for any permanent volume differences between TV
channels or external sources.
This allows you to correct for any permanent volume differences
between TV channels or external sources.
Features menu
Settings
TV
4 Features
Closed captions
Sleeptimer
TV
Sound
Features
Channels
& Select Features in the TV Settings menu.
é Press the cursor right to enter the features menu.
“ Select the menu items with the cursor up/down and adjust the settings with the
cursor left/right.
2
Settings | TV
Features
Closed captions
Sleeptimer
2 Closed captions
Off
On
On during mute
3
The features menu gives you control over special, additional
functions.
This displays the transmitted CC-text on the TV screen according
to your chosen CC service. This text can either be permanently
displayed, or only when mute is active.
Closed captions
This displays the transmitted CC- or CS-text on the screen according to your
chosen CC or CS service in the Setup, Features preferences menu,
p. 10. This text can either be permanently displayed (assuming that the service is
available in the broadcast) or only when mute is active.
& Press the cursor right after having selected Closed captions.
é Select On, Off or On during mute.
Settings | TV
Features
2
Sleeptimer
Sleeptimer
Closed captions
Sleeptimer
35
This sets a time period after which the TV automatically turns to standby.
& Select Sleeptimer.
35 Min
é Press the cursor right.
“ Select a value with the cursor up/down. The list will have values from 0 to 180
minutes.
When 0 is selected, the sleeptimer is turned off.
You can always turn off your TV earlier or select another time set.
This sets a time period after which the TV automatically turns to standby.
Manufactured under license from Dolby Laboratories.
‘Dolby’ and the double-D symbol are trademarks of
Dolby Laboratories.
16
Channels menu
Settings
TV
Sound
Features
Channels
4 Channels
7
Lock after
Channel lock
TV ratings lock
Movie ratings lock
Preferred channels
Region ratings lock
Clear region ratings
This menu can control special functions for the TV channels.
& Select Channels in the TV settings menu with the cursor up/down.
é Press the cursor right to enter the channels menu.
“ Press the cursor up/down to select a channels menu item.
Lock after
Note: Lock after is only selectable if time is known. See Setup, Clock menu, p. 13.
This allows you to prevent the viewing of the channels after a selectable time
delay. Locked channels can still be tuned, but the picture is blanked and the audio
is muted.
This menu can control special functions for the TV channels.
Settings | TV
Channels
Lock after
7
Lock after
Please enter your PIN.
Channel lock
TV ratings lock
Movie ratings lock
Preferred channels
Region ratings lock
Clear region ratings
& Press the cursor right and you will be prompted to enter your PIN.
é Enter your 4-digit PIN code and select Timer On or Off.
When set to On this allows you to set the clock.
“ Select Time and press the cursor right. This allows you to set the time after
which the lock is set.
‘ Select AM or PM to select the correct period of the day.
( Enter the time with the digit or the cursor buttons and press OK to confirm.
Caution! If you have forgotten your PIN!
& Select Change PIN in the Menu preferences menu on p. 12 (Set/Change
PIN) and press the cursor right.
é Press the cursor right to enter the overriding PIN code 0-7-1-1.
“ Press the cursor again and enter a new personal 4-digit PIN code. The
previous code is erased and the new PIN-code is stored.
This allows you to activate the childlock after a selectable time
delay.
Channel lock
This allows you to completely lock a certain TV channel or external source.
Select the channels or subchannels you want to lock and press OK to confirm.
Settings | TV
Channels
7
Lock after
Channel lock
TV ratings lock
Movie ratings lock
Preferred channels
Region ratings lock
Clear region ratings
TV ratings lock
Please enter your PIN.
TV ratings lock
x x x x
&
é
This allows you to limit access to individual programs based on
their TV ratings and broadcast V-chip information.
“
Settings | TV | Channels
TV ratings lock
All
None
8
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
This allows you to limit access to individual programs based on
their TV ratings and broadcast V-chip information.
‘
(
Your TV is equipped with a V-chip. This allows you to control access to individual
programs based on their movie and TV ratings. All settings apply to all AV inputs,
except HDMI. The program content advisory data are sent by the broadcaster
or program provider.
Select TV ratings lock with the cursor down.
Press the cursor right to enter the list. You are asked to enter your code. (See
Set/Change PIN, p. 12.) If the code is correct, a list appears, showing the agebased TV ratings and a corresponding content-based ratings list.
Select an age-based TV rating with the cursor up/down, and enter, if present, the
list with content-based ratings with the cursor right, and select one contentbased rating.
Press OK to activate/de-activate the selected rating.
Select another content-based rating if you like and press OK again.
You need only enter your PIN-code once while the menu is active.
You can lock/unlock any number of ratings on the list without re-entering your code.
Each ratings item has a box-graphic in front of it to indicate whether or not
programs carrying that rating are currently locked:
• box with a 'X': all items in the contents-based list are locked as well;
• empty box: the item is unselected;
• box with a '/': some content-based ratings are selected/unselected.
17
When All has been selected, all items in the age-based and in the contents-based
lists are locked.
If, while All is selected, any other item, either an age-based or content-based item, is
unselected, then All is automatically unselected.
Age-based
Rating
Content-based
Rating
All
none
None is the selection for items that either have no rating information or have a
rating of None. Both will be locked.
When an item on the age-based list is selected, all items below that item of the
same group are locked as well.
When you select a content-based rating, all identical content-based ratings in the
younger age-based categories are also selected.
None
none
TV-Y
none
TV-Y7
(FV) Fantasy Violence
TV-G
none
TV-PG
(D) Dialog
(L) Language
(S) Sex
(V) Violence
TV-14
appropriate for children of all ages with themes and elements suitable for children
aged 2-6
TV-Y7
programs designed for children age 7 and older
TV-Y7-FV programs include fantasy violence more intense than other programs in the
TV-Y7 category
TV-G
(D) Dialog
(L) Language
(S) Sex
(V) Violence
TV-14
TV-Y
programs suitable for all ages. These programs contain little or no violence, no
strong language and little or no sexual dialogue or situations
TV-PG programs contain elements that some parents may find unsuitable for younger
children and which may need parental guidance. The program may contain
moderate violence, sexual dialogue and/or situations and some strong language.
TV-14
(L) Language
(S) Sex
(V) Violence
programs contain elements that may not be suitable for children under 14 years
of age. These programs include one or more of the following:
intense violence, intense sexual situations, suggestive dialogue and strong
language.
TV-MA programs are designed to be viewed by adults and may be unsuitable for children
under the age of 17. These programs may contain graphic violence, explicit sexual
activity and/or crude or indecent language.
Movie Ratings Lock
Settings | TV
Channels
7
Lock after
Channel lock
TV ratings lock
Movie ratings lock
Preferred channels
Region ratings lock
Clear region ratings
Movie ratings lock
Please enter your PIN.
x x x x
“
‘
Cancel
This allows you to limit access to individual programs based on their
MPAA ratings.
Settings | TV
Channels
Lock after
Channel lock
TV ratings lock
Movie ratings lock
Preferred channels
Region ratings lock
Clear region ratings
&
é
7 Movie ratings lock
8
All
NR
G
PG
PG-13
R
NC-17
X
This allows you to limit access to individual programs based on their
MPAA ratings.
This function allows you to control access to individual movies based on their
MPAA ratings (Motion Picture Association of America).
Select Movie ratings lock with the cursor down.
Press the cursor right to enter the list. You are asked to enter your code. (See
Set/Change PIN, p. 12.) If the code is correct, a list appears, showing all valid
MPAA content ratings.
Select a movie rating with the cursor up/down.
Press OK to activate/de-activate the selected rating.
Each rating item has a box-graphic in front of it to indicate whether or not
programs carrying that rating are currently locked:
• box with a 'X': movies with this rating are locked;
• empty box: movies with this rating are unlocked.
When All has been selected, all items on the movie ratings list become selected. (All
movies are locked.)
If, while All is selected, any other item is unselected, then All is automatically
unselected.
When NR has been selected, no other item is selected.
When any other item has been selected, all ratings below are selected as well, thus
all movies with those ratings will be locked.
NR
not rated
G
movies with a mild content, suitable for all ages
PG
movies for which parental guidance is recommended. They may contain a few
racy or violent scenes or maybe some bad language
PG-13 movies for which parental guidance may be recommended if under age 13
R
restricted. The movies usually contain offensive sex or bad language and may
be unsuitable for children under the age of 17. Parental guidance or permission
needed.
NC-17 even with parental permission, forbidden under age 17. More offensive sex,
violence or bad language.
X
18
movies which generally focus on sex, violence and/or bad language. Also known
as pornography.
Preferred channels
Settings | TV
Channels
7 Preferred channels
Lock after
Channel lock
TV ratings lock
Movie ratings lock
Preferred channels
Region ratings lock
Clear region ratings
x
x
x
x
x
x
x
x
2
2.1
6
10
13
15
18
35.1
WCBS-DT
&
é
“
‘
(
A channel, when installed, is marked as preferred by default and added
to the channel list. This feature provides the ability to remove a channel
number from the channel list.
Select Preferred channels with the cursor down.
Press the cursor right to enter a list with all stored channel numbers.
Select the channel you want to remove with the cursor down.
Press OK.
Repeat to remove other channels.
MELCO
You can browse through the TV channels with the - P + button.
Only those channels which are in the preferred list, will be displayed.
Region ratings lock
Settings | TV
Channels
7
Lock after
Channel lock
TV ratings lock
Movie ratings lock
Preferred channels
Region ratings lock
Clear region ratings
Region ratings lock
Please enter your PIN.
x x x x
This allows you to control access to individual programs based on
their broadcasted regional rating.
This function allows you to control access to digital programs based on
downloaded Region Ratings.
& Select Region ratings lock with the cursor down.
é Press the cursor right to enter the list. You are asked to enter your code.
(See Set/Change PIN, p. 12.) if the code is correct, a list appears, showing
the Region ratings and a corresponding content-based ratings list.
“ Select a Region rating with the cursor up/down, and enter, if present,
the list with content-based ratings with the cursor right, and select one
content-based rating.
‘ Press OK to activate/de-activate the selected rating.
( Select another content-based rating if you like and press OK again.
You need only enter your PIN-code once while the menu is active.
You can lock/unlock any number of ratings on the list without re-entering your
code.
Each ratings item has a box-graphic in front of it to indicate whether or not
programs carrying that rating are currently locked:
• box with a 'X': all items in the contents-based list are locked as well;
• empty box: the item is unselected;
• box with a '/': some content-based ratings are selected/unselected.
Settings | TV
Channels
Lock after
Channel lock
TV ratings lock
Movie ratings lock
Preferred channels
Region ratings lock
Clear region ratings
Clear region ratings
7
Clear region ratings
Start now
This function allows you to clear all the Region Ratings settings.
& Select Clear region ratings with the cursor down.
é Press the cursor right to enter the list. You are asked to enter your code.
(See Set/Change PIN, p.12.)
“ Select Start now.
‘ Press OK to activate.
This allows you to clear all the locks you have set in the Region
ratings lock table.
19
PiP (Picture-in-Picture)
main picture's channel
number and name
35.1
MELCO
AV1
DVD
PiP picture's channel
number and name
The PiP mode enables you to watch one program (main picture) on the full screen
of the TV and another on a smaller window (PiP picture). This window can be
positioned anywhere along the four edges of the TV screen to avoid blocking
certain section of the screen.
Start PiP mode
& Press the PIP button on the remote control to start the PiP mode.
é Press the cursor right button to activate PiP window.
Note: When you see the PiP window enclosed in a yellow frame, this means that
it activated. In this status, you can position the PiP window, change channels and
interchange the main picture with PiP picture.
Position the PiP window
“ Press the red button to start the process. A set of four directional cursors
appear on the screen. This means that the PiP window can be move in any of
the direction shown by the cursors.
‘ Press the cursor left/right/top/bottom button to move the PiP window along
the edges of the screen.
Main picture and PiP window
OR
Change channels of the PiP picture
“ Press the CH/PAGE + or – or the numbered buttons to select channels.
Note: if there is no transmission or if the accesory device is not playing in the channel
selected, the message "Source not available" will display.
OR
Interchange the main picture with the PiP picture
“ Press the PIP button once. The PiP picture will now become the main picture.
The PiP window disappears.
‘ Press the PIP button to call back the PiP window with the previous main
picture.
Position
Function of button
colored buttons
Positioning PiP window
AV1
DVD
SIDE
End PiP mode
& Press the left cursor key to remove the highlight around the frame of the PiP
window.
é Press the PiP button to end the PiP mode.
PiP doesn't work on two TV channels (direct off-air or cable) or two
external devices' channels. Here are some possible combinations of PiP:
CAM
AV2
AV3
Side
AV
Ch 37.4
Ch 58.2
Ch 72.1
AV1
Ch 35.1
OR
OR
OR
HDMI
OR
Ch 69.5
Source not available
69.2
2.0
Ch 35.1
2.0
Ch 35.1
Ch 35.1
Change channels of PiP picture
35.1
AV1
44.3
AV2
OR
73.9
OR
AV3
82.4
OR
Side AV
62.1
OR
Source not available
AV2
AV1
20
HDMI
AV3
2.0
AV3
HDMI
Picture Formats
The picture you received from the broadcaster or playback from DVDs may be in
widescreen or conventional modes. Pictures in conventional mode will have black
bars on the right and left of the screen.
Select Picture format
& Press FORMAT button to display a list of available display formats (depending
on the receiving signal). This lets you choose the display format of your
preference.
é Press this button repeatedly to select a picture format: Automatic, Super Zoom,
4:3, Movie expand 14:9, Movie expand 16:9, 16:9 subtitle and Wide screen.
“ Stop when you come to the format that you want. From now on the TV will
display its picture in the format that you have selected until you select another
format.
Automatic
picture expanded to fill the screen.
Super zoom
removes the black bars on the sides of pictures in
conventional (4:3) mode.
Movie expand 14:9
or
Movie expand 16:9
or
Super zoom
make subtitles visible with the cursor up/down.
Note: With HD sources not all screen formats will be available.
21
Connect Accessory Devices
1 Set Top Box to TV
Using HDMI
A
Connect RF cable from wall to input at back of the cable box.
Set output switch on set-top box to CH 3 or 4 and tune TV to same
channel.
In some cases, cable box will automatically tune to channel 3 or 4. Just change channels
until picture appears.
Pb
B
Connect cable box to TV using HDMI cable.
Note: If the accessory device has DVI output only, use a DVI to HDMI adapter cable to
connect to the HDMI connector. You need to also connect the audio cable to L and R
AUDIO jacks. Next, go to Menu=>Setup=>Source=>Analog Audio In=> and
select HDMI.
Y
CABLE/
ANTENNA
HDMI
R
Using RF Cable
VIDEO
A
Connect RF cable from wall to input at the back of the cable box.
B Use second RF cable to connect the cable box to the TV's antenna input.
This connection gives mono sound. For stereo sound use also composite
audio/video connection (Refer to panel 3).
2
DVD Player or DVD Recorder to
Pb
Using HDMI
Y
CABLE/
ANTENNA
HDMI
R
A
VIDEO
B
Connect DVD player/DVD recorder to the TV using HDMI cable.
Turn on TV and DVD Player/DVD recorder. Press CH+ or CH- on remote
control to tune to the video supplied by HDMI.
Insert a prerecorded DVD into DVD player/DVD recorder and press PLAY
to verify correct connection.
3
DVD Player or DVD Recorder to
Using Composite Video Input (YPbPr)
A
Insert Component Video connectors into their corresponding jacks on both
DVD player/DVD recorder and TV (Y, Pb and Pr).
B
Connect red/white audio cables into the audio output jacks on DVD player/
DVD recorder and audio AV inputs on TV.
C
Turn on TV and DVD player/DVD recorder. Press AV on remote control
until the connected source appears on TV screen.
Insert a pre-recorded DVD into DVD player/DVD recorder and press PLAY to verify
correct connection.
COMP VIDEO
Y
22
S-VIDEO
VIDEO
AUDIO
OUT
OUT
OUT
R
Pb
Pr
L
4
DVD Player/DVD Recorder/VCR to TV
Using S-Video
A
Connect S-Video cable to S-Video input on back of TV and S-Video output
on the back of DVD/VCR player or recorder.
B
Connect audio cables (red/white) to audio AV inputs on back of TV and
Audio outputs on back of DVD/VCR player or recorder.
C
Turn on TV and DVD/VCR player or recorder. Press AV button on the
remote control until AV1 or AV2 appears on TV screen.
Insert pre-recorded videotape/DVD into DVD/VCR player or recorder and
press PLAY to verify correct connection.
When you connect S-Video and AV2 at the same time, you can only hear sound
coming from S-Video.
5
DVD Player/DVD Recorder/VCR to TV
Using Composite Audio/Video Input
A
Connect the video cable (yellow) to the VIDEO AV input on back of TV and
the corresponding video output on back.
B
Connect audio cables (red/white) to audio AV inputs on back of TV and the
corresponding audio outputs (L & R) on back of DVD/VCR player or
recorder.
C
Turn on the TV and VCR. Press AV button on the remote control until AV1
or AV2 appears on TV screen.
Insert pre-recorded videotape/DVD into DVD/VCR player or recorder and
press PLAY to verify correct connection.
6
Video Camera/Games Console to TV
Using Composite Audio/Video Input
A
Connect the video cable (yellow) from the video output on camera (or
other device) to the video input (yellow) located on the side of TV.
B
Connect audio cables (red/white) from audio outputs on device to audio
inputs (red/white) on the side of TV.
C
Tip: For mono devices, connect only white audio cable from device’s audio
output to white audio input on the side of TV.
Turn on TV and the device. Press the AV button on the remote control until
FRONT/SIDE appears on TV screen.
Press PLAY on the device to verify connection.
23
7
Audio to Hi-Fi System (Digital)
Using SPDIF
A
Connect audio cable from the SPDIF jack on the rear of the TV to the
DIGITAL IN jack on the rear of the hi-fi system.
Tip:SPDIF (Sony and Philips Digital Interconnect Format) is highly recommended
for high quality digital sound output.
To select connected devices and audio and video functions
Select Connected Devices
&
Press the AV button repeatedly or select Source in the Settings menu
(see p. 13) to select the connected devices' channels: AV1, AV2, AV3, HDMI,
Side or TV, according to where you connected your devices.
é
Press the cursor up/down button.
“
Press OK button.
Select audio and video functions
Most of the audio and video equipment from Philips' range of products can be
operated with the remote control of your TV.
Press one of the buttons after you pressed the SELECT button repeatedly
according to the equipment you want to operate with this remote control. See
Use of the remote control, p. 5.
When no action is taken within 60 seconds, the remote control goes back to TV
mode.
POWER to switch to standby
- CH + for chapter, channel, track
Δ
·
¢
selection
0 to 9 digit entry,
tape index (VCR),
select a DVD chapter,
select a frequency (AMP)
for pause,
for record,
for rewind (VCR, CD);
search down (DVD, AMP)
Ê
for stop,
Æ
for play,
∫
for fast forward (VCR, CD);
search up (DVD/AMP)
INFO display information
MENU to switch the menu on or off
cursor up/down
to select the next or the
previous disc (CD)
cursor left/right
to select the previous or
following track (CD)
Notes:
- If no action is being undertaken within 60 seconds, the remote control returns to TV
mode.
- After an action in the selected system mode, the remote control will remain in this mode
for 60 seconds and will then return to TV mode or press the SELECT button to return to
TV mode immediately.
24
Multimedia browser
Note: This is primarily for service only! It may work with certain memory devices but not with most camera
devices.
Multimedia browser lets you display pictures or play audio files stored on a USB
device.
The Multimedia browser application is invoked from the My Content menu
(press the MY CONTENT button) by selecting the USB device and pressing
the cursor right.
Notes:
- Following file formats can be reproduced:
• For pictures: JPEG
• For audio: MP3, MP3 Pro
- Only FAT/DOS-formatted memory devices are supported.
- If your digital camera is not supported, make sure your camera is switched on and
verify if its configuration settings are correct (see the manual of your camera).
- Philips cannot be responsible if your USB device is not supported.
Viewing content from a USB device
Inserting a USB device
Note: USB devices are not supplied with this TV.
Insert a USB device in the USB connector at the side of the TV.
When a USB device is inserted, the Multimedia browser menu is displayed
automatically, see further.
Removing the USB device
First switch off the My Content menu. To do so, navigate to the Multimedia
browser menu and press the MY CONTENT button to exit the menu.
Remove the USB device.
25
USBDevice1
USBDevice1
Press the OK button to play or pause.
USBDevice1 London2005
Multimedia Browser menu
& Insert a USB device.
é Select the USB device under Multimedia with the cursor up/down.
The Multimedia browser will allow the user to browse content stored on
the inserted USB device.
“ Press the cursor right.
The 2-panel browser will be shown with the left panel containing the
content types (Music, Picture).
The right panel will display the content that is available of the selected
content type.
‘ Press the cursor up/down to select a content type and press the cursor
right to enter the content.
( Press the cursor up/down to select a file or a directory.
Note: Press the green color button to display all the image files in the current
directory as thumbnails when browsing pictures. Press the green button again to
display the image files in a list.
In case a file is selected, press the OK button to display a picture file or to
play an audio file.
In case a directory, album or playlist is selected, press the cursor right
to enter the content or press the OK button to start a slide show or a
playback of the files present in the directory, album or playlist.
( Press the cursor left to keep music playing and switch back to the
Multimedia menu.
§ Press one of the color buttons on the remote control to perform the
corresponding function mentioned at the bottom of the screen.
The blue color button can be used to let the color re-appear.
To stop playing content, press the button on the remote control.
USBDevice1 London2005
Notes:
• Your TV supports slide shows with
background music.
• The playback will continue to play even if
temporarily switched to browser screens. The audio
will be stopped when another song starts playing, or
when the end has been reached.
• Progressive JPEG files are not supported.
• The length of the files should not exceed 128
characters.
• Do not use a dot “.” in folder naming.
Function buttons at the bottom of the screen
Details
to display a description of the selected file or
directory;
Transitions
to select if a transition during a slide show should
be applied;
Slide time
to select the duration a picture will be displayed in
a slide show;
Rotate
to rotate a picture;
Repeat one/all
to repeat the playback of a music file;
Shuffle
to shuffle music collections in a random way;
Following icons may appear:
folder
pictures
music
self made playlist/album
26
Other function buttons on the remote control
to stop displaying content;
to pause displaying content;
to play a single file, start a slide show, playback of a
folder or other collection.
Troubleshooting Tips
Check this List of Symptoms and Suggested Steps To Take before requesting Service. You may be able to solve the problem yourself. If
you face problems connecting the TV to external devices, please refer to the User Guide of the external device or call their service centers for
help. Charges for TV installation and adjustments of customer controls are not covered under your warranty.
SYMPTOMS
SUGGESTED STEPS TO TAKE
Hookup
Can't get external
audio equipment
to work with TV.
SPDIF output audio only in digital mode and the audio equipment used must have the decoder.
Installation
Can't get the AV
channels on the TV
screen.
Press the AV button on the remote control repeatedly to select the desired AV channels. Note: SVHS
can only be selected if a S-VHS device is connected and powered on.
Installation
TV displays wrong
channel or no
channels above 13
Go to INSTALLATION MODE in the television menu and select the correct signal source, then
perform the automatic installation again. (Refer to page 7).
Installation
Channel numbers
do not follow the
channel number
of the
programs.
Go to INSTALLATION MODE in the television menu and select the correct signal source, then
perform the automatic installation again. (Refer to page 7).
Installation
Auto programing is
taking too long.
Auto programing may take 20 to 40 minutes depending on the number of channels that are available.
Settings
Error messages
appear on the
screen of TV:
No Signal
Check that the antenna / cable is connected properly and that you have selected the correct
installationmode (refer to page 7).
No Program
There could be temporarily no transmission on the selected channel. You may like to add these
channels to the Weak Dig Sig. list. (refer to page 8). When transmission is resumed or when
available, your TV will receive it.
Audio Only
The current channel has only audio transmission.
Sound
Disturbing sound
(such as buzzing,
clicking, cracking,
humming, whistling,
etc).
It is normal to hear a disturbing sound (such as buzzing, clicking, cracking, humming, whistling, etc)
from a distance less than 2 meters (6 feet) with the television sound muted.
If problem occurs on one channel, you may have a signal problem. Please contact the cable provider or
local broadcaster regarding the specific channel.
Sound
Sound is not in
Stereo.
This could be due to any of the following reasons:
1. Not all transmitted broadcasts by the cable or broadcast stations are in STEREO. Try checking with
several major network stations to be sure that the station you selected is in STEREO.
2. When SAP is turned ON, the sound mode is automatically set to MONO.
3. Sound mode is set to MONO. Set the sound mode to STEREO. (Refer to page 16).
4. When using an AV input, the television will not display STEREO even though it is producing stereo
sound.
General
No power to the
TV
Check the TV power cord. Unplug the power cord from the TV, wait 10 seconds, then reinsert the
plug into your wall outlet. Power On the TV again.
Plug the power cord directly to the wall socket and not via an extension cord.
If you need to use an extension cord, check that the fuse on the AC power strip is not blown.
27
SYMPTOMS
SUGGESTED STEPS TO TAKE
General
Temperature
indicator is RED
Turn off the TV set and allow it to cool down. If symptom continues, contact the nearest service
center.
General
Lamp indicator is
RED
Lamp has failed. Contact the nearest service center.
General
TV is not
responding to
Remote Control
Ensure the batteries are inserted into the remote control according to the illustration in the battery
compartment. Refer to page 4.
Reset the television by disconnecting the power plug from the wall
outlet for 10 seconds and then reconnecting it again.
General
Remote control is
not working
Clean the remote control and the remote control sensor window on the TV.
Check the TV power cord. Unplug the TV, wait 10 seconds, then reinsert the plug into the wall.
General
No Picture on the
TV screen
Check antenna connections. Are they properly secured to the TV ANT 75 ohm plug?
Check the TUNER MODE control for the correct tuner setting.
Try running the Autoprogram feature to find all available channels (refer to page 7).
Press the AV button on the remote control to make sure the correct signal source is selected
(FRONT, AV1, AV2, Current Channel, etc.).
Note: SVHS can only be selected if a S-VHS device is connected and powered on.
General
TV Displays white
lines in letterbox
when viewing a
DVD disc
Some DVD Discs are encoded with as much as 30% more video information to give the best
possible picture quality. With the DVD Player in the 16:9 picture format, the playback of this
type of disc with extra video information can produce a number of small white lines in the
upper portion of the black letterbox area. With some of these discs, this problem is inherent
and does not require a service call.
If your problem is not solved
Turn your TV off and then on again once.
Never attempt to repair a defective TV yourself.
Check with your dealer or call a TV technician.
28
Telephone number Philips Customer
Care Center: 1-888-PHILIPS (744-5477)
Please, have the Model and Product number which you can find at
the back of your television set ready, before calling.
Glossary
Active Control
Active Control is a unique, intelligent and proactive control system. It ensures that the viewing experience is always optimal
by automatically compensating and changing ambient light condition.
Aspect Ratio
The ratio between the width and height of the TV picture on the screen. In a normal TV set the aspect ratio is 4
to 3 (4:3). The new aspect ratio in HDTV is 16:9 which resembles the aspect ratio in a movie theatre
(Widescreen). New TV systems support both 4:3 and 16:9 aspect ratio and can automatically switch between
them.
Audio Video (A/V)
A term often used when discussing a channel on a TV receiver or on video equipment, which has been especially designed
to accept VCR audio-video signals. This channel automatically activates special circuitry within the TV set to prevent picture
distortion and skewing. It is also used for audio-video processors, which handle both types of signals.
ATSC
ATSC: Advanced Television Systems Committee. Formed to establish technical standards for advanced television systems,
including digital high definition television (HDTV).
CVBS
Composite Video Baseband Signal. In broadcast television this refers to the video signal, including the colour information
and syncs.
CVI (Y Pb Pr)
CVI (Component Video Input) is a type of connection that uses a cinch-type connector to allow set top boxes or analog
DVD players to connect a signal to the TV. By offering the cinch-type input (YPbPr) the primary colors, red, green and blue
are connected from a set top box directly into the TV allowing for the signal to display on the screen.
DTV
Digital television. Generic term that refers to all digital television formats, including high-definition television (HDTV) and
standard-definition television (SDTV).
DOLBY Digital
Dolby Digital - Six-channel digital audio standard that is part of the U.S. digital television standard; also called AC-3 or Digital
5.1. The channels consist of front left, front right, front center, surround or rear left, surround or rear right, and a separate
subwoofer
Digital Tuner
A digital tuner serves as the decoder required to receive and display digital broadcasts. It can be included inside TV sets or
via a set-top box.
HDTV
The generally agreed upon definition of HDTV is approximately twice the vertical and horizontal picture resolution of
today’s NTSC TV, which essentially makes the picture twice as sharp. HDTV also has a screen ratio of 16:9 as compared
with most of today’s TV screens, which have a screen ratio of 4:3. HDTV offers reduced motion artifacts (i.e. ghosting, dot
crawl), and offers 5.1 independent channels of CD-quality stereo surround sound, (also referred to as AC-3).
NTSC
National television system committee. The organization that developed the analog television standard currently in use in the
U.S., Canada, and Japan. Now generally used to refer to that standard. The NTSC standard combines blue, red, and green
signals modulated as an AM signal with an FM signal for audio.
Progressive Scan
In Progressive Scanning all the horizontal scan lines are scanned on to the screen at one time. The Digital TV and HDTV
Standards accept both Interlaced Scan and Progressive Scan broadcast and display methods.
Resolution
Resolution: A measurement of the finest (smallest) detail that is visible in a video image. TV Resolutions may be expressed as
number of pixels in an image; or more commonly, “As Total Number of (horizontally scanned) Lines used to create the
image.
Standard Digital TV Resolutions:
SDTV: 480i - The picture is 704x480 pixels, 480p - The picture is 704x480 pixels.
HDTV: 720p - The picture is 1280x720 pixels, 1080i - The picture is 1920x1080 pixels, 1080p - The picture is 1920x1080
pixels.
SPDIF
SPDIF (Sony and Philips Digital Interconnect Format) is highly recommended for high quality digital sound output.
29
Care and Cleaning
• To avoid possible shock hazard, be sure the TV is unplugged from the electrical outlet before cleaning.
• Regularly dust the TV with a dry, non-scratching duster to keep the TV clean.
• When cleaning the TV, take care not to scratch or damage the screen surface. Avoid wearing jewelry when
cleaning the TV. Do not use household cleaners. Wipe the front screen with a clean cloth dampened with
water. Use even, easy, vertical strokes when cleaning.
Specially designed screen-cleaning kits are available. These kits contain anti-static cleaners and cloths designed
to get into the ridges of the TV screen. Purchase the kits at stores that sell electronics or call our Customer
Care Center at 1-800-531-0039.
• Gently wipe the cabinet surfaces with a clean cloth or sponge dampened in a solution of cool, clean water
and a mild soap or detergent. Use a clean, dry cloth to dry the wiped surfaces.
• Occasionally vacuum the ventilation holes or slots on the back cover of the set.
Never use thinners, insecticide sprays or other chemicals on or near the cabinet, as they might cause
permanent marring of the cabinet finishing.
30
Specifications
50PL9200D
60PL9200D
PICTURE / DISPLAY
Aspect ratio
16 : 9
Display screen type
DLP® Projection TV
Picture Enhancement
Pixel Plus, Progressive Scan, 3D combfilter, Black stretch, Active Control, Auto Picture (5 modes),
Digital Noise Reduction (DNR)
SOUND
Output Power (RMS)
2 x 10W
Sound Enhancement
Auto Volume Leveller, Virtual Dolby
Sound System
AutoSound (4 modes)
CONVENIENCE
Ease of installation
Auto Program
Ease of use
Channel list
Remote control type
RCLU026
Remote control
TV
Teletext
Closed captioning
ON SCREEN DISPLAY
LANGUAGES
English, French, Spanish
CONNECTIVITY
Back of TV
AV1/AV2 : Audio L/R input, Composite Video input (CVBS), Component Video input (YPbPr)
AV3: Audio L/R input, Composite Video input (CVBS), S-Video, HDMI, SPDIF output
Side
Audio L/R input, Composite Video input (CVBS), S-Video input and Headphone jack.
WEIGHT &
DIMENSIONS :
Weight (incl. Packaging) :
90.2 Ibs
171.6 lbs
Weight (excl. Packaging) :
70.4 lbs
137.5 lbs
Carton Dimension (WxDxH)
51.6 " x 21.3 " x 37 "
60.8 " x 25 " x 44.6 "
Product Dimension
45.8 " x 15.9 " x 31.5 "
54.5 " x 18.7 " x 36.4 "
Screen size :
50 "
60 "
POWER
CONSUMPTION
STANDBY POWER
CONSUMPTION
OPERATING
TEMPERATURE
230 W
< 1W
Between 10 degree and 32 degree Celsius
Between 50 degree and 90 degree Fahrenheit
Be sure to allow for proper ventilation space around the set.
31
Annex 1 - Philips TV software upgrade with portable memory
Introduction
Philips offers software upgrade capability for your TV using USB portable memory.
After you have completed a software upgrade, your TV will typically perform
better.
What improvements are made depends on the upgrade software you are using as
well as the software your TV contained before the upgrade.
You can execute the software upgrade procedure yourself.
Be aware that the content of this document is addressing technical or software
skilled users.
Preparing a portable memory for software upgrade
For the procedure you will require:
• A personal computer with web browsing capability.
• An archive utility that supports the ZIP-format (e.g. WinZip for Windows or
StuffIt for Mac OS).
• A preferably empty USB memory stick.
Note: Only FAT/DOS-formatted portable memory is supported.
New software can be obtained from your dealer or can be downloaded from the
www.philips.com/usasupport website:
& Go to www.philips.com/usasupport using the web browser on your PC.
é Follow the procedure to find the information and the software related to your TV.
“ Select the latest software upgrade file and download it to your PC.
‘ Decompress the ZIP-file and copy the file “autorun.upg” to the root directory of
the USB portable memory.
Note: Only use software upgrades that can be found on the www.philips.com/usasupport
web site.
Settings| Installation
Software upgrade
Current software info
Current software info
Version:
ER10U-0.3.0.0_FB
Local upgrades/applica...
Release notes:
Release for 2nd Spin:
ER10U-0.3.0.0_FB5.51
Generation date:
2005-09-23 3:49:06 AM
32
Verifying the version of the TV software
Before starting the software upgrade procedure, it is advised to check what the
current TV software is.
& Select Software Upgrade in the Installation menu.
é Press the cursor right.
The Software Upgrade menu moves to the left panel.
“ Select Current Software Info to observe the version and the description of the
current software.
Automatic software upgrade procedure
Settings | Installation
Upgrade busy...
For automatic software upgrade, the “autorun.upg” file should be copy to
the root of the USB portable memory
Software id:
TL32E-234
Loading
Done
Validating
Done
Programming
& Power off your TV and remove all memory devices.
é Insert the USB portable memory that contains the downloaded software
upgrade.
“ Switch on your TV with the power switch . at the right side of the TV.
‘ At startup the TV will scan the USB portable memory until it finds the
update content. The TV will automatically go to the upgrade mode. After a
few seconds it will display the status of the upgrade procedure.
Warning:
• You are not allowed to remove the USB portable memory during the software
upgrade procedure!
• In case of a power drop during the upgrade procedure, don’t remove the USB
portable memory from the TV. The TV will continue the upgrade as soon as the
power comes back.
• If you try to upgrade to a software version lower than the current version, a
confirmation will be asked. Downgrading to older software should only be done in
case of real necessity.
• If an error occurs during the upgrade you should retry the procedure or contact
your dealer.
( When the software upgrade was successful, remove the USB portable
memory and restart your TV with the power switch . at the front side of
the TV.
Your TV will start up with the new software.
Note: Once the upgrade is finished use your PC to remove the TV software from
your USB portable memory.
Settings
Installation
Language
Autoprogram
Manual software upgrade procedure
4
Software upgrade
2
Current software info
Local upgrades/app...
Weak channel installation
Software upgrade
This allows you to upgrade new TV software if available.
For a manual software upgrade copy the “autorun.upg” file in a directory
called “Upgrades” located in the root of the USB portable memory.
& Insert the portable memory that contains the downloaded software
upgrade.
é The TV will automatically start the content browser menu. Exit the menu by
pressing the MY CONTENT key.
“ Select Software Upgrade in the Installation menu. Go to Local upgrades/
applications.
The TV will list all compatible images available on the USB portable memory
and display the data for each selected upgrade image.
‘ Select the correct upgrade image and press the red color button to start
the upgrade.
Your TV will restart and will automatically go to the upgrade mode. After a
few seconds it will display the status of the upgrade procedure.
Warning:
If you try to upgrade to a software version equal or lower than the current version,
a confirmation will be asked. Downgrading to older software should only be done
in case of real necessity.
( When the software upgrade was successful, remove the USB portable
memory and restart your TV with the power switch . at the front side of
the TV.
Your TV will start up with the new software.
33
PHILIPS LIMITED WARRANTY
ONE (1) YEAR
WARRANTY COVERAGE:
PHILIPS warranty obligation is limited to the terms set forth
below.
WHO IS COVERED:
Philips warrants the product to the original purchaser or the
person receiving the product as a gift against defects in materials and workmanship as based on the date of original purchase
(“Warranty Period”) from an Authorized Dealer. The original
sales receipt showing the product name and the purchase date
from an authorized retailer is considered such proof.
WHAT IS COVERED:
The Philips warranty covers new products if a defect arises and
a valid claim is received by Philips within the Warranty Period.
At its option, Philips will either (1) repair the product at no
charge, using new or refurbished replacement parts, or (2)
exchange the product with a product that is new or which has
been manufactured from new, or serviceable used parts and is
at least functionally equivalent or most comparable to the original product in Philips current inventory, or (3) refund the original purchase price of the product.
Philips warrants replacement products or parts provided under
this warranty against defects in materials and workmanship
from the date of the replacement or repair for ninety (90) days
or for the remaining portion of the original product’s warranty,
whichever provides longer coverage for you. When a product
or part is exchanged, any replacement item becomes your
property and the replaced item becomes Philips’ property.
When a refund is given, your product becomes Philips’ property.
Note: Any product sold and identified as refurbished or
renewed carries a ninety (90) day limited warranty.
Replacement product can only be sent if all warranty
requirements are met. Failure to follow all requirements can result in delay.
WHAT IS NOT COVERED - EXCLUSIONS AND LIMITATIONS:
This Limited Warranty applies only to the new products manufactured by or for Philips that can be identified by the trademark, trade name, or logo affixed to it. This Limited Warranty
does not apply to any non-Philips hardware product or any
software, even if packaged or sold with the product. NonPhilips manufacturers, suppliers, or publishers may provide a
separate warranty for their own products packaged with the
bundled product.
Philips is not liable for any damage to or loss of any programs,
data, or other information stored on any media contained within the product, or any non-Philips product or part not covered
by this warranty. Recovery or reinstallation of programs, data
or other information is not covered under this Limited
Warranty.
This warranty does not apply (a) to damage caused by accident,
abuse, misuse, misapplication, or non-Philips product, (b) to
damage caused by service performed by anyone other than
Philips or Philips Authorized Service Location, (c) to a product
or a part that has been modified without the written permission of Philips, or (d) if any Philips serial number has been
removed or defaced, or (e) product, accessories or consumables sold “AS IS” without warranty of any kind by including
refurbished Philips product sold “AS IS” by some retailers.
This Limited Warranty does not cover:
• Shipping charges to return defective product to Philips.
• Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation
or repair of antenna systems outside of the product.
• Product repair and/or part replacement because of improper
installation, connections to improper voltage supply, abuse,
neglect, misuse, accident, unauthorized repair or other cause
not within the control of Philips.
• Damage or claims for products not being available for use, or
for lost data or lost software.
• Damage occurring to product during shipping.
• A product that requires modification or adaptation to enable
it to operate in any country other than the country for
which it was designed, manufactured, approved and/or
authorized, or repair of products damaged by these modifications.
• A product used for commercial or institutional purposes
(including but not limited to rental purposes).
• Product lost in shipment and no signature verification receipt
can be provided.
• Failure to operate per Owner’s Manual.
TO OBTAIN ASSISTANCE IN THE U.S.A., PUERTO
RICO, OR U.S. VIRGIN ISLANDS…
Contact Philips Customer Care Center at:
1-888-PHILIPS (1-888-744-5477)
TO OBTAIN ASSISTANCE IN CANADA…
1-800-661-6162 (French Speaking)
1-888-PHILIPS (1-888-744-5477) - (English or Spanish
Speaking)
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS
PRODUCT IS LIMITED IN DURATION TO THE DURATION
OF THIS WARRANTY.
Some states do not allow the exclusions or limitation of incidental or consequential damages, or allow limitations on how
long an implied warranty lasts, so the above limitations or
exclusions may not apply to you.
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
Philips, P.O. Box 671539, Marietta, GA. 30006-0026
3121 233 48801
34
3139 125 36902
