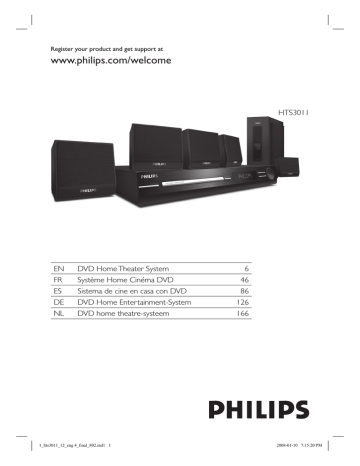

Philips HTS3011/51 Specification Specification

Register your product and get support at

www.philips.com/welcome

HTS3011

EN DVD Home Theater System

FR Système Home Cinéma DVD

ES Sistema de cine en casa con DVD

DE DVD Home Entertainment-System

NL DVD home theatre-systeem

6

46

86

126

166

2

Important notes for users in the

U.K.

Mains plug

This apparatus is fi tted with an approved 13

Amp plug. To change a fuse in this type of plug proceed as follows:

1 Remove fuse cover and fuse.

2 Fix new fuse which should be a BS1362

5 Amp, A.S.T.A. or BSI approved type.

3 Refi t the fuse cover.

If the fi tted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fi tted in its place.

If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.

Note: The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L).

As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:

– Connect the blue wire to the terminal marked N or coloured black.

– Connect the brown wire to the terminal marked L or coloured red.

– Do not connect either wire to the earth terminal in the plug, marked E (or e) or coloured green (or green and yellow).

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.

Copyright in the U.K.

Recording and playback of material may require consent. See Copyright Act 1956 and

The Performer’s Protection Acts 1958 to

1972.

Italia

DICHIARAZIONE DI CONFORMITA’

Si dichiara che l’apparecchio HTS3011, Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548.

Fatto a Eindhoven

Norge

Philips Consumer Electronics

Philips, Glaslaan 2

5616 JB Eindhoven, The Netherlands

Typeskilt fi nnes på apparatens underside.

Observer: Nettbryteren er sekundert innkoplet. Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten.

For å redusere faren for brann eller elektrisk støt, skal apparatet ikke utsettes for regn eller fuktighet.

Ensure that the power outlet is always within reach. If abnormal situations occur, fully disconnect power: unplug the power cord from the power outlet.

ATTENTION!

For Customer Use:

Read carefully the information located at the bottom or rear of your DVD Home Theatre

System and enter below the Serial No. Retain this information for future reference.

Model No.

Serial No.

HTS3011

_______________

DK

Advarsel: Usynlig laserstråling ved

åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling.

Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten.

S

Klass 1 laseraparat

Varning! Om apparaten används på annat sätt än i denna bruksanvisning specifi cerats, kan användaren utsättas för osynlig laserstrålning, som

överskrider gränsen för laserklass 1.

Observera! Stömbrytaren är sekundärt kopplad och bryter inte strömmen från nätet. Den inbyggda nätdelen är därför ansluten till elnätet så länge stickproppen sitter i vägguttaget.

SF

Luokan 1 laserlaite

Varoitus! Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.

Oikeus muutoksiin varataan. Laite ei saa olla alttiina tippu-ja roiskevedelle.

Huom. Toiminnanvalitsin on kytketty toisiopuolelle, eikä se kytke laitetta irti sähköverkosta. Sisäänrakennettu verkko-osa on kytkettynä sähköverkkoon aina silloin, kun pistoke on pistorasiassa.

This product complies with the radio interference requirements of the

European Community.

This product complies with the requirements of the following directives and guidelines: 2006/95/EC +

2004/108/EC

LASER

Type

Wave length

Semiconductor laser

GaAIAs

645 - 660 nm (DVD)

770 - 800 nm (CD)

Output Power 6 mW (DVD)

7 mW (VCD/CD)

Beam divergence 60 degrees

CAUTION

VISIBLE AND INVISIBLE LASER

RADIATION WHEN OPEN. AVOID

EXPOSURE TO BEAM

ADVARSEL

SYNLIG OG USYNLIG LASERSTRÅLING

VED ÅBNING UNDGÅ UDSÆTTELSE

FOR STRÅLING

VARNING

SYNLIG OCH OSYNLIG

LASERSTRÅLNING NÄR DENNA DEL

ÄR ÖPPNAD BETRAKTA EJ STRÅLEN

VARO!

AVATTAESSA OLET ALTTIINA

NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE

LASER SÄTEILYLLE. ÄLÄ KATSO

SÄTEESEEN

VORSICHT

SICHTBARE UND UNSICHTBARE

LASERSTRAHLUNG WENN

ABDECKUNG GEÖFFNET NICHT DEM

STRAHL AUSSETZEN

ATTENTION

RAYONNEMENT LASER VISIBLE ET

INVISIBLE EN CAS D’OUVERTURE

EXPOSITION DANGEREUSE AU

FAISCEAU

3

4

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Se débarrasser de votre produit usagé (Français)

Votre produit est conçu et fabriqué avec des matériaux et des composants de haute qualité, qui peuvent être recyclés et utilisés de nouveau

.

Lorsque ce symbole d'une poubelle à roue barrée est attaché à un produit, cela signifie que le produit est couvert par la Directive

Européenne 2002/96/EC.

Veuillez vous informer du système local de séparation des déchets

électriques et électroniques.

Veuillez agir selon les règles locales et ne pas jeter vos produits usagés avec les déchets domestiques usuels. Jeter correctement votre produit usagé aidera à prévenir les conséquences négatives potentielles contre l'environnement et la santé humaine.

Cómo deshacerse del producto usado

(Español)

Su producto ha sido diseñado y fabricado con materiales y componentes de alta calidad, que pueden ser reciclados y reutilizados.

Cuando vea este símbolo de una papelera con ruedas tachada junto a un producto, esto significa que el producto está bajo la Directiva Europea

2002/96/EC

Deberá informarse sobre el sistema de reciclaje local separado para productos eléctricos y electrónicos.

Siga las normas locales y no se deshaga de los productos usados tirándolos en la basura normal de su hogar. El reciclaje correcto de su producto usado ayudará a evitar consecuencias negativas para el medio ambiente y la saludde las persona.

Entsorgung Ihres Altgerätes

(Deutsch)

Ihr Produkt ist aus hochqualitativen Materialien und Bestandteilen hergestellt, die dem Recycling zugeführt und wiederverwertet werden können.

Falls dieses Symbol eines durchgestrichenen Müllcontainers auf Rollen auf diesem Produkt angebracht ist, bedeutet dies, dass es von der Europäischen

Richtlinie 2002/96/EG erfasst wird.

Bitte informieren Sie sich über die örtlichen Sammelstellen für Elektroprodukte und elektronische Geräte.

Bitte beachten Sie die lokalen Vorschriften und entsorgen Sie Ihre Altgeräte nicht mit dem normalen Haushaltsmüll. Die korrekte Entsorgung Ihres Altgerätes ist ein Beitrag zur

Vermeidung möglicher negativer Folgen für die Umwelt und die menschliche Gesundhei.

Wegwerpen van uw afgedankt apparaat (Nederlands)

Uw apparaat werd ontworpen met en vervaardigd uit onderdelen en materialen van superieure kwaliteit, die gerecycleerd en opnieuw gebruikt kunnen worden.

Wanneer het symbool van een doorstreepte vuilnisemmer op wielen op een product is bevestigd, betekent dit dat het product conform is de

Europese Richtlijn 2002/96/EC

Gelieve u te informeren in verband met het plaatselijke inzamelingsysteem voor elektrische en elektronische apparaten.

Gelieve u te houden aan de plaatselijke reglementering en apparaten niet met het gewone huisvuil mee te geven. Door afgedankte apparaten op een correcte manier weg te werpen helpt u mogelijke negatieve gevolgen voor het milieu en de gezondheid te voorkomen.

‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH

DEFINITION TELEVISION SETS ARE FULLY

COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE

ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN

CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE

PROBLEMS, IT IS RECOMMENDED THAT THE USER

SWITCH THE CONNECTION TO THE ‘STANDARD

DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS

REGARDING OUR TV SET COMPATIBILITY WITH THIS

MODEL 525p AND 625p DVD PLAYER, PLEASE

CONTACT OUR CUSTOMER SERVICE CENTER.’

Enregistrez votre produit et obtenez de l’assistance sur le site www.philips.com/welcome

Registre su producto y obtenga asistencia en www.philips.com/welcome

Registrieren Sie Ihr Produkt und holen

Sie sich Unterstützung unter www.philips.com/welcome

Voor registratie van uw product en ondersteuning kunt u terecht op www.philips.com/welcome

Index

English ------------------------------------ 6

Manufactured under license from Dolby

Laboratories. Dolby, Pro Logic and the double-D symbol are trademarks of Dolby

Laboratories.

DivX, DivX Ultra Certifi ed, and associated logos are trademarks of DivX, Inc. and are used under license.

Français ---------------------------------- 46

Español ---------------------------------- 86

Windows Media and the Windows logo are trademarks, or registered trademarks of

Microsoft Corporation in the United States and/or other countries.

Deutsch -------------------------------- 126

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks

Nederlands ---------------------------- 166

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorised by

Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision Corporation.

Reserve engineering or disassembly is prohibited.

5

6

Table of contents

General

General Information ........................................................................................................ 8

Setup precautions .................................................................................................................................................8

Accessories supplied ...........................................................................................................................................8

Cleaning discs ........................................................................................................................................................8

About recycling .....................................................................................................................................................8

Product Overview

Main Unit ........................................................................................................................... 9

Remote Control .........................................................................................................10-12

Using the remote control ................................................................................................................................12

Connections

Basic Connections .....................................................................................................13-16

Step 1: Placing the speakers .............................................................................................................................13

Step 2: Connecting to TV ................................................................................................................................14

Option 1: Connecting to the Scart socket ..........................................................................................14

Option 2: Connecting to the Video socket .........................................................................................14

Step 3: Connecting speakers and subwoofer .............................................................................................15

Step 4: Connecting the FM antennas ............................................................................................................16

Step 5: Connecting the power cord ..............................................................................................................16

Optional Connections .................................................................................................... 17

Connecting to cable box/satellite receiver and recorder/VCR ............................................................17

Basic Setup

Getting Started ..........................................................................................................18-21

Finding the correct viewing channel .............................................................................................................18

Switching to different play source .................................................................................................................18

Setting language preferences ...........................................................................................................................19

On-screen display (OSD) language ........................................................................................................19

Audio, Subtitle and Menu language for DVD playback ...............................................................19-20

Setting the speakers’ channels ........................................................................................................................21

Disc Playback

Disc Operations .........................................................................................................22-29

Playable discs ...................................................................................................................................................... 22

Playing a disc ....................................................................................................................................................... 22

Basic playback controls .....................................................................................................................................23

Selecting various repeat/shuffl e functions ...................................................................................................23

Other playback features for video discs (DVD/VCD/SVCD) ...............................................................24

Using the Disc menu ..................................................................................................................................24

Viewing playback information ..................................................................................................................24

Zooming........................................................................................................................................................ 25

Changing subtitle language ...................................................................................................................... 25

Switching camera angles ........................................................................................................................... 25

Changing sound track language .............................................................................................................. 25

Setting the delay times for audio playback .......................................................................................... 25

Playback Control (VCD only) ..................................................................................................................26

Preview function (VCD/SVCD only) .....................................................................................................26

Table of contents

Playing a MP3/ WMA disc ................................................................................................................................27

Playing a JPEG image fi le (slide show) ......................................................................................................... 28

Preview function ....................................................................................................................................... 28

Zooming ...................................................................................................................................................... 28

Skip/Rotate picture .................................................................................................................................... 28

Playing music and photo fi les simultaneously .............................................................................................29

Playing a DivX ® disc ...........................................................................................................................................29

Setup Options

Setup Menu Options ................................................................................................. 30-36

Accessing the setup menu ............................................................................................................................... 30

General Setup ..............................................................................................................................................31

Audio Setup ..................................................................................................................................................32

Video Setup ...................................................................................................................................................33

Preferences ............................................................................................................................................ 34-36

Radio Tuning

Radio Operations .......................................................................................................37-38

Tuning to radio stations ....................................................................................................................................37

Presetting radio stations ........................................................................................................................... 37-38

Using auto install .........................................................................................................................................37

Using automatic preset ............................................................................................................................. 38

Using manual preset .................................................................................................................................. 38

Selecting a preset radio station ..................................................................................................................... 38

Deleting a preset radio station ...................................................................................................................... 38

Others

Sound and Volume Controls ......................................................................................... 39

Volume control ...................................................................................................................................................39

Selecting surround sound .................................................................................................................................39

Selecting digital sound effects .........................................................................................................................39

Other Features................................................................................................................40

Installing the latest software .......................................................................................................................... 40

Troubleshooting .........................................................................................................41-42

Specifi cations .................................................................................................................. 43

Glossary...................................................................................................................... 44-45

7

8

General Information

WARNING!

This unit does not contain any userserviceable parts. Please leave all maintenance work to qualifi ed personnel.

Setup precautions

Finding a suitable location

– Place this unit on a fl at, hard and stable surface. Never place the unit on a carpet.

– Never unit on top of other equipment that might heat it up (e.g., receiver or amplifi er).

– Never put anything under this unit

( e.g., CDs, magazines).

– Install this unit near the AC outlet where the AC power plug can be easily reached.

Space for ventilation

– Place this unit in a location with adequate ventilation to prevent internal heat build up. Allow at least 10 cm (4”) clearance from the rear and the top of this unit and 5cm (2”) from the left and right to prevent overheating.

Avoid high temperature, moisture, water and dust

– This t must not be exposed to dripping or splashing.

– Never place any object or items that can damage this unit (e.g., liquid fi lled objects, lighted candles).

Accessories supplied

– 2 front speakers

– 2 rear speakers

– 1 speaker

– 1 remote control with batteries

– 1 composite video cable (yellow)

– 1 FM wire antenna

– Quick Start Guide

Cleaning discs

To clean a disc, use a micro fi bre cleaning cloth and wipe the disc from the centre to the edge in a straight line.

CAUTION!

Never use solvents e.g. benzene, thinner, commercially available cleaners, or antistatic sprays intended for discs.

About recycling

These operating instructions have been printed on non-polluting paper. The electronic equipment contains a large number of materials that can be recycled.

If you are disposing of an old machine, please take it to a recycling centre.

Please observe the local regulations regarding disposal of packaging materials, exhausted batteries and old equipment.

Front Panel View

6 7

Main Unit

1 2 3 4 5 8 9 10 a STANDBY-ON

– Turns on this unit or turns off to standby mode.

b Disc Tray c OPEN/CLOSE ç

– Opens/closes the disc tray. d

Display panel

– Shows information about the current status of the unit.

e

IR Sensor

– Point the remote control towards this sensor.

f

PLAY/ PAUSE u

– RADIO: starts auto radio installation for fi rst time setup.

g STOP

– Exits an operation.

– DISC: stops playback.

– RADIO: press and hold this button to erase the current preset radio station. h SOURCE

– Selects the relevant active source mode:

DISC, FM, SCART IN or AUX. i SURROUND

– Selects multi-channel surround or stereo or party mode.

j

VOL

– Adjusts the volume level.

9

Remote Control

1

3

4

5

2

66

67

68

69

11 a 2 (Standby-On)

– Turns on this unit or turns off to standby mode.

b ç (Open/Close)

– Opens/closes the disc tray. c ZOOM

– Zoom in or out the picture on the TV.

d REPEAT (PROGRAM)

– DISC: Selects various repeat or shuffl e modes; turns off repeat or shuffl e mode.

– RADIO: Press this button to start manual preset programming.

– RADIO: Press and hold this button to start automatic preset programming. e INFO

– Displays the current status or disc information.

f

OK

– Confi rms an entry or selection.

g v V b B

– DISC: selects movement direction in the menu.

– DISC: press left or right for fast forward and backward search.

– RADIO: press up or down to tune the radio frequency.

– RADIO: press left or right to start auto search.

h OPTIONS

– Enters or exits the system setup menu. i

u (Play/Pause)

– RADIO: starts auto radio installation for fi rst time setup.

j

x (Stop)

– Exits an operation.

– DISC: stops playback.

– RADIO: press and hold this button to erase the current preset radio station. k Numeric keypad 0-9

– Enters a track/title/chapter number of the disc.

– Enters a number of a preset radio station.

10

l Source buttons

– AUX: switches to SCART IN or AUX external source mode.

– RADIO: switches to FM band.

– DISC: switches to DISC mode. m MENU (BACK)

– DVD: go back to title menu.

– VCD/SVCD:

During playback (PBC ON mode only) return to PBC menu.

n í/ë (Previous / Next)

– DISC: skips to the previous or next title/ chapter/track.

– RADIO: selects a preset radio station.

o (Mute)

– Mutes or restores the volume.

p

SURROUND

– Selects multi-channel surround, stereo or party mode.

q VOL +/-

– Adjusts the volume level.

r SOUND MODES +/-

– Selects a predefi ned sound effect.

s SUBTITLE

– Selects a DVD subtitle language.

t AUDIO SYNC

– Select an audio language/channel.

– Sets the audio output delay times if the video playback is slower than the audio output.

Remote Control

(continued)

12

13

14

15

16

17

18

19

20

11

Remote Control

(continued)

Using the remote control

CAUTION!

– Remove batteries if they are exhausted or if the remote control is not to be used for a long time.

– Never mix batteries (old and new or carbon and alkaline, etc).

– Batteries contain chemical substances , they sho uld be disposed of properly.

A Push to open the battery compartment.

B Insert two batteries type R03 or AAA, following the indications (+-) inside the compartment.

C

Close the cover.

D

Point the remote control directly at the remote sensor (iR) on the front panel.

E

Select the source you wish to control by pressing the AUX, RADIO or DISC button on the remote control.

F Then select the desired function (for example í, ë).

12

Basic Connections

REAR

LEFT

FRONT

LEFT

CENTER

FRONT

RIGHT

REAR

RIGHT

SUBWOOFER

Step 1: Placing the speakers

The Philips Home Theatre System is simple to install. However, proper system placement is critical to ensure an optimum sound experience.

A

Place the front left and right speakers at equal distances from the TV and at an angle of approximately 45 degrees from the listening position.

B Place the centre speaker above the TV or the main unit such that the centre channel’s sound is localised.

C

Place the rear speakers at normal listening ear level facing each other or hang on the wall.

D Place the subwoofer at the corner of the room. Otherwise, keep it at least one metre away from the TV.

Helpful Hints:

– The placement diagram shown here is only a guideline that provides great system performance. You may fi nd other placement choices that are more suitable for your room layout that provide the sound experience you enjoy.

– To avoid magnetic interference, never position the front speakers too close to your

TV.

– The rear speakers are labelled as REAR

LEFT or REAR RIGHT.

– The front speakers are labelled as

FRONT LEFT or FRONT RIGHT.

– For speaker setting, see ‘Getting Started -

Setting the speakers’ channels’.

13


(continued)

Main Unit (rear)

Option 2

Option 1

14

Step 2: Connecting to TV

This connection enables you to view the video playback from this unit. Y ou only need to choose one of the options below to make the video connection.

– For a standard TV, follow option 1 or or 2.

Helpful Hint:

– It is important to connect this unit directly to the TV in order to enjoy optimum video quality.

– To hear the TV audio through this unit, connect AUDIO IN-AUX sockets on the unit to the audio output on your TV (cables not supplied). Then press AUX until ‘AUX’ is displayed on the front panel.

Option 1: Connecting to the Scart socket

Connect the scart cable (not supplied) from the SCART TO TV socket on the main unit to the corresponding SCART input socket on the TV.

Helpful Hint:

– With this connection, audio connection is not required, you can press AUX repeatedly on the remote control to select SCART IN to route the TV’s audio to the speakers.

Option 2: Connecting to theVideo socket

Use a composite video cable (yellow - supplied) to connect the CVBS socket on the main unit to the video input socket (or labeled as A/V In, Video In,

Composite or Baseband) on the TV.

It provides good picture quality.

FRONT

RIGHT

FRONT

LEFT


(continued)

FRONT CENTRE

REAR

LEFT

REAR

RIGHT

SUBWOOFER

Step 3: Connecting speakers and subwoofer

Connect all the speakers and subwoofer to the matching sockets at the rear of the main unit, Mak e sure that the colour s of the cables and sockets are matched.

Helpful Hint:

– To prevent unwanted noise, never place the speakers too close to the main unit, subwoofer, AC power adapter, TV or any other radiation sources.

15


(continued)

Main Unit (rear)

Main Unit (rear)

FM antenna

Step 4: Connecting the

FM antennas

A Connect the FM antenna (supplied) to the FM 75 Ω socket. (For some models, it has been connected in the factory.)

B Extend the FM antenna and fi x its ends to the wall.

For better FM stereo reception, connect an external FM antenna (not supplied).

Helpful Hints:

– Adjust the position of the antennas for optimal reception.

– Position the antennas as far away as possible from your TV, VCR or other radiation source to prevent any unwanted interference.

Step 5: Connecting the power cord

After everything is connected properly, connect the AC power cord into the power outlet.

The standby LED on the main unit lights up.

Helpful Hints:

– Refer to the type plate at the rear or bottom of the product for identifi cation and supply ratings.

– Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

16

DVD Recorder/VCR (rear)

TV-OUT ANTENNA-IN

EXT 2 AUX - I/O EXT 1 TO TV - I/O

Optional Connections

~

MAINS

Cable/Satellite Box (rear)

IN

RF VIDEO AUDIO

R L

OUT

S-VIDEO

TO TV

TV (rear)

Main Unit (rear)

Connecting to cable box/ satellite receiver and recorder/VCR

You can connect the audio output from an analogue audio/video device (e.g. VCR,

Cable/Satellite Box, game console or TV) to this unit to enjoy the multi-channel surround sound capabilities

Note:

The above illustration is only an example of the possible connections. It may be varied depending on the connected devices.

A Keep the existing connections between your TV and other devices.

B Use the scart cable to connect this unit to your TV.

If your TV does not have double-scart connectors, see ‘Step 2: Connecting to

TV’ for other video connection options.

C

Connect an audio cable (red/white - not supplied) from the AUDIO IN-AUX sockets on the main unit to the AUDIO output sockets on the Cable/Satellite Box.

To listen to the sound, press AUX until

‘AUX’ is displayed on the front panel.

Helpful Hint:

– Refer to the connected devices’ user manual for other possible connections.

17

Getting Started

Finding the correct viewing channel

A Press STANDBY-ON to turn on the unit.

B

Press DISC on the remote control.

C

Turn on the TV and switch it to the correct video-in channel.

You may go to the lowest channel on your TV, then press the Channel Down button on your TVs remote control until you see the Video In channel.

You may press ° button repeatedly on your TV’s remote control.

Usually this channel is between the lowest and highest channels and may be called FRONT, A/V IN, VIDEO, etc..

Refer to your TVs user manual on how to select the correct input on your

TV.

Switching to different play source

On the main unit

Press the SOURCE button on the main unit repeatedly to select:

DISC ¤ FM ¤ SCART IN ¤ AUX

¤ DISC ....

Or

On the remote control

Press AUX repeatedly to hear the audio output from the external device.

‘SCART IN’ for device connected to

SCART TO TV sockets.

‘AUX’ for device connected to

AUDIO IN-AUX sockets.

Press RADIO to switch to FM bandwave.

Press DISC to switch to DISC mode.

18

Setting language preferences

The language options are different depending on your country or region. It may not correspond to the illustrations shown on the user manual.

On-screen display (OSD) language

The OSD (On-Screen Display) language for this unit remains as you have set it, regardless of the changes made to the

DVD disc language.

A In disc mode, press OPTIONS on the remote control.

{ General Setup } appears.

B

Press .

C

Press keys to select { OSD

Language } icon in the menu and press .

General Setup

Disc Lock

Display Dim

OSD Language

Screen Saver

Sleep

DivX(R) VOD Code

English

Dansk

Nederlands

Suomi

Français

Deutsch

Italiano

Norsk

Press OPTIONS to exit menu

D Use keys to select a language and press OK to confi rm.

Getting Started

(continued)

Audio, Subtitle and Menu language for DVD playback

You can select your preferred language settings for DVD playback. If the selected language is recorded on the DVD disc, this unit automatically plays the disc in that language. Othe rwise, the disc’s default language will be used instead.

A Press Ç twice to stop playback (if any), then press OPTIONS .

B Press repeatedly to select

{ Preferences } icon, and press .

C Use keys to select one of the options below and press .

Preferences

Audio

Subtitle

Disc Menu

Parental

PBC

MP3/JPEG Nav

Password

DivX Subtitle


English

Chinese (Simp)

French

Spanish

Portuguese

Polish

Italian

Turkish

{ Audio }

Select the preferred audio language for

DVD playback.

{ Subtitle }

Select the preferred subtitle language for

DVD playback.

{ Disc Menu }

Select the preferred disc menu language for DVD playback.

D Use keys to select a language and press OK to confi rm.

19

Getting Started

(continued)

If the language you want is not available in the list, select { Others }.

Use the numeric keypad (0-9) on the remote control to enter the 4-digit language code ‘XXXX’ (see last page) and press OK to confi rm.

E

Repeat steps C ~ D for other settings.

Helpful Hints:

– During DVD playback, you can press the

AUDIO SYNC and SUBTITLE on the remote control to change the audio and subtitle languages respectively.

However, this does not change the default settings you have made here.

– For some DVDs, the subtitle/audio /disc menu language can only be changed via the

DVD disc menu.

20

Getting Started

(continued)

Setting the speakers’ channels

E

Use keys to highlight { Speakers

Delay } and press .

You can adjust the delay times (centre and surround only) and volume level for individual speakers. These adjustments let you optimise the sound according to your surroundings and setup.

Before you start...

Stop the disc playback by pressing x button twice or remove the disc from the disc tray. Otherwise, the settings are not accessible.


B Press repeatedly to select { Audio

Setup } icon, and press .

C Select { Speakers Volume } and press

.

Audio Setup

Speakers Volume

Speakers Delay

CD Upsampling

Audio Sync Speakers Level Setup

Front Left

Front Right

Center

Subwoofer

Rear Left

Rear Right


0dB

0dB

0dB

0dB

0dB

0dB

D Use keys to set the volume level for each speaker (-6dB ~ +6dB) and press

OK to confi rm.

Audio Setup

Speakers Volume

Speakers Delay

CD Upsampling

Audio Sync

Speakers Distance Setup

Center

Rear Left

Rear Right


F Use keys to set the delay times

(0 ms ~ 15 ms) for centre and rear speakers that best suit your surround sound needs.

G Press OK to confi rm.

0ms

0ms

0ms

Helpful Hints:

– A 1ms increase/decrease of delay time is equivalent to 30 cm change in distance.

– Use the longer delay time settings when the rear speakers are closer to the listener than the front speakers.

– The test tone will be generated to help you

judge the sound level of each speaker.

21

Disc Operations

Playable discs

Notes:

– If the inhibit icon (ø or X) appears on the TV when a button is pressed, it means the function is not available on the current disc or at the current time.

– Never put any objects other than discs on the disc tray. Doing so may cause the unit to malfunction.

Your DVD home theatre system plays:

– Digital Versatile Discs (DVDs)

– Super Video CDs (SVCDs)

– Finalised DVD Recordable (DVD±R),

DVD Rewritable (DVD±RW)

– Audio Compact Discs (CDs)

– MP3/ Windows Media™ Audio discs, picture (Kodak, JPEG) fi les on

CD-R(W)

– ISO 9660/UDF format

– JPEG resolution support up to

3072 x 2048

– Supported sampling frequencies:

32 kHz, 44.1 kHz, 48 kHz

– Supported Bit-rates: 32~256 (kbps),

variable bit rates (average 128 kbps)

– DivX ® fi les on CD-R(W)/DVD+R(W):

DivX ® 3/4/5/6, DivX ® Ultra

Region Codes for DVD discs

DVD discs and players are designed with regional restrictions. Before playing a disc, make sure the disc is for the same region as the unit. The regional code for this unit is indicated at the rear or bottom panel.

Playing a disc

A

Press SOURCE repeatedly until ‘DISC’ appears on the display panel (or press

DISC on the remote control).

B Turn on the TV to the correct viewing channel for this unit.

The blue DVD background screen appears on the TV.

C

Press ç to open the disc tray.

D

Load a disc and press ç to close the disc tray.

Make sure the disc label is facing up.

For double-sided discs, load the side which you want to play facing up.

E Playback starts automatically.

See the following pages for more playback options and features.

Helpful Hints:

– If you are having trouble playing a certain disc, remove the disc and try a different one.

Improperly formatted discs cannot be played on this unit.

– Some discs cannot be played on this unit due to the confi guration and characteristics of the disc, or due to the condition of recording and authoring software that was used.

22

Basic playback controls

Pausing playback

During playback, press u.

While in pause mode, you can press

to step forward one frame at each press.

To resume playback, press u again.

Selecting another track/chapter

P ress í / ë or use the numeric

keypad 0-9 to key in a track/chapter number.

If the repeat track mode is active, press

again to replay the same track/chapter.

Searching backward/forward

Press m / M on the remote control.

While searching, press m / M repeat edly to increase the search speed.

To resume normal playback, press u.

Stopping playback

Press x.

Helpful Hints:

– If the message ‘Playback from the

beginning, pressí’ appears on the TV while

you load in a disc, you can press í to start playback from the beginning.

– This is a power-saving feature, this unit automatically switches to standby mode if you do not press any buttons within 15 minutes after a disc has stopped playing.

– Screen saver starts automatically if the disc playback is stopped for about 5 minutes.

Disc Operations

(continued)

Selecting various repeat/ shuffl e functions

The available of the repeat play options and shuffl e play mode are vary depending on the disc type.

While playing a disc, press

REPEAT (PROGRAM) on the remote control repeatedly to choose a repeat or shuffl e play mode.

DVD

RPT ONE (repeat chapter)

RPT TT (repeat title)

SHUFFLE (random play)

RPT SHF (repeat random play)

RPT OFF (exit repeat mode)

VCD/SVCD/CD

RPT ONE (repeat track)

RPT ALL (repeat disc)


RPT SHF (repeat random play)


MP3/ Windows Media™ Audio/ DivX ®

RPT ONE (repeat track)

RPT ALL/FLD (repeat folder)



Helpful Hint:

– Repeat playback is not possible on VCDs /

SVCDs when the PBC mode is turned on.

23

Disc Operations

(continued)

Other playback features for video discs (DVD/VCD/

SVCD)

DISC

BACK

MENU

INFO

OPTIONS

Viewing playback information

This unit can display the disc playback information (for example, title or chapter number, audio/subtitle language) and a number of operations can be done without interrupting disc playback.

A During playback, press INFO.

A list of available disc information appears on the TV.

DVD

Menu

Title

Chapter

Audio

Subtitle

Bitrate 7

01/01

02/99

2ch Chi

Off

Title Elapsed

SUBTITLE AUDIO SYNC

VCD/SVCD

Note:

The operating features described here might not be possible for certain discs.

Always refer to the instructions supplied with the discs.

Menu

Track

Disc Time

Track Time

Repeat

Bitrate 8

09/16

1:16:05

0:04:32

Off

Total Elapsed

Using the Disc menu

Depending on the disc format, a menu may appear on the TV screen once you load the disc.

To select a playback feature or item

Use keys or numeric keypad

0-9 on the remote control, then press

OK to start playb ack.

To access or remove the menu

Press on the remote control.

B Use keys to view the information and press OK to access.

C Use the numeric k eypad 0-9 to in put th e number/time or use make the selection.

keys to

D

Press OK to confi rm.

Playb ack changes according to the chosen time or to the selected title/ chapter/track.

E

To exit, press INFO.

24

Disc Operations

(continued)

Zooming

This option allows you to zoom and pan through the picture on the TV.

A

During playback, press ZOOM repeatedly to select a different zoom factor.

Playback continues.

B

Use keys to pan through the enlarged image.

C

Press ZOOM repeatedly to return to the original size.

Changing sound track language

This operation works only on DVDs with multiple sound track languages, or VCDs/

SVCDs with multiple audio channels.

For DVD

Press AUDIO SYNC repeatedly to select the available audio languages.

For VCD and SVCD

Press AUDIO SYNC repeatedly to select the available audio channels provided by the disc (STEREO, MONO

LEFT, MONO RIGHT or MIX MONO).

Changing subtitle language

This operation works only on DVDs with multiple subtitle languages. You can change the language you want while playing a DVD.

Press SUBTITLE repeatedly to select different subtitle languages.

Switching camera angles

This option is only available on DVDs that contain sequences recorded from different camera angles. This allows you to view the picture from different angles.

A

During playback, press INFO.

Playback information menu appears.

B Press to highlight ‘ANGLE’ option in the menu.

C If different camera angles choices are available, press and use the numeric

keypad 0-9 to select.

Setting the delay times for audio playback

This feature allows you to adjust the audio delay times if the video playback is slower than the audio output streams, hence resulting in ‘Lip-sync’. The only way to correct ‘Lip-sync’ error caused by delayed video is to delay audio by an equal amount.

A

Press and hold AUDIO SYNC until

‘Audio Sync’ appears on the TV.

B Within fi ve seconds, use the VOL

+- to set the audio output delay times

(0 ~ 200 ms).

If the volume control is not used within fi ve seconds, it resumes its normal volume control function.

Helpful Hint:

– Set your preferred default AUDIO SYNC setting in the setup menu, see ‘Setup Menu

Options - { Audio Setup > Audio Sync } for details.’

25

Disc Operations

(continued)

Playback Control (VCD only)

Playback Control (PBC) playback allows you to play VCDs/SVCDs interactively, following the menu on the display. The

PBC feature on this unit is turned on by default.

For VCDs with PBC feature

(version 2.0 only) and SVCDs

During playback (PBC ON mode only), press MENU (BACK) to return to PBC menu.

Helpful Hint:

– Set your preferred default PBC setting in the setup menu, see ‘Setup Menu Options -

{ Preferences > PBC } for details.’

Preview function (VCD/SVCD only)

This function allows you to preview the contents of a VCD/SVCD.

A DISC .

Select Digest Type:

Track Digest

Disc Interval

Track Interval

{ Track Interval }

View the content of a single track in six thumbnail pictures. It divides a single track into six portions at regular intervals and displays them on one screen.

This option is only available during playback mode.

01

04

02

05

03

06

Exit Menu

To go to the previous or next page, press

í

/

ë

.

To return to the main menu, select

{ Menu } on the screen and press OK.

Press OK on the selected thumbnail picture to start playback from there.

C To exit the preview menu, select

{ Exit } on the screen and press OK.

B Use keys to select one of the following options and press OK.

{ Track Digest }

View six different tracks on one screen each time. It allows you to have a quick glance at all the tracks on the disc.

{ Disc Interval }

View the whole disc in six thumbnail pictures. It divides a disc into six portions at regular intervals and displays them on one screen.

26

Playing a MP3/ WMA disc

This unit can playback most of the MP3 and Windows Media™ Audio fi les recorded on a recordable disc or commercial CD.

Before you start ...

Turn on your TV to the correct Video In channel. See ‘Finding the correct viewing channel’ for details.

A Load a MP3/WMA disc.

The disc reading time may exceed 30 seconds due to the complexity of the directory/fi le confi guration.

The disc menu appears on the TV.

00:06 04:04 001/036

\UDF_MP3\

Previous

08-AudioTrack

09-AudioTrack

10-AudioTrack

11-AudioTrack

12-AudioTrack

13-AudioTrack

14-AudioTrack

000 018 000 Disc

Disc Operations

(continued)

During playback;

Press

í

/

ë

to playback another fi le in the current folder.

sea rch for a track.

To select another folder from the current disc, press repeatedly to highlight ‘Previous’ folder and press OK to return to the root menu.

D To stop playback, press x.

Helpful Hints:

– You can set to display or skip the folders when you load a MP3/JPEG disc. Press

OPTIONS, then go to { Preferences > MP3/

JPEG NAV }.

– Only the fi rst session of a multi-session CD will be played back.

– It is normal to experience an occasional

‘skip’ while listening to your MP3/WMA disc due to poor clarity of digital contents during internet downloading.

– If any special characters are present in the

MP3/WMA track name (ID3) or album name, it might not be displayed correctly on the screen because this unit does not support the characters.

B If the disc main menu contains various folders, use keys to select a desired folder and press OK to open the folder.

C Use keys to select a fi le and press

OK to start playback.

Playback starts from the selected fi le and continue till the end of the folder.

27

Disc Operations

(continued)

Playing a JPEG image fi le

(slide show)

Before you start ...

Turn on your TV to the correct Video In channel. See ‘Finding the correct viewing channel’ for details.

A Load a JPEG photo CD (or Kodak Picture

CD).

For a Kodak disc, the slide show begins automatically.

For a JPEG disc, the picture menu appears on the TV. Press u to start the slide-show playback.

Helpful Hint:

– It may require longer time to display the disc content due to the large number of songs/pictures compiled into the disc.

Preview function

A During playback, press INFO .

12 thumbnail pictures will be displayed on the TV.

B Press

í

/

ë

to display the other pictures on the previous/next page.

C

Use keys to select one of the pictures and press OK to start playback.

D Press MENU (BACK) to return to

Picture CD menu.

Supported fi le format:

– The fi le extension has to be ‘*.JPG’ and not ‘*.JPEG’.

– This unit can only display digital camera pictures according to the JPEG-EXIF format, typically used by almost all digital cameras. It cannot display progressive

JPEG, Motion JPEG, or pictures in formats other than JPEG, or sound clips associated with pictures.

Zooming

A

During playback, press ZOOM repeatedly to select a different zoom factor.

B Use keys to pan through the enlarged image.

Skip/Rotate picture

During playback, use keys to skip/rotate the picture on the TV.

Action Remote

Control

Skip to previous picture.

Skip to next picture.

Rotate the picture clockwise.

Rotate the picture anticlockwise.

28

Disc Operations

(continued)

Playing music and photo fi les simultaneously

Playing a DivX

®

disc

You can create a musical slide show playback if the disc contains both the

MP3/WMA music and JPEG picture fi les.

A Load a disc that contains both MP3/WMA and JPEG fi les.

B Use keys to select a MP3/WMA fi le from the disc menu and press OK to start playback.

C During MP3/WMA playback, use

keys to select a JPEG fi le from the disc menu and press OK.

Slideshow begins and continues till the end of the photo folder or album.

To return to the menu, press

MENU (BACK),

D To stop simultaneous playback, press x twice.

You can only play those DivX ® videos that were rented or purchased using the

DivX ® registration code of this unit (see

‘Setup Menu Options - { General Setup >

DivX(R) VOD Code }’ for details.)

A

Load a DivX ® disc.

B

Use keys to navigate to the fi le you want to play.

C Press OK to start playback.

During playback;

If the DivX ® disc has multilingual subtitles, you can press SUBTITLE on the remote control to change the subtitle language.

If the DivX ® title has different audio tracks, you can press AUDIO SYNC on the remote control to change the audio stream.

Use keys on the remote control to perform fast reverse/forward search.

Press repeatedly until the Time

Search menu appears, key in the time where playback should start.

Playback skips to the time entered.

Helpful Hints:

– Subtitle fi les with the following fi le name extensions (.srt, .smi, .sub, .ssa, .ass) are supported but do not appear on the fi le navigation menu.

– The subtitle fi le name has to be the same as the fi le name of the movie.

– The subtitle can only be displayed up to an average of 45 characters.

29

Setup Menu Options

Accessing the setup menu

You can change the settings in this unit to suit your particular requirements.

OK

OPTIONS


The setup menu appears.

B

Use keys to select one of the setup menu options, then press .

General Setup

Audio Setup

Video Setup

Preferences

If you are not able to access the

{ Preferences }, press OPTIONS to exit the menu. Then, press x twice before you press the OPTIONS again.

C Use keys to select an option and press .

D

Select the setting you wish to change and press OK to confi rm and go back to the previously selected item.

Instructions and explanations of the options are provided in the following pages.

If the option in the menu is grayed out, that means the setting is not available or cannot be changed in the current state.

E To exit, press OPTIONS.

30

General Setup

Disc Lock

Display Dim

OSD Language

Screen Saver

Sleep

DivX(R) VOD Code


See ‘General Setup’ on this Chapter.

Audio Setup

Speakers Delay

CD Upsampling

Audio Sync


See ‘Audio Setup’ on this Chapter.

Video Setup

TV Type

TV Display

Picture Setting

Closed Caption


See ‘Video Setup’ on this Chapter.

Preferences

Audio

Subtitle

Disc Menu

Parental

PBC

MP3/JPEG Nav

Password

DivX Subtitle


See ‘Preferences’ on this Chapter.


(continued)

General Setup

(underlined options are the factory default settings)

Disc Lock Not all discs are rated or coded by the disc maker. You can prevent play of specifi c discs with the disc lock function. Up to 40 discs can be locked.

{ Lock } – To block the playback of the current disc.

Subsequent access to a locked disc requires a six-digit password. The default password is

‘136900’ (see { Preferences > Password } for details).

{ Unlock } – All discs can be played.

Display Dim

OSD Language

Screen Saver

Select the brightness of this unit’s display panel.

{ 100% } – Full brightness.

{ 70% }

{ 40% }

– Medium brightness.

– Dimmest display. This switches off all LEDs and icons on the front display panel of this unit.

Select the menu language for this unit’s on-screen display.

The screen saver prevents damage to the TV screen by avoiding exposure to a static image for too long.

{ On }

{ Off }

– Switch to TV screen saver mode when playback has been stopped or paused for about 5 minutes.

– Disable the screen saver function.

Sleep The sleep timer enables the unit to switch to standby mode automatically after at a preset time.

{ 15/30/45/60 mins } – Select the preset minutes for switching the unit to standby mode

{ Off } automatically.

– Turn off the sleep mode function.

DivX(R) VOD Code Philips provides you with the DivX ® VOD (Video On Demand) registration code that allows you to rent or purchase videos from

DivX ® VOD service at www.divx.com/vod. All the downloaded videos from DivX ® VOD can only be played back on this unit.

31


(continued)

Audio Setup


Speakers Volume Access the speaker’s level setup menu. Use keys to adjust the volume level for each connected speaker between -6dB to

+6dB. See ‘Getting Started - Setting the speakers’ channels’.

Speakers Delay

Access the speaker’s distance setup menu. Use keys to set the delay times for the centre and rear speakers based on the listening position and distance. See ‘Getting Started - Setting the speakers’ channels’.

Note: 1 ms increase/decrease of delay time is equivalent to one (1) foot change in distance. Use the longer delay time settings when the rear speakers are closer to the listener than the front speakers.

CD Upsampling

This feature enables you to convert the music CD to a higher sampling rate using sophisticated digital signal processing for better sound quality.

{ Off } – Turn off CD-upsampling.

{ 88.2 kHz (X2) } – To convert the sampling rate of the

CDs twice as high as the original rate.

Notes:

– This function is not available if you switches to Multi-channel mode.

– If you press SURROUND on the remote control, it turns off the

CD upsampling feature.

Audio Sync

This feature allows you to adjust the audio delay times if the video playback is slower than the audio output streams.

between 0~200ms.

32


(continued)

Video Setup


TV Type

Select the colour system that matches the connected TV. It enables playback of a different type of disc (PAL or NTSC disc) on this unit.

{ PAL }

{ NTSC }

{ Multi }

– For PAL-system TV.

– For NTSC-system TV.

– For TV that is compatible with both

PAL and NTSC.

TV Display

The picture shape can be adjusted to fi t your TV.

{ 4:3 Pan Scan } – For a full-height picture with the sides trimmed.

{ 4:3 Letter Box } – For a ‘wide-screen’ display with black bars on the top and bottom.

{ 16:9 Wide Screen } – For wide-screen TV

(frame ratio 16:9).

Picture Setting

This unit provides three predefi ned sets of picture colour settings and one personal setting which you can defi ne yourself.

{ Standard } – Original colour setting.

{ Bright } – Vibrant colour setting.

Brightness

Contrast

{ Soft } – Warm colour setting.

{ Personal } – Select this to personalise the picture colour

Personal Picture Setup setting. Use keys to adjust to the setting that best suits your personal preference and press OK to confi rm. For an average setting,

Tint

Color select { 0 }.

Closed Caption This feature is only available if the disc contains of special video signal data. It shows sound effects on the screen if your TV supports this feature, such as ‘phone ringing’ and ‘footsteps.’

{ On }

{ Off }

– Turn on closed caption feature.

– Turn off closed caption feature.

33


(c

ontinued)

Preferences


Audio

Select the preferred audio language for DVDs with multiple sound tracks.

Subtitle

Disc Menu

Parental

Select the preferred subtitle language for DVD playback.

Select the preferred disc menu language for DVD playback.

Note: If the selected audio/subtitle/disc menu language is not available on the DVD, the disc’s default language will be used instead.

This is to prohibit viewing of discs that had exceeded the limits you set. It works only on the DVDs with parental level assigned to the complete disc or to certain scenes on the disc.

1) Use keys to select a rating level from 1 to 8 and press

OK.

2) Use the numeric keypad 0-9 on the remote control to enter your six-digit password.

Notes:

– The ratings are country-dependent (‘1’ is considered material that is least offensive and ‘8’ is most offensive). To disable parental controls and allow all discs to play, select ‘8’.

– Some DVDs are not encoded with a rating though the movie rating may be printed on the disc cover. The rating level feature does not prohibit playback of such discs. VCD, SVCD and CD have no level indication, so parental control has no effect on these type of discs.

– DVDs that are rated higher than the level you selected will not be played unless you enter the same six-digit password.

PBC

Play Back Control feature is applicable for VCD/SVCD only. It allows you to play Video CDs (2.0) interactively, following the menu on the display.

{ On } – The index menu (if available) appears on the

{ Off }

TV when you load a VCD/SVCD.

– The VCD/SVCD skips the index menu and playback directly from the beginning.

34


(continued)

Preferences


MP3/JPEG Nav

MP3/JPEG Navigator can only be set if the disc is recorded with a menu. It allows you to select different display menus for easy navigation.

{ Without Menu } – Display all the fi les contained in the MP3/

Picture disc.

{ With Menu } – Display the folder menu of the MP3/

Picture disc.

Note: This unit can only display 648 fi les in the directory.

Password

DivX Subtitle

The password is used for the Disc Lock and Parental. The default password is ‘136900’. To change the password:

1) Press OK to access the change password menu.

Change Password

Old Password

New Password

Confirm PWD

OK

2) Use the numeric keypad 0-9 on the remote control to enter your existing six-digit password at { Old Password }.

Note: When doing this for the fi rst time or if you forget your existing password, key in ‘136900’.

3) Enter the new six-digit password at { New Password }.

4) Enter the new six-digit password again at { Confi rm PWD }.

5) Press OK to confi rm and exit the menu.

Select the font type that supports the recorded DivX

®

{ Standard }

subtitle.

– Display a standard list of Roman subtitle fonts provided by this unit.

{ Central Europe }– Display Central Europe fonts.

{ Cyrillic } – Display Cyrillic fonts.

{ Greek } – Display Greek subtitle fonts .

35


(continued)

Preferences


Default

This feature enables you to reset all the setup menu options and your personal settings to the factory defaults, except your password for the Disc Lock and Parental.

Version Info

This shows you informations about the current version of the software installed in this unit. You may require this information for future online fi rmware upgrade.

36

Radio Operations

Before you start .....

Ensure that FM antenna is connected to the main unit. (For some models, it has been connected in the factory.) Extend the FM antenna and fi x its ends to the wall.

FM antenna

Helpful Hints:

– For better FM stereo reception, connect an external FM antenna (not supplied.)

– Position the antenna as far away as possible from your TV, VCR or other radiation source to prevent any unwanted interference.

Presetting radio stations

You can store up to 40 FM preset radio stations in the memory. There are three different ways to program the radio stations:

– Using auto install (for fi rst time setup only)

– Using automatic preset

– Using manual preset

Helpful Hints:

– This unit exits presetting mode if no button is pressed within 20 seconds.

– If no stereo signal is detected or less than

5 (fi ve) stations are detected during radio installation, ‘CHECK ANTENNA’ appears.

Tuning to radio stations

A

Press SOURCE repeatedly until ‘FM’ appears on the display panel (or press

RADIO on the remote control).

B Press W / X on the remote control to start tuning.

The frequency indication starts to change until a radio station with suffi cient signal strength is found.

C Repeat step B if necessary until you fi nd the desired radio station

D To fi ne-tune the reception of a weak station, press S / T briefl y and repeatedly until an optimal reception is found.

Using auto install

When you access the ‘RADIO’ mode for the very fi rst time, you will be prompted to install the radio stations. With this feature, you can install all the available radio station automatically with one touch of button.

RADIO

A Press RADIO.

‘AUTO INSTALL ... PRESS PLAY’ appears.

B

Press u.

All the available radio stations with strong signal will be stored automatically.

Once complete, the fi rst tuned radio station will be played back.

37

Radio Operations

(continued)

Using automatic preset

Use automatic presetting to store or reinstall all the preset radio stations.

RADIO

PROGRAM

REPEAT

Selecting a preset radio station

A Press RADIO.

B Press í / ë or use the numeric

keypad 0-9 to select a preset radio stations.

The preset number and radio frequency appear on the display panel.

A Press RADIO

B

Press and hold REPEAT (PROGRAM) until ‘START ...’ appears on the display panel.

All previously stored radio stations will be replaced.

Using manual preset

Use manual presetting to store your favourite radio stations.

A

Tune to your desired radio station (see

‘Tuning to radio stations’).

B Press REPEAT (PROGRAM).

C Press í / ë or use the numeric

keypad 0-9 to select a preset number that you want to store the current radio station.

D

Press REPEAT (PROGRAM) to store.

Deleting a preset radio station

A In radio mode, press í / ë to select a preset radio station.

B Press and hold x until ‘FM X DELETED’ appears.

‘X’ is the preset number.

The radio station continues to play but has been deleted from the preset list.

The rest of the preset radio stations remain unchanged.

38

(Mute)

VOL

+-

SURROUND

Volume control

SOUND

MODES

+-

Press VOL + / - to increase or decrease the volume level.

To turn off the volume temporarily

Press .

Playback continues without sound and

‘MUTE’ appears.

To restore the volume, press again, or increase the volume level.

Selecting surround sound

Press SURROUND to select Multi-

Channel, Stereo sound or Party sound.

The availability of the various surround sound modes depends on the sound available on the disc.

The available output modes for

Multi-channel include: Dolby Digital and

Dolby Pro Logic II.

Stereo broadcasts or recordings will produce some surround channel effects when played in a surround mode.

Party mode is ideal for party music. It enhanced the stereo channels output by duplicating the sound output to the centre, rear left and rear right speakers.

Sound and Volume Controls

Selecting digital sound effects

Select a preset digital sound effect that matches your disc’s content or that optimises the sound of the musical style you are playing.

Press SOUND MODES +/- to select the available sound effect.

Movies Music Description

CONCERT CLASSIC Flat and pure sound mode. Ideal for listening to classical music and watching live concert DVDs.

DRAMA LOUNGE Moderate sound mode suitable for lounge music and watching dramas.

ACTION ROCK Enhanced low and high range for great sounding movie effects and atmosphere. Great for action movies and rock/pop music.

GAMING SPORTS

NIGHT NIGHT

Moderate mid range and surround effects for clear vocals and the atmosphere of a live sports venue. Also suitable for video gaming.

Dynamically controlled sound mode suitable for watching movies at night or for non-intrusive background music.

39

Other Features

Installing the latest software

Philips provides software upgrades to make sure that this unit is compatible with the newest formats. To check the updates, compare the current software version of this unit with the latest software version available at the Philips website.

A Press OPTIONS to select

{ Preferences } menu.

B Select { Version Info }, and press OK to check the software version of this unit.

Preferences

Disc Menu

Parental

PBC

MP3/JPEG Nav

Password

DivX Subtitle

Default

Version Info


C Write down the version number, then press OPTIONS to exit the menu.

D Go to www.philips.com/support to check the latest software version available for this unit.

E

If the latest software version is higher than the software version of this unit, download it and store onto a CD-R.

F Insert the CD-R to this unit and confi rm upgrade operation.

Note:

Never unplug or turn off this unit during the upgrade.

G Once complete, this unit restarts automatically.

40

Troubleshooting

WARNING

Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Never open the system as there is a risk of electric shock.

If a fault occurs, fi rst check the points listed below before taking the system for repair.

If you are unable to solve a problem by following these instructions, consult your dealer or

Philips for help.

No picture.

Solution

– Refer to your TVs manual for correct Video In channel selection. Change the TV channel until you see the DVD screen.

– Press DISC to select disc mode.

Completely distorted picture or black/white picture.

– Check the video connection.

– Sometimes a small amount of picture distortion may

appear. This is not a malfunction.

– The disc is dirty. Clean the disc.

No sound or distorted sound.

– Adjust the volume.

– Check the speaker connections and settings.

– Make sure that the audio cables are connected and press the correct source button (for example, AUX) to choose the device that you want to hear through this unit.

No surround sound effect from the speakers.

– Press SURROUND to select a correct surround sound setting.

– For playback of DTS track, press AUDIO SYNC to select other audio track.

– Make sure that the source you are playing is recorded or broadcast in surround sound (Dolby Digital, etc).

The remote control does not function properly.

– Select the source you want to play (for example,

DISC or RADIO) before pressing the function button

(u, í / ë).

– Reduce the distance between the remote control and this unit.

– Batteries are weak, replace the batteries.

– Point the remote control directly toward the IR sensor.

41

Troubleshooting

(continued)

Solution

The unit does not start playback.

– Load a readable disc with the playback side facing down. The DVD+R/CD-R must be Finalised.

– Make sure the disc is not scratched or warped.

– Press OPTIONS to turn off the system setup menu

screen.

– You may need to enter the password in order to unlock the disc for playback.

– Moisture may have condensed inside this unit.

Remove the disc and leave this unit turned on for about an hour.

The aspect ratio of the screen cannot be changed even though you have set the TV display.

– The aspect ratio is fi xed on the DVD disc.

– Depending on the TV, it may not be possible to change the aspect ratio.

Cannot activate some features e.g. Angles, Subtitles, or multi-language Audio.

– The features may not be available on the DVD.

– Changing the language for the sound or subtitle is

prohibited on this DVD.

Not able to select some items in the setup/system menu.

– Press x twice before selecting the system setup menu.

– Depending on the disc availability, some menu items cannot be selected.

Unable to play DivX ® movies.

– Ensure that the DivX ® fi le is encoded according to the

‘Home Theatre Profi le’ with the DivX ® encoder.

– Check that the DivX ® movie download is a complete fi le.

Radio reception is poor.

– If the signal is too weak, adjust the antenna or connect an external antenna for better reception.

– Increase the distance between this unit and your TV or VCR.

– Tune in to the correct frequency.

– Place the antenna further away from any equipment that may be causing the interference.

42

AMPLIFIER

Total output power :

- Home Theatre mode: 200 W

Frequency Response: 180 Hz – 18 kHz / ±3 dB

Signal-to-Noise Ratio: > 60 dB (A-weighted)

Input Sensitivity

- AUX: 400 mV

- SCART TO TV: 200 mv

RADIO

Tuning Range:

26 dB Quieting

Sensitivity:

FM 87.5–108 MHz (50 kHz)

FM 22 dBf

IF Rejection Ratio: FM 60 dB

Signal-to-Noise Ratio: FM 50 dB

Harmonic Distortion: FM Mono 3%

FM Stereo 3%

Frequency Response FM 180 Hz–10 kHz / ±6 dB

Stereo Separation FM 26 dB (1 kHz)

Stereo Threshold FM 29 dB

DISC

Laser Type

Disc Diametre

Video Decoding

Video DAC

Signal System

Video Format

Video S/N

Composite Video

Semiconductor

12cm / 8cm

MPEG-1 / MPEG-2 /

/ DivX 3/4/5/6, Ultra

12 Bits

PAL / NTSC

4:3 / 16:9

56 dB

Output 1.0 Vp-p, 75Ω

Frequency Response 4 Hz–20 kHz (44.1 kHz)

PCM

Dolby Digital

4 Hz–22 kHz (48 kHz)

4 Hz–44 kHz (96 kHz)

IEC 60958

IEC 60958, IEC 61937

Specifi cations

MAIN UNIT

Power Supply Rating: 110-240 V; 50~60 Hz

Power Consumption: 40 W

Dimensions: 435 x 57 x 360 (mm)

(w x h x d)

Weight: 2.82 kg

FRONT AND REAR SPEAKERS

System:

Impedance:

Full range satellite

4 Ω

Speaker drivers: 3” full range speaker

Frequency response: 150 Hz – 20 kHz

Dimensions: 95.5 x 198 x 75 (mm)

Weight:

(w x h x d)

0.53 kg/each

CENTRE SPEAKER

System: Full range satellite

Impedance:

Speaker drivers:

8 Ω

2 x 2.5” full range speaker+

1 x 2” tweeter

Frequency response: 150 Hz – 20 kHz

Dimensions: 240 x 99.5 x 64 (mm)

Weight:

(w x h x d)

0.85 kg

SUBWOOFER

Impedance:

Speaker drivers:

8 Ω

203 mm (8”) woofer

Frequency response: 40 Hz – 150 Hz

Dimensions: 131 x 315 x 386 (mm)

Weight:

(w x h x d)

3.93 kg

Specifi cations subject to change without prior notice.

43

Glossary

Analogue audio: Sound that has not been turned into numbers. Analogue sound is available if you use the AUDIO LEFT/RIGHT.

These red and white sockets send audio through two channels, the left and right.

Aspect ratio: Aspect ratio refers to the length to height ratio of TV screens. The ratio of a standard TV is 4:3, while the ratio of a high-defi nition or wide TV is 16:9. The letter box allows you to enjoy a picture with a wider perspective on a standard 4:3 screen.

AUDIO IN sockets: Red and white sockets on the back of the unit that receive audio from another system (TV, Stereo, etc.).

Bit Rate: The amount of data used to hold a given length of music; measured in kilobits per second, or kbps. Or, the speed at which you record. Generally, the higher the bit rate, or the higher the recording speed, the better the sound quality. However, higher bit rates use more space on a disc.

Chapter: Sections of a picture or a music piece on a DVD that are smaller than titles.

A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.

Composite video (CVBS): A single video signal commonly used in most consumer video products.

Disc menu: A screen display prepared for allowing a selection of images, sounds, subtitles, multi-angles, etc., recorded on a

DVD.

DivX ® : The DivX ® code is a patent-pending,

MPEG-4 based video compression technology, developed by DivX ® Networks,

Inc., that can shrink digital video to sizes small enough to be transported over the internet, while maintaining high visual quality.

Dolby Digital: A surround sound system developed by Dolby Laboratories containing up to six channels of digital audio (front left and right, surround left and right, centre and subwoofer).

Dolby Surround Pro Logic II: It is an improved matrix decoding technology that provides better spatiality and directionality on Dolby Surround programme material, provides a convincing three dimensional sound fi eld on conventional stereo music recordings and is ideally suited to bring the surround experience to automotive sound.

While conventional surround programming is fully compatible with Dolby Surround Pro

Logic II decoders, soundtracks will be able to be encoded specifi cally to take full advantage of Pro Logic II playback, including separate left and right surround channels. (Such material is also compatible with conventional

Pro Logic decoders).

HDCP (High-bandwidth Digital Content

Protection) is a specifi cation that provides a secure transmission of digital contents between different devices (to prevent unauthorised copyright).

JPEG: A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic

Expert Group, which features small decrease in image quality in spite of its high compression ratio. Files are recognised by their fi le extension ‘JPG or JPEG’.

44

MP3: A fi le format with a sound data compression system. ‘MP3’ is the abbreviation of Motion Picture Experts

Group 1 (or MPEG-1) Audio Layer3. By using the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD.

MPEG: Motion Picture Experts Group. A collection of compression systems for digital audio and video.

PBC: Playback Control. A system of navigating a Video CD/Super VCD through on-screen menus recorded onto the disc.

You can enjoy interactive playback and searching.

Region code: A system allowing discs to be played only in the region designated. This unit will only play discs that have compatible region codes. You can fi nd the region code of your unit by looking at the product label.

Some discs are compatible with more than one region (or ALL regions).

Surround: A system for creating realistic three dimensional sound fi elds full of realism by arranging multiple speakers around the listener.

Title: The longest section of a movie or music feature on DVD. Each title is assigned a title number, enabling you to locate the title you want.

WMA: Windows Media™ Audio. Refers to an audio compression technology developed by Microsoft Corporation. WMA data can be encoded by using Windows Media Player version 9 or Windows Media Player for

Windows XP. Files are recognised by their fi le extension ‘WMA’.

Glossary

(continued)

45
