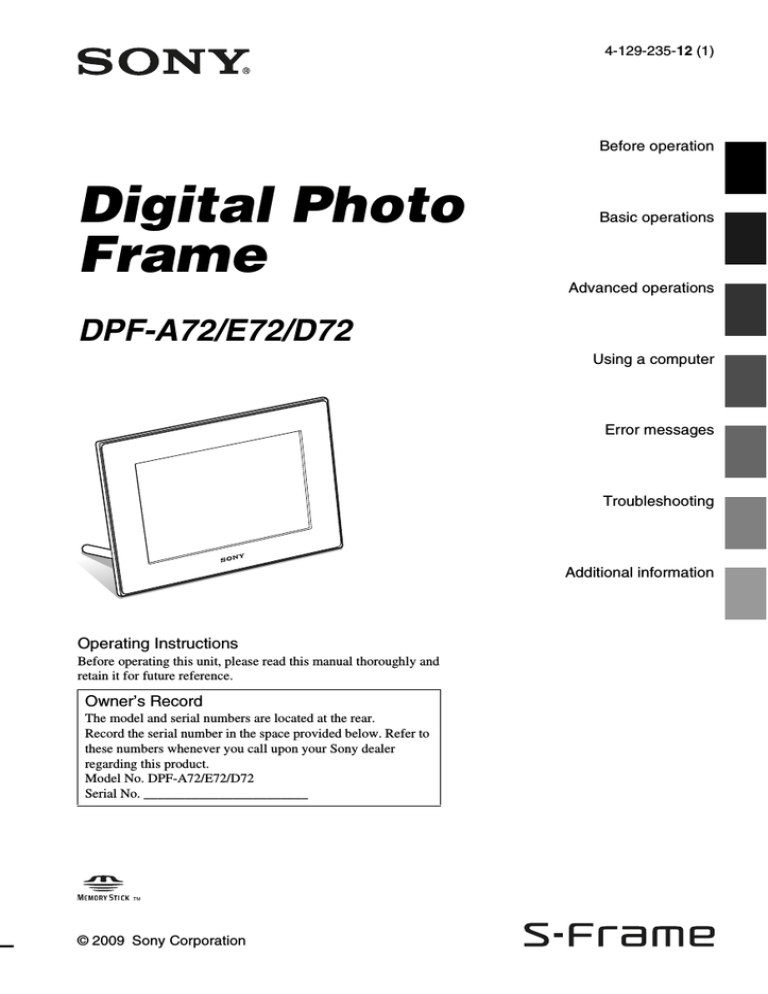

4-129-235-12 (1)
Before operation
Digital Photo
Frame
Basic operations
Advanced operations
DPF-A72/E72/D72
Using a computer
Error messages
Troubleshooting
Additional information
Operating Instructions
Before operating this unit, please read this manual thoroughly and
retain it for future reference.
Owner’s Record
The model and serial numbers are located at the rear.
Record the serial number in the space provided below. Refer to
these numbers whenever you call upon your Sony dealer
regarding this product.
Model No. DPF-A72/E72/D72
Serial No. ________________________
© 2009 Sony Corporation
WARNING
To reduce fire or shock hazard, do not
expose the unit to rain or moisture.
Do not expose the batteries to
excessive heat such as sunshine, fire
or the like.
CAUTION
Replace the battery with the specified
type only. Otherwise, fire or injury
may result. Dispose of used batteries
according to the instructions.
For the customers in the U.S.A.
CAUTION
You are cautioned that any changes or modifications
not expressly approved in this manual could void
your authority to operate this equipment.
If you have any questions about this product, you may
call:
Sony Customer Information Services Center
1-800-222-SONY (7669)
The number below is for the FCC related matters
only.
Regulatory Information
Declaration of Conformity
Trade Name:
Model No.:
Responsible Party:
Address:
SONY
DPF-A72
Sony Electronics Inc.
16530 Via Esprillo, San Diego,
CA 92127 U.S.A.
Telephone No.:
858-942-2230
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
2 GB
Declaration of Conformity
Trade Name:
Model No.:
Responsible Party:
Address:
SONY
DPF-D72
Sony Electronics Inc.
16530 Via Esprillo, San Diego,
CA 92127 U.S.A.
Telephone No.:
858-942-2230
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Note:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
For the State of California, USA
only
Perchlorate Material - special handling may apply,
See
www.dtsc.ca.gov/hazardouswaste/perchlorate
Perchlorate Material: Lithium battery contains
perchlorate.
For the Customer in Europe
This product has been tested and found compliant
with the limits set out in the EMC Directive for using
connection cables shorter than 3 meters (9.8 feet).
Attention
The electromagnetic fields at the specific frequencies
may influence the picture of this digital photo frame.
Notice
If static electricity or electromagnetism causes data
transfer to discontinue midway (fail), restart the
application or disconnect and connect the
communication cable (USB, etc) again.
Disposal of Old Electrical &
Electronic Equipment (Applicable in
the European Union and other
European countries with separate
collection systems)
This symbol on the product
or on its packaging indicates
that this product shall not be
treated as household waste.
Instead it shall be handed
over to the applicable
collection point for the
recycling of electrical and
electronic equipment. By
ensuring this product is
disposed of correctly, you
will help prevent potential
negative consequences for
the environment and human health, which could
otherwise be caused by inappropriate waste handling
of this product. The recycling of materials will help to
conserve natural resources. For more detailed
information about recycling of this product, please
contact your local Civic Office, your household waste
disposal service or the shop where you purchased the
product.
Disposal of waste batteries
(applicable in the European Union
and other European countries with
separate collection systems)
This symbol on the battery or on the
packaging indicates that the battery
provided with this product shall not
be treated as household waste. By
ensuring these batteries are disposed
of correctly, you will help prevent
potentially negative consequences for
the environment and human health which could
otherwise be caused by inappropriate waste handling
of the battery. The recycling of the materials will help
to conserve natural resources. In case of products that
for safety, performance or data integrity reasons
require a permanent connection with an incorporated
battery, this battery should be replaced by qualified
service staff only. To ensure that the battery will be
treated properly, hand over the product at end-of-life
to the applicable collection point for the recycling of
electrical and electronic equipment. For all other
batteries, please view the section on how to remove
the battery from the product safely. Hand the battery
over to the applicable collection point for the
recycling of waste batteries.
For more detailed information about recycling of this
product or battery, please contact your local Civic
Office, your household waste disposal service or the
shop where you purchased the product.
Notice for the customers in the
countries applying EU Directives
The manufacturer of this product is Sony
Corporation, 1-7-1 Konan Minato-ku Tokyo, 1080075 Japan. The Authorized Representative for EMC
and product safety is Sony Deutschland GmbH,
Hedelfinger Strasse 61, 70327 Stuttgart, Germany.
For any service or guarantee matters please refer to
the addresses given in separate service or guarantee
documents.
Continued
3 GB
Duplication, edition, or printing of a CD, TV
programs, copyrighted materials such as pictures or
publications, or any other materials except for your
own recording or creation is limited to private or
domestic use only. Unless you hold copyright or
have permission of copyright holders for the
materials to be duplicated, use of those materials
beyond this limit may infringe the provisions of the
copyright law and be subject to the copyright
holders claim for damages.
When using photo images with this digital photo
frame, pay special attention not to infringe the
provisions of the copyright law. Any unauthorized
use or modification of there’s portrait may also
infringe their rights.
For some demonstrations, performances, or
exhibits, photography may be forbidden.
Backup recommendations
To avoid potential risk of data loss caused by
accidental operation or malfunction of the digital
photo frame, we recommend that you save a
backup copy of your data.
Information
IN NO EVENT SHALL SELLER BE LIABLE
FOR ANY DIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY
NATURE, OR LOSSES OR EXPENSES
RESULTING FROM ANY DEFECTIVE
PRODUCT OR THE USE OF ANY PRODUCT.
Sony shall assume no responsibility for any
accidental or consequential damages or loss of the
recording contents which may be caused by use or
malfunction of the digital photo frame or memory
card.
Notes on LCD screen
• Do not press against the LCD screen. The screen
may be discolored and that may cause a
malfunction.
• Exposing the LCD screen to direct sunlight for long
periods may cause malfunctions.
• The LCD screen is manufactured using extremely
high-precision technology, so over 99.99% of the
pixels are operational for effective use. However,
there may be some tiny black points and/or bright
points (white, red, blue or green in color) that
constantly appear on the LCD screen. These points
are normal in the manufacturing process and do not
affect the viewing in any way.
• Images may trail across on the LCD screen in a cold
location. This is not a malfunction.
4 GB
On trademarks and copyrights
•
, Cyber-shot,
, “Memory
, “Memory Stick Duo”,
, “MagicGate Memory
Stick”, “Memory Stick PRO”,
, “Memory Stick PRO Duo”,
, “Memory Stick PRO-HG
Duo”,
, “Memory Stick
Micro”,
,
, “Memory StickROM”,
, “MagicGate”, and
are trademarks or registered
trademarks of Sony Corporation.
• Microsoft, Windows, and Windows Vista are
registered trademarks of Microsoft Corporation in
the United States and/or other countries.
• Macintosh and Mac OS are registered trademarks of
Apple Inc. in the United States and/or other
countries.
• CompactFlash is a trademark of SanDisk
Corporation in the U.S.A.
Stick”,
•
•
•
•
•
or xD-Picture Card™ is a trademark of
FUJIFILM Corporation.
The photo frame contains fonts from Monotype
Imaging Inc.
This software is based in part on the work of the
Independent JPEG Group.
Libtiff
Copyright © 1988 - 1997 Sam Leffler
Copyright © 1991 - 1997 Silicon Graphics, Inc.
All other companies and product names mentioned
herein may be the trademarks or registered
trademarks of their respective companies.
Furthermore, “™” and “®” are not mentioned in
each case in this manual.
Notice for users
Program © 2009 Sony Corporation
Documentation © 2009 Sony Corporation
All rights reserved. This manual or the software
described herein, in whole or in part, may not be
reproduced, translated or reduced to any machine
readable form without prior written approval from
Sony Corporation.
IN NO EVENT SHALL SONY CORPORATION BE
LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES,
WHETHER BASED ON TORT, CONTACT, OR
OTHERWISE, ARISING OUT OF OR IN
CONNECTION WITH THIS MANUAL, THE
SOFTWARE OR OTHER INFORMATION
CONTAINED HEREIN OR THE USE THEREOF.
Sony Corporation reserves the right to make any
modification to this manual or the information
contained herein at any time without notice.
The software described herein may also be governed
by the terms of a separate user license agreement.
Any design data such as sample pictures provided in
this software cannot be modified or duplicated except
for the purpose of personal use. Any unauthorized
duplication of this software is prohibited under
copyright law.
Please note that unauthorized duplication or
modification of portraits or copyrighted work could
infringe the rights reserved by rights holders.
On the illustrations and screen
shots used in this manual
The illustrations and screen shots used in this
manual are of the DPF-D72 unless noted
otherwise.
The illustrations and screen shots used in this
manual may not be identical to those actually
used or displayed.
5 GB
Table of Contents
Before operation
Enjoying your photo frame in various
ways ...............................................8
Features ..........................................9
Checking included items ...............10
Identifying the parts .....................11
Basic operations
Preparing the remote control ........14
Setting the stand ..........................15
To display the photo frame
on the wall ....................................16
To exchange a panel
(DPF-E72 only) .............................17
Connecting to the AC
power source ................................18
Turning the photo frame on ..........20
Setting the current time ................21
Inserting a memory card ..............22
Changing the display ....................23
Slideshow display .........................24
Clock and calendar display ...........25
Single view mode .........................26
Index image display ......................27
6 GB
Advanced operations
Enjoying a slideshow ....................29
Changing the settings of
the slideshow .................................29
Refresh mode (DPF-D72 only) .....32
Adding images to the internal
memory ........................................32
Exporting an image .......................34
Deleting an image .........................36
Registering a mark
(DPF-D72 only) ............................37
Searching for an image (Filtering)
(DPF-D72 only) ............................39
Specifying the playback device .....40
Adjusting the image size and
position ...................................40
Enlarging/reducing an image ..........40
Rotating an image ...........................41
Changing the settings of the auto
power on/off function ...................42
Changing the settings ...................43
Setting procedure ...........................43
Items to set .....................................45
Using a computer
Connecting to a computer ............47
System requirements ......................47
Connecting to a computer to exchange
images ............................................47
Disconnecting your computer .........48
Error messages
If an error message appears .........49
Troubleshooting
If trouble occurs ...........................51
Additional information
Precautions ..................................55
On safety ........................................55
On installation ................................55
On cleaning ....................................55
On restrictions on duplication ........56
Disposing of the photo frame ..........56
About memory cards ....................56
“Memory Stick” ..............................56
SD memory card ............................57
xD-Picture Card .............................57
CompactFlash card
(DPF-D72 only) ..............................58
Notes on using a memory card .......58
Specifications ...............................59
Index ............................................61
7 GB
Before operation
Enjoying your photo frame in various ways
The Sony DPF-A72/E72/D72 is a digital photo frame for easily displaying images taken with a
digital camera or other device, without using a computer.
8 GB
Features
Before operation
x Support for various memory cards
Supports various memory cards, such as a
“Memory Stick”, CompactFlash card (DPFD72 only), SD memory card, and xD-Picture
Card. Just insert a memory card removed
from a digital camera or other device, and
you will be able to view the images
immediately. (.page 22)
x Various modes
The displayed image can be switched
automatically as though you are turning the
pages of an album yourself. You can select
from various modes, including just images, a
clock, or calendar view. You can also change
playback settings such as the playback order.
(.page 29)
x Adding images to internal memory
The images you add to the album are saved
in internal memory. (.page 32)
x Various display functions
You can enjoy various viewing modes, such
as the slideshow display, Clock and calendar
display, Single view mode, and Index image
display. (.page 23)
x Exporting images
You can export images in the album to your
memory card. (.page 34)
Continued
9 GB
D:\DPF series\A Series\4129235121DPF-A.E.D.72IM_GB\4129235121\4129235121DPF-A.E.D.72IM_GB\030C01.fm
Master: Left
030C01.fm Page 10 Wednesday, April 15, 2009 5:01 PM
x Search function (DPF-D72 only)
You can search for images by the date,
folder, image direction, and mark.
(.page 39)
x Automatic rotation of images
The photo frame automatically rotates
images to their proper orientation. Images
are also automatically rotated when the
photo frame is set in either the portrait or
landscape position. (.page 16)
Checking included
items
Make sure that the following items are
included.
• Digital photo frame (1)
• Stand (1)
• Remote control (1)
• AC adaptor (1)
• Exchangeable panel (2) (DPF-E72 only)
• Operating Instructions (this manual) (1)
• Read This First (1)
• Warranty (1)
(In some regions, the warranty is not
supplied.)
x Displaying images on a wall
You can hang the photo frame on the wall.
(.page 16)
10 GB
DPF-A72/E72/D72 4-129-235-12 (1)
Identifying the parts
Rear
Before operation
For details, see the pages indicated in the
parentheses.
The illustrations are of the DPF-D72. The
locations and names of buttons and connectors
of the DPF-A72/E72 are identical to those of
the DPF-D72, except that the DPF-A72/E72
are not equipped with CompactFlash card/
Microdrive slot.
Front
A
USB B connector (.page 47)
Connect a USB cable when you want to use
the photo frame with a computer.
B Stand (.page 15)
C DC IN 5 V jack (.page 18)
Insert the DC plug of the supplied AC adaptor
to this jack, and connect the AC adaptor and
the wall outlet.
A LCD screen
B Remote sensor
When using the supplied remote control, point
it at this sensor.
Continued
11 GB
D CompactFlash card/Microdrive
slot (.page 22) (DPF-D72 only)
E 1 (on/standby) button
F Standby indicator
G MENU button
Displays the menu.
From the menu, you can operate the same
functions as those of the buttons on the
remote control, such as [Slideshow Settings],
[Rotate], [Add to album] and [Date/time
settings].
H Direction (B/b/v/V) buttons,
Press B/b/v/V to select the menu items. Then
press
to enter the selection.
I BACK button
Returns to the previous screen.
J Reset switch
If the photo frame does not operate at all with
the power on, use a long, thin object such as a
pin to push the switch.
K Access lamp
L “Memory Stick PRO” (Standard/
Duo)/SD memory card/MMC/xDPicture Card slot (.page 22)
12 GB
M VIEW MODE button (.page 23)
N Holes for hanging unit on the wall
(.page 16)
O Space for storing stand
Remote control
13 GB
Before operation
A VIEW MODE button (.page 23)
B SLIDE-SHOW ( ) button
(.page 23)
C INDEX ( ) button (.page 23)
D SINGLE (
) button
(.page 23)
E MENU button
F BACK button
G 1 (on/standby) button
H CLOCK ( ) button (.page 23)
I Zoom in ( )/Zoom out ( ) buttons
(.page 40)
J ALBUM ( ) button (.page 32)
K Direction (B/b/v/V) buttons
L
(enter) button
M ROTATE (
) button
(.page 40)
Basic operations
Preparing the remote
control
The supplied lithium battery (CR2025) has
already been inserted into the remote control.
Pull out the protective sheet before use as
shown in the figure.
Replacing the battery of the
remote control
If the remote control stops working, replace the
battery (CR2025 lithium battery) with a new
one.
1
Pull out the battery holder.
While pressing in the tab of the battery
holder, pull out the battery holder.
Protective sheet
Using the remote control
Point the top end of the remote control towards
the remote sensor on the photo frame.
2
Remove the old battery from the
battery holder and then insert a new
battery.
Insert the battery so that “+” is facing
upwards.
Remote
sensor
3
Reinsert the battery holder into the
remote control.
WARNING
Battery may explode if mistreated. Do not
recharge, disassemble or dispose of in fire.
Notes
Note
The photo frame may fall if you use the buttons on the
photo frame when it is hanging on the wall. Operate
the photo frame using the remote control.
14 GB
• When the lithium battery becomes weak, the
operating distance of the Remote control may
shorten, or the Remote control may not function
properly. In this case, replace the battery with a
Sony CR2025 lithium battery. Use of another
battery may present a risk of fire or explosion.
• Using a battery other than the specified one may
result in the battery rupturing.
• Dispose of used batteries as specified by the local
authorities.
• Do not leave the remote control in a very hot and
humid place.
• Take care that no foreign objects get inside the
remote control when you, for example, replace the
battery.
• Incorrect use of the battery may cause leaking and
corrosion.
Setting the stand
1
Hold the photo frame tightly and
insert the stand straight into the
screw hole on the rear panel.
– Do not recharge the battery.
– Incorrectly inserting, shorting, dismantling, or
heating the battery, or throwing it into a fire
may cause the battery to rupture or leak.
About descriptions in this
manual
2
Screw the stand into the screw hole
firmly until the stand stops turning.
The operations described in this manual are
based on remote control operation. When an
operation is performed differently, for example,
with the remote control and the buttons on the
photo frame, it will be explained in a tip.
Setting to portrait or landscape
orientation
You can set the photo frame to portrait or
landscape orientation by rotating it without
moving the stand.
Continued
15 GB
Basic operations
– When the remote control will not be used for a
long period of time, remove the battery from the
remote control to prevent leaking and corrosion.
When the photo frame is placed in the portrait
orientation, the image is also automatically
rotated to its proper orientation.
DPF-D72 only: The directions indicated on the
direction button on the rear panel depend on the
orientation of the photo frame.
To display the photo
frame on the wall
You can hang the photo frame on the wall
using the following procedure.
1
Prepare screws (not supplied)
suitable for the screw holes on the
rear panel.
4mm (3/16 inch)
More than 25mm (1 inch)
4.2mm
(3/16 inch)
Notes
• Check whether the stand is stable. If the stand is not
set properly, the photo frame may fall over.
• DPF-A72/D72 only: When the photo frame is
placed in the portrait orientation, the Sony logo
doesn't light up.
• The photo frame does not detect and rotate the
orientation of images when [Auto display
orientation] of [General Settings] on the
(Settings) tab is set to [OFF].
• A magnet is contained in the storage portion of the
stand. Do not keep anything that is easily affected
by magnetism, such as a cash card or credit card,
near the photo frame.
If you place the photo frame near a cathode-ray tube
television, the colors of the television screen may be
affected.
8.6mm
(11/32 inch)
Holes for hanging
the unit on the wall
2
Screw the screws (not supplied) into
the wall.
Be sure the screws (not supplied) protrude
between 2.5 to 3mm (1/8 inch) from the
surface of the wall.
Between
Tip
2.5mm to 3mm
(1/8 inch)
It is easier to turn the stand if you wind or wrap a
rubber band tightly around the stand when you
remove the stand from the photo frame.
3
Hang the photo frame on the wall by
fitting the one hole on the rear panel
to the screws on the wall.
Notes
• Use screws suitable for the quality of the material of
the wall. The screws may be damaged, depending
on the type of material used in the wall. Set the
screws in a pillar or stud in the wall.
16 GB
• When you want to re-insert the memory card,
remove the photo frame from the wall, then eject
and re-insert the memory card while the photo
frame is placed on a stable surface.
• Remove the stand and store it in the storage portion
provided on the rear when you hang the photo frame
on the wall.
To exchange a panel
(DPF-E72 only)
You can exchange the original panel with an
exchangeable panel supplied.
1
Since a magnet is contained in the
storage portion, you can keep the
stand attached to the portion.
• Connect the DC cable of the AC adaptor to the
photo frame and hang the photo frame on the wall.
Then connect the AC adaptor to the wall outlet.
• We take no responsibility for any accidents or
damage caused by defects of attachment, misuse, or
natural disasters, etc.
2
Remove the panel.
Continued
17 GB
Basic operations
Insert a long, thin object such as a
pin into the hole next to the space
for storing stand on the rear of the
photo frame and lift up the front
panel.
3
Place an exchangeable panel to the
photo frame, while aligning the hole
on an exchangeable panel to the
remote sensor of the photo frame.
Remote sensor
Connecting to the AC
power source
1
2
Insert the plug of the AC adaptor
into the DC IN 5 V jack on the rear
of the photo frame.
Connect the AC adaptor to the wall
outlet.
The photo frame is automatically turned
on.
4
Press the four corners of the
exchangeable panel to snap it into
the photo frame.
To DC IN 5 V
jack
DC Plug
To wall outlet
DC cable
AC adaptor
main unit
AC plug
Notes
• The socket outlet should be as close as possible to
the unit, and easily accessible.
• Do not place the photo frame on an unsteady or
tilted surface.
• Connect the AC adaptor to an easily accessible wall
outlet close by. If trouble occurs while using the
adaptor, immediately shut off the power by
disconnecting the plug from the wall outlet.
18 GB
Removing the AC plug from the wall
outlet
If the AC plug remains inserted in the wall
outlet, remove it as follows:
Metal terminals at the rear of the AC plug.
About the AC plug
Attaching the AC plug
Attach the AC plug to the AC adaptor main
unit as follows:
PUSH tab clicks when the AC plug is slid firmly
into place.
Notes
Notes
• The AC plug may be removed from the AC adaptor
main unit by pushing the “PUSH” tab. When using
the AC adaptor, however, you do not have to
remove the AC plug. Make sure to use the AC
adaptor with the AC plug firmly attached. If the AC
plug is removed, slide it into the AC adaptor main
unit until it clicks into place as illustrated above.
• The AC plug shape may differ depending on the
region you purchase the photo frame.
• If handled roughly, the AC plug may become
detached from the AC adaptor main unit and remain
in the wall outlet. If this occurs, grasp the AC plug
with dry hands as illustrated above and remove it
from the wall outlet. Do not use a tool. Be careful
not to touch the metal terminals at the rear of the
AC plug.
• Check to see if there is no trouble with the AC
adaptor main unit and AC plug, and then slide the
AC plug into the AC adaptor main unit until it
clicks into place.
• If there is any problem with the AC adaptor main
unit or AC plug, consult with your Sony service
facilities for repair.
19 GB
Basic operations
• Do not short the plug of the AC adaptor with a
metal object. Doing so may cause a malfunction.
• Do not use the AC Adaptor placed in a narrow
space, such as between a wall and furniture.
• Insert the plug of the AC adaptor firmly, if the
connection is loose, the photo frame may turn off
when it is moved.
• After use, remove the AC adaptor from the
DC IN 5 V jack of the photo frame, and remove the
AC adaptor from the outlet.
• Even if your photo frame is turned off, power will
still be supplied if the AC adaptor remains
connected and plugged into the wall outlet.
• Do not turn the photo frame off or disconnect the
AC adaptor from the photo frame before the
standby indicator turns red. Doing so may damage
the photo frame.
Turning the photo frame
on
Operations in an initial state
When the photo frame is turned on without a
memory card connected, the initial display
below appears on the screen.
When you have already turned on your photo
frame in the previous section, skip to the next
section.
Turning on the power
Press 1 (on/standby) on the photo frame or
remote control to turn on the power. The
standby indicator turns to green from red. The
Sony logo on the front panel lights up (DPFA72/D72 only).
If the photo frame is not operated for 10
seconds, the demo mode is displayed. If any
other button than the power button is pressed,
the screen returns to the initial display.
First, press MENU during the initial display,
and then set the date and time.
Turning off the power
Hold 1 (on/standby) on the photo frame or
remote control until the power turns off. The
standby indicator turns to red from green.
Note
Do not turn the photo frame off or disconnect the AC
adaptor from the photo frame before the standby
indicator turns red. Doing so may damage the photo
frame.
20 GB
Setting the current time
6
1 Press v/V to select [Date Display Order]
and then press
Press MENU.
The menu screen is displayed.
2
.
press
• Y-M-D
• M-D-Y
• D-M-Y
7
You can set the day that appears on the
very left when the calendar is displayed.
1 Press v/V to select [First Weekday] and
then press
.
2 Press v/V to select [Sunday] or
[Monday] and then press
.
The settings screen is displayed.
Tip
3
Set the day to start the week for the
calendar.
8
Select the time display.
1 Press v/V to select [12hr/24hr display]
and then press
Press v/V to select [Date/time
settings] and then press
.
.
2 Press v/V to select [12 hours] or
[24 hours] and then press
The Date/time settings screen is displayed.
9
.
Press MENU.
The menu screen is closed.
4
Adjust the date.
1 Press v/V to select [Date] and then
press
.
2 Press B/b to select month, day, and
year, and then press v/V to select a
value, then press
.
5
Adjust the time.
1 Press v/V to select [Time] and then
press
.
2 Press B/b to select hour, minute, and
second, and then press v/V to select a
value, then press
.
21 GB
Basic operations
Press B/b to select the
(Settings) tab.
You can use the B/b buttons only when a
memory card is inserted in the photo frame, or
anything other than the clock and calendar
settings item (page 25) are selected.
.
2 Press v/V to select a format and then
The clock of the photo frame needs to be
adjusted in order to display an accurate time in
the clock and calendar view modes.
1
Select the format of the date.
Inserting a memory card
Insert the memory card firmly into the
corresponding slot with its label side
facing toward you (when you are facing
the back side of the photo frame).
The access lamp flashes when the memory card
is inserted correctly. Reinsert the memory card
after checking the label side of the memory
card if the access lamp does not flash.
For details on the memory cards you can use
with this photo frame, see pages 56 to 58.
CompactFlash card
(DPF-D72 only)
Notes
• When inserting the memory card, it will only insert
part of the way, so do not try to force it as this could
damage the memory card and/or photo frame.
• The “Memory Stick PRO” (Standard/Duo)/SD
memory card/MMC/xD-Picture Card multi-purpose
slot automatically detects the card type. The slot is
also both a “Memory Stick” standard and Duo size
compatible slot, so you do not need a “Memory
Stick” adaptor.
• Do not insert multiple memory cards into A, B
or CompactFlash card/Microdrive (DPF-D72 only)
slots simultaneously. If multiple memory cards are
inserted, the photo frame will not work properly.
• Before using a memory card, see “About memory
cards” on page 56.
Display priority of images
If a memory card is inserted, the images of the
inserted memory card are displayed automatically.
To manually change the memory card to be displayed,
specify it in
(Select device) menu (page 40).
The photo frame displays the images of the device
in the following priorities.
• Memory cards b Internal memory
• If no memory card is inserted, the images saved in
the album in the internal memory are displayed.
Notes
• Due to one of the characteristics of the internal
memory device, images stored for long time or read
many times may be subject to data error when read
too often.
• For the file formats that the photo frame can
display, see page 59.
Access lamp
Insert “Memory Stick Duo” into
the slot B.
Insert xD-Picture Card, SD memory card, or
“Memory Stick” from the top into the slot A.
To remove a memory card
Remove the memory card from its slot in the
opposite direction from which it was inserted.
22 GB
Changing the display
1
Press VIEW MODE.
The view mode screen is displayed.
Press B/b/v/V or VIEW MODE to
select the style you want and then
press
.
Note
If you have not operated the photo frame for an
extended period of time, the style the cursor is on will
be selected automatically.
Basic operations
2
3
Select the group you want.
Group
Slideshow
Explanation
Displays a slideshow display
style.
Displays a clock or calendar
style.
Clock and
calendar
Displays a single image
style.
Index
Displays a thumbnail list
style.
Tip
Select the group you want using B/b after
moving the cursor to the group area using B/b/
v/V, when you operate the photo frame using
the buttons on the photo frame.
23 GB
Slideshow display
Group
Slideshow
Style
Explanation
A
Single view
Displays one image after another.
B
Multi image view
Displays multiple images at the same time.
C
Clock view
Displays images with the present date and time.
D
Calendar view
Displays images, one after another, while
showing a calendar. The present date and time
is displayed.
E
Time Machine
(DPF-D72 only)
Displays images with the shooting date and
time. The present date and time cannot be
displayed.
F
Random view
Displays images while randomly switching
between a number of different slideshow styles
and effects.
A
B
E
F
Tips
• If the power is on, and no memory card is inserted,
the images stored in internal memory are displayed.
If no images are saved in internal memory,
demonstration mode starts automatically.
Demonstration mode ends if a button other than 1
(on/standby) is pressed.
• For details on the playback order in a slideshow
display, see page 45.
24 GB
C
D
• You can set the interval, effect, listing order, or
color effect when you select the slideshow display.
Refer to “Slideshow Settings” (page 45).
• You can select the single view mode when you
press
on the photo frame when the image you
want appears in the slideshow display.
• You can use the VIEW MODE button on the photo
frame.
Clock and calendar display
Clock 2
Clock 3
Clock 4
Clock 5
Clock 6
Clock 7
Clock 8
Clock 9
Clock 10
Calendar 2
Calendar 3
Clock 11
(DPF-D72 only)
Calendar 1
Lunar Calendar
(when you select
[Simplified
Chinese] in
[Language setting])
(DPF-D72 only)
Note
You can select only the
(Settings) tab when the
clock and calendar are displayed.
Tip
You can use the VIEW MODE button on the photo
frame.
25 GB
Basic operations
Clock 1
Single view mode
Group
A
Style
Explanation
A
Entire image
Displays an entire image in the screen. You can
switch the images to be displayed by pressing
B/b.
B
Fit to screen
Displays an image over the whole screen. You
can switch the images to be displayed by
pressing B/b.
C
Entire image (with
Exif)
Displays image information, such as the image
number, file name, and shooting date while
displaying the entire image. You can switch the
images to be displayed by pressing B/b.
Refer to “About the information display”
(page 28) for details on the image information.
D
Fit to screen (with
Exif)
Displays image information, such as the image
number, file name, and shooting date in fit to
screen mode. You can switch the images to be
displayed by pressing B/b.
Refer to “About the information display”
(page 28) for details on the image information.
B
Tips
• If the power is on, and no memory card is inserted,
the images stored in internal memory are displayed.
If no images are saved in internal memory,
demonstration mode starts automatically.
Demonstration mode ends if a button other than 1
(on/standby) is pressed.
• You can set the image display mode when you press
B/b to select
and then press B/b to select
the entire image mode or fit to screen mode after
pressing VIEW MODE. Not all images are able to
use the fit to screen mode.
• You can use the VIEW MODE button on the photo
frame.
26 GB
C
D
Index image display
Group
Style
Explanation
A
Index1
Displays a list of large thumbnails. You can
select an image by pressing B/b/v/V.
B
Index2
Displays a list of thumbnails. You can select an
image by pressing B/b/v/V.
C
Index3
Displays a list of small thumbnails (DPF-D72
only). You can select an image by pressing B/
b/v/V.
Index
A
B
C
(DPF-D72 only)
Tips
• A thumbnail is a small-sized image for index use
that is recorded in the pictures taken by a digital
camera.
• If the power is on, and no memory card is inserted,
the images in internal memory are displayed. If no
images are saved in internal memory,
demonstration mode starts automatically.
Demonstration mode ends if a button other than 1
(on/standby) is pressed.
• You can select the single view mode when you
press
on the photo frame when the image you
want appears in the index image display.
• You can use the VIEW MODE button on the photo
frame.
Continued
27 GB
Basic operations
About the information display
4 Setting information
Icons
Meaning
Protect indication
Associated file indication
(Displayed when there is an
associated file such as a motion
file or a miniature e-mail image
file.)
Displays when you have
registered a mark.
The following information is displayed.
1 Display type
– Entire image
– Fit to screen
– Entire image (with Exif)
– Fit to screen (with Exif)
2 Ordinal number of the displayed image/Total
number of images
Input media indication for the displayed
image is shown as follows:.
Icons
Meaning
Internal memory input
“Memory Stick” input
CompactFlash input
SD Memory Card input
xD-Picture Card input
3 Image details
– File format (JPEG(4:4:4), JPEG(4:2:2),
JPEG(4:2:0), BMP, TIFF, RAW)
– Number of pixels (width × height)
– Manufacturer name of image input device
– Model name of image input device
– Shutter speed (e.g.: 1/8)
– Aperture value (e.g.: F2.8)
– Exposure value (e.g.: +0.0EV)
– Rotation information
28 GB
5 Image number (folder-file number)
This is displayed if the image is DCF
compliant.
If the image does not comply with DCF, its
file name is displayed. The displayed file
name, however, may differ from the one
displayed on your computer.
6 Shooting date/time
D:\DPF series\A Series\4129235121DPF-A.E.D.72IM_GB\4129235121\4129235121DPF-A.E.D.72IM_GB\050C03.fm
Master: Right.L0
050C03.fm Page 29 Monday, April 6, 2009 4:52 PM
Advanced operations
Enjoying a slideshow
You can display images stored in the internal
memory or on a memory card, one after
another, automatically.
When you turn on the photo frame, the
slideshow plays continuously from the
previous play.
1
Press VIEW MODE.
Changing the settings of the
slideshow
1
The menu is displayed.
2
Select
Press B/b to select the
(Settings) tab.
The settings screen is displayed.
3
The view mode screen is displayed.
2
Press MENU.
Press v/V to select [Slideshow
Settings] and then press
.
The slideshow settings screen is
displayed.
(slideshow).
Advanced operations
Tip
Select
(slideshow) using B/b after moving
the cursor to the group area using B/b/v/V
when you operate the photo frame using the
buttons on the photo frame.
4
Press v/V to select the item and
then press
.
Refer to the tables on the next page for
details on the setting items.
3
Press B/b/v/V to select the style you
want, then press
.
Notes
• Note the following when you select a slideshow
using the image stored on the memory card.
– Due to one of the characteristics of the memory
card devices, images may be subject to data
error when read too often.
– Do not run a slideshow for a long time with a
small number images. This may cause data
error.
Refer to “Slideshow display” (page 24)
for details on the slideshow styles.
– We recommend you back up images on the
memory card often.
• When the photo frame is, for instance, displaying a
slideshow, changes to the settings of some items are
unavailable. These items are displayed in gray and
cannot be selected.
Continued
29 GB
DPF-A72/E72/D72 4-129-235-12 (1)
• The slideshow starts from the first image if you turn
off the photo frame, or if you reset the photo frame.
• When the screen is too bright, it may make you feel
nauseous. Be careful that you do not make the
brightness settings too bright when you use the
photo frame.
Tip
You can also use the VIEW MODE button on the
photo frame.
30 GB
*: Factory default settings
Item
Setting
Description
Slideshow
Settings
Interval
Set a value from 3 sec., 7 sec.*, 20 sec., 1 min., 5 min., 30 min., 1 hour,
3 hours, 12 hours, 24 hours for the interval between images.
Note
An image may not switch at the intervals you set on the menu, depending
on the style of the slideshow, color effect, or image size.
Effect
Color effect
Display Mode
Transitions to the next image as though the previous
image is being pushed from the center to the four
corners.
Vert. blinds
Transitions to the next image as though blinds are
being lowered vertically.
Horiz. blinds
Transitions to the next image as though blinds are
being pulled horizontally.
Fade*
Transitions to the next image by fading out the current
image and fading in the next image.
Wipe
Transitions to the next image as though the current
image is being wiped off the screen to reveal the next
image.
Random
Uses the above five effects randomly.
ON
Displays images randomly.
OFF*
Displays images according to the [Listing Order]
setting of [General Settings].
Color*
Displays an image in color.
Sepia
Displays an image in a sepia color.
Monochrome
Displays an image in monochrome.
Select the desired display size from the following:
Note
The original image data will not change.
Entire image*
Displays an entire image enlarged to proper size. (An
image may be displayed with margins on the top,
bottom, left and right.)
Fit to screen
Zooms in at the center of the image enough to fill the
whole screen.
Note
An image may not display with the display size you set
on the menu, depending on the style of the slideshow.
31 GB
Advanced operations
Shuffle
Center cross
Refresh mode
(DPF-D72 only)
Due to one of the characteristics of the device,
images stored for a long time or read many
times may be subject to data error when read
too often.
This photo frame refreshes the internal memory
automatically to prevent these errors,
depending on the status of the internal memory.
The confirmation screen used for refreshing the
internal memory is displayed automatically
when the refresh is needed.
The refresh starts when you select [OK]. The
Refresh also starts automatically when no
operation is attempted for 30 seconds. If you
select [Cancel], the confirmation screen used
for refreshing the internal memory is displayed
the next time.
Adding images to the
internal memory
You can use the photo frame as a digital album,
saving important images in the internal
memory.
Tip
In [Image file size] of the menu, you can preset
whether to optimize the size of images or save images
as is, without compressing them, when you save them
to the internal memory (page 45).
When [Image file size] is set to [Album], up to
approx. 2,000 images (DPF-D72), or approx. 250
images (DPF-A72/E72) can be added to the album.
When set to [Original], the number of images that can
be saved may vary, depending on the original image
file size.
1
Press
(Album) when an image
stored on the memory card is
displayed on the screen.
Tip
Select [Add to album] using v/V after pressing
the MENU button and then select
(Editing) using B/b.
Single image display
Do not turn the photo frame to OFF while the
internal memory is being refreshed. It may
cause a malfunction.
It may take approximately 5 minutes to refresh
the internal memory.
Notes
• We recommend that you perform a backup of your
data periodically to avoid losing it.
• Do not run a slideshow with less than 10 images
continuously if you have set the interval time for the
slideshow to 3 seconds. You may not be able to
protect some images in the internal memory.
32 GB
Slideshow display
Refer to “Searching for an image
(Filtering) (DPF-D72 only)” (page 39).
1 Press B/b/v/V to select the image to
add to the album and then press
.A
check mark will be attached to the
check box of each selected image.
Repeat this operation to add multiple
images at the same time.
Index image display
Press v/V to select [Add this image],
[Selected images] or [Add all
images] and then press
.
If you select [Add this image], the image
currently displayed is added to the album.
Go to step 4. (This item cannot be selected
on the slideshow display.)
If you select [Selected images], you can
select the image you want to add from the
image list. Go to step 3.
If you select [Add all images], the image
list is displayed. A check mark is attached
to the check box of all the images. Go to
step 4.
3
4
Press v/V to select the folder you
want and press
.
The confirmation screen used to decide
whether to add an image or not to the
internal memory is displayed.
Specify the image to add from the
image list.
About image searching in the
image list (DPF-D72 only)
During a search: Displays all the images
applicable to the criteria used for the
search.
Other than during a search: Displays all
images in the device displayed on the
screen.
Tip
A new folder is created automatically when you
select [New folder].
5
Press v/V to select [Yes] and then
press
.
The image is saved in the specified folder
in internal memory.
Continued
33 GB
Advanced operations
2
To cancel the selection, select images to
cancel and then press
to delete the
check mark in the check box.
2 Press MENU.
The confirmation screen used for
selecting a folder is displayed.
6
Press
when the confirmation
screen is displayed.
Exporting an image
Notes
• Images in the internal memory cannot be added to
the album.
• Avoid doing the following while images are being
added to the album of the internal memory. Doing
so may damage the photo frame, memory card, or
the data:
You can export the images in the internal
memory to a memory card.
1
– Turning off the power
– Removing an memory card
– Inserting another card
The menu is displayed.
2
Press B/b to select the
tab.
(Editing)
The screen used for editing is displayed.
Tips
• To perform this operation using the remote control,
press the MENU button on the remote control and
then press v/V to select [Add to album] from
(Editing) and then press
.
• You can also use the MENU button on the photo
frame.
• You can change the thumbnail size using [ / ] in
the image list.
• Due to one of the characteristics of the internal
memory device, images stored for long time or read
many times may be subject to data error when read
too often. We recommend that you perform a
backup of your data periodically to avoid losing it.
Press MENU when an image stored
on the internal device is displayed
on the screen.
3
Press v/V to select [Export] and
then press
.
The Export menu is displayed.
Single image display
4
Press v/V to select [Export this
image], [Selected images] or [Export
all images] and then press
.
If you select [Export this image], the
image currently displayed is exported to
the device. Go to step 6. (This item cannot
be selected on the slideshow display.)
If you select [Selected images], you can
select the image you want to export from
the image list. Go to step 5.
If you select [Export all images], the
image list is displayed. A check mark is
attached to the check box of all the
images. Go to step 6.
34 GB
5
Specify the image to export from the
image list.
6
Press v/V to select the device to
which to export the image and then
press
.
Press v/V to select the folder you
want to save and press
.
The confirmation screen used to decide
whether to export or not is displayed.
Tip
A new folder is created automatically when you
select [New folder].
8
Press v/V to select [Yes] and then
press
.
The exporting is finished.
9
Press
when the confirmation
screen is displayed.
The image is copied to the specified
device.
Note
• Avoid doing the following while an image is being
exported. Doing so may damage the photo frame,
memory card, or the data:
– Turning off the power
– Removing an memory card
– Inserting another card
Tips
• You can also use the MENU button on the photo
frame.
• You can enlarge or reduce the image to export when
you select the index image display.
• Any device that is not recognized by the photo
frame is displayed in gray and you cannot select it.
35 GB
Advanced operations
About image searching in the
image list (DPF-D72 only)
During a search: Displays all the images
applicable to the criteria used for the
search.
Other than during a search: Displays the
image list of the album on the screen.
Refer to “Searching for an image
(Filtering) (DPF-D72 only)” (page 39).
1 Press B/b/v/V to select the image you
want to export and then press
.A
check mark will be attached to the
check box of each selected image.
Repeat this operation to export multiple
images at the same time.
To cancel the selection, select images to
cancel and then press
to delete the
check mark in the check box.
2 Press MENU.
The screen used for selecting the device
to which to export is displayed.
7
Repeat this operation to delete multiple
images at the same time.
To cancel the selection, select images to
cancel and then press
to delete the
check mark in the check box.
2 Press MENU.
The delete confirmation screen is
displayed.
Deleting an image
1
Press MENU when an image is
displayed on the screen.
The menu is displayed.
2
Press B/b to select the
tab.
(Editing)
6
The screen used for editing is displayed.
3
4
The image is deleted.
Press v/V to select [Delete] and
then press
.
7
Press v/V to select [Delete this
image], [Selected images] or [Delete
all images] and then press
.
To format the internal memory
If you select [Delete this image], the
image currently displayed is deleted. Go
to step 6. (This item cannot be selected on
the slideshow display.)
If you select [Selected images], you can
select the image you want to delete from
the image list. Go to step 5.
If you select [Delete all images], the
image list is displayed. A check mark is
attached to the check box of all the
images. Go to step 6.
5
Press v/V to select [Yes] and then
press
.
Specify the image to delete from the
image list.
About image searching in the
image list (DPF-D72 only)
During a search: Displays all the images
applicable to the criteria used for the
search.
Other than during a search: Displays all
images in the device displayed on the
screen.
Refer to “Searching for an image
(Filtering) (DPF-D72 only)” (page 39).
1 Press B/b/v/V to select the image to
delete and then press
. A check mark
will be attached to the check box of
each selected image.
36 GB
Press
when the confirmation
screen is displayed.
1
Press MENU.
The menu is displayed.
2
Press v/V to select the
(Settings) tab.
The settings screen is displayed.
3
Press v/V to select [Initialize] and then
press .
4
Press v/V to select [Format internal
memory] and then press .
The confirmation screen used for
initializing the internal memory is
displayed.
5
Press v/V to select [Yes], then press
.
Notes
• Avoid doing the following while an image is being
deleted. Doing so may damage the photo frame,
memory card, or the data:
– Turning off the power
– Removing an memory card
– Inserting another card
• When the message [Cannot delete a protected
image.] appears on the screen, the image file was set
to Read Only on a computer. In this case, connect
the photo frame to a computer, and delete this file
using the computer.
• The total capacity of the internal memory is not
equal to the remaining capacity, even immediately
after initialization.
• If deletion has started, the deleted image cannot be
recovered even if you stop deletion. Delete images
only after confirming you actually want to delete
them.
Registering a mark
(DPF-D72 only)
Tips
• You can also use the MENU button on the photo
frame.
• You can enlarge or reduce the image when you
select the index image display.
You can produce a slideshow only with images
which have been selected beforehand and have
been marked. You can easily check for images
with marks using the index image display or
single view mode.
1
Press MENU when an image is
displayed on the screen.
The menu is displayed.
Press B/b to select the
tab.
(Editing)
The screen used for editing is displayed.
3
4
5
Press v/V to select [Marking] and
then press
.
Press v/V to select the mark you
want and then press
.
Press v/V to select [Mark this
image], [Selected images] or [Mark
all images] and then press
.
If you select [Mark this image], the image
currently displayed will be marked and
showed in the future. Go to step 7. (This
item cannot be selected on the slideshow
display.)
If you select [Selected images], you can
select the image to which you want to
attach a mark from the image list. Go to
step 6.
If you select [Mark all images], the image
list is displayed. A check mark is attached
Continued
37 GB
Advanced operations
2
to the check box of all the images. Go to
step 7.
6
Specify the image to which you want
to attach a mark from the image list.
About the image list
During a search: Displays all the images
applicable to the criteria used for the
search.
Other than during a search: Displays all
images in the device.
Refer to “Searching for an image
(Filtering) (DPF-D72 only)” (page 39).
1 Press B/b/v/V to select the image to
which to attach and then press . A
check mark will be attached to the
image. Repeat this operation to attach a
mark to multiple images at the same
time.
To cancel the selection, select an
images you want to cancel and then
press
to remove the check mark
from the check box.
2 A mark will be attached to the image
for which a check mark has been placed
in the check box.
If a check mark is removed from the
check box of an image, the mark will be
removed from the image.
7
Press v/V to select [Yes] and then
press
.
The mark is attached to the selected
image.
To delete the registration of a
mark
Select [Unmark this image] or [Unmark all
images] and then press
in step 5. You can
also cancel the selection when you remove the
check mark from the check box.
[Unmark this image]: Removes a mark from
the image currently displayed. (This item
cannot be selected on the slideshow display.)
38 GB
[Unmark all images]
During a search: Removes a marks from all the
images applicable to the criteria specified in the
search.
Other than during a search: Remove all marks
from all images stored on the device displayed.
Note
A mark is saved only when it is registered with an
image in the internal memory. A mark registered with
an image on a memory card is removed when the
power is turned off, or if you change the device being
displayed.
Tips
• You can select a mark from among 3 types.
• You can also use the MENU button on the photo
frame.
• You can enlarge or reduce the image when you
select the index image display.
Searching for an image
(Filtering) (DPF-D72 only)
You can search for an image which is stored in
internal memory or on a memory card. You can
filter an image using various criteria, such as
the date, the folder in which the image is saved,
the orientation of the image or mark, etc.
1
Press MENU when an image is
displayed on the screen.
The menu is displayed.
Press B/b to select the
tab.
(Editing)
The screen used for editing is displayed.
Note
You cannot select the
(Editing) tab when
the clock and calendar are displayed.
3
4
Press v/V to select [Search] and
then press
.
Press the MENU button when an image is
displayed on the screen and then select [Exit
search (show all photo)].
To change the criteria for a
search
Press the BACK button when an image you
searched for is displayed on the screen.
Notes
• Do not turn off the power, remove the memory card
during a searching. Doing so may damage the photo
frame or memory card, or damage the data.
• The search is cancelled automatically in the
following cases.
– When you change the playback device
– When you search for an image which is stored
on a memory card and then remove that
memory card
Tip
You can also use the MENU button on the photo
frame.
Press v/V to select the criteria you
want and then press
.
• [Search by date]: Filters by the date.
• [Search by folder]: Filters by the folder.
• [Search by vertical/horizontal]: Filters
by the image orientation.
• [Search by mark]: Filters by the mark.
5
Press v/V to select the item you
want and then press
.
39 GB
Advanced operations
2
To cancel the search for an
Specifying the playback
device
You can specify a memory card to be
displayed.
1
Press B/b to select the
device) tab.
1
(Select
The screen used for selecting a device is
displayed.
Tip
Insert the device at this point during the
procedure if the device you want to use cannot
be selected.
3
Enlarging/reducing an image
You can enlarge or reduce an image in single
view mode.
Press MENU.
The menu is displayed.
2
Adjusting the image size
and position
Press v/V to select the device you
want to display and then press
.
The images of the selected device are
displayed.
Tips
• You can also use the MENU button on the photo
frame.
• The search is cancelled automatically when you
change the playback device during a search.
To enlarge an image, press
(zoom in) on the remote control. To
reduce an enlarged image, press
(zoom out).
Each press of the button enlarges the
image further. You can enlarge an image
to a maximum of 5 times the original
scale. You can move an enlarged image
up, down, left, and right.
About crop and save
• The screen currently displayed is saved as it
was trimmed after you press B/b/v/V to
move the enlarged image and then press the
MENU button.
• You can select [Save as new image] or
[Overwrite] by pressing the MENU button
when the image is enlarged or reduced. Press
v/V to select the method used to save the
image.
• If you select [Save as new image], the image
is saved as a new image.
• If you select [Overwrite], the image is
overwritten. A confirmation screen is
displayed when you select [Overwrite]. Press
v/V to select [Yes] and then press
to
save the image. Press
again when the
confirmation screen is displayed after saving
is finished.
Notes
• You cannot overwrite files except for a JPEG file
(extension: JPG).
• Enlarging an image may reduce the quality
depending on the image size.
• It is not possible to enlarge an image using the
buttons on the photo frame.
40 GB
Rotating an image
Press ROTATE (
control.
Tips
) on the remote
Each press of the button rotates the image 90
degrees counter-clockwise.
• For an internal memory image, image rotation data
will be retained even after the power is turned off.
• You can rotate the image of the index image
display.
Operate from the menu of the
photo frame
1
Press MENU in single display mode.
The menu is displayed.
2
(Editing)
Advanced operations
Press B/b to select the
tab.
The screen used for editing is displayed.
3
Press v/V to select [Rotate] and
then press
.
The Rotate menu is displayed.
4
Press v/V to select the direction to
rotate and then press
.
•
:
Rotates the image 90 degrees
clockwise.
•
:
Rotates the image 90 degrees counterclockwise.
5
Press v/V to select [OK] and then
press
.
Note
An enlarged image cannot be rotated.
41 GB
Changing the settings of
the auto power on/off
function
5
Set the time setting.
[Simple]
You can use the timer function to turn the
photo frame on or off automatically when the
photo frame is turned on.
1
Press MENU.
The menu is displayed.
2
3
1 Press v/V to select [Auto power ON/
OFF] and then press
.
Press B/b to select the
(Settings) tab.
2 Press v/V to select [Enable] and then
The settings screen is displayed.
3 Set the auto on/off timer.
Press v/V to select [Auto power ON/
OFF] and press
.
The screen used for setting a value for
[Auto power ON/OFF] is displayed.
When using DPF-A72/E72, you can set
the auto power function on [Simple] mode
only, so skip to step 5.
press
.
Press v/V to set the time you want.
AM or PM is displayed on the right of
the screen when you select [12 hours]
on the time display setting.
4 Set the auto ON/OFF day.
Press v/V to select the day you want to
use this function and then press
to
check. Press v/V to select [OK] and
then press
.
[Advanced] (DPF-D72 only)
4
Press v/V to select [Setup method],
and press
. Then press v/V to
select [Simple] or [Advanced], and
press
. (DPF-D72 only)
[Simple]: Sets the auto power ON/OFF
function finely in one minute increments.
[Advanced]: Sets the auto power ON/OFF
function according to a day of the week by
one hour units.
42 GB
1 Press B/b/v/V to select the time you
want to use the auto power on/off
function.
You can set this function according to a
day of the week by one hour units.
The color of the selected time zone
changes to blue after you press
. The
power supply of the photo frame will be
turned on when the blue time zone time
occurs. The color of the selected time
zone changes to gray, after you select
the blue time zone and then press
.
The power supply of the photo frame is
turned off while it is in the gray time
zone.
Tip
The power is turned off automatically at the
time you set for [Auto power OFF] when
you are using the photo frame.
The power is turned on automatically at the
time you set for [Auto power ON] during the
standby mode.
2 Press B/b/v/V to select [OK].
Changing the settings
You can change the following settings.
•
•
•
•
Slideshow Settings
Auto power ON/OFF
Date/time settings
General Settings (Listing Order, Sony logo
ON/OFF etc,.)
• Language setting
• Initialize
Setting procedure
Advanced operations
1
Press MENU.
The menu is displayed.
2
Press B/b to select the
(Settings) tab.
The settings screen is displayed.
Continued
43 GB
3
Press v/V to select the item you
want to change and then press
.
The setting screen of the selected item is
displayed.
For example, when [Slideshow Settings]
is selected.
4
Press v/V to select the item you
want to change and then press
.
This enables you to set each of the items
(page 45).
Note
When the photo frame is, for instance,
displaying a slideshow, some settings of some
items cannot be changed. They are displayed in
gray and cannot be selected.
5
Press v/V to select a setting value
and then press
.
Each time you press v/V (v/V from the
photo frame), the setting value changes. In
the case of a numerical value, press V to
increase the value and press v to decrease
the value.
If you press
, the setting is confirmed.
6
Press MENU.
The menu closes.
To reset to factory default
settings
1
Press MENU and then select
(Settings) [Initialize] by pressing B/b/v/V.
2
Press v/V to select [Reset] and then press
.
All adjusted values, except for the clock
settings, are reset to the default settings.
44 GB
Tip
You can also use the MENU button on the photo
frame.
Items to set
*: Factory default settings
Item
Setting
Slideshow
Settings
Refer to “Enjoying a slideshow” (page 29).
Auto power
ON/OFF
Sets the timer function which turns the power supply of the photo frame on or off,
automatically. You can use this function with the following settings. (.page 42)
Simple
Setup method
(DPF-D72
only)
Power-ON
timer
You can set the timer (time/day) and input time for the
power to turn on automatically, when you set this
function to enable.
Power-OFF
timer
You can set the timer (time/day) and input time for the
power to turn off automatically, when you set this
function to enable.
The following functions are enabled when you press the following buttons
after you have set time or date to turn on or off the photo frame
automatically.
Execute
Returns to the previous screen after confirming the
operation.
Cancel
Returns to the previous screen after cancelling the
operation.
Reset all
Deletes all the selected times.
Advanced*
Sets the auto power ON/OFF function according to a
day of the week by one hour units.
Simple
Sets the auto power ON/OFF function finely in one
minute increments.
Date/time
settings
Sets the date, time, first day of a week, etc. (.page 21)
General
Settings
Listing Order
Sets the display order of images. This setting affects the order in
[Slideshow Settings].
Number Order*
Displays images in order of image numbers.
Shoot. Date
Displays images in order of shooting date.
Auto display
orientation
ON*/OFF: You can set the photo frame to automatically detect and rotate
the orientation of images.
LCD backlight
Allows you to set the brightness of the backlight of the LCD screen to a
level from 1 to 10*.
Continued
45 GB
Advanced operations
Advanced
(DPF-D72
only)
Description
*: Factory default settings
Item
Setting
Description
General
Settings
Image file size
Album*
Compresses images and saves them to the internal
memory.You can save more images, but a
deterioration in image quality compared to the original
images is noticeable when the images are displayed on
a large monitor via a computer or other device.
Original
Saves images to the internal memory without
compressing them. There is no deterioration, but you
can save fewer images.
Sony logo ON/
OFF (DPF-
ON*/OFF: You can set whether the photo frame's Sony logo lights or not.
A72/D72
only)
System
Information
Language
setting
Version
Displays the version of the firmware of the photo frame.
Internal
memory
Memory
capacity
Indicates the maximum amount of space available in
internal memory in the initial state.
Remaining
capacity
Indicates the amount of free space currently available
in internal memory.
Sets the display language on the LCD screen.
Japanese, English*, French, Spanish, German, Italian, Russian, Simplified Chinese,
Traditional Chinese, Dutch, Portuguese,
Note
Default language setting may vary in some regions.
Initialize
Format internal
memory
You can format the internal memory.
Notes
• All the images added to the internal memory will be deleted.
• Do not format the internal memory by using a connection to a PC.
Reset
46 GB
Returns all settings to their factory defaults except for the current date and
time setting of the [Date/time settings].
Using a computer
Connecting to a
computer
You can connect to a computer to view and
copy images from the internal memory of the
photo frame to the computer, and copy images
from the computer to the photo frame.
System requirements
To connect a computer to the picture frame,
your computer must satisfy the following
recommended system requirements.
Connecting to a computer to
exchange images
Note
This section shows an example for a connection for
Windows Vista. Depending on the OS you use, the
screen display and procedures may vary.
1
2
Connect the photo frame to the AC
power source. (.page 18)
Connect the computer and photo
frame with a commercially available
USB cable.
x Windows
Using a computer
Recommended OS: Microsoft Windows Vista
SP1/Windows XP SP3/Windows 2000
Professional SP4
Port: USB port
x Macintosh
Recommended OS: Mac OS X (10.4 or later)
Port: USB port
To USB B
connector
Notes
• If multiple USB devices are connected to a
computer or if a hub is used, a problem may occur.
In such a case, simplify the connections.
• You cannot operate the photo frame from another
USB device being used simultaneously.
• Do not disconnect the USB cable during data
communication.
• Operation with all computers that satisfy the
recommended system requirements is not
guaranteed.
• The photo frame has been demonstrated as operable
when connected to PC or Sony digital photo printer.
When other devices are connected to the photo
frame, these devices may not recognize the internal
memory of the photo frame.
Computer
To USB connector
Note
Use a B-Type USB cable that is less than 3
meters long.
3
Turn the photo frame to ON.
(.page 20)
Continued
47 GB
4
When the [AutoPlay] window
appears on the computer display,
click [Open folder to view files].
If the [AutoPlay] window does not appear,
click [Computer (My Computer)] in the
Start menu, and then open the removable
disc.
5
Move the cursor in this window and
right click, and then click [New] [Folder].
Name this new folder. In this manual, the
folder name “sony” is used as an example.
• When images from the computer are saved in the
internal memory of the photo frame, the image files
are saved without being compressed. As a result,
fewer images may be able to be saved to the internal
memory of the photo frame.
• Image files made or edited on a computer may not
be displayed. Image files set to “Read Only” on a
computer cannot be deleted on the photo frame.
Cancel “Read Only” before saving image files from
a computer on the photo frame.
Disconnecting your computer
Disconnect the USB cable or turn the photo
frame to OFF after disconnecting it from your
computer.
1
2
3
6
7
Double click to open this “sony”
folder.
Open the folder that contains the
image files you want to copy, and
then copy the image files by using
drag-and-drop.
Notes
• When saving images from a computer in the
internal memory, make a folder in the internal
memory and save the images in this folder. If you
do not make a folder, you can only save up to 512
images. In addition, the number of images may be
reduced depending on the file name length or
character type.
• A particular image may not be displayed in order of
the shooting date on the index image display, etc as
the information on the shooting date may have been
changed or lost when you edited or saved that image
file on a computer.
48 GB
Double-click
on the Task Tray.
Click
(USB Mass Storage
Device) t [Stop].
Click [OK] after checking the drive
you want to remove.
Error messages
If an error message appears
If an error occurs, one of the following error messages may be displayed on the LCD screen of the
photo frame. Follow the corresponding solution below to solve the problem.
Error message
Meaning/Solutions
No Memory Stick. / No
CompactFlash card. / No SD
Memory Card. / No xD-Picture
Card.
• A memory card is not inserted in a slot.
Insert a memory card in the corresponding slot.
(.pages 22)
An incompatible Memory Stick is • An unsupported memory card is inserted. Use a memory
inserted. / An incompatible
card that is supported by the photo frame.
CompactFlash card is inserted. / An
incompatible SD Memory Card is
inserted. / An incompatible xDPicture Card is inserted.
• There is no image file that can be displayed on the screen
of the photo frame on the memory card. Use a memory
card containing image files that can be displayed with the
photo frame.
Cannot delete a protected image.
• To delete a protected file, cancel the protection on your
digital camera or computer.
Media is protected. Remove
protection then try again.
• The memory card is write-protected. Slide the writeprotect switch to the enable position. (.page 57)
The Memory Stick is full. / The
• No more data can be saved because the memory card, or
CompactFlash card is full. / The SD
the internal memory is full. Delete images, or use a
Memory Card is full. / The xDmemory card with free space available.
Picture Card is full. /The internal
memory is full.
Error reading the Memory Stick. /
Error reading the CompactFlash
card. / Error reading the SD
Memory Card. / Error reading the
xD-Picture Card./Error reading the
iternal memory.
• In case of a memory card:
An error has occurred. Check that the memory card is
inserted correctly. If this error message is displayed
frequently, check the status of the memory card with a
device other than the photo frame.
• For an internal memory:
Initialize the internal memory.
Write error in the Memory Stick. /
Write error in the CompactFlash
Note
card. / Write error in the SD
Memory Card. / Write error in the When you initialize the internal memory, please note that all the
xD-Picture Card./ Write error in the image files added to the album are deleted.
internal memory.
Continued
49 GB
Error messages
No images on file.
Error message
Meaning/Solutions
The Memory Stick is read only.
• A “Memory Stick-ROM” is inserted. To save the images,
use the “Memory Stick” recommended.
The Memory Stick is protected.
• A protected “Memory Stick” is inserted. To edit and save
the images, use an external device to remove protection.
Media format not supported.
• For a memory card, use your digital camera or other device
to format the memory card.
• For the internal memory, initialize it with the photo frame.
Note
When you initialize the media, all the files on the media will be
deleted.
Cannot open the image.
50 GB
• The photo frame cannot display or open an image file
whose format is not supported.
Troubleshooting
If trouble occurs
Before submitting the photo frame for repair, try using the following guidance to solve the problem.
If the problem persists, consult with your Sony dealer or Sony service facilities.
Power supply
Symptom
Check item
Cause/Solutions
The power cannot
be turned on.
• Is the AC power plug
inserted correctly?
c Insert the power plug properly.
Displaying images
If the power is turned on but images are not displayed or the settings of the operation screen cannot
be configured, confirm the following check items.
Symptom
Check item
Cause/Solutions
No images are
displayed on the
screen.
• Is a memory card inserted
properly?
c Insert a memory card properly.
(.pages 22, 54)
• Does the memory card
contain images saved with a
digital camera or other
device?
c Insert a memory card containing images.
c Check the file formats that can be
displayed. (.page 59)
• Is the file format compatible c A file that is not compatible with DCF
with DCF?
may not be able to be displayed with the
photo frame, even if it can be displayed
with a computer.
• Were these images saved
c The information on the shooting date may
from a computer?
be changed or lost when you edit or save
• Were these images edited on
an image file on a computer.
a computer?
Continued
51 GB
Troubleshooting
Images are not
played back in the
order of shooting
date.
Symptom
Check item
Cause/Solutions
Some images are
not displayed.
• Are the images displayed in
the index view?
c If the image is displayed in the index view
but cannot be displayed as single image,
the image file may be damaged even
though its thumbnail preview data is fine.
c A file that is not compatible with DCF
may not be able to be displayed with the
photo frame, even if it can be displayed
with a computer.
• Does the mark displayed
below appear in the index
view?
c If the mark shown on the left is displayed,
the image file may not be supported by the
photo frame because, for example, it is a
JPEG file that was created with your
computer. Also, the image file may be
supported, but not contain thumbnail data.
Select the mark and press
to change
the screen to the single image display. If
the mark on the left is displayed again, the
image cannot be displayed because the
image file is not supported by the photo
frame.
• Were the images created
with an application on a
computer?
• Does the mark displayed
below appear in the index
view?
c If the mark shown on the left is displayed,
the image file is supported by the photo
frame, but the thumbnail data or image
itself cannot be opened. Select the mark
and press
. If the mark shown on the
left is displayed again, the image cannot
be displayed.
• Are there more than 4,999
images in the memory card?
c The photo frame can play, save, delete, or
otherwise handle up to 4,999 image files.
• Did you rename the file with c If you named or renamed the file on your
a computer or other device?
computer and the file name includes
characters other than alphanumeric
characters, the image may not be able to
be displayed on the photo frame.
• Is there a folder with more
than 5 levels in its hierarchy
on the memory card?
52 GB
c The photo frame cannot display images
saved in a folder that is more than five
levels deep.
Symptom
Check item
The file name is
not displayed
properly.
• Did you rename the file with c If you named or renamed the file on your
a computer or other device?
computer and the file name includes
characters other than alphanumeric
characters, the file name may not be able
to be displayed properly on the photo
frame.
Cause/Solutions
Saving and deleting images
Symptom
Check item
Cause/Solutions
Cannot save an
image.
• Is the memory card writeprotected?
c Cancel write-protection and try saving
again.
• Is the write-protect switch of c Slide the write-protect switch to the
the memory card in the
enable position.
[LOCK] position?
c Replace the memory card with one with
sufficient free space. Or, delete any
unwanted images. (.page 36)
• Is the internal memory full?
c Delete any unwanted images.
(.page 36)
• Did you save images from a
computer to the internal
memory without making a
folder in the internal
memory?
c If you do not make a folder, you can only
save up to 512 images. In addition, the
number of images may be reduced
depending on the file name length or
character type. When you save images in
the internal memory from a computer, be
sure to make a folder in the internal
memory and save the images in this
folder.
Continued
53 GB
Troubleshooting
• Is the memory card full?
D:\DPF series\A Series\4129235121DPF-A.E.D.72IM_GB\4129235121\4129235121DPF-A.E.D.72IM_GB\090C07.fm
Master: Left
090C07.fm Page 54 Thursday, April 9, 2009 12:50 AM
Symptom
Check item
Cause/Solutions
Cannot delete an
image.
• Is the memory card writeprotected?
c Use the device you are using to cancel
write-protection and try deleting again.
• Is the write-protect switch of c Slide the write-protect switch to the
enable position.
the memory card in the
[LOCK] position?
• Are you using a “Memory
Stick-ROM”?
c It is not possible to delete an image from
or format a “Memory Stick-ROM”.
• Is this image protected?
c Check the image information from the
single view mode. (.page 28)
c An image with a
mark is set to Read
Only. You cannot delete it on the photo
frame.
An image was
deleted
accidentally.
—
c An image cannot be recovered once it is
deleted.
Photo frame
Symptom
Check item
Nothing happens
even if you operate
the photo frame.
Cause/Solutions
—
c Push the reset switch on the back of the
photo frame using a long, thin object such
as a pin, etc. (.page 12)
c Turn off and then on the power.
(.page 20)
Remote control
Symptom
Check item
Cause/Solutions
Nothing happens
• Is the battery inserted in the
even if you operate
remote control properly?
the remote control.
—
• Is there a protective sheet
inserted?
c Replace the battery. (.page 14)
c Insert a battery. (.page 14)
c Insert a battery in the proper orientation.
(.page 14)
c Point the top end of the remote control
towards the remote sensor on the photo
frame. (.page 14)
c Remove any obstruction between the
remote control and the remote sensor.
c Remove the protective sheet.
(.page 14)
54 GB
DPF-A72/E72/D72 4-129-235-12 (1)
Additional information
Precautions
On safety
• Be careful not to set or drop any heavy
objects on the power cord, or to damage the
power cord in any way. Never operate this
photo frame with a damaged power cord.
• Should any solid object or liquid fall into the
cabinet, unplug the photo frame and have it
checked by qualified personnel before
operating it any further.
• Never disassemble the photo frame.
• To disconnect the power cord, pull it out by
the plug. Never pull the power cord itself.
• When the photo frame is not going to be
used for an extended period of time,
disconnect the power cord from the wall
outlet.
• Do not handle the photo frame roughly.
• To reduce the risk of electrical shock, always
unplug the photo frame from the electrical
outlet before cleaning and servicing the
photo frame.
•
•
•
•
while it is connected to the wall outlet via the
AC adaptor.
Be sure to use the AC adaptor supplied with
the photo frame. Do not use other AC
adaptors, as this may cause a malfunction.
Do not use the supplied AC adaptor for other
devices.
Do not use an electrical transformer (travel
converter), as this may cause overheating or
a malfunction.
In case the cord of the AC adaptor is
damaged, do not use it any longer, as this
may be dangerous.
On moisture condensation
If the photo frame is brought directly from a
cold location to a warm location or placed in an
extremely warm or humid room, moisture may
condense inside the unit. In such cases the
photo frame will probably not work properly
and may even develop a fault if you persist in
using it. If moisture condensation occurs,
unplug the AC power cord of the photo frame
and do not use the photo frame for at least one
hour.
On transport
On installation
On the AC adaptor
• Even if your photo frame is turned off, AC
power (house current) is still supplied to it
On cleaning
Clean the photo frame with a soft dry cloth, or a
soft cloth lightly moistened with a mild
detergent solution. Do not use any type of
solvent, such as alcohol or benzine, which may
damage the finish.
Continued
55 GB
Additional information
• Avoid placing the photo frame in a location
subject to:
– vibration
– humidity
– excessive dust
– direct sunlight
– extremely high or low temperatures
• Do not use electrical equipment near the
photo frame. The photo frame will not work
properly in electromagnetic fields.
• Do not place heavy objects on the photo
frame.
When you transport the photo frame, remove
the memory card, AC adaptor, and connected
cables from the photo frame and put the photo
frame and its peripherals in the original box
with the protective packaging.
If you no longer have the original box and
packing parts, use similar packing material so
that the photo frame will not be damaged while
being transported.
On restrictions on duplication
TV programs, films, video tapes, portraits of
other people, or other materials may be
copyrighted. Unauthorized use of such
materials may infringe the provisions of the
copyright law.
Disposing of the photo frame
Even if you perform [Format internal memory],
the data in the internal memory may not be
erased completely. When you dispose of the
photo frame, we recommend that you
physically destroy the photo frame.
About memory cards
“Memory Stick”
Types of “Memory Stick” that
the photo frame can use
With the photo frame, you can use the
following types of “Memory Stick”*1:
Type of “Memory
Stick”
Deleting/
Saving
“Memory Stick”*2
(Not compatible
with
“MagicGate”)
OK
OK
“Memory Stick”*2
(Compatible with
“MagicGate”)
OK*5
OK*5
“MagicGate
Memory Stick”*2
OK*5
OK*5
“Memory Stick
PRO”*2
OK*5
OK*5
“Memory Stick
PRO-HG”*2
OK*5*6
OK*5*6
“Memory Stick
Micro”*3 (“M2”*4)
OK*5
OK*5
*1
*2
*3
*4
*5
56 GB
Displaying
The photo frame supports FAT32. The photo
frame has been demonstrated as operable with a
“Memory Stick” with a capacity of 16 GB or less
manufactured by Sony Corporation. However, we
do not guarantee the operations of all the “Memory
Stick” media.
The photo frame is equipped with a slot compatible
with both standard-size and Duo-size media.
Without a “Memory Stick Duo” adaptor, you can
use both a standard-size “Memory Stick” and the
compact-size “Memory Stick Duo”.
When using a “Memory Stick Micro” with the
photo frame, always insert it into an M2 adaptor.
“M2” is an abbreviation for “Memory Stick
Micro”. In this section, “M2” is used to describe a
“Memory Stick Micro”.
Data reading/recording that requires “MagicGate”
copyright protection cannot be performed.
“MagicGate” is the general name of a copyright
*6
protection technology developed by Sony using
authentication and encryption.
The photo frame does not support 8 bit parallel
data transfer.
Notes on use
The SD memory card slot of the photo frame
allows you to use the following:
• SD memory card*1
• miniSD card, microSD card
(An adaptor is necessary.)*2
• SDHC memory card*3
• MMC standard memory card*4
We do not guarantee proper operations for all
types of SD memory cards and MMC standard
memory cards.
*1
*2
*3
*4
The photo frame has been demonstrated as
operable with an SD memory card with a capacity
of 2 GB or smaller.
Some commercially available card adaptors have
projected terminals on the back. This type of
adaptor may not work properly with the photo
frame.
The photo frame has been demonstrated as
operable with an SDHC memory card with a
capacity of 32 GB or less.
The photo frame has been demonstrated as
operable with an MMC standard memory card with
a capacity of 2 GB or less.
Notes on use
Data reading/recording that requires copyright
protection cannot be performed.
xD-Picture Card
With the xD-Picture Card slot of the photo
frame, you can use an xD-Picture Card*5. Not
all the memory card operations are supported
and we do not guarantee proper operations for
all types of xD-Picture Card.
*5
The photo frame has been demonstrated as
operable with an xD-Picture Card with a
capacity of 2 GB or less.
Continued
57 GB
Additional information
• Do not insert more than one “Memory Stick”
at the same time, or this may cause trouble
with the photo frame.
• If you use a “Memory Stick Micro” with the
photo frame, the “Memory Stick Micro”
needs to be inserted into an “M2” adaptor.
• If you insert a “Memory Stick Micro” into
the photo frame without an “M2” adaptor,
you may be unable to remove the “Memory
Stick Micro”.
• If you insert a “Memory Stick Micro” into an
“M2”adaptor, and insert the “M2” adaptor
into a “Memory Stick Duo” adaptor, the
photo frame may not operate properly.
• When you initialize a “Memory Stick”, use
the initialization function of your digital
camera. If you initialize it with your
computer, images may not be displayed
properly.
• When you perform initialization, all the
protected images are erased. To avoid
erasing important data by accident, make
sure to check the contents of the “Memory
Stick” before initialization.
• You cannot record, edit, or delete data if you
slide the write-protect switch to LOCK.
• Do not attach any other material than the
supplied label on the labelling position.
When you attach the supplied label, be sure
to attach it to the labelling position. Be
careful that the label does not stick out.
SD memory card
CompactFlash card (DPF-D72
only)
The CompactFlash card slot of the photo frame
allows you to use the following (DPF-D72
only):
• CompactFlash Memory Card (Type I/
Type II) and CF+Card (Type I/Type II)compatible CompactFlash Card*6
• Microdrive
You can also use the Smart Media card by
using a commercially available CompactFlash
card adaptor*7.
However, we do not guarantee proper
operations for all types of CompactFlash cards.
*6
*7
Use a CompactFlash card with a power
specification of 3.3V or 3.3V/5V. You cannot use
a type for 3V or 5V only. Do not insert other types
of CompactFlash card into the photo frame’s
insertion slot. The photo frame may be damaged.
The photo frame has been demonstrated as
operable with a CompactFlash with a capacity of
32 GB or smaller.
When using a commercially available
CompactFlash card adaptor, refer to the operating
instructions of the adaptor you use for how to
install the card and adaptor. When using a
CompactFlash card adaptor, a write-protected card
may not work properly.
Notes on using a memory card
• When using a card, make sure to check the
correct insertion direction of the card and the
correct insertion slot.
• When inserting the memory card, it will only
insert part of the way, so do not try to force
it, as this could damage the memory card
and/or photo frame.
• Do not remove a card or turn off the photo
frame while the photo frame is reading or
writing data, or the access indicator is
flashing. Otherwise, data may be rendered
unreadable or be erased.
• We recommend that you save a backup of
important data.
58 GB
• Data processed with the computer may not
be displayed with the photo frame.
• When you carry or store a card, put it in the
case supplied with it.
• Do not touch the terminal of a card with your
hand or a metal object.
• Do not strike, bend or drop a card.
• Do not disassemble or modify a card.
• Do not expose a card to water.
• Do not use or store a card under the
following conditions:
– Locations beyond the required operational
conditions including locations such as the
hot interior of a car parked in the sun and/
or in the summer, the outdoors exposed to
direct sunlight, or a place near a heater.
– Humid locations or locations with
corrosive substances present
– Locations subject to static electricity or
electrical noise
Specifications
x Photo frame
Model
in operation mode
DPF-D72
at the maximum load
DPF-A72/
E72
including the
AC adaptor
10.7W
normal mode*
9.0W
at the maximum load
7.6W
normal mode*
7.5W
* The definition of the normal mode is a status
which allows the performance of a slideshow using
images stored in the internal memory with the
default settings without inserting a memory card or
connecting an external device.
Operating temperature
5 °C to 35 °C (41 °F to 95 °F)
Continued
59 GB
Additional information
LCD screen
LCD panel:
7.0 inches, TFT active matrix
Total number of dots:
DPF-D72: 1,152,000
(800 × 3(RGB) × 480) dots
DPF-A72/E72: 336,960
(480 × 3(RGB) × 234) dots
Display aspect ratio
DPF-A72/E72/D72: 15:9
Effective display area
DPF-A72/E72: 6.6 inches
DPF-D72: 7.0 inches
LCD backlight life
20,000 hours
(before brightness of the backlight is
reduced to half)
Input/Output connectors
USB connector (TypeB, Hi-Speed USB)
Slots
“Memory Stick PRO” (Standard/Duo)/
SD memory card/MMC/
xD-Picture Card slot
CompactFlash card/Microdrive slot
(DPF-D72 only)
Compatible image file formats
JPEG: DCF 2.0 compatible, Exif 2.21
compatible, JFIF*1
TIFF: Exif 2.21 compatible
BMP: 1, 4, 8, 16, 24, 32 bit Windows
format
RAW (preview only*2): SRF, SR2, ARW
(2.0 or lower version)
(Some image file formats are not
compatible.)
Maximum number of pixels that can be
displayed
8,000 (H) × 6,000 (V) pixels*3
File system
FAT12/16/32,
sector size of 2,048 bytes or smaller
Image file name
DCF format, 128 characters within 5th
hierarchy
Maximum number of files that can be
handled
4,999 files for a memory card
Internal memory capacity*4
DPF-D72: 1 GB
(Approx. 2,000 images*5 can be saved.)
DPF-A72/E72: 128 MB
(Approx. 250 images*5 can be saved.)
(When measuring media capacity, 1GB
equals 1 billion bytes, a portion of
which is used for data management.)
Power requirements
DC IN jack, DC 5V
Power consumption
Dimensions
[Without the stand]
DPF-A72/E72/D72:
Approx. 212 × 142 × 39.3 mm
(8 3/8 × 5 5/8 × 1 9/16 inches)
(width/height/depth)
[With the stand spread out]
DPF-A72/E72/D72:
Approx. 212 × 142 × 115.2 mm
(8 3/8 × 5 5/8 × 4 5/8 inches)
(width/height/depth)
Mass
DPF-D72: Approx. 495 g (17 oz)
DPF-A72/E72: Approx. 425 g (15 oz)
(excluding the AC adaptor)
Included accessories
See “Checking included items” on
page 10.
x AC adaptor supplied
Power requirements
- 100 V to 240 V, 50/60 Hz
0.3 A
Rated output voltage
5V2A
Dimensions
Approx. 45 × 72 × 50 mm
(1 3/4 × 2 7/8 × 2 inches)
(width/height/depth)
(excluding the protruding parts)
Mass
Approx. 110 g (3 7/8 oz)
See the label of AC adaptor for more details.
Design and specifications are subject to change
without notice.
*1
: Baseline JPEG with 4:4:4, 4:2:2, or 4:2:0 format
: RAW files are displayed as thumbnail preview.
*3
: 17 bits or more are required both vertically and
horizontally. An image with an aspect ratio of 20:1
or more may not be displayed properly. Even if the
aspect ratio is less than 20:1, display problem may
occur in thumbnails, slideshow or other occasions.
*4
: The capacity is calculated as 1 MB is equivalent to
1,000,000 bytes. The actual capacity is reduced as
*2
60 GB
files for management and applications are
included. Approximately 942 MB on DPF-D72,
approximately 106 MB on DPF-A72/E72 can be
used for your actual operation.
*5: The numbers of images to be saved are
approximate numbers when images are saved in
Album Image file size. The values may vary
depending on the subjects or shooting conditions.
When saved in the Album Image file size, an
image exceeding 3,140,000 pixels is automatically
resized to an image equivalent to between 780,000
and 3,140,000 pixels. The resizing size cannot be
selected.
Customer support home page
The latest support information is available at the
following home page address:
http://www.sony.net/
Index
A
AC adaptor 18
Accessories 10
Adding to the internal
memory 32
Associated file 28
Auto power ON/OFF 42, 45
C
Calendar 21
Changing the settings 43
Cleaning 55
Connecting
AC power source 18
Computer 47
D
Date/time settings 21, 45
DC IN 5 V 18
Deleting an image 36
Display priority 22
E
Error messages 49
Exporting an image 34
Features 9
Format internal memory 46
G
General Settings 45
I
Image file size 45
Index image display 27
Initialize 46
L
W
Memory cards 56
“Memory Stick” 56
CompactFlash card 58
Notes on use 58
SD memory card 57
xD-Picture Card 57
Write-protect switch 57
Z
Zooming an image in/out 40
P
Placing in portrait or
landscape orientation 15
Playback device 40
Precautions 55
R
Remote control 14
Replacing the battery of the
remote control 14
Reset 46
Rotating an image 41
S
Searching for an image 39
Setting the stand 15
Single view mode 26
Slideshow display 24
Slideshow Settings 31
Color effect 31
Display Mode 31
Effect 31
Interval 31
Shuffle 31
Specifications 59
System Information 46
System requirements
Macintosh 47
Windows 47
Additional Information
F
M
T
Troubleshooting 51
Language setting 46
61 GB
Printed using VOC (Volatile Organic
Compound)-free vegetable oil based ink.
Sony Corporation
Printed in China
