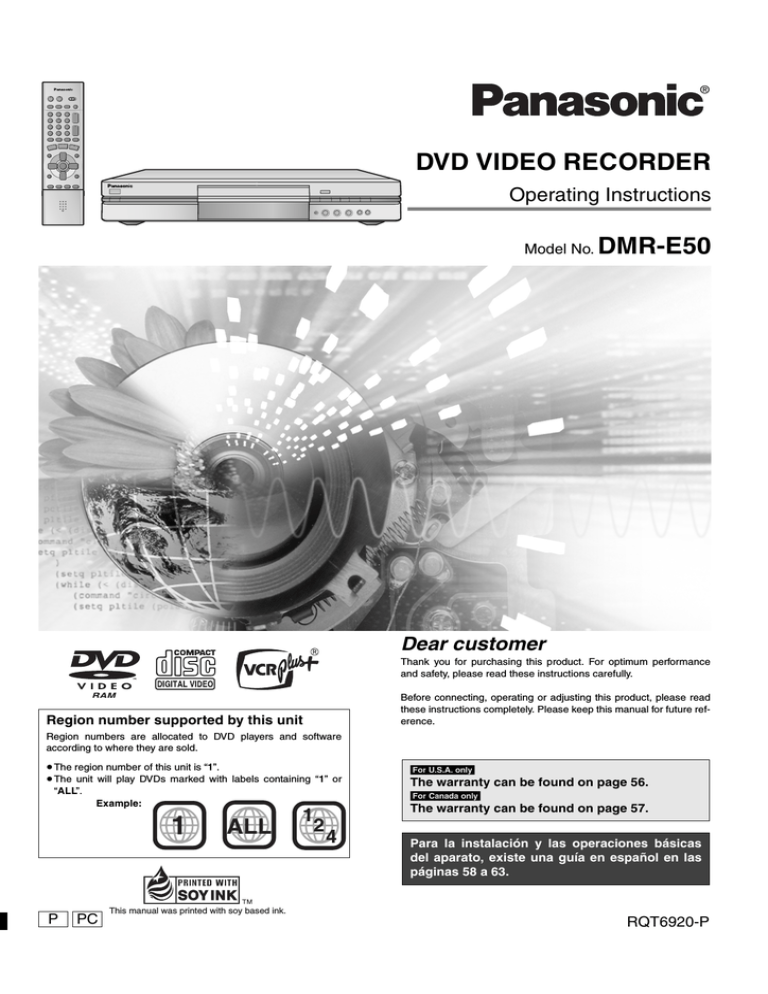

DVD VIDEO RECORDER
Operating Instructions
Model No.
DMR-E50
Dear customer
Thank you for purchasing this product. For optimum performance
and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read
these instructions completely. Please keep this manual for future reference.
Region number supported by this unit
Region numbers are allocated to DVD players and software
according to where they are sold.
≥The region number of this unit is “1”.
≥The unit will play DVDs marked with labels containing “1” or
“ALL”.
Example:
1
P
PC
ALL
1
2
4
[For\U.S.A.]only]
The warranty can be found on page 56.
[For\Canada]only]
The warranty can be found on page 57.
Para la instalación y las operaciones básicas
del aparato, existe una guía en español en las
páginas 58 a 63.
This manual was printed with soy based ink.
RQT6920-P
.
Getting started
CAUTION!
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT
EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT
NO OBJECTS FILLED WITH LIQUIDS, SUCH
AS VASES, SHALL BE PLACED ON THE
APPARATUS.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock
to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
FCC Note:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
≥Reorient or relocate the receiving antenna.
≥Increase the separation between the equipment and
receiver.
≥Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
≥Consult the dealer or an experienced radio/TV technician
for help.
FCC Caution: To assure continued compliance, follow the
attached installation instructions and use only shielded interface cables when connecting to peripheral devices.
Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
- VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
(FDA 21 CFR)
AVOID DIRECT EXPOSURE TO BEAM.
CAUTION - VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID EXPOSURE TO BEAM.
(IEC60825-1)
ATTENTION - RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D’OUVERTURE.
EXPOSITION DANGEREUSE AU FAISCEAU.
ADVARSEL - SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING.
UNDGÅ UDSÆTTELSE FOR STRÅLING.
DANGER
VARO!
- AVATTAESSA OLET ALTTIINA NÄKYVÄÄ JA NÄKYMÄTÖN
LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
VARNING - SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL
ÄR ÖPPNAD. BETRAKTA EJ STRÅLEN.
ADVARSEL - SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES.
UNNGÅ EKSPONERING FOR STRÅLEN.
VORSICHT - SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG
GEÖFFNET. NICHT DEM STRAHL AUSSETZEN.
-
RQLS0233
CAUTION:
TO PREVENT ELECTRIC SHOCK MATCH
WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
CAUTION!
DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
2
RQT6920
(Inside of product)
Before moving the unit, ensure the disc tray is empty.
Failure to do so will risk severely damaging the disc and the
unit.
Do not place the unit
on amplifiers or equipment that may become
hot.
The heat can damage the unit.
IMPORTANT SAFETY INSTRUCTIONS
1)
2)
3)
4)
5)
6)
7)
8)
9)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than
the other. A grounding-type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete
outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms
or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
Getting started
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions
listed below. Keep these operating instructions handy for future reference.
Features
This unit allows recording of high quality video on
DVD-RAM, the compact and durable digital media with
fast random access. This media also out performs past
tape formats in ease of operation.
∫ Exceptional sound and picture quality when
recording
≥Audio is recorded using Dolby Digital stereo, enabling high quality
sound recordings.
≥The encoder system used for recording is called “Hybrid VBR” and
allows high quality recordings.
∫ Fast access to the program you want to watch
(➜page 17) [RAM] [DVD-R]
Use the Direct Navigator to find a program you have recorded and
start play.
∫ Make your own DVD-Video
≥Finalizing a DVD-R that has been recorded on produces an original DVD-Video in accordance with DVD-Video standards.
≥In addition to DVD-Video movie software, this unit can also play
other types of discs including audio CDs and Video CDs. This
means that this unit has the potential to play a central role in your
home entertainment, from high-end home theater through to CD
playback.
∫ Maximum 12 hours on DVD-RAM
≥Using a double sided, 9.4 GB DVD–RAM allows you to record a
maximum of 12 hours (6 hours continuously).
≥You can also use the FR (Flexible Recording) mode to fit recordings efficiently onto the available space on the disc.
∫ MP3 disc play (➜page 21)
You can also play MP3 files recorded on CD-R and CD-RW, as well
as DVD-RAM, DVD-R, DVD-Video, Video CDs and CDs.
∫ Progressive Scan
By connecting the component video terminal of this unit to a progressive scan television, it is possible to enjoy the high quality picture rendered by the progressive scan function.
∫ Quick View (➜page 19)
You can speed up play to make checking the contents faster. Both
video and sound are played faster.
∫ The FUNCTIONS window shows you most of the
features you can use (➜page 23)
The FUNCTIONS window has most of the features and functions
you are likely to use regularly. Just select the icon for the operation
you want to perform.
∫ Watch a program while you are recording it
(➜page 22) [RAM]
Chasing play
You can watch a program from the start while you are still recording it.
Simultaneous rec and play
You can record a program while watching one you recorded
previously.
Time Slip
You can jump back to review a piece of action you missed while
recording by pressing the time slip button.
≥During playback, you can specify a length of time to jump to the
scene you wish to view.
∫ Editing your recording [RAM]
≥You can divide programs (➜page 32).
≥Use play lists (➜page 28) to select your favorite scenes and rearrange them to play in any order you like.
The manufacturer accepts no responsibility and offers no compensation for loss of recorded or edited material due to a problem
with the unit or disc, and accepts no responsibility and offers no compensation for any subsequent damage caused by such
loss.
Examples of causes of such losses are
≥A disc recorded and edited with this unit is played in a DVD recorder or computer disc drive manufactured by another company.
≥A disc used as described above and then played again in this unit.
≥A disc recorded and edited with a DVD recorder or computer disc drive manufactured by another company is played in this unit.
3
RQT6920
Table of contents
Getting started
Editing
Getting started
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Setting up
STEP 1 Antenna and television connections . . . . . . . . . . . . . . . 5
STEP 2 The remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
STEP 3 Plug-in Auto Tuning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
STEP 4 VCR Plusi guide channel settings . . . . . . . . . . . . . . . . 8
STEP 5 Set up to match your television . . . . . . . . . . . . . . . . . . 10
Disc information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Control reference guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Recording
Recording television programs . . . . . . . . . . . . . . . . . . . . . . . . . 14
Inserting discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Recording modes and approximate recording times in hours . 15
Watching the television while recording . . . . . . . . . . . . . . . . . . 15
Recording from a video cassette recorder . . . . . . . . . . . . . . . . 15
Recording the best quality pictures in the remaining time
—Flexible Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Playing back
Playing discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
When a menu screen appears on the television . . . . . . . . . . . 17
Position Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Using the Direct Navigator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
To erase a program that is being played back . . . . . . . . . . . . . 17
Other methods of play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Skipping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Slow-motion play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Frame-by-frame viewing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Starting play from a selected program, title, chapter, or track . . 18
Skipping a minute forward—CM Skip . . . . . . . . . . . . . . . . . . . 18
Selecting an amount of time to skip—Time Slip . . . . . . . . . . . 19
Fast forward and rewind—SEARCH . . . . . . . . . . . . . . . . . . . . 19
Quick View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Marking places to play again—MARKER . . . . . . . . . . . . . . . . . 20
Marking positions directly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using on-screen menus to mark positions. . . . . . . . . . . . . . . . 20
Using menus to play MP3 discs . . . . . . . . . . . . . . . . . . . . . . . . 21
Playing while you are recording . . . . . . . . . . . . . . . . . . . . . . . . 22
Playing from the beginning of the program you are recording
—Chasing Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Simultaneous rec and play. . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Reviewing the recorded images while recording—Time Slip . . 22
Changing audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Using the FUNCTIONS window . . . . . . . . . . . . . . . . . . . . . . . . . 23
Timer recording
Timer recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Specify a time to stop recording. . . . . . . . . . . . . . . . . . . . . . . . 24
Using VCR Plus+ codes to make timer recordings . . . . . . . . . 24
Manually programming timer recordings . . . . . . . . . . . . . . . . . 25
Check programs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Change or delete the program . . . . . . . . . . . . . . . . . . . . . . . . . 26
Entering text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Creating play lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Playing play lists, Playing play list scenes . . . . . . . . . . . . . . . . 29
To erase a play list or a play list scene during playback . . . . . . 29
Editing play lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Editing programs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Disc setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Advanced operation
Using on-screen menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Common procedures, Disc menu . . . . . . . . . . . . . . . . . . . . . . . 36
Play menu, Audio menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Video menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
On-screen displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Home Theater. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Connecting a cable TV box/satellite receiver . . . . . . . . . . . . . . 41
Connecting an amplifier or system component . . . . . . . . . . . . 42
Connecting other video equipment. . . . . . . . . . . . . . . . . . . . . . 43
Other antenna connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Other antenna connection to the unit . . . . . . . . . . . . . . . . . . . 44
Other antenna connection from the unit to the television . . . . . 44
Changing the remote control code . . . . . . . . . . . . . . . . . . . . . . 45
Changing the unit’s settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Summary of settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Common procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Clock settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Reference
Glossary, Disc handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Product Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Limited Warranty (ONLY FOR U.S.A.) . . . . . . . . . . . . . . . . . . . . 56
Limited Warranty (ONLY FOR CANADA) . . . . . . . . . . . . . . . . . . 57
Español
Instalación básica. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Conexiones del televisor y de la antena . . . . . . . . . . . . . . 58
Plug-in para Sintonización automática . . . . . . . . . . . . . . . 58
Guía VCR Plus+ para ajuste de canales . . . . . . . . . . . . . 59
Instalación para ajustar su televisor . . . . . . . . . . . . . . . . . 59
Grabación de programas de televisión. . . . . . . . . . . . . . . . 60
Introducción de discos . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Modos de grabación y tiempo de grabación
aproximado en horas . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Visualización del televisor durante la grabación . . . . . . . . 61
Reproducción durante la grabación . . . . . . . . . . . . . . . . . . 61
Reproducción de discos . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Cuando aparece una pantalla de menús en el televisor . . 63
Memoria de posición . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Utilización del Navegador directo . . . . . . . . . . . . . . . . . . . 63
Para borrar un programa que se está reproduciendo . . . . 63
Índice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Contraportada
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover
Accessories
Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts.
Only for U.S.A.: To order accessories contact 1-800-332-5368 or web site (http://www.panasonic.com).
Only for Canada: To order accessories, call the dealer from whom you have made your purchase.
[] 1 Remote control
(EUR7615KN0)
[] 1 AC power supply cord
(RJA0065-A)
[] 1 75 ≠ coaxial cable
(VJA1091)
[] 2 Batteries
for remote control
[] 1 Audio/Video cable
(VJA0788)
[] 1 DVD-RAM disc
[Note]
4
RQT6920
The included AC power supply cord is for use with this unit
only. Do not use it with other equipment.
(U.S.A. only)
Product Registration Card
Please complete and return the included product registration card, or register
via the Internet at: http://www.prodreg.com/panasonic/
Antenna and television connections
To enjoy sound through other audio equipment (➜page 42)
To enjoy progressive video
Preparation
≥Refer to the television’s operating instructions.
≥Turn the television off and disconnect its AC power supply cord.
Connect to the component video (480P) input terminals on a television compatible with this unit’s copy guard system. (Video will not
be displayed correctly if connected to an incompatible television.)
≥All Panasonic televisions that have 480P input terminals are compatible. Consult the manufacturer if you have another brand of
television.
To the antenna
Television
AUDIO
IN
R L
Cable TV
VIDEO
IN
VHF/UHF
RF IN
Outdoor antenna
AC power supply cord (included)
Connect last.
Also connect the AC
power supply cords for
the other equipment.
Red White Yellow
Audio/Video cable
(included)
Indoor antenna
Setting up
STEP 1
or
If the connector
doesn’t match
➜page 44
75 ≠ coaxial cable
(included) ➜below
Antenna cable
(usually disconnected from the
television).
To household AC outlet
(AC 120 V, 60 Hz)
Red White Yellow
Cooling fan
This unit
RF IN
R-AUDIO-L
VIDEO
S-VIDEO
(L1)
IN 1
Y
PB
PR
OPTICAL
RF OUT
OUT
IN 3
R-AUDIO-L
VIDEO
S-VIDEO
(L3)
R-AUDIO-L
VIDEO
COMPONENT
VIDEO OUT
(480P/480I)
S-VIDEO
The S-VIDEO OUT terminal achieves a more vivid picture than
the VIDEO OUT terminal by separating the chrominance (C)
and luminance (Y) signals. (Actual results depend on the television.)
Television
S video cable
(not included)
COMPONENT
VIDEO IN
Y
PB
PR
S VIDEO
IN
OUT
R-AUDIO-L
VIDEO
S-VIDEO
When making this connection, ensure you connect the audio
cables to the corresponding audio input terminals on the television.
Video cable
(not included)
75 ≠ coaxial cable
≥The signal from the antenna passes through this unit and along
the 75 ≠ coaxial cable to the television even when this unit is
turned off. You don’t have to connect the antenna to the television.
≥The picture and sound signal from this unit does not go through
the 75 ≠ coaxial cable to the television. Make sure you connect
one of the following terminals on this unit to the television: the
AUDIO/VIDEO terminal, the S-VIDEO OUT terminal or the
COMPONENT VIDEO OUT terminal. If the television has none
of these terminals, consult your local dealer.
Conserving power
This unit consumes a small amount of power, even when it is
turned off (approx. 3.2 W). To save power when the unit is not to
be used for a long time, unplug it from the household AC outlet.
Y
PB
PR
OPTICAL
COMPONENT
VIDEO OUT
(480P/480I)
VHF/UHF
COMPONENT VIDEO OUT terminal
Television
S-VIDEO OUT terminal
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
These terminals can be used for either
interlace or progressive output and
provide a purer picture than the S-VIDEO
OUT terminal.
Connection using these terminals outputs
the color difference signals (PB/PR) and
luminance signal (Y) separately in order to
achieve high fidelity in reproducing colors.
≥The description of the component video
input terminals depends on the television or monitor (e.g. Y/PB/PR, Y/B-Y/R-Y,
Y/CB/CR). Connect to terminals of the
same color.
≥After making this connection, change the
black level for a better picture
(➜page 47, Video–Black Level Control).
When making this connection, ensure you
connect the audio cables to the
corresponding audio input terminals on
the television.
Do not connect the unit through a video
cassette recorder
Video signals fed through video cassette recorders will be
affected by copyright protection systems and the picture
will not be shown correctly on the television.
5
RQT6920
STEP 2
The remote control
STEP 3
Plug-in Auto Tuning
Batteries
R6/LR6, AA, UM-3
DVD POWER TV
-
Setting up
+
-
DVD
Í, DVD POWER
Í
TV
Í
VCR Plus+ TV/VIDEO REC MODE REC
+
Numbered
buttons
1
2
3
4
5
6
W,X,CH
CH
VOLUME
7
8
9
0
100
CANCEL
SKIP
≥Insert so the poles (i and j) match those in the remote control.
≥Do not use rechargeable type batteries.
SLOW/SEARCH
PAUSE
STOP
PLAY/a
DIRECT NAVIGATOR
Do not:
≥mix old and new batteries.
≥use different types at the same time.
≥heat or expose to flame.
≥take apart or short circuit.
≥attempt to recharge alkaline or manganese batteries.
≥use batteries if the covering has been peeled off.
Mishandling of batteries can cause electrolyte leakage which can
damage items the fluid contacts and may cause a fire.
3, 4, 2, 1
ENTER
1. 3
PLAY LIST
MENU
TOP
MENU
ENTER
RETURN
ADD/DLT
FUNCTIONS
CM SKIP TIME SLIP
OPEN/CLOSE STATUS
FRAME
SETUP
AUDIO INPUT SELECT DISPLAY
ERASE
F Rec
SETUP
Remove if the remote control is not going to be used for a long
period of time. Store in a cool, dark place.
RETURN
PROG/CHECK ADD/DLT
POSITION MEMORY MARKER
[Note]
If you cannot operate the unit or television using the remote control
after changing the batteries, please re-enter the codes
(television➜page 10, main unit ➜page 45).
X,W, CH
POWER, Í/I
Use
OPEN/CLOSE
Remote control signal sensor
CH
POWER
REC MODE
/I
TIME SLIP TIME SLIP
REC
ERASE
/a1.3
20x
20x
30x
After plugging the unit into your household AC outlet and pressing
[Í, DVD POWER] to turn the unit on for the first time, the unit
assists you to set the menu language, and automatically tunes in all
the channels it can receive and sets the clock.
30x
7 m (23 feet) directly
in front of the unit
The unit automatically determines the type of transmission (air or
cable) and puts them into channels as follows.
TV Mode
(Air)
CATV Mode
(Cable)
Band
Channel
VHF
2s13
UHF
14s69
VHF
2s13
CATV LOW BAND
95s99
CATV MID/SUPER BAND
14s36
CATV HYPER BAND
37s65
ULTRA BAND
SPECIAL CATV CHANNEL
6
RQT6920
66s94
100s125
1
≥Confirm that the antenna is connected correctly.
≥Turn on the television and select the appropriate video input to
suit the connections to this unit.
1
2
Press [3, 4] to select “Channel” and
press [1].
SETUP
Press [Í, DVD POWER] to turn the
unit on.
Select Language
Channel
Set Up
Disc
Seleccione la Lengua
Sélection de Langue
3
English
Español
Antenna System
Français
CATV
Auto Channel Setting
Channel Caption
Preset Channel Caption
Manual Channel Caption
Press [3, 4] to select “Antenna System” and press [ENTER].
Press ENTER
Pulse ENTER
Appuyer sur ENTER
Antenna System
SETUP
Setting up
Preparation
TV
2
Press [3, 4] to select the menu language and press [ENTER].
e.g., when you select
English
Auto Channel/Clock Setting
Connect antenna cable and if you use a
cable box, tune it to your local PBS CH
then. . .
4
3
Press [3, 4] to select “TV” or
“CATV” and press [ENTER].
The screen shown in step 2 reappears.
5
Please push the ENTER key.
ENTER
Press [3, 4] to select “Auto Channel
Setting” and press [ENTER].
Auto Channel Setting
SETUP
RETURN
Press [ENTER].
The unit then proceeds with Auto Clock Setting. The time is
displayed when finished. If the clock is an hour slower or
faster than the actual time, go to “Time Zone Adjust” to correct it (➜page 49).
Please push the ENTER key.
If you have not yet set clock, the “Auto Channel/Clock Setting” screen appears.
6
When the display shows the correct time
Connect antenna cable and if you use a
cable box, tune it to your local PBS CH
then...
Channel
Set Up
Disc
Video
Audio
Display
Plug-in Auto Tuning starts and the unit puts the stations it
can receive into channels.
4
CATV
Channel
Set Up
Press [ENTER] to complete Plug-in
Auto Tuning.
Press [ENTER].
Auto setting starts. This takes a few minutes. (To stop auto
channel setting, press [RETURN].) When finished, the Complete screen or time display is shown. Press [ENTER].
If the unit couldn’t set the clock automatically
To return to the previous screen
Press [ENTER] to show the “Manual Clock Setting” screen. Set the
time manually (➜page 49).
Press [RETURN].
To start Plug-in Auto Tuning again (after relocation, for example)
Press [SETUP].
Antenna system, channel caption, and VCR Plusr guide
channel settings all revert to the default values when you
perform the procedure below. Timer recording settings are
also cleared.
When the unit is on and stopped
1 Press and hold [X, CH] and [W, CH] on the main unit for
about five seconds.
The unit turns off.
2 Press [Í, DVD POWER] to turn the unit on.
Follow the above steps 2–4.
When you are finished
Adding and deleting channels
Add or delete channels if necessary channels are not set or unnecessary channels are set.
While this unit is receiving the antenna signal (but not during
recording):
1
e.g.,
If Plug-in Auto Tuning fails
1
Channel
Set Up
Disc
Video
Audio
Display
TV Screen
Antenna System
CATV
Auto Channel Setting
Channel Caption
Preset Channel Caption
Manual Channel Caption
VCR Plusi CH Setting
TAB
“5”:
[0] ➜ [5]
“15”: [1] ➜ [5]
“115”: [100] ➜ [1] ➜ [5]
Unit's display
≥You can also use [W, X, CH]
when you are going to delete a channel.
Press [SETUP] to show the menus.
SETUP
Press the numbered buttons to select
a channel.
2
Press [ADD/DLT].
The channel is deleted if it was set or added if it was not set.
e.g.,
CHANNEL 15 DELETED
SELECT
RETURN
Repeat steps 1 and 2 as necessary.
7
RQT6920
STEP 4
VCR Plusi guide channel settings
3
e.g., when the current antenna system is CATV.
DVD POWER TV
DVD
Í
Press [3, 4] to select “VCR Plusr
CH Setting” and press [ENTER].
TV
Í
VCR PlusiCH Setting
SETUP
VCR Plus+ TV/VIDEO REC MODE REC
Guide Channel CATV Channel
1
2
3
4
5
6
Channel
Set Up
Disc
Video
Audio
Display
TV Screen
Setting up
CH
VOLUME
7
8
9
0
100
CANCEL
CANCEL
SKIP
SLOW/SEARCH
PAUSE
STOP
PLAY/a
DIRECT NAVIGATOR
3, 4, 2, 1
ENTER
4
MENU
ENTER
RETURN
PROG/CHECK ADD/DLT
CM SKIP TIME SLIP
OPEN/CLOSE STATUS
FRAME
AUDIO INPUT SELECT DISPLAY
ERASE
F Rec
VCR PlusiCH Setting
Channel
Set Up
Disc
Video
Audio
Display
TV Screen
POSITION MEMORY MARKER
e.g.,
5
Station
name
Guide
channel
Channel
number
CBS
04
04
unnecessary
15
Enter channel 15 next
to Guide Channel 33.
Channel setting
(in step 5)
SELECT
ENTER
20
Look up the guide channels
for the stations in magazines.
1
Channel
Set Up
Disc
Video
Audio
Display
TV Screen
2
RQT6920
Channel
Set Up
Disc
Video
Audio
Display
TV Screen
7
8
-----
SELECT
ENTER
4
5
-----
6
12
7
8
-----
RETURN
To delete a number, press [CANCEL].
Repeat steps 4 and 5 as necessary.
6
Press [ENTER].
The “Channel” screen reappears.
To return to the previous screen
VCR Plusi CH Setting
Press [RETURN].
TAB
SELECT
When you are finished
RETURN
Press [3, 4] to select “Channel” and
press [1].
SETUP
8
CATV
---
Guide Channel CATV Channel
Press [SETUP] to show the menus.
Antenna System
6
VCR PlusiCH Setting
Channel
Set Up
Disc
Video
Audio
Display
TV Screen
Enter channel 20 next
to Guide Channel 38.
Auto Channel Setting
Channel Caption
Preset Channel Caption
Manual Channel Caption
-----
Press [3, 4] to select the channel
corresponding to the guide channel
and press [2].
Write down all the stations you
can receive.
SETUP
4
5
RETURN
SETUP
38
-----
Guide Channel CATV Channel
SETUP
Set these guide channels so you can use VCR Plusi codes for
timer recording. Before starting the settings, prepare a chart showing the channels, station names, and guide channels.
Nickelodeon
2
3
Press [3, 4] to select the guide
channel you want to set and press
[1].
SETUP
33
---
RETURN
SETUP
HBO
1
When selecting the guide channel, press and hold [3, 4] to
scroll the screen up and down.
RETURN
FUNCTIONS
ENTER
---
1. 3
PLAY LIST
TOP
MENU
SELECT
125
Antenna System
CATV
Auto Channel Setting
Channel Caption
Preset Channel Caption
Manual Channel Caption
Press [SETUP].
VCR Plusi and PlusCode are registered trademarks of Gemstar Development Corporation. The VCR Plusi system is manufactured under license from Gemstar Development Corporation.
VCR Plusi CH Setting
SELECT
ENTER
Pats. 5,307,173;
4,706,121
TAB
RETURN
5,335,079;
4,908,713;
4,751,578;
and
Other channel settings
Press [SETUP] to show the menus.
Press [3, 4] to select “Channel” and
press [1].
SETUP
Channel
Set Up
Disc
Video
Audio
Display
TV Screen
Antenna System
ENTER
Channel
Set Up
Disc
Video
Audio
Display
TV Screen
Proceed with
the steps
described
below.
VCR Plusi CH Setting
4
RETURN
Press [3, 4] to select “Preset Channel Caption” and press [ENTER].
Channel
Set Up
Disc
Video
Audio
Display
TV Screen
5
ENTER
Caption
125
----
1
----
2
3
-------
RETURN
Press [3, 4] to select the channel
and then press [1].
SELECT
ENTER
Caption
Channel Number
GLOB
---
ABC
---
PBS
CBS
-----
Manual Caption
SETUP
Channel
Set Up
Disc
Video
Audio
Display
TV Screen
RETURN
Press [3, 4] to select the caption
and then press [1].
Press [3, 4] to select the channel
corresponding to the caption and
then press [2].
Press [3, 4] to select the first character and then press [1].
≥You can choose from the following characters:
A–Z, 0–9, -, &, !, /, (space)
≥To delete the caption, press [CANCEL].
≥Repeat step 5 to enter the other characters.
Preset Caption
You can choose from the following captions.
ABC, PBS, CBS, CNN, FOX, ESPN, NBC, HBO, A&E, AMC,
FAM, MAX, MTV, SHOW, TBS, USA, TNT, CBC, UPN, CTV,
WB, TSN, DSC, GLOB
≥The screen scrolls a page at a time if you press and hold
[3, 4].
5
SELECT
Channel Number
≥Channels are not displayed if they do not contain a station
or if preset captions have been added.
SETUP
4
Manual Caption
TAB
Preset Channel Caption
3
Press [3, 4] to select “Manual Channel Caption” and press [ENTER].
SETUP
CATV
Auto Channel Setting
Channel Caption
Preset Channel Caption
Manual Channel Caption
SELECT
3
Setting up
1
2
Manual Channel Caption
6
SELECT
ENTER
Channel Number
Caption
6
8
-------
10
AAAA
12
23
-------
RETURN
Press [2, 1] to return to the Channel
Number column when you are
finished.
Repeat steps 4, 5, and 6 as necessary.
7
Press [ENTER].
The “Channel” screen reappears.
≥Channels are not displayed if they do not contain a station
or if captions have been added manually.
≥To delete the channel number, press [CANCEL].
≥Repeat steps 4 and 5 as necessary.
6
Press [ENTER].
The “Channel” screen reappears.
To return to the previous screen
Press [RETURN].
When you are finished
Press [SETUP].
9
RQT6920
STEP 5
Set up to match your television
To return to the previous screen
Press [RETURN].
DVD POWER TV
DVD
Í
TV
Í, POWER TV
When you are finished
DVD, TV
Press [SETUP].
Í
VCR Plus+ TV/VIDEO REC MODE REC
TV/VIDEO
Numbered
buttons
∫ Regarding Progressive Television Picture
1
2
3
4
5
6
7
8
9
0
100
W, X, CH
CH
Setting up
VOLUME
r, s, VOLUME
CANCEL
SKIP
SLOW/SEARCH
PAUSE
STOP
DIRECT NAVIGATOR
3, 4, 2, 1
ENTER
PLAY/a
1. 3
PLAY LIST
MENU
TOP
MENU
ENTER
RETURN
FUNCTIONS
RETURN
PROG/CHECK ADD/DLT
CM SKIP TIME SLIP
OPEN/CLOSE STATUS
FRAME
SETUP
AUDIO INPUT SELECT DISPLAY
ERASE
F Rec
POSITION MEMORY MARKER
Television operation
Change the settings if your television is:
≥Widescreen (16:9 aspect ratio)
≥Progressive
– Read your television’s operating instructions for details.
You can control televisions by entering the remote control code.
1
Press and hold [Í, POWER TV] and enter the
two-digit code with the numbered buttons.
Press [SETUP] to show the menus.
SETUP
Channel
Set Up
Disc
Video
Audio
Display
TV Screen
2
Channel
Set Up
Disc
Video
Audio
Display
TV Screen
3
Antenna System
CATV
Auto Channel Setting
Channel Caption
Preset Channel Caption
Manual Channel Caption
01
SELECT
4:3 (480I)
TV Type
4
JVC
12
HITACHI
03
MAGNAVOX SYLVANIA
PHILIPS (RC-5)
13
MITSUBISHI
04
ZENITH
14
SAMSUNG
05
THOMSON RCA GE
15
06
16
SHARP
07
TV mode(4:3)
SONY
18
4:3 TV Settings for DVD-Video Pan&Scan
09
TOSHIBA
19
10
SANYO FISHER
4:3 TV Settings for DVD-RAM Letterbox
GOLDSTAR/LG
17
08
SAMSUNG
–
≥Test by turning on the television and changing channels. Repeat
the procedure until you find the code that allows correct operation.
SELECT
ENTER
TAB
RETURN
TV Type
Aspect 4:3 & 480I
Channel
Set Up
Disc
Video
11
RETURN
Press [3, 4] to select “TV Type” and
press [ENTER].
SETUP
Panasonic/National QUASAR
02
VCR Plusi CH Setting
TAB
e.g., 01: press [0] ➜ [1].
Code No. and Manufacturer
Press [3, 4] to select “TV Screen”
and press [1].
SETUP
Aspect 4:3 & 480P
Aspect 16:9 & 480I
[Note]
If your television brand is not listed or if the code listed for your television does not allow control of your television, this remote control
is not compatible with your television.
∫ Operation
Point the remote control at the television.
Operation
Button
Aspect 16:9 & 480P
Press [3, 4] to select the item and
press [ENTER].
≥If you select a progressive output (480P) item, select Video
in the on-screen menu and set “Transfer” to suit the material
(➜page 38).
10
[Note]
≥If the unit is connected to the TV through VIDEO OUT or SVIDEO OUT, output will be interlace only (even if you select progressive output).
≥When progressive output is on, closed captions can not be displayed.
SETUP
RQT6920
Progressive image aspect (height to width ratio) is set at a standard
16:9. DVD-Video which has been set at 16:9 will be displayed correctly. However, 4:3 video material will be stretched to the right and
left when displayed.
≥To view the picture at the right aspect
– For televisions that allow the aspect of progressive images to
be adjusted, use the function provided on the television and
adjust as necessary.
– For televisions which do not allow the aspect of progressive
images to be adjusted, please set “Progressive” to “OFF” (➜
page 38).
On and off
Video input mode
Channels
Volume
[Í, POWER TV]
[TV/VIDEO]
(Switch [DVD, TV] to “TV”.)
[W, X, CH] or
Numbered buttons
e.g., Channel “5”: [0] ➜ [5]
[r, s, VOLUME]
Disc information
Play-only discs
DVD-Video
DVD-RAM
4.7 GB/9.4 GB, 12 cm (5z)
2.8 GB, 8 cm (3z)
DVD-R
4.7 GB 12 cm (5z)
1.4 GB, 8 cm (3z)
for General Ver. 2.0
≥We recommend using Panasonic discs as they have been confirmed to be compatible with this unit. Other discs may not perform
correctly.
≥Do not allow the disc to become dirty or scratched. Fingerprints,
dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for recording.
≥Discs with programs recorded in PAL already cannot be recorded
on using this unit.
§
Video CD
Audio CD§
Including discs recorded with MP3.
≥The producer of the material can control how DVD-Video and
Video CDs are played. This means that you may not be able to
control play of a disc with some operations described in these
operating instructions. Read the disc’s instructions carefully.
≥This unit can play CD-R/CD-RW (audio recording disc) recorded
with CD-DA (digital audio), video CD (video CD format 2.0 or
above) or MP3. Finalize§1 the disc after recording.
It may not be able to play some CD-R or CD-RW due to the condition of the recording.
§1
A process that allows play on compatible equipment.
≥This unit cannot record onto CD-R or CD-RW.
Setting up
Discs you can use for recording and
play
DVD-Video
DVD-RAM
≥Audio format
≥DVD-RAM recorded on this unit may not be compatible with
other DVD players, including some Panasonic players. Consult the manual for the player to determine compatibility with
these DVD-RAM discs.
≥This unit is compatible with both non-cartridge and cartridge
DVD-RAM, but the write-protect tabs on cartridge-type discs give
better protection to your recordings.
≥Picture aspect ratios, regular 4:3 or widescreen 16:9, are recorded
as they are received.
Dolby Digital (➜page 47)
This unit can play Dolby Digital in stereo (2
channels). Connect an amplifier with a builtin Dolby Digital decoder to enjoy surround
sound.
DTS Digital Surround (➜page 47)
Connect this unit to equipment that has a
DTS decoder to enjoy DVDs with this mark.
DVD-R
≥In order to play a DVD-R recorded using this unit on another
playback source, the disc must first be finalized (‹page 34).
≥Once a DVD-R is finalized, it becomes DVD-Video.
≥You can record onto the available space on the disc and perform
editing functions, such as giving titles to discs and programs and
erasing programs before finalizing.
≥When programming is erased from a DVD-R, that space does not
become available. Once an area on a DVD-R is recorded on, that
area is no longer available for recording, whether the recording is
erased or not.
≥It takes about 30 seconds for the unit to complete recording management information after recording finishes.
≥This unit optimizes the DVD-R for each recording. Optimizing is
carried out when you start recording after inserting the disc or
turning on the unit. Recording onto the disc may become impossible if optimizing is carried out too many times.
≥Play may be impossible in some cases due the condition of the
recording.
≥The video is recorded in a 4:3 aspect irrespective of the video signal input.
Discs you can use
The features you can use with the different types of discs are indicated as follows.
[RAM] [DVD-R] [DVD-V] [VCD]
|
|
|
|
DVD-RAM DVD-R
[CD]
|
[MP3]
|
DVD-Video Video CD Audio CD MP3 discs
[DVD-R] indicates DVD-R that have not yet been finalized
(➜page 34). DVD-R that have been finalized can use the same features as DVD-Video. (Refer to features indicated [DVD-V].)
Discs that cannot be played
≥DVD-Video with a region number other than “1” or “ALL”
≥12-cm (5z), 2.6- and 5.2-GB DVD-RAM
≥DVD-RAM not recorded following the Video Recording Standard
≥3.95- and 4.7-GB DVD-R for Authoring
≥Unfinalized DVD-R recorded on other equipment
≥PAL discs
≥DVD-ROM
≥DVD-RW
≥DVD-Audio
≥+RW
≥CD-ROM
≥CDV
≥CD-G
≥Photo CD
≥CVD
≥SVCD
≥SACD
≥MV-Disc
≥PD
≥Divx Video Disc, etc.
Protection
[RAM]
You can protect the contents of your discs in the following ways.
≥Cartridge-protect:
With the write-protect tab in the protect position, you cannot record to, edit, or erase from
the disc. (Type 1, 2, and 4 cartridge discs)
PROTECT
≥Program-protect (➜page 32)
≥Disc-protect (➜page 34)
11
RQT6920
Control reference guide
Remote control
D
Setting up
DVD POWER TV
DVD
1
Í
TV
E
Í
VCR Plus+ TV/VIDEO REC MODE REC
2
3
F
G
1
2
3
4
5
6
7
8
9
0
100
H
CH
4
VOLUME
I
CANCEL
5
SKIP
6
SLOW/SEARCH
PAUSE
STOP
7
8
PLAY/a
J
1. 3
K
DIRECT NAVIGATOR
PLAY LIST
L
9
MENU
TOP
MENU
:
ENTER
;
M
<
FUNCTIONS
RETURN
PROG/CHECK ADD/DLT
CM SKIP TIME SLIP
N
=
O
>
?
@
A
B
OPEN/CLOSE STATUS
FRAME
SETUP
AUDIO INPUT SELECT DISPLAY
ERASE
F Rec
P
Q
R
POSITION MEMORY MARKER
S
C
T
How to open the remote control
Hold both sides of the remote control’s cover to open it. (You can
also open it by pressing on the center of it and sliding it down.)
12
RQT6920
1 POWER button (Í, DVD (POWER)) . . . . . . . . . . . . . . . . . . 7, 14
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
2 VCR Plusr button (VCR Plusr) . . . . . . . . . . . . . . . . . . . . . . 24
3 Television input mode selector (TV/VIDEO). . . . . . . . . . . . . 10
4 Numbered buttons (1–9, 0, 100)
5 Cancel button (CANCEL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6 Skip buttons (:, 9 SKIP) . . . . . . . . . . . . . . . . . . . . . . . 18
7 Stop button (∫ STOP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
8 Pause button (; PAUSE). . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
9 Top menu and Direct Navigator button
(TOP MENU, DIRECT NAVIGATOR) . . . . . . . . . . . . . . . . . 17, 21
: Cursor buttons (3, 4, 2, 1)/Enter button (ENTER) . . . 7, 15
; Functions button (FUNCTIONS) . . . . . . . . . . . . . . . . . . . . . . 23
< Manual channel adding and deleting button
(ADD/DLT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
= Manual programming and check button
(PROG/CHECK). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
> On-screen display button (STATUS) . . . . . . . . . . . . . . . . . . . 39
? Disc tray open/close button (< OPEN/CLOSE). . . . . . . . . . 14
@ Audio button (AUDIO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
A Setup button (SETUP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
B Program/play list erase button (ERASE) . . . . . . . . . . . . 17, 29
C Flexible Recording button (F Rec) . . . . . . . . . . . . . . . . . . . . 15
D TV power on/off button (Í, (POWER) TV). . . . . . . . . . . . . . . 10
E DVD/TV switch (DVD, TV). . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
F Recording button (¥, REC) . . . . . . . . . . . . . . . . . . . . . . . . . . 14
G Recording mode button (REC MODE) . . . . . . . . . . . . . . . . . 14
H Channel buttons for recorder and TV (W, X, CH) . . . . . 10, 14
I TV volume buttons (r, s, VOLUME). . . . . . . . . . . . . . . . . . . 10
J Slow/search buttons (6, 5 SLOW/SEARCH) . . . . . . . . 18
K Play/quick view button (1 PLAY/a1.3). . . . . . . . . . . . . . 16, 19
L Menu and Play list button (MENU, PLAY LIST) . . . . . . . 17, 28
M Return button (RETURN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
N One-minute skip button (CM SKIP). . . . . . . . . . . . . . . . . . . . 18
O Time slip button (TIME SLIP). . . . . . . . . . . . . . . . . . . . . . 19, 22
P Frame advance and frame reverse buttons
(2;, ;1 FRAME). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Q Input select button (INPUT SELECT) . . . . . . . . . . . . . . . . . . 15
R On-screen menu button (DISPLAY) . . . . . . . . . . . . . . . . . . . 36
S Marker button (MARKER) . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
T Position memory button (POSITION MEMORY) . . . . . . . . . 17
Main unit
V
?
W
F B
OPEN/CLOSE
OPEN/CLOSE
CH
CH
POWER
REC MODE
/I
S-VIDEO IN
VIDEO IN
L/MONO
AUDIO IN
R
TIME SLIP TIME SLIP
REC
ERASE
/a1.3
Setting up
1 U
L2
Y
X
G
ZO 7 K
[
Controls such as 1 function the same as the buttons on the remote control.
U
V
W
X
Y Display
Z Time slip indicator (TIME SLIP) . . . . . . . . . . . . . . . . . . . . . . . 22
[ Skip/Slow/Search buttons (4, 5). . . . . . . 18, 19
Remote control signal sensor . . . . . . . . . . . . . . . . . . . . . . . . . 6
Disc tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Channel buttons for recorder (X, W, CH) . . . . . . . . . . . . . . . 14
L2 input terminals (L2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
The unit’s display
B
A
C
F
Center circle (e.g., DVD-RAM)
Rotating (REC):recording
Stopped (REC):recording paused
D
E
G
Rotating (REC, PLAY):
Chasing play or simultaneous
rec and play is in progress
A Timer recording display
On:
When timer recording is on standby (➜page 24)
Flashes: When the unit couldn’t go to timer recording standby
B Disc type
C The display mode of the main display section
GRP:
Group number
TITLE:
Title number
PL:
Play list number
CHAP:
Chapter number
PG:
Program number
TRACK: Track number
Rotating (PLAY):playing
Stopped (PLAY):play paused
“PLAY” flashes:
the resume function (➜page 16,
To stop play) is working
D Recording mode (➜page 15)
E DVD indicator
Flashes: When you press [Í, DVD POWER] to turn the unit off
until it actually turns off
F Channel
G Main display section
Recording and play counter, and other miscellaneous messages
13
RQT6920
Recording television programs
[RAM] [DVD-R]
Disc tray
1
4 23 5
1
Press [Í, DVD POWER] to turn the
unit on.
2
Press [< OPEN/CLOSE] to open the
tray and insert a disc (➜ next page).
≥Press the button again to close the tray.
≥It is not possible to record continuously from one side of a
double sided disc to the other. You will need to eject the disc
and turn it over.
Recording
?
3
3
4
TV/VIDEO
e.g., when you
select channel 4
5
1
Numbered
buttons
CAN
4
CEL
SE
PAU
PLAY/
a 1.3
Press [REC MODE] to select the
recording mode (➜ next page).
e.g., when you
select “XP”
OP
ST
?
;
Ensure [DVD, TV] is switched to
“DVD” and press [W, X, CH] to select
the channel.
5
3, 4, 2, 1
ENTER
Press [¥, REC] to start recording.
Program information (e.g., time and date) is registered in the
program list (➜page 17).
2
STATUS
FR
ec
F Rec
INPUT SELECT
To stop recording
Press [∫].
To pause recording
Press [;]. Press again to restart recording.
Auto power-off
The unit switches to standby after about 6 hours in the stop mode.
You can turn this feature off or change the time to 2 hours
(➜page 46, Set Up—Off Timer).
[DVD-R]
To play DVD-R on compatible equipment, finalize it (➜page 34).
For your reference
≥You can record up to 99 programs on one disc.
≥This unit is compatible with the Content Protection for Recordable Media (CPRM ➜page 50) system so you can record broadcasts that allow one copy, such as some CATV broadcasts, onto
4.7 GB/9.4 GB DVD-RAM (these are CPRM compatible). It is not
possible to record onto DVD-R or 2.8 GB DVD-RAM.
≥Recording will take place on open space on disc. Data will not be
overwritten.
[Note]
≥You cannot change the channel or recording mode during recording.
≥Release protection (cartridge ➜page 11, disc ➜page 34) when
you record. [RAM]
≥When using a DVD-RAM for the first time with this unit, format it to
ensure accurate recording (➜ “Format” , page 34).
≥There are limitations when recording to DVD-R (➜ page 11).
≥When recording MTS sound onto DVD-R, either the main channel
or the sub channel can be recorded, not both. Select at “Select
MTS” (➜ page 47).
14
RQT6920
Should the AC power supply cord come loose by
accident or for any other reason the power supply is
cut off while recording or editing is taking place, the
contents of the disc may be lost.
Inserting discs
Recording from a video cassette recorder
[RAM] [DVD-R]
You can insert a cartridge or non-cartridge disc.
[RAM] [DVD-R]
Preparation
Connect a video cassette recorder to this unit’s input terminals
(➜page 43).
Insert label-up.
1
Insert inside the
tray’s guides.
Press [INPUT SELECT] to select the
input channel for the equipment you
have connected.
Cartridge disc
Insert label-up with the arrow facing in.
Select L1, L2, or L3.
≥You can also select the input channel by pressing [W, X, CH].
2
[Note]
≥Load double-sided discs so the label for the side you want to
record/play is facing up.
≥When using 8 cm (3″) DVD-RAM, remove the disc from the cartridge and insert it, making sure you align it with the groove.
While stopped
3
4
Press [REC MODE] to select the
recording mode (XP, SP, LP or EP).
Start play on the other equipment.
Press [¥, REC] at the point you want
to start recording.
Recording
Non-cartridge disc
Recording starts.
Recording modes and approximate
recording times in hours
To skip unwanted parts
Press [;] to pause recording. (Press again to restart recording.)
Disc
To stop recording
DVD-RAM
DVD-R
(4.7 GB)
Single-sided
(4.7 GB)
Double-sided
(9.4 GB)
XP (High quality)
1
2
1
SP (Normal)
2
4
2
LP (Long play)
4
8
4
EP (Extra long play)
6
12
6
Mode
FR (Flexible Recording Mode)
The unit automatically selects a recording rate between XP and EP
that will enable the recordings to fit in the available recording time on
the disc with the best possible recording quality.
You may use FR Mode in either Flexible Recording (➜ right) or in
timer recording (➜page 25).
Watching the television while recording
[RAM] [DVD-R]
Pictures being recorded are unaffected.
Switch [DVD, TV] to “TV”.
1 Press [TV/VIDEO] to change the television’s input mode to
“TV”.
2 Press [W, X, CH] to change channels.
≥You can also select the channel with the numbered buttons.
e.g.,
“5”:
[0] ➜ [5]
“15”: [1] ➜ [5]
“115”: [100] ➜ [1] ➜ [5]
Press [∫].
[Note]
≥When recording using L1, L2 or L3 terminals, only the sound
received at the time of recording will be recorded.
≥If flexible recording (➜ below) is used instead of steps 2 and 4,
settings can be made so that recording continues to the end of the
video.
Almost all videos and DVD software on sale have been
treated to prevent illegal copying. Any software that has
been so treated cannot be recorded using this unit.
Recording the best quality pictures in
the remaining time—Flexible Recording
[RAM] [DVD-R]
The unit calculates a recording rate that enables the recording to fit
in the time you set (within the remaining time on the disc) and with
the best possible picture quality.
1
2
While stopped
FLEXIBLE REC
Press [F Rec].
Record on FR mode
Maximum rec time
Set up rec time
1 Hour 23 Min.
1 Hour 23 Min.
Press [2, 1] to
Start
Cancel
select
“Hour”
and “Min.” and
press [3, 4] to set the recording time.
Press [3, 4, 2, 1] to select “Start”
and press [ENTER].
SELECT
ENTER
3
RETURN
Recording starts.
[Note]
It may not be possible to record to the finish of the program if the
remaining time doesn’t allow.
For your reference
≥Press [STATUS] during recording to show the remaining time.
≥Recording time reduces if you repeatedly pause recording.
15
RQT6920
Playing discs
[RAM] [DVD-R] [DVD-V] [VCD] [CD] [MP3]
Disc tray
1
2 ERASE
1
2
?
3
≥Press the button again to close the tray.
≥If cartridge protection is activated (➜page 11), play begins
automatically when you close the tray. [RAM]
≥You cannot play continuously from one side of a doublesided disc to the other. Eject the disc and turn it over.
:/6, 5/9
Playing back
DVD/TV
Press [Í, DVD POWER] to turn the
unit on.
Press [< OPEN/CLOSE] to open the
tray and insert a disc (‹ page 15).
3
Press [1] (PLAY).
The unit takes some time to read the disc
before play starts. (When a menu screen
appears on the television ➜ next page)
1
Numbered
buttons
CAN
CEL
SE
PAU
PLAY/
a 1.3
:, 9
OP
ST
?
;
3
≥If the resume function (➜ below, To stop play) is not active,
playback will begin from the most recently recorded program. To play from the beginning of a disc, select “PLAY
FROM TOP” in the FUNCTIONS window (➜page 23).
MENU
RETURN
DIRECT
NAVIGATOR,
TOP MENU
3, 4, 2, 1
ENTER
2
FR
ec
ERASE
POSITION
MEMORY
To stop play
[Note]
Press [∫].
≥When “PLAY” flashes on the display, resume function is active. Press [1] (PLAY) to start play from
where you stopped it.
To cancel, press [∫] until “PLAY” goes out. (The
position is also cleared when you turn the unit off
or open the disc tray.)
≥The screen saver may appear when you
stop play. Press [∫] again and you can
use this unit’s tuner to watch television.
≥If a disc is loaded, the unit will come on and play will start when
you press [1] (PLAY).
≥When you play a disc with an audio-only track, the video from the
previous disc may continue to be shown on the television.
≥Actual sound levels for DVD-Video are lower compared to television broadcast or playback of other discs. To avoid a sudden
increase in volume level when switching from DVD-Video, reduce
the volume setting before playing other sources or switching to
television broadcast.
To pause play
Press [;]. (Press again to restart play.)
Auto power-off
The unit switches to standby after about 6 hours in the stop mode.
You can turn this feature off or change the time to 2 hours
(➜page 46, Set Up—Off Timer).
16
RQT6920
Using the Direct Navigator
[RAM] [DVD-R]
[VCD]
Switch [DVD, TV] to “DVD” and
A list of programs is created as you record them. You can use this
list to find programs to watch.
Press the numbered buttons (0, 1j9) to select an item.
1
Press [DIRECT NAVIGATOR].
The highlighted program plays in the background.
DIRECT NAVIGATOR
[DVD-V]
Press [3, 4, 2, 1] to select an item and press
[ENTER].
3
≥You may also be able to use the numbered buttons (0, 1j9) to
select an item.
Position Memory
2
TIME
TITLE
No
EDIT
1
1
1
1
1
SELECT
ENTER
RETURN
Press [3, 4] to select the program
and press [ENTER].
≥You can also select programs with the numbered buttons.
e.g.,
“5”: [0]➜ [5]
“15”: [1] ➜ [5]
Play of the images that were playing in the background continues.
To stop play
Press [∫].
To clear the program list
Press [DIRECT NAVIGATOR].
About the program list
Write-protected
Displayed when you have protected
the program.
(When the elapsed play time is displayed)
Copy-protected
Displayed when you have recorded
a program that has copy protection,
from CATV broadcasts, for example.
During play
Press [POSITION MEMORY].
The message “Position Memorized” appears on the television.
2
DATE
0 ~ 9
[RAM] [DVD-R] [DVD-V] [VCD] [CD] [MP3]
You can start play from a memorized position even after turning the
unit off.
1
4 6/20 WED 10 : 00 AM Dinosaur
6 6/20 WED 9 : 00 PM Auto action
13 6/20 WED 11 : 00 PM USJ
TOTAL 3
[Note]
≥Discs continue to rotate while menus are displayed. Press [∫]
when you have finished viewing to preserve the unit’s motor and
your television screen.
≥If “/” appears on the television, the operation is prohibited by
the unit or disc.
≥Functions available vary from disc to disc.
CH
01
02
03
3
Other buttons used to operate menus
Read the disc’s instructions for further details about operation.
[9][5]: Shows the next menu.
[:][4]: Shows the previous menu.
[RETURN]: Shows the menu screen. [VCD]
[TOP MENU]: Shows the first menu screen. [DVD-V]
[MENU]: Shows the menu screen. [DVD-V]
No
Unable to play
Displayed if you cannot play the program.
After switching the unit to standby and back on
Press [1] (PLAY).
Currently recording
Displayed when the program is being
recorded.
Play starts from the memorized position. (The position is
cleared.)
3
3
e.g., “5”: [0] ➜ [5]
“15”: [1] ➜ [5]
Playing back
When a menu screen appears on the
television
No POS FE
01 4 6/20
02 6 6/20
03 13 6/20
X 04 2 6/21
¥ 05 8 6/22
TOTAL 5
N
0 ~
[Note]
[DVD-R] [DVD-V] [VCD] [CD] [MP3]
≥The position is cleared when you open the disc tray.
[RAM]
≥Positions remain memorized even after the disc tray is opened.
≥You cannot mark positions if the disc is write-protected.
For your reference
If you press [∫] before switching the unit to standby after pressing
[POSITION MEMORY] to memorize a position, play will resume
from the position you pressed [∫] when you press [1] (PLAY).
To erase a program that is being played back
Since the program and any play lists (➜page 28) created
from it are erased irretrievably by this procedure, you
should be certain you wish to erase before carrying it out.
1
Press [ERASE].
A confirmation screen will be displayed.
2
Press [2] to select “Erase” and press
[ENTER].
≥On the main unit, press [D] and [ERASE].
[Note]
≥It is not possible to erase the program when you are carrying out
simultaneous rec and play (➜page 22). [RAM]
≥The amount of space remaining on the disc does not increase
even if you erase programs. [DVD-R]
≥If the confirmation screen disappears before you complete the
operation, start from the beginning again.
17
RQT6920
Other methods of play
Slow-motion play
[RAM] [DVD-R] [DVD-V] [VCD]
DVD POWER TV
DVD
Í
TV
While paused
Í
VCR Plus+ TV/VIDEO REC MODE REC
Numbered
buttons
1
2
Press [6] or [5].
Press and hold [D] or [E] on the main unit.
3
CH
4
5
6
7
8
9
0
100
[Note]
VOLUME
CANCEL
SKIP
:, 9
SLOW/SEARCH
PAUSE
STOP
PLAY/a
6, 5
1. 3
1, PLAY/t1.3
Playing back
DIRECT NAVIGATOR
Frame-by-frame viewing
PLAY LIST
[RAM] [DVD-R] [DVD-V] [VCD]
MENU
TOP
MENU
3, 4, 2, 1
ENTER
≥The speed increases up to 5 steps.
≥Press [1] (PLAY) to restart play.
≥Backward ([6] [D]) does not work with Video CDs.
While paused
ENTER
Press [2;] or [;1].
FUNCTIONS
RETURN
PROG/CHECK ADD/DLT
CM SKIP
CM SKIP TIME SLIP
TIME SLIP
OPEN/CLOSE STATUS
FRAME
2;, ;1
SETUP
AUDIO INPUT SELECT DISPLAY
ERASE
F Rec
POSITION MEMORY MARKER
[Note]
≥Each press shows the next frame.
≥Press [1] (PLAY) to restart play.
≥Cursor buttons [2, 1] are also effective while paused for frameby-frame viewing.
≥Backward ([2;]) does not work with Video CDs.
Starting play from a selected program,
title, chapter, or track
Skipping
[RAM] [DVD-R] [DVD-V] [VCD] [CD] [MP3]
[RAM] [DVD-R] [DVD-V] [VCD] [CD] [MP3]
During play or while stopped
Press the numbered buttons to select the
item.
During play or while paused
Press [:] or [9].
≥Press [D] or [E] on the main unit.
≥Each press increases the number of skips.
Twice
Play position
Once Once
Twice
Chapter/track
Chapter/track
Chapter/track
[:]
[9]
[:/6]
[5/9]
Twice
Play position
Once Once
“5”: [0] ➜ [5]
“15”: [1] ➜ [5]
[MP3]
“5”: [0] ➜[0] ➜[5]
“15”: [0] ➜[1] ➜[5]
[Note]
[DVD-V] [VCD] [CD] [MP3]
[RAM] [DVD-R]
e.g.,
Marker
Twice Three times
≥This may not work with some discs.
≥This works only when stopped with some discs (the screen saver
is on the television).
Skipping a minute forward—CM Skip
[RAM] [DVD-R]
Program
[:]
[:/6]
Program
Program
[9]
[5/9]
For your reference
Pressing [:] [D] or [9] [E] while the playback
control feature on Video CDs (➜page 50) is working may take you
to a menu screen.
18
RQT6920
During play
Press [CM SKIP].
Play restarts from approximately a minute later.
[Note]
If the start of the next program is within one minute of the point you
skipped from, play restarts from the beginning of that program.
Selecting an amount of time to skip—
Time Slip
[RAM] [DVD-R]
1
During play
Press [TIME SLIP].
2
Within 5 seconds
Press [3, 4] to enter the time and
then press [ENTER].
e.g., Go back to 5 minutes
–5 min
Playing back
0 min
Press to alter in one-minute units. Press and hold to alter in
10-minute units.
Fast forward and rewind—SEARCH
[RAM] [DVD-R] [DVD-V] [VCD] [CD] [MP3]
During play
Press [6] or [5].
≥Press and hold [D] or [E] on the main unit.
[Note]
≥The speed increases up to 5 steps.
≥Press [1] (PLAY) to restart play.
≥Audio will be heard during search. You can turn this audio off if you
want to (➜page 47, Audio—PLAY k1.3 & Audio during Search).
Quick View
[RAM] (Only with Dolby Digital)
You can increase the speed of play without disrupting the
soundtrack. Output is in stereo during Quick View.
During play
Press and hold [1] (PLAY/ k1.3).
DVD-RAM
PLAY
DVD-RAM
PLAY t1.3
LR
LR
To return to normal speed
Press [1] (PLAY/k1.3).
[Note]
≥Output is in PCM when using a digital connection (➜page 42, [A]).
≥This is canceled if you perform operations to change the
soundtrack, skip or pause.
≥This does not work if the setting is “Off” in “PLAY k1.3 & Audio
During Search” (➜page 47).
≥This does not work when recording is in XP or FR mode during
simultaneous rec and play (➜page 22).
19
RQT6920
Marking places to play again—MARKER
Using on-screen menus to mark
positions
DVD POWER TV
DVD
Í
TV
Displaying the marker icon
Í
VCR Plus+ TV/VIDEO REC MODE REC
1
2
1
3
4
6
5
The on-screen menus appear. (e.g., DVD-RAM)
VOLUME
7
8
9
0
100
Disc
Play
Video
Audio
CANCEL
CANCEL
SKIP
SLOW/SEARCH
PAUSE
STOP
Playing back
DIRECT NAVIGATOR
3, 4, 2, 1
ENTER
PLAY/a
1. 3
2
PLAY LIST
MENU
TOP
MENU
RETURN
RETURN
PROG/CHECK ADD/DLT
CM SKIP TIME SLIP
OPEN/CLOSE STATUS
FRAME
SETUP
AUDIO INPUT SELECT DISPLAY
ERASE
F Rec
DISPLAY
3
1
Î Digital 2/0ch
Subtitle
OFF
LR
Audio channel
Press [3, 4] to select the “Play” and
press [1].
Repeat play
Marker
OFF
1s10
††††††††††
Press [3, 4] to select “Marker” and
press [1] to highlight the first asterisk (¢).
[RAM] [DVD-R]
POSITION MEMORY MARKER
MARKER
Sound track
Disc
Play
Video
Audio
ENTER
FUNCTIONS
During play
Press [DISPLAY].
CH
1s10
††††††††††
[DVD-V] [VCD] [CD] [MP3]
†††††
Marking positions
Press [2, 1] to select an asterisk (¢) and
press [ENTER].
One marker is added.
You can mark positions by pressing [MARKER]. Also use on-screen
menus to mark, recall, and clear positions.
[RAM] [DVD-R]
Mark up to 999 positions. The unit records the markers directly onto
the disc and they remain intact even if you remove the disc.
[DVD-V] [VCD] [CD] [MP3]
Mark up to 5 positions. The markers clear when you open the disc
tray.
Marking positions directly
During play
Press [MARKER].
One marker is added.
When marking positions 11 and above
[RAM] [DVD-R]
1 Press [2, 1] to highlight “1–
10”.
2 Press [3, 4] to select “11–20”.
You can select the next group of
10 when the current group is full.
3 Press [1].
The first asterisk is highlighted.
4 Press [ENTER] to mark a position.
1s10
12
Playing from a marked position
Press [2, 1] to select a marker number
and press [ENTER].
Play starts from the marked position.
Clearing markers
Press [2, 1] to select a marker number
and press [CANCEL].
An asterisk replaces the number and the position is cleared.
To clear the on-screen menus
Press [RETURN].
[Note]
20
RQT6920
≥You cannot use this feature if:
– the disc’s elapsed play time is not shown in the display.
– you are using a play list. [RAM]
– protection (cartridge ➜page 11, disc ➜page 34) is set
(you can still recall the markers to play a position).
≥Subtitles around markers may fail to appear.
≥Markers are cleared when you finalize DVD-R (➜page 34).
≥Markers on DVD-RAM and DVD-R are ordered by time, so
marker numbers can change when you add and delete them.
Using menus to play MP3 discs
Using the tree screen to find a group
1
DVD POWER TV
DVD
Í
TV
Í
Numbered
buttons
1
2
3
4
5
6
7
8
9
0
100
While stopped
Press [1] while a track is highlighted
to display the tree screen.
VCR Plus+ TV/VIDEO REC MODE REC
Selected group no. /Total group no.
≥If the group has no track, “– –” is displayed
as group number.
CH
VOLUME
CANCEL
MENU
G
8
T
14
TOTAL
1/111
SLOW/SEARCH
PAUSE
STOP
DIRECT NAVIGATOR
PLAY/a
1. 3
PLAY LIST
No.
0 ~ 9
TOP MENU
3, 4, 2, 1
ENTER
MENU
TOP
MENU
SELECT
ENTER
ENTER
RETURN
FUNCTIONS
2
RETURN
PROG/CHECK ADD/DLT
CM SKIP TIME SLIP
RETURN
TREE
MP3 music
G 1/40
001 My favorite
001 Brazilian pops
002 Chinese pops
003 Czech pops
004 Hungarian pops
005 Liner notes
006 Japanese pops
007 Mexican pops
008 Philippine pops
009 Swedish pops
001 Momoko
002 Standard number
001 Piano solo
002 Vocal
You cannot select
groups that
contain no
compatible files.
Press [3, 4, 2, 1] to select a group
and press [ENTER].
The file list for the group appears.
Playing back
SKIP
To return to the file list
Press [RETURN].
[Note]
[MP3]
This unit can play MP3 files recorded on CD-R/RW with a computer.
Files are treated as tracks and folders are treated as groups.
1
Press [TOP MENU].
Selected group number and name
G: Group no.
T: Track no. in the
group
TOTAL: Selected
track no./
Total track
no. in all
groups
2
MENU
G
1
T
1
TOTAL
1/111
No.
0 ~ 9
SELECT
ENTER
RETURN
No
GROUP
1 : My favorite
TOTAL
TRACK
TREE
001 Both Ends Freezing
1
002 Lady Starfish
2
003 Life on Jupiter
3
004 Metal Glue
4
005 Paint It Yellow
5
006 Pyjamamama
6
007 Shrimps from Mars
7
008 Starperson
8
009 Velvet Cuppermine
9
010 Ziggy Starfish
10
Prev.
Next
Press [3, 4] to select the track and
press [ENTER].
Play continues to the last track in the last group.
≥“0” indicates the track currently playing.
≥You can also select tracks with numbered buttons.
e.g., “5”: [0] ➜ [0] ➜ [5]
“15”: [0] ➜ [1] ➜ [5]
To show other pages
Press [3, 4, 2, 1] to select “Prev.” or “Next” and press [ENTER].
After listing all the tracks in one group, the list for the next group
appears.
To exit the file list
Press [TOP MENU].
≥Discs must conform to ISO9660 level 1 or 2 (except for
extended formats).
≥This unit is compatible with multi-session but if there are a lot
of sessions it takes more time for play to start. Keep the number of sessions to a minimum to avoid this.
≥If you play a MP3 track that includes still picture data, it will
take some time before the music itself starts playing and the
elapsed time will not be displayed during this time. Even after
the track starts, the correct play time will not be displayed.
≥This unit is not compatible with ID3 tags.
≥Compatible sampling rate:
16, 22.05, 24, 32, 44.1 and
48 kHz.
Compatible compression rate: between 32 kbps and 320 kbps
Naming folders and files
≥MP3 files must have the extension e.g.,
“.MP3” or “.mp3”.
001
≥At the time of recording, give folder
and file names a 3-digit numeric
prefix in the order you want them to
play (this may not work at times).
001 (folder=group)
001track.mp3 (file=track)
002track.mp3
003track.mp3
002 group
003 group
001track.mp3
002track.mp3
003track.mp3
004track.mp3
001track.mp3
002track.mp3
003track.mp3
MPEG Layer-3 audio decoding technology licensed from
Fraunhofer IIS and Thomson multimedia.
21
RQT6920
Playing while you are recording
Simultaneous rec and play
[RAM]
DVD POWER TV
DVD
Í
You can play a program previously recorded.
TV
Í
1
VCR Plus+ TV/VIDEO REC MODE REC
1
2
3
5
6
During recording
Press [DIRECT NAVIGATOR].
Time slip indicator lights.
CH
4
2
VOLUME
7
8
9
0
100
CANCEL
SKIP
STOP
SLOW/SEARCH
PAUSE
PLAY/a
1. 3
1
∫
DIRECT NAVIGATOR
DIRECT
NAVIGATOR
PLAY LIST
MENU
TOP
MENU
3, 4, 2, 1
ENTER
ENTER
Playing back
Press [3, 4] to select a program and
press [ENTER].
FUNCTIONS
PROG/CHECK ADD/DLT
e.g.,
You want to watch the movie
you recorded yesterday (program 1) while recording program 2 (sport).
DIRECT NAVIGATOR
RETURN
3
CM SKIP TIME SLIP
Program 1 is played back
while program 2 (sport) is
being recorded.
No
CH
01
4
6
¥ 02
TIME SLIP
DATE
TIME
TITLE
6/19 WED 10 : 00 AM Dinosaur
6/20 THU 9 : 00 PM Soccer
TITLE
EDIT
1
1
1
1
1
3
TOTAL 2
No
0 ~ 9
SELECT
ENTER
RETURN
[Note]
≥Sound is not output while fast-forwarding.
≥You cannot edit programs during simultaneous rec and play
(➜page 32).
Playing from the beginning of the
program you are recording—Chasing Play
[RAM]
[RAM]
Press [1] (PLAY).
Play starts from the beginning of the program being recorded. (Time
slip indicator lights.)
e.g.,
You are recording a sports
program and you want to
watch it from the beginning.
Reviewing the recorded images while
recording—Time Slip
The same sports program is
played back from the beginning. (Recording continues.)
[Note]
Sound is not output while fast-forwarding.
You can play the program being recorded to check that it is being
recorded correctly. You can also check parts that were recorded previously.
1
Press [TIME SLIP].
Time slip indicator lights.
Play starts from 30 seconds previous. The current
recording images appear
as a picture-in-picture and
you will hear the playback
audio.
≥You can select another
program if you press
[DIRECT NAVIGATOR].
2
Play images
PLAY
0 min
REC
Current
recording
Press [3, 4] to enter the time and
press [ENTER].
≥Press [3, 4] to alter in
one-minute units. Press
and hold [3, 4] to alter
in 10-minute units.
PLAY
REC
To stop play and recording
1 Press [∫]. (Play stops.)
Wait 2 seconds.
2 Press [∫]. (Recording stops.)
≥To stop timer recording, press [∫], then [ENTER] within 5
seconds.
22
RQT6920
Press [TIME SLIP] to show the play images in full. Press again to
show the play and recording images.
Changing audio
Using the FUNCTIONS window
7
DIRECT NAVIGATOR
PLAY LIST
MENU
TOP
MENU
8
9
0
100
CANCEL
SKIP
STOP
ENTER
SLOW/SEARCH
PAUSE
PLAY/a
DIRECT NAVIGATOR
FUNCTIONS
AUDIO
PLAY LIST
RETURN
PROG/CHECK ADD/DLT
CM SKIP TIME SLIP
OPEN/CLOSE STATUS
FRAME
SETUP
AUDIO INPUT SELECT DISPLAY
ERASE
F Rec
3, 4, 2, 1
ENTER
1. 3
MENU
TOP
MENU
ENTER
FUNCTIONS
FUNCTIONS
POSITION MEMORY MARKER
RETURN
CM SKIP TIME SLIP
PROG/CHECK ADD/DLT
[RAM] [DVD-R] [DVD-V] [VCD] [CD] [MP3]
By using the FUNCTIONS window you may access the main functions quickly and easily.
Press [AUDIO].
1
How the type changes depends on when you press the button.
e.g., “Stereo” is selected
“((” appears when the unit is receiving
the type of audio you selected.
[Note]
≥If you change the sound setting while recording, the recorded
sound will also change.
≥You cannot change the sound when a DVD-R is in the disc tray.
≥If recorded in SAP mode, main audio is also recorded.
≥When you record MTS audio, select either “Main” or “SAP” before
recording (➜page 47, Audio—Select MTS). [DVD-R]
∫ While playing DVD-RAM or
Video CD
e.g., DVD-RAM
“L R” is selected
LR>L>R
^---------------}
DVD-RAM
PLAY
∫ While playing DVD-Video
You can change the audio channel number each time you press the
button. This allows you to change things like the soundtrack language.
1 ENG
FUNCTIONS
Î Digital 3/2.1ch
e.g., English is the selected language.
[Note]
[RAM]
You may be unable to change the audio when you have connected
the unit to an AV receiver through the DIGITAL AUDIO OUT terminal
and “Dolby Digital” is set to “Bitstream”. If this occurs:
– Change “Dolby Digital” to “PCM” (➜page 47), or
– Connect also with an audio cable (➜page 42, [B]) and change the
input on the receiver.
DVD-RAM
DISC PROTECTION OFF
CARTRIDGE PROTECT OFF
N
S
N
S
DISC SETTING
DIRECT NAVIGATOR CREATE PLAY LIST
ate
Time DCH
TIMER RECORDING
RESUME PLAY
PLAY LIST
PLAY FROM TOP
FLEXIBLE REC
SELECT
ENTER
2
RETURN
SETUP
Press [3, 4, 2, 1] to select an item.
Refer to the relevant pages for details.
Icon
DISC SETTING
TIMER
RECORDING
SETUP
DIRECT
NAVIGATOR
RESUME PLAY
PLAY
PLAY FROM TOP
LR
≥If you have recorded an SAP broadcast by pressing [AUDIO] to
select SAP [RAM]
MAIN()SAP
For your reference
You can change the audio for the full images being played with
simultaneous rec and play and Time Slip. [RAM]
Sound track
e.g., DVD-RAM
No disc
CH 12
(( Stereo
While stopped
Press [FUNCTIONS].
∫ While receiving MTS audio (Multi-channel Television Sound Stereo)
Stereo: Main audio (stereo)
v
SAP:
Secondary audio program (SAP)
v
Mono: Main audio (monaural)
v
(Return to Stereo)
≥If the broadcast is “Mono i SAP”, audio will be monaural even if
you select Stereo mode.
≥Select “Mono” if reception is poor during a stereo broadcast.
Playing back
[RAM] [DVD-V] [VCD]
You can change the audio being received or played.
FLEXIBLE REC
Refer to
➜page 34, Disc setting
➜page 24, Timer recording
➜page 46, Changing the unit’s settings
➜page 17, Using the Direct Navigator
➜page 32, Editing programs
➜page 16, Playing discs
[RAM] [DVD-R]
Play will begin with the oldest program
on the disc (Program 1).
[DVD-V]
Play will avoid playing the introductory
parts and begin playing the contents
immediately. (The performance of this
function varies from disc to disc.)
➜page 15, Recording the best quality
pictures in the remaining time –Flexible Recording
CREATE PLAY
LIST
➜page 28, Creating play lists
PLAY LIST
➜page 29, Playing play lists
➜page 30, Editing play lists
TOP MENU
MENU
➜page 17, When a menu screen
appears on the television
Functions displayed depend on the type of disc.
≥Some items will be grayed out and cannot be selected if:
–the disc is write protected/the disc is not formatted/there is nothing recorded on the disc.
3
Press [ENTER].
Your selection is entered and the FUNCTIONS window disappears. If the operation requires further selections, another
screen appears.
To clear the FUNCTIONS window
Press [FUNCTIONS].
23
RQT6920
Timer recording
Preparation
≥Ensure the clock (and guide channels for VCR Plusr recording,
➜page 8) are set correctly.
≥Release protection (cartridge ➜page 11, disc ➜page 34) before
proceeding. [RAM]
DVD POWER TV
Í, DVD POWER
DVD
Í
TV
Í
VCR Plus+ TV/VIDEO REC MODE REC
REC MODE
VCR Plus+
Numbered
buttons
, REC
1
2
3
4
5
6
7
8
9
0
100
Entering VCR Plusi codes is an easy way of programming the unit
for recording. You can find these codes in newspapers and magazines. You can enter up to 16 programs up to a month in advance.
CH
VOLUME
1
CANCEL
SKIP
SLOW/SEARCH
PAUSE
STOP
Using VCR Plusr codes to make timer
recordings
PLAY/a
Press
[VCR Plusr].
VCR Plusi
Remaining Recording Time 1:58 SP
3/26 TUE12:53 PM
1. 3
∫
DIRECT NAVIGATOR
3, 4, 2, 1
ENTER
PLAY LIST
MENU
TOP
MENU
Enter PLUS CODE Number by using 0–9 key.
ENTER
No.
Timer recording
RETURN
FUNCTIONS
PROG/CHECK
STATUS
RETURN
PROG/CHECK ADD/DLT
CM SKIP TIME SLIP
OPEN/CLOSE STATUS
FRAME
SETUP
2
Press the numbered buttons to enter
the VCR Plusr code.
Press [2] to move
back to correct a
digit.
AUDIO INPUT SELECT DISPLAY
VCR Plusi
3/26 TUE12:53 PM
1 2 1 2 1 2 1 2
[RAM] [DVD-R]
Specify a time to stop recording
This is a simple way of specifying a time to stop recording when you
are in a hurry or before you go to bed.
3
Press [ENTER].
Confirm the program and make corrections if necessary using
[3, 4, 2, 1].
≥“Invalid Entry” is displayed when you enter the wrong code.
Reenter the code.
≥To change the recording mode
Press [REC MODE].
≥To enter the title of the program
Press [2, 1] to select “Enter Title” and press [ENTER]
(➜page 27).
The current
TIMER
Remaining Recording Time 1:58 SP
RECORDING
recording mode
3/26 TUE12:53 PM
(shown on the
CHANNEL
DATE
ON
OFF MODE
39
4 / 1 MON 4:20 PM 5:10 PM SP
unit’s display) is
automatically
Enter Title
selected.
During recording
Press [¥, REC] to select the recording time.
Each time you press the button:
Remaining Recording Time 1:58 SP
e.g.,
0:30 "# 1:00 "# 1:30 "# 2:00 "# 3:00
^"" Counter (cancel) !" 4:00 ,""}
For your reference
≥Press [STATUS] to show the time remaining until recording finishes.
≥This does not work during timer recordings or while using Flexible
Recording (➜ page 15).
≥Recording stops and the set time is cleared if you press [∫].
≥The set time is cleared if you change the recording mode or channel while recording is paused.
3
4
When you press [ENTER]
TIMER
RECORDING
Remaining Recording Time 1:58 SP
3/26 TUE12:53 PM
No CHANNEL
DATE
ON
OFF MODE CHECK
01 39
4 / 1 MON 4:20 PM 5:10 PM SP Enable
New Timer Program
Displayed if the
recording can fit
in the remaining
space on the
disc.
Repeat steps 1–3 to program other recordings.
4
Press [RETURN].
The timer recording list disappears and the message “TURN
RECORDER OFF FOR TIMER RECORDING” is shown on
the television.
5
24
RQT6920
Press [Í, DVD POWER].
Ensure “F” lights on the unit’s display.
Manually programming timer recordings
4
You can enter up to 16 programs up to a month in advance.
Each daily or weekly program is counted as one program.
3/26 TUE12:55 PM
Remaining Recording Time 1:58 SP
3/26 TUE 12:55 PM
No CHANNEL
DATE
ON
OFF MODE CHECK
01 64 ABC 3/ 26 TUE 1:00 PM 2:00 PM SP Enable
New Timer Program
A line that is
ready for
programming
is highlighted.
Displayed if the
recording can fit
in the remaining
space on the
disc.
≥Press [3, 4] to select “New Timer Program” and repeat
steps 2- 4 to program other recordings.
SELECT
CANCEL
ENTER
RETURN
Press ENTER or VCR Plus+ to
store new program
5
Remaining Recording Time 1:58 SP
3/26 TUE 12:55 PM
CHANNEL
---3
4
DATE
----------
ON
--:-- --
OFF
--:-- --
MODE
--
Enter Title
No.
0
--
9
RETURN
ENTER
Press [1] to move through the items
and change the items with [3, 4].
≥The current settings are shown each time you press [1].
≥You may use the numbered buttons to enter the CHANNEL,
DATE, ON (start Time), and OFF (Finish Time).
TIMER
RECORDING
CHANNEL
64 ABC
Remaining Recording Time 1:58 SP
3/26 TUE 12:55 PM
DATE
3/ 26 TUE
ON
2:30 PM
6
Press [Í, DVD POWER].
Ensure “F” lights on the unit’s display.
To release the unit from recording standby
If you want to record something else before the program start
time, for example:
Please set Channel.
SELECT
Press [PROG/CHECK] or [RETURN].
The timer recording list disappears and the message “TURN
RECORDER OFF FOR TIMER RECORDING” is shown on
the television.
Press [ENTER].
TIMER
RECORDING
3
Remaining Recording Time 1:58 SP
No CHANNEL
DATE
ON
OFF MODE CHECK
01 64 ABC 3/ 26 TUE 1:00 PM 2:00 PM SP Enable
02 64 ABC 3/ 26 TUE 2:30 PM 3:00 PM SP Enable
New Timer Program
Press [PROG/CHECK].
TIMER
RECORDING
2
TIMER
RECORDING
OFF MODE
3:00 PM SP
Enter Title
≥CHANNEL (Channel number and caption)
≥DATE
Current date
;
Next day up to one month later minus one day
;
Weekly timer: SUN-SAT>MON-SAT>MON-FRI
;
Daily timer: WEEKLY SUN>--->WEEKLY SAT
;
(Return to Current date)
≥ON (Start time)/OFF (Finish time)
The time increases or decreases in 30-minute increments if
you hold the button.
≥MODE (Recording mode ➜page 15)
SP>XP>FR>EP>LP (>Return to SP)
≥Enter Title
Select “Enter Title” using [2, 1] and press [ENTER]
(➜page 27).
Press [Í, DVD POWER].
The unit turns on and “F” goes out.
≥Be sure to press [Í, DVD POWER] to return the unit to
standby mode before the scheduled recording time. Timer
recording will work only if “F” is displayed.
Timer recording
1
Press [ENTER] when you have finished programming the timer.
To stop recording when recording has already
begun
Press [∫], then [ENTER] within 5 seconds.
Recording stops.
[Note]
≥The actual time recorded may be longer than the program
itself when television programs are recorded using VCR
Plusi.
≥If you don’t select a recording mode when using VCR Plus+
codes to make a timer recording, the unit sets the mode
selected on the unit at that time (unless the mode is “XP”, in
which case the unit sets “FR” as the mode).
≥“All timer programs are occupied.” appears if there are
already 16 programs.
≥The remaining time displayed is based on the current recording mode.
≥When you program successive timer recordings to start
immediately one after the other, the unit cannot record the
part at the beginning of the later programs (a few seconds
when recording with DVD-RAM and approximately 30 seconds when recording with DVD-R).
≥If you set DST (Daylight Saving Time) to ON when manually
setting the clock (➜page 49), timer recording may not work
when summer switches to winter and vice versa.
≥“F” flashes when the unit couldn’t go to timer recording
standby (e.g., a disc isn’t loaded, a disc that can’t be recorded
to is loaded, or the disc is protected). Check the disc carefully.
25
RQT6920
Timer recording
Message displayed in the CHECK line
Some of the information shown in the CHECK line may not be correct while you are recording.
Enable: Displayed if the recording can fit in the remaining space
on the disc.
> (Date): For recordings made daily or weekly, the display will
show until when recordings can be made (up to a maximum of one month from the present time) based on the
time remaining on the disc.
! : It may not be possible to record because of write protection, because there is no more space left or because the
number of possible programs has reached its maximum.
Please check the disc.
DVD POWER TV
DVD
Í, DVD POWER
Í
TV
Í
VCR Plus+ TV/VIDEO REC MODE REC
Numbered
buttons
1
2
3
4
5
6
7
8
9
0
100
CH
VOLUME
CANCEL
CANCEL
SKIP
STOP
SLOW/SEARCH
PAUSE
DIRECT NAVIGATOR
3, 4, 2, 1
ENTER
PLAY/a
1. 3
2
PLAY LIST
Press [PROG/CHECK] or [RETURN].
The timer recording list disappears.
MENU
TOP
MENU
ENTER
Change or delete the program
Timer recording
RETURN
ADD/DLT
PROG/CHECK
FUNCTIONS
PROG/CHECK ADD/DLT
RETURN
1
CM SKIP TIME SLIP
Press [PROG/CHECK].
The timer recording list appears.
2
[RAM] [DVD-R]
≥You may also select programs by inputting a 2-digit number
using the numbered buttons.
e.g., “5”: [0] ➜ [5]
“15”: [1] ➜ [5]
≥Press [2, 1] to move to the page preceding or following the
one on display.
Check programs
1
Press [PROG/CHECK].
TIMER
RECORDING
Remaining Recording Time 1:57 LP
3
3/26 TUE 1:19 PM
No CHANNEL
DATE
ON
OFF MODE CHECK
01 64 ABC 3/ 26 TUE 1:19 PM 1:22 PM LP Enable
64 ABC SUN-SAT 2:30 PM 2:40 PM LP # 3/31
64 ABC 3/ 25 MON 2:30 AM 3:30 AM SP Overlap
- 04 64 ABC WEEKLY MON 5:00 AM 6:00 AM LP # 3/28
05 64 ABC 3/ 26 TUE 9:00 AM 10:00 AM SP
F 06 64 ABC 3/ 26 TUE 8:00 AM 9:00 AM SP
X 07 64 ABC 3/ 26 TUE 10:00 AM 11:00 AM SP
New Timer Program
SELECT
RETURN
or press [ENTER] to change.
The timer recording setting screen appears.
4
If you pressed [ENTER] in step 3,
5
Move through the items with [2, 1]
and change the settings with [3, 4]
and press [ENTER].
Press [PROG/CHECK] or [RETURN].
Press ENTER or VCR Plus+ to
store new program
Icon explanations
W The times overlap those in another program.
Note the following if times overlap:
The program with the earlier start time receives priority.
Recording of the program with the later start time starts when
the earlier program finishes recording.
If you make two programs with the same start time, the one you
programmed last receives priority.
- You stopped recording of a weekly or daily timer recording. The
icon disappears the next time the timer starts recording.
Press [CANCEL] or [ADD/DLT] to
delete,
You cannot delete programs that are currently recording.
W 02
W 03
ENTER
Press [3, 4] to select the program.
The timer recording list disappears.
¥ This program is currently recording.
F The disc was full or the maximum number of programs or scenes
was reached so the program failed to record.
The material was copy-prohibited so it was not recorded.
X The program failed to record for some other reason.
≥Programs that failed to record are displayed gray. They are automatically deleted from the timer recording list at 4 a.m. two days
later.
26
RQT6920
To put the unit on timer recording standby
[Note]
Press [Í, DVD POWER].
The unit turns off and “F” lights on the unit’s display.
≥A Timer recording that is taking place in a recording mode other
than “FR” may have its end time altered.
≥Even if the power is off you can still view timer recording information by pressing [PROG/CHECK].
Entering text
Preparation
Release protection (cartridge ➜page 11, program ➜page 32, disc
➜page 34) before proceeding.
1
DVD POWER TV
DVD
Í
TV
Í
Numbered
buttons
1
2
3
4
5
6
After the titling screen appears
Press [3, 4, 2, 1] to select the
character and press [ENTER].
VCR Plus+ TV/VIDEO REC MODE REC
Title field: shows the text you have entered
CH
VOLUME
7
8
9
0
100
Enter Title
_
CANCEL
SKIP
;
∫
STOP
SLOW/SEARCH
PAUSE
DIRECT NAVIGATOR
3, 4, 2, 1
ENTER
PLAY/a
1. 3
PLAY LIST
;
MENU
TOP
MENU
π
ENTER
ERASE
SET
0 –– 100
FUNCTIONS
PROG/CHECK ADD/DLT
RETURN
SELECT
CM SKIP TIME SLIP
1 1
2
3
2 A
B
C
3 D
4 G
E
F
H
I
5 J
K
L
j
6 M N
O
7 P
8 T
Q
R
U
V
9 W X
0 . ,
Y
?
100
ENTER
4
5
6
7
8
a
b
c
i j ¢
d
e
f
/
l %
g
h
i
fl
$
k
m n
l
O N @
o
[
]
_
p
q
r
s
(
t
u
v
{
}
)
-
Z
w
x
!
"
'
y
:
z
;
\
`
|
^
S
9
0
&
SPACE
RETURN
2
[RAM] [DVD-R]
This page shows how to enter text for:
≥Program titles for timer recording (➜pages 24 and 25)
Program titles (➜page 32)
≥Play list titles (➜page 30)
≥Disc titles (➜page 34)
You can enter up to:
≥64 characters (DVD-RAM)
≥40 characters for a disc title (DVD-R)
≥44 characters for a program title (DVD-R)
Press [∫].
The title is entered and the screen disappears.
≥You can also finish entering the title by selecting “SET” and
pressing [ENTER].
Editing
Repeat step 1 to enter other characters.
Using the numbered buttons to enter characters
e.g., entering the letter “R”
1 Press [7] to move to the
7th row.
2 Press [7] twice to highlight
“R”.
3 Press [ENTER].
5 J
K
7
7
6 M N
7 P
8 T
L
7
O
Q
R
U
V
S
To erase a character
1 Press [3, 4, 2, 1] to select the character you want to
erase in the title field.
2 Press [;].
You can also erase characters by selecting “ERASE” and pressing [ENTER].
[Note]
≥The full title is shown in the Properties screen (➜page 30 and 32),
but if you enter a long title, only part of it is shown in the program
list or play list screen.
≥If you enter a long title, only part of it is shown in the menu screen
after finalization. [DVD-R]
27
RQT6920
Creating play lists
DVD POWER TV
DVD
Í
TV
Í
1
While stopped
2
Press [PLAY LIST].
Press [3, 4] to select “–– ––/––” and
press [ENTER].
VCR Plus+ TV/VIDEO REC MODE REC
Numbered
buttons
1
2
3
4
5
6
PLAY LIST
CH
---
---
---
---
---
VOLUME
7
8
9
0
100
No DATE TOTAL SCENE
CANCEL
:, 9
SLOW/SEARCH
PAUSE
STOP
PLAY/a
No.
0 ~ 9
6, 5
SELECT
∫
DIRECT NAVIGATOR
RETURN
EDIT
1
1
1
1
1
1
- - :- -
---
PLAY LIST
PLAY LIST
3, 4, 2, 1
ENTER
- - - - /- -
1. 3
ENTER
---
TITLE
01 10/23 0:03 006 Dinosaur
02 10/26 0:07 006 USJ
03 10/21 0:06 004 Auto action
3
SKIP
3
MENU
TOP
MENU
3
ENTER
The length of the
whole contents
on the disc.
RETURN
FUNCTIONS
Press [ENTER] at the start point.
PLAY LIST
Creation
PLAY LIST No.4
01
PLAY
Start
End
Next
RETURN
PROG/CHECK ADD/DLT
CM SKIP TIME SLIP
OPEN/CLOSE STATUS
FRAME
Scene No.
1
Editing
Exit
ERASE
SETUP
AUDIO INPUT SELECT DISPLAY
ERASE
F Rec
The location of
the start point.
ENTER
0 : 00 . 05
3
SELECT
RETURN
POSITION MEMORY MARKER
Start
End
0 : 00 . 05
-- : -- . --
≥Use [6], [5] and slow-motion (➜page 18) to find the
start and end points.
≥Pressing [:], [9] allows you to select other programs.
[RAM]
Specify start and end points to create scenes, then specify the order
in which they are to be played. These scenes are not recorded separately so this doesn’t use much capacity.
You can create a maximum of 99 play lists and 999 scenes.
4
Press [ENTER] at the end point.
PLAY LIST
Creation
PLAY LIST No.4
Scene No.
1
01
Start
End
Next
The location of
the end point.
Preparation
Release protection (cartridge ➜page 11, disc ➜page 34) before
proceeding.
Exit
3
SELECT
ENTER
RETURN
0 : 01 . 20
3
Start
End
0 : 00 . 05
0 : 01 . 20
To specify another scene
Select “Next” and press [ENTER], then repeat steps 3 and 4.
5
Press [3, 4] to select “Exit” and
press [ENTER].
The play list screen appears.
To clear the play list screen
Press [PLAY LIST].
To stop partway through
Press [RETURN].
For your reference
≥You cannot specify an end point before a start point.
≥You may not be able to specify points within 3 seconds of each
other.
≥Play pauses if the end of the last program on the disc is reached
during this procedure.
≥Depending on the state of recording, the actual number of play
lists that can be recorded may be less than that specified in this
manual.
28
RQT6920
4
Playing play lists
1
While stopped
The scene you select is played.
Press [PLAY LIST].
To show scene 10 and later
Press [3, 4, 2, 1] to select “Next” and press [ENTER].
≥You can also select a page of scenes by entering a 3-digit
number with the numbered buttons.
e.g.,
“5”: [0] ➜ [0] ➜ [5]
“15”: [0] ➜ [1] ➜ [5]
PLAY LIST
001
002
004
---
003
---
No DATE TOTAL SCENE
No.
0 ~ 9
3
SELECT
ENTER
TITLE
EDIT
01 10/23 0:03 004 Dinosaur
02 10/26 0:07 006 USJ
03 10/21 0:06 004 Auto action
- - - - /- -
- - :- -
---
RETURN
3
2
Press [3, 4, 2, 1] to select the
scene and press [ENTER].
1
1
1
1
1
1
Press [3, 4] to select the play list
and press [ENTER].
≥You can also select play lists by entering a 2-digit number
with the numbered buttons.
e.g.,
“5”: [0] ➜ [5]
“15”: [1] ➜ [5]
All the scenes in the play list are played.
To stop scene play
Press [∫]. (The scene list appears.)
To clear the scene list
Press [RETURN].
To erase a play list or a play list scene
during playback
1
To stop play list play
Press [ERASE].
A confirmation screen will be displayed.
2
Playing play list scenes
1
Press [2] to select “Erase” and press
[ENTER].
Editing
Press [∫]. (The play list appears.)
While stopped
Press [PLAY LIST].
2
Press [3, 4] to select the play list
that contains the scene you want to
play and press [1].
PLAY LIST
001
002
004
---
No DATE TOTAL SCENE
No.
0 ~ 9
3
SELECT
ENTER
003
---
TITLE
EDIT
1
1
1
1
1
1
01 10/23 0:03 004 Dinosaur
02 10/26 0:07 006 USJ
03 10/21 0:06 004 Auto action
- - - - /- -
- - :- -
---
RETURN
3
3
Play Scenes
Edit Scenes
PL Copy
PL Erase
Enter Title
Properties
Press [3, 4] to select “Play Scenes”
and press [ENTER].
PLAY LIST
Play Scenes
Select Page
1 10/23 0:03 004
Dinosaur
001 00:00.19
002
003
004
---
---
---
---
0 ~ 9
SELECT
ENTER
---
RETURN
Prev.
001 / 001
Next
Page no./Total page no.
29
RQT6920
Editing play lists
[RAM]
➜ page 29, Playing play list scenes
Play Scenes
Operation
Edit Scenes
While stopped
Press [PLAY LIST].
1 10/23 0:03 004 Dinosaur
PLAY LIST
Edit Scenes
Add
Move
Re-edit
Erase
001 00:00.19
002
003
004
---
---
---
---
PLAY LIST
001
002
Select Page
003
0 ~ 9
004
3
No.
0 ~ 9
SELECT
RETURN
0:03
0:07
0:06
--:--
SELECT
---
TITLE
EDIT
ENTER
1
1
1
1
1
1
004 Dinosaur
006 USJ
004 Auto action
---
3
ENTER
---
No DATE TOTAL SCENE
01 10/23
02 10/26
03 10/21
- - --/--
---
001 / 001
Prev.
RETURN
Press [2, 1] to select
the item (Add, Move, Reedit or Erase) and press
[ENTER].
Next
To show scene 10 and later
Press [3, 4] to select
the list.
≥ Press [3, 4, 2, 1] to select “Next” and press [ENTER].
≥ You can also select a page of scenes by entering a 3-digit
number with the numbered buttons.
e.g.,
“5”: [0] ➜ [0] ➜ [5]
“15”: [0] ➜ [1] ➜ [5]
Editing
≥ To create a new list, select
“` `” and press [ENTER]
(➜ page 28).
Press [1] so the
submenu appears.
Press [3, 4] to select
the item and press
[ENTER].
PL Copy
Press [2] to select
“Copy” and press
[ENTER].
Copy PLAY LIST
Copy this PLAY LIST?
Copy
Numbered
buttons
1
2
3
4
5
6
7
8
9
0
100
Cancel
The copied play list appears at
the bottom of the list.
SELECT
CH
RETURN
ENTER
VOLUME
CANCEL
SKIP
6, 5
STOP
PL Erase
SLOW/SEARCH
PAUSE
PLAY/a
Erase PLAY LIST
1. 3
Once a play list has been erased,
it is irretrievable. Check carefully
before proceeding.
Erase this PLAY LIST?
DIRECT NAVIGATOR
3, 4, 2, 1
ENTER
PLAY LIST
MENU
TOP
MENU
Erase
PLAY
LIST
Press [2] to select
“Erase” and press
[ENTER].
Cancel
SELECT
ENTER
RETURN
ENTER
The play list is erased.
FUNCTIONS
RETURN
RETURN
To clear the play list or
scene list screen
Enter Title
Entering text ➜ page 27
Press [PLAY LIST].
Enter Title
_
;
π
ERASE
SET
0 –– 100
SELECT
To stop set up process
30
RQT6920
2
3
5
6
7
8
2 A
B
C
a
b
c
i j ¢
3 D
4 G
E
F
d
e
f
/
l %
H
$
5 J
Properties
Play list information (e.g., time and
date) is shown.
4
0
g
h
i
fl
K
L
j
O N @
m
k
n
l
O
o
[
7 P
8 T
Q
R
S
p
q
r
s
(
U
V
t
u
v
{
}
)
-
9 W X
0 . ,
Y
Z
w
x
?
!
"
'
y
:
z
;
\
`
|
^
I
SPACE
RETURN
Properties
Dinosaur
No.
1
Scenes 004
9
6 M N
100
ENTER
Press [RETURN].
For your reference
You can only access “Play Scenes”
and “Properties” if the disc is writeprotected. Release protection
(cartridge ➜ page 11, disc ➜ page
34) to access other items.
1 1
Date 10/23/2002FRI
Total 0:03.53
ENTER
RETURN
]
&
_
∫ Add (maximum of 999 scenes)
Press [3, 4, 2, 1]
to select the place
where you want to
add the scene and
press [ENTER].
PLAY LIST PLAY LIST No.3 Dinosaur
Add Scenes
01
Press [ENTER]
at the start point
of the scene.
PLAY
Scene No.
5
Start
End
Next
Exit
ENTER
0 : 00 . 05
3
SELECT
RETURN
Start
End
0 : 00 . 05
--:--.--
Press [ENTER]
at the end point
of the scene.
Press [3, 4] to
select “Exit”
and press
[ENTER].
The new scene is
inserted before the
highlighted scene.
Press [3, 4] to select “Next” and press [ENTER].
(Repeat to add other scenes.)
∫ Move
Press [3, 4, 2, 1] to select the place
where you want to move the scene to
and press [ENTER].
The scene is moved and inserted before the
highlighted scene.
Repeat to move other scenes.
∫ Re-edit
PLAY LIST No.3
PLAY LIST
Re-edit Scenes
Press [3, 4, 2, 1]
to select the scene
and press [ENTER].
PLAY
01
Press [ENTER] at
the start point of
the scene.
Scene No.
1
Prev.
Start
End
Next
Exit
3
SELECT
ENTER
0 : 02 . 08
3
RETURN
Start
End
0 : 00 . 05
0 : 02 . 08
Press [ENTER]
at the end point
of the scene.
Press [3, 4] to
select “Exit”
and press
[ENTER].
Editing
Press [3, 4, 2, 1]
to select the scene
and press [ENTER].
The re-edited
scene replaces the
old one.
Press [3, 4] to select “Prev.” or “Next” and press
[ENTER]. (Repeat to re-edit other scenes.)
∫ Erase
Once a scene has been
erased, it is irretrievable.
Check carefully before
proceeding.
Press [3, 4,
2, 1] to select
the scene and
press [ENTER].
Press [2] to select
“Yes” and press
[ENTER].
Erase Scenes
Erase this scene?
Yes
No
SELECT
ENTER
[Note]
The play list itself is erased if
you erase all the scenes in it.
The selected scene is
erased from the play
list.
RETURN
Repeat to erase other scenes.
[Note]
≥
≥
≥
≥
≥
≥
Use [6], [5] and slow-motion (➜ page 18) to find the start and end points.
You cannot specify an end point before a start point.
You may not be able to specify points within 3 seconds of each other.
Play pauses if the end of the last program is reached during this procedure.
You cannot edit still picture images.
Depending on the state of recording, the actual number of play lists or scenes that
can be recorded may be less than that specified in this manual.
31
RQT6920
Editing programs
Operation
Press
[DIRECT NAVIGATOR].
Erase Program
Erase Program
[RAM] [DVD-R]
0 : 58 SP
Remaining Recording Time
Corresponding PLAY LIST will also be erased.
Erase
The program, and play lists
created from it, are erased
irretrievably when you use this
procedure. Check carefully before
proceeding.
DIRECT NAVIGATOR
3
No
CH
01
02
03
4 6/20 WED 10 : 00 AM Dinosaur
6 6/20 WED 9 : 00 PM Auto action
13 6/20 WED 11 : 00 PM USJ
DATE
TIME
TITLE
EDIT
1
1
1
1
1
3
TOTAL 3
No
0 ~ 9
Enter Title
SELECT
Erase
SELECT
ENTER
[RAM] [DVD-R]
Entering text ➜ page 27
Press [3, 4] to select
the program.
≥ You can also select programs
by entering a 2-digit number
with the numbered buttons.
e.g., “5”: [0] ➜ [5]
;
Editing
Press [3, 4] to select
the item and press
[ENTER].
0 –– 100
SELECT
2
3
4
5
6
3
5
6
7
8
B
C
a
b
c
i j ¢
3 D
4 G
E
F
d
e
f
/
l %
$
H
4
I
K
L
6 M N
O
7 P
8 T
Q
R
U
V
9 W X
0 . ,
Y
Z
?
!
S
9
0
g
h
i
fl
j
k
n
l
O N @
m
o
[
]
_
p
q
r
s
(
t
u
v
{
}
)
-
w
x
"
'
y
:
z
;
\
`
|
^
&
SPACE
RETURN
Properties
Properties
Dinosaur
No. 1
Date 6/20/ 2001 TUE
CH
4
Program information (e.g., time and
date) is shown.
ENTER
Protection
On
1:02 PM
Time 0:01(SP)
RETURN
Protection
Set up Program Protection.
[RAM]
Yes
No
SELECT
ENTER
RETURN
CH
VOLUME
7
8
9
0
100
CANCEL
SKIP
6, 5
STOP
DIRECT
NAVIGATOR
2
2 A
100
ENTER
If set, this will protect the program
from accidental erasure.
1
RETURN
1 1
5 J
ERASE
SET
π
[RAM] [DVD-R]
Press [1] so the
submenu appears.
SELECT
ENTER
Enter Title
_
RETURN
ENTER
Numbered
buttons
Cancel
:9
[RAM]
Shorten
Segment
03
N
S
PLAY
PAUSE
PLAY/a
Next
1. 3
PLAY LIST
MENU
TOP
MENU
Start
End
SLOW/SEARCH
DIRECT NAVIGATOR
3, 4, 2, 1
ENTER
Shorten Segment
The program segment, and play
list scenes created from it, are
erased irretrievably when you use
this procedure. Check carefully
before proceeding.
Exit
0 : 00 . 01
SELECT
ENTER
RETURN
Start
End
–:––.––
–:––.––
ENTER
FUNCTIONS
RETURN
RETURN
To clear the program list
Press [DIRECT NAVIGATOR].
To stop set up process
Press [RETURN].
Divide Program
[RAM]
Select a point at which to divide the
program into two.
Divide
Program
32
RQT6920
You must be sure you wish to
divide a program because once a
program has been divided,
it cannot be returned to its
original form.
PLAY
Preview
Divide
Exit
0 : 00 . 01
SELECT
ENTER
For your reference
You can only access “Properties” if
the disc is write-protected. Release
protection (cartridge ➜ page 11, disc
➜ page 34) to access other items.
[RAM]
03
N
S
Divide
RETURN
–:––.––
Press [2] to
select “Erase” and
press [ENTER].
[Note]
≥ The disc’s available recording time may not increase after
erasing short programs.
≥ Computer data cannot be erased.
≥ The available recording time on DVD-R does not increase when
you erase programs.
The program is erased.
3
No CH
01 4
02 6
03 13
DATE
TIME
TOTAL 3
No
EDIT
1
1
1
1
1
SELECT
0 ~ 9
Press
[ENTER] at
the start point
of the section
you want to
erase.
TITLE
6/20 WED 10 : 00 AM Dinosaur
6/20 WED 9 : 00 PM Auto action
6/20 WED 11 : 00 PM USJ
3
The lock symbol
appears when the
program is writeprotected.
Press [2] to set
protection and press
[ENTER].
ENTER
RETURN
Shorten
Segment
Shorten
Segment
03
N
S
PLAY
Press [ENTER] at
the end point of the
section you want to
erase.
Start
End
Next
Exit
ENTER
0 : 00 . 01
3
SELECT
RETURN
Editing
DIRECT NAVIGATOR
Start
End
0 : 00 . 01
–:––.––
Press [3, 4] to select “Next” and press [ENTER], then press [2] to
select “Erase” and press [ENTER].
03
N
S
Start
End
Next
Exit
ENTER
0 : 10 . 15
33
SELECT
RETURN
Start
End
0 : 00 . 01
0 : 10 . 15
Press [3, 4] to
select “Exit” and
press [ENTER].
Repeat to enter other sections.
Shorten Segment
[Note]
≥ Use [6], [5] and slow-motion (➜ page 18) to find the start and end points.
≥ Play pauses if the end of the program is reached during this procedure.
≥ You may not be able to specify points within 3 seconds of each other.
≥ You cannot specify an end point before a start point.
≥ You cannot specify points on still pictures in the program.
≥ The disc’s available recording time may not increase after erasing short segments.
Divide Program
Press [ENTER] at
the point you want
to divide the
program.
Press [3, 4] to
select “Exit”
and press
[ENTER].
Once you divide the program,
it will not be restored to the original.
To confirm the division point
Press [3, 4] to select “Preview” and press [ENTER]. (Play will
begin from a point 10 seconds prior to and after the division
point.)
To change the division point
Press [3, 4] to select “Divide” and press [ENTER] at the point
you want to change.
Divide
Cancel
SELECT
ENTER
Remaining Recording Time 0:19 SP
Corresponding PLAY LIST will also be erased.
Erase
Cancel
SELECT
ENTER
RETURN
Press [2] to
select “Erase”
and press
[ENTER].
Press [2] to select
“Divide” and press
[ENTER].
The program is divided.
RETURN
[Note]
≥ The divided programs retain the title and CPRM property (➜ page
50) of the original program.
≥ A minute portion of the recording directly preceding the division
point may be lost.
≥ It is not possible to carry out Divide Program in the following cases:
–when the program is extremely short.
–when the total number of programs is more than 99.
33
RQT6920
Disc setting
Operation
Enter Title
While stopped
Press [FUNCTIONS].
[RAM] [DVD-R]
Entering text ➜ page 27
Enter Title
_
;
π
1 1
2
3
6
7
2 A
B
C
b
c
3 D
4 G
E
F
d
e
f
/
l %
H
I
g
h
i
fl
$
j
k
n
l
O N @
m
o
[
]
_
p
q
r
s
(
t
u
v
{
}
)
-
w
x
"
'
y
:
z
;
\
`
|
^
5 J
ERASE
SET
0 –– 100
SELECT
Press [3, 4, 2, 1] to
select “DISC SETTING”
and press [ENTER].
K
L
O
7 P
8 T
Q
R
U
V
9 W X
0 . ,
Y
Z
?
!
[RAM]
If set, this will protect the disc from
accidental erasure.
S
8
9
0
i j ¢
&
SPACE
RETURN
Disc Protection
Disc Protection
DISC SETTING
5
a
6 M N
100
ENTER
4
Set up Disc Protection.
Yes
No
e.g., DVD-RAM
DISC SETTING Prog #
Used
7
Free
0 : 42 (SP)
0 : 58 Total Mark 10
Enter Title
Erase all programs
Off
Disc Protection
Erase all programs
Erase all programs
SELECT
[RAM]
Editing
Format
ENTER
RETURN
Press [3, 4] to select
the item and press
[ENTER].
All programs and play lists created
from them will be erased
irretrievably when you use this
procedure. Check carefully
before proceeding.
All programs and PLAY LISTs will
be erased.
Is it OK to start erasing all programs?
Yes
No
Preparation
Release protection (cartridge ➜
page 11, program ➜ page 32, disc
➜ page 34) before proceeding.
Format
[RAM]
Some DVD-RAM are unformatted.
Format them before using them in
this unit. Formatting also allows you
to erase the entire contents of a disc.
1
2
3
4
5
6
7
8
9
0
100
CH
VOLUME
CANCEL
SKIP
STOP
SLOW/SEARCH
PAUSE
DIRECT NAVIGATOR
3, 4, 2, 1
ENTER
PLAY/a
MENU
34
RQT6920
Yes
No
RETURN
RETURN
Finalize
Finalize
[DVD-R]
(DVD-R recorded on this unit only)
To stop set up process
Press [RETURN].
Formatting the disc will erase all contents.
This will take approximately 1 minute.
Is it OK to start formatting the disc?
1. 3
ENTER
FUNCTIONS
Format disc
PLAY LIST
TOP
MENU
FUNCTIONS
Preparation
≥ Release protection (cartridge ➜
page 11) before proceeding.
≥ If the disc is dirty, clean it with the
recommended cleaner (➜
page 50) before formatting.
Formatting erases all
contents on the disc,
including computer data.
Check carefully before
proceeding.
You can play DVD-R on compatible
DVD players by finalizing them on
this unit, effectively making them into
DVD-Video.
For your reference
The markers you entered (➜ page
20) will be lost.
This will take approximately 10 minutes.
Is it OK to start finalizing the disc?
Yes
No
Press [2] to set disc
protection and press
[ENTER].
DISC SETTING Prog #
Used
7
Free
0 : 42 (SP)
0 : 58 Total Mark 10
Enter Title
Disc Protection
On
Erase all programs
SELECT
Format
ENTER
The lock symbol appears
closed when the disc is
write-protected.
RETURN
[Note]
Press [2]
to select
“Yes” and
press
[ENTER].
Press [2] to
select “Start” and
press [ENTER].
Formatting starts.
≥ A message appears when
formatting is finished.
All programs
and play lists
are erased.
Press
[ENTER]
to complete
the procedure.
Editing
Press [2] to select
Press [2] to
select “Yes” and “Start” and press
press [ENTER]. [ENTER].
Computer data cannot be erased.
[Note]
≥ Do not turn the unit off or disconnect the AC power
supply cord while the message “Formatting the disc” is
on the television. This can render the disc unusable.
≥ Formatting takes up to a maximum of 70 minutes.
≥ The contents on the disc are erased when you format it even
if you have set program or disc protection.
≥ It may not be possible to use a disc on this unit if you cannot
format it.
≥ Formatting cannot be performed on DVD-R or CD-R/RW.
To stop formatting
Press [RETURN].
You can cancel formatting if it takes more than 2 minutes. The
disc must be reformatted if you do this.
Press [2]
to select
“Yes” and
press
[ENTER].
Press [2] to
select “Start” and
press [ENTER].
Finalizing starts.
≥ A message appears when
finalizing is finished.
Press
[ENTER]
to complete
the procedure.
[Note]
≥ Do not turn the unit off or disconnect the AC power
supply cord while the message “Finalizing the disc” is
on the television. This will render the disc unusable.
≥ Finalizing takes up to 15 minutes.
After finalizing..
≥ You cannot record or perform editing such as giving titles
and erasing programs.
≥ Programs longer than 5 minutes are divided into about
five-minute chapters.
≥ These DVD-R can be played on other Panasonic DVD
players, but this is not guaranteed. Play may not be possible
due to the player you are using, the DVD-R, or the condition
of the recording. Play the disc using this unit if you
experience problems with other equipment.
Visit Panasonic’s homepage for more information about
DVDs. http://www.panasonic.com/playDVD-R
35
RQT6920
Using on-screen menus
Disc menu
Not available when playing CDs and MP3 discs.
e.g., DVD-RAM
DVD POWER TV
DVD
Í
TV
Disc
Play
Video
Audio
Í
VCR Plus+ TV/VIDEO REC MODE REC
Numbered
buttons
1
2
3
4
5
6
7
8
9
0
100
SKIP
PAUSE
DIRECT NAVIGATOR
Sound track
PLAY/a
ENTER
^=======J
RETURN
PROG/CHECK ADD/DLT
CM SKIP TIME SLIP
OPEN/CLOSE STATUS
FRAME
Subtitle
AUDIO INPUT SELECT DISPLAY
ERASE
F Rec
Advanced operation
DISPLAY
POSITION MEMORY MARKER
Common procedures
e.g., DVD-RAM
2
3
4
1
Î Digital 2/0 ch
Subtitle
OFF
Audio channel
LR
Setting
Press [3, 4] to select the menu and
press [1].
Press [3, 4] to select the item and
press [1].
Press [3, 4] to select the setting.
To clear the on-screen menus
Press [DISPLAY].
For your reference
≥The screens depend on the disc contents.
≥Depending on the condition of the unit (playing, stopped, etc.) and
disc contents, there are some items that you cannot select or
change.
36
RQT6920
Angle
Angle number [DVD-V]
Audio channel
[RAM] [VCD] (➜page 23)
PBC
Playback control on/off [VCD]
Indicates whether menu play (playback control) is on or off.
[A] Soundtrack/Subtitle language
Press [DISPLAY].
Item
Subtitle language [DVD-V]
See [A] below.
Subtitle on/off [RAM] [DVD-R] [DVD-V]
SETUP
Sound track
Soundtrack language [DVD-V]
See [A] below.
Karaoke vocals, on and off
(Karaoke [DVD-V] only)
Solo: ON()OFF
Duet: OFF()V1+V2()V1()V2
MENU
TOP
MENU
Content
Audio attribute [RAM] [DVD-R] [DVD-V]
See [B] below.
1. 3
PLAY LIST
FUNCTIONS
Menu
LR
SLOW/SEARCH
STOP
Disc
Play
Video
Audio
OFF
Audio channel
Item
VOLUME
1
Î Digital 2/0 ch
1
Subtitle
CH
CANCEL
3, 4, 2, 1
ENTER
Sound track
ENG:
FRA:
DEU:
ITA:
ESP:
NLD:
English
French
German
Italian
Spanish
Dutch
SVE: Swedish
NOR: Norwegian
DAN: Danish
POR: Portuguese
RUS: Russian
JPN: Japanese
CHI: Chinese
KOR:Korean
MAL: Malay
VIE: Vietnamese
THA: Thai
¢: Others
[B] Audio attributes
LPCM/ÎDigital/DTS/MPEG: Signal type
k (kHz):Sampling frequency
b (bit):Number of bits
ch (channel):Number of channels
e.g., 3/2 .1ch
.1:
Subwoofer signal (not displayed if there
is no subwoofer signal)
0:
1:
2:
No surround
Mono surround
Stereo surround (left/right)
1:
2:
3:
Center
Front leftiFront right
Front leftiFront rightiCenter
For your reference
≥When playing back recordings of SAP broadcasts, “1+1 ch” will be
displayed.
≥You can only select subtitles, soundtracks, and angles if they are
recorded on the disc.
≥Some discs allow changes to soundtracks, subtitles, and angles
only by using the disc’s menus.
≥If the subtitles overlap closed captions recorded on discs, turn the
subtitles off.
Play menu
e.g., DVD-RAM
Disc
Play
Video
Audio
Repeat play
Marker
OFF
1s10
Item
††††††††††
Content
Repeat play
Each time you press [3, 4]:
[RAM] [DVD-R]
PRG: Program
All
PL: Play list ([RAM])
OFF
[DVD-V]
Chapter
Title
OFF
[VCD] [CD]
Track
All
OFF
[MP3]
Track
Group
OFF
Remarks
≥You cannot use repeat play to repeat an entire DVD-Video.
≥Repeat play does not work if the disc’s elapsed play time is
not shown on the unit’s display.
≥[ERASE] does not work while in repeat play mode.
If the Video CD has playback control
1 While stopped (the screen saver is
on the television), press the numbered buttons to select a track
(➜page 18).
2 Select the repeat mode.
To cancel: Select “OFF”.
[RAM] [DVD-R] [DVD-V] [VCD] [CD] [MP3]
(➜page 20)
Marker
—
Audio menu
Disc
Play
Video
Audio
Item
V. S. S.
Dialog Enhancer
OFF
OFF
Content
Remarks
V.S.S.
[RAM] [DVD-R] [DVD-V]
(Only with Dolby Digital with 2 or more channels)
Enjoy a surround-like effect if you are using two front
speakers only. The effect is broadened and sound
seems to come from virtual speakers on either side if
the disc has surround signals recorded on it.
Natural ()Emphasis()OFF
≥Turn off the surround effects on the other equipment.
≥V.S.S. will not work, or will have less effect, with some discs.
≥Turn V.S.S. off if it causes distortion.
Dialog
Enhancer
[DVD-V]
(Dolby Digital, 3-channel or over only, including a center channel)
The volume of the center channel is raised to make
dialog easier to hear.
ON()OFF
—
Advanced operation
Not available when playing Video CDs, CDs and MP3 discs.
e.g., DVD-Video
^=======J
37
RQT6920
Using on-screen menus
Video menu
Not available when playing CDs and MP3 discs.
[RAM] [DVD-R] [DVD-V] [VCD]
Disc
Play
Video
Audio
Normal
MPEG-DNR
ON
Advanced operation
Item
38
RQT6920
Content
Normal: Default setting
Soft:
Soft picture with fewer video artifacts
Fine:
Details are sharper
Cinema: Mellows movies, enhances detail in
dark scenes.
MPEG-DNR
You can turn the recommended settings for
3D NR, block NR, and mosquito NR on and
off.
ON()OFF
3D NR:
Reduces overall noise
Block NR:
Smoothes block noise
Mosquito NR: Reduces the smudging that
appears around contrasting
sections of the picture
∫ When you have set “TV Type” to “Aspect 4:3 &
480P” or “Aspect 16:9 & 480P” in SETUP
(➜page 10)
Disc
Play
Video
Audio
Normal
MPEG-DNR
Progressive
Item
ON
ON
Transfer
Auto 1
Content
Progressive
ON:
OFF:
Enables progressive output
Disables progressive output
Transfer
(When progressive output is on)
Select the method of conversion for progressive output to suit the type of material being
played (➜page 50, Film and video).
Auto1 (normal): For film material
Auto2: For film material (the same as
Auto1, but able to convert 30-frameper-second progressive video.)
Video: For video material
On-screen displays
Displays appear on the television when you operate the unit to let
you know what operation was performed and what condition the unit
is in.
≥You can change the setting in the SETUP menu so the first display
does not appear automatically (➜page 47, Display—Status Messages).
DVD POWER TV
DVD
Í
TV
Í
VCR Plus+ TV/VIDEO REC MODE REC
1
2
Changing the information displayed
3
CH
4
5
6
7
8
9
0
100
Press [STATUS].
VOLUME
The display changes each time you press the button.
e.g., DVD-RAM
CANCEL
SKIP
SLOW/SEARCH
PAUSE
STOP
PLAY/a
DIRECT NAVIGATOR
DVD-RAM
REC
PLAY
LR
1. 3
PLAY LIST
MENU
TOP
MENU
ENTER
FUNCTIONS
RETURN
PROG/CHECK ADD/DLT
CM SKIP TIME SLIP
OPEN/CLOSE STATUS
FRAME
STATUS
πRemain
6/8 10:15 PM
π PRG2 0:05.14 XP
π PRG1 0:00.10 SP
SETUP
AUDIO INPUT SELECT DISPLAY
ERASE
F Rec
0:50 XP
Bit Rate
0 . . . . 5 . . . . 10
π REC 5.4Mbps XP
π PLAY 3.1Mbps SP
POSITION MEMORY MARKER
DVD-RAM
REC
PLAY
LR
DVD-RAM
REC
PLAY
LR
Display examples
a
b
a Disc indication
DVD-RAM
REC
PLAY
LR
c
e.g., DVD-RAM
b Audio type (➜page 23)
Shows the selected audio type.
≥During reception
Stereo: Stereo is selected
Mono: Monaural is selected
SAP: Secondary audio program is
selected
(“((” appears when the type you have
selected is actually being received.)
≥During play
LR, R, L:
a stereo program is recorded
MAIN, SAP: an SAP program is recorded
e.g., DVD-RAM
d
e
f
6/8 10:15 PM
π Remain
π PRG2 0:05.14 XP
π PRG1 0:00.10 SP
d
j
π G1
Total
6/9 10:15 PM
Group: RootsMusic
Track: 008 Holy.mp3
status/input channel
;:
Playing paused
5: Fast forwarding
D:
Slow-motion
g
d The current date and time
j Selected group and track name
0:50 XP
e Elapsed recording time/recording
mode
k Selected group and track number
h
i
k
e.g., MP3
c Current recording or play
and caption (if entered)
REC:
Recording
PAUSE: Recording paused
PLAY: Playing
6:
Rewinding
E:
Reverse slow-motion
T8
1:35
T8/18
m
Advanced operation
No display
l Selected track no./Total track no.
f Elapsed play time of a program playin all groups
ing/mode at the time of recording
m Elapsed play time of a track playg Available recording time and
ing
recording mode
h Approximate volume of recording
i Play position in the volume of
recording
l
e.g., DVD-RAM
o
p
n
Bit Rate
0 . . . . 5 . . . . 10
π REC 5.4Mbps XP
π PLAY 3.1Mbps SP
n Recording mode
or I/P/B display when paused
(➜page 50)
o Video bit-rate when recording
§
q
p Video bit-rate when playing
q Bit-rate display§
Show as Mbps (Megabits per
seconds) during play and
recording, or kbit (kilobits)
while paused.
The method of calculating bit-rate for recording and playing is different so there may be differences in the figures displayed. (Values are
approximate.)
39
RQT6920
Home Theater
Refer to the relevant pages for details.
Enjoying CATV/Satellite broadcasts
What you want to do
Enjoying CATV/Satellite broadcasts
How to do it
Connect a cable TV box or
satellite receiver.
Reference
pages
41
Settings
Reference
pages
Tune to channels correctly.
9
Change the necessary
settings on the equipment you
have connected.
—
SETUP—Audio—
Digital Audio Output
≥Set PCM Down Conversion
to suit the equipment.
≥Set Dolby Digital and DTS to
suit the equipment.
47
Change speaker settings on
the amplifier.
—
Enjoying more powerful sound
Advanced operation
Enjoying 5.1channel surround
sound with Dolby
Digital and DTS
Enjoying stereo or
Dolby Pro Logic
Digital connection
Connect to an amplifier with
built-in decoders.
42
[A]
Analog connection
Connect to an analog
amplifier or system
component.
42
[B]
SETUP—Audio—
Digital Audio Output
≥Set PCM Down Conversion
to Off.
47
Digital connection
Connect to a digital
amplifier or system component.
42
[A]
SETUP—Audio—
Digital Audio Output
≥Set PCM Down Conversion
to suit the equipment.
≥Set Dolby Digital to PCM.
≥Set DTS to Off.
47
Other uses
Record to digital recording equipment or cassette deck (➜page 42)
Record from a video cassette recorder (➜page 15)
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are trademarks of
Dolby Laboratories.
“DTS”, “DTS Digital Surround” and “DTS Digital Out” are registered trademarks of Digital Theater Systems, Inc.
40
RQT6920
≥The equipment connections described are examples.
≥Peripheral equipment and optional cables sold separately unless otherwise indicated.
≥Before connection, turn off all equipment and read the appropriate operating instructions.
≥The signal from the cable TV box or satellite receiver passes through this unit to the television even when this unit is turned off.
Connecting a cable TV box/satellite receiver
You need to subscribe to a cable TV or satellite TV service, to enjoy viewing their programming.
≥Consult your service provider regarding appropriate cable box or satellite receiver.
≥Select the applicable input on your television to view the output from your cable box or satellite receiver, or the applicable video input on the television is connected using the audio and video connections.
One cable TV box/satellite receiver
Two cable TV boxes
AUDIO VIDEO
VHF/UHF
IN
IN
RF IN
R L
You can record and view both scrambled and unscrambled channels
if connections are made as shown in the diagram below.
AUDIO VIDEO
VHF/UHF
IN
IN
RF IN
R L
red white yellow
red white yellow
Television
Audio/Video cable (included)
Audio/Video cable
(included)
75 ≠ coaxial cable
(included)
red white yellow
Connect with 75 ≠
coaxial cable
red white yellow
RF IN
(L1)
Y
PB
PR
OPTICAL
OUT
)
R-AUDIO-L
(L3)
RF IN
RF OUT
VIDEO
S-VIDEO
COMPONENT
VIDEO OUT
(480P/480I)
PB
PR
OPTICAL
)
75 ≠ coaxial cable
RF OUT
OUT
This unit
RF OUT RF IN
VHF/UHF
Y
VHF/UHF
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
R-AUDIO-L
VIDEO
S-VIDEO
COMPONENT
VIDEO OUT
(480P/480I)
Advanced operation
Television
VHF/UHF
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
This unit
OUT
IN
IN2
Switch
box
IN1
or
Cable TV box
Cable TV box
DSS receiver
IN
OUT
IN
OUT
Cable TV
box
To household
cable TV jack
To household
home satellite system
(Dishnetwork/DSS) jack
OUT1
OUT2
IN
2-way
splitter
[Note]
When a home satellite system (Dishnetwork/DSS) is connected,
auto tuning and auto clock setting may not operate properly. Set the
clock manually (➜page 49).
≥Change the video input on the television when you want to watch
another program while recording.
≥You cannot do a timer recording unless the channel is first
selected on the cable TV box or DSS receiver.
To household
cable TV jack
≥Change the video input on the television when you want to watch
another program while recording.
≥You cannot do a timer recording unless the channel is first
selected on the cable TV box.
41
RQT6920
Home Theater
Connecting an amplifier or system component
This model can play Dolby Digital, but only in two channels. This model does not have a DTS decoder. You must connect a unit with a
Dolby Digital or DTS decoder to enjoy surround sound.
A
B
Digital connection
To enjoy multi-channel surround
sound
Connect an amplifier with a built-in
decoder or a decoder-amplifier combination.
≥Change the settings in “Digital Audio
Output” (➜page 47).
Analog connection
To enjoy stereo or Dolby Pro Logic
Connect an analog amplifier or system component.
To enjoy stereo or Dolby Pro Logic
Connect a digital amplifier or system
component.
≥Change the settings in “Digital Audio
Output” (➜page 47).
Amplifier or system
component
[Note]
You cannot use DTS Digital Surround
decoders not suited to DVD.
AUX IN
R
L
Amplifier
Speakers (Example)
Connect three or more speakers
for surround sound.
Insert fully, with this
side facing up.
OPTICAL IN
Audio cable
Advanced operation
Optical digital audio cable
Do not bend sharply when
connecting.
OPTICAL
R - AUDIO - L
RF IN
R-AUDIO-L
VIDEO
S-VIDEO
(L1)
IN 1
Y
PB
PR
OPTICAL
RF OUT
OUT
IN 3
R-AUDIO-L
VIDEO
S-VIDEO
R-AUDIO-L
(L3)
VIDEO
S-VIDEO
COMPONENT
VIDEO OUT
(480P/480I)
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
VHF/UHF
This unit
Recording to digital recording equipment or cassette tapes
Digital recording
You can record the digital signal directly to digital recording equipment (➜ Connection [A] above).
[Note]
≥With DVD, the following conditions must be met: a the disc
doesn’t have protection preventing digital recording, and b the
recording equipment can handle signals with a sampling frequency of 48 kHz.
≥You cannot record DTS signals.
≥You cannot record MP3.
When recording DVDs, make the following settings.
V.S.S.: OFF (➜page 37)
PCM Down Conversion: On (➜page 47)
Dolby Digital: PCM (➜page 47)
DTS: Off (➜page 47)
42
RQT6920
Analog recording
You can record to a cassette deck or other recording equipment
(➜ Connection [B] above).
There are no limitations on recording analog signals as there are
with digital signals.
Connecting other video equipment
Connecting to the L2 input terminals on the front
of the unit
/I
S-VIDEO IN
VIDEO IN
L/MONO
AUDIO IN
R
R-AUDIO-L
VIDEO
S-VIDEO
(L1)
R-AUDIO-L
VIDEO
S-VIDEO
(L3)
IN 1
L2
OUT
IN 3
This unit
R-AUDIO-L
VIDEO
This unit
yellow white red
red white yellow
S video cable§
S video cable§
Audio/Video
cable (included)
Audio/Video cable
(included)
red white yellow
yellow white red
S VIDEO
OUT
L
R
AUDIO VIDEO
OUT
OUT
R
VIDEO L
OUT AUDIO
OUT
S VIDEO
OUT
Advanced operation
POWER
Connecting to the input terminals on the rear of
the unit, L1 and L3
Other video equipment
Connect to the video and audio output terminals.
Other video equipment
Connect to the video and audio output terminals.
§
By using the S video cable instead of the yellow video cable you
may make recordings of higher picture quality.
§
By using the S video cable instead of the yellow video cable you
may make recordings of higher picture quality.
[Note]
[Note]
If the audio output of the other equipment is monaural, connect to L/
MONO. (Both left and right channels are recorded when connected
through L/MONO.)
If audio output on the other equipment is monaural, use a stereomonaural conversion cable (not included).
43
RQT6920
Other antenna connections
Other antenna connection to the unit
Use one of the following connections to suit the antenna lead.
∫ A single twin lead
300–75 ≠ transformer
(not included)
Other antenna connection from the unit
to the television
Use one of the following connections to suit the antenna terminals
on your television. Refer to the television’s operating instructions.
∫ A twin lead and coaxial plug terminal
Television
VHF
VHF/UHF band separator
(not included)
from the antenna
UHF
To this unit’s
RF IN terminal
(Flat)
Twin lead
300 ≠ cable
75 ≠ coaxial cable
∫ A twin lead terminal
∫ A twin lead and a coaxial cable
Television
Advanced operation
from the antenna
75–300 ≠ transformer
(not included)
VHF or
UHF
VHF/UHF band mixer
(not included)
(Flat)
Twin lead
300 ≠ cable
75 ≠ coaxial cable
∫ Two twin lead terminals
Television
(Round)
75 ≠ coaxial cable
VHF/UHF band separator
(not included)
VHF
To this unit’s
RF IN terminal
∫ Two twin leads
UHF
75 ≠ coaxial cable
from the antenna
∫ Multiple antenna terminals
Television
(Flat)
Twin lead
300 ≠ cable
300–75 ≠ transformer
(not included)
Split out
ANT 1
VHF/UHF band mixer
(not included)
75 ≠ coaxial cable
To this unit’s
RF IN terminal
≥If your television has both lead and coaxial VHF terminals, use the
lead connection to minimize signal loss.
44
RQT6920
ANT 2
≥Connect to one of the terminals, then change the television’s
setting as necessary.
Changing the remote control code
1
While stopped
Press [SETUP] to show the menus.
SETUP
DVD POWER TV
DVD
Í
TV
Í
Channel
Set Up
Disc
Video
Audio
Display
TV Screen
VCR Plus+ TV/VIDEO REC MODE REC
Numbered
buttons
1
2
3
4
5
6
7
8
9
0
100
CH
VOLUME
Antenna System
CATV
Auto Channel Setting
Channel Caption
Preset Channel Caption
Manual Channel Caption
VCR Plusi CH Setting
TAB
SELECT
RETURN
CANCEL
SKIP
STOP
DIRECT NAVIGATOR
3, 4, 2, 1
ENTER
PLAY/a
1. 3
PLAY LIST
3
MENU
TOP
MENU
4
ENTER
FUNCTIONS
SETUP
2
SLOW/SEARCH
PAUSE
RETURN
PROG/CHECK ADD/DLT
CM SKIP TIME SLIP
OPEN/CLOSE STATUS
FRAME
SETUP
AUDIO INPUT SELECT DISPLAY
ERASE
F Rec
Press [3, 4] to select “Set Up” and
press [1].
Press [3, 4] to select “Remote Control Code” and press [ENTER].
Press [3, 4] to select the code (1, 2,
or 3) and press [ENTER].
The remote control code on the unit has been set.
5
POSITION MEMORY MARKER
While pressing [ENTER] on the
remote control, press the numbered
button ([1], [2] or [3]) corresponding
to the code you selected in step 4.
6
Press [SETUP]
The following display appears when you use a remote control with a
different code.
Panasonic DVD players and recorders use the same remote control
system so they may respond unintentionally to a command from this
remote control. Change the code on this unit and its remote control
(the two must match) if you place equipment close together.
≥Use “1”, the factory set code, under normal circumstances.
Advanced operation
The remote control code on the remote control has been set.
The unit’s remote control code
If you are trying to use this unit’s remote control, change its code to
match the unit’s (➜ step 5).
45
RQT6920
Changing the unit’s settings
Summary of settings
This chart shows the initial settings for this unit. See page 48 for details on menu operation.
≥Underlined items are the factory presets.
Tabs
Channel
Menus
Options
Antenna System (➜page 7)
≥TV
Select to suit the type of antenna you are using. Channels are
set corresponding to the antenna system you select.
≥CATV
Auto Channel Setting (➜page 7)
The unit sets the channels automatically.
Preset Channel Caption (➜page 9)
You can give preset captions to the channels.
Manual Channel Caption (➜page 9)
You can set channel captions manually.
VCR Plusr CH Setting (➜page 8)
Set the guide channels for use with VCR Plusi timer recording.
Set Up
Off Timer
≥2 hr
Select how long the unit remains on when it is not being used.
≥6 hr
≥Off
≥Set Code 2
≥Set Code 3
≥j1
Time Zone Adjust (➜page 49)
Adjust the time zone if it was not set correctly after auto clock
setting. This appears only after auto clock setting is complete.
≥0
≥i1
Re-initialize Setting
≥Yes
This returns all values in the SETUP menus, except for the
clock, channel settings, ratings level, and display language, to
the default settings.
≥No
Remote Control Code (➜page 45)
To avoid operating equipment other than the one intended
(when more than one remote controlled item is in the same
area), change the remote control code.
• Set Code 1
Auto Clock Setting (➜page 49)
The unit adjusts the clock automatically.
Advanced operation
Manual Clock Setting (➜page 49)
You can adjust the clock.
Disc
[DVD-V]
Audio
Choose the audio language.
Some discs start in
a certain language
despite any
changes you make
here.
≥French
≥Spanish
The original language of each disc will be
selected.
≥Other ¢¢¢¢:Input a code (➜page 48).
≥English
≥Original:
≥Automatic:
≥English
If the language selected for “Audio” is not available, subtitles of that language will automatically
appear if available on that disc.
≥French
≥Spanish
≥Other ¢¢¢¢
Menus
Choose the language for disc menus.
≥English
≥French
Ratings
Set a ratings level to limit DVD-Video play. The password
screen is shown when you select levels 0 to 7.
To enter a password
1. Input a 4-digit password with the numbered buttons.
≥If you enter a wrong number, press [CANCEL] to erase it.
≥Do not forget your password.
2. Press [ENTER].
≥The lock symbol appears closed to show the rating is
locked.
3. Press [ENTER] to confirm the 4 digits.
Setting ratings (When level 8 is selected)
8 No Limit: All DVD-Video can be played.
1 to 7:
Prohibits play of DVD-Video with corresponding ratings
recorded on them.
0 Lock All: Prohibits play of all DVD-Video.
Subtitle
Choose the subtitle language.
≥Spanish
≥Other ¢¢¢¢
Changing ratings (When level 0–7 is selected)
≥Unlock Recorder
≥Change Password
≥Change Level
≥Temporary Unlock
If you insert a DVD-Video that exceeds the ratings limit
you set, a message appears on the television.
Press [SETUP] to select “Ratings” again and change ratings.
Video
46
RQT6920
3-D Y/C Separation
Turn 3-D Y/C separation on or off.
≥On: Reduces noise for recording by separating the luminance (Y)
and color (C) signals received from the television station.
≥Off: Reduces the ghosting that occurs when recording fast moving images.
Hybrid VBR Resolution
≥Automatic: The unit automatically switches resolution rates during
recording. The unit reduces block noise, which occurs durSwitch between automatic and fixed hybrid VBR resolution
ing MPEG compression, by selecting the optimum rate.
when recording.
≥Fixed:
The resolution rate is fixed to ensure the resolution
rate is not reduced.
Continued on next page.
Tabs
Video
Menus
Still Mode
Select the type of picture shown when you pause play.
Options
≥Automatic
≥Field: Less blurred field stills are shown. Select if jittering
occurs when “Automatic” is selected.
≥Frame: Sharper frame stills are shown. Select if small text or fine patterns cannot be seen clearly when “Automatic” is selected.
Black Level Control
≥Input Level (Lighter/Darker):
Select normal, lighter or darker for adjusting the black level Adjusts the black level of the input signal (e.g., L1, L2, L3)
≥Composite & S Video Output Level (Lighter/Darker):
control to the desired setting for picture enhancement.
when connected to a TV through the VIDEO OUT or S-VIDEO
OUT terminal
≥Component Video Output Level (Lighter/Normal/Darker):
when connected to a TV through the COMPONENT VIDEO OUT
(Y/PB/PR) terminal
Audio
PLAY k1.3 & Audio during Search [RAM] [DVD-R] [DVD-V] [VCD] ≥On
Choose whether to have sound during the first level of fastforward. Quick View (➜page 19) does not work if you make
the setting “Off”.
≥Off
D. Range Compression [DVD-V] (Dolby Digital only)
Change the dynamic range for late night viewing.
≥On
≥Off
Select MTS (➜page 23)
Select whether to record the main or secondary audio type
(SAP) when recording to DVD-R.
≥Main
≥SAP
PCM Down Conversion
Select how to output audio with a sampling frequency of
96 kHz.
≥On: Converted to 48 kHz for output. Select if the equipment you connect cannot process signals with a sampling frequency of 96 kHz.
≥Off: Output as 96 kHz. There is no output if the disc has copy
protection. Select “On” in this case.
If you use analog connection, select this setting irrespective
of the type of equipment.
Dolby Digital
≥Bitstream: Select if the equipment you connected can decode
the signal.
≥PCM:
Select if the equipment you connected cannot
decode the signal.
DTS
Display
TV
Screen
If the equipment you connected cannot decode the signal, the setting
must be changed to PCM or Off. If not,
signals the equipment cannot process
will be output by this unit, causing
high levels of noise which can damage your hearing and the speakers.
≥Bitstream: Select if the equipment you connected can decode
the signal.
Select if the equipment you connected cannot
≥Off:
decode the signal.
Status Messages
Choose whether to show on-screen messages automatically.
≥Automatic
≥Off
Language of Display Message
Choose the language for these menus and the on-screen
messages.
≥English
≥Español
Blue Background
Select “Off” if you do not want to have the unit show the blue
background when reception is weak.
≥On
≥Off
FL Display
Changes the brightness of the unit’s display.
≥Dim
≥Bright
≥Automatic: The display dims during video playback and goes off
completely when the unit is turned off or on timer
recording standby. If you press a button the display
will brighten briefly. (At this time the power consumed
will be 0.4 W.)
TV Type (➜page 10)
Choose the setting to suit your television.
≥Aspect 4:3 & 480I
≥Aspect 16:9 & 480I
4:3 TV Settings for DVD-Video
Select how DVD-Video widescreen picture is shown on a 4:3
standard aspect television.
≥Pan & Scan (➜page 50):
Video recorded for a widescreen is played as Pan & Scan
(unless prohibited by the producer of the disc).
≥Letterbox (➜page 50):
Video recorded for a widescreen is played in the letterbox style.
4:3 TV Settings for DVD-RAM
Select how DVD-RAM widescreen picture is shown on a 4:3
standard aspect television.
≥4:3:
Programs played as recorded.
≥Pan & Scan: Video recorded for a widescreen is played as Pan & Scan.
≥Letterbox: Video recorded for a widescreen is played in the
letterbox style.
Advanced operation
Digital Audio Output
Change the settings when you have connected equipment through this unit’s DIGITAL AUDIO OUT terminal (➜page 42, [A]).
≥Français
≥Aspect 4:3 & 480P
≥Aspect 16:9 & 480P
47
RQT6920
Changing the unit’s settings
Common procedures
See page 46 for menu and option details.
1
DVD POWER TV
DVD
Í
TV
Í
VCR Plus+ TV/VIDEO REC MODE REC
Numbered
buttons
1
2
While stopped
Press [SETUP] to show the menus.
SETUP
3
CH
4
5
6
7
8
9
0
100
VOLUME
CANCEL
SKIP
STOP
DIRECT NAVIGATOR
3, 4, 2, 1
ENTER
Disc
Video
Audio
Display
TV Screen
SLOW/SEARCH
PAUSE
PLAY/a
1.3
PLAY LIST
MENU
TOP
MENU
Antenna System
CATV
Auto Channel Setting
Channel Caption
Channel Settings
Preset Channel Caption
Set Up
Manual Channel Caption
VCR Plusi CH Setting
Tabs
TAB
SELECT
RETURN
Menus
Options
ENTER
2
RETURN
FUNCTIONS
RETURN
PROG/CHECK ADD/DLT
CM SKIP TIME SLIP
OPEN/CLOSE STATUS
FRAME
3
SETUP
AUDIO INPUT SELECT DISPLAY
ERASE
F Rec
SETUP
4
POSITION MEMORY MARKER
Press [3, 4] to select the menu’s tab
and press [1].
Press [3, 4] to select the menu and
press [ENTER].
Press [3, 4] to select the option and
press [ENTER].
Advanced operation
The screen now shows the menu again.
≥Some items require different operations. Follow the on-screen
instructions, or read the following explanations.
To return to the previous screen
Press [RETURN].
When you are finished
Press [SETUP].
Language code list
Abkhazian: 6566
Afar:
6565
Afrikaans: 6570
Albanian: 8381
Ameharic: 6577
Arabic:
6582
Armenian: 7289
Assamese: 6583
Aymara:
6588
Azerbaijani: 6590
Bashkir:
6665
Basque:
6985
Bengali; Bangla:
6678
Bhutani:
6890
Bihari:
6672
Breton:
6682
Bulgarian: 6671
Burmese: 7789
Byelorussian:6669
Cambodian:7577
Catalan:
6765
48
RQT6920
Input the code with numbered buttons.
Chinese:
Corsican:
Croatian:
Czech:
Danish:
Dutch:
English:
Esperanto:
Estonian:
Faroese:
Fiji:
Finnish:
French:
Frisian:
Galician:
Georgian:
German:
Greek:
Greenlandic:
Guarani:
Gujarati:
9072
6779
7282
6783
6865
7876
6978
6979
6984
7079
7074
7073
7082
7089
7176
7565
6869
6976
7576
7178
7185
Hausa:
7265
Hebrew:
7387
Hindi:
7273
Hungarian: 7285
Icelandic:
7383
Indonesian: 7378
Interlingua: 7365
Irish:
7165
Italian:
7384
Japanese:
7465
Javanese:
7487
Kannada:
7578
Kashmiri:
7583
Kazakh:
7575
Kirghiz:
7589
Korean:
7579
Kurdish:
7585
Laotian:
7679
Latin:
7665
Latvian, Lettish:7686
Lingala:
7678
Lithuanian: 7684
Macedonian: 7775
Malagasy:
7771
Malay:
7783
Malayalam: 7776
Maltese:
7784
Maori:
7773
Marathi:
7782
Moldavian:
7779
Mongolian: 7778
Nauru:
7865
Nepali:
7869
Norwegian: 7879
Oriya:
7982
Pashto, Pushto:8083
Persian:
7065
Polish:
8076
Portuguese: 8084
Punjabi:
8065
Quechua:
8185
Rhaeto-Romance:8277
Romanian:
8279
Russian:
8285
Samoan:
8377
Sanskrit:
8365
Scots Gaelic: 7168
Serbian:
8382
Serbo-Croatian:8372
Shona:
8378
Sindhi:
8368
Singhalese: 8373
Slovak:
8375
Slovenian:
8376
Somali:
8379
Spanish:
6983
Sundanese: 8385
Swahili:
8387
Swedish:
8386
Tagalog:
8476
Tajik:
8471
Tamil:
8465
Tatar:
8484
Telugu:
Thai:
Tibetan:
Tigrinya:
Tonga:
Turkish:
Turkmen:
Twi:
Ukrainian:
Urdu:
Uzbek:
Vietnamese:
Volapük:
Welsh:
Wolof:
Xhosa:
Yiddish:
Yoruba:
Zulu:
8469
8472
6679
8473
8479
8482
8475
8487
8575
8582
8590
8673
8679
6789
8779
8872
7473
8979
9085
Clock settings
Preparation
1
2
Manual Clock Setting
3
Channel
Set Up
Disc
Video
Audio
Display
TV Screen
Off Timer
SELECT
MONTH
Channel
Set Up
Disc
Video
Audio
Display
TV Screen
6 hr
Remote Control Code Set Code 1
Clock Settings
Auto Clock Setting
Manual Clock Setting
0
Time Zone Adjust
Re-initialize Setting
Proceed with the
steps described
below.
4
TAB
ENTER
RETURN
Press [3, 4] to select “Auto Clock
Setting” and press [ENTER].
Channel
Set Up
Disc
Video
Audio
Display
TV Screen
Auto Clock Setting
Connect antenna cable and if you use a
cable box, tune it to your local PBS CH
then...
Please push the ENTER key.
ENTER
RETURN
5
Press [ENTER].
Auto setting starts. This can take some time, up to a few
hours in some cases. (To stop auto clock setting, press
[RETURN].) The following screen appears when setting is
complete. Press [ENTER].
SETUP
CHANGE
DAY
/
1
YEAR
/
HOUR
MINUTE
2000 MON 12 : 00 PM
DST
TIME ZONE
OFF
EST
SELECT
ENTER
RETURN
Press [2, 1] to select the item you
want to change and press [3, 4] to
change the setting.
Press [ENTER].
The clock starts.
[Note]
When you change the time zone, the recording times for programs
recorded before the time zone was changed also change to correspond to the new time zone.
If you have not yet set channels, the “Auto Channel/Clock
Setting” screen appears.
4
1
MONTH(--)DAY(----)YEAR(--)HOUR (12-hour display)
^>TIME ZONE()DST()MINUTE(J
DST (Daylight Saving Time): ON or OFF
If you select “ON”, the clock is advanced one hour starting
at 2 a.m. on the first Sunday in April and ending at 2 a.m. on
the last Sunday in October.
TIME ZONE:
EST()CST()MST()PST()AST()HST
(s5)
(s6)
(s7)
(s8)
(s9)
(s10)
^---------------------------------------------------------------------------------J
Auto Clock Setting
SETUP
Manual Clock Setting
SETUP
Press [SETUP] to show the menus.
Press [3, 4] to select “Set Up” and
press [1].
SETUP
3
Press [3, 4] to select “Manual Clock
Setting” and press [ENTER].
Advanced operation
If you connect the unit through a cable TV box or DSS receiver
(➜page 41), tune to your local PBS station before starting auto
clock setting. Use manual clock setting if auto clock setting does not
work or if there is no local PBS channel in your area.
Time Zone Adjust
Adjust the time zone (s1 or r1) if it was not set correctly with auto
clock setting.
You cannot change this setting if you set the clock manually.
3
Auto Clock Setting
Press [3, 4] to select “Time Zone
Adjust” and press [ENTER].
SETUP
Time Zone Adjust
Auto Clock Setting is complete.
Channel
Set Up
Disc
Video
Audio
Display
j1
4/4/2002 12:15 AM
DST............. ON
TIME ZONE.... CST
[Note]
≥If the time was not set correctly, use manual clock setting or time
zone adjust.
≥DST, Daylight Saving Time, shows the summertime setting.
≥TIME ZONE shows the time difference from Greenwich meantime
(GMT).
EST=GMT s5, CST=GMT s6, MST=GMTs7, PST=GMTs8,
AST=GMT s9, HST=GMTs10, For other areas: xx hr
4
Channel
Set Up
Disc
Video
0
i1
Press [3, 4] to select “s1”, “0”, or
“r1” and press [ENTER].
The “Set Up” screen (➜ step 2) reappears.
49
RQT6920
Glossary
Bitstream
This is the digital form of multi-channel audio data (e.g., 5.1 channel) before it is decoded into its various channels.
CPRM (Content Protection for Recordable Media)
CPRM is the copyright protection technology that is used to protect
broadcasts that are allowed to be recorded only once (e.g. some
CATV broadcasts).
Decoder
A decoder restores the coded audio signals on DVDs to normal.
This is called decoding.
Dolby Digital
This is a method of coding digital signals developed by Dolby Laboratories. Apart from stereo (2-channel) audio, these signals can also
be multi-channel audio. A large amount of audio information can be
recorded on one disc using this method.
This unit is set to record using Dolby Digital in all recording modes.
Dolby Pro Logic
A surround system where a 4-channel audio track is recorded as 2
channels and then is restored to 4 channels for play. The surround
channel is monaural and can reproduce up to 7 kHz.
DTS (Digital Theater Systems)
This surround system is used in many movie theaters around the
world. There is good separation between the channels, so realistic
sound effects are possible.
Reference
Film and video
DVD-Videos are recorded using either film or video. Usually, film is
recorded at 24 frames per second, the rate movies are filmed at,
while video is recorded at 30 frames per second.
Frame still and field still
Frames are the still pictures that go together to make a moving picture. There are about 30 frames shown each second.
One frame is made up of two fields. A regular television shows these
fields one after the other to create frames.
A still is shown when you pause a moving picture. A frame still is
made up of two alternating fields, so the picture may appear blurred,
but overall quality is high.
A field still is not blurred, but it has only half the information of a
frame still so picture quality is lower.
Interlace and progressive output
NTSC, the video signal standard, has 480 interlaced (i) scan lines,
whereas progressive scanning uses twice the number of scan lines.
This is called 480p. The video signals output from this unit’s COMPONENT VIDEO OUT terminals (Y, PB, PR) allow you to enjoy higher
quality pictures than if the signals were output from the VIDEO OUT
terminal or S-VIDEO OUT terminal.
I/P/B
MPEG 2, the video compression standard adopted for use with
DVD-Video, codes frames using these 3 picture types.
I: Intra coded picture
This picture has the best quality and is the best to use when
adjusting the picture.
P: Predictive coded picture
This picture is calculated based on past I- or P-pictures.
B: Bidirectionally-predictive coded picture
This picture is calculated by comparing past and future I- and
P-pictures so it has the lowest volume of information.
Linear PCM (pulse code modulation)
These are uncompressed digital signals. This unit outputs linear
PCM sound in 2 channels from the DIGITAL AUDIO OUT terminals.
Playback control (PBC)
If a Video CD has playback control, you can select scenes and information with menus.
Pan&Scan/Letterbox
In general, DVD-Video are produced with the intention that they be
viewed on a widescreen television with an aspect ratio of 16:9. This
means you can view most material with the intended aspect ratio on
a widescreen television.
Material with this ratio will not fit onto a standard television with an
aspect ratio of 4:3. Two styles of picture, “Pan&Scan” and “Letterbox”, deal with this problem.
Pan&Scan: The sides are cut off so the
picture fills the screen.
Letterbox:
Black bands appear at the top
and bottom of the picture so the
picture itself appears in an
aspect ratio of 16:9.
Disc handling
Do not use irregularly shaped discs, such as heart-shaped.
(These can damage the unit.)
DVD-Video, Video CD, CD
Wipe with a damp cloth and then wipe dry.
∫ How to hold a disc
∫ Handling precautions
Do not touch the recorded surface.
≥Do not write on the label side with a ball-point pen or other writing
instrument.
≥Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.
≥Do not attach labels or stickers to discs. (Do not use discs with
exposed adhesive from tape or left over peeled-off stickers.)
≥Do not use scratch-proof protectors or covers.
≥Do not use discs printed with label printers available on the market.
≥Do not use discs that are badly warped or cracked.
∫ If there is dirt or condensation on the disc
Moisture may condense on discs after they are brought inside from
the cold.
50
RQT6920
DVD-RAM and DVD-R
Clean only with the DVD-RAM/PD disc cleaner available as an
optional accessory, part number LF-K200DCA1.
Do not use cleaners or cloths for CDs to clean DVD-RAM and
DVD-R.
Error messages
On the television
Page
No disc.
≥You haven’t inserted a disc. Correctly insert a disc that this unit can use.
≥The disc is upside down. If it is a single-sided disc, insert it so the label is facing up.
11
15
This is non-recordable disc.
≥The unit cannot record on the disc you inserted. Insert a DVD-RAM or unfinalized DVD-R.
≥You inserted an unformatted DVD-RAM. Format the disc with this unit.
11
34
This disc cannot be read.
≥You inserted an incompatible disc.
11
Please check write protect tab
on the disc.
≥The write-protect tab on the cartridge is set to PROTECT.
Use a ballpoint pen or similar to release the write protection.
This disc is not formatted
properly.
Please format the disc in
‘DISC SETTING’ to record.
—
Contents of this disc are protected.
≥The program is write-protected. Cancel the protection.
≥The disc is write-protected. Cancel Disc Protection.
32
34
Cannot finish recording completely.
≥The program was copy-guarded.
≥No space left on the disc.
‹ Create space by erasing any unwanted programs. [RAM]
‹ Use a new disc. [RAM] [DVD-R]
≥Recording was not completed for some other reason.
—
32
—
—
Cannot record on the disc.
≥The disc is scratched. Use another disc.
≥The disc is dirty.
≥You inserted an incompatible disc.
—
50
11
Disc is full.
≥No space left on the disc.
‹ Create space by erasing any unwanted programs. [RAM]
‹ Use a new disc. [RAM] [DVD-R]
32
—
Please set clock.
≥The clock is not set.
49
This disc may not be played
in your region.
≥You tried to play a disc with a region number different from this unit’s region number. This unit
can only play discs with the region numbers compatible with this unit (1, All, or including the
number 1).
Your selection exceeds the
recorder’s rating limit.
≥A ratings level has been set for DVD-Video with this unit. Unlock the unit with “Ratings” in
“Disc”.
46
Finalizing is necessary for
compatible playback.
≥To enable playback of your DVD-R on compatible equipment, it is necessary to finalize it.
34
Error has occurred. Please
press [ENTER].
≥A serious, but temporary error has occurred and one of the unit’s safety devices has activated.
Press [ENTER]. The unit switches to the standby mode. Press [Í, DVD POWER] to turn the
unit on again.
—
Cover
page
Reference
PROTECT
On the unit’s display
≥The disc is dirty or badly scratched.
‹ Clean the disc if it is dirty.
‹ The disc cannot be played if it is scratched and this display doesn’t disappear.
≥The unit cannot read the disc.
≥You have used a DVD-RAM/PD lens cleaner and it has finished.
50
—
—
50
UNSUPPORT
≥You have inserted a disc the unit cannot play or record on.
11
U14
≥The unit is hot.
‹ The unit switches to standby automatically for safety reasons and you cannot operate it.
Wait for about 30 minutes for the service number to disappear.
‹ Select a position with good ventilation when installing the unit.
‹ Do not block the cooling fan on the rear of the unit.
NO READ
—
—
—
U99
≥The unit fails to operate properly. Press [Í, DVD POWER] to switch the unit to standby. Now
press [Í, DVD POWER] again to turn the unit on.
—
CHK REMOTE
≥The remote control and main unit are using different codes. Change the code on the remote
control or main unit.
45
RECOVER
≥There was a power failure or the AC plug was disconnected while the power was on. The unit
is carrying out its recovery process. Wait until the message disappears.
—
51
RQT6920
Troubleshooting guide
Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do
not solve the problem:
In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail consumerproducts@panasonic.com, or web site
(http://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer Care Centre at 1-800-561-5505, web site (www.panasonic.ca), or an authorized
Servicentre closest to you.
Power
Page
No power.
≥Insert the AC power supply cord securely into a known active AC outlet.
5
The unit switches to the
standby mode.
≥This is a power saving feature. You can turn it off if you would prefer (Set Up—Off Timer—
Off). Press [Í, DVD POWER] to turn the unit on.
≥One of the unit’s safety devices may have activated. Press [Í, DVD POWER] to turn the unit
on.
46
≥Some operations may be prohibited by the disc.
≥The unit is hot (“U14” appears on the display). Wait for “U14” to disappear.
≥One of the unit’s safety devices may have activated.
Reset the unit as follows:
1.Press [Í, DVD POWER] to switch the unit to standby.
If the unit doesn’t switch to standby, press and hold [Í, DVD POWER] for about 10 seconds. The unit is forcibly switched to standby.
Alternatively, disconnect the AC power supply cord, wait one minute, then reconnect it.
2.Press [Í, DVD POWER] to turn the unit on.
—
51
—
—
Operation
The unit is on but cannot be
operated.
≥When progressive output is on, refer also to “Progressive video” below.
Reference
The images from this unit do
not appear on the television.
≥Make sure that the television is connected to the AUDIO/VIDEO terminal, S-VIDEO OUT terminal or COMPONENT VIDEO OUT terminal on this unit.
≥Make sure that the television’s input setting (e.g., VIDEO 1) is correct.
≥You have set “TV Type” to “4:3 (480P)” or “16:9 (480P)” in the TV Screen menus, but the
television isn’t compatible with progressive signals. Press and hold [∫] and [TIME SLIP] on
the unit at the same time for about 5 seconds. The setting will change to interlace.
5
—
—
Television reception worsens
after connecting the unit.
≥This can occur because the signals are being divided between the unit and the television.
It can be solved by using a signal booster, available from audio-visual suppliers. Consult your
dealer if reception does not improve.
—
Screen size is wrong.
≥Check the settings on your television.
≥Check the settings for “TV Type”, “4:3 TV Settings for DVD-Video” or “4:3 TV Settings for
DVD-RAM” in the TV Screen menu.
—
10, 47
On-screen messages do not
appear.
≥Go to the Display menu and select “Automatic” for “Status Messages”.
≥Press [STATUS] to show the on-screen messages constantly.
47
39
The blue background does
not appear.
≥Go to the Display menu and select “On” for “Blue Background”.
47
There is ghosting.
≥Turn “MPEG-DNR” off if it is on.
38
Play stops for a moment during Quick View.
≥Play may stop where two play lists join, but this is not a malfunction.
—
There is ghosting when progressive output is on.
≥Set “Progressive” to “OFF”. This problem is caused by the editing method or material used on
DVD-Video, but should be corrected if you use interlace output.
38
There is no apparent change
in picture quality when
adjusted with the Video menu
in the on-screen menus.
≥The effect is less perceivable with some types of video.
—
Progressive video
52
RQT6920
Sound
Page
No sound.
Low volume.
Distorted sound.
≥Check the connections. Check the input mode on the amplifier if you have connected one.
Cannot hear the desired
audio type.
≥Press [AUDIO] to select the desired audio type.
Cannot switch audio during
stereo or SAP broadcasts.
≥You have used digital connection. Set “Dolby Digital” to “PCM” or connect to other equipment
using audio cables (analog connection).
≥You cannot change the audio type when a DVD-R is in the disc tray.
42, 47
Play fails to start even when
[1] (PLAY) is pressed.
Play starts but then stops
immediately.
≥Insert the disc correctly with the label facing up.
≥This unit cannot play discs other than DVD-RAM, DVD-R, DVD-Video, Video CD, CD and
MP3 discs.
≥The disc is dirty. Clean it.
≥The disc may be badly scratched.
≥You inserted a blank DVD-RAM or DVD-R.
≥Condensation has formed: Wait 1 to 2 hours for it to evaporate.
15
11
A title or chapter doesn’t play
when it is selected.
≥Some titles and chapters on DVD-Video are not played when you have changed the ratings
level.
46
Picture distorted during
search.
≥Some distortion is normal.
—
Alternative soundtrack and
subtitles cannot be selected.
≥The languages are not recorded on the disc.
≥You may have to use the disc’s menus to select languages.
—
17
No subtitles.
≥Subtitles are not recorded on the disc.
≥Turn the subtitles on.
—
36
Angle cannot be changed.
≥This function depends on software availability. Angles can only be changed during scenes
where different angles are recorded.
—
You have forgotten your ratings password.
≥Return the ratings setting to “8”.
While the disc tray is open, press and hold [:/6] and [5/9] on the main unit at the
same time for 5 or more seconds.
—
≥Turn V.S.S. off if it causes distortion.
5,
41–43
37
23
—
Play
Displays
The display is dim.
≥Go to the Display menu and change the display’s brightness with “FL Display”.
47
“12:00” is flashing on the
unit’s display.
≥The clock is not set.
49
The displayed recording time
and actual recording time differ.
≥Displayed recording time is based on the number of frames per second. This number is subject to minute variations. When recording over long periods, these variations may result in the
difference between displayed recording time and actual recording time. This is normal.
—
The display doesn’t show the
correct time. [MP3]
≥Times may not appear correctly when searching through tracks recorded with a variable bit
rate.
—
≥[DVD, TV] is not switched to “DVD”. Switch to “DVD” when operating this unit.
≥The remote control and main unit are using different codes. Change the code on the remote
control or main unit.
≥The batteries are depleted. Replace them with new ones.
≥Point the remote control at the remote control sensor on the main unit.
≥Remove obstacles from between the remote control and main unit.
12
45
≥Change manufacturer code. Some televisions cannot be operated even if you change the
code.
≥[DVD, TV] is not switched to “TV”. Switch to “TV” when selecting the receiving channel for the
television.
10
Reference
50
—
—
—
Remote control
The remote control doesn’t
work.
Cannot operate the television.
6
6
—
12
53
RQT6920
Troubleshooting guide
Recording and timer recording
Cannot record.
VCR Plusr programming
does not work properly.
≥You haven’t inserted a disc or the disc you inserted cannot be recorded on. Insert a disc the
unit can record onto.
≥The disc is unformatted. Format the disc so this unit can record on it.
≥The write-protect tab on the cartridge is set to PROTECT.
≥Some programs have limitations on the number of times they can be recorded (CPRM).
≥The disc is protected with DISC SETTING.
≥The disc is full or nearly full. Erase unneeded programs or use another disc.
≥You cannot record on finalized DVD-R discs.
11
≥The guide channels are incorrect. Go to the Channel menu and correct them with “VCR
Plusi CH Setting”.
≥The clock is wrong. Go to the Set Up menu and correct it with “Clock Settings”.
8
34
11
14
34
32
—
49
≥The timer program is incorrect. Correct the program.
≥The unit is not on timer recording standby. (“F” on the unit’s display is not on.) Press [Í,
DVD POWER] to turn the unit off and make sure that “F” is on.
≥Different timer program times overlap.
≥The clock is wrong. Go to the Set Up menu and correct it with “Clock Settings”.
26
—
The unit switches to standby
while making a timer recording.
≥The disc has run out of space. Use a disc that has enough space to record the program.
—
The timer program remains
even after recording finishes.
≥The program remains if you select “DAILY” or “WEEKLY”.
25
Timer recording does not
stop even when [∫] is
pressed.
≥Press [∫] and then [ENTER] within 5 seconds to turn “F” off. Recording stops.
—
The available recording time
doesn’t increase even after
erasing recordings on the
disc.
≥As this unit is unable to erase data written to DVD-RAM with a computer, the available recording time does not increase. The data will be erased if you reformat the disc.
≥If the disc is dirty, wipe with the DVD-RAM/PD disc cleaner (optional) before formatting.
34
A part or whole of a recorded
program has been lost.
≥If there is a power failure or the plug is disconnected from the household AC outlet while
recording or editing, the program may be lost or the disc may become unusable.
‹ We cannot offer any guarantee regarding lost programs or discs. You will have to format
the disc or use a new disc.
Timer recording does not
work properly.
Reference
Page
—
49
50
34
Discs make sounds as they rotate. This does not indicate a malfunction.
Maintenance
The precision parts in this unit are readily affected by the environment, especially temperature, humidity, and dust. Cigarette
smoke also can cause malfunction or breakdown.
To clean this unit, wipe with a soft, dry cloth.
≥Never use alcohol, paint thinner or benzine to clean this unit.
≥Before using chemically treated cloth, read the instructions that
came with the cloth carefully.
Observe the following points to ensure continued listening and
viewing pleasure.
Dust and dirt may adhere to the unit’s lens over time, making it
impossible to record or play discs.
Use DVD-RAM/PD lens cleaner (LF-K123LCA1) every 1 to 4
months, depending on frequency of use and the operating environment. Read the lens cleaner’s instructions carefully before use.
Product Service
1. Damage requiring service—The unit should be serviced by
qualified service personnel if:
(a)The AC power supply cord or AC adaptor has been damaged;
or
(b)Objects or liquids have gotten into the unit; or
(c)The unit has been exposed to rain; or
(d)The unit does not operate normally or exhibits a marked
change in performance; or
(e)The unit has been dropped or the cabinet damaged.
2. Servicing—Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to authorized servicing personnel.
54
RQT6920
3. Replacement parts—When parts need replacing ensure the
servicer uses parts specified by the manufacturer or parts that
have the same characteristics as the original parts. Unauthorized
substitutes may result in fire, electric shock, or other hazards.
4. Safety check—After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working
condition.
Product information
For product information or assistance with product operation:
In the U.S.A., contact the Panasonic Customer Call Center at
1-800-211-7262, or e-mail consumerproducts@panasonic.com,
or web site (http://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer Care Centre at 1-800-561-5505, web site (www.panasonic.ca), or an
authorized Servicentre closest to you.
Specifications
Optical pick-up:
Recordable discs:
Recording time:
Discs played:
Video system
TV system:
Recording system:
Input:
DVD video recording standards
(DVD-RAM),
DVD video standards (DVD-R)
System with 1 lens, 2 integration
units (662 nm wavelength for DVDs,
790 nm wavelength for CDs)
12 cm (5q) 4.7 GB DVD-RAM discs
12 cm (5q) 9.4 GB DVD-RAM discs
8 cm (3q) 2.8 GB DVD-RAM discs
12 cm (5q) 4.7 GB DVD-R discs
8 cm (3q) 1.4 GB DVD-R discs
(for General Ver. 2.0)
Max. 6 hours (using 4.7 GB disc)
XP: 60 minutes
SP: 120 minutes
LP: 240 minutes
EP: 360 minutes
12 cm (5q) 4.7 GB DVD-RAM discs
12 cm (5q) 9.4 GB DVD-RAM discs
8 cm (3q) 2.8 GB DVD-RAM discs
12 cm (5q) 4.7 GB DVD-R discs
8 cm (3q) 1.4 GB DVD-R discs
(for General Ver. 2.0)
DVD-VIDEO discs
CD-Audio discs (CD-DA)
Video CD discs
CD-R/CD-RW discs
(CD-DA, Video CD, MP3 formatted
discs)
[MP3]
≥Maximum number of tracks and
groups recognizable: 999 tracks
and 99 groups
≥Compatible compression rate:
between 32 kbps and 320 kbps
NTSC system, 525 lines, 60 fields
MPEG2 (Hybrid VBR)
LINE (pin jack)a3, 1.0 Vp-p; 75 ≠
S connectora3
Y: 1.0 Vp-p; 75 ≠
C: 0.286 Vp-p; 75 ≠
Output:
LINE (pin jack)a1, 1.0 Vp-p; 75 ≠
S connectora1
Y: 1.0 Vp-p; 75 ≠
C: 0.286 Vp-p; 75 ≠
Component video output (480P/480i):
Y: 1.0 Vp-p; 75 ≠
PB: 0.7 Vp-p; 75 ≠
PR: 0.7 Vp-p; 75 ≠
Antenna reception input:
TV Channel: 2ch–69ch, 75 ≠
CATV Channel: 1ch–125ch, 75 ≠
Audio system
Recording system:
Input:
Dolby Digital (XP/SP/LP/EP)
LINE (pin jack)a3
Reference input: 309 mVrms
FS: 2 Vrms (1 kHz, 0 dB)
Input impedance: 47 k≠
Output:
LINE (pin jack)a1
Reference output: 309 mVrms
FS: 2 Vrms (1 kHz, 0 dB)
Output impedance: 1 k≠
(Load impedance: 10 k≠)
Number of channels:
Recording: 2 channels
Playback: 2 channels
Other input/output connectors:
Digital audio optical output connector
Operating temperature range:
5 oC–40 oC (41 oF–104 oF)
Operating humidity range:
10 %–80 % RH (no condensation)
Clock unit:
Quartz-controlled 12-hour digital display
LASER Specification
Class I LASER Product
Wave length:
775–815 nm 655–666 nm
Laser power:
No hazardous radiation is emitted with
the safety protection
Power supply:
AC 120 V, 60 Hz
Power consumption:
26 W
Dimensions:
Approx. 430 (W)k79 (H)k283 (D) mm
[Approx.1615/16q(W)k31/8q(H)k113/16q(D)]
(excluding protrusions)
Mass:
Approx. 3.7 kg (8.14 lbs)
Power consumption in standby mode: approx. 3.2 W
[Note]
Specifications are subject to change without notice.
Mass and dimensions are approximate.
Reference
Recording system:
55
RQT6920
Limited Warranty (ONLY FOR U.S.A.)
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic Sales Company, Division of Matsushita Electric
of Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic DVD Player/Recorder
Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively
referred to as “the warrantor”) will, for the length of the period indicated on the chart below,
which starts with the date of original purchase (“warranty period”), at its option either (a)
repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished
product. The decision to repair or replace will be made by the warrantor.
Product or Part Name
Parts
Labor
DVD Player
One (1) Year
Ninety (90) Days
DVD Recorder
One (1) Year
One (1) Year
Rechargeable Batteries,
DVD-RAM Disc (in
exchange for defective
item)
Ten (10) Days
Not Applicable
During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. You must carry-in or mail-in your product during the warranty period. If non-rechargeable batteries are included, they are not warranted.
This warranty only applies to products purchased and serviced in the United States or Puerto
Rico. This warranty is extended only to the original purchaser of a new product which was not
sold “as is”. A purchase receipt or other proof of the original purchase date is required for warranty service.
Carry-In or Mail-In Service
For Carry-In or Mail-In Service in the United States call 1-800-211-PANA(7262) or visit Panasonic Web Site: http://www.panasonic.com
For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax
(787)-768-2910.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES
NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT
COVER damages which occurred in shipment, or failures which are caused by products not
supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect,
mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment
of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of
the product, service by anyone other than a Factory Servicenter or other Authorized Servicer,
or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS
WARRANTY. (As examples, this excludes damages for lost time, travel to and
from the servicer, loss of media or images, data or other recorded content. The
items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND
IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights
which vary from state to state. If a problem with this product develops during or
after the warranty period, you may contact your dealer or Servicenter. If the
problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the addresses listed for the warrantor.
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.
Reference
Customer Services Directory
For Product Information, Operating Assistance, Literature Request, Dealer Locations, and
all Customer Service inquiries please contact:
1-800-211-PANA (7262), Monday–Friday 9 am–9 pm; Saturday–Sunday 9 am–7 pm, EST.
or send e-mail:
consumerproducts@panasonic.com
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Web Site: http://www.panasonic.com
You can purchase parts, accessories or
locate your nearest servicenter by visiting
our Web Site.
Accessory Purchases:
1-800-332-5368 (Customer Orders Only)
For hearing or speech impaired TTY uers, TTY: 1-866-605-1277
Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032
(6 am to 5 pm Monday–Friday; 6 am to 10:30 am Saturday; PST)
(Visa, MasterCard, Discover Card, American Express, Check)
Service in Puerto Rico
Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/Factory Servicenter:
Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Phone (787) 750-4300 Fax (787) 768-2910
F0102NY1082
The model number and serial number of this product can be
found on either the back or the bottom of the unit.
Please note them in the space provided below and keep for
future reference.
MODEL NUMBER
56
RQT6920
SERIAL NUMBER
DMR-E50
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
Limited Warranty (ONLY FOR CANADA)
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC/TECHNICS PRODUCT—LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a
period as stated below from the date of original purchase.
Panasonic DVD Recorder One (1) year, parts and labour
LIMITATIONS AND EXCLUSIONS
This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage
for which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that
affects the reliability or detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries are also
excluded from coverage under this warranty.
This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is required before
warranty service is performed.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, EXCLUDING ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied
warranties, so the above limitations and exclusions may not be applicable.
WARRANTY SERVICE
For product operation and information assistance, please contact your Dealer or our Customer Care Centre at: Telephone #: (905) 624-5505
Fax #: (905) 238-2360 Web: www.panasonic.ca
Richmond,
British Columbia
Panasonic Canada Inc.
12111 Riverside Way
Richmond, BC
V6W 1K8
Tel: (604) 278-4211
Fax: (604) 278-5627
Calgary, Alberta
Mississauga, Ontario
Lachine, Québec
Panasonic Canada Inc.
6835-8th St. N. E.
Calgary, AB
T2E 7H7
Tel: (403) 295-3955
Fax: (403) 274-5493
Panasonic Canada Inc.
5770 Ambler Dr.
Mississauga, ON
L4W 2T3
Tel: (905) 624-8447
Fax: (905) 238-2418
Panasonic Canada Inc.
3075, rue Louis A. Amos
Lachine, QC
H8T 1C4
Tel: (514) 633-8684
Fax: (514) 633-8020
Reference
For product repairs, please contact one of the following:
≥Your Dealer who will inform you of an authorized Servicentre nearest you.
≥Our Customer Care Centre at (905) 624-5505 or www.panasonic.ca
≥A Panasonic Factory Servicentre listed below:
CUSTOMER’S RECORD:
Customer Name:
Model Number:
Serial Number:
Date of Purchase:
Dealer’s Name:
Address:
Phone Number:
IF YOU SHIP THE PRODUCT TO A SERVICENTRE
Carefully pack and send prepaid, adequately insured and preferably in the original carton.
Include details of the defect claimed, and proof of date of original purchase.
57
RQT6920
Instalación básica
Conexiones del televisor y de la antena
Televisor
A la antena
Cable de TV
AUDIO
IN
R L
VIDEO
IN
VHF/UHF
RF IN
Antena exterior
Antena interior
o
Rojo Blanco Amarillo
Cable de alimentación de CA (incluido)
Conecte por último.
Conecte también los cables de
alimentación de CA para el otro equipo.
75 ≠ cable coaxial
(incluido)
Cable de audio/
vídeo
(incluido)
Cable de antena
(desconectado
normalmente
desde el
televisor)
A la toma de CA del hogar
(CA 120 V, 60 Hz)
Rojo Blanco Amarillo
Ventilador de refrigeración
Este aparato
RF IN
R-AUDIO-L
VIDEO
S-VIDEO
(L1)
IN 1
Y
PB
PR
OPTICAL
Español
RF OUT
OUT
IN 3
R-AUDIO-L
VIDEO
S-VIDEO
(L3)
R-AUDIO-L
VIDEO
S-VIDEO
COMPONENT
VIDEO OUT
(480P/480I)
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
VHF/UHF
Para disfrutar del vídeo progresivo
≥Conecte a los terminales de entrada de vídeo componente (480P) en un televisor compatible con el sistema de protección contra copia del aparato. (El vídeo no se visualizará
correctamente si está conectado a un televisor incompatible).
≥Ajuste “TV Type” a “4:3 & 480P” o “16:9 & 480P”. (➜página 59, “Instalación para ajustar
su televisor”)
Preparación
≥Confirme que la antena esté conectada correctamente.
≥Encienda el televisor y seleccione en él la entrada de vídeo
apropiada para ajustar las conexiones realizadas al aparato.
DVD POWER TV
Í,DVD POWER
DVD
Í
TV
Í
VCR Plus+ TV/VIDEO REC MODE REC
1
2
3
4
5
6
Plug-in para Sintonización automática
CH
1
Pulse [Í, DVD POWER]
encender el aparato.
2
Pulse [3, 4] para seleccionar
“Español” y pulse [ENTER].
3
Pulse [ENTER].
VOLUME
7
8
9
0
100
para
CANCEL
CANCEL
SKIP
SLOW/SEARCH
PAUSE
STOP
DIRECT NAVIGATOR
3, 4, 2, 1
ENTER
PLAY/a
1. 3
PLAY LIST
MENU
TOP
MENU
Se activa el plug-in para la Sintonización automática y el
aparato transforma las emisoras que puede recibir en
canales.
ENTER
RETURN
FUNCTIONS
CM SKIP TIME SLIP
OPEN/CLOSE STATUS
FRAME
SETUP
AUDIO INPUT SELECT DISPLAY
ERASE
F Rec
SETUP
58
RQT6920
4
RETURN
PROG/CHECK ADD/DLT
DISPLAY
POSITION MEMORY MARKER
Cuando el visualizador muestre la hora correcta
Pulse [ENTER] para desactivar el
plug-in
para
Sintonización
automática.
Ajuste esta guía de canales de manera que pueda utilizar los
códigos i VCR Plus para la grabación con temporizador.
Instalación para ajustar su televisor
Cambie los ajustes si su televisor es:
≥De pantalla panorámica (relación del ancho a la altura de la
imagen 16:9)
≥Progresivo
– Si desea información más detallada, lea el manual de instrucciones de su televisor.
1
Pulse [SETUP] para visualizar los
menús.
2
Pulse [3, 4] para
“Canal” y pulse [1].
seleccionar
1
Pulse [SETUP] para visualizar los
menús.
3
Pulse [3, 4] para seleccionar “VCR
Plusr Ajuste canal” y pulse [ENTER].
2
Pulse [3, 4] para seleccionar
“Pantalla TV” y pulse [1].
4
Pulse [3, 4] para seleccionar la guía
de canales que desea ajustar y pulse
[1].
3
Pulse [3, 4] para seleccionar “Tipo
TV” y pulse [ENTER].
≥Compruebe en las guías de televisión las guías de canales
para las emisoras.
≥Al seleccionar la guía de canales, pulse y mantenga
pulsado [3, 4] para desplazar la pantalla hacia arriba y
hacia abajo.
4
Pulse [3, 4] para seleccionar el
elemento y pulse [ENTER].
Pulse [3, 4] para seleccionar el
canal correspondiente a la guía de
canales y pulse [2].
Pulse [RETURN].
5
6
Para volver a la pantalla anterior
Cuando haya finalizado
Pulse [SETUP].
≥Compruebe en las guías de televisión el número de canal
para las emisoras.
≥Para borrar un número, pulse [CANCEL].
≥Repita los pasos 4 y 5 si es necesario.
Si selecciona el elemento para salida progresiva (480P)
Pulse [ENTER].
Durante la reproducción
1. Pulse [DISPLAY].
2. Pulse [3, 4] para seleccionar “Vídeo” y pulse [1].
3. Pulse [3, 4] para seleccionar “Progresiva” y pulse [1] dos
veces.
4. Pulse [3, 4] para seleccionar “Transferencia” de acuerdo con
el tipo de material en reproducción.
Vuelve a aparecer la pantalla del paso 2.
Para volver a la pantalla anterior
Pulse [RETURN].
Cuando haya finalizado
Pulse [SETUP].
Seleccione Vídeo en el menú en pantalla y ajuste “Transferencia”
de acuerdo con el tipo de material en reproducción durante la
reproducción.
Disco
Repr.
Vídeo
Audio
Imagen
Normal
DNR
Progresiva
Español
Guía VCR Plusi para ajuste de canales
ACT
ACT
Transferencia
Auto 1
Auto1 (normal): Para material cinematográfico
Auto2: Para material cinematográfico (igual que Auto1, capaz de
convertir vídeo progresivo de 30 cuadros por segundo).
Vídeo: Para material de vídeo
[Note]
≥Si el aparato está conectado al TV a través de VIDEO OUT o SVIDEO OUT, la salida se entrelaza sólo (incluso al seleccionar la
salida progresiva).
≥Cuando la salida progresiva está activada, no se pueden
visualizar encabezamientos cerrados.
59
RQT6920
Grabación de programas de televisión
[RAM] [DVD-R]
Bandeja del disco
1
4 23 5
1
Pulse [Í, DVD POWER]
encender el aparato.
2
Pulse [< OPEN/CLOSE] para abrir la
bandeja e introduzca un disco
(➜ siguiente página).
? 1
≥Vuelva a pulsar el botón para cerrar la bandeja.
≥En un disco de doble cara, no es posible grabar de manera
continua desde una cara a la otra. Será necesario expulsar
el disco y darle la vuelta.
Indicador Time Slip
TIME SLIP
3
4
TV/VIDEO
3
5
1
Botones
numerados
CAN
?
PLAY/
Asegúrese de que [DVD, TV] se
encuentre en la posición “DVD” y
pulse [W, X, CH] para seleccionar el
canal.
por ejemplo., al
seleccionar el
canal 4
CEL
SE
PAU
1
;
a 1 .3
OP
ST
4
3, 4, 2, 1
ENTER
DIRECT
NAVIGATOR
Pulse [REC MODE] para seleccionar
el modo de grabación (➜ siguiente
página).
por ejemplo., al
seleccionar
“XP”
TIME SLIP
Español
2
para
5
FR
ec
Para detener la grabación
Pulse [∫].
Para hacer una pausa en la grabación
Pulse [;]. Vuelva a pulsar para reanudar la grabación.
Apagado automático
El aparato pasa al modo en espera después de aproximadamente 6
horas en el modo de parada. Puede desactivar esta función o
cambiar el tiempo a 2 horas en el Temporizador de desconexión del
Menú de instalación.
Pulse [¥,
grabación.
REC]
para
iniciar
la
Para su referencia
≥Puede grabar hasta 99 programas en un disco.
≥Este aparato es compatible con el sistema Content Protection
for Recordable Media (CPRM) de manera que se pueden grabar
emisiones que permitan realizar una copia, como algunas
emisiones CATV, en 4.7 GB/9.4 GB DVD-RAM (éstas son
compatibles con CPRM). No es posible grabar en DVD-R ni 2.8
GB DVD-RAM.
≥La grabación se realizará en el espacio libre del disco. Los datos
no se sobrescribirán.
[Note]
≥Durante la grabación no se pueden cambiar ni el canal ni el modo
de grabación.
≥Suelte la protección durante la grabación. [RAM]
≥Al utilizar un soporte DVD-RAM por primera vez con este aparato,
formatéelo y asegúrese de que la grabación sea precisa.
≥En la grabación en DVD-R hay limitaciones.
≥Durante la grabación de sonido MTS en DVD-R, únicamente se
puede grabar o el canal principal o el subcanal. Seleccione en
“Select MTS” del Menú de audio.
60
RQT6920
Si se aflojase accidentalmente el cable de
alimentación de CA o si se interrumpiese la
alimentación por alguna otra razón durante la
grabación o edición, podría perderse el contenido
del disco.
Introducción de discos
Reproducción durante la grabación
[RAM]
[RAM] [DVD-R]
Puede introducir un disco con o sin estuche.
Reproducción desde el inicio del programa que
está grabando—Reproducción encadenada
Disco sin estuche
Introduzca la etiqueta
mirando hacia arriba.
Introduzca dentro
de las guías de la
bandeja.
Pulse [1] (PLAY).
La reproducción se inicia desde el principio del programa que se
está grabando. (Se enciende el indicador Time Slip).
Disco con
estuche
Grabación y reproducción simultáneas
Puede reproducir un programa grabado previamente.
Introduzca la etiqueta mirando hacia arriba y
con la fecha hacia el interior.
1
Durante la grabación
Pulse [DIRECT NAVIGATOR].
[Note]
≥Cargue discos de doble cara de manera que la etiqueta de la cara
que desee grabar/reproducir quede mirando hacia arriba.
≥Al utilizar DVD-RAM de 8 cm (3″), retire el disco del estuche e
introdúzcalo, asegurándose de que quede alineado con la ranura.
Se enciende el indicador Time Slip.
2
Revisión de imágenes grabadas durante la
reproducción—Time Slip
Modos de grabación y tiempo de
grabación aproximado en horas
DVD-RAM
De una sola
cara
(4.7 GB)
De doble
cara
(9.4 GB)
DVD-R
(4.7 GB)
XP (Alta calidad)
1
2
1
SP (Normal)
2
4
2
LP (Disco de larga
duración)
4
8
4
EP (Disco de extra
larga duración)
6
12
6
Modo
Visualización del televisor durante la
grabación
[RAM] [DVD-R]
Las imágenes siendo grabadas no se ven afectadas.
Interruptor [DVD, TV] a “TV”.
1 Pulse [TV/VIDEO] para cambiar el modo de entrada del
televisor a “TV”.
2 Pulse [W, X, CH] para cambiar canales.
≥También puede seleccionar el canal con los botones
numerados.
por ejemplo., “5”:
[0] ➜[5]
“15”: [1] ➜[5]
“115”: [100] ➜ [1] ➜ [5]
Puede reproducir el programa que se está grabando para
comprobar que se está grabando correctamente. También puede
comprobar las partes que se han grabado previamente.
1
Pulse [TIME SLIP].
Se enciende el indicador Time Slip.
La reproducción se inicia a partir de los 30 segundos
anteriores. Las imágenes que se están grabando en ese
momento se muestran como imágenes dentro de imágenes y
podrá escuchar el audio de reproducción.
2
Español
Disco
Pulse [3, 4] para seleccionar un
programa y pulse [ENTER].
Pulse [3, 4] para introducir la hora y
pulse [ENTER].
≥Pulse [TIME SLIP] para mostrar las imágenes de
reproducción enteras. Vuelva a pulsar para mostrar las imágenes de reproducción y grabación.
Para detener la reproducción y la grabación
1 Pulse [∫]. (La reproducción se detiene).
Espere 2 segundos.
2 Pulse [∫]. (La grabación se detiene).
≥Para detener la grabación con temporizador, pulse [∫],
después [ENTER] en un transcurso de 5 segundos.
61
RQT6920
Reproducción de discos
[RAM] [DVD-R] [DVD-V] [VCD] [CD] [MP3]
Bandeja del disco
1
2 ERASE
1
2
?
3
:/6, 5/9
≥Vuelva a pulsar el botón para cerrar la bandeja.
≥Si está activada la protección del estuche, pulsando [<
OPEN/CLOSE] se iniciará automáticamente la reproducción. [RAM]
≥En un disco de doble cara, no es posible reproducir de
manera continua desde una cara a la otra. Será necesario
expulsar el disco y darle la vuelta.
DVD/TV
1
3
Botones
numerados
CAN
CEL
SE
PAU
PLAY/
a 1.3
:, 9
OP
ST
?
;
3
MENU
RETURN
DIRECT
NAVIGATOR,
TOP MENU
Pulse [Í, DVD POWER] para
encender el aparato.
Pulse [< OPEN/CLOSE] para abrir la
bandeja e introducir un disco (‹
página 61).
Pulse [1] (PLAY).
El aparato tarda algún tiempo en leer el
disco antes de iniciar la reproducción.
(Cuando aparece una pantalla de menús
en el televisor ➜ siguiente página)
≥Si la función de reanudación (➜ más abajo, Para detener la
reproducción) no está activa, la reproducción se iniciará
desde el programa grabado más recientemente.
3, 4, 2, 1
ENTER
Español
2
FR
ec
ERASE
POSITION
MEMORY
Para detener la reproducción
[Note]
Pulse [∫].
≥Cuando “PLAY” parpadea en el visualizador, se
está activando la función de reanudación. Pulse
[1] (PLAY) para iniciar la reproducción desde la
posición en que la detuvo.
Para cancelar la función, pulse [∫] hasta que se
apague “PLAY” (también se cancela la posición al apagar el
aparato o abrir la bandeja del disco).
≥Al detener la reproducción puede que
aparezca el salvapantallas en el lado
derecho. Vuelva a pulsar [∫] y podrá
utilizar el sintonizador del aparato para ver
el televisor.
≥Si se carga un disco, se pondrá en marcha el aparato y se iniciará
la reproducción al pulsar [1] (PLAY).
≥Al reproducir un disco con una sola pista de audio, puede que se
siga mostrando el vídeo del disco anterior en el televisor.
≥Los niveles reales de sonido para DVD de Vídeo son inferiores en
relación a la emisión de televisión o a la reproducción de otros
discos. Para evitar una subida repentina del volumen al conectar
desde DVD de Vídeo, reduzca el ajuste de volumen antes de
reproducir otras fuentes o conectar la emisión de televisión.
Para hacer una pausa en la
reproducción
Pulse [;]. (Vuelva a pulsar para reanudar la reproducción).
Apagado automático
El aparato pasa al modo en espera después de aproximadamente 6
horas en el modo de parada. Puede desactivar esta función o
cambiar el tiempo a 2 horas en el Temporizador de desconexión del
Menú de instalación.
62
RQT6920
Utilización del Navegador directo
[RAM] [DVD-R]
[VCD]
Interruptor [DVD, TV] a “DVD” y
Al grabar una serie de programas, se crea un lista. Puede utilizar
esta lista para encontrar programas para su visualización.
Pulse los botones numerados (0, 1j9) para seleccionar
un elemento.
1
Pulse [DIRECT NAVIGATOR].
El programa resaltado se
reproduce de fondo.
por ejemplo., “5”: [0] ➜ [5]
“15”: [1] ➜ [5]
DIRECT NAVIGATOR
[DVD-V]
2
≥Puede que también sea posible utilizar los botones numerados (0,
1j9) para seleccionar un elemento.
Otros botones utilizados para activar menús
Si desea más información sobre el funcionamiento, lea las
instrucciones de los discos.
[9][5]: Muestra el siguiente menú.
[:][4]: Muestra el menú anterior.
[RETURN]: Muestra la pantalla de menús. [VCD]
[TOP MENU]: Muestra la primera pantalla de menús. [DVD-V]
[MENU]: Muestra la pantalla de menús. [DVD-V]
Pulse [3, 4]
para seleccionar
el programa y
pulse [ENTER].
3
No POS
FECHA
01
02
03
6/20 MIÉ 10 : 00 AM Dinosaur
6/20 MIÉ 9 : 00 PM Auto action
6/20 MIÉ 11 : 00 PM USJ
TOTAL 3
[Note]
Para detener la reproducción
Pulse [∫].
TíTULO
No
EDITAR
1
1
1
1
1
SELECT
0 ~ 9
ENTER
RETURN
Para cancelar la lista de programas
Pulse [DIRECT NAVIGATOR].
Sobre la lista de programas
Protección contra escritura
Se visualiza cuando se ha protegido
el programa.
[RAM] [DVD-R] [DVD-V] [VCD] [CD] [MP3]
Después de apagar el aparato, puede iniciar la reproducción desde
una posición memorizada.
Protección contra copia
Se visualiza cuando se ha grabado
un programa que dispone de
protección
contra
copia,
de
emisiones CATV, por ejemplo.
Incapaz de reproducir
Se visualiza si no es posible reproducir el
programa.
Grabación en proceso
Se visualiza cuando el programa se está
reproduciendo.
(Cuando se muestra el tiempo de reproducción transcurrido)
Durante la reproducción
Pulse [POSITION MEMORY].
El mensaje “Posicion Memorizada” aparece en el televisor.
Después de pasar el aparato a la posición de modo en
espera y de volver a ponerlo en funcionamiento
3
3
Memoria de posición
2
HORA
≥También puede seleccionar programas con los botones
numerados.
por ejemplo., “5”: [0] ➜ [5]
“15”: [1] ➜ [5]
La reproducción de las imágenes que se estaba
reproduciendo de fondo continúa.
≥Los discos siguen girando mientras se muestran los menús. Pulse
[∫] una vez finalizada la visualización para mantener en buen
estado el motor del aparato y la pantalla del televisor.
≥Si aparece “/” en el televisor, la unidad o disco impiden el
funcionamiento.
≥Las funciones disponibles varían de un disco a otro.
1
4
6
13
3
Pulse [3, 4, 2, 1] para seleccionar un elemento y
pulse [ENTER].
No POS FE
01 4 6/20
02 6 6/20
03 13 6/20
X 04 2 6/21
¥ 05 8 6/22
TOTAL 5
Español
Cuando aparece una pantalla de menús
en el televisor
N
0 ~
Pulse [1] (PLAY).
La reproducción se inicia desde la posición memorizada. (La
posición se cancela).
Para borrar un programa que se está
reproduciendo
[Note]
[DVD-R] [DVD-V] [VCD] [CD] [MP3]
≥La posición se cancela al abrir la bandeja del disco.
[RAM]
≥Los posiciones siguen estando memorizadas incluso tras haber
abierto la bandeja del disco.
≥Si el disco está protegido contra escritura, no se pueden marcar
posiciones.
Para su referencia
Si pulsa [∫] antes de pasar el aparato a la posición de modo en
espera después de pulsar [POSITION MEMORY] para memorizar
una posición, se reanudará la reproducción desde la posición
pulsada [∫] al pulsar [1] (PLAY).
Ya que el programa borrado con este procedimiento no se
puede recuperar, debería asegurarse de que desea
borrarlo antes de realizar la operación.
1
Pulse [ERASE].
Se visualizará una pantalla de confirmación.
2
Pulse [2] para seleccionar “Borrar” y
pulse [ENTER].
≥En el aparato principal, pulse [D] y [ERASE].
[Note]
≥No es posible borrar el programa al realizar una grabación y
reproducción simultáneas (➜página 61). [RAM]
≥La cantidad de espacio que queda en el disco no aumenta incluso
al borrar programas. [DVD-R]
63
RQT6920
Index
Angle . . . . . . . . . . . . . . . . . . . . . . . . 36
Antenna system . . . . . . . . . . . . . . . . 7
Audio attribute . . . . . . . . . . . . . . . . 36
Channel caption . . . . . . . . . . . . . . . . 9
Channel setting . . . . . . . . . . . . . . . . 9
Chasing play . . . . . . . . . . . . . . . . . . 22
Cleaning
disc . . . . . . . . . . . . . . . . . . . . . . . . . . 50
lens . . . . . . . . . . . . . . . . . . . . . . . . . 54
main unit . . . . . . . . . . . . . . . . . . . . . 54
Clock setting . . . . . . . . . . . . . . . . . . 49
CM Skip . . . . . . . . . . . . . . . . . . . . . . 18
Connection
amplifier, system component . . . . . . 42
antenna . . . . . . . . . . . . . . . . . . . . . . 44
antenna, television . . . . . . . . . . . . . . . 5
cable TV box, satellite receiver . . . . 41
video equipment . . . . . . . . . . . . . . . . 43
CPRM system . . . . . . . . . . . . . . . . . 50
Dialog Enhancer . . . . . . . . . . . . . . . 37
Direct Navigator . . . . . . . . . . . . . . . 17
Divide Program . . . . . . . . . . . . . . . . 32
Edit Scenes . . . . . . . . . . . . . . . . . . . 30
Enter title
disc . . . . . . . . . . . . . . . . . . . . . . . . . . 34
play list . . . . . . . . . . . . . . . . . . . . . . . 30
program . . . . . . . . . . . . . . . . . . . 24, 32
Finalize . . . . . . . . . . . . . . . . . . . . . . 34
Flexible Recording (FR) . . . . . . 15, 23
Format DVD-RAM . . . . . . . . . . . . . . 34
FUNCTIONS window. . . . . . . . . . . . 23
Language code list . . . . . . . . . . . . . 48
Marker . . . . . . . . . . . . . . . . . . . . . . . 20
MPEG-DNR . . . . . . . . . . . . . . . . . . . 38
MP3 . . . . . . . . . . . . . . . . . . . . . . . . . 21
On-screen display. . . . . . . . . . . . . . 39
On-screen menu . . . . . . . . . . . . . . . 36
PCM Down Conversion . . . . . . . . . 47
Picture . . . . . . . . . . . . . . . . . . . . . . . 38
PLAY FROM TOP . . . . . . . . . . . . . . 23
Play list . . . . . . . . . . . . . . . . . . 28, 30
Position memory . . . . . . . . . . . . . . 17
Progressive . . . . . . . . . . 5, 10, 38, 50
Properties
play list . . . . . . . . . . . . . . . . . . . . . . 30
program . . . . . . . . . . . . . . . . . . . . . . 32
Ratings password . . . . . . . . . . . . .
Recording mode . . . . . . . . . . . . . . .
Re-initialize setting. . . . . . . . . . . . .
Repeat play . . . . . . . . . . . . . . . . . . .
Resume function . . . . . . . . . . . . . .
46
15
46
37
16
SETUP menu . . . . . . . . . . . . . . . . . .
Shorten Segment . . . . . . . . . . . . . .
Simultaneous rec and play . . . . . .
Sound track. . . . . . . . . . . . . . . . . . .
Subtitle . . . . . . . . . . . . . . . . . . . . . .
48
32
22
36
36
Time Slip . . . . . . . . . . . . . . . . . . 19, 22
Timer recording . . . . . . . . . . . . 24–26
Transfer . . . . . . . . . . . . . . . . . . . . . 38
TV Type . . . . . . . . . . . . . . . . . . . . . . 10
VCR Plusi
guide channel . . . . . . . . . . . . . . . . . . 8
timer recording . . . . . . . . . . . . . . . . . 24
V.S.S. . . . . . . . . . . . . . . . . . . . . . . . . 37
Protection
cartridge . . . . . . . . . . . . . . . . . . . . . . 11
disc. . . . . . . . . . . . . . . . . . . . . . . . . . 34
program . . . . . . . . . . . . . . . . . . . . . . 32
Quick View. . . . . . . . . . . . . . . . . . . . 19
Erase
all program . . . . . . . . . . . . . . . . . . . . 34
play list . . . . . . . . . . . . . . . . . . . . 29, 30
play list scene . . . . . . . . . . . . . . 29, 31
program . . . . . . . . . . . . . . . . . . . 17, 32
Índice
Reproducción encadenada . . . . . . 61
Conexión
Modo de grabación . . . . . . . . . . . . . 61
Función de reanudación . . . . . . . . 62
antena, televisor . . . . . . . . . . . . . . . . 58
Navegador directo . . . . . . . . . . . . . 63
Borrar
programa . . . . . . . . . . . . . . . . . . . . . 63
Memoria de posición . . . . . . . . . . . 63
Progresivo . . . . . . . . . . . . . . . . . . . . 58
Grabación y reproducción
simultáneas . . . . . . . . . . . . . . . . . . . 61
Time Slip . . . . . . . . . . . . . . . . . . . . . 61
Tipo TV. . . . . . . . . . . . . . . . . . . . . . . 59
VCR Plusi
guía de canales . . . . . . . . . . . . . . . . 59
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing uses only.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual
property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by
Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
Panasonic Sales Company,
Division of Matsushita Electric
of Puerto Rico, Inc. (“PSC”)
One Panasonic Way Secaucus,
New Jersey 07094
http://www.panasonic.com
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
C 2002 Matsushita Electric Industrial Co., Ltd.
Printed in Japan
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
pr
RQT6920-P
F1202YM1122
