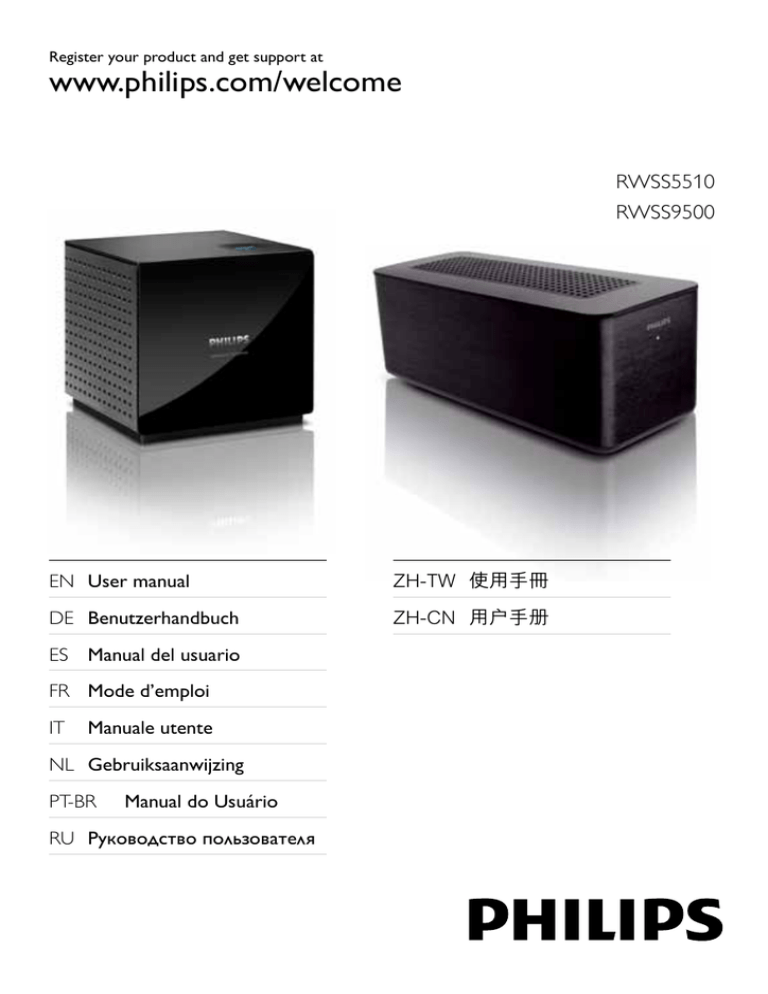

Register your product and get support at
www.philips.com/welcome
RWSS5510
RWSS9500
EN User manual
ZH-TW 使用手冊
DE Benutzerhandbuch
ZH-CN 用户手册
ES Manual del usuario
FR Mode d’emploi
IT Manuale utente
NL Gebruiksaanwijzing
PT-BR
Manual do Usuário
RU Руководство пользователя
English
Contents
1Notice 2
Compliance
2
Important
2
Disposal of your old product
3
2Connect3
Place the wireless receiver 3
Connect the wireless transmitter 3
Connect rear speakers to wireless receiver 4
Connect power cord 4
3Troubleshooting5
4 Product specifications 5
EN
1
1Notice
Philips
Modelo: RWSS5510, RWSS9500
Compliance
Agência Nacional de Telecomunicações
This product is in compliance with the essential
requirements and other relevant provisions of
Directives 2006/95/EC (Low Voltage), 2004/108/
EC (EMC).
Hereby, Philips Consumer Lifestyle, declares that
this Wireless Rear Audio System RWSS5510,
RWSS9500 is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC.
Note
•• This equipment has been tested and found
to comply with the limits for a Class B,C
digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
2
EN
“Este equipamento opera em caráter secundário,
isto é, não tem direito à proteção contra
interferência prejudicial, mesmo de estações do
mesmo tipo, e não pode causar interferência a
sistemas operando em caráter primário.”
Important
Read and understand all instructions before you
use your product. If damage is caused by failure
to follow instructions, the warranty does not
apply.
Safety
Risk of electric shock or fire!
•• Never expose the product and accessories
to rain or water. Never place liquid
containers, such as vases, near the product.
If liquids are spilt on or into the product,
disconnect it from the power outlet
immediately. Contact Philips Consumer
Care to have the product checked before
use.
•• Never place the product and accessories
near naked flames or other heat sources,
including direct sunlight.
•• Never insert objects into the ventilation
slots or other openings on the product.
•• Where the mains plug or an appliance coupler
is used as the disconnect device, the disconnect
device shall remain readily operable.
•• Disconnect the product from the power
outlet before lightning storms.
•• When you disconnect the power cord,
always pull the plug, never the cable.
Risk of short circuit or fire!
•• Before you connect the product to the
power outlet, ensure that the power
voltage matches the value printed on the
back or bottom of the product. Never
connect the product to the power outlet if
the voltage is different.
2Connect
English
Risk of injury or damage to the product!
•• Never place the product or any objects
on power cords or on other electrical
equipment.
•• If the product is transported in
temperatures below 5°C, unpack the
product and wait until its temperature
matches room temperature before
connecting it to the power outlet.
Risk of overheating!
•• Never install this product in a confined
space. Always leave a space of at least four
inches around the product for ventilation.
Ensure curtains or other objects never
cover the ventilation slots on the product.
Place the wireless receiver
Place the wireless receiver near the AC outlet
and in between the rear speakers. Align the
wireless receiver with the home theater, with
Philips logo facing the home theater.
Disposal of your old product
Your product is designed and manufactured with
high quality materials and components, which
can be recycled and reused.
WIRELESS
RECEIVER
Note
•• For best reception, make sure that the line-
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local
separate collection system for electrical and
electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste.
Correct disposal of your old product helps to
prevent potential negative consequences for the
environment and human health.
of-site between the wireless receiver and the
home theater is not blocked by furniture, walls
and other objects.
Connect the wireless
transmitter
Connect the wireless transmitter to the
WIRELESS REAR AUDIO connector on the
back of the home theater.
EN
3
Connect rear speakers to
wireless receiver
For RWSS9500
REAR
RIGHT
REAR
LEFT
Note
•• The rear speakers in the picture shown may
vary.
~AC MAINS
For RWSS5510
REAR LEFT REAR RIGHT
REAR REAR
RIGHT LEFT
~AC MAINS
REAR
LEFT
REAR
RIGHT
Connect the rear left and rear right speakers
to the matching connectors at the back of the
wireless receiver.
Connect power cord
Warning
•• Risk of product damage! Ensure that the
Connect the speaker adapters, rear left, and rear
right speakers to the matching connectors at the
bottom of the wireless receiver.
4
EN
power supply voltage corresponds to the
voltage printed on the back or the underside
of the product.
Connect the power cords for home theater,
wireless receiver and other devices after you have
made all of the other connections.
»» The wireless indicator lights and the
wireless receiver is ready to use.
Follow these steps within twenty seconds if
there is no sound from the rear speakers and
the indicator on the wireless receiver blinks
continuously for more than one minute.
For home theater with Blu-ray
Disconnect the power cord from the
wireless receiver for a few seconds and
connect it back again.
Switch to either AUX source or MP3 link
source.
Press and hold the Navigation button,
(right) for three seconds.
»» ‘PAIRING’ blinks and then ‘PAIRED’ is
displayed.
1
2
3
4
If ‘FAILED’ is displayed, repeat steps 1 to 3.
For other home theaters
Disconnect the power cord from the
wireless receiver for a few seconds and
connect it back again.
Press .
Press INFO.
»» A screen is displayed.
1
2
3
4Press 1, then press SURR within five
5
seconds.
»» ‘PAIRING SUCCESS’ is displayed.
If ‘PAIRING FAIL’ is displayed, repeat steps 1
to 4.
4Product
specifications
English
3Troubleshooting
Note
•• Specification and design are subject to change
without notice.
Wireless receiver
For RWSS5510
•• Power supply rating: 110-240V; ~50-60 Hz
•• Total output power: 250 W (RMS)
•• Power consumption: 50 W
•• Standby power consumption: ≤ 0.45 W
•• Frequency response: 150 Hz ~ 20 kHz
•• S/N Ratio: 65 dB (A-Weighted)
•• Distortion: 1%
•• Dimensions (WxHxD): 126 x 131 x 126
(mm)
•• Weight: 1.1 kg
For RWSS9500
•• Power supply rating: 110-240V; ~50-60 Hz
•• Total output power: 300 W (RMS)
•• Power consumption: 40 W
•• Standby power consumption: ≤ 0.45 W
•• Frequency response: 150 Hz ~ 20 kHz
•• S/N Ratio: 65 dB (A-Weighted)
•• Distortion: 1%
•• Dimensions (WxHxD): 265 x 116 x 106
(mm)
•• Weight: 1.4 kg
Wireless transmitter
•• Frequency response: 5.8 GHz
•• Dimensions (WxHxD): 55 x 53 x 33 (mm)
•• Weight: 0.05 kg
EN
5
