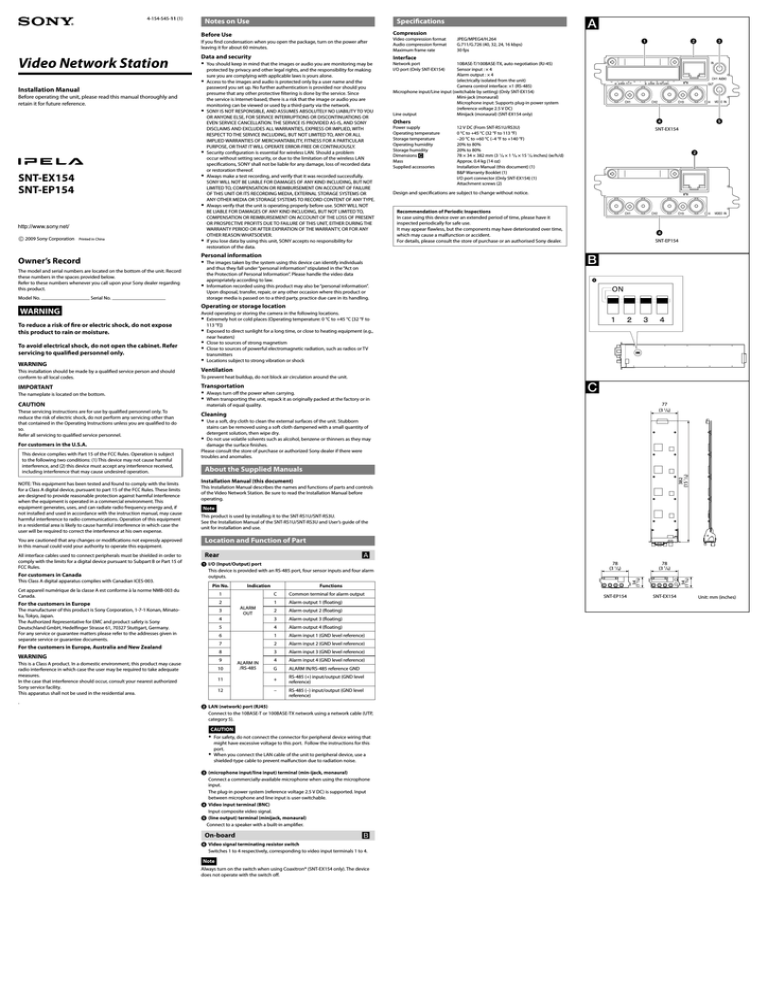

Video Network Station
Installation Manual
Before operating the unit, please read this manual thoroughly and retain it for future reference.
SNT-EX154
SNT-EP154
4-154-545-11 (1)
2009 Sony Corporation Printed in China
Owner’s Record
The model and serial numbers are located on the bottom of the unit. Record these numbers in the spaces provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this product.
Model No. Serial No.
WARNING
To reduce a risk of fire or electric shock, do not expose this product to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
WARNING
This installation should be made by a qualified service person and should conform to all local codes.
IMPORTANT
The nameplate is located on the bottom.
CAUTION
These servicing instructions are for use by qualified personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the Operating Instructions unless you are qualified to do so.
Refer all servicing to qualified service personnel.
For customers in the U.S.A.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B or Part 15 of
FCC Rules.
For customers in Canada
This Class A digital apparatus complies with Canadian ICES-003.
.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du
Canada.
For the customers in Europe
The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minatoku, Tokyo, Japan.
The Authorized Representative for EMC and product safety is Sony
Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany.
For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.
For the customers in Europe, Australia and New Zealand
WARNING
This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.
In the case that interference should occur, consult your nearest authorized
Sony service facility.
This apparatus shall not be used in the residential area.
Notes on Use
Before Use
If you find condensation when you open the package, turn on the power after leaving it for about 60 minutes.
Data and security
You should keep in mind that the images or audio you are monitoring may be
protected by privacy and other legal rights, and the responsibility for making sure you are complying with applicable laws is yours alone.
Access to the images and audio is protected only by a user name and the password you set up. No further authentication is provided nor should you presume that any other protective filtering is done by the service. Since the service is Internet-based, there is a risk that the image or audio you are monitoring can be viewed or used by a third-party via the network.
SONY IS NOT RESPONSIBLE, AND ASSUMES ABSOLUTELY NO LIABILITY TO YOU
OR ANYONE ELSE, FOR SERVICE INTERRUPTIONS OR DISCONTINUATIONS OR
EVEN SERVICE CANCELLATION. THE SERVICE IS PROVIDED AS-IS, AND SONY
DISCLAIMS AND EXCLUDES ALL WARRANTIES, EXPRESS OR IMPLIED, WITH
RESPECT TO THE SERVICE INCLUDING, BUT NOT LIMITED TO, ANY OR ALL
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, OR THAT IT WILL OPERATE ERROR-FREE OR CONTINUOUSLY.
Security configuration is essential for wireless LAN. Should a problem occur without setting security, or due to the limitation of the wireless LAN specifications, SONY shall not be liable for any damage, loss of recorded data or restoration thereof.
Always make a test recording, and verify that it was recorded successfully.
SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT
LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF FAILURE
OF THIS UNIT OR ITS RECORDING MEDIA, EXTERNAL STORAGE SYSTEMS OR
ANY OTHER MEDIA OR STORAGE SYSTEMS TO RECORD CONTENT OF ANY TYPE.
Always verify that the unit is operating properly before use. SONY WILL NOT
BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO,
COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT
OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE
WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY
OTHER REASON WHATSOEVER.
If you lose data by using this unit, SONY accepts no responsibility for restoration of the data.
Personal information
The images taken by the system using this device can identify individuals and thus they fall under “personal information” stipulated in the “Act on the Protection of Personal Information”. Please handle the video data appropriately according to law.
Information recorded using this product may also be “personal information”.
Upon disposal, transfer, repair, or any other occasion where this product or storage media is passed on to a third party, practice due care in its handling.
Operating or storage location
Avoid operating or storing the camera in the following locations.
Extremely hot or cold places (Operating temperature: 0 °C to +45 °C [32 °F to
113 °F])
Exposed to direct sunlight for a long time, or close to heating equipment (e.g.,
near heaters)
Close to sources of strong magnetism
Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters
Locations subject to strong vibration or shock
Ventilation
To prevent heat buildup, do not block air circulation around the unit.
Transportation
Always turn off the power when carrying.
When transporting the unit, repack it as originally packed at the factory or in materials of equal quality.
Cleaning
Use a soft, dry cloth to clean the external surfaces of the unit. Stubborn
stains can be removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry.
Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the surface finishes.
Please consult the store of purchase or authorized Sony dealer if there were troubles and anomalies.
About the Supplied Manuals
Installation Manual (this document)
This Installation Manual describes the names and functions of parts and controls of the Video Network Station. Be sure to read the Installation Manual before operating.
Note
This product is used by installing it to the SNT-RS1U/SNT-RS3U.
See the Installation Manual of the SNT-RS1U/SNT-RS3U and User’s guide of the unit for installation and use.
Location and Function of Part
Rear
I/O (Input/Output) port
This device is provided with an RS-485 port, four sensor inputs and four alarm outputs.
Indication
6
7
4
5
Pin No.
1
2
3
8
9
10
11
12
ALARM
OUT
ALARM IN
/RS-485
2
3
4
1
4
G
2
3
C
1
+
–
Functions
Common terminal for alarm output
Alarm output 1 (floating)
Alarm output 2 (floating)
Alarm output 3 (floating)
Alarm output 4 (floating)
Alarm input 1 (GND level reference)
Alarm input 2 (GND level reference)
Alarm input 3 (GND level reference)
Alarm input 4 (GND level reference)
ALARM IN/RS-485 reference GND
RS-485 (+) input/output (GND level reference)
RS-485 (–) input/output (GND level reference)
LAN (network) port (RJ45)
Connect to the 10BASE-T or 100BASE-TX network using a network cable (UTP, category 5).
CAUTION
For safety, do not connect the connector for peripheral device wiring that might have excessive voltage to this port. Follow the instructions for this port.
When you connect the LAN cable of the unit to peripheral device, use a shielded-type cable to prevent malfunction due to radiation noise.
(microphone input/line input) terminal (min-ijack, monaural)
Connect a commercially-available microphone when using the microphone input.
The plug-in power system (reference voltage 2.5 V DC) is supported. Input between microphone and line input is user-switchable.
Video input terminal (BNC)
Input composite video signal.
(line output) terminal (minijack, monaural)
Connect to a speaker with a built-in amplifier.
On-board
Video signal terminating resistor switch
Switches 1 to 4 respectively, corresponding to video input terminals 1 to 4.
Note
Always turn on the switch when using Coaxitron® (SNT-EX154 only). The device does not operate with the switch off.
Specifications
Compression
Video compression format
Audio compression format
Maximum frame rate
JPEG/MPEG4/H.264
G.711/G.726 (40, 32, 24, 16 kbps)
30 fps
Interface
Network port
I/O port (Only SNT-EX154)
Line output
10BASE-T/100BASE-TX, auto negotiation (RJ-45)
Sensor input : × 4
Alarm output : × 4
(electrically isolated from the unit)
Camera control interface: ×1 (RS-485)
Microphone input/Line input (switchable by setting) (Only SNT-EX154)
Mini-jack (monaural)
Microphone input: Supports plug-in power system
(reference voltage 2.5 V DC)
Minijack (monaural) (SNT-EX154 only)
Others
Power supply
Operating temperature
Storage temperature
Operating humidity
Storage humidity
Dimensions
Mass
Supplied accessories
12 V DC (From SNT-RS1U/RS3U)
0 °C to +45 °C (32 °F to 113 °F)
–20 °C to +60 °C (–4 °F to +140 °F)
20% to 80%
20% to 80%
78 × 34 × 382 mm (3 1 /
8
× 1 3 /
8
× 15 1 /
8
inches) (w/h/d)
Approx. 0.4 kg (14 oz)
Installation Manual (this document) (1)
B&P Warranty Booklet (1)
I/O port connector (Only SNT-EX154) (1)
Attachment screws (2)
Design and specifications are subject to change without notice.
Recommendation of Periodic Inspections
In case using this device over an extended period of time, please have it inspected periodically for safe use.
It may appear flawless, but the components may have deteriorated over time, which may cause a malfunction or accident.
For details, please consult the store of purchase or an authorised Sony dealer.
78
(3 1 /
8
)
SNT-EP154
SNT-EX154
SNT-EP154
77
(3 1 /
8
)
78
(3 1 /
8
)
SNT-EX154 Unit: mm (inches)
