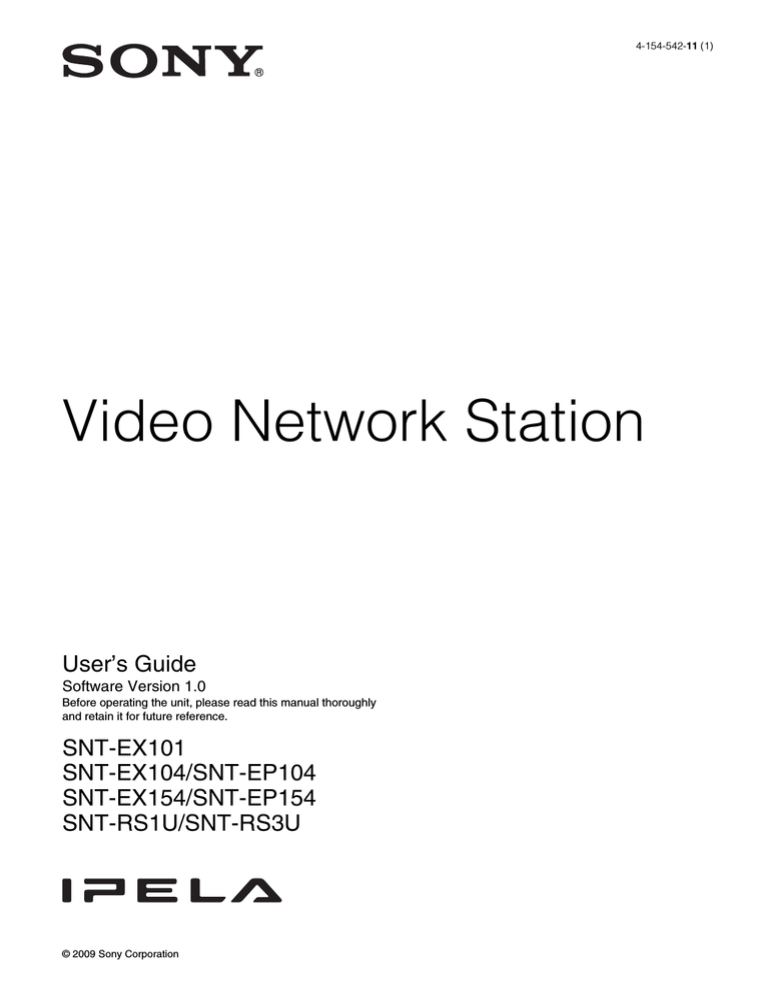

4-154-542-11 (1)
Video Network Station
User’s Guide
Software Version 1.0
Before operating the unit, please read this manual thoroughly
and retain it for future reference.
SNT-EX101
SNT-EX104/SNT-EP104
SNT-EX154/SNT-EP154
SNT-RS1U/SNT-RS3U
© 2009 Sony Corporation
Table of Contents
Overview
Features .................................................................. 4
How to Use This User’s Guide .............................. 5
System Requirements ............................................ 5
Preparation
Assigning the IP Address to the unit ................... 6
Assigning an IP address using SNC toolbox ..... 6
When using Windows XP Service Pack 2 or
later ................................................................... 8
When using Windows Vista ............................. 10
Accessing the System Using the Web
Browser ................................................................. 13
Basic Configuration by the Administrator ....... 15
Operating the unit
Administrator and User ...................................... 16
Logging in to System ........................................... 17
Logging in as a user ......................................... 17
About Viewers .................................................. 17
Configuration of Main Viewer ........................... 18
Main menu ....................................................... 18
Control panel section ....................................... 18
Monitor image .................................................. 20
Plug-in free Viewer .......................................... 20
Operating the Camera ........................................ 21
Controlling via the control panel ..................... 21
Moving the camera to a preset position ........... 22
Using the Trigger Button ................................... 22
Sending a monitor image via e-mail ................ 22
Sending a monitor image to an FTP server ...... 22
Recording a camera image as a still image ...... 22
Controlling alarm output .................................. 23
Playing an audio file stored in the system ........ 23
Switching TCP/UDP Transmission Mode ......... 23
Using the System Utility ...................................... 24
SNC Viewer ..................................................... 24
SNC Desktop Viewer ....................................... 26
2
Table of Contents
Administrating the unit
Basic Operations of the Administrator Menu ...27
How to set up the Administrator menu .............27
Configuration of the Administrator menu ........28
Configuring the System — System Menu ..........29
System Tab ........................................................29
Date & time Tab ................................................30
Superimpose Tab ..............................................31
Initialize Tab .....................................................32
System log Tab .................................................33
Access log Tab ..................................................33
Setting the Camera Image and Audio
— Camera Menu ..................................................34
Common Tab ....................................................34
Picture Tab ........................................................35
Privacy Masking tab .........................................35
Video codec Tab ...............................................36
Streaming Tab ...................................................37
Configuring the Network — Network Menu .....38
Network Tab .....................................................38
QoS Tab ............................................................39
Dynamic IP address notification Tab — Notifying
the IP Address .................................................40
Setting the SSL function — SSL Menu ..............42
SSL tab .............................................................42
CA certificate tab — Adding the CA certificate for
client authentication ........................................44
How to install the CA certificate ......................45
To remove an installed CA certificate ..............46
Using the 802.1X Authentication Function
— 802.1X Menu ....................................................47
System configuration of 802.1X network ........47
Common Tab – Basic setting of 802.1X
authentication function ...................................47
Client certificate Tab .........................................48
CA certificate Tab .............................................49
Setting the 802.1X authentication function
– Example of Windows Server 2003 ..............50
Setting the User — User Menu ...........................53
Setting the Security — Security Menu ...............54
Saving the Camera Position and Action — Preset
position Menu .......................................................54
Position Tab — Saving pan/tilt/zoom
position ...........................................................54
Position Tour Tab — Setting a position tour ....56
Sending an Image via E-mail — e-Mail (SMTP)
Menu ..................................................................... 57
Common Tab — Setting the e-Mail (SMTP)
Function .......................................................... 57
Alarm sending Tab — Setting the e-mail sending
mode when detecting the alarm ...................... 58
Periodical sending Tab — Setting the periodical
e-mail sending mode ...................................... 59
Sending Images to FTP Server — FTP client
Menu ..................................................................... 60
Common Tab — Setting the FTP client
function .......................................................... 60
Alarm sending Tab — Setting the FTP client
action when detecting the alarm ..................... 61
Periodical sending Tab — Setting the periodical
FTP client activity .......................................... 62
Recording Images in Memory — Image memory
Menu ..................................................................... 63
Common Tab — Setting the image memory
function .......................................................... 63
Alarm recording Tab — Setting the Image
memory function when detecting the
alarm ............................................................... 64
Periodical recording Tab — Setting the periodical
recording mode ............................................... 65
Folder structure of image memory ................... 66
Downloading Images from the system — FTP
server Menu ......................................................... 67
Setting the Alarm Output — Alarm output
Menu ..................................................................... 67
Alarm output Tab .............................................. 67
Outputting Audio Linked to Alarm Detection
— Voice alert Menu ............................................. 69
Voice alert 1, 2, 3 Tab ....................................... 69
Setting the Operations from the Viewer
— Trigger Menu .................................................. 70
Setting the Schedule — Schedule Menu ............ 72
Setting the Alarm Buffer — Alarm buffer
Menu ..................................................................... 73
Setting the Motion Detection/VMF Function
— Motion detection Menu .................................. 73
What are VMF functions-Video Motion
Filter ............................................................... 73
Setting items for motion detection ................... 74
VMF setting items ............................................ 76
Simple motion detection function .................... 79
Transmitting with External Equipment
— PTZ control I/F Menu .................................... 80
Configuring the Viewer — Viewer Menu .......... 81
Layout tab ......................................................... 81
HTML output tab ............................................. 83
Others
Using the Supplied SNC toolbox .........................84
Starting SNC toolbox ........................................84
How to use SNC toolbox ..................................84
Registering in My device ..................................86
Changing the Device list display method .........87
Setting SNC toolbox options ............................88
Using Privacy Masking — Masking
a Camera Image ..............................................89
Using the Custom Homepage ...........................90
Using the Firmware Upgrade ............................91
Using the Schedule Task ...................................91
Configuring the device setting ..........................93
Device restart and initialization ........................94
Using the SNC audio upload tool — Transmitting
Audio to unit .........................................................95
Installing the SNC audio upload tool ................95
Connecting the unit to the Computer ................95
Using the SNC audio upload tool .....................96
Using the SNC video player — Playing a Video/
Audio File Recorded with the unit ....................100
Installing the SNC video player ......................100
Using the SNC video player ...........................101
Assigning the IP Address to the unit using ARP
Commands ..........................................................102
Using the SNMP .................................................102
1. Inquiry Commands ....................................102
2. Setting Commands .....................................103
Glossary ..............................................................104
Index ....................................................................107
Table of Contents
3
Overview
Overview
Features
• High-quality live images from camera can be
monitored at a maximum frame rate of 30 fps.
• XDNR and Visibility Enhancer enable clearer images
for streaming.
• Three video compression modes (video codecs)
JPEG/MPEG4/H.264 are supported.
• Single codec mode and dual codec modes are
available.
• The motion detection function is provided on the
SNT-EX101, SNT-EX104 and SNT-EX154. The
simple motion detection function is provided on the
SNT-EP104 and SNT-EP154. The camera tampering
detection alarm function is provided on the
SNT-EX101, SNT-EX104 and SNT-EX154.
• Up to 10 users can view images from one camera at
the same time.
• Date/time can be superimposed on the image.
NOTICE TO USERS
© 2009 Sony Corporation. All rights reserved. This
manual or the software described herein, in whole or in
part, may not be reproduced, translated or reduced to
any machine readable form without prior written
approval from Sony Corporation.
SONY CORPORATION PROVIDES NO
WARRANTY WITH REGARD TO THIS MANUAL,
THE SOFTWARE OR OTHER INFORMATION
CONTAINED HEREIN AND HEREBY EXPRESSLY
DISCLAIMS ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR ANY
PARTICULAR PURPOSE WITH REGARD TO THIS
MANUAL, THE SOFTWARE OR SUCH OTHER
INFORMATION. IN NO EVENT SHALL SONY
CORPORATION BE LIABLE FOR ANY
INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES, WHETHER BASED ON TORT,
CONTRACT, OR OTHERWISE, ARISING OUT OF
OR IN CONNECTION WITH THIS MANUAL, THE
SOFTWARE OR OTHER INFORMATION
CONTAINED HEREIN OR THE USE THEREOF.
Sony Corporation reserves the right to make any
modification to this manual or the information
contained herein at any time without notice.
The software described herein may also be governed by
the terms of a separate user license agreement.
• “IPELA” and
are trademarks of
Sony Corporation.
• Microsoft, Windows and Internet Explorer are
registered trademarks of Microsoft Corporation in
the United States and/or other countries.
• Java is a trademark of Sun Microsystems, Inc. in the
United States and other countries.
• Intel and Pentium are registered trademarks of Intel
Corporation or its subsidiaries in the United States
and other countries.
• Adobe, Adobe Reader and Adobe Flash are
trademarks of Adobe Systems Incorporated in the
United States and/or other countries.
All other company and product names are trademarks
or registered trademarks of the respective companies or
their respective makers.
4
Features
How to Use This User’s
Guide
The following computer environment is necessary for
the computer to display images and the controls of the
camera.
(August 2009)
CPU
Intel Core 2 Duo, 1.8 GHz or higher.
Jumping to a related page
Memory
1 GB or more.
When you read the User’s Guide on the computer
display, you can click on a sentence to jump to a related
page.
OS
Microsoft Windows XP, Windows Vista
Software display examples
Note that the displays shown in the User’s Guide are
explanatory examples. Some displays may be different
from the ones that appear in actual use.
The illustrations of the camera and menu display in the
User’s Guide show the SNC-RH124, SNC-RH164 or
SNT-EX104 video network station as an example.
Overview
This User’s Guide explains how to operate the video
network station from a computer.
The User’s Guide is designed to be read on the computer
display.
This section gives tips on making the most of the User’s
Guide-read it before you operate the camera.
System Requirements
Web Browser
Microsoft Internet Explorer Ver 6.0 or 7.0
Display
1280 × 1024 pixels or higher.
Printing the User’s Guide
Depending on your system, certain displays or
illustrations in the User’s Guide, when printed out, may
differ from those that appear on your screen.
Installation Manual (printed matter)
The supplied Installation Manual describes the names
and functions of parts and controls of the video network
station, connection examples, and how to set up the
camera. Be sure to read the Installation Manual before
hand.
How to Use This User’s Guide
5
Preparation
The Preparation section explains what the administrator
has to prepare for monitoring images after installation
and connection of the unit.
Assigning an IP address using SNC
toolbox
1
Preparation
Assigning the IP
Address to the unit
To connect the unit to a network, you need to assign a
new IP address to the unit when you install it for the first
time.
You can assign an IP address in two ways:
• Using SNC toolbox stored in the supplied CD-ROM
(see this page)
• Using the ARP (Address Resolution Protocol)
commands (see page 102)
When you are using Windows Vista, the “Auto
play” pop-up may appear. For details, see
“Installing software” in “When using Windows
Vista” on page 10.
2
3
If you click “Save” on the “File Download” dialog,
you will not be able to perform set up correctly.
Delete the downloaded file, and click the Setup
icon again.
4
Install SNC toolbox on your computer using the
wizard.
If the Software License Agreement is displayed,
read it carefully and click Accept to continue with
the installation.
5
Start SNC toolbox.
When you are using Windows Vista, the message
“User Account Control – An unidentified program
wants access to your computer” may appear. In this
case, click Allow.
6
6
Assigning the IP Address to the unit
Click File Open.
Note
Notes
• SNC toolbox may not operate correctly if you use a
personal firewall or antivirus software in your
computer. In that case, disable the software or assign
an IP address to the camera using another method. For
example, see “Assigning the IP Address to the unit
using ARP Commands” on page 102.
• If you are using Windows XP Service Pack 2 or later,
or Windows Vista, disable the Windows Firewall
function. Otherwise SNC toolbox will not operate
correctly. For the setting, see “Configuring Windows
Firewall” in “When using Windows XP Service Pack
2 or later” on page 9 or “Configuring Windows
Firewall” in “When using Windows Vista” on
page 11.
Click the Setup icon of SNC toolbox.
The File Download dialog opens.
When you are using Windows XP Service Pack 2 or
later, or Windows Vista, a message regarding the
active contents may appear. For details, see
“Installing software” in “When using Windows XP
Service Pack 2 or later” on page 8 or “Installing
software” in “When using Windows Vista” on
page 10.
This section explains how to assign an IP address to the
unit using the supplied setup program and how to
configure the network.
Before starting, connect the unit, referring to
“Connection” in the supplied Installation Manual.
Consult the administrator of the network about the
assigned IP address.
Insert the CD-ROM in your CD-ROM drive.
A cover page appears automatically in your Web
browser.
If it does not appear automatically in the Web
browser, double-click the index.htm file on the
CD-ROM.
Click Search.
SNC toolbox detects the video network stations
connected to the local network and lists them.
9
Set the IP address.
To obtain the IP address automatically from a
DHCP server:
Select Obtain an IP address automatically.
The IP address, Subnet mask and Default gateway
are assigned automatically.
Note
Tip
The factory setting of the unit network is DHCP
mode.
7
Select a unit you want to assign an IP address from
the list and click Network.
The account settings screen is displayed.
Preparation
When you select Obtain an IP address
automatically, make sure that the DHCP server is
operating on the network.
To specify the IP address manually:
Select Use the following IP address, and type the
IP address, Subnet mask and Default gateway in the
relevant boxes.
10 Set the DNS server address.
To obtain the DNS server addresses
automatically:
Select Obtain DNS server address automatically.
To specify the DNS server addresses manually:
Select Use the following DNS server address, and
type the Primary DNS server address and
Secondary DNS server address in the relevant
boxes.
11 Set the HTTP port No.
Normally, select 80 for the HTTP port No. To use
another port number, type a port number between
1024 and 65535 in the text box.
8
Register the name and password of the
administrator and click OK.
The factory settings for both items are “admin.”
The Network Setting screen is displayed.
Note
When using a port number other than 80, check
with the network administrator first.
12 Confirm that all items are correctly set, then click
OK.
If “Setting OK” is displayed, the IP address is
correctly assigned.
13 When setting is finished, to access the unit directly,
double-click the unit name in the list.
Assigning the IP Address to the unit
7
The viewer screen of the video network station is
displayed on the Web browser.
If the message “File Download – Security Warning”
appears, click Run.
Display sample
Program name
Preparation
Note
If the IP address is not set correctly, the viewer does not
appear after step 13. In that case, try to set the IP address
again.
When using Windows XP Service
Pack 2 or later
Note
If you select Save in the “File Download – Security
Warning” dialog, you will not be able to perform the
installation correctly. Delete the downloaded file, and
click the Setup icon again.
If the message “Internet Explorer – Security Warning”
appears, click Run.
Installing software
A warning message regarding the active contents may
appear when you install software such as SNC toolbox
from CD-ROM. In this case, operate as follows:
Program name
Example: In case of SNC toolbox
If message “Internet Explorer” appears, click Yes.
The software installation starts.
Installing ActiveX Control
During installation of ActiveX Control, the
“Information Bar” or “Security Warning” may appear.
In this case, operate as follows:
If the message “Information Bar” appears, click OK.
8
Assigning the IP Address to the unit
If the information bar appears, click on the bar and select
Install ActiveX Control….
3
Select Windows Firewall and select Off in the
Windows Firewall dialog.
If “ Internet Explorer – Security Warning” appears, click
Install.
Preparation
Program name
The installation of ActiveX Control starts. When
installation is completed, the main viewer or the Motion
detection menu appears.
Configuring Windows Firewall
SNC toolbox or SNC audio upload tool may not operate
correctly depending on the configuration of Windows
Firewall. (No video network stations are shown in the
list even if they are detected.) In this case, confirm the
Windows Firewall configuration as follows:
The video network station will be displayed in the
list.
If you want to keep Windows Firewall On, continue
with the following steps.
Example: In case of SNC toolbox
4
Select the “Exceptions” tab.
1
Select Control Panel from the Start menu of
Windows.
5
Click Add Program….
2
Select Security Center of the working field.
Assigning the IP Address to the unit
9
6
In the Add Program dialog, select SNC toolbox and
click OK.
If the pop-up “AutoPlay” appears when a CD-ROM is
inserted into the CD-ROM drive, click Install or run
program.
SNC toolbox is added to the Programs and Services
list.
7
Click OK.
Preparation
Program name
Note
If you click Open folder to view files, the Web browser
will not open automatically. In this case, double-click
the “index.htm” file in the CD-ROM.
If the message “Internet Explorer” appears, click Yes.
When the above procedure is completed, the video
network station connected in the local network are
displayed in SNC toolbox.
When using Windows Vista
Installing software
A warning message regarding the active contents may
appear when you install software such as SNC toolbox
from the CD-ROM. In this case, operate as follows:
If the message “File Download – Security Warning”
appears, click Run.
Example: In case of SNC toolbox
Program name
10
Assigning the IP Address to the unit
If the message “User Account Control – Windows needs
your permission to continue” appears, click Continue.
Note
If you select Save in the “File Download – Security
Warning” dialog, you will not be able to perform
installation correctly. Delete the downloaded file, and
click the Setup icon again.
If “Internet Explorer – Security Warning” appears, click
Install.
If the message “Internet Explorer – Security Warning”
appears, click Run.
Program name
Preparation
Program name
The installation of ActiveX Control starts. When
installation is completed, the main viewer or the Motion
detection menu appears.
Configuring Windows Firewall
If the message “User Account Control – An unidentified
program wants access to your computer” appears, click
Allow.
The software installation starts.
SNC toolbox or SNC audio upload tool may not operate
correctly depending on the configuration of Windows
Firewall. (No cameras are shown in the list even if they
are detected.) In this case, confirm the Windows
Firewall configuration as follows:
Starting the software
Example: In the case of SNC toolbox
When you start software such as SNC toolbox, the
message “User Account Control – An unidentified
program wants access to your computer” may appear. In
this case, click Allow.
1
Select Control Panel from the Start menu of
Windows.
2
Click Windows Firewall.
Installing ActiveX Control
3
Select Turn Windows Firewall on or off.
“User Account Control – Windows needs your
permission to continue” may appear. In this case,
click Continue.
During installation of ActiveX Control, the information
bar or “Security Warning” may appear. In this case,
operate as follows:
If the message “Information Bar” appears, click Close.
If the information bar appears, click on the bar and select
Install ActiveX Control….
Assigning the IP Address to the unit
11
4
Select Off in the “General” tab.
8
Click OK.
Preparation
The video network station will be displayed in the
list.
If you want to keep Windows Firewall On, continue
with the following steps.
5
Select the “Exceptions” tab.
6
Click Add a Program….
7
If the Add a Program dialog appears, select SNC
toolbox and click OK.
SNC toolbox is added to the Program or port list.
12
Assigning the IP Address to the unit
When the above procedure is completed, the video
network station connected in the local network are
displayed in SNC toolbox.
Accessing the System
Using the Web Browser
After the IP address has been assigned to the unit, check
that you can actually access the system using the Web
browser installed on your computer.
Use Internet Explorer as a Web browser.
Start the Web browser on the computer and type the
IP address of the unit in the URL address bar.
Preparation
1
When Internet Explorer 7 is used
When you enter the unit IP address, “Certificate Error”
may appear according to the status of the certificate set
on the system. In this case, click Continue to this
website (not recommended). to continue.
The welcome page appears (in SSL communication).
The viewer window is displayed.
Display sample
When “Allow HTTP connection for some
clients” (page 42) is checked
To use HTTP and SSL connections separately to access,
enter the following in the address box of the browser.
For HTTP connection
For SSL connection
Using the SSL function
Note
The model on sale in China does not support the SSL
function.
When the viewer of the unit is displayed
for the first time
“Security Warning” is displayed. When you click Yes,
ActiveX control is installed and the viewer is displayed.
When Internet Explorer 6 is used
“Security Alert” dialog may appear according to the
status of the certificate. In this case, click Yes to
continue.
The viewer window is displayed (in SSL
communication).
Accessing the System Using the Web Browser
13
Notes
Preparation
• If Automatic configuration is enabled in the Local
Area Network (LAN) settings of Internet Explorer, the
image may not be displayed. In that case, disable
Automatic configuration and set the Proxy server
manually. For the setting of the Proxy server, consult
your network administrator.
• When you install ActiveX Control, you should be
logged in to the computer as Administrator.
• If you are using Windows XP Service Pack 2 or later,
or Windows Vista, the information bar or “Security
Warning” may appear. For details, see “Installing
ActiveX Control” in “When using Windows XP
Service Pack 2 or later” on page 8 or “Installing
ActiveX Control” in “When using Windows Vista” on
page 11.
Tip
The software is optimized for Internet Explorer using
medium font.
To display the viewer correctly
To operate the viewer correctly, set the security level of
Internet Explorer to Medium or lower, as follows:
1
Select Tools from the menu bar for Internet
Explorer, then select Internet Options and click
the Security tab.
2
Click the Internet icon (when using the camera via
the Internet), or Local intranet icon (when using
the camera via a local network).
3
Set the slider to Medium or lower. (If the slider is
not displayed, click Default Level.)
When using antivirus software, etc., on
the computer
• When you use antivirus software, security software,
personal firewall or pop-up blocker on your computer,
the system performance may be reduced, for example,
the frame rate for displaying the image may be lower.
• The Web page displayed when you log in to the
camera uses JavaScript. The display of the Web page
may be affected if you use antivirus software or other
software described above on your computer.
14
Accessing the System Using the Web Browser
Basic Configuration by
the Administrator
Preparation
You can monitor the camera image by logging in with
the initial conditions set for this video network station.
You can also set various functions according to the
installing position, network conditions or purpose of the
camera.
We recommend you configure the following items
before monitoring images from the camera.
Setting contents
Setting menu
Set the format of the image sent from the unit.
Video codec Tab (page 36)
Select the brightness of the image sent from the unit.
Brightness (page 35)
Select the quality of the image sent from the unit.
Video codec Tab (page 36)
Select the view size of the image.
View size (page 18)
Select whether the audio from the external microphone is sent or not.
Microphone (page 34)
Synchronize the date and time of the unit with those of the computer.
Date & time Tab (page 30)
Make the setting for sending the monitor image attached to an e-mail.
e-Mail (SMTP) Menu (page 57)
Set the user access right for the unit.
User Menu (page 53)
Set a place to be watched beforehand.
Preset position Menu (page 54)
Basic Configuration by the Administrator
15
Operating the unit
Administrator and User
This video network station identifies those who log in as
the Administrator or User.
The Administrator can use all the functions of this
video network station, including camera settings. The
User can use the functions for monitoring the image and
audio from the camera, and control the camera. The
Viewer mode setting is used to restrict the user's access
rights. There are five types of users.
This section explains how to monitor the image from the
camera using your Web browser (Internet Explorer).
The functions of the unit should be set by the
Administrator. For the setting of the unit, see
“Administrating the unit” on page 27.
Each type of user can use the corresponding functions below.
User
Operating the unit
Function
Administrator
Pan/Tilt
Preset
position
Light
View
Monitor a live image
z
z
z
z
z
z
View the date and time
z
z
z
z
z
z
Control the frame rate (JPEG mode only)
z
z
–
–
–
–
Control the image view size
z
z
z
z
z
–
Save a still image and movie in the computer
z
z
z
z
z
–
Send an image file to the FTP server
z
z
–
–
–
–
Send an image attached to an e-mail
z
z
–
–
–
–
Record an image in the memory
z
z
–
–
–
–
Control the alarm output of the I/O port on the unit
z
z
–
–
–
–
Play an audio file (Voice alert) *
z
z
–
–
–
–
Switch the TCP/UDP transmission mode (Available in
MPEG4/H.264 mode only)
z
z
–
–
–
–
Call the preset position *
z
z
z
z
–
–
Perform the pan/tilt/zoom operation *
z
z
z
–
–
–
Receive audio *
z
z
z
z
z
z
Select the codec mode
z
z
z
z
z
–
Control the setting menu
z
–
–
–
–
–
z Usable function
– Not usable function
* SNT-EX101/SNT-EX104/SNT-EX154 only
The access rights of the administrator and the user can
be set in “Setting the User — User Menu” of the
Administrator menu on page 53.
16
Full
Administrator and User
Logging in to System
Logging in as a user
1
Start the Web browser on your computer and type
the IP address of the system you want to monitor.
The viewer is displayed.
Display sample:
Plug-in free Viewer
This viewer allows the user to select from three image
display methods: JPEG, JPEG/FLASH or ActiveX
Viewer.
JPEG method: JPEG images will be displayed in
sequence.
JPEG/FLASH method: JPEG images will be displayed
in sequence.
ActiveX Viewer method: The image can be viewed
when the image display is set to JPEG, MPEG4 or
H.264.
Notes
Operating the unit
• If Automatic configuration is enabled in the Local
Area Network (LAN) Settings of Internet Explorer,
the camera image may not be displayed. In that case,
disable Automatic configuration and set the Proxy
server manually. For the setting of the Proxy server,
consult your network administrator.
• When you install ActiveX Control, you should be
logged in to the computer as the Administrator.
Tip
Every page of this software is optimized for Internet
Explorer in Medium font.
Three types of viewer are available: ActiveX
Viewer, Plug-in free Viewer and custom homepage.
By default, ActiveX Viewer is displayed. To switch
the viewer, make changes to the Viewer menu
(page 81).
Note
If the main viewer does not start correctly, the security
level of the Internet Explorer may be set to higher than
Medium. See “To display the viewer correctly” on
page 14 and check the security level.
About Viewers
You can use the following viewers.
ActiveX Viewer
This viewer can monitor the camera image in any of the
JPEG, MPEG4 and H.264 video codecs.
You must install this viewer when you access the main
viewer for the first time.
When you display the main viewer of the unit
for the first time
When you access the video network station using
ActiveX Viewer for the first time, the Security Warning
appears. Click Yes and install ActiveX Control. You can
use all the functions of the viewer with ActiveX Control.
Logging in to System
17
Configuration of Main
Viewer
Control panel section
Information panel
This section explains the functions of the parts and
controls of the main viewer. For a detailed explanation
on each part or control, see the specified pages.
Main viewer using ActiveX Viewer
Check the date and time here.
View panel
Main menu
Operating the unit
Main menu
You can change the screen mode, size of the image,
image codec mode and frame rate. Also, still images and
movies can be saved (movie saving can also be stopped)
from here. Microphone and audio output levels can be
adjusted.
ActiveX
Screen Mode
Select Window or Full Screen.
Control panel
section
Monitor image
section
Displays the ActiveX viewer.
Plug-in free
Displays the Plug-in free viewer.
Tool
You can download system utility from here. (page 24)
This operation is only available when you are logged in
as administrator.
Set up
Click to display the Administrator menu. (page 27)
You can operate this function only when logging in as
the administrator.
Language
Set language from pull-down.
View size
Selects the view size to be displayed.
Click View size list box to select the view size.
Full is determined by the image size specified in the
Camera menu (page 36).
Image Codec
Select an image codec mode.
Frame rate
(Displayed only when the camera image is in JPEG.)
Selects the frame rate to transmit images.
(Capture)
Click to capture a still image shot by the camera and to
store it in the computer. Click to open the folder to be
saved.
(Run)/
(Stop Save Video)
Runs and stops Save Video. Click
to open the folder
to be saved.
18
Configuration of Main Viewer
Volume
(Displayed when Microphone (page 34) is set to On.)
Adjust the microphone volume by moving the each
slider bar.
When you click
, the icon changes to
and the
microphone input stops. To input the microphone, click
again.
When you click
, the icon changes to
and the
microphone output stops. To output the microphone,
click
again.
• This operation is not available on the SNT-EP104 or
SNT-EP154.
• Voice alert configuration is only available for CH1 on
the SNT-EX154.
Focus control
To focus on a nearby object, press
. To focus on a
distant object, press
.
By pressing
, focus is set to the optimum
position.
Note
To control the focus manually, set Focus mode of the
Camera menu to Manual (page 34).
(Exclusive control)
Click this button to display the time remaining for
operation authority. However, if operation authority has
not been obtained, the waiting time is displayed.
Operating the unit
Notes
Zoom control
Press
to zoom out, and press
to zoom in.
Zooming continues while the button remains pressed.
Trigger panel
Camera control panel
On this panel, you can control the pan/tilt/home position
of the camera, adjust the zoom and switch focus mode
(page 21). In addition, you can obtain authority to
operate the camera when the exclusive control mode is
on.
Notes
• This operation is not available on the SNT-EP104 or
SNT-EP154.
• To operate the camera, it is necessary to have a camera
connected, and the connection/setting set correctly.
Pan/Tilt control
Click the arrow button the direction in which you want
to move the camera. Keep it pressed to move the camera
continuously.
The above is displayed only when Viewer mode
(page 53) is set to Full, and one or more triggers are
enabled in the Trigger menu (page 70).
The configured functions are displayed as buttons on
this panel.
Click the function button you want to use on the Trigger
panel. The selected function is activated. The selectable
functions are as follows:
• send still image files attached to an e-mail (page 22)
• send still image files to an FTP server (page 22)
• record still image files in the built-in memory or USB
memory (not supplied) (page 22)
• control the alarm output (page 23)
• play the audio file stored in the system (page 23)
Configuration of Main Viewer
19
Preset position panel
Monitor image
Operating the unit
The above is displayed only when one or more preset
positions are stored in memory.
The registered preset position is displayed with a
thumbnail.
Select the Preset position name from the list. The
camera will move to the preset position that you have
stored in memory using the Preset position menu.
Notes
The image shot by the camera is shown here.
You can use the camera control panel bar to pan or tilt.
Plug-in free Viewer
Main viewer using Plug-in free Viewer
• This operation is not available on the SNT-EP104 or
SNT-EP154.
• To operate the camera, it is necessary to have a camera
connected, and the connection/setting set correctly.
Others panel
Camera list
Control bar
(Displayed only when the camera image is in MPEG4 or
H.264, and the ActiveX Viewer is used.)
You can switch between TCP and UDP (Unicast/
Multicast).
Each click switches the transmission mode of the video/
audio data between TCP mode, UDP (Unicast) mode,
and UDP (Multicast) mode (page 23).
The last selected mode is saved in the computer, and will
stay selected for the next startup.
20
Configuration of Main Viewer
Monitor
screen
Monitor screen
You can use the tool bar to pan or tilt.
Control bar
The following operation buttons are available.
Operating the Camera
You can control pan/tilt, zoom and focus.
Setting
Play/Pause button
Trigger run button
Notes
• This operation is not available on the SNT-EP104 or
SNT-EP154.
• To operate, make sure the connected camera is
configured correctly.
Preset
Controlling via the control panel
Audio output volume slider
You can operate the camera direction, zoom, and focus
by using the control panel for the monitor image
currently displayed.
Control waiting time and control time for exclusive control
Exclusive control button
Operating the unit
Save still image button
Camera list
The camera list is displayed when Camera list is set to
On in the viewer menu, and at least one camera is
registered in the unit list.
Pan/Tilt control
Click the arrow button in the direction in which you
want to move the camera. Keep it pressed to move the
camera continuously.
To return to the home position, click
.
Zoom control
Click
to zoom out, and click
to zoom in.
Zooming continues while the button remains pressed.
Focus control
To focus on a nearby object, click
. To focus on a
distant object, click
.
By clicking
, the focus is set to the
optimum position.
Note
To control the focus manually, set Focus mode of the
Camera menu to Manual (page 34).
Operating the Camera
21
Moving the camera to a preset
position
Select a preset position name from the Preset position
panel. The camera will move to the preset position that
you have stored in memory using the Preset position
menu (page 54).
Multiple preset positions can be organized by group
according to setting.
Using the Trigger Button
You can execute various functions by clicking their
respective buttons on the Trigger panel.
Sending a monitor image via e-mail
You can send a captured still image by attaching it to an
e-mail.
To use this function, you need to make e-Mail (SMTP)
active and set the address in the Trigger menu of the
Administrator menu properly (page 70).
1
Operating the unit
Click e-Mail (SMTP) on the Trigger panel.
The still image of the moment you click is captured,
and your e-mail with the image file attached is sent
to the specified mail address.
Sending a monitor image to an FTP
server
You can send a captured still image to the FTP server.
To use this function, you need to make FTP active and
set the address in the Trigger menu of the Administrator
menu properly (page 71).
1
Click FTP client on the Trigger panel.
The still image of the moment you click is captured,
and the image file is sent to the FTP server.
Recording a camera image as a still
You can capture a camera image as a still picture and
record it.
The still images are recorded in the built-in memory or
USB memory (not supplied).
To use this function, you need to make Image memory
active and set the details in the Trigger menu of the
Administrator menu (page 71).
1
22
Using the Trigger Button
Click Image memory on the Trigger panel.
The still image of the moment you click is captured,
and the image file is recorded.
Controlling alarm output
You can control Alarm output.
To use this function, you need to make Alarm output
active in the Trigger menu of the Administrator menu
(page 71).
1
Click Alarm output1 or Alarm output2 on the
Trigger panel.
The alarm output is switched by clicking.
The alarm output mode can be selected from
Toggle or Timer of Alarm output 1, 2 (page 71) in
the Trigger menu.
Tip
Playing an audio file stored in the
system
You can play an audio file previously stored in the
system using the SNC audio upload tool.
To use this function, you need to make Voice alert1,
Voice alert2 and Voice alert3 active in the Trigger menu
of the Administrator menu (page 71).
1
Click Voice alert1, Voice alert2 or Voice alert3 on
the Trigger panel.
Playback of the selected audio file starts and the
playback sound is output from the speaker
connected to the system.
Notes
• This operation is not available on the SNT-EP104 or
SNT-EP154.
• Voice alert configuration is only available for CH1 on
the SNT-EX154.
You can select TCP or UDP as the communication port
for video/audio data.
This function can be used when Mode (video codec
mode) is set to MPEG4 or H.264 and the ActiveX
Viewer is used.
Notes
• The function may not operate correctly if you use
personal firewall software or antivirus software on
your computer. In that case, disable the software or
select the TCP mode.
• If you are using Windows XP Service Pack 2 or later,
or Windows Vista, disable “Windows Firewall.” For
details, see “Configuring Windows Firewall” in
“When using Windows XP Service Pack 2 or later” on
page 9, or “Configuring Windows Firewall” in “When
using Windows Vista” on page 11.
1
Operating the unit
• For the connection of peripheral devices to the alarm
output of the I/O port, see the supplied Installation
Manual.
• The number of alarm outputs varies by model.
The number of selectable alarm output terminals is as
follows:
SNT-EX101: 2
SNT-EX104/SNT-EX154: 4
SNT-EP104/SNT-EP154: None
Switching TCP/UDP
Transmission Mode
Select TCP, UDP (Unicast) or UDP (Multicast)
from the Connection drop-down list in the Others
panel.
TCP: This is normally selected.
When TCP is selected as the communication port,
HTTP communication is adopted for video/audio
communications.
HTTP is the protocol used for reading the usual
Web page.
In an environment capable of reading Web pages,
you can watch or listen to video/audio by selecting
the TCP port.
UDP (Unicast): When UDP (Unicast) is selected
as the communication port, RTP (Real-time
Transport Protocol) is adopted for video/audio
communications. Since RTP is the protocol for
running video/audio data, the video/audio playback
is smoother than when TCP (HTTP) is selected. If
a firewall is installed between the system and the
computer, or depending on the network
environment, video/audio may not play back
properly when UDP (Unicast) is selected. In this
case, select TCP.
Switching TCP/UDP Transmission Mode
23
UDP (Multicast): This protocol is selectable when
Multicast streaming (page 37) is On. When UDP
(Multicast) is selected as the transmission port,
RTP (Real-time Transport Protocol) and UDP
multicast techniques are adopted for video/audio
transmission. By selecting it, the network
transmission load of the system can be reduced. If a
router that does not correspond to a multicast or
firewall is installed between the system and the
computer, video/audio may not play back properly.
In this case, select TCP or UDP (Unicast).
Using the System Utility
You can download system utility from the tools tab on
the main menu.
This operation is only available when you are logged in
as administrator.
Operating the unit
To use the utility, click Download to begin download.
Note
Network camera (SNC-RH124/RS46N/RS46P,
SNC-RS44N/RS44P/RH164, SNC-RS86N/RS86P/
RS84N/RS84P) and video network station have a
common utility. For the video network station, some of
the utility functions cannot be used.
SNC Viewer
SNC Viewer is an application which allows you to set
the initial state of the viewer.
Connection tab
24
Using the System Utility
You can set the connection method.
Select the start-up connection from: TCP, UDP
Unicast, and UDP Multicast.
If TCP connection is selected, you can configure proxy
settings by selecting Use proxy.
Audio tab
View tab
Operating the unit
Volume
Mute: Select this option to mute sound at start-up.
Use the slide bar to set the volume for start-up sound
output.
Screen mode
You can select Window or Full.
View size
You can select the view size.
Mic
Mute: Select this option to mute microphone sound at
start-up.
Use the slide bar to set the volume for start-up
microphone input.
Save tab
JPEG framerate
You can set the frame rate for JPEG.
Image action
Select from the image operation modes Area zoom and
Vector dragging.
Note
This function cannot be used with video network station.
Specify a folder to save the still images and movies to.
Using the System Utility
25
Joystick tab
Operating the unit
You can assign the joystick buttons here.
SNC Desktop Viewer
This is a gadget that displays the camera image in the
side bar of Windows Vista.
Camera address
Set the IP address for the camera to display on the
Gadget.
Frame rate
Select the frame rate for the image to display on the
Gadget.
Image size
Select the image size for the image to display on the
Gadget.
Click
to exit Gadget.
When you click , you will see the following setting
screen.
26
Using the System Utility
Administrating the unit
3
Example: “System” menu
This section explains how to set the functions of the unit
by the Administrator.
For details about monitoring the camera image, see
“Operating the unit” on page 16.
This section explains the basic operations and each
option of the Administrator menu.
Click the menu name (example: System) on the left
side of the Administrator menu.
The clicked menu appears.
4
Select the required tab above the menu, and set each
setting option in the tab.
Example: “Date & time” tab of “System” menu
Note on the display of menu options
The setting menus of this unit will clearly display only
the setting options that you can currently select. Grayed
out options cannot be selected.
See pages 29 to 83 for details of the menu tabs and
setting options.
You can use the Administrator menu to set all functions
to suit the user's needs.
Click Setting in the viewer to display the Administrator
menu.
How to set up the Administrator
menu
1
Log in to the homepage to display the viewer.
For details, see “Logging in as a user” on page 17.
2
Click Setting on the main menu.
The authentication dialog appears. Enter the user
name and password for Administrator.
The user name “admin” and password “admin” are
set at the factory for the Administrator.
The Administrator menu appears.
5
After setting, click OK.
The settings you have made become active.
Administrating the unit
Basic Operations of the
Administrator Menu
Click Cancel to nullify the set values and return to
the previous settings.
Buttons common to every menu
The following buttons are displayed on all the menus.
The functions of the buttons are the same on every
menu.
Click this button to confirm the settings.
Click this button to nullify the set values and return to
the previous settings.
General notes on menus
• One-byte katakana character is not valid for any text
field, such as User name.
• After changing a setting on a menu, wait at least 10
seconds before turning off the power of the unit.
If the power is turned off immediately, the new setting
may not be stored correctly.
• If the unit settings are changed while watching the
main viewer, some settings cannot be restored. To
reflect the change on the opening main viewer, click
Refresh on the Web browser.
Basic Operations of the Administrator Menu
27
Configuration of the Administrator
menu
Preset position
Displays the Preset position menu to register a position
you want to save. “Tour function,” which rotates the
registered positions, is also set here. (“Saving the
Camera Position and Action — Preset position Menu”
on page 54)
e-Mail (SMTP)
Displays the e-Mail (SMTP) menu for sending an email. (“Sending an Image via E-mail — e-Mail (SMTP)
Menu” on page 57)
FTP client
Displays the FTP client menu for sending an image/
audio file, etc., to an FTP server. (“Sending Images to
FTP Server — FTP client Menu” on page 60)
System
Displays the System menu. For details, see
“Configuring the System — System Menu” (page 29).
Administrating the unit
Camera
Displays the Camera menu for setting the camera image
and audio. For details, see “Setting the Camera Image
and Audio — Camera Menu” (page 34).
Network
Displays the Network menu for setting the network
connection. For details, see “Configuring the Network
— Network Menu” (page 38).
SSL
Displays the SSL menu for performing SSL
communication between the client device and system.
(“Setting the SSL function — SSL Menu” on page 42)
802.1X
Displays the 802.1X menu for connecting the camera to
a network configured in compliance with the 802.1X
standard for port authentication. (“Using the 802.1X
Authentication Function — 802.1X Menu” on page 47)
User
Displays the User menu for setting the log in user name
and password. (“Setting the User — User Menu” on
page 53)
Security
Displays the Security menu for specifying a computer
that is allowed to connect to the camera. (“Setting the
Security — Security Menu” on page 54)
28
Basic Operations of the Administrator Menu
Image memory
Displays the Image memory menu for recording an
image/audio file, etc., in the built-in memory or in a
USB memory (not supplied) inserted in the unit.
(“Recording Images in Memory — Image memory
Menu” on page 63)
FTP server
Displays the FTP server menu for setting the FTP server
function of the unit. (“Downloading Images from the
system — FTP server Menu” on page 67)
Alarm output
Displays the Alarm output menu for setting the alarm
output terminal of the unit. (“Setting the Alarm Output
— Alarm output Menu” on page 67)
Voice alert
Displays the Voice alert menu for playing an audio file
stored in the system in synchronization with alarm
detection by the sensor input or the motion detection
function. (“Outputting Audio Linked to Alarm
Detection — Voice alert Menu” on page 69)
Trigger
Displays the Trigger menu for designating the operation
to execute when you run a trigger. (“Setting the
Operations from the Viewer — Trigger Menu” on page
70)
Schedule
Displays the Schedule menu for the Preset position
function, e-Mail (SMTP) function, FTP client function,
Image memory function and Alarm output function,
Voice alert function, etc. (“Setting the Schedule —
Schedule Menu” on page 72)
Alarm buffer
Displays the Alarm buffer menu for the buffer for
storing the image and audio related to alarm detection.
(“Setting the Alarm Buffer — Alarm buffer Menu” on
page 73)
Motion Detection
Displays the Motion detection menu for the motion
detection function built into the system. (“Setting the
Motion Detection/VMF Function — Motion detection
Menu” on page 73)
Configuring the System
— System Menu
When you click System in the Administrator menu,
the System menu appears.
Use this menu to perform the principal settings of the
software.
The System menu has six tabs: System, Date & time,
Superimpose, Initialize, System log and Access log.
System Tab
Viewer
Displays the Viewer menu from which you can select the
viewer to use and configure advanced settings.
(“Configuring the Viewer — Viewer Menu” on page 81)
Administrating the unit
PTZ control I/F
Displays the PTZ control I/F menu for communications
with external equipment through the external serial
terminal. (“Transmitting with External Equipment PTZ control I/F Menu” on page 80)
Title bar name
Type a name of up to 48 characters to be displayed on the
title bar. The characters typed here are displayed on the
title bar of the Web browser.
Serial number
The serial number of the camera is displayed.
Software version
The software version of this camera is displayed.
Exclusive control mode
Controls the authority to operate pan, tilt, zoom and
some other functions of the camera.
Notes
This operation is not available on the SNT-EP104 or
SNT-EP154.
On: Only one user has control authority. Set the
operation time for one user in Operation time.
If a user tries to operate a function during operation
by another user, the authority is controlled by the
settings of Operation time and Maximum wait
number.
Configuring the System — System Menu
29
Off: Multiple users can control pan, tilt and zoom at the
same time. When multiple users control these
functions at the same time, the last operation has
priority.
Date & time Tab
Operation time
Sets the time length for a user who has control authority.
The selectable range is from 10 to 600 seconds. This is
effective when Exclusive control mode is set to On.
Maximum wait number
Sets the number of users who are permitted to wait for
their turn for control authority during operation by one
user. The selectable number is from 0 to 10. This is
effective when Exclusive control mode is set to On.
Notes
Administrating the unit
• To use Exclusive control mode, the date and time of
the system and the connected computer must be set
correctly first.
• To use Exclusive control mode, do not disable the
Web browser Cookie. If it is disabled, this mode
cannot be used.
• When you change the Exclusive control mode
setting, click Refresh on the Web browser to reflect
the change when opening the main viewer page.
Sensor input mode
Set the detection mode of the signal input to the sensor
input terminal of the system.
Note
Sensor input mode configuration is not available for
SNT-EP104 and SNT-EP154.
Normally open: Detects the alarm when the sensor
input is short-circuited.
Normally closed: Detects the alarm when the sensor
input is open-circuited.
Camera tampering detection
Select On to activate the function to detect the camera
shaking. When you select On, you can select the Tamper
level.
Note
The camera tempering detection is not available on the
SNT-EP104 and SNT-EP154.
OK/Cancel
See “Buttons common to every menu” on page 27.
30
Configuring the System — System Menu
Current date & time
Displays the date and time set on the unit.
Note
After you have purchased the camera, be sure to check
the date and time of the camera and set as necessary.
PC clock
Displays the date and time set on your computer.
Date & time format
Select the format of date and time to be displayed in the
main viewer from the drop-down list.
You can select the format between yyyy-mm-dd
hh:mm:ss (year-month-day hour:minutes:seconds),
mm-dd-yyyy hh:mm:ss (month-day-year
hour:minutes:seconds), and dd-mm-yyyy hh:mm:ss
(day-month-year hour:minutes:seconds).
Adjust
Select how to set the day and time.
Keep current setting: Select if you do not need to set
the date and time.
Synchronize with PC: Select if you want to
synchronize the unit’s date and time with the
computer.
Manual setting: Select if you want to set the unit’s date
and time manually.
Select the year, month, date, hour, minutes and
seconds from each drop-down list.
Synchronize with NTP: Select if you want to
synchronize the unit’s date and time with those of the
time server called NTP server (Network Time
Protocol).
Set the NTP server when Synchronize with NTP is
selected.
Use the following NTP server address: Synchronize
with the selected NTP server address.
NTP server 1: Enter the first choice for NTP server
address.
NTP server 2: Enter the second choice for NTP
server address.
NTP server 3: Enter the third choice for NTP server
address.
Superimpose Tab
Select whether to superimpose the camera ID and/or
date & time on the image or not.
The camera ID is also superimposed on images recorded
by the Pre-alarm or Post-alarm function.
DHCP server: Select DHCP server when you need to
get NTP server information from DHCP server.
Multicast: Select Multicast when you search for an
NTP server with Multicast.
Time zone
Set the time difference from Greenwich Mean Time in
the area where the unit is installed.
Select the time zone in the area where the unit is
installed from the drop-down list.
Note
If the time zone selected in Time zone is different from
that set on the computer, the time is adjusted using the
time zone difference and set on the system.
OK/Cancel
See “Buttons common to every menu” on page 27.
Superimpose
Administrating the unit
Automatically adjust the clock for daylight
saving time changes
When selected, the clock is automatically adjusted
according to the daylight saving time of the selected
time zone.
On/Off
When using the Superimpose function, select On.
Font size
Set the font size.
Style
Set the items to superimpose and the format to display
in. Superimpose settings are available for the following
items:
• Date: Set the display setting for date.
• Camera ID: Configure the Camera ID display
setting.
• Event: Configure the display setting for when an
event occurs.
• Codec: Configure the bit rate and frame rate display
settings.
• Custom String: Set Custom String to display the
text of your choice.
Display format, including color, can be individually set
for each item.
Color: Select the font color of the superimposed text.
Brink: Select On to enable brinking for the
superimposed text.
String Effect: Enable a string effect for displayed text.
Advanced: Detailed settings, such as formatting the
display of date and time, are also available.
Configuring the System — System Menu
31
Superimpose format
Backup setting data
Set the display position of superimposed text.
You can set the content to superimpose on the bottom
left, bottom right, top left, top right, center, top middle,
and bottom middle parts, respectively.
Saves the setting data of the unit in a file.
Click Save, and follow the instructions on the Web
browser to specify the folder and save the setting data of
the unit. The file name preset at the factory is
“snt-ex104.cfg” for SNT-EX104.
Preset position
Checking here will display the preset name when the
camera faces the direction registered as preset.
Note
This operation is not available on the SNT-EP104 or
SNT-EP154.
OK/Cancel
See “Buttons common to every menu” on page 27.
Initialize Tab
Restore setting
Loads the stored setting data of the unit.
Click Browse and select the file in which the setting data
is stored. Click OK, and the system is adjusted
according to the loaded data, and restarted.
Notes
Administrating the unit
• With Restore setting, some items in the Network
menu (page 38) cannot be restored.
• The following items cannot be stored or restored with
Backup setting data or Restore setting.
– audio files uploaded using SNC audio upload tool
– a homepage created using Custom Homepage of
SNC toolbox
– a client certificate and CA certificate to be used in
the 802.1X authentication function
– Other
Format USB memory
Click Format to format the USB memory inserted into
the unit. The files and folders stored in the USB memory
are deleted while formatting.
Reboot
Reboots the unit.
Click Reboot, and the message “This System will be
rebooted. Are you sure?” appears. Click OK to reboot
the unit.
Factory default
Resets the unit to the factory settings.
Restore network setting
When this item is checked, only the current network
settings will be retained after reset.
Click Factory default, and the message “Setup data will
be initialized. Are you sure?” appears. When you click
OK, the network indicator on the unit starts to blink.
After adjustments of the default settings have finished,
the unit reboots automatically. Do not turn off the
camera until the unit reboots.
Tip
The unit can also be reset to the factory settings by
turning on the power of this unit while pressing the reset
button on the camera. For details, see the supplied
Installation Manual.
32
Configuring the System — System Menu
Notes
• Before formatting, disable the image memory
function and FTP server function to protect the USB
memory from writing.
• Do not activate the Format USB memory function
when no USB memory is inserted into the USB
connector.
• USB memory cannot be used with the SNT-EP104,
SNT-EX154 and SNT-EP154.
Delete custom homepage
Click Delete to delete the homepages recorded in the
flash memory of the camera with Custom Homepage of
SNC toolbox (page 90).
Delete voice alert file
Click Delete to delete all the audio files stored in the
camera using SNC audio upload tool (page 95).
Access log Tab
Notes
• Clicking Delete deletes all the stored audio files
simultaneously. To delete a specified audio file only,
perform deletion of the audio file in the corresponding
Voice alert tab of the Voice alert menu (page 69).
• Before deleting the audio file, set Voice alert to Off in
each tab of the Voice alert menu (page 69).
Delete thumbnails
The access record of the unit is displayed.
Click Reload to reload the latest data.
Click Delete to delete the thumbnails set in the Preset
Setting menu.
Note
This operation is not available on the SNT-EP104 or
SNT-EP154.
Administrating the unit
Delete header logo
Click Delete to delete the header logo set in the Viewer
menu.
Delete superimpose logo
Click Delete to delete the superimposed logo set in the
Advance of the camera ID on the Superimpose tab of the
System menu.
System log Tab
The data of the software activity of the unit is recorded
in this log. It includes data that is useful if a problem
occurs.
Click Reload to reload the latest data.
Configuring the System — System Menu
33
Setting the Camera
Image and Audio
— Camera Menu
When you click Camera in the Administrator menu, the
Camera menu appears.
Use this menu to set the functions of the camera.
The Camera menu consists of five tabs: Common,
Picture, Privacy masking, Video codec and
Streaming.
Common Tab
Notes
Administrating the unit
• SNT-EP104 and SNT-EP154 do not have Common
Tab.
• Voice alert configuration is only available for CH1 on
the SNT-EX154.
Mic volume
Set the volume level of the audio input from the
microphone input connector. It is adjustable from –10 to
+10.
Audio
Select microphone input or line input.
Audio codec
Select the bit rate of audio from the microphone input
connector. G.711 (64kbps), G.726 (40kbps), G.726
(32kbps), G.726 (24kbps) or G.726 (16kbps) can be
selected.
Note
If the bit rate is set to other than G.711(64kbps), no
audio is output when you use Plug-in free Viewer.
Echo suppressor
Select On to reduce echo from audio transmission.
Audio noise reduction
Select On to use Audio noise reduction.
Audio upload
Using SNC audio upload tool stored in the supplied
CD-ROM, you can output audio that is input to the
computer’s audio input terminal from a powered speaker
connected to the line output jack of the system.
Select On to output audio from the speaker.
Focus mode
Select the focus mode.
Auto: The focus is automatically adjusted.
Manual: The focus can be adjusted by using the
,
and
buttons of the control panel
displayed in the main viewer.
Microphone
Select whether you are going to send audio from the
microphone input connector. Select On to send the
audio from the system.
Notes
• When you change the Microphone setting, click
Refresh on the Web browser to reflect the change on
the opening main viewer page.
• Microphone setting, microphone volume setting,
audio input setting, audio codec and audio upload are
not available on the SNT-EP104 and SNT-EP154.
34
Setting the Camera Image and Audio — Camera Menu
Volume
Set the speaker volume level from – 10 to + 10.
OK/Cancel
See “Buttons common to every menu” on page 27.
Picture Tab
You can set the color condition, brightness, etc., of the
camera.
Display sample:
OK/Cancel
See “Buttons common to every menu” on page 27.
Privacy Masking tab
Using the privacy masking enables you to hide images
by masking specified parts of the images when
streaming.
Note
Performing the pan/tilt/zoom operation on the camera
does not change the mask position.
Administrating the unit
Visibility Enhancer
Using the Visibility Enhancer function makes the darker
part of the camera image brighter as well as auto-adjust
brightness and contrast to show bright parts clearly
without white out.
To use this function, select High, Middle or Low. If you
do not use this function, select Off.
Preview screen
This screen is for monitoring images and configuring
privacy masking.
XDNR
Image noise can be reduced by using the XDNR
function. The intensity of the Noise Reduction filter can
be selected among High, Middle and Low. If you do not
use this function, select Off.
Brightness
Adjust the brightness. A larger value brightens the
image, and a smaller value darkens the image. A value
from –5 to +5 can be set.
Saturation
Select the saturation in 7 steps, from –3 to +3.
Selecting +3 provides the highest image saturation.
Sharpness
Select the sharpness in 7 steps, from –3 to +3.
Selecting +3 provides the sharpest picture.
Contrast
Select the contrast in 7 steps, from –3 to +3.
Selecting +3 provides the highest contrast.
Control buttons
The control buttons are located at the top of the preview
screen.
You can operate the camera with these buttons.
Pan/Tilt operation
Available by clicking the icon of the direction you wish
to move the camera.
Zoom operation
Available by clicking - to zoom out and + to zoom in.
Position
Available to call out the privacy masks, delete them one
by one or delete all at one time.
After completing the configuration, register by clicking
OK.
Call: Clicks the button to turn the camera facing to the
position where the privacy mask is set.
Clear: Click the button to delete the privacy mask set.
Clear all: Click the button to delete all privacy mask.
Setting the Camera Image and Audio — Camera Menu
35
Color
Specify the color of privacy masks. This setting is
common to every privacy mask.
The colors used are as follows:
Black, White, Gray, Red, Green, Blue, Cyan, Yellow,
Magenta.
Video codec Tab
Use this tab to set the items for the video codec.
Setting a privacy mask
Operate according to the following procedure to set a
privacy mask in the position of your choice:
Administrating the unit
1
Face the camera to the position where you want to
set a privacy mask using the control button on the
preview screen.
2
Specify the privacy mask area by dragging the
mouse on the preview screen.
3
Select the number to register from the Position
drop-down list.
4
Select the color of the mask from the Color dropdown list.
Image 1 and Image 2
Two image codec modes can be set. Configure the
following setting for each image mode.
Image Codec
Select JPEG, MPEG4, H.264 or Off.
Note
The color is common to every privacy mask. The
color selected last is applied.
5
Click OK.
The mask is displayed on the preview screen.
OK/Cancel
See “Buttons common to every menu” on page 27.
Image size
You can select the size of the image sent from the
camera.
Frame rate
Set the frame rate of the image.
“fps” is a unit indicating the number of frames
transmitted per second.
Bit rate
Set the bit rate of MPEG4 or H.264 image transmission
for a line. When the bit rate is set to a high level, better
image quality can be enjoyed.
I-Picture Interval
Set the I-picture insertion interval.
Adaptive rate control
This function adjusts the frame rate and the bit rate
automatically so that the camera plays back a smooth
image to suit the connected computer environment. If
On is selected, the MPEG4 or H.264 image rate is
automatically adjusted.
36
Setting the Camera Image and Audio — Camera Menu
Notes
• The actual frame rate and bit rate may be different
depending on the image size, shooting scene, or
network condition.
• When Adaptive rate control is set to On, the
maximum transmission rate will be the values set in
Frame rate and Bit rate.
Audio port number
Specify the transmission port number of the audio data.
It is initially set to 50002. Specify an even number from
1024 to 65534. Two port numbers (the number specified
here and an odd number with 1 added to the specified
number) are used for audio data communication and
control.
Note
Image quality
Set the JPEG image quality.
Selectable values are from Level 1 to Level 10.
When Level 10 is selected, the best image quality is
achieved.
Bandwidth control
Limits the network bandwidth for the JPEG image data
output from the camera.
Note
OK/Cancel
See “Buttons common to every menu” on page 27.
Streaming Tab
Use this tab to set the items for the transmission by
unicast or multicast.
Unicast streaming
Specify the transmission port numbers of the MPEG4/
H.264 video data and audio data to be used when UDP
(Unicast) is selected from the Connection drop-down
list in the Other panel on the main viewer.
Video port number
Specify the transmission port number of the MPEG4/
H.264 video data. It is initially set to 50000. Specify an
even number from 1024 to 65534. Two port numbers
(the number specified here and an odd number with 1
added to the specified number) are actually used for
video data communication and control.
Multicast streaming
Set whether the unit uses multicast streaming for
MPEG4/H.264 video data and audio data or not. It
reduces the transmission load on the system by having a
computer of the same segment network receive the same
transmitting data.
Select On to allow, or Off not to allow multicast
sending.
When you select On, set Multicast address, Video port
number and Audio port number properly.
Administrating the unit
Audio may be interrupted depending on the selected
bandwidth. In this case, select a wider bandwidth.
Specify different numbers for the video port number and
the audio port number.
Multicast address
Type the multicast address used on the multicast
streaming.
Video port number
Specify the MPEG4/H.264 video transmission port
number used for the multicast streaming. It is initially
set to 60000. Specify an even number from 1024 to
65534. Two port numbers (the number specified here
and an odd number with 1 added to the specified
number) are used for video data communication and
control.
Audio port number
Specify the audio transmission port number used for the
multicast streaming. It is initially set to 60002. Specify
an even number from 1024 to 65534. Two port numbers
(the number specified here and an odd number with 1
added to the specified number) are used for audio data
communication and control.
Note
Specify different numbers for the video port number and
the audio port number.
OK/Cancel
See “Buttons common to every menu” on page 27.
Setting the Camera Image and Audio — Camera Menu
37
Configuring the Network
— Network Menu
When you click Network in the Administrator menu, the
Network menu appears.
Use this menu to configure the network to connect the
camera and the computer.
The Network menu consists of three tabs: Network,
QoS and Dynamic IP address notification.
Network Tab
This section provides the menus for connecting the
camera through the network cable.
Note
When you select Obtain an IP address automatically
(DHCP), make sure that a DHCP server is operating on
the network.
IP address
Type the IP address of the system.
Subnet mask
Type the subnet mask.
Default gateway
Type the default gateway.
DNS server
Configure the DNS server address.
Administrating the unit
Obtain DNS server address automatically: Select this
option to obtain the IP address of DNS server
automatically. It can be set only when Obtain an IP
address automatically (DHCP) is selected in the
Network tab.
Use the following DNS server address: Select this
when you set a fixed address as the IP address of the
DNS server. With this setting, specify the addresses
on Primary DNS server and Secondary DNS
server manually.
Note
MAC address
Displays the MAC address of the system.
Ethernet status
Displays the current transmission rate.
IPv4 setting
When you select Obtain DNS server address
automatically, make sure that a DHCP server is
operating on the network.
Primary DNS server
Type the IP address of the primary DNS server.
Secondary DNS server
Type the IP address of the secondary DNS server, if
necessary.
Configure the IPv4 network setting.
IP address
Configure the IP address.
Obtain an IP address automatically (DHCP): Select
this option when a DHCP server is installed on the
network to allow IP address assignment. With this
setting, the IP address is assigned automatically.
Use the following IP address: Select this option when
you set a fixed IP address. With this setting, specify
the IP address, Subnet mask and Default gateway
manually.
38
Configuring the Network — Network Menu
MTU
Enter the MTU value. (1000 to 1500)
Host name
Type the host name of the system to be transmitted to the
DHCP server. This setting is valid only when Obtain an
IP address automatically (DHCP) is selected in the
Network tab.
Domain suffix
Type the domain suffix of the system to be transmitted
to the DHCP server. This setting is valid only when
Obtain an IP address automatically (DHCP) is
selected in the Network tab.
Note
The domain suffix is sent to the DHCP server as FQDN
(Fully Qualified Domain Name) information when Host
name is set.
HTTP port number
QoS Tab
In the QoS tab, traffic priority can be set by configuring
the number, network address, subnet (prefix), port,
protocol and/or DSCP of IPv4 or IPv6.
A maximum of 10 addresses (No.1 to No.10) can be
registered.
Normally select 80. If you want to use a port number
other than 80, select the text box and type a port number
between 1024 and 65535.
Note
When you have set the HTTP port number to a number
other than 80 in the Network menu or in SNC toolbox,
access the system again by typing the IP address of the
camera on your Web browser as follows:
Example: Setting port number 8000 when IP address is
192.168.0.100
Administrating the unit
IPv6 setting
Configure the IPv6 network settings.
IPv6 can be used simultaneously with IPv4.
Only IPv6-specific details are explained here. For
common details, see “IPv4 setting” on page 38.
IPv4 QoS setting
Select On to configure the QoS setting for IPv4.
On/Off
To use IPv6, select On.
Rule
Used to register, edit and delete QoS.
Prefix
Enter the Prefix value. (0 to 128)
No.
Select the number to use when registering on the QoS
table.
When you select a registered number, the registered QoS
information is displayed.
MTU
Enter the MTU value. (1280 to 1500)
OK/Cancel
See “Buttons common to every menu” on page 27.
Network address
Enter the address to perform QoS.
Subnet
Enter the subnet mask.
Port
Enter the port number.
Protocol
Select the protocol.
DSCP
Enter the DSCP value.
Configuring the Network — Network Menu
39
Set
Used when registering on the QoS table.
QoS is set according to the following procedure:
1
Select No. from NO. and enter the necessary
conditions for Network address, Subnet,
Protocol and/or Port No..
2
Enter values in the Protocol and DSCP fields.
3
Click Set and configure the QoS.
Delete
select No. to delete the setting and click Delete.
QoS table
Displays the list of registered QoS information.
3
Click Set and configure the QoS.
Delete
select No. to delete the setting and click Delete.
QoS table
Displays the list of registered QoS information.
Dynamic IP address notification
Tab — Notifying the IP Address
When Obtain an IP address automatically (DHCP) is
selected in the Network tab, you can send notification of
completion of the network settings using the SMTP or
HTTP protocol.
IPv6 QoS setting
Select On to configure the QoS setting for IPv6.
Administrating the unit
Rule
Used to register, edit and delete QoS.
No.
Select the number to use when registering on the QoS
table.
When you select a registered number, the registered QoS
information is displayed.
Network address
Enter the address to perform QoS.
Prefix
Enter the prefix.
Port
Enter the port number.
Select On to send an e-mail when the DHCP setting is
completed.
SMTP server name
Protocol
Select the protocol.
Type the name or IP address of the SMTP server for
sending an e-mail, using up to 64 characters.
DSCP
Enter the DSCP value.
SMTP port number
Set
Used when registering on the QoS table.
QoS is set according to the following procedure:
1
2
40
e-Mail (SMTP) notification
Select the number you want to register from No.
and enter the necessary conditions for Network
address, Prefix and Port.
Select Protocol and enter values in DSCP.
Configuring the Network — Network Menu
Select the textbox and enter a port number from 25 to
65535.
Use TLS
To use the encryption function by TLS, set to On.
STARTTLS
To use the encryption function by STARTTLS, set to
On.
Authentication
Administrator e-mail address
Select the authentication required when you send an email.
Type the e-mail address of the camera administrator,
using up to 64 characters. This is used as the reply
address or the address for a system mail from the mail
server.
Off: Select if no authentication is required when an email is sent.
On: Select if authentication is required when an e-mail
is sent. Select one of the authentication methods
from the following and specify the POP server
name, User name and Password as required.
SMTP: Select when SMTP authentication is
required.
POP before SMTP: Select when POP before SMTP
authentication is required.
Note
When you set Authentication to On, make sure to select
either or both SMTP or/and POP before SMTP.
POP mode
Select POP 3 or APOP (encrypted authentication).
POP server name
It is necessary when POP before SMTP is selected for
Authentication.
Type the POP (receiving mail) server name, using up to
64 characters. Or type the IP address of the POP server.
This setting is necessary when the SMTP server that
sends e-mails performs authentication using the POP
user account.
POP port number
Enter a port number from 110 to 65535.
Authentication mode
Set the user authentication mode.
If you are not using CRAM-MD5, select Login.
User name, Password
Type the user name and password of the owner of the
mail account, using up to 64 characters. This setting is
necessary when the SMTP server that sends e-mails
performs authentication.
Recipient e-mail address
Type the recipient e-mail address, using up to 64
characters. You can specify only one recipient e-mail
address.
Type the subject/title of the e-mail, using up to 64
characters.
Message
Type the text of the e-mail using up to 384 characters. (A
line break is equivalent to 2 characters.) You can
describe the information of the acquired IP address, etc.,
using the special tags mentioned below.
HTTP notification
Select On to output a command to the HTTP server
when the DHCP setting is completed. Using this
function, you can configure a useful system, for
example, to view the access log stored in the HTTP
server, or start an external CGI program.
Administrating the unit
Waiting time after POP
Set the timeout from 0 to 10000 msec.
Subject
URL
Specify the URL to send an HTTP request, using up to
256 characters. The URL is normally written as follows:
ip_address: Type the IP address or host name of the host
to which you want to connect.
To enter an IPv6 address:
http:// [IPv6 address]
http:// [IPv6 address]
[:port]: Specify the port number to which you want to
connect. If you want to use the established port
number 80, you do not need to input a value.
path: Type the command.
parameter: Type the command parameter if necessary.
You can use the special tags mentioned below for the
parameters.
Proxy server name
When you send an HTTP request via a proxy server,
type the name or IP address of the proxy server, using up
to 64 characters.
Proxy port number
Specify the port number when you send an HTTP
request via the proxy server. Set a port number between
1024 and 65535.
Method
Select the HTTP method GET or POST.
Configuring the Network — Network Menu
41
OK/Cancel
See “Buttons common to every menu” on page 27.
About the special tags
You can use the following five special tags to allow
notification of the settings acquired by DHCP, such as an
IP address. Type the tags in the parameter section of the
URL that you described in the Message field of the
HTTP.
<IP>
Use this tag to embed the IP address acquired by DHCP
in the text or parameter.
<HTTPPORT>
Use this tag to embed the specified HTTP server port
number in the text or parameters.
Setting the SSL function
— SSL Menu
When you click SSL in the Administrator menu, the
SSL menu appears.
Use this menu to configure the SSL or TLS function.
(called “SSL” hereafter)
The settings allows the unit to communicate with the
client PC by using SSL.
Note
The model on sale in China does not support the SSL
function.
SSL tab
Administrating the unit
<MACADDRESS>
Use this tag to embed the MAC address of the interface,
whose IP address was acquired by DHCP, in the text or
parameter.
<MODELNAME>
Use this tag to embed the camera's model name in the
text or parameter.
<SERIAL>
Use this tag to embed the camera's serial number in the
text or parameter.
SSL function
On: Select this to use the SSL function. When Allow
HTTP connection for some clients is selected, both
HTTP and SSL connections are allowed. When
Allow HTTP connection for some clients is not
selected, only SSL connection is allowed.
When Microsoft Internet Explorer Ver.6.0 is used
When SSL session is established,
appears in the
status bar on your web browser.
When Microsoft Internet Explorer Ver.7.0 is used
When SSL session is established, appears in the right
of the address bar on your web browser.
Off: Select this to not use the SSL function. Only HTTP
connection is allowed with the unit.
When you use SSL connection for the first time
When you use SSL connection only with the SSL
function On, you cannot access the unit if the SSL
function does not work properly.
In this case, you must reset the unit to the factory
settings. (All settings will be initialized.)
To avoid this, check that SSL connection is possible by
performing the following steps.
42
Setting the SSL function — SSL Menu
1
Set the SSL function to On, and select Allow
HTTP connection for some clients.
2
Click OK to close the main viewer and the setting
window.
3
Display the main viewer via SSL connection.
Refer to “Using the SSL function” on page 13 for
connection.
4
After checking that SSL connection is possible,
cancel Allow HTTP connection for some clients
selected in step 1.
– The private key generated by the unit is self-signed
by the camera.
– A prepared value is set for a distinguished name
(Common name, etc).
– The certificate is not issued by a trusted CA.
For reasons of security, we recommend using this
mode only when there is no problem even if perfect
security is not saved.
Notes
Even if the setting window or the browser is closed as
SSL connection is impossible, http connection will be
possible if Allow HTTP connection for some clients is
selected. First check the setting contents of SSL tab in
http connection, then check the SSL connection again.
Certificates
Administrating the unit
If Allow HTTP connection for some clients is not
selected, you will not be able to access the unit if SSL
connection becomes impossible. In this case, turn on the
power while pressing the reset switch on the unit to
initialize. For details, refer to the supplied Installation
Manual.
• When Use the camera’s built-in certificate (For test
use) is selected, the Security Alert dialog appears on
the SSL connection with a browser.
For details, refer to “Using the SSL function”
(page 13).
• SSL connection may be impossible due to the type of
certificate installed in the unit. In this case, refer to
“How to install the CA certificate” on page 45 and
install.
Import, display or delete the certificate.
To import the certificate
Click Browse... to select the certificate to be imported.
Click Submit to import the selected file to the unit.
Note
SSL connection places additional burden on the unit;
therefore, not all images may be downloaded, and the
mark may appear when the camera accesses the
setting window from the browser. In this case, reload the
window. Press the F5 key on the keyboard to reload.
Certificate options
Select an installation mode of the certificate.
Use an external certificate: Uses the certificate
including private key information issued by a CA.
The PKCS#12 and PEM formats are supported.
Note
The import process becomes invalid if the selected file is
not a certificate or the imported certificate is not
allowed.
Generating a self-signed certificate
A self-signed certificate can be generated by the unit to
be used when Use the camera’s built-in certificate
(For test use) is selected from Certificate options.
Click Generate to generate a self-signed certificate by
the unit. Clicking Generate again after Generate has
been clicked once will update the self-signed certificate
stored in the unit.
Note
Even if the SSL function is set to On, it is not active in
the following cases:
– When Use an external certificate is selected in
“Certificate options,” and also when the certificate and
the private key password are not set properly.
Use the camera’s built-in certificate (For test use):
This mode uses the certificate and private key pair
generated by “Generating a self-signed certificate”
on page 43. Private key information corresponding
to the certificate is stored in the unit.
You do not need to install an external certificate.
However, you cannot execute the existence proof that
is one of the SSL functions for the following reasons.
To display certificate information
When the certificate has been set in the unit correctly, its
information appears on Status, Issuer DN, Subject DN,
Validity Period and Extended Key Usage.
Status
Shows if the status of the certificate is valid or invalid.
The following statuses are recognised.
Valid: The certificate is correctly stored and set.
Invalid: The certificate is not correctly stored and set.
Possible causes are as follows:
– Use an external certificate is selected and the
private key password included in the certificate is
not specified correctly.
Setting the SSL function — SSL Menu
43
– Use an external certificate is selected and the
private key password is specified in spite of the fact
that the key pair in the certificate is not encrypted.
– Use an external certificate is selected and the key
pair is not included in the certificate.
– Use the camera’s built-in certificate (For test
use) is selected without the self-signed certificate
being generated.
CA certificate tab — Adding the CA
certificate for client authentication
In this tab, you can manage the CA certificate needed for
the unit to use the client authentication of the SSL
function.
Note
When the certificate to be imported is of PKCS#12
format and the private key password is not set correctly,
<Put correct private key password> is displayed in the
boxes of Issuer DN, Subject DN, Validity Period and
Extended Key Usage. Specify the correct private key
password to confirm the information of the certificate.
Administrating the unit
To delete the imported certificate or self-signed
certificate
Click Delete to delete the imported certificate or selfsigned certificate from the unit.
Private key password
SSL client certificate
Type the password for the private key information
included in the certificate using up to 50 characters. This
text box is active only when Certificate options is set to
Use an external certificate.
Leave the text box blank if the private key information
included in the certificate is not encrypted.
If no private key password is set in the unit, an active text
field is displayed and this allows a password to be
entered.
If a private key password is already set, it is displayed as
an inactive text field.
You can configure whether to enable the client
authentication of the SSL function.
Reset
To change the private key password, click this button.
The current password is cleared and the password text
box becomes active to allow a new password entry.
Note
Click Cancel at the bottom of the menu if you want to
cancel changing the private key password after clicking
Reset. Doing so restores the other setting items in the
Client certificate tab to the previous settings.
OK/Cancel
See “Buttons common to every menu” on page 27.
Trusted CA certificate 1 to 4
You can import a trusted CA certificate (route
certificate, etc.) to the unit.
Up to four certificates from trusted CAs can be imported
to the camera. Only PEM format is supported.
To import the CA certificate
1
Click Browse… to select the CA certificate to be
saved in the unit.
2
Click Submit
The selected file will be imported to the unit.
Note
Import process will be invalid if the selected file is not a
CA certificate.
To display the information of the CA certificate
When the CA certificate has been saved in the unit
correctly, its information appears on Issuer DN,
Subject DN, Validity Period, and Extended Key
Usage for your reference.
Note
When you click OK after changing SSL setting, close
the main viewer and the setting window once.
44
Setting the SSL function — SSL Menu
To delete the CA certificate
Click Delete to delete the selected CA certificate from
the unit.
OK/Cancel
3
Click Next.
4
Select Automatically selects the certificate store
based on the type of certificate and click Next.
Completing the Certificate Import Wizard
appears.
5
Check the contents, then click Finish.
The CA certificate will be installed.
See “Buttons common to every menu” on page 27
How to install the CA certificate
The unit may not be connected because the browser
(Internet Explorer) does not display whether the
certificate will be accepted or not due to the type of
certificate. In this case, install the CA certificate as
follows.
1
On the PC, save the certificate of the CA center that
signed the certificate that is to be stored in the unit.
The extension of the certificate file is normally
“.cer.” Double-click this file. The following
Certificate dialog appears.
Administrating the unit
2
Click Installation Certificate....
The Certificate Import Wizard appears.
Setting the SSL function — SSL Menu
45
To remove an installed CA
certificate
1
In Internet Explorer, click in the order Tools,
Internet options, Content tab and Certificates.
The Certificates dialog appears.
Administrating the unit
2
Select the certificate you want to remove.
The CA certificate is usually stored in Trusted
Root Certification Authorities.
3
Click Remove.
Do you want to delete the certificate appears to
confirm.
4
Click Yes.
The certificate will be removed.
There may be a case that a certificate cannot be
removed by the steps above due to the type of
certificate. Check the installation condition and
remove it following the steps below.
Note
You need to log in as Administrator to perform these
steps.
46
1
Open Run... of the Windows menu, then enter mmc
and click OK.
2
Select File in the Console 1 window and Add/
Remove Snap-in... (when Windows XP
Professional is used)
Add/Remove Snap-in... dialog appears.
3
Click Add to display Add Stand-alone Snap-in
dialog.
You need to follow this step if using Windows XP
Professional.
Setting the SSL function — SSL Menu
4
Select Certificates from the list, then click Add.
Certificate Snap-in is displayed.
5
Select Computer account as the certificate
administrated in this Snap-in, then click Next.
6
Select Local Computer as the computer
administrated in this Snap-in, then click Finish.
7
Close Add Standalone Snap-in (for Windows XP
Professional only) and Add/Remove Snap-in...
dialogs.
The items for administrating Certificates appears
in the Console Route window.
Confirm the relevant certificate, then remove it.
Using the 802.1X
Authentication Function
— 802.1X Menu
When you click 802.1X in the Administrator menu, the
802.1X menu appears.
Use this menu to configure the wired port-based
authentication in compliance with the 802.1X standard.
The 802.1X menu consists of three tabs: Common,
Client certificate and CA certificate.
Note
System configuration of 802.1X
network
The following figure shows a general system
configuration of an 802.1X network.
Supplicant (video
network station)
Authenticator
An authenticator forwards certificate request data or
response data that the supplicant or authentication server
issues to the other party. Normally a hub, router or
access point serves as an authenticator.
Authentication server
An authentication server has a database of connecting
users and verifies if the supplicant is a valid user or not.
It can also be called RADIUS server.
CA (Certificate Authority)
A CA issues and manages certificates of the
authentication server (CA certificates) and user
certificates. The CA is essential for certificate-based
user authentication. Normally a CA is located inside an
authentication server.
Administrating the unit
To use the 802.1X authentication function, you need
knowledge of the 802.1X authentication (WPA and
WPA2) and digital certificate. To establish an 802.1X
network, you need to configure the authenticator, access
point, authentication server and other elements. For
details on these settings, refer to the manual of the
corresponding equipment.
Supplicant
A supplicant is a device that connects to the
authentication server to join the network. This unit
serves as a supplicant in the 802.1X network. The
supplicant can enter the 802.1X network after
appropriate authentication by the authentication server.
Note
This camera supports EAP mode in which the supplicant
and the server authenticate using the certificate. This
mode requires a CA to issue the certificate.
Common Tab – Basic setting of
802.1X authentication function
Authenticator (hub, router or
access point)
802.1X authentication function
Authentication server + CA
This item is used for enabling/disabling the 802.1X
authentication function for wired ports. The wired
interface status and the wireless interface status can also
be checked here.
Wired interface
To activate the 802.1X authentication function for wired
ports, select On.
Wired interface status
Shows the authentication status of the 802.1X
authentication function for wired ports.
Click Refresh to update the status.
Using the 802.1X Authentication Function — 802.1X Menu
47
EAP identity
Type the user name to identify the client in the 802.1X
authentication server using 3 to 253 characters.
EAP password
Client certificate Tab
When TLS is selected as the EAP method, import to the
unit the client certificate needed for authentication by
the unit.
A supplicant EAP password is needed to be inputted
when PEAP is selected with EAP condition. The
password can contain half-width letters and the length
should be between 1 to 50.
Reset
To change the once set EAP password, click Reset and
clear the current password. A new password can be
entered.
Note
Administrating the unit
After you click Reset, if you wish to cancel the EAP
password change, click Cancel at the bottom of the
screen. This will cancel other changes made to the
settings.
EAP method
Import, display or delete the client certificate.
To import the client certificate
Click Browse… to select the client certificate to be
imported.
Then click Submit, and the selected file will be
imported to the unit.
Note
You can select the authentication method used with the
authentication server. This device supports TLS and
PEAP.
The import process becomes invalid if the selected file is
not a client certificate or the imported client certificate is
not allowed.
TLS: By this method, the supplicant and the server
authenticate each other using a certificate. This
enables secure port authentication.
PEAP: By this method, an EAP password is used for the
supplicant authentication and a certificate is used for
server authentication.
To display the information of the client
certificate
When the client certificate has been saved in the unit
correctly, its information appears on Status, Issuer DN,
Subject DN, Validity Period and Extended Key
Usage.
OK/Cancel
Status: Shows if the status of the client certificate is
valid or invalid.
Valid means the client certificate is correctly stored
and set.
Invalid means the client certificate is not correctly
stored and set.
Possible causes of Invalid are as follows:
– The private key password included in the client
certificate is not specified correctly.
– The private key password is specified in spite of
the fact that the key pair in the client certificate is
not encrypted.
– The key pair is not included in the client certificate.
See “Buttons common to every menu” on page 27.
48
Client certificate request
Using the 802.1X Authentication Function — 802.1X Menu
Note
When the client certificate to be imported is of
PKCS#12 format and the private key password is not set
correctly, “<Put correct private key password>” is
displayed in the boxes of Issuer DN, Subject DN,
Validity Period and Extended Key Usage. Specify the
correct private key password to confirm the information
of the certificate.
CA certificate Tab
You can import a trusted CA certificate (server
certificate or route certificate) to the unit. Up to four
certificates from trusted CAs can be imported to the unit.
Only the PEM format is supported.
To delete the client certificate
Click Delete, and the client certificate stored in the unit
will be deleted.
Private key password
Reset
To change the private key password, click this button.
The current password is cleared and the password text
box is actived to allow new password entry.
Note
Click Cancel at the bottom of the menu if you want to
cancel changing the private key password after clicking
Reset. Doing so restores the other setting items in the
Client certificate tab to their previous settings.
OK/Cancel
See “Buttons common to every menu” on page 27.
Administrating the unit
Type the password for the private key information
included in the client certificate using up to 50
characters.
Leave the text box blank if the private key information
included in the client certificate is not encrypted.
If no private key password is set in the unit, the text box
is activated to allow entering of a password.
If a private key password is already set, it is displayed as
turned letters.
To import the CA certificate
Click Browse… to select the CA certificate to be
imported.
Then click Submit, and the selected file will be
imported to the unit.
Note
Import process becomes invalid if the selected file is not
a CA certificate.
To display the information of the CA certificate
When the CA certificate has been saved in the unit
correctly, its information appears on Issuer DN,
Subject DN, Validity Period and Extended Key
Usage.
To delete the CA certificate
Click Delete, and the selected CA certificate will be
deleted from the unit.
Using the 802.1X Authentication Function — 802.1X Menu
49
Setting the 802.1X authentication
function – Example of Windows
Server 2003
This section explains how to configure the
authentication server and CA using Microsoft Windows
Server 2003.
Note
As this section describes authentication based on the
user interface in English on Windows Server 2003, the
UI terminology and page configuration may be different
depending on the version of the Operating System or
Service Pack and patch update status.
3
Configuring the Internet Authentication
Service
1
Open Internet Authentication Service from
Administrative Tools of the Windows menu.
2
Click Register Server in Active Directory on the
operation menu.
3
Read the displayed precautions carefully and click
OK to accept them.
Before setting
Perform the following settings before configuring an
802.1X network.
Administrating the unit
Active Directory (domain controller)
The following setting example is based on the
assumption that the Active Directory has been
configured.
Windows IAS configuration
Configure Remote access/VPN server in Manage Your
Server of Windows Server 2003. Open Add or Remove
Programs from Control Panel of Windows menu.
Install Internet Authentication Service in Add/
Remove Windows Components.
Then, continue to configure the EAP-TLS policy.
4
Select Remote Access Policy and right-click.
5
Select New from the context menu, and select
Remote Access Policy to open “New Remote
Access Policy Wizard.”
6
Select Set up a custom policy.
7
Set the following items:
Policy name: Type “Allow 802.1X Access” as an
example.
Policy conditions: Click Add and add the
following items:
– NAS Port-Type: Ethernet, Other and Virtual
(VPN)
– Windows-Groups: Wired_802.1X_Group
Permissions: Select Grant remote access
permission.
Edit Profile:
– Dial-in Constraints tab: Specify the session
time out period during which the client is
allowed to be connected, as required.
– Authentication tab: Delete checks from all the
boxes. Click EAP Method and add Smart
Card or other certificates.
CA configuration
To configure the CA, perform the following steps:
1
Open Add or Remove Programs from Control
Panel of the Windows menu.
2
Select Add/Remove Windows Components.
3
Add Certificate Services in the Component menu.
4
Select Enterprise root CA on CA Type.
5
Type the CA name on Common Name for this CA,
and configure the CA.
Creating a security group for Active
Directory
50
1
Open Active Directory Users and Computers
from Administrative Tools of the Windows menu.
2
Select Users of the domain with which you want to
perform 802.1X connection.
Using the 802.1X Authentication Function — 802.1X Menu
Select New from the context menu, then select
Group and configure the group for 802.1X
connection.
For example, the group “Wired_802.1X_Group” is
assumed for explanation purposes.
Then, continue to configure the RADIUS client.
8
Select RADIUS Clients and right-click.
9
Select New RADIUS Client from the context
menu.
10 Set the following items:
The “Microsoft Certificate Services” page opens.
Friendly name: Type “authenticator” as an
example.
Client address (IP or DNS): IP address of the
authenticator
Client-Vender: RADIUS Standard
Shared secret: Specify the shared secret to be set
in the authenticator.
Adding a user
1
Open Active Directory Users and Computers
from Administrative Tools of Windows menu.
2
Select Users of the domain with which you want to
add a user and right-click.
Note
Select New from the context menu, then select
User.
4
Set the following items to configure a new user:
For example, the log-on user name “1XClient” is
assumed for explanation purposes.
First name: 1XClient
User logon name: 1XClient@<domain name>
Password: Specify a password. Then select
Password never expires in account options.
5
Select the user to be added and right-click.
6
Select Properties from the context menu.
7
Set the following items:
Dial-in tab: Select Allow access in Remote
Access Permission (Dial-in or VPN)
Member Of tab: Add “Wired_802.1X_Group.”
The preparations for configuring a 802.1X network are
now completed.
Proceed to issue the certificate to be imported to the
system.
Issuing the CA certificate
If the Microsoft Certificate Service page does not appear
using the URL above, check the following:
– Is the service of Web site enabled on Internet
Information Service (IIS)?
– Is Certificate Services enabled?
– Does the firewall or antivirus software setting on
the client PC block connection?
– Are the network configuration and Internet
Explorer settings on the client PC correct?
3
Administrating the unit
3
When Internet Explorer prompts entering the log-in
user and password, type the user name as follows.
Example: when the user name is “1XClient” and
the domain name “localnetwork.net”
1XClient@localnetwork.net
4
Click Download a CA certificate, certificate
chain, or CRL.
5
Select Base 64 in Encoding method and click
Download CA certificate.
The “File Download” dialog opens.
6
Specify the file storage location and save the CA
certificate.
Prepare a Windows client PC (called “client PC”
hereafter) to temporarily store the certificate, and
configure so that the client PC and Windows Server
2003 computer can be connected through the network.
After saving the CA certificate, import it to the system.
The CA certificate import procedure is completed.
1
Start Internet Explorer on the client PC.
2
Type the CA’s URL in the address bar, and click Go
To.
The CA’s URL is normally as follows:
The procedures of the client certificate download differs
depending on the TLS mode of the camera. This section
explains the procedures for each mode.
Downloading the client certificate
Using the 802.1X Authentication Function — 802.1X Menu
51
When “Use a key pair from a CA” is selected
1
Start Internet Explorer on the client PC and type the
CA’s URL in the address bar.
The CA’s URL is normally as follows:
2
Click Go To.
3
Type the log-in user name and password correctly.
The “Microsoft Certificate Services” page opens.
4
Click Request a certificate, advanced certificate
request and Create and submit a request to this
CA in sequence.
5
Set the following items.
Administrating the unit
Certificate Template: User
Key Options: Create new key set
– CSP: Microsoft Enhanced Cryptographic
Provider v1.0
– Key Size: 1024
– Check Mark keys as exportable.
Additional Options: Select SHA-1 for Hash
Algorithm.
52
6
Click Submit.
The message “The certificate you requested was
issued to you.” appears.
7
Click Install this certificate. to install the
certificate in the certificate store on the client PC.
8
Click Internet Options, Content and Certificates
of Internet Explorer in sequence.
The new client certificate is displayed in the
Personal tab.
9
Select the installed certificate and click Export....
The “Certificate Export Wizard” opens.
Using the 802.1X Authentication Function — 802.1X Menu
10 Click Next and select as follows.
Do you want to export the private key with the
certificate?: Select Yes, export the private key.
Select the format you want to use: Select
Personal Information Exchange –
PKCS#12(PFX).
Password: Specify the private key password.
File to export: Specify the name of the file to be
exported.
The certificate is exported. Import the exported file to
the unit as the unit’s client certificate.
For details, see “To import the client certificate” in the
Client certificate tab on page 48.
Setting the User
— User Menu
When you click User in the Administrator menu, the
User menu appears.
Use this menu to set the user names and passwords of
Administrator and up to 9 kinds of users (User 1 to User
9), and the access right of each user.
Note
To output audio using the SNC audio upload tool, set
Audio upload to On in the Common tab of the Camera
menu (page 34).
Viewer mode
When the user is authenticated for logging in the main
viewer, select the viewer mode to be displayed after
authentication.
Note
Pan/Tilt and Preset position are not available on the
SNT-EP104 and SNT-EP154.
Administrator
User 1 to 9
Specify User name, Password, Re-type password,
FTP, Audio and Viewer mode for each user ID.
User name
Type a user name between 5 and 16 characters.
Password
Type a password between 5 and 16 characters.
Administrating the unit
Specify User name, Password and Re-type password.
Full: The user can operate all functions in this mode.
Pan/Tilt: In addition to the Light mode, the user can
operate pan/tilt/zoom.
Preset position: In addition to the Light mode, the user
can perform the camera’s preset position settings.
Light: In addition to the View mode, the user can select
the image size of the main viewer, select codec and
capture a still image.
View: The user can only monitor the camera image.
For the functions available for each viewer mode, see
“Administrator and User” on page 16.
Viewer authentication
Set whether the user is authenticated or not when the
main viewer is displayed.
Note
Re-type password
To confirm the password, retype the password that you
typed in the Password box.
Pan/Tilt and Preset position are not available on the
SNT-EP104 and SNT-EP154.
FTP
Set whether this user is allowed to log in to an FTP
server or not. Check the box if the user is allowed to log
in to an FTP server.
On: The main viewer is displayed in accordance with
the viewer mode of the authenticated user.
Off: Select the viewer mode of the main viewer which is
displayed without authentication from Full, Pan/
Tilt, Preset position, Light or View.
Audio
Select whether audio output to a speaker connected to
the line output jack of the system is allowed or not by
using the SNC audio upload tool stored in the supplied
CD-ROM. Check this box to allow audio output.
OK/Cancel
See “Buttons common to every menu” on page 27.
Notes
• This operation is not available on the SNT-EP104 or
SNT-EP154.
• Voice alert configuration is only available for CH1 on
the SNT-EX154.
Setting the User — User Menu
53
Setting the Security
— Security Menu
When you click Security in the Administrator menu, the
Security menu appears.
This allows you to control which computers can have
access to the camera.
Likewise, when using IPv6, security settings can be
configured for each network.
Saving the Camera
Position and Action —
Preset position Menu
When you click Preset position in the Administrator
menu, the Preset position menu appears. This allows you
to save the camera’s pan, tilt and zoom positions and set
position tours (programmed actions of the camera).
The Preset position menu consists of 2 tabs: Position
and Tour (position).
The Preview screen is displayed in the upper part.
Position Tab — Saving pan/tilt/
zoom position
Security function
Administrating the unit
To activate the security function, select On.
Default policy
Select the basic policy of the limit from Allow and Deny
for the computers specified in the Network address/
Subnet 1 to Network address/Subnet 10 menus below.
You can set camera positions (pan, tilt and zoom
positions).
Note
These settings are not available on the SNT-EP104 or
SNT-EP154.
Network address/Subnet 1 to Network
address/Subnet 10
Type the network addresses and subnet mask values that
you want to allow or deny access to the camera.
You can specify up to 10 network addresses and subnet
mask values. For a subnet mask, type 8 to 32.
(In the case of IPv6, enter a value between 8 and 128.)
Select Allow or Deny from the drop-down list on the
right for each network address/subnet mask.
Tip
The subnet mask value represents the bit number from
the left of the network address.
For example, the subnet mask value for “255.255.255.0”
is 25.
If you set 192.168.0.0/24 and Allow, you can allow
access from computers having an IP address between
“192.168.0.0” and “192.168.0.255.”
Note
You can access the unit even from a computer having an
IP address whose access right is set to Deny, if you enter
the user name and password set for the Administrator
boxes in the User menu.
OK/Cancel
See “Buttons common to every menu” on page 27.
54
Setting the Security — Security Menu
Position at alarm
The unit can synchronize a preset position with sensor
input with the motion detection function.
If an alarm is detected by the sensor input or the motion
detection function, the unit automatically moves to the
corresponding preset position.
If you do not want to synchronize with any preset
number, select none.
Tip
The number of selectable sensor input terminals is as
follows:
SNT-EX101: 2
SNT-EX104/SNT-EX154: 4
SNT-EP104/SNT-EP154: None
Sensor input 1 (S1)
Select a preset position to synchronize with the alarm
from Sensor input 1.
Sensor input 2 (S2)
Select a preset position to synchronize with the alarm
from Sensor input 2.
Sensor input 3 (S3)
Select a preset position to synchronize with the alarm
from Sensor input 3.
Tampering (TP)
Select the preset position to synchronize with the camera
tampering detect alarm.
VMF
Select the preset position to synchronize with the VMF
detection alarm.
Motion Detection (MD)
Select a preset position to synchronize with the alarm
from the motion detection.
Click Detection, and the motion detection menu is
displayed to allow you to set the motion detection
function (page 73).
Note
In the case where the synchronized preset position is
specified, an alarm event that happens when the camera
moves to the preset position will be invalid.
Preset
You can save preset positions. You can also click Call to
move the camera to a specified preset position.
No.
Select a preset number from 1 to 256 from the dropdown list.
1
Move the camera to the position to be saved, while
checking the image with the preview viewer.
2
Select a preset number for saving, and type the
preset position Name.
3
Click the Set button.
The camera position is saved.
Call
Click to move the camera to the preset position.
Clear Thumbnail
Click to delete the thumbnail of the sepecific preset
position.
Administrating the unit
Sensor input 4 (S4)
Select a preset position to synchronize with the alarm
from Sensor input 4.
Set
Click to save the current camera position to the selected
preset number.
To save a preset position, operate as follows:
Thumbnail
Checking this checkbox registers a thumbnail when you
register a preset position.
Select a radio button to determine whether to register the
current camera image as a thumbnail or to register with
a specified image.
To specify an image, click Browse. Then click Submit.
Group preset positions
You can sort preset positions into groups.
The information of the preset positions registered in a
group can be viewed from the group tree screen.
By clicking the preset position in a group, the camera
moves to the preset position.
New Group
You can register a new group.
Rename
You can rename the group and preset positions.
Clear
You can delete the group and preset positions.
OK/Cancel
See “Buttons common to every menu” on page 27.
Note
The OK/Cancel buttons are effective for the Position at
Alarm setting in this tab.
Name
Type the preset position name of the selected preset
number using up to 32 characters.
Saving the Camera Position and Action — Preset position Menu
55
Position Tour Tab — Setting a
position tour
Positions can be programmed, and the camera can be set
to move to the programmed positions sequentially
(Tour).
Up to five programs can be set as Tours A to E.
Sequence
Set the sequence of the tour.
The preset positions saved using the Position tab are
displayed in the drop-down list at the bottom.
Select the preset position from the group-tree, then click
Add. The selected preset position is added in the
Sequence list. Repeat this procedure to specify the
preset positions in sequence.
You can check the preset position by clicking Call.
If you specified an unnecessary preset position, click to
select it in the list and then click Delete.
To change the order in the list, select the preset position
and then click Up or Down.
Note
The tour cannot be set to On if no preset position is
added in the Sequence list.
Administrating the unit
Stay time
Type a period of time during which the camera is to stay
at each preset position, between 1 and 3600 seconds.
Effective period
Select the period during which the tour in activated.
Tour
Select On to enable the tour function.
Resume time on inactivity
This item becomes active when Tour is set to On.
With this item, you can select whether you restart or stop
the tour after it has stopped by manual pan, tilt or zoom
operation or by camera movement to the preset position
triggered by an alarm.
On: Specify the wait time before the tour restarts,
between 5 and 3600 seconds. The tour restarts
automatically after the specified time has elapsed.
Off: The tour does not restart.
Tour A to Tour E
Configure Tour A to Tour E respectively.
Each tour setting consists of 5 items: On/Off,
Sequence, Speed, Stay time. Effective period.
Select the tour to configure from the drop-down list.
On: The tour operates.
Off: The tour does not operate.
56
Saving the Camera Position and Action — Preset position Menu
Always: The tour can be activated any time.
Schedule: The tour is activated according to the
schedule you have set.
Click Schedule, and the menu for the effective
period is displayed. (“Setting the Schedule —
Schedule Menu” on page 72.)
Note
You cannot set tours if the effective periods overlap each
other.
OK/Cancel
See “Buttons common to every menu” on page 27.
Sending an Image via
E-mail — e-Mail (SMTP) Menu
When you click e-Mail (SMTP) in the Administrator
menu, the e-Mail (SMTP) menu appears.
Using the e-Mail (SMTP) function, you can send an
e-mail with an attached image file that has been shot
linked with an external sensor input or with the built-in
motion detection function. The image file can also be
sent periodically.
The e-Mail (SMTP) menu consists of three tabs:
Common, Alarm sending and Periodical sending.
Note
The SNT-EP104 and SNT-EP154 do not have a function
to send image files from external automatic sensor
inputs.
Select the textbox and enter a port number from 25 to
65535.
Use TLS
To use the encryption function by TLS, select On.
STARTTLS
To use the encryption function by STARTTLS, select
On.
Authentication
Select whether authentication is required when you send
an e-mail.
Off: No authentication is required when an e-mail is
sent.
On: Authentication is required when an e-mail is sent.
Select one of the authentication methods from the
following and specify the POP server name, User
name and Password as required.
SMTP: Select when SMTP authentication is
required.
POP before SMTP: Select when POP before SMTP
authentication is required.
Administrating the unit
Common Tab — Setting the e-Mail
(SMTP) Function
SMTP port number
Note
When you set Authentication to On, be sure to select
either or both SMTP or/and POP before SMTP.
POP mode
Select POP3 or APOP (encrypted authentication).
Waiting time after POP authentication
Set the timeout duration. Timeout duration can be set
from 1 to 10000 msec.
e-Mail (SMTP)
Select On when you use the e-Mail (SMTP) function.
Notes
• You cannot send an audio file by using the e-mail
sending function.
• The frame rate and operability on the main viewer
may be reduced while a file is being transmitted by the
e-Mail (SMTP) function.
SMTP server name
Type the SMTP server name using up to 64 characters,
or the IP address of the SMTP server.
POP server name
This is necessary when POP before SMTP is selected
for Authentication.
Type the POP (receiving mail) server name using up to
64 characters, or type the IP address of the POP server.
This setting is necessary when the SMTP server that
sends e-mails performs authentication using the POP
user account.
POP port number
Enter a port number from 110 to 65535.
Authentication mode
Set the user authentication mode.
If you do not use CRAM-MD5, select Login.
Sending an Image via E-mail — e-Mail (SMTP) Menu
57
User name, Password
Type the user name and password of the user who owns
the mail account using up to 64 characters. This setting
is necessary when the SMTP server that sends e-mails
performs authentication.
Recipient e-mail address
Type the recipient e-mail address using up to 64
characters.
You can specify up to three recipient e-mail addresses.
Administrator e-mail address
Type the Administrator e-mail address using up to 64
characters.
This address is used for reply e-mails and sending
system messages from the mail server.
Subject
Administrating the unit
Type the subject/title of the e-mail using up to 64
characters.
When Alarm sending of the Alarm sending tab is set to
On, an e-mail sent in response to alarm detection will
indicate the type of alarm in the subject. S1 is added for
sensor input 1 detection, S2 for sensor input 2 detection,
S3 for sensor input 3 detection, S4 for sensor input
4 detection, MD is added for the motion detection.
Message
Type the text of the e-mail using up to 384 characters. (A
line break is equivalent to 2 characters.)
OK/Cancel
See “Buttons common to every menu” on page 27.
Alarm sending Tab — Setting the
e-mail sending mode when
detecting the alarm
Set to send an e-mail linked with alarm detection by the
external sensor input or by the built-in motion detection
function.
Alarm sending
Select On to set sending an e-mail linked with alarm
detection.
File attachment
Set whether an image file (JPEG file) is to be attached to
the e-mail or not.
When On is selected, the image file made using the
settings below is attached. When Off is selected, only
the message is sent.
Image file name
Type the file name you want to assign to the image to be
attached to an e-mail. You can use up to 10
alphanumeric characters, - (hyphen) and _ (underscore)
for naming.
Suffix
Select a suffix to be added to the file name.
None: No suffix is added. The image file name is
assigned to the image to be sent via e-mail.
Date & time: The date & time suffix is added to the
image file name.
The date/time suffix consists of lower two-digits of
the year (2 digits), month (2 digits), date (2 digits),
hour (2 digits), minute (2 digits), second (2 digits),
and sequential number (2 digits), thus adding 14digit number to the image file name.
Sequence number: A sequential number of 10 digits
between 0000000001 and 4294967295 and two fixed
digits 00 are added to the image file name.
Sequence number clear
Click Clear to reset the Sequence number suffix to 1.
Alarm
Select the alarm to be linked with e-mail notification.
Tip
The number of selectable input terminals is as follows:
SNT-EX101: 2
SNT-EX104/SNT-EX154: 4
SNT-EP104/SNT-EP154: None *
* Alarm sending is available only for the simple motion
detection function.
Sensor input 1: The external sensor that is connected to
sensor input1 of the I/O port.
Sensor input 2: The external sensor that is connected to
sensor input 2 of the I/O port.
Sensor input 3: The external sensor that is connected to
sensor input 3 of the I/O port.
Sensor input 4: The external sensor that is connected to
sensor input 4 of the I/O port.
58
Sending an Image via E-mail — e-Mail (SMTP) Menu
Tampering: An alarm that is triggered when the camera
detects vibration or shaking.
VMF: An alarm of the VMF detection function.
Motion detection: The alarm detected by the motion
detection function.
Click Detection, and the motion detection menu is
displayed to allow you to set the motion detection
function (page 73).
Periodical sending Tab — Setting
the periodical e-mail sending mode
You can set to send e-mails periodically.
Note
In the case that the synchronized preset position is
specified in Position at alarm in the Preset position
menu, an alarm event that happens when the camera
moves to the preset position will be invalid.
Effective period
Periodical sending
Select On when you want to use periodical e-mail
sending.
Image file name
Always: Alarm detection is always effective.
Schedule: You can specify the period during which
alarm detection is effective.
Click Schedule and the menu for the effective period
is displayed. (“Setting the Schedule — Schedule
Menu” on page 72)
Type the file name of the image attached to the e-mail
using up to 10 alphanumeric characters, - (hyphen) and
_ (under score).
The actual image file name will be the specified image
file name with a suffix and the extension .jpg.
Administrating the unit
Set the period during which alarm detection is effective.
Suffix
OK/Cancel
See “Buttons common to every menu” on page 27.
Select a suffix to be added to the file name used when the
e-mail is sent.
None: The name of the sent file will be the image file
name.
Sending an Image via E-mail — e-Mail (SMTP) Menu
59
Date & time: The date & time suffix is added to the
image file name.
The date & time suffix consists of the year (2 digits),
month (2 digits), date (2 digits), hour (2 digits),
minutes (2 digits) and seconds (2 digits), and
sequential number (2 digits), thus adding a 14-digit
number to the image file name.
Sequence number: A sequential number of 10 digits
between 0000000001 and 4294967295 and two fixed
digits 00 are added to the image file name.
Sequence number clear
Click Clear to reset the Sequence number suffix to 1.
Interval
Type the interval at which you want to send an e-mail
periodically. You can set the hour (H) and minutes (M)
between 30 minutes and 24 hours (one day).
Effective period
Administrating the unit
Set the period during which periodical sending will be
effective.
Always: Periodical sending is always effective.
Schedule: You can specify the period during which
periodical sending is effective.
Click Schedule and the menu for the effective period
is displayed. (“Setting the Schedule — Schedule
Menu” on page 72)
OK/Cancel
See “Buttons common to every menu” on page 27.
Sending Images to FTP
Server
— FTP client Menu
When you click FTP client in the Administrator menu,
the FTP client menu appears.
Use this menu to set up for capturing and sending still
images to an FTP server. Using FTP client function, you
can send an image and audio file that has been shot and
recorded linked with the external sensor input or with
the built-in motion detection function to an FTP server.
The image file can also be sent periodically.
The FTP client menu consists of three tabs: Common,
Alarm sending and Periodical sending.
Common Tab — Setting the FTP
client function
FTP client function
To activate the FTP client function, select On.
Note
The frame rate and operability on the main viewer may
be reduced while a file is being transmitted by the FTP
client function.
FTP server name
Type either the FTP server name to upload still images
using up to 64 characters, or the IP address of the FTP
server.
User name
Type the user name for the FTP server using up to 64
characters.
Password
Type the password for the FTP server using up to 64
characters.
Re-type password
To confirm the password, type the same characters as
you typed in the Password box.
60
Sending Images to FTP Server — FTP client Menu
Passive mode
Set whether you use the passive mode of FTP server or
not when connecting to the FTP server. Select On to
connect to the FTP server using the passive mode.
OK/Cancel
Sequence number: A sequential number of 10 digits
between 0000000001 and 4294967295 and a
sequential 2-digit number are added to the image file
name.
Tip
See “Buttons common to every menu” on page 27.
A sequential number added to Date & time and
Sequence number is used to identify individual files
created with consecutive alarm events.
Alarm sending Tab — Setting the
FTP client action when detecting
the alarm
Sequence number clear
Click Clear to reset the Sequence number suffix to 1.
Set to forward an image and audio file to the specified
FTP server linked with alarm detection by the external
sensor input or by the built-in motion detection function.
Alarm
Select the alarm to be linked with the file to be
forwarded to the FTP server.
Tip
Alarm sending
Select On to send the image and audio file to the FTP
server linked with alarm detection.
Remote path
Type the path to the destination using up to 64
characters.
Image file name
Type the file name you want to assign to the images
when sending to the FTP server. You can use up to 10
alphanumeric characters, - (hyphen) and _ (underscore)
for naming.
Suffix
Select a suffix to be added to the file name.
Date & time: The date & time suffix is added to the
image file name.
The date/time suffix consists of the year (2 digits),
month (2 digits), date (2 digits), hour (2 digits),
minute (2 digits) and second (2 digits), and
sequential number (2 digits), thus adding a 14-digit
number to the image file name.
Administrating the unit
The number of selectable input terminals is as follows:
SNT-EX101: 2
SNT-EX104/SNT-EX154: 4
SNT-EP104/SNT-EP154: None *
* Alarm sending is available only for the simple motion
detection function.
Sensor input 1: The external sensor that is connected to
sensor input 1 of the I/O port.
Sensor input 2: The external sensor that is connected to
sensor input 2 of the I/O port.
Sensor input 3: The external sensor that is connected to
sensor input 3 of the I/O port.
Sensor input 4: The external sensor that is connected to
sensor input 4 of the I/O port.
Tampering: An alarm that is triggered when the camera
detects vibration or shaking.
VMF: An alarm of the VMF detection function.
Motion detection: The alarm detected by the motion
detection function.
Click Detection, and the Motion detection menu is
displayed to allow you to set the motion detection
function (page 73).
Note
In the case that the synchronized preset position is
specified in Position at alarm in the Preset position
menu, an alarm event that happens when the camera
moves to the preset position will be invalid.
Sending Images to FTP Server — FTP client Menu
61
Effective period
Suffix
Set the period during which alarm detection is effective.
Select a suffix to be added to the file name sent to the
FTP server.
Always: Alarm detection is always effective.
Schedule: You can specify the period during which
alarm detection is effective.
Click Schedule and the menu for the effective period
is displayed. (“Setting the Schedule — Schedule
Menu” on page 72)
Alarm buffer
Select Use alarm buffer to forward the image/audio at
a specified time before or after alarm detection (prealarm, post-alarm).
If you do not select the alarm buffer, only the image at
the moment of alarm detection is forwarded.
Click Alarm buffer to display the Alarm buffer menu.
For details, see “Setting the Alarm Buffer — Alarm
buffer Menu” on page 73.
Administrating the unit
OK/Cancel
See “Buttons common to every menu” on page 27.
Periodical sending Tab — Setting
the periodical FTP client activity
You can set to send image files (JPEG files) to an FTP
server periodically.
None: The name of the sent file will be the image file
name.
Date & time: The date & time suffix is added to the
image file name.
The date & time suffix consists of the year (2 digits),
month (2 digits), date (2 digits), hour (2 digits),
minute (2 digits) and second (2 digits), and
sequential number (2 digits), thus adding a 14-digit
number to the image file name.
Sequence number: A sequential number of 10 digits
between 0000000001 and 4294967295 and two fixed
digits 00 are added to the image file name.
Sequence number clear
Click Clear to reset the Sequence number suffix to 1.
Mode
Select the periodical sending mode.
Periodical mode: An image file is sent periodically
according to the specified Interval and Effective
period.
Tour mode: An image file is sent each time the camera
is moved to a preset position during the tour.
Note
Periodical mode and Tour mode are not available on
the SNT-EP104 and SNT-EP154.
Interval
Type the interval at which you want to send images to
the FTP server periodically. You can set the hour (H),
minutes (M) and seconds (S) between 1 second and 24
hours (one day).
Note
Periodical sending
Select On when you want to use periodical sending.
Remote path
Type the remote path using up to 64 characters.
Image file name
Type the file name of the image sent to the FTP server
using up to 10 alphanumeric characters, - (hyphen) and
_ (under score).
The actual image file name will be the specified image
file name with a suffix and extension .jpg.
Note
You cannot send an audio file using periodical sending
of the FTP client function.
62
Sending Images to FTP Server — FTP client Menu
The actual interval may be longer than the set value,
depending on the image size, image quality setting, bit
rate and the network environments.
Effective period
Set the period during which periodical sending is
effective.
Always: Periodical sending is always effective.
Schedule: You can specify the period during which
periodical sending is effective.
Click Schedule to display the menu for the effective
period. (“Setting the Schedule — Schedule Menu”
on page 72)
OK/Cancel
See “Buttons common to every menu” on page 27.
Recording Images in
Memory
Common Tab — Setting the image
memory function
— Image memory Menu
When you click Image memory in the Administrator
menu, the Image memory menu appears.
By using the image memory function, you can record an
image and audio file (shot being linked with the external
sensor input or built-in motion detection function) in the
built-in memory (approx. 8 MB), or in a USB memory
(not supplied) inserted in the unit. Image files can also
be recorded periodically.
The recorded image and audio files can be searched or
downloaded via a computer using the FTP server
function. (See “Downloading Images from the system
— FTP server Menu” on page 67.)
The Image memory menu consists of three tabs:
Common, Alarm recording and Periodical recording.
• The image and audio files recorded in the built-in
memory are deleted when the power of the camera is
turned off, or the Selected root directory setting is
changed.
• The frame rate and operability on the main viewer
may be reduced during image storage.
• Set the image memory function to Off when you
remove the USB memory from the camera, or when
you turn off the power of the unit.
• Before using a USB memory, format it using the
computer, or by Format USB memory in the
Initialize tab (page 32).
To use the image memory function, select On.
Selected root directory
Select a memory in which you want to save an image.
The current memory space is displayed on the right.
Administrating the unit
Notes
Image memory
Built-in memory: Built-in memory of this unit
USB memory: USB memory inserted into the unit
Notes
• The image and audio files recorded in the built-in
memory are deleted when the Selected root directory
setting is changed.
• When Selected root directory is set to an option other
than Built-in memory, “empty” is displayed in the
memory space box and you cannot access the built-in
memory.
• The USB memory option is not available on the
SNT-EP104, SNT-EX154 and SNT-EP154.
Overwrite
Select On to overwrite the file when there is insufficient
memory space to record the image in the built-in
memory or USB memory.
On: Overwrite is enabled and old files will be
overwritten in the order of date.
Off: Overwrite is prohibited. No recording will be
performed.
Capacity warning
Select On to send a warning mail to the Administrator
when the memory space of the built-in memory or CF
memory card is low or the memory is full. Select Off if
you do not want to send a warning mail.
On: A warning mail is sent to the Administrator.
Off: A warning mail is not sent to the Administrator.
Recording Images in Memory — Image memory Menu
63
Note
When Overwrite is set to On, a warning mail is not sent
to the Administrator.
SMTP server name
Type the name of the SMTP server for sending an email, using up to 64 characters.
Otherwise type the IP address of the SMTP mail server.
SMTP port number
Select the textbox and enter a port number from 25 to
65535.
POP port number
Enter a port number from 110 to 65535.
Authentication mode
Set the user authentication mode.
If you do not use CRAM-MD5, select Login.
User name, Password
Type the user name and the password of the user who
owns the e-mail account. This setting is necessary when
the SMTP server that sends e-mails performs
authentication.
Use TLS
To use the encryption function by TLS, select On.
Administrator e-mail address
Type the e-mail address for the recipient of a warning
mail (e-mail address of the Administrator), using up to
64 characters.
STARTTLS
To use the encryption function by STARTTLS, select
On.
OK/Cancel
Administrating the unit
Authentication
Select whether authentication is required when you send
an e-mail.
Off: No authentication is required when an e-mail is
sent.
On: Authentication is required when an e-mail is sent.
Select one of the authentication methods from the
following and specify the POP server name, User
name and Password as required.
SMTP: SMTP authentication is required.
POP before SMTP: POP before SMTP
authentication is required.
See “Buttons common to every menu” on page 27.
Alarm recording Tab — Setting the
Image memory function when
detecting the alarm
You can set to record image and audio file to the memory
linked with an external sensor input or built-in motion
detection function.
Note
When you set Authentication to On, be sure to select
either or both SMTP or/and POP before SMTP.
POP mode
Select POP3 or APOP (encrypted authentication).
Alarm recording
64
Waiting time after POP authentication
Set the timeout duration. Timeout duration can be set
from 1 to 10000 msec.
Select On to automatically record the image and audio
files from alarm detection to the built-in memory or
USB memory.
POP server name
This is necessary when POP before SMTP is selected
for Authentication.
Type a POP (receiving mail) server name using up to 64
characters, or type the IP address of the POP server. This
setting is necessary when the SMTP server that sends emails performs authentication using the POP user
account.
Image file name
Recording Images in Memory — Image memory Menu
Type the file name you want to assign to the image(s) to
be recorded. You can use up to 10 alphanumeric
characters, - (hyphen) and _ (underscore) for naming.
Suffix
Select a suffix to be added to the file name.
Date & time: The Date & time suffix is added to the
image file name.
The Date & time suffix consists of the year (2 digits),
month (2 digits), date (2 digits), hour (2 digits),
minute (2 digits), second (2 digits) and sequential
number (2 digits), thus adding a 14-digit number to
the image file name.
Sequence number: A sequential number of 10 digits
between 0000000001 and 4294967295 and an
sequential 2 - digit number is added to the image file
name.
Tip
A sequential number added to Date & time and
Sequence number is used to identify individual files
created with consecutive alarm events.
Sequence number clear
Click Clear to reset the Sequence number suffix to 1.
Select the alarm to be linked with the recording of image
and audio files.
Tip
Number of selectable input terminals is as follows:
SNT-EX101: 2
SNT-EX104/SNT-EX154: 4
SNT-EP104/SNT-EP154: None *
* Alarm sending is available only for the simple motion
detection function.
Sensor input 1: The external sensor that is connected to
sensor input 1 of the I/O port.
Sensor input 2: The external sensor that is connected to
sensor input 2 of the I/O port.
Sensor input 3: The external sensor that is connected to
sensor input 3 of the I/O port.
Sensor input 4: The external sensor that is connected to
sensor input 4 of the I/O port.
Tampering: An alarm that is triggered when the camera
detects vibration or shaking.
VMF: An alarm of the VMF detection function.
Motion detection: The alarm by the motion detection
function.
Click Detection, and the Motion detection menu is
displayed to allow you to set the motion detection
function (page 73).
In the case that the synchronized preset position is
specified in Position at alarm in the Preset position
menu, the alarm event that happens when the camera
moves to the preset position will be invalid.
Effective period
Set the period during which alarm detection is effective.
Always: Alarm detection is always effective.
Schedule: You can specify the period during which
alarm detection is effective.
Click Schedule to display the setting menu for the
effective period. (“Setting the Schedule — Schedule
Menu” on page 72)
Alarm buffer
Select Use alarm buffer when you record the image/
audio at a specific time before or after alarm detection
(pre-alarm, post-alarm).
If you do not select the alarm buffer, only the image at
the moment of alarm detection is recorded.
Click Alarm buffer to display the Alarm buffer menu.
For details, see “Setting the Alarm Buffer — Alarm
buffer Menu” on page 73.
Administrating the unit
Alarm
Note
OK/Cancel
See “Buttons common to every menu” on page 27.
Periodical recording Tab — Setting
the periodical recording mode
You can set to record an image file (JPEG file) to the
built-in memory or USB memory periodically.
Periodical recording
Select On when you want to use periodical recording.
Image file name
Type the file name of the image to be recorded to the
memory using up to 10 alphanumeric characters, (hyphen) and _ (under score).
The actual image file name will be the specified image
file name with a suffix and the extension .jpg.
Recording Images in Memory — Image memory Menu
65
Note
You cannot record an audio file using the periodical
recording function.
Suffix
Select a suffix to be added to the file name.
None: The recording file name will be the image file
name.
Date & time: The date & time suffix is added to the
image file name.
The date/time suffix consists of the year (2 digits),
month (2 digits), date (2 digits), hour (2 digits),
minute (2 digits), second (2 digits), and sequential
number (2 digits), thus adding a 14-digit number to
the image file name.
Sequence number: A sequential number of 10 digits
between 0000000001 and 4294967295 and two fixed
digits 00 are added to the image file name.
Always: Periodical recording is always effective.
Schedule: You can specify the period during which
periodical recording is effective.
Click Schedule and the menu for the effective period
is displayed. (“Setting the Schedule — Schedule
Menu” on page 72)
OK/Cancel
See “Buttons common to every menu” on page 27.
Folder structure of image memory
When the image memory function is used, images are
recorded with the following folder structure.
Root
Date_No.
xxxxxxx.jpf
yyyyyyy.jpf
bbbbbbb.jpf
Administrating the unit
ccccccc.jpf
Sequence number clear
Click Clear to reset the Sequence number suffix to 1.
Date_No.
zzzzzzz.m4f
qqqqqqq.m4f
Mode
Select the periodical recording mode.
Periodical mode: An image file is recorded periodically
according to the specified Interval and Effective
period.
Tour mode: An image file is recorded when the camera
is moved to each preset position during the tour.
Note
Periodical mode and Tour mode are not available for
SNT-EP104 and SNT-EP154.
Interval
Type the interval at which you want to record an image
in the memory periodically. You can set the hour (H),
minutes (M) and seconds (S) between 1 second and 24
hours (one day).
Note
The actual interval may be longer than the set value
depending on the image size, image quality, bit rate, or
recording media.
Effective period
Set the period during which periodical recording is
effective.
A
represents a folder created automatically.
The Date_No. folder has an 11-digit name consisting of
the year (last 2 digits), month (2 digits), day (2 digits),
underscore and sequential number (4 digits).
In the built-in memory, one folder automatically created
can store image files of about 1 MB. If the size of the
image files exceeds that value, a new folder is created
automatically to continue recording.
Note
USB memory folder size varies depending on capacity.
About the extension of a file
A file to be recorded/sent using the image memory
function or the FTP client function has one of the
following four extensions depending on the operation
mode setting and the recording/sending settings of the
unit.
.m4f: MPEG4 image files (including sound)
.jpf: JPEG image files (including sound)
.jpg: JPEG still image files
.maf: H.264 image files (including sound)
The SNC video player (page 100) allows playback of
“.m4f”, “.maf” and “.jpf” files.
66
Recording Images in Memory — Image memory Menu
Downloading Images
from the system — FTP
server Menu
When you click FTP server in the Administrator menu,
the FTP server menu appears. This allows you to set up
for the FTP server function, whcih finds a specified
image and audio file stored in the built-in memory
(about 8 MB) or USB memory (not supplied) inserted in
the camera, or downloads a file from the camera.
Setting the Alarm Output
— Alarm output Menu
When you click Alarm output in the Administrator
menu, the Alarm output menu appears.
You can perform setting in this menu to control the
alarm output of the I/O port on the rear of the system in
conjunction with alarm detection and the timer.
The Alarm output menu consists of four tabs: Alarm
output 1, Alarm output 2, Alarm output 3 and Alarm
output 4.
Tip
FTP server function
To activate the FTP server function, select On.
Select the memory that contains the file you want to
download.
The current memory space is displayed on the right.
Built-in memory: Built-in memory of this unit
USB memory: USB memory inserted into the unit
Notes
• When Selected root directory is set to an option other
than Built-in memory in the Common tab of the
Image memory menu, “empty” is displayed in the
memory space box and you cannot access the built-in
memory.
• The frame rate and operability on the main viewer
may be reduced when you logged in to the FTP server
of this unit using the FTP client software installed in
the computer.
• USB memory cannot be used on the SNT-EP104,
SNT-EX154 and SNT-EP154.
OK/Cancel
See “Buttons common to every menu” on page 27.
Administrating the unit
Selected root directory
• For details on connection of peripheral devices to the
alarm output of the I/O port, refer to the supplied
Installation Manual.
• The number of selectable input terminals is as follows:
SNT-EX101: 2
SNT-EX104/SNT-EX154: 4
SNT-EP104/SNT-EP154: None *
* Alarm sending is available only for the simple
motion detection function.
Note
This operation is not available on the SNT-EP104 or
SNT-EP154.
Alarm output Tab
Alarm output
To activate the alarm output function, select On.
Mode
Select the mode of the alarm output function.
Alarm: Controls alarm output by synchronizing it with
an external sensor input or the built-in motion
detection function.
When Alarm is selected, the items Sensor input 1,
Sensor input 2, Sensor input 3, Sensor input 4,
Tampering, VMF, Motion detection, Alarm
duration and Effective period become active.
Downloading Images from the system — FTP server Menu
67
Timer: Controls alarm output using the timer.
Click Schedule and the menu for the effective period
is displayed. (“Setting the Schedule — Schedule
Menu” on page 72)
Sensor input 1
Select this option when you link the alarm output to an
external sensor that is connected to sensor input 1 of the
I/O port.
Sensor input 2
Select this option when you link the alarm output to an
external sensor that is connected to sensor input 2 of the
I/O port.
Sensor input 3
Select this option when you link the alarm output to an
external sensor that is connected to sensor input 3 of the
I/O port.
Administrating the unit
Sensor input 4
Select this option when you link the alarm output to an
external sensor that is connected to sensor input 4 of the
I/O port.
Camera tampering detect
Select this option when you link the alarm output to the
vibration/shaking detection of the camera.
VMF
Select this option when you link the alarm output to the
VMF detection function.
Motion detection
Select this option when you link the alarm output to the
motion detection function.
Click Detection, and the Motion detection menu is
displayed to allow you to set the motion detection
function (page 73).
Note
In the case that the synchronized preset position is
specified in Position at alarm in the Preset position
menu, the alarm event that happens when the camera
moves to the preset position will be invalid.
Alarm duration
Select the duration for which the alarm is output,
between 1 and 60 sec.
Effective period
This item becomes active when Mode is set to Alarm.
Set the period during which the alarm detection is
effective.
Always: Alarm detection is always effective.
68
Setting the Alarm Output — Alarm output Menu
Schedule: You can specify the period during which
alarm detection is effective.
Click Schedule and the menu for the effective period
is displayed. (“Setting the Schedule — Schedule
Menu” on page 72)
OK/Cancel
See “Buttons common to every menu” on page 27.
Outputting Audio Linked
to Alarm Detection
Test
When an audio file is saved in the unit, you can check it
by playing it back.
Click Play to play back the audio file.
— Voice alert Menu
Voice alert
Click Voice alert in the Administrator menu to display
the Voice alert menu.
Use this menu to set the Voice alert function to output
audio from the line output jack of the unit when an alarm
is detected by the sensor input or motion detection
function.
You can output the audio from the speaker connected to
the unit in synchronization with an alarm event triggered
by the sensor input or the motion detection function.
The Voice alert menu consists of 3 tabs: Voice alert 1,
Voice alert 2 and Voice alert 3. You can configure an
individual audio file on each tab.
To use the voice alert function linked with the sensor
input or the motion detection function, select On.
Notes
Voice alert 1, 2, 3 Tab
Alarm
Select the alarm to be linked with the voice alert
function.
Tip
The number of selectable input terminals is as follows:
SNT-EX101: 2
SNT-EX104/SNT-EX154: 4
SNT-EP104/SNT-EP154: None *
* Alarm sending is available only for the simple motion
detection function.
Administrating the unit
• Before using the Voice alert function, you need to save
the audio file to the unit using the SNC audio upload
tool stored in the supplied CD-ROM.
• For details on use of the SNC audio upload tool, see
page 95.
• This operation is not available on the SNT-EP104 or
SNT-EP154.
• Voice alert configuration is only available for CH1 on
the SNT-EX154.
Repeat
Select playback repeat time from 1 to 3.
Sensor input 1: The external sensor that is connected to
sensor input 1 of the I/O port.
Sensor input 2: The external sensor that is connected to
sensor input 2 of the I/O port.
Sensor input 3: The external sensor that is connected to
sensor input 3 of the I/O port.
Sensor input 4: The external sensor that is connected to
sensor input 4 of the I/O port.
Tampering: An alarm that is triggered when the camera
detects vibration or shaking.
VMF: An alarm of the VMF detection function.
Motion detection: The alarm detected by the motion
detection function.
Click Detection to display Motion detection menu to
allow you to set the motion detection function
(page 73).
Notes
File
Displays the name of the audio file saved in the unit.
“Not uploaded” is displayed dimly if no audio file is
saved.
To delete the audio file saved in the unit, click Delete.
Note
Before deleting an audio file, set Voice alert to Off.
• If voice alert is actively linked with a different alarm
event while another voice alert is occuring, the first
voice alert is canceled and the second is output.
• If two or three audio files are set to be output
simultaneously linked with the same alarm event,
priority is given in the order Voice alert 1, 2 then 3.
• In the case where a preset position is specified in
Position at alarm in the Preset position menu, the
alarm event that occurs when the camera moves to the
preset position will be invalid.
Outputting Audio Linked to Alarm Detection — Voice alert Menu
69
Effective period
Set the period during which alarm detection is effective.
Always: Alarm detection is always effective.
Schedule: You can specify the period during which
alarm detection is effective.
Click Schedule, and the menu for the effective
period is displayed. (“Setting the Schedule —
Schedule Menu” on page 72)
OK/Cancel
See “Buttons common to every menu” on page 27.
Setting the Operations
from the Viewer — Trigger
Menu
Click Trigger in the Administrator menu to display the
Trigger menu.
This allows you to select the activities that can be
performed when the button on the Trigger panel is
clicked on the main viewer.
e-Mail (SMTP)
Administrating the unit
Checking this box allows you to select e-Mail (SMTP)
on the Trigger panel in the main viewer.
By clicking e-Mail (SMTP) a still image of the moment
you click is captured, and your e-mail with the image file
attached is sent to the specified mail address.
When you click e-Mail (SMTP), the Trigger-e-Mail
(SMTP) menu is displayed. You can set the necessary
options here. The setting options and setting procedures
are the same as those of the e-Mail (SMTP) menu
(page 57).
70
Setting the Operations from the Viewer — Trigger Menu
FTP client
Checking this box allows you to select FTP client on the
Trigger panel in the main viewer.
By clicking FTP client a still image of the moment you
click is captured, and the image file is sent to the FTP
server.
When you click FTP client, the Trigger-FTP client
menu is displayed. You can set the necessary options
here. The setting options and setting procedures are the
same as those of the FTP client menu (page 60).
Administrating the unit
Alarm output
Checking this box allows you to select Alarm output 1,
Alarm output 2, Alarm output 3 and Alarm output 4
on the Trigger panel in the main viewer. You can control
the alarm output by clicking Alarm output 1, Alarm
output 2, Alarm output 3 or Alarm output 4.
Note
Image memory
Checking this box allows you to select Image memory
on the Trigger panel in the main viewer.
By clicking Image memory a still image of the moment
you click is captured, and the image file is recorded in
the built-in memory or USB memory (not supplied).
Click Image memory to display the Trigger-Image
memory menu. You can set the necessary options here.
The setting options and setting procedures are the same
as those of the Image memory menu (page 63).
This operation is not available on the SNT-EP104 or
SNT-EP154.
Select the alarm ouput control mode from Toggle or
Timer.
Toggle: Each time you run a trigger, On (short circuit)
or Off (open) is switched.
Timer: When you run a trigger, the alarm output is
switched to On, and will automatically set to Off
after the time specified in Duration has elapsed.
Duration
When Timer is selected, specify the time for which the
alarm output remains off, from 1 to 300 seconds.
Voice alert 1, 2, 3
Checking this box allows you to select Voice alert 1,
Voice alert 2 or Voice alert 3 on the Trigger panel in the
main viewer. You can output audio from the audio file
saved in the system by clicking Voice alert 1 , 2 or 3.
Audio file
Displays the name of the audio file saved in the system.
“Not uploaded” is displayed dimly if no audio file is
saved.
Setting the Operations from the Viewer — Trigger Menu
71
Notes
• This operation is not available on the SNT-EP104 or
SNT-EP154.
• Voice alert configuration is only available for CH1 on
the SNT-EX154.
OK/Cancel
See “Buttons common to every menu” on page 27.
Setting the Schedule
— Schedule Menu
When you click Schedule in the Administrator menu,
the Schedule menu appears.
The Schedule menu consists of six tabs.
This is the same menu as the Schedule menu that is
displayed when you click Schedule to set the Effective
period in the following menus.
Administrating the unit
Preset position: Schedule in the Position Tour of the
Preset position menu
e-Mail: Schedule in the Alarm sending or Periodical
sending tab of the e-Mail (SMTP) menu
FTP: Schedule in the Alarm sending or Periodical
sending tab of the FTP client menu
Image memory: Schedule in the Alarm recording or
Periodical recording tab of the Image memory menu
Alarm output: Schedule in the Alarm output 1 ~ Alarm
output 4 tab of the Alarm output menu
Voice alert: Schedule in the Voice alert 1, 2 or 3 tab of
the Voice alert menu
Note
Preset position and Voice alert are not available for
SNT-EP104 and SNT-EP154.
Example: When setting e-Mail (SMTP) (Periodical
sending) in the Schedule menu
Use the same time schedule every day
When this item is checked, the same Start time and End
time are applied to all days. In that case, the Start time
and End time of the day from Mon (Monday) to Sun
(Sunday) cannot be input.
Mon (Monday) to Sun (Sunday)
The time period on the right of the checked day is the
effective period of the schedule.
Start time, End time
Specify the start time and the end time.
OK/Cancel
See “Buttons common to every menu” on page 27.
72
Setting the Schedule — Schedule Menu
Setting the Alarm Buffer
— Alarm buffer Menu
When you click Alarm buffer in the Administrator menu,
the Alarm buffer menu appears.
You can set the Pre-alarm image and audio (the image
and audio before alarm detection) and the Post -alarm
image and audio. These can be set when Alarm sending
of FTP client menu or Alarm recording of the Image
memory menu is set to On, besides when Use alarm
buffer is selected.
Codec
Recording capacity
Displays the maximum recording capacity of the alarm
buffer in the present system setting of the video mode,
image size, bit rate and frame rate.
Recording time
Set the recording time for the Pre-alarm image/audio
and Post alarm image/audio.
Pre-alarm duration: Type the recording time of the
image/audio before alarm detection.
Post-alarm duration: Type the recording time of the
image/audio after alarm detection.
Note
The value of Recording capacity differs depending on
the image size and image quality settings in the Camera
menu.
OK/Cancel
See “Buttons common to every menu” on page 27.
— Motion detection Menu
When you click Motion detection in the Administrator
menu, the Motion detection menu appears.
Using this menu, you can set the conditions for
activating the built-in “Motion detection” function.
Motion detection detects moving objects in the camera
image and outputs an alarm. In VMF, an alarm is set off
when a motion detected under the motion detection
setting passes, appears in or disappears from a specified
area or inspection line.
The motion detection function and the VMF function
can independently set off an alarm at the time of
detection.
Note
Administrating the unit
Select the video codec to be used for the alarm buffer.
Setting the Motion
Detection/VMF Function
The simple motion detection function is available for
SNT-EP104 and SNT-EP154.
See “The simple motion detection function” on page 79.
What are VMF functions-Video
Motion Filter
VMF functions are for inspecting whether a moving
object detected under the motion detection settings
passed, appeared in or disappeared from a specified area
or inspection line.
The inspection method is selected from Pass/Presence/
Appear/Disappear/Volume, and also allows for a
maximum combination of three, which can be
simultaneously or sequentially executed. In the VMF
setting, up to three patterns can be kept for each preset
for the current camera position.
Pass
A reference passage line is determined, and when a
moving object passes the setting line, an alarm is set off.
FTP client alarm sending, image memory alarm
recording and/or audio file playback can be performed
in synchronization with this alarm.
Presence
When the reference object acknowledged by the system
is present after a certain period of time has elapsed, an
alarm will be set off. FTP client alarm sending, image
memory alarm recording and/or audio file playback can
be performed in synchronization with this alarm.
Setting the Alarm Buffer — Alarm buffer Menu
73
Appearance
When an object that did not exist in the reference area
appears, an alarm will be set off. FTP client alarm
sending, image memory alarm recording and/or audio
file playback can be performed in synchronization with
this alarm.
• When you are using Windows XP Service Pack 2 or
later, or Windows Vista, the information bar or
“Security Warning” may appear as you click Motion
detection. For details, see “Installing ActiveX
Control” in “When using Windows XP Service Pack 2
or later” on page 8 or “Installing ActiveX Control” in
“When using Windows Vista” on page 11.
Disappearance
When an object acknowledged by the system as a
moving object in the reference area disappears, an alarm
is set off. FTP client alarm sending, image memory
alarm recording and/or audio file playback can be
performed in synchronization with this alarm.
Volume
Setting items for motion detection
Use the settings tab to set the conditions for the motion
detection function while observing camera images. This
menu is the same as the settings menu displayed when
you click Detection on Alarm transmission on the eMail (SMTP) menu, or on Alarm recording on the Image
memory menu.
Administrating the unit
When the volume of moving objects in the reference
area reaches definite number, an alarm is set off. FTP
client alarm sending, image memory alarm recording
and/or audio file playback can be performed in
synchronization with this alarm.
Notes
• Before actual use, perform an operation test and
confirm that the motion detection function works
correctly.
• Even when privacy masking and/or cropping is used,
the motion detection function operates based on the
images before these functions are activated.
• When cropping is enabled, the motion detection menu
is not displayed. To use the motion detection menu,
disable these functions first.
When the Motion detection menu is
displayed for the first time
When you click Motion detection, “Security Warning”
is displayed.
When you click Yes, ActiveX control is installed and the
Motion detection menu is displayed.
Preview screen
This screen is for monitoring images and configuring
active/inactive windows.
Notes
• If Automatic configuration is enabled in the Local
Area Network (LAN) settings of Internet Explorer, the
image may not be displayed. In that case, disable
Automatic configuration and set the Proxy server
manually. For the setting of the Proxy server, consult
your network administrator.
• When you install ActiveX control, you should be
logged in to the computer as Administrator.
Active window Inactive window
Note
The frames shown on the monitor screen are not
displayed on the image files sent or recorded with
motion detection.
74
Setting the Motion Detection/VMF Function — Motion detection Menu
Target of setting
Select the camera position subject to detection settings
and VMF settings from Current position or Preset.
If you select Items to configure, the Current Position
and Preset will be displayed. Selecting Preset will
display Restore preset.
Detection settings
Detection area
Specify the effective scope of the motion detection.
Current position: Select this option to set the current
camera position as the subject of configuration.
Preset: Select this option to configure each preset.
Select a preset from the list and move the camera to
the preset position. The setting is enabled when the
camera has moved to the set preset position.
Current position
Preset
Notes
• Camera control can be used when the mode is
“Current position” mode.
• Detection settings and VMF settings should be saved
independently when the and Current position and
Preset is selected.
1
Administrating the unit
Configuring the detection area
The following procedure is used to configure the motion
detection area:
Use the following buttons to specify the active
area(s) and inactive area(s).
Adding an active area
Clicking Adding an active area will add an active
area window in the center of the screen.
When you place the cursor on the area, the cursor
changes to a crossed arrow, which you can drag to
move the area.
When you place the cursor on the vertex of the area,
the cursor changes to n, which you can drag to
move the vertex.
Adding an inactive area
Clicking Adding an inactive area will add an
inactive area window in the center of the screen.
When you place the cursor on the area, the cursor
changes to a crossed arrow, which you can drag to
move the area.
When you place the cursor on the vertex of the area,
the cursor changes to n, which you can drag to
move the vertex.
Deleting a region
Clicking Deleting a region will delete the selected
active area or inactive area.
To select an area, click on the center or side of the
area.
Setting the Motion Detection/VMF Function — Motion detection Menu
75
Adding a vertex
Clicking Adding a vertex will change the cursor to
a button. In that state, when you click on a part of
the side of the area, a vertex is added to that point.
After the addition, the cursor will return to move
mode.
It is the same function as the button displayed in
VMF settings.
Deleting a vertex
Clicking Deleting a vertex will change the cursor
to a button. In that state, when you click on a part of
the side of the area, the vertex added to that point is
deleted. After the deletion, the cursor will return to
move mode.
It is the same function as the button displayed in
VMF settings.
Note
Administrating the unit
The vertex can be moved in an outward direction
but cannot be moved toward the inside of an area.
Detection sensitivity
Set the sensitivity of motion detection.
A value from 1 to 100 can be specified.
The values of the slide bar and spin button are
synchronized.
Clicking Return to the default changes the value to the
default value.
Detection response
Set the response velocity of motion detection.
A value from 1 to 5 can be specified.
Clicking Return to the default changes the value to the
default value.
Detection size
Specify the minimum detection size and maximum
detection size of motion detection. To specify the
detection size, you can either enter values or drag the
vertexes of the area.
76
Setting the Motion Detection/VMF Function — Motion detection Menu
The area size is measured in pixels.
• When you place the cursor on the area, the cursor
changes to a crossed arrow, which you can drag to
move to the minimum detection size area and
maximum detection size area.
• When you place the cursor on the vertex of the area,
the cursor changes to n. Drag and move the vertex
to adjust the detection size.
Moving shadow exemption
Set ON/OFF for the moving shadow exemption function
of the motion detection.
Selecting ON will prevent the shadows of a moving
object from being recognized as moving objects.
Remove the check to disable the shadow removal
function of the motion detection.
VMF setting items
Up to three VMF settings (package number1 to 3) can be
retained for each current camera position and preset
position. You can select one of those settings for use.
You can configure the inspection method and the size
and speed of object to inspect individually for each
package number.
Setting number
Inspection method settings
Select the setting number to set from 1, 2 or 3.
The following VMF setting is saved for the individual
setting number selected here.
The set of the setting numbers selected here is valid for
current VMF setting.
Settings for each inspection method can be edited here.
The inspection line and active window are set to default
values. Edit according to use.
Note
package1, package2 and package3 of the VMF setting
cannot be simultaneously enabled.
Tip
The buttons displayed on the edit screen for inspection
method is used in the same way as those for detection
setting. See page 75.
Pass
Inspection method
Specify the VMF inspection method.
Enable/Disable checkbox for inspection
method
Set enable/disable for individual inspection methods.
Inspection method order switching button
Clicking
switches the order of inspection methods
between the neighouring methods.
e.g., If you click the button between 1 and 2, they will
switch order. If you click the button between 2 and 3,
they will switch order.
Specifying the time for “When all occurs in
order”
Specify the reference interval in seconds between 1 and
2, or 2 and 3.
For example, if “At least 3 seconds” is specified, the
state of 2 being acknowledged two seconds after 1 has
been acknowledged will not validate the
acknowledgment of 2.
Administrating the unit
Select the inspection method from When any occur or
When all occur in order.
When any occur: An alarm will be set off when any one
of the three conditions is met.
When all occurs in order: An alarm will be set off
when the three conditions are met in the sequence
specified. If the conditions occur in an order different
from the sequence specified, such as 1, 3 and then 2,
there will be no alarm.
Each inspection method can include up to 3 criteria.
Select the inspection method from Pass, Presence,
Appear, Disappear, Volume and None.
Edit the pass inspection line according to the following
procedure:
Pass inspection line
By default, one pass inspection line is displayed. The
initial number of vertexes is 2 for each pass inspection
line.
Placing the cursor on the line will turn the cursor into a
cross, and when you drag the line, the whole line will
move.
Placing the cursor on the vertex will turn the cursor into
n, and when you drag the line, the vertex will move.
The arrow displayed in the center of the pass inspection
line shows the direction of inspection. Inspection is
performed when an object passes the pass inspection
position in this direction.
Inspection direction setting
Each time you click , the inspection direction toggles
among the directions left, right and both.
Pass inspection position
Select the pass inspection position from Center, Left
side, Top side, Right side and Bottom side.
Setting the Motion Detection/VMF Function — Motion detection Menu
77
Administrating the unit
Presence
Disappear
Similar to a active window an inspection area can also be
moved and vertexes can be moved/added or deleted.
If an object is present within the window longer than the
specified time, the presence is acknowledged.
This criterion is whether an object disappeared in the
inspection area.
Similar to an active window, an inspection area can also
be moved and vertexes can be moved/added or deleted.
Presence time
Specify the time of presence.
Volume
Appear
This criterion is whether an object appeared in the
inspection area.
Similar to an active window, an inspection area can also
be moved and vertexes can be moved/added or deleted.
This criterion is the number of objects found in the
inspection area.
The quantity is specified from the pull-down list.
Similar to a active window, the inspection area can also
be moved and its vertexes can also be moved, added or
deleted.
Quantity: The quantity is specified from the “Quantity”
pull-down.
Size of object to inspect
Specify the minimum inspection size and maximum
inspection size of the object. To specify the detection
size, you can either enter values or drag the vertexes of
the area.
78
Setting the Motion Detection/VMF Function — Motion detection Menu
• The blue marker for minimum speed cannot be set to
the right of the red marker for maximum speed.
• The indicators indicating Min. speed and Max. speed
move on the left and right side of the screen.
Note
The set value is only valid under the conditions of Pass,
Appear or Disappear.
Full-screen display button
Click
to display the ActiveX area in full screen.
Clicking again will show the normal display.
Stretch bar
Click
to hide the menu list on the left and enlarge the
preview screen.
Clicking again will show the menu list as it was before.
Tip
The minimum and maximum detection sizes configured
in the detection setting are displayed, but the size of the
area cannot be modified from here.
Speed of object to inspect
Specify the range of the speed of object to inspect by
determining Min. speed and Max. speed.
OK/Cancel
Click OK to finalize any changes made to the settings
and send them to the system.
If you click Cancel, changes made to the settings will be
discarded and the screen will be reloaded with the
current settings.
Administrating the unit
The size of an object is measured in pixels.
• When you place the cursor on the area, the cursor
changes to a crossed arrow, which you can drag to
move the minimum inspection size area and maximum
inspection size area.
• Placing the cursor on the vertex of the minimum
inspection size area or maximum inspection size area
will change the cursor to n, then you can drag the
vertex to change the inspection size.
Simple motion detection function
The following three simple functions are provided for
motion detection. The simple motion detection function
is available on the SNT-EP104 and SNT-EP154.
Detection level
Set the sensitivity of the motion detection. Set a scale
from [1] to [100].
Detection size
Specify the size of moving object to be detected, from
three options: Large, Medium and Small.
Motion level
If a moving object is shown in full screen, you can set
the degree of motion of the object to within a scale :
1 - 100 Check the current degree of motion on the level
meter and set the detection level referencing that value.
Note
VMF configuration is not available when the simple
motion detection function is activated.
• Min. speed and Max. speed can be specified within a
scale of 100.
Setting the Motion Detection/VMF Function — Motion detection Menu
79
Transmitting with
External Equipment
— PTZ control I/F Menu
When you click PTZ control I/F in the Administrator
menu, the PTZ control I/F menu is displayed.
Using this menu, you can input data into the system
from the computer via a network and output them to the
external serial interface to control a peripheral device.
You can also input data from a peripheral device via an
external serial interface and output them to the computer
via a network.
Notes
Administrating the unit
• For the SNT-EX104 and SNT-EX154, set the four
video channels to the same setting, except for the
camera ID, which should differ between channels.
setting.
• This operation is not available on the SNT-EP104 or
SNT-EP154.
TCP: Select when you use the TCP port to input and
output data through the external serial interface.
Using this method, you can easily check data
communications through the serial port by DOS
command “telnet [host name] [port number].”
When TCP is selected, the TCP port No. box
becomes active. Type the port number corresponding
to the TCP port. Specify a port number (1024 to
65535) other than Well Known port numbers.
Protocol
Pelco-D: Select when you control the camera with
Pelco-D protocol.
AD: Select when you control a camera with AD
protocol.
Baud rate
Select a baud rate that corresponds to the peripheral
device of serial interface. Selectable baud rates are
shown below.
38400, 19200, 9600, 4800, 2400, 1200 (bps)
Parity bit
Select a parity that corresponds to the peripheral device
connected to the serial interface: none, odd or even.
Character length
Select the character length that corresponds to the
peripheral device connected to the serial interface: 7 or
8 (bits).
Select Coaxitron or Serial.
Stop bits
Select the stop bit that corresponds to the peripheral
device connected to the serial interface: 1 or 2 (bits).
Serial setting
OK/Cancel
Interface
See “Buttons common to every menu” on page 27.
Standard
Select RS-485 or RS-422.
Note
RS-422 is only available on the SNT-EX101.
Camera ID
Set the connected Camera ID when Interface is selected
to Serial.
Mode
Select the mode of data transmission/reception via a
network: TCP port or camera control. Select Normal to
not use TCP.
80
Transmitting with External Equipment — PTZ control I/F Menu
Configuring the Viewer
— Viewer Menu
Click Viewer in the Administrator menu to display the
Viewer menu.
Using this menu, you can select the viewer to use and
configure advanced settings.
Layout tab
Custom
Select the homepage to be displayed.
You can display your favorite homepage stored in the
built-in flash memory or USB memory (not
supplied).
To store a homepage HTML file in the built-in flash
memory, use the Custom Homepage function of
SNC toolbox included in the supplied CD-ROM.
To learn how to use the Custom Homepage, see
page 90.
To display your Custom homepage perform the
following operation:
Select Custom.
2
Type the path of the HTML file using up to 64
characters in the text box on the right of Path.
3
In Selected memory, you can select either Flash
memory or USB memory in which the homepage
is stored.
The directory displayed in the text box on the right
of Path changes according to the selected memory.
Administrating the unit
1
Tip
Even when you select Custom, the homepage inside the
camera can be displayed by typing the following URL in
the address box of your Web browser.
Example: When the IP address of the camera is set to
192.168.0.100
Header
Configure the setting for the bar menu displayed at the
top of the viewer screen. Select On to display the header,
and Off to hide it.
Button style
Select Standard or Simple.
Homepage
Logo URL
To set the logo image, click Browse and specify the
URL of the logo image to display.
Set the viewer or homepage to be displayed at the time
of access.
ActiveX Viewer
Plug-in free Viewer
Configuring the Viewer — Viewer Menu
81
Background color 1, background color 2, and
Text color
Specify the background colors and font color.
To specify the color, enter “#” followed by an RGB
value in 6-digit hexadecimal.
The first 2 digits after # represent red, the next 2 digits
green, and the last 2 digits blue. Specify the brightness
for each color. 256 brightness levels are available
(00-FF).
Display comment when camera is selected
Select this option to display comments on the viewer
screen.
Camera list
The camera list can be set only when Plug-in free
Viewer is selected as the homepage.
You can register cameras in the camera list. By selecting
a registered camera on the viewer screen, you can see the
images from the registered camera.
Note
The camera list can be set only when Plug-in free
Viewer is selected as the homepage.
Administrating the unit
On/Off
Select On to show the camera list, and Off to hide it.
Style
You can configure the camera list style.
Background color
Specify the background color of the camera list. The
colors are specified in the same way as those for the
header.
Registering in Cameras
Specify a number on the camera list and set the IP
address, port number, and comment for each camera.
Insert: Click to register a camera in the camera list.
Modify: Click to edit a selected camera list.
Delete: Click to delete a selected camera list.
Text
Note
The camera list can be set only when Plug-in free
Viewer is selected as the homepage.
Text1 text, Text2 text and Text3 text
Enter the text to be displayed on the viewer screen.
Setting the Monitor
Configure the setting for the camera image display part
of Plug-in free Viewer.
Note
Initial streaming
Set the display method for camera images.
Initial image size
Set the initial camera image size.
Initial PTZ
Set the pan/tilt/zoom operation modes of the camera.
Initial frame rate
Set the initial camera image frame rate.
Initial image
Set what to initially display on the camera image display
area.
Initial Sound
Set the initial volume for when streaming starts. Check
Mute for muting sound.
Note
• This setting is valid only when SNC ActiveX viewer
is selected for Streaming method from Setting of the
control bar.
• The initial PTZ operation is not available on
the SNT-EP104 and SNT-EP154.
Show menu
Set whether to have a frame or not in the camera image
area.
Set whether to show or hide operation buttons at the
bottom of the camera image area.
OK/Cancel
Text1 link, Text2 link and Text3 link
Specify the URL of the link to assign a link to the text.
Text color, background color 1, and
background color 2
Specify the font color of the text and background colors.
The colors are specified in the same way as specifying
those for the header.
82
Configuring the Viewer — Viewer Menu
See “Buttons common to every menu” on page 27.
HTML output tab
If the monitor is for personal use, this tab can be used to
output sample source for HTML and script.
For details on the setting, refer to “Setting the monitor”
of the Layout tab.
Administrating the unit
Monitor
Displays a preview.
Embedded script
Displays the sample source for script.
HTML sample
Displays the sample source for HTML.
Configuring the Viewer — Viewer Menu
83
Others
How to use SNC toolbox
Menu bar
Function buttons
This section explains how to use the application
software and commands, including the supplied CDROM.
***
Using the Supplied SNC
toolbox
Explains the functions except those of the Network tab
in SNC toolbox.
To install SNC toolbox, to assign an IP address and to set
the network, see “Assigning the IP Address to the unit”
on page 6 in “Preparation.”
Device tree display
Device list
View button
Menu bar
All functions can be selected from here.
Notes
Others
• SNC toolbox may not operate correctly if you use a
personal firewall or antivirus software in your
computer. In this case, disable the software or assign
an IP address to the camera using another method. For
an example, see “Assigning the IP Address to the unit
using ARP Commands” on page 102.
• If you are using Windows XP Service Pack 2 or later,
or Windows Vista, disable the Windows Firewall
function. Otherwise SNC toolbox will not operate
correctly. For the setting, see “Configuring Windows
Firewall” in “When using Windows XP Service Pack
2 or later” on page 9 or “Configuring Windows
Firewall” in “When using Windows Vista” on
page 11.
• Network camera (SNC-RH124, SNC-RS46N/
SNC-RS46P, SNC-RS44N/SNC-RS44P,
SNC-RH164, SNC-RS86N/RS86P, SNC-RS84N/
SNC-RS84P) and video network station have a
common utility. Some functions cannot be used with
in the video network station.
Starting SNC toolbox
Select Program from the Start menu of Windows, then
select SNC toolbox and SNC toolbox in sequence.
SNC toolbox starts.
The main screen appears. SNC toolbox detects unit
connected to the local network and lists them on the
Network tab window.
When you are using Windows Vista, message “User
Account Control – An unidentified program wants
access to your computer” may appear. In this case, click
Allow.
84
Using the Supplied SNC toolbox
File (F) menu
Import: Reads the Device list file (CSV format).
Export: Outputs the Device list in a CSV format file.
Close: Exits SNC toolbox.
Edit (E) menu
Cut: Cuts off a device or folder.
Copy: Copies a device or folder.
Paste: Pastes a device or folder.
Select All: Selects all devices in the Device list.
Add Folder: Creates a folder.
Add Device Entry: Manually registers a device.
Modify Device Entry: Edits the device information.
Remove: Removes a device from a folder.
Delete: Deletes a device or folder.
View (V) menu
Status bar: Switches show/hide of status at the bottom
of the screen.
Normal: Displays detailed information on a device.
Snap shot small: Displays detailed information on a
device with a small thumbnail.
Snap shot large: Lists devices with large thumbnails.
Column setting: Displays the setting screen for the
items to display on the list.
Tools (T) menu
Search: Searches again for devices.
Login Setting: Displays the management screen for
user names and passwords related to the device.
Network Setting: Displays the screen for modifying the
address settings for the selected device.
Device Setting: Displays the settings screen for the
selected device.
Privacy Masking: Displays the Privacy Masking
screen.
Panorama Image: Displays the Panorama Creator
screen.
Custom Homepage: Displays the Custom Homepage
screen.
Firmware Upgrade: Displays the Firmware Upgrade
screen.
Initialize Device:
Reboot: Restarts the device.
Factory default: Initializes the device to factory
default.
Backup setting data: Backs up setting data on a
computer.
Device Homepage: Connects to the device.
Device Log:
System Log: Obtains system log for the device.
Access Log: Obtains access log for the device.
Tool Log: Obtains SNC toolbox log.
Option: Displays the screen for modifying SNC toolbox
settings.
Help (H) menu
Version: Displays SNC toolbox version information.
Function buttons
Function buttons are used for updating lists and
displaying dialog.
Search
Updates the Device list in the search result.
Account
Sets the administrator for each device.
Network
Displays the Network Setting dialog.
Masking
Displays the Privacy Masking dialog.
Device tree view
This function allows you to customize folders. The
registration details of My device can be displayed in tree
format.
Search result folder
When this folder is selected, devices in the same
segment detected at time of startup or by Search are
displayed in the Device list.
Error folder
When this folder is selected, devices registered in My
device folder that can not be connected are displayed in
the Device list.
Also, if a registered device is not found on the network,
it will also be registered in this folder.
My device folder
When this folder is selected, devices in the Search result
folder or registered manually are displayed in the Device
list.
Device list
Others
Task (K) menu
Task list: Displays the Task list screen.
Add task: Displays the Task Wizard screen.
Modify task: Displays the Task editing screen.
Delete task: Deletes task.
Task
Displays the Task List dialog.
Devices registered in the folder selected at Device tree
view are displayed in a list.
Device name
Displays individual device names.
Status (Only for Error folder and My device
folder)
You can check the current connection status.
MAC address
You can check the MAC address of the device.
Device address
You can check the IP address of the device.
Port No.
You can check the port number of the device.
Panorama
Displays the Panorama Creator dialog.
DHCP/Fixed IP
Displays whether the IP address of the selected device is
DHCP or fixed IP.
Custom HP
Displays the Custom Homepage dialog.
Model name
Displays the model name.
Device setting
Displays the settings screen for the device.
Serial
Displays the serial number.
Using the Supplied SNC toolbox
85
Software version
Displays the version of firmware.
The Add Device Entry dialog appears.
Admin name
Displays the administrator user name.
View button
You can change the display format of the Device list
(page 87) .
Registering in My device
The device tree has three folders by default: Search
result, Error and My device.
The Search result folder and Error folder are fixed, so
you cannot edit the content or rename the folder.
The My device folder can be renamed, and you can add,
delete and move folders.
3
Enter the following items:
Device name: Enter a device name of your choice.
Device address: Enter the address of the device to
register.
HTTP port No.: Normally, 80 should be selected.
When setting a value other than 80, select the
textbox and enter a port number.
HTTPS port No.: Normally select 443. When
setting a value other than 443, select the textbox
and enter a port number.
Device account: Enter the user name and password
of the administrator who will access the device in
the Administrator name field and Administrator
password field, respectively.
4
Click OK to finish registration.
Search result folder
Displays devices detected by search.
Error folder
Displays devices that are not connected.
Others
My device folder
You can sort and manage devices using any folder.
Adding a folder
1
Select the parent folder to which you want to add a
folder.
2
Right click the mouse and select Add Folder from
the displayed menu.
A folder is added. Enter a folder name of your
choice.
Registering a device
To register a device, follow the procedure below:
• Registering by Add Device Entry dialog
• Registering by drag & drop
• Registering by copy & paste
86
Registering by drag & drop
To add a device, select a device from the Device list in
the Search result folder, and drag & drop to the folder to
register it in.
Registering by Add Device Entry dialog
Registering by copy & paste
Select a device from the Device list in the Search result
folder and right click the mouse. Select Copy from the
displayed menu (or select Copy from the Edit menu).
Next, select the folder to register in and right click the
mouse. Select Paste from the displayed menu.
1
Select the folder to register the device.
Renaming the device/folder
2
Right click the mouse and select Add Device Entry
from the displayed menu.
Select the folder or device to rename and right click the
mouse. Select Rename from the displayed menu. The
device/folder name is highlighted. Enter the new name.
Using the Supplied SNC toolbox
Deleting a device/folder
Display with large thumbnails
Select the device/folder to be deleted from the Device
list or Device tree and right click the mouse. Select
Delete from the displayed menu (or select Delete from
the Edit menu).
Select Snapshot(L) from the View menu or click
set to display with large thumbnails.
to
Moving a device/folder
You can move a device/folder by following either of the
methods below:
• Select a device/folder from the Device list or Device
tree and drag & drop in the folder to move it to, which
will move the device/folder.
• Select a device/folder from the Device list or Device
tree and right click the mouse. Select Cut from the
displayed menu (or select Cut from the Edit menu).
Next, select the folder to move to and select Paste.
Modifying the items to show on list
Select Column setting from the View menu to display
the “Column Setting” dialog.
Changing the Device list display
method
Details display
Select Normal from the View menu or click
to the details display.
to set
Others
Check the items you want to display and remove the
checks from items you want to hide.
Click OK after making the changes. The new setting is
reflected on the list and the display returns to the main
screen.
Updating thumbnail images
When the Details display with thumbnails or Large
thumbnail display is selected as the display method,
clicking Reload displays the current camera images as
thumbnails.
Details display with thumbnails
Select Snapshot(S) from the View menu or click
set to the details display with thumbnails.
to
Using the Supplied SNC toolbox
87
Setting SNC toolbox options
Select Option from the Tools menu to display the
“Option” dialog. This dialog consists of three tabs:
General, Network and Log.
General tab
Configure the HTTP proxy and FTP proxy.
When using HTTP proxy, check Use HTTP proxy.
When using FTP proxy, check Use FTP proxy.
To auto-detect the proxy server, select On for Auto
detect.
If you are not auto-detecting the proxy server, select Off
for Auto detect, and enter the proxy address and proxy
port number.
IP configuration
Select IPv4 or IPv6 priority for combined use of IPv6
and IPv4.
SSL setting
Configure the SSL setting.
Default client cerfificate: Enter the client certificate to
use.
How to process SSL errors in scheduled task or main
window: Select Continue or Cancel.
When SSL function of device is SSL only, allow to
switch from HTTP protocol to HTTPS protocol
automatically: Check this box if necessary.
Note
Others
When you have changed the SSL setting, restart the
SNC toolbox.
Language
Set language.
Log tab
Default device account
Set the initial values of user name and password for the
administrator accessing the device for each device.
Show warning dialog when closing main window:
Select to display the warning message.
Remind me the risk when assigning IP: Select to
display the warning message.
Network tab
Overwrite the oldest log file
To set the size of the log file, check Enable and specify
the minimum required space for a log file.
Log output folder
Click Browse to display the folder selection dialog.
Specify the folder to save the log.
88
Using the Supplied SNC toolbox
Using Privacy Masking —
Masking a Camera Image
The Privacy Masking function of SNC toolbox allows
you to mask parts of the camera image to be transmitted.
1
Select the camera to set a privacy mask from the
Device list.
2
Click Masking.
Using the Privacy Masking
The Privacy Masking screen enables you to set the
privacy mask position.
Click Masking to display the Privacy Masking screen.
Privacy Masking screen
Note
The default image is shown when no panorama image
has been created.
PTZ Controller
Allows you to pan, tilt and zoom the camera.
Pan/tilt control
Click the arrow button of the direction in which you
want to move the camera. Keep it pressed to move the
camera continuously.
Zoom control
Click
to zoom out, and click
to zoom in.
Zooming continues while the button remains pressed.
The current zoom status is shown on the zoom bar. The
left end is WIDE, and the right end is TELE.
Click
to move the zoom to WIDE.
Click
to move the zoom to TELE.
Privacy mask setting section
Allows you to set, call or delete the privacy mask.
You can set up to thirty two privacy masks and the mask
color.
Others
Set: Register the area specified on the viewer as a
privacy mask area.
Click Set and the portion of the viewer image is
masked with the privacy mask. The color of the
privacy mask is that selected with the Color dropdown list.
Note
If the mask area is close to the bottom of the image, the
background at the bottom may still be visible.
Call: Click to face the camera at the privacy mask
position.
Tip
Viewer
A live image of the camera is displayed. You can specify
the position of the privacy mask in this area.
If you click on the image, the camera moves so that the
clicked point goes to the center of the image.
Panorama image area
The panorama image created with the supplied
Panorama Creator is displayed.
The positions of the registered privacy masks are shown
with numbers in this area.
If you click on the panorama image, the camera moves
to the clicked point.
The privacy mask positions are shown with numbers in
the panorama image area.
Clear: Click to delete the privacy mask.
Color
Specify the color or mosaic of privacy masks. This
setting is common to every privacy mask.
The selectable colors are as follows:
Black, White, Gray, Red, Green, Blue, Cyan, Yellow,
Magenta
Clear all
Click to delete all privacy masks simultaneously.
Using the Supplied SNC toolbox
89
Setting a privacy mask
To set a privacy mask in a desired position, do the
following:
1
Move the camera to the position you want to set a
privacy mask using the control panel.
2
Click the point where you want to set the privacy
mask on the viewer. The clicked point moves to the
center of the image.
3
Specify the privacy mask area by dragging the
mouse on the viewer.
The privacy mask area is a rectangle that is
symmetrical with respect to the center of the
viewer.
4
Select the color or mosaic of the mask from the
Color drop-down list.
Uploading the homepage to the camera
using the Custom Homepage
1
Select the device to upload from the Device list.
You can select multiple devices at the same time.
2
Click the Custom Homepage.
The “Custom Homepage” dialog opens.
Read the notes carefully.
Note
If you cannot establish communications with the
unit using the proxy server being used, connect the
camera to the local network and run the Custom
Homepage without using the proxy server.
Note
The color is common to every privacy mask. The
color last selected is applied.
5
Others
Select the desired privacy mask number in the
privacy mask setting section, and then click Set of
the corresponding number.
The mask is displayed on the viewer.
Note
Performing the pan/tilt/zoom operation on the camera
does not change the mask position.
3
Type the path in which your homepage is stored.
Using the Custom Homepage
4
The Custom Homepage function of the supplied SNC
toolox allows you to store the homepage that you have
created in the camera and watch it.
Click Start uploading.
Uploading of the homepage file to the unit starts.
5
Click Cancel to exit the program.
Notes on creating the homepage
When you are creating the homepage, note the following
points.
• The file name should be typed using up to 24
characters including the extension.
• The file size of the homepage should be 2.0 MB or
less.
• To see the created homepage, set the Homepage in the
Layout tab from viewer menu.
90
Using the Supplied SNC toolbox
2
Click Browse and select an upgrade file for each
model.
Using the Firmware Upgrade function of the supplied
SNC toolbox allows you to upgrade the firmware of the
device.
3
Select how many devices to upgrade in Paralleled
upgrade quantity.
Starting the Firmware Upgrade
4
To back up the unit setting, check Backup device
setting.
5
Click Start upgrading.
Upgrading starts.
Using the Firmware Upgrade
1
Select the device to upgrade its firmware from the
Device list.
You can select multiple devices at the same time.
2
Right click the mouse. Click Firmware Upgrade
from the displayed menu.
The Firmware Upgrade screen is displayed.
Notes
***
• To stop upgrading, click Stop upgrading.
To protect some devices, during the process of
upgrading, upgrading cannot be canceled.
• Do not turn off the power until the device restarts after
upgrading.
Using the Schedule Task
You can specify the time or interval to change the Device
setting or perform Firmware upgrade.
Click Task to display the Task List, which shows a list
of scheduled executable tasks.
***
Others
Device list
Module list
Tip
The Firmware Upgrade screen can also be displayed
using the following method:
• Select Firmware Upgrade from the Tools menu.
Device list
Select the device to upgrade.
A progress bar is displayed when updating is in process.
The status field shows current status.
Module list
To display the dialog, click the Browse button on the
right side of the model to update (listed in the module
list). Select the target SVU file from the dialog.
You can select one file for each model.
Updating
1
Set the order of devices perform update using Up
and Down.
Task List
Displays the list of scheduled executable tasks.
Add
Displays the Task Wizard.
Modify
You can edit a task.
Delete
You can delete a task.
Start
This reserves a task.
Stop
You can cancel a task reservation.
Using the Supplied SNC toolbox
91
Cancel
Closes the Task List.
5
Select the task action.
Select Device Setting or Firmware Upgrade.
6
Click Next.
Creating a task
1
Click Add.
Displays Task Wizard.
Click Next.
3
Select a device to which the task is assigned.
A list of devices registered in My device is
displayed. Select the device you want to assign the
task to from the My device list, and register in
Device(s) in task list.
Others
2
For Device Setting:
Edit the value for the setting you wish to change.
See “Device Setting” on page 93 for changing the
values.
Click Next to display the confirmation screen for
setting change. Check to see if the setting is correct.
If correction is needed, click Back to return to the
previous screen to redo the setting.
For Firmware Upgrade:
Set the firmware for the device you want to
upgrade.
See “Using the Firmware Upgrade” on page 91 for
setting firmware.
7
Click Next.
8
Set the schedule.
My Device: Display a list of cameras registered in
My devices.
Device(s) in task: Display a list of devices set to
execute a task.
Add: Register a device in Device(s) in task.
Remove: Removes a device from Device(s) in task.
Up/Down: Changes the order of devices in
Device(s) in task.
4
92
Click Next.
Using the Supplied SNC toolbox
Task name
Name the task.
9
Recurrence pattern
Specify the operation interval.
Onetime: Runs the task once.
Hourly: Specify the operation frequency in units of
hours. (Possible set value: 1 to 99)
Daily: Specify the operation frequency in units of
days. (Possible set value: 1 to 99)
Weekly: Specify the operation frequency in units
of weeks and days of the week. (Possible set value:
1 to 99)
Setting tree
All settings are sorted into categories. Click + to display
the subcategories under a category. Click – to hide the
subcategories.
Select a subcategory to display setting items on the right
side of the screen.
Range of recurrence
Specify the starting date and time, and the end date
and time.
Start: Set the starting date.
Execution time: Set the starting time.
No end date: This setting does not set an end date.
End after: Specify the number of times to execute
the operation.
End by: Set the end date.
Value
Displays the value of an item. Select or enter a value to
change the value.
Click Next.
Check the setting when the final confirmation
screen for task setting is displayed.
If correction is needed, click Back to return to the
previous screen to redo the setting.
Item
Displays the setting items. Select a line to change its
value.
Explanation
Displays the range of value for setting and
supplementary explanations.
OK
Apply the setting and close the Device Setting screen.
The main screen of SNC Toolbox is displayed.
Others
Cancel
Close the Device Setting screen without changing the
setting. The main screen of SNC Toolbox is displayed.
10 Click Finish.
Configuring the device setting
You can configure advanced settings for a device on the
Device Setting screen.
When you select a device(s) on the Device list and select
Device Setting from the Tools menu, or when you right
click on the device selection screen and click Device
Setting in the displayed menu, the Device Setting screen
is displayed.
Apply
Apply the setting.
Other settings
See the relevant pages in “Administrating the unit” when
configuring the settings.
Setting items
Pages to refer to in
“Administrating the
system”
System
“Configuring the System —
System Menu” on page 29
System
“System Tab” on page 29
Day & Time
“Date & time Tab” on
page 30
Camera
“Setting the Camera Image
and Audio — Camera
Menu” on page 34
Common
“Common Tab” on page 34
“Picture Tab” on page 35
Video codec
“Video codec Tab” on
page 36
Streaming
“Streaming Tab” on page 37
Security setting
“Setting the Security —
Security Menu” on page 54
Using the Supplied SNC toolbox
93
Setting items
Pages to refer to in
“Administrating the
system”
Setting items
Pages to refer to in
“Administrating the
system”
Preset position
“Saving the Camera
Position and Action —
Preset position Menu” on
page 54
Alarm Output
“Setting the Alarm Output
— Alarm output Menu” on
page 67
Alarm output 1
Tour
e-Mail (SMTP)
Alarm output 2
“Sending an Image via Email — e-Mail (SMTP)
Menu” on page 57
Alarm output 4
Common
“Common Tab — Setting
the e-Mail (SMTP)
Function” on page 57
Alarm sending
“Alarm sending Tab —
Setting the e-mail sending
mode when detecting the
alarm” on page 58
Periodical sending
FTP client
Others
Common
Voice Alert
Voice alert 1
“Outputting Audio Linked
to Alarm Detection — Voice
alert Menu” on page 69
“Voice alert 1, 2, 3 Tab” on
page 69
Voice alert 2
Voice alert 3
“Setting the Alarm Buffer
— Alarm buffer Menu” on
page 73
“Sending Images to FTP
Server — FTP client Menu”
on page 60
Trigger setting
“Setting the Operations
from the Viewer — Trigger
Menu” on page 70
“Common Tab — Setting
the FTP client function” on
page 60
Periodical sending
“Periodical sending Tab —
Setting the periodical FTP
client activity” on page 62
“Recording Images in
Memory — Image memory
Menu” on page 63
Common
“Common Tab — Setting
the image memory
function” on page 63
Alarm sending
“Alarm recording Tab —
Setting the Image memory
function when detecting the
alarm” on page 64
Periodical sending
“Periodical recording Tab
— Setting the periodical
recording mode” on page 65
Using the Supplied SNC toolbox
Alarm output 3
Alarm buffer setting
“Alarm sending Tab —
Setting the FTP client action
when detecting the alarm”
on page 61
FTP server setting
“Alarm output Tab” on
page 67
“Periodical sending Tab —
Setting the periodical e-mail
sending mode” on page 59
Alarm sending
Image memory
94
“Position Tour Tab —
Setting a position tour” on
page 56
“Downloading Images from
the system — FTP server
Menu” on page 67
Device restart and initialization
You can restart and initialize (restore factory default) a
selected device. Multiple devices can be selected
simulteneously for restart and initialization.
Restarting a device
Click Tools, Initialize Device and Reboot in this order
on the menu bar to restart the device.
Initializing a device
Click Tools, Initialize Device and Factory Default in
this order on the menu bar to initialize the device
(restore factory default).
When you are using Windows XP Service Pack 2 or
later, or Windows Vista, a message regarding the
active contents may appear. For details, see
“Installing software” in “When using Windows XP
Service Pack 2 or later” on page 8 or “Installing
software” in “When using Windows Vista” on
page 10.
Using the SNC audio
upload tool — Transmitting
Audio to unit
The supplied SNC audio upload tool allows you to
transmit sound from the computer to the system via a
microphone, as well as upload an audio file for Voice
alert function.
3
Note
If you click “Save this program to disk” on the “File
Download” dialog, you cannot install the tool
correctly. Delete the downloaded file, and click the
Setup icon again.
Notes
• This operation is not available on the SNT-EP104 or
SNT-EP154.
• Voice alert configuration is only available for CH1 on
the SNT-EX154.
4
The SNC audio upload tool supports the following audio
data to be transmitted.
Transmission rate
G.711 (µ-LAW)
64 kbps
G.726
40 kbps
G.726
32 kbps
G.726
24 kbps
G.726
16 kbps
Note
Only one user can transmit sound to the unit.
Meanwhile, another user will not be able to transmit
sound to the unit.
Install the SNC audio upload tool following the
wizard displayed.
If the Software License Agreement is displayed,
read it carefully and accept the agreement to
continue with the installation.
Connecting the unit to the
Computer
1
Connect a speaker to the line output jack on the
unit.
2
Connect a microphone to the microphone input jack
on the computer.
Note
Installing the SNC audio upload
tool
If the microphone input jack of the computer is not set
correctly, no sound is transmitted from the computer and
nothing is output from the speaker connected to the unit.
Set the microphone input jack from the control panel of
Windows.
1
On Windows XP
Insert the CD-ROM in your CD-ROM drive.
A cover page appears automatically in your Web
browser.
If it does not appear automatically in the Web
browser, double-click on the index.htm file on the
CD-ROM.
When you are using Windows Vista, pop-up “Auto
Play” may appear. For details, “Installing software”
in “When using Windows Vista” on page 10.
2
Others
Audio CODEC
Click Open.
1 Select Sounds and Audio Device from Control
Panel.
2 Click Volume in the Sound Recording section on
the Audio tab.
The Recording Control window opens.
3 Check Select in the Microphone section.
On Windows Vista
Click the Setup icon of SNC audio upload tool.
The “File Download” dialog opens.
There are no settings regarding the microphone jack.
If recording cannot be made, connect a microphone
device to the computer and check that the recording
device operates correctly, as follows:
1 Select Sound from Control Panel.
Using the SNC audio upload tool — Transmitting Audio to unit
95
2 Open the Recording tab and check that Windows has
recognized the hardware correctly.
Using the SNC audio upload tool
When you start the SNC audio upload tool, the Setting
tab is displayed.
Setting tab
Use this menu to set the unit to transmit audio from a
computer or upload an audio file.
Proxy address: Type the IP address or host name of the
proxy server.
Proxy port: Type the port number used for
communication with the proxy server.
Note
The Proxy setting is applicable to all video network
stations. You cannot use individual proxy settings for
each unit.
Codec
Select the audio mode (Codec) from the drop-down list.
Save camera setting
Check this box to store the current settings and camera
list in the Setting tab. The same settings will be recalled
when the camera is rebooted.
Click this button repeatedly to hide/show the camera list.
Others
Target camera(s) (Camera list)
When the SNC audio upload tool starts, it automatically
detects Sony video network stations connected to the
local network and displays them in the camera list. Up
to 256 video network stations can be displayed in the
list.
Select the check box on the left of the row to enable
audio transmission and audio file uploading for that unit.
You can then enable these functions simultaneously for
multiple video network stations.
User
Set the User ID and Password for the administrator.
The factory setting of the User ID for the Administrator
is “admin,” and the Password is “admin.”
Single sign-on: Select On to use the same user ID and
same password for all the video network stations.
Select Off to set the user ID and password
individually for each unit.
For details on setting with Off, see “User ID/
Password” on page 97.
User ID: This item can be set when Single sign-on is set
to On. The user ID specified here is applicable to all
video network stations.
Password: This item can be set when Single sign-on is
set to On. The administrator password specified here
is applicable to all video network stations.
Proxy
Check this box when you use a proxy server for
communications. When it is not checked, direct
communication with the unit is performed.
Auto detect: Select On to obtain the proxy setting
automatically from Internet Explorer.
96
Using the SNC audio upload tool — Transmitting Audio to unit
Notes
• If you are using Windows XP Service Pack 2 or later,
or Windows Vista, disable the Windows Firewall
function. Otherwise the camera list may not be
displayed automatically. For details, see “Configuring
Windows Firewall” in “When using Windows XP
Service Pack 2 or later” on page 9 or “Configuring
Windows Firewall” in “When using Windows Vista”
on page 11.
• The SNC audio upload tool cannot detect video
network stations that are subsequently connected to
the local network after the program has started.
• The SNC audio upload tool cannot detect video
network stations that are not equipped with audio.
Camera select checkbox: The check box is located on
the left end of the row. Select this check box to
enable audio transmission and audio file uploading
for that video network station.
MAC address: Displays the MAC address of the video
network station.
IP address: Displays the IP address of the video
network station. “DHCP” is shown at the end of the
IP address when the IP address is obtained with a
DHCP server.
Model: Displays the model name of the video network
station.
Serial: Displays the serial number of the video network
station.
User: Displays the specified user ID and password. The
password is shown as turned letters.
Select all
Click to select all the cameras in the camera list. This is
useful, for example, when you delete all the video
network stations from the list or specify the same user
ID and password for all video network stations.
User ID/Password
Use this item when you specify the user ID and password
to communicate with selected video network stations only.
Select video network stations from the camera list and
click this button. The following dialog opens.
Type the user ID and password for the administrator and
click OK.
Notes
• An error dialog appears if the specified IP address in
the camera list is assigned for a device other than the
video network station, or does not exist in the network.
• You cannot add new video network stations if the
maximum of 256 video network stations has been
reached.
Delete
Click this button to delete the selected video network
station(s) from the camera list.
Note on switching the tab
If an error occurs when you switch from the Setting tab
to the Audio upload tab or the Voice alert tab, the video
network station is shown in red. In this case, check the
video network station settings and the user ID and
password settings.
Audio upload tab
Others
Use this menu to transmit audio from the computer to
the video network station. You can transmit audio to
multiple video network stations displayed in the camera
list simultaneously.
Before transmitting, set Audio upload to Enable on the
Common tab of the Camera menu.
Note
If you select multiple video network stations from the
camera list, the same user ID and password are set for all
those selected video network stations. The factory
setting for both items is “admin.”
Add
Use this item when you add a new video network station
to the camera list manually. Click this button to open the
following dialog.
Type the IP address and port number of the camera to be
added and click OK.
(start) /
(stop)
Click
(start) to start audio transmission. The
transmission speed is displayed in the Bitrate box during
transmission. You can adjust the microphone volume
and enable/disable muting, if necessary.
To stop audio transmission, click
(stop).
Using the SNC audio upload tool — Transmitting Audio to unit
97
Notes
• Audio transmission stops if you switch the tab during
transmission.
• Audio may be interrupted when the IP address is
changed if Obtain an IP address automatically
(DHCP) is set on IP address in the Network menu.
• Audio may be interrupted if you transmit it to many
video network stations simultaneously.
Voice alert tab
Use this menu to record sound via a microphone
connected to the computer, and upload the recorded
audio file to the unit. You can upload the audio file to
multiple video network stations selected from the unit
list simultaneously.
Sound adjustment and indicators
Adjust the microphone input volume by moving the
slider bar. You can adjust the volume even
during transmission.
Click
to enable/disable sound muting. The
microphone input volume level is displayed.
The transmission rate is displayed in the Bitrate box.
Click this button to hide the camera list. Click it again to
display the camera list.
Others
Target camera(s) (Camera list)
Displays the cameras selected with the camera select
checkbox of the camera list in the Setting tab.
The list shows the information and status of the selected
video network stations.
IP address: Displays the IP address of the video
network station. “DHCP” is shown at the end of the
IP address when the IP address is obtained with a
DHCP server.
(playback)
To start playback, open the recorded file or another
audio file and click this icon.
You can check the recorded sound or the contents of the
selected audio file. During playback, the progress bar
shows playback progress.
Tip
During SSL communication,
appears on the left side
of the IP address of the video network station.
The model on sale in China does not support the SSL
function.
Model: Displays the model name of the video network
station.
Serial: Displays the serial number of the video network
station.
Status: Displays the current status of the video network
station.
Ready: The camera is ready for connection.
Connected: Camera connection was successful.
Fault: Camera connection failed.
Sending: Audio data is being transmitted.
(stop)
Click to stop recording or playback.
When you click it during recording, recording stops, and
you can review the recorded sound or upload the
recording to the video network station.
When you click it during playback, playback stops and
the progress bar returns to the start position.
(recording)
Click to start recording of sound via the computer’s
microphone. Maximum recording time is 30 seconds.
The codec specified in the Setting tab is used for the
recording.
The recorded file is displayed as “RecordedFile.vof.”
Notes
• Recording or playback stops if you switch the tab
during recording or playback.
• The recorded file is not stored in the computer.
98
Using the SNC audio upload tool — Transmitting Audio to unit
Recording/playback progress bar
Click this button to hide the camera list. Click it again to
display the camera list.
You can check recording or playback progress with this
bar.
During recording, the far right of the bar represents
30 seconds, and the remaining recording time is
numerically displayed below the bar.
During playback, the length of the bar depends on the
recorded time.
(file open)
Click to select a previously saved audio file. You can
play the selected audio file or upload it to the system.
(save)
Click to save a recorded audio file to the computer.
Voice alert number select
Note
The audio file name for the video network station
selected in the camera list is displayed here. To check the
uploaded file name, click on the video network station in
the camera list.
(upload)
Click to upload the recorded or selected audio file to the
video network station specified in the Setting tab. Only
one audio file can be uploaded to the video network
station at a time.
IP address: Displays the IP address of a video network
station. “DHCP” is shown at the end of the IP
address when the IP address is obtained from a
DHCP server.
Tip
During SSL communication,
appears on the left side
of the IP address of the video network station.
The model on sale in China does not support the SSL
function.
Model: Displays the model name of the video network
station.
Serial: Displays the serial number of the video network
station.
Progress: Displays the progress of audio file
transmission.
Status: Displays the current status of the camera.
Ready: The camera is ready for connection.
Inquiry: The video network station information is
being requested.
No func: The camera does not support the Voice
alert function.
Uploading: An audio file is being uploaded.
Fault: Audio file uploading failed.
No Privilege: The camera is not authorized to
upload audio files.
Succeeded: The audio file uploaded successfully.
Uploading a recorded audio file to the
video network station
Tip
Before operating, create an audio file and set the video
network station to upload using the Setting tab.
1
Click
(recording) in the Voice alert tab to
start recording.
2
Click
(stop) to stop recording.
Recording will stop automatically in 30 seconds.
3
Select the voice alert number.
4
Click
system.
Note
Uploading a new audio file overwrites the audio file
previously uploaded to the video network station.
Others
Specify the voice alert number to which you want to
upload an audio file. For example, select 1 when
uploading to voice alert 1.
The name of the uploaded audio file is displayed to the
right of the number.
“Not uploaded” is displayed if no audio file is uploaded
to the video network station.
The audio file name will be “RecordedFile” + “Voice
alert number” + “.vof” if you upload an audio file
recorded using
and not stored in the computer.
Target camera(s) (Camera list)
Displays the cameras selected with the camera select
checkbox of the camera list in the Setting tab.
The list shows information and status of selected video
network stations.
(upload) to transmit the audio file to the
Using the SNC audio upload tool — Transmitting Audio to unit
99
Saving the recorded audio file to the
computer
1
Click
(recording) in the Voice alert tab to
start recording.
2
Click
(stop) to stop recording.
Recording will stop automatically in 30 seconds.
3
Click
(save).
The Save as dialog appears. Type the file name and
save it.
Uploading the saved audio file to the
video network station
1
Click
(file open) in the Voice alert tab and
select the audio file to be uploaded.
2
Select the voice alert number.
3
Click
(upload) to transmit the audio file to the
video network station.
Using the SNC video
player — Playing a Video/
Audio File Recorded with the
unit
The supplied SNC video player allows you to play
video/audio data recorded with the unit on your
computer.
Installing the SNC video player
1
Insert the CD-ROM in your CD-ROM drive.
A cover page appears automatically in your Web
browser.
If it does not appear automatically in the Web
browser, double-click on the index.htm file on the
CD-ROM.
Others
When you are using Windows Vista, the pop-up
“Auto Play” may appear. For details, see “Installing
software” in “When using Windows Vista” on
page 10.
2
Click the Setup icon of SNC video player.
The “File Download” dialog opens.
When you are using Windows XP Service Pack 2 or
later, or Windows Vista, a message regarding the
active contents may appear. For details, see
“Installing software” in “When using Windows XP
Service Pack 2 or later” on page 8, or “Installing
software” in “When using Windows Vista” on
page 10.
3
Click File open.
Note
If you click “Save this program to disk” on the “File
Download” dialog, you cannot install the player
correctly.
Delete the downloaded file, and click the Setup
icon again.
4
100
Using the SNC video player — Playing a Video/Audio File Recorded with the unit
Install the SNC video player following the wizard
displayed.
If the Software License Agreement is displayed,
read it carefully and accept the agreement to
continue installation.
Record event: Type of event used for the
recording: Sensor input, Motion detection.
Using the SNC video player
1
Start the SNC video player.
Playing a video/audio file
Click
(start) to start playback from the beginning of
the selected file.
To freeze the movie temporarily, click
(pause).
Click
again to resume playback from the freeze
point.
To stop playback, click
(stop).
To start playback from the beginning, click
(start)
again.
Playback stops when the file is played to the end.
Playing from a specified point
Move the slider bar below the image display, and
playback will start from the position of the slider bar.
Adjusting the sound
2
Click the
(browse) icon.
The Select File dialog opens.
3
Select the file you want to play.
Click
on the top of the screen to open the file
information dialog.
Others
Adjust the playing sound volume by moving the
slider bar. Move it to the left end for minimum volume,
and to the right end for maximum volume.
Click
(speaker) to enable/disable sound (muting).
When sound muting is on, no sound will be heard, even
if you move the slider bar.
Saving an image
Click the
(capture) icon during playback or pause
and the captured image is displayed in a pop-up dialog.
To save the image, click Save on the dialog. You can
specify the destination to which the image is to be
stored, and select the JPEG or Bitmap format.
How to change the image display size
Click × 1/4, × 1/2, × 1, × 2 or Full at the top of the image
to display the image in the selected magnification.
If you select × 1, the image is displayed in the
original image display size of the file.
The × 2 button is only available when image size is
640 × 480 (VGA) or smaller.
The selected image display size is highlighted.
File dialog
Model name: Model name of the video network
station with which the file was recorded.
IP address: IP address of the video network station
with which the file was recorded.
Serial number: Serial number of the video
network station with which the file was
recorded.
Date&time: Recording date and time
Movie: Video Codec
Audio: Audio Codec
Using the SNC video player — Playing a Video/Audio File Recorded with the unit
101
Assigning the IP
Address to the unit
using ARP Commands
This section explains how to assign an IP address to the
unit using ARP (Address Resolution Protocol)
commands without using the supplied SNC toolbox.
Note
When you turn on the camera, execute the ARP and
PING commands within 5 minutes. Also when you
restart the camera, execute the operation within 5
minutes.
1
Open the command prompt on the computer.
2
Enter the IP address and the MAC address of the
video network station to assign a new IP address,
using the following ARP commands.
arp -s <Camera's IP address> <Camera's MAC address>
ping -t <Camera's IP address>
Example:
Others
arp -s 192.168.0.100 08-00-46-21-00-00
ping -t 192.168.0.100
3
When the following line is displayed on the
command prompt, hold down Ctrl and press C.
Display stops.
Using the SNMP
This unit supports SNMP (Simple Network
Management Protocol). You can read MIB-2 objects
using software such as SNMP manager software. This
unit also supports the coldStart trap which occurs when
the power is turned on or the unit restarts, and the
Authentication failure trap, which informs of any illegal
access using SNMP.
Using CGI commands, you can set the community name
and access limitation, host to send traps, and some MIB2 objects. To allow these settings, you need
authentication by the administrator.
1. Inquiry Commands
You can check the SNMP Agent settings using the
following CGI commands.
<Method>
GET, POST
<Command>
(JavaScript parameter format)
(standard format)
With the above inquiry, you can obtain the following
setting information. The following explains the setting
information using the inqjs=snmp (JavaScript
parameter) format.
Reply from 192.168.0.100:bytes=32 time...
You will normally receive a reply after about 5
repetitions of “Request time out.”
4
Wait until the execution of PING finishes, then
input the following code.
arp -d 192.168.0.100
Note
If you do not receive a reply, check the following:
– Did you enter the ARP commands within 5 minutes
after it was turned on?
If not, turn off the camera and restart the operation.
– Is the NETWORK indicator on the camera flashing?
If the indicator goes off, the network connection has a
problem. Connect the network correctly.
– Did you enter the IP address previously used for
another device?
Assign a new IP address to the camera.
– Do the computer and the unit have the same network
address?
If not, set the same network address on the computer
and the camera.
102
Assigning the IP Address to the unit using ARP Commands
var sysDescr=“SNT-EX101”, “SNT-EX104”,
“SNT-EP104”, “SNT-EX154”, “SNT-EP154”,
“SNT-RS1U”, “SNT-RS3U”
var sysObjectID=“1.3.6.1.4.1.122.8501”
var sysLocation=“”
var sysContact=“”
var sysName=“”
var snmpEnableAuthenTraps=“1”
var community=“public,0.0.0.0,read,1”
var community=“private,192.168.0.101,read,2”
var trap=“public,192.168.0.101.1”
...1
...2
...3
...4
...5
...6
...7
...8
...9
1 describes the case of “mib-2.system. sysDescr.0”.
You cannot change this parameter.
2 describes the case of “mib-2.system.
sysObjectID.0”. You cannot change this parameter.
3 describes the case of “mib-2.system.
sysLocation.0”. This field is used to describe
information on the location of this camera. Nothing
is set at the factory.
3)
sysName=<string>
Set the case of “mib-2.system.sysName.0” in the
<string> position. The maximum length of
<string> is 255 characters.
5 describes the case of “mib-2.system. sysName.0”.
This field is used to describe the administration
node of this camera. Nothing is set at the factory.
4)
enaAuthTraps=<value>
Set the case value of “mib-2.snmp.snmp
EnableAuthenTraps.0” in the <string> position.
Type “1” (enable) or “2” (disable) in the <value>
position.
5)
community=<ID>,r,
<communityName>,<IpAddressString>
Set the community attributes. <ID> describes the
setting identification number (1 to 8)
<communityName> describes the community
name to be set, and <IpAddressString> describes
the IP address of the host you allow access (0.0.0.0
for any host).
Example: To allow reading by any host in the
“private” community and having the ID number
“2”. community=2,r,private,0.0.0.0
6)
trap=<ID>,<communityName>,
<IpAddressString>
Set the attributes to send traps to. <ID> describes
the setting identification number (1 to 8),
<communityName> describes the community
name to send traps to, and <IpAddressString>
describes the IP address of the host to send traps to.
Example: To specify the destination of traps as the
public community and the ID number “1”.
trap=1,public,192.168.0.101
7)
delcommunity=<ID>
This parameter is used to delete the previous
community setting. <ID> describes the community
setting identification number (1 to 8).
8)
deltrap=<ID>
This parameter is used to delete the previous setting
of the host to send traps to. <ID> describes the trap
setting identification number (1 to 8).
6 describes the case of “mib-2.snmpEnable
AuthenTraps.0”. This example shows when “1”
(enable) is set. In this setting, a trap occurs when
there is an authentication failure. When “2”
(disable) is set, no authentication failure trap
occurs.
7 describes the community attributes. This example
shows the identification number “ID=1,” the
community name “public,” and enables read from
any IP address (0.0.0.0).
8 describes the community attributes, similar to 7.
This example shows the identification number
ID=2, the community name “private,” and enables
reading by SNMP request packet from the host
“192.168.0.101”.
9 describes the attributes to send a trap. This example
shows the identification number “ID=1,” the
community name “public,” and enables sending of
traps to the host having the IP address
“192.168.0.101”.
2. Setting Commands
The unit supports the following SNMP setting
commands.
<Method>
GET, POST
<Command>
First, perform the settings of the following parameters.
1)
2)
sysLocation=<string>
Set the case of “mib-2.system.sysLocation.0” in the
<string> position. The maximum length of
<string> is 255 characters.
sysContact=<string>
Set the case of “mib-2.system.sysContact.0” in the
<string> position. The maximum length of
<string> is 255 characters.
Others
4 describes the case of “mib-2.system. sysContact.0”.
This field is used to describe information on the
administrator of this camera. Nothing is set at the
factory.
When you have finished changing the SNMP setting
information using the above parameters 1) to 8), check
the changed settings using an inquiry command. If the
changed settings are OK, restart the SNMP using the
following CGI command.
SNMP restart command
<Method>
GET, POST
<Command>
Using the SNMP
103
Glossary
ActiveX control
A component program object that can be used with web
pages or other application programs. The technology for
creating ActiveX control is part of software developed
by Microsoft.
AES
Abbreviation for Advanced Encryption Standard. This is
the next-generation standard of encryption, adopted by
the U.S. government.
ARP commands
The commands for checking the entry of the IP address
and MAC address in a host computer, or for updating
them.
Bandwidth control
To limit the amount of transmitted data.
Bit rate
Others
The rate at which data bits are transmitted.
CA (Certificate Authority)
A private authority that issues and controls digital
certificates to be used for authentication regarding
network access.
Capture
To display the audio and video digital data from video
devices on a computer.
DHCP server
Acronym for Dynamic Host Configuration Protocol
server. The IP address of a terminal without an
individual IP address can be automatically distributed by
the Dynamic Host Configuration Protocol (DHCP). The
DHCP server assigns the IP addresses to the terminals.
Digital certificate
An electronic certificate that a CA (Certificate
Authority) attests that a public key to cancel a secret
code is issued by an authentic publisher.
DNS server
Acronym for Domain Name System server. As an IP
address required for connecting to the device on an IP
network is numerical and difficult to remember, the
Domain Name System was established. A domain name
is alphabetic and is easier to remember. When a client
computer uses a domain name to connect to another
computer, it asks a DNS server to translate the name into
the corresponding IP address. The client computer can
then obtain the IP address of the computer to be
connected.
EAP method
Acronym for Extensible Authentication Protocol. This
is a protocol extended from PPP (Point-to-Point
Protocol) and having an authentication function.
EAP-TLS authentication
TLS is an authentication protocol of the EAP methods
using Transport Layer Security. By using digital
certificates and other methods, EAP-TLS prevents data
falsification, eavesdropping and spoofing.
Frame rate
Codec
Software/hardware for coding/decoding video and audio
data.
The number of frames of a moving image that can be
transmitted per a second.
FTP client
Common name
A URL to be typed in the browser when you access a
website employing SSL (Secure Sockets Layer)
protocol with the security function. Access is successful
after the URL of the website is verified as matching the
server’s common name.
Contrast
The difference in tone between the lightest and darkest
portions of the image.
Default gateway
Device that can be used to access another network.
104
Glossary
Software to be used for accessing the FTP server.
FTP server
A server to be used to transfer files via a network.
HTTP port
A port used to communicate between the web server and
the web client, such as a web browser.
H.264
Primary DNS server
An image compression format. The standard written by
the JVT (Joint Video Team) a joint organization for
standardization (composed of ISO and ITU-T. H.264), is
capable of transmitting video data at a higher
compression rate than that of MPEG4.
One of the DNS servers that can first reply to a request
by connected devices or other DNS servers.
IP address
Acronym for Internet Protocol Address. An individual
IP address is basically assigned to each piece of
equipment connected to the Internet.
JPEG
Acronym for Joint Photographic Expert Group. The still
image compression technology or standards of ISO
(International Organization for Standardization) and
ITU-T. Popularly used as an image compression format
on the Internet, etc.
Proxy server
A server or software that acts as an intermediary
between a local network and the Internet so that it can
connect to the Internet in place of a computer on a local
network.
PSK
Abbreviation for Pre-Shared Key. This is a shared key to
make an encryption key, used with TKIP in WPA
encryption standard. PSK sometimes means an
authentication system using a key previously shared.
QoS
MAC address
Enter a value in the DSCP (Differential Service Code
Point) field included in the IP header to control
communication service quality.
A network address that uniquely identifies each LAN
card.
RADIUS client
MPEG4
Multicast
The class D IP address assigned between 224.0.0.0 and
239.255.255.255. Using this IP address enables you to
transmit the same data to multiple equipment.
Saturation
Network address
Secondary DNS Server
The portion that identifies the local network (subnet) in
an IP address.
Subsidiary DNS server used when a primary DNS server
cannot be used.
Network bandwidth
Shared secret
Bit rate that can be used for networking.
A character string to be used for mutual authentication
between a RADIUS server and RADIUS client.
Others
Acronym for Moving Picture Experts Group4. One of
the MPEG standards for image compression format
aiming to transmit images at a high compression rate
with lower picture quality.
RADIUS (Remote Authentication Dial-in User Service)
is an authentication and accounting protocol managing
network access, and a RADIUS client is a party that
accesses the network.
In Internet connecting service, a Network Access Server
(NAS) such as that for dial-up and broadband access
server is a RADIUS client. In a wireless LAN system, a
wireless LAN access point is a RADIUS client.
The degree to which a color is pure.
NTP server
Network time server that transmits and receives time
information over the networks.
Sharpness
The degree to which the boundary of two portions is
clearly distinguished.
Passive mode
The mode whereby a client FTP allows TCP connection
for data transmission to the FTP server.
SMTP server
A server for sending or relaying e-mail messages
between servers.
POP server
A server for storing incoming e-mail until you have read
it.
Glossary
105
SNMP
A protocol for monitoring and managing network
devices.
SSL
Acronym for Secure Sockets Layer. This is a protocol
developed by Netscape Communications Corporation to
be used for communications of encrypted data on the
Internet.
Subnet mask
32-bit stream used to distinguish the subnet address
from an IP address.
TCP
Acronym for Transmission Control Protocol. A standard
protocol used for Internet connection. Compared with
the other protocol, UDP, TCP provides reliable
communication but communication speed is slower.
UDP
Others
Acronym for User Datagram Protocol. A standard
protocol used for Internet connection. Compared with
the other protocol, TCP, UDP can transmit data faster,
but reliable communication is not guaranteed.
Unicast
Transmission of data to specified equipment on a
network by specifying a single address.
802.1X
A standard that performs user authentication and
dynamic key generation and traffic on a LAN.
106
Glossary
Index
A
Backup setting data ........................ 32
Bandwidth control.......................... 37
Bit rate............................................ 36
bit rate ............................................ 36
Brightness ...................................... 35
C
CA (Certificate Authority) ..... 47, 104
CA certificate ........................... 49, 51
CA certificate tab ........................... 44
Camera ........................................... 28
camera ............................................ 34
Camera list ............................... 21, 82
Camera Menu................................. 34
camera position .............................. 54
Cancel button ................................. 27
Capacity warning ........................... 63
Capture........................................... 18
capture............................................ 18
certificate request ........................... 48
CGI commands ............................ 102
Client certificate............................. 48
client certificate.............................. 48
Codec ............................................. 73
Common........................34, 57, 60, 63
Common name ............................. 104
common name.............................. 104
Contrast .......................................... 35
contrast........................................... 35
control authority............................. 29
control panel................................... 21
Current date & time ....................... 30
Custom Homepage Installer........... 90
D
Date & time.................................... 30
date and time .................................. 30
Date and time format ..................... 30
Date_No. ........................................ 66
daylight saving time ....................... 31
Default gateway ............................. 38
default gateway .............................. 38
Default policy................................. 54
delete ........................................ 32, 33
Delete custom homepage ............... 32
Delete voice alert file ..................... 33
device setting.................................. 93
DHCP server .................................. 38
Digital certificate.......................... 104
digital certificate........................... 104
DNS server ..................................... 38
Domain suffix................................. 38
downloading images....................... 67
Dynamic IP address notification .... 40
E
EAP method ........................... 48, 104
EAP-TLS authentication .............. 104
Effective period .............................. 62
Effective period
............ 56, 59, 60, 62, 65, 66, 68, 70
e-mail ....................................... 40, 57
e-Mail (SMTP)................... 28, 57, 70
e-Mail (SMTP) Menu..................... 57
e-Mail (SMTP) notification............ 40
e-mail address ................................ 41
End time ......................................... 72
Exclusive control mode.................. 29
extension ........................................ 66
F
Others
Access log ...................................... 33
Active Directory............................. 50
ActiveX control.....................8, 11, 13
ActiveX Viewer........................ 17, 18
Adaptive rate control...................... 36
adaptive rate control....................... 36
Adjust............................................. 30
Administrator ........................... 16, 53
administrator .................................. 16
Administrator e-mail
address ..............................41, 58, 64
Administrator menu ....................... 27
AES .............................................. 104
Alarm ............................58, 61, 65, 69
alarm .............................58, 61, 65, 69
Alarm buffer........................29, 62, 65
alarm buffer.........................62, 65, 73
Alarm buffer Menu ........................ 73
alarm detection......................... 58, 61
Alarm duration ............................... 68
Alarm output .......................28, 67, 71
alarm output ............................. 23, 67
Alarm output Menu........................ 67
Alarm recording ............................. 64
Alarm sending.......................... 58, 61
ARP commands ........................... 102
Audio ............................................. 53
audio............................................... 34
Audio codec ................................... 34
audio output ................................... 69
Audio port number......................... 37
Audio upload.................................. 34
Authentication.....................41, 57, 64
authentication......................41, 57, 64
authentication server ...................... 47
authenticator................................... 47
Automatically adjust clock for
daylight saving time changes....... 31
B
Factory default ............................... 32
factory settings ............................... 32
File ........................................... 69, 71
File attachment............................... 58
file name............ 58, 59, 61, 62, 64, 65
Firmware Upgrade ......................... 91
focus ......................................... 19, 21
Focus mode .................................... 34
focus mode ..................................... 34
folder structure ............................... 66
format ............................................. 32
format of date and time .................. 30
Format USB memory ..................... 32
Frame rate ...................................... 36
frame rate ................................. 18, 36
FTP................................................. 53
FTP client................................. 28, 71
FTP client function......................... 60
FTP client Menu............................. 60
FTP server ................................ 28, 60
FTP server function........................ 67
FTP server Menu............................ 67
FTP server name ............................ 60
Index
107
G
M
Glossary........................................104
Group preset positions....................55
MAC address ..................................38
main viewer ....................................18
mask ...............................................89
Maximum wait number ..................30
memory..................................... 63, 67
Message.................................... 41, 58
Method ...........................................41
Mic volume.....................................34
Microphone ....................................34
microphone.....................................34
Mode................................... 62, 66, 67
monitor image ................................20
Motion detection ................ 29, 55, 68
motion detection.............................73
Motion detection Menu ..................73
multicast .........................................37
Multicast address............................37
multicast address ............................37
Multicast streaming ........................37
multicast streaming ........................37
My device .......................................86
H
H.264 ............................................105
Home ..............................................18
Homepage ......................................81
Host name.......................................38
HTML output tab ...........................83
HTTP method.................................41
HTTP notification ..........................41
HTTP port number .........................39
HTTP request .................................41
HTTP server ...................................41
I
Others
image file........................................22
Image file name.......58, 61, 62, 64, 65
Image memory ............. 22, 28, 63, 71
image memory................................28
Image memory Menu .....................63
Image quality..................................37
image quality ..................................37
Image size.......................................36
information bar.................................9
Information Bar message .................8
Initialize..........................................32
Internet Authentication Service......50
Internet Explorer ............................13
Interval ............................... 60, 62, 66
IP address ................................... 6, 38
IP Setup Program ....................... 6, 84
IPv4 setting.....................................38
IPv6 setting.....................................39
J
JPEG...............................................17
L
Layout ............................................81
logging in .......................................17
108
Index
N
Name ..............................................55
Network .................................... 28, 38
network...........................................38
Network address/Subnet.................54
network bandwidth .........................37
Network Menu................................38
No. ..................................................55
O
OK button .......................................27
Operation time................................30
Overwrite........................................63
overwrite.........................................63
P
pan/tilt....................................... 19, 21
Passive mode ..................................61
passive mode ..................................61
Password..................41, 53, 58, 60, 64
password..................41, 53, 58, 60, 64
PC clock .........................................30
periodical e-mail sending ...............59
Periodical recording .......................65
periodical recording........................65
Periodical sending .................... 59, 62
periodical sending...........................62
Picture.............................................35
Play.................................................69
playing audio ..................................23
Plug-in free Viewer.........................20
POP server .......................... 41, 57, 64
POP server name ................ 41, 57, 64
port number ....................................41
Portable module..............................82
Position...........................................54
Position at alarm.............................54
Post-alarm period ...........................73
Pre-alarm period .............................73
Preset ..............................................55
Preset call .......................................55
Preset position ................................28
preset position........................... 20, 22
Preset position Menu ......................54
preset position name.......................55
Preset tour.......................................56
Primary DNS server .......................38
Privacy Masking tab .......................35
Private key password ......................49
Proxy port number..........................41
proxy server ....................................41
Proxy server name ..........................41
PSK...............................................105
Q
QoS Tab ..........................................39
R
RADIUS client .............................105
Reboot ............................................32
reboot..............................................32
Recipient e-mail address .......... 41, 58
recipient e-mail address............41, 58
Recording capacity .........................73
recording capacity of the alarm
buffer ............................................73
recording images ......................22, 63
Recording time ...............................73
Remote path.............................. 61, 62
remote path .....................................62
Repeat.............................................69
Restore setting ................................32
Resume time on inactivity ..............56
Re-type password ..................... 53, 60
S
T
TCP ................................................ 23
TCP/UDP ....................................... 23
Test ................................................. 69
Text................................................. 82
time difference ............................... 31
Time zone....................................... 31
time zone........................................ 31
Timer .............................................. 71
title bar ........................................... 29
Title bar name ................................ 29
Toggle............................................. 71
tour ................................................. 56
transmission port number............... 37
Trigger............................................ 28
Trigger Menu ................................. 70
V
Video codec.................................... 36
video codec .............................. 36, 73
Video port number ......................... 37
View size ........................................ 18
view size......................................... 18
Viewer authentication..................... 53
Viewer mode ............................ 16, 53
viewer mode ................................... 53
Viewer Setting................................ 81
VMF ............................................... 73
Voice alert .......................... 28, 69, 71
Voice alert Menu ............................ 69
voice alert number select................ 99
volume...................................... 19, 34
W
warning mail .................................. 63
welcome page................................. 13
Windows Firewall ............................ 9
Windows Vista ............................... 10
Windows XP Service Pack 2............ 8
Others
Saturation ....................................... 35
saturation........................................ 35
saves the setting data...................... 32
Schedule......................................... 29
schedule ................................... 29, 72
Schedule Menu .............................. 72
Schedule Task ................................ 91
Secondary DNS server ................... 38
Security .......................................... 28
security........................................... 54
Security function............................ 54
Security Menu................................ 54
Security Warning ..............8, 9, 11, 74
Selected root directory ............. 63, 67
sending images............................... 22
Sensor input mode ......................... 30
Sensor input 1 .......................... 55, 68
Sensor input 2 .......................... 55, 68
Sequence ........................................ 56
Sequence number
clear ................ 58, 60, 61, 62, 65, 66
Serial number ................................. 29
serial number.................................. 29
Set .................................................. 55
Setting ............................................ 18
Shared secret ................................ 105
Sharpness ....................................... 35
sharpness ........................................ 35
Simple motion detection
function........................................ 79
SMTP server .......................40, 57, 64
SMTP server name..............40, 57, 64
SNC audio upload tool................... 95
SNC Desktop Viewer ..................... 26
SNC privacy masking tool ............. 89
SNC toolbox .................................. 84
SNC video player......................... 100
SNC Viewer ................................... 24
SNMP........................................... 102
Software version ............................ 29
software version ............................. 29
special tags ..................................... 42
SSL Menu ...................................... 42
SSL............................................... 106
Start time........................................ 72
Stay time ........................................ 56
Streaming ....................................... 37
Subject ..................................... 41, 58
Subnet mask ................................... 38
subnet mask.................................... 38
Suffix................. 58, 59, 61, 62, 64, 66
suffix ................. 58, 59, 61, 62, 64, 66
Superimpose................................... 31
superimpose ................................... 31
supplicant ....................................... 47
System...................................... 28, 29
system ............................................ 29
System log...................................... 33
System Menu ................................. 29
System Utility ................................ 24
Z
zoom......................................... 19, 21
Numerics
802.1X.................................... 47, 106
U
UDP................................................ 37
UDP (Multicast)............................. 24
UDP (Unicast)................................ 23
Unicast streaming........................... 37
URL................................................ 41
USB memory ......................32, 63, 67
Use the same time schedule every
day................................................ 72
User .....................................16, 28, 53
user ......................................16, 51, 53
User Menu...................................... 53
User name ...............41, 53, 58, 60, 64
user name ................41, 53, 58, 60, 64
Utility ............................................. 18
Index
109
Sony Corporation
