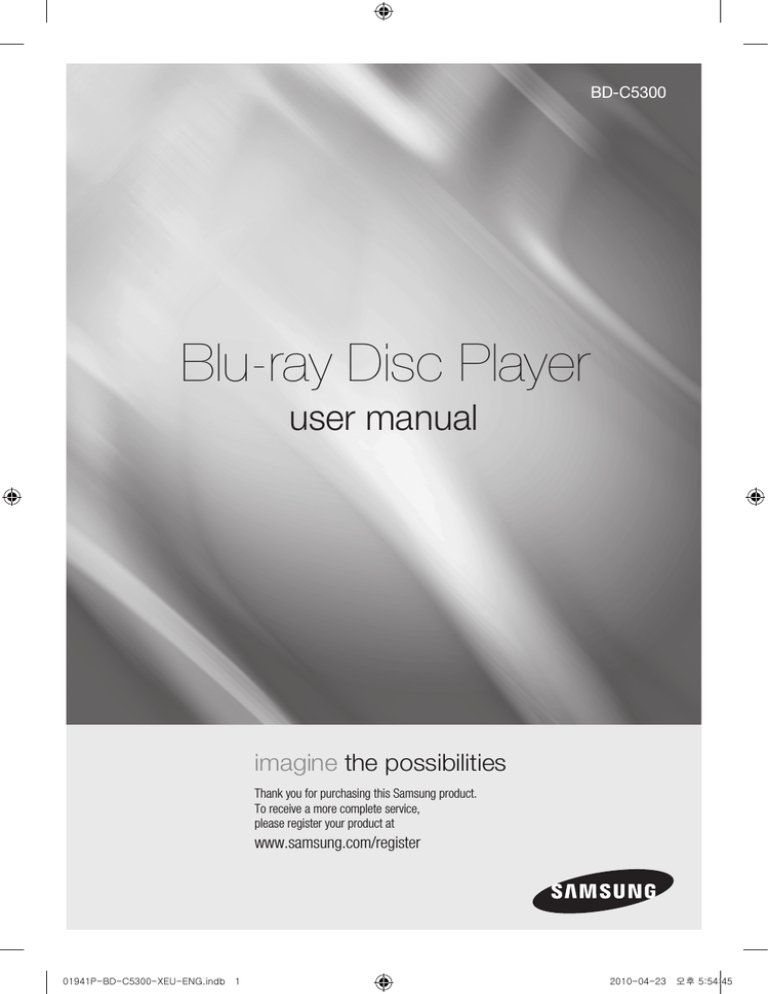

BD-C5300
Blu-ray Disc Player
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/register
01941P-BD-C5300-XEU-ENG.indb 1
2010-04-23 오후 5:54:45
Key features
Blu-ray Disc Features
Blu-ray Discs support the highest quality HD video
available in the industry - Large capacity means
no compromise on video quality. Furthermore, a
Blu-ray Disc has the same familiar size and look
as a DVD.
The following Blu-ray Disc features are disc
dependant and will vary.
Appearance and navigation of features will also
vary from disc to disc.
Not all discs will have the features described
below.
Video highlights
The BD-ROM format supports three highly advanced
video codecs, including AVC, VC-1 and MPEG-2.
HD video resolutions are also available:
• 1920 x 1080 High Definition
• 1280 x 720 High Definition
For High-Definition Playback
To view high-definition contents on a Blu-ray Disc,
an HDTV (High Definition Television) is required.
Some Blu-ray Discs may require using the
product’s HDMI OUT to view high-definition
content.
The ability to view high-definition content on
Blu-ray Discs may be limited depending on the
resolution of your TV.
Subtitles
Depending on what is contained on the Blu-ray
Disc, you may be able to select different font
styles, sizes and colours for the subtitles. Subtitles
may also be animated, scrolled or faded in and
out.
BD-LIVE
You can use a Blu-ray Disc supporting BD-LIVE
through network connection to enjoy various
contents provided by the disc manufacturer.
Blu-ray Disc Player Features
Internet@TV
You can download various chargeable or free-ofcharge applications through network connection.
Various internet service and contents will be
provided, which include news, weather forecast,
stock market, games, movies and music.
Interactivity
Certain Blu-ray Discs may contain Animated
menus and Trivia games.
User Browsable Slideshows
With Blu-ray Discs, you can browse through
various still pictures while the audio remains
playing.
English
01941P-BD-C5300-XEU-ENG.indb 2
2010-04-23 오후 5:54:45
Safety Information
02
Warning
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates “dangerous voltage” CAUTION: TO REDUCE THE RISK OF ELECTRIC This symbol indicates important instructions
inside the product that presents a risk of
SHOCK, DO NOT REMOVE COVER (OR BACK)
accompanying the product.
electric shock or personal injury.
NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
Do not install this equipment in a confined space
such as a bookcase or similar unit.
WARNING
To prevent damage which may result in fire
or electric shock hazard, do not expose this
appliance to rain or moisture.
CAUTION
Blu-ray Disc Player USES AN INVISIBLE LASER
BEAM WHICH CAN CAUSE HAZARDOUS
RADIATION EXPOSURE IF DIRECTED. BE SURE
TO OPERATE Blu-ray Disc Player CORRECTLY
AS INSTRUCTED.
CAUTION
THIS PRODUCT UTILIZES A LASER. USE
OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE. DO
NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
This product satisfies CE regulations when
shielded cables and connectors are used to
connect the unit to other equipment. To prevent
electromagnetic interference with electric
appliances, such as radios and televisions, use
shielded cables and connectors for connections.
IMPORTANT NOTE
The mains lead on this equipment is supplied with
a molded plug incorporating a fuse. The value of
the fuse is indicated on the pin face of the plug.
If it requires replacing, a fuse approved to BS1362
of the same rating must be used.
Never use the plug with the fuse cover omitted
if the cover is detachable. If a replacement fuse
cover is required, it must be of the same colour as
the pin face of the plug. Replacement covers are
available from your dealer.
If the fitted plug is not suitable for the power points
in your house or the cable is not long enough to
reach a power point, you should obtain a suitable
safety approved extension lead or consult your
dealer for assistance.
However, if there is no alternative to cutting off the
plug, remove the fuse and then safely dispose of
the plug. Do not connect the plug to a mains jack,
as there is a risk of shock hazard from the bared
flexible cord.
To disconnect the apparatus from the mains, the
plug must be pulled out from the mains socket,
therefore the mains plug shall be readily operable.
The product unit accompanying this user manual
is licensed under certain intellectual property
rights of certain third parties. This licence is limited
to private non-commercial use by end-user
consumers for licensed contents.
No rights are granted for commercial use.
The licence does not cover any product unit other
than this product unit and the licence does not
extend to any unlicensed product unit or process
conforming to ISO/IEC 11172-3 or ISO/IEC
13818-3 used or sold in combination with this
product unit. The licence only covers the use
of this product unit to encode and/or decode
audio files conforming to the ISO/IEC 11172-3 or
ISO/IEC 13818-3. No rights are granted under this
licence for product features or functions that do
not conform to the ISO/IEC 11172-3 or ISO/IEC
13818-3.
English
01941P-BD-C5300-XEU-ENG.indb 3
Safety Information
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
2010-04-23 오후 5:54:45
Safety Information
Precautions
Important Safety Instructions
Read these operating instructions carefully before
using the unit. Follow all the safety instructions
listed below.
Keep these operating instructions handy for future
reference.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade
or the third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Disc Storage & Management
Disc Handling
Disc Shape
• Use discs with regular
shapes. If an irregular disc
(a disc with a special shape)
is used, this product may be damaged.
Holding discs
• Avoid touching the surface of a
disc where recording is performed.
Blu-ray Discs
• If the product is not used for a long period of
time, remove the Blu-ray Disc from the product
and store it in its case.
• Be careful not to leave fingerprints or scratches
on the surface of the Blu-ray Disc.
DVD-VIDEO, Audio CD (CD-DA)
• Wipe off dirt or contamination on the disc with a
soft cloth.
11. Only use attachments/accessories specified
by the manufacturer.
12. Use only with the cart,
stand, tripod, bracket,
or table specified by the
manufacturer, or sold with
the apparatus. When a cart
is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
English
01941P-BD-C5300-XEU-ENG.indb 4
2010-04-23 오후 5:54:45
Handling Cautions
• Do not write on the printed side with a ball-point
pen or pencil.
• Do not use record cleaning sprays or antistatic.
Also, do not use volatile chemicals, such as
benzene or thinner.
• Do not apply labels or stickers to discs. (Do not
use discs fixed with exposed tape adhesive or
leftover peeled-off stickers.)
• Do not use scratch-proof protectors or covers.
• Do not use discs printed with label printers
available on the market.
• Do not load warped or cracked discs.
• Before connecting other components to this
product, be sure to turn them all off.
• Do not move the product while a disc is being
played as the disc may be scratched or broken,
or the product’s internal parts may be damaged.
• Do not put a flower vase filled with water or any
small metal objects on the product.
• Be careful not to put your hand into the disc
tray.
• Do not place anything other than the disc in the
disc tray.
• Exterior interferences such as lightning and
static electricity can affect the normal operation
of this product. If this occurs, turn the product
off and on again with the POWER button, or
disconnect and then reconnect the AC power
cord to the AC power outlet. The product will
operate normally.
Maintenance of Cabinet
For safety reasons, be sure to disconnect the AC
power cord from the AC outlet.
• Do not use benzene, thinner, or other solvents
for cleaning.
• Wipe the cabinet with a soft cloth.
Restrictions on Playback
• This product may not respond to all operating
commands because some Blu-ray, DVD and
CD discs allow specific or limited operation and
features during playback.
Please note that this is not a defect in the
product.
• Samsung cannot assure that this product will
play every disc bearing the Blu-ray Disc, DVD
or CD logo because disc formats evolve, and
problems and errors may occur during the
creation of Blu-ray Disc, DVD, CD software
and/or the manufacture of discs.
Please contact the SAMSUNG customer care
center if you have questions or encounter
difficulty in playing Blu-ray, DVD, or CD discs
in this product. Also, refer to rest of this user
manual for additional information on playback
restrictions.
English
01941P-BD-C5300-XEU-ENG.indb 5
Safety Information
Be careful not to damage the disc because the
data on these discs is highly vulnerable to the
environment.
• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Store vertically.
• Keep in a clean protection jacket.
• If you move your product suddenly from a cold
place to a warm place, condensation may
generate on the operating parts and lens and
cause abnormal disc playback. If this occurs,
wait for two hours before connecting the plug to
the power outlet.
Then insert the disc and try to play back again.
• Be sure to remove the disc and turn off the
product after use.
• Disconnect the AC power cord from the AC
outlet when you don’t intend to use the product
for long periods of time.
• To clean a disc, wipe it in a straight
line from the inside to the outside of
the disc.
• Do not expose the product to any
liquid.
• When the AC plug is connected to a wall outlet,
the product will still draw power (standby mode)
when it is turned off.
• Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such
as vases, shall be placed on the apparatus.
• The main plug is used as a disconnect device
and shall stay readily operable at any time.
02
Disc Storage
2010-04-23 오후 5:54:45
Contents
Key features
2
2
Blu-ray Disc Features
Blu-ray Disc Player Features
Safety Information
3
4
4
4
4
Warning
Precautions
Important Safety Instructions
Disc Storage & Management
Disc Handling
Getting Started
10
10
10
11
11
12
13
13
14
14
15
16
17
18
18
19
19
Before Using the user manual
Disc Types and Contents that can be played.
Disc types that cannot be played
Blu-ray Disc Compatibility
Disc Types
Supported File Formats
Region Code
Copyright
Logos of Discs that can be played
Accessories
Front Panel
Front Panel Display
Rear Panel
Remote Control
Tour of the Remote Control
Setting the Remote Control
Controllable Tv Codes
Connections
20
20
Connecting to a TV
Case 1 : Connecting to a TV with an HDMI Cable
- Best Quality (Recommended)
Case 2 : Connecting to a TV with DVI Cable
- Best Quality (Recommended)
Case 3 : Connecting to a TV (Component)
- Better Quality
Case 4 : Connecting to a TV (Video)
- Good Quality
21
22
23
English
01941P-BD-C5300-XEU-ENG.indb 6
2010-04-23 오후 5:54:45
26
26
27
Connecting to an Audio System
Case 1 : Connecting to an Audio System
(HDMI Supported Amplifier) - Best Quality
(Recommended)
Case 2 : Connecting to an Audio System
(Dolby Digital, DTS Amplifier) - Better Quality
Case 3 : Connecting to an Audio System
(2 Channel Amplifier) - Good Quality
Connecting to the Network
Cable Network
Wireless Network
28
29
30
30
30
30
32
32
32
32
32
32
32
33
34
34
34
34
34
34
34
35
35
35
36
36
36
39
39
Before Starting (Initial Settings)
Setting the Menu
Display
TV Aspect
BD Wise (Samsung Products only)
Resolution
HDMI Format
Movie Frame (24Fs)
Progressive Mode
Still Mode
HDMI Deep Colour
Audio
Digital Output
PCM Downsampling
Dynamic Range Control
Downmixing Mode
DTS Neo:6
System
Initial Settings
Internet@TV Screen Size
Anynet+(HDMI-CEC)
BD Data Management
Clock
DivX(R) Registration
DivX(R) Deactivation
Network Setup
Network Settings
Network Status
BD-LIVE Internet Connection
24
24
25
25
Setup
English
01941P-BD-C5300-XEU-ENG.indb 7
ENGLISH
Connections
2010-04-23 오후 5:54:46
Contents
Setup
40
40
40
40
40
40
41
41
41
41
41
42
Language
Security
Parental Rating
Change Password
General
Background
Energy Saving
Front Display
Power On/Off Sound
Support
Software Upgrade
Contact Samsung
Basic Functions
43
43
43
43
43
43
43
44
44
44
44
44
44
44
45
45
45
45
45
46
46
46
46
47
Playing a Disc
Playback
Disc Structure
Using the Disc menu/Title menu/Popup menu
Using the Disc Menu
Using the Title Menu
Playing the Title List
Using the Popup Menu
Using the Search and Skip Functions
Searching for a Desired Scene
Skipping Chapters
Slow Motion Play/Step Motion Play
Slow Motion Play
Step Motion Play
Repeat Playback
Repeat the Title or Chapter
Repeat the Section
Using the TOOLS button
Moving to a Desired Scene Directly
Selecting the Audio Language
Selecting the Subtitle Language
Changing the Camera Angle
Selecting the Picture Setting
Setting BONUSVIEW
English
01941P-BD-C5300-XEU-ENG.indb 8
2010-04-23 오후 5:54:46
48
48
48
49
49
49
50
Listening to Music
Buttons on the Remote Control used for Music
Playback
Playing an Audio CD (CD-DA)/MP3
Repeat an Audio CD (CD-DA)/MP3
Playlist
Playing back a Picture
Playing a JPEG Disc
Using the TOOLS button
Playing back a USB Storage Device
Network Services
51
51
53
54
55
55
Using Internet@TV
Getting Started with Internet@TV
Settings
Samsung Apps
BD-LIVE™
Software Upgrade Notification
Appendix
56
58
59
60
60
61
62
Troubleshooting
Index
Specifications
Compliance and Compatibility Notice
Copy Protection
Network Service Disclaimer
License
47
47
English
01941P-BD-C5300-XEU-ENG.indb 9
ENGLISH
Basic Functions
2010-04-23 오후 5:54:46
Getting Started
Before Using the user manual
Disc Types and Contents that can be played.
Term
Logo
Icon
h
�
Z
BD-ROM
BD-RE/-R
DVD-VIDEO
Definition
This involves a function available on a BD-ROM.
This involves a function available on a BD-RE/-R disc recorded in the BD-RE format.
This involves a function available on a DVD-VIDEO.
DVD-RW(V)
DVD-R
�
DVD+RW
This involves a function available on recorded DVD+RW or DVD-RW(V)/DVD-R/+R
discs that have been recorded and finalized.
DVD+R
MP3
WMA
-
JPEG
-
o
�
G
DivX
MKV
MP4
-
�
Audio CD
This involves a function available on an audio CD-RW/-R (CD-DA format).
This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage
media containing MP3 or WMA contents.
This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage
media containing JPEG contents.
This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage
media containing DivX, MKV, MP4 contents.
✎ NOTE
▪ The product may not play certain CD-RW/-R and DVD-R due to the disc type or recording conditions.
▪ If a DVD-RW/-R disc has not been recorded properly in DVD video format, it will not be playable.
Disc types that cannot be played
• HD DVD
• DVD-ROM/PD/MVDisc, etc
10
• DVD-RAM
• Super Audio CD
(except CD layer)
• DVD-RW(VR mode)
• 3.9 GB DVD-R Disc for
Authoring.
• CVD/CD-ROM/CDV/
CD-G/CD-I/LD
(CD-Gs play audio only,
not graphics.)
English
01941P-BD-C5300-XEU-ENG.indb 10
2010-04-23 오후 5:54:46
▪
▪
▪
▪
Do not allow the disc to become dirty or scratched.
Fingerprints, dirt, dust, scratches or deposits of
cigarette smoke on the recording surface may make
it impossible to use the disc for playback.
When a BD-J title is played, loading may take longer
than a normal title, or some functions may perform
slowly.
This product may not respond to all operating
commands because some Blu-ray, DVD and CD
discs allow specific or limited operation and features
during playback.
Please note that this is not a defect in the product.
Samsung cannot assure that this product will play
every disc bearing the Blu-ray Disc, DVD or CD logo
because disc formats evolve, and problems and
errors may occur during the creation of Blu-ray Disc,
DVD, CD software and/or the manufacture of discs.
Please contact the SAMSUNG customer care centre
if you have questions or encounter difficulty when
playing Blu-ray, DVD, or CD discs in this product.
Also, refer to rest of this user manual for additional
information on playback restrictions.
Blu-ray Disc Compatibility
Blu-ray Disc is a new and evolving format.
Accordingly, disc compatibility issues are possible.
Not all discs are compatible and not every disc will
play back. For additional information, refer to the
Compliance and Compatibility Notice section of
this user manual.
BD-ROM
This Blu-ray disc can only be played back.
This product can play back pre-recorded
commercial BD-ROM discs.
BD-RE/-R
This Blu-ray disc can be recorded and played
back.
This product can play back a BD-RE/-R disc
recorded by other compatible Blu-ray disc
recorders.
DVD-VIDEO
• This product can play back pre-recorded
commercial DVD discs (DVD-VIDEO discs) with
movies.
• When switching from the first layer to the
second layer of a dual-layered DVD-VIDEO disc,
there may be momentary distortion in the image
and sound. This is not a malfunction of the
product.
DVD-RW
This product can play back a DVD-RW disc
recorded and finalized with a DVD video recorder.
Ability to play back may depend on recording
conditions.
DVD-R
This product can play back a DVD-R disc
recorded and finalized with a DVD Video recorder.
Ability to play back may depend on recording
conditions.
DVD+RW
• This product can play back a DVD+RW disc
recorded with a DVD Video recorder. Ability to
play back may depend on recording conditions.
•
English
01941P-BD-C5300-XEU-ENG.indb 11
Getting Started
▪
outside your region may not be playable with this
product. When these discs are played, either “This
disc can not be played.” or “Cannot read this disc.
Please check the regional code of the disc.” will be
displayed.
Playback may not work for some types of discs, or
when specific operations, such as angle change and
aspect ratio adjustment, are being performed.
Information about the discs is written in detail on the
disc box. Please refer to this if necessary.
Disc Types
03
✎ NOTE
▪ Some commercial discs and DVD discs purchased
11
2010-04-23 오후 5:54:47
Getting Started
DVD+R
• This product can play back a DVD+R disc
recorded and finalized with a DVD Video
recorder. Ability to play back may depend on
recording conditions.
Audio CD (CD-DA)
• This product can play back CD-DA format audio
CD-RW/-R discs.
• The product may not be able to play some
CD-RW/-R discs due to the condition of the
recording.
CD-RW/-R
• Use a 700MB(80 minutes) CD-RW/-R disc.
If possible, do not use a 800MB(90 minutes) or
above disc, as the disc may not play back.
• If the CD-RW/-R disc was not recorded as a
closed session, you may experience delays
when playing back the beginning of the disc or
all recorded files may not play.
• Some CD-RW/-R discs may not be playable
with this product, depending on the device
which was used to burn them. For contents
recorded on CD-RW/-R media from CDs
for your personal use, playability may vary
depending on contents and discs.
Supported File Formats
Video File Support
File Extension
Container
*.avi
AVI
Video Codec
DivX 3.11/4.x/5.1/6.0
XviD
MP4v3
H.264 BP/MP/HP
VC-1 AP
*.mkv
MKV
DivX 5.1/6.0
XviD
H.264 BP/MP/HP
*.wmv
*.mp4
*.mpg
*.mpeg
12
WMV(wmv9)
MP4
PS
VC-1 AP
VC-1 SM
MP4 (mp4v)
H.264 BP/MP/HP
MPEG1
MPEG2
H.264 BP/MP/HP
Audio Codec
Resolution
MP3
AC3
DTS
WMA
PCM
1920x1080
MP3
AC3
DTS
1920x1080
WMA
AAC
MP1, 2
AC3
DTS
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
English
01941P-BD-C5300-XEU-ENG.indb 12
2010-04-23 오후 5:54:47
Container
*.mp3
MP3
*.wma
WMA
Audio
Codec
Support Range
WMA
Compliant with
WMA version 10
* Sampling rates (in
kHz) - 8, 11, 16,
22, 32, 44.1, 48
* Bit rates - All bitrates in the range
5kbps to 384kbps
MP3
-
AVCHD (Advanced Video Codec High
Definition)
• This product can playback AVCHD format
discs. These discs are normally recorded and
used in camcorders.
• The AVCHD format is a high definition digital
video camera format.
• The MPEG-4 AVC/H.264 format is capable of
compressing images at higher efficiency than
that of the conventional image compressing
format.
• Some AVCHD discs use the “x.v.Color” format.
• This product can playback AVCHD discs using
“x.v.Color” format.
• “x.v.Color” is a trademark of Sony Corporation.
• “AVCHD” and the AVCHD logo are trademarks
of Matsushita Electronic Industrial Co., Ltd. and
Sony Corporation.
Both the product and the discs are coded by
region. These regional codes must match in order
to play the disc. If the codes do not match, the
disc will not play.
The Region Number for this product is described
on the rear panel of the product.
Disc Type
Blu-ray
DVD-VIDEO
▪
on the recording condition.
AVCHD format discs need to be finalized.
“x.v.Color” offers a wider colour range than normal
DVD camcorder discs.
Some DivX, MKV and MP4 format discs may not
play, depending on the video resolution and frame
rate condition.
Area
a
North America, Central America,
South America, Korea, Japan,
Taiwan, Hong Kong and South
East Asia.
b
Europe, Greenland, French
territories, Middle East, Africa,
Australia and New Zealand.
c
✎ NOTE
▪ Some AVCHD format discs may not play, depending
▪
Region
Code
India, China, Russia, Central
and South Asia.
1
The U.S., U.S. territories and
Canada
2
Europe, Japan, the Middle East,
Egypt, South Africa, Greenland
3
Taiwan, Korea, the Philippines,
Indonesia, Hong Kong
4
Mexico, South America,
Central America, Australia,
New Zealand, Pacific Islands,
Caribbean
5
Russia, Eastern Europe, India,
most of Africa, North Korea,
Mongolia
6
China
Copyright
© 2010 Samsung Electronics Co.,Ltd.
All rights reserved; No part or whole of this user’s
manual may be reproduced or copied without the
prior written permission of Samsung Electronics
Co.,Ltd.
English
01941P-BD-C5300-XEU-ENG.indb 13
Getting Started
File
Extension
03
Region Code
Music File Support
13
2010-04-23 오후 5:54:47
Getting Started
Logos of Discs that can be played
Blu-ray Disc
DTS-HD Master Audio
Dolby TrueHD
PAL broadcast System in U.K., France,
Germany, etc.
DivX
BD-LIVE
Java
Accessories
Check for the supplied accessories below.
Audio/Video cable
Batteries for Remote Control (AAA Size)
POWER
TV
POWER
BONUSVIEW
SOURCE
SUBTITLE
AUDIO
DISC MENU
MENU
TITLE MENU
POPUP
TOOLS
INFO
RETURN
EXIT
INTERNET@ FULL SCREEN REPEAT
79
MUTE
VOL
CH
AK59-00104R
User Manual
14
Quick Guide
Remote Control
English
01941P-BD-C5300-XEU-ENG.indb 14
2010-04-23 오후 5:54:48
03
Front Panel
Getting Started
a
b c
de f g
h
1
DISC TRAY
Opens to accept a disc.
3
REMOTE CONTROL SENSOR
Detects signals from the remote control.
DISPLAY
Displays the playing status, time, etc.
OPEN/CLOSE BUTTON
Opens and closes the disc tray.
STOP BUTTON
Stops disc playback.
PLAY/PAUSE BUTTON
Plays a disc or pauses playback.
POWER BUTTON
Turns the product on and off.
USB HOST
A USB memory flash stick can be connected here and used as storage when
connected to BD-LIVE. It can also be used for software upgrades and MP3/JPEG/
DivX/MKV/MP4 playback.
The Wireless LAN adapter (WIS09ABGN) can be connected here to use the
Wireless network.
2
4
5
6
7
8
✎ NOTE
▪ Software upgrades using the USB Host jack must be performed with a USB memory flash stick only.
▪ A USB device consuming more than 500mA requires a separate power supply device for normal operation.
▪ A USB HDD device cannot be used for BD Data storage (BD-LIVE).
English
01941P-BD-C5300-XEU-ENG.indb 15
15
2010-04-23 오후 5:54:48
Getting Started
a
Front Panel Display
b
c
1
2
3
16
IN DISC INDICATOR
Lights when a disc is inserted or played back.
CURRENT TIME AND
STATUS INDICATOR
Displays the play time and the current status.
WIFI INDICATOR
Lights when the wireless network is connected.
English
01941P-BD-C5300-XEU-ENG.indb 16
2010-04-23 오후 5:54:48
Getting Started
a b
03
Rear Panel
c
f e d
1
LAN
Can be used for network based services (See pages 51~55), BD-LIVE and software
upgrades using a network connection.
HDMI OUT
3
Using an HDMI cable, connect this HDMI output terminal to the HDMI input terminal
on your TV for the best quality picture or to your Receiver for the best quality sound.
COMPONENT OUT
Connects to equipment having component video input.
5
VIDEO OUT
Connects the input of external equipment using a video cable.
AUDIO OUT
Connects to the audio input of external equipment using audio cables.
DIGITAL AUDIO OUT
Connects to a Receiver.
2
4
6
English
01941P-BD-C5300-XEU-ENG.indb 17
17
2010-04-23 오후 5:54:49
Getting Started
Tour of the Remote Control
Turn the product on and off.
To open and close the disc tray.
Remote Control
POWER
TV
POWER
BONUSVIEW
SOURCE
Turn the TV on and off.
(To operate your TV, please refer to page 19)
After setup, allows you to set the input
source on your TV.
Press this to use Bonusview function.
Press numeric buttons to operate options.
Press this to switch the Blu-ray Disc/DVD’s
subtitle language.
SUBTITLE
Use this to access various audio functions
on a disc (Blu-ray Disc/DVD).
AUDIO
Press to skip backwards or forwards.
Press to search a disc backwards or
forwards.
Press to pause a disc.
Press to stop a disc.
Use this to enter the disc menu.
DISC MENU
MENU
Press to play a disc.
TITLE MENU
Use this to enter the popup menu/title
menu.
Use this to display the playback information
during playing a Blu-ray/DVD disc.
Select menu items and change menu value.
POPUP
Press this to move to the home menu.
TOOLS
INFO
RETURN
EXIT
Press this to use Tools menu.
Return to the previous menu.
Press this to link to various Internet@TV
services.
Press this to exit the menu.
These buttons are used both for menus on
the product and also several Blu-ray Disc
functions.
INTERNET@ FULL SCREEN REPEAT
Press this to see the full screen on a TV.
79
Allows you to repeat a title, chapter, track
or disc.
MUTE
TV volume adjustment.
Mutes the speakers of your TV.
Installing batteries
VOL
CH
AK59-00104R
Use this to select a TV program.
✎ NOTE
▪ If the remote does not operate properly :
!
18
English
01941P-BD-C5300-XEU-ENG.indb 18
•
•
•
•
Check the polarity +/– of the batteries (Dry-Cell)
Check if the batteries are drained.
Check if remote sensor is blocked by obstacles.
Check if there is any fluorescent lighting nearby.
CAUTION
▪
The rechargeable battery incorportabed in this
product is not user replaceable. For the information
on its replacement, go to your service provider.
2010-04-23 오후 5:54:49
Button
TV POWER
TV SOURCE
TV VOL (+/–)
Function
Used to switch the television on and off.
Used to select an external source
connected to the TV.
Used to adjust the volume of the television.
TV CH (,/.) Used to select the desired channel.
TV MUTE
✎
Used to toggle the sound on and off.
NOTE
▪
The functions listed above will not necessarily work
on all televisions. If you encounter problems, operate
the television directly.
To determine whether your television is
compatible, follow the instructions below.
1. Switch your television on.
2. Point the remote control towards the
television.
3. Press and hold the TV POWER button and
enter the two-figure code corresponding to
the brand of your television by pressing the
appropriate number buttons.
If your television is compatible with the remote
control, it will switch off.
It is now programmed to operate with the
remote control.
✎ NOTE
▪ If several codes are listed for your television brand,
▪
try each one in turn until you find one that works.
If you replace the remote control’s batteries, you
must set the brand code again.
Brand
SAMSUNG
Code
TV POWER+01, +02,
+03, +04, +05,
+06, +07, +08, +09
AIWA
TV POWER+82
ANAM
TV POWER+10, +11,
+12, +13, +14,
+15, +16, +17, +18
BANG & OLUFSEN TV POWER+57
BLAUPUNKT
TV POWER+71
BRIONVEGA
TV POWER+57
BRANDT
CGE
CONTINENTAL
EDISON
DAEWOO
EMERSON
FERGUSON
FINLUX
FORMENTI
FUJITSU
GRADIENTE
GRUNDIG
HITACHI
IMPERIAL
JVC
LG
LOEWE
LOEWE OPTA
MAGNAVOX
METZ
MITSUBISHI
MIVAR
NEC
NEWSAN
TV POWER+73
TV POWER+52
TV POWER+75
TV POWER+19, +20,
+23, +24, +25,
+26, +27, +28,
+29, +30, +31,
+32, +33, +34
TV POWER+64
TV POWER+73
TV POWER+06, +49,
+57
TV POWER+57
TV POWER+84
TV POWER+70
TV POWER+49, +52,
+71
Brand
NOBLEX
NOKIA
NORDMENDE
PANASONIC
PHILIPS
PHONOLA
Code
TV POWER+66
TV POWER+74
TV POWER+72, +73,
+75
TV POWER+53, +54,
+74, +75
TV POWER+06, +55,
+56, +57
TV POWER+06, +56,
+57
PIONEER
TV POWER+58, +59,
+73, +74
RADIOLA
TV POWER+06, +56
RADIOMARELLI TV POWER+57
RCA
TV POWER+45, +46
SABA
TV POWER+57, +72,
+73, +74, +75
REX
TV POWER+74
SALORA
TV POWER+74
SANYO
TV POWER+41, +42,
+43, +44, +48
SCHNEIDER
SELECO
SHARP
TV POWER+06
TV POWER+74
TV POWER+36, +37,
+38, +39, +48
SIEMENS
TV POWER+71
TV POWER+52
SINUDYNE
TV POWER+57
TV POWER+06, +19,
+20, +21, +22, +78
TELEAVA
TV POWER+60, +72,
+73, +75
TV POWER+61, +79
TV POWER+06, +69
TV POWER+06, +57
TV POWER+40
TV POWER+57
TV POWER+06, +48,
+62, +65
SINGER
SONY
TELEFUNKEN
THOMSON
TV POWER+57
TV POWER+35, +48
TV POWER+73
TV POWER+67, +73,
+75, +76
TV POWER+72, +73,
+75
THOMSON ASIA TV POWER+80, +81
TOSHIBA
TV POWER+47, +48,
+49, +50, +51, +52
TV POWER+52, +77
WEGA
TV POWER+57
TV POWER+68
ZENITH
TV POWER+63
TV POWER+83
YOKO
TV POWER+06
English
01941P-BD-C5300-XEU-ENG.indb 19
Getting Started
You can control certain functions of your TV with
this remote control.
Controllable Tv Codes
03
Setting the Remote Control
19
2010-04-23 오후 5:54:49
Connections
Connecting to a TV
Case 1 : Connecting to a TV with an HDMI Cable - Best Quality
(Recommended)
1. Using an HDMI cable, connect the HDMI OUT terminal on the rear of the product to the HDMI IN
terminal of your TV.
2. Turn on the product and TV.
3. Press the input selector on your TV remote control until the HDMI signal from the product appears
on your TV screen.
• If you have set the remote control to operate your TV (See page 19), press the TV SOURCE
button on the remote control and select HDMI as the external source of the TV.
HDMI cable
(not included)
✎ NOTE
▪ An HDMI cable outputs digital video/audio, so you don’t need to connect an audio cable.
▪ If the product is connected to your TV in HDMI 720p, 1080i, 1080p output mode, you must use a High
▪
▪
▪
20
speed(category2) HDMI cable.
HDMI outputs only a pure digital signal to the TV.
If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.
Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.
When you connect the product to the TV using the HDMI cable for the first time or to a new TV, the HDMI output
resolution will be automatically set to the highest supported by the TV.
English
01941P-BD-C5300-XEU-ENG.indb 20
2010-04-23 오후 5:54:50
04
Case 2 : Connecting to a TV with DVI Cable - Best Quality
(Recommended)
2. Using the audio cables, connect the AUDIO OUT (red and white) terminals on the rear of the
product to the AUDIO IN (red and white) terminals of your TV.
Connections
1. Using an HDMI-DVI cable, connect the HDMI OUT terminal on the rear of the product to the DVI IN
terminal of your TV.
3. Turn on the product and TV.
4. Press the input selector on your TV remote control until the DVI signal from the product appears on
your TV screen.
• If you have set the remote control to operate your TV (See page 19), press the TV SOURCE
button on the remote control and select HDMI as the external source of the TV.
HDMI-DVI cable
(not included)
Red
Audio cable
White
✎ NOTE
▪ HDMI outputs only a pure digital signal to the TV. If your TV does not support HDCP (High-bandwidth Digital Content
▪
▪
Protection), random noise appears on the screen.
Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.
When you connect the product to the TV using the HDMI-DVI cable for the first time or to a new TV, the HDMI output
resolution will be automatically set to the highest supported by the TV.
English
01941P-BD-C5300-XEU-ENG.indb 21
21
2010-04-23 오후 5:54:50
Connections
Case 3 : Connecting to a TV (Component) - Better Quality
- Connecting to your TV using Component video cables.
- You will enjoy high quality images with accurate colour reproduction. Component video separates the
picture element into black and white(Y), blue(PB) and red(PR) signals to present clear and clean images.
(Audio signals are delivered through the audio output.)
1. Using Component video cables, connect the COMPONENT VIDEO OUT terminals on the rear of
the product to the COMPONENT IN terminals of your TV.
2. Using the audio cables, connect the AUDIO OUT (red and white) terminals on the rear of the
product to the AUDIO IN (red and white) terminals of your TV.
3. Turn on the product and TV.
4. Press the input selector on your TV remote control until the “COMPONENT” signal from the product
appears on the TV screen.
• If you have set the remote control to operate your TV (See page 19), press the TV SOURCE
button on the remote control and select COMPONENT as the external source of the TV.
Audio cable
Red
White
Red
Blue
Component cable
(not included)
Green
✎ NOTE
▪ Depending on the manufacturer, the component terminals on your TV may be marked “R-Y, B-Y, Y ” or “Cr, Cb, Y”
▪
▪
▪
22
instead of “PB, PR, Y”. The number and position of terminals may vary depending on the TV set.
Please refer to the user manual of your TV.
You can select from a variety of resolution settings for Blu-ray Discs such as 1080i, 720p, 576p/480p, 576i/480i,
depending on the disc type. (See pages 30~31)
The actual resolution may differ from the setting in the setup menu if both Component and HDMI cables are connected.
The resolution may also be different depending on the disc. (See pages 30~31)
In DVD playback, if both HDMI and Component jacks are connected and you select the Component 1080p, 1080i or
720p mode, the Display Setup menu will show the output resolution as 1080p, 1080i or 720p in the menu.
The resolution is actually 576i/480i.
English
01941P-BD-C5300-XEU-ENG.indb 22
2010-04-23 오후 5:54:51
04
Case 4 : Connecting to a TV (Video) - Good Quality
2. Turn on the product and TV.
3. Press the input selector on your TV remote control until the “VIDEO” signal from the product appears
on the TV screen.
• If you have set the remote control to operate your TV (See page 19), press the TV SOURCE
button on the remote control and select VIDEO as the external source of the TV.
Connections
1. Using video/audio cables, connect the VIDEO OUT (yellow) / AUDIO OUT (red and white)
terminals on the rear of the product to the VIDEO IN (yellow) / AUDIO IN (red and white) terminals
of your TV.
Audio/Video cable
Red
White
Yellow
✎ NOTE
▪ Noise may be generated if the audio cable is placed too close to the power cable.
▪ If you want to connect to an Amplifier, please refer to the Amplifier connection pages. (See pages 24~25)
▪ The number and position of terminals may vary depending on your TV set. Please refer to the user manual of your TV.
▪ If there is only one audio input terminal on the TV, connect it to the AUDIO OUT(right/white) terminal of the product.
English
01941P-BD-C5300-XEU-ENG.indb 23
23
2010-04-23 오후 5:54:51
Connections
Connecting to an Audio System
• Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause
damage to the speakers and your ears.
• Please set the audio in the menu screen according to the Amplifier. (See pages 32~34)
• The position of HDMI terminals may vary depending on the Amplifier. Please refer to the user manual
of your Amplifier.
Case 1 : Connecting to an Audio System (HDMI Supported Amplifier)
- Best Quality (Recommended)
1. Using an HDMI cable, connect the HDMI OUT terminal on the rear of the product to the HDMI IN
terminal of your Amplifier.
2. Using an HDMI cable, connect the HDMI OUT terminal of the Amplifier to the HDMI IN terminal of
your TV.
3. Turn on the product, TV and Amplifier.
4. Press the input select button of the Amplifier to select the external input in order to hear sound from
the product. Refer to your Amplifier’s user manual to set the Amplifier’s audio input.
HDMI cable
(not included)
HDMI cable
(not included)
24
English
01941P-BD-C5300-XEU-ENG.indb 24
2010-04-23 오후 5:54:51
1. Using an optical cable, connect the DIGITAL
AUDIO OUT (OPTICAL) terminal on the rear
of the product to the DIGITAL AUDIO IN
(OPTICAL) terminal of your Amplifier.
1. Using the audio cables, connect the AUDIO
OUT (red and white) terminals on the rear of
the product to the AUDIO IN (red and white)
terminals of your Amplifier.
3. Turn on the product, TV and Amplifier.
3. Turn on the product, TV and Amplifier.
2. Using the video signal cable(s), connect
the HDMI, COMPONENT or VIDEO OUT
terminals on the rear of the product to the
HDMI, COMPONENT or VIDEO IN terminal
of your TV. (See pages 20~23)
4. Press the input select button of the Amplifier
to select the external input in order to hear
sound from the product. Refer to your
Amplifier’s user manual to set the Amplifier’s
audio input.
Case 2 : Optical cable
(not included)
Red
Connections
Case 3 : Connecting to an Audio
System (2 Channel Amplifier)
- Good Quality
04
Case 2 : Connecting to an Audio
System (Dolby Digital, DTS
Amplifier) - Better Quality
2. Using the video signal cable(s), connect
the HDMI, COMPONENT or VIDEO OUT
terminals on the rear of the product to the
HDMI, COMPONENT or VIDEO IN terminal
of your TV. (See pages 20~23)
4. Press the input select button of the Amplifier
to select the external input in order to hear
sound from the product. Refer to your
Amplifier’s user manual to set the Amplifier’s
audio input.
Case 3 : Audio cable
White
✎ NOTE
▪ When following the case 2 connection, discs with PCM audio soundtracks will only be heard over the front two
channels.
English
01941P-BD-C5300-XEU-ENG.indb 25
25
2010-04-23 오후 5:54:52
Connections
Connecting to the Network
This product enables you to view network based services (See pages 51~55) such as Internet@TV and
BD-LIVE, as well as receive software upgrades when a network connection is made. We recommend
using an AP (Access Point) or IP router for the connection. For more information on router connection,
refer to the user manual of the router or contact the router manufacturer for technical assistance.
Cable Network
1. Using the Direct LAN Cable (UTP cable), connect the LAN terminal of the product to the LAN
terminal of your modem.
2. Set the network options. (See pages 36~39)
Router
Broadband
service
Broadband modem
(with integrated router)
Or
Broadband modem
Broadband
service
✎ NOTE
▪ Internet access to Samsung’s software update server may not be allowed, depending on the router you use or the ISP’s
▪
26
policy. For more information, contact your ISP (Internet Service Provider).
For DSL users, please use a router to make a network connection.
English
01941P-BD-C5300-XEU-ENG.indb 26
2010-04-23 오후 5:54:52
04
Wireless Network
1. A wireless AP/IP router is required to make a wireless network connection. Connect the wireless
LAN adapter to the Wireless LAN Adapter on the front panel of the product.
2. Set the network options. (See pages 36~39)
Connections
You can connect to network with a Wireless IP sharer.
Broadband
service
Wireless IP sharer
Wireless LAN Adapter
(not included)
✎ NOTE
▪ Use only the Samsung wireless LAN adapter with this product. (Model name: WIS09ABGN).
▪
▪
▪
▪
Do not use this adapter with any other third-party products.
Please contact the retailer of this product for purchasing the wireless LAN adapter.
You must use a wireless IP sharer that supports IEEE 802.11 a/b/g/n. (n is recommended for stable operation of the
wireless network.)
Wireless LAN, by its nature, may cause interference, depending on the use condition (AP performance, distance,
obstacles, interference by other radio devices, etc).
Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.
When applying the security key for the AP (wireless IP sharer), only the following is supported.
1) Authentication Mode : WEP, WPAPSK, WPA2PSK
2) Encryption Type : WEP, AES
English
01941P-BD-C5300-XEU-ENG.indb 27
27
2010-04-23 오후 5:54:53
Setup
Before Starting (Initial Settings)
1. Turn on your TV after connecting the product.
(When the product is connected to TV for the
first time, product will turn on automatically and
the Initial Settings screen will be displayed.)
Initial Settings I On-Screen Language
Select a language for the on-screen displays.
English
5. Press the ◄► buttons to the select the
desired Network Settings: Wired, Wireless or
PBC (WPS), then press the ENTER button.
(See pages 36~39)
The Network Test will start and Initial Settings
will be completed.
6. Press the OK button.
The home menu will be displayed. (For more
information about home menu, please see
page 29)
• Home Menu
Français
Deutsch
Español
Italiano
Nederlands
You Tube
internet radio service
Please activate Internet@TV
to enjoy a variety of Internet Services.
> Move " Select
2. Press the ▲▼ buttons to select desired
language, then press the ENTER button.
3. Press the ENTER button to select Start
button.
Each setting may be changed later under "Settings"
▪
Start
a Previous " Select
4. Press the ▲▼ buttons to select the desired
TV Aspect ratio, then press the ENTER
button. (See page 30)
▪
▪
▪
Initial Settings I Network
▪
Network Setting is needed to use various Internet services.
Choose the primary method for connecting to network.
Wired : Set the network connection using the Ethernet cable.
Please make sure that Ethernet cable is connected.
Wired
a Previous
28
Wireless
PBC (WPS)
d Skip < Move
a Change Device d View Devices
" Enter
✎ NOTE
▪ When the product is connected to TV for the first
Initial Settings
TV Aspect and Network will be set.
No Disc
" Select
time, product will turn on automatically.
Do not confuse because this is not malfunction.
The home menu will not be displayed if you do not
configure the initial settings.
If you press the BLUE(D) button during the network
setup, you can access the home menu even if the
network setup is not completed yet.
When you return to home menu, the full screen
mode will be cancelled automatically.
If you want to display Initial Setting screen again
in order to make changes, press the STOP (
)
button on the front panel of the product for more
than 5 seconds with no disc inserted.
Use the HDMI cable to connect the product to an
Anynet+(HDMI-CEC)-compliant Samsung TV.
If the TV uses a language supported by the product,
that language will be set to a preferred language
automatically.
However, the Anynet+(HDMI-CEC) feature should
be set to On in both TV and the product.
English
01941P-BD-C5300-XEU-ENG.indb 28
2010-04-23 오후 5:54:56
TV
POWER
BONUSVIEW
SOURCE
DISC MENU
MENU
RETURN
EXIT
4
MENU Button : Press this to move to the home menu.
79
2
RETURN Button : Return to the previous menu.
MUTE
VOL
3
4
2. Press the ◄► buttons to select Settings,
then press the ENTER button.
✎ NOTE
▪ When the product is connected to the network,
INTERNET@ FULL SCREEN REPEAT
1
Displays buttons available.
5. Press the EXIT button to exit the menu.
INFO
3
2
6
4. Press the ▲▼ buttons to select the desired
item, then press the ENTER button.
TITLE MENU
POPUP
TOOLS
Selects the Settings.
3. Press the ▲▼ buttons to select the desired
submenu, then press the ENTER button.
Setting the Menu
1
5
Setup
If the product is left in the stop mode more than
5 minutes without being used, a screen saver will
appear on your TV. If the product is left in the screen
saver mode for more than 25 minutes, the power
SUBTITLE
will automatically
turn off. AUDIO
05
▪
POWER
▪
▪
CH
ENTER / DIRECTION Button :
Move the cursor
or select an item.
AK59-00104R
Select the currently selected item.
Confirm the setting.
select Internet@TV from the home menu.
Download desired content from Samsung Apps.
(See page 54)
The access step may differ depending on the
selected menu.
The OSD (On Screen Display) may change in this
product after upgrading the software version.
EXIT Button : Press this to exit the menu.
1. Press the POWER button.
The Home Menu will appear.
• Home Menu
You Tube
internet radio service
Please activate Internet@TV
to enjoy a variety of Internet Services.
2
3
4
1
5
No Disc
a Change Device 1
Selects the Internet@TV.
2
Selects the Videos.
3
Selects the Music.
4
Selects the Photos.
d View Devices
" Enter
6
English
01941P-BD-C5300-XEU-ENG.indb 29
29
2010-04-23 오후 5:54:57
Setup
Display
You can configure various display options such as
the TV Aspect, Resolution, etc.
TV Aspect
Depending on the type of television you have, you
may want to adjust the screen setting.
• 16:9 Normal
• 16:9 Wide
Certain movies(4:3 source) will be
displayed in 4:3 Pillar-box (black
bars on sides of picture) if 16:9
normal is selected.
You can view the full 16:9 picture
on your widescreen TV.
▪
BD Wise (Samsung Products only)
BD Wise is Samsung’s latest inter-connectivity
feature.
When you connect Samsung products with
BD Wise to each other via HDMI, the optimum
resolution will be set automatically.
• On : The original resolution of the BD/DVD disc
will be output to the TV.
• Off : The output resolution will be fixed
according to the Resolution previously set,
regardless of the resolution of the disc.
✎ NOTE
▪ If you want to change the resolution in BD Wise, you
▪
• 4:3 Letter Box
• 4:3 Pan-Scan
Select when you want to see the
total 16:9 ratio screen a Blu-ray
Disc/DVD supplies, even though
you have a TV with a 4:3 ratio
screen. Black bars will appear at
the top and bottom of the screen.
Select when you want to see the
16:9 video supplied by the Blu-ray
Disc/DVD without the black bars
on top and bottom, even though
you have a TV with a 4:3 ratio
screen(extreme left and right portion
of the movie picture will be cut off).
✎ NOTE
▪ Depending on the disc type, some aspect ratios may
▪
▪
30
not be available.
If you select an aspect ratio and option which is
different than the aspect ratio of your TV screen,
then the picture might appear to be distorted.
If you select the 4:3 Pan-Scan or 4:3 Letter Box, you
can’t see full screen by pressing the FULL SCREEN
button on the remote control.
If you select the 16:9 Normal, 4:3 Pillar-box may
displayed.
In this case, you can’t see full screen by pressing
the FULL SCREEN button on the remote control.
▪
▪
must set BD Wise to Off in advance.
If you set off the BD Wise, the resolution of the
connected TV will be adjusted to its maximum
resolution automatically.
If the product is connected to a device that does not
support BD Wise, you can not use the BD Wise function.
For proper operation of BD Wise, set the BD Wise
menu of both the product and the TV to On.
Resolution
Sets the output resolution of the Component and
HDMI video signal.
The number in 1080p, 1080i, 720p, 576p/480p,
576i/480i indicates the number of lines of video.
The i and p indicate interlace and progressive
scan, respectively.
• Auto : It automatically checks and sets the
optimal resolution.
• BD Wise : Automatically sets the optimal
resolution when connected via HDMI to a TV
with the BD Wise feature. (The BD Wise menu
item appears only if BD Wise is set to On.)
• 1080p : Outputs 1080 lines of progressive video.
• 1080i : Outputs 1080 lines of interlaced video.
• 720p : Outputs 720 lines of progressive video.
• 576p/480p : Outputs 576/480 lines of progressive
video.
• 576i/480i : Outputs 576/480 lines of interlaced
video.
English
01941P-BD-C5300-XEU-ENG.indb 30
2010-04-23 오후 5:54:58
Output
Setup
HDMI / connected
Setup
• Blu-ray Disc playback
05
Resolution according to the output mode
HDMI / not connected
HDMI Mode
Component/VIDEO Mode
Component Mode
VIDEO Mode
1080p@60F
576i/480i
-
-
Auto
Optimal Resolution
1080p/1080i,
Movie Frame(24Fs) on
1080p@24F
576i/480i
-
-
1080i, Movie Frame(24Fs) off
1080i
576i/480i
1080i
576i/480i
576p/480p
576p/480p
576i/480i
576p/480p
576i/480i
1080p, Movie Frame(24Fs) off
720p
576i/480i
720p
576i/480i
-
• DVD playback
Output
Setup
576i/480i
Component/VIDEO Mode
1080p@60F
576i/480i
Optimal Resolution
1080i
1080i
720p
576p/480p
576i/480i
576i/480i
HDMI Mode
Auto
1080p
720p
-
HDMI / connected
720p
576p/480p
-
✎ NOTE
▪ If the connected TV does not support Movie Frame or
the selected resolution, the message “If no pictures
are shown after the selection, please wait for 15
seconds. And then, the resolution will be reverted to
the previous value automatically. Would you like to
make a selection?” will be displayed.
If you select Yes and the resolution is not supported,
the TV’s screen will be blank. Please wait for 15
seconds and the resolution will be reverted to the
previous value automatically.
576i/480i
-
-
576i/480i
576i/480i
HDMI / not connected
Component Mode
-
VIDEO Mode
-
576i/480i
576p/480p
576i/480i
576i/480i
576p/480p
576i/480i
576i/480i
-
▪
▪
▪
▪
576p/480p
576i/480i
576i/480i
576i/480i
If the screen is blank, press and hold the STOP (
)
button on the front of the product for more than 5
seconds (no disc inserted). All settings are restored to
the factory default. Follow the steps on the previous
page to access each mode and select the Display
Setup that your TV will support.
When the factory default settings are restored, all
the user data stored in the BD data will be deleted.
The Blu-ray Disc must have the 24 frame feature in
order to use the Movie Frame (24Fs) mode.
If both HDMI and Component jacks are connected
and you are currently viewing component output,
there is a difference between resolution table and
acutal resolution depending on your TV.
English
01941P-BD-C5300-XEU-ENG.indb 31
31
2010-04-23 오후 5:54:58
Setup
HDMI Format
You can optimize the colour setting from the
HDMI output.
Select a connected device Type.
• TV : Select if connected to a TV via HDMI.
• Monitor : Select if connected to a Monitor via
HDMI.
Movie Frame (24Fs)
Setting the Movie Frame (24Fs) feature to On
allows you to adjust the product’s HDMI output to
24 frames per second for improved picture quality.
You can enjoy the Movie Frame (24Fs) feature only
on a TV supporting this frame rate. This menu can
only be selected in 1080i or 1080p HDMI output
resolution modes.
• On : Movie Frame (24Fs) functions will work.
• Off : Movie Frame (24Fs) functions will not work.
✎ NOTE
▪ If your TV does not support Movie Frame (24Fs)
function, the pop-up message will be displayed.
Progressive Mode
Set to improve picture quality when viewing DVDs.
• Auto : Select this to have the product
automatically set the best picture for the DVD
you’re watching.
• Video : Select for the best picture quality from
concert or TV show DVDs.
Still Mode
Set the type of picture shown when you pause
DVD playback.
• Auto : Automatically set the best still picture
depending on the content.
• Frame : Select when pausing a scene with a
little action.
• Field : Select when pausing a scene with a lot
of action.
32
HDMI Deep Colour
Set to output the picture from the HDMI OUT jack
with Deep Colour or not. Deep Colour allows more
accurate colour reproduction with deeper colour
depth.
• Auto : The picture will be output with Deep
Colour to the connected TV which supports
HDMI Deep Colour.
• Off : The picture will be output without Deep
Colour.
Audio
Digital Output
Set Digital Output depending on the connected
receiver. (For more details, please refer to the
digital output selection on the next page)
• PCM
• Bitstream(Re-encode)
• Bitstream(Audiophile)
✎ NOTE
▪ Be sure to select the correct Digital Output or you
▪
▪
▪
▪
▪
will hear no sound or a loud noise.
If the HDMI device (Receiver, TV) is not compatible
with compressed formats (Dolby digital, DTS), the
audio signal outputs as PCM.
Secondary and Effect audio will not be heard with
regular DVDs.
Some Blu-ray Discs do not have Secondary and
Effect audio.
This Digital Output setup does not effect the analogue
(L/R) audio or HDMI audio output to your TV.
It effects the optical and HDMI audio output when
connected to a receiver.
If you play MPEG audio soundtracks, audio signal
outputs PCM regardless of Digital Output Selections
(PCM or Bitstream).
English
01941P-BD-C5300-XEU-ENG.indb 32
2010-04-23 오후 5:54:58
Connection
PCM
Dolby Digital
HDMI Receiver
Any
HDMI Receiver
PCM 2ch
DTS re-encoded
Dolby Digital
DTS re-encoded
PCM 2ch
PCM 2ch
DTS re-encoded
Dolby TrueHD
Dolby Digital
Up to 7.1ch
PCM 2ch
DTS re-encoded
DTS-HD HRA
DTS
PCM 2ch
PCM 2ch
PCM 2ch
PCM 2ch
Up to 6.1ch
PCM 2ch
PCM 2ch
PCM 2ch
PCM 2ch
PCM 2ch
DTS re-encoded
DTS re-encoded
DTS re-encoded
Dolby Digital
DTS
PCM
Optical
PCM 2ch
Up to 7.1ch
Audio Stream
Dolby Digital
on DVD
DTS
HDMI Receiver or Optical
PCM 2ch
DTS-HD MA
PCM
Optical
PCM 2ch
PCM 2ch
Up to 6.1ch
DTS-HD HRA
Bitstream
(Audiophile)
Up to 7.1ch
Dolby Digital
Audio Stream
Plus
on Blu-ray
Dolby TrueHD
Disc
DTS
Definition for
Blu-ray Disc
Bitstream
(Re-encode)
PCM
Setup
Setup
05
Digital Output Selection
Dolby Digital
Plus
DTS
DTS-HD MA
Dolby Digital
DTS
PCM 2ch
Dolby Digital
Dolby Digital
DTS
DTS
PCM 2ch
Dolby Digital
DTS
Outputs only the Primary audio
Decodes Primary, Secondary
soundtrack (main soundtrack of
Decodes Primary, Secondary and Effect audio streams
the movie) so that your receiver
and Effect audio streams together into PCM audio, then
can decode the audio bitstream.
together into PCM audio. reencodes the PCM audio into
You will not hear Secondary and
DTS bitstream.
Effect audio.
Blu-ray Discs may include three audio streams.
- Primary Audio : The audio soundtrack of the
main feature
- Secondary Audio : Additional soundtrack such
as director or actor’s commentary.
- Interactive Audio : Interactive sounds will be
heard when selected.
Interactive Audio is different on each Blu-ray
Disc.
PCM Downsampling
Set whether to downsample 96KHz signals.
• On : Select this when the Amplifier connected
to the product is not 96KHz compatible. 96KHz
signals will be down converted to 48KHz.
• Off : Select this when the Amplifier connected
to the product is 96KHz compatible.
✎ NOTE
▪ Even when PCM Downsampling is set to Off, some
discs will only output downsampled audio through
the optical digital outputs.
English
01941P-BD-C5300-XEU-ENG.indb 33
33
2010-04-23 오후 5:54:59
Setup
HDMI
• If your TV is not compatible with compressed
multi-channel formats (Dolby Digital, DTS), the
product may output PCM 2ch downmixed
audio even though you set Bitstream(either Reencode or Audiophile) on your setup menu.
• If your TV is not compatible with PCM sampling
rates over 48kHz, the product may output
48kHz downsampled PCM audio even though
you set PCM Downsampling to Off.
Dynamic Range Control
You can listen at low volumes but still hear dialog
clearly.
This is only active when a Dolby Digital signal is
detected.
• On : When Movie soundtracks are played at low
volume or from smaller speakers, the system
can apply appropriate compression to make
low-level content more intelligible and prevent
dramatic passages from getting too loud.
• Off : You can enjoy the movie with the standard
Dynamic Range.
Downmixing Mode
Set whether to downmix the multi-channel audio
into fewer channels.
• Normal Stereo : Downmixes the multi-channel
audio into two channel stereo. Choose when
connected to equipment that does not support
virtual surround functions such as Dolby Pro
Logic.
• Surround Compatible : Downmixes multichannel audio into surround compatible stereo.
Choose when connected to equipment that
supports virtual surround functions such as
Dolby Pro Logic.
DTS Neo:6
You can enjoy multi-channel sound from a simple
2-channel audio source.
• Off : Outputs a 2-channel audio signal through
the front speakers only.
34
• Cinema : Select this if you want to play
2-channel movie sound over multi-channels.
• Music : Select this if you want to play 2-channel
music sound over multi-channels.
✎ NOTE
▪ If you are using HDMI receiver, this option is
available when you set Digital Output setup as PCM.
System
Initial Settings
By using Initial Settings, you can set language, TV
aspect and Network Settings, etc.
For more information on the settings, refer to the
corresponding section in this user manual.
(See pages 28~42)
Internet@TV Screen Size
Set the Internet@TV Screen to the optimal size.
• Size 1 : Display smaller application icons, you
may see some black on sides of screen.
• Size 2 : Display normal application icons, image
may be too large for your TV screen.
• Size 3 : Display larger application icons, image
may be too large for your TV screen.
Anynet+(HDMI-CEC)
Anynet+ is a convenient function that offers linked
operations with other Samsung products with the
Anynet+ feature.
To operate this function, connect this product to a
Samsung TV with an HDMI cable.
You can operate this product using a Samsung
TV remote control and start disc playback simply
by pressing the PLAY (
) button on the TV’s
remote control.
For more information, please see the TV user
manual.
• On : Anynet+ functions will work.
• Off : Anynet+ function will not work.
English
01941P-BD-C5300-XEU-ENG.indb 34
2010-04-23 오후 5:54:59
▪
not support CEC.
If your Samsung TV has an n logo, then it
supports the Anynet+ function.
Depending on your TV, certain HDMI output
resolutions may not work.
Please refer to the user manual of your TV.
BD Data Management
Enables you to manage the downloaded contents
from a Blu-ray disc that supports the BD-LIVE
service.
You can check the device information including
the storage size, delete the BD data or change the
Flash memory device.
Settings
Display
Audio
System
Network
Language
Security
General
Support BD Data Management
Current Device
:External Memory
Total Size
:955MB
Available Size
:949MB
Delete BD Data
Change Device
\
:External Memory
" Select ' Return
Description of Device(Storage) Information on
the Product
• Total Size : Total size of the Device(Storage).
• Available Size : Available size of the Device
(Storage).
✎ NOTE
▪ In the external memory mode, disc playback will
▪
▪
▪
be stopped if you disconnect the USB device in the
middle of the playback.
Only those USB devices formatted in FAT file system
(DOS 8.3 volume label) are supported, and it is
recommended to use USB devices that support USB
2.0 protocol, 4 MB/sec or faster read/write speed.
A USB HDD device cannot be used for BD Data
storage (BD-LIVE).
The Resume Play function may not work after
formatting the storage device.
The total size of BD Data Management may differ,
depending on the situations.
Clock
Set time-related functions.
Settings
Display
Audio
System
Network
Language
Security
General
Support Clock Mode
Clock Set
Time Zone
DST
Clock
:Auto
\
:GMT + 0:00
:Off
> Move " Enter ' Return
• Clock Mode : You can set it to Auto or
Manual.
If you select Manual, the Clock Set menu will
be activated while DST will be deactivated.
• Clock Set : You can specify the current time
and date manually.
• Time Zone : You can specify the time zone that
is applicable to your area.
• DST : You can set DST (Daylight Saving Time)
on or off.
DivX(R) Registration
View DivX(R) VOD Registration Code to purchase
and play DivX(R) VOD content.
Settings
Display
Audio
System
Network
Language
Security
General
Support
Initial Setting
Disc Menu
:
Audio
DivX(R)
Video On Demand:
Subtitle
:
Your registration
code is : XXXXXXXXXX
To learn more visit www.divx.com/vod
OK
✎ NOTE
▪ This option is not activated if you select OK.
To activate this option, please activate the DivX(R)
Deactivation.
English
01941P-BD-C5300-XEU-ENG.indb 35
Setup
▪
▪
05
✎ NOTE
▪ This function is not available if the HDMI cable does
35
2010-04-23 오후 5:55:00
Setup
DivX(R) Deactivation
Select this to get a new registration code.
Settings
Display
Audio
System
Network
Language
Security
General
Support
✎
Initial Setting
Disc Menu
:
Audio
:
Subtitle
:
Do you want
to deactivate your device?
Yes
No
NOTE
▪
This function can be operated when DivX(R)
Registration function is deactivated.
Network Setup
To begin setting up the network connection for
your product, follow these steps:
1. In the Home menu, press the ◄► buttons
to select the Settings, and then press the
ENTER button.
2. Press the ▲▼ buttons to select Network, and
then press the ENTER button.
3. Press the ▲▼ buttons to select Network
Settings, and then press the ENTER button.
4. Press the ▲▼ buttons to select Network
Type, and then press the ENTER button.
5. Press the ▲▼ buttons to select Wired or
Wireless, and then press the ENTER button.
Wired Network
1. In the Network Settings menu, press the ▲▼
buttons to select Network Setting, and then
press the ENTER button.
The Internet Protocol Setup screen appears.
2. Press the ► button, then select Auto or
Manual, and then press the ENTER button.
Setting Up a Wired Connection - Auto
1. If you selected Auto, the Network Function
acquires and fills in the values for IP Address,
Subnet Mask, etc., automatically.
✎ NOTE
▪ This process can take up to five minutes.
Settings
Network Setting
Display
Internet Protocol Setup :Auto
Audio
0
IP Address
: 0
System
0
Subnet Mask
: 0
Network
0
Gateway
: 0
Language
DNS
:Auto
Security
0
DNS Server
: 0
General
Support
\
0
0
0
0
0
0
0
0
> Move " Select ' Return
2. After the Network Function has acquired the
network values, press the RETURN button.
Then, run a Network Test to ensure the product
has connected to your network (See page 39).
3. If the Network Function does not acquire the
network values or you selected Manual, go to
the directions for Manual Setup.
6. Go to the next section.
Network Settings
Please contact your ISP to find out if your IP
address is static or dynamic. If it is dynamic, we
recommend using the Auto setting. This is the
easiest and will work in the majority of cases. If it is
static, you must use the manual set up procedure.
Directions for wired networks are below. Directions
for wireless networks are after the directions for
wired networks.
36
English
01941P-BD-C5300-XEU-ENG.indb 36
2010-04-23 오후 5:55:01
1. Right click the Network icon on the bottom
right of the screen.
2. In the pop-up menu, click Status.
3. On the dialog that appears, click the Support
tab.
4. On the Support tab, click the Details button.
The Network settings are displayed.
To enter the Network settings into your product,
follow these steps:
1. On the Internet Protocol Setup screen, press
the ENTER button.
2. Press the ▲▼ buttons to select Manual, and
then press the ENTER button.
3. Press the ▼ button to go to the first entry field
(IP Address).
Settings
Network Setting
Display
Internet Protocol Setup :Manual
Audio
0
0
IP Address
: 0
System
Subnet Mask
: 255 255 255
Network
0
0
Gateway
: 0
Language
DNS
:Manual
Security
0
0
DNS Server
: 0
General
Support
\
0
0
0
0
> Move " Select ' Return
4. Use the number buttons on your remote to
enter numbers.
9. Press the Return button on your remote.
10. Run a Network Test to ensure the product has
connected to your network (See page 39).
Wireless Network
Setup
If the Auto Setting does not work, you’ll need to
set the Network Setting values manually.
To get the Network setting values from most
Windows computers, follow these steps:
05
Setting Up a Wired Connection - Manual
You can setup the wireless network three ways:
• Using PBC (WPS)
• Using the Auto Network Search function.
• Manually.
Each method is described below.
Setting Up the Wireless Network Connection
- PBC (WPS)
The easiest way to set up the wireless network
connection is using the PBC (WPS) function.
If your wireless router has a PBC (WPS) button,
follow these steps:
1. In the Network Settings menu, press the ▲▼
buttons to select Network Setting, and then
press the ENTER button.
The Internet Protocol Setup screen appears.
2. Press the RED(A) button on the remote
control.
3. Press the PBC (WPS) button on your router
within two minutes. Your product displays the
Network Selection Screen, and automatically
acquires all the network setting values it
needs and connects to your network. When
it is done, it displays an OK button. Press the
Enter button on your remote.
4. After the network connection is set up, press
the Return button to exit the Network
Setting screen.
5. When done with each field, use the ► button
to move successively to the next field.
You can also use the other arrow buttons to
move up, down, and back.
6. Enter the IP Address, Subnet Mask, and
Gateway values.
7. Press the ▼ button to go to DNS.
8. Press the ▼ button to go to the first DNS
entry field. Enter the numbers as above.
English
01941P-BD-C5300-XEU-ENG.indb 37
37
2010-04-23 오후 5:55:01
Setup
Setting Up the Wireless Network Connection
- Auto Network Search
Most wireless networks have an optional security
system that requires devices that access the
network to transmit an encrypted security code
called an Access or Security Key. The Security
Key is based on a Pass Phrase, typically a word
or a series of letters and numbers of a specified
length you were asked to enter when you set up
security for your wireless network. If you use this
method of setting up the network connection, and
have a Security Key for your wireless network,
you will have to enter the Pass Phrase during the
setup process.
5. In the list of networks, press the ▲▼ buttons
to select a network, and then press the
ENTER button.
6. If the PIN/Security pop-up appears, go to
Step 7. If the Network Connecting Screen
appears, go to Step 11.
7. Press the ▲▼ buttons to select PIN or
Security.
For most home networks, you would select
Security (for Security Key).
8. On the Security screen, enter your network’s
Pass Phrase.
 Setting Up the Network Connection
✎ NOTE
▪ You should be able to find the Pass Phrase on one of
1. In the Network Settings menu, press the ▲▼
buttons to select Network Setting, and then
press the ENTER button.
The Internet Protocol Setup screen appears.
9. To enter the Pass Phrase, follow these
general directions:
• Press the number keys on your remote to
enter numbers.
To set up the wireless connection using Auto
Network Search, follow these steps:
2. Press the ▲▼ buttons to select the Internet
Protocol Setup, and then press the ENTER
button.
3. Press the ▲▼ buttons to select Auto or
Manual, and then press the ENTER button.
4. If you selected Auto, press the ▲ button to
go to Access Point Selection, and then
press the ENTER button.
The Network function searches for available
wireless networks.
When done, it displays a list of the available
networks.
Settings
Display
Audio
System
Network
Language
Security
General
Support
Network Settings
Network Selection
Connecting to network.
Network Name(SSID) : shj
Stop
" Select ' Return
the set up screens you used to set up your router or
modem.
• Use the arrow keys on your remote to move
from button to button on the Security Key
screen.
• To enter letters, move to the button labelled
a/A/1/, and then press the ENTER button.
Each time you press the ENTER button,
you change the kind of characters you can
enter (a/A/1/).
• To enter a letter, press the number button
that corresponds to the letter. Pressing the
button repeatedly changes the letter.
• To delete the last letter or number you
entered, move to the Delete button, and
then press the ENTER button.
• To clear all entered letters and numbers,
move to the Clear key, and then press the
ENTER button. You can also just press the
RED(A) button on your remote.
10. When done, press the YELLOW(C) button
on your remote, or move to the Done button,
and then press the ENTER button.
The Network Connecting screen appears.
11. Wait until the connection confirmation
message is displayed, and then press the
ENTER button. The Network Settings screen
reappears.
38
English
01941P-BD-C5300-XEU-ENG.indb 38
2010-04-23 오후 5:55:02
If the Auto Setting does not work, you need to
enter the Network settng values manually.
To get the Network setting values from most
Windows computers, follow these steps:
1. Right click the Network icon on the bottom
right of the screen.
2. In the pop-up menu, click Status.
3. On the dialog that appears, click the Support
tab.
4. On the Support tab, click the Details button.
The Network settings are displayed.
To Enter the Network settings into your product,
follow these steps:
1. On the Internet Protocol Setup screen, press
the ENTER button.
2. Press the ▲▼ buttons to select Manual, and
then press the ENTER button.
3. Press the ▼ button to go to the first entry field
(IP Address).
7. Press the ▼ to go to DNS.
8. Press the ▼ button to go to the first DNS
entry field. Enter the numbers as above.
Setup
Setting Up the Wireless Network Connection
- Manual
6. Enter the IP Address, Subnet Mask, and
Gateway values.
05
12. To test the connection, press the ▼ button
to select Network Test, and then press the
ENTER button.
9. When done, press the ▲ button to return to
Access Point Selection. Select the network,
and then press the ENTER button.
10. Go to Step 6 in the Automatic Wireless
procedure above, and follow the directions
from that point on.
Network Test
Use this menu to connect the wired network
or check whether your network connection is
working or not.
Settings
Display
Audio
System
Network
Language
Security
General
Support
Network Test
MAC Address (00:00:00:00:00:00)
IP Address,Subnet Mask,Gateway,DNS Server
Gateway Ping
Internet Service Test
Network testing...
Settings
Network Setting
Display
Access Point Selection :Not Selected
Audio
Internet Protocol Setup :Manual
System
0
0
IP Address
: 0
Network
Subnet Mask
: 255 255 255
Language
0
0
Gateway
: 0
Security
DNS
:Manual
General
0
0
DNS Server
: 0
Support
\
0
0
0
0
a PBC (WPS) > Move " Select ' Return
4. Use the number buttons to enter numbers.
5. When done with each field, use the ► button
to move successively to the next field.
You can also use the other arrow buttons to
move up, down, and back.
Network Status
Check whether a connection to the network and
the Internet have been established.
BD-LIVE Internet Connection
Set to allow internet connection when BD-LIVE
service is used.
• Allow (All) : The Internet connection will be
allowed for all BD-LIVE contents.
• Allow (Valid Only) : The Internet connection will
be allowed only for BD-LIVE contents containing
a valid certificate.
• Prohibit : No Internet connection will be allowed
for any BD-LIVE content.
English
01941P-BD-C5300-XEU-ENG.indb 39
39
2010-04-23 오후 5:55:03
Setup
✎ NOTE
▪ What is a valid certificate?
▪
When the product uses BD-LIVE to send the disc data
and a request to the server to certify the disc, the
server uses the transferred data to check if the disc is
valid and sends the certificate back to the product.
The Internet connection may be restricted while you
are using BD-LIVE contents.
Language
You can select the language you prefer for home
menu, disc menu, etc.
• On-Screen Menu : Select the language for the
on-screen displays.
• Disc Menu : Select the language for the disc
menu displays.
• Audio : Select the language for disc audio.
• Subtitle : Select the language for disc subtitles.
✎
NOTE
▪ The selected language will only appear if it is
supported on the disc.
Settings
Display
Audio
System
Network
Language
Security
General
Support
Parental Rating
Change Password
 Off
8(Adults)
7
6
5
4
|
Change Password
Change the 4-digit password used to access
security functions.
If you forgot your password
1. Remove the disc.
2. Press and hold the STOP (
) button on the
front panel for 5 seconds or more.
All settings will revert to the factory settings.
✎ NOTE
▪ When the factory default settings are restored, all
the user data stored in the BD data will be deleted.
Security
When you operate this menu for the first time,
password setup screen will be displayed.
Enter the desired 4-digit password using the
number buttons.
Parental Rating
This function works in conjunction with Blu-ray
Disc/DVDs that have been assigned a rating,
which helps you control the types of Blu-ray Disc/
DVDs that your family watches.
Select the rating level you want to set.
A larger number indicates that the program is
intended for adult use only. For example, if you
select up to Level 6, discs that contain Level 7, 8
will not play.
40
General
Background
Change the background theme of the menu screen.
Settings
Display
Audio
System
Network
Language
Security
General
Support
Background
Skin 1
Skin 2
Skin 3
Skin 4
Skin 5
> Move " Select ' Return
English
01941P-BD-C5300-XEU-ENG.indb 40
2010-04-23 오후 5:55:04
Front Display
Change the brightness of the front panel.
• Auto : Dim during playback.
• Dim : Dim the display window.
• Bright : Brighten the display window.
Software Upgrade
This menu allows you to upgrade software for
performance improvements or additional services.
You can check the current software version,
upgrade using the internet and set the Auto
upgrade notification. If the product is properly
connected to the network by cable or wirelessly,
the product will automatically connect to
Samsung’s website each time it is turned on and
download update files if any valid upgrade exists.
Setup
You can reduce power consumption by setting
the front panel to turn off automatically when there
is no operation for 5 seconds.
• On : The front panel will automatically turn off
when there is no operation for 5 seconds.
• Off : Energy Saving function is not used.
Support
05
Energy Saving
Settings
Display
Software Upgrade
Software
Upgrade :
Audio
Disc Menu
System Current Version
Audio :XXX-XXXXXXXXX
:
Network
Subtitle
:
By Internet
\
Language
Auto Upgrade Notification:On
Security
General
" Select ' Return
Support
Power On/Off Sound
Play a melody when the product is turned on and
off.
• On : Turn Power Sound On.
• Off : Turn Power Sound Off.
1. To select By Internet, press the ENTER
button.
A popup message will appear if an update is
available.
2. If you select Yes, the product will turn off
automatically before restarting.
(Never turn it on manually.)
3. The update progress popup will appear.
When the update is completed, the product
will turn back off automatically.
4. Press the POWER button to turn on the
product.
✎ NOTE
▪ The Update will be completed when the product
▪
turns off after restarting. Press the POWER button to
turn on the updated product for your use.
Never turn off or on the product manually during the
update process.
Samsung Electronics shall take no legal responsibility
for product malfunction caused an unstable internet
connection or consumer negligence during software
upgrade.
English
01941P-BD-C5300-XEU-ENG.indb 41
41
2010-04-23 오후 5:55:05
Setup
You can also update software in any of the two
ways as follows: Software update is the same as
in the By Internet menu.
• USB : Visit www.samsung.com/bluraysupport,
then download and store the latest software
(RUF file) into a USB flash drive. Connect the
USB flash drive to the USB port of the product
(disc tray must be empty) to update the
software, then follow the on-screen instructions.
• CD/DVD : Visit www.samsung.com/
bluraysupport, download and write the latest
software (RUF file) onto a disc. Insert and play
the disc in the product to start the update, then
follow the on-screen instructions.
✎ NOTE
▪ Software upgrades using the USB Host jack must be
▪
▪
▪
▪
performed with no disc inside.
If you want to cancel the upgrade in the process of
downloading the upgrade data, press the ENTER
button.
When the system upgrade is done, check the
software details in the software Upgrade menu.
Do not turn off the product during the System
Upgrade, as it may cause the product to not work
properly.
Software upgrades using the USB Host jack must be
performed with a USB memory flash stick only.
Contact Samsung
Provide contact information for assistance with
your product.
42
English
01941P-BD-C5300-XEU-ENG.indb 42
2010-04-23 오후 5:55:05
Basic Functions
1. Press the OPEN/CLOSE (
open the disc tray.
) button to
3. Press the OPEN/CLOSE (
close the disc tray.
) button to
2. Place a disc gently into the tray with the disc’s
label facing up.
4. Press the PLAY (
) button.
Playback related buttons
PLAY (
)
STOP (
)
PAUSE (
Stops playback.
• If pressing the button once : The
stop position will be memorized.
• If pressing the button twice : The
stop position will be not memorized.
Pauses playback.
✎ NOTE
▪ For some discs, pressing the STOP (
may not memorize the resume position.
) button once
Disc Structure
The contents of disc are usually divided as below.
• Blu-ray Disc, DVD-VIDEO
title 1
chapter 1 chapter 2
chapter 1
• Audio CD (CD-DA)
track 1
track 2
track 3
title 2
chapter 2
chapter 3
track 4
track 5
• MP3, WMA, DivX, MKV and MP4
folder (group) 1
file 1
file 2
file 1
hZ
1. During playback, press the DISC
MENU button on the remote control.
2. Press the ▲▼◄► buttons to make
the desired selection, then press the
ENTER button.
✎ NOTE
▪ Depending on the disc, the menu items may differ
Starts playback.
)
Using the Disc Menu
folder (group) 2
file 2
file 3
and this menu may not be available.
Using the Title Menu
Z
1. During playback, press the TITLE
MENU button on the remote control.
2. Press the ▲▼◄► buttons to make
the desired selection, then press the
ENTER button.
✎ NOTE
▪ Depending on the disc, the menu items may differ
and this menu may not be available.
Playing the Title List
z
1. During playback, press the DISC
MENU or TITLE MENU button.
2. Press the ▲▼ buttons to select an
entry you want to play from Title List,
then press the ENTER button.
✎ NOTE
▪ If your disc has the playlist, press the GREEN(B)
button to go to the Playlist.
English
01941P-BD-C5300-XEU-ENG.indb 43
Basic Functions
Playback
Using the Disc menu/Title menu/
Popup menu
06
Playing a Disc
43
2010-04-23 오후 5:55:05
Basic Functions
Using the Popup Menu
h
1. During playback, press the POPUP
MENU button on the remote control.
2. Press the ▲▼◄► buttons or ENTER
button to select the desired menu.
✎ NOTE
▪ Depending on the disc, the menu items may differ
and this menu may not be available.
Using the Search and Skip Functions
During play, you can search quickly through a
chapter or track, and use the skip function to
jump to the next selection.
Searching for a Desired Scene
hzZyx
• During playback, press the SEARCH (
)
button.
Each time you press the SEARCH (
)
button, the playback speed will change as follows.
BD-ROM,
BD-RE/-R,
DVD-RW/-R,
DVD+RW/+R,
DVD-VIDEO
DivX, MKV, MP4
)1)2)3
)4)5)6)7
(1(2(3
(4(5(6(7
)1)2)3
(1(2(3
• To return to normal speed playback, press the
PLAY (
) button.
✎ NOTE
▪ No sound is heard during search mode.
Skipping Chapters
hzZyx
• During playback, press the SKIP (
)
button.
If you press the SKIP (
) button, it moves to
the next chapter.
If you press the SKIP (
) button, it moves to
the beginning of the chapter. One more press
makes it move to the beginning of the previous
chapter.
Slow Motion Play/Step Motion Play
Slow Motion Play
hzZyx
• In pause mode, press the SEARCH (
)
button.
If you press the SEARCH (
) button, the
playback speed is reduced to
* 1/8 * 1/4 * 1/2
• To return to normal speed playback, press the
PLAY (
) button.
✎ NOTE
▪ No sound is heard during slow mode.
▪ Slow motion operates only in the forward direction.
Step Motion Play
hzZyx
• In pause mode, press the PAUSE (
) button.
Each time the PAUSE (
) button is pressed,
a new frame will appear.
• To return to normal speed playback, press the
PLAY (
) button.
✎ NOTE
▪ No sound is heard during step mode.
▪ Step motion operates only in the forward direction.
44
English
01941P-BD-C5300-XEU-ENG.indb 44
2010-04-23 오후 5:55:06
hzZy
Repeat the disc title or chapter.
Depending on the disc, the Repeat function may
not be available.
1. During playback, press the REPEAT
button on the remote control.
2. Press the ▲▼ buttons to select Chapter or
Title, then press the ENTER button.
Repeat
> Chapter
5. To return to normal play, press the REPEAT
button again.
6. Press the ENTER button.
✎ NOTE
▪ If you set point (B) before 5 seconds has lapsed, the
prohibition message will appear.
Using the TOOLS button
During playback, you can operate disc
menu by pressing the TOOLS button.
• Tools Menu Screen
Title
Repeat the Section
hzZy
1. During playback, press the REPEAT
button on the remote control.
2. Press the ▲▼ buttons to select Repeat A-B.
Repeat
> Repeat A-B : Off " Mark A
3. Press the ENTER button at the point where
you want repeat play to start (A).
Tools
:
<
Audio
: 1/7 ENG Multi CH
Subtitle
Angle
:
00:12:06
:
1/6 ENG
:
BONUSVIEW Video:
BONUSVIEW Audio:
1/1
4/21
Chapter
Playing Time
3. To return to normal play, press the REPEAT
button again.
4. Press the ▲▼ buttons to select Off, the press
the ENTER button.
Picture Setting
>
1/1
Off
0/1 Off
< Change " Enter
✎ NOTE
▪ Depending on the disc, the Tools menu may differ.
Moving to a Desired Scene Directly
hzZy
1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Title, Chapter
or Playing Time.
3. Enter the desired Title, Chapter or Playing
Time using the number buttons, then press
the ENTER button.
English
01941P-BD-C5300-XEU-ENG.indb 45
Basic Functions
Repeat the Title or Chapter
4. Press the ENTER button at the point where
you want repeat play to stop (B).
06
Repeat Playback
45
2010-04-23 오후 5:55:09
Basic Functions
Selecting the Audio Language
hzZx
You can also operate this function by
pressing the AUDIO button on the
remote control.
1. During playback, press the TOOLS button.
✎ NOTE
▪ Depending on the Blu-ray Disc / DVD, you may be
▪
▪
2. Press the ▲▼ buttons to select Audio.
▪
✎ NOTE
▪ The ◄► indicator will not be displayed on the
▪
3. Press the ◄► buttons to select the desired
audio language.
▪
▪
▪
▪
▪
screen if the BONUSVIEW section does not contain
any BONUSVIEW audio settings.
Information about the primary / secondary mode
will be also displayed if the Blu-ray Disc has a
BONUSVIEW section.
Use the ◄► button to switch between primary and
secondary audio modes.
This function depends on what audio languages are
encoded on the disc and may not be available.
A Blu-ray Disc can contain up to 32 audio languages
and a DVD up to 8.
Some Blu-ray Discs may allow you to select either
the multi-channel LPCM or Dolby digital audio
soundtrack in English.
If you press the AUDIO button on the remote control,
Audio bar will be displayed.
Press the RETURN button to remove the Audio bar.
Selecting the Subtitle Language
hZx
You can also operate this function by
pressing the SUBTITLE button on the
remote control.
1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Subtitle.
3. Press the ◄► buttons to select the desired
subtitle language.
46
▪
▪
able to change the desired subtitle in the Disc Menu.
Press the DISC MENU button.
This function depends on what subtitles are encoded
on the disc and may not be available on all Blu-ray
Discs/DVDs.
A Blu-ray Disc can contain up to 255 subtitle
languages and a DVD up to 32.
Information about the primary / secondary mode
will also be displayed if the Blu-ray Disc has a
BONUSVIEW section.
This function changes both the primary and
secondary subtitles at the same time.
The total number of subtitles is the sum of the
primary and secondary ones.
If you press the SUBTITLE button on the remote
control, the subtitle bar will be displayed.
Press the RETURN button to remove the subtitle bar.
Changing the Camera Angle
hZ
When a Blu-ray Disc/DVD contains multiple angles
of a particular scene, you can use the ANGLE
function.
1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Angle.
3. Press the ◄► buttons to select the desired
Angle.
Selecting the Picture Setting
hzZy
This function enables you to adjust video quality
when you are connected to a TV via HDMI.
1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Picture Setting,
then press the ENTER button.
3. Press the ◄► buttons to select the desired
Picture Setting, then press the ENTER button.
English
01941P-BD-C5300-XEU-ENG.indb 46
2010-04-23 오후 5:55:09
• Movie : This is the best setting for watching
movies.
• User : The user can adjust the sharpness
and noise reduction function respectively.
Setting BONUSVIEW
ow
Buttons on the Remote Control
used for Music Playback
h
You can also operate this function by
pressing the BONUSVIEW button on
the remote control.
!
9
3. Press the ◄► buttons to select the desired
bonusview.
✎ NOTE
▪ If you switch from BONUSVIEW Video, BONUSVIEW
Audio will change automatically in accordance with
BONUSVIEW Video.
Picture Setting
Off
SUBTITLE
SUBTITLE
AUDIO
AUDIO
1
2
DISC
DISC MENU
MENU
MENU
MENU
TITLE
TITLE MENU
MENU
3
POPUP
POPUP
TOOLS
TOOLS
INFO
INFO
RETURN
RETURN
EXIT
EXIT
4
7
5
6
INTERNET@
INTERNET@ FULL
FULL SCREEN
SCREEN REPEAT
REPEAT
79
79
MUTE
MUTE
1
2
3
4
>
5
< Change " Enter
6
0/1 Off
SOURCE
SOURCE
8
2. Press the ▲▼ buttons to select BONUSVIEW
Video or BONUSVIEW Audio.
BONUSVIEW Audio:
BONUSVIEW
BONUSVIEW
0
1. During playback, press the TOOLS button.
BONUSVIEW Video<
TV
TV
POWER
POWER
@
The BONUSVIEW feature allows you to view
additional content (such as commentaries) in a
small screen window while the movie is playing.
This function is only available if the disc has the
bonusview feature.
Tools
POWER
7
8
9
0
SEARCH buttons
VOL : Fast Play.
CH
(Audio CD (CD-DA) only)
PAUSE button : Pauses playback.
AK59-00104R
AK59-00104R
PLAY button : Plays the currently selected track.
▲▼ buttons : Selects a track in the Music List or
Playlist.
YELLOW(C) button : Select or deselect a track in
the music list.
REPEAT button : Selects the play mode in the
Playlist.
ENTER button : Plays and pauses the selected
track.
◄► buttons : Jump Play.
(except for Audio CD (CD-DA))
STOP button : Stops a track.
SKIP button : During playback, moves to the next
page in the Music List or moves to the next track in
the Playlist.
English
01941P-BD-C5300-XEU-ENG.indb 47
Basic Functions
• Normal : Choose this setting for most
viewing applications.
06
Listening to Music
• Dynamic : Choose this setting to increase
Sharpness.
47
2010-04-23 오후 5:55:09
Basic Functions
SKIP button : During playback, moves to the
previous page in the Music List or moves to the
previous track in the Playlist.
If you press this button after three seconds of
playback in the Playlist, the current track will be
replayed from the beginning. But, if you press this
button within three seconds after playback starts in
the Playlist, the previous track will be played.
!
NUMBER buttons : During the Playlist playback,
press the desired track number. The selected track
will be played.
@
Playing an Audio CD (CD-DA)/MP3
1. Insert an Audio CD (CD-DA) or an MP3 Disc
into the disc tray.
• For an Audio CD (CD-DA), the first track will
be played automatically.
• For an MP3 disc, press the ◄► buttons
to select Music, then press the ENTER
button.
Audio CD (CD-DA)/MP3 Screen Elements
1
2
TRACK 001
TRACK 001
3
Playlist
05:57
TRACK 002
+
00:08 / 05:57
04:07
TRACK 004
03:41
TRACK 005
03:17
TRACK 006
" Pause
5
1
Displays the music information.
2
Displays the playlist.
3
Display the current track/total tracks.
4
Displays buttons available.
48
Shows the current play time/total play time.
6
Displays the current playback status
7
Displays the repeated playback status.
2. Press the ▲▼ buttons to select the track
you want to play, and then press the ENTER
button.
Repeat an Audio CD (CD-DA)/MP3
1. During the Playlist playback, press the
REPEAT button.
2. Select the desired play mode by
pressing the REPEAT button repeatedly.
Off
Audio CD
(CD-DA)/MP3
(
)Track
(
)One
Audio CD
(CD-DA)
(
)All
Audio CD
(CD-DA)/MP3
(
) Shuffle
Audio CD
(CD-DA)/MP3
MP3
Tracks on a disc are
played in the order in
which they were recorded
on the disc.
Current track is repeated.
Current track is repeated.
All tracks are repeated.
The random option plays
a disc’s track in random
order.
04:27
TRACK 003
7
6
1/6
5
03:35
Tools ' Return
4
Playlist
1. Insert an Audio CD (CD-DA) or an MP3 Disc
into the disc tray.
• For an Audio CD (CD-DA), the first track will
be played automatically.
• For an MP3 disc, press the ◄► buttons
to select Music, then press the ENTER
button.
2. To move to the Music List, press the STOP (
or RETURN button.
The Music List screen is displayed.
)
English
01941P-BD-C5300-XEU-ENG.indb 48
2010-04-23 오후 5:55:10
Playing a JPEG Disc
1. Insert a JPEG disc into the disc tray.
3 files selected 1/2 Page
TRACK 003
TRACK 001
TRACK 002
TRACK 003
TRACK 004
2. Press the ◄► buttons to select the Photos,
and then press the ENTER button.
00:04:27
00:05:57
00:03:41
00:04:07
3. Press the ▲▼◄► buttons to select the folder
you want to play, and then press the ENTER
button.
TRACK 006
TRACK 005
00:03:35
00:03:17
TRACK 008
TRACK 007
00:03:49
00:03:47
TRACK 010
TRACK 009
00:03:53
CDDA
G
c Select
00:03:45
() Jump page
4. Press the ▲▼◄► buttons to select the photo
you want to play, and then press the ENTER
button.
The Slide Show starts automatically.
' Return
4. If there is an undesired track in the playlist,
press the YELLOW(C) button again.
The selected track will be deleted.
✎ NOTE
▪ You can’t enlarge the subtitle and PG graphic in the
5. Press the ENTER button to play the selected
tracks.
Selected tract will automatically play.
TRACK 001
TRACK 001
TRACK 002
TRACK 003
+
Playlist
full screen mode.
Using the TOOLS button
1/3
During the slide show playback, you
can use various function by pressing the
TOOLS button.
05:57
04:27
04:07
00:08 / 05:57
Stop Slide Show
" Pause
Basic Functions
Music
06
Playing back a Picture
3. Press the ▲▼◄► buttons to move desired
track, then press the YELLOW(C) button to
check desired tracks.
Repeat this procedure to select additional
tracks.
Slide Show Speed : Tools ' Return
6. To go to the Music List, press the STOP (
or RETURN button.
Tools
Background Music
Normal
Zoom
Rotate
)
Information
>Move "Enter 'Return
7. To go to the Playlist, press the ENTER
button.
✎ NOTE
▪ You can create a playlist with up to 99 tracks on
Audio CD (CD-DA).
• Stop Slide Show : Select this if you want to
stop the slide show.
• Slide Show Speed : Select this if you want to
adjust the Slide Show speed.
• Background Music : Select this if you want to
listen to music while viewing a picture.
English
01941P-BD-C5300-XEU-ENG.indb 49
49
2010-04-23 오후 5:55:11
Basic Functions
• Zoom : Select this if you want to enlarge the
current picture. (Enlarged up to 4 times)
• Rotate : Select this if you to rotate the picture.
(This will rotate the picture either clockwise or
counter clockwise.)
• Information : Shows the picture information
including the name and size, etc.
5. Press the ▲▼ buttons to select the USB,
then press the ENTER button.
6. Press the ◄► buttons to select the desired
Videos, Music or Photos, then press the
ENTER button.
4-1. Press the BLUE(D) button.
✎ NOTE
▪ To enable the Background Music function, both
Please activate Internet@TV service
to enjoy a variety of Internet Services.
music and MP3 files must be contained in the same
folder. However, the sound quality can be affected
by the bit rate of the MP3 file, the size of the photo
and the encoding method.
Playing back a USB Storage Device
You can use the USB connection to play multimedia
files (MP3, JPEG, DivX, etc) downloaded from the
USB storage device.
1. Move to the home menu.
2. In Stop mode, connect the USB storage
device to the USB port on the front panel of
the product.
The message “Do you want to access the
device?” will be displayed.
3. Press the ◄► button to select Yes, then
press the ENTER button.
USB
USB
50
USB
USB a Change Device c Safely Remove USBd View Devices" Enter
" Enter
6-1. Press the ▲▼ buttons to select the desired Videos, Music or Photos, then press the ENTER button.
7. For playing back Video, Music or Photo files,
refer to pages 47~50.
✎ NOTE
▪ You must remove the USB storage device safely
▪
▪
CD
d Home
5-1. Press the ◄► buttons to select the USB, then press the ENTER button.
4. Press the RED(A) button.
You Tube
internet radio service
Please activate Internet@TV
to enjoy a variety of Internet Services.
(by performing the “Safe to Remove USB” function)
in order to prevent a possible damage to the USB
memory. Press the MENU button to move to the
home menu, and select the YELLOW(C) button and
press the ENTER button.
When the Audio-CD (CD-DA), MP3 and JPEG files
are in stop mode, you can’t see full screen by
pressing the FULL SCREEN button on the remote
control.
If you insert the disc when playing USB storage
device, the device mode is changed to “DVD or CD”
automatically.
English
01941P-BD-C5300-XEU-ENG.indb 50
2010-04-23 오후 5:55:12
Network Services
1. Connect the product to the network.
(See pages 26~27)
2. Configure the network settings.
(See pages 36~39)
Internet@TV at a Glance
1
2
Recommended
Using Internet@TV
My Applications
Connect this product to the network to download
various for a fee or free-of-charge applications.
Internet@TV brings useful and entertaining content
and services directly from the web to your product
such as news, weather forecasts, stock market
quotes, games, movies and music.
You can also operate this function by
pressing the INTERNET@ button on
the remote control.
6
1
Getting Started with Internet@TV
1. Move to the home menu.
2
3
You Tube
internet radio service
Please activate Internet@TV
to enjoy a variety of Internet Services.
4
No Disc
a Change Device d View Devices
3
Network Services
Check the following instructions before using
any network service.
4. When you have agreed on the service
agreement, the Internet@TV service will start
being updated. It takes several minutes.
When the update is completed, you will see
the Internet@TV menu screen.
07
You can enjoy various network services such
as Internet@TV or BD-LIVE by connecting the
product to the network system.
" Enter
2. Press the ◄► buttons to select Internet@TV
and press the ENTER button.
5
6
by Date 1/3
Samsung Apps Settings
a Login b Mark as Favorite d Sort by ' Return
5
4
Commercial : Displays Internet@TV Guide, product
introduction and new application introduction.
Recommended : Displays recommended contents
managed by Samsung.
My Applications : Displays your personal gallery
which can be added and deleted by you.
Navigation Help : Displays remote control buttons
available.
• RED(A) : To log in to Internet@TV.
• GREEN(B) : To mark the application as a favourite.
• BLUE(D) : To sort the applications.
• Return : To return to the previous menu.
Settings : You can set the system setup and create
accounts, etc.
Samsung Apps : You can download various
chargeable or free-of-charge application services.
3. In the start screen of the Internet@TV service,
you will see the service agreement screen.
You should agree to the service terms and
conditions before you can use the Internet@
TV service.
English
01941P-BD-C5300-XEU-ENG.indb 51
51
2010-04-23 오후 5:55:13
Network Services
Using the Keypad
Through your remote, you can use the On-Screen
Keypad in several Internet@TV applications to enter
text.
Pressing the SUBTITLE button on the remote while
you are using the Screen Keypad lets you change
the text fields to lower case, upper case, numbers
and icons.
1
4
7
2
5
ghi
Input Mode
9
tuv
0
a
6
jkl
8
pqrs
3
abc
A
1
def
12. Press buttons on the remote to input the rest
of ‘Challenger Rd., Ridgefield Park NJ’.
13. Press the ENTER button.
14. The map and address appear on the screen.
✎ NOTE
▪ Samsung Electronics shall take no legal responsibility
▪
mno
wxyz
Delete

For example, here is how to search an address in
Google Maps:
1. Press the ENTER button on the remote at the
Google Maps icon at the Internet@TV.
2. Press Green(B) button to use the SEARCH
function.
3. Press the ◄► buttons to move to the “Search
or address” window.
4. Press the ENTER button to use Search or
address function.
5. For example, suppose that you want to input
‘105 Challenger Rd., Ridgefield Park NJ’.
6. Press the SUBTITLE button on the remote
twice to change the input mode from lower
case to numbers.
7. Press ‘1’, ‘0’, ‘5’.
8. Press the Yellow(C) button on the remote
to input a blank space.
▪
▪
▪
▪
▪
▪
for any interruption of the Internet@TV service
caused by the service provider for any reasons.
The Internet@TV service is to download and process
data via the Internet so that you can enjoy the
contents on the TV screen.
If the Internet connection is unstable, the service
may be delayed or interrupted.
Furthermore, the product may be turned off
automatically.
If this is the case, check the Internet connection and
try again.
The application service may be provided in English
only and the contents available may vary, depending
on the area.
When using a application service, you can not
operate FULL SCREEN button on the remote control.
For more information about the Internet@TV service,
visit the web site of the applicable service provider.
The provided services are subject to change,
depending on the Internet@TV service provider.
The Internet@TV service contents may differ
according to the firmware version.
For-a-fee DivX contents with copy protection can
only be played using HDMI cable.
If you have connected your product to your TV using
Component or video cables, the DivX video signal
can not output or the popup message “Connect
with a HDMI cable to play this file.” or “Cannot play
current file.” will be displayed.
9. Press the SUBTITLE button on the remote
3 times to change the input mode from
numbers to upper case.
10. Press ‘2’ button on the remote 3 times to
input C.
11. Press the SUBTITLE button on the remote 3
times to change the input mode from upper
case to lower case.
52
English
01941P-BD-C5300-XEU-ENG.indb 52
2010-04-23 오후 5:55:13
1. Press the ▲▼◄► buttons to select the
desired application and press the RED(A)
button.
Login
Password :
a Create
[0~9] Enter PIN ' Cancel
2. Enter the user account and password.
Settings
Create IDs and configure Internet@TV settings
from this screen.
Settings
 System setup
 Internet@TV ID
 Service Manager
 Properties
Change the Service Lock password
Reset
Reset
Resets Internet@TV settings to factory default
settings.
✎ NOTE
▪ If you forgot your password, press the STOP (
)
button on the front panel of the product for more than
5 seconds with no disc inserted.
Internet@TV ID
admin
User Account :
System Setup
Use this menu to create or delete an account and
enter or delete account information.
You can control your account including contents
site’s account information.
This account is only for Internet@TV.
Create
Create an account and link it with desired service
applications.
✎ NOTE
▪ The account name must be at least 1 character in
▪
length but no more than 8.
You can register up to 10 User Account Names.
Manager
• Service Site : Register login information for
service sites.
• Change Password : Change account
password.
• Delete : Delete the account.
' Cancel
English
01941P-BD-C5300-XEU-ENG.indb 53
Network Services
For a more enjoyable application experience,
register and log in to your account.
To do this, you must create an account first.
(For instructions on creating an account, refer to
Internet@TV ID on this page)
07
Account Login
53
2010-04-23 오후 5:55:13
Network Services
Service Manager
Delete and lock applications installed to Internet@
TV.
Lock
Lock the application. Accessing a locked
application requires the password.
Delete
Using the colour buttons with the Samsung
Apps
• RED(A) (Login) : To log in to the internet
service.
• GREEN(B) (Thumbnail View) : To change the
view mode.
• BLUE(D) (Sort By) : To sort the applications by
Featured, Most Downloaded, Most Recent or
Name.
✎ NOTE
▪ The available Internet contents services may be
Delete the application.
Properties
added or deleted.
Display information about Internet@TV. Use the
“Check the speed of your internet connection”
option to test your network connection.
Samsung Apps
Various applications are available from here,
organized into different categories. Some
applications have a download fee.
Samsung Apps
What's New?
 Video
 Games
 Sports
 Lifestyle
 Information
 Other

My page
Help
Video
Featured
1/1
Most downloaded
Most recent
YouTube
TV store Test User002
a Login
b Thumbnail View
d Sort By
Name
Free
' Return
My page
Displays the application list.
Help
If you questions about Internet@TV, check this
section first. If none of the tips apply, please visit
the help website.
54
English
01941P-BD-C5300-XEU-ENG.indb 54
2010-04-23 오후 5:55:13
07
BD-LIVE™
Network Services
Once the product is connected to the network,
you can enjoy various movie-related service
contents using a BD-LIVE compliant disc.
1. Check the size of the remaining memory.
The memory device must have at least 1GB
of free space to accommodate the BD-LIVE
services.
2. Insert a Blu-ray disc that supports BD-LIVE.
3. Select an item from various BD-LIVE service
contents provided by the disc manufacturer.
✎ NOTE
▪ The way you use BD-LIVE and the provided contents
may differ, depending on the disc manufacturer.
Software Upgrade Notification
In network connection, the product will notice
you of any new software version with a popup
message.
1. Turn on the product.
2. From the Software Upgrade menu, set Auto
Upgrade Notification to On. (See page 41)
If there is a new software version available, the
product will notice you with a popup message.
3. To upgrade the firmware, select Yes.
It will turn off automatically before restarting.
(Never turn it on manually.)
4. The update progress popup will appear.
When the update is completed, it will turn
back off automatically.
5. Press the POWER button to turn on the
product.
✎ NOTE
▪ Update will be completed when the product turns off
▪
after restarting. Press the POWER button to turn on
the updated product for your use.
Never turn off or on the product manually during the
update process.
Samsung Electronics shall take no legal responsibility
for product malfunction caused by unstable of
internet connection or consumer negligence during
software upgrade.
English
01941P-BD-C5300-XEU-ENG.indb 55
55
2010-04-23 오후 5:55:14
Appendix
Troubleshooting
Before requesting service, please check the following.
PROBLEM
SOLUTION
No operation can be performed with the
remote control.
• Check the batteries in the remote control. They may need replacing.
• Operate the remote control at a distance of no more than 6.1m.
• Remove batteries and hold down one or more buttons for several minutes
to drain the microprocessor inside the remote control to reset it. Reinstall
batteries and try to operate the remote control again.
Disc does not play.
• Ensure that the disc is installed with the label side facing up.
• Check the region number of the Blu-ray Disc/DVD.
Disc Menu does not appear.
• Ensure that the disc has disc menus.
The prohibition message appears on the
screen.
• This message appears when an invalid button is pressed.
• The Blu-ray Disc/DVD’s software doesn’t support the feature (e.g., angles)
• You’ve requested a title or chapter number or search time that is out of
range.
Play mode differs from the Setup Menu
selection.
• Some of the functions selected in the Setup Menu may not work properly if
the disc is not encoded with the corresponding function.
The screen ratio cannot be changed.
• The Screen Ratio is fixed on your Blu-ray Disc/DVDs.
• This is not a problem with the product.
No audio.
• Make sure you have selected the correct Digital Output in the Audio Options
Menu.
The screen is blocked
• Press the STOP (
) button (on front panel) for more than 5 seconds with
no disc inside. All settings will revert to the factory settings.
• When the factory default settings are restored, all the user data stored in
the BD data will be deleted.
If the HDMI output is set to a resolution your • Press the STOP (
) button (on front panel) for more than 5 seconds with
TV cannot support (for example, 1080p), you
no disc inside. All settings will revert to the factory settings.
may not see a picture on your TV.
• When the factory default settings are restored, all the user data stored in
the BD data will be deleted.
56
English
01941P-BD-C5300-XEU-ENG.indb 56
2010-04-23 오후 5:55:14
SOLUTION
08
• Press the STOP (
) button (on front panel) for more than 5 seconds with
no disc inside. All settings including the password will revert to the factory
settings.
Don’t use this unless absolutely necessary.
• When the factory default settings are restored, all the user data stored in
the BD data will be deleted.
If you experience other problems.
• Go to the contents and find the section of the user manual that contains the
explanations regarding the current problem, and follow the procedure once
again.
• If the problem still cannot be solved, please contact your nearest Samsung
authorized service centre.
The picture is noisy or distorted
• Make sure that the disc is not dirty or scratched.
• Clean the disc.
No HDMI output.
• Check the connection between the TV and the HDMI jack of the product.
• Check if your TV supports 576p/480p, 720p, 1080i, 1080p HDMI input
resolution.
Abnormal HDMI output screen.
• If random noise appears on the screen, it means that TV does not support
HDCP (High-bandwidth Digital Content Protection).
BD-LIVE
I cannot connect to the BD-LIVE server.
• Check whether the network connection is successful or not by using
Network Test menu. (See page 39)
• Check whether the USB memory device is connected with product
or not.
• The memory device must have at least 1GB of free space to accommodate
the BD-LIVE service.
You can check the available size in BD Data Management. (See page 35)
• Please check whether the BD-LIVE Internet Connection menu is set to
Allow(All).
• If all above fails, contact the contents provider or update the latest
firmware.
When using the BD-LIVE service, an error
occurs.
• The memory device must have at least 1GB of free space to accommodate
the BD-LIVE service.
You can check the available size in BD Data Management. (See page 35)
Appendix
Forgot password
PROBLEM
✎ NOTE
▪ When the factory default settings are restored, all the user data stored in the BD data will be deleted.
English
01941P-BD-C5300-XEU-ENG.indb 57
57
2010-04-23 오후 5:55:14
Appendix
A
Accessories
Ad-hoc
Anynet+ (HDMI-CEC)
Audio Language
14
27
34
46
B
BD Wise
30
BD Data Management
35
BD-LIVE
39, 55
BONUSVIEW
47
Background Music
49
C
Component
Cable Network
Camera Angle
22
26
46
D
Digital Output
32~33
Dynamic Range Control
34
Downmixing Mode
34
DTS Neo:6
34
DST (Daylight Saving Time) 35
DivX
35~36
Disc Menu
43
Disc Structure
43
H
HDMI
20, 34
HDMI Supported Amplifier 24
HDMI Deep Color
32
I
Internet@TV
Initial Settings
58
J
Index
JPEG
M
Movie Frame (24F)
MP3
N
Network Setup
O
Optimal Resolution
P
PCM Downsampling
Popup Menu
Picture Setting
49
32
48~49
36~39
30~31
33
43~44
46
T
TV Aspect
Title Menu
Tools Menu
U
USB Storage Device W
Wireless Network
Wireless LAN Adapter
Z
Zoom
30
43
45~47
50
27, 37
27
50
R
Region Code
13
Romote Control Sensor
15
Romote Control
18
Resolution
30
Repeat
45, 48
S
Supported File Format
12
Software Upgrade
41, 55
Search and Skip
44
Slow and Step
44
Subtitle Language
46
Slide Show
49
36, 50
28, 34
English
01941P-BD-C5300-XEU-ENG.indb 58
2010-04-23 오후 5:55:14
1.7 kg
Operating Temperature Range
+5°C to +35°C
Dimensions
Operating Humidity Range
BD (Blu-ray Disc)
DVD (Digital Versatile Disc)
Disc
CD : 12 cm (COMPACT DISC)
CD : 8 cm (COMPACT DISC)
Composite Video
Video Output
Video/Audio
Component Video
HDMI
2 Channel
Digital Audio Output
Audio Output
*Frequency Response
*S/N Ratio
*Dynamic Range
*Total Harmonic Distortion
Appendix
General
Weight
08
Specifications
430 (W) X 207 (D) X 43 (H) mm
10 % to 75 %
Reading Speed : 4.917m/sec
Reading Speed : 3.49 ~ 4.06 m/sec.
Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 74 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 20 min.
1 Channel : 1.0 Vp-p (75Ω load)
Blu-ray/DVD Disc : 576i/480i
Y :1.0 Vp-p (75Ω load)
PR:0.70 Vp-p (75Ω load)
PB:0.70 Vp-p (75Ω load)
Blu-ray Disc : 1080i, 720p, 576p/480p, 576i/480i
DVD : 576p/480p, 576i/480i
1080p, 1080i, 720p, 576p/480p
PCM multichannel audio, Bitstream audio
L(1/L), R(2/R)
Optical
48 kHz Sampling : 4 Hz to 22 kHz
96 kHz Sampling : 4 Hz to 44 kHz
110 dB
100 dB
0.003%
*: Nominal specification
- Design and specifications are subject to change without prior notice.
- For the power supply and power consumption, refer to the label attached to the product.
- Weight and dimensions are approximate.
English
01941P-BD-C5300-XEU-ENG.indb 59
59
2010-04-23 오후 5:55:14
Appendix
Compliance and Compatibility Notice
NOT ALL discs are compatible
• Subject to the restrictions described below and those noted throughout this Manual, including the Disc
Type and Characteristics section of this user manual, disc types that can be played are: pre-recorded
commercial BD-ROM, DVD-VIDEO, and Audio CD (CD-DA) discs; BD-RE/-R, DVD-RW/-R discs; and
CD-RW/-R discs.
• Discs other than the above cannot and/or is not intended to be played by this product. And some of
the above discs may not play due to one or more reasons provided below.
• Samsung cannot assure that this product will play every disc bearing the BD-ROM, BD-RE/-R,
DVD-VIDEO, DVD-RW/-R, DVD+RW/+R and CD-RW/-R logos, and this product may not respond to
all operating commands or operate all features of every disc. These and other disc compatibility and
product operation issues with new and existing format discs are possible because:
- Blu-ray is a new and evolving format and this product may not operate all features of Blu-ray Discs
because some features may be optional, additional features may have been added to the Blu-ray
Disc format after the production of this product, and certain available features may be subject to
delayed availability;
- not all new and existing disc format versions are supported by this product;
- new and existing disc formats may be revised, changed, updated, improved and/or supplemented;
- some discs are produced in a manner that allows specific or limited operation and feature during
playback;
- some features may be optional, additional features may have been added after the production of this
product or certain available features may be subject to delayed availability;
- some discs bearing the BD-ROM, BD-RE/-R, DVD-VIDEO, DVD-RW/-R, DVD+RW/+R and
CD-RW/-R logos may still be non-standardized discs;
- some discs may not be played depending on their physical state or recording conditions;
- problems and errors can occur during the creation of Blu-ray Disc, DVD software and/or the
manufacture of discs;
- this product operates differently than a standard DVD product or other AV equipment; and/or
- for reasons noted throughout this user manual and for other reason(s) discovered and posted by
SAMSUNG customer care centre.
• If you encounter disc compatibility or product operation problems, please contact SAMSUNG customer
care centre.
You may also contact SAMSUNG customer care centre for possible updates on this product.
• For additional information on playback restrictions and disc compatibility, refer to the Precautions,
Before Reading the user manual, Disc Types and Characteristics, and Before Playing sections of this
user manual.
Copy Protection
• Because AACS (Advanced Access Content System) is approved as content protection system for
Blu-ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain
restrictions are imposed on playback, analog signal output, etc., of AACS protected contents.
The operation of this product and restrictions on this product may vary depending on your time of
purchase as those restrictions may be adopted and/or changed by AACS after the production of this
product. Furthermore, BD-ROM Mark and BD+ are additionally used as content protection system for
Blu-ray Disc format, which imposes certain restrictions including playback restrictions for BD-ROM
Mark and/or BD+ protected contents. To obtain additional information on AACS, BD-ROM Mark, BD+,
or this product, please contact SAMSUNG customer care center.
60
English
01941P-BD-C5300-XEU-ENG.indb 60
2010-04-23 오후 5:55:14
08
Appendix
• Many Blu-ray Disc/DVD discs are encoded with copy protection. Because of this, you should only
connect your Product directly to your TV, not to a VCR. Connecting to a VCR results in a distorted
picture from copy-protected Blu-ray Disc/DVD discs.
• This product incorporates copyright protection technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright protection technology must be authorized by Rovi
Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized
by Rovi Corporation. Reverse engineering or disassembly is prohibited.
• Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use,
display, distribution, or revision of television programs, videotapes, Blu-ray Discs, DVDs, and other
materials may subject you to civil and/or criminal liability.
• For Blu-ray Disc Player progressive scan output : CONSUMERS SHOULD NOTE THAT NOT
ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS product AND
MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF PROGRESSIVE SCAN
PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO
THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET
COMPATIBILITY WITH THIS product, PLEASE CONTACT OUR CUSTOMER SERVICE Center.
Network Service Disclaimer
All content and services accessible through this device belong to third parties and are protected by
copyright, patent, trademark and/or other intellectual property laws. Such content and services are
provided solely for your personal noncommercial use. You may not use any content or services in a
manner that has not been authorized by the content owner or service provider. Without limiting the
foregoing, unless expressly authorized by the applicable content owner or service provider, you may
not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or
distribute in any manner or medium any content or services displayed through this device.
THIRD PARTY CONTENT AND SERVICES ARE PROVIDED “AS IS.” SAMSUNG DOES NOT WARRANT
CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE.
SAMSUNG EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED
TO, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SAMSUNG
DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS
OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO
CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE LIABLE, WHETHER IN
CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN
CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF ANY
CONTENT OR SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
Third party services may be terminated or interrupted at any time, and Samsung makes no representation
or warranty that any content or service will remain available for any period of time. Content and services
are transmitted by third parties by means of networks and transmission facilities over which Samsung
has no control. Without limiting the generality of this disclaimer, Samsung expressly disclaims any
responsibility or liability for any interruption or suspension of any content or service made available
through this device.
Samsung is neither responsible nor liable for customer service related to the content and services.
Any question or request for service relating to the content or services should be made directly to the
respective content and service providers.
English
01941P-BD-C5300-XEU-ENG.indb 61
61
2010-04-23 오후 5:55:14
Appendix
License
• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol
are trademarks of Dolby Laboratories.
• Manufactured under license under U.S. Patent #’s : 5,451,942; 5,956,674; 5,974,380;
5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567
& other U.S. and worldwide patents issued & pending. DTS and the Symbol are
registered trademarks, & DTS-HD, DTS-HD Master Audio, and the DTS logos are
trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
• ABOUT DIVX VIDEO : DivX® is a digital video format created by DivX,Inc. This is an official
DivX Certified device that plays DivX video. Visit www.divx.com for more information and
software tools to convert your files into DivX video.
• ABOUT DIVX VIDEO-ON-DEMAND : This DivX Certified® device must be registered in order to play
DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section
in the device setup menu. Go to vod.divx.com with this code to complete the registration process and
learn more about DivX VOD.
• DivX Certified to play DivX video up to HD 1080p, including premium content.
• The product unit accompanying this user manual is licensed under certain intellectual property rights of
certain third parties. This product is covered by one or more of the following U.S. patents : 5,060,220
5,457,669 5,561,649 5,705,762 6,043,912 6,438,099 6,467,061 6,556,521 6,578,163 6,697,307
6,728,474 6,771,891 6,894,963 6,895,593 6,937,815 6,996,327 7,009,926 7,085,221 7,088,649
7,092,327 7,099,566 7,123,564 7,142,493 7,142,495 7,145,861 7,146,624 7,151,729 7,161,879
7,164,647 7,167,437 7,173,891 7,177,250 7,194,187 7,203,891 7,209,423 7,210,067 7,228,062
7,245,566 7,245,567 7,257,065 7,263,045 7,269,110 7,272,086 7,272,106 7,280,460 7,283,729
7,286,454 7,304,938
• This license is limited to private non-commercial use by end-user consumers for licensed contents.
No rights are granted for commercial use. The license does not cover any product unit other than this
product unit and the license does not extend to any unlicensed product unit or process conforming to
ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit.
The license only covers the use of this product unit to encode and/or decode audio files conforming to
the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features
or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.
• Open Source License Notice
- In the case of using open source software, Open Source Licenses are available on the product
menu.
62
English
01941P-BD-C5300-XEU-ENG.indb 62
2010-04-23 오후 5:55:14
UNITED KINGDOM
This Samsung product is warranted for the period of
twelve (12) months from the original date of
purchase, against defective materials and
workmanship. In the event that warranty service is
required, you should return the product to the
retailer from whom it was purchased.
However, Samsung Authorised Dealers and
Authorised Service Centres in other EC Countries
will comply with the warranty on the terms issued to
purchasers in the country concerned.
In case of difficulty, details of our Authorised Service
Centres are available from:
Samsung Electronics U.K. Ltd.
Customer Care Centre PO Box 17243 Edinburgh,
EH11 4YB United Kingdom
United Kingdom
Tel : 0845 SAMSUNG (7267864)
Fax : 0845 650 8080
Web : www.samsung.com
EIRE
Tel : 0818 717 100
Fax : +44 (0)131 202 0630
Web : www.samsung.com/ie
@ WARRANTY CONDITIONS
1. The warranty is only valid if, when warranty
service is required, the warranty card is fully and
properly completed and is presented with the
original invoice or sales slip or confirmation, and
the serial number on the product has not been
defaced.
2. Samsung’s obligations are limited to the repair or,
at its discretion, replacement of the product or
the defective part.
3. Warranty repairs must be carried out by
Authorised Samsung Dealers or Authorised
Service Centres.
No re-imbursement will be made for repairs
carried out by non Samsung Dealers and, any
such repair work and damage to the products
caused by such repair work will not be covered
by this warranty.
01941P-BD-C5300-XEU-ENG.indb 63
EIRE
4. This product is not considered to be defective in
materials nor workmanship by reason that it
requires adaptation in order to conform to
national or local technical or safety standards in
force in any Country other than the one for which
the product was originally designed and
manufactured. This warranty will not cover, and
no re-imbursement will be made for such
adaptation nor any damage which may result.
5. This warranty covers none of the following:
a) Periodic check ups, maintenance and repair or
replacement of parts due to normal wear and
tear.
b) C
ost relating to transport, removal or installation
of the product.
c) Misuse, including the faiure to use this product
for its normal purposes or incorrect installation.
d) Damage caused by Lightning, Water, Fire, Acts
of God, War, Public Disturbances, incorrect
mains voltage, improper ventilation or any
other cause beyond the control of Samsung.
6. This warranty is valid for any person who legally
acquired possession of the product during the
warranty period.
7.The consumers statutory rights in any applicable
national legislation whether against the retailer
arising from the purchase contract or otherwise
are not affected by this warranty. Unless there is
national legislation to the contrary, the rights
under this warranty are the consumers sole rights
and Samsung, its subsidiaries and distributors
shall not be liable for indirect or consequential
loss or any damage to records, compact discs,
videos or audio taper or any other related
equipment or material.
SAMSUNG ELECTRONICS (U.K.) LTD.
2010-04-23 오후 5:55:14
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care centre.
Area
` North America
Contact Centre 
Web Site
Canada
1-800-SAMSUNG (726-7864) www.samsung.com
U.S.A
1-800-SAMSUNG (726-7864) www.samsung.com
Mexico
` Latin America
Argentine
Brazil
Chile
Nicaragua
Honduras
Costa Rica
Ecuador
El Salvador
Guatemala
Jamaica
Panama
Puerto Rico
Rep. Dominica
Trinidad &
Tobago
Venezuela
Colombia
` Europe
01-800-SAMSUNG (726-7864) www.samsung.com
0800-333-3733
0800-124-421
4004-0000
Germany
Hungary
Italia
Luxemburg
Netherlands
Norway
Poland
Portugal
Slovakia
Spain
Sweden
U.k
Eire
Estonia
` CIS
www.samsung.com
Kazakhstan
www.samsung.com
Kyrgyzstan
www.samsung.com
Tadjikistan
1-800-299-0013
1-800-234-7267
800-7267
1-800-682-3180
1-800-751-2676
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
1-800-SAMSUNG (726-7864) www.samsung.com
0-800-100-5303
01-8000112112
800 - SAMSUNG
(800-726786)
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com/
be (Dutch)
www.samsung.com/
be_fr (French)
www.samsung.com
70 70 19 70
www.samsung.com
01 48 63 00 00
www.samsung.com
030 - 6227 515
01805 - SAMSUNG
(726-7864 € 0,14/Min)
www.samsung.com
www.samsung.com
06-80-SAMSUNG (726-7864) www.samsung.com
800-SAMSUNG (726-7864)
261 03 710
www.samsung.com
` Asia Pacific
www.samsung.com
www.samsung.ua
www.samsung.com/
ua_ru
00-800-500-55-500
China
400-810-5858
010-6475 1880
www.samsung.com
Hong Kong
(852) 3698-4698
India
3030 8282
1800 110011
1800 3000 8282
1800 266 8282
Indonesia
Japan
Malaysia
Philippines
www.samsung.com
Taiwan
Vietnam
0800 SAMSUNG (0800 726 786) www.samsung.com
www.samsung.com/
hk
www.samsung.com/
hk_en/
www.samsung.com
0800-112-8888
021-5699-7777
www.samsung.com
1800-88-9999
www.samsung.com
0120-327-527
www.samsung.com
1-800-10-SAMSUNG
(726-7864)
1-800-3-SAMSUNG
(726-7864)
1-800-8-SAMSUNG
(726-7864)
02-5805777
www.samsung.com
1800-SAMSUNG (726-7864)
1800-29-3232
02-689-3232
0800-329-999
1 800 588 889
www.samsung.com
` Middle East & Africa
www.samsung.com
South Africa
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
Turkey
444 77 11
www.samsung.com
800-SAMSUNG (726-7864)
www.samsung.com
0771 726 7864 (SAMSUNG)
www.samsung.com
U.a.e
0818 717100
www.samsung.com
Jordan
www.samsung.com
www.samsung.com
www.samsung.com
0 801 1SAMSUNG (172678)
022-607-93-33
01941P-BD-C5300-XEU-ENG.indb 64
8-10-800-500-55-500
1300 362 603
New Zealand
Thailand
0845 SAMSUNG (7267864)
www.samsung.com
00-800-500-55-500
Australia
Singapore
902 - 1 - SAMSUNG
(902 172 678)
www.samsung.com
8-10-800-500-55-500
810-800-500-55-500
www.samsung.com
0800-SAMSUNG (726-7864)
8-10-800-500-55-500
Belarus
Moldova
www.samsung.com
088-55-55-555
0-800-502-000
www.samsung.com
80820-SAMSUNG (726-7864) www.samsung.com
8-800-555-555
Ukraine
0900-SAMSUNG
www.samsung.com
(0900-7267864) (€ 0,10/Min)
815-56 480
www.samsung.com
0-800-05-555
Uzbekistan
800-6225
800-7267
Armenia
www.samsung.com
1-800-10-7267
www.samsung.com
8000-7267
www.samsung.com
Azerbaijan
Web Site
8-800-77777
8-800-555-55-55
www.samsung.com
0-800-507-7267
Contact Centre 
0848 - SAMSUNG (7267864, www.samsung.com/ch
www.samsung.com/
CHF 0.08/min)
ch_fr/ (French)
Russia
800-7919267
00-1800-5077267
02-201-24-18
France
Latvia
Georgia
Belgium
Finland
Lithuania
www.samsung.com
Austria
Denmark
www.samsung.com
Switzerland
800-SAMSUNG (726-7864)
0810 - SAMSUNG
(7267864, € 0.07/min)
Czech
www.samsung.com
Area
Bahrain
0860-SAMSUNG (726-7864)
8000-4726
www.samsung.com
800-22273
2010-04-23 오후 5:55:14
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed
of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb
indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.
If batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and
recycle them through your local, free battery return system.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where they purchased this product, or their local government office,
for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
AK68-01941P
01941P-BD-C5300-XEU-ENG.indb 65
2010-04-23 오후 5:55:15

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Key Features

  • Video formats supported: AVCHD, H.264, MKV, MP4, MPEG2, VC-1, WMV9
  • Audio formats supported: MP3, WMA
  • Ethernet LAN Wi-Fi

Related manuals

Download PDF

advertisement
