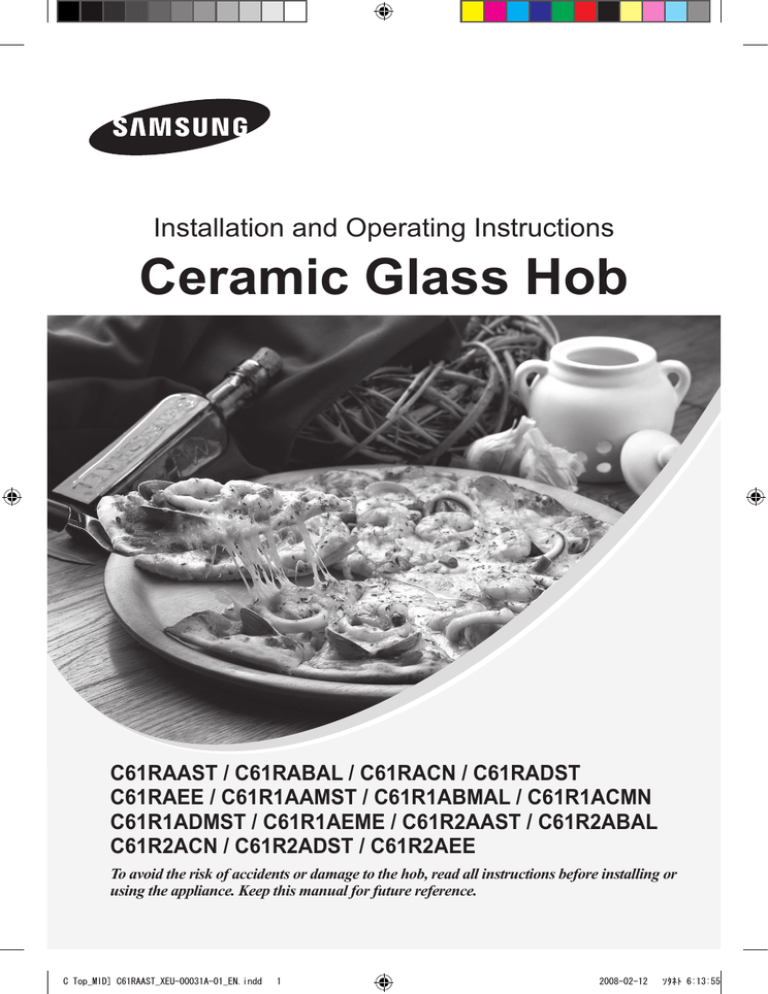

Installation and Operating Instructions
Ceramic Glass Hob
C61RAAST / C61RABAL / C61RACN / C61RADST
C61RAEE / C61R1AAMST / C61R1ABMAL / C61R1ACMN
C61R1ADMST / C61R1AEME / C61R2AAST / C61R2ABAL
C61R2ACN / C61R2ADST / C61R2AEE
To avoid the risk of accidents or damage to the hob, read all instructions before installing or
using the appliance. Keep this manual for future reference.
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
1
2008-02-12
ソタネト 6:13:55
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
2
2008-02-12
ソタネト 6:13:55
Contents
EN
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety during use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety when cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Disposal Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installing the Hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Regulations and compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety instructions for the installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connecting to the mains power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installing into the countertop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Parts and Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cooking zones and control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
The key features of your appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Safety shutoff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Residual heat indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Initial cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Hob Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Using suitable cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Using the touch control sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Switching the appliance on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Temperature control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Switching the appliance off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Switching a cooking zone off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Using the child safety lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Locking and unlocking the control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Suggested settings for cooking specific foods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Hob Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
To avoid damaging your appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Warranty and Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
FAQs and troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
1
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
1
2008-02-12
ソタネト 6:13:55
Using This Manual
EN
Please take the time to read this owner’s manual, paying particular attention to the safety
information contained in the following section, before using your appliance. Keep this manual
for future reference. If transferring ownership of the appliance, please remember to pass the
manual on to the new owner.
The following symbols are used in the text
This is the safety alert symbol.
Warning indicates information concerning your personal safety.
Important indicates information on avoiding damage to the appliance.
This symbol indicates useful information and practical tips.
This symbol refers to measures that can be taken to help protect the environment.
1. Numbers like these indicate step - by - step instructions for using the appliance.
2. ...
3. ...
This manual contains information on steps you can take yourself to diagnose and resolve
problems that may arise. Refer to the section “Troubleshooting.”
2
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
2
2008-02-12
ソタネト 6:13:56
Safety
The safety aspects of this appliance comply with accepted technical standards and
the German Appliance Safety Law. However, as manufacturers we also believe it is
our responsibility to familiarise you with the following safety instructions.
EN
Electrical safety
• Be sure the appliance is properly installed and grounded by a qualified technician.
• The appliance should be serviced only by qualified service personnel. Repairs carried out
by unqualified individuals may cause injury or serious malfunction. If your appliance is in
need of repair, contact your local service centre. Failure to follow these instructions may
result in damage and void the warranty.
• Flush - mounted appliances may be operated only after they have been installed in
cabinets and workplaces that conform to the relevant standards. This ensures sufficient
protection against contact for electrical units as required by the VDE [Association of German Electrical Engineers].
• If your appliance malfunctions or if fractures, cracks or splits appear:
- switch off all cooking zones;
- disconnect the hob from the mains supply; and
- contact your local service centre.
• If the cooktop cracks, turn the appliance off to avoid the possibility of electric shock. Do not
use your hob until the glass surface has been replaced.
• Do not use the hob to heat aluminium foil, products wrapped in aluminium foil or frozen
foods packaged in aluminium cookware.
Child safety
This appliance is not intended for use by young children or infirm persons without
the adequate supervision of a responsible adult.
Young children should be supervised to ensure that they do not play with the appliance.
The cooking zones will become hot when you cook. Always keep small children
away from the appliance.
3
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
3
2008-02-12
ソタネト 6:13:56
Safety (continued)
EN
Safety during use
• This appliance is to be used only for normal cooking and frying in the home. It is not designed for commercial or industrial use.
• Never use the hob for heating the room.
• Take care when plugging electrical appliances into mains sockets near the hob. Mains
leads must not come into contact with the cooktop.
• Overheated fat and oil can catch fire quickly. Never leave surface units unattended when
preparing foods in fat or oil, for example, when cooking chips.
• Turn the cooking zones off after use.
• Always keep the control panels clean and dry.
• Never place combustible items on the hob. It may cause fire.
Safety when cleaning
• Always turn the appliance off before cleaning.
• For safety reasons do not clean the appliance with a steam jet or high - pressure cleaner.
• Clean the hob in accordance with the cleaning and care instructions contained in this
manual.
Disposal Instructions
Disposing of the packaging material
• All materials used to package the appliance are fully recyclable. Sheet and hard foam
parts are appropriately marked. Please dispose of packaging materials and old appliances
with due regard to safety and the environment.
Proper disposal of your old appliance
Warning: Before disposing of your old appliance, make it inoperable so that it cannot be a source of danger.
To do this, have a qualified technician disconnect the appliance from the mains supply and remove the mains lead.
• The appliance may not be disposed of in the household rubbish.
• Information about collection dates and public refuse disposal sites is available from your
local refuse department or council.
4
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
4
2008-02-12
ソタネト 6:13:56
Installing the Hob
Important: Be sure the new appliance is installed and grounded only by qualified
personnel.
Please observe this instruction. The warranty will not cover any damage that may
occur as a result of improper installation.
Technical data is provided at the end of this manual.
EN
Regulations and compliance
This appliance meets the following standards:
• EN 60 335 - 1 and EN 60 335 - 2 - 6, relating to the safety of electrical appliances for household use and similar purposes;
• EN 60350, or DIN 44546 / 44547 / 44548, relating to the operating features of electric cookers, hobs, ovens, and grills for household use;
• EN 55014 - 2;
• EN 55014;
• EN 61000 - 3 - 2; and
• EN 61000 - 3 - 3, relating to basic requirements for electromagnetic compatibility (EMC).
This appliance complies with the following EU Directives:
• 73 / 23 / EWG dated 19.02.1973 (Low Voltage Directive);
• 89 / 336 / EWG dated 03.05.1989 (EMC Directive including Amending Directive 92
/ 31 / EWG); and
• 93 / 68 / EWG CE Labeling Directive.
Safety instructions for the installer
• A device must be provided in the electrical installation that allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm. Suitable
isolation devices include line protecting cut - outs, fuses (screw type fuses are to be removed
from the holder), earth leakage trips and contactors.
• With respect to fire protection, this appliance corresponds to EN 60 335 - 2 - 6. This type of
appliance may be installed with a high cupboard or wall on one side.
• Drawers may not be fitted underneath the hob.
• The installation must guarantee shock protection.
• The kitchen unit in which the appliance is fitted must satisfy the stability requirements of DIN
68930.
• For protection against moisture, all cut surfaces are to be sealed with a suitable sealant.
• On tiled work surfaces, the joints in the area where the hob sits must be completely filled with
grout.
• On natural, artificial stone, or ceramic tops, the snap action springs must be bonded in place
with a suitable artificial resin or mixed adhesive.
• Ensure that the seal is correctly seated against the work surface without any gaps. Additional
silicon sealant must not be applied; this would make removal more difficult when servicing.
• The hob must be pressed out from below when removed.
5
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
5
2008-02-12
ソタネト 6:13:56
Installing the Hob (Continued)
EN
Connecting to the mains power supply
Before connecting, check that the nominal voltage of the appliance, that is, the voltage stated on the rating
plate, corresponds to the available supply voltage. The rating plate is located on the lower casing of the
hob.
Shut off power to circuit before connecting wires to circuit.
The heating element voltage is AC230 V~. The appliance also works perfectly on older networks with
AC220 V~.
The hob is to be connected to the mains using a device that allows the appliance to be disconnected from
the mains at all poles with a contact opening width of at least 3 mm, eg. automatic line protecting cut - out,
earth leakage trips or fuse.
A type H05SS - F (180°C) cable or one of a higher grade must be used as the mains connecting cable.
2
Rated current of appliance (A)
Nominal cross-sectional area (mm )
1N~
> 25 and ≤ 32
> 4 and < 6
2N~
> 10 and ≤ 16
> 1.5 and < 2.5
The connection must be carried out as shown in the diagram. The connecting links should be fitted according to the appropriate connection diagram.
The earth lead is connected to terminal. The earth lead must be longer than leads carrying electric current.
The cable connections must be made in accordance with regulations and the terminal screws tightened
securely.
The connecting cable is to be secured with the mains cable cleat and the covering closed by pressing firmly
(locking into place). Before switching on for the first time, any protective foil or stickers must be removed
from the ceramic glass surface.
Once the hob is connected to the mains supply, check that all cooking zones are
ready for use by briefly switching each on in turn at the maximum setting.
When the hob is powered on for the first time, all displays light and the child safety
lock is activated.
< IN ~ >
L: Brown
N: Blue
PE: Green
Warning: Pay attention (conformity) to phase and neutral allocation of house connection and appliance (connection schemes); otherwise, components can be damaged.
Warranty does not cover damage resulting from improper installation.
6
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
6
2008-02-12
ソタネト 6:13:56
Installing the Hob (Continued)
Installing into the countertop
EN
Make a note of the serial number on the appliance rating plate prior to installation.
This number will be required in the case of requests for service and is no longer accessible after installation, as it is on the original rating plate on the underside of the
appliance.
Pay special attention to the minimum space and clearance requirements.
Secure the brackets at both sides with the provided screws before mounting the hob
onto the brackets.
Min. 50mm
x4
R3
560
min. 20
+1
490+1
600
50
7
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
7
2008-02-12
ソタネト 6:14:15
Installing the Hob (Continued)
EN
90 x4
2
=
100
100
=
490+1
8
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
8
2008-02-12
ソタネト 6:14:32
Parts and Features
Cooking zones and control panel
EN
Single cooking zone 1800W
Single cooking zone 1200 W
14
8
3
18
m
83
m
m
14
m
m
m
8
m
m
1
Control panel
Single cooking zone
1200 W
Single cooking zone 1800W
Indicators for heat settings
and residual heat
“Lock” control sensor
Heat setting selectors
“On/Off” control sensor
9
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
9
2008-02-12
ソタネト 6:14:50
Parts and Features (Continued)
EN
Components
1 Ceramic Glass Hob
2 Installation Brackets
3 Screws
10
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
10
2008-02-12
ソタネト 6:14:51
Parts and Features (Continued)
The key features of your appliance
EN
• Ceramic glass cooking surface: The appliance has a ceramic glass cooking surface and
four rapid - response cooking zones. The hob’s powerful radiant heater elements significantly
shorten the amount of time required for the zones to heat up.
• Touch control sensors: Your appliance is operated using touch control sensors.
• Easy cleaning: The advantage of the ceramic glass cooking surface and the control sensors
is their accessibility for cleaning. The smooth, flat surface is easy to clean.
• On / Off sensor: The “On / Off” control sensor provides the appliance with a separate mains
switch. Touching this sensor switches the power supply on or off completely.
• Control and function indicators: Digital displays and indicator lights provide information
about settings and activated functions, as well as the presence of residual heat in the various
cooking zones.
• Safety shutoff: A safety shutoff ensures that all cooking zones switch off automatically after
a period of time if the setting has not been changed.
• Residual heat indicator: An icon for residual heat appears in the display if the cooking zone
is so hot that there is a risk of burning.
Digital displays: The four display fields are assigned to the four cooking zones.
They show the following information:
-
the appliance has been switched on,
to selected heat settings,
residual heat,
the child lock is activated; and
error message, the sensor has been touched for longer than 10 seconds.
error message, when the Hob is overheated because of abnormal operation.
11
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
11
2008-02-12
ソタネト 6:14:52
Parts and Features (Continued)
EN
Safety shutoff
If one of the cooking zones is not switched off or the heat setting is not adjusted after an extended period of time, that particular cooking zone will automatically switch itself off.
Any residual warmth will be indicated with (for “hot”) in the digital displays corresponding to
the particular cooking zones.
The cooking zones switch themselves off at the following times.
Cooking setting
1-2
After 6 hours
Cooking setting
3-4
After 5 hours
Cooking setting
5-6
After 3 hours
Cooking setting
7-9
After 1 hour
If the Hob is overheated because of abnormal operation,
And the Hob will be switched off.
will be displayed.
Should one or more of the cooking zones switch off before the indicated time has
elapsed, see the section “Troubleshooting.”
Other reasons why a cooking zone will switch itself off
All cooking zones will immediately switch themselves off if liquid boils over and lands on the
control panel.
The automatic shutoff will also be activated if you place a damp cloth on the control panel. In
both of these instances, the appliance will need to be switched on again using the main power
sensor after the liquid or the cloth has been removed .
Residual heat indicator
When an individual cooking zone or the hob is turned off, the presence of residual heat is
shown with an (for “hot”) in the digital display of the appropriate cooking zones. Even after
the cooking zone has been switched off, the residual heat indicator goes out only after the
cooking zone has cooled.
You can use the residual heat for thawing or keeping food warm.
Important: As long as the residual heat indicator is illuminated, there is a risk of
burns.
Important: If the power supply is interrupted, the symbol will go out and information about residual heat will no longer be available. However, it may still be possible
to burn yourself. This can be avoided by always taking care when near the hob.
12
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
12
2008-02-12
ソタネト 6:14:52
Before You Begin
Initial cleaning
EN
Wipe the ceramic glass surface with a damp cloth and ceramic cooktop glass cleaner.
Important: Do not use caustic or abrasive cleaners. The surface could be damaged.
Hob Use
Using suitable cookware
Better pans produce better results.
• You can recognise good pans by their bases. The base should be as thick and flat as possible.
• When buying new pans, pay particular attention to the diameter of the base. Manufacturers often give only the diameter of the upper rim.
• Pots with aluminium or copper bases can cause metallic discolouration on the ceramic
glass surface. The discolouration is very difficult or impossible to remove.
• Do not use pans made of cast iron or which have damaged bases with rough edges or
burrs. Permanent scratching can occur if these pan are slid across the surface.
• When cold, pan bases are normally bowed slightly inwards (concave). They should never
be bowed outwards (convex).
• If you wish to use a special type of pan, for example, a pressure cooker, a simmering pan,
or a wok, please observe the manufacturer’s instructions.
Energy saving tips
You can save valuable energy by observing the following points.
Right!
Wrong!
13
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
13
2008-02-12
ソタネト 6:14:54
Hob Use (Continued)
EN
• Always position pots and pans before switching on the cooking zone.
• Dirty cooking zones and pan bases increase power consumption.
• When possible, position the lids firmly on the pots and pans to cover completely.
• Switch the cooking zones off before the end of the cooking time to use the residual heat
for keeping foods warm or for thawing.
• The base of the pan should be the same size as the cooking zone.
• Using a pressure cooker reduces cooking times by up to 50 %
Using the touch control sensors
To operate the touch control sensors, touch the desired panel with the tip of your pointed finger until the relevant displays illuminate or go out, or until the desired function is activated.
Ensure that you are touching only one sensor panel when operating the appliance. If your
finger is too flat on the panel, an adjacent sensor may be actuated as well.
14
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
14
2008-02-12
ソタネト 6:14:55
Hob Use (Continued)
Switching the appliance on
EN
Touch the “Lock ” sensor for approximately 3 seconds.
The appliance is switched on using the “On / Off ” control sensor.
Touch the “On / Off ” sensor.
The digital displays will show .
After the “On / Off ” sensor has been actuated to switch on your appliance, a heat
setting must be selected within approximately 10 seconds. Otherwise, the appliance
will switch itself off for safety reasons.
Temperature control
For setting and adjusting the power level ( to ) for cooking, touch the corresponding cooking zone’s
,
keys.
The first time
is pressed, the heat level is set to .
The first time
is pressed, the heat level is set to .
Use the
key to increase the heat setting and the
key to decrease.
15
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
15
2008-02-12
ソタネト 6:14:56
Hob Use (Continued)
EN
Switching the appliance off
To completely switch off the appliance, use the “On / Off
Touch the “On / Off ” sensor.
” control sensor.
After switching off a single cooking zone or the entire cooking surface, the presence of
residual heat will be indicated in the digital displays of the corresponding cooking zones
in the form of an (for “hot”).
If the heat setting is at and you want to turn the
burner off, the sensor can be
touched one additional time, and the heat setting will go to zero.
For faster adjustment, keep your finger on the
or
sensor until the required
value is obtained.
If more than one sensor is pressed for longer than 10 seconds,
will show in the
heat setting display. To reset, touch the “On / Off ” sensor.
Switching a cooking zone off
To switch off a cooking zone, return the setting to
and touch sensors
or
.
by using the control panel’s heat setting
16
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
16
2008-02-12
ソタネト 6:14:56
Hob Use (Continued)
Using the child safety lock
EN
You can use the child safety lock to safeguard against unintentionally turning on a cooking
zone and activating the cooking surface. The lock control sensor can be used only when the
power is on.
Switching the child safety lock on
1. Touch the
control sensor for approximately 3 seconds.
An acoustic signal will sound as confirmation.
approx. 3 sec.
2. Touch any heat setting control sensor .
will appear in the displays, indicating the child safety lock has been activated.
17
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
17
2008-02-12
ソタネト 6:15:14
Hob Use (Continued)
EN
Switching the child safety lock off
1. Touch the control sensor for approximately 3 seconds.
An acoustic signal will sound as confirmation.
approx. 3 sec.
18
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
18
2008-02-12
ソタネト 6:15:32
Hob Use (Continued)
Locking and unlocking the control panel
EN
At any stage during the cooking process, the control panel, with the exception of the “On / Off
” control sensor, can be locked in order to prevent the settings from being changed unintentionally, for example, by wiping over the panel with a cloth.
1. Touch the lock control sensor for approximately 3 seconds.
The indicator light in the lock control sensor will illuminate. The control sensors are now
locked.
2. To unlock the control sensor, touch the lock control sensor again for approximately 3 seconds. The indicator light in the lock control sensor will extinguish.
approx. 3 sec.
Suggested settings for cooking specific foods
The figures in the table below are guidelines. The heat settings required for various cooking
methods depend on a number of variables, including the quality of the cookware being used
and the type and amount of food being cooked.
Switch Setting
Cookingmethod
9
Warming
Sautéing
Frying
Warming large amounts of liquid, boiling noodles,
searing meat, (browning goulash,braising meat)
7
Intensive
Frying
Steak, sirloin, hash browns, sausages, pancakes /
griddle cakes
6
Frying
8
5
4
3
Boiling
2
Steaming
Stewing
Boiling
1
Melting
Examples for Use
Schnitzel / chops, liver, fish, rissoles, fried eggs
Cooking up to 1.5 l liquid, potatoes, vegetables
Steaming and stewing of small amounts of vegetables, boiling rice and milk dishes
Melting butter, dissolving gelatine, melting chocolate
Note
• The heat settings indicated in the table above are provided only as guidelines for your reference.
• You will need to adjust the heat settings according to specific cookware and foods.
19
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
19
2008-02-12
ソタネト 6:15:49
Cleaning and Care
EN
Hob
Important: Cleaning agents must not come into contact with a heated ceramic glass
surface: All cleaning agents must be removed with adequate amounts of clean water
after cleaning because they can have a caustic effect when the surface becomes
hot. Do not use any aggressive cleaners such as grill or oven sprays, scouring pads
or abrasive pan cleaners.
Clean the ceramic glass surface after each use when it is still warm to the touch.
This will prevent spillage from becoming burnt onto the surface. Remove scales,
watermarks, fat drippings and metallic discolouration with the use of a commercially
available ceramic glass or stainless steel cleaner.
Light Soiling
1. Wipe the ceramic glass surface with a damp cloth.
2. Rub dry with a clean cloth. Remnants of cleaning agent must not be left on the surface.
3. Thoroughly clean the entire ceramic glass cooking surface once a week with a commercially available ceramic glass or stainless steel cleaner.
4. Wipe the ceramic glass surface using adequate amounts of clean water and rub dry with a
clean lint - free cloth.
Stubborn Soiling
1. To remove food that has boiled over and stubborn splashes, use a glass scraper.
2. Place the glass scraper at an angle to the ceramic glass surface.
3. Remove soiling by scraping with the blade.
Glass scrapers and ceramic glass cleaners are available from specialty retailers.
20
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
20
2008-02-12
ソタネト 6:15:50
Cleaning and Care (Continued)
Problem Dirt
1. Remove burnt-on sugar, melted plastic, aluminium foil or other materials with a glass
scraper immediately and while still hot.
EN
Important: There is a risk of burning yourself when the glass scraper is used on a
hot cooking zone:
2. Clean the hob as normal when it has cooled down.
If the cooking zone on which something has
melted has been allowed to cool, warm it up
again for cleaning.
Scratches or dark blemishes on the ceramic glass
surface, caused, for example, by a pan with sharp
edges, cannot be removed. However, they do
not impair the function of the hob.
Hob Frame
Important: Do not use vinegar, lemon juice or scale remover on the hob frame;
otherwise dull blemishes will appear.
1. Wipe the frame with a damp cloth.
2. Moisten dried debris with a wet cloth. Wipe and rub dry.
To avoid damaging your appliance
• Do not use the cooktop as a work surface or for storage.
• Do not operate a cooking zone if there is no pan on the cooktop or if the pan is empty.
• Ceramic glass is very tough and resistant to temperature shock, but it is not unbreakable.
It can be damaged by a particularly sharp or hard object dropping onto the cooktop.
• Do not use pans made of cast iron or which have damaged bases with rough edges or
burrs. Scratching may occur if these pans are slid across the surface.
• Do not place pans on the hob frame. Scratching and damage to the finish may occur.
• Avoid spilling acidic liquids, for example, vinegar, lemon juice and descaling agents, onto
the hob frame, since such liquids can cause dull spots.
• If sugar or a preparation containing sugar comes into contact with a hot cooking zone and
melts, it should be cleaned off immediately with a kitchen scraper while it is still hot. If allowed to cool, it may damage the surface when removed.
• Keep all items and materials that could melt, for example, plastics, aluminium foil and
oven foils, away from the ceramic glass surface. If something of this nature melts onto the
cooktop, it must be removed immediately with a scraper.
21
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
21
2008-02-12
ソタネト 6:15:50
Warranty and Service
EN
FAQs and troubleshooting
A fault may result from a minor error that you can correct yourself with the help of the following
instructions. Do not attempt any further repairs if the following instructions do not help in each
specific case.
Warning: Repairs to the appliance are to be performed only by a qualified service
technician. Improperly effected repairs may result in considerable risk to the user. If
your appliance needs repair, please contact your customer service centre.
What should I do if the cooking zones are not functioning?
Check for the following possibilities:
• The fuse in the house wiring (fuse box) is intact. If the fuses trip a number of times, call an
authorised electrician.
• The appliance is properly switched on.
• The control indicators in the control panel are illuminated.
• The cooking zone is switched on.
• The cooking zones are set at the desired heat settings.
What should I do if the cooking zones will not switch on?
Check for the following possibilities:
• A period of more than 10 seconds has elapsed between when the On / Off button was actuated and the desired cooking zone switches on (see the section “Switching the appliance
on”).
• The control panel is partially covered by a damp cloth or liquid.
What should I do if the display except for
denly disappears?
the residual warmth indicator sud-
This could be a result of one of two possibilities:
• The On / Off sensor was accidentally actuated.
• The control panel is partially covered by a damp cloth or liquid.
What should I do if, after the cooking zones have been switched off, residual
warmth is not indicated in the display?
Check for the following possibility:
• The cooking zone was only briefly used and therefore did not become hot enough. If the
cooking zone is hot, please call the customer service centre.
What should I do if the cooking zone will not switch on or off?
This could be due to one of the following possibilities:
• The control panel is partially covered by a damp cloth or liquid.
• The child safety lock is on.
What should I do if the
display is illuminated?
Check for the following:
• The control panel is partially covered by a damp cloth or liquid. To reset, press the “On / Off”
control sensor.
22
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
22
2008-02-12
ソタネト 6:15:50
Warranty and Service (Continued)
What does it mean when the burner does not glow red?
• The selected temperature of the cooking zone is maintained by a sensor that cycles the zone
on and off, so the surface cooking area will not always glow red. If you select a low heat
setting, the heat will cycle on and off more frequently than at higher settings. The heat also
cycles on and off at the highest setting.
EN
If you request a service call because of an error made in operating the appliance, the visit from
the customer service technician may incur a charge even during the warranty period.
Service
Before calling for assistance or service, please check the section “Troubleshooting.”
If you still need help, follow the instructions below.
Is it a technical fault?
If so, please contact your customer service centre.
Always prepare in advance for the discussion. This will ease the process of diagnosing the
problem and also make it easier to decide if a customer service visit is necessary.
Please take note of the following information.
• What form does the problem take?
• Under what circumstances does the problem occur?
When calling, please know the model and serial number of your appliance. This information is
provided on the rating plate as follows:
• Model description
• S / N code (10 digits)
We recommend that you record the information here for easy reference.
Model:
Serial number:
When do you incur costs even during the warranty period?
• if you could have remedied the problem yourself by applying one of the solutions provided in
the section “Troubleshooting,”
• if the customer service technician has to make several service calls because he was not
provided with all of the relevant information before his visit and as a result, for example, has
to make additional trips for parts. Preparing for your phone call as described above will save
you the cost of these trips.
23
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
23
2008-02-12
ソタネト 6:15:50
Technical Data
EN
Appliance dimensions
Width
Depth
Height
575 mm
505 mm
55 mm
Worktop cut - out dimensions
Width
Depth
Corner radius
560 mm
490 mm
3 mm
Cooking rings
Position
Diameter
Power
Front left
183 mm
1,800 W
Rear left
148 mm
1,200 W
Rear right
183 mm
1,800 W
Front right
148 mm
1,200 W
Connection voltage
Maximum connected load power
Weight : Net
7.5 kg
Gross
10.0 kg
230 V ~ 50 Hz
6.0 kW
24
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
24
2008-02-12
ソタネト 6:15:50
Note
EN
25
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
25
2008-02-12
ソタネト 6:15:51
QUESTIONS OR COMMENTS
COUNTRY
CALL
OR VISIT US ONLINE AT
www.samsung.com/be
BELGIUM
0032 (0)2 201 24 18
CZECH REPUBLIC
844 000 844
www.samsung.com/cz
DENMARK
70 70 19 70
www.samsung.com/dk
FINLAND
030-6227 515
www.samsung.com/fi
FRANCE
3260 SAMSUNG (€ 0,15/Min)
08 25 08 65 65 (€ 0,15/Min)
www.samsung.com
GERMANY
01805 - SAMSUNG(726-7864 € 0,14/Min)
www.samsung.com
HUNGARY
06-80-SAMSUNG(726-7864)
www.samsung.com
ITALIA
800-SAMSUNG(726-7864)
www.samsung.com
LUXEMBURG
0035 (0)2 261 03 710
www.samsung.com/be
NETHERLANDS
0900-SAMSUNG (726-7864 € 0,10/Min)
www.samsung.com/nl
NORWAY
815-56 480
www.samsung.com/no
POLAND
0 801 801 881
022-607-93-33
www.samsung.com/pl
PORTUGAL
80820-SAMSUNG(726-7864)
www.samsung.com/pt
SLOVAKIA
0800-SAMSUNG(726-7864)
www.samsung.com/sk
SPAIN
902 10 11 30
www.samsung.com
SWEDEN
0771-400 200
www.samsung.com/se
U.K
0845 SAMSUNG (7267864)
www.samsung.com
EIRE
0818 717 100
www.samsung.com/ie
AUSTRIA
0800-SAMSUNG(726-7864)
www.samsung.com/at
Switzerland
0800-SAMSUNG(726-7864)
www.samsung.com/ch
Code No.: DG68-00031A-01
C Top_MID] C61RAAST_XEU-00031A-01_EN.indd
26
2008-02-12
ソタネト 6:15:51
