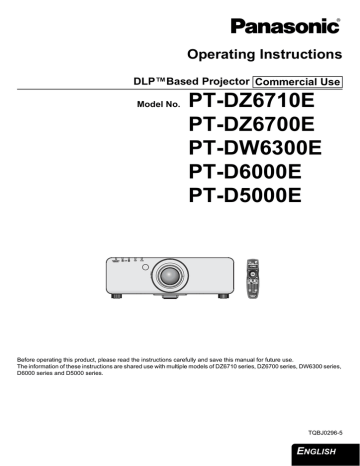

Operating Instructions
DLP™Based Projector Commercial Use
Model No.
STANDBY(RED)/
ON(GREEN)
LAMP
TEMP
PT-DZ6710E
PT-DZ6700E
PT-DW6300E
PT-D6000E
PT-D5000E
FILTER
Before operating this product, please read the instructions carefully and save this manual for future use.
The information of these instructions are shared use with multiple models of DZ6710 series, DZ6700 series, DW6300 series,
D6000 series and D5000 series.
TQBJ0296-5
ENGLISH
Important Safety Notice
Important
Information
Dear Panasonic Customer:
This instruction booklet provides all the necessary operating information that you might require. We hope it will help
you to get the most out of your new product, and that you will be pleased with your Panasonic DLP™Based projector.
The serial number of your product may be found on its bottom. You should note it in the space provided below and
retain this booklet in case service is required.
Model number:
PT-DZ6710E/PT-DZ6700E/PT-DW6300E/PT-D6000E/PT-D5000E
Serial number:
WARNING:
THIS APPARATUS MUST BE EARTHED.
WARNING:
To prevent damage which may result in fire or shock hazard, do not expose this appliance
to rain or moisture.
Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator
position is equal or less than 70 dB (A) according to ISO 7779.
WARNING:
1. Remove the plug from the mains socket when this unit is not in use for a prolonged period of time.
2. To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified
service personnel.
3. Do not remove the earthing pin on the mains plug. This apparatus is equipped with a three prong earthingtype mains plug. This plug will only fit an earthing-type mains socket. This is a safety feature. If you are unable
to insert the plug into the mains socket, contact an electrician. Do not defeat the purpose of the earthing plug.
CAUTION:
To assure continued compliance, follow the attached installation instructions, which includes using
the provided power cord and shielded interface cables when connecting to computer or peripheral
device. If you use serial port to connect PC for external control of projector, you must use optional
RS-232C serial interface cable with ferrite core. Any unauthorized changes or modifications to this
equipment will void the user’s authority to operate.
Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, F.R. Germany
ENGLISH - 2
Information for Users on Collection and Disposal of Old Equipment and used
Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used electrical
and electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC
and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment which could otherwise
arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your
local municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
Important
Information
Important Safety Notice
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
Information on Disposal in other Countries outside the European Union
These symbols are only valid in the European Union. If you wish to discard these items, please contact
your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical involved.

Environment care information for users in China
This symbol is only valid in China.
ENGLISH - 3
Important Safety Notice
Important
Information
IMPORTANT: THE MOULDED PLUG (U.K. only)
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This appliance is supplied with a moulded three pin mains plug for your safety and convenience.
A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the
replacement fuse has a rating of13 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark a or the BSI mark ` on the body of the fuse.
If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is
replaced. If you lose the fuse cover, the plug must not be used until a replacement cover is
obtained. A replacement fuse cover can be purchased from an Authorised Service Centre.
If the fitted moulded plug is unsuitable for the mains socket in your home, then the fuse
should be removed and the plug cut off and disposed of safely. There is a danger of severe
electrical shock if the cut off plug is inserted into any 13 amp socket.
If a new plug is to be fitted, please observe the wiring code as shown below.
If in any doubt, please consult a qualified electrician.
WARNING:
THIS APPLIANCE MUST BE EARTHED.
IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:
Green - and - Yellow: Earth
Blue:
Neutral
Brown:
Live
As the colours of the wire in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows.
The wire which is coloured GREEN - AND - YELLOW must be connected to the
terminal in the plug which is marked with the letter E or by the Earth symbol W or
coloured GREEN or GREEN - AND - YELLOW.
The wire which is coloured BLUE must be connected to the terminal in the plug which
is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal in the plug
which is marked with the letter L or coloured RED.
ASA
L
HE
-8
13
A2
50
V
N
BS
13
63
/A
How to replace the fuse: Open the fuse compartment with a screwdriver and
replace the fuse.
ENGLISH - 4
 Quick steps
1. Set up your projector
See “Setting up” on page 16.
Getting Started
Setting up.................................................................. 16
Projection method........................................................... 16
Removing and attaching the projection lens................... 17
Mains lead ...................................................................... 18
Important
Information
Contents
Operating range.............................................................. 21
Setting up the image position automatically ................... 21
Switching the input signal ............................................... 22
Stopping the projection................................................... 22
Clearing the on-screen menu ......................................... 22
Changing the picture aspect ratio................................... 22
Displaying the internal test pattern ................................. 22
Using an assigned function ............................................ 23
Displaying the status of the projector ............................. 23
Resetting to the factory default....................................... 23
Menu Navigation....................................................... 24
Main menu and Sub-menu ............................................. 24
Navigating through the menu ......................................... 27
Maintenance
Monitor Lamp indicators ......................................... 28
4. Start projecting
See “Projecting” on page 19.
Managing the indicated problems................................... 28
Replacement ............................................................. 30
Replacing the Lamp unit................................................. 30
Replacing the Auto Cleaning Filter (ACF) ...................... 32
Troubleshooting ....................................................... 33
Appendix
Technical Information .............................................. 34
5. Adjust the image
See “Menu Navigation” on page 24.
List of compatible signals ............................................... 34
Specifications ................................................................. 36
Ceiling mount bracket safeguards .................................. 38
Dimensions..................................................................... 39
Trademark acknowledgements ...................................... 39
Index .......................................................................... 40
Important Information
Important Safety Notice..............................................2
Precautions with regard to safety .............................6
Appendix
WARNINGS ...................................................................... 6
CAUTIONS ....................................................................... 7
Cautions when transporting .............................................. 9
Cautions when installing ................................................... 9
Cautions on use ................................................................ 9
Others ............................................................................. 10
Security ........................................................................... 10
Accessories..................................................................... 11
Basic Operation
3. Prepare the Remote control
See “Remote control” on page 14.
Projecting a image.......................................................... 19
Remote control operation........................................ 21
Maintenance
2. Connect with other devices
See the functional instructions in the
CD-ROM that is provided with the
projector.
Getting Started
Projecting.................................................................. 19
Preparation
Basic Operation
Preparation
About Your Projector................................................12
Projector body................................................................. 12
Remote control................................................................ 14
ENGLISH - 5
Precautions with regard to safety
Important
Information
WARNINGS
If you notice smoke, strange smells or noise coming
from the projector, disconnect the mains plug from
the mains socket.
 Do not continue to use the projector in such cases,
otherwise fire or electric shocks could result.
 Check that no more smoke is coming out, and then
contact an Authorised Service Centre for repairs.
 Do not attempt to repair the projector yourself, as this
can be dangerous.
Do not install this projector in a place which is not
strong enough to take the full weight of the
projector.
 If the installation location is not strong enough, it may
fall down or tip over, and severe injury or damage
could result.
Installation work (such as ceiling suspension)
should only be carried out by a qualified technician.
 If installation is not carried out correctly, there is the
danger that injury or electric shocks may occur.
 Do not use other than an authorised ceiling mount
bracket.
If foreign objects or water get inside the projector, or
if the projector is dropped or the cabinet is broken,
disconnect the mains plug from the mains socket.
 Continued use of the projector in this condition may
result in fire or electric shocks.
 Contact an Authorised Service Centre for repairs.
The mains socket shall be installed near the
equipment and shall be easily accessible.
 Unplug the mains plug from the mains socket
immediately when problem occurred.
Do not overload the mains socket.
 If the power supply is overloaded (for example, by
using too many adapters), overheating may occur
and fire may result.
Never attempt to modify or disassemble the
projector.
 High voltages can cause fire or electric shocks.
 For any inspection, adjustment and repair work,
please contact an Authorised Service Centre.
Clean the mains plug regularly to prevent it from
becoming covered in dust.
 If dust builds up on the mains plug, the resulting
humidity can damage the insulation, which could
result in fire. Pull the mains plug out from the mains
socket and wipe it with a dry cloth.
 If not using the projector for an extended period of
time, pull the mains plug out from the mains socket.
Do not handle the mains plug with wet hands.
 Failure to observe this may result in electric shocks.
ENGLISH - 6
Insert the mains plug securely into the mains socket.
 Do not use other than the provided mains lead.
 If the plug is not inserted correctly, electric shocks or
overheating could result.
 Do not use plugs which are damaged or mains
sockets which are coming loose from the wall.
Do not place the projector on top of surfaces which
are unstable.
 If the projector is placed on top of a surface which is
sloped or unstable, it may fall down or tip over, and
injury or damage could result.
Do not place the projector into water or let it become
wet.
 Failure to observe this may result in fire or electric
shocks.
Do not do anything that might damage the mains
lead or the mains plug.
 Do not damage the mains lead, make any
modifications to it, place it near any hot objects, bend
it excessively, twist it, pull it, place heavy objects on
top of it or wrap it into a bundle.
 If the mains lead is used while damaged, electric
shocks, short-circuits or fire may result.
 Ask an Authorised Service Centre to carry out any
repairs to the mains lead that might be necessary.
Do not place the projector on soft materials such as
carpets or sponge mats.
 Doing so may cause the projector to overheat, which
can cause burns, fire or damage to the projector.
Do not place liquid containers on top of the
projector.
 If water spills onto the projector or gets inside it, fire
or electric shocks could result.
 If any water gets inside the projector, contact an
Authorised Service Centre.
Do not insert any foreign objects into the projector.
 Do not insert any metal objects or flammable objects
into the projector or drop them onto the projector, as
doing so can result in fire or electric shocks.
Do not allow the + and - terminals of the batteries to
come into contact with metallic objects such as
necklaces or hairpins.
 Failure to observe this may cause the batteries to
leak, overheat, explode or catch fire.
 Store the batteries in a plastic bag and keep them
away from metallic objects.
Do not touch the leaked liquid from the batteries.
 If you touch the leaked liquid, it may hurt your skin.
Immediately wash away the liquid with water and
seek medical advice.
 If you get the leaked liquid in your eye, it may cause
blindness or damage. Never rub your eye, and
immediately wash away the liquid with water and
seek medical advice.
During a thunderstorm, do not touch the projector or
the cable.
 Electric shocks can result.
Do not use the projector in a bath or shower.
 Fire or electric shocks can result.
Do not place your skin into the light beam while the
projector is being used.
 Strong light is emitted from the projector’s lens. If you
place directly into this light, it can hurt or damage
your skin.
Do not look into the lens while the projector is being
used.
 Strong light is emitted from the projector’s lens. If you
look directly into this light, it can hurt and damage
your eyes.
Do not disassemble the lamp unit.
 If the lamp section breaks, it may cause injury.
Do not place your hands or other objects close to the
air outlet port.
 Heated air comes out of the air outlet port. Do not
place your hands or face, or objects which cannot
withstand heat close to this port [allow at least
50 cm (20") of space], otherwise burns or damage
could result.
Replacement of the lamp should be carried out by a
qualified technician.
 The lamp has high internal pressure. If improperly
handled, explosion might result.
 The lamp can easily become damaged if struck
against hard objects or dropped, and injury or
malfunctions may result.
When replacing the lamp, allow it to cool for at least
one hour before handling it.
 The lamp cover gets very hot, and touching it can
cause burns.
Before replacing the lamp, be sure to disconnect the
mains plug from the mains socket.
 Electric shocks or explosions can result if this is not
done.
Important
Information
Precautions with regard to safety
Do not allow infants or pets to touch the remote
control unit.
 Keep the remote control unit out of the reach of
infants and pets after using it.
After removing the battery from remote control unit,
keep it away from the reach of children.
 The battery can cause death by suffocation if
swallowed.
 If the battery is swallowed, seek medical advice
immediately.
Insulate the battery using tape or similar before
disposal.
 If the battery comes into contact with metallic objects
or other batteries, it may catch fire or explode.
When installing to a ceiling, be sure to use the
accessory wire (install in a different location to the
ceiling mount bracket) and the eye bolts as an extra
preventative measure to stop the projector from
falling down.
 If the projector is not secure enough, accidents may
result.
Do not place sets directly on top of each other.
 If this is not observed, accidents may result.
Do not use the projector while the projection lens
cover is still attached to the projection lens.
 If this is not observed, fire may occur.
CAUTIONS
Do not cover the air inlet port or the air outlet port.
 Doing so may cause the projector to overheat, which
can cause fire or damage to the projector.
 Do not place the projector in narrow, badly ventilated
places such as closets or bookshelves.
 Do not place the projector on cloth or papers, as
these materials could be drawn into the air inlet port.
Do not set up the projector in humid or dusty places
or in places where the projector may come into
contact with oily smoke or steam.
 Using the projector under such conditions may result
in fire, electric shocks or plastic deterioration. The
plastic deterioration may cause the falling down of
the projector which is mounted on the ceiling.
ENGLISH - 7
Precautions with regard to safety
Important
Information
Do not set up the projector in a high temperature
environment, such as near a heater or in direct
sunlight.
 Failure to observe this may result in fire, malfunction
or plastic deterioration.
Do not set up the projector outdoors.
 The projector is designed for indoor use only.
When disconnecting the mains lead, hold the plug,
not the lead.
 If the mains lead itself is pulled, the lead will become
damaged, and fire, short-circuits or serious electric
shocks may result.
Always disconnect all cables before moving the
projector.
 Moving the projector with cables still attached can
damage the cables, which could cause fire or electric
shocks to occur.
Do not place any heavy objects on top of the
projector.
 Failure to observe this may cause the projector to
become unbalanced and fall, which could result in
damage or injury.
Do not short-circuit, heat or disassemble the
batteries or place them into water or fire.
 Failure to observe this may cause the batteries to
overheat, leak, explode or catch fire, and burns or
other injury may result.
When inserting the batteries, make sure the
polarities (+ and -) are correct.
 If the batteries are inserted incorrectly, they may
explode or leak, and fire, injury or contamination of
the battery compartment and surrounding area may
result.
Use only the specified batteries.
 If incorrect or different kind of batteries are used, they
may explode or leak, and fire, injury or contamination
of the battery compartment and surrounding area
may result.
Do not mix old and new batteries.
 If the batteries are used mixing old and new, they
may explode or leak, and fire, injury or contamination
of the battery compartment and surrounding area
may result.
Remove the used batteries from the remote control
promptly.
 If you leave used batteries in the remote control for
an extended period of time, it may cause liquid
leaking, abnormal internal temperature rising or
explosion.
ENGLISH - 8
If not using the projector for an extended period of
time, disconnect the mains plug from the mains
socket and remove the batteries from the remote
control.
 If dust builds up on the mains plug, the resulting
humidity may damage the insulation, which could
result in fire.
 Keeping or leaving the remote control with batteries
inside may cause insulation deterioration, electrical
leakage or explosion which could result in fire.
Do not use the old lamp unit.
 The lamp section may break.
Do not put your weight on this projector.
 You could fall or the projector could break, and injury
may result.
 Be especially careful not to let young children stand
or sit on the projector.
Disconnect the mains plug from the mains socket as
a safety precaution before carrying out any cleaning.
 Electric shocks can result if this is not done.
If the lamp has broken, ventilate the room
immediately. Do not touch or bring your face close
to the broken pieces.
 Failure to observe this may cause the user to absorb
the gas which was released when the lamp broke and
which contains nearly the same amount of mercury
as fluorescent lamps, and the broken pieces may
cause injury.
 If you believe that you have absorbed the gas or that
the gas has got into your eyes or mouth, seek
medical advice immediately.
 Ask your dealer about the replacement of the lamp
unit and check the inside of the projector.
Ask an Authorised Service Centre to clean inside the
projector at least once a year.
 If dust is left to build up inside the projector without
being cleaned out, it can result in fire or problems
with operation.
 It is a good idea to clean the inside of the projector
before the season for humid weather arrives. Ask
your nearest Authorised Service Centre to clean the
projector when required. Please discuss with the
Authorised Service Centre regarding cleaning costs.
Do not use chemical treated wipes when cleaning.
 Using chemical treated wipes may result in plastic
distortion or deterioration.
Do not reach for the openings beside the optical
lens, during horizontal or vertical movements of the
lens.
 Failure to observe this may cause injury.
Replacement of the lamp unit should only be carried
out after it has completely cooled off.
 Failure to observe this may cause burns.
We are constantly making efforts to preserve and maintain a clean environment. Please take non repairable
units back to your dealer or a recycling company.
Important
Information
Precautions with regard to safety
Cautions when transporting
Do not subject the projector to excessive vibration
or shocks.
 The projector lens need to be handled with care.
 Cover the lens with the lens cover when transporting
the projector.
When transporting the projector, hold the body at
the bottom securely.
 Do not hold the adjuster legs or the top cover to move
the projector, as this may damage the projector.
Be sure to always remove the lens during transport.
 The projection lens is susceptible to vibrations and
impacts.
Cautions when installing
Avoid setting up in places which are subject to
vibration or shocks.
 The internal parts can be damaged, which may cause
malfunctions or accidents.
Avoid setting up in places which are subject to
sudden temperature changes, such as near an air
conditioner or lighting equipment.
 The life of the lamp may be shortened or the projector
may be turned off. See “TEMP indicator” on page 28.
Do not set up the projector near high-voltage power
lines or near motors.
 The projector may be subject to electromagnetic
interference.
If installing the projector to the ceiling, ask a
qualified technician to carry out all installation work.
 You will need to purchase the separate installation kit
(Model No. ET-PKD56H, ET-PKD55S). Furthermore,
all installation work is should only be carried out by a
qualified technician.
If using this projector at high elevations 1 400 2 700 m (4 593 - 8 858 ft) sea level, set the HIGH
ALTITUDE MODE to ON.
 Failure to observe this may result in malfunctions or
the life of the lamp or the other components may be
shortened.
Be sure to install the projection lens cover after
installing the projection lens.
 If this not done, dust will collect inside the projector
and problems with the projector will result.
Cautions on use
In order to get the best picture quality
 Draw curtains or blinds over any windows and turn off
any lights near the screen to prevent outside light or
light from indoor lamps from shining onto the screen.
 In rare cases, wafture can occur on the screen
affected by the warm air from the exhaust port
depending on the environment. Make sure that there
is no equipment in front of the set which will
recirculate the exhaust air from the set or other
nearby equipment.
Do not touch the surfaces of the lens or the front
glass with your bare hands.
 If the surface of the lens becomes dirty from
fingerprints or anything else, this will be magnified
and projected onto the screen. Moreover, when not
using the projector, close the front panel cover.
ENGLISH - 9
Precautions with regard to safety
Important
Information
The projector has a high pressure mercury lamp and
that is characterised as follows.
 The brightness of the lamp depends on the duration
of use.
 The lamp may explode or shorten the lamp life by
shocks or chipping damage.
 The lamp may explode only occasionally after using
the projector.
 The lamp may explode if using the projector after the
instructed lamp replacement timing.
 When the lamp exploded, it emits internal smoke-like
gas.
 The lamp life is depends on individual lamp
characteristics, usage condition and the installation
environment. Especially the consecutive use of the
projector for more than 22 hours, or the frequent
switching on or off may greatly affect on the lamp life.
 Provide a lamp for replacement in advance.
Optical components
 If you use the projector consecutively 22 hours every
day, the optical components may need to be replaced
in less than 1 year.
Do not use projectors with the adjustable feet or
projection lens cover removed.
 If this is not observed, the sets may not operate
correctly or accidents may result.
DLP chips
 The DLP chips are made using extremely highprecision technology. Note that in rare cases, pixels
may be missing or always lit, but this is not a
malfunction.
Others
Disposal
 When disposing of the product, contact your nearest
municipality or dealer to confirm the correct
procedure for disposal.
Connection to external device
 When connecting the projector to a computer or
external device, use the power cord supplied with the
corresponding device and a commercially available
shielded interface cable.
Security
Take the safety measures for use of the projector
that should cover the following envisioned
incidents.
 The leakage of your personal registered information.
 Dishonest operation by an untrusted third party.
 Locking out or prevent anyone else from using the
projector by an untrusted third party.
ENGLISH - 10
Security instruction
 The connecting network must be secured by firewall
or others.
 Change your password regularly.
 Do not use password too simple to guess.
 The Authorised Service Centre will never ask you for
the password.
 Do not share your password with anyone else.
 Password the projector and restrict access to
authorized users only.
Accessories
Make sure the following accessories are provided with your projector.
Remote control (x1)
N2QAYB000371
AA batteries for remote
control (x2)
Safety cable (x1),
Washers (x2)
TTRA0214
Projector lens cover (x1)
TKKL5244-1
Lens cover (x1)
TKPB35101A
Mains lead (x1)
K2CM3FZ00003
Important
Information
Precautions with regard to safety
Mains lead (x1)
K2CT3FZ00003
Power cord secure lock
(x1)
TTRA0183
CD-ROM (x1)
TQBH9013
* The protectors for enclosed products, such as a plug cover or foam cartons, must be treated properly.
* Contact to an Authorised Service Centre for lost accessories.
ENGLISH - 11
About Your Projector
Projector body
 Top, front and bottom view
Preparation
Indicators
Power indicator
Lamp1 (LAMP1) indicator (page 28)
Lamp2 (LAMP2) indicator (page 28)
Temperature (TEMP) indicator (page 28)
Filter (FILTER) indicator (page 29)
STANDBY(RED)/
ON(GREEN)
LAMP
TEMP
Lamp unit compartment (page 30)
Air exhaust port
FILTER
Projection lens
Focus ring
STANDBY(RED)/
ON(GREEN)
LAMP
TEMP
FILTER
POWER ON button
Starts the projection while
in the standby mode.
(page 19)
Remote control signal
receptor (page 21)
Front leg adjusters
Screw up/down to adjust the
projection angle.
Burglar hook port
Attach a commercial burglar
prevention cable.
POWER STANDBY
button
Returns to the standby
mode. (page 20)
MENU button
Displays and clears the main
menu, and returns to the
previous menu when the menu
is displayed. (page 27)
LENS button
This button is used together with
F G I H to adjust focus, zoom
and shift by the projection lens.
(page 19)
Input select buttons
These buttons select the
RGB1, RGB2, DVI-D, VIDEO,
S-VIDEO and SDI
(PT-DZ6710E only) terminals.
(page 19)
Navigation and
ENTER buttons
Navigate through
the menu items
with F G I H,
and activate them
with the ENTER
button. (page 27)
AUTO SETUP button
Pressing this button while projecting an image
automatically corrects the picture positioning on
the screen. While the auto setup feature is active,
a message “PROGRESS” appears on the screen.
(page 21)
Remote control signal receptor (page 21)
SHUTTER button
Pressing this button toggles the projector’s
internal mechanical shutter to black out the
projector. (page 22)
NOTE:
• Do not cover the ventilation openings or place anything within 50 cm (20") of them as this may cause damage or injury.
• While the projector is not in use, keep the projector lens cover attached to protect the lens.
ENGLISH - 12
About Your Projector
 Side views
S-VIDEO IN
Connect an S-VIDEO signals.
(Mini DIN 4 pin)
RGB 1 IN
Connect an RGB or YPBPR signals.
(3, 4 or 5 wire BNC)
VIDEO IN
Connect a video signals.
(BNC)
LAN
Connect a LAN cable for network
connection.
(RJ-45)
REMOTE 1 IN/OUT
When two or more main
units are used in the system,
they can be connected and
controlled with wired remote
control cable.
(M3 jack)
DVI-D IN
Connect a single link DVI-D signals.
(DVI-D 24 pin)
REMOTE 2
Connect a cable from an
external control circuit.
(D-sub 9 pin female)
Air intake port
SERIAL IN/SERIAL OUT SDI IN (PT-DZ6710E only)
Connect an RS-232C cable Connect a cable from a
from/to a computer.
computer.
(BNC)
Air intake port
POWER button
Switch the projector on/off. (page 19)
AC IN terminal
Connect the main lead to supply
electronic power to the projector.
(page 19)
Security lock
Attach the commercial shackle lock, manufactured
by Kensington, to protect your projector.
Compatible with the Kensington MicroSaver
Security System.
Auto Cleaning Filter (ACF) compartment (page 32)
NOTE:
• Switch on the POWER button of the projector body that is located near the terminals before using the control buttons.
• Do not touch the LAN terminal with your bare hands or body, as body parts may have charged static electricity. Failure to do so may
cause malfunctions. Do not touch the metallic parts of LAN terminal and cable.
• Please connect the LAN to indoor devices only.
ENGLISH - 13
Preparation
RGB 2 IN
Connect an RGB or YPBPR signals.
(D-SUB 15 pin female)
About Your Projector
Remote control
Preparation
POWER ON and POWER STANDBY
buttons
POWER ON: Starts
the projection while in
the standby mode.
POWER STANDBY: Returns to the
standby mode. (page 19)
INPUT SELECT buttons
These buttons
select the RGB1,
RGB2, DVI-D,
VIDEO, S-VIDEO
and SDI terminals. (page 22)
MENU buttons
Displays and clears the main
menu, and returns to the
previous menu when the menu
is displayed. (page 27)
ON SCREEN button
Displays and clears the on
screen indications. (page 22)
TEST PATTERN button
Displays the test pattern.
(page 22)
Numeric (0 - 9) buttons
Enter ID number of the remote control
and adjustment values of menu items.
(page 15)
STATUS button
Displays projector
information. (page 23)
Navigation and ENTER buttons
Navigate through the
menu items with F G
I H, and activate them
with the ENTER button.
(page 27)
Remote control indicator
Flashes by pressing any buttons.
(page 21)
AUTO SETUP
Pressing this button while
projecting an image
automatically corrects the
picture positioning on the screen.
While the auto setup feature is active,
a message “PROGRESS” appears on
the screen. (page 21)
SHUTTER button
Pressing this button toggles
the projector’s internal
mechanical shutter to black out
the projector. (page 22)
ASPECT button
Switches the image aspect
ratio. (page 22)
LENS buttons
These buttons
are used
together with
F G I H to adjust focus, zoom and
shift by the projection lens. (page 19)
FUNCTION button
Assign the frequently use
functions from options for
shortcut. (page 23)
DEFAULT button
Restores the default factory
setting. (page 23)
ID buttons
ALL: Makes the remote
control available to
control any ID
projectors.
SET: Specifies the ID of the remote
control. (page 15)
B
A
Top view
Remote control signal emitters
Bottom view
Remote control wired terminal
Battery compartment
1.Press the tab and lift up the cover.
2.Insert the batteries according to the polarity
diagram indicated inside.
NOTE:
•
•
•
•
•
•
•
Switch on the POWER button of the projector body that is located near the terminals before using the remote control.
Do not drop the remote control.
Avoid contact with liquids or moisture.
Use manganese batteries with the remote control.
Do not attempt to modify or disassemble the remote control. Contact an Authorised Service Centre for repairs.
Do not keep pressing the remote control buttons as this may shorten battery life.
See “Remote control operation” on page 21.
ENGLISH - 14
About Your Projector
 Setting projector ID number to
remote control
Each projector can be assigned a unique 2 digits ID
number, and the remote control 2 digits ID number must
be set to match the intended projector. The default
setting of the projector ID is ALL. Set the ID of the
projector in advance from the menu items.
1.Press the ID SET button.
 Displays the projector ID number on the screen.
 Using a wired remote control
When multiple projectors are connected as part of the
system, connect to units with a M3 stereo mini jack
commercial cable to simultaneously control multiple main
units with a single remote control through the REMOTE 1
IN/OUT terminal. It is effective to use the wired remote
control in the environment in which an obstacle stands in
the light path or where devices are susceptible to outside
light.
Preparation
2.Within 5 seconds, enter the same number of the required
projector by pressing the numeric buttons.
 ID number range: 01 - 64
NOTE:
• Do not press the ID SET button accidentally or carelessly
because the ID number on the remote control can be set even
when no projector is around.
• If you do not enter the 2 digits ID number within 5 seconds
after the ID SET button has been pressed, the ID will remain at
the number that was set before the ID SET button was
pressed.
• Your specified ID will be erased if the batteries of the remote
control are left exhausted. When the batteries are replaced,
set the same ID number again.
Connect to another
projector
M3 stereo mini jack
(commercial)
Connect to the remote
control wired terminal
NOTE:
• Use 2 core shielded cable of length of 15 m or less. If the
length of the cable exceeds 15 m (49'2"), the shielding of the
cable may not be sufficient and the remote control may not
work.
ENGLISH - 15
Setting up
Projection method
You can use the projector with any of the following 4 projection methods. To set the desired method in the projector,
 Setting on a desk/floor and
projecting from front
INSTALLATION: FRONT/FLOOR
COOLING CONDITION: FLOOR SETTING
Getting Started
 Setting on a desk/floor and
projecting from rear
INSTALLATION: REAR/FLOOR
COOLING CONDITION: FLOOR SETTING
 Mounting on the ceiling and
projecting from front
INSTALLATION: FRONT/CEILING
COOLING CONDITION: CEILING SETTING
 Mounting on the ceiling and
projecting from rear
INSTALLATION: REAR/CEILING
COOLING CONDITION: CEILING SETTING
NOTE:
• A translucent screen is required for rear projection.
• See more detailed setting up instructions, INSTALLATION and COOLING CONDITION in PROJECTOR SETUP menu on the functional
instructions in the CD that is provided with the projector.
• Do not place or use a projector on top of another projector.
 Cautions when setting the projectors
When placing the projector in confined space, a ventilation or air conditioning system must be equipped, and keep enough
ventilation space on the rear and both sides of the projector.
over 50 cm (20")
over 50 cm (20")
over 50 cm (20")
STANDBY(RED)/
ON(GREEN)
LAMP
TEMP
FILTER
STANDBY(RED)/
ON(GREEN)
LAMP
TEMP
FILTER
over 10 cm (4")
NOTE:
• Do not stack the projectors without using frame or shelf.
• Do not cover the ventilation openings or place anything within 50 cm (20") of them as this may cause
damage or injury.
• Avoid heating or cooling air of the air conditioning systems directly blow on to the projector ventilation
openings.
• You can tilt the projector within ± 15 degrees horizontally.
ENGLISH - 16
Setting up
Removing and attaching the projection lens
 Removing the projection lens
from the projector
1. Switch off the POWER button on the projector.
2. Rotate the lens cover counterclockwise and remove.
 Attaching the projection lens to
the projector
1. Switch off the POWER button on the projector.
 When the lens cover is attached, rotate counterclockwise
and remove.
2. Align the guide of the projection lens with the guide
groove in the projector, and then insert the lens.
3. While pressing the lens release button, rotate the
projection lens counterclockwise, and remove the
projection lens.
Lens release button
Projection lens
3. Rotate the projection lens clockwise until it clicks into
place.
4. To attach the slot, align the slot of the lens cover (see *1)
with the arrow tip located on the body of the projector
(see *2). Rotate clockwise until it reaches the arrow’s
end mark (see *3) to attach.
NOTE:
• Do not touch the lens signal receiver. Dust or dirt may cause
defective contact.
• Do not touch the surface of the projection lens with your bare
hands.
• Store the replaced lens where it will be free from vibration and
impact.
Lens cover
*3
*2
*1
NOTE:
• Make sure the projection lens is attached securely by rotating
the projection lens counterclockwise.
ENGLISH - 17
Getting Started
Lens cover
Setting up
Mains lead
 Connecting
 Disconnecting
1. Make sure the shape of the mains plug and the AC IN
terminal on the back of the projector match, then push
the plug all the way in.
1. Unplug the mains lead from the mains socket.
2. Depress the latch and slide the cover off.
Latch
2. Align the side of the “power cord secure lock” with the
side guide rail of the AC IN terminal of the projector and
slide it in.
Rail guide
Getting Started
3. Place the latch to the latch catcher and press until it
clicks.
3. Slide the “power cord secure lock” up along the side
guide rail and remove.
Rail guide
4. Hold the plug and unplug the mains lead from the AC IN
terminal on the back of the projector.
 Power indicator lights in orange if the internal cooling fan is
still operating by internal power supply.
Latch
4. Connect the mains lead to a mains socket.
NOTE:
•
•
•
•
•
•
Do not use other than the provided mains lead.
Ensure all the input devices are connected and turned off before connecting the mains lead.
Do not force the connector as this may damage the projector and/or the mains lead.
Dirt or dust build-up around plugs may cause fire or electrical hazards.
Switch off the power to the projector when not in use.
If the projector is switched on again while the internal cooling fan is still operating by the internal power supply, it may take a while to start
the projection.
ENGLISH - 18
Projecting
Projecting a image
 Switching on the projector
When using an optional lens, install a projection lens
before switch on the projector.
1. Connect the supplied mains lead (220 - 240 V AC,
50 Hz/60 Hz) to the AC IN terminal.
2. Remove the projection lens cover from the lens.
3. Switch the POWER switch on that is on the side of the
projector.
 The power indicator lamp on the projector will flash in red.
After a short period, the indicator will illuminate and the
projector will enter standby mode.
 Making adjustment and selection
It is recommended that the projector be allowed to warm
up for at least 30 minutes before any adjustments are
made to the focus.
1. Roughly adjust the focus of the lens.
2. Select and set the projection scheme of
INSTALLATION and COOLING CONDITION settings in
PROJECTOR SETUP menu.
3. Select the input signal by pressing the INPUT SELECT
buttons.
4. Adjust the vertical tilt of the projector with the front leg
adjusters.
5. Adjust the shift position of the projection.
 If the input signal is RGB signal, additionally press the
AUTO SETUP button to adjust the position of the image.
6. Zoom the lens so the image fills the screen.
7. Readjust the focus.
8. Readjust the zoom so that the image size fits in the
screen.
AC IN terminal
4. Press the POWER ON button
 The power indicator lamp illuminates in green and soon the
image is projected on the screen.
POWER ON button
 Adjusting focus, zoom and shift
Pressing the LENS button changes the
setup screen in order of FOCUS, ZOOM
and SHIFT. Press F G I H to adjust.
Press FOCUS, ZOOM or SHIFT button
Remote control buttons to display the setup screen. Press F G
I H to adjust.
Control buttons of the
projector
INPUT SELECT buttons
.
NOTE:
• If the projector is powered up at about 0 °C (32 °F), a warmup period of approximately 5 minutes may be necessary to
start projection. The temperature monitor (TEMP) lamp lights
up during the warm-up period. When the warm-up is
completed, the temperature monitor (TEMP) lamp turns off
and the image is projected on the screen.
• If the temperature of the operating environment is low and
warm-up takes more than 5 minutes, the projector will judge
that a problem has occurred and the power will be turned off
automatically. If this happens, increase the temperature
around the projector so that it is 0 °C (32 °F) or higher, and
then turn on the POWER switch and press the POWER ON
button again.
LENS button
CAUTION:
• Be careful not to catch your fingers between the lens and
shroud when shifting the lens.
NOTE:
• The setup screen will be displayed with the optional fixed lens
though, it will not be functioning.
• Pressing F G I or H for 3 seconds or more, performance
the adjustment faster.
ENGLISH - 19
Basic Operation
POWER switch
Projecting
 Switching off the projector
1. Press the POWER STANDBY button.
 The confirmation screen will be displayed.
POWER STANDBY button
 Lens home position
1. Press and hold the LENS button of the control button on
the projector or SHIFT button of the remote control for
3 seconds or more.
 The HOME POSITION setup screen will be displayed for
5 seconds.
2. Press the ENTER button before the setup screen
disappeared.
 While the lens returning to the home position, a message
“PROGRESS” appears on the screen.
NOTE:
• The home position for the projection lens is the lens position
when the lens is being replaced or when the projector is being
stored away, and it is not the optical centre of the screen.
 Adjustment range after lens
position (optical shift)
2. Select OK and press the ENTER button, or press the
POWER STANDBY button again.
 The projection of the image stops, and the power indicator
of the projector lights up orange. The cooling fan keeps
running.
3. When the power indicator of the projector turns to red,
switch the POWER switch to OFF.
 When the power indicator of the projector turns to red, the
cooling fan stops.
 While the cooling fan is still running, never turn off the
POWER switch, nor unplug the mains lead from the mains
socket.
Do not move the lens beyond the bounds of the shift
range as this may cause a change in the focus. This
limitation is to protect the parts of the projector. Using the
standard projection position as the reference, the optical
axis shift function makes it possible to adjust the
projection position in the ranges shown in the figures
below.
 PT-DZ6710E/PT-DZ6700E/PT-D6000E/
PT-D5000E
Standard projection position
Basic Operation
NOTE:
• In the cooling state after the power is turned off, the lamp will
not light up even if the power is turned on. To light up the lamp,
turn on the power supply again when the lamp has been
cooled sufficiently. Failure to observe this may shorten the
lamp life.
 Direct power off function
The power supplied internally causes the cooling fan to
continue operating and cool off in the event that the
power has failed or even after the mains lead is
accidentally disconnected immediately after the power
has been turned off.
NOTE:
• When the lamp has been cooled by the direct power off
function, it sometimes takes longer than usual for the lamp to
light up again.
• While the cooling fan is operating, do not place the projector
inside a box or bag.
ENGLISH - 20
 PT-DW6300E
Standard projection position
Remote control operation
Shutter button
Auto setup button
Input select buttons
Operating range
You can operate the projector with the remote control within the
remote range 30 m (98'5"), approximately ± 30° horizontally
and ± 15° vertically.
 Facing to the projector
Ensure the remote control emitter is facing to the remote
control signal receptor on front/back of the projector and
press the required buttons to operate.
 Facing to the screen
On screen button
Ensure the remote control emitter is facing to the screen
and press the required buttons to operate the projector.
The signal will be reflected off the screen. The operating
range may differ due to the screen material. This
function may not be effective with a translucent screen.
Test pattern button
Status button
NOTE:
Function button
Aspect button
• Do not let strong light shine onto the signal receptor. The
remote control may malfunction under strong light such as
fluorescent.
• If there are any obstacles between the remote control and the
remote control signal receptor, the remote control may not
operate correctly.
Setting up the image position automatically
1. Input an analogue RGB image signal.
2. Press the AUTO SETUP button.
3. Displays a message “PROGRESS”.
4. Displays a message “COMPLETE” when ended.
 When the performance is not completed and ended, displays “INCOMPLETE”.
NOTE:
• The automatic setup function does not work with video format signals such as signals output from a DVD player.
• It is recommended to supply images with a bright white frame at the outermost periphery containing characters etc. that are clear in white
and black contrast when the system is in automatic adjustment mode.
• Avoid supplying images that involve halftones or gradation such as photographs and computer graphics.
• The clock phase adjustment may have been shifted even when the adjustment ended normally. In this case, manually adjust CLOCK
PHASE in POSITION menu.
• If an image with blurred edges or a dark image is input, “INCOMPLETE” may appear or adjustment may not be performed properly even
if “COMPLETE” appears. In this case, manually adjust INPUT RESOLUTION in ADVANCED MENU, CLOCK PHASE and SHIFT in
POSITION menu.
• For specific signals and landscape signals such as 16:9, see AUTO SETUP in DISPLAY OPTION menu of the functional instructions
that is in the provided CD-ROM.
• Automatic adjustment may not be available depending on the machine type of the computer.
• Automatic adjustment may not be available for synchronisation signal of C-SYNC and G-SYNC.
• Image may be distorted for several seconds during automatic adjustment. This is not a malfunction.
• For every supplied signal, adjustment is required.
• Automatic adjustment can be cancelled by pressing the MENU button during the course of automatic adjustment.
• Even for an RGB signal for which automatic setup is possible, if automatic setup is performed while moving images are being input,
“INCOMPLETE” may appear, or adjustment may not be performed properly even if “COMPLETE” appears.
ENGLISH - 21
Basic Operation
The automatic setup function can be used to automatically adjust the resolution, clock phase and picture position when
analogue RGB signals consisting of bitmap images such as computer signals are being input, or to automatically adjust
the picture position when DVI-D signals are being input.
Remote control operation
Switching the input signal
You can use the remote control to switch
the signals that are being input and
projected.
RGB1
Switches to RGB 1 IN.
RGB2
Switches to RGB 2 IN.
DVI-D
Switches to DVI-D IN.
VIDEO
Switches to VIDEO IN.
S-VIDEO
SDI*1
Switches to S-VIDEO IN.
Switches to SDI IN.
*1. SDI is only for PT-DZ6710E.
Stopping the projection
If the projector is not used for a certain period of time during the meeting intermission, for example, a shutter mode is
available that allows the user to hide images temporarily.
Press the SHUTTER button to block the projected light by the internal shutter, and press again to resume.
Clearing the on-screen menu
Press the ON SCREEN button to clear the on-screen menus to avoid disrupting the program.
Press the ON SCREEN button again to displays
Changing the picture aspect ratio
You can toggle through an appropriate set of aspect ratios for a given input signal. The setting will change each time the
ASPECT button is pressed.
Basic Operation
 Appearance sample
S-VIDEO signal
 VID AUTO H S1 AUTO H VID AUTO(PRI.) H THROUGH H 16:9 H 4:3 H H-FIT H V-FIT H HV-FIT H VID AUTO
NOTE:
• The appearance of setting options vary according to input signals. See ASPECT in POSITION menu of the functional instructions that is
in the provided CD-ROM.
Displaying the internal test pattern
The projector has 7 types of internal test patterns to check the condition of the set.
1. Display an input signal image.
2. Press the TEST PATTERN button.
3. Press I H to select the required test pattern.
NOTE:
• See TEST PATTERN menu of the functional instructions that is in the provided CD-ROM.
ENGLISH - 22
Remote control operation
Using an assigned function
You can assign a selected function to the FUNCTION button. Following functions are assignable.
Options
Functions
DISABLE
Deactivate the FUNCTION button.
SUB MEMORY LIST
Display the assigned SUB MEMORY LIST.
NOTE:
SYSTEM SELECTOR Switches the SYSTEM SELECTOR options.
SYSTEM DAYLIGHT
VIEW
Switches the SYSTEM DAYLIGHT VIEW
setting.
FREEZE
Freezes the image.
SIDE BY SIDE
Start the SIDE BY SIDE mode.
• See FUNCTION in PROJECTOR SETUP menu and each
corresponding menu items of the functional instructions that is
in the provided CD-ROM.
Displaying the status of the projector
Pressing this button displays several pages of projector status information.
NOTE:
• See STATUS in PROJECTOR SETUP menu and “Accessing with the web browser” in Technical Information of the functional instructions
that is in the provided CD-ROM.
Resetting to the factory default
Basic Operation
If an adjustment item is selected and press the DEFAULT button, the adjustment value will return to the factory default
setting.
ENGLISH - 23
Menu Navigation
Main menu and Sub-menu
The menu options are structured and categorised. You can
navigate through the menu with F G I H buttons. See
“Navigating through the menu” on page 27.




Some default settings vary by the selected input signal.
Sub-menu items vary according to the selected input signal.
Some settings are adjustable without any signals.
See the functional indications in the CD-ROM that is
provided with the projector.
(Default: 16)
GEOMETRY
(PT-DZ6710E only)
OFF
CURVED
KEYSTONE
PC
GEOMETRY:KEYSTONE
VERTICAL KEYSTONE
VERTICAL SUB KEYSTONE
HORIZONTAL KEYSTONE
HORIZONTAL SUB KEYSTONE
LINEARITY
PICTURE MODE
STANDARD
NATURAL
GRAPHIC
CLOCK PHASE
GEOMETRY:CURVED
CINEMA
DYNAMIC
LENS THROW RATIO
VERTICAL KEYSTONE
HORIZONTAL KEYSTONE
VERTICAL ARC
HORIZONTAL ARC
VERTICAL BALANCE
HORIZONTAL BALANCE
CONTRAST
(Default: 0)
BRIGHTNESS
(Default: 0)
KEYSTONE
COLOR
(PT-DZ6700E/PT-DW6300E/PT-D6000E
only)
(Default: 0)
TINT
VERTICAL KEYSTONE
VERTICAL SUB KEYSTONE
LINEARITY
(Default: 0)
COLOR TEMPERATURE
DEFAULT
MIDDLE
USER
HIGH
ADVANCED MENU
WHITE GAIN
Basic Operation
(Default: 10)
DIGITAL CINEMA REALITY
SYSTEM DAYLIGHT VIEW
OFF
2
AUTO
25p FIXED
1
3
OFF
30p FIXED
BLANKING
SHARPNESS
UPPER
LEFT
(Default: 6)
NOISE REDUCTION
LOWER
RIGHT
INPUT RESOLUTION
1
3
2
OFF
TOTAL DOTS
TOTAL LINES
ON
OFF
CLAMP POSITION
EDGE BLENDING *
AI
SYSTEM SELECTOR
AUTO
PAL-M
RGB
480pRGB
72060p
108025p
576i
NTSC
PAL-N
YCBCR
YPBPR
108024p
108024sF
OFF
NTSC 4.43
SECAM
VGA60
108060i
108050i
72050p
PAL
PAL60
480p
103560i
108030p
480i
DISPLAY DOTS
DISPLAY LINES
ON
GAMMA
2.2
1.8
2
BRIGHT ADJUST
BRIGHT INSIDE
OUTSIDE AREA
BRIGHT OUTSIDE
RASTER POSITION
VERTICAL
HORIZONTAL
POSITION
DISPLAY LANGUAGE
SHIFT
ASPECT
DEFAULT VID AUTO S1 AUTO
VID AUTO(PRI.)
THROUGH
16:9
4:3
H-FIT
V-FIT
HV-FIT
ZOOM
INTERNAL
ENGLISH - 24
FULL
Menu Navigation
DISPLAY OPTION
INSTALLATION
COLOR MATCHING *
HIGH ALTITUDE MODE
OFF
7 COLORS
3 COLORS
MEASURED
COLOR CORRECTION
OFF
USER
CONTRAST MODE *
NORMAL
HIGH
SCREEN SETTING
16:9
4:3
SCREEN POSITION
AUTO SETUP
WIDE
EDID1
EDID2(PC)
DVI SIGNAL LEVEL
SINGLE
LAMP2
LAMP RELAY
00:00 - 23:00
HIGH
LOW
NORMAL
ECO
16-235
SDI IN
REMOTE2 MODE
(PT-DZ6710E only)
64-940
4-1019
ON-SCREEN DISPLAY
OSD POSITION
2
5
8
3
6
9
OSD DESIGN
2
5
3
6
OSD MEMORY
ON
OFF
INPUT GUIDE
ON
OFF
WARNING MESSAGE
ON
OFF
BACK COLOR
BLACK
LOGO1
BLUE
LOGO2
STARTUP LOGO
LOGO2
LOGO1
(IN) BAUDRATE
(IN) PARITY
(OUT) BAUDRATE
(OUT) PARITY
RESPONSE(ID ALL)
GROUP
RESPONSE(ID GROUP)
NONE
FREEZE
SIDE BY SIDE
DEFAULT
USER
STATUS
FILTER COUNTER RESET
NO SIGNAL SHUT-OFF
DISABLE
10 MIN. 20 MIN.
60 MIN. 70 MIN.
30 MIN.
80 MIN.
40 MIN.
90 MIN.
50 MIN.
FUNCTION BUTTON
DISABLE
SUB MEMORY LIST
SYSTEM SELECTOR
SYSTEM DAYLIGHT VIEW
FREEZE
SIDE BY SIDE
DAY AND TIME
TIME ZONE
ADJUST CLOCK
SAVE ALL USER DATA
LOAD ALL USER DATA
INITIALIZE
SERVICE PASSWORD
TEST PATTERN
(PT-DZ6710E/PT-DZ6700E/PT-DW6300E only)
VIDEO
RGB1
DVI-D
OFF
S-VIDEO
RGB2
SDI
TEST PATTERN
SIGNAL LIST
PROJECTOR SETUP
REGISTERED SIGNAL STATUS
SUB MEMORY LIST
PROJECTOR ID
ALL
1 - 64
* Not available for PT-D5000E.
ENGLISH - 25
Basic Operation
0-255:PC
1
4
LAMP SELECT
RS-232C
DVI EDID
1
4
7
FLOOR SETTING
VERTICAL DOWN SETTING
CEILING SETTING
VERTICAL UP SETTING
STANDBY MODE
DVI-D IN
EDID3
ON
LAMP POWER *
OFF
DEFAULT
USER
OFF
COOLING CONDITION
OFF
AUTO SIGNAL
ON
FRONT/CEILING
REAR/CEILING
DUAL
LAMP1
SCREEN FORMAT
16:10
FRONT/FLOOR
REAR/FLOOR
Menu Navigation
SECURITY
NETWORK
SECURITY PASSWORD
OFF
ON
SECURITY PASSWORD CHANGE
DISPLAY SETTING
OFF
LOGO1
TEXT
LOGO2
TEXT CHANGE
MENU LOCK
OFF
ON
MENU LOCK PASSWORD
CONTROL DEVICE SETUP
CONTROL PANEL
ENABLE
DISABLE
REMOTE CONTROLLER
ENABLE
Settings
ENGLISH - 26
DISABLE
NETWORK SETUP
HOST NAME
DHCP
IP ADDRESS
SUBNET MASK
DEFAULT GATEWAY STORE
NETWORK CONTROL
WEB CONTROL
PJLink CONTROL
COMMAND CONTROL
COMMAND PORT
STORE
NETWORK STATUS
DHCP
SUBNET MASK
DNS1
MAC ADDRESS
IP ADDRESS
DEFAULT GATEWAY
DNS2
Menu Navigation
Navigating through the menu
 Displaying the Main menu
Press the MENU button to display the main menu.
 Operating procedure
1. Press F G to scroll to the required main menu item and
press the ENTER button to select.
 The selected item is highlighted in orange and the submenu is displayed.
 See “Main menu and Sub-menu” on page 24.
MAIN MENU
POSITION
ADVANCED MENU
MAIN MENU
DISPLAY LANGUAGE
DISPLAY OPTION
PROJECTOR SETUP
POSITION
TEST PATTERN
ADVANCED MENU
SIGNAL LIST
DISPLAY LANGUAGE
SECURITY
DISPLAY OPTION
NETWORK
PROJECTOR SETUP
TEST PATTERN
ENTER
SIGNAL LIST
MENU SELECT
SUB MENU
SECURITY
NETWORK
 Adjusting with the bar scale
items
The triangle mark under the bar indicates factory
default setting and the square indicates the current
setting.
Current setting
CONTRAST
ENTER
MENU SELECT
SUB MENU
2. Press F G to scroll to the required sub-menu item and
press I H or the ENTER button to adjust.
 The selected item is called up and the other menu items
disappear from the screen. Called up item will be disappear
after 5 seconds and return to the menu mode.
 If there is a lower level, the next level will be displayed.
0
POSITION
SHIFT
Default
 Returning to the previous menu
ASPECT
AUTO
ZOOM
CLOCK PHASE
GEOMETRY
0
KEYSTONE
Press the MENU button to return to the previous menu. Press
repeatedly to escape from the menu mode and return to the
projection.
MENU SELECT
ENTER
CHANGE
3. Press I H to adjust or set the selected item.
 For items using a bar scale, the current settings are
displayed on the left of the bar scale.
 You can cycle through the options of an item by pressing I
H.
CONTRAST
0
ADJUST
4. Press the MENU button to return to the previous menu.
ENGLISH - 27
Basic Operation
ADJUST
Monitor Lamp indicators
Managing the indicated problems
Indicators
Power indicator
Lamp1 (LAMP1) indicator
Lamp2 (LAMP2) indicator
Temperature (TEMP) indicator
Filter (FILTER) indicator
STANDBY(RED)/
ON(GREEN)
LAMP
TEMP
STANDBY(RED)/
ON(GREEN)
LAMP
TEMP
FILTER
FILTER
If a problem should occur with the projector, the indicators will inform you. Manage the indicated problems as follow.
1. Confirm the status of all indicators and projector, and switch off the projector in proper way.
2. Find out the cause of the problem by status of each indicator.
3. Follow the instruction for each indication below and solve the problem.
4. Turn on the projector in the correct way and confirm the indicator is not indicating a problem any longer.
NOTE:
• If no problem is found or the problem remains, do not turn on the projector. Instead contact your nearest dealer.
 LAMP1/LAMP2 indicator
Lamp
indication
Lighting in red
Blinking in red
once
Blinking in red
3 times
Information
Check point
Remedial measure
• Did you notice a “REPLACE
LAMP” message on the screen
when turning on the projector
power supply?
• Check the lamp unit
Lamp unit is not installed.
compartment.
Indicates the time for
replacing the lamp unit
Error is detected in the
lamp circuit.
• This lamp monitor lights up when the lamp
unit used hours have reached 1 800* hours.
Request the dealer to replace the lamp unit.
* 2 800 hours for PT-D5000E only.
• Install the lamp unit.
• When lamp unit is installed and still having
the indicator lights, contact to the dealer.
• Did you turn the power back on • Wait until the lamp has cooled off, and then
immediately after turning it off?
turn on the power.
• Turn off the POWER switch of the projector
• Some error has arisen in the
lamp circuit.
properly and contact your nearest dealer.
• Check for fluctuation (or drop) in
the source voltage.
 TEMP indicator
Maintenance
Lamp
indication
Lighting in red
Blinking in red
once
Blinking in red
twice
Blinking in red
3 times
Information
Check point
Remedial measure
• Did you turn on the power when • Wait about 5 minutes in the current status.
the ambient temperature was
• Install the unit in a location having an
Warm-up status
lower than approx. 0 °C (32 °F)?
ambient temperature from 0 °C (32 °F) 45 °C (113 °F).
High temperature inside. • Check the ventilation port is
• Remove the object that is blocking the
(WARNING)
blocked.
ventilation port.
• Is the room air temperature too • Move the projector to a temperature of 0 °C
The filter is excessively
high?
(32 °F) - 45 °C (113 °F) and the humidity of
dirty and the ventilation is
• Was the temperature warning
20 % to 80 % (no condensation).
poor.
indication displayed?
• Turn off the POWER switch of the projector
High temperature inside.
in proper way and contact the dealer.
(Standby condition)
Cooling fan has been
stopped.
ENGLISH - 28
• Turn off the POWER switch of the projector
in proper way and contact the dealer.
Monitor Lamp indicators
 FILTER indicator
The FILTER indicates the Auto Cleaning Filter (ACF) unit status.
Lamp
indication
Lighting in red
Blinking in red
Lighting in
orange
Blinking in
orange
Information
The ACF unit has run out.
The ACF unit is not
installed.*1
The ACF unit remains
few. The remaining use
time of the ACF unit is
approximately
200 hours.*2
The ACF unit cannot
operate properly.
Check point
Remedial measure
• Check the REMAINING FILTER • Replace the ACF unit.
of STATUS in PROJECTOR
SETUP menu.
• Check the ACF unit
• Replace the ACF unit.
compartment.
• Check the REMAINING FILTER • Request the dealer to purchase the new
of STATUS in PROJECTOR
ACF unit.
SETUP menu.
• Is foreign object blocking the
ACF unit operation?
• Remove the foreign object from the ACF
unit.
• When the foreign object still remained,
contact the dealer.
*1. When the ACF unit is not installed, the filter indicator will blink in red and the power will turn off.
*2. 200 hours is the roughly guided time.
NOTE:
When the FILTER indicator is flashing green, the Auto Cleaning Filter (ACF) is normally rolling up.
When the ACF unit is operating, operational sound may be heard.
In a dusty environment, the guided remaining use time will be shorter. Contact the dealer to purchase the new ACF unit earlier.
If using the projector at high elevations 1 400 - 2 700 m (4 593 - 8 858 ft) sea level and HIGH ALTITUDE MODE in PROJECTOR SETUP
menu is OFF, it may cause malfunction of the ACF unit.
• Before the FILTER indicator blinks in orange when operational malfunction, mechanical sound of the clutch may be heard.
Maintenance
•
•
•
•
ENGLISH - 29
Replacement
Replacing the Lamp unit
 Before replacing the Lamp unit





Turn off the POWER switch of the projector in proper way and disconnect the mains plug from the mains socket.
Wait for more than 1 hour and make sure the lamp unit and the surroundings are cooled enough.
Prepare a Phillips-head screwdriver.
Contact the dealer to purchase a replacement lamp unit (ET-LAD60:1 bulb unit, ET-LAD60W: 2 bulb units).
When the projector is mounted on the ceiling, do not work directly under the projector or put your face
closer to the projector.
CAUTION:
• The lamp may explode by shocks or chipping damage.
NOTE:
• Prior to replacing the lamp unit, allow it to cool down to prevent the risk of burns, damage and other hazards.
• Do not attempt replacement with an unauthorised lamp unit.
• Both lamps must be set in a lamp unit. If only one lamp is set, the power will not work.
 When to replace the lamp unit
The lamp unit is consumable and the brightness decreases by duration of usage. The LAMP1/LAMP2
indicators will inform you of the replacement timing at 1 800*2 hours, and at 2 000*1 hours, the projector will be
turned off. Those figures are rough guidance and might be shortened by the usage conditions, characteristics
of the lamp unit, environmental conditions, and so on. You can check the duration of usage time using LAMP1/
LAMP2 of STATUS in the PROJECTOR SETUP menu.
On screen
LAMP indicator
REPLACE LAMP
Indication
LAMP
Over 1 800*2 hours
Over 2 000*1 hours
“REPLACE LAMP” is displayed on the upper left
of the screen for 30 seconds. Press any button to
clear the screen, or disappears after 30 seconds.
Lights in red
“REPLACE LAMP” is displayed on the upper left
of the screen, and it will stay until you respond.
To clear the screen, press any button.
CAUTION:
• If you keep using the lamp unit after 2 000*1 hours, it cause the damage of the projector. Automatically the projector will be powered off
after 10 minutes.
Maintenance
NOTE:
• The guide times, 1 800*2 and 2 000*1 hours, are rough estimates based on certain conditions and are not a guaranteed time.
• For more information about the lamp unit, see the instructions which is provided with the lamp unit.
*1. 3 000 hours for PT-D5000E.
*2. 2 800 hours for PT-D5000E.
ENGLISH - 30
Replacement
 Replacement procedure
 Removing and replacing the lamp unit
1. Use a Phillips-head screwdriver to loosen the
“lamp unit cover fixing screw” (1 screw) on the
back of the projector until the screws turn freely,
and remove the lamp unit cover.
 Slide the lamp unit cover to the control buttons and
pull to remove.
4. Hold the handle of the new lamp unit and replace it
in correct direction.
5. Press in the lamp unit until it clicks and make sure
the unit is installed securely.
6. Tighten the “lamp unit fixing screws” (3 screws)
securely with a Phillips-head screwdriver.
Lamp unit cover
fixing screw
Fan electric power
connector
Lamp unit cover
2. Use a Phillips-head screwdriver to remove the
“lamp unit fixing screws” (3 screws).
3. Hold the handles of the lamp unit and pull the used
lamp unit gently from the projector.
Lamp unit fixing screws
Handle
7. Attach the lamp unit cover and tighten the “lamp
unit cover fixing screw” (1 screw) securely with a
Phillips-head screwdriver.
 Slide the lamp unit cover to the hinge side along the
guide and push in to attach securely.
 Make sure the fan electric power connector of the
lamp unit cover is inserted securely to the projector’s
connector.
Handle
Lamp unit fixing screws
• The lamp unit and the lamp unit cover must be attached correctly and securely. Failure to do so, the projector will bot be turned on for the
protection circuit.
• When the lamp unit is replaced, the duration of usage time will be reset to "0".
ENGLISH - 31
Maintenance
NOTE:
Replacement
Replacing the Auto Cleaning Filter (ACF)
 Before replacing the ACF




Wait until the cooling fan stops and turn off the POWER switch of the projector in proper way.
Disconnect the mains lead from the mains socket.
Contact an Authorised Service Centre to purchase a replacement ACF (ET-ACF100).
The ACF unit to be replaced should be an unused product.
 When to replace the ACF
The ACF unit is consumable product and effects on ventilation. The FILTER indicator will inform you of the
replacement timing. You can check the remaining amount of the ACF unit in REMAINING FILTER of STATUS
in PROJECTOR SETUP menu.
 Replacement procedure
1. Loosen “ACF cover fixing screw” (1 screw) until the
screws turn freely and remove the ACF cover.
4. Attach the ACF cover and tighten “ACF cover
fixing screw” (1 screw) securely.
NOTE:
• If the ACF and/or ACF cover are attached incorrectly, the
projector may not be turned on.
• The replacement timing of the ACF depends on environment of
usage.
 Resetting the REMAINING
FILTER
ACF cover fixing screw
1. Turn on the projector and display the FILTER
COUNTER RESET in PROJECTOR SETUP
menu.
2. Press the ENTER button.
 The confirmation screen will be displayed.
ACF cover
2. Slide out the ACF unit from the projector slowly.
 When you replace the ACF unit, clean the
compartment and/or the air exhaust port if you need
to.
3. Insert the new ACF unit into the compartment in
correct direction and slightly push until it clicks.
3. Select OK by pressing I, then press the ENTER
button.
4. Display the STATUS in PROJECTOR SETUP
menu and confirm the REMAINING FILTER.
NOTE:
• See FILTER COUNTER RESET and STATUS in
PROJECTOR SETUP menu of the functional instructions that
is in the provided CD-ROM.
Maintenance
ACF unit
ENGLISH - 32
Troubleshooting
Should any problem persist, contact your dealer.
Reference
page*1
Cause
Power does not turn on.
The mains lead may not be connected.
The POWER switch is turned off.
No electric supply is at the mains socket.
TEMP indicator is lit or flashes.
LAMP1/LAMP2 indicator is lit or flashes.
The lamp unit cover has not been securely installed.
The circuit breakers have tripped.
CD-ROM
No picture appears.
The video signal input source may not be connected to a terminal
properly.
The input selection setting may not be correct.
The BRIGHTNESS adjustment setting may be at the minimum setting.
The input source which is connected to the projector may have a
problem.
The shutter function may be in use.
The ACF unit may not have been set correctly.
The picture is fuzzy.
The lens focus may not have been set correctly.
The projector may not be at the correct distance from the screen.
The lens may be dirty.
The projector may be tilted too much.
19
CD-ROM
CD-ROM
The colour is pale or
greyish.
COLOR or TINT adjustment may be incorrect.
The input source which is connected to the projector may not be
adjusted correctly.
RGB cable is damaged.
CD-ROM
-
The control buttons of the
projector do not operate.
CONTROL PANEL of CONTROL DEVICE SETUP in SECURITY
menu is disabled. If you have a loss of the remote control while the
CONTROL PANEL is disabled, press and hold the MENU button for
2 seconds with pressing the ENTER button.
The remote control does
not operate.
REMOTE CONTROLLER of CONTROL DEVICE SETUP in
SECURITY menu is disabled.
The batteries may be weak.
The batteries may not have been inserted correctly.
The remote control signal receptor on the projector may be
obstructed.
The remote control unit may be out of the operation range.
Strong light such as fluorescent shine onto the signal receptor.
The remote control ID setting is incorrect.
18
19
19
28
28
31
-
22
CD-ROM
22
32
CD-ROM
CD-ROM
14
21
21
CD-ROM
On screen menu does not
appear.
ON SCREEN button on the remote control may have been pressed
and cleared.
The picture does not
display correctly.
The colour format may not have been set correctly.
There may be a problem with the VCR or other signal source.
A signal which is not compatible with the projector is being input.
-
Picture from a computer
does not appear.
The cable may be longer than the optional cable.
The external video output from a laptop computer may not be correct.
(You may be able to change the external output settings by pressing
the [Fn] + [F3] or [Fn] + [F10] keys simultaneously. The actual method
varies depending on the type of computer; refer to the documentation
provided with your computer for further details.)
The graphic board driver of the computer needs to be updated to the
latest version.
DVI-D IN setting in DISPLAY OPTION menu may be incorrect setting.
-
Picture from a computer
DVI-D graphic board does
not appear.
The computer may need to be restarted after switching DVI-D IN
setting in DISPLAY OPTION menu of the projector correctly.
22
CD-ROM
34
CD-ROM
-
*1. CD-ROM: See the functional instructions in the provided CD-ROM.
ENGLISH - 33
Maintenance
Problem
Technical Information
List of compatible signals
Mode
NTSC/NTSC 4.43/
PAL-M/PAL60
PAL/PAL-N/SECAM
525i (480i)
625i (576i)
525p (480p)
625p (576p)
1 125 (1 080)/60i
1 125 (1 080)/50i
1 125 (1 080)/24p
1 125 (1 080)/24sF
1 125 (1 080)/25p
1 125 (1 080)/30p
1 125 (1 080)/60p
1 125 (1 080)/50p
750 (720)/60p
750 (720)/50p
VGA400
VGA480
Display
resolution
(dots)*1
H (kHz) V (Hz)
Dot clock
frequency
(MHz)
quality*2
RGB2
DVI-D
EIDI1
15.7
59.9
-
A
720 x 576i
720 x 480i
720 x 576i
720 x 483
720 x 576
15.6
15.7
15.6
31.5
31.3
50.0
59.9
50.0
59.9
50.0
13.5
13.5
27.0
27.0
A
A
A
A
A
D
D
33.8
60.0
74.3
AA*5
D
28.1
50.0
74.3
AA*5
D
27.0
24.0
74.3
AA*5
D
1 920 x 1 080i
1 920 x 1 080
1 920 x 1 080i
1 920 x 1 080
1 920 x 1 080p
1 280 x 720
640 x 400
640 x 480
800 x 600
MAC16
832 x 624
1 024 x 768
MXGA
1 152 x 864
MAC21
1 152 x 870
Appendix
1 280 x 768
1 280 x 960
1 280 x 800
1 280 x 800
MSXGA
1 280 x 960
SXGA
1 280 x 1 024
DVI-D
EIDI2
R/Y/SDI
27.0
24.0
74.3
28.1
25.0
74.3
AA*5
33.8
30.0
74.3
AA
*5
67.5
60.0
148.5
AA*5
D
56.3
50.0
148.5
AA*5
D
D/R/Y
D/R/Y/SDI
D
45.0
60.0
74.3
AA*6
D
37.5
50.0
74.3
AA*6
D
31.5
37.9
31.5
35.0
37.9
37.5
43.3
35.2
37.9
48.1
46.9
53.7
49.7
70.1
85.1
59.9
66.7
72.8
75.0
85.0
56.3
60.3
72.2
75.0
85.1
74.6
25.2
31.5
25.2
30.2
31.5
31.5
36.0
36.0
40.0
50.0
56.3
56.3
57.3
A
A
A
A
A
A
A
A
A
A
A
A
A
39.6
50.0
51.9
AA
48.4
60.0
65.0
56.5
70.1
60.0
75.0
D
D
D/R/Y
D/R/Y/SDI
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
AA*7
D
D
75.0
AA*7
D
D
78.8
AA*7
D
D
D
D
*7
65.5
81.6
86.0
AA*7
68.7
85.0
94.5
AA*7
80.0
100.0
105.0
AA*7
96.7
120.0
130.0
64.0
67.5
76.7
68.7
71.2
74.9
85.0
75.1
94.2
108.0
121.5
100.0
AA*7
A
A
A
A
39.6
49.9
65.3
AA*6
47.8
59.9
79.5
AA*6
41.3
50.0
68.0
AA*6
49.7
59.8
83.5
60.0
64.0
80.0
60.0
60.0
75.0
108.0
108.0
135.0
AA*6
A
A
A
D
D
D
D
A*8
A
D
D
91.1
85.0
157.5
65.2
60.0
122.6
82.2
75.0
155.9
Format*4
V/S
AA*5
SXGA+
1 400 x 1 050
WXGA+
1 440 x 900
55.9
59.9
106.5
A*8
A
UXGA
1 600 x 1 200
75.0
60.0
162.0
A*8
ENGLISH - 34
PnP*3
720 x 480i
SVGA
XGA
Scanning
frequency
D/R
D/R
D/R
D/R
D/R
D
D
D/R
Technical Information
Mode
Display
resolution
(dots)*1
Scanning
frequency
H (kHz) V (Hz)
Dot clock
frequency
(MHz)
quality*2
WSXGA+
1 680 x 1 050
65.3
60.0
146.3
A
1 920 x 1 080*9
1 920 x 1 080
66.6
59.9
138.5
AA*5
WUXGA*9
1 920 x 1 200
74.0
60.0
154.0
AA*8
PnP*3
RGB2
DVI-D
EIDI1
DVI-D
EIDI2
Format*4
D/R
D
D
*1. The “i” appearing after the resolution indicates an interlaced signal. Flicker (line flicker) may be caused in images if interlace is connected.
*2. The following symbols are used to indicate picture quality.
AA
Maximum picture quality can be obtained.
A
Signals are converted by the image processing circuit before picture is projected.
B
Some loss of data occurs to make projection easier.
*3. Where marked “D” signals indicates in Plug and Play is compatible with EDID of projector. 
Unmarked signals in Plug and Play may also be compliant if input terminals are written in the format list. Where Plug and Play is
unmarked and nothing is written in the format list, difficulties in projecting image may occur even when computer and projector
appear to have same resolution.
*4. The following symbols are used to indicate the format.
V = VIDEO, S = S-VIDEO, D = DVI, R = RGB, Y = YPBPR
SDI is only for the PT-DZ6710E.
*5. PT-DW6300E/PT-D6000E/PT-D5000E: A
*6. PT-DZ6710E/PT-DZ6700E/PT-D6000E/PT-D5000E: A
*7. PT-DZ6710E/PT-DZ6700E/PT-DW6300E: A
*8. PT-DW6300E/PT-D6000E/PT-D5000E: B
*9. VESA CVT-RB (Reduced Blanking) compatible.
NOTE:
• Projecting an interlaced signal may cause flicker in screen.
 Display dots of each model
PT-DZ6710E
1 920 x 1 200
PT-DZ6700E
1 920 x 1 200
PT-DW6300E
1 280 x 800
Appendix
PT-D6000E/PT-D5000E 1 024 x 768
ENGLISH - 35
Technical Information
Specifications
Power supply
AC 220 - 240 V 50 Hz/60 Hz
Power consumption
•
•
•
PT-DZ6710E/PT-DZ6700E: 800 W
PT-DW6300E/PT-D6000E: 750 W
PT-D5000E: 600 W
During standby (when fan is stopped): Approx. 9 W*1
Amps
Panel size
(diagonal)
Aspect ratio
DLP™ chip
•
•
•
PT-DZ6710E/PT-DZ6700E: 4.3 A
PT-DW6300E/PT-D6000E: 3.8 A
PT-D5000E: 3.3 A
•
PT-DZ6710E/PT-DZ6700E: 0.67 type
PT-DZ6710E/PT-DZ6700E/PT-DW6300E: 16 : 10
•
PT-D6000E/PT-D5000E: 4:3
1 unit DLP™ chip, DLP™ type
Pixels
•
•
•
Motorised zoom
1.8 - 2.4:1
•
•
Motorised focus
•
Lamp
PT-DZ6710E/PT-DZ6700E: 2 304 000 (1 920 x 1200)
PT-DW6300E: 1 024 000 (1 280 x 800)
PT-D6000E/PT-D5000E: 786 432 (1 024 x 768)
•
F 1.7 - 2.0, f 25.6 mm - 33.8 mm
PT-DZ6710E/PT-DZ6700E: 
f = 26.8 mm - 35.7 mm
PT-DW6300E/PT-D6000E/PT-D5000E: 
f = 25.6 mm - 33.8 mm
Lens is optional for the projectors that “L”
follows in model number.
•
•
PT-DZ6710E/PT-DZ6700E/PT-DW6300E/PT-D6000E: UHM lamp (300 W) x 2
PT-D5000E: UHM lamp (240 W) x 2
•
PT-DZ6710E/PT-DZ6700E/
PT-DW6300E:6 000 lm (ANSI)
PT-D6000E: 6 500 lm (ANSI)
PT-D5000E: 5 000 lm (ANSI)
•
•
Luminosity*2
PT-DW6300E: 0.65 type
PT-D6000E/PT-D5000E: 0.7 type
•
Display method
Lens
•
•
•
Lens is optional for the projectors that “L”
follows in model number.
Average value of the lens that is provided with the
projector.
Operating environment
VIDEO/S-VIDEO
Temperature: 0 °C - 45 °C (32 °F - 113 °F)*3
Humidity: 20% - 80% (no condensation)
H: 15.75 kHz/15.63 kHz, V: 50 Hz/60 Hz
H: 15 - 91 kHz, V: 50 - 85 Hz Panasonic Intelligent Auto Scanning (PIAS)
RGB
DVI-D
Scanning
frequency*4
YPBPR
Dot clock frequency
• PT-DZ6710E/PT-DZ6700E: 162 MHz or less
• PT-DW6300E/PT-D6000E/PT-D5000E: 150 MHz or less
480p, 576p, 720/60p, 720/59.94p, 720/50p, 1 080/60p, 1 080/59.94p,1 080/50p, 1 080/60i, 
1 080/59.94i, 1 080/50i, 1 080/24sF, 1 080/23.98sF, 1 080/30p, 1 080/29.97p, 1 080/25p, 
1 080/24p, 1 080/23.98p
Displayable resolution: VGA - WUXGA (non interlace)
Dot clock frequency: 25 - 162 MHz
WUXGA signal is applicable with VESA CVT-RB (Reduced Blanking).
•
•
•
•
•
•
•
•
480i
480p
720/50p
1 035/60i
1 080/60i
1 080/25p
1 080/24sF
1 080/60p
H: 15.73 kHz, V: 59.94 Hz
H: 31.5 kHz, V: 59.94 Hz
H: 37.5 kHz, V: 50 Hz
H: 33.75 kHz, V: 60 Hz
H: 33.75 kHz, V: 60 Hz
H: 28.13 kHz, V: 25 Hz
H: 27 kHz, V: 48 Hz
H: 67.5 kHz, V: 60 Hz
•
•
•
•
•
•
•
576i
576p
720/60p
1 080/50i
1 080/24p
1 080/30p
1 080/50p
HD/SYNC, VD terminals are not compliant with 3 value composite SYNC.
Appendix
Colour system
7 (NTSC/NTSC 4.43/PAL/PAL-M/PAL-N/PAL60/SECAM)
Projection size
50" - 600" (1 270 mm - 12 700 mm)*5
Screen aspect ratio
•
•
Installation
FRONT/FLOOR, FRONT/CEILING, REAR/FLOOR, REAR/CEILING
(Menu selection method)
•
Contrast ratio
•
ENGLISH - 36
PT-DZ6710E/PT-DZ6700E/PT-DW6300E: 16 : 10
PT-D6000E/PT-D5000E: 4:3
PT-DZ6710E/PT-DZ6700E/PT-DW6300E/PT-D6000E: 2 000 : 1 
(When CONTRAST MODE in DISPLAY OPTION menu is set to HIGH)
PT-D5000E: 1 000 : 1
H: 15.63 kHz, V: 50 Hz
H: 31.25 kHz, V: 50 Hz
H: 45 kHz, V: 60 Hz
H: 28.13 kHz, V: 50 Hz
H: 27 kHz, V: 24 Hz
H: 33.75 kHz, V: 30 Hz
H: 56.25 kHz, V: 50 Hz
Technical Information
S-VIDEO IN
VIDEO IN
1 set, Mini DIN 4p
Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 Ω, compatible with S1 signal
1 set, BNC pin jack
1.0 V [p-p], 75 Ω
1 set, BNC x 5
 RGB signal
0.7 V [p-p], 75 Ω
RGB 1 IN
• G-SYNC: 1.0 V [p-p], 75 Ω
• HD/SYNC: TTL high impedance, automatic positive/negative polarity compatible
• VD: TTL high impedance, automatic positive/negative polarity compatible
 YPBPR signal
• Y: 1.0 V [p-p] Synchronisation signal included
•
PBPR: 0.7 V [p-p], 75 Ω
1 set of high density, D-sub 15p (female)
 RGB signal
RGB 2 IN
0.7 V [p-p], 75 Ω (G-SYNC: 1.0 V [p-p], 75 Ω)
• HD/SYNC: TTL high impedance, automatic positive/negative polarity compatible
• VD: TTL high impedance, automatic positive/negative polarity compatible
 YPBPR signal
• Y: 1.0 V [p-p] Synchronisation signal included
•
PBPR: 0.7 V [p-p], 75 Ω
DVI-D IN
1 set, DVI-D 24-pin (Single link), DVI 1.0 compatible, HDCP compatible
SERIAL
1 set, D-sub 9-pin, RS-232C compatible, computer control use
REMOTE1
1 set, M3 pin jack, wired remote control use, multiple connection use
REMOTE2
1 set, D-sub 9-pin, external control use
LAN
1 set, RJ-45, network connection use, PJLink™ compatible, 
10 Base-T/100Base-TX
SDI
1 set, BNC
SD-SDI (Y, CB, CR, 4:2:2)
• SMPTE259M: 480i, 576i
Cabinet
Moulded plastic
Mains lead length
3.0 m (9'10")
Dimensions
Remote
control
SMPTE292M: 720/50p, 720/60p, 1 035/60i,
1 080/50i, 1 080/60i, 1 080/25p, 1 080/24p,
1 080/24sF, 1 080/30p
Width
498 mm (19- 19/32")
Height
175 mm (6 - 7/8")
Length
Approx. 16 kg (35.3
Weight
•
440 mm (17 - 5/16")
lbs.)*6
Power supply
3 V DC (AA battery x 2)
Operating range
Approx. 30 m (98'5") (when operated directly in front of signal receptor)
Weight
120 g (4.2 ozs.) (including batteries)
Dimensions
Width
51 mm (2')
Length
176 mm (6 - 29/32")
Height
22.7 mm (-7/8") (not including surface projection
parts)
Ceiling bracket
ET-PKD56H (High ceiling), ET-PKD55S (Low ceiling)
Projection lens
ET-DLE150, ET-DLE250, ET-DLE350, ET-DLE450, ET-DLE055
Lamp unit
ET-LAD60 (1 bulb), ET-LAD60W (2 bulbs)
ACF unit
ET-ACF100
Options
*1. When STANDBY MODE in PROJECTOR SETUP menu is NORMAL: Approx. 9 W
When STANDBY MODE in PROJECTOR SETUP menu is ECO: Approx. 0.3 W
*2. Measurement, measuring conditions and method of notation all comply with ISO21118 international standards.
*3. When using this projector at high elevations 1 400 - 2 700 m (4 593 - 8 858 ft) sea level, temperature will be 5 °C lower than this
higher limit.
*4. See “List of compatible signals” on page 34 for available signals.
*5. When using the ET-DLE055 lens, maximum projection size is 200 inch.
*6. Average value. Each product (inc. lens) has an individual variable in weight.
ENGLISH - 37
Appendix
Terminals
Technical Information
Ceiling mount bracket safeguards
The projector and the ceiling mount bracket are designed sufficiently safety though, make sure the safety cable
provided with the projector is installed and attached to the bottom of the projector when mounting in the ceiling for
safety and security.
 Installation work of the ceiling mount bracket should only be carried by a qualified technician according to
the following procedure.
 Even if it is guarantee period, the manufacturer is not responsible for any hazard or damage caused by
using a ceiling mount bracket which is not purchased from an authorized distributors, or environmental
conditions.
 Make sure to use a torque driver and do not use an electrical screwdriver or an impact screwdriver.
 An unused ceiling mount bracket should be removed promptly by qualified technician.
 Do not use other than the provided safety cable (x1) and washers (x2).
 Do not use the screw holes of the front leg adjusters for the projector installation.
 Do not attach the safety cable to the burglar hook port and suspend the projector on it.
 Read the installation instructions booklet that is provided with the ceiling mount bracket to install the safety
cable.
 Attachment procedure
1. Turn the projector upside down and place it gently on a
soft cloth.
2. Turn one of the front leg adjuster counterclockwise to
remove from the projector.
3. Insert the front leg adjuster through the ring of the
washer.
4. Place the front leg adjuster through the loop of the
safety cable.
5. Attach the front leg adjuster to the projector by turning
clockwise, and then tighten up the front leg adjuster
securely.
6. Pull the safety cable outward toward the ceiling.
Ceiling mount
Appendix
ENGLISH - 38
Please also attach
the washer which is
additional accessory
to the ceiling mount.
Washer
Front leg adjuster
Front leg
leg adjuster
adjuster
Front
Washer
Washer
Safety
Safety cable
cable
Technical Information
Dimensions
21
(-13/16'')
20
(-25/32'')
5
(-3/16'')
498
(19-19/32'')
77.5
9
155
16.8
(3-1/32'') (6-3/32'') (-21/32'') (-11/32'')
423
(16-5/8'')
Unit: mm (inch)
Trademark acknowledgements
Appendix
 Microsoft and Microsoft logos, Windows, Windows® XP, and Windows Vista® are the registered trademarks
or trademarks of Microsoft Corporation in the United States and/or other countries.
 Other types of names such as company names and product names appearing in this instruction manual are
trademarks or registered trademarks of their respective holders. The ® and TM marks are not indicated in
this instruction manual.
ENGLISH - 39
Index
A
L
Accessories .................................................................... 11
Air exhaust port .............................................................. 12
Air intake port ................................................................. 13
ASPECT
Remote control button ................................................. 14
Remote control function ............................................... 22
Auto Cleaning Filter (ACF) ............................................. 13
AUTO SETUP
Control panel button .................................................... 12
Remote control button ................................................. 14
Remote control function ............................................... 21
LAMP
Indicator status ........................................................... 28
Lamp unit compartment ................................................ 12
LAMP1/LAMP2 indicators ............................................. 12
Replacing ................................................................... 30
LAN
Terminal ..................................................................... 13
LENS
Control panel button .................................................... 12
Projection lens ............................................................ 12
Projector lens cover ..................................................... 11
Remote control button .................................................. 14
B
Lens cover
Battery ............................................................................ 11
Compartment ............................................................. 14
Burglar hook port ............................................................ 12
Accessories ................................................................ 11
Lens home position ......................................................... 20
M
C
Mains lead
AC IN terminal ............................................................ 13
Accessories ................................................................ 11
Connecting ................................................................. 18
CD-ROM ......................................................................... 11
Accessories ............................................................... 11
Menu ......................................................................... 24
MENU
CD-ROM .................................................................... 24
Control panel button .................................................... 12
Navigation .................................................................. 27
Remote control button .................................................. 14
Structure .................................................................... 24
D
DEFAULT
Remote control button ................................................. 14
Remote control function ............................................... 23
Dimensions ..................................................................... 39
Direct power off .............................................................. 20
DISPLAY LANGUAGE ................................................... 24
DVI-D
Control panel button .................................................... 12
Remote control button ................................................. 14
Terminal .................................................................... 13
N
Navigation buttons
Control panel .............................................................. 12
Navigation .................................................................. 27
Remote control buttons ................................................ 14
Numeric (0 - 9) buttons
Remote control buttons ................................................ 14
E
O
ENTER
Control panel button .................................................... 12
Menu navigation ......................................................... 27
Remote control button ................................................. 14
F
ON SCREEN
Remote control button .................................................. 14
Remote control function ............................................... 22
P
FILTER
Compartment .............................................................
Indicator ....................................................................
Indicator status ...........................................................
Replacing ..................................................................
13
12
29
32
FOCUS
Adjusting ................................................................... 19
Remote control button ................................................. 14
Focus ring ....................................................................... 12
Front leg adjusters .......................................................... 12
FUNCTION
Remote control button ................................................. 14
Remote control function ............................................... 23
I
ID
Remote control button ................................................. 14
Setting ....................................................................... 15
Appendix
INPUT SELECT
Control panel button .................................................... 12
Remote control buttons ............................................... 14
Remote control function ............................................... 22
INSTALLATION
Projection method ....................................................... 16
ENGLISH - 40
POWER
Switch ........................................................................ 13
Switching on/off ........................................................... 19
Power cord secure lock
Accessories ................................................................ 11
Attaching .................................................................... 18
POWER ON
Control panel button .................................................... 12
Remote control button .................................................. 14
Switching on/off ........................................................... 19
POWER STANDBY
Control panel button .................................................... 12
Remote control button .................................................. 14
Projection lens
Removing and Attaching .............................................. 17
Projector lens cover
Accessories ................................................................ 11
Index
R
Remote control ............................................................... 14
Accessories ................................................................ 11
Signal receptor ........................................................... 12
Wired connection ........................................................ 15
REMOTE1
Terminal .................................................................... 13
Wired connection ........................................................ 15
REMOTE2
Terminal .................................................................... 13
RGB1
Control panel button .................................................... 12
Remote control button ................................................. 14
Terminal .................................................................... 13
RGB2
Control panel button .................................................... 12
Remote control button ................................................. 14
Terminal .................................................................... 13
S
Safety cable
Accessories ................................................................ 11
Attachment procedure ................................................. 38
SDI
Control panel button .................................................... 12
Remote control button ................................................. 14
Terminal .................................................................... 13
Security lock ................................................................... 13
SERIAL
Terminal .................................................................... 13
SHIFT
Adjusting .................................................................... 19
Adjustment range ........................................................ 20
Remote control button ................................................. 14
SHUTTER
Control panel button .................................................... 12
Remote control button ................................................. 14
Remote control function ............................................... 22
Specifications .................................................................. 36
STATUS
Remote control button ................................................. 14
Remote control function ............................................... 23
S-VIDEO
Control panel button .................................................... 12
Remote control button ................................................. 14
Terminal .................................................................... 13
T
TEMP
Indicator ..................................................................... 12
Indicator status ........................................................... 28
TEST PATTERN
Remote control button ................................................. 14
Remote control function ............................................... 22
Troubleshooting .............................................................. 33
V
VIDEO
Appendix
Control panel button .................................................... 12
Remote control button ................................................. 14
Terminal .................................................................... 13
Z
ZOOM
Adjusting .................................................................... 19
Remote control button ................................................. 14
ENGLISH - 41
Printed in Japan
S0509-6119G
TQBJ0296-5
