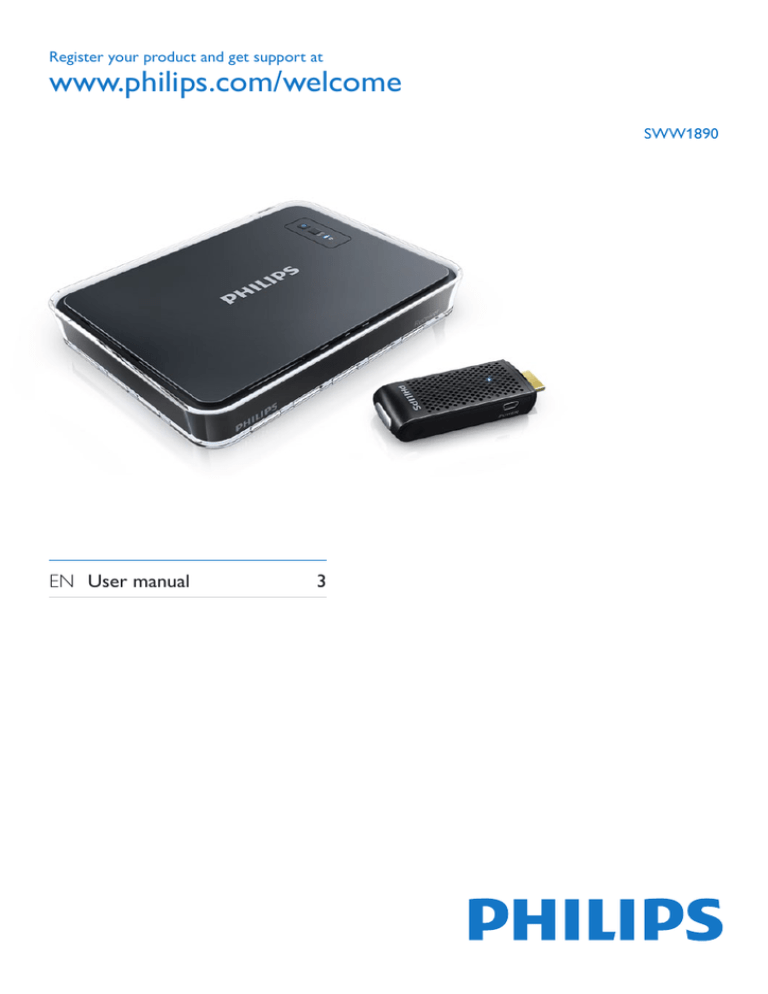

Philips Wireless HD Net Connect SWW1890

Register your product and get support at
www.philips.com/welcome
SWW1890
EN User manual
3
1Important Safety English
Contents
4
4
2 Your Philips Wireless HD Net Connect 6
What is in the box 6
3Overview 7
7
7
4Installation 9
9
9
The transmitter The receiver Connect the transmitter to your computer Connect the receiver to the HDTV set 5 Activate your Philips Wireless HD
Net Connect and set up the link Turn on the power of your HDTV Activate the wireless link 6 Mount your receiver Mount your receiver on the wall Mount your receiver on the back of the
HDTV 10
10
10
12
12
13
7 Technical data 14
14
14
8Notice Notice for USA Notice for Canada Recycling One Year Limited Warranty 15
15
15
16
16
9 Frequently asked questions 17
Supported resolution Product specifications EN
3
1Important
Safety
This ‘bolt of lightning’ indicates uninsulated
material within your unit may cause an electrical
shock.
The ‘exclamation mark’ calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
hDo not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
iDo not defeat the safety purpose of
the polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third grounding
prong. The wide blade or the third prong
are provided for your safety. If the provided
plug does not fit into your outlet, consult
an electrician for replacement of the
obsolete outlet.
Warning
•• To reduce the risk of fire or electric shock, this
apparatus should not be exposed to rain or moisture
and objects filled with liquids, such as vases, should not
be placed on this apparatus.
Caution
•• To prevent electric shock, fully insert the plug. (For
regions with polarized plugs: To prevent electric shock,
match wide blade to wide slot.)
4
EN
jProtect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
kOnly use attachments/accessories specified
by the manufacturer.
lUse only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
English
mUnplug this apparatus during lightning
storms or when unused for long periods of
time.
nRefer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
oApparatus shall not be exposed to
dripping or splashing.
pDo not place any sources of danger on the
apparatus (e.g. liquid filled objects, lighted
candles).
EN
5
2 Your Philips
Wireless HD
Net Connect
Congratulations on your purchase and welcome
to Philips!
To fully benefit from the support that
Philips offers, register your product at
www.philips.com/welcome.
USB cable for the power supply of the
transmitter (2 feet 1 inch / 1.5 meters)
Power adapter for the receiver
What is in the box
Note
Anchors x 2
•• Make sure you have all these items in the box. Contact
your dealer for any missing or damaged items.
Screws x 2
Transmitter
Adhesive tape x 2
Quick Installation Guide
Quick start guide
Receiver
HDMI cable (5 feet / 0.64 meters)
User manual
6
EN
The receiver
English
3Overview
Top view
The transmitter
Front view
POWER
1
2
LED
indicator
USB
power
jack
Displays the connection status
of the transmitter.
Connect the transmitter to the
computer with the USB cable.
1
LED indicator
2
Power button
with LED
indicator
INFO button
3
Top view
Displays the status of the
receiver.
Press to turn the receiver
on/off or to standby
mode.
Displays on the HDTV
the connection status of
the receiver.
Rear view
1
2
INFO
button
HDMI IN
connector
Displays on the HDTV the
connection status of the
transmitter.
Plug into the HDMI port of
the computer.
1
2
DC IN
connector
HDMI OUT
connector
Connect the power adapter
of the receiver.
Connect to the HDTV with
an HDMI cable
EN
7
The Philips Wireless HD Net Connect gives
you a total wireless solution to enjoy the
content from your computer on your HDTV.
The transmitter can transmit an uncompressed
video content up to 23 feet (7 meters) without
latency. The receiver can receive signals for
viewing on your HDTV. All you need to do is:
• Connect the transmitter to your computer.
• Connect the receiver to your HDTV set.
8
EN
4Installation
English
Connect the transmitter to
your computer
»» The power LED indicator of the
transmitter flashes in blue, then turns
into solid blue when the connection is
established.
Connect the receiver to the
HDTV set
HDMI
a
b
c
HDMI
1
Connect the transmitter to the computer using
the supplied USB cable.
1
2
3
Connect the transmitter to the HDMI port
of the computer.
Connect the small end of the USB cable to
the POWER jack of the transmitter;
Connect the other end of the USB cable
to your the USB port of your computer.
2
Connect the receiver with the supplied
HDMI cable:
• Connect one end of the HDMI cable
to HDMI OUT connector of the
receiver.
• Connect the other end of the HDMI
cable to the HDMI in connector of
your HDTV.
Connect the power adapter to the
receiver with the supplied power adapter:
• Connect one end of the power
adapter to the DC IN connector of
the receiver.
• Connect the other end of the power
adapter to a power outlet.
Note
•• For some computers, the HDMI and USB ports are
located in different sides of the computer. It is not
recommended to use the USB port that sits right next
to the HDMI port. There may not be enough space for
both connectors.
EN
9
5 Activate your
Philips Wireless
HD Net
Connect and set
up the link
Turn on the power of your
HDTV
HDMI
On screen display on HDTV
On screen display
Mode and status
Standby mode: it is a
power-saving mode
.....
Start up in progress: It
takes 15-20 seconds.
x and ....
Searching available
channels: It occurs
when the link cannot
establish over
80 seconds after
initialization.
On mode with
HDMI CH1
unrecognized video
format
On mode but
HDMI CH1
without input from
the computer/source
device
HDMI CH1 1080P On mode with
recognized video
format
HDMI
Activate the wireless link
1
2
10
Go to the source menu under the settings
menu of your HDTV.
Select the HDMI input to which the
receiver is connected.
EN
Switch on the transmitter and
receiver
Once the transmitter and receiver are powered
up, the link is automatically established after
15-20 seconds.
•
•
•
A flashing blue power LED is displayed
until the signal link between the two units
is established. Normally, it takes around
15-20 seconds for the link to establish
successfully.
When you unplug the power cord of the
transmitter, the receiver enters standby
mode after 5 minutes.
»» The power LED of the receiver lights
up in red.
The link between the transmitter and
receiver is re-established when you plug in
the power cord of the transmitter again.
»» The power LED of the receiver flashes
in blue.
LED indicator status of the
transmitter
Power LED indicator Status
Solid blue
The link is established.
Flashing blue
Linking is in progress.
LED indicator status of the receiver
Power
LED
Solid
red
Flashing
blue
Status
LED
Off
Solid
blue
Flashing
quickly
Solid
blue
Solid
blue
Flashing
slowly
Solid
blue
Flashing
English
Establish the link between the
transmitter and receiver
Mode and status
Standby mode for powersaving
Setting up a Link between
the transmitter and
receiver
On mode but without
input from the computer/
source device
On mode with
unrecognized video format
On mode with recognized
video format
Note
•• If the link is not established after 80 seconds, move the
transmitter, receiver and HDTV closer to each other.
The maximum transmission range is up to 23 feet
(7 meters).
•• If more than one set of Philips Wireless HD Net
Connect is placed in the same room, make sure that
the minimum distance among each one is 6 feet
(2 meters).
•• Make sure the computer is on and the video output on
•• the laptop/PC is switched to HDMI.
•• Make sure the video format is supported before the
video is displayed, see the chapter on Technical data for
information.
•• If the picture on your TV is not full screen, see the
chapter on ‘Frequently asked questions’ for information..
EN
11
6 Mount your
receiver
You can either mount the receiver on the wall
or on the back of the HDTV.
Mount your receiver on the
wall
1
2
3
4
12
Select a spot near the HDTV.
Drill two holes in the wall. Make sure that
the distance between the two holes is
1 25/32” (45mm) and the diameter of the
hole is 3/16” (5mm).
Punch the supplied two anchors into the
two holes on the wall.
Put the two screws into the anchors and
leave 1/8” (3mm) to mount the receiver on.
EN
5
Hook the key holes at the back of the
receiver on the screws.
1
2
Remove the white protective film from
one of the supplied adhesive tapes.
Secure the glued side of the adhesive tape
and attach it to the central bottom area of
the receiver.
6
Align the adhesive tape on the receiver
with the one on the HDTV until both the
receiver and HDTV are mounted together
firmly.
Note
•• The use of adhesive tapes is an alternative mounting
option when the receiver cannot be fixed.
•• When you mount the receiver at the back of the
HDTV, avoid blocking the ventilation holes of the
HDTV.
•• For safety reason, check regularly if the HDTV and
receiver are mounted together firmly.
•• The receiver is not recommended for in-the-wall
installation.
3
4
5
Select a flat location on the rear side of
the HDTV.
Remove the white protective film from the
other adhesive tape.
Secure the glued side of the adhesive tape
and attach it to the selected rear side of
the HDTV.
EN
13
English
Mount your receiver on the
back of the HDTV
7 Technical data
Supported resolution
Video format
timings
Resolution
Operating frequencies:
5.15-5.25GHz / 5.725-5.825GHz
Power supply:
Input: AC 100~ 240V
Output: DC 5V, 2A
Operating temperature:
0~40°C/32~104°F
Primary CEA video Timing
Transmitter interfaces
480p
480p
480p
576p
720p
720p
1080i
1080i
1080p/60
1080p/60
A/V interfaces
HDMI input: One (Type A, Male)
Power interface
Power input: The USB cable connected to the
USB jack of the computer
LEDs
Status LED: 1 x blue LED
Dimensions
30 x 83.3 x 17.5 mm (W x L x H)
640x480p @ 59.94/60Hz
720x480p @ 59.94Hz
720x480p @ 60Hz
720x576p @ 50Hz
1280x720p @ 50Hz
1280x720p @ 59.94/60Hz
1920x1080i @ 50Hz
1920x1080i @ 59.94/60Hz
1920x1080p @50Hz
1920x1080p @ 59.94/60Hz
Secondary CEA video Timing
1080p/24
1080p/24
1080p/24
1920x1080p @ 23.98/24Hz
1920x1080p @ 25Hz
1920x1080p @ 29.97/30Hz
Product specifications
General specification
Video resolution
HDMI input: 1080p, 1080i, 720p, 576p, 480p
Supported audio formats:
Digital audio: up to 6 Mbps AC3 and DTS
Analog audio: 32-96 KHz and 16-24 bits per
audio sample
Transmission distance:
Maximum 23 feet (7 meters).
Antennas:
High performance internal antennas
14
EN
Receiver interfaces
A/V interfaces
HDMI output: One (Type A)
Power interface
Power input: 5V DC jack
Switches
Front power switch: One
Info switch: One
LEDs
Power LED: 1 x LED (Two Tone: Blue & Red)
Status LED: 1 x blue LED
Signal quality status: On-screen display
Dimensions
194.8 x 146.8 x 31 mm (W x L x H)
Notice for USA
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy
and, if not installed and used in accordance with
the instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference
by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
FCC Caution: Any changes or modifications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate this equipment.
• Operations in the 5.15-5.25GHz / 5.7255.825GHz band are restricted to indoor
usage only.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
• This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment. This equipment
should be installed and operated with
minimum distance 20cm between the
radiator & your body.
• This transmitter must not be co-located
or operating in conjunction with any other
antenna or transmitter.
Note
•• The country code selection is for non-US model only
and is not available to all US model. Per FCC regulation,
all wireless product marketed in US must be fixed to
US operation channels only.
Notice for Canada
This device complies with RSS-210 of the
Industry Canada Rules. Operation is subject to
the following two conditions: (1) This device
may not cause harmful interference, and (2) this
device must accept any interference received,
including interference that may cause undesired
operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with minimum distance 20cm
between the radiator & your body.
Caution
•• The device for operation in the band 5150-5250
MHz is only for indoor use to reduce the potential
for harmful interference to co-channel mobile satellite
systems;
•• the maximum antenna gain permitted for devices in the
band 5725-5825 MHz shall comply with the e.i.r.p. limits
specified for point-to-point and non point-to-point
operation as appropriate.
EN
15
English
8Notice
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
The packaging of this product is intended to
be recycled. Contact your local authorities for
information about how to recycle the packaging.
When this logo is attached to a product, it
means a financial contribution has been paid to
the associated national recovery and recycling
system.
One Year Limited Warranty
Philips warrants that this product shall be free
from defects in material, workmanship and
assembly, under normal use, in accordance with
the specifications and warnings, for a period
of one year from the date of purchase. This
warranty extends only to the original purchaser
of the product, and is not transferable. To
exercise your rights under this warranty, you
must provide proof of purchase in the form of
an original sales receipt that shows the product
name and the date of purchase. For customer
support or to obtain warranty service, please
visit our website www.philips.com/support,
or dial in 1-888-744-5477. THERE ARE NO
OTHER EXPRESS OR IMPLIED WARRANTIES.
Philips’ liability is limited to repair or, at its
sole option, replacement of the product.
16
EN
Incidental, special and consequential damages
are disclaimed where permitted by law. This
warranty gives you specific legal rights. You may
also have other rights that vary from state to
state.
The power LED on the
receiver is not lit up in
red in standby mode.
The laptop screen
image is not
full screen on my TV.
Make sure that there is power supply for the receiver.
1
2
3
4
5
6
There is no video
displayed on my TV
screen.
English
9 Frequently asked questions
•
•
•
Right-click on an open space on your desktop.
Select Graphics Options > Output to > Digital Television (Now the
laptop image will only appear on your TV).
Once again, right-click on an open space on your desktop.
Select Screen Resolution.
On the pop-up box increase the resolution settings till the laptop
image better fits your TV screen.
Select OK and KEEP CHANGES when you are satisfied with your
image size.
Make sure that the appropriate cables are selected and inserted to the
transmitter, receiver, and HDTV.
Make sure that you select HDMI as the input source on your HDTV.
Check the power LED and status LED on the receiver:
• Flashing blue power LED: Make sure that the transmission range
between receiver and transmitter is not over 23 feet (7 meters)
transmission distance. Move the transmitter closer to the receiver.
• Solid blue power LED + slow and flashing source LED: 1)
Make sure that the frame rate and video resolution of your
A/V equipment are supported and conformed to the technical
specification (see the chapter ‘Technical data’). 2) Connect
the computer to your TV with an HDMI cable to check the
compatibility of the video format.
• Solid blue power LED + quick and flashing source LED: 1) Make
sure that the proper cables are connected between the receiver
and HDTV. 2) Make sure that your computer connected to the
transmitter is powered on. 3) Make sure that the HDMI cable is
connected between the HDTV and receiver. 4) Make sure that the
display setting of your computer is set to clone display or extended
display.
Tip
•• For information about how to set your computer to clone or extended display, see
‘How can I connect to my computer to enable the external display?’ described later in
this chapter.
EN
17
If the picture quality is
poor, what do I do?
••
I cannot hear any
sound or the sound is
poor, what do I do?
••
••
••
••
••
••
Make sure that the video scale and resolution of your computer
matches the resolution of your HDTV (See chapter ‘Technical data’).
Make sure that the transmission range between receiver and
transmitter is not over 23 feet (7 meters) transmission distance.
Make sure that the TV volume is adjusted correctly.
Make sure that the TV volume is not set to minimum or the sound is
not muted.
Make sure that the audio volume of your computer is turned up.
Make sure that the audio bit rate is supported.
Make sure that the audio output of your computer is set to HDMI
output.
Tip
•• See the chapter ‘Product specification’.
How can I connect to
my computer to enable
the external display?
For Windows7
operation system:
1Press
, then P.
»» The screen with options is displayed.
2Select Clone, Extend display or Project out only for external display.
For Windows Vista
operating system:
1
2
3
For Windows XP
operating system:
Click on Start > Control Panel > Personalization > Display settings.
Make sure that the display 2 is on with or without enabling Extend the
desktop onto this monitor.
Make sure that the resolution is comply to the supported resolution
(See the chapter ‘Technical data’, section supported resolution).
1 On the computer screen, right click on your mouse.
2Select Properties > Settings.
3 Make sure that the display 2 is on with or without enabling Extend the
4
desktop onto this monitor.
Make sure that the resolution is comply to the supported resolution
(See the chapter ‘Technical data’, section supported resolution).
Tip
•• For further information, click on Start > Help and Support, then enter ‘change display
settings’ on the blank space provided.
18
EN
MAC operating system detects the external display equipment and
switches to a better resolution automatically when you plug in the display
cable to MAC series.
English
For MAC operating
system:
Note
•• If the MAC operation system does not detect the external display automatically, click
on
> Preference > Detect Displays.
•• This product does not work with display port.
How can I change the
audio setting of my
computer to HDMI
output?
For Windows7 and
Vista operating system:
1
2
For Windows XP
operating system:
1
2
Click on Start > Control Panel > Sound > Playback.
Set the playback device to the corresponding TV set shown on the list.
Click on Start > Control Panel > Sounds and Audio Devices >
Audio > Sound Playback.
Set the Default device to HDMI device.
Tip
•• For further information, click on Start > Help and Support, then enter ‘change
audio settings’ on the blank space provided.
EN
19
20
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
IFU_SWW1890_EN_V2.0
WK11472
