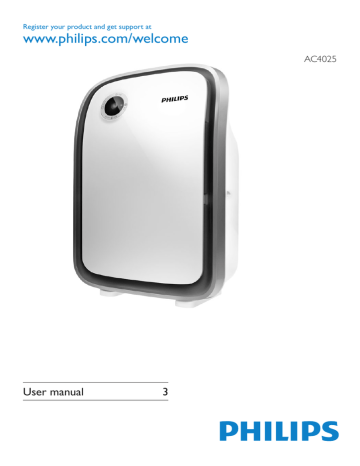

Register your product and get support at
www.philips.com/welcome
AC4025
User manual
3
1Important Safety 4
4
2 Your air purifier What’s in the box 5
5
3 Get started Install filters 6
6
4 Use the air purifier 8
8
8
9
9
10
5 Clean your air purifier Clean the air purifier 11
11
11
6 Replace the filters 13
Understand the healthy air protect alert Switch on or off Change the fan speed Sleep mode Set the Timer Clean the activated carbon filter Replace the activated carbon filter and the
HEPA filter Reset the filter lifetime counter 13
15
7Troubleshooting 16
8 Guarantee and service Order parts or accessories 17
17
9Notices 18
18
18
18
Electomagnetic fields (EMF) Compliance with EMF Recycling English
Contents
EN
3
1Important
Safety
Read this user manual carefully before you use
the appliance, and save it for future reference.
Danger
•• Do not let water or any other liquid or flammable
detergent enter the appliance to avoid electric shock
and/or a fire hazard.
•• Do not clean the appliance with water, any other
liquid, or a (flammable) detergent to avoid electric
shock and/or a fire hazard.
Warning
•• Check if the voltage indicated on the bottom or
indicated at the rear of the appliance corresponds
to the local power voltage before you connect the
appliance.
•• If the power cord is damaged, you must have it
replaced by Philips, a service center authorized by
Philips, or similarly qualified persons in order to avoid
a hazard.
•• Do not use the appliance if the plug, the power cord,
or the appliance itself is damaged.
•• This appliance is not intended for use by persons
(including children) with reduced physical sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
•• Children should be supervised to ensure that they do
not play with the appliance.
•• Do not block the air inlet and outlet, e.g. by placing
items on the air outlet or in front of the air inlet.
4
EN
Caution
•• This appliance is not a substitute for proper
ventilation, regular vacuum cleaning, or use of an
extractor hood or fan while cooking.
•• If the power socket used to power the appliance has
poor connections, the plug of the appliance becomes
hot. Make sure that you plug the appliance into a
properly connected power socket.
•• Always place and use the appliance on a dry, stable,
level, and horizontal surface.
•• Leave at least 20cm free space behind and on both
sides of the appliance and leave at least 30cm free
space above the appliance.
•• Do not place anything on top of the appliance and do
not sit on the appliance.
•• Do not place the appliance directly below an air
conditioner to prevent condensation from dripping
onto the appliance.
•• Make sure all filters are properly installed before you
switch on the appliance.
•• Only use the original Philips filters specially intended
for this appliance. Do not use any other filters.
•• Avoid knocking against the appliance (the air inlet
and outlet in particular) with hard objects.
•• Always lift or move the appliance by the handle at
the back of the appliance.
•• Do not insert your fingers or objects into the air
outlet.
•• Do not use this appliance when you have used
indoor smoke-type insect repellents or in places with
oily residues, burning incense, or chemical fumes.
•• Do not use the appliance near gas appliances, heating
devices or fireplaces.
•• Always unplug the appliance after use and before
you clean it.
•• Do not use the appliance in a room with major
temperature changes, as this may cause condensation
inside the appliance.
•• To prevent interference, place the appliance at least
2m away from electrical appliances that use airborne
radio waves such as TVs, radios, and radio-controlled
clocks.
•• The appliance is only intended for household use
under normal operating conditions.
•• Do not use the appliance in wet surroundings or in
surroundings with high ambient temperatures, such
as the bathroom, toilet, or kitchen.
•• The appliance does not remove carbon monoxide
(CO) or radon (Rn). It cannot be used a a safety
device in case of accidents with combustion
processes and hazardous chemicals.
English
2 Your air purifier
Congratulations on your purchase, and
welcome to Philips!
To fully benefit from the support that Philips
offers, register your product at www.Philips.
com/welcome.
Read this user manual carefully before you
install and use the unit. Save it for future
reference.
What’s in the box
Check and identify the contents of your
package:
For other Philips
air purifier
4
Filter 4: H
EPA filter
(AC4104)
Filter 3: A
ctivated carbon filter
(AC4103)
Filter 1 and 2 are for other Philips air purifier.
Register your product and get support at
www.philips.com/welcome
AC4016
AC4025 QSG V1.4 140x140mm 15/07/2011
������������������������‫੶ߔۻ‬ອ3ࠧ4���ҡ౒ᓎ၉
3ʥ4
1
2
Quick start guide AC4025
������������‫أۻ‬ራਜ���ҡΛ༅ࢿ
3
৛ะሙ‫׿‬ාԊ | ҄஠‫ܞ‬ኒʹ˫
1
2 Sec.
2
秒
2秒
2
4
5
6
For other
Philips air
�������
1
More info
4
2
2
8
2
English
3
简体中文
1
9
繁體中文
19
Warranty
ႬჃఇ෴٪
৪௹०ఛ࣮
߈చ
͂‫כ‬ԯˢࠔ
Сࣳ‫ࣩي‬૱
ʝኂ
‫أۻ‬ራਜ
ҡΛ༅ࢿ
1
7
4
Reset
ᇛᇆ
ࠇສ
2 Sec.
2
���������������������
���������������������������������
੶ອ4: HEPA੶ອ
੶ອ3: ࠇྣณ‫੶ݚ‬ອ
ᓎ၉4: HEPAᓎ၉
ᓎ၉3: ‫ֲݠ‬ဧ༦ᓎ၉
AC4104
AC4103
���������������������������������������������������
૔་1ࢅ2ᄊᄡ౥๒‫ੈۈ‬౗ৄ౹ौࠦ౸ |
33
秒
2秒
���������������������������������������������������
�������������������������������������������
��������������������
ᓎ၉1ʥ2͂‫כ‬ԯˢࠔСࣳ‫ࣩي‬૱ʝኂ
4222 248 54271
11285
www.philips.com/welcome
CEASUIAKPFF
AC4016 um en.indd
1
04/05/2011
19:01:12
User manual
Quick start guide
Warranty
EN
5
3 Get started
3
Remove all the filters from the purifier.
Install filters
The air purifier comes with all filters fitted
inside, but you have to remove the packaging
of the filters before you can use the appliance.
Remove all filters, unpack them, and place
them back into the air purifier as described
below.
Tip
4
4
Remove all packaging material from the
filters.
•• When you remove or insert filters, place the air
purifier against a wall for more stability.
Note
•• Insert the filters in the correct position.
1
2
Place your fingers at the top panel and
gently pull the top part of the front panel
towards you. (1)
Lift the panel out of the hooks at the
bottom of the purifier. (2)
5
Put the filters back into the purifier.
1
2
Note
•• Make sure that the side with the tag is pointing
towards you, and the tag is at the bottom end of
the filter.
6
EN
To reattach the front panel, insert the
bottom hooks into the bottom of the
purifier first (1). Then, push the panel
against the body of the purifier(2).
English
6
2
1
EN
7
4 Use the air
purifier
2
Press the button to switch on the
purifier.
»» The power-on light [ ] on the
control panel goes on.
Understand the healthy air
protect alert
This purifier is equipped with the Healthy
air protect alert to make sure that the filters
are in optimal condition when the purifier is
operating.
The filter replacement light ( ) indicates the
filter have to be replaced.
Healthy air protect
alert
Filter replacement
light flashes. This
lasts approximately
for 2 weeks.
Filter replacement
light is on
continuously.
Follow this
You still have 2 weeks
time to replace the
activated carbon filter
and the HEPA filter.
Replace the activated
carbon filter and
the HEPA filter
immediately.
Switch on or off
1
Plug the air purifier into the power supply.
»» All lights go on twice. Then, the lights
go out again.
Control panel
8
EN
3
Press the
purifier.
button to switch off the
You can select the desired fan speed.
Note
•• When you select a fan speed, you can also use the
Sleep mode
In sleep mode, the air purifier operates very
quietly while all the lights are dimmed for your
undisturbed sleep.
1
timer function (see ‘Set the timer’). In this case, one
of the lights ( , , and ) and the one of the
lights ( , , or ) are on.
1
Press the
purifier.
button to switch on the air
button to switch on the
2
2
Press the
purifier.
Press the button to select sleep mode.
»» The light goes on.
Press the button once or more times
to select the desired fan speed ( , , or
).
To change to another fan speed, press the
button.
EN
9
English
Change the fan speed
Set the Timer
With the timer function, you can let the
purifier operate for a set number of hours.
When the set time has elapsed, the purifier
automatically switches off.
You can use the timer function in the following
situation:
Situation
Choose a fan
speed manually
(see ‘Manual’)
1
2
Press the
You will see
One of the lights ( ,
, or ) and one of the
lights ( , , or ) are on.
button to switch on the purifier.
Press the button to activate the timer.
»» The light ( , , or ) goes on.
3
Press the button repeatedly to choose
the number of hours you want the
purifier to operate. The corresponding
light ( , , or ) goes on.
To deactivate the timer function, press the
button repeatedly until the light ( , , or
) is out.
10
EN
1
Switch off the purifier and unplug it.
English
5 Clean your air
purifier
Note
•• Always unplug the purifier before you clean it.
•• Never immerse the purifier in water or any other
liquid.
•• Never use abrasive, aggressive, or flammable cleaning
agents such as bleach or alcohol to clean any part of
the purifier.
•• The air purifier filters are NOT washable.
2
Clean the air purifier
Place your fingers at the top panel and
gently pull the top part of the front panel
towards you (1). Lift the panel out of the
hooks at the bottom of the purifier (2).
1
Regularly clean the inside and outside of the
purifier body to prevent dust from collecting.
1
2
Wipe away dust with a soft dry cloth
from the body of the purifier.
Clean the air inlet and the air outlet with
a soft dry cloth.
Clean the activated carbon
filter
2
3
Remove the activated carbon filter.
This activated carbon filter catches large
airborne particles like lint, dust, human hair,
and pet hair. It also helps remove odors.
Note
•• The activated carbon filter is not washable nor
vacuum cleanable.
•• Clean the activated carbon filter for every two
weeks to ensure optimal functioning of the purifier.
EN
11
4
5
Clean the activated carbon filter with soft
brush to remove dust.
Put the activated carbon filter back into
the purifier.
1
4
2
6
To reattach the front panel, insert the
bottom hooks into the bottom of the
purifier first (1). Then, push the panel
against the body of the purifier(2).
2
1
12
EN
Note
•• Insert the filters in the correct position.
•• Make sure you place the filters in the order of HEPA
filter and activated carbon filter.
•• Make sure that the side with the tag is pointing
The filter replacement light (
filter have to be replaced.
towards you, and the tag is at the bottom end of
the filter.
) indicate the
1
Switch off the purifier and unplug it.
Replace the activated carbon
filter and the HEPA filter
Note
•• The activated carbon filter and the HEPA filter are
neither washable nor vacuum cleanable.
Replace both the activated carbon filter and
HEPA filter when the light starts to flash.
This will last for approximately 2 weeks.
When you do not replace the filter in time:
»» The lights up continuously.
2
3
Place your fingers at the top panel and
gently pull the top part of the front panel
towards you (1).
Lift the panel out of the hooks at the
bottom of the purifier (2).
1
In sleep mode, when the light starts to
flash but dim, replace both the activated
carbon filter and HEPA filter. This will last for
approximately 2 weeks.
When you do not replace the filter in time:
»» The lights up but dim continuously.
2
Tip
•• When you remove or insert filters, place the purifier
against a wall for more stability.
EN
13
English
6 Replace the
filters
4
Remove all the filters from the purifier.
7
Place the new activated carbon filter in
the purifier.
1
4
2
5
Remove all packaging material from the
new filters.
8
To reattach the front panel, insert the
bottom hooks into the bottom of the
purifier first (1). Then, push the panel
against the body of the purifier(2).
2
6
1
Place the new HEPA filter in the purifier
first.
9
1
2
14
EN
Reset the activated carbon filter and the
HEPA filter lifetime (see ‘Reset the filter
lifetime counter).
4
Press and hold the
seconds.
button for 2
English
Reset the filter lifetime
counter
When you replace the filters, it is important
that you also reset the filter lifetime counter
afterwards. This allows the purifier to be in
sync with the filter lifetime.
After you have replaced the filter, reset the
filter time:
1
Switch off the purifier and unplug it.
Note
•• Reset the purifier when it is plugged in and switched
on.
•• Only replace the filters when you see the
start flashing.
2
3
light
Replace the air purifier filter (see ‘Replace
the filters’).
Put the plug in the power socket and
switch on the purifier again.
EN
15
7Troubleshooting
This chapter summarizes the most common
problems you could encounter with the
purifier. If you are unable to solve the problem
with the information below, contact the
Consumer Care Center in your country.
Problem
The light
has been
flashing.
No air comes
out of the air
outlet.
The airflow
that comes
out of the
air outlet is
significantly
weaker than
before.
The air
quality does
not improve,
even though
the purifier
has been
operating for
a long time.
The purifier is
extra loud.
The purifier
still indicates
that I need
to replace a
filter, but I
already did.
16
EN
Possible solution
The filter is full. Replace the
filter and reset the purifier.
The purifier is not connected
to the power supply. Plug the
purifier into the power supply
and switch on.
You have not removed all
packaging material from the
filters. Make sure that you
have removed all packaging
material.
One of the filters has not
been placed in the purifier.
Make sure that all filters
are properly installed in the
following order, starting with
the innermost filter: 1) HEPA
filter, 2) activated carbon
filter.
You have not removed all
packaging material from the
filters. Make sure that you
have removed all packaging
material.
You can change the fan speed
to lower fan speed.
Perhaps you did not press the
filter reset button properly.
Plug in the purifier, press
the button. Then, press
and hold the button for 2
seonds.
English
8 Guarantee and
service
If you need information or if you have a
problem, please visit the Philips website
at www.philips.com or contact the Philips
Consumer Care Center in your country (you
find its phone number in the worldwide
guarantee leaflet). If there is no Consumer
Care Centre in your country, go to your local
Philips dealer.
Order parts or accessories
If you have to replace a part or want to
purchase an additional part, go to your Philips
dealer or visit www.philips.com/support.
If you have problems obtaining the parts,
please contact the Philips Consumer Care
Center in your country (you find its phone
number in the worldwide guarantee leaflet).
EN
17
9Notices
Recycling
Electomagnetic fields (EMF)
This Philips appliance complies with all
standards regarding electromagnetic fields
(EMF). If handled properly and according
to the instructions in this user manual, the
appliance is safe to use based on scientific
evidence available today.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Compliance with EMF
Koninklijke Philips Electronics N.V.
manufactures and sells many products
targeted at consumers, which, like any
electronic apparatus, in general have the
ability to emit and receive electromagnetic
signals.
One of Philips’ leading Business Principles is to
take all necessary health and safety measures
for our products, to comply with all applicable
legal requirements and to stay well within
the EMF standards applicable at the time of
producing the products.
Philips is committed to develop, produce and
market products that cause no adverse health
effects. Philips confirms that if its products are
handled properly for their intended use, they
are safe to use according to scientific evidence
available today.
Philips plays an active role in the development
of international EMF and safety standards,
enabling Philips to anticipate further
developments in standardization for early
integration in its products.
18
EN
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
4222 248 53842
11352

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
