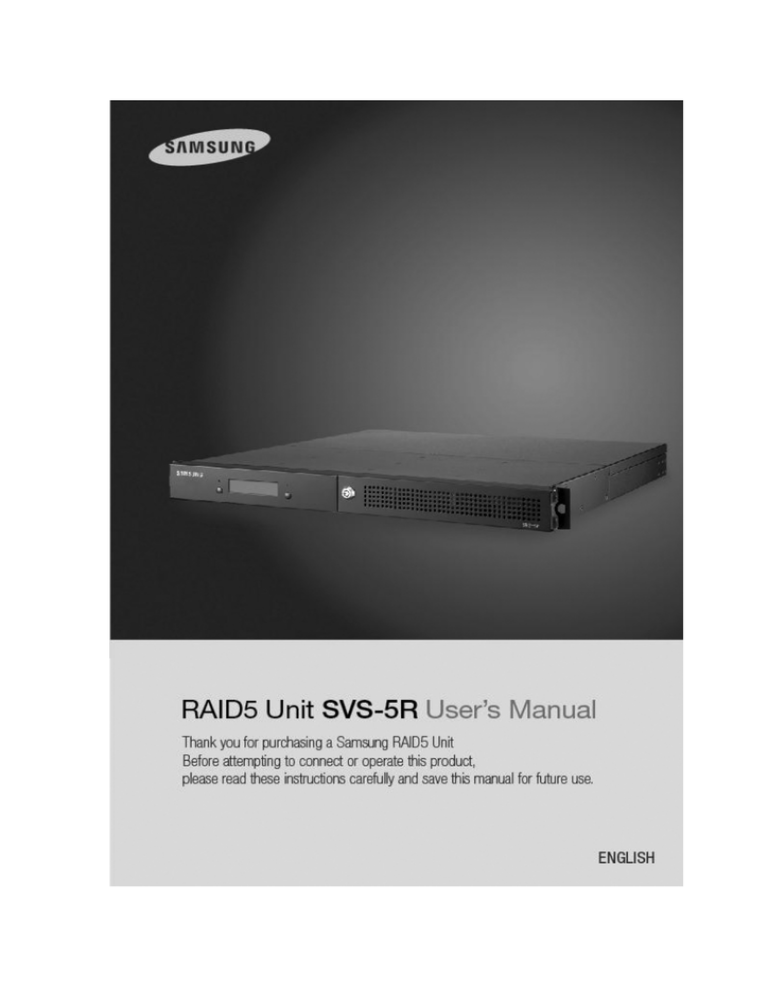

User’s Manual
Preface
Thank you for purchasing the Samsung DVR storage.
This is a user instruction manual for the SVS-5R. The user installing and/or operating this
item needs to be aware of this manual and any other manual referenced in this manual before
installing or operating and use the item accordingly.
This manual, and the software and hardware explained herein are protected by copyright law.
All copying, reprinting and translating to other languages of part of or all of its contents
without permission of Samsung Techwin Co., Ltd. are not allowed, except for fair use within
the scope of copyright law.
The specifications of this product are subject to change and upgrade without prior notice.
Product Warranty and Limitations
The manufacturer of this product is not responsible for any occurrence related to sales of
this product, nor does the manufacturer delegate such responsibility to a third party. The
product warranty does not cover accidents, negligence, abuse, or improper use for the item in
whole or in any part. Additionally, the manufacturer does not provide warranty for any
additional part or piece that was not supplied by the manufacturer.
The warranty is valid for three years from the purchase date. During this period, the warranty
does not cover the malfunctions in the following areas.
™
Malfunction due to user’s
™
Dismantling or replacement by the user
™
Connection to an alternate power source
™
Malfunction due to natural disasters (fire, flood, tsunami, etc.)
™
Replacement due to wear and tear (HDD, Fan, etc.)
(The warranty of HDD and Fan is valid for one year from the purchase
date.)
This warranty specifically excludes product not of Samsung’s manufacture, which may
be included as an adjunctive product in any Samsung system.
A service charge shall be charged for non-warranty products where the 3-year warranty has
expired or voided by customer misuse as described in the cases above.
1
User’s Manual
This product is a peripheral device for a security system, not a whole security system
protecting against fire and theft. Samsung is not be liable, directly or indirectly, for any
loss or damage which is caused by, alleged to be caused by or in connection with the
use of the product.
Assembly or installation of this item requires experience and technical skills, and unauthorized
assembly or installation is strictly prohibited. Unauthorized assembly or installation may cause
fire, electric shock, or product malfunction. Please contact your sales agent for help with safe
assembly and installation.
This manual, and the software and hardware explained herein may differ from your product
depending on the version of the firmware and software. The product dimensions and design are
subject to change and upgrade without prior notice.
2
User’s Manual
Table of Contents
CHAPTER 1. SAFETY WARNINGS ................................................. 5
1.1 Warning Symbols ................................................................................................................................5
CHAPTER 2. SUMMARY ................................................................. 8
2.1
Features ..........................................................................................................................................8
2.2
Components ...................................................................................................................................9
2.3
Part Names...................................................................................................................................10
2.3.1
Front I ....................................................................................................................................10
2.3.2
Front II ................................................................................................................................... 11
2.3.3
Back/Rear .............................................................................................................................12
CHAPTER 3. INSTALLATION ........................................................ 13
3.1
Installing HDD ..............................................................................................................................13
3.2
Initializing a HDD .........................................................................................................................15
CHAPTER 4. OPERATION ............................................................ 17
4.1
RAID Settings ...............................................................................................................................17
4.1.1
RAID0 ....................................................................................................................................18
4.1.2
RAID1 ....................................................................................................................................21
4.1.3
RAID0+1................................................................................................................................24
4.1.4
RAID5 ....................................................................................................................................26
4.1.5
RAID5+Hotstandby..............................................................................................................29
4.2
RAID Rebuilding...........................................................................................................................31
4.2.1
RAID0 ....................................................................................................................................31
4.2.2
RAID1 ....................................................................................................................................32
4.2.3
RAID0+1................................................................................................................................33
4.2.4
RAID5 ....................................................................................................................................34
4.2.5
RAID5+Hotstandby..............................................................................................................35
3
User’s Manual
CHAPTER 5. CONNECTING TO DVR ........................................... 36
5.1
Adding/Removing a Hard Disk...................................................................................................37
HDD RECOMMENDED MODEL .................................................... 39
SPECIFICATION ............................................................................ 39
PRODUCT DIMENSIONS .............................................................. 40
4
User’s Manual
Chapter 1. Safety Warnings
1.1 Warning Symbols
Danger
Misuse or wrongful operation of the item may result in death, injury, or bring about other
harmful results. It indicates absolute caution must be observed when operating said item.
™ Before Setup
9
Please set up the proper voltage (AC 100V~240V) before connecting to a
power source.
9
Make sure the power is turned off before set up.
9
There is a risk of shock or fire; be sure to avoid setting up in places with high
humidity.
9
To prevent electric or static shocks, connect the ground wire properly.
™ During Use
9
When opening the product cover, there is a risk of electric shock. Only a
professional should open the cover.
9
Do not plug in multiple products to a single power source; it is often the
cause of short-circuits which may cause fire.
9
Do not place water or any heavy items on top of the product; these may
cause a malfunction.
9
Do not use this item in a location containing propane gas, gasoline, or other
flammable substances to avoid risk of explosion or fire.
9
Do not touch the power plug with (wet) hands to avoid electric shock.
9
Keep the cooling fan away from any electrical source.
9
Do not pull on the power plug with any force; a damaged plug may cause
electric shock or fire.
™ Disassembly and Cleaning
9
There is a risk of malfunction, shock, or other dangers. Do not disassemble
or attempt to fix the product yourself.
9
To prevent malfunction or shock, do not use a wet cloth or oil-based cleaning
agent to clean the cover of the item. Clean the cover with a dry cloth.
User’s Manual
Caution
Misuse or wrongful operation of the item may result in injury or damage to the item. It
indicates caution should be observed when operating.
™ Upon Installation
9
Please keep at least a 15cm distance between the cooling fan and the wall to
provide sufficient ventilation.
9
Do not drop or install on an unstable surface to avoid shocks and vibration.
These may cause malfunctions.
9
Do not install in areas exposed to direct sunlight or any heat source.
Excessive heat may cause deformation and malfunctions.
9
Please avoid installing a new camera while the existing camera is recording.
This may decrease the video-quality. To avoid decreasing video quality,
please only record after installation of a new camera is complete.
™ During Use
9
Avoid shock and vibration while operating or moving the item.
9
Avoid movement, any impact, or throwing of the item during operation.
9
Before adding hard disks from a third party, please contact your sales agent
and avoid a possible malfunction.
9
Using this product in conjunction with hard disks from unauthorized third
parties is not covered by the product warranty.
9
This product is a peripheral device for a security system, not a whole security
system against fire and theft. Samsung shall not be liable, directly or
indirectly, for any loss or damage which is caused by, alleged to be caused by
or caused in connection with the use of this item.
Samsung Techwin cares for the environment at all stages of
product manufacturing to preserve the environment, and is
taking a number of steps to provide customers with more
environmentally friendly products.
The Eco mark represents Samsung Techwin’s wish to create
environmentally friendly products, and indicates that the product
satisfies the EU RoHS Directive.
6
User’s Manual
FCC Compliance Statement
Caution : Any changes or modifications in the construction of this device which are not
expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
NOTE : This equipment has been tested, and found to comply with the limitations for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy, and if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which cause the user will be
required to correct the interference at his own expense.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate
collection systems) This marking shown on the product or its literature, indicates that it
should not be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources. Household users should contact
either the retailer where they purchased this product, or their local government office, for
details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for
disposal.
User’s Manual
Chapter 2. Summary
Designed as a 19-inch rack mount unit, this SVS-5R external SATA (eSATA) storage
device can be easily mounted in a cabinet along with DVR units. To achieve space
efficiency, it is 1U high equipped with slots for a maximum of 4 SATA hard drives. It
offers various levels of RAID (Redundant Array of Independent Disks) to provide
enhanced data stability and overall system performance. Featuring the hot-swap drive
bay option, the SVS-5R enables easy hard drive replacement when errors occur. When
configuring the SVS-5R to RAID1, RAID0+1, RAID5, or RAID5+Hotstandby, you can
replace SATA hard drives and then rebuild the RAID array when one or more connected
SATA hard drives fail.
2.1
Features
™ 1U 19-inch rack case
™ Hardware RAID solution
™ Maximum transfer speed of 3.0Gbps (SATA II) – D1 480fps record and display
frame rate
™ Maximum 4 SATA hard drives (250GB~1TB)
™ Supports RAID0, RAID1, RAID0+1, RAID5, and RAID5+Hotstandby
™ Supports hot-swappable hard drive bays
™ Front LCD for the RAID status display
™ Error alarm with sound and light
™ Mute switch for error alarm
™ Supports Plug and Play and Hot Plug
™ Maximized space efficiency and disk capacity at economical costs
™ Expandable for more storage
™ Supported Devices: SVS-3200, SVR-1680, SVR-1645, SVR-960, SVR-945
8
2.2
Components
Please make sure that your product includes all of the accessories as shown below.
SVS-5R HDD Main Frame (1ea)
SATA Cable (1ea)
USB Cable (1ea)
AC Power Cord (1ea)
Screws (1 bag)
User’s Manual (1ea)
Program CD (1ea)
Access Panel Lock (1 pair)
Rack Mount Kit (1ea)
User’s Manual
2.3
Part Names
2.3.1 Front I
①
②
④
③
⑤
Name
Function
The red LED turns on when the SVS-5R encounters
1
Error LED (Red)
2
Network LED (White)
3
Access Panel Lock
Locks or unlocks the front panel of the product.
Front LCD
Shows the RAID Status of the SVS-5R, status of
an error.
The white LED turns on when data is being
transferred to or from the SVS-5R.
connected SATA hard drives, and RAID rebuilding
4
information.
5
Settings Button
Performs commands displayed in the front LCD.
10
2.3.2 Front II
①
Name
1
Mute Switch
2
Power Switch
3
Power LED (Blue)
②
③
Function
Turns off the SVS-5R alarm sound when an error
occurs during the RAID operation.
Turns the SVS-5R on or off.
The blue LED lights up when the SVS-5R is turned
on.
User’s Manual
2.3.3 Back/Rear
①
②
③
④
⑤
Name
Function
1
Power Connector
2
Power Fan
3
USB Port
Used to set the SVS-5R RAID settings.
eSATA Port
Used for data transfer to and from the SVS-5R.(DVR
4
5
Connects the power cord to the product.
Keeps the SMPS inside the SVS-5R at an optimal
temperature.
connection port)
Cooling FAN
Keeps the SVS-5R at an optimal temperature.
12
Chapter 3. Installation
3.1
Installing HDD
The SVS-5R supports a maximum of 4 SATA hard drives. To ensure proper installation, please
follow the instructions below.
※Caution: All SATA hard drives must be of the same model.
- Using the enclosed access panel lock, open the right front panel, and then the left front panel
while holding down the two buttons on the left panel.
- For the hot-swap drive bays, ① and ③ are shaped identically to each other, while ② and ④
are shaped identically. Please install them in the designated locations.
①
②
③
④
User’s Manual
- Remove a hot-swap drive bay by pulling the handle toward you.
- Using the enclosed screws, secure a SATA hard drive to the hot-swap drive bay. 2 screw
grooves are located on either side of the hot-swap drive bay.
※Caution: SATA hard drives are of different shape on the front and back. When securing a
SATA hard drive to a hot-swap drive bay, please make sure to place the SATA connector on
the opposite side of the handle of the drive bay.
- Insert the hot-swap drive bay into the back of the main frame. Gently push the drive bay until
it reaches the end of the main frame, and then secure it to the frame using the handle. Repeat
the procedure to insert SATA hard drives to the other 3 hot-swap drive bays.
14
3.2
Initializing a HDD
The SVS-5R shows the status of the RAID operation and connected SATA hard drives through
an LCD on the front panel.
※Caution: The SVS-5R is initially set up to “RAID5 4d”.
Should connected SATA drive fail, the front LCD indicates the degraded status of the SVS-5R.
In this case, you can rebuild the RAID array by replacing the failed SATA hard drive.
- Using the enclosed access panel lock, open the right front panel, and then press the power
switch on the front panel for at least 2 seconds to turn on the SVS-5R.
Power Switch
- When the SVS-5R turns on, the front LCD displays a message as shown below. The SVS-5R
is initially set up to “RAID5 4d.” To use 4 SATA hard drives for RAID5, please wait for 20
seconds after turning it on. To use a different RAID mode, please refer to 4-1.RAID Settings.
User’s Manual
※Caution: The following message appears each time the SVS-5R turns on. To keep the
initial RAID settings, please wait 20 seconds after the product is turned on. To change the
RAID settings, press the left button to move to the RAID resetting mode.
Change RAID mode
<-Okay?
-
If all 4 SATA hard drives are properly connected, the LCD on the front panel displays a
message as shown in the window below on the left. To reset the RAID settings, press the left
button. If at least one of 4 SATA hard drives fails to connect, the LCD displays a message as
shown in the window below on the right.
※Caution: Pressing the left button resets the current RAID settings and deletes entire data
saved in the SVS-5R. Please be cautious when using the button except one necessary
case: to reset the RAID settings of newly equipped SATA hard drives.
RAID5 4d
<-Init?
-- HALTED --
Cancel->
Bad Disk Count
- When the RAID setting of the SVS-5R is reset successfully, the LCD displays a message as
shown below. “R5 4d” next to the product name indicates the RAID5 mode is successfully
configured for 4 SATA hard drives. “d:OOOO” at the bottom right indicates the status of
connected 4 SATA hard drives. The following initials indicate different statuses.
e.g.) O: Operating properly
F: Failed to connect
R: Rebuilding
S: on Standby
X: Not equipped
SVS-5R
R5 4d
d:OOOO
16
Chapter 4. Operation
4.1
RAID Settings
The SVS-5R supports RAID0, RAID1, RAID0+1, RAID5, and RAID5+Hotstandby.
※Caution: The SVS-5R is initially set up to “RAID5 4d”.
“RAID5 4d” is to configure 4 SATA hard drives with the RAID5 settings. To use a different
RAID mode, please use the ‘Configuration Tool’ in the enclosed CD.
-
Connect plugs of the enclosed USB cable to the back side of the SVS-5R and a windowsinstalled PC.
USB Cable
-
Press the power switch on the front of the SVS-5R for at least 2 seconds to turn on the SVS5R.
Power Switch
- When running ‘Configuration Tool’ from the enclosed CD, the following window appears in the
computer screen. The following instructions describe how to set up each available RAID
mode.
※Caution: Please set up the RAID settings of the SVS-5R before connecting to a DVR to
begin saving data.
User’s Manual
4.1.1
RAID0
The SVS-5R supports RAID0. Using RAID0 requires 2 or 4 SATA hard drives. When configured
to RAID0 with 2 or 4 SATA hard drives, the SVS-5R saves data as shown in the picture below.
RAID0 saves data across all connected hard drives and storage; it has the fastest speed and
uses the hard drives to full capacity.
※Caution: RAID0 has no fault tolerance; entire data of the SVS-5R is lost if even one SATA
hard drive fails. RAID0 is not recommended for saving crucial data.
18
Block1
Block2
Block3
Block4
Block5
Block6
[For 2 HDDs]
SVS-5R
Block1
Block2
Block3
Block4
Block5
Block6
[HDD#1]
Striping
(RAID0)
[HDD#2]
Block1
Block2
Block3
Block4
[For 4 HDDs]
Block5
Block6
SVS-5R
(RAID0)
Block1
Block2
Block3
Block4
Block5
Block6
Block7
Block8
Block9
Block10
Block11
Block12
[HDD#1]
[HDD#2]
[HDD#3]
Striping
[HDD#4]
User’s Manual
- To configure the SVS-5R to RAID0, you must change the RAID mode by using the
Configuration Tool. When the following window appears on your screen, select RAID0 under
“Select RAID level”. Under “Select number of disks”, select a number of connected SATA
hard drives. Click “Configure”.
-
When the RAID settings are complete, the following popup window appears. Click “Exit”.
- Clicking the “Exit” button resets the SVS-5R and displays the following message on the LCD
at the front panel. To change the RAID mode, click the button on the left.
Change RAID mode
<-Okay?
20
- A confirmation message appears, asking if you really want to reset the RAID settings.
Resetting the RAID settings will delete the entire data saved in the SVS-5R. When the
following window appears, press the left button to reset the RAID settings.
Warning!!!
RAID0 4d
Data can be lost
<-Init?
Cancel->
- When the RAID0 mode is successfully configured, the LCD at the front will display the
following message. Connect to a DVR to begin saving data.
SVS-5R
R0 4d
d:OOOO
4.1.2
RAID1
SVS-5R supports the RAID1. Using RAID1 requires 2 SATA hard drives; HDD#3 and HDD#4
are not used. When configured to RAID1, the SVS-5R saves data as shown in the picture below.
In the RAID1 mode, each of the two hard drives stores identical data. Thus, data is not lost even
if either SATA hard drive fails. When a SATA hard drive fails, the SVS-5R continues saving data
to the other hard drive. To ensure data stability however, it is highly recommended that you
replace the failed hard drive and rebuild the RAID array. In the RAID1 mode, total storage
capacity of the SVS-5R is simply the capacity of one drive; please check total storage capacity
of the SVS-5R before configuring it to RAID1.
User’s Manual
Block1
Block2
Block3
Block4
Block5
Block6
SVS-5R
Block1
Block1
Block2
Block2
Block3
Block3
[HDD#1]
(RAID1)
[HDD#2]
Mirroring
- To configure the SVS-5R to RAID1, you must change the RAID mode by using the
Configuration Tool. When the following window appears on your screen, select RAID1 under
“Select RAID level”. Select 2 under “Select number of disks”, then click “Configure”.
- When the RAID settings are complete, the following popup window appears. Click “Exit”.
22
- Clicking the “Exit” button resets the SVS-5R and displays the following message on the LCD
at the front panel. To change the RAID mode, press the left button.
Change RAID mode
<-Okay?
- A confirmation message appears asking if you really want to reset the RAID settings.
Resetting the RAID settings deletes ALL data saved in the SVS-5R. When the following
window appears, press the left button to reset the RAID settings.
Warning!!!
RAID1 2d
Data can be lost
<-Init?
Cancel->
- When the RAID1 mode is successfully configured the front LCD displays the following
message. Connect to a DVR to begin saving data.
SVS-5R
R1 2d
d:OOXX
User’s Manual
4.1.3 RAID0+1
The SVS-5R supports RAID0+1. Using RAID0+1 requires 4 SATA hard drives. When
configured to RAID0+1, the SVS-5R saves data as shown in the picture below. RAID0+1 uses
both striping (RAID0) and mirroring (RAID1); it will store identical data to 2 RAID0 disk arrays.
Thus, data is not lost even if a SATA hard drive or either disk array should fail. When a SATA
hard drive or a disk array fails, the SVS-5R continues saving data to the other RAID0 disk array.
To ensure data stability, however, it is highly recommended that you replace a failed hard drive
and rebuild the RAID array. In the RAID0+1 mode, total storage capacity of the SVS-5R is
simply the capacity of 2 drives; please check total storage capacity of the SVS-5R before
configuring it to RAID0+1. The following describes possible instances when 2 SATA hard drives
simultaneously fail during the RAID0+1 mode.
e.g.) HDD#1, HDD#2 fail Æ Rebuilding Can be rebuilt
HDD#1, HDD#3 fail Æ Halt, Entire data is lost
HDD#1, HDD#4 fail Æ Can be rebuilt
HDD#2, HDD#3 fail Æ Can be rebuilt
HDD#2, HDD#4 fail Æ Halt, Entire data is lost
HDD#3, HDD#4 fail Æ Can be rebuilt
Block1
Block2
Block3
Block4
Block5
Block6
SVS-5R
(RAID0+1)
Mirroring
Block1
Block2
Block1
Block2
Block3
Block4
Block3
Block4
Block5
Block6
Block5
Block6
[HDD#1]
[HDD#2]
[HDD#3]
Striping
[HDD#4]
Striping
24
- To configure the SVS-5R to RAID0+1, you must change the RAID mode by using the
Configuration Tool. When the following window appears in the screen, select RAID0+1 under
“Select RAID level”. Select 4 under “Select number of disks”, then click “Configure”.
- When the RAID settings are complete, the following popup window appears. Click “Exit”.
- Clicking the “Exit” button resets the SVS-5R and displays the following message on the LCD
at the front panel. To change the RAID mode, press the left button.
Change RAID mode
<-Okay?
User’s Manual
- A confirmation message appears asking you if you really want to reset the RAID settings.
Resetting the RAID settings will delete ALL saved in the SVS-5R. When the following window
appears, press the left button to reset the RAID settings.
Warning!!!
RAID0+1 4d
Data can be lost
<-Init?
Cancel->
- When the RAID0+1 mode is successfully configured, the LCD will display the following
message. Connect to a DVR to begin saving data.
SVS-5R
R0+1 4d
d:OOOO
4.1.4
RAID5
The SVS-5R supports RAID5. Using RAID5 requires 3 or 4 SATA hard drives. When configured
to RAID5, the SVS-5R saves data as shown in the picture below. RAID5 uses block-level
striping with parity data to save data across all connected SATA hard drives. Thus, data is not
lost even if a hard drive fails. When a SATA hard drive fails, the SVS-5R continues saving data
to the remaining hard drives. To ensure data stability however, it is highly recommended that
you replace a failed hard drive and rebuild the RAID array. In the RAID5 mode, total storage
capacity of the SVS-5R is the capacity of total SATA hard drives subtracted by one drive.
Although RAID5 has decreased data storage capacity, it is most recommended as it is safest
and has larger capacity than RAID0+1.
26
Block1
Block2
Block3
Block4
Block5
Block6
SVS-5R
(RAID5)
Block1
Block2
Block3
Parity(1,2,3)
Block4
Block5
Parity(4,5,6)
Block6
Block7
Parity(7,8,9)
Block8
Block9
[HDD#1]
[HDD#2]
[HDD#3]
[HDD#4]
- To configure the SVS-5R to RAID5, you must change the RAID mode by using the
Configuration Tool. When the following window appears on your screen, select RAID5 under
“Select RAID level”. Under “Select number of disks”, select a number of connected SATA
hard drives and click “Configure”.
- When the RAID settings are complete, the following popup window appears. Click “Exit”.
User’s Manual
- Clicking the “Exit” button resets the SVS-5R and displays the following message on the LCD
at the front panel. To change the RAID mode, press the left button.
Change RAID mode
<-Okay?
- A confirmation message appears, asking if you really want to reset the RAID settings.
Resetting the RAID settings will delete ALL data saved in the SVS-5R. When the following
window appears, press the left button to reset the RAID settings.
Warning!!!
RAID5 4d
Data can be lost
<-Init?
Cancel->
- When the RAID5 mode is successfully configured, the LCD displays the following message.
Connect to a DVR to begin saving data.
SVS-5R
R5 4d
d:OOOO
28
4.1.5
RAID5+Hotstandby
SVS-5R supports RAID5+Hotstandby. Using RAID5+Hotstandby requires 4 SATA hard drives.
When configured to RAID5+Hotstandby, the SVS-5R saves data as shown in the picture below.
RAID5+Hotstandby uses 3 SATA hard drives in the RAID5 mode, while putting on the last drive
on standby.
※Caution: In the RAID5+Hotstandby mode, HDD#4 in the SVS-5R is put on standby.
When a SATA hard drive in the RAID5 mode fails, the standby drive replaces the failed drive to
rebuild the RAID array and allow the SVS-5R to continue saving data. To ensure data stability
however, it is highly recommended that you replace the failed hard drive immediately. In the
RAID5+Hotstandby mode, total storage capacity of the SVS-5R is simply the capacity of 2
drives. It is more stable than RAID5, but has decreased storage capacity; please consider the
storage capacity before using this mode.
Block1
Block2
Block3
Block4
Block5
Block6
SVS-5R
(RAID5+Hotstandby)
Block1
Block2
Parity(1,2)
Block3
Parity(3,4)
Block4
Parity(5,6)
Block5
Block6
[HDD#1]
[HDD#2]
[HDD#3]
Standby
[HDD#4]
User’s Manual
- To configure the SVS-5R to RAID5+Hotstandby, you must change the RAID mode by using
the Configuration Tool. When the following window appears in the screen, select RAID5 under
“Select RAID level”. Select 3+Hotstandby under “Select number of disks”, then click
“Configure”.
- When the RAID settings are complete, the following popup window appears. Click “Exit”.
- Clicking the “Exit” button resets the SVS-5R and displays the following message on the LCD
at the front panel. To change the RAID mode, press the left button.
Change RAID mode
<-Okay?
30
- A confirmation message appears asking you if you really want to reset the RAID settings.
Resetting the RAID settings will delete ALL data saved in the SVS-5R. When the following
window appears, press the left button to reset the RAID settings.
Warning!!!
RAID5 3d+HS
Data can be lost
<-Init?
Cancel->
- When the RAID5+Hotstandby mode is successfully configured, the LCD displays the following
message. Connect to a DVR to begin saving data.
SVS-5R
R5 3d
d:OOOS
4.2
RAID Rebuilding
When the SVS-5R is in the RAID rebuilding process and its connected DVR is in the Half
D1 or D1 mode, activating the playback option may cause skipping frames. This skipping
frame issue is simply caused by the RAID rebuilding process; once it is complete, the
screen will no longer skip frames and no data is damaged.
4.2.1
RAID0
In the RAID0 mode, ALL data saved in the SVS-5R is lost if only ONE of the connected SATA
hard drives fails.
※Caution: RAID0 does not offer the rebuilding option; you must replace a failed hard drive
and reinitialize a RAID mode.
- During the RAID0 mode when one of connected SATA hard drives fails, the front LCD of the
SVS-5R displays the following message notifying you of the loss of ALL data.
-- HALTED -Bad Disk Count
User’s Manual
※Caution: RAID0 is not recommended for saving crucial data.
4.2.2
RAID1
During the RAID1 mode, when a SATA hard drive fails, replace it and then rebuild the RAID
array.
- During the RAID1 mode, when a SATA hard drive fails, the SVS-5R activates a beeping
sound, as well as the RAID error LED. To disable the beeping sound, open the front panel
using the access panel lock, and then press the front mute switch. The front LCD will display
the SVS-5R status as Degraded. d:FOXX; indicating a failed SATA hard drive.
Degraded R1 2d
d:FOXX
- When a failed SATA hard drive is replaced with a new one, the LCD displays the following
message. Press the left button to start rebuilding the RAID array.
RAID rebuilding?
<-Okay?
- During the rebuilding process, the front LCD displays the following message. This indicates a
rebuilding SATA hard drive and the remaining time.
Rebuild d:ROXX
1h:31m
- When the RAID array is successfully rebuilt, the front LCD displays the following message.
SVS-5R
R1 2d
d:OOXX
32
4.2.3
RAID0+1
During the RAID0+1 mode, when a SATA hard drive fails, replace it and then rebuild the RAID
array.
- During the RAID0+1 mode, when a SATA hard drive fails, the SVS-5R activates beeping
sounds and the RAID error LED. To disable the beeping sounds, open the front panel using
the access panel lock, and then press the mute switch. The front LCD will display the SVS-5R
status as Degraded. d:FOOO; indicating a failed SATA hard drive.
Degraded R0+1 4d
d:FOOO
- When the failed SATA hard drive is replaced with a new one, the LCD displays the following
message. Press the left button to start rebuilding the RAID array.
RAID rebuilding?
<-Okay?
- During the rebuilding process, the front LCD displays the following message. It indicates a
rebuilding SATA hard drive, and the time remaining until completion.
Rebuild d:ROOO
1h:31m
- When the RAID array is successfully rebuilt, the front LCD displays the following message.
SVS-5R
R0+1 4d
d:OOOO
User’s Manual
4.2.4
RAID5
During the RAID5 mode, when a SATA hard drive fails, replace it and then rebuild the RAID
array.
- During the RAID1 mode, when a SATA hard drive fails, the SVS-5R activates beeping sounds
and the RAID error LED. To disable the beeping sounds, open the front panel using the
access panel lock, and then press the mute switch. The front LCD will display the SVS-5R
status as Degraded. d:FOOO indicates a failed SATA hard drive.
Degraded R5 4d
d:FOOO
- When the failed SATA hard drive is replaced with a new one, the LCD displays the following
message. Press the left button to start rebuilding the RAID array.
RAID rebuilding?
<-Okay?
- During the rebuilding process, the front LCD displays the following message to indicate a
SATA hard drive rebuilding, and the time remaining until completion.
Rebuild d:ROOO
1h:31m
- When the RAID array is successfully rebuilt, the front LCD displays the following message.
SVS-5R
R5 4d
d:OOOO
34
4.2.5
RAID5+Hotstandby
During the RAID5+Hotstandby mode, when a SATA hard drive fails, another hard drive in
standby replaces the failed drive and rebuilds the RAID array. When replacing the failed SATA
hard drive, the new hard drive is automatically set to standby status.
- During the RAID5+Hotstandby mode, when a SATA hard drive fails, the SVS-5R activates
beeping sounds and the RAID error LED. To disable the beeping sounds, open the front panel
using the access panel lock, and then press the front mute switch. Check the front LCD to
make sure that the standby SATA hard drive has replaced the failed drive and begun
rebuilding the RAID array automatically. d:FOOR indicates both the failed SATA hard drive
and rebuilding one as well as the time to remaining rebuild the RAID array.
Rebuild d:FOOR
SVS-5R
1h:31m
R5 3d
d:OOOS
- When the failed SATA hard drive is replaced with a new one, the LCD displays the following
message. To put the new hard drive on standby, press the left button.
RAID rebuilding?
<-Okay?
- The new hard drive is in standby mode while the RAID is being rebuilt.
Rebuild d:SOOR
1h:31m
-
When the RAID array is successfully rebuilt, the front LCD displays the following message.
SVS-5R
R5 3d
d:SOOO
User’s Manual
Chapter 5. Connecting to DVR
The SVS-5R HDD extension unit uses the eSATA port to connect to a DVR. To ensure proper
installation, please follow the instructions below.
※ Applicable Models: SVR-3200, SVR-1680, SVR-1645, SVR-960, SVR-945
- Please check the eSATA port on the back side of the SVS-5R.
eSATA Port
- Connect plugs of the enclosed eSATA cable to the eSATA port of a DVR and the SVS-5R.
※Caution: Please use the enclosed eSATA cable to connect the SVS-5R to a DVR.
36
5.1
Adding/Removing a Hard Disk
This section describes how to add, remove or format a hard disk.
Select “System Setup/Disk” in the menu.
Disk Manager
Disk Manager is used to manage internal and external HDDs.
It manages HDD status, bad blocks, disk size, enabled/disabled status, etc.
User’s Manual
Type
: Displays disk locations and types.
Int A (Internal A HDD), Int B (Internal B HDD), Ext (External
HDD)
Model
: Displays HDD models.
Bad Block
: Displays HDDs with bad blocks. 0 is displayed when there are
no problems. Nothing is displayed for HDDs not in use.
Size( in MB)
: Displays HDD sizes in MB.
Enabled (Yes/No)
: Enables or disables HDDs.
Yes: Enabled / No: Disabled
To Change HDD to Yes
- Enabled: While selecting No, press the [Enter] button or use the mouse wheel to open the
notice window, which shows the following message:
- “Warning: This disk is usable without being formatted. Do you want to format the disk
anyway?”
- - Select No to keep the previous data stored in the HDD and change it to Enabled-Yes.
- Select Yes to delete the previous data stored in the HDD and change it to Enabled-Yes.
To change HDD to No
- Enabled: While selecting Yes, press the [Enter] button or use the mouse wheel to open the
notice window to display the following message:
- “Warning: Do you want to remove the disk?”
- Select Yes to open the “The disk has been removed.” message and change the HDD to
Enabled-No.
- The HDD is now unused.
※Caution: The SVS-5R does not offer you to save data selectively to a hard drive; it
automatically starts saving data starting from a last-enabled HDD.
38
HDD Recommended Model
Seagate Technology
Western Digital
Size
Model
Size
Model
1,000GB
ST31000340SV
1,000GB
WD10EVCS
750GB
ST3750840SCE
750GB
WD7500AVCS
500GB
ST3500830SCE
500GB
WD5000AVJS
250GB
ST3250820SCE
250GB
WD2500AVJS
Specification
SVS-5R
Transmission Speed
Maximum Capacity
Internal HDD
RAID
eSATA
Up to 3.0Gbps (SATA II)
Up to 4TB
Up to 4 SATA HDDs (Support Hot-Swap Function)
RAID 0,1,0+1,5
1 External SATA ports for DVR connection
USB
USB2.0, RAID configuration only
Operating Temperature
+5°C ~ +45°C (+41°F ~ +113°F)
Operating Humidity
Input Voltage
20%RH ~ 70%RH
115~230V AC ±10%, 50/60 Hz, Autoranging
Dimensions (W×H×D)
482ⅹ44×433mm (18.97"×1.73"×17.04")
Weight(4X hard disks)
Approx. 6.4Kg (14.1 lb)
Rack Mount Kit
Supported Devices
Certifications
For mounting one unit in an EIA 19-inch rack
SVR-3200/1680/1645/960/945
FCC (Class A), UL/cUL listed, CE (Class A)
User’s Manual
Product Dimensions
40
