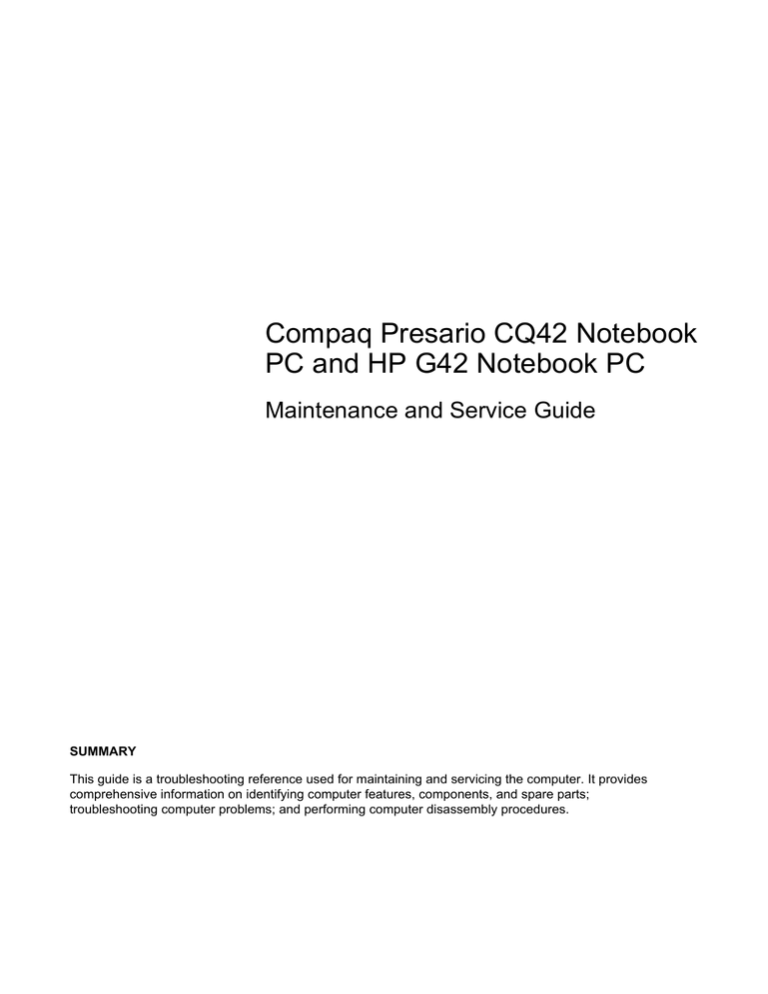

Compaq Presario CQ42 Notebook
PC and HP G42 Notebook PC
Maintenance and Service Guide
SUMMARY
This guide is a troubleshooting reference used for maintaining and servicing the computer. It provides
comprehensive information on identifying computer features, components, and spare parts;
troubleshooting computer problems; and performing computer disassembly procedures.
© Copyright 2010 Hewlett-Packard
Development Company, L.P.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Intel and
Arrandale are trademarks of Intel
Corporation in the United States and other
countries. Microsoft and Windows are U.S.
registered trademarks of Microsoft
Corporation. SD Logo is a trademark of its
proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: March 2010
Document Part Number: 594158-001
MSG revision history
Revision
Publication date
Description
A
March 2010
Edited this guide to include HP G42 Notebook PC and Compaq CQ42
Notebook PC information only.
B
October 2010
●
Added newly supported hard drives to spare parts listings in the
following locations: Computer major components on page 24,
Mass storage devices on page 34, Sequential part number
listing on page 37, Hard drive on page 53.
●
Added newly supported memory modules to spare parts listings
in the following locations: Computer major components
on page 24, Mass storage devices on page 34, Sequential part
number listing on page 37, Memory module on page 61.
●
Added newly supported processors to spare parts listings in the
following locations: Computer major components on page 24,
Mass storage devices on page 34, Sequential part number
listing on page 37, Processor on page 94.
●
Added newly supported system boards to spare parts listings in
the following locations: Computer major components
on page 24, Mass storage devices on page 34, Sequential part
number listing on page 37, System board on page 83.
●
Added newly supported hard drives to spare parts listings in the
following locations: Computer major components on page 24
Hard drive on page 53.
●
Added newly supported processors to spare parts listings in the
following locations: Computer major components on page 24,
Mass storage devices on page 34, Sequential part number
listing on page 37, Processor on page 94.
●
Added newly supported system boards to spare parts listings in
the following locations: Computer major components
on page 24, Mass storage devices on page 34, Sequential part
number listing on page 37, System board on page 83.
●
Added newly supported wireless devices to spare parts listing in
the following locations: Computer major components
on page 24, Sequential part number listing on page 37,
Component replacement procedures on page 50, WLAN
Module.
C
ENWW
December 2010
iii
iv
MSG revision history
ENWW
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on
a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer
and the AC adapter comply with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment (IEC 60950).
ENWW
v
vi
Safety warning notice
ENWW
Table of contents
1 Product description ........................................................................................................................................ 1
2 External component identification .............................................................................................................. 11
Identifying the hardware ..................................................................................................................... 11
Top components ................................................................................................................................. 12
TouchPad .......................................................................................................................... 12
Lights ................................................................................................................................. 13
Button and speakers .......................................................................................................... 14
Keys ................................................................................................................................... 15
Display ............................................................................................................................... 16
Right-side components ....................................................................................................................... 17
Left-side components ......................................................................................................................... 18
Bottom components ........................................................................................................................... 19
Wireless antennas .............................................................................................................................. 20
Additional hardware components ....................................................................................................... 21
3 Illustrated parts catalog ............................................................................................................................... 23
Serial number location ........................................................................................................................ 23
Computer major components ............................................................................................................. 24
Display assembly components ........................................................................................................... 31
Plastics Kit .......................................................................................................................................... 33
Mass storage devices ......................................................................................................................... 34
Miscellaneous parts ............................................................................................................................ 36
Sequential part number listing ............................................................................................................ 37
4 Removal and replacement procedures ....................................................................................................... 45
Preliminary replacement requirements ............................................................................................... 45
Tools required .................................................................................................................... 45
Service considerations ....................................................................................................... 45
Plastic parts ....................................................................................................... 45
Cables and connectors ..................................................................................... 46
Drive handling ................................................................................................... 46
Grounding guidelines ......................................................................................................... 47
ENWW
vii
Electrostatic discharge damage ........................................................................ 47
Packaging and transporting guidelines ............................................. 48
Workstation guidelines ..................................................................... 48
Equipment guidelines ....................................................................... 49
Component replacement procedures ................................................................................................. 50
Serial number .................................................................................................................... 50
Computer feet .................................................................................................................... 51
Battery ............................................................................................................................... 52
Hard drive .......................................................................................................................... 53
Optical drive ....................................................................................................................... 56
WLAN module .................................................................................................................... 58
Memory module ................................................................................................................. 61
Keyboard ........................................................................................................................... 63
Top cover ........................................................................................................................... 65
Speaker assembly ............................................................................................................. 68
Power button board ........................................................................................................... 69
TouchPad button board ..................................................................................................... 70
Modem module .................................................................................................................. 71
Bluetooth module ............................................................................................................... 73
USB board ......................................................................................................................... 74
Power connector cable ...................................................................................................... 75
Display assembly ............................................................................................................... 76
System board ..................................................................................................................... 83
Optical drive SATA cable and connector ........................................................................... 87
RTC battery ....................................................................................................................... 89
Fan/heat sink assembly ..................................................................................................... 91
Processor ........................................................................................................................... 94
5 Setup Utility ................................................................................................................................................... 97
Computer Setup in Windows 7 ........................................................................................................... 97
Starting Setup Utility .......................................................................................................... 97
Using Setup Utility ............................................................................................................. 97
Changing the language of Setup Utility ............................................................. 97
Navigating and selecting in Setup Utility ........................................................... 98
Displaying system information .......................................................................... 98
Restoring default settings in Setup Utility .......................................................... 99
Exiting Setup Utility ......................................................................................... 100
Setup Utility menus .......................................................................................................... 100
Main menu ...................................................................................................... 100
Security menu ................................................................................................. 100
System Configuration menu ............................................................................ 101
Diagnostics menu ............................................................................................ 101
Computer Setup in Linux .................................................................................................................. 102
viii
ENWW
Starting Computer Setup ................................................................................................. 102
Using Computer Setup .................................................................................................... 102
Navigating and selecting in Computer Setup .................................................. 102
Restoring factory settings in Computer Setup ................................................. 103
Computer Setup menus ................................................................................................... 104
File menu ........................................................................................................ 104
Security menu ................................................................................................. 105
Diagnostics menu ............................................................................................ 105
System Configuration menu ............................................................................ 106
6 Specifications .............................................................................................................................................. 109
Computer specifications ................................................................................................................... 109
35.6-cm (14.0-in) display specifications ........................................................................................... 110
Hard drive specifications .................................................................................................................. 111
DVD±RW SuperMulti Double-Layer Drive with LightScribe specifications ....................................... 112
Blu-ray ROM with LightScribe DVD±R/RW SuperMulti DL Drive specifications .............................. 113
System resource specifications ........................................................................................................ 114
7 Backup and recovery .................................................................................................................................. 115
Windows 7 ........................................................................................................................................ 115
Creating recovery discs ................................................................................................... 116
Backing up your information ............................................................................................ 117
Using Windows Backup and Restore .............................................................. 118
Using system restore points ............................................................................ 119
When to create restore points ........................................................ 119
Create a system restore point ........................................................ 119
Restore to a previous date and time ............................................... 119
Performing a recovery ..................................................................................................... 119
Recovering from the recovery discs ................................................................ 120
Recovering from the dedicated recovery partition (select models only) .......... 120
Linux backup and recovery .............................................................................................................. 121
8 Connector pin assignments ....................................................................................................................... 123
Audio-out (headphone) ..................................................................................................................... 123
Audio-in (microphone) ...................................................................................................................... 123
External monitor ............................................................................................................................... 124
RJ-11 (modem) ................................................................................................................................ 125
RJ-45 (network) ................................................................................................................................ 125
HDMI ................................................................................................................................................ 126
Universal Serial Bus ......................................................................................................................... 127
9 Power cord set requirements .................................................................................................................... 129
Requirements for all countries or regions ......................................................................................... 129
ENWW
ix
Requirements for specific countries or regions ................................................................................ 130
10 Recycling ................................................................................................................................................... 131
Battery .............................................................................................................................................. 131
Display .............................................................................................................................................. 131
Index ................................................................................................................................................................. 137
x
ENWW
1
Product description
Category
Product
Name
Description
HP G42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete
UMA
Discrete
UMA Models
150-199
UMA Models
100-149
√
√
√
Compaq Presario
CQ42 Notebook PC
HP G42 Notebook
PC
Processors
HP G42
√
√
i7-620M, 2.66-GHz,
SC turbo, 4-MB L3
cache
√
√
√
√
i5-540M, 2.53-GHz,
SC turbo, 3-MB L3
cache
√
√
√
√
i5-520M, 2.4-GHz,
SC turbo, 3-MB L3
cache
√
√
√
√
i5-430M 2.26-GHz
(turbo to 2.53- GHz)
3-MB L3 cache
√
√
√
√
i3-350M, 2.26-GHz
3-MB L3 cache
√
√
√
√
i3-330M, 2.13-GHz
3-MB L3 cache
√
√
√
√
i3-390M processor
2.66-GHz 3MB 35W
√
√
i5-480M processor
2.66-GHz 3MB 35W
√
√
P6300 - 2.26-GHz
3M
√
√
i5-480M processor
2.66-GHz 3MB 35W
√
√
Intel® Arrandale™
Intel Pentium™
ENWW
1
Category
Description
HP G42
HP G42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete
UMA
Discrete
UMA Models
150-199
UMA Models
100-149
DC T4300, 2.1-GHz,
800-MHz FSB, 1-MB
L2 cache
√
DC T4400, 2.2-GHz,
800-MHz FSB, 1-MB
L2 cache
√
Intel Celeron™
Chipset
Graphics
2
DC T3000, 1.8-GHz
800-MHz FSB, 1-MB
L2 cache
√
DC T3100, 1.9-GHz,
800-MHz FSB, 1-MB
L2 cache
√
Mobile 925 - 2.3GHz 1M L2 cache
√
√
Intel® HM55
Express
√
√
√
√
√
Intel® GL40
√
Southbridge: ICH9m
√
Intel UMA
(integrated)/HD
Graphics with
shared video
memory (memory
size is dynamic
change):
●
Up to 251 MB
on computers
with 1024 MB
of system
memory
●
Up to 358 MB
on computers
with more than
2048 MB of
system
memory
Chapter 1 Product description
√
√
ENWW
Category
Description
Intel UMA
(integrated)/GMA
4500M - GL40
chipset with shared
video memory
(memory size is
dynamic change):
ENWW
●
Up to 1759 MB
for computers
with more than
4096 MB of
system
memory (64 bit)
●
Up to 1309 MB
for computers
with more than
4096 MB of
system
memory (32 bit)
●
Up to 1309 MB
for computers
with more than
3072 MB of
system
memory
●
Up to 797 MB
for computers
with more than
2048 MB
system
memory
●
Up to 285 MB
for computers
with more than
1024 MB of
system
memory
HP G42
HP G42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete
UMA
Discrete
UMA Models
150-199
UMA Models
100-149
√
3
Category
Description
HP G42
HP G42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete
UMA
Discrete
UMA Models
150-199
UMA Models
100-149
ATi Discrete PCI
Express x 16
Graphics
●
ATi Mobility
Radeon ParkLP S3 package
(ATI Mobility
Radeon™
HD5430 with
512-MB of
dedicated video
memory (64MB×16 DDR3,
4 pcs, 800MHz))
Switchable
Discrete Graphics
Panel
Memory
4
√
●
ATi Robson XT
(ATI Mobility
Radeon™
HD6370) with
512MB of
dedicated
memory
(64Mx16 DDR3
800 MHz x 4
PCs)
●
ATi Robson XT
(ATI Mobility
Radeon™
HD6370) with
1GB of
dedicated
memory
(128Mx16
DDR3 800 MHz
x 4 PCs)
√
√
Support for BD or
HD-DVD playback
with HD decoder
and DX10 support
√
√
√
√
√
35.6-cm (14.0-in)
HD LED BrightView
(1366 x 768)
√
√
√
√
√
16:9 wide aspect
ratio
√
√
√
√
√
2 SODIMM slots
√
√
√
√
√
Chapter 1 Product description
ENWW
Category
Description
HP G42
HP G42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete
UMA
Discrete
UMA Models
150-199
UMA Models
100-149
Customeraccessible and
upgradable
√
√
√
√
√
Supports up to 8 GB
of system memory
√
√
√
√
√
DDR3, 1066-MHz,
dual-channel
memory (DDR3
1333 MHz can be
downgraded to
DDR3 1066 MHz)
√
√
√
√
DDR3, 800-MHz,
dual-channel
memory (DDR3
1333 MHz can be
downgraded to
DDR3 800 MHz)
√
Supports the
following
configurations:
Hard drives
●
4096 MB (2048
MB × 2)
√
√
√
√
√
●
3072 MB (1024
MB × 1 + 2048
MB × 1)
√
√
√
√
√
●
2048 MB (2048
MB × 1)
√
√
√
√
√
●
2048 MB (1024
MB × 2)
√
√
√
√
√
●
1024 MB (1024
MB × 1)
√
√
√
√
√
Supports 9.5-mm,
6.35-cm (2.5-in)
hard drive
√
√
√
√
√
Serial ATA
√
√
√
√
√
Supports the
following drives:
ENWW
●
750 GB, 5400
rpm
√
√
√
√
●
640 GB, 5400
rpm
√
√
√
√
●
500 GB, 7200
rpm
√
√
√
√
5
Category
Optical
drives
Description
HP G42
HP G42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete
UMA
Discrete
UMA Models
150-199
UMA Models
100-149
●
320 GB, 7200
rpm
√
√
√
√
√
●
250 GB, 7200
rpm
√
√
√
√
√
●
160 GB, 7200
rpm
√
√
√
√
Fixed (removal of
one screw required)
√
√
√
√
√
SATA
√
√
√
√
√
12.7-mm (0.50-in)
fixed tray load
√
√
√
√
√
Supports the
following drives:
6
●
Blu-ray ROM
with
LightScribe
DVD±R/RW
SuperMulti DL
Drive
√
√
√
√
●
Blu-ray ROM
DVD±R/RW
SuperMulti DL
Drive
√
√
√
√
●
DVD±R/RW
SuperMulti DL
Drive with
LightScribe
√
√
√
√
√
●
DVD±R/RW
SuperMulti DL
Drive
√
√
√
√
√
Diskette drive
Supports external
USB drive only
√
√
√
√
√
Camera
VGA camera
√
√
√
√
√
Fixed (no tilt)
√
√
√
√
√
640 × 480 by 24
frames per second
√
√
√
√
√
Microphone
One microphone,
analog
√
√
√
√
√
Audio
HD audio
√
√
√
√
√
Supports Microsoft
Premium
requirements
√
√
√
√
√
Chapter 1 Product description
ENWW
Category
Description
HP G42
HP G42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete
UMA
Discrete
UMA Models
150-199
UMA Models
100-149
Altec Lansing
speakers
√
√
√
√
√
Modem
(select models
only)
Support for optional
high-speed 56k
modem
√
√
√
√
√
Ethernet
Integrated 10/100
network interface
card (NIC)
√
√
√
√
√
Wireless
Integrated wireless
local area network
(WLAN) options by
way of wireless
module:
Intel Centrino
Wireless-N 1000
802.11b/g 1x2
√
√
√
√
Intel Centrino
Wireless-N 1000
802.11b/g 1x2 plus
Broadcom 2070
Bluetooth 2.1+EDR
Adapter
√
√
√
√
Atheros AR9285
802.11b/g/n 1x1
WiFi Adapter
√
√
√
√
√
Atheros AR9285
802.11b/g/n 1x1
WiFi Adapter plus
Broadcom 2070
Bluetooth 2.1+EDR
Adapter
√
√
√
√
√
Broadcom 4312G
802.11b/g WiFi
Adapter
√
Broadcom 4312G
802.11b/g WiFi
Adapter plus
Broadcom 2070
Bluetooth 2.1+EDR
Adapter
√
Realtek RTL8191SE
802.11b/g/n 1x1
WiFi Adapter
ENWW
√
√
√
√
√
7
Category
External
media card
(select models
only )
Ports
8
Description
HP G42
HP G42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete
UMA
Discrete
UMA Models
150-199
UMA Models
100-149
Realtek RTL8191SE
802.11b/g/n 1x1
WiFi Adapter plus
Broadcom 2070
Bluetooth 2.1+EDR
Adapter
√
√
√
√
√
5-in-1 Digital Media
Slot; supports SD,
MMC, MS, Mspro,
xD
√
√
√
√
√
Single port
configured as either
HDMI or 5-in-1
Digital Media Slot
√
√
√
√
Supports mini
versions of SD,
MMC, and MS Duo
with adapter
(adapter not
included)
√
√
√
√
√
VGA (Dsub 15-pin)
supporting 1600 x
1200 resolution at
75 Hz; disabled
when connected to
devices through
Expansion port 3
√
√
√
√
√
Hot plug/unplug and
auto detect for wideaspect or standardaspect video
√
√
√
√
√
HDMI v1.3
supporting 1080p
with HDCP key
√
√
√
√
√
Single port
configured for either
HDMI or 5-in-1 card
reader
√
√
√
√
√
USB 2.0 (3)
√
√
√
√
√
RJ-11 (modem) with
modem option
√
√
√
√
√
RJ-45 (Ethernet,
with link and activity
lights)
√
√
√
√
√
Audio-in (mono
microphone)
√
√
√
√
√
Audio-out (stereo
headphone)
√
√
√
√
√
Chapter 1 Product description
ENWW
Category
Keyboard/
pointing
devices
Power
requirements
Description
HP G42
HP G42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete
UMA
Discrete
UMA Models
150-199
UMA Models
100-149
Smart-pin AC
adapter plug
√
√
√
√
√
14.0-inch keyboard
√
√
√
√
√
TouchPad with 2
buttons and 2-way
scroll (taps enabled
as default)
√
√
√
√
√
6-cell (47-Wh) 2.20Ah Li-ion battery
√
√
√
√
√
65-W AC adapter
with Smart-Pin DC
connector
√
√
√
√
√
90-W AC adapter
with Smart-Pin DC
connector
Security
Security cable slot
Operating
system
Preinstalled:
Serviceability
ENWW
√
√
√
√
√
Windows 7
Professional (32 &
64 bit)
√
√
√
√
Windows 7 Home
Premium (32 & 64
bit)
√
√
√
√
√
Windows 7 Home
Basic (32 & 64 bit)
√
√
√
√
√
Free DOS
√
√
√
√
√
AC adapter
√
√
√
√
√
Battery (system)
√
√
√
√
√
Hard drive
√
√
√
√
√
Memory module
√
√
√
√
√
Optical drive
√
√
√
√
√
Mini-card device
√
√
√
√
√
End-user
replaceable parts:
9
10
Chapter 1 Product description
ENWW
2
External component identification
Identifying the hardware
Components included with the computer may vary by region and model. The illustrations in this
chapter identify the standard features on most computer models.
To see a list of hardware installed in the computer, follow these steps:
1.
Select Start > My Computer.
2.
In the left pane of the System Tasks window, select View system information.
3.
Select Hardware tab > Device Manager.
You can also add hardware or modify computer configurations using Device Manager.
ENWW
Identifying the hardware
11
Top components
TouchPad
Component
(1)
Description
TouchPad off indicator
To switch the TouchPad zone on and off, quickly double-tap
the TouchPad off indicator.
NOTE:
When the TouchPad zone is active, the light is off.
(2)
TouchPad zone
Moves the pointer and selects or activates items on the
screen.
(3)
Left TouchPad button
Functions like the left button on an external mouse.
(4)
Right TouchPad button
Functions like the right button on an external mouse.
There is an unmarked scroll zone inside the right edge of the TouchPad. To scroll up and down using
the TouchPad vertical scroll zone, slide your finger up or down inside the right edge of the TouchPad.
For more information about TouchPad features, refer to” Using the TouchPad” section later in this
guide.
12
Chapter 2 External component identification
ENWW
Lights
Component
(1)
TouchPad light
●
On: The TouchPad is disabled.
●
Off: The TouchPad is enabled.
(2)
Caps lock light
On: Caps lock is on.
(3)
Power light
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state.
●
Off: The computer is off or in Hibernation.
●
White: An integrated wireless device, such as a
wireless local area network (WLAN) device and/or a
Bluetooth® device, is on.
●
Amber: All wireless devices are off.
(4)
ENWW
Description
Wireless light
Top components
13
Button and speakers
Component
Description
(1)
Speakers (2)
Produce sound.
(2)
Power button
●
When the computer is off, press the button to turn on the
computer.
●
When the computer is on, press the button briefly to
initiate Sleep.
●
When the computer is in the Sleep state, briefly press
the button to exit Sleep.
●
When the computer is in Hibernation, briefly press the
button to exit Hibernation.
If the computer has stopped responding and Windows®
shutdown procedures are ineffective, press and hold the
power button for at least 5 seconds to turn off the computer.
To learn more about your power settings, select Start >
Control Panel > System and Security > Power Options.
14
Chapter 2 External component identification
ENWW
Keys
Component
ENWW
Description
(1)
esc key
Displays system information when pressed in combination with
the fn key.
(2)
fn key
Displays system information when pressed in combination with
the esc key.
(3)
Windows logo key
Displays the Windows Start menu.
(4)
Windows applications key
Displays a shortcut menu for items beneath the pointer.
(5)
Navigation keys
Navigate using the Up, Down, Left and Right arrow keys.
(6)
Action keys
Execute frequently used system actions.
Top components
15
Display
16
Component
Description
(1)
Internal microphone
Records sound.
(2)
Integrated webcam (select models only)
Records audio and video and captures still photographs.
(3)
Integrated webcam light (select models only)
On: The integrated webcam is in use.
Chapter 2 External component identification
ENWW
Right-side components
Component
Description
(1)
Optical drive
Reads and writes to optical discs.
(2)
Optical drive light
Blinking: The optical drive is being accessed.
(3)
USB port
Connects an optional USB device.
(4)
RJ-11 (modem) jack (select models only)
Connects a modem cable.
(5)
AC adapter/power/battery light
●
White: The computer is connected to external power and
the battery is fully charged.
●
Blinking white: The computer is in the Sleep state.
●
Amber: A battery is charging.
(6)
Power connector
Connects an AC adapter.
(7)
Security cable slot
Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent,
but it may not prevent the computer from being mishandled or
stolen.
ENWW
Right-side components
17
Left-side components
Component
Description
(1)
External monitor port
Connects an external VGA monitor or projector.
(2)
Vent
Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for
the internal fan to cycle on and off during routine operation.
(3)
HDMI port (select models only)
Connects an optional video or audio device, such as a highdefinition television, or any compatible digital or audio
component.
(4)
RJ-45 (network) jack
Connects a network cable.
(5)
USB ports (2)
Connects optional USB devices.
(6)
Audio-in (microphone) jack
Connects an optional computer headset microphone, stereo
array microphone, or monaural microphone.
(7)
Audio-out (headphone) jack
Produces sound when connected to optional powered stereo
speakers, headphones, earbuds, a headset, or television
audio.
(8)
Digital Media Slot (select models only)
Supports the following optional digital card formats:
(9)
18
Drive light
Chapter 2 External component identification
●
Memory Stick (MS)
●
Memory Stick Pro (MSP)
●
MultiMediaCard (MMC)
●
Secure Digital (SD) Memory Card
●
xD-Picture Card (XD)
On: The hard drive is in use.
ENWW
Bottom components
Component
Description
(1)
Battery bay
Holds the battery.
(2)
Battery release latch
Releases the battery from the battery bay.
(3)
Vents (4)
Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
(4)
Memory module compartment
Contains 2 memory module slots and, on select models,
the wireless LAN (WLAN) device.
CAUTION: To prevent an unresponsive system, replace
the wireless module only with a wireless module
authorized for use in the computer by the governmental
agency that regulates wireless devices in your country or
region. If you replace the module and then receive a
warning message, remove the module to restore computer
functionality, and then contact technical support through
Help and Support.
(5)
ENWW
Hard drive bay
Holds the hard drive.
Bottom components
19
Wireless antennas
At least 2 antennas send and receive signals from one or more wireless devices. These antennas are
not visible from the outside of the computer.
NOTE: For optimal transmission, keep the areas immediately around the antennas free from
obstructions.
To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. These notices are located in Help and Support.
20
Chapter 2 External component identification
ENWW
Additional hardware components
Component
Description
(1)
Power cord*
Connects an AC adapter to an AC outlet.
(2)
AC adapter
Converts AC power to DC power.
(3)
Battery*
Powers the computer when the computer is not plugged into
external power.
*Power cords vary in appearance by country or region.
WARNING! Connecting the internal analog modem to a digital line can permanently damage the
modem. Immediately disconnect the modem cable if you accidentally connect it to a digital line.
NOTE: Telephone jacks vary by country or region. To use the modem and the modem cable
(included with select models only) outside the country or region in which you purchased the
computer, you must obtain a country- or region-specific modem cable adapter (included with select
models or purchased separately). The modem must be connected to an analog telephone line using a
6-pin, RJ-11 modem cable (included with select models only). Jacks for digital PBX systems may
resemble analog telephone jacks, but they are not compatible with the modem.
If the modem cable contains noise suppression circuitry, which prevents interference from TV and
radio reception, orient the circuitry end of the cable toward the computer.
ENWW
Additional hardware components
21
22
Chapter 2 External component identification
ENWW
3
Illustrated parts catalog
Serial number location
When ordering parts or requesting information, provide the computer serial number and model
number located in the battery bay of the computer.
ENWW
Serial number location
23
Computer major components
Item
Description
(1)
35.6 cm (14-in), WXGA, BrightView display assembly
Spare part number
NOTE: See Display assembly components on page 31 for more display assembly
internal component spare part information.
●
24
For use with integrated microphone and webcam; Presario, matte black
Chapter 3 Illustrated parts catalog
592146-001
ENWW
Item
(2)
(3)
ENWW
Description
Spare part number
●
For use with integrated microphone and webcam; Presario, biscotti
597617-001
●
For use with integrated microphone and webcam; HP, biscotti
600163-001
●
For use with integrated microphone and webcam; HP, silver (for models 1.1 and
later)
606155-001
●
For use with integrated microphone and webcam; HP, white (for model 1.1 only)
606156-001
●
For use with integrated microphone and webcam; HP, charcoal (for models 1.2 and
1.3 only)
622571-001
●
For use with integrated microphone and webcam; HP, imperial blue (for models 1.2
and 1.3 only)
622572-001
●
For use with integrated microphone and webcam; Presario, velvet red (for model
1.2 only)
624966-001
●
For use with integrated microphone and webcam; HP, velvet red (for models 1.2
and 1.3 only)
630907-001
Keyboards
●
For use in Brazil
600175-201
●
For use in Canada (English and French)
600175-121
●
For use in Latin America
600175-161
●
For use in South Korea
600175-AD1
●
For use in Taiwan
600175-AB1
●
For use in Thailand
600175-281
●
For use in the United States
600175-001
Top cover (includes Touchpad, bracket, button board, and cable)
●
Matte black color (for models 1.0, 1.1 and 1.3 only)
600181-001
●
Biscotti color
600182-001
●
Silver color (for models 1.1 and later)
606161-001
●
White color (for model 1.1 only)
606162-001
●
Charcoal color (for models 1.2 and 1.3 only)
622581-001
●
Imperial blue color (for models 1.2 and 1.3 only)
622582-001
●
Velvet red color (for models 1.2 and 1.3 only)
624971-001
(4)
Power button board (includes cable)
600188-001
(5)
Touchpad button board (includes cable)
604603-001
(6)
Thermal module — fan and heat assembly (includes thermal material)
●
For use in models that use Universal Memory Architecture (UMA) graphics
subsystem memory
595832-001
●
For use in models that use discrete graphics subsystem memory
595833-001
●
For use in models that use Universal Memory Architecture (UMA) GL40 graphics
subsystem memory
606573-001
Computer major components
25
Item
Description
Spare part number
●
For use in models that use discrete HD545V graphics subsystem memory (for
model 1.1 only)
617024-001
●
For use in models that use Universal Memory Architecture (UMA) GL40 (for model
1.3 only)
634650-001
●
For use in models that use discrete graphics subsystem memory (for model 1.3
only)
634651-001
Thermal pad kit for South Bridge chipset
634433-001
(7)
Speaker assembly (includes cable)
600189-001
(8)
System boards (includes replacement thermal material) for use in:
(9)
●
HM55 HD5430 discrete system board (for models 1.0 and 1.1 only)
595181-001
●
HM55 UMA system board
595182-001
●
HM55 HD5430 discrete system board with HDMI card reader (for models 1.0, 1.1
and 1.2 only)
595183-001
●
HM55 UMA system board with HDMI card reader
595184-001
●
HM55 HD5430/1 G discrete system board (for model 1.1 only)
608823-001
●
HD5430/1 G discrete system board with HDMI card reader (for model 1.1 only)
608824-001
●
GL40 UMA system board with HDMI card reader
605140-001
●
HM55 HD545V discrete system board (for model 1.1 only)
615577-001
●
HM55 HD545V discrete system board with HDMI card reader (for model 1.1 only)
615578-001
●
HD5470/512 MB discrete system board (for model 1.2 only)
615579-001
●
HD5470/512 MB discrete system board with HDMI card reader (for model 1.2 only)
615580-001
●
HD5470/1 G discrete system board (for model 1.2 only)
615581-001
●
HD5470/1 G discrete system board with HDMI card reader (for model 1.2 only)
615582-001
●
HD6370/512 MB discrete system board (for model 1.3 only)
631593-001
●
HD6370/1 GB discrete system board (for model 1.3 only)
631594-001
●
HD6370/512 MB discrete system board with HDMI card reader (for model 1.3 only)
631595-001
●
HD6370/1 GB system board with HDMI card reader (for model 1.3 only)
631596-001
●
i3-350M UMA system board (for model 1.3 only)
634648-001
●
i3-370M UMA system board (for model 1.3 only)
637583-001
●
HD6370/512M i3-370M discrete system board (for model 1.3 only)
637584-001
●
GL40 UMA 2M system board with HDMI card reader (for model 1.3 only)
639266-001
●
GL40 UMA ROM 2M system board (for model 1.3 only)
639267-001
Plastics Kit (see Plastics Kit on page 33 for more Plastics Kit information)
600190-001
(9a) Hard drive compartment cover
(9b) Wireless/memory module mini-card compartment cover
(10)
26
RTC battery (includes mounting adhesive)
Chapter 3 Illustrated parts catalog
602745-001
ENWW
Item
Description
(11)
Memory modules
(12)
(13)
Spare part number
●
1-GB, PC3-10600, 1333-MHz
598859-001
●
2-GB, PC3-10600, 1333-MHz
598856-001
●
4-GB, PC3-10600, 1333-MHz (for models 1.2 and 1.3 only)
599092-001
Modem module
●
High-speed 56K modem for use in all countries and regions except Australia and
New Zealand (for models 1.0 and 1.1 only)
510100-001
●
High-speed 56K modem for use in Australia and New Zealand (for models 1.0 and
1.1 only)
510100-011
WLAN module
Atheros AR9285 802.11 a/b/g/n 2x2 WiFi adapter
●
For use in Canada, the Cayman Islands, Guam, Puerto Rico, the United States,
and the US Virgin Islands
580101-001
●
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentian,
Armenia, Australia, Austria, Azerbaijan, Bahamas, Bahrain, Barbados, Belgium,
Belize, Benin, Bhutan, Bosnia and Herzegovina, Botswana, Brazil, Brunei, Bulgeria,
Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, Central African
Republic, Chad, Chile, China, Colombia, Comoros, Congo, Costa Rica, Croatia,
Cyprus, Czech Republic, Zaire, Denmark, Djibouti, Dominica, Dominican Republic,
Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji,
Finland, France, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece,
Grenada, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong,
Hungary, Iceland, India, Indonesia, Ireland, Italy, Ivory Coast, Jamaica, Japan,
Jordan, Kazakhstan, Kenya, Kiribati, Korea-South, Kuwait, Kyrgyzstan, Laos,
Latvia, Lebanon, Lesotho, Liberia, Martinique, Nether Antilles, French Guiana,
Aruba, British Virgin Islands, Bermuda, Syria, Guadeloupe, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagaascar, Malawi, Malaysia, Maldives, Mali, Malta,
Marshall Islands, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia,
Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, Netherlands, New
Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New
Guinea, Paraguay, Peru, Philippines, Poland, Portugal, Republic of Moldova,
Romania, rwanda, Samoa, San Marino, Sao tome and Principe, Saudi Arabia,
Senegal, Serbia and Montenegro, Seychelles, Sierra Leone, Singapore, Slovakia,
Slovenia, Solomon Islands, Somalia, South Africa, Spain, Sri Lanka, St. Kitts and
Nevis, St. Lucia, St. Vincent and Gren, Suriname, Swaziland, Sweden, Switzerland,
Taiwan, Tajikistan, Tanzania, Thailand, Timor (East), Togo, Tonga, Trinidad and
Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, United Arab
Emirates ,United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam,
Yemen, Zambia, and Zimbabwe
580101-002
Intel Centrino Wireless-N 1000 802.11b/g/n 1x2
593530-001
Broadcom 4312G 802.11b/g WiFi Adapter (halogen free)
●
ENWW
For use in Canada, Cayman Islands, Guam, Puerto Rico, the United States, and
the U.S. Virgin Islands (for models 1.0 and 1.1 only)
582562-001
Computer major components
27
Item
(14)
28
Description
Spare part number
●
For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,
Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, The Bahamas, Bahrain,
Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia
and Herzegovina, Botswana, Brazil, The British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic,
Chad, Chile, China, Colombia, Comoros, Congo, Costa, Rica, Croatia, Cyprus, The
Czech Republic, Denmark, Djibouti, Dominica, The Dominican Republic, East
Timor , Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia,
Fiji, Finland, France, French, Guiana, Gabon, Gambia, Georgia, Germany, Ghana,
Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa,
Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Italy, The
Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos,
Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg,
Macedonia, Madagascar, Malawi, The Maldives, Mali, Malta, The Marshall Islands,
Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia,
Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, The Nether Antilles,
The Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman,
Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, The Philippines,
Poland, Portugal, Puerto Rico, The Republic of Moldova, Romania, Russia,
Rwanda, Samoa, San Marino, Sao Tome and Principe Saudi Arabia, Senegal,
Serbia and Montenegro, The Seychelles, Sierra Leone, Singapore, Slovakia,
Slovenia, The Solomon Islands, Somalia, South Africa, Spain, Sri Lanka, St. Kitts &
Nevis, St. Lucia, St. Vincent and Gren, Suriname, Swaziland, Sweden, Switzerland,
Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, The United Arab Emirates, The United Kingdom,
Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia and
Zimbabwe (for models 1.0 and 1.1 only)
582562-002
Realtek RTL8191SE 802.11b/g/n 1x1 WiFi Adapter (for models 1.0, 1.1 and 1.2 only)
593533-001
Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo Adapter
(BT3.0+HS ready) (for models 1.2 and 1.3 only)
602992-001
Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070 Bluetooth 2.1+EDR Combo adapter
(BT3.0+HS ready) (for models 1.2 and 1.3 only)
600370-001
Ralink 5390GN 802.11b/g/n 1x1 WiFi Adapter (for model 1.3 only)
630703-001
Processor (includes replacement thermal material)
●
Intel Arrandale Core 620M 2.26-GHz (for models 1.0 and 1.1 only)
587259-001
●
Intel Arrandale 540M 2.53-GHz (for models 1.0, 1.1 and 1.2 only)
594188-001
●
Intel Arrandale 520M 2.4-GHz (for models 1.0, 1.1 and 1.2 only)
594187-001
●
Intel Arrandale i5-430M 2.26-GHz (for models 1.0, 1.1 and 1.2 only)
597624-001
●
Intel Arrandale i3-350M 2.26-GHz (for models 1.0, 1.1 and 1.2 only)
597623-001
●
Intel Arrandale i3-330M 2.13-GHz (for model 1.0 only)
597622-001
●
Intel Core 2 Duo Mobile processor T3000, 1.8-GHz (for model 1.0 only)
572926-001
●
Intel Core 2 Duo Mobile processor T4400 - 2.2-GHz
584296-001
●
Intel Core 2 Duo Mobile,T4300, 2.1-GHz (for models 1.0 and 1.1 only)
572929-001
●
Intel Core 2 Duo Mobile processor T3100 - 1.9-GHz (for models 1.0 and 1.1 only)
572925-001
●
Intel Core 2 Duo Mobile processor T3300 - 2.0-GHz (for models 1.1 and 1.2 only)
592399-001
●
Intel Arrandale P6000 1.86-GHz (for models 1.1 and 1.2 only)
613586-001
●
Intel Arrandale P6100 2.0-GHz (for models 1.2 and 1.3 only)
613587-001
Chapter 3 Illustrated parts catalog
ENWW
Item
Description
Spare part number
●
Intel Core 2 Duo Mobile processor T4500 - 2.3-GHz (for models 1.0, 1.1 and 1.3
only)
591880-001
●
Intel Arrandale i5–450M 2.4-GHz (for models 1.1 and 1.2 only)
613585-001
●
Intel Arrandale i3–370M 2.4-GHz (for models 1.1 and later)
613584-001
●
Intel Arrandale i5–560M 2.53-GHz (for models 1.2 and 1.3 only)
625824-001
●
Intel Core i5–460M 2.53-GHz (for models 1.2 and 1.3 only)
626039-001
●
Intel Arrandale i3–380M 2.53-GHz (for models 1.2 and 1.3 only)
625823-001
●
Intel Pentium P6200 2.13-GHz (for models 1.2 and 1.3 only)
625831-001
●
Intel Celeron 900 2.2-GHz (for models 1.1, 1.2 and 1.3 only)
534419-001
●
Intel Arrandale i5–580M 2.66–3.33-GHz (for models 1.2 and 1.3 only)
625825-001
●
Intel Penryn–MV 2 Duo Mobile processor T3500 - 2.1-GHz (for models 1.2 and 1.3
only)
625830-001
●
Intel Arrandale i3-390M processor 2.66-GHz 3MB 35W (for model 1.3 only)
634692-001
●
Intel Arrandale i5-480M processor 2.66-GHz 3MB 35W (for model 1.3 only)
634693-001
●
Intel Pentium P6300 - 2.26-GHz 3M (for model 1.3 only)
635500-001
●
Intel Celeron Mobile 925 - 2.3-GHz 1M L2 cache (for model 1.3 only)
636636-001
Thermal pad kit for processor
634428-001
(15)
USB board (includes cable)
600631-001
(16)
Modem (RJ-11) cable (includes RJ-11 connector with modem cable)
610791-001
(17)
Power connector cable (includes power connector and cable)
600630-001
(18)
Base enclosure (with modem cable and ODD cable)
(19)
(20)
●
For use with HDMI card reader, biscotti
617025-001
●
For use without HDMI card reader, biscotti
617026-001
●
For use with HDMI card reader, matte black
617027-001
●
For use without HDMI card reader, matte black
617028-001
●
For use with HDMI card reader, silver (for models 1.1, 1.2 and 1.3 only)
608912-001
●
For use with HDMI card reader, white (for model 1.1 only)
608913-001
●
For use with HDMI card reader, charcoal (for models 1.2 and 1.3 only)
622579-001
●
For use with HDMI card reader, imperial blue (for models 1.2 and 1.3 only)
622580-001
●
For use with HDMI card reader, velvet red (for models 1.2 and 1.3 only)
624970-001
Bluetooth module (for models 1.0, 1.1 and 1.3 only)
537921-001
Bluetooth module cable (for models 1.0, 1.1 and 1.3 only) (illustrated with Bluetooth
module)
602822-001
Battery
●
ENWW
6-cell 47-WH (2.2-Ah) LI-ion
593553-001
Computer major components
29
Item
(21)
30
Description
Spare part number
●
593554-001
6-cell 55-WH (2.55-Ah) LI-ion
Hard drive (include hard drive bracket)
●
750-GB 5400 RPM (for model 1.3 only)
634250-001
●
640-GB 5400 RPM (for models 1.1, 1.2 and 1.3 only)
603785-001
●
500-GB 7200 RPM
608218-001
●
320-GB 7200 RPM
600169-001
●
250-GB 7200 RPM
575598-001
●
160-GB 7200 RPM (for models 1.0, 1.1 and 1.2 only)
600167-001
(22)
Hard drive cable/adapter (included with the cable kit; see Mass storage devices
on page 34)
610791–001
(23)
Optical drive cable (included in the cable kit)
610791-001
(24)
Optical drives (12.7 mm, SATA, fixed)
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, matte
black
600173-001
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, biscotti
600174-001
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, silver (for
models 1.1, 1.2 and 1.3 only)
608121-001
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, white (for
model 1.1 only)
608122-001
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, charcoal
(for models 1.2 and 1.3 only)
622577-001
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, imperial
blue (for models 1.2 and 1.3 only)
622578-001
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, velvet
red (for models 1.2 and 1.3 only)
624968-001
●
DVD±RW SuperMulti DL Drive with LightScribe, matte black
600171-001
●
DVD±RW SuperMulti DL Drive with LightScribe, biscotti
600172-001
●
DVD±RW SuperMulti DL Drive with LightScribe, silver (for models 1.1, 1.2 and 1.3
only)
608119-001
●
DVD±RW SuperMulti DL Drive with LightScribe, white (for model 1.1 only)
608120-001
●
DVD±RW SuperMulti DL Drive with LightScribe, charcoal (for models 1.2 and 1.3
only)
622575-001
●
DVD±RW SuperMulti DL Drive with LightScribe, imperial blue (for models 1.2 and
1.3 only)
622576-001
●
DVD±RW SuperMulti DL Drive with LightScribe, velvet red (for models 1.2 and 1.3
only)
624969-001
Chapter 3 Illustrated parts catalog
ENWW
Display assembly components
Item
Description
(1)
Display bezel
Spare part number
●
HP, for use with microphone and webcam
592147-001
●
Presario, for use with microphone and webcam
592148-001
(2)
35.6 cm (14-in) high definition, Brightview, display panel (includes display panel cable)
592144-001
(3)
Display hinge cover
592150-001
Display bracket (with hinges)
600627-001
Display cable kit
592151-001
Display cable (shown with display panel)
ENWW
Display assembly components
31
Item
Description
Spare part number
(4) Webcam cable
(5) Antennas and cables
(6)
(7)
32
Display back cover
●
Presario, matte black
592149-001
●
Presario, biscotti
600164-001
●
HP, biscotti
600165-001
●
HP, silver (for models 1.1, 1.2 and 1.3 only)
606157-001
●
HP, white (for model 1.1 only)
606158-001
●
HP, charcoal (for models 1.2 and 1.3 only)
622573-001
●
HP, imperial blue (for models 1.2 and 1.3 only)
622574-001
●
Presario, velvet red (for model 1.2 only)
624967-001
●
HP, velvet red (for models 1.2 and 1.3 only)
630908-001
Webcam module
600166-001
Display screw kit (not illustrated; includes screws and screw covers)
592152-001
Display rubber display kit (not illustrated)
595198-001
Chapter 3 Illustrated parts catalog
ENWW
Plastics Kit
Item
ENWW
Description
Spare part number
Plastics kit
600190-001
(1)
Hard drive bay cover (includes captive screws)
(2)
Wireless/memory module mini-card compartment cover (includes captive screw)
Plastics Kit
33
Mass storage devices
Item
Description
(1)
Hard drive (include hard drive bracket)
(2)
34
Spare part number
●
750-GB 5400 RPM (for model 1.3 only)
634250-001
●
640-GB 5400 RPM (for models 1.1, 1.2 and 1.3 only)
603785-001
●
500-GB 7200 RPM
608218-001
●
320-GB 7200 RPM
600169-001
●
250-GB 7200 RPM
575598-001
●
160-GB 7200 RPM (for models 1.0, 1.1 and 1.2 only)
600167-001
Hard drive hardware kit (contains screws, hard drive bracket, not illustrated)
513771-001
Hard drive cable/adapter (included in the cable kit)
610791–001
Optical drives (12.7 mm, SATA, fixed)
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, matte
black
600173-001
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, biscotti
600174-001
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, silver (for
models 1.1, 1.2 and 1.3 only)
608121-001
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, white (for
model 1.1 only)
608122-001
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, charcoal
(for models 1.2 and 1.3 only)
622577-001
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, imperial
blue (for models 1.2 and 1.3 only)
622578-001
●
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, velvet red
(for models 1.2 and 1.3 only)
624968-001
●
DVD±RW SuperMulti DL Drive with LightScribe, matte black
600171-001
Chapter 3 Illustrated parts catalog
ENWW
Item
ENWW
Description
Spare part number
●
DVD±RW SuperMulti DL Drive with LightScribe, biscotti
600172-001
●
DVD±RW SuperMulti DL Drive with LightScribe, silver (for models 1.1, 1.2 and 1.3
only)
608119-001
●
DVD±RW SuperMulti DL Drive with LightScribe, white (for model 1.1 only)
608120-001
●
DVD±RW SuperMulti DL Drive with LightScribe, charcoal (for models 1.2 and 1.3
only)
622575-001
●
DVD±RW SuperMulti DL Drive with LightScribe, imperial blue (for models 1.2 and
1.3 only)
622576-001
●
DVD±RW SuperMulti DL Drive with LightScribe, velvet red (for models 1.2 and 1.3
only)
624969-001
Mass storage devices
35
Miscellaneous parts
Description
Spare part number
AC adapters
●
90-W Smart AC adapter with power factor correction (PFC)
613152-001
●
90-W AC adapter with power factor correction (PFC)
613160-001
●
65-W AC Smart, slim, AC adapter
613153-001
●
65-W Smart power adapter with power factor correction (PFC) for use in India
613161-001
Power cord, AC, 3 wire, black, 1.83-m
36
●
For use in Argentina
490371-D01
●
For use in Australia
490371-011
●
For use in Europe (for model 1.3 only)
490371-021
●
For use in Brazil
490371-202
●
For use in India
490371-D61
●
For use in Italy
490371-061
●
For use in North America
490371-001
●
For use in South Korea
490371-AD1
●
For use in Taiwan
490371-AB1
●
For use in Thailand
490371-201
●
For use in the People's Republic of China
490371-AA1
●
For use in the United Kingdom and Singapore
490371-031
Rubber kit
600184-001
Screw kit
595202-001
●
Phillips M2.0x3.0 screw
●
Phillips M2.5x3.0 screw
●
Phillips M2.5x4.0 screw
●
Phillips M2.5x5.0 screw
●
Phillips M2.5x6.5 screw
Chapter 3 Illustrated parts catalog
ENWW
Sequential part number listing
ENWW
Spare part
number
Description
490371-001
Power cord, AC, 3-pin, black, 1.83-m, for use in North America
490371-011
Power cord, AC, 3-pin, black, 1.83-m, for use in Australia
490371-021
Power cord, AC, 3-pin, black, 1.83-m, for use in Europe (for model 1.3 only)
490371-031
Power cord, AC, 3-pin, black, 1.83-m, for use in the United Kingdom and Singapore
490371-061
Power cord, AC, 3-pin, black, 1.83-m, for use in Italy
490371-201
Power cord, AC, 3-pin, black, 1.83-m, for use in Thailand
490371-202
Power cord, AC, 3-pin, black, 1.83-m, for use in Brazil
490371-AA1
Power cord, AC, 3-pin, black,1.83-m, for use in the People's Republic of China
490371-AB1
Power cord, AC, 3-pin, black,1.83-m, for use in Taiwan
490371-AD1
Power cord, AC, 3-pin, black,1.83-m, for use in South Korea
490371-D01
Power cord, AC, 3-pin, black,1.83-m, for use in Argentina
490371-D61
Power cord, AC, 3-pin, black,1.83-m, for use in India
510100-001
Modem module, high-speed 56K modem for use in all countries and regions except Australia and New
Zealand (for models 1.0 and 1.1 only)
510100-011
Modem module, high-speed 56K modem for use in Australia and New Zealand (for models 1.0 and 1.1
only)
513771-001
Hard drive hardware kit
534419-001
Processor, Intel Celeron processor 900 - 2.2-GHz
537921-001
Bluetooth module without cable (for models 1.0, 1.1 and 1.3 only)
572925-001
Processor, Intel Core 2 Duo Mobile processor T3100 - 1.9-GHz (for models 1.0 and 1.1 only)
572926-001
Processor, Intel Core 2 Duo Mobile processor T3000, 1.8-GHz (for models1.0 only)
572929-001
Processor, Intel Core 2 Duo Mobile,T4300, 2.1-GHz (for models 1.0 and 1.1 only)
575598-001
Hard disk drive, 250-GB 7200 RPM
580101-001
Atheros AR9285 802.11 a/b/g/n 2x2 WiFi adapter for use in Canada, the Cayman Islands, Guam,
Puerto Rico, the United States, and the US Virgin Islands
Sequential part number listing
37
38
Spare part
number
Description
580101-002
Atheros AR9285 802.11 a/b/g/n 2x2 WiFi adapter for use in Afghanistan, Albania, Algeria, Andorra,
Angola, Antigua and Barbuda, Argentina, Armenia, Australia, Austria, Azerbaijan, Bahamas, Bahrain,
Barbados, Belgium, Belize, Benin, Bhutan, Bosnia and Herzegovina, Botswana, Brazil, Brunei,
Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, Central African Republic, Chad,
Chile, China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, Czech Republic, Zaire,
Denmark, Djibouti, Dominica, Dominican Republic, Ecuador, Egypt, El Salvador, Equatorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar,
Greece, Grenada, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong,
Hungary, Iceland, India, Indonesia, Ireland, Italy, Ivory Coast, Jamaica, Japan, Jordan, Kazakhstan,
Kenya, Kiribati, Korea-South, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Martinique,
Nether Antilles, French Guiana, Aruba, British Virgin Islands, Bermuda, Syria, Guadeloupe,
Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, Maldives, Mali,
Malta, Marshall Islands, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro,
Morocco, Mozambique, Namibia, Nauru, Nepal, Netherlands, New Zealand, Nicaragua, Niger, Nigeria,
Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, Peru, Philippines, Poland, Portugal,
Republic of Moldova, Romania, Rwanda, Samoa, San Marino, Sao tome and Principe, Saudi Arabia,
Senegal, Serbia and Montenegro, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, Solomon
Islands, Somalia, South Africa, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and Gren,
Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Timor (East),
Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, United Arab
Emirates, United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zambia, and
Zimbabwe
582562-001
Broadcom 4312G 802.11b/g WiFi adapter for use in Canada, Cayman Islands, Guam, Puerto Rico,
the United States, and the U.S. Virgin Islands (for models 1.0 and 1.1 only)
582562-002
Broadcom 4312G 802.11b/g WiFi adapter for use in Afghanistan, Albania, Algeria, Andorra, Angola,
Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, The Bahamas,
Bahrain, Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and
Herzegovina, Botswana, Brazil, The British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi,
Cameroon, Cape Verde, the Central African Republic, Chad, Chile, China, Colombia, Comoros,
Congo, Costa, Rica, Croatia, Cyprus, The Czech Republic, Denmark, Djibouti, Dominica, The
Dominican Republic, East Timor , Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia,
Ethiopia, Fiji, Finland, France, French, Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar,
Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong
Kong, Hungary, Iceland, India, Ireland, Italy, The Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya,
Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg,
Macedonia, Madagascar, Malawi, The Maldives, Mali, Malta, The Marshall Islands, Martinique,
Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique,
Namibia, Nauru, Nepal, The Nether Antilles, The Netherlands, New Zealand, Nicaragua, Niger,
Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, The
Philippines, Poland, Portugal, Puerto Rico, The Republic of Moldova, Romania, Russia, Rwanda,
Samoa, San Marino, Sao Tome and Principe Saudi Arabia, Senegal, Serbia and Montenegro, The
Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, The Solomon Islands, Somalia, South Africa,
Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent and Gren, Suriname, Swaziland, Sweden,
Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, The United Arab Emirates, The United Kingdom, Uruguay,
Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia and Zimbabwe (for models 1.0 and
1.1 only)
584296-001
Processor, Intel Core 2 Duo Mobile processor T4400 - 2.2-GHz
587259-001
Processor, Intel Arrandale Core 620M 2.26-GHz (for models 1.0 and 1.1 only)
591880-001
Processor, Intel Core 2 Duo Mobile processor T4500 - 2.3-GHz (for models 1.0, 1.1 and 1.3 only)
592144-001
Display panel, 35.6 cm (14-in) high definition, Brightview
592146-001
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam;
Presario, matte black
592147-001
Display bezel, HP, for use with microphone and webcam
Chapter 3 Illustrated parts catalog
ENWW
ENWW
Spare part
number
Description
592148-001
Display bezel, Presario, for use with microphone and webcam
592149-001
Display back cover, Presario, matte black
592150-001
Display hinge cover
592151-001
Display cable kit
592152-001
Display screw kit (not illustrated)
592399-001
Processor, Intel Core 2 Duo Mobile processor T3300 - 2.0-GHz (for models 1.1 and 1.2 only)
593530-001
Intel Centrino Wireless-N 1000 802.11b/g/n 1x2
593533-001
Realtek RTL8191SE 802.11b/g/n 1x1 WiFi Adapter (for models 1.0, 1.1 and 1.2 only)
593553-001
Battery, 6-cell 47-WH (2.2-Ah) LI-ion
593554-001
Battery, 6-cell 55-WH (2.55Ah) LI-ion
594187-001
Processor, Intel Arrandale 520M 2.4-GHz (for models 1.0, 1.1 and 1.2 only)
594188-001
Processor, Intel Arrandale 540M 2.53-GHz (for models 1.0, 1.1 and 1.2 only)
595181-001
System board (includes replacement thermal material) for use in models with discrete graphics
subsystem (for models 1.0 and 1.1 only)
595182-001
System board (includes replacement thermal material) for use in models with Unified Memory
Architecture (UMA) graphics subsystem
595183-001
System board (includes replacement thermal material) for use in models with discrete graphics
subsystem and HDMI card reader (for models 1.0, 1.1 and 1.2 only)
595184-001
System board (includes replacement thermal material) for use in models with UMA graphics
subsystem and HDMI card reader
595198-001
Display rubber kit
595202-001
Screw kit
595832-001
Thermal module (includes fan and heat sink) for use in models that use Universal Memory
Architecture (UMA) graphics subsystem memory
595833-001
Thermal module (includes fan and heat sink) for use in models that use discrete graphics subsystem
memory
597617-001
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam;
Presario, biscotti
597622-001
Processor, Intel Arrandale i3-330M 2.13-GHz (for model 1.0 only)
597623-001
Processor, Intel Arrandale i3-350M 2.26-GHz (for models 1.0, 1.1 and 1.2 only)
597624-001
Processor, Intel Arrandale i5-430M 2.26-GHz (for models 1.0, 1.1 and 1.2 only)
598856-001
Memory module, 2-GB, PC3 10600, 1333-MHz
598859-001
Memory module, 1-GB, PC3 10600, 1333-MHz
599092-001
Memory module, 4-GB, PC3 10600, 1333-MHz (for models 1.2 and 1.3 only)
600163-001
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam;
HP, biscotti
600164-001
Display back cover, Presario, biscotti
Sequential part number listing
39
40
Spare part
number
Description
600165-001
Display back cover, HP, biscotti
600166-001
Webcam module
600167-001
Hard disk drive, 160-GB 7200 RPM (for models 1.0, 1.1 and 1.2 only)
600169-001
Hard disk drive, 320-GB 7200 RPM
600171-001
Optical drive, DVD±RW SuperMulti DL Drive with LightScribe, matte black
600172-001
Optical drive, DVD±RW SuperMulti DL Drive with LightScribe, biscotti
600173-001
Optical drive, Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, matte black
600174-001
Optical drive, Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, biscotti
600175-001
Keyboard for use in the United States
600175-121
Keyboard for use in Canada (English and French)
600175-161
Keyboard for use in Latin America
600175-201
Keyboard for use in Brazil
600175-281
Keyboard for use in Thailand
600175-AB1
Keyboard for use in Taiwan
600175-AD1
Keyboard for use in South Korea
600181-001
Top cover (includes Touchpad and bracket, button board, and cable), matte black color (for models
1.0, 1.1 and 1.3 only)
600182-001
Top cover (includes Touchpad and bracket, button board, and cable) , bicotti color
600184-001
Rubber kit
600188-001
Power button board (includes cable)
600189-001
Speaker assembly (includes cable)
600190-001
Plastics kit (with hard drive compartment cover and memory/wireless compartment cover)
600370-001
Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070 Bluetooth 2.1+EDR Combo adapter (BT3.0+HS
ready) (for models 1.2 and 1.3 only)
600627-001
Display bracket (with hinges)
600630-001
Power connector with cable
600631-001
USB board with cable
602745-001
RTC battery
602822-001
Bluetooth cable (for models 1.0, 1.1 and 1.3 only)
602992-001
Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo Adapter (BT3.0+HS ready)
(for models 1.2 and later)
603785-001
Hard disk drive, 640-GB 5400 RPM (for models 1.1, 1.2 and 1.3 only)
604603-001
Touchpad board (includes cable)
605140-001
System board (includes replacement thermal material) for use in models with UMA graphics
subsystem memory, Intel® GL40 chipset, and HDMI card reader
Chapter 3 Illustrated parts catalog
ENWW
ENWW
Spare part
number
Description
606155-001
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam;
HP, silver (for models 1.1, 1.2 and 1.3 only)
606156-001
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam;
HP, white (for models 1.1 only)
606157-001
Display back cover, HP, silver (for models 1.1, 1.2 and 1.3 only)
606158-001
Display back cover, HP, white (for model 1.1 only)
606161-001
Top cover (includes Touchpad and bracket, button board, and cable), silver color (for models 1.1, 1.2
and 1.3 only)
606162-001
Top cover (includes Touchpad and bracket, button board, and cable), white color (for model 1.1 only)
606573-001
Thermal module (includes fan and heat sink) for use in models that use Universal Memory
Architecture (UMA) GL40 graphics subsystem memory
608119-001
Optical drive, DVD±RW SuperMulti DL Drive with LightScribe, silver (for models 1.1, 1.2 and 1.3 only)
608120-001
Optical drive, DVD±RW SuperMulti DL Drive with LightScribe, white (for model 1.1 only)
608121-001
Optical drive, Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, silver (for
models 1.1, 1.2 and 1.3 only)
608122-001
Optical drive, Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, white (for
model 1.1 only)
608218–001
Hard drive 500 GB–7200RPM SATA 2.5IN
608823-001
System board (includes replacement thermal material) for use in models with discrete graphics
subsystem memory, HM55 HD5430/1 G chipset (for model 1.1 only)
608824-001
System board (includes replacement thermal material) for use in models with discrete graphics
subsystem memory, HD5430/1 G chipset, with HDMI card reader (for model 1.1 only)
608912-001
Base enclosure with HDMI card reader, silver (for models 1.1, 1.2 and 1.3 only)
608913-001
Base enclosure with HDMI card reader, white (for model 1.1 only)
610791-001
Optical drive cable (included in the cable kit)
610791–001
Modem (RJ–11 cable with modem connector included in the cable kit)
610791–001
Hard drive cable/adaptor (included in the cable kit)
613152-001
65-W Smart AC adapter
613153-001
90-W AC adapter with power factor correction (PFC)
613160-001
90-W AC adapter RC/V EM, with power factor correction (PFC)
613161-001
65-W AC adapter with power factor correction (PFC) for use in India
613584-001
Processor, Intel Arrandale i3-370M 2.4-GHz (for models 1.1, 1.2 and 1.3 only)
613585-001
Processor, Intel Arrandale i5-450M 2.4-GHz (for models 1.1 and 1.2 only)
613586-001
Processor, Pentium Arrandale P6000 1.86-GHz (for models 1.1 and 1.2 only)
613587-001
Processor, Pentium Arrandale P6100 2.0-GHz (for models 1.2 and 1.3 only)
615577-001
System board (includes replacement thermal material) for use in models with discrete graphics
subsystem memory, HM55 HD545V chipset (for model 1.1 only)
Sequential part number listing
41
42
Spare part
number
Description
615578-001
System board (includes replacement thermal material) for use in models with discrete graphics
subsystem memory, HM55 HD545V chipset, with HDMI card reader (for model 1.1 only)
615579-001
System board (includes replacement thermal material) for use in models with discrete graphics
subsystem memory, HD5470/512 MB chipset (for model 1.2 only)
615580-001
System board (includes replacement thermal material) for use in models with discrete graphics
subsystem memory, HD5470/512 MB chipset, with HDMI card reader (for model 1.2 only)
615581-001
System board (includes replacement thermal material) for use in models with discrete graphics
subsystem memory, HD5470/1 G chipset (for model 1.2 only)
615582-001
System board (includes replacement thermal material) for use in models with discrete graphics
subsystem memory, HD5470/1 G chipset, with HDMI card reader (for model 1.2 only)
617024-001
Thermal module (includes fan and heat sink) for use in models that use discrete HD545V graphics
subsystem memory (for models 1.1 only)
617025-001
Base enclosure with HDMI card reader, biscotti
617026-001
Base enclosure, biscotti
617027-001
Base enclosure with HDMI card reader, matte black
617028-001
Base enclosure, matte black
622571-001
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam;
HP, charcoal (for models 1.2 and 1.3 only)
622572-001
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam;
HP, imperial blue (for models 1.2 and 1.3 only)
622573-001
Display back cover, HP, charcoal (for models 1.2 and 1.3 only)
622574-001
Display back cover, HP, imperial blue (for models 1.2 and 1.3 only)
622575-001
Optical drive, DVD±RW SuperMulti DL Drive with LightScribe, charcoal (for models 1.2 and 1.3 only)
622576-001
Optical drive, DVD±RW SuperMulti DL Drive with LightScribe, imperial blue (for models 1.2 and 1.3
only)
622577-001
Optical drive, Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, charcoal (for
models 1.2 and 1.3 only)
622578-001
Optical drive, Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, imperial blue
(for models 1.2 and 1.3 only)
622579-001
Base enclosure with HDMI card reader, charcoal (for models 1.2 and 1.3 only)
622580-001
Base enclosure with HDMI card reader, imperial blue (for models 1.2 and 1.3 only)
622581-001
Top cover (includes Touchpad and bracket, button board, and cable), charcoal color (for models 1.2
and 1.3 only)
622582-001
Top cover (includes Touchpad and bracket, button board, and cable), imperial blue color (for models
1.2 and 1.3 only)
624966-001
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam;
Presario, velvet red (for model 1.2 only)
624967-001
Display back cover, Presario, velvet red (for model 1.2 only)
624968-001
Optical drive, Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, velvet red (for
models 1.2 and 1.3 only)
Chapter 3 Illustrated parts catalog
ENWW
ENWW
Spare part
number
Description
624969-001
Optical drive, DVD±RW SuperMulti DL Drive with LightScribe, velvet red (for models 1.2 and later)
624970-001
Base enclosure with HDMI card reader, velvet red (for models 1.2 and 1.3 only)
624971-001
Top cover (includes Touchpad and bracket, button board, and cable), velvet red color (for models 1.2
and 1.3 only)
625823-001
Processor, Intel Arrandale i3-380M 2.53-GHz (for models 1.2 and 1.3 only)
625824-001
Processor, Intel Arrandale i5-560M 2.66–3.2-GHz (for models 1.2 and 1.3 only)
625825-001
Processor, Intel Arrandale i5-580M 2.66–3.33-GHz (for models 1.2 and 1.3 only)
625830-001
Processor, Intel Penryn T3500 2.1-GHz (for models 1.2 and 1.3 only)
625831-001
Processor, Intel Pentium P6200 2.13-GHz (for models 1.2 and 1.3 only)
626039-001
Processor, Intel Core i5-460M 2.53-GHz (for models 1.2 and 1.3 only)
628482-001
System board (includes replacement thermal material) for use in models with UMA graphics
subsystem memory, HM55 WiMAX chipset, with HDMI card reader
630703-001
Ralink 5390GN 802.11b/g/n 1x1 WiFi Adapter (for model 1.3 only)
630907-001
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and webcam;
HP, velvet red (for models 1.2 and 1.3 only)
630908-001
Display back cover, HP, velvet red (for models 1.2 and 1.3 only)
631593-001
System board for HD6370/512-MB with HDMI card reader (for model 1.3 only)
631594-001
System board HD6370/1-GB (for model 1.3 only)
631595-001
System board HD6370/512-MB with HDMI card reader (for model 1.3 only)
631596-001
System board HD6370/1-GB with HDMI card reader (for model 1.3 only)
634250-001
750–GB 5400 RPM (for model 1.3 only)
634428-001
Thermal pad kit for processor
634433-001
Thermal pad kit for South Bridge chipset
634648-001
System board UMA i3-350M (for model 1.3 only)
634650-001
GL40 graphics subsystem memory (for model 1.3 only)
634651-001
GL40 thermal module for use in models that use Universal Memory Architecture (for model 1.3 only)
634692-001
Intel Arrandale i3-390M processor 2.66-GHz 3MB 35W (for model 1.3 only)
634693-001
Intel Arrandale i5-480M processor 2.66-GHz 3MB 35W (for model 1.3 only)
635500-001
Intel Pentium P6300 - 2.26-GHz 3M (for model 1.3 only)
636636-001
Intel Celeron Mobile 925 - 2.3-GHz 1M L2 cache (for model 1.3 only)
637583-001
i3-370M UMA system board (for model 1.3 only)
637584-001
i3-370M HD6370/512M system board (for model 1.3 only)
639266-001
GL40 2M UMA system board with HDMI card reader (for model 1.3 only)
639267-001
GL40 UMA system board (for model 1.3 only)
Sequential part number listing
43
44
Chapter 3 Illustrated parts catalog
ENWW
4
Removal and replacement procedures
Preliminary replacement requirements
Tools required
You will need the following tools to complete the removal and replacement procedures:
●
Flat-bladed screwdriver
●
Magnetic screwdriver
●
Phillips P0 and P1 screwdrivers
Service considerations
The following sections include some of the considerations that you must keep in mind during
disassembly and assembly procedures.
NOTE: As you remove each subassembly from the computer, place the subassembly (and all
accompanying screws) away from the work area to prevent damage.
Plastic parts
Using excessive force during disassembly and reassembly can damage plastic parts. Use care when
handling the plastic parts. Apply pressure only at the points designated in the maintenance
instructions.
ENWW
Preliminary replacement requirements
45
Cables and connectors
CAUTION: When servicing the computer, be sure that cables are placed in their proper locations
during the reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to
unseat or seat the cables during removal and insertion. Handle cables by the connector whenever
possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in
such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex
cables with extreme care; these cables tear easily.
Drive handling
CAUTION: Drives are fragile components that must be handled with care. To prevent damage to
the computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the
computer is off or in Hibernation, turn the computer on, and then shut it down through the operating
system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.
Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and
be sure that the optical drive tray is closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.
Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”
46
Chapter 4 Removal and replacement procedures
ENWW
Grounding guidelines
Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure
determine the degree of sensitivity. Networks built into many integrated circuits provide some
protection, but in many cases, ESD contains enough power to alter device parameters or melt
silicon junctions.
A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a
normal cycle. Or the device may function normally for a while, then degrade in the internal layers,
reducing its life expectancy.
CAUTION: To prevent damage to the computer when you are removing or installing internal
components, observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Use nonmagnetic tools.
Before touching an electronic component, discharge static electricity by using the guidelines
described in this section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity affects the electrostatic voltage levels generated by different
activities.
CAUTION: A product can be degraded by as little as 700 V.
Typical electrostatic voltage levels
Relative humidity
Event
ENWW
10%
40%
55%
Walking across carpet
35,000 V
15,000 V
7,500 V
Walking across vinyl floor
12,000 V
5,000 V
3,000 V
Motions of bench worker
6,000 V
800 V
400 V
Removing DIPS from plastic tube
2,000 V
700 V
400 V
Removing DIPS from vinyl tray
11,500 V
4,000 V
2,000 V
Removing DIPS from Styrofoam
14,500 V
5,000 V
3,500 V
Removing bubble pack from PCB
26,500 V
20,000 V
7,000 V
Packing PCBs in foam-lined box
21,000 V
11,000 V
5,000 V
Preliminary replacement requirements
47
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
●
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
●
Protect ESD-sensitive parts and assemblies with conductive or approved containers or
packaging.
●
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
●
Place items on a grounded surface before removing items from their containers.
●
Always be properly grounded when touching a component or assembly.
●
Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive
foam.
●
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that
mechanized equipment used for moving materials is wired to ground and that proper materials
are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate
electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
48
●
Cover the workstation with approved static-shielding material.
●
Use a wrist strap connected to a properly grounded work surface and use properly grounded
tools and equipment.
●
Use conductive field service tools, such as cutters, screwdrivers, and vacuums.
●
When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe
materials.
●
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and
Styrofoam.
●
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle
these items only at static-free workstations.
●
Avoid contact with pins, leads, or circuitry.
●
Turn off power and input signals before inserting or removing connectors or test equipment.
Chapter 4 Removal and replacement procedures
ENWW
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
●
When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible
straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper
ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug
connectors, use alligator clips to connect a wrist strap.
●
When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)
can be used at standing workstations and are compatible with most types of shoes or boots. On
conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one
megohm resistance between the operator and ground. To be effective, the conductive strips
must be worn in contact with the skin.
The following grounding equipment is recommended to prevent electrostatic damage:
●
Antistatic tape
●
Antistatic smocks, aprons, and sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Nonconductive foam
●
Conductive tabletop workstations with ground cords of one megohm resistance
●
Static-dissipative tables or floor mats with hard ties to the ground
●
Field service kits
●
Static awareness labels
●
Material-handling packages
●
Nonconductive plastic bags, tubes, or boxes
●
Metal tote boxes
●
Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and floor mats.
ENWW
Material
Use
Voltage protection level
Antistatic plastic
Bags
1,500 V
Carbon-loaded plastic
Floor mats
7,500 V
Metallized laminate
Floor mats
5,000 V
Preliminary replacement requirements
49
Component replacement procedures
This chapter provides removal and replacement procedures.
There are as many as 75 screws, in 12 different sizes, that must be removed, replaced, or loosened
when servicing the computer. Make special note of each screw size and location during removal and
replacement.
Serial number
The serial number label, located in the battery bay of the computer, provides important information
that you may need when contacting technical support.
(1) Product name
(4) Warranty period
(2) Serial number
(5) Model description (select models)
(3) Product number
50
Chapter 4 Removal and replacement procedures
ENWW
Computer feet
Description
Spare part number
Rubber Feet Kit
600184-001
The computer feet are adhesive-backed rubber pads. The feet attach to the base enclosure in the
locations illustrated below.
ENWW
Component replacement procedures
51
Battery
Description
Spare part number
6-cell 55-WH (2.55Ah) LI-ion
593554-001
6-cell 47-WH (2.2-Ah) LI-ion
593553-001
Before disassembling the computer, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
Remove the battery:
1.
Turn the computer upside down on a flat surface.
2.
Slide the battery release latch (1) to release the battery.
3.
Pivot the battery (2) upward and lift it out of the computer (3).
To insert the battery, insert the rear edge of the battery into the battery bay and pivot the front edge
downward until the battery is seated. The battery release latch automatically locks the battery into
place.
52
Chapter 4 Removal and replacement procedures
ENWW
Hard drive
NOTE: All hard drive spare part kits include a hard drive bracket.
Description
Spare part number
750-GB 5400 RPM (for model 1.3 only)
634250-001
640-GB 5400 RPM (for models 1.1 and 1.2 only)
603785-001
500-GB 7200 RPM
608218-001
320-GB 7200 RPM
600169-001
250-GB 7200 RPM
575598-001
160-GB 7200 RPM (for models 1.0, 1.1 and 1.2 only)
600167-001
Hard drive hardware kit (includes screws and hard drive bracket)
513771-001
Hard drive cable/adaptor (included in the cable kit)
610791–001
Before removing the hard drive, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
Remove the hard drive:
ENWW
1.
Position the computer with the front toward you.
2.
Remove the two Phillips PM2.5×5.0 screws (1) that secure the hard drive cover to the computer.
Component replacement procedures
53
54
3.
Lift the left side of the hard drive cover (2), swing it forward, and remove the cover (3). The hard
drive cover is included in the plastics kit, spare part number 600190-001.
4.
Remove the three Phillips PM2.5×4.0 screws (1) that secure the hard drive to the computer.
5.
Use the hard drive bracket to lift the hard drive out (2) of the hard drive compartment.
Chapter 4 Removal and replacement procedures
ENWW
6.
Disconnect the hard drive cable from the system board.
7.
Remove the hard drive.
8.
If it is necessary to replace the hard drive bracket, remove the four Phillips PM3.0×3.0 screws
(1) that secure the hard drive bracket to the hard drive
9.
Lift the bracket (2) straight up.
Reverse this procedure to install the hard drive.
ENWW
Component replacement procedures
55
Optical drive
Description
Spare part
number
DVD±RW SuperMulti DL Drive with LightScribe, matte black
600171-001
DVD±RW SuperMulti DL Drive with LightScribe, biscotti
600172-001
DVD±RW SuperMulti DL Drive with LightScribe, silver (for models 1.1, 1.2 and 1.3 only)
608119-001
DVD±RW SuperMulti DL Drive with LightScribe, white (for model 1.1 only)
608120-001
DVD±RW SuperMulti DL Drive with LightScribe, charcoal (for models 1.2 and 1.3 only)
622575-001
DVD±RW SuperMulti DL Drive with LightScribe, imperial blue (for models 1.2 and 1.3 only)
622576-001
DVD±RW SuperMulti DL Drive with LightScribe, velvet red (for models 1.2 and 1.3 only)
624969-001
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, matte black
600173-001
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, biscotti
600174-001
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, silver (for models 1.1, 1.2
and 1.3 only)
608121-001
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, white (for model 1.1 only)
608122-001
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, charcoal (for models 1.2 and
1.3 only)
622577-001
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, imperial blue (for models 1.2
and 1.3 only)
622578-001
Blu-ray Disc ROM LightScribe with SuperMulti DVD±R/RW Double-Layer, velvet red (for models 1.2
and 1.3 only)
624968-001
Before removing the optical drive, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
Remove the optical drive:
56
1.
Position the computer upside down with the front toward you.
2.
Remove the Phillips PM2.5x5.0 screw (1) that secures the optical drive to the computer.
3.
Insert a flat-bladed screwdriver or similar tool into the access point through the hard drive
compartment (2), and then push the drive bracket to the left to release the optical drive.
Chapter 4 Removal and replacement procedures
ENWW
4.
Remove the optical drive (3).
5.
If it is necessary to replace the optical drive bracket, position the optical drive with the optical
drive bracket toward you.
6.
Remove the two Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the optical
drive.
7.
Remove the optical drive bracket (2).
Reverse the above procedure to reassemble and install the optical drive.
ENWW
Component replacement procedures
57
WLAN module
58
Description
Spare part
number
Atheros AR9285 802.11 a/b/g/n 2x2 WiFi adapter for use in Canada, the Cayman Islands, Guam,
Puerto Rico, the United States, and the US Virgin Islands
580101-001
Atheros AR9285 802.11 a/b/g/n 2x2 WiFi adapter for use in Afghanistan, Albania, Algeria, Andorra,
Angola, Antigua and Barbuda, Argentian, Armenia, Australia, Austria, Azerbaijan, Bahamas, Bahrain,
Barbados, Belgium, Belize, Benin, Bhutan, Bosnia and Herzegovina, Botswana, Brazil, Brunei,
Bulgeria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, Central African Republic, Chad,
Chile, China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, Czech Republic, Zaire,
Denmark, Djibouti, Dominica, Dominican Republic, Ecuador, Egypt, El Salvador, Equitorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar,
Greece, Grenada, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary,
Iceland, India, Indonesia, Ireland, Italy, Ivory Coast, Jamaica, Japan, Jordan, Kazakhstan, Kenya,
Kiribati, Korea-South, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Martinique, Nether
Antilles, French Guiana, Aruba, British Virgin Islands, Bermuda, Syria, Guadeloupe, Liechtenstein,
Lithuania, Luxembourg, Macedonia, Madagaascar, Malawi, Malaysia, Maldives, Mali, Malta, Marshall
Islands, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco,
Mozambique, Namibia, Nauru, Nepal, Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway,
Oman, Palau, Panama, Papua New Guinea, Paraguay, Peru, Philippines, Poland, Portugal, Republic of
Moldova, Romania, rwanda, Samoa, San Marino, Sao tome and Principe, Saudi Arabia, Senegal,
Serbia and Montenegro, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, Solomon Islands,
Somalia, South Africa, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and Gren, Suriname,
Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Timor (East), Togo, Tonga,
Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, United Arab Emirates ,United
Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zambia, and Zimbabwe
580101-002
Intel Centrino Wireless-N 1000 802.11b/g/n 1x2
593530-001
Broadcom 4312G 802.11b/g WiFi Adapter for use in Canada, Cayman Islands, Guam, Puerto Rico, the
United States, and the U.S. Virgin Islands (for models 1.0 and 1.1 only)
582562-001
Broadcom 4312G 802.11b/g WiFi Adapter for use in Afghanistan, Albania, Algeria, Andorra, Angola,
Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, The Bahamas,
Bahrain, Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and
Herzegovina, Botswana, Brazil, The British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi,
Cameroon, Cape Verde, the Central African Republic, Chad, Chile, China, Colombia, Comoros, Congo,
Costa, Rica, Croatia, Cyprus, The Czech Republic, Denmark, Djibouti, Dominica, The Dominican
Republic, East Timor , Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji,
Finland, France, French, Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece,
Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong,
Hungary, Iceland, India, Ireland, Italy, The Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati,
Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia,
Madagascar, Malawi, The Maldives, Mali, Malta, The Marshall Islands, Martinique, Mauritania,
Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia,
Nauru, Nepal, The Nether Antilles, The Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway,
Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, The Philippines, Poland,
Portugal, Puerto Rico, The Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao
Tome and Principe Saudi Arabia, Senegal, Serbia and Montenegro, The Seychelles, Sierra Leone,
Singapore, Slovakia, Slovenia, The Solomon Islands, Somalia, South Africa, Spain, Sri Lanka, St. Kitts
& Nevis, St. Lucia, St. Vincent and Gren, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu,
Uganda, The United Arab Emirates, The United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela,
Vietnam, Yemen, Zaire, Zambia and Zimbabwe (for models 1.0 and 1.1 only)
582562-002
Realtek RTL8191SE 802.11b/g/n 1x1 WiFi Adapter (for models 1.0, 1.1 and 1.2 only)
593533-001
Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo Adapter (BT3.0+HS ready)
(for model 1.2 and 1.3 only)
602992-001
Chapter 4 Removal and replacement procedures
ENWW
Description
Spare part
number
Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070 Bluetooth 2.1+EDR Combo adapter (BT3.0+HS ready)
(for models 1.2 and 1.3 only)
600370-001
Ralink 5390GN 802.11b/g/n 1x1 WiFi Adapter (for model 1.3 only)
630703-001
Before removing the WLAN module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
5.
Remove the hard drive cover (see Hard drive on page 53).
Remove the WLAN module:
ENWW
1.
Turn the computer upside down with the front toward you.
2.
Loosen the 2 Phillips PM2.5×5.0 captive screws (1) that secure the mini-card compartment
cover.
3.
Lift the cover off the computer (2). The mini-card compartment cover is included in the plastics
kit, spare part number 600190-001.
4.
Disconnect the two WLAN antenna cables (1) from the WLAN module.
5.
Remove the Phillips PM2.0×3.0 screw (2) that secures the WLAN module to the computer. (The
edge of the module opposite the slot rises away from the computer.)
Component replacement procedures
59
6.
Remove the WLAN module (3) by pulling it away from the slot at an angle.
CAUTION: To prevent an unresponsive system, replace the wireless module only with a
wireless module authorized for use in the computer by the governmental agency that regulates
wireless devices in your country or region. If you replace the module and then receive a warning
message, remove the module to restore computer functionality, and then contact technical
support through Help and Support.
NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion into the
WLAN module slot.
Reverse this procedure to install a WLAN module.
60
Chapter 4 Removal and replacement procedures
ENWW
Memory module
Description
Spare part number
2-MB, PC3 10600, 1333-MHz
598856-001
1-MB, PC3 10600, 1333-MHz
598859-001
4-MB, PC3 10600, 1333-MHz (for models 1.2 and 1.3 only)
599092-001
Before removing the memory module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
Remove the memory module:
ENWW
1.
Turn the computer upside down with the front toward you.
2.
Loosen the two Phillips PM2.5×5.0 captive screws that secure the mini-card compartment cover
to the computer.
Component replacement procedures
61
3.
Lift cover off the computer. The mini-card compartment cover is included in the plastics kit, spare
part number 600190-001.
NOTE: Small tabs hold the cover in place. Firmly pull up on the cover to release the tabs.
4.
Spread the retaining tabs (1) on each side of the memory module slot to release the memory
module. (The edge of the module opposite the slot rises away from the computer.)
5.
Remove the module (2) by pulling it away from the slot at an angle.
NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the
memory module slot.
Reverse this procedure to install a memory module.
62
Chapter 4 Removal and replacement procedures
ENWW
Keyboard
Description
Spare part number
Keyboard for use in Brazil
600175-201
Keyboard for use in Canada (English and French)
600175-121
Keyboard for use in for use in Latin America
600175-161
Keyboard for use in South Korea
600175-AD1
Keyboard for use in Taiwan
600175-AB1
Keyboard for use in Thailand
600175-281
Keyboard for use in the United States
600175-001
Before removing the keyboard, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
5.
Remove the hard drive (see Hard drive on page 53)
6.
Remove the mini-card compartment cover (see WLAN module on page 58).
Remove the keyboard:
ENWW
1.
Turn the computer upside down with the front toward you.
2.
Remove the six Phillips PM2.5×6.5 screws that secure the keyboard to the computer.
3.
Turn the computer display-side up with the front toward you.
4.
Open the computer as far as possible.
Component replacement procedures
63
5.
Release the top edge of the keyboard by lifting it up to disengage the keyboard from the tabs on
the top cover (1).
6.
Slide the top edge of the keyboard back (2) until it rests against the display.
7.
Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached and
disconnect the keyboard cable (2) from the system board.
8.
Remove the keyboard.
Reverse this procedure to install the keyboard.
64
Chapter 4 Removal and replacement procedures
ENWW
Top cover
Description
Spare part number
Top cover (includes Touchpad and bracket, button board, and cable), matte black (for models 1.0,
1.1 and 1.3 only)
600181-001
Top cover, biscotti
600182-001
Top cover, silver (for models 1.1, 1.2 and 1.3 only)
606161-001
Top cover, white (for model 1.1 only)
606162-001
Top cover, charcoal (for models 1.2 and 1.3 only)
622581-001
Top cover, imperial blue (for models 1.2 and 1.3 only)
622582-001
Top cover, velvet red (for models 1.2 and 1.3 only)
624971-001
Before removing the switch cover, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the following components:
a.
Battery (see Battery on page 52).
b.
Optical drive (see Optical drive on page 56).
c.
Keyboard (see Keyboard on page 63).
Remove the switch cover:
ENWW
1.
Turn the computer upside down with the front toward you.
2.
Remove the four screw covers (1) at the front edge of the computer.
Component replacement procedures
65
66
3.
Remove the five Phillips PM2.5×6.5 screws (2), the two Phillips PM2.5x4.0 screws (3), and the
four Phillips PM2.5x3.0 screws (4) that secure the top cover to the base enclosure.
4.
Turn the computer display-side up with the front toward you.
5.
Open the computer as far as possible.
6.
Release the ZIF connector to which the touchpad (1) is connected and disconnect the cable
from the system board.
7.
Release the ZIF connector to which the touchpad button board cable (2) is connected and
disconnect the cable from the system board.
8.
Disconnect the speaker cable (3) from the system board.
Chapter 4 Removal and replacement procedures
ENWW
9.
Release the ZIF connector to which the power button board cable (4) is connector and
disconnect the cable from the system board.
10. Remove the Phillips PM2.5×6.5 screw (1) from the top cover, disengage the rear edge of the top
cover (2) from the base enclosure, and then remove the cover from the computer (3).
Reverse this procedure to install the switch cover.
ENWW
Component replacement procedures
67
Speaker assembly
Description
Spare part number
Speaker assembly
600189-001
Before removing the speaker assembly, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
5.
Remove the following components:
a.
Optical drive (see Optical drive on page 56)
b.
Keyboard (see Keyboard on page 63)
c.
Top cover (see Top cover on page 65)
Remove the speaker assembly:
1.
Turn the top cover upside down.
2.
Remove the two Phillips PM2.5×4.0 screws (1) that secure the speaker assembly to the
computer.
3.
Lift the speaker assembly (2) straight up to remove it from the top cover.
Reverse this procedure to install the speaker assembly.
68
Chapter 4 Removal and replacement procedures
ENWW
Power button board
Description
Spare part number
Power button board (with cable)
600188-001
Before removing the power button board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 53)
b.
Optical drive (see Optical drive on page 56)
c.
Keyboard (see Keyboard on page 63)
d.
Top cover (see Top cover on page 65)
Remove the power button board:
ENWW
1.
Turn the top cover upside down with the rear edge toward you.
2.
Remove the Phillips PM2.5×3.0 screw (1) that secures the power button board to the top cover.
3.
Remove the power button board (2).
Component replacement procedures
69
TouchPad button board
Description
Spare part number
TouchPad button board
604603-001
Before removing the TouchPad button board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 53)
b.
Optical drive (see Optical drive on page 56)
c.
Keyboard (see Keyboard on page 63)
d.
Top cover (see Top cover on page 65)
Remove the TouchPad button board:
1.
Turn the top cover upside down with the front toward you.
2.
Remove the two Phillips PM2.5×3.0 screws (1) that secure the TouchPad board to the top cover.
3.
Remove the TouchPad button board (2) from the TouchPad bracket.
Reverse the above procedure to reassemble and install the TouchPad button board.
70
Chapter 4 Removal and replacement procedures
ENWW
Modem module
Description
Spare part number
High-speed 56K modem for use in all countries and regions except Australia and New Zealand
(for models 1.0 and 1.1 only)
510100-001
High-speed 56K modem for use in Australia and New Zealand (for models 1.0 and 1.1 only)
510100-011
Modem module cable with RJ-11 connector (included in the cable kit)
610791-001
Before removing the modem module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 53)
b.
Optical drive (see Optical drive on page 56)
c.
Keyboard (see Keyboard on page 63)
d.
Top cover (see Top cover on page 65)
Remove the modem module:
ENWW
1.
Turn the computer upright with the front toward you.
2.
Remove the two Phillips PM2.0×3.0 screws (1) that secure the modem module to the system
board.
3.
Disconnect the modem module cable (2) from the modem module.
Component replacement procedures
71
4.
Lift up on the front of the modem module (3) to disconnect it from the system board.
5.
Remove the modem module.
Reverse the above procedure to install the modem module, and be sure that the connector on the
bottom of the modem module connects firmly into the system board.
72
Chapter 4 Removal and replacement procedures
ENWW
Bluetooth module
Description
Spare part number
Bluetooth module (for models 1.0, 1.1 and 1.3 only)
537921-001
Bluetooth module cable (for models 1.0, 1.1 and 1.3 only)
602822-001
Before removing the Bluetooth module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 53)
b.
Optical drive (see Optical drive on page 56)
c.
Keyboard (see Keyboard on page 63)
d.
Top cover (see Top cover on page 65)
Remove the Bluetooth module:
1.
Position the computer upright with the front toward you.
2.
Disconnect the Bluetooth module cable (1) from the system board.
3.
Remove the Bluetooth module and cable from the clips in the base enclosure (2).
4.
Remove the Bluetooth module (3) from the base enclosure.
Reverse the above procedure to install the Bluetooth module.
ENWW
Component replacement procedures
73
USB board
Description
Spare part number
USB board (includes cable)
600631-001
Before removing the USB board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 53)
b.
Optical drive (see Optical drive on page 56)
c.
Keyboard (see Keyboard on page 63)
d.
Top cover (see Top cover on page 65)
Remove the USB board:
1.
Position the computer upright with the right side toward you.
2.
Disconnect the USB board cable (1) from the system board.
3.
Remove the Phillips PM2.5×3.0 screw (2) that secures the USB board to the base enclosure.
4.
Lift the USB board (3) straight up to remove it from the computer.
Reverse this procedure to install the USB board.
74
Chapter 4 Removal and replacement procedures
ENWW
Power connector cable
Description
Spare part number
Power connector cable (includes cable and connector)
600188-001
Before removing the power connector cable, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 53)
b.
Optical drive (see Optical drive on page 56)
c.
Keyboard (see Keyboard on page 63)
d.
Top cover (see Top cover on page 65))
Remove the power connector cable:
1.
Turn the computer upright with the right side toward you.
2.
Disconnect the power connector cable (1) from the system board.
3.
Lift the power connector (2) from the clips built into the base enclosure.
4.
Remove the cable from the base enclosure.
Reverse this procedure to install the power connector cable.
ENWW
Component replacement procedures
75
Display assembly
Description
Spare part number
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and
webcam; Presario, matte black
592146-001
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and
webcam; Presario, biscotti
597617-001
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and
webcam; HP, biscotti
600163-001
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and
webcam; HP, silver (for models 1.1, 1.2 and 1.3 only)
606155-001
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and
webcam; HP, white (for model 1.1 only)
606156-001
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and
webcam; HP, charcoal (for models 1.2 and 1.3 only)
622571-001
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and
webcam; HP, imperial blue (for models 1.2 and 1.3 only)
622572-001
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and
webcam; Presario, velvet red (for model 1.2 only)
624966-001
35.6 cm (14-in) WXGA Brightview display assembly for use with integrated microphone and
webcam; HP, velvet red (for models 1.2 and 1.3 only)
630907-001
Before removing the display assembly, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
5.
Disconnect the wireless antenna cables from the WLAN module (see WLAN module
on page 58).
6.
Remove the following components:
a.
Keyboard (see Keyboard on page 63)
b.
Optical drive (see Optical drive on page 56)
c.
Top cover (see Top cover on page 65)
Remove the display assembly:
76
1.
Turn the computer display-side up, with the front toward you.
2.
Open the display as far as possible.
3.
Remove the wireless antenna cables (1) from the hole and clips built into the base enclosure.
Chapter 4 Removal and replacement procedures
ENWW
4.
Disconnect the display panel cable (2) from the system board.
5.
Disconnect the microphone cable (3) from the system board.
6.
Disconnect the webcam cable (2) from the system board.
CAUTION: Support the display assembly when removing the display screws in the following
steps. Failure to support the display assembly can result in damage to the assembly and other
components.
ENWW
7.
Remove the four black Phillips PM2.5×6.5 screws (1) that secure the display assembly to the
computer.
8.
Remove the display assembly (2).
Component replacement procedures
77
9.
If it is necessary to replace any of the display assembly internal components, remove the
following screw covers and screws. The display screw covers are included in the display screw
kit, spare part number 592152-001.
(1) Two Mylar screw covers on the display bezel bottom edge
(2) Two Phillips PM2.5×4.0 screws
10. Flex the inside edge of the top (1), the left and right sides (2), and the bottom (3) of the display
bezel until the bezel disengages from the display back cover.
11. Remove the display bezel (4). The display bezel is available using spare part number
592147-001 for HP computers, and 592148-001 for Presario computers.
78
Chapter 4 Removal and replacement procedures
ENWW
12. If it is necessary to replace the webcam module, disconnect the webcam cable (1) from the
module. Lift the webcam from the double-sided tape on the display back cover, and remove the
webcam.
13. If it is necessary to replace the display panel, remove the eight Phillips PM2.5×5.0 screws (1)
that secure the display panel to the display enclosure, and then lift the panel from the enclosure
(2). The display panel is available using the spare part number 592144-001.
14. If it is necessary to replace the display cable, follow these steps:
ENWW
a.
Turn the display panel upside down in front of you.
b.
Peel back the tape that secures the cable to the display (1).
c.
Unplug the cable from the display (2).
d.
Remove the cable from the display (3).
Component replacement procedures
79
The display cable is available in the display cable kit, spare part number 592151-001.
15. If it is necessary to replace the display bracket and hinges, remove the Phillips PM2.0×3.0
screws (1) that secure each bracket to the display.
16. Remove the display hinges (2) from the display. The display bracket and hinge set is available
using spare part number 600627-001.
17. If it is necessary to replace the wireless antennas and cables, remove the adhesive strip (1) that
secures each antenna to the display back cover.
18. Detach the wireless antenna (2) from the display back cover .
19. Remove the antenna cables from the clips (3) built into the display enclosure.
80
Chapter 4 Removal and replacement procedures
ENWW
20. Remove the wireless antennas and cables (4) from the display enclosure. The wireless
antennas and cables are included in the display cable kit, spare part number 592151-001.
21. If it is necessary to remove the webcam cable, remove the cable from the adhesive strips (1)
along the cable path on the display back cover, and then remove the webcam cable (2). The
webcam cable is included in the display cable kit, spare part number 592151-001,
ENWW
Component replacement procedures
81
22. If it is necessary to remove the microphone, release the microphone cable from the adhesive
strips (1) along the cable path on the display back cover, remove the microphone from the clips
on the display back cover (2), and then remove the microphone and microphone cable (3). The
microphone and cable is included in the display cable kit, spare part number 592151-001,
Reverse this procedure to reassemble and install the display assembly.
82
Chapter 4 Removal and replacement procedures
ENWW
System board
Description
Spare part number
System board for use in models with discrete graphics subsystem (for models 1.0 and 1.1 only)
595181-001
System board for use in models with Unified Memory Architecture (UMA) graphics subsystem
595182-001
System board for use in models with discrete graphics subsystem and HDMI card reader (for
models 1.0, 1.1 and 1.2 only)
595183-001
System board for use in models with UMA graphics subsystem and HDMI card reader
595184-001
System board for use in models with UMA graphics subsystem memory, Intel GL40 chipset, and
HDMI card reader
605140-001
System board for use in HM55 HD5430/1 G discrete subsystem (for model 1.1 only)
608823-001
System board for use in HD5430/1 G discrete subsystem with HDMI card reader (for model 1.1
only)
608824-001
System board for use in HM55 HD545V discrete subsystem (for model 1.1 only)
615577-001
System board for use in HM55 HD545V discrete subsystem with HDMI card reader (for model 1.1
only)
615578-001
System board for use in HD5470/512 MB discrete subsystem (for model 1.2 only)
615579-001
System board for use in HD5470/512 MB discrete subsystem with HDMI card reader (for model
1.2 only)
615580-001
System board for use in HD5470/1 GB discrete subsystem (for model 1.2 only)
615581-001
System board for use in HD5470/1 GB discrete subsystem with HDMI card reader (for model 1.2
only)
615582-001
System board for use in HD6370/512 subsystem with HDMI card reader (for model 1.3 only)
631593-001
System board for use in HD6370/1-GB (for model 1.3 only)
631594-001
System board for use in HD6370/512M with HDMI reader card (for model 1.3 only)
631595-001
System board for use in HD6370/512M i3-370M with HDMI (for model 1.3 only)
631596-001
System board for use in i3-350M UMA subsystems (for model 1.3 only)
634648-001
System board for use in i3-370M UMA subsystems (for model 1.3 only)
637583-001
System board for use in HD6370/512M i3-370M (for model 1.3 only)
637584-001
System board GL40 UMA HDMI ROM 2M (for model 1.3 only)
639266-001
When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:
ENWW
●
RTC battery (see RTC battery on page 89)
●
Memory modules (see Memory module on page 61)
●
WLAN module (see WLAN module on page 58)
●
Modem module (see Modem module on page 71)
Component replacement procedures
83
Before removing the system board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 53)
b.
WLAN (see WLAN module on page 58)
c.
Optical drive (see Optical drive on page 56)
d.
Keyboard (see Keyboard on page 63)
e.
Top cover (see Top cover on page 65)
f.
Speaker assembly (see Speaker assembly on page 68)
g.
Display assembly (see Display assembly on page 76)
h.
Top cover (see Top cover on page 65)
Remove the following cables from the system board if still connected:
84
●
Power connector cable (see Power connector cable on page 75)
●
Bluetooth cable (see Bluetooth module on page 73)
●
USB board cable (see USB board on page 74)
1.
Turn the computer upright with the right side toward you.
2.
Remove the three Phillips PM2.5×3.0 screws that secure the system board to the computer.
Chapter 4 Removal and replacement procedures
ENWW
ENWW
3.
Release the optical drive cable (1) from the system board.
4.
Lift the right side of the system board (2).
5.
Release the system board by sliding it to the right at an angle (3) until the connectors on the left
side of the system board clear the base enclosure, and then remove the system board.
6.
If it is necessary to replace the modem module cable, remove the RJ-11 connector (1) from the
clip built into the base enclosure.
7.
Remove the modem module cable (2) from the routing channel built into the base enclosure.
The modem module cable is available using spare part number 610791-001.
Component replacement procedures
85
When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:
●
Fan/heat sink assembly (see Fan/heat sink assembly on page 91)
●
Processor (see Processor on page 94)
Reverse the preceding procedure to install the system board.
86
Chapter 4 Removal and replacement procedures
ENWW
Optical drive SATA cable and connector
Description
Spare part number
Optical drive cable (included in the cable kit)
610791-001
Before removing the optical drive cable, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 53)
b.
WLAN (see WLAN module on page 58)
c.
Optical drive (see Optical drive on page 56)
d.
Keyboard (see Keyboard on page 63)
e.
Top cover (see Top cover on page 65)
f.
Speaker assembly (see Speaker assembly on page 68)
g.
Display assembly (see Display assembly on page 76)
h.
System board (see System board on page 83)
Remove the optical drive cable
1.
ENWW
Remove the two Phillips PM2.5×6.0 screws (1) that secure the optical drive connector to the
system board.
Component replacement procedures
87
2.
88
Release the cable from the clips on the base enclosure (2), and then remove the cable (3).
Chapter 4 Removal and replacement procedures
ENWW
RTC battery
Description
Spare part number
RTC battery
602745-001
Before removing the RTC battery, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 53)
b.
WLAN (see WLAN module on page 58)
c.
Optical drive (see Optical drive on page 56)
d.
Keyboard (see Keyboard on page 63)
e.
Top cover (see Top cover on page 65)
f.
Speaker assembly (see Speaker assembly on page 68)
g.
Display assembly (see Display assembly on page 76)
h.
System board (see System board on page 83)
Remove the RTC battery:
ENWW
1.
Turn the system board upside down.
2.
Release the RTC battery from the clips on the system board (1).
Component replacement procedures
89
3.
Remove the RTC battery (2).
Reverse this procedure to install the RTC battery.
90
Chapter 4 Removal and replacement procedures
ENWW
Fan/heat sink assembly
Description
Spare part number
Fan/heat sink assembly for use in models that use Universal Memory Architecture (UMA) graphics
subsystem memory (includes thermal replacement material)
595832-001
Fan/heat sink assembly for use in models that use discrete graphics subsystem memory (includes
thermal replacement material)
595833-001
Fan/heat sink assembly for use in models that use HD545V discrete graphics subsystem memory
(for model 1.1 only)
617024-001
Fan/heat sink assembly for use in models that use GL40 Universal Memory Architecture (UMA)
graphics subsystem memory (includes thermal replacement material)
606573-001
Thermal pad kit for South Bridge chipset
634433-001
Fan/heat sink assembly for use in models that use discrete graphics subsystem memory (for
model 1.3 only)
634650-001
Fan/heat sink assembly for use in models that use Universal Memory Architecture (UMA) graphics
subsystem memory (includes thermal replacement material) (for model 1.3 only)
634651-001
NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-inch) clearance on the right
side and rear panel of the computer. The computer uses an electric fan for ventilation. The fan is
controlled by a temperature sensor and is designed to turn on automatically when high temperature
conditions exist. These conditions are affected by high external temperatures, system power
consumption, power management/battery conservation configurations, battery fast charging, and
software requirements. Exhaust air is displaced through the ventilation grill located on the left side of
the computer.
Before removing the fan/heat sink assembly, follow these steps:
ENWW
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 53)
b.
Optical drive (see Optical drive on page 56)
c.
Keyboard (see Keyboard on page 63)
d.
Top cover (see Top cover on page 65)
e.
Speaker assembly (see Speaker assembly on page 68)
f.
Display assembly (see Display assembly on page 76)
g.
System board (see System board on page 83)
Component replacement procedures
91
Remove the fan/heat assembly (fan/heat sink appearance may vary):
1.
Turn the system board upside down.
2.
Disconnect the fan cable (1) from the system board.
3.
Follow the sequence embossed on heat sink to loosen the four Phillips PM2.5×7.0 captive
screws (2) that secure the fan/heat sink assembly to the system board.
NOTE: Due to the adhesive quality of the thermal material located between the fan/heat sink
assembly and system board components, it may be necessary to move the fan/heat sink
assembly from side to side to detach the assembly.
4.
Remove the fan/heat sink assembly (3).
The thermal material must be thoroughly cleaned from the surface of the fan/heat sink assembly (1),
(3) and the processor (2) and video components (4) each time the fan/heat sink assembly is
removed. Thermal pads and thermal paste must be installed on all surfaces before the fan/heat sink
assembly is reinstalled.
NOTE: Thermal pads and thermal paste are included with all fan/heat sink assembly, system board,
and processor spare part kits.
The following illustration shows the locations for thermal material on systems with discrete graphics
subsystems.
92
Chapter 4 Removal and replacement procedures
ENWW
The thermal material must be thoroughly cleaned from the surface of the fan/heat sink assembly (1)
and (3), and the processor component (2), each time the fan/heat sink assembly is removed. Thermal
pads and thermal paste must be installed on all surfaces before the fan/heat sink assembly is
reinstalled.
The following illustration shows the locations for thermal material on systems with UMA graphics
subsystems.
Reverse this procedure to install the fan/heat sink assembly.
ENWW
Component replacement procedures
93
Processor
NOTE:
94
All processor spare part kits include thermal material.
Description
Spare part number
Intel Arrandale Core 620M 2.26-GHz (for models 1.0 and 1.1 only)
587259-001
Intel Arrandale 540M 2.53-GHz (for models 1.0, 1.1 and 1.2 only)
594188-001
Intel Arrandale 520M 2.4-GHz (for models 1.0, 1.1 and 1.2 only)
594187-001
Intel Arrandale i5-430M 2.26-GHz (for models 1.0, 1.1 and 1.2 only)
597624-001
Intel Arrandale i3-350M 2.26-GHz (for models 1.0, 1.1 and 1.2 only)
597623-001
Intel Arrandale i3-330M 2.13-GHz (for model 1.0 only)
597622-001
Intel Core 2 Duo Mobile processor T3000, 1.8-GHz (for model 1.0 only)
572926-001
Intel Core 2 Duo Mobile processor T4400 - 2.2-GHz
584296-001
Intel Core 2 Duo Mobile,T4300, 2.1-GHz (for models 1.0 an 1.1 only)
572929-001
Intel Core 2 Duo Mobile processor T3100 - 1.9-GHz (for models 1.0 and 1.1 only)
572925-001
Intel Core 2 Duo Mobile processor T3300 - 2.0-GHz (for models 1.1 and 1.2 only)
592399-001
Intel Arrandale P6000 1.86-GHz (for models 1.1 and 1.2 only)
613586-001
Intel Arrandale P6100 2.0-GHz (for models 1.2 and 1.3 only)
613587-001
Intel Core 2 Duo Mobile processor T4500 - 2.3-GHz (for models 1.0, 1.1 and 1.3 only)
591880-001
Intel Arrandale i5–450M 2.4-GHz (for models 1.1 and 1.2 only)
613585-001
Intel Arrandale i3–370M 2.4-GHz (for models 1.1, 1.2 and 1.3 only)
613584-001
Intel Arrandale i5–560M 2.53 GHz (for models 1.2 and 1.3 only)
625824-001
Intel Core i5–460M 2.53 GHz (for models 1.2 and 1.3 only)
626039–001
Intel Arrandale i3–380M 2.53 GHz (for models 1.2 and 1.3 only)
625823–001
Intel Pentium P6200 2.13 GHz (for models 1.2 and 1.3 only)
625831–001
Intel Celeron 900 2.2 GHz (for models 1.1, 1.2 and 1.3 only)
534419–001
Intel Arrandale i5–580M 2.66–3.33 GHz (for models 1.2 and 1.3 only)
625825–001
Intel Core 2 Duo Mobile processor T3500 - 2.1-GHz (for models 1.2 and 1.3 only)
625830–001
Intel Arrandale i3-390M processor 2.66-GHz 3MB 35W (for model 1.3 only)
634692-001
Intel Arrandale i5-480M processor 2.66-GHz 3MB 35W (for model 1.3 only)
634693-001
Intel Pentium P6300 - 2.26-GHz 3M (for model 1.3 only)
635500-001
Intel Celeron Mobile 925 - 2.3-GHz 1M L2 cache (for model 1.3 only)
636636-001
Thermal pad kit for processor
634428-001
Chapter 4 Removal and replacement procedures
ENWW
Before removing the processor, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 52).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 53)
b.
Optical drive (see Optical drive on page 56)
c.
Keyboard (see Keyboard on page 63)
d.
Top cover (see Top cover on page 65)
e.
Speaker assembly (see Speaker assembly on page 68)
f.
Display assembly (see Display assembly on page 76)
g.
System board (see System board on page 83)
h.
Fan/heat sink assembly (see Fan/heat sink assembly on page 91)
Remove the processor:
1.
ENWW
Turn the processor locking screw (1) one-half turn counterclockwise until you hear a click.
Component replacement procedures
95
2.
Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle icon (4)
embossed on the processor socket when you install the processor.
Reverse this procedure to install the processor.
96
Chapter 4 Removal and replacement procedures
ENWW
5
Setup Utility
Computer Setup in Windows 7
To view the drives installed on the computer, select Start > Computer.
On models with a secondary hard drive (drive D), the optical drive becomes drive E. The next drive
added to the system, such as a new USB drive, will be assigned the next available drive letter.
Starting Setup Utility
Setup Utility is a ROM-based information and customization utility that can be used even when your
Windows® operating system is not working.
The utility reports information about the computer and provides settings for startup, security, and
other preferences.
To start Setup Utility:
▲
Open Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press f10.
– or –
1.
Open Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press esc.
2.
When the Startup Menu is displayed, press f10.
Using Setup Utility
Changing the language of Setup Utility
The following procedure explains how to change the language of Setup Utility. If Setup Utility is not
already running, begin at step 1. If Setup Utility is already running, begin at step 2.
1.
Open Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press f10.
– or –
Open Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press esc. When the
Startup Menu is displayed, press f10.
2.
ENWW
Use the arrow keys to select System Configuration > Language, and then press enter.
Computer Setup in Windows 7
97
3.
Use the arrow keys to select a language, and then press enter.
4.
When a confirmation prompt with your language selected is displayed, press enter.
5.
To save your change and exit Setup Utility, use the arrow keys to select Exit > Exit Saving
Changes, and then press enter.
Your change goes into effect immediately.
Navigating and selecting in Setup Utility
Because Setup Utility is not Windows based, it does not support the TouchPad. Navigation and
selection are by keystroke.
●
To choose a menu or a menu item, use the arrow keys.
●
To choose an item in a list or to toggle a field, for example an Enable/Disable field, use either the
arrow keys or f5 or f6.
●
To select an item, press enter.
●
To close a text box or return to the menu display, press esc.
●
To display additional navigation and selection information while Setup Utility is open, press f1.
Displaying system information
The following procedure explains how to display system information in Setup Utility. If Setup Utility is
not open, begin at step 1. If Setup Utility is open, begin at step 2.
1.
Open Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press f10.
– or –
Open Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press esc. When the
Startup Menu is displayed, press f10.
98
2.
Select the Main menu. System information such as the system time and date, and identification
information about the computer is displayed.
3.
To exit Setup Utility without changing any settings, use the arrow keys to select Exit > Exit
Discarding Changes, and then press enter.
Chapter 5 Setup Utility
ENWW
Restoring default settings in Setup Utility
The following procedure explains how to restore Setup Utility default settings. If Setup Utility is not
already running, begin at step 1. If Setup Utility is already running, begin at step 2.
1.
Open Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press f10.
– or –
Open Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press esc. When the
Startup Menu is displayed, press f10.
2.
Use the arrow keys to select Exit > Load Setup Defaults, and then press enter.
3.
When the Setup Confirmation is displayed, press enter.
4.
To save your change and exit Setup Utility, use the arrow keys to select Exit > Exit Saving
Changes, and then press enter.
Setup Utility default settings go into effect when the computer restarts.
NOTE: Your password, security, and language settings are not changed when you restore the
factory default settings.
ENWW
Computer Setup in Windows 7
99
Exiting Setup Utility
You can exit Setup Utility with or without saving changes.
●
To exit Setup Utility and save your changes from the current session:
If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the
arrow keys to select Exit > Exit Saving Changes, and then press enter.
●
To exit Setup Utility without saving your changes from the current session:
If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the
arrow keys to select Exit > Exit Discarding Changes, and then press enter.
After either choice, the computer restarts in Windows.
Setup Utility menus
The menu tables in this section provide an overview of Setup Utility options.
NOTE: Some of the Setup Utility menu items listed in this chapter may not be supported by your
computer.
Main menu
Select
To do this
System information
●
View and change the system time and date.
●
View identification information about the computer.
●
View specification information about the processor, memory size,
system BIOS, and keyboard controller version (select models
only).
Security menu
Select
To do this
Administrator password
Enter, change, or delete an administrator password.
Power-On Password
Enter, change, or delete a power-on password.
100 Chapter 5 Setup Utility
ENWW
System Configuration menu
Select
To do this
Language Support
Change the language of Setup Utility.
Button Sound (select models only)
Enable/disable the capacitive button tapping sound.
Virtualization Technology (select models only)
Enable/disable the processor Virtualization Technology.
Processor C6 State (select models only)
Enable/disable the processor C6 sleep state.
LAN Power Saving (select models only)
Enable/disable LAN Power Saving. When enabled, saves power when
the computer is in DC mode.
Card Reader/1394 Power Saving (select models
only)
Enable/disable Card Reader/1394 Power Saving.
Fan Always On
Enabled/disable Fan Always On. When enabled, the computer fan will
always be on.
Action Keys Mode
Enable/disable Action Keys Mode.
Boot Options
Set the following boot options:
●
POST hotkey delay (sec.)―Set the delay for the f1, f2, f9, f10, f11,
and f12 functions of Setup Utility in intervals of 5 seconds each (0,
5, 10, 15, 20).
●
CD-ROM Boot―Enable/disable boot from CD-ROM.
●
Floppy Boot―Enable/disable boot from diskette.
●
Internal Network Adapter Boot―Enable/disable boot from the
internal network adapter.
●
Boot Order―Set the boot order for:
◦
Notebook Hard Drive
◦
Internal CD/DVD ROM Drive
◦
USB Diskette on Key/USB Hard Disk
◦
USB CD/DVD ROM Drive
◦
USB Floppy
◦
Network Adapter
Diagnostics menu
Select
To do this
Hard Disk Self Test
Run a comprehensive self-test on the hard drive.
NOTE: On models with two hard drives, this menu option is called the
Primary Hard Disk Self Test.
ENWW
Secondary Hard Disk Self Test (select models
only)
Run a comprehensive self-test on a secondary hard drive.
Memory Test
Run a diagnostic test on the system memory.
Computer Setup in Windows 7 101
Computer Setup in Linux
Starting Computer Setup
Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating
system is not working or will not load.
NOTE: Some of the Computer Setup menu items listed in this guide may not be supported by your
computer.
NOTE: Pointing devices are not supported in Computer Setup. You must use the keyboard to
navigate and make selections.
NOTE: An external keyboard connected by USB can be used with Computer Setup only if USB
legacy support is enabled.
To start Computer Setup, follow these steps:
1.
Turn on or restart the computer.
2.
Before your operating system opens and while the “F10=ROM Based Setup” message is
displayed in the lower-left corner of the screen, press f10.
Using Computer Setup
Navigating and selecting in Computer Setup
The information and settings in Computer Setup are accessed from the File, Security, Diagnostics,
and System Configuration menus.
1.
Open Computer Setup by turning on or restarting the computer, and then pressing f10 while the
"F10 = ROM Based Setup" message is displayed in the lower-left corner of the screen.
Because Computer Setup is not operating system based, it does not support the TouchPad.
Navigation and selection are by keystroke:
●
To choose a menu or a menu item, use the arrow keys.
●
To select an item, press enter.
●
To close open dialog boxes and return to the main Computer Setup screen, press esc.
●
To view navigation information, press f1.
●
To change the language, press f2.
2.
Select the File, Security, Diagnostics, or System Configuration menu.
3.
To exit Computer Setup, choose one of the following methods:
●
To exit Computer Setup without saving your preferences, use the arrow keys to select File
> Ignore Changes And Exit. Then follow the instructions on the screen.
●
To save your preferences and exit Computer Setup, use the arrow keys to select File >
Save Changes And Exit. Then follow the instructions on the screen.
Your preferences go into effect when the computer restarts.
102 Chapter 5 Setup Utility
ENWW
Restoring factory settings in Computer Setup
To return all settings in Computer Setup to the values that were set at the factory, follow these steps:
1.
Open Computer Setup by turning on or restarting the computer, and then pressing f10 while the
"F10 = ROM Based Setup" message is displayed in the lower-left corner of the screen.
2.
Use the arrow keys to select File > Restore Defaults, and then press enter.
3.
When the confirmation dialog box opens, press f10.
4.
To save your preferences and exit Computer Setup, use the arrow keys to select File > Save
Changes And Exit. Then follow the instructions on the screen.
Your preferences go into effect when the computer restarts.
NOTE: Your password settings and security settings are not changed when you restore the factory
settings.
ENWW
Computer Setup in Linux 103
Computer Setup menus
The menu tables in this section provide an overview of Computer Setup options.
NOTE: Some of the Computer Setup menu items listed in this chapter may not be supported by
your computer.
File menu
Select
To do this
System information
●
View identification information for the computer.
●
View specification information for the processor, cache
and memory size, and system ROM.
Restore Defaults
Replace the configuration settings in Computer Setup with
the original factory settings. (Password settings and security
settings are not changed when you restore the factory
settings.)
Ignore Changes And Exit
Cancel any changes entered during the current session.
Then exit and restart the computer.
Save Changes And Exit
Save any changes entered during the current session. Then
exit and restart the computer. Your changes go into effect
when the computer restarts.
104 Chapter 5 Setup Utility
ENWW
Security menu
NOTE:
Some of the menu items listed in this section may not be supported by your computer.
Select
To do this
Setup Password
Enter, change, or delete a setup password.
Power-On Password
Enter, change, or delete a power-on password.
Password Options
●
Enable/disable stringent security.
●
Enable/disable the password requirement on computer
restart.
●
Enable/disable DriveLock on any computer hard drive.
●
Enter, change, or disable DriveLock on an optional
MultiBay hard drive.
DriveLock Passwords
NOTE: DriveLock settings are accessible only when you
enter Computer Setup by turning on (not restarting) the
computer.
System IDs
Enter a user-defined computer asset tracking number and
ownership tag.
Disk Sanitizer
Run Disk Sanitizer to destroy all existing data on the primary
hard drive. The following options are available:
●
Fast: Runs the Disk Sanitizer erase cycle once.
●
Optimum: Runs the Disk Sanitizer erase cycle 3 times.
●
Custom: Allows you to select the desired number of
Disk Sanitizer erase cycles from a list.
CAUTION: If you run Disk Sanitizer, the data on the
primary hard drive is destroyed permanently.
Diagnostics menu
ENWW
Select
To do this
HDD Self-Test Options
Run a comprehensive self-test on any hard drive in the
system or on any optional MultiBay hard drive.
Memory Check
Run a comprehensive check on system memory.
Computer Setup in Linux 105
System Configuration menu
NOTE:
Some of the listed System Configuration options may not be supported by your computer.
Select
To do this
Language
Change the Computer Setup language.
Boot options
●
Set an f9, f10, and f12 delay when starting up.
●
Enable/disable CD-ROM boot.
●
Enable/disable floppy boot.
●
Enable/disable internal network adapter boot.
●
Enable/disable MultiBoot, which sets a boot order that
can include most boot devices in the system.
●
Set the Express Boot Popup delay in seconds.
●
Set the boot order.
Device Configurations
106 Chapter 5 Setup Utility
◦
1st boot device: USB CD-ROM
◦
2nd boot device: USB floppy
◦
3rd boot device: USB SuperDisk
◦
4th boot device: Notebook hard drive
◦
5th boot device: USB hard disk
◦
6th boot device: Network controller
●
Swap the functions of the fn key and left ctrl key.
●
Enable/disable USB legacy support. When enabled,
USB legacy support allows the following:
◦
Use of a USB keyboard in Computer Setup even
when a your operating system is not running.
◦
Startup from bootable USB devices, including a
hard drive, diskette drive, or optical drive
connected by a USB port to the computer.
●
Enable/disable BIOS DMA data transfers.
●
Enable/disable fan always on while connected to an AC
outlet.
●
Enable/disable data execution prevention.
●
Enable/disable LAN power saving mode.
●
Enable/disable SATA Native Mode.
●
Enable/disable Dual Core CPU.
●
Enable/disable HDD translation mode.
ENWW
Select
To do this
Built-in device options
●
Enable/disable embedded WLAN Device Radio.
●
Enable/disable embedded Bluetooth Device Radio.
●
Enable/disable Network Interface Controller (NIC)
●
Enable/disable LAN/WLAN Switching.
●
Enable/disable Wake on LAN.
●
Enable/disable the integrated camera (webcam)
●
Enable/disable USB port.
●
Enable/disable ExpressCard slot.
Port options
ENWW
Computer Setup in Linux 107
108 Chapter 5 Setup Utility
ENWW
6
Specifications
Computer specifications
Dimensions
Depth
22.8 cm (8.98 in)
Width
34.2 cm (13.46 in)
Height (front to rear)
31.5 to 36.5 cm (1.24 to 1.44 in)
Weight (lowest weight configuration)
< 2.20 kg (4.85 lbs)
Input power
Operating voltage
18.5 V dc @ 4.74 A – 90 W
Operating current
4.74 A
Temperature
Operating (not writing to optical disc)
0°C to 35°C (32°F to 95°F)
Operating (writing to optical disc)
5°C to 35°C (41°F to 95°F)
Nonoperating
-20°C to 60°C (-4°F to 140°F)
Relative humidity
Operating
10% to 90%
Nonoperating
5% to 95%
Maximum altitude (unpressurized)
Operating
-15 m to 3,048 m (-50 ft to 10,000 ft)
Nonoperating
-15 m to 12,192 m (-50 ft to 40,000 ft)
NOTE: Applicable product safety standards specify thermal limits for
plastic surfaces. The computer operates well within this range of
temperatures.
ENWW
Computer specifications 109
35.6-cm (14.0-in) display specifications
Dimensions
Height
17.6 cm (17.6 cm)
Width
31.1 cm (12.24 in)
Diagonal
35.7 cm (14.06 in)
Number of colors
Up to 16.8 million
Contrast ratio
300:1 (typical)
Brightness
200 nits (typical)
Pixel resolution
Pitch
0.259 × 0.259 mm
Format
1280 × 800; HD: 1366 × 768
Configuration
RGB vertical stripe
Backlight
LED
Character display
80 × 25
Total power consumption
4.0 W
Viewing angle
±40° horizontal, +120/-40° vertical (typical)
110 Chapter 6 Specifications
ENWW
Hard drive specifications
750 GB*
500-GB*
320-GB*
250-GB*
160-GB*
Height
9.5 mm
9.5 mm
9.5 mm
9.5 mm
9.5 mm
Width
70 mm
70 mm
70 mm
70 mm
70 mm
Weight
101 g
101 g
101 g
101 g
101 g
Interface type
SATA
SATA
SATA
SATA
SATA
Transfer rate
100 MB/sec
100 MB/sec
100 MB/sec
100 MB/sec
100 MB/sec
Security
ATA security
ATA security
ATA security
ATA security
ATA security
Single track
3.0 ms
1.0 ms
1.5 ms
2.0 ms
1.5 ms
Average
13.0 ms
14.0 ms
12.0 ms
12.0 ms
11.0 ms
Maximum
24.0 ms
22.0 ms
22.0 ms
22.0 ms
22.0 ms
Logical blocks
1,465,128,35
9
976,773,168
625,142,448
488,397,168
312,581,808
Disc rotational speed
5400 rpm
7200 rpm
7200 rpm
7200 rpm
7200 rpm
Dimensions
Seek times (typical read, including setting)
Operating temperature
5°C to 55°C (41°F to 131°F)
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less. Actual drive
specifications may differ slightly.
NOTE: Certain restrictions and exclusions apply. Contact technical support for details.
ENWW
Hard drive specifications 111
DVD±RW SuperMulti Double-Layer Drive with LightScribe
specifications
Applicable disc
Read
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVDROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD
+RW, DVD-RAM
Write
CD-R and CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM
Random access time
DVD
< 230 ms
CD
< 175 ms
Cache buffer
2 MB
Data transfer rate
24X CD-ROM
3,600 KB/sec
8X DVD-ROM
10,800 KB/sec
24X CD-R
3,600 KB/sec
16X CD-RW
2,400 KB/sec
8X DVD+R
10,800 KB/sec
4X DVD+RW
5,400 KB/sec
8X DVD-R
10,800 KB/sec
4X DVD-RW
5,400 KB/sec
2.4X DVD+R(9)
2,700 KB/sec
5X DVD-RAM
6,750 KB/sec
Transfer mode
Multiword DMA Mode
112 Chapter 6 Specifications
ENWW
Blu-ray ROM with LightScribe DVD±R/RW SuperMulti DL
Drive specifications
Applicable disc
Read
BD-ROM, BD-ROM-DL, BD-R, BD-R-DL, BD-RE, BD-RE-DL, DVD-ROM,
DVD+R, DVD+R-DL, DVD+RW, DVD-R, DVD-R-DL, DVD-RW, DVD-RAM
(Ver.2), CD-DA, CD-ROM (mode 1 and mode 2), CD-ROM XA (mode 2,
form 1 and form 2), Photo CD (single and multiple sessions), CD Extra,
CD-R, CD-RW, and CD-TEXT
Write
DVD-RAM (Ver.2), DVD+R, DVD-R, CD-R, and CD-ROM
Random access time
BD
< 230 ms
DVD
< 180 ms
CD
< 180 ms
Cache buffer
8 MB
Data transfer rate
ENWW
24X CD-ROM
3,600 KB/sec
8X DVD-ROM
10,800 KB/sec
4X BD
18,000 KB/sec
24X CD-R
3,600 KB/sec
16X CD-RW
2,400 KB/sec
8X DVD+R
10,800 KB/sec
4X DVD+RW
5,400 KB/sec
8X DVD-R
10,800 KB/sec
4X DVD-RW
5,400 KB/sec
2.4X DVD+R(9)
2,700 KB/sec
5X DVD-RAM
6,750 KB/sec
1X BD-ROM
4,500 KB/sec
1X BD-R read
4,500 KB/sec
1X BD-RE read
4,500 KB/sec
Transfer mode
Multiword DMA Mode
Blu-ray ROM with LightScribe DVD±R/RW SuperMulti DL Drive specifications 113
System resource specifications
You can use Device Manager to get a graphical view of the system resources that control how the
devices work on the computer. System resources you can access from Device Manager are direct
memory access (DMA) channels, input/output (I/O) ports, interrupt request (IRQ) lines, and memory
addresses.
If two devices require the same resource and create a device conflict, you can manually change the
resource settings in Device Manager to be sure each setting is unique.
CAUTION: Improperly changing resource settings can disable your hardware and cause your
computer to malfunction or become inoperable. Only users who have expert knowledge of computer
hardware and hardware configurations should change resource settings.
To view resource settings in Windows 7 and Windows Vista:
1.
Select Start > Computer.
2.
Click System properties near the top of the Computer folder.
3.
On the left, click Device Manager.
4.
On the View menu, click one of the following:
●
Resources by type
●
Resources by connection
To view resource settings in Windows XP:
1.
Select Start > My Computer, or double-click My Computer on the desktop.
2.
Under System Tasks, click View system information.
3.
In the System Properties window, select the Hardware tab.
4.
Click Device Manager.
5.
On the View menu, click one of the following:
●
Resources by type
●
Resources by connection
114 Chapter 6 Specifications
ENWW
7
Backup and recovery
Recovery after a system failure is as complete as your most current backup. HP recommends that
you create recovery discs immediately after software setup. As you add new software and data files,
you should continue to back up your system on a regular basis to maintain a reasonably current
backup.
Tools provided by the operating system and HP Recovery Manager software are designed to help
you with the following tasks for safeguarding your information and restoring it in case of a system
failure:
●
Creating a set of recovery discs (Recovery Manager software feature). Recovery discs are used
to start up (boot) your computer and restore the operating system and software programs to
factory settings in case of system failure or instability.
●
Backing up your information regularly to protect your important system files.
●
Creating system restore points (operating system feature). System restore points allow you to
reverse undesirable changes to your computer by restoring the computer to an earlier state.
●
Recovering a program or driver (Recovery Manager software feature). This feature helps you
reinstall a program or driver without performing a full system recovery.
●
Performing a full system recovery (Recovery Manager software feature). With Recovery
Manager, you can recover your full factory image if you experience system failure or instability.
Recovery Manager works from a dedicated recovery partition (select models only) on the hard
drive or from recovery discs you create.
NOTE: Computers with a solid-state drive (SSD) may not have a recovery partition. Recovery
discs have been included for computers that do not have a partition. Use these discs to recover
your operating system and software. To check for the presence of a recovery partition, select
Start, right-click Computer, click Manage, and then click Disk Management. If the partition is
present, an HP Recovery drive is listed in the window.
Windows 7
To protect your information, back up your files and folders. In case of system failure, you can use the
backup files to restore your computer.
CAUTION: In the event of a hard drive failure, you cannot use your computer to access the Disaster
Recovery utility. Therefore, HP recommends that you download the Disaster Recovery utility SoftPaq,
and then extract it to a USB flash drive as soon as possible after software setup. For details, refer to
“Downloading and extracting the Disaster Recovery utility” later in this section.
ENWW
Windows 7 115
Depending on your computer model, you may have one of the following backup and recovery
solutions:
●
Roxio BackOnTrack
●
HP Recovery Manager
NOTE:
For detailed information, perform a search for these topics in Help and Support.
Creating recovery discs
HP recommends that you create recovery discs to be sure that you can restore your system to its
original factory state if you experience serious system failure or instability. Create these discs after
setting up the computer for the first time.
Handle these discs carefully and keep them in a safe place. The software allows the creation of only
one set of recovery discs.
NOTE: You can use an optional external optical drive (purchased separately) to create recovery
discs, or you can purchase recovery discs for your computer from the HP Web site.
Note the following guidelines before creating recovery discs:
NOTE: The external hard drive must be connected to a USB port on the computer, not to a USB
port on an external device such as a hub.
●
You will need high-quality DVD-R, DVD+R, BD-R (writable Blu-ray), or CD-R discs. All these
discs are purchased separately. DVDs and BDs have a much higher capacity than CDs. If you
use CDs, up to 20 discs may be required, whereas only a few DVDs or BDs are required.
NOTE: Read-write discs, such as CD-RW, DVD±RW, double-layer DVD±RW, and BD-RE
(rewritable Blu-ray) discs, are not compatible with the Recovery Manager software.
●
The computer must be connected to AC power during this process.
●
Only one set of recovery discs can be created per computer.
●
Number each disc before inserting it into the optical drive.
●
If necessary, you can exit the program before you have finished creating the recovery discs. The
next time you open Recovery Manager, you will be prompted to continue the disc creation
process.
To create a set of recovery discs:
1.
Select Start > All Programs > Recovery Manager > Recovery Disk Creation.
2.
Follow the on-screen instructions.
116 Chapter 7 Backup and recovery
ENWW
Backing up your information
As you add new software and data files, you should back up your system on a regular basis to
maintain a reasonably current backup. Back up your system at the following times:
●
At regularly scheduled times
NOTE: Set reminders to back up your information periodically.
●
Before the computer is repaired or restored
●
Before you add or modify hardware or software
Note the following when backing up:
●
Create system restore points using the Windows® System Restore feature, and periodically
copy them to disc.
●
Store personal files in the Documents library and back up this folder periodically.
●
Back up templates stored in their associated programs.
●
Save customized settings in a window, toolbar, or menu bar by taking a screen shot of your
settings. The screen shot can be a time-saver if you have to reset your preferences.
To copy the screen and paste it into a word-processing document, follow these steps:
1.
Display the screen.
2.
Copy the screen:
To copy only the active window, press alt+prt sc.
To copy the entire screen, press prt sc.
3.
Open a word-processing document, and then select Edit > Paste.
4.
Save the document.
●
You can back up your information to an optional external hard drive, a network drive, or discs.
●
When backing up to discs, use any of the following types of discs (purchased separately): CD-R,
CD-RW, DVD+R, DVD-R, or DVD±RW. The discs you use will depend on the type of optical
drive installed in your computer.
NOTE: DVDs store more information than CDs, so using them for backup reduces the number
of recovery discs required.
●
ENWW
When backing up to discs, number each disc before inserting it into the optical drive of the
computer.
Windows 7 117
Using Windows Backup and Restore
To create a backup using Windows Backup and Restore, follow these steps:
NOTE:
Be sure that the computer is connected to AC power before you start the backup process.
NOTE: The backup process may take over an hour, depending on file size and the speed of the
computer.
1.
Select Start > All Programs > Maintenance > Backup and Restore.
2.
Follow the on-screen instructions to set up and create a backup.
NOTE: Windows® includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support for more
information.
118 Chapter 7 Backup and recovery
ENWW
Using system restore points
When you back up your system, you are creating a system restore point. A system restore point
allows you to save and name a snapshot of your hard drive at a specific point in time. You can then
recover back to that point if you want to reverse subsequent changes made to your system.
NOTE: Recovering to an earlier restore point does not affect data files saved or e-mails created
since the last restore point.
You also can create additional restore points to provide increased protection for your system files and
settings.
When to create restore points
●
Before you add or extensively modify software or hardware
●
Periodically, whenever the system is performing optimally
NOTE:
If you revert to a restore point and then change your mind, you can reverse the restoration.
Create a system restore point
1.
Select Start > Control Panel > System and Security > System.
2.
In the left pane, click System Protection.
3.
Click the System Protection tab.
4.
Under Protection Settings, select the disk for which you want to create a restore point.
5.
Click Create.
6.
Follow the on-screen instructions.
Restore to a previous date and time
To revert to a restore point (created at a previous date and time), when the computer was functioning
optimally, follow these steps:
1.
Select Start > Control Panel > System and Security > System.
2.
In the left pane, click System protection.
3.
Click the System Protection tab.
4.
Click System Restore.
5.
Follow the on-screen instructions.
Performing a recovery
NOTE: You can recover only files that you have previously backed up. HP recommends that you
use HP Recovery Manager to create a set of recovery discs (entire drive backup) as soon as you set
up your computer.
Recovery Manager software allows you to repair or restore the system if you experience system
failure or instability. Recovery Manager works from recovery discs or from a dedicated recovery
partition (select models only) on the hard drive. However, if your computer includes a solid-state drive
ENWW
Windows 7 119
(SSD), you may not have a recovery partition. If that is the case, recovery discs have been included
with your computer. Use these discs to recover your operating system and software.
NOTE: Windows has its own built-in repair features, such as System Restore. If you have not
already tried these features, try them before using Recovery Manager.
NOTE: Recovery Manager recovers only software that was preinstalled at the factory. Software not
provided with this computer must be downloaded from the manufacturer's Web site or reinstalled from
the disc provided by the manufacturer.
Recovering from the recovery discs
To restore the system from the recovery discs:
1.
Back up all personal files.
2.
Insert the first recovery disc into the optical drive and restart the computer.
3.
Follow the on-screen instructions.
Recovering from the dedicated recovery partition (select models only)
NOTE: Computers with an SSD may not have a recovery partition. If the computer does not have a
recovery partition, you will not be able to recover using this procedure. Recovery discs have been
included for computers that do not have a partition. Use these discs to recover your operating system
and software.
On some models, you can perform a recovery from the partition on the hard drive, accessed by
pressing either the Start button or f11. This restores the computer to its factory condition.
To restore the system from the partition, follow these steps:
1.
Access Recovery Manager in either of the following ways:
●
Select Start > All Programs > Recovery Manager > Recovery Manager.
– or –
●
Turn on or restart the computer, and then press esc while the “Press the ESC key for
Startup Menu” message is displayed at the bottom of the screen. Then, press f11 while the
“Press <F11> for recovery” message is displayed on the screen.
2.
Click System Recovery in the Recovery Manager window.
3.
Follow the on-screen instructions.
120 Chapter 7 Backup and recovery
ENWW
Linux backup and recovery
Use the instructions in this section if SUSE Linux SLED 11 is installed on your computer.
To protect your information, back up your files and folders. Then if the system fails, you can restore
your important files from copies. You can also use the options listed in this section to restore the
operating system and programs that were installed at the factory.
CAUTION: Using f11 completely erases hard drive contents and reformats the hard drive. All files
you have created and any software installed on the computer are permanently removed. The f11
recovery tool reinstalls the original operating system and HP programs and drivers that were installed
at the factory. Software, drivers, and updates not installed by HP must be manually reinstalled.
Personal files must be restored from a backup.
To recover the original hard drive image using f11, follow these steps:
1.
If possible, back up all personal files.
2.
Restart the computer, and then press f11 while the “Press <F11> for recovery” message is
displayed on the screen.
3.
Follow the on-screen instructions.
NOTE: If you are unable to boot (start up) your computer from the primary operating system or from
the recovery f11 method, you must purchase a SUSE Linux Enterprise Desktop Operating System
DVD to repair the operating system. For additional information, refer to the Worldwide Telephone
Numbers booklet, included with the computer.
ENWW
Linux backup and recovery 121
122 Chapter 7 Backup and recovery
ENWW
8
Connector pin assignments
Audio-out (headphone)
Pin
Signal
1
Audio out, left channel
2
Audio out, right channel
3
Ground
Audio-in (microphone)
ENWW
Pin
Signal
1
Audio signal in
2
Audio signal in
3
Ground
Audio-out (headphone) 123
External monitor
Pin
Signal
1
Red analog
2
Green analog
3
Blue analog
4
Not connected
5
Ground
6
Ground analog
7
Ground analog
8
Ground analog
9
+5 VDC
10
Ground
11
Monitor detect
12
DDC 2B data
13
Horizontal sync
14
Vertical sync
15
DDC 2B clock
124 Chapter 8 Connector pin assignments
ENWW
RJ-11 (modem)
Pin
Signal
1
Unused
2
Tip
3
Ring
4
Unused
5
Unused
6
Unused
RJ-45 (network)
ENWW
Pin
Signal
1
Transmit +
2
Transmit -
3
Receive +
4
Unused
5
Unused
6
Receive -
7
Unused
8
Unused
RJ-11 (modem) 125
HDMI
Pin
Signal
1
TMDS data 2+
2
TMDS data 2 shield
3
TMDS data 2–
4
TMDS data 1+
5
TMDS data 1shield
6
TMDS data 1–
7
TMDS data 0+
8
TMDS data 0 shield
9
TMDS data 0–
10
TMDS clock+
11
TMDS clock shield
12
TMDS clock–
13
CEC
14
No connect
15
DDC clock
16
DDC data
17
Ground
18
+5V power
19
Hot plug detect
20
Shell
126 Chapter 8 Connector pin assignments
ENWW
Universal Serial Bus
ENWW
Pin
Signal
1
+5 VDC
2
Data -
3
Data +
4
Ground
Universal Serial Bus 127
128 Chapter 8 Connector pin assignments
ENWW
9
Power cord set requirements
The wide range input feature of the computer permits it to operate from any line voltage from 100 to
120 volts AC or from 220 to 240 volts AC.
The 3-conductor power cord set included with the computer meets the requirements for use in the
country or region where the equipment is purchased.
Power cord sets for use in other countries or regions must meet the requirements of the country or
region where the computer is used.
Requirements for all countries or regions
The requirements listed below are applicable to all countries or regions:
ENWW
●
The length of the power cord set must be at least 1.5 m (5.0 ft) and no more than 2.0 m (6.5 ft).
●
All power cord sets must be approved by an acceptable accredited agency responsible for
evaluation in the country or region where the power cord set will be used.
●
The power cord sets must have a minimum current capacity of 10 amps and a nominal voltage
rating of 125 or 250 V AC, as required by each country or region’s power system.
●
The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320
Standard Sheet C13 connector for mating with the appliance inlet on the back of the computer.
Requirements for all countries or regions 129
Requirements for specific countries or regions
Country/region
Accredited agency
Applicable note number
Australia
EANSW
1
Austria
OVE
1
Belgium
CEBC
1
Canada
CSA
2
Denmark
DEMKO
1
Finland
FIMKO
1
France
UTE
1
Germany
VDE
1
Italy
IMQ
1
Japan
METI
3
The Netherlands
KEMA
1
Norway
NEMKO
1
The People's Republic of China
CCC
5
South Korea
EK
4
Sweden
SEMKO
1
Switzerland
SEV
1
Taiwan
BSMI
4
The United Kingdom
BSI
1
The United States
UL
2
1.
The flexible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set fittings (appliance
coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region
where it will be used.
2.
The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole
grounding type with a NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.
3.
The appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the
Japanese Dentori Law. The flexible cord must be Type VCT or VCTF, 3-conductor, 1.00-mm² conductor size. The wall
plug must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V) configuration.
4.
The flexible cord must be Type RVV, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler
and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it
will be used.
5.
The flexible cord must be Type VCTF, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler
and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it
will be used.
130 Chapter 9 Power cord set requirements
ENWW
10 Recycling
Battery
When a battery has reached the end of its useful life, do not dispose of the battery in general
household waste. Follow the local laws and regulations in your area for computer battery disposal.
Display
WARNING! The backlight contains mercury. Exercise caution when removing and handling the
backlight to avoid damaging this component and causing exposure to the mercury.
CAUTION: The procedures in this chapter can result in damage to display components. The only
components intended for recycling purposes are the liquid crystal display (LCD) panel and the
backlight. When you remove these components, handle them carefully.
NOTE: Materials Disposal. This HP product contains mercury in the backlight in the display
assembly that might require special handling at end-of-life. Disposal of mercury may be regulated
because of environmental considerations. For disposal or recycling information, contact your local
authorities, or see the Electronic Industries Alliance (EIA) Web site at http://www.eiae.org.
This section provides disassembly instructions for the display assembly. The display assembly must
be disassembled to gain access to the backlight (1) and the liquid crystal display (LCD) panel (2).
NOTE: The procedures provided in this chapter are general disassembly instructions. Specific
details, such as screw sizes, quantities, and locations, and component shapes and sizes, can vary
from one computer model to another.
ENWW
Battery 131
Perform the following steps to disassemble the display assembly:
1.
Remove all screw covers (1) and screws (2) that secure the display bezel to the display
assembly.
2.
Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of
the display bezel until the bezel disengages from the display assembly.
3.
Remove the display bezel (3).
132 Chapter 10 Recycling
ENWW
ENWW
4.
Disconnect all display panel cables (1) from the display inverter and remove the inverter (2).
5.
Remove all screws (1) that secure the display panel assembly to the display enclosure.
6.
Remove the display panel assembly (2) from the display enclosure.
7.
Turn the display panel assembly upside-down.
8.
Remove all screws that secure the display panel frame to the display panel.
9.
Use a sharp-edged tool to cut the tape (1) that secures the sides of the display panel to the
display panel frame.
Display 133
10. Remove the display panel frame (2) from the display panel.
11. Remove the screws (1) that secure the backlight cover to the display panel.
12. Lift the top edge of the backlight cover (2) and swing it outward.
13. Remove the backlight cover.
14. Turn the display panel right-side up.
134 Chapter 10 Recycling
ENWW
15. Remove the backlight cables (1) from the clip (2) in the display panel.
16. Turn the display panel upside-down.
WARNING! The backlight contains mercury. Exercise caution when removing and handling the
backlight to avoid damaging this component and causing exposure to the mercury.
17. Remove the backlight frame from the display panel.
ENWW
Display 135
18. Remove the backlight from the backlight frame.
19. Disconnect the display panel cable (1) from the LCD panel.
20. Remove the screws (2) that secure the LCD panel to the display rear panel.
21. Release the LCD panel (3) from the display rear panel.
22. Release the tape (4) that secures the LCD panel to the display rear panel.
23. Remove the LCD panel.
24. Recycle the LCD panel and backlight.
136 Chapter 10 Recycling
ENWW
Index
Symbols/Numerics
1394 Power Saving 101
A
AC adapter
identifying 21
AC adapter, spare part numbers
36
administrator password 100
antenna
removal 80
antennas 20
applications key, Windows 15
audio, product description 6
audio-in jack, pin assignments
123
audio-out jack, pin assignments
123
B
backing up
customized window, toolbar,
and menu bar settings 117
personal files 117
templates 117
base enclosure, spare part
number 29
battery
removal 52
spare part numbers 29, 52
battery bay, identifying 19
battery release latch, identifying
19
battery, identifying 21
bays
battery 19
hard drive 19
BD/DVD±R/RW Super Multi
Double-Layer Combo Drive
removal 56
ENWW
bezel
illustrated 31
spare part number 31, 78
Blu-ray Disc ROM LightScribe with
SuperMulti DVD±R/RW DoubleLayer
spare part number 30, 34, 56
Blu-ray ROM with LightScribe DVD
±R/RW SuperMulti DL Drive
specifications 113
Bluetooth module
removal 73
spare part number 29, 73
boot options 101, 106
boot order 101, 106
button sound 101
buttons
power 14
TouchPad right/left 12
C
cable kit, spare part number 30
cables, service considerations 46
camera module
removal 79
spare part number 79
camera, product description 6
caps lock light, identifying 13
Card Reader Power Saving 101
changing the language of Setup
Utility 97
chipset, product description 2
compartments
memory module 19
components
additional hardware 21
bottom 19
front 11
left-side 18
right-side 17
top 12
computer feet
locations 51
spare part number 51
Computer Setup
accessing 102
Diagnostics menu 105
File menu 104
navigating and selecting 102
restoring factory settings 103
Security menu 105
System Configuration menu
106
using 102
computer specifications 109
connector pin assignments
audio-in 123
audio-out 123
external monitor 124
HDMI 126
headphone 123
microphone 123
modem 125
monitor 124
network 125
RJ-11 125
RJ-45 125
Universal Serial Bus (USB)
127
connector, power 17
connectors, service
considerations 46
cord, power 21
D
Diagnostics menu 101, 105
Digital Media Slot light,
identifying 18
Digital Media Slot, identifying 18
Index 137
diskette drive
precautions 46
display assembly
removal 76
spare part number 24, 76
display back cover
spare part number 32
display bezel
illustrated 31
spare part number 31, 78
display bracket and hinge
removal 80
spare part number 80
display cable kit
spare part number 31
display component recycling 131
display components
illustrated 31
spare part numbers 31
display enclosure
illustrated 31
display hinge kit, spare part
number 31
display inverter
illustrated 31
display panel
illustrated 31
product description 4
removal 79
spare part number 31, 79
Display screw kit, spare part
number 32
display specifications 110
displaying system information 98
drives
boot order 101, 106
preventing damage 46
DVD/CD-RW Combo Drive
precautions 46
removal 56
DVD±RW and CD-RW Combo
Drive
precautions 46
removal 56
DVD±RW SuperMulti DL Drive
with LightScribe
spare part numbers 30, 34, 56
DVD±RW SuperMulti DoubleLayer Drive with LightScribe
specifications 112
138 Index
E
electrostatic discharge 47
esc key, identifying 15
Ethernet, product description 7
exiting Setup Utility 100
external media cards, product
description 8
external monitor port
pin assignments 124
external monitor port, identifying
18
F
f11 120
fan always on 101
fan/heat sink assembly
removal 91
spare part number 25, 91
feet
locations 51
spare part number 51
File menu 104
fn key, identifying 15
front components 11
full system recovery 115
function keys, identifying 15
G
graphics, product description
grounding equipment and
methods 49
2
H
hard drive
precautions 46
product description 5
removal 53
spare part numbers 30, 34, 53
specifications 111
hard drive bay, identifying 19
hard drive cover
illustrated 33
removal 54
hard drive hardware kit, spare part
number 34
hard drive self test 101
HDMI 18
HDMI port, pin assignments 126
headphone jack, pin
assignments 123
I
inverter
illustrated 31
J
jacks
RJ-11 (modem) 17
RJ-45 (network 18
K
keyboard
product description 9
removal 63
spare part numbers 25, 63
keys
esc 15
fn 15
function 15
navigation 15
Windows applications 15
Windows logo 15
L
LAN Power Saving 101
language support 101
latch, battery release 19
legacy support, USB 102, 106
light
power 13
lights
caps lock 13
Digital Media Slot 18
optical drive 17
webcam 16
wireless 13
M
Main menu 100
mass storage devices, spare part
numbers 34
memory module
product description 4
removal 61
spare part numbers 27, 61
memory module compartment,
identifying 19
memory test 101
microphone (internal), identifying
16
microphone jack, pin
assignments 123
ENWW
microphone, product description
6
mini-card compartment cover
illustrated 33
removal 62
spare part number 62
model name 1
modem cable
noise suppression circuitry 21
modem jack, pin assignments
125
modem module
product description 7
removal 71
spare part number 27, 71
modem module cable
removal 85
monitor port, external 18
monitor port, pin assignments
124
N
navigating in Setup Utility 98
navigation keys, identifying 15
network jack, pin assignments
125
noise suppression circuitry
modem cable 21
O
ODD cable
removal 87
spare part number 87
operating system, product
description 9
optical drive
identifying 17
precautions 46
product description 6
removal 56
spare part numbers 30, 34, 56
specifications 112, 113
optical drive light, identifying 17
P
packing guidelines 48
passwords 100, 105
performing a recovery 119
plastic parts 45
ENWW
Plastics kit
contents 33
spare part number 33
plastics kit
spare part number 26
pointing device, product
description 9
ports
external monitor 18
HDMI 18
product description 8
USB 17, 18
power button board
removal 69
spare part number 69
power button, identifying 14
power connector cable
removal 75
spare part number 29, 75
power connector, identifying 17
power cord set requirements 129
power cord, identifying 21
power cord, spare part numbers
36
power light, identifying 13
power requirements, product
description 9
power-on password 100
processor
product description 1
removal 94
spare part numbers 28, 94
Processor C6 State 101
product description
audio 6
camera 6
chipset 2
display panel 4
Ethernet 7
external media cards 8
graphics 2
hard drives 5
keyboard 9
memory module 4
microphone 6
modem module 7
operating system 9
optical drives 6
pointing devices 9
ports 8
power requirements 9
processors 1
product name 1
security 9
serviceability 9
wireless 7
product name 1
R
recovering a program or driver
115
recovering from the dedicated
recovery partition 120
recovering from the recovery
discs 120
recovery discs 115, 116
Recovery Manager 115, 120
recovery partition 115
recovery, system 120
removal/replacement
preliminaries 45
procedures 50
restore points 119
restoring default settings 99
RJ-11 (modem) jack, identifying
17
RJ-11 jack, pin assignments 125
RJ-45 (network) jack, identifying
18
RJ-45 jack, pin assignments 125
RTC battery
removal 89
spare part number 26, 89
Rubber Feet Kit, spare part
number 51
S
secondary hard drive self test
101
security cable slot, identifying 17
Security menu 100, 105
security, product description 9
selecting in Setup Utility 98
serial number 23, 50
service considerations 45
serviceability, product
description 9
setup utility
Diagnostics menu 105
File menu 104
Index 139
navigating and selecting 102
restoring factory settings 103
Security menu 105
System Configuration menu
106
slots
Digital Media 18
memory module 19
security cable 17
solid-state drive (SSD) 115, 120
speaker assembly
removal 68
spare part number 26, 68
speakers, identifying 14
specifications
Blu-ray ROM with LightScribe
DVD±R/RW SuperMulti DL
Drive 113
computer 109
display 110
DVD ±RW SuperMulti DoubleLayer Drive with LightScribe
112
hard drive 111
optical drive 112, 113
system resources 114
starting Setup Utility 97
static-shielding materials 49
stringent security 105
supported discs 116
system board
removal 83
spare part numbers 26, 83
System Configuration menu 101,
106
system failure or instability 115
system fan 106
system information 100, 104
system recovery 120
system resources 114
system restore points 115, 119
T
thermal paste, replacement 92,
93
tools required 45
top cover
removal 65
spare part number 25, 65
140 Index
TouchPad
buttons 12
identifying 12
removal 70
TouchPad button board
spare part number 70
TouchPad zone
identifying 12
transporting guidelines 48
workstation guidelines 48
U
Universal Serial Bus (USB) port,
pin assignments 127
USB board
removal 74
spare part number 29, 74
USB legacy support 102, 106
USB ports, identifying 17, 18
using Setup Utility 97
using system restore 119
V
vents, identifying 18, 19
Virtualization Technology 101
W
webcam
identifying 16
webcam light, identifying 16
Webcam module
spare part number 32
Windows applications key,
identifying 15
Windows logo key, identifying 15
wireless antenna
removal 80
wireless antennas 20
wireless antennas and cables
removal 81
spare part number 81
wireless antennas and cables,
spare part number 81
wireless light 13
wireless, product description 7
wireless/memory module
compartment cover
removal 59
spare part number 59
WLAN module
removal 58
spare part numbers 27, 58
ENWW
