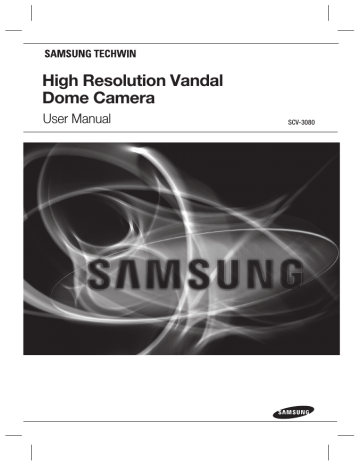

High Resolution Vandal
Dome Camera
User Manual
SCV-3080
B
v
d
High Resolution Vandal Dome Camera
User Manual
Copyright
©2009 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd. The name of this
product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances,
this document shall be reproduced, distributed or changed, partially or wholly, without formal
authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this
document, but no formal guarantee shall be provided. Use of this document and the subsequent
results shall be entirely on the user’s own responsibility.
Samsung Techwin reserves the right to change the contents of this document without prior
notice.
Warranty
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances,
this document shall be reproduced, distributed or changed, partially or wholly, without formal
authorization of Samsung Techwin.
Before operating the camera, confirm the camera model and correct input power
voltage. To help you understand this manual thoroughly, we'll introduce our model
description.
SCV-3080 SERIES
• NTSC MODELS
SCV-3080N
• PAL MODELS
SCV-3080P
MODEL DESCRIPTION
• SCV-3080X_
SIGNAL SYSTEM
• SIGNAL SYSTEM
N Ą NTSC MODEL
P Ą PAL MODEL
•
•
•
The lightning flash with an arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
•
•
•
INFORMATION - This equipment has been tested and found to comply with limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the
equipment.
WARNING - To prevent electric shock and risk of fire hazards:
‹ Do NOT use power sources other than that specified.
‹ Do NOT expose this appliance to rain or moisture.
This installation should be made by a qualified service person and
should conform to all local codes.
•
•
•
•
Contents
Contents
•Features ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ •PrecautionsÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ •Components and AccessoriesÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ ngle
tude
•Overview ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ
•Installation ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ
■ InstallationÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ ■ Adjusting the monitoring direction of the cameraÄÄÄÄÄÄÄÄÄÄÄÄÄ ■ Optional Accessories for InstallationÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ he
)
•ConnectionÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ ■ Connecting to MonitorÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ ■ Connecting to Power ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ ■ Using Coaxial CommunicationsÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ mits
are
he
s,
•Operating Your Camera ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ ■ Menu ConfigurationÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ ■ Menu SetupÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ ÂLENSÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ ÂEXPOSUREÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ ÂWHITE BAL (White Balance) ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ ÂBACKLIGHTÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ ÂSSNR3ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ ÂDAY/NIGHTÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ ÂPROFILE ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ ÂSPECIAL ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ ÂEXITÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ io
at his
•TroubleshootingÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ •Specifications ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ •Dimension ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ d
COLOR DOME CAMERA
5
SCV-3080
Features
Contents
IP66 Approved/Dust and Rain
Resistant
Day&Night (ICR)
With dust and rain resistant design, the camera can be
installed outside under building eaves or places that are
exposed to the dust and rain.
This camera has a function that automatically selects the
mode that is appropriate for daytime or night-time
conditions.
The COLOR mode operates in daytime conditions to
provide optimum colors, and B/W mode operates in nighttime conditions to enhance the definition of the image.
Ultra High Resolution
By adopting a double-speed 410,000 pixel Sony CCD,
the camera produces clear picture quality with a
horizontal resolution of 600 TV lines for color, and 700
TV lines for B/W.
SSDR
(Samsung Super Dynamic Range)
For images with high contrast between bright and
dark areas from difficult lighting conditions such as
backlighting, this camera selectively illuminates
darker areas while retaining the same light level for
brighter areas to even out the overall brightness.
Excellent Sensitivity
The built-in high sensitivity COLOR CCD produces a
clear image.
- Color : 0.3 Lux (50IRE, @F1.2),
0.0006LUX (SENS-UP, x512)
- B/W : 0.01 Lux (50IRE, @F1.2),
0.00002 LUX (SENS-UP, x512)
PROFILE
You can set a mode according to the camera
installation conditions.
- BASIC, DAY/NIGHT, BACKLIGHT, ITS, INDOOR, USER
Intelligence
PIP
Without assistance from an external sensor, this
camera independently detects and traces objects
while examining stillness and movement to activate
the alarm.
Displays a full-size image along with the thumbnail.
WDR
SSNR3 (Samsung Super Noise
Reduction) Function
By adopting a proprietary SV-V DSP chip, the camera
delivers clear, high quality pictures even when the
scene is backlight, by increasing exposure in dark
areas while decreasing it in bright areas; a corrected
image with clear details results.
The high-performance SV-V DSP chip effectively
removes low-light gain noise and afterimage to
provide clear images even in dark environments.
COLOR DOME CAMERA
6
SCV-3080
e
t-
VPS(Virtual Progressive Scan)
Adopting Samsung’s unique development, the VPS
(Virtual Progressive Scan) enhances the sharpness of
moving subject’s outline. The VPS enables elective
output in progressive mode using the existing
interlaced input and effectively enhances the
sharpness of captured pictures from video and still
images. The function effectively removes blurred
outline problems resulting in excellent road
monitoring and improved license plate recognition.
DIS (Digital Image Stabilizer)
The DIS function compensates for any camera
movement, to produce more stable pictures.
Communication
Coaxial communication methods are supported.
- Protocol : Pelco Coaxitron
OSD
The camera’s OSD is complimented by 18 languages.
- NTSC : English, Korean, Japanese, Spanish,
French, Portuguese, Taiwanese
- PAL : English, Chinese, German, Italian, French,
Spanish, Russian, Czech, Polish, Romanian,
Serbian, Swedish, Danish, Turkish,
Portuguese
Miscellaneous Functions
HLC(High Light Compensation), SENS-UP, REVERSE ,
D-ZOOM, SHARPNESS and PRIVACY functions are
provided.
COLOR DOME CAMERA
7
SCV-3080
Samsung Techwin cares for the environment at all product manufacturing
stages to preserve the environment, and is taking a number of steps to provide
customers with more environment-friendly products. The Eco mark represents
Samsung Techwin's will to create environment-friendly products, and
indicates that the product satisfies the EU RoHS Directive.
Warnings & Cautions
This information is provided to ensure your safety and to prevent any losses, financial or
otherwise. Please read it carefully and use the product accordingly.
* For product inquiries, please contact the retail shop where you bought the camera. The use of equipment such as
an aerial ladder while providing after-sales service shall be at your expense.
* Separate the power plug during a thunder storm.
* This product is support equipment for surveillance systems. Therefore, we can't compensate for material loss and/
or personal injuries by robbery, fire, natural disaster or other such events.
U
-5
u
Warning/Attention/Special Mark Messages
Ignoring this information may
result in material loss and/or
serious personal injuries including
death.
Ignoring this information may
result in material loss and/or a
slight injuries.
Indicates "Never Allowed."
Indicates "No Disassembling."
S
h
M
COLOR DOME CAMERA
8
SCV-3080
Precautions
Do not install under extreme
temperature conditions.
Do not install in high humidity
environment.
r
Use only under temperature conditions between
-50°C and +50°C. Provide good ventilation when
using in high temperature conditions.
May lower image quality.
Do not install under unstable lighting
conditions.
Severe lighting changes or flickering may
hinder normal camera operation.
Avoid touching the camera lens.
The lens is the most important component
of the camera. Be careful not to smear it
with fingerprints.
Do not drop the camera or subject it
to physical shock.
May cause a product malfunction.
Never keep the camera face to
strong light directly.
May damage the CCD.
COLOR DOME CAMERA
9
SCV-3080
Precautions
❶
Do not expose the camera to
radioactivity.
➍
Notes
• Exposure to a spotlight or an object emitting strong light may cause smear or blooming.
• Ensure that the power source complies with normal specifications before supplying it to
the camera.
❼
❶
➋
➌
➍
➎
➏
➐
➑
➒
COLOR DOME CAMERA
10 SCV-3080
Components and Accessories
❶
➋
➌
High Resolution Vandal Dome
Camera SCV-3080
User Manual
SCV-3080 Series
Quick Install Guide
SCV-3080
The lightning flash with arrowhead symbol, within an equilateral triangle is intended
to alert the user to the presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
INFORMATION -This equipment has been tested and found to comply with limits for a
Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will required to correct the interference at
his own expense.
WARNING - Changes or modifications not expressly approved by the manufacturer
could void the user’s authority to operate the equipment.
WARNING - To prevent electric shock and risk of fire hazards:
ý Do NOT use other than specified power source.
ý Do NOT expose this appliance to rain or moisture.
This installation should be made by a qualified service person and should conform to all
local codes.
1
➍
❼
➎
➏
❽
❾
❶ High Resolution Vandal Dome Camera SCV-3080
➋ Instruction Manual
➌ Quick Install Guide
➍ Template
➎ Cable for test monitor connection
➏ Plastic Anchor (4 EA)
➐ L-wrench
➑ Fixing Screws (4 EA)
➒ Tapping Screws (4 EA)
COLOR DOME CAMERA
11 SCV-3080
Overview
➋
⓬
➌
⓫
1
➊
⓭
⓮
➏
➎ ➍
➐
➑
❾
❿
❶
➋
➌
➍
➎
➏
❽
➒
❿
⓭
2
Pan Base : Control panning angle of camera.
Rotate Base : Control rotating angle of camera.
x3.9 Vari-focal Lens Module 2.8 ~ 11mm (F1.2)
Video Output Terminal to Monitor
Function Setup switch : Display the menu on the screen and move the cursor to four
directions to confirm status or changing a selected item.
➐ Power Input Terminal
Video Output Jack
D & N Input Terminal : You can switch to Day & Night Mode by connecting an external
signal to this terminal.
MD Output Terminal : Motion detection signals are output through this terminal.
⓫ Dome Cover
⓬ Inner cover
Ground Terminal
⓮ Lock releaser
Wing locker
Notes
• Be sure to connect the Day & Night input terminal to GND when using an external input.
COLOR DOME CAMERA
12 SCV-3080
3
Installation
Installation
Disassembling
1) Using the L-wrench provided, loosen
3 screws by turning them
counterclockwise and separate the
dome cover.
Dome Cover
2) Lift up the inner cover while gently
pressing both ends to separate it from
the unit.
3) Loosen 3 screws by turning them
counterclockwise, press both left
and right lock releases inwards (in
arrow direction) to unlock the
stopper, and then separate the
camera from the case.
Inner cover
Main Body (Camera)
Case
COLOR DOME CAMERA
13 SCV-3080
Installation
Installing the camera on a ceiling or wall
1
1) Affix the mounting template(supplied) to
the mounting surface.
2) Drill holes (diameter 5mm, more than 35mm
deep) on the ceiling by matching to the holes
on the case bed, and insert plastic anchors
(HUD 5) fully into the holes. Fix the case bed
on the ceiling by using Tapping Screws
(TH M4xL30). (4 places)
2
Ø5 tapping screw x 4 (supplied)
3) Connect power and video cables and
arrange cable running not to damage or
squeeze them, and assemble the camera
unit in the reverse way.
3
4) Pass the power and BNC cable through the
hole you want to pass them when mounting
the main body on the mounting bracket.
5) Secure the camera on its mounting bracket
with the four screws.
COLOR DOME CAMERA
14 SCV-3080
M4 machine screw x 3
Installing the camera on a ceiling or wall with pipeline
1) Secure the mounting bracket on the place
you want to mount it after combining the
mounting bracket with the pipeline.
Hole for 3/4° pipe
(JIS B 0202-1966)
2) Connect power input and video output cables
with the each cable from pipeline.
Ø5 tapping screw x 4 (supplied)
d)
3) Secure the main body on mounting bracket.
x3
M4 machine screw x 3
COLOR DOME CAMERA
15 SCV-3080
Installation
3FJOTUBMMUIFEPNFDPWFSUPUIFNBJOCPEZ
1) Adjust the lens in a desired direction.
2) Secure the inner cover to the main unit.
3) Assemble the Dome Cover.
For waterproof purpose, fix and secure the bolt using L-wrench provided.
Case
Main Body (Camera)
1
Inner cover
Dome Cover
2
COLOR DOME CAMERA
16 SCV-3080
"EKVTUJOHUIFNPOJUPSJOHEJSFDUJPOPGUIFDBNFSB
Panning
0˚
Tilting
Lens rotation
60˚ ~ 80˚
1) You can adjust the camera direction only when the camera is fixed on the ceiling.
Then, turning the camera to the left or right is referred to as "Panning", while moving the
camera angle up or down is "Tilting". For panning, the panning limit is 220° for the
clockwise, and 135° for the counter-clockwise, a total of 355° enabled; further rotation is
prevented by the stopper.
• Adjust the panning angle so that the camera settles in the right horizontal position. You
can adjust the panning up to 135° in each one direction, and 220° in the other direction,
a total of 355°.
• Adjust the tilting angle so that the camera settles in the right vertical position. You can
adjust the tilting between 0° and 90°.
• The total rotation range is 355°. You can make adjustment in one direction up to 125°,
and 230° in the other direction.
2) Methods of adjustment
• The case of wall installation
➊ After mounting the camera on the wall, adjust the panning angle so that the camera
faces a desired direction when tilting.
➋ Adjust the Rotate position to fit the video to the screen borders.
➌ Then, adjust the tilting angle so that the camera faces the monitoring direction.
COLOR DOME CAMERA
17 SCV-3080
Installation
• The case of ceiling installation
➊ After mounting the camera on the ceiling, adjust the panning angle according to the
monitoring direction. You should adjust the panning angle lest that the video be
displayed upside down on the monitor.
➋ Adjust the Rotate position to fit the video to the screen borders.
➌ Then, adjust the tilting angle so that the camera faces the monitoring direction.
3
Notes
• For smoother Rotate adjustment, set the Tilt position between 60˚ ~ 80˚.
4
Optional Accessories for Installation
For your easier installation, you can purchase appropriate optional accessories.
1) WALL MOUNT ADAPTOR(SCX-300WM)/
HANGING MOUNT(SCX-300HM) This adaptor
is used when installing the dome camera
onto a wall.
C
2) CEILING MOUNT ADAPTOR(SCX-300CM)/
HANGING MOUNT(SCX-300HM) This adaptor
is used when installing the dome camera on
a concrete ceiling.
•
•
•
COLOR DOME CAMERA
18 SCV-3080
3) POLE MOUNT ADAPTOR(SCX-300PM) This
is an adaptor for WALL MOUNT ADAPTOR
(SCX-300WM) installation on a pole whose
diameter is bigger than 80mm.
4) CORNER MOUNT ADAPTOR (SCX-300KM)
This is an adaptor for WALL MOUNT
ADAPTOR (SCX-300WM) installation on
the corner of wall joint.
Connection
Connecting to Monitor
Connect the Video Output jack to the VIDEO-IN jack of monitor.
CCTV Camera
Monitor
• As the connecting method varies with the instruments, refer to the manual supplied with the instrument.
• If necessary, you can connect the monitor to the REMOTE jack on the back of your camera.
• Only connect the cable when the power is turned off.
COLOR DOME CAMERA
19 SCV-3080
Connection
Connecting to Power
Connect the adaptor to the power input terminal as shown in the figure below.
Output of the adaptor should be either one of AC 24 V, 1.5 A or DC 12 V, 1.0 A. Note that using
DC 12 V may cause lower heater temperature.
•
•
---- Power Input Terminal
When the resistance value of copper wire is at [20˚C(68˚F)]
Copper wire size (AWG)
2
2
2
2
#24(0.22mm )
#22(0.33mm )
#20(0.52mm )
#18(0.83mm )
Resistance (Ω/m)
0.078
0.050
0.030
0.018
Voltage Drop (V/m)
0.028
0.018
0.011
0.006
• As shown in the table above, voltage decreases as the wire gets longer. Therefore use of
an excessively long adaptor output line for connection to the camera may affect the
performance of the camera.
* There may be some deviation in voltage drop depending on the type of wire and the manufacturer.
Notes
• Be sure to connect power only after all the installation is complete.
• Note that AC / DC adaptor is not supplied with camera.
• Ground should be connected to the GND terminal.
COLOR DOME CAMERA
20 SCV-3080
•
Using Coaxial Communications
• Coaxial Communications System
• OSD Control method
CAMERA
SET
UP
DOWN
LEFT
RIGHT
DVR
MENU/ENTER
UP KEY
DOWN KEY
LEFT KEY
RIGHT KEY
CONTROLLER
OSD KEY
JOYSTICK UP
JOYSTICK DOWN
JOYSTICK LEFT
JOYSTICK RIGHT
DVR
DVD
: BNC
•
• ---- : RS-485
• Video Cable
The camera's video output port is connected to the monitor with a BNC coaxial
cable, shown below : If the distance between the camera and the monitor exceeds
the recommended maximum, please use an auxiliary video amp.
Distance
300m
450m
600m
Recommended Cable Specification
3C2V(RG-59/U)
5C2V(RG-6/U)
7C2V(RG-11/U)
Notes
• It is recommended that pure copper coax cable is used and not copper coated
steel, as this will cause issues with the communication over the coaxial cable.
COLOR DOME CAMERA
21 SCV-3080
Operating Your Camera
Menu Configuration
U
MAIN SETUP
LENS
úDC
EXPOSURE
úBRIGHTNESS
úSENS-UP
úRETURN
WHITE BAL
úATW
úMANUAL
úOUTDOOR
úAWC⳨SET
úINDOOR
BACKLIGHT
úOFF
úSSDR
úUSER BLC
úWDR
úHLC
SSNR3
úON
úOFF
úAUTO
úEXTERN
úCOLOR
úDAY/NIGHT
úINDOOR
úBACKLIGHT
úUSER
DAY/NIGHT
PROFILE
SPECIAL
EXIT
úSHUTTER úAGC
1
úB/W
úBASIC
úITS
úCAM TITLE
úIMAGE ADJ
úINTELLIGENCE úPRIVACY
úLANGUAGE
úRETURN
úSAVE
úNOT SAVE
úSYNC
úDIS
Se
th
úRESET
2
3
4
COLOR DOME CAMERA
22 SCV-3080
Menu Setup
Use the Function Setup switch within the camera.
Function Setup switch
1. Press the Function Setup switch.
• Main SETUP menu is displayed on the monitor screen.
T
Select the function using
the Function Setup switch.
MAIN SETUP
1.LENS
DC
2.EXPOSURE
3.WHITE BAL
ATW
4.BACKLIGHT
OFF
5.SSNR3
ON
6.DAY/NIGHT
AUTO
7.PROFILE
BASIC
8.SPECIAL
9.EXIT
SAVE
Change the status using
the Function Setup switch.
2. Select a desired function using the Function Setup switch.
• Place the cursor over a desired item.
3. Set up a selected item by using the Function Setup switch.
4. To finish the setting, select ‘EXIT’ and press the Function Setup switch .
COLOR DOME CAMERA
23 SCV-3080
Operating Your Camera
Notes
• An item with the icon also has sub menus. To select a sub menu, select an item
with the icon and press the Function Setup switch.
• An item with the --- icon is unavailable due to function settings.
LENS
Using this function, you can control the screen brightness.
1. When the SETUP menu screen is displayed, select ‘LENS’ by using the Function Setup
switch so that the arrow indicates ‘LENS’.
2. The Lens mode has sub menu site as listed below.
- BRIGHTNESS : Adjusts the video brightness.
- FOCUS ADJ : To adjust the lens focus correctly, you must activate the Focus Settings mode.
To activate the Focus Settings mode, adjust the lens focus, and then deactivate the settings mode.
You can adjust the shutter value of ESC shutter mode.
MAIN SETUP
1.LENS
2.EXPOSURE
DC
MAIN SETUP
1.LENS
2.EXPOSURE
DC
EXPOSURE
1. When the SETUP menu screen is displayed, select ‘EXPOSURE’ by using the Function
Setup switch so that the arrow indicates ‘EXPOSURE’.
2. Select a desired mode using the Function Setup switch.
COLOR DOME CAMERA
24 SCV-3080
.
EXPOSURE SETUP
1.BRIGHTNESS
25
2.SHUTTER
--3.AGC
HIGH
4.SENS-UP
OFF
5.RETURN
BRIGHTNESS : Adjusts the video brightness.
SHUTTER : You can select the shutter.
- --: Shutter speed is fixed at 1/60 sec (1/50 sec).
- ESC
: Select this to control the shutter speed automatically. If ESC is selected,
the shutter speed is automatically controlled depending on the ambient
illumination of the subject.
- MANUAL : You can control shutter speed manually.
(NTSC MODEL - 1/60sec~1/120,000sec, PAL MODEL - 1/50sec~1/120,000sec)
- A.FLK
: Select this when you experience picture flicker, this happen when there
is a clash with the installed lighting frequency.
Notes
• Set the shutter mode to --- if color rolling occurs.
• When the SHUTTER is set to ESC after selecting the Internal Synchronization Type, the
picture may become unstable if the camera faces a bright fluorescent light. Therefore,
take care when choosing the installation position.
• When the SHUTTER is set to MANUAL or A.FLK mode, SENS-UP will be disabled.
AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen - but
the greater the noise.
- OFF : Deactivates the AGC function.
- LOW : Allows automatic gain control from 5.3dB to 32dB.
- HIGH : Allows automatic gain control from 5.3dB to 37dB.
SENS-UP : When it is night or dark, the camera automatically detects the light level
and maintains a clear picture if this mode is activated.
- OFF : Deactivates the SENS-UP function.
- AUTO : Activates the SENS-UP function.
COLOR DOME CAMERA
25 SCV-3080
Operating Your Camera
Notes
• If you set the Function Setup switch to ‘AUTO’ mode, You can adjust the brightness by
increasing or decreasing the shutter speed. (x2 ~ x512)
• Note that the higher the zoom level, the brighter the screen, but the more likely it is that
an after-image will appear.
• Although Noise, Spots and Whitish symptoms may occur in SENS-UP operation when
the zoom level is increased, this is normal.
RETURN : Select this to save the changes in the EXPOSURE menu and return to the
SETUP menu.
WHITE BAL (White Balance)
Use the White Balance function to adjust the screen color.
1. When the SETUP menu screen is displayed, select ‘WHITE BAL’ by using the Function
Setup switch so that the arrow indicates ‘WHITE BAL’.
2. Select a desired mode using the Function Setup switch.
MAIN SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
DC
ATW
ö Select one of the following 5 modes, as appropriate for your purpose.
ATW
: Select this when the color temperature is between 1,700˚K and
11,000˚K.
OUTDOOR : Select this when the color temperature is between 1,700˚K and
11,000˚K. (sodium light inclusion)
INDOOR
: Select this when the color temperature is between 4,500˚K and 8,500˚K.
MANUAL : Select this to fine-tune White Balance manually. Set White Balance first by
using the ATW or AWC mode. After that switch to MANUAL mode, finetune the White Balance and the Function Setup switch.
COLOR DOME CAMERA
T
s
S
1
26 SCV-3080
2
y
AWC ĄSET : To find the optimal luminance level for the current environment, point the
camera towards a sheet of white paper and press the Function Setup switch.
If the environment changes, readjust it.
Notes
• White Balance may not work properly under the following conditions. In this case select
the OUTDOOR mode.
❶
When
the color temperature of the environment surrounding the subject is out of
the control range (e.g. clear sky or sunset).
➋When the ambient illumination of the subject is dim.
➌
If the camera is directed towards a fluorescent light or is installed in a place where
illumination changes dramatically, the White Balance operation may become unstable.
BACKLIGHT
The SCV-3080 is designed so that it delivers a distinctive subject and background at the
same time, even when the subject is in backlight, by adopting a function of the proprietary
SV-V DSP chip.
1. When the SETUP menu screen is displayed, select ‘BACKLIGHT’ by using the Function
Setup switch so that the arrow indicates ‘BACKLIGHT’.
MAIN SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.BACKLIGHT
DC
ATW
OFF
2. Select a desired mode using the Function Setup switch depending on the camera purpose.
OFF : Not being used
BLC : Enables a user to select a desired area on a picture and view that area more clearly.
- LEVEL : Adjusts the brightness level of a monitoring area.
- TOP/BOTTOM/LEFT/RIGHT : Adjust the area to be enhanced.
COLOR DOME CAMERA
27 SCV-3080
Operating Your Camera
HLC (High Light Compensation) :
If the scene contains extremely bright light areas such as; from car headlight, the
light can mask out much of the on-screen detail.
- LEVEL : Adjusts the brightness level of a monitoring area.
- LIMIT : Enable to change the operating condition.
- MASK COLOR/TONE : Change the color / brightness of the masking area.
(Black, Red, Blue, Cyan, Magenta)
- TOP/BOTTOM/LEFT/RIGHT : Adjust the area to be enhanced.
SSDR (Samsung Super Dynamic Range) : SSDR illuminates darker areas of an image
while retaining the same light level for brighter areas to even out the overall
brightness of images with high contrast between bright and dark areas.
Use the Function Setup switch to change the SSDR level in the sub menu according to
the contrast between bright and dark areas.
SSDR ON
SSDR OFF
WDR : When there are both bright and dark areas at the same time, this mode
makes both areas distinctive.
< WDR >
< OFF >
Select ’WDR‘ to adjust the WDR LIMIT and LEVEL.
- LIMIT : Adjust the WDR Sensitivity by selecting LOW, MIDDLE or HIGH.
COLOR DOME CAMERA
28 SCV-3080
3
- LEVEL : Adjust the WDR Brightness by controlling the bar from 1 to 100.
- MODE : Indoor and outdoor backlight conditions are appropriately selected.
- ANTI ROLLING : Rolling caused around a fluorescent lamp is improved.
3. Select a desired mode using the Function Setup switch.
BLC : Adjust the area to be enhanced
HLC : Enable the user to change the level,
then adjust the level.
limit, mask color/tone and area.
o
SSDR :
Enable the user to change the
level.
WDR :
Enable the user to change the
limit and level.
Notes
• Because there can be a difference in the effectiveness of HLC according to the amount of
light area in the screen, optimize the installation angle for the best HLC performance.
• When dark, the HLC is only activated when a bright light exceeding a specific size. (In NIGHT
ONLY mode).
• The HLC is not activated in day light or when bright light is not present at night. (In NIGHT ONLY mode).
• When using the WDR function, the shutter is only available with the fixed(---) mode.
• Since the performance of the WDR function may be affected by the area of the bright part of
the screen, optimize the installation angle for the best WDR performance.
• If you increase LIMIT, the screen display may be distorted.
• If you use the VPS (Virtual Progressive Scan) function, the CCD reads differently so you can not
use WDR simultaneously. If you set VPS to ON, WDR will be automatically set to FIXED Mode.
COLOR DOME CAMERA
29 SCV-3080
Operating Your Camera
SSNR3
This function reduces the background noise in a low luminance environment.
1. When the SETUP menu screen is displayed, select ‘SSNR3’ by using the Function Setup
switch so that the arrow indicates ‘SSNR3’.
MAIN SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.BACKLIGHT
5.SSNR3
DC
ATW
OFF
ON
2. Select a desired mode using the Function Setup switch.
ON : Activates SSNR3 so that noise is reduced.
OFF : Deactivates SSNR3. Noise is not reduced.
3. Set the SSNR3 mode to ‘ON’ and press the Function Setup switch. Then you can adjust the
noise reduction level.
Notes
• You cannot set the SSNR3 to ‘ON’ or ‘OFF’ when the AGC mode of the 'EXPOSURE' menu
is ‘OFF’.
• When adjusting the noise reduction level in the SSNR3 mode, remember that the higher
the level set, the more the noise level will be reduced, as will the brightness of the image.
DAY/NIGHT
You can display pictures in color or in black and white.
1. When the SETUP menu screen is displayed, select ‘DAY/NIGHT’ by using the Function
Setup switch so that the arrow indicates ‘DAY/NIGHT’.
COLOR DOME CAMERA
30 SCV-3080
MAIN SETUP
1.LENS
DC
2.EXPOSURE
3.WHITE BAL
ATW
4.BACKLIGHT
OFF
5.SSNR3
ON
6.DAY/NIGHT
AUTO
2. Select a desired mode using the Function Setup switch according to the picture display you want.
AUTO : The mode is switched to ’Color‘ in a normal environment, but switches to ’B/W‘
mode when ambient illumination is low. To set up the switching time for AUTO
mode, press the Function Setup switch. You can turn on or off the burst signal
on B/W mode.
- BURST MODE : You can turn on or off the burst signal on B/W mode.
- DURATION : You can select the day/night switching point.
- DWELL TIME : You can select day/night switching delay time from.
Ą3s, 5s, 7s, 10s, 15s, 20s, 30s, 40s, 60s
Early
Late
Color ➞ B/W
B/W ➞ Color
2.5 lux
1 lux
5 lux
7 lux
* The day/night switching point of the camera can be adjusted.
EXTERN : This mode allows you to apply a desired filter to external signals.
COLOR : The picture is always displayed in color.
B/W
: The picture is always displayed in black and white.
You can turn on or off the burst signal on B/W mode.
COLOR DOME CAMERA
31 SCV-3080
Operating Your Camera
Notes
• When AGC in the EXPOSURE menu is 'OFF', '---' mode operates as selecting 'COLOR'
mode and 'AUTO' mode cannot be selected.
• Be sure to connect the Day & Night input terminal to GND when using an external input.
PROFILE
3
1. When the SETUP menu screen is displayed, select ‘PROFILE’ by using the Function
Setup switch so that the arrow indicates ‘PROFILE’.
MAIN SETUP
1.LENS
DC
2.EXPOSURE
3.WHITE BAL
ATW
4.BACKLIGHT
OFF
5.SSNR3
ON
6.DAY/NIGHT
AUTO
7.PROFILE
BASIC
8.SPECIAL
9.EXIT
SAVE
2. Select a desired mode using the Function Setup switch according to the picture display
you want.
BASIC : The most common environment is set to meet.
DAY/NIGHT : It will be set automatically so it optimizes to the day or night conditions,
respectively.
BACKLIGHT : It will be set automatically so you can distinguish the object from the
background in a severe backlighting scene.
ITS : It will be set automatically so you can easily check the traffic conditions.
COLOR DOME CAMERA
32 SCV-3080
S
G
W
S
1
INDOOR : It will be set automatically to help you take a picture in a regular indoor
lighting condition.
USER : Automatically configures the camera to your custom settings.
❶ Select Custom for Simple Setup mode.
❷ Configure the menu options to your custom settings.
➌ The settings are automatically saved as Custom mode.
➍ Profile user mode don't initialize when menu resets.
3. In the PROFILE menu, you can configure the following camera settings at once.
SHUTTER
GAIN
WHITE BAL
BACKLIGHT
SSNR3
DAY/NIGHT
BASIC
--HIGH
ATW
OFF
ON
AUTO
DAY/NIGHT BACKLIGHT
ITS
----MANUAL(1/250)
HIGH
HIGH
HIGH
ATW
ATW
OUTDOOR
OFF
USER BLC
OFF
ON
ON
ON
AUTO
AUTO
AUTO
INDOOR
A.FLK
HIGH
INDOOR
OFF
ON
AUTO
USER
-
SPECIAL
1. When the SETUP menu screen is displayed, select ‘SPECIAL’ by using the Function Setup
switch so that the arrow indicates ‘SPECIAL’.
MAIN SETUP
1.LENS
DC
2.EXPOSURE
3.WHITE BAL
ATW
4.BACKLIGHT
OFF
5.SSNR3
ON
6.DAY/NIGHT
AUTO
7.PROFILE
BASIC
8.SPECIAL
9.EXIT
SAVE
COLOR DOME CAMERA
33 SCV-3080
Operating Your Camera
2. Select a desired mode using the Function Setup switch.
1.
2.
3.
4.
5.
6.
7.
8.
SPECIAL
IMAGE ADJ
CAM TITLE
OFF
SYNC
INT
INTELLIGENCE
OFF
PRIVACY
OFF
DIS
OFF
LANGUAGE
ENGLISH
RETURN
IMAGE ADJ :
1) When the SPECIAL menu screen is displayed, select ‘IMAGE ADJ’ by using the
Function Setup switch so that the arrow indicates ’IMAGE ADJ‘.
2) Select a desired mode using the Function Setup switch.
IMAGE SETUP
1.MONITOR
LCD
2.VPS
OFF
3.REVERSE
OFF
4.PIP
OFF
OFF
5.D-ZOOM
6.FONT COLOR
BLUE
ON
7.SHARPNESS
8.RETURN
ú Monitor : Please change the settings value of video appropriate to your monitor.
ⰒLCD : Please select this menu item when using an LCD monitor.
You can change the gamma, PED level and color gain in the sub menus.
COLOR DOME CAMERA
34 SCV-3080
ⰒCRT : Please select this menu item when using a CRT
monitor. You can change the PED level, color
gain in the sub menus.
ⰒUSER : Please use this menu item when using a
monitor other than standard ones. You can
change the gamma, PED level and color gain
in the sub menus.
ú VPS(Virtual Progressive Scan) : This is an advanced technology that reproduces a sharp
progressive image. This is appropriate to high quality recording and file transfer via the
Internet.
ⰒOFF : Selects 2:1 Interlaced Scan as the Imaging Method.
ⰒON : Selects Progressive Scan as the Imaging Method.
ú REVERSE : You can reverse the picture.
ⰒOFF : You don’t reverse the picture.
ⰒH-REV : You can flip the picture horizontally on the screen.
ⰒV-REV : You can flip the picture vertically on the screen.
ⰒHV-REV : You can flip the picture horizontally and vertically on the screen.
ú PIP(Picture in Picture) : Displays a full-size image along
with the thumbnail to provide more detailed
information. The position of the thumbnail is
adjustable.
ú D-ZOOM : You can use a digital zoom of x1 ~ x16.
ú FONT COLOR : You can change the OSD font color.
(White, Yellow, Green, Red, Blue)
ú SHARPNESS : As you increase this value, the picture
outline becomes stronger and clearer.
Adjust this value appropriately depending
on the sharpness of the picture.
ú RETURN
: Select this to save the settings for the
IMAGE ADJ menu and to return to the
SPECIAL menu.
COLOR DOME CAMERA
35 SCV-3080
Operating Your Camera
Notes
• When the V-REV or H-REV mode is enabled, the text on the screen does not flip.
• If you increase the SHARPNESS level too high, the picture may become distorted or
noise may appear.
CAM TITLE : If you enter a title, the title will appear on the monitor.
1) If the SPECIAL menu screen is displayed, use the Function Setup switch so that the
arrow indicates ‘CAM TITLE’.
CAMERA TITLE SETUP
2) Set it to ‘ON’ by using the Function Setup
ABCDEFGHIJKLM
switch.
NOPQRSTUVWXYZ
abcdefghijklm
3) Press the Function Setup switch.
nopqrstuvwxyz
4) Use the Function Setup switch to move to
-.0123456789
a desired letter and select the letter by
ąĄCLR POS END
pressing the Function Setup switch.
Repeat this to enter multiple letters. You
can enter up to 15 letters.
5) Enter a title, move the cursor to ‘POS’ and press
the Function Setup switch. The entered title
appears on the screen. Select the position to
display the title on the screen by using the
Function Setup switch and press the Function
Setup switch. When the position is determined,
select ‘END’ and press the Function Setup
switch to return to the SPECIAL menu.
FRONT DOOR
Notes
• When the CAM TITLE menu is ‘OFF’, no title will be displayed on the monitor screen
even if you enter one.
• English and Numbers are available in this mode.
• If you move the cursor to CLR and press the Function Setup switch, all the letters are
deleted. To edit a letter, change the cursor to the bottom left arrow and press the
Function Setup switch. Move the cursor over the letter to be edited, move the cursor to
the letter to be inserted and then press the Function Setup switch.
COLOR DOME CAMERA
36 SCV-3080
SYNC : In areas where the supply is at 60Hz(NTSC),
50Hz(PAL) frequency, you can synchronize the
output phase of multiple cameras using the power
synchronization function (Line-Lock) without using
a synchronization signal generator.
ⰒINT : Internal Synchronization Type
ⰒL/L : Power Synchronization Type, Line-lock
❶ Press the Function Setup switch.
❷ You can select a desired phase from 0 to 359 when select 'phase'.
e
Notes
• When using AC power at 60Hz(NTSC), 50Hz(PAL) frequency, you can use the L/L type
synchronization.
• When the power is DC 12V, the SYNC menu is fixed to the ‘INT’ mode.
INTELLIGENCE : Commands the camera to motion-detect and trace an object.
INTELLIGENCE
1.
2.
3.
4.
5.
6.
7.
8.
MOTION
DETECT BOX
ALARM OUT
DETECT AREA
MASK AREA
SENSITIVITY
DET. SIZE
RETURN
COLOR DOME CAMERA
OFF
ON
OFF
3
3
37 SCV-3080
Operating Your Camera
úMOTION : Select motion types to detect.
ⰒOFF : Not being used.
ⰒDETECTION : Since the camera detects motion without any additional external
sensor, you can monitor activity more efficient.
ⰒTRACKING : Commands the camera to detect and
trace a moving object.
ĶFENCE : You can select up to 4 FENCES.
ĶMODE : Determines whether to use the fence
selected in the FENCE.
ĶTYPE : Two types, line and area, of fences are
available.
ĶCOUNT : Displays the number of times that an
object enters or leaves a fenced area.
ĶFILL : Fill or remove color from the FENCE.
ĶPOSITION : Defines the position and detection direction of a line or fenced area.
1) LINE FENCE
-SEL POS : Selects a position from POS1,POS2.
- X POS / Y POS : Adjust the size and position of the selected line fence.
- DIRECTION
ⰒDIR1 : Detects objects moving left to right on the fence line.
ⰒDIR2 : Detects objects moving right to left on the fence line.
ⰒDIR1/2 : Detects all objects moving crosswise on the fence line.
-RETURN : Select this to save the POSITION menu settings and return to the
TRACKING menu.
2) AREA FENCE
- SEL POS : Selects a position from POS1 ~ POS4.
- X POS / Y POS : Adjust the size and position of the selected area fence.
- DIRECTION
ⰒIN : Detects objects entering the fenced area.
ⰒOUT : Detects objects exiting the fenced area
ⰒIN/OUT : Detects all objects entering and exiting the fenced area.
- RETURN : Select this to save the POSITION menu settings and return to the
TRACKING menu.
Ķ RETURN : Select this to save the TRACKING menu settings and return to the
INTELLIGENCE menu.
COLOR DOME CAMERA
38 SCV-3080
ⰒFIXED/MOVED : Detects an object that emerges or disappears from the screen, or
stays onscreen without movement.
Notes
•A detection (FIXED/MOVED) error may occur if :
· multiple motions occur continuously in random directions
· a fixed object moves in one position continuously
· a second object screens the first moving object
ú DETECT BOX : Outlines an object on the screen in a box when its movement
matches a custom Motion Type.
ú ALARM OUT : Releases a signal from the MD Output Terminal of the camera
when an object’s movement matches a custom Motion Type.
ú DETECT AREA : Defines the Motion Detection area.
ú MASK AREA : Specify a detection exception area to
mask.
Select a mask area number and specify
the size and position.
ĶAREA : You can select up to 4 areas.
ĶMODE : Determines whether to use the area
selected in the AREA.
ĶTOP / BOTTOM / LEFT / RIGHT : Adjust the size and position of the selected area.
COLOR DOME CAMERA
39 SCV-3080
Operating Your Camera
ĶRETURN : Select this to save the MASK AREA menu settings and return to the
INTELLIGENCE menu.
ú SENSITIVITY : Set the sensitivity of the motion detection. When adjusting the
sensitivity, note that the lower the level means the higher sensitivity.
ú DETECT SIZE : Selects an object size to detect on the screen. When adjusting the detection
size, note that the higher the level means the bigger detection size.
ú RETURN : Select this to save the INTELLIGENCE menu settings and return to the
SPECIAL menu.
PRIVACY : Mask an area you want to hide on the screen.
PRIVACY AREA SETUP
1.AREA
AREA1
2.MODE
OFF
3.MASK COLOR
GREEN
OFF
4.TRANSPARENCY
L_TOP
5.SEL POS
6.XPOS
10
7.YPOS
10
8.RETURN
1) When the SPECIAL menu screen is displayed, press the Function Setup switch so that
the arrow indicates ‘PRIVACY’.
2) Set up the mode using the Function Setup switch.
ú AREA : You can select up to 12 PRIVACY areas.
ú MODE : Determines whether to use the area selected in the AREA.
ú MASK COLOR : Determine area color. You can select Green, Red, Blue, Black, White, Gray.
ú TRANSPARENCY : Adds or removes transparency from the masking area.
ú SEL POS/ XPOS/ YPOS : Adjust the size and position of the selected area.
ú RETURN : Select this to save the PRIVACY menu settings and return to the SPECIAL menu.
DIS (Digital Image Stabilizer) : This function mitigates any picture movement due to external
factors such as wind.
COLOR DOME CAMERA
40 SCV-3080
n
Notes
• As the DIS function uses the digital zoom, the camera's resolution will decrease.
• DIS doesn’t operate when background illumination is too low.
• DIS doesn’t operate when object pattern is monotonic as like sky or white wall.
LANGUAGE : You can select the menu language according to your requirements.
RETURN
: Select this to save the SPECIAL menu settings and return to the MAIN
SETUP menu.
EXIT
Select a desired EXIT mode using the Function Setup switch depending on the camera purpose.
SAVE
: Save the current settings and exit the MAIN SETUP menu.
NOT SAVE : Do not save the current settings and exit the MAIN SETUP menu.
RESET
: Resets the camera settings to the factory defaults.
Language and Monitor settings are not initialized.
y.
COLOR DOME CAMERA
41 SCV-3080
Troubleshooting
If you have trouble operating your camera, refer to the following table.
If the guidelines do not enable you to solve the problem, contact an authorized technician.
úNothing appears on the screen.
Ķ Check that the power cord and line connection between the camera and monitor are properly connected.
Ķ Check that you have properly connected BNC cable to the camera.
úThe image on the screen is dim.
Ķ Is lens stained with dirt? Clean your lens with soft, clean cloth.
Ķ Set the monitor or DVR to the proper condition.
Ķ If the camera is exposed to very strong light, change the camera position.
úThe image on the screen is dark.
Ķ Adjust the contrast feature of the monitor or DVR.
Ķ If you have an intermediate device, set the 75Ω / Hi-z properly.
úThe camera is not working properly, and the surface of the camera is hot.
Ķ Check that you have properly connected the camera to an appropriate power source.
úThe DAY/NIGHT menu does not work.
Ķ Check that AGC of EXPOSURE SETUP menu is ‘OFF’.
úThe SENS-UP function does not work.
Ķ Check that AGC of EXPOSURE SETUP menu is ‘OFF’.
Ķ Check that SHUTTER of EXPOSURE SETUP menu is ‘A.FLK’ or ‘MANUAL’.
úThe INTELLIGENCE function does not work.
Ķ Check that INTELLIGENCE of menu is ‘OFF’.
úColor is not correct.
Ķ Check the setting of WHITE BAL SETUP menu .
úThe screen flickers continually.
Ķ Ensure the camera is not pointing towards the sun.
úWhen coaxial communication is not available:
Ķ Make sure that the camera and monitor are installed within the recommended distance.
Ķ Use the video amplifier equivalent to coaxitron if the recommended installation distance is exceeded.
úThe camera is out of focus.
Ķ Check that you have properly adjusted the zoom / focus adjustment lever of lens.
E
In
P
V
Im
T
E
S
S
F
H
M
V
L
Z
F
A
P
P
O
E
S
O
(N
G
S
COLOR DOME CAMERA
42 SCV-3080
Specifications
SCV-3080 NTSC
SCV-3080 PAL
ELECTRICAL
Input Voltage
AC 24V/DC 12V, Built-in Fan & Heater(AC 24V)
Power Consumption
Heater off : 3.8W(Max), Heater on : 8.0W (Max)
VIDEO
Imaging Device
1/3 inch Color Double Density CCD
Total Pixels /
Effective Pixels
811(H) x 508(V) / 768(H) x 494(V)
Scanning System
2:1 Interlace / Progressive
Synchronization
Internal / Line-Lock
Frequency
H : 15.734KHz
V : 59.94Hz
795(H) x 596(V) / 752(H) x 582(V)
H: 15.625KHz
V: 50.00Hz
Horizontal Resolution
COLOR : 600TVL / B/W : 700 TVL
Min. Illumination
COLOR : 0.3 Lux(50IRE,F1.2),
0.0006 Lux(SENS-UP X512)
B/W : 0.01 Lux(50IRE,F1.2),
0.00002Lux(SENS-UP X512)
Video Output
CVBS : 1.0Vp-p, 75Ω composite
LENS
Zoom Ratio
3.9x (Manual)
Focus Length
2.8 ~ 11mm (F1.2)
Angular Field of View
H: 102.0°(Wide) ~ 28.0°(Tele) / V: 73.0°(Wide) ~ 21.0°(Tele)
PAN / TILT / ROTATE
Pan/Tilt/Rotate Range
0°~355°/ 0°~90°/ 0°~355°
OPERATIONAL
Electronic Shutter Speed 1/60 ~ 1/120k sec
1/50 ~ 1/120k sec
Shutter Mode
ESC, MANUAL, A.FLK, FIXED
On Screen Display
(NTSC : 7 / PAL : 15)
NTSC : English, Korean, Japanese, Spanish, French, Portuguese, Taiwanese
PAL : English, Chinese, German, Italian, French, Spanish, Russian, Czech,
Polish, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
Gain Control
OFF / LOW / HIGH
SENS-UP (frame Integration) OFF / Auto (Selectable x2 ~ x512)
COLOR DOME CAMERA
43 SCV-3080
Specifications
SCV-3080 NTSC
White Balance
SCV-3080 PAL
ATW / OUTDOOR / INDOOR / MANUAL / AWC (1,700°K ~ 11,000°K)
Backlight Compensation OFF / USER BLC / HLC / SSDR / WDR
Wide Dynamic Range
x128(52dB)
x160(54dB)
3D Noise Filter (SSNRIII) OFF / ON (Level adjustable)
Day & Night
AUTO / EXTERN / COLOR / B/W
Profile
BASIC / DAY/NIGHT / BACKLIGHT / ITS / INDOOR / USER
Digital Zoom
OFF / ON (x1 ~ x16)
Sharpness
OFF / ON (Level adjustable)
Camera Title
OFF / ON (Display 15 Characters)
SYNC
INTERNAL/LINE-LOCK
VPS(Virtual Progressive
OFF / ON
Scan)
INTELLIGENCE
DETECTION / TRACKING / FIXED/MOVED / ALARM OUT
ETC
PIP, REVERSE
Privacy Masking
OFF / ON (12 Programmable zones, Polygonal type)
Digital Image
Stabilization(DIS)
OFF / ON
Coaxial Communication
Pelco Coaxitron
ENVIRONMENTAL
Operating Temperature /
-50°C ~ +50°C / Less Than 90% RH
Humidity
MECHANICAL
Weather Proof
IP66
Dimension
Ø160(W) x 134.5(H)
Weight
1.26 Kg
ö The specification for this product may change without prior notice for product improvement.
COLOR DOME CAMERA
44 SCV-3080
134.5
Ø160
Dimension
COLOR DOME CAMERA
45 SCV-3080
DECLARATION OF CONFORMITY
Application of Council Directive(s)
2004 / 108 / EC
Manufacturer's Name
SAMSUNG TECHWIN CO., LTD
Manufacturer's Address
SAMSUNG TECHWIN CO., LTD
42, SUNGJU-DONG CHANGWON-CITY,
KYUNGNAM, KOREA, 641-716
European Representative Name
European Representative Address
Equipment Type/Environment
CCTV Camera
Model Name
SCV-3080P
Beginning Serial NO.
C5CX6V3Z300001X
Year of Manufacture
2010.03.01
Conformance to
EN 55022 : 2006
EN 50130-4 : 2003
We, the undersigned, hereby declare that the equipment specified above conforms
to the above Directive(s).
Manufacturer
SAMSUNG TECHWIN CO., LTD
Signature
Legal Representative in Europe
Signature
Full Name
BONJENG GU
Full Name
Position
QUALITY CONTROL MANAGER
Position
Place
CHANGWON, KOREA
Place
Date
2010.03.01
Date
COLOR DOME CAMERA
46 SCV-3080
MEMO
ms
COLOR DOME CAMERA
47 SCV-3080
SALES NETWORK
SAMSUNG TECHWIN CO., LTD.
Samsungtechwin R&D Center, 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 463-400
TEL : +82-70-7147-8740~60, FAX : +82-31-8018-3745
SAMSUNG TECHWIN AMERICA Inc.
1480 Charles Willard St, Carson, CA 90746, UNITED STATES
Tol Free : +1-877-213-1222, FAX : +1-310-632-2195
www.samsungcctvusa.com
www.samsungtechwin.com
www.samsungsecurity.com
SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business Park
Chertsey, Surrey, UNITED KINGDOM KT16 OPS
TEL : +44-1932-45-5300, FAX : +44-1932-45-5325
P/No. : Z6806-1229-01A
