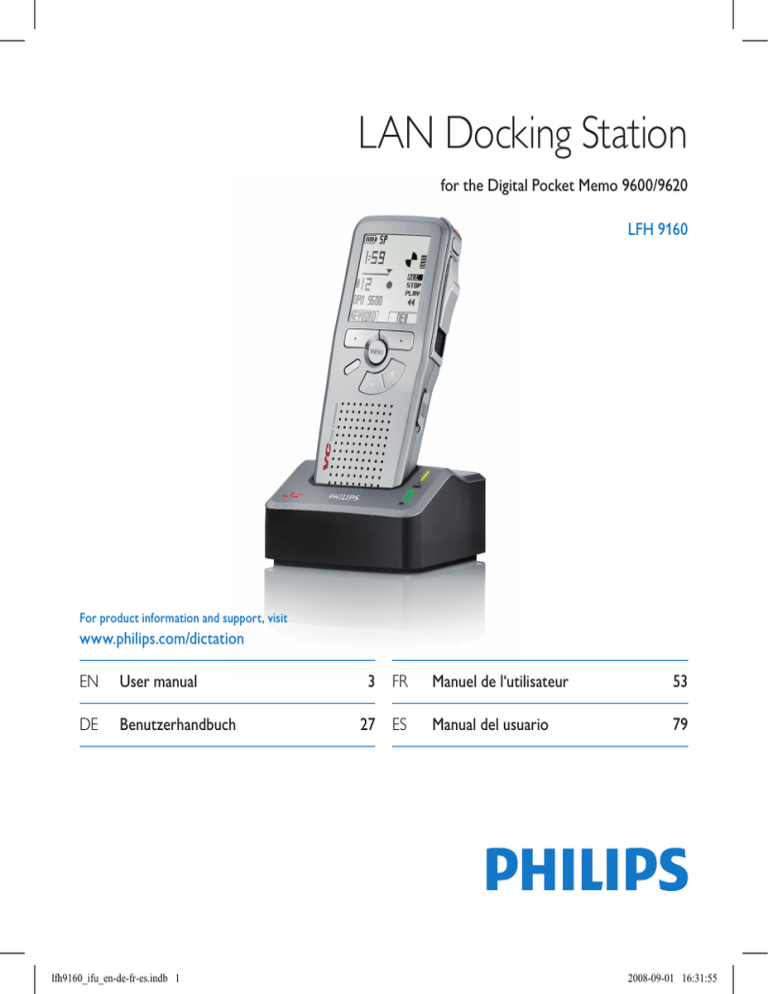

LAN Docking Station
for the Digital Pocket Memo 9600/9620
LFH 9160
For product information and support, visit
www.philips.com/dictation
EN
User manual
DE
Benutzerhandbuch
lfh9160_ifu_en-de-fr-es.indb 1
3
FR
Manuel de l‘utilisateur
53
27
ES
Manual del usuario
79
2008-09-01 16:31:55
lfh9160_ifu_en-de-fr-es.indb 2
2008-09-01 16:31:55
ENGLIS H
User manual
1
1.1
1.2
Welcome
Product highlights
What’s in the box
4
4
4
2
2.1
2.2
2.3
Important
Safety
Disposal of your old product
Technical support and warranty
5
5
5
5
3
3.1
3.2
3.3
3.3.1
3.3.2
Get started
Overview
System requirements
Installation
Installation using DHCP
Installation using the factory default IP
address
6
6
6
7
7
4
4.1
4.2
4.3
4.4
4.5
4.6
4.7
8
Configuration
9
Setting up the FTP server
9
Setting up the file upload directory on
your FTP server
10
Files stored in the file upload directory10
Setting up the file upload user account on
your FTP server
11
FTP settings
11
Automatic file upload
12
Changing the IP address of the LAN
Docking Station
12
User manual
lfh9160_ifu_en-de-fr-es.indb 3
4.7.1 Assigning an IP address from DHCP
4.7.2 Assigning a static IP address
4.8 Changing the LAN Docking Station
administrator password
4.9 Assigning a comment to the LAN
Docking Station
4.10 Upgrading the LAN Docking Station
firmware
4.11 Resetting to factory defaults
5
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.8
5.9
6
13
13
15
15
16
17
LAN Docking Station
Administration Tool
18
Obtaining the Administration Tool
software
18
System requirements
18
Installation
18
First-time configuration
18
Overview of the LAN Docking Stations19
Using the Initial Setup Installer to install a
LAN Docking Station
21
Changing the settings of multiple LAN
Docking Stations
22
Changing the settings of a single LAN
Docking Station
22
Upgrading the firmware of LAN Docking
Stations
23
Troubleshooting
24
3
2008-09-01 16:31:56
1 Welcome
Congratulations on your purchase and welcome
to Philips!
To fully benefit from the support that Philips
offers, visit our Website for support information
such as user manuals, software downloads,
warranty information and more:
www.philips.com/dictation.
1.1
Product highlights
for multiple authors
• Minimum user training required
• Remote configuration and maintenance of the
LAN docking station
• Platform independent (key components
function in Windows and Linux environments)
1.2
•
•
•
•
What’s in the box
LAN Docking Station 9160
Power Supply
RJ45 network cable
User manual
Simplify the dictation workflow:
• Upload the dictation files from your Digital
Pocket Memo directly to the network
without a PC or upload application
• Reduce document creation time, transfer
dictation files directly to your transcriptionist
• Recharge the batteries of your Digital Pocket
Memo while docked
Guaranteed security throughout the
entire dictation workflow:
• Password protection of the LAN Docking
Station
• Support of SFTP file transfer
• Encryption of dictation (.dss) files
• Theft protection by Kensington lock
Reduce total cost of IT ownership and
maintenance:
• Save time by centralized software installation
4
lfh9160_ifu_en-de-fr-es.indb 4
User manual
2008-09-01 16:31:56
2.1
Safety
• To avoid short circuit, do not expose the
product to rain or water.
• Do not expose the device to excessive
heat caused by heating equipment or direct
sunlight.
• Protect the cables from being pinched,
particularly at plugs and the point where they
exit from the device.
• Back up your files. Philips is not responsible
for any loss of data.
2.2
Disposal of your old product
• Your product is designed and manufactured
with high quality materials and components,
that can be recycled and re-used.
• When this crossed-out wheeled bin
symbol is attached to a product, it
indicates that the product is covered
by the European Directive 2002/96/
EC.
• Please become informed about the local
separate collection system for electrical and
electronic products.
• Please act according to your local rules and
do not dispose of old products with your
normal household waste. The correct disposal
of old products will help prevent potential
negative consequences for the environment
User manual
lfh9160_ifu_en-de-fr-es.indb 5
and human health.
• Batteries (including built-in rechargeable
batteries) contain substances that may pollute
the environment. All batteries should be
disposed of at an official collection point.
ENGLIS H
2 Important
2.3 Technical support and warranty
This Philips product was designed and
manufactured to the highest quality standards.
If your Philips product is not working correctly
or is defective, contact your supplying Philips
Speech Processing dealer who will provide
you with the necessary information on how to
proceed.
If you have questions that your dealer cannot
answer or any other related question, visit
www.philips.com/dictation to contact us.
No components are user-serviceable. Do not
open or remove covers and do not insert
objects not suitable for the specific connectors.
Repairs may be made only by Philips service
centers and official repair facilities. Failure to do
so will void any warranty, stated or implied. Any
operation expressly prohibited in this manual,
any adjustments, or assembly procedures not
recommended or authorized in this manual will
void the warranty.
5
2008-09-01 16:31:56
3 Get started
3.1
Overview
1
1
2
3
4
5
6
2
3
4
5
6
Docking slot for the Digital Pocket Memo
Green LED indicates that the Digital Pocket Memo batteries are recharging
Yellow LED indicates that dictation files are being transferred
Power supply socket
Socket for Kensington lock
RJ45 network socket for connection to the Local Area Network
3.2
System requirements
• 10/100 Mbit/s Local Area Network with RJ45 connections
• FTP server with a user account configured for the LAN Docking Station
• DHCP server (recommended)
6
lfh9160_ifu_en-de-fr-es.indb 6
User manual
2008-09-01 16:31:56
Installation
When installing one or more new LAN Docking
Stations to your network, you can set it up in
one of two ways:
• Use the DHCP service on your network
to assign IP addresses to the LAN Docking
Stations based on the MAC address of each
LAN Docking Station, or
• Set the LAN docking station to a default IP
address to access the configuration interface
and assign a fixed IP address
The LAN Docking has a default configuration
setting to use the DHCP server to obtain its
IP address. This makes it easier to do a batch
installation of several LAN Docking Stations in
a corporate network. See Installation using DHCP
below for more information.
If your network does not support DHCP,
you can set the LAN Docking Station to use
a default static IP address to get started. See
Installation using the factory default IP address
below for more information.
3.3.1 Installation using DHCP
If your network has a DHCP server, follow
the steps below to install new LAN Docking
Stations:
1 Make a note of the MAC address of every
LAN Docking Station that you are about
to install (The MAC address can be found
on the bottom plate of the LAN Docking
Station).
User manual
lfh9160_ifu_en-de-fr-es.indb 7
2 Configure your DHCP server to assign an IP
address to each LAN Docking Station based
on the MAC address of each LAN Docking
Station. Refer to the documentation of your
DHCP server for more information.
3 Deploy the LAN Docking Stations
throughout your organization. Connect each
LAN Docking Station to the main power
supply with the included Philips power
supply. Connect each LAN Docking Station
to a free network socket using the RJ45
network cable.
4 Open a Web browser on your PC and load
the LAN Docking Station configuration
interface for each assigned IP address
to configure the LAN Docking Stations
individually. See Configuration on page 9 for
more information.
ENGLIS H
3.3
DNote
The LAN Docking Station is configured by
default to obtain an IP address from your DHCP
server. If this default setting has been changed,
you must reset the device to its factory default
settings before starting. Read Resetting to factory
defaults on page 17 for information on how
to reset the LAN Docking Station to factory
default settings.
ETip
It is good practice to make a note of the
location and network socket number of
each LAN Docking Station before they are
deployed. You can enter this information into
the comment field of the LAN Docking Station
configuration interface, which will make it easier
7
2008-09-01 16:31:56
to troubleshoot and maintain LAN Docking
Stations in your network. See Assigning a
comment to the LAN Docking Station on page 15
for more information about assigning comments.
3.3.2 Installation using the factory default
IP address
If your network does not have a DHCP server,
follow these steps to install a new LAN Docking
Station:
1 Connect the LAN Docking Station to the
main power supply with the included Philips
power supply.
2 Connect the LAN Docking Station to a free
network socket using the RJ45 network
cable.
3 Slide a Digital pocket Memo 9600 or 9620
into the docking slot of the LAN Docking
Station.
4 Press and hold the FUNCTION and the
MENU button on the Digital Pocket Memo
simultaneously for 3 seconds. The LAN
Docking Station will be configured to use
the static IP address 192.168.109.1 (subnet
mask 255.255.255.0).
5 Configure the network connetion settings
of your PC to use a static IP address
like 192.168.109.xxx and subnet mask
255.255.255.0 for the network socket that is
used to connect the LAN Docking Station.
6 Open a Web browser on your PC and enter
http://192.168.109.1 in the address field
7 Your user name and password is required.
Leave the USER NAME field empty and enter
8
lfh9160_ifu_en-de-fr-es.indb 8
‚administrator‘ in the PASSWORD field.
8 Change the IP address of the LAN Docking
Station according to your network policy.
See Assigning a static IP address on page 13
for more information.
9 Make any additional configuration changes as
you see fit. See Configuration on page 9 for
more information.
DNote
This procedure resets all configuration settings
of the LAN Docking Station to their factory
defaults.
CImportant
If installing several LAN Docking Stations,
be sure to change the IP address of the LAN
Docking Station before connecting the next one
to the network. Failure to do so will result in
IP address conflicts, making the configuration
interface of the LAN Docking Station
inaccessible.
User manual
2008-09-01 16:31:56
Once the LAN Docking Station is connected to
the network, it can be configured using a simple
HTML interface from any HTML4-compliant
Web browser.
There is also an Administration Tool that can
be used to manage and update the configuration
settings of several LAN Docking Stations (batch
update). See LAN Docking Station Administration
Tool on page 18 for more information.
To open the LAN Docking Station configuration
interface, follow these steps:
1 Open a Web browser on your PC.
2 Enter the IP address of the LAN Docking
User manual
lfh9160_ifu_en-de-fr-es.indb 9
ENGLIS H
4 Configuration
Station that you want to configure into the
address field of the Web browser.
3 The Web browser prompts you for a user
name and password. Leave the user name
field empty and enter the administrator
password. If you are accessing the
configuration interface for the first time, the
default password is ‚administrator‘.
4 The configuration interface appears with
the following panels: Status, IP settings, FTP
settings, Automatic file upload, Comments,
Firmware upgrade and Administrator
password.
9
2008-09-01 16:31:56
4.1 Setting up the FTP server
The LAN Docking Station can automatically
upload dictation files to an FTP server when a
Digital Pocket Memo is connected.
The LAN Docking Station has been tested with
a number of FTP servers for the Windows and
Linux platforms. It should also function with
any other FTP server conforming to the FTP
protocol specifications standard. The following
FTP servers have been tested with the LAN
Docking Station:
• Microsoft Internet Information Server
• WS FTP Server
• WinSSHD
• FileZilla Server
• freeftpd
• OpenSSHD
If you have multiple LAN Docking Stations
on your network, there is no need to create
a different file upload directory for each
installation. The LAN Docking Station was
designed to work more efficiently with a single
shared file upload directory.
ETip
It is a good practice to make the file upload
directory available to employees at your
organization as a shared network folder
that they can map to a drive letter on their
computers. This makes it quick and easy for
them to pick up dictation jobs, and allows you
to control access to the uploaded dictation files
using the existing user and group configuration
in your network domain.
DNote
The LAN Docking Station opens FTP data
connections in passive mode. If there is a
firewall between the LAN Docking Station
and your FTP server, make sure that the LAN
Docking Station can connect to port numbers
used for passive data transfer. Refer to the
User Manual of your FTP server for more
information.
4.3
4.2
The LAN Docking Station also creates a
“configuration” subdirectory in the file upload
directory and creates a file named MAC_config.
txt, where MAC is the MAC address of the
LAN Docking Station. These files contain
configuration information for the LAN Docking
Setting up the file upload directory
on your FTP server
Create a directory on the FTP server to store
uploaded dictation files. This dictory will be
referred to as the ‚file upload directory‘ in this
user guide.
10
lfh9160_ifu_en-de-fr-es.indb 10
Files stored in the file upload
directory
When dictation files are uploaded from a Digital
Pocket Memo, the LAN Docking Station creates
a subdirectory with the serial number of the
Digital Pocket Memo under the file upload
directory and places all uploaded files there. The
file names of the uploaded files are composed of
the name of the author, the sequential number
of the file, and the .DSS file extension.
User manual
2008-09-01 16:31:56
4.4
Setting up the file upload user
account on your FTP server
Create a user account on your FTP server
that the LAN Docking Station will use to
upload dictation files. This user account needs
the following access rights to the file upload
directory:
• Create subdirectories
• Create and write files
• List directory contents
The user name and password for this user
account must be entered at the LAN Docking
Station configuration interface. See the next
chapter for details.
4.5 FTP settings
Once you have your FTP server set up, you
must configure the LAN Docking Station to use
it. To configure the FTP settings, follow these
steps:
1 Open the LAN Docking Station
configuration interface by entering its IP
address in your Web browser or using the
LAN Docking Station Administration Tool.
2 If your FTP server can accept secure (SFTP)
connections, check the SFTP radio button
on the FTP settings panel. Otherwise, check
the FTP radio button on the FTP settings
User manual
lfh9160_ifu_en-de-fr-es.indb 11
panel.
3 Enter the domain name or IP address of
your FTP server into the FTP SERVER field.
The FTP server does not have to be on the
the local area network. If you reference
the FTP server using its domain name,
make sure that at least one DNS server is
configured (see Assigning a static IP address
on page 13) or that you are using DHCP
(see Assigning an IP address from DHCP on
page 13).
4 Enter the port number of your FTP server
into the FTP PORT field. The port number
should be 21 for FTP or 22 for SFTP,
unless your FTP server is configured with a
nonstandard port number.
5 Enter the name of the FTP user account
into the USERNAME field. This should be
the user account you have set up to receive
dictation file uploads from the LAN Docking
Station. See Setting up the FTP server on page
9 for more information.
6 Enter the password of the FTP user account
into the PASSWORD field and confirm
the password by typing it again into the
CONFIRM PASSWORD field.
7 Enter the path to the directory to receive
dictation files into the PATH ON SERVER
field. If you want to use the default directory
of the user account, leave the field empty.
8 Press the SUBMIT button at the bottom of
the FTP settings panel in order to save your
changes.
ENGLIS H
Station and are used by the Administration Tool.
See LAN Docking Station Administration Tool on
page 18 for more information.
11
2008-09-01 16:31:56
upload settings here, check the LAN
DOCKING STATION DEFINES UPLOAD
SETTINGS radio button. In this case,
4.6 Automatic file upload
The automatic file upload settings let you
configure which dictation files are automatically
uploaded to the FTP server when a Digital
Pocket Memo is connected to the LAN Docking
station.
1 Open the LAN Docking Station
configuration interface by entering its IP
address in your Web browser or using the
Administration tool.
2 Choose how the automatic file upload
settings should be determined:
• If you want the configuration settings
of the connected Digital Pocket Memo
to determine which dictation files
are uploaded, then check the DPM
configuration settings of the connected
Digital Pocket Memo will be ignored.
3 Choose which files should be uploaded
when a Digital Pocket Memo is connected
to the LAN Docking Station:
• Check the UPLOAD ALL DICTATION FILES
radio button if you want all dictation files
to be uploaded when a Digital Pocket
Memo is connected.
• Check the EOL DICTATION FILES ONLY
radio button if you only want to upload
dictation files that have been marked
finished with the EOL (End-of-Letter)
button.
4 Check the DELETE UPLOADED check box
if you want to delete dictation files from
the Digital Pocket Memo that have been
successfully uploaded to the FTP server.
Clear the check box if you want to leave the
uploaded files on the Digital Pocket Memo.
5 Press the SUBMIT button at the bottom of
the panel to save your changes.
CONFIGURATION DEFINES FILES TO
UPLOAD radio button and skip to step 5.
Refer to the Digital Pocket Memo User
Manual on configuring automatic file
upload settings.
• If you want to configure automatic file
12
lfh9160_ifu_en-de-fr-es.indb 12
User manual
2008-09-01 16:31:56
Changing the IP address of the LAN
Docking Station
You can assign a static IP address to the LAN
Docking Station or have the LAN Docking
station use the DHCP service on your network
to obtain an IP address automatically.
the IP settings panel in order to save your
changes. The LAN Docking Station will
obtain an IP address from the DHCP server
immediately and every time it is powered
on.
ENGLIS H
4.7
4.7.1 Assigning an IP address from DHCP
DNote
If you are installing the LAN Docking Station for
the first time, please follow the instructions in
the chapter Installation on page 7.
To have the LAN Docking Station obtain an IP
address automatically from the DHCP server on
your network, follow these steps:
1 Make a note of the MAC address of the
LAN Docking Station. The MAC address can
be found on the bottom plate of the LAN
Docking Station.
2 Configure your DHCP server to assign an IP
address to the LAN Docking Station based
on the MAC address of the LAN Docking
Station. Refer to the documentation of your
DHCP server for more information.
3 Open the LAN Docking Station
configuration interface by entering its IP
address in your Web browser or using the
LAN Docking Station Administration Tool.
4 Check the OBTAIN IP ADDRESS
AUTOMATICALLY (DHCP) check box on the
IP Settings panel.
5 Click the SUBMIT button at the bottom of
User manual
lfh9160_ifu_en-de-fr-es.indb 13
DNote
The IP address of the LAN Docking Station
is updated immediately, so its configuration
interface will no longer be accessible from the
old IP address.
4.7.2 Assigning a static IP address
DNote
If you are installing the LAN Docking Station
for the first time, follow the instructions in the
chapter Installation on page 7.
13
2008-09-01 16:31:57
ETip
To display the current IP address assigned to a
LAN Docking Station and its MAC address, slide
a Digital Pocket Memo 9600 or 9620 into the
docking slot and press the MENU button and
RIGHT SMART BUTTON on the Digital Pocket
Memo simultaneously.
To assign a static IP address to the LAN
Docking Station, follow these steps:
1 Open the LAN Docking Station
configuration interface by entering its IP
address in your Web browser or using the
LAN Docking Station Administration Tool.
2 Check the USE THE FOLLOWING IP
SETTINGS check box on the IP settings
panel.
3 Enter the IP address you want to assign
to the LAN Docking Station into the IP
ADDRESS field.
4 Enter the subnet mask for this IP address
into the SUBNET MASK field.
5 Enter the IP address of your network
gateway into the DEFAULT GATEWAY field.
6 Enter the IP address of a DNS server on
your network into the PREFERRED DNS
SERVER field. A DNS server is only required
if you reference your FTP server using a
domain name on the FTP settings panel
(see FTP settings on page 11). Leave the field
empty if you do not want to specify a DNS
server.
7 You can enter the IP address of another
DNS server into the ALTERNATE DNS
SERVER field. This alternate DNS server will
14
lfh9160_ifu_en-de-fr-es.indb 14
only be used if the preferred DNS server is
not available. Leave the field empty if you
don‘t want to specify an alternate DNS
server.
8 Press the SUBMIT button at the bottom of
the IP settings panel in order to save your
changes. The LAN Docking Station will
change its IP address immediately and will
attempt to use this static IP address every
time it is powered on.
DNote
The IP address of the LAN Docking Station
is updated immediately, so its configuration
interface will no longer be accessible from the
old IP address.
CImportant
When assigning a static IP address to the LAN
Docking Station, make sure that the address
you assign is available on your network. If the
IP address is already in use on your network,
the configuration interface of the LAN Docking
User manual
2008-09-01 16:31:57
4.8
Changing the LAN Docking Station
administrator password
To access the configuration interface of the LAN
Docking Station, you must enter a password.
The factory default password is ‚administrator‘.
The administration password protects the
settings of the LAN Docking Station against
unauthorized access. It is highly recommended
that you change the default password when you
first log on to the configuration interface.
1 Type the new password into the
ADMINISTRATOR PASSWORD field on the
password settings panel.
2 Confirm the password by typing it again into
the CONFIRM PASSWORD field.
3 Press the SUBMIT button at the bottom of
the password settings panel.
DNote
If the password and the confirmation do not
match, you will get an error pop-up message
after pressing the SUBMIT button. If this
happens, start over from step 1.
ENGLIS H
Station will not be accessible. You can resolve
this situation by freeing up the IP address on
the network and powering the LAN Docking
Station off then back on, or by resetting the
LAN Docking Station to factory default settings.
See Resetting to factory defaults on page 17 for
more information.
CImportant
When you access the configuration interface
of the LAN Docking Station, your password is
sent over the network in clear text format. Do
not use your domain administrator password
or any existing network password for the LAN
Docking Station.
ETip
If you have several LAN Docking Stations in
your network, it is advisable to use the same
administrator password for each. This makes
it easier to access them from the LAN Docking
Station Administration Tool (see page 18).
4.9
Assigning a comment to the LAN
Docking Station
You can assign comments to each LAN Docking
Station. Assigning comments is not required, but
it can help you identify individual LAN Docking
Stations within your organization.
1 Enter the name of the office (where the
LAN Docking Station is installed) along
with a comment in the the comments panel.
This will help you identify this LAN Docking
Station.
2 Press the SUBMIT button at the bottom of
the comments panel to save your changes.
User manual
lfh9160_ifu_en-de-fr-es.indb 15
15
2008-09-01 16:31:57
DNote
The ROOM field is limited to 128 characters;
the COMMENT field is limited to 255
characters.
4.10 Upgrading the LAN Docking Station
firmware
Occasionally Philips may release new versions
of the firmware with bug fixes and feature
improvements. Visit the support center at www.
philips.com/dictation to check if a new firmware
version is available for the LAN Docking Station.
The current version of the firmware is displayed
at the top of the configuration interface on the
STATUS panel.
1 Download the latest firmware (.bcd file)
from www.philips.com/dictation.
2 Save the .bcd file to to a network location
that the LAN Docking Station can access.
This can be either an FTP server or an
HTTP Web server.
3 Open the LAN Docking Station
configuration interface by entering its IP
address in your Web browser or using the
16
lfh9160_ifu_en-de-fr-es.indb 16
LAN Docking Station Administration Tool.
4 Select the type of server (FTP, SFTP, HTTP)
where you have saved the .bcd file.
5 Enter the domain name or IP address of
the server hosting the firmware file into
the SERVER field (the server does not have
to be on your Local Area Network). If you
reference the server using its domain name,
make sure that at least one DNS server is
configured (see Assigning a static IP address
on page 13) or that you are using DHCP
(see Assigning an IP address from DHCP on
page 13).
6 Enter the port number of your server
into the PORT field. Unless your server
is configured to use nonstandard port
numbers, you should use 21 for an FTP
server, 22 for an SFTP connection and 80 for
an HTTP Web server.
7 If your server requires authentication to
download the firmware file, enter the name
of the user account, the password, and
confirm the password. Otherwise leave
the USERNAME, PASSWORD and CONFIRM
PASSWORD text fields empty.
8 Enter the full path and file name to the .bcd
file of the new firmware into the PATH ON
SERVER text field.
9 Press the UPGRADE NOW button to start
the upgrade process.
User manual
2008-09-01 16:31:57
DNote
Once the firmware upgrade is complete, the
LAN Docking Station will restart. You may get
disconnected from the configuration interface.
ENGLIS H
4 The configuration settings of the LAN
Docking Station will reset to their factory
defaults, and the LAN Docking Station will
restart. The IP address of the LAN Docking
Station will be set to 192.168.109.1 (subnet
mask 255.255.255.0).
5 Open the LAN Docking Station
configuration interface by entering its IP
address in your Web browser.
6 You will be prompted to enter a user name
and a password. Leave the user name field
empty and enter ‚administrator‘ in the
PASSWORD field.
7 Change the IP address of the LAN Docking
Station according to your network policy.
See Changing the IP address of the LAN
Docking Station on page 13 for more
information.
4.11 Resetting to factory defaults
Follow these steps to reset the LAN Docking
Station to its factory default configuration
settings:
BWarning: When you reset the LAN
Docking Station, all your configuration settings
will be lost.
1 Make sure that the LAN Docking Station is
connected to the main power supply using
the Philips power supply.
2 Slide a Digital pocket Memo 9600 or 9620
into the docking slot of the LAN Docking
Station.
3 Press and hold the FUNCTION and the
MENU button on the Digital Pocket Memo
simultaneously for 3 seconds.
User manual
lfh9160_ifu_en-de-fr-es.indb 17
17
2008-09-01 16:31:57
5 LAN Docking Station
Administration Tool
The Administration Tool allows the network
administrator to quickly overview the status of
up to 100 LAN Docking Stations connected to
a network and make configuration changes to
them from a centralized user interface.
5.1
Obtaining the Administration Tool
software
The Administration Tool is sold separately. Contact your local reseller for more information.
5.2 System requirements
Hardware
• IBM PC or compatible computer
• Pentium III, 1 GHz, 512 MB RAM
• 10 MB hard disk space (350 MB if .NET and
additional third party software installation is
required)
• CD-ROM drive
• LAN connection
Operating System
• Windows 2000 (with service pack 4)
• Windows XP (with service pack 2)
• Windows Vista
• Windows Server 2003
Software
• Microsoft .NET Framework 2.0
18
lfh9160_ifu_en-de-fr-es.indb 18
• Microsoft Windows Installer 3.1
• Microsoft Core XML Services (MSXML) 6.0
If a required software cannot not be found on
the target computer, the installer will attempt
to install it.
5.3 Installation
To install the Administration tool on your PC:
1 Insert the Administration Tool CD into your
CD-ROM drive.
2 The Administration Tool set-up program
starts automatically. If not, open the
Administration Tool CD contents in
Windows Explorer and run the setup.exe file.
3 Follow the on-screen instructions of the
set-up program to install the Administration
Tool on your PC.
5.4 First-time configuration
The Administration Tool collects information
about the LAN Docking Stations in your
network by collecting the LAN Docking
Stations’ identification files from a shared
upload directory on your FTP server. See Setting
up the FTP server on page 10 for information
about setting up your FTP server. Afterwards, a
connection is established to each LAN Docking
Station to read its configuration data.
When you run the Administration Tool for
the first time, you will be prompted to enter
the connection data of the FTP server and
User manual
2008-09-01 16:31:57
If the directory is mapped to a shared network
folder:
1 Check the LOCAL NETWORK DRIVE radio
button.
2 Enter the absolute path to the shared
upload directory or click the BROWSE
button and select the folder.
3 Enter an administration password for direct
connections with LAN Docking Stations in
the PASSWORD field and confirm it in the
RE-ENTER field.
4 Click OK at the bottom of the configuration
dialog.
If the directory is not mapped to a shared network
folder:
1 Check the FTP SERVER radio button.
2 Enter the IP address or domain name of the
FTP server in the SERVER field.
3 Enter the FTP port number in the PORT field.
Unless your FTP server is configured to use
a nonstandard port number, this should be
21.
4 Enter the user name and the password of the
account needed to log on to the FTP server
into the USERNAME and PASSWORD fields.
5 Click the OK button at the bottom of the
configuration dialog.
ENGLIS H
the administration password to allow direct
communication with the LAN Docking Stations.
FTP server settings can also be accessed at a
later time by clicking the SETTINGS button in
the file menu.
DNote
You will not be able to administer any LAN
Docking Stations until you provide valid
connection data to the FTP server and a valid
administration password.
CImportant: Remember that you can only
administer LAN Docking Stations sharing the
same FTP settings and administration password
at a time!
5.5
Overview of the LAN Docking
Stations
Upon start-up, the Administration Tool
automatically retrieves configuration data
from any LAN Docking Station, that placed
an identification file within the shared upload
directory on the FTP server, and displays the
data record in the application’s main pane.
User manual
lfh9160_ifu_en-de-fr-es.indb 19
19
2008-09-01 16:31:57
Double-clicking on a LAN Docking Station in
the list opens its configuration interface in the
system’s default browser.
A LAN Docking Station is regarded on line
if both the connection to the device was
established and its configuration data could
be retrieved successfully. The on line status
is represented by a green or a red dot in the
ONLINE STATUS column.
Every LAN Docking Station will display the
following information:
• Its MAC address
• Its IP address
• The date and time when it was last used
(or when a Digital Pocket Memo was last
connected).
Additionally, the following settings are displayed
for all online LAN Docking Stations:
20
lfh9160_ifu_en-de-fr-es.indb 20
• The firmware version of the LAN Docking
Station
• The MAC address of the LAN Docking
Station
• A flag that indicates whether the LAN
Docking Station is configured via a DHCP
server
• The IP address settings of the LAN Docking
Station, including the IP address, the subnet
mask, the gateway address, and any Domain
Name Server addresses
• A flag indicates if the LAN Docking Station
connects to an FTP or an SFTP server for file
upload
• The FTP/SFTP server settings of the LAN
Docking Station, including the hostname and
port of the server, as well as the username,
password and path on the server
• A flag that indicates whether the file upload
settings of the LAN Docking Station are
taken from the Digital Pocket Memo or from
User manual
2008-09-01 16:31:57
DNote
Only online LAN Docking stations can be
administered from the Administration Tool.
CImportant
You should use the RELOAD button (below
the file menu of the Application tool) often to
refresh the status of the LAN Docking Stations
in your network.
5.6
Using the Initial Setup Installer to
install a LAN Docking Station
The Initial Setup Installer offers a comprehensive
and easy to use interface to initally configure the
User manual
lfh9160_ifu_en-de-fr-es.indb 21
settings of a LAN Docking Station. Follow the
steps below to install a LAN Docking Station.
1 Connect the LAN Docking Station to the
PC that is running the Administration Tool,
or to your LAN, via a crossed LAN cable.
2 Open the Initial Setup Installer by clicking on
the tool bar button.
3 Specify the current IP address of the
LAN Docking Station in the CURRENT IP
ADDRESS field.
4 IP SETTINGS
You can assign a static IP address to the
LAN Docking Station or have it use the
DHCP service on your network to obtain
an IP address automatically in the IP settings
panel of the Initial Setup Installer dialog
• Assigning
an IP address via DHCP: To
have the LAN Docking Station obtain
an IP address automatically from the
DHCP server on your network, check the
ENGLIS H
the LAN Docking Station itself
• A flag indicates if all files (or only EOL
dictation files) will be uploaded to the FTP/
SFTP. For this setting to take effect, the LAN
Docking Station must be in charge of the file
upload settings!
• A flag that indicates whether the dictation
files will be deleted from the Digital Pocket
memo after they are uploaded to the FTP/
SFTP server by the LAN Docking Station. For
this setting to take effect, the LAN Docking
Station must be in charge of the file upload
settings!
• Any commentary data, including an office
name or description and a general comment
• The administration password of the LAN
Docking Station
• The date and time when the LAN Docking
Station was last used (a Digital Pocket Memo
was last connected)
OBTAIN AN IP ADDRESS AUTOMATICALLY
(DHCP) radio button. See Assigning an IP
address from DHCP on page 13 for further
information.
• Assigning
a static IP address: To assign
a static IP address to the LAN Docking
Station, check the USE THE FOLLOWING
IP SETTINGS radio button and enter the IP
address settings, including the IP address,
the subnet mask, the gateway address, and
the Domain Name Server addresses.
5 FTP SETTINGS
Enter the hostname and port of the server,
as well as the username, the password and
the path on the server. If the FTP server can
21
2008-09-01 16:31:57
accept secure connections, you may use this
feature by checking the SFTP radio button.
For further information, refer to FTP settings
on page 11. For information on setting up
the FTP server, refer to chapter Setting up
the FTP server on page 10.
6 AUTOMATIC FILE UPLOAD SETTINGS
The automatic file upload settings let
you configure which dictation files are
automatically uploaded to the FTP server
when a Digital Pocket Memo is connected
to the LAN Docking Station. For further
information, refer to Automatic file upload on
page 12.
7 ADMINISTRATION PASSWORD
Enter an administration password for the
LAN Docking Station.
8 COMMENTS
You may enter any commentary data about
the LAN Docking Station in the comments
panel. For further information, see Assigning
a comment to the LAN Docking Station on
page 15.
9 Press the CONFIGURE button at the bottom
of the Initial Setup Installer panel to submit
the settings to the LAN Docking Station.
file upload settings in the global settings
form, which is located below the
Administration Tool’s main pane.
2 Select the LAN Docking Stations you want
to update.
3 Click the SUBMIT CHANGES button in the
bottom right corner. An overview of the
settings is displayed. These settings will be
sent to the LAN Docking Stations after
confirmation by clicking the OK button.
The result of the operation of each LAN
Docking Station is shown in a result
window. Clicking the CANCEL button will
close the overview, but will keep the new
settings stored for later submission. Upon
clicking the UNDO CHANGES button, any
stored settings will be deleted.
DNote
Settings can only be uploaded to LAN Docking
Stations that are currently online.
5.7
Changing the settings of a single
LAN Docking Station
Many of the settings of the LAN Docking
Station can be changed directly in the data
record in the Administration Tool’s main pane.
These are:
1 Configure FTP settings, administration
password, DHCP activation and automatic
• A flag indicates wether the LAN Docking
Station is configured via a DHCP server (or
not) in the DHCP column.
• A flag indicates if the LAN Docking Station
connects to an FTP or an SFTP server (for file
upload) in the USE SFTP column.
Changing the settings of multiple
LAN Docking Stations
The Administration Tool allows for quick
reconfiguration of the most important settings
of one or multiple LAN Docking Stations.
22
lfh9160_ifu_en-de-fr-es.indb 22
5.8
User manual
2008-09-01 16:31:57
1 Enter your changes directly in the fields of
the Administration Tool’s main pane.
2 Click the SUBMIT CHANGES button in
the bottom right corner of the form. An
overview of the settings is displayed. These
settings will be sent to the LAN Docking
Stations after confirmation by clicking the
OK button. The result of the operation of
each LAN Docking Station is shown in a
result window. Clicking the CANCEL button
will close the overview, but will keep the
new settings stored for later submission.
Upon clicking the UNDO CHANGES button,
User manual
lfh9160_ifu_en-de-fr-es.indb 23
any stored settings will be deleted.
DNote
Settings can only be uploaded to LAN Docking
Stations that are currently online.
ENGLIS H
• A flag indicates if the file upload settings of
the LAN Docking Station are taken from
the Digital Pocket Memo or from the LAN
Docking Station itself in the USE DPM
UPLOAD SETTINGS column.
• A flag indicates if all files (or EOL dictation
files only) get uploaded to the FTP/SFTP
server by the LAN Docking Station in the
UPLOAD ALL column. For this setting to take
effect, the LAN Docking Station has to be in
charge of the file upload settings!
• A flag indicates wheter the dictation files will
be deleted from the Digital Pocket Memo
after they were uploaded to the FTP/SFTP
server by the LAN Docking Station in the
DELETE UPLOADED column. For this setting to
take effect, the LAN Docking Station has to
be in charge of the file upload settings!
• Some commentary data, including a room
description and a general comment on the
LAN Docking Station in the ROOM and
COMMENT column.
CImportant
Changes made to a single LAN Docking Station
have precedence over any settings made in the
global settings form that apply to the same LAN
Docking Station!
5.9
Upgrading the firmware of LAN
Docking Stations
1 Download the latest firmware (.bce file)
from www.philips.com/dictation
2 Save the .bcd file to to a network location
that the LAN Docking Station can access.
This can be an FTP server or an HTTP Web
server.
3 Click on the FIRMWARE UPGRADE button on
the symbol bar of the Administration Tool
4 Select the type of server (FTP, SFTP, HTTP)
where the .bcd file is saved.
5 Enter the domain name or IP address of the
server hosting the firmware file into the
SERVER field.
6 Enter the port number of your server
into the PORT field. Unless your server
is configured to use non-standard port
numbers, you should use 21 for an FTP
server, 22 for an SFTP connection and 80 for
an HTTP Web server.
7 If your server requires authentication to
23
2008-09-01 16:31:58
download the firmware file, enter the name
of the user account, the password, and
confirm the password. Otherwise leave
the USERNAME, PASSWORD and CONFIRM
PASSWORD text fields empty.
8 Enter the full path and file name to the .bcd
file of the new firmware into the PATH ON
SERVER text field.
9 Press the UPGRADE NOW button to start
the upgrade process.
DNote
The current firmware version of a LAN Docking
Station can be found in the FIRMWARE column
of the Administration Tool’s main pane.
CImportant
A firmware upgrade will be uploaded to all LAN
Docking Stations that appear online in the main
pane of the Administration Tool, and may take a
few minutes to complete. During the firmware
upgrade process, a LAN Docking Station
will temporarily go offline and will go back
online when the upgrade process is complete.
After upgrading, reload the main pane (click
the RELOAD button) and check the current
firmware version.
24
lfh9160_ifu_en-de-fr-es.indb 24
6 Troubleshooting
Configuration
Displaying the current IP address and the
MAC address of a LAN Docking Station
To display the current IP address assigned to a
LAN Docking Station and its MAC address, slide
a Digital pocket Memo 9600 or 9620 into the
docking slot and press the MENU button and the
RIGHT SMART BUTTON on the Digital Pocket
Memo simultaneously.
The LAN Docking Station configuration
window does not show up in the Web
browser when entering the IP address
• Verify if the Docking Station is connectd to
the mains power supply.
• Verify if you use the correct network cable.
Only use a crossover cable, when you directly
connect the LAN Docking station to the PC.
• Check your TCP/IP configuration. If you do
not use DHCP, do you have configured the
LAN Docking Station according to your
network policy? If you use DHCP, has the
DHCP Server assigned an IP-address to the
LAN Docking Station? (search for the IP
address)
• If you use DHCP (the default), has the DHCP
server assigned an IP address?
• Can you ping the IP address in the Command
window?
• Verify if you can enable error logging on the
target FTP server to find the cause of the
problem.
User manual
2008-09-01 16:31:58
Forgot your administrator password?
If you have forgotten your administrator
password, see Resetting to factory defaults on
page 17.
User manual
lfh9160_ifu_en-de-fr-es.indb 25
Errors on the display of the Digital Pocket
Memo
The Digital Pocket Memo displays the
error message:
FAILED:
-- REASON:
No Files
ENGLIS H
The LAN Docking Station configuration
window can be opened but files created
on the Digital Pocket Memo are not
transferred to the target FTP Server
• Verify if the FTP server is running on the
target file server.
• Verify if the FTP server is set up correctly
(Settings of: user names, user passwords, port
number, dictation target folder, folder access
and write rights).
• Verify if the FTP address of the FTP server
configured correctly in the LAN Docking
Station.
• Verify if the firewall between the LAN
Docking Station and the target FTP server is
open for FTP traffic (deault port 21).
• Verify if the LAN Docking Station has full
access and write rights to the target file folder
of the FTP Server.
• Verify if there is a proxy server between
the LAN Docking Station and the target
FTP server. Can the proxy be configured
in “transparent mode” to allow the LAN
Docking Station to connect?
• Can you enable logging on the FTP server to
find the cause of the problem?
This is no failure. This message is displayed,
when no dictation files are on the device when
you connect it to the LAN Docking Station and
it tries to upload dictations to the FTP server.
The Digital Pocket Memo displays the
error message:
FAILED:
-- REASON:
NETWORK OR
SERVER PROBLEM
• Verify if you have configured the FTP settings
properly
• Verify if you have configured the FTP settings
for firmware upgrade properly
File upload
File upload does not work, but the
LAN Docking Station shows up in the
Administration Tool
Verify if you have configured the LAN Docking
Station with the correct FTP settings?
25
2008-09-01 16:31:58
Not all dictations are uploaded to the
FTP server
Open the LAN Docking Station configuration
interface by entering its IP address in your Web
browser or using the LAN Docking Station
Administration Tool and check the ‘Automatic
file upload’ settings. Activate LAN DOCKING
STATION DEFINES UPLOAD SETTINGS and select
UPLOAD ALL DICTATION FILES.
Error logs
How to enable error logging on the LAN
Docking Station
When access to the LAN Docking Station is
possible using the configuration interface, type
http://ip.addr.of.dock/web/log.txt in the address
field of the Web browser to open an error text
logging file.
When access to the LAN Docking Station is not
possible through the web browser:
1 Go to the LAN Docking Station and make
sure it is powered.
2 Disconnect the LAN cable connected to the
LAN Docking Station.
3 Dock a Digital Pocket Memo into the LAN
Docking Station.
4 To copy the error log.txt file to the memory
card press the MENU button and the LEFT
SMART BUTTON (left hand side below the
LC-Display) on the Digital Pocket Memo
simulataneously.
5 Connect the Digital Pocket Memo to a
PC using a USB cable and view the log.txt
file available in the root directory of the
memory card.
26
lfh9160_ifu_en-de-fr-es.indb 26
Error log ‚Can not download from server
– wrong filename or access denied‘
• The error indicates that the download of an
upgrade file from the FTP server failed.
Administration Tool
A LAN Docking Station does not show up
in the Administration tool overview list
The reason is most likely that the LAN Docking
Station was unable to connect to the FTP
server. Check the following:
• Verify if the LAN Docking Station is
connected to the main power supply.
• Verify if the LAN Docking Station is
connected to the network.
• Is the IP address of the LAN Docking Station
configured properly?
• Are the FTP settings of the LAN
Docking Station the same as those in the
Administration tool?
User manual
2008-09-01 16:31:58
lfh9160_ifu_en-de-fr-es.indb 105
2008-09-01 16:32:05
Technical data
Connectivity
• Docking connector: 8 pin male
• LAN connector: RJ45 network socket
• Socket for Kensington lock
Accessories
• RJ45 network cable
• User manual
Green Specifications
• Compliant to 2002/95/EC (RoHS)
• Lead-free soldered product
Convenience
• Green LED indicates that the Digital Pocket
Memo batteries are recharging
• Yellow LED indicates that dictation files are
being transferred
Operation conditions
• Temperature: 5° - 45° C / 41° - 113° F
• Humidity: 10 % - 90 %
Dimensions
• Product dimensions (W x D x H):
78 x 78 x 35 mm / 3.07 x 3.07 x 1.38 "
• Net weight: 143 g / 5.0 oz
System requirements LAN Docking
Station
• 10/100 Mbit/s Local Area Network with RJ45
connections
• FTP server with a user account configured
for the LAN Docking Station
• DHCP server (recommended)
System requirements Administration Tool
Hardware:
• IBM PC or compatible computer
• Pentium III, 1 GHz, 512 MB RAM
• 10 MB hard disk space (350 MB if .NET and
additional third party software installation is
required)
• CD-ROM drive
• LAN connection
Software:
• Windows 2000 (with service pack 4),
Windows XP (with service pack 2),
Windows Vista or
Windows Server 2003
• Microsoft .NET Framework 2.0
• Microsoft Windows Installer 3.1
• Microsoft Core XML Services (MSXML) 6.0
Power
• Power supply: 6 V DC / 850mA
• Power consumption: 800 mA max.
lfh9160_ifu_en-de-fr-es.indb 106
2008-09-01 16:32:05
Declaration of Conformity
Tested to comply with FCC standards
FOR HOME OR OFFICE USE
Model Number:
LFH 9160
Trade Name:
Philips LAN Docking Station 9160
Responsible Party: Philips Speech Processing
Address:
64 Perimeter Center East, Atlanta, GA 30346, USA
Telephone number:(888) 260-6261
Website:
www.philips.com/dictation
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired operation.
The CE mark confirms that the device corresponds to the relevant guidelines of the
European Union.
The cardboard used for packaging can be recycled. This electronic device contains
recyclable material.
Disclaimer and Notices
Philips performs extensive testing with the most popular configurations. However, since PC addons and device drivers are updated continually, conflict-free operation cannot be guaranteed.
lfh9160_ifu_en-de-fr-es.indb 107
2008-09-01 16:32:06
Discover the comprehensive range of high-end dictation products from Philips
www.philips.com/dictation
Specifications are subject to change without notice.
Trademarks are the property of Royal Philips Electronics or their respective owners.
© 2008 Royal Philips Electronics. All rights reserved.
Document version 2.0, 2008/09/01.
5103 109 9666.4
lfh9160_ifu_en-de-fr-es.indb 108
2008-09-01 16:32:06
