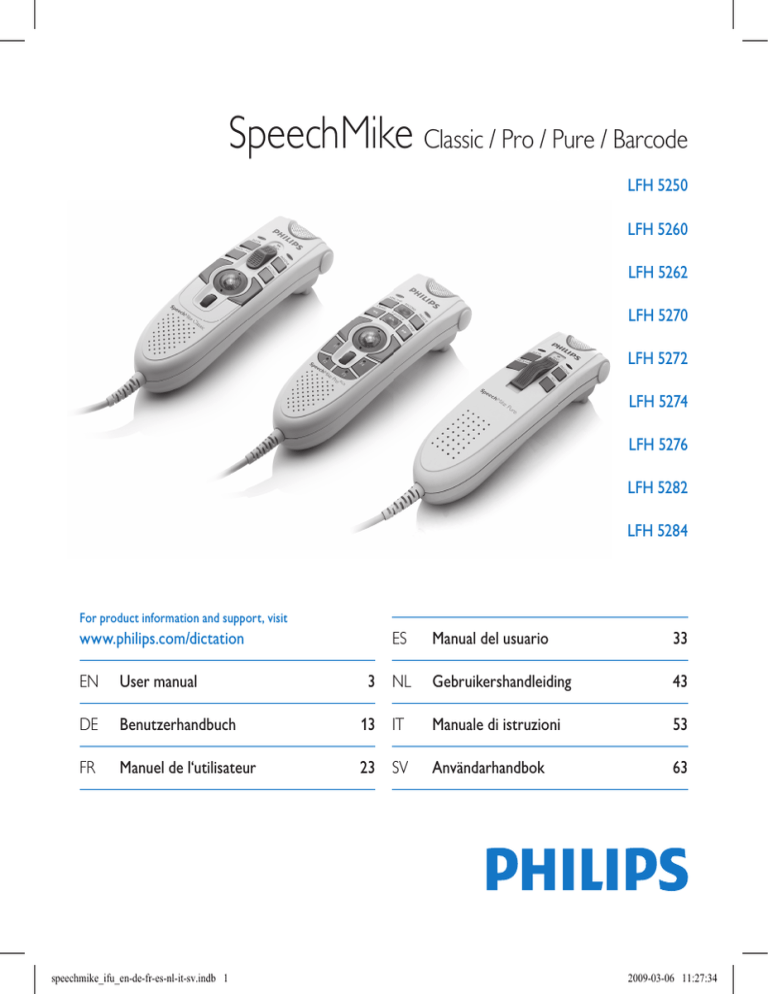

SpeechMike Classic / Pro / Pure / Barcode
LFH 5250
LFH 5260
LFH 5262
LFH 5270
LFH 5272
LFH 5274
LFH 5276
LFH 5282
LFH 5284
For product information and support, visit
ES
Manual del usuario
33
3
NL
Gebruikershandleiding
43
www.philips.com/dictation
EN
User manual
DE
Benutzerhandbuch
13
IT
Manuale di istruzioni
53
FR
Manuel de l‘utilisateur
23
SV
Användarhandbok
63
speechmike_ifu_en-de-fr-es-nl-it-sv.indb 1
2009-03-06 11:27:34
speechmike_ifu_en-de-fr-es-nl-it-sv.indb 2
2009-03-06 11:27:34
E N G LISH
User manual
1
1.1
Welcome
What’s in the box
4
4
2
2.1
2.1.1
2.2
Important
Safety
SpeechMike Barcode
Disposal of your old product
4
4
4
5
3
3.1
3.2
3.3
Get started
System requirements
Installation
Advanced configuration
5
5
5
6
4
SpeechMike Pro 5274
SpeechMike Pro Plus 5276
7
SpeechMike Classic 5260 / 5262
SpeechMike Classic Plus 5270 / 5272
8
6
SpeechMike Pure 5250
9
7
7.1
7.2
7.3
SpeechMike Barcode 5282 / 5284
Overview
Use the barcode scanner
Configure the barcode scanner
10
10
10
10
8
Troubleshooting
11
9
Technical support and warranty
11
10
Technical data
12
5
User manual
speechmike_ifu_en-de-fr-es-nl-it-sv.indb 3
3
2009-03-06 11:27:34
1
Welcome
Congratulations on your purchase and welcome
to Philips!
To fully benefit from the service that Philips
offers, visit our Website for support information
such as user manuals, software downloads,
warranty information and more:
www.philips.com/dictation.
1.1
What’s in the box
• EOL/••P
RECORD
Important
2.1
Safety
• To avoid short circuit, do not expose the
product to rain or water.
• Do not expose the device to excessive
heat caused by heating equipment or direct
sunlight.
• Protect the cables from being pinched,
particularly at plugs and the point where they
exit from the device.
2.1.1 SpeechMike Barcode
INS/OVR
F1
2
F4
F2
F2
B Class 1 laser product
PLUS
SpeechMike Pro
SpeechMike
Hanging bracket
SpeechMike Classic / Pro / Pure / Barcode
LFH 5250
LFH 5260
LFH 5262
LFH 5270
LFH 5272
LFH 5274
LFH 5276
LFH 5282
LFH 5284
For product information and support, visit
www.philips.com/dictation
EN
CD-ROM
User manual
3
ES
Manual del usuario
NL
Gebruikershandleiding
33
43
DE
Benutzerhandbuch
13
IT
Manuale di istruzioni
53
FR
Manuel de l‘utilisateur
23
SV
Användarhandbok
63
This product complies with:
• 21CFR1040.10 and 1040.11 except for
deviations pursuant to Laser Notice No. 50,
dated July 26, 2001.
• EN60825-1:1994 + A1:2002 + A2:2001
• IEC60825-1:1993 + A1:1997 + A2:2001
User manual
The laser classification is marked near the
scanner window on the product.
Class 1 Laser devices are not considered to
be hazardous when used for their intended
purpose. The following statement is required to
comply with US and international regulations:
4
speechmike_ifu_en-de-fr-es-nl-it-sv.indb 4
User manual
2009-03-06 11:27:35
2.2
Disposal of your old product
• Your product is designed and manufactured
with high quality materials and components,
that can be recycled and re-used.
• When this crossed-out wheeled bin
symbol is attached to a product, it
indicates that the product is covered
by the European Directive 2002/96/
EC.
• Please become informed about the local
separate collection system for electrical and
electronic products.
• Please act according to your local rules and
do not dispose of old products with your
normal household waste. The correct disposal
of old products will help prevent potential
negative consequences for the environment
and human health.
3 Get started
3.1
E N G LISH
ACaution
Do not try to open the unit. Allow only
authorized service technicians to repair the unit.
Use of controls, adjustments or performance
of procedures other than those specified herein
may result in hazardous laser light exposure.
System requirements
• Pentium III or similar, 500 MHz and 256 MB
RAM; Recommended: Pentium IV, 1 GHz and
512 MB RAM
• 75 MB hard disk space for SpeechMike drivers,
250 MB for Microsoft .NET Framework
• One self-powered USB port
• Windows Vista, Windows XP
DNote
For all operating systems, it is recommended
that the latest service pack available be installed
before installation.
3.2
Installation
CImportant
Administrator rights are required to install
the software. For more help, contact your
administrator.
1 Turn on the PC.
2 Connect the USB plug of the SpeechMike to
a free USB port.
3 The New Hardware Found message is
displayed and installation will proceed
automatically.
DNote
If the message does not appear, verify if
the USB port is enabled in the BIOS of the
User manual
speechmike_ifu_en-de-fr-es-nl-it-sv.indb 5
5
2009-03-06 11:27:35
4
5
6
7
system. See the hardware documentation
for details, or contact your hardware
vendor.
Restart the PC when prompted by Windows.
Insert the installation CD in the CD-ROM
drive. The set-up program should start
automatically. If it does not, open the CD
contents in Windows Explorer and doubleclick the autorun.exe file.
Click the Install button.
Follow the on-screen instructions of the
set-up program.
2
3
1
3.3 Advanced configuration
Use the Device Control Center, to customize
the button functions of the SpeechMike to suit
individual user needs.
1 Connect the USB plug of the SpeechMike to
a free USB port.
2 Start the Device Control Center by opening
the Windows start menu and selecting All
Programs > Philips Speech Control > Philips
Device Control Center.
3 Change the button functions according to
your preferences. 1
4 Click the Upload button 2 to save the new
settings.
D Note
The SpeechMike can be reset to its factory
default configuration by clicking the Defaults
button 3 . Click the Upload button 2 to save
the default settings.
6
speechmike_ifu_en-de-fr-es-nl-it-sv.indb 6
User manual
2009-03-06 11:27:35
SpeechMike Pro 5274
E N G LISH
4
SpeechMike Pro Plus 5276
Microphone
Record LED
Instruction LED
••P
• EOL/
RECORD
INS/O
VR
EOL (end-of-letter)/Priority
Fast forward
Fast rewind
Play / Pause
Trackball
Right mouse button
Left mouse button
F1-F4: programmable
function keys
(LFH5276 only)
Insert/Overwrite LED
Record
Insert/Overwrite
F1
F4
F2
Scroll wheel
F2
PLUS
SpeechMike Pro
Speaker
Trigger button
Left mouse button
Front view
User manual
speechmike_ifu_en-de-fr-es-nl-it-sv.indb 7
Rear view
7
2009-03-06 11:27:36
5
SpeechMike Classic 5260 / 5262
SpeechMike Classic Plus 5270 / 5272
Microphone
Philips version
LFH5260/5270
Slide switch
Record LED
Instruction LED
INSTR
INS/O
VR
INSTR
Insert/Overwrite LED
INS/O
VR
L/••P
• EO
Record
Insert/Overwrite
Instruction
L/••P
EOL (end-of-letter)/
Priority
• EO
International
version
LFH5262/5272
Left mouse button
Right mouse button
Trackball
INSTR
F1
F4
F2
Scroll wheel
INS/O
VR
F1
F4
L/••P
F.FWD
• EO
F2
F1-F4: programmable
function keys
(LFH5270/5272 only)
•Fastforward
•Play
•Stop
•Fastrewind
Slide switch
•Record
•Stop
•Play
•Fastrewind
Fast forward
F2
PLUS
SpeechMike Classic
F2
PLUS
SpeechMike Classic
F1
Speaker
F4
Trigger button
F2
F2
PLUS
SpeechMike Classic
Left mouse button
Front view
8
speechmike_ifu_en-de-fr-es-nl-it-sv.indb 8
Rear view
User manual
2009-03-06 11:27:37
SpeechMike Pure 5250
E N G LISH
6
Microphone
Record LED
Instruction LED
PLAY
Insert/Overwrite LED
Insert/Overwrite
Instruction
EOL (end-of-letter)/
Priority
Philips version
LFH5250
PLAY
Slide switch
•Fastforward
•Play
•Stop
•Fastrewind
SpeechMike Pure
Record
SpeechMike Pure
Speaker
Programmable
function buttons
Front view
User manual
speechmike_ifu_en-de-fr-es-nl-it-sv.indb 9
Rear view
9
2009-03-06 11:27:39
7 SpeechMike Barcode 5282 / 5284
7.1 Overview
For information about the buttons on the front
side of the SpeechMike, refer to the chapter for
the SpeechMike Pro or SpeechMike Classic.
Scan trigger
7.2
Scan angle adjustment
Use the barcode scanner
7.3
Configure the barcode scanner
The SpeechMike barcode scanner is preconfigured with the keyboard language US
English and the suffix “carriage return” (CR).
Before using the barcode scanner for the first
time, it is necessary to adapt it to your local
keyboard language. To change the scanner
configuration, start the application Barcodeconfig.
exe on the installation CD.
For information about customizing the barcode
module, refer to the Advanced Barcode Scanner
Configuration manual on the installation CD
provided with your SpeechMike.
1 Press the scan trigger button and scan the
barcode. When a barcode is recognized,
the SpeechMike will beep and the barcode
information is inserted into the currently
active application as if the barcode number
is typed in digit by digit.
DNote
• The barcode scanner allows barcode scanning
from a distance of up to 30 cm / 12 inches.
• The scan angle of the barcode scanner can be
adjusted in two positions by 25°.
10
speechmike_ifu_en-de-fr-es-nl-it-sv.indb 10
User manual
2009-03-06 11:27:39
My operating system stops responding
after restart
Using the Philips SpeechMike together with
certain USB hubs may cause the operating
system to stop responding when the PC is
started. To work around this, unplug the
SpeechMike before starting the PC and
reconnect it afterwards. To solve this problem,
we recommend replacing the USB hub or
connecting your SpeechMike directly to the USB
port of the PC.
The SpeechMike is completely without
function
Some PC providers limit the output power of
USB ports to 100mA. These ports may not
provide enough power for the SpeechMike to
function properly. To resolve this issue, connect
the SpeechMike via the self-powered hub.
User manual
speechmike_ifu_en-de-fr-es-nl-it-sv.indb 11
9 Technical support and
E N G LISH
8 Troubleshooting
warranty
This Philips product was designed and
manufactured to the highest quality standards.
If your Philips product is not working correctly
or is defective, contact your supplying Philips
Speech Processing dealer who will provide
you with the necessary information on how to
proceed.
If you have questions that your dealer cannot
answer or any other related question, visit
www.philips.com/dictation to contact us.
No components are user-serviceable. Do not
open or remove covers and do not insert
objects not suitable for the specific connectors.
Repairs may be made only by Philips service
centers and official repair facilities. Failure to do
so will void any warranty, stated or implied. Any
operation expressly prohibited in this manual,
any adjustments, or assembly procedures not
recommended or authorized in this manual will
void the warranty.
11
2009-03-06 11:27:39
10 Technical data
Connectivity
• USB connector
Green specifications
• Compliant to 2002/95/EC (RoHS)
• Lead-free soldered product
Operation conditions
• Temperature: 5° - 45° Celsius / 41° - 113°
Fahrenheit
• Humidity: 10 % - 90 %
Speaker
• Acoustic frequency response: 200 – 6,000 Hz
• Output power: > 100 mW
SpeechMike Barcode
Specifications
• Product dimensions (W x L x H):
43 x 155 x 30 mm / 1.7 x 6.1 x 1.2 inch
• Weight:
• LFH5260/70: 155 g / 5.5 oz
• LFH5262/72: 160 g / 5.6 oz
• LFH5276: 185 g / 6.5 oz
• LFH5282: 165 g / 5.8 oz
• LFH5284: 200 g / 7.1 oz
System requirements
• Pentium III or similar, 500 MHz and 256 MB
RAM; Recommended: Pentium IV, 1 GHz and
512 MB RAM
• 75 MB hard disk space for SpeechMike drivers,
250 MB for Microsoft .NET Framework
• One self-powered USB port
• Windows Vista, Windows XP
Compatible barcodes
• EAN
• UPC
• Code 11 / 39 / 93 / 128
• Codabar
• MSI Code
• RSS
• Interleaved 2 of 5
• Discrete 2 of 5
Laser class
• Class 1 laser product
12
speechmike_ifu_en-de-fr-es-nl-it-sv.indb 12
Disclaimer and Notices
Philips performs extensive testing with the most
popular configurations. However, since PC addons and device drivers are updated continually,
conflict-free operation cannot be guaranteed.
User manual
2009-03-06 11:27:39
Declaration of Conformity
Tested to comply with FCC standards
FOR HOME OR OFFICE USE
Model Number:
LFH 5250, LFH 5260, LFH 5262, LFH 5270, LFH 5272, LFH 5274, LFH 5276, LFH 5282, LFH 5284
Trade Name:
SpeechMike Classic, SpeechMike Pro, SpeechMike Pure, SpeechMike Barcode
Responsible Party: Philips Speech Processing
Address:
64 Perimeter Center East, Atlanta, GA 30346, USA
Telephone number:888-260-6261
Website:
www.philips.com/dictation
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired operation.
The CE mark confirms that the device corresponds to the relevant guidelines of the
European Union.
The cardboard used for packaging can be recycled. This electronic device contains
recyclable material.
speechmike_ifu_en-de-fr-es-nl-it-sv.indb 75
2009-03-06 11:28:10
Discover the comprehensive range of high-end dictation products from Philips
www.philips.com/dictation
Specifications are subject to change without notice.
Trademarks are the property of Royal Philips Electronics or their respective owners.
© 2009 Royal Philips Electronics. All rights reserved.
Document Version 2.0, 06/03/2009.
5103 109 9627.3
speechmike_ifu_en-de-fr-es-nl-it-sv.indb 76
2009-03-06 11:28:10
