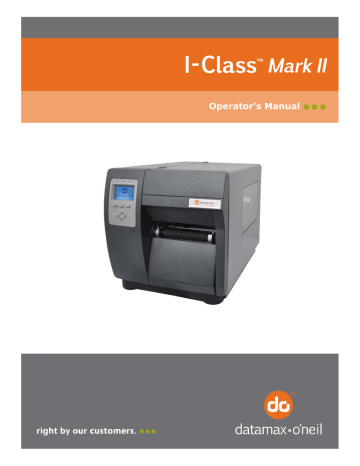

Operator’s Manual
Copyright Information
CG Triumvirate is a trademark of Agfa Corporation.
CG Times based upon Times New Roman under license from the Monotype Corporation.
Windows is a registered trademark of the Microsoft Corporation.
All other brand and product names are trademarks, service marks, registered trademarks, or registered service marks of their respective companies.
Limitation of Liability
In no event shall Datamax-O’Neil be liable to the purchaser for any indirect, special or consequential damages or lost profits arising out of or relating to Datamax-O’Neil’s products, or the performance or a breach thereof, even if Datamax-O’Neil has been advised of the possibility thereof. Datamax-O’Neil’s liability, if any, to the purchaser or to the customer of the purchaser hereunder shall in no event exceed the total amounts paid to Datamax-O’Neil hereunder by the purchaser for a defective product.
In no event shall Datamax-O’Neil be liable to the purchaser for any damages resulting from or related to any failure or delay of Datamax-O’Neil in the delivery or installation of the computer hardware, supplies or software or in the performance of any services.
Some states do not permit the exclusion of incidental or consequential damages, and in those states the foregoing limitations may not apply. The warranties here give you specific legal rights, and you may have other legal rights which vary from state to state.
Firmware (Software) Agreement
The enclosed Firmware (Software) resident in the Printer is owned by Licensor or its suppliers and is licensed for used only on a single printer in the user’s Trade or Business. The User agrees not to, and not to authorize or permit any other person or party to, duplicate or copy the Firmware or the information contained in the non-volatile or programmable memory. The firmware (Software) is protected by applicable copyright laws and Licensor retains all rights not expressly granted. In no event will Licensor or its suppliers be liable for any damages or loss, including direct, incidental, economic, special, or consequential damages, arising out of the use or inability to use the
Firmware (Software).
Information in this document is subject to change without notice and does not represent a commitment on the part of Datamax-O’Neil Corporation. No part of this manual may be reproduced or transmitted in any form or by any means, for any purpose other than the purchaser's personal use, without the expressed written permission of Datamax-O’Neil
Corporation.
Important Safety Instructions
This printer has been carefully designed to provide many years of safe, reliable performance. As with all types of electrical equipment, however, there are a few basic precautions you should take to avoid hurting yourself or damaging the equipment:
• Carefully read the provided installation and operating instructions.
• Read and follow all warning instruction labels on the printer.
• Place the printer on a flat, firm, solid surface.
• Make sure all openings on the printer remain unblocked; never insert anything into the openings or ventilation slots.
• Do not place the printer near a heat source.
• Do not use your printer near water, or spill liquid into it.
• Be certain that your power source matches a listed voltage rating for the printer (if unsure, check with your dealer or local utility company).
• Do not place the power cord where it can be stepped on; and, if the power cord becomes damaged, immediately replace it.
• If service is required, use only qualified trained technicians to repair your printer.
All rights reserved. Copyright © 2012, Datamax-O’Neil
Part Number 88-2357-01, Revision B
i
Agency Compliance and Approvals
UL60950-1; 2 nd Edition
CSA C22.2 No. 60950-1-07 2 nd Edition
The manufacturer declares under sole responsibility that this product conforms to the following standards or other normative documents:
EMC: EN 55022 (2006) Class A
EN 50024 (1998) + A1:2001; +A2:2003
Safety: This product complies with the requirements of IEC 60950-1, 2 nd Edition, 2005-12
ROHS: 2002/95/EC
LVD: 2006/95/EC
Warning!
This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
Gost-R
GB4943-2001, GB9254-2008, GB17625.1-2003
I-4212e model:
The foregoing equipment has been registered under the Clause 3, Article 58-2 of Radio
Waves Act
FCC:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
ii
C o n t e n t s
1.1
Introduction ........................................................................... 1
1.2
Unpacking.............................................................................. 1
2 Printer
2.1
Printer Connections ................................................................. 3
2.1.1
Power Connection ........................................................ 3
2.1.2
Interface Connection .................................................... 4
2.1.3
USB Connection ........................................................... 5
2.2
Loading Media ........................................................................ 9
2.3
Media Sensor Adjustment......................................................... 11
2.4
Loading Ribbon ....................................................................... 12
2.5
OPTImedia ............................................................................. 15
2.6
Internal Rewinder.................................................................... 16
3 Printer
3.1
Front Panel............................................................................. 19
3.1.1 Display Icons ............................................................... 20
3.2
Windows Driver ...................................................................... 21
Important Notes: .................................................................. 22
3.3
Printer Configuration Utility (NETira CT)...................................... 23
3.4
Media Calibration .................................................................... 25
3.4.1
Quick Calibration......................................................... 25
3.4.2
Empty Calibration........................................................ 25
3.4.3
Standard Calibration.................................................... 26
3.4.4
Advanced Entry Calibration........................................... 28
System
4.1
Menu System Overview............................................................ 35
4.2
The User Menu........................................................................ 36
4.3
The Advanced Menu ................................................................ 36
4.4
The Test Menu ........................................................................ 37
4.4.1
User-Defined Label....................................................... 37
4.5
Menu Details .......................................................................... 37
iii
5.1
Cleaning Intervals ................................................................... 59
5.2
Cleaning the Printhead............................................................. 60
5.3
Media Width Adjustment .......................................................... 62
5.4
Printhead Pressure Adjustment ................................................. 63
5.5
Printhead Replacement ............................................................ 64
5.6
Resetting the Printer................................................................ 65
5.7
Upgrading Firmware ................................................................ 65
6 Troubleshooting
6.1
Problem Resolution.................................................................. 67
6.2
Hex Dump Mode ..................................................................... 71
Appendix A - Specifications
Appendix B - Wireless and Wired LAN Setup
B.1
Network Card Setup ................................................................ 77
B.2
Wireless Setup........................................................................ 78
B.2.1
Wireless Setup – Infrastructure ...................................... 79
B.2.1
Wireless Setup – Ad-Hoc ............................................... 80
B.3
Installing the Printer Driver ...................................................... 82
Appendix C - Menu Language
C.1
Changing the Menu Language ................................................... 85
C.2
Advanced File Handling Information ........................................... 88
iv
1
G e
1 .
.
.
1 I n t t r r o d u c t t i i i o n t t i i i n g S t a r t e d
Congratulations on your I-Class Mark II printer purchase. The I-Class Mark II printer family, hereafter referred to as ‘the printer’, blends the rugged durability of die-cast construction with state-of-the-art electronics and user-friendly features to redefine the standard in industrial thermal printers.
This manual provides all the information necessary to operate the printer.
To print labels or tags, simply refer to the instructions included with the software you have chosen to create the labels. A Windows™ printer driver can be found on our website
(http://www.datamax-oneil.com) or on the included
CD-ROM for printing from common applications. If you wish to write a custom program, a copy of
1 .
.
.
the Programmer’s Manual can also be found on the CD-ROM.
2 U n p a c k i i i n g
After removing the printer from the packaging material, check the contents. The following items should be included:
Printer
Power Cord
CD-ROM and Documentation
Any special or additionally purchased items
Additional Requirements
The following items are necessary for generating labels from your printer. Contact your customer support or sales representative for advice on which media and software may best be suited for your application.
Serial, USB or Parallel cable
Ethernet cable for optional LAN connectivity
Applicable Media and Ribbon
It is a good idea to save all packaging materials for future use.
Chapter 1 – Getting Started 1
Chapter 1 – Getting Started 2
2
P r i i i n t e
2 .
.
.
1 P r r i i i n t t e r r C o n n e c t t i i i o n s r S e t u p
2.1.1 Power Connection
Before connecting the AC Power Cord or interface cables to the printer, ensure the Power On/Off
Switch is in the ‘Off’ position.
Place the printer on a firm, level surface.
Ensure that the Power Switch on the Printer is in the ‘Off’ position.
Connect the AC Power Cord to the receptacle on the back of the Printer, and then plug the AC
Power Cord into a properly grounded outlet. (The power supply automatically detects and then adjusts to the applied line voltage; see Appendix A for the acceptable voltage ranges.)
Power Switch
AC Power Cord
Wall Outlet
Chapter 2 - Printer Setup 3
2.1.2 Interface Connection
The printer can be connected to the host via the parallel, USB, serial, or optional network interface. The printer will automatically connect to the first port that delivers valid data. Once established, the printer’s power must be cycled
‘Off’ and ‘On’ to change an interface connection.
The Parallel Connection needs a Centronics
IEEE 1284 cable with a 36-pin male connector for unidirectional (forward channel) communications, or an IEEE 1284 Compliant cable for bi-directional communications
(forward and reverse channels). Also, for bidirectional communications your host must have supporting software.
The Serial Connection needs a serial interface cable with specific pin-outs for proper communications (part numbers and pin-outs are given, below; contact your reseller to order). The interface supports RS-232C communications via a DB-9 connector. Serial port settings are menuselectable and must match your host’s serial port settings.
Part # 32-2300-01 Part # 32-2301-01
Optional Ethernet Print Servers (wired and wireless) are available. For information on using these interfaces, see Appendix B.
The USB Connection needs a USB cable and is supported in Windows 95 and greater operating systems. Depending upon the operating system of your host computer, installation requirements may differ slightly, see section 2.1.3 for more information
Chapter 2 - Printer Setup 4
2.1.3 USB Connection
USB connection to PC requires installation of drivers for both the Port and the Windows Driver itself. All the files necessary for installation are located on the Accessories CD-Rom. Connect the printer to the host PC via a standard USB Cable and follow the steps below. The following steps are for a typical Windows XP system, other versions of Windows may vary.
Step A: Windows Port Driver Installation:
1. Turn on the printer and wait until the “Ready” screen appears. The PC will then detect the printer and launch the “Found New Hardware
Wizard”.
2. Select the “No, not this time” radio button and then click Next.
3. Select the “Install from a list or specific (Advanced)” radio button and then click Next.
4. Select the “Search for the best driver in these locations” radio button.
5. Check the “Include this location in the search” checkbox and then click
Browse.
6. Navigate to driver folder on the CD-
ROM, assuming your CD/DVD drive is labeled D: the path would be as follows:
Computer>D:>assets>windriver
7. Select the folder and then Click
‘OK’. Then Click Next.
Chapter 2 - Printer Setup 5
8. When prompted click “Continue
Anyway”
9. Windows will now load the drivers to assign the necessary ports to the printer.
10. Click Finish to close the wizard.
Proceed to Step B to begin the installation of the Windows
Printer Driver.
Chapter 2 - Printer Setup 6
Step B: Windows Printer Driver Installation:
1. The PC will launch the “Found New
Hardware Wizard” again.
2. Select the “No, not this time” radio button and then click Next.
3. Select the “Install from a list or specific (Advanced)” radio button and then click Next.
4. Select the “Search for the best driver in these locations” radio button.
5. Check the “Include this location in the search” checkbox and then click Browse.
6. Navigate to driver folder on the
CD-ROM, assuming your CD/DVD drive is labeled D: the path would be as follows:
My
Computer>D:>assets>windriver
7. Select the folder and then Click
‘OK’. Then Click Next.
Chapter 2 - Printer Setup 7
8. Select the driver that matches your model printer. (there may be multiple models listed) and then click Next.
9. When prompted click “Continue
Anyway”
10. Windows will now install the necessary files for the Windows printer driver.
11. Click Finish to close the wizard.
The printer can now be selected for use in the printer dialogue box of any windows application.
Chapter 2 - Printer Setup 8
2 .
.
.
2 L o a d i i i n g M e d i i i a
Load media into the printer as follows:
1. Open the media cover. Rotate and unlock the Printhead Latch and raise the Printhead
Assembly.
2. Rotate the Media Guide down.
Printhead Latch
Printhead Assembly
Media Guide
3. Slide the Roll Media onto the Media Hub.
4. Route the Media through the printer as shown. Raise the Media Guide. The Media Guide should be pushed inward so that it is just touching the edge of the Media.
Roll Media
Media Hub
Media Guide
Chapter 2 - Printer Setup 9
5. Close the Printhead Assembly and rotate the Printhead Latch to the locked position.
6. Close the cover and press the FEED button several times to position the media and ensure proper tracking.
Printhead Assembly
Printhead Latch
If the printer does not correctly sense the top of each label, it may be necessary to calibrate the printer (see Section 3.4 Media Calibration).
The printer is factory set to use 4-inch media (and ribbon, if thermal transfer equipped). When using a different width of media/ribbon, refer to Section 5.3.
Chapter 2 - Printer Setup 10
2 .
.
.
3 M e d i i i a S e n s o r r A d j j j u s t t m e n t t
The Media Sensor needs to be positioned so that the printer can detect the presence of media and the top-of-form (except for continuous stock, where the TOF is set through the front panel).
To adjust:
1. With media loaded, as described in Section 2.2, grasp the Slide Tab and move the Sensor
Eye Mark into position over media according to the table below.
‘Sensor Eye’ Mark
Slide Tab
Media Type
Media Sensor Selection and Adjustment
Sensor Eye Mark Position Sensing Required
Die-cut
Notched
Reflective
Near the middle of the label
Centered over the notch
Centered over the black mark
Near the middle of the media
Gap
Notch
Black Mark
Continuous Continuous
Chapter 2 - Printer Setup 11
2 .
.
.
4 L o a d i i i n g R i i i b b o n
Ribbon is required with thermal transfer media. It is recommended that the width of the ribbon be slightly wider than the media being used. The printer can use either ribbons with the ‘coating side in’ or ribbons with the ‘coating side out’. To load:
•
Using a ribbon that is slightly wider than your media (and liner, if any) will help protect against printhead wear.
•
The ‘Media Type’ setting within the printer’s setup must be set to ‘Thermal Transfer’ to print using ribbon. This can be accomplished via the NETira CT configuration Utility (see section 3.3); or via the printers menu system (see section 4.5).
1. Open the media cover. Rotate and unlock the Printhead Latch and raise the Printhead Assembly.
Printhead Latch
Printhead Assembly
2. Slide the Ribbon Roll onto the Ribbon Supply Hub until it rests against the flange. Ensure the ribbon unwinds in the correct direction (see Ribbon Routing). The illustrations below depict the proper orientation.
C.S.I Coated Side In Ribbon
C.S.O Coated Side Out Ribbon
Directional Arrows near the Ribbon Supply Hub indicate the correct ribbon route. Ribbon types are available with the ink (coating) layer wound ‘in’ or ‘out’. Ensure the inked side of the ribbon faces the media and NOT the printhead.
Chapter 2 - Printer Setup 12
Ribbon Routing Diagrams
(CSI) ‘Coating Side In’ Ribbon Routing
(CSO) ‘Coating Side Out’ Ribbon Routing
Chapter 2 - Printer Setup 13
3. Route the ribbon under the Ribbon Idler and then out the front of the printer approximately 12 inches as shown.
Ribbon Roll
Ribbon Supply Hub
Ribbon Idler
4. Close the Printhead Assembly and rotate the Printhead Latch to the locked position. Route the ribbon up and then around to the Ribbon Take-Up Hub, winding it several times in a clockwise direction to secure it in place.
Printhead Assembly
Printhead Latch
Ribbon Take-up Hub
5. Close the cover and press the Feed button several times to position the ribbon and ensure proper tracking.
Chapter 2 - Printer Setup 14
2 .
.
.
5 O P T I I m e d i i i a
The OPTIMedia function is designed to reduce set up time when using Datamax-O’Neil branded media and ribbons. This feature enables the printer to automatically adjust print heat and print speed settings to optimum levels to produce the best possible print quality. By using the model number prefix of the media and ribbon (printed on the shipping box), the printer can be quickly configured to produce optimum print quality for that particular media and ribbon combination.
To make the OPTImedia selection.
1. Press the MENU BUTTON.
2. Make sure MEDIA SETTINGS is highlighted then press the ENTER KEY.
3. Make sure OPTimedia is highlighted then press the ENTER KEY.
4. Using the DOWN BUTTON, Scroll to the model number prefix of the label media being used and then press the ENTER KEY.
5. For direct thermal media; an ‘OK’ will be displayed, then press the EXIT KEY to exit the menu system.
For thermal transfer media; the printer will now prompt for selection of the ribbon being used. Scroll to the model prefix of the ribbon being used and then press the ENTER
KEY. An ‘OK’ will be displayed, then press the EXIT KEY to exit the menu system.
The printer is now ready to print using the media/ribbon selections made.
Chapter 2 - Printer Setup 15
2 .
.
.
6 I n t t e r r n a l l l R e w i i i n d e r
When equipped with the Internal Rewind option, labels can be rewound or, with the addition of a
Peel and Present option, dispensed automatically for application. If equipped, follow the instructions below to begin using the Internal Rewinder:
1. Press down then pull outward to remove the Front Fascia.
2. Remove Thumbscrew and Tear Plate.
Fascia
Thumbscrew
Tear Plate
3. Place the Arc Plate on the front of the printer (as shown below) and tighten the Thumbscrew to secure it.
Thumbscrew
Arc Plate
Chapter 2 - Printer Setup 16
4. Load media as described in section 2.2. Feed approximately 20 inches (50 cm) of media out of the printer. Route the media over the Arc Plate and then back into the printer and around the Rewinder Hub.
Arc Plate
Rewinder Hub
5. Wrap the media around the Rewinder Hub. Insert the end of the media into a Slot in the
Rewinder Hub. Slide the Media Retainer into the Slot to secure the media.
Media
Rewinder Hub
Media Retainer
Slot
6. Rotate the Rewinder Hub by hand to take up any slack in the media. There should be at least
2 or 3 full wraps of the media on the Rewinder Hub before starting printing to ensure tight rewinded rolls.
Chapter 2 - Printer Setup 17
Chapter 2 - Printer Setup 18
3
P r
3 .
.
.
1 F r r o n t t P a n e l l l i i i n t e r O p e r a t i i i o n
The Control Panel is an event-driven interface composed of a graphic display and keypad. In addition to providing current printer information, the mode-dependent panel allows the items in the main display area and the key functions to change as operational events require.
Ready/Receiving
Stop/Paused
Fault/Error
Time and Date
Status
Icon Status Line (see section 3.1.1)
Soft Key Labels
Soft
Menu Navigation and Control Buttons (see chapter 4)
Chapter 3 - Printer Operation 19
3.1.1 Display Icons
Display Icon Description
Initialization, typically brief (but a damaged or invalid printhead can delay the process).
Display large fonts
Input Mode – DPL
DPL
LINE
Input Mode – LINE
PL Z
A
U
T
O
Input Mode – PL-Z
Input Mode – AUTO
SD memory card detected. SD
USB
HOST
USB memory (or keyboard) detected.
Wired network - Connected.
Wired network - Server inaccessible.
WLAN associated with Access Point.
WLAN not associated with Access Point.
WLAN ADHOC Mode.
Chapter 3 - Printer Operation 20
3 .
.
.
2 W i i i n d o w s D r r i i i v e r r
The Windows driver is located on the Accessories CD-Rom included with your printer. For the latest version please visit our web site at www.datamax-oneil.com.
If installing the Windows driver for use with an USB connection, refer to section 2.1.3 for the installation procedure.
Installing the Windows Driver:
Place the Accessories CD-Rom included with your printer into your computers CD-Rom drive.
Once the CD-Rom starts select "Install Windows
Driver" from the main menu and follow the instructions on the screen to install.
When prompted, select your printer from the list, (i.e. Datamax-O’Neil I-Class MarkII).
Continue to follow the on-screen instructions to install the driver.
Chapter 3 - Printer Operation 21
Important Notes:
The Windows driver functions the same as any other Windows printer. A built in help file is available for complete information on all settings; however, there are some important settings that should be observed for trouble free printing.
Page Setup Tab: Stock
It is important that the Stock setting matches the size of the label you are using. If you cannot find a match for your label click 'New' and enter the dimensions of your label.
Options Tab: Print Speed & Printhead
Temperature
These two settings will have the greatest effect on print quality. Some label stocks will require more heat and slower print speeds to generate a quality image.
The Windows application software used to create the label format will likely have a "Page Setup" screen. This will also need to match the size of the label you are using.
Chapter 3 - Printer Operation 22
3 .
.
.
3 P r r i i i n t t e r r C o n f f i i i g u r r a t t i i i o n U t t i i i l l l i i i t t y ( N E T i i i r r a C T )
NETira CT (located on the Accessories CD-ROM) is a Windows-based configuration utility that allows the user to make changes to the existing printer setup via a direct connection to the host computer’s serial, USB, or LAN IP address.
NETira CT Features:
Allows Real-Time Control/Query of Printer Configuration
Define and Save Optimal Configurations for Applications
Saved Configurations can be Shared with other Printers and Sent via Email
Download Files, Formats and Fonts
Query Memory Modules
Be sure to use the NETira CT utility located on the Accessories CD-ROM that is included with your printer. Older versions might not operate correctly with some printers. For the latest version please visit our web site at http://www.datamax-oneil.com
1) Once installed launch the NETira CT configuration utility:
2) Be sure the printer is ‘ON’. Connect the host to the printer (see Section 2.1.2).
For Serial Connections: a) Query the printer by using the ‘Auto Detect’ button.
This will connect to the printer and retrieve the setting currently stored in the printer.
For USB Connections: a) In the toolbar, from the drop down menu box, select “USB_VIRTUAL_COM”. Then click on the
Query Printer Icon .
For LAN IP Address Connections:
Close the ‘Open a configuration file…’ dialogue box. a) In the toolbar, Click on the ‘ TCP/IP Configuration’
Icon . b) In the ‘TCP/IP Configuration’ dialogue box enter the
IP address of the printer and click ‘OK’. (The IP address should be displayed on the printers LCD).
Chapter 3 - Printer Operation 23
c) In the toolbar, from the drop down menu box, select
“TCP_IP”. Then click on the Query Printer Icon .
3) At this point you may browse the Printer Component categories and make any changes necessary to the printer configuration.
4) Once complete, send the new settings to the printer using the ‘Send’ button.
Note: When sending the changes to the printer, only the changes displayed on the current page will be sent. You must click the ‘Send’ button for each page that has been modified.
Chapter 3 - Printer Operation 24
3 .
.
.
4 M e d i i i a C a l l l i i i b r r a t t i i i o n
3.4.1 Quick Calibration
Quick Calibration should be performed as part of the media loading routine to fine-tune the sensing parameters.
(1) This calibration is not necessary when using continuous stock.
(2) Media containing large gaps may require a change in the PAPER EMPTY DISTANCE before
proceeding.
Calibrate the printer as follows:
1. Ensure that the printer is ON and in an idle state (i.e., not off-line) with media loaded, the media sensor adjusted, and the sensor type selected.
2. Press and hold the FEED Key until at least one full label has been output then release the key and wait for the printer to process the data. There are two possible outcomes:
CALIBRATION COMPLETE - will be displayed, and the media will be advanced to the next top of form if calibration was successful; or,
CALIBRATION FAILED will be displayed if calibration was not successful. In this case, check the hints listed below to help resolve the problem:
Calibration Hints:
WARNING LOW BACKING is a normal message when calibrating die-cut media mounted on a highly translucent liner or notched tag stocks.
If the initial attempt fails, press and hold the FEED Key until two successive label TOFs have been output. If, however, CALIBRATION FAILED is displayed again, perform the Standard
Calibration routine, see Section 3.4.3.
3.4.2 Empty Calibration
Empty Calibration calibrates the printer’s media sensor to detect an ‘Out of Stock’ condition.
Calibrate the printer as follows:
1. Ensure that the printer is ON and in an idle state (i.e., not off-line) with media removed.
2. Press and hold the Pause & Feed Keys together. The printer will now be calibrated for the ‘Out of Stock’ condition.
Chapter 3 - Printer Operation 25
3.4.3 Standard Calibration
The Standard Calibration can be performed using the NETira CT Utility (see Section 3.3) or using the front panel buttons via the printer’s menu, see Section 4.5. Standard Calibration provides dynamic readings, which can be helpful when using media with small position-critical notches or marks. Three calibration samples are required:
Empty – with nothing over the sensor;
Gap, Notch, Hole or Mark – with media liner, a notch, hole, or a mark over the sensor; and,
Paper – with the label (and liner, if any) over the sensor.
Calibrate the Media Sensor using the steps below:
Step
The Sensor Calibration menu item is only accessible in the Advanced Menu mode.
Action Displayed Message Comment
A Turn ON the printer. READY
Wait briefly for initialization to complete.
B
Press MENU Button. Make sure
MEDIA SETTINGS is highlighted and press ENTER.
Then using the DOWN Button, scroll to SENSOR CALIBRATION.
(Printer Menu)
C
Press ENTER to access SENSOR
CALIBRATION. Then using the
DOWN Button, scroll to PERFORM
CALIBRATION. Press ENTER again and then press YES to proceed.
PERFORM CALIBRATION Press NO to abort this procedure.
D
E
With no media installed, press
ESC.
Proceed according to the media type:
Die-Cut – Remove a label or two from the liner then install the media. Position the Media Sensor under the liner area and press
ESC.
Notched (or Reflective) – Install media. Position the Media Sensor under a notch (or black mark) and press ESC.
Continuous – Press ESC then proceed to Step F.
REMOVE LABEL STOCK
PRESS ESC KEY
Yyy
For die-cut media:
SCAN BACKING
PRESS ESC KEY yyy
For Notched/Reflective media:
SCAN MARK
PRESS ESC KEY yyy
For continuous media:
REMOVE LABEL STOCK
PRESS ESC KEY
Yyy
This sets the empty value, where
“yyy” represents the current sensor reading.
This sets the gap (or mark) value, where “yyy” represents the current sensor reading.
See Section 2.3 for sensor adjustment instructions.
Do not position a perforation over the sensor when taking the sample.
(3) For small notches or reflective marks, ensure that the labels exit straight from the printer.
(4) Unless otherwise noted, do not move the Media Sensor after this step.
Chapter 3 - Printer Operation 26
Standard Calibration (continued)
Step
F
Action
Proceed according to the media type:
All media except Continuous –
Position label material (and liner, if any) over the sensor then press the ESC Key.
Continuous – Install media.
Position the Media Sensor under the stock and press ESC.
Displayed Message
SCAN PAPER
PRESS ESC KEY yyy
Comment
This sets the paper value, where
“yyy” represents the current sensor reading.
(1) If using preprinted media, ensure that the area placed over the sensor is free of text, graphics, or borders.
(2) See Section 2.3 for sensor adjustment instructions.
G Observe the calibration result. CALIBRATION COMPLETE
Calibration was successful.
If WARNING LOW BACKING is displayed, calibration was successful.
H
Press ESC then EXIT to return to
READY.
When calibrating gap or reflective media, press and hold the FEED
Key until at least one label is output.
CALIBRATION COMPLETE
Followed by...
READY
The printer is now ready for use.
Chapter 3 - Printer Operation 27
3.4.4 Advanced Entry Calibration
Advanced Entry is an alternate calibration method for special-case media types, where sensor readings are taken using different sampling algorithms and from a list of these readings the best algorithm is selected for manual entry into the database.
Advanced Entry Calibration should be used only when Standard Calibration proves unsuccessful.
Calibrate the Media Sensor using the steps below:
The Sensor Calibration menu item is only accessible in the Advanced Menu mode.
Step Action Displayed Message Comment
A Turn ON the printer. READY
Wait briefly for initialization to complete.
B
Press MENU Button. Make sure
MEDIA SETTINGS is highlighted and press ENTER.
Then using the DOWN button, scroll to SENSOR CALIBRATION
(Printer Menu)
C
Using the DOWN Button, highlight ADVANCED ENTRY then press ENTER.
ADVANCED ENTRY
Press EXIT to abort this procedure.
D
Scroll to TRAN SENSOR GAIN (or
REFL SENSOR GAIN, if using reflective media) then press
ENTER.
E
Install media. Position the Media in the Media Sensor then lower and latch the Printhead
Assembly.
TRAN SENSOR GAIN
25
(0 - 31)
TRAN SENSOR GAIN
25
(0 - 31)
The following examples detail die-cut media calibration; however, unless otherwise noted, the reflective media procedure is the same.
See Section 2.3 for sensor adjustment instructions.
Do not position the Media
Sensor under a perforation; and if using preprinted media, ensure the label area placed over the sensor is free of text, graphics,
lines, etc.
Chapter 3 - Printer Operation 28
Advanced Entry Calibration (continued)
Step Action Displayed Message Comment
F
Use the UP and DOWN Arrow buttons to set the Gain Number to
00.
Record the sensor reading as a
Label Value for Gain Number 00 in a table (32 rows by four columns, with headings similar to those shown below.)
TRAN SENSOR GAIN
00
(0 - 31)
This is the Label Value for a gain setting of 00.
Gain Number
Sample Calibration Table
Label Value TOF Value Difference Value
00 252
01
02
…
31
Step Action
G
Use the UP and DOWN Arrow buttons to increment the Gain
Number by one and then Record the Label Value.
Repeat this process for each Gain
Number.
Displayed Message
TRAN SENSOR GAIN
01
(0 - 31)
Comment
This is the Label Value for a gain setting of 01.
Gain Number
Sample Calibration Table
Label Value TOF Value Difference Value
00 252
01 250
02 248
… …
31 09
Chapter 3 - Printer Operation 29
Advanced Entry Calibration (continued)
Step Action
H
Raise the printhead assembly then proceed according to the media type:
Die-cut – Remove a label or two from the liner then position the liner in the Media Sensor. Adjust the Media Sensor if necessary.
Notched – Position the Media in the Media Sensor under the notch.
Reflective – Position the Media in the Media Sensor under the black mark.
Displayed Message
TRAN SENSOR GAIN
31
(0 - 31)
Comment
(1) Do not position the Media
Sensor under a perforation; and if using preprinted media, ensure the label area placed over the sensor is free of text, graphics, lines, etc.
(2) Do not move the Media
Sensor after this step.
I
Lower and latch the Printhead
Assembly.
Using the UP and DOWN Arrow buttons set the Gain Number to
00.
Record the reading as a TOF Value for Gain Number 00 in the table.
TRAN SENSOR GAIN yyy (0 - 31)
00
This is the TOF Value for a gain setting of 00, where “yyy” represents the current sensor reading.
Gain Number
Sample Calibration Table
Label Value TOF Value Difference Value
00 252 248
01 250
02 248
… …
31 09
Chapter 3 - Printer Operation 30
Advanced Entry Calibration (continued)
Step Action Displayed Message Comment
J
Use the buttons to increment the
Gain Number by one. Record the
TOF Value. Repeat this process for each Gain Number.
TRAN SENSOR GAIN yyy (0 - 31)
01
These are TOF Values, where
“yyy” represents the current sensor reading.
Step Action
Gain Number
Sample Calibration Table
Label Value TOF Value Difference Value
00 252 248
01 250 245
02 248 234
… … …
31 09 14
Displayed Message Comment
K
In your sample calibration table, where both the Label Value and
TOF Value are at least 20, subtract the amounts and record the result as a Difference Value (see below).
Identify the largest Difference
Value and the corresponding Gain
Number. This Gain Number will be used to resample the media.
TRAN SENSOR GAIN yyy (0 - 31)
31
In this example, Gain Number 18 is chosen because, where both values are at least twenty, it has the highest Difference Value.
Sample Calibration Table
Gain Number Label Value TOF Value Difference Value
00 252 248 4
01 250 245 5
02 248 234 14
… … … …
15 188 63 125
16 184 51 133
17 179 38 141
18 174 25 149
19 170 19 N/A
… … … …
31 132 14 N/A
Chapter 3 - Printer Operation 31
Advanced Entry Calibration (continued)
Step Action Displayed Message
L
Use the buttons to set the Gain
Number determined in the previous step. Press ENTER to enable the setting.
TRAN SENSOR GAIN yyy (0 - 31)
18
Comment
This example uses Gain Number
18.
M
Complete a table (see example below) using new measurements, as follows:
(A) Raise the Printhead Assembly.
Place the label over the Media
Sensor then lower and latch the
Printhead Assembly. Record the sensor reading as P.
(B) Raise the Printhead Assembly.
Place the liner, notch, or mark over the Media Sensor then lower and latch the Printhead Assembly.
Record the sensor reading as G (or
M).
(C) Raise the Printhead Assembly.
Remove all media from the Media
Sensor then lower and latch the
Printhead Assembly. Record the sensor reading as E.
TRAN SENSOR GAIN yyy (0 - 31)
18
Where “yyy” is a numerical value representing the current sensor reading.
The re-sampled values may differ from those previously noted. This is normal; do not
readjust the Media Sensor.
Gain Number
Selected Gain Table
Paper Gap (or Mark) Empty
18 173 42 9
Chapter 3 - Printer Operation 32
Advanced Entry Calibration (continued)
Step Action Displayed Message
N
Press the ESC Key.
Use the buttons to scroll to PAPER
SENSOR LEVEL (or if using reflective media, REFL PAPER
LEVEL) and then press ENTER.
Use the buttons to set the Paper value determined in Step M and then press ENTER.
PAPER SENSOR LEVEL
(0 - 255)
173
Comment
This is the Paper value.
O
Press the ESC Key.
Scroll to GAP SENSOR LEVEL (or, if using reflective media, MARK
SENSOR LEVEL) and then press
ENTER.
Set the Gap (or Mark) value determined in Step M and then press ENTER.
GAP SENSOR LEVEL
(0 - 255)
042
This is the Gap (or Mark) value.
P
Press the ESC Key.
Scroll to EMPTY SENSOR LEVEL and then press ENTER.
Set the Empty value determined in
Step M and then press ENTER.
EMPTY SENSOR LEVEL
(0 - 255)
009
Q
Press the EXIT Key and, when prompted, press YES at the SAVE
CHANGES prompt.
OFFLINE
This is the Empty value.
The procedure is finished, the process almost complete.
Chapter 3 - Printer Operation 33
Advanced Entry Calibration (continued)
Step Action Displayed Message
R
Press and hold the FEED Key until at least one label has been output.
CALIBRATION COMPLETE
Followed by...
READY
Comment
The printer is ready for use.
If the calibration attempt fails, try desensitizing the sensor as follows:
Re-enter the ADVANCED MENU.
Go to MEDIA SETTINGS /
SENSOR CALIBRATION /
ADVANCED ENTRY / TRAN (or
REFL) SENSOR GAIN and lower the corresponding GAIN SETTING by one.
Exit the menu and save your changes. Test your media at the new setting. If necessary, repeat until a usable Gain Setting is obtained.
Chapter 3 - Printer Operation 34
4
M e n u S y s t e m
4 .
.
.
1 M e n u S y s t t e m O v e r r v i i i e w
The Menu System contains three primary branches, each with a differing level of access to secondary menus or functions:
The User Menu accesses basic printer settings and functions;
The Advanced Menu accesses all operational settings, functions, and diagnostics; and,
The Test Menu accesses a menu of test, user-defined, and previous label printing functions.
(1) Prompts may appear before menu access is granted and before changes are enacted; see
Security for details.
(2) Display contrast is adjustable: press and hold the MENU BUTTON to cycle through the contrast range (this may take several seconds) then release the button when the desired appearance has been achieved.
The multi-purpose Menu, Test, and Navigation Buttons allow Menu System entry, negotiation, and parameter selection functions:
Soft Key Labels
Soft
MENU Button: Enters the Menu System; returns to the previous menu level. Press and hold to adjust display contrast.
To change printer settings or perform diagnostics, press the
MENU Button then observe the display for available selections.
(When the number of selections present is greater than can be shown, use the UP or DOWN Buttons to view those additional items.) Also, Soft Key Labels are dynamic and change to denote the current associated Soft Key functions.)
UP Button: Accesses the System Window, or ascends through branches, levels, items, and increments settings in the Menu
System. Press and hold to view printer system information.
DOWN Button: Descends through branches, levels, items, and decrements settings.
TEST Button: Enters the Test Menu; or, if already in the Menu
System, advances to next level or item, and moves cursor position. Press and hold to initiate the printhead cleaning routine.
Chapter 4 – Menu System 35
4 .
.
.
2 T h e U s e r r M e n u
The User Menu contains basic selections in these menus:
Media Settings
Print Control
Printer Options
System Settings
(1) Some setting changes will only become effective (and saved) after selecting YES at the Save
Changes prompt.
(2) Labeling software may, in some cases, override the printer menu settings; see Advanced Menu for details.
4 .
.
.
3 T h e A d v a n c e d M e n u
The Advanced Menu contains all setting, control, and functional selections in these menus:
Media Settings
Print Control
Printer Options
System Settings
Communications
Diagnostics
After selecting the Advanced Menu, it will be accessed whenever the MENU BUTTON is pressed.
To enable the Advanced Menu, proceed as follows:
1. Press the MENU BUTTON.
2. Using the UP or the DOWN BUTTON, scroll to SYSTEM SETTINGS then press the ENTER
KEY.
3. Scroll to MENU MODE then press the ENTER KEY.
4. Scroll to ADVANCED MENU then press the ENTER KEY. (Upon completion, OK will be displayed and the printer will exit the menu system.)
(1) Some setting changes will only become effective (and saved) after selecting YES at the Save
Changes prompt.
(2) Labeling software may, in some cases, override the printer menu settings; see Advanced Menu /
Communications / Host Settings to avoid potential conflicts.
(3) To return to the User Menu, re-select it or restore the factory defaults.
Chapter 4 – Menu System 36
4 .
.
.
4 T h e T e s t t M e n u
The Test Menu contains test and informational label selections:
Print Quality Label
Print Configuration
Ribbon Test Label
Test Label
Validation Label
Print Last Label
User Defined Label
Internally generated, these labels are printed at pre-selected media type, speed, and heat settings. Changes to these print settings can be made via the Menu System or through host commands. When printing, use full width media to capture the entire format; otherwise, adjust the printer and set the Label Width menu setting.
(1) Press the CANCEL KEY to stop printing.
(2) A printing delay can be set; see Print Test Rate (in Diagnostics).
4.4.1 User-Defined Label
The User-Defined Label allows a template to be populated by variable data (via the printer’s control panel or a USB QWERTY keyboard). The template is a stored label format, where fields delimited by an ampersand (&) become variable.
The printer will prompt you to enter the variable field data. For example, the stored label format could contain the data 19131423443&ENTER NAME&
Afterward, when recalled from memory, the printer’s display will indicate the variable field: ENTER
NAME
(1) Variable data can be any part of the DPL format - font ID, positioning, etc.
(2) No error checking will be performed.
(3) Supports .dlb, .dpl, .prn, and .txt file types.
4 .
.
.
5 M e n u D e t t a i i i l l l s
Media Settings
The Media Settings menu contains label and ribbon sensing and sizing functions, as well as printhead cleaning selections:
OPTimedia
Media Type
Media Index Type
Label Length
Maximum Label Length*
Paper Empty Distance*
Label Width
Ribbon Low Options*
Sensor Calibration*
Printhead Cleaning*
Items denoted with an asterisk (*) are only accessible through the Advanced Menu.
The menu selections are defined on the following pages:
Chapter 4 – Menu System 37
DISPLAYED ITEM
OPTimedia
MEDIA TYPE
DIRECT THERMAL
ITEM DESCRIPTION
Automatically configures various print settings to the selected media/ribbon combination.
Selects the method used to print labels and should be set according to the type of media being used, where:
Sets use for media that is heat reactive to produce an image.
THERMAL
TRANSFER
MEDIA INDEX TYPE
GAP
NOTCH
HOLE
BLACK MARK
CONTINUOUS
LABEL LENGTH
04.00
MAXIMUM LABEL
LENGTH
8.00
Sets use for media that requires a ribbon to produce an image.
Selects the top-of-form (TOF) sensing method used to determine the leading edge of the label, where:
TOF will be recognized by sensing the gaps in the media. (Default Setting)
TOF will be recognized by sensing the notches in the media.
TOF will be recognized by sensing the holes in the media.
TOF will be recognized by sensing the reflective (black) marks on the underside of the media
No TOF sensing will be used; instead, LABEL LENGTH (in Media Settings) is used.
Determines the length of the label (0 - 99.99 inches) when the SENSOR TYPE is set to CONTINUOUS, where:
Is the default setting.
Sets the distance (0 - 99.99 inches) that the printer will feed media to find TOF
(when the Sensor Type is set to GAP or REFLECTIVE) before a TOF Fault is declared, where:
Is the default setting.
Maximum Label Length should typically be 2.5 to 3 times the physical length of the label.
PAPER EMPTY
DISTANCE
0.25
Sets the distance (0 - 99.99 inches) the printer will attempt to feed before an
Out Of Stock Fault is declared, where:
Is the default setting.
When using clear or translucent media, this setting should be longer than the actual label size.
LABEL WIDTH x.xx
RIBBON LOW
OPTIONS
RIBBON LOW
DIAMETER
0.50
PAUSE ON RIBBON
LOW
ENABLE
DISABLE
Sets the maximum printable width. Objects extending beyond this setting will
NOT print, where:
Default setting is dependant on printer model.
Defines the printer response when THERMAL TRANSFER mode is selected and the ribbon supply begins to diminish.
Sets the ribbon supply threshold diameter (1.00 - 2.00 inches) that will trigger a
Low Ribbon Warning prompt, where:
Is the default setting.
Allows the printer to enter a paused condition when Ribbon Low Diameter is met, where:
Pauses when a Ribbon Low Diameter condition is detected; the PAUSE Key must be pressed to proceed with the print job.
No action is required by the operator; printing can continue until a Ribbon Fault is declared. (Default Setting)
Chapter 4 – Menu System 38
DISPLAYED ITEM
SENSOR
CALIBRATION
PERFORM
CALIBRATION
ADVANCED ENTRY
PAPER SENSOR
LEVEL
REFL PAPER
LEVEL
GAP SENSOR
LEVEL
MARK SENSOR
LEVEL
EMPTY SENSOR
LEVEL
TRAN SENSOR
GAIN
REFL SENSOR
GAIN
PRINTHEAD
CLEANING
CLEAN HEAD
SCHEDULE
CLEAN HEAD
COUNTER
RESET COUNTER
CLEAN HEAD NOW
ITEM DESCRIPTION
Selects the media sensor calibration method, where:
Sets the values via internal printer calculations, as described in the STANDARD
CALIBRATION procedure.
Sets the values via manual entry (typically for hard to calibrate label stocks), as described in the ADVANCED ENTRY CALIBRATION where:
Establishes the threshold for the paper value (0 - 255), where 170 is the default setting.
Establishes the threshold for the reflective value (0 - 255), where 170 is the default setting.
Establishes the threshold for the gap value (0 - 255), where 040 is the default setting.
Establishes the threshold for the mark value (0 - 255), where 040 is the default setting.
Establishes the threshold for the empty value (0 - 255), where 000 is the default setting.
Establishes the sensitivity of the transmissive sensor (0 - 31), where 15 is the default setting.
Establishes the sensitivity of the reflective sensor (0 - 31), where 15 is the default setting.
Controls the automatic cleaning alert and function, where:
Specifies the inch (or centimeter) count at which to clean the printhead, and if exceeded three times, declare a Head Cleaning Fault. (Note that the specified count [0 - 200 inches] will be multiplied by one thousand, and that zero [the default setting] will disable the function.)
Indicates the number of inches (or centimeters) since a cleaning was last initiated.
Resets the Clean Head Counter to zero to restart the Clean Head Schedule.
Initiates the cleaning process and resets the Clean Head Counter.
Chapter 4 – Menu System 39
Print Control
The Print Control menu contains printing throughput, offset and custom setup functions:
Heat
Print Speed
Feed Speed
Reverse Speed*
Slew Speed*
Row Offset
Column Offset
Present Distance
TOF Precedence*
Custom Adjustments*
Motor Throttling*
Items denoted with an asterisk (*) are only accessible through the Advanced Menu.
The menu selections are defined as follows:
DISPLAYED ITEM
HEAT
ITEM DESCRIPTION
Controls the burn time (0 - 30) of the printhead (and is equivalent to the Heat setting in many software labeling programs), where:
PRINT SPEED x.x in/sec
FEED SPEED x.x in/sec
REVERSE SPEED
4.0 in/sec
SLEW SPEED x.x in/sec
ROW OFFSET
00.00 in.
COLUMN OFFSET
00.00 in.
Controls the rate of label movement during printing, where:
Controls the rate of label movement between printing areas, where:
Controls the rate of label movement (2.0 - 5.0 inches per second) during backup positioning, where:
Is the default setting.
Controls the rate of label movement (2.0 - 16.0 inches per second) between printing areas when using the GPIO function, where:
Shifts the vertical start of print position (0 - 99.99 inches) on the label, where:
Is the default setting.
Shifts the HORIZONTAL, left-justified start of print position to the right (0-99.99 inches), without shifting the LABEL WIDTH termination point to the right, where:
Is the default setting.
Chapter 4 – Menu System 40
DISPLAYED ITEM ITEM DESCRIPTION
PRESENT DISTANCE Sets the label stop position (0 - 4.00 inches) past the start of print position upon output. When subsequent label formats are received, the printer will automatically back up the label to position it at the start of print position, where:
0.00 in. Is the default setting.
When set to 0.01 in., NONE is assumed and a zero (0) positioning value will be used.
TOF PRECEDENCE Allows an override of label format data when the form length is exceeded, where:
DISABLE Prints labels formats without TOF truncating.
ENABLE
CUSTOM
ADJUSTMENTS
DARKNESS
Ends the label at the next TOF, truncating any print data that extends past this mark .
Changes the factory adjustment parameters to finely and independently compensate for slight mechanical differences sometimes evident when multiple printers share label formats. These settings are also available to make special label formatting adjustments, where:
Controls the strobe time (1 - 64) to establish the nominal HEAT setting for printhead-specific thermal characteristics, where:
CONTRAST Allows fine-tuning (1 - 64) of the gray adjustment for print quality, where:
ROW ADJUST
+0000
COLUMN ADJUST
+000 (-100 –
100 DOTS)
Shifts the vertical start of print position (in xxx dots) to fine-tune the ROW OFFSET setting, where:
If shifting Row Adjust in the negative direction, modify the PRESENT ADJUST setting (see below) by that same amount.
Shifts both the horizontal start of print position and the LABEL WIDTH termination point to the right (in xxx dots) to fine-tune the COLUMN OFFSET setting, where:
Is the setting.
PRESENT ADJUST Adjusts the label stopping position (in xxx dots) to fine-tune the PRESENT
DISTANCE setting, where:
+000 (-100 –
100 DOTS)
Is the setting.
MOTOR
THROTTLING
ENABLE
The printer will throttle the print to a single label with delay mode if printing consecutively for a specified period of time.
Enables Motor Throttling; default setting
Chapter 4 – Menu System 41
Printer Options
The Printer Options menu contains file-handling, module, and optional equipment settings:
Modules
Present Sensor
Cutter
GPIO Port
The menu selections are defined as follows:
DISPLAYED ITEM
MODULES
DIRECTORY
PRINT FILE
ITEM DESCRIPTION
Controls memory handling functions, where:
Allows viewing and printing of the available space and file types (including plug-in files) present on a module. Only detected modules will be listed, and selecting ALL will display all results. (See the Programmer’s Manual for memory allocation information.)
Prints selections from stored file types :
File Extension
DBM A font sample.
Printed Result
DCM The configuration commands contained in the file.
DIM The
DLB The
DLN
DMS
DPL
DTT
PLU
PRN
TXT
The name of the language.
The database contained in the file for RFID.
A label format, if detected.
A font sample.
The names of the files contained in the plug-in directory.
Is processed as a DPL file.
Is processed as a DPL file.
Selects from a list of modules available for formatting by the printer. Choosing
FORMAT MODULE will erase existing data in the selected module
FORMAT
MODULE
DELETE FILE
COPY FILE
Selects from the list of available files for deleting; see Section 6.3, File Handling
Messages.
Selects from the list of available files for copying, prompting you for the destination module before execution.
UNPROTECT
MODULE
PRESENT SENSOR
Selects from the list of available modules to unprotect, and then prompting you regarding the outcome of the attempt.
Controls the "on-demand" dispensing of labels , where:
MODE Sets and response of the printer:
AUTO
ENABLED
Is the default setting. Automatically detects, enables the Present Sensor (or Peel and Present mechanism) and sets the label stop location; if not detected, the operation will be ignored.
Enables the Present Sensor (or Peel and Present mechanism) and sets the label stop location; if not detected, a fault will be generated.
RETRACT DELAY
(1 - 255 x 10 mS)
070
Programs a time delay for the retraction of the next label in the print process, where:
Is the range, times 10 milliseconds; and,
Seventy (times ten) is the default setting.
Chapter 4 – Menu System 42
DISPLAYED ITEM ITEM DESCRIPTION
CUTTER Controls the Cutter operation, where:
MODE Sets and response of the printer:
AUTO
ENABLED
Is the default setting, where the presence of the cutter option is automatically sensed. If detected, the cutter is enabled; otherwise, it will be ignored.
Enables the cutter. If the cutter is not detected, a fault will be generated.
CUT BEHIND
(0 – 2)
0
GPIO PORT
GPIO DEVICE
Allows a queue of small labels to accumulate before cutting is performed to increase throughput.
(1) This mode can be used without a cutter to allow the presentation of an extra label with retraction upon the next job or feed operation.
(2) After a fault or unknown label position, the leading edge will be cut to ensure no extra material exists at the beginning of the first label; otherwise, the cutter will only cut when necessary.
Zero, one, or two are the number of labels to queue before cutting; and
Is the default setting.
Controls the optional Applicator Interface Card’s GPIO function, where:
Sets the option to work with a specific device type, where:
APPLICATOR
APPLICATOR2
BARCODE
VERIFIER
Enables parameters for related label applicator functions:
• Completion upon last SOP, de-asserts Data Ready (DRDY);
• FEED allowed at any time; and,
• DRDY upon PAUSE.
Enables parameters for alternate label applicator functions:
• Completion upon 1 msec. overlap of Data Ready (DRDY) and End of Print (EOP);
• DRDY signal end inhibits FEED; and,
• De-asserts DRDY upon PAUSE or FAULT.
Enables the GPIO Port to work with a bar code verifier.
START OF PRINT Selects the type of input signal required to initiate Start of Print (SOP), where:
LOW PULSE Triggers printing with a low pulse.
HIGH PULSE Triggers printing with a high pulse.
ACTIVE LOW Triggers printing with a low signal.
ACTIVE HIGH Triggers printing with a high signal.
END OF PRINT
LOW PULSE
Sets the type of output signal generated to indicate End of Print (EOP), where:
Outputs a low pulse upon completion.
HIGH PULSE Outputs a high pulse upon completion.
ACTIVE LOW Outputs a logic low upon completion.
ACTIVE HIGH Outputs a logic high upon completion.
Chapter 4 – Menu System 43
RIBBON LOW Sets the type of output signal generated to indicate Ribbon Low condition where:
ACTIVE LOW Outputs a logic low upon condition.
ACTIVE HIGH Outputs a logic high upon condition..
SLEW ENABLE Selects the type of input signal required to initiate label slew, where:
STANDARD
LOW PULSE
Triggers slew with a low signal.
Triggers slew with a low pulse.
HIGH PULSE Triggers slew with a high pulse.
ACTIVE LOW Triggers slew with a low signal.
ACTIVE HIGH Triggers slew with a high signal.
Err On Pause
(App2)
Sets the output when a service required fault occurs (Applicator Interface Card
Type 2 equipped only), where:
ENABLED
DISABLED
Enables the output signal.
Disables the output signal.
System Settings
The System Settings menu contains label formatting, operation, and control functions:
Menu Mode
Configuration File
Internal Module*
Default Module*
Scaleable Font Cache*
Single Byte Symbols*
Double Byte Symbols*
Time And Date
Media Counters*
Print Configuration*
Configuration Level*
Set Factory Defaults*
Format Attributes*
Label Rotation
Imaging Mode*
Pause Mode*
Peel Mode*
Security*
Units Of Measure*
Input Mode*
DPL Emulation*
Column Emulation*
Row Emulation*
SOP Emulation*
Back After Print*
Font Emulation*
Label Store*
Menu Language
Display Settings*
Fault Handling*
SCL Font Bold Factor*
Items denoted with an asterisk (*) are only accessible through the Advanced Menu.
The menu selections are defined as follows:
Chapter 4 – Menu System 44
DISPLAYED ITEM
CONFIGURATION
FILE
RESTORE AS
CURRENT
SAVE SETTING
AS
DELETE FILE
FACTORY
SETTING FILE
INTERNAL MODULE
1024
DEFAULT MODULE
D
ITEM DESCRIPTION
Controls the creation, storage, and recall of printer configuration files, where:
Returns the printer to a previously saved configuration.
Creates a file based on the current printer configuration, as described here.
Removes a selected configuration file from memory. (An active file cannot be deleted.)
Provides a list of available configuration files used to restore the printer's configuration following a Level One Reset or when YES is selected in the SET
FACTORY DEFAULTS menu. (NONE is the default file setting.)
Sets the number of 1KB blocks (100 - 5120) allocated for the internal DRAM ‘D’ module, where:
Is the Default Setting.
Designates the memory module to be used for file storage when none are specified, where:
Is the Default Setting (DRAM module).
The available modules may vary depending upon printer model and options.
SCALEABLE FONT
CACHE
384 KBytes
SINGLE BYTE
SYMBOLS
Configures the number of 1KB blocks (128 - 512) allocated for the scaleable font engine, where:
Is the Default Setting.
Selects the code page used to print single byte fonts, including:
ARABIC-8
CYRILLIC
ISO 15: ITALIAN
LEGAL
ISO 60: DAN/NOR HP4000 ZAPF DINGBAT
DESKTOP MATH-8
ITC ZAPF DINGBAT/100 MACINTOSH
ITC ZAPF DINGBAT/200
ITC ZAPF DINGBAT/300
PS ITC ZAPF DINGBAT
ISO 8859/1 LATIN 1
ISO 8859/2 LATIN 2
ISO 8859/5 LATIN 5
ISO 8859/10 LATIN 6
ISO 8859/7 LT/GK E7
PS-MATH
PC-858 MULTILINGUAL
MICROSOFT PUBLISHING
PC-8 CODE PAGE 437
PC-8 D/N, CP 437N
PC-852 LATIN 2
PC-851 LATIN/GREEK
PC-862 LATIN/ARABIC
ISO 17: SPANISH
ISO 11: SWEDISH
SYMBOL
TURKISH-8
PS TEXT
UTF-8
ISO 4: UK
ISO 6: ASCII
VENTURA INTERNATIONAL
VENTURA US
VENTURA MATH
WINDOWS 3.1 LATIN 1
WINDOWS LATIN/ARABIC
ISO 8859/15 LATIN 9
ISO 8859/7 LT/GK EG
ISO 8859/8 LATIN/HBR
ISO 8859/8 LATIN/CYR
ISO 69: FRENCH
GREEK-8
PC-8 GREEK
PI FONT
PC-864 LATIN/ARABIC
PC-8 TK, CP 437T
PC-1004
PC-775 BALTIC
PTXT3000
AGFA TIDBITS
PC-850 MULTILINGUAL (Default Setting) WINDOWS 3.1 LATIN 2
WINDOWS LATIN/GREEK
WINDOWS 3.1 LATIN 5
WINDOWS
WINDOWS 3.0 LATIN 1
WINDOWS LATIN/CYRIC
ISO 21: GERMAN NON-UGL, PI FONT WINDOWS 3.0 LATIN 5
HEBREW-7 ROMAN-8
HEBREW-8 ROMAN-9
Reference the Programmer’s Manual for code page symbol set details.
Chapter 4 – Menu System 45
DISPLAYED ITEM
DOUBLE BYTE
SYMBOLS
JIS
SHIFT JIS
EUC
UNICODE
GB
BIG 5
ITEM DESCRIPTION
Selects the optional ILPC code page used to print double byte fonts, where:
Japanese Industry Standard
Shift Japanese Industry Standard
Extended UNIX Code
Unicode (including Korean). Default setting.
Government Bureau Industry Standard; Chinese (PRC)
Taiwan encoded
Reference the Programmer’s Manual for the code page symbol set details.
TIME AND DATE
MEDIA COUNTERS
ABSOLUTE
COUNTER
PRINTHEAD
COUNTER
Sets the printer's time and date.
Displays and controls various internal counters, where:
Shows the total number of inches printed and the date the counter was set (nonresettable).
Shows the total number of inches printed (not user-resettable).
RESETTABLE
COUNTER
Shows the number of inches printed since the last reset (user-resettable).
RESET COUNTER Returns the Resettable Counter to zero.
CONFIGURATION
Produces a Configuration Label using the printer's current database information.
(1) The information varies with the model, firmware version and installed options.
(2) To capture all the data, use media that is at least 2 inches (51 mm) wide and set the Label
Width (in Media Settings) according to the width of your labels.
CONFIGURATION
LEVEL
Displays the hardware and software levels of the printer, where:
PRINTER KEY
This information is also provided on the Configuration Label.
Identifies the unique key number of the printer, in the form: vvvv-cwxx-yyyyyyzzz
, where: c
Represents the hardware/software feature level, where:
- w xx
Represents the software feature level (10 = standard DPL, and 20 =
Internal CG Times Font). Features are accepted up to this value, but
increases beyond the range will require an authorization code. yyyyyy
Is the manufacturing date code.
APPLICATION
VERSION
BOOT LOADER
UPGRADE
PRINTER CODE
UNLOCK
FEATURE
Displays the level, version number, and date of the application firmware.
Displays the version level and date of the boot loader.
Upgrades the software feature level of the printer.
Unlocks additional optional features within the printer. (An authorization code is required.)
Chapter 4 – Menu System 46
DISPLAYED ITEM
SET FACTORY
DEFAULTS
FORMAT
ATTRIBUTES
TRANSPARENT
ITEM DESCRIPTION
Returns the printer settings to the factory-programmed values (except CUSTOM
ADJUSTMENTS and calibrations); or, if selected, to the Factory Setting File, where selecting YES at the prompt causes the configuration to be restored.
Defines the manner in which overlapping text and graphics appear when printed, where:
Intersecting text, images, and bar codes will be printed, for example:
XOR
OPAQUE
Intersecting text, images, and bar codes will not be printed, for example:
(Default Setting)
Intersecting text, images, and bar codes will be printed by obliterating those formatted first, for example:
LABEL ROTATION Allows the label format to be rotated 180 degrees before printing, where:
DISABLED
IMAGING MODE
MULTIPLE LABEL
SINGLE LABEL
PAUSE MODE
ENABLED
DISABLED
PEEL MODE
Does not flip the format. (Default Setting)
Determines the process used to format labels, where:
Images multiple labels as memory permits to achieve the fastest throughput. If time-stamping labels, however, the indicated time will reflect the moment of imaging rather than the actual print time. (Default Setting)
Images the next label only after the previous label has been printed, providing the most accurate time-stamps but at a slower throughput rate.
Allows for controlled interactive printing, where:
Requires you to press the PAUSE Key to print each label.
Labels are printed without pausing. (Default Setting)
Allows the printer to wait until the Start of Print signal is received (via the optional
GPIO Port) to feed a label, where:
Inhibits the feed function until the Start of Print signal is received.
Feeds the label regardless of the Start of Print signal. (Default Setting)
ENABLED
DISABLED
SECURITY
SELECT
SECURITY
DISABLED
Allows all or part of the User Interface to be password-protected and for that password to be modified:
Allows password to be set for specific User Interface areas, where:
No password is required for menu access. (Default Setting)
SECURE MENU Sets a password requirement for User and Advanced menu entry.
MENU AND
TEST
Sets a password requirement for all menu entries.
ADVANCED
MENU
Sets a password requirement for Advanced menu entry. (After enabling this selection, make it effective by returning the Menu Mode to the User setting; see above.)
MODIFY
PASSWORD
Modifies the four-digit password required when security is enabled. For modification, the code must be reentered when prompted to confirm.
To be activated, the password must initially be set to a value other than the default setting
(0000).
Chapter 4 – Menu System 47
DISPLAYED ITEM ITEM DESCRIPTION
UNITS OF MEASURE Sets the measurement standard used, where:
IMPERIAL Uses inches. (Default Setting)
METRIC Uses millimeters and centimeters.
INPUT MODE
PL-Z
AUTO
DPL EMULATION
Defines the type of processing that will occur when data is received, where:
Alternative programming language processing will be used, with the exception of the following DPL specific-parameters:
DPL Emulation;
SOP Emulation; and,
Label Store.
Identifies then activates the appropriate emulation parser for the data.
STANDARD
ALLEGRO
PRODIGY PLUS
PRODIGY
Allows the printer to reproduce, for backward compatibility, label formats with the same characteristics as those produced by legacy models, where:
Standard DPL processing will be used for printing. (Default Setting)
Processes DPL data as an Allegro®, including row position calculations based on
194 dots per inch and the exceptions noted below.
Processes DPL data as a Prodigy Plus®, including column calculations based on
200 dots per inch and the exceptions noted below.
Processes DPL data as a Prodigy®, including column calculations based on 200 dots per inch and the exceptions noted below.
Exceptions: Data Terminator processing – When printing I 2 of 5 bar codes D, J, and L, the first non-numeric character processed will terminate the bar code data field.
Bar Size exception – When printing I 2 of 5 bar code L, if the bar size specified is greater than P (25) it is automatically decreased to 10.
Human Readable Fonts fixed size – When printing EAN and UPC bar codes B, C, F, G, M, and N, a fixed font size is produced.
Line and box vertical sizing anomaly – When printing rotations 2 and
4, lines and boxes are affected by the vertical multiplication factor defined in the DPL Dxx command.
Column position defaults – Column positions greater than the printhead width are adjusted back to the printable area then printed.
Bar codes in rotation 3 - (upside down / right to left) default sizing –
When row position in rotation 3 is less than bar code height, bar codes falling off the label's leading edge are pushed back onto the label.
<STX>L command – When no printable fields reside in the format, it results in no label movement.
COLUMN
EMULATION
XXX Dots
Allows the column dots per inch to be adjusted (153 - 253 dots), so that numbers smaller than the printhead resolution reduce the printed output from right to left, where:
Chapter 4 – Menu System 48
DISPLAYED ITEM ITEM DESCRIPTION
ROW EMULATION
XXX Dots
SOP EMULATION
Allows the row dots per inch to be adjusted (103 - 303), so that numbers smaller than the printhead resolution enlarge the height of the printed output and numbers larger reduce it, where:
Allows label positioning commands to function with backward compatibility when printing label formats designed for legacy models, where:
DISABLED Produces the natural start of print position. (Default Setting)
110 (PRODPLUS) Emulates the Prodigy Plus® start of print position.
220 (ALLEGRO)
250 (PRODIGY)
Emulates the Allegro® start of print position.
Emulates the Prodigy™ start of print position.
BACK AFTER PRINT Determines media movement when a cutter, present sensor, peel and present, or
GPIO is enabled, where:
MODE
DISABLED
Repositions media, where:
Movement occurs only when the next label is ready to print, minimizing edge curling. (Default Setting)
Movement occurs according to BACKUP DELAY timing after a cut, cleared sensor, or SOP to allow fastest throughput.
ENABLED
BACKUP DELAY
(1/50s)
000
FONT EMULATION
STANDARD
FONTS
CG TIMES
USER ID S50
LABEL STORE
STATE & FIELDS
FIELDS ONLY
MENU LANGUAGE
ENGLISH
Instructs the printer to retract a presented label after a specified time elapses (0 –
255, in one-fiftieth of a second increments), where:
Retraction occurs when the next label is received and processed. (Default Setting)
Allows font substitution for all internal fonts, where:
Prints using a standard (internal) font. (Default Setting)
Prints using the CG Times font.
Prints using a downloaded font.
Determines the command recall level used when retrieving stored label formats, where:
Recalls the printer state (i.e., heat, speed settings, etc.) and the label-formatting commands for the stored label. (Default Setting)
Recalls the label-formatting commands for the stored label.
Selects the menu and configuration label language. Only languages that are resident will be displayed (see Appendix C), where:
Enables English (Default Setting)
DISPLAY SETTINGS
GRAPHIC DISPLAY
MODE
STANDARD
Determines the appearance of the items in the display, where:
Determines the magnification of the displayed items, where:
Is the normal setting.
DISPLAY UNITS
STANDARD
IMPERIAL
METRIC
DISPLAY
CONTRAST
Determines the displayed type of distance information , where:
Displays the information according to the UNITS OF MEASURE setting (see above).
Displays the information in inches.
Displays the information in millimeters and centimeters.
Adjusts the displays contrast (0-100), where:
Chapter 4 – Menu System 49
DISPLAYED ITEM
FAULT HANDLING
LEVEL
NO REPRINT
STANDARD
VOID AND
RETRY
VOID DISTANCE
(0.09 – 2.00 in.)
0.50
RETRY COUNT
(0 – 3)
1
BACKFEED ON
CLEAR
ENABLED
DISABLED
SCL FONT BOLD
FACTOR
08 (1 – 36)
ITEM DESCRIPTION
Determines the intervention required and the disposition of the label in process when a fault occurs, where:
Selects the user action and the reprint status upon declaration of a fault, where:
Printing stops and a fault message is displayed. Following correction of the problem, the FEED Key must be pressed to clear the fault, but the label in process is not reprinted.
Printing stops and a fault message is displayed. Following correction of the problem, the FEED Key must be pressed to clear the fault then the label in process is reprinted. (Default Setting.)
Depending upon the RETRY COUNT (see below), one of the following occurs:
If the count has not been exceeded, VOID is printed (see VOID DISTANCE) on the failed label and reprinting automatically occurs;
If the count has been exceeded, printing stops and a fault message is displayed.
Following correction of the problem, the FEED Key must be pressed to clear the fault before the label in process is reprinted; or,
If the CANCEL Key is pressed, reprinting is optional: to reprint press NO; or, to cancel the reprint press YES (and press YES again to cancel the batch.)
(1) With no Linear Scanner attached, the printer will perform in the STANDARD setting, except that VOID will be printed on the faulted label.
(2) VOID will not be printed if insufficient text space exists (see
VOID DISTANCE, below), or if the fault occurred after printing.
(3) The text can be customized, see the Programmer’s Manual for details.
Sets the distance to backup and then print VOID on a faulted label, where:
Is the distance, measured from the trailing edge of the label, which indirectly establishes the font size of the text. (The default setting is 0.5 inches.)
Sets the number of reprint attempts, where:
Is the last label in the count to be voided before the printer will stop and display a fault message. (The default setting is one.)
Retry counts greater than 1 are only valid for printers equipped with the Linear Scanner or RFID option.
Determines the printer's action after a fault is cleared, where:
Backup label positioning will occur after the fault is cleared.
No backup label positioning will occur after fault clearing; the printer will assume that the current position is correct. (This is the default setting.)
If reloading media, the label must be placed its presented position.
Sets a scalable font boldfacing amount, where:
Is the setting, based on an incrementing scale, where eight (08) is nominal.
Chapter 4 – Menu System 50
Communications
The Communications menu contains interface and host control functions:
Serial Port A*
Parallel Port A*
USB Port*
Network Interface*
Host Settings*
Items denoted with an asterisk (*) are only accessible through the Advanced Menu.
The menu selections are defined as follows:
DISPLAYED ITEM
SERIAL PORT A
BAUD RATE
(1200 –
115000 BPS)
9600 BPS
PROTOCOL
BOTH
ITEM DESCRIPTION
Controls the RS-232 communications settings for Serial Port A, where:
Sets the serial communication rate, where:
Is the range, in Bits Per Second; and, is the Default Setting.
Sets the data flow control (handshaking) method, where:
XON/XOFF and CTS/DTR are used. (Default Setting)
HARDWARE
NONE
PARITY
NONE
ODD
EVEN
CTS/DTR is used.
Flow control is not used.
Sets word parity, where:
Parity is not used. (Default Setting)
Odd parity is used.
Even parity is used.
DATA BITS
(7 - 8)
8
STOP BITS
(1 - 2)
1
PARALLEL PORT A
PORT
DIRECTION
UNI-
DIRECTIONAL
BI-
DIRECTIONAL
Sets word length, where:
A seven or eight bit word is selectable; and, is the Default Setting.
Sets the number of stop bits, where:
One stop or two stop bits are selectable; and, is the Default Setting.
Controls the communication setting for the parallel port, where:
Determines if data is returned from the printer, where:
No data is returned; communication is one-way.
Data is returned in compliance with IEEE 1284 back-channel operation. (Default
Setting)
USB PORT
An IEEE 1284 bidirectional cable is required.
Controls the communication setting for the USB port
USB DEVICE CLASS Defines the USB port type
PRINTER
CDC
Composite
NETWORK
INTERFACE
QUICK SETUP
WIRED DHCP
SET FACTORY
DEFAULTS
Sets the printer for use as a typical Windows printer
Sets the printer for use with handled PC’s and similar devices
Combines both Printer and CDC classes. (Defautl Setting)
Controls the communications settings for the network interface, where:
Controls the communications settings for the network interface, where:
Configures the card for wired connection.
Resets NIC Adapter parameters to the factory defaults values.
Chapter 4 – Menu System 51
DISPLAYED ITEM
GENERIC
SETTINGS
ACTIVE
INTERFACE
ITEM DESCRIPTION
Controls global communication settings shared by wired and wireless LAN
Selects the network interface currently in use by the printer, where:
WIRED
ETHERNET
WIRELESS
ETHERNET
Selects the Wired Ethernet interface
Selects the Wireless Ethernet interface
SNMP ENABLE Sets SNMP
YES
TELNET
ENABLE
Enable/Disable Telnet protocol
YES
FTP SERVER
ENABLE
Enable/Disable FTP protocol
YES
HTTP SERVER
ENABLE
Enable/Disable FTP protocol
NO
LPD PRINT
ENABLE
NO
TCP PRINT
ENABLE
NO
NETCENTER
ENABLE
YES
GRATUITOUS
ARP
Sets time interval for ARP transmission packets, where:
(0-100 minutes); Default is 0
NETWORK
REPORT
Prints or displays a report which lists the printer’s network settings.
Chapter 4 – Menu System 52
DISPLAYED ITEM
WIRED
ETHERNET
IP
DISCOVERY
USE STATIC
ADDRESSES
ITEM DESCRIPTION
Controls the communications settings for the wired Ethernet network interface
Sets the address discovery method, where:
The stored static IP, Subnet Mask, and / or Gateway Address will be used.
USE DHCP
USE BOOTP
IP ADDRESS
SUBNET
MASK
DEFAULT
GATEWAY
DUPLEX
CAPABILITY
PRIMARY
WINS SERVER
SECONDARY
WINS SERVER
PRIMARY DNS
SERVER
SECONDARY
DNS SERVER
SNMP TRAP
DESTINATION
ADDRESS
SNMP SERVER
ADDRESS
NETBIOS
ENABLE
YES
The card broadcasts over the network using DHCP protocol to receive addresses from the responsible server at startup. Manual modifications to IP Address, Subnet
Mask, or Gateway Address are not allowed; and, if no server is found, the specified static value will be used. (Default Setting)
A server assigned IP address takes precedence over any static IP address stored in the interface.
The card broadcasts over the network using BOOTP protocol to receive addresses from the responsible server at startup. Manual modifications to IP Address, Subnet
Mask, or Gateway Address are not allowed; and, if no server is found, the specified static value will be used. (Default Setting)
A server assigned IP address takes precedence over any static IP address stored in the interface.
Specifies the static IP Address of the interface in the standard octet format.
Specifies the static Subnet assigned to the interface, for example:255.255.255.000.
Specifies the Gateway Address the interface will use, for example:192.168.10.1
Specifies the transmission and speed of the wired Ethernet connection:
•
Auto-Negotiate (default);
•
100 BaseT Full Duplex;
•
100 BaseT Half Duplex;
•
10 BaseT Full Duplex; or,
•
10 BaseT Half Duplex
The IP address of the primary WINS Server.
The IP address of the secondary WINS Server.
The IP address of the primary DNS Server.
The IP address of the secondary DNS Server.
Is the address in standard octet format where SNMP traps will be sent when SNMP service is installed on your receiver. When zeroed, no traps are sent.
Is the server address in standard octet format for SNMP services.
Enables or disables the NET BIOS SERVICES
Chapter 4 – Menu System 53
DISPLAYED ITEM
TCP PRINT
PORT
INACTIVITY
TIME
LPD PRINT
PORT
WIRELESS
ETHERNET
IP
DISCOVERY
USE STATIC
ADDRESSES
ITEM DESCRIPTION
Selects the Port to use for all TCP network communications; Default is 9100
Set the amount of time (in seconds) in which the current port will remain open when no activity is present.
Selects the Port to use for all LPD network communications; Default is 515
Controls the communications settings for the wireless Ethernet network interface, where:
Sets the address discovery method, where:
The stored static IP, Subnet Mask, and / or Gateway Address will be used.
USE DHCP
USE BOOTP
IP ADDRESS
SUBNET
MASK
DEFAULT
GATEWAY
HOST SETTINGS
HOST TIMEOUT
10
The card broadcasts over the network using DHCP protocol to receive addresses from the responsible server at startup. Manual modifications to IP Address, Subnet
Mask, or Gateway Address are not allowed; and, if no server is found, the specified static value will be used. (Default Setting)
A server assigned IP address takes precedence over any static IP address stored in the interface.
The card broadcasts over the network using BOOTP protocol to receive addresses from the responsible server at startup. Manual modifications to IP Address, Subnet
Mask, or Gateway Address are not allowed; and, if no server is found, the specified static value will be used. (Default Setting)
A server assigned IP address takes precedence over any static IP address stored in the interface.
Specifies the static IP Address of the interface in the standard octet format.
Specifies the static Subnet assigned to the interface, for example:255.255.255.000.
Specifies the Gateway Address the interface will use, for example:192.168.10.1
Controls the communications with a host device, where:
The "ignore host" settings for ESC SEQUENCES, HEAT, SPEED,
TOF SENSING, SYMBOL SET, CNTRL-CODES, STX-V SW
SETTINGS, and MAX LENGTH will be unaffected when PL-Z Mode is selected (see Input Mode for details).
Sets the number of seconds (1 - 60) that an established communications port must be idle before data can be received through an alternate port, where:
If the time-out period is exceeded before all data is received, the data will be ignored.
Is the Default Setting.
Chapter 4 – Menu System 54
DISPLAYED ITEM ITEM DESCRIPTION
CONTROL
CODES
STANDARD
CODES
ALTERNATE
CODES
ALTERNATE
CODES 2
CUSTOM
CODES
FEEDBACK
CHARACTERS
ENABLED
DISABLED
Allows changes to the prefix of the software commands interpreted by the printer, where:
Use these characters: Hex 01 = SOH command; Hex 02 = STX command; countby = ^; Hex 1B = ESC; Hex 0x0D = Carriage Return. (Default Setting)
Use these characters: Hex 5E = SOH command; Hex 7E = STX command; countby = @; Hex 1B = ESC; Hex 0x0D = Carriage Return.
Use these characters: Hex 5E = SOH command; Hex 7E = STX command; countby = @; Hex 1B = ESC; Hex 0x7C = Carriage Return.
Each DPL command (SOH, STX, CR, and count-by) may be selected by entering the desired Hex code.
Allows the printer to return a Hex 1E (RS) after each label successfully prints, and a Hex 1F (US) after each label batch successfully prints, where:
Sends feedback characters to the host.
Does not send feedback characters to the host. (Default Setting)
ESC SEQUENCES Allows data containing invalid ESC control code sequences to be processed, where:
ENABLED
DISABLED
Processes commands normally. (Default Setting)
Ignores ESC sequences are during processing (since some systems send a
“banner” to the printer). Bitmapped font downloads are disabled in this mode.
HEAT COMMAND
ENABLED
DISABLED
Determines the way the DPL Heat command is handled, where:
Processes commands normally. (Default Setting)
Ignores DPL Heat commands; instead, the heat value is controlled via the menu setting.
SPEED
COMMANDS
ENABLED
DISABLED
TOF SENSING
COMMANDS
ENABLED
DISABLED
SYMBOL SET
COMMAND
ENABLED
DISABLED
CNTRL-CODES
(DATA)
ENABLED
DISABLED
STX-V SW
SETTINGS
ENABLED
DISABLED
Determines the way DPL Print, Feed, Slew, and Reverse commands are handled, where:
Processes commands normally. (Default Setting)
Ignores DPL speed commands; instead, the speeds are controlled via the menu setting.
Determines the way in which DPL Gap, Continuous, and Reflective commands are handled, where:
Processes commands normally. (Default Setting)
Ignores DPL TOF commands; instead, TOF is controlled via the menu setting.
Determines the way in which DPL Single and Double Symbol Set commands are handled, where:
Processes commands normally. (Default Setting)
Ignores DPL Symbol Set commands; instead, the Symbol Set selection is controlled via the menu setting.
Determines the way in which DPL SOH, STX, CR, ESC, and ^ codes are handled, where:
Processes commands normally. (Default Setting)
Ignores DPL Control Codes; instead, the control code functions are established via the menu setting.
Determines the way in which the DPL <STX>V command is handled, where:
Processes commands normally. (Default Setting)
Ignores the option-enable command; instead, the option selections are controlled via menu settings.
Determines the way in which the DPL <STX>M command is handled, where: MAX LENGTH
COMMAND
ENABLED
DISABLED
PROCESS SOH
(DATA)
Processes commands normally. (Default Setting)
Ignores the maximum label length command; instead, Maximum Label Length is controlled via the menu setting.
Determines the way the printer responds to an Immediate Command (e.g., Get
Status, Module Storage, etc.), where:
DISABLED Processes commands normally. (Default Setting)
Chapter 4 – Menu System 55
Diagnostics
The Diagnostics menu contains testing functions and printhead reporting selections:
Hex Dump Mode*
Options Testing*
Print Test Rate (min)*
Sensor Readings*
Ribbon Sensor Limits*
iPH Report*
Flash Module Report*
Items denoted with an asterisk (*) are only accessible through the Advanced Menu.
The menu selections are defined as follows:
DISPLAYED ITEM
HEX DUMP MODE
ENABLE
DISABLE
FILE CAPTURE
OPTIONS TESTING
TEST PRESENT
SENSOR
TEST CUTTER
PERFORM
TEST
001 TIMES
TEST GPIO
MONITOR
GPIO INPUT
ITEM DESCRIPTION
Determines how the printer handles the data received from a host, where:
The printer outputs the raw ASCII data it receives without interpretation; no processing occurs.
Processes data normally. (Default Setting)
Saves the incoming data to Module H (USB thumbdrive) if present; otherwise, the file is stored on Module G. The file name, in the form [dmx_xxx_yyy.dpl], where the count is automatically incremented for every capture and a unique printer time stamp (xxx), is assigned.
Performs printer option diagnostics or monitors and outputs test results, where:
Performs a functional test of the Present Sensor by indicating LABEL PRESENTED
(when a label blocks the sensor) and LABEL NOT PRESENTED (when no label blocks the sensor). (Note that this test can also be used to check the sensor function of the Peel & Present option.)
Performs a functional test of the Cutter, where:
Cycles the cutter blade a selected number of times (0 - 999), with PASS / FAIL results given for each cycling attempt.
TEST GPIO
OUTPUT
PRINT SIGNAL
INFO
PRINT TEST RATE
(MIN)
000
Performs a functional test of the GPIO port, where:
Displays input signal logic values for Start of Print (SOP).
If unconnected, a zero or one may be displayed.
Displays output signal logic values for End of Print (EP) and Service Required (SR).
To change an output signal state, cursor over the displayed state to select and then toggle it using the UP or Down Arrow Buttons.
Prints a reference label containing GPIO signal names, pin assignments, programmed settings, and current signal states.
Sets a label-to-label delay interval (0 - 120 minutes) when Test label batch printing, where:
Is the Default Setting.
Chapter 4 – Menu System 56
DISPLAYED ITEM
SENSOR READINGS
RIBBON SENSOR
LIMITS iPH REPORT
ITEM DESCRIPTION
Displays the values (0 – 255) from the printer sensors, where:
103 091 009 171
PS HD RANK
003 255 050
THR = Printhead thermistor sensor;
TRAN = Gap media sensor (REFL when set to reflective);
RIBM = Ribbon sensor;
24V = 24 volt power supply sensor;
PS = Present sensor;
HD = Printhead position sensor; and,
RANK = Printhead ranking resistor.
Displays the values from the ribbon sensor readings (see example below) for printers equipped with the thermal transfer option, where:
RIBBON ADC LOW
111
RIBBON ADC HIGH
249
Displays the IntelliSEAQ™ printhead report data, where:
Prints a reference label: iPH REPORT
TUE 12:44PM 23MAY2006
4212-HE25-060224-090
PRINTHEAD SERIAL #: 5x-00289
PRINTHEAD MODEL # 163
PRINTER SERIAL # 60430014
PRINTHEAD INCHES 11175
INSTALLATION DATE - INITIAL 02/02/2006
INSTALLATION DATE - LAST 28/ 02/2006
PRINTHEAD CLEANING
CLEAN PROCEDURES: 0
CLEAN COUNTER RESET 0
NUMBER OF INCHES - INITIAL 0
Displays the module report data, where: FLASH MODULE
REPORT
PRINT Prints a reference label:
FLASH MODULE REPORT
SUN 12:44PM 23MAY2011
Module G Mount Fail: 0
Module G Reformatted: 0
Chapter 4 – Menu System 57
Chapter 4 – Menu System 58
5 M
A a i i d i j n j u
5 .
.
.
1 C l l l e a n i i i n g I n t t e r r v a l l l s t e s t n a m n e c n e t s a n d
This section details the cleaning, adjusting, and troubleshooting tips for the printer. The following table outlines the recommended maintenance schedule for the various printer parts.
Area
Printhead
Method
Turn off the printer before cleaning the printhead. Use solvent* on a cotton swab to clean the printhead from end to end.
Interval
After every roll of media.
Platen Roller Turn the power off. Rotate the platen roller and clean it thoroughly with solvent* and a cotton swab.
After every roll of media.
Peel-Off Roller Rotate the peel-off roller and clean it thoroughly with solvent* and a cotton swab.
After every roll of media.
Media Path
Peel/Tear Bar
Media Sensor
Exterior
Interior
Solvent*
Air blow
Mild detergent or desktop cleaner.
Brush or vacuum cleaner
* It is recommended that a solvent containing isopropyl alcohol be used.
After every roll of media.
Monthly
As needed
As needed.
Isopropyl alcohol is a flammable solvent; always take the proper precautions when using this substance.
Proper cleaning is critical. To maintain peak performance of the printer, Datamax-O’Neil offers a complete line of cleaning products including pens, cards, films and swabs. Visit our website at http://www.datamax-oneil.com to learn more.
Certified Datamax-O’Neil – The worry free choice for optimal printer performance
Chapter 5 – Maintenance and Adjustments 59
5 .
.
.
2 C l l l e a n i i i n g t t h e P r r i i i n t t h e a d
If print quality declines (symptoms include non-compliant bar codes, print dropouts, and streaks; see sample label below), the typical cause is debris build-up on the printhead. Furthermore, when the build-up is not removed it may lead to element failure, greatly reducing the service life of the printhead.
Faulty Print Quality Label:
Streaks indicate a dirty or faulty printhead.
To clean the printhead:
1. Turn ‘Off’ and unplug the printer.
2. Open the cover. Unlock the Printhead Latch and raise the Printhead Assembly. Allow the
printhead to cool before proceeding.
3. Move media and ribbon away from the printhead as necessary.
4. Using a Cotton Swab moistened, not soaked, with isopropyl alcohol gently wipe away any build-up on the printhead surface, paying close attention to the Burn Line. Allow the printhead to dry.
5. Replace the ribbon and media. Lower the Printhead Assembly back to the locked position.
6. Close the cover. Plug in and turn ‘On’ the printer. Feed several labels to normalize tracking.
Printhead Latch
Printhead Assembly
Cotton Swab
Chapter 5 – Maintenance and Adjustments 60
Automated Printhead Cleaning
1. Remove media and ribbon.
2. Place a Datamax-O’Neil Cleaning Card, part number 70-2013-01 under the printhead. Lower and lock the printhead. Ensure that the Media Width Adjustment is not engaged.
3. Press and hold the TEST Key for approximately four seconds.
The printer will begin the cleaning routine.
4. In cases of heavy build-up, or if high heat values are typically used for printing, flip the card over and repeat Step 3.
5. Reinstall your ribbon and media (if necessary, readjust the Media Width Adjustment, see
Section 5.3). Lower and lock the printhead. Close the cover.
Chapter 5 – Maintenance and Adjustments 61
5 .
.
.
3 M e d i i i a W i i i d t t h A d j j j u s t t m e n t
Whenever using narrow media (sizes that are less than the width of the printhead), adjust the
Leveling Cam for even pressure distribution. Adjust the Printhead Leveling Cam as follows:
1. With media loaded, download your label format (or use a Test Menu format) then begin printing a small batch of labels.
2. While observing the printed output, rotate the Leveling Cam counter-clockwise until the image fades across the label, as shown in Example 1 (below).
3. While observing the printed output, rotate the Leveling Cam clockwise until the image is complete, with even contrast, as shown in Example 2 (below).
Thumbscrew
Example 1 – Over adjustment:
Too much adjustment produces an image that fades across the label. To correct this, move the Thumbscrew
to the right.
Example 2 – Correct adjustment:
The proper adjustment produces a complete image with even print contrast across the
label (see note below).
Under-adjustment can also cause problems including ribbon wrinkling, label tracking, and platen roller and printhead wear. When changing to a different width of label, always perform this adjustment.
Chapter 5 – Maintenance and Adjustments 62
5 .
.
.
4 P r r i i i n t t h e a d P r r e s s u r r e A d j j j u s t t m e n t t
Printhead Pressure Adjustment should only be performed after attempting to improve print quality through the use of other print quality controls.
A. With media loaded, download your label format (or use a Test Menu format) then begin printing a small batch of labels.
B. While observing the printed output, turn each Pressure Adjustment Screw (use a small coin or screwdriver) by the same amount until the image is complete, with even contrast:
Counterclockwise (+) to increase applied pressure, or;
Clockwise (-) to decrease applied pressure.
Ensure that each arrow points in the same direction.
Pressure Adjustment Cams
Chapter 5 – Maintenance and Adjustments 63
5 .
.
.
5 P r r i i i n t t h e a d R e p l l l a c e m e n t
To replace a damaged printhead, follow the procedure below.
Printheads are fragile; use extreme care when handling and never use a sharp object on the surface. If you have questions, contact a qualified technician or Datamax-O’Neil
Support before proceeding.
Technical
1. Touch a bare metal part of the printer’s frame to discharge any static electricity that may be present on your body.
2. Turn ‘Off’ and unplug the printer. Open the cover; if ribbon is installed, remove it.
3. With the printhead locked in the down position, loosen the Printhead Mounting Screw (it will remain in the assembly).
4. Unlatch the Printhead Assembly. While holding the Printhead, raise the assembly. Disconnect the two cables and then remove the old Printhead.
5. While carefully holding the new Printhead, connect both cables.
6. Position the Printhead onto the Locating Pins in the Printhead Assembly and secure in place with the Printhead Mounting Screw (do not over-tighten).
7. Clean the Printhead (see Section 5.2).
8. Reload ribbon (if removed), lower the printhead assembly, and rotate the printhead latch back, into the locked position.
Printhead Mounting Screw
Chapter 5 – Maintenance and Adjustments 64
5 .
.
.
6 R e s e t t t t i i i n g t t h e P r r i i i n t t e r r
Soft Reset - To reset the printer and clear any temporary host settings:
1. With the printer ‘On’, press and hold the PAUSE and CANCEL buttons for approximately four seconds.
5 .
.
.
7 U p g r r a d i i i n g F i i i r r m w a r e
When program updates and/or new features are added, they can be downloaded to the printer as follows:
1) Identify the new version for your model of printer from the Datamax-O’Neil Web site at www.datamax-oneil.com and download it onto your computer’s hard drive.
2) Launch the NETira CT configuration utility, and query (connect) to the printer, (see section
3.3 for more information on NETira CT).
It is recommended that the configuration be saved before downloading firmware, and restored when finished. Be sure to check the box labeled “Include Sensor Calibration Data on Open” when restoring the configuration.
3) Go to the Tools>Upgrade>Firmware.
Select the binary file (BIN file).
4) Click the ‘Send’ button to start the firmware update.
Be sure only that only one communication cable is connected to the printer before attempting the firmware upgrade. Do not attempt to send any other data or perform operations via the front panel when the firmware is downloading.
Chapter 5 – Maintenance and Adjustments 65
Loading Boot 1 and Boot 2 and Firmware
1) Connect the printer to your PC using a serial cable
2) Launch the NETira CT configuration utility, and query (connect) to the printer, (see section
3.3 for more information on NETira CT).
It is recommended that the configuration be saved before downloading firmware, and restored when finished. Be sure to check the box labeled “Include Sensor Calibration Data on Open” when restoring the configuration.
3) Go to the Tools>Upgrade>Firmware. Select the binary files (BIN files) for each of the Boot files.
4) Check the “Select and Download Boot 1 file:”, “Select and Download Boot 2 file:” and “Erase
System and/or User Area” boxes and click send to initiate the download.
Be sure only that only one communication cable is connected to the printer before attempting the firmware upgrade. Do not attempt to send any other data or perform operations via the front panel when the firmware is downloading.
Always Check “Erase System and/or User Area” box unless otherwise instructed.
5) Once the Boot Loader files have been loaded, the firmware version can now be updated using the procedure outlined in section 5.7.
Chapter 5 – Maintenance and Adjustments 66
6
T T r o u b l l l e s h o o t i i i n g
6 .
.
.
1 P r r o b l l l e m R e s o l l l u t i i i o n
Should a problem arise, the information in this section will help you resolve it. The following table lists problems that may not necessarily generate an error condition. Items denoted with an asterisk (*) are only for display-equipped printers.
If experiencing this problem… Try this solution…
Can not communicate through the parallel port:
Can not load media through the optional cutter:
* The LCD is blank, but the Ready
Indicator is ‘On’:
Observe the Ready Indicator as the format is sent to the printer. If it does not flash, check the parallel cable type.
Also, check the protocol and port settings between the printer and host.
WARNING!
Use extreme care. Turn ‘Off’ and unplug the printer before proceeding.
Ensure that the cutter is properly installed. Plug in and turn
‘On’ the printer. You should hear the cutter blade rotate and position itself properly. However, if the problem continues call for service.
The display contrast may set too low. Press and hold the
MENU Key for 3 seconds then use the up and down arrow keys until the display reappears.
Erratic feeding: The printer may require Calibration; see Section 3.4.
Erratic printing (instead of the label format, strange characters are printed):
The printer may be in Hex Dump Mode; see Section 6.2.
If using the serial port for communicating, check both the host and printer port settings; the printer may be set to eight data bits while the host is set to 7 (or vice versa).
Intellifont will not print:
Light print on the right side (facing the printer) of the label:
Intellifont format is Little/Big Endian specific. The printer uses Big Endian. Refer to your font supplier for information.
The Media Width Adjustment may be incorrectly adjusted; see Section 5.3.
The Printhead or Platen Roller may be dirty or worn; clean or call for service.
Chapter 6 – Troubleshooting 67
If experiencing this problem…
Missing information in the printed label:
Missing print on left or right side of the label:
No power (all indicator lights are
‘Off”):
Try this solution…
Check the label format for character placement outside the dimensions of the label; all row/column values must allow enough space for the height/length of the characters and bar codes to be printed within the format size.
The available memory may have been exceeded by the memory requirement of the label format. Try reducing the memory allocated to either the internal module or scaleable font caches, see Section 4.5.)
If using serial communications, ensure that the interface cable meets the requirements found in Section 2.1.2.
Information may be formatted outside the label dimensions.
Check your software program label size. For displayequipped printers also check the values in the menu for Print
Control / Column Offset and Print Control / Custom
Adjustments / Column Offset; see Section 4.5.
Verify that the AC power cord connection has been made at both the outlet and the printer; also, ensure the power switch is ‘On’.
Verify that the AC outlet is functioning, or try moving the printer to another AC circuit.
The AC cord may be damaged; replace it.
The line fuse may be blown; call for service.
Chapter 6 – Troubleshooting 68
If experiencing this problem…
Nothing is printing (labels advance normally, but no image is printed):
Nothing happens when trying to print using a software program:
Try this solution…
Examine the used ribbon for an image:
If there is an image on the used ribbon:
Verify that the ribbon was properly loaded per Section 2.4.
If properly loaded, the wrong coating configuration was used. (To verify the inked side, press the adhesive backing of a label against the ribbon surface. Ink will only lift from the coated side of the ribbon.) Clean the printhead (see
Section 5.2); then replace the ribbon with the correct type for the printer, Section 2.4.
If there is no image on the used ribbon:
Print any Internal Test Label, see Section 4.4.) If an image is printed, then check the protocol and port settings for both the printer and host. These settings must match.
The heat setting may be too low. Make an adjustment in the software program or through the menu.
The media/ribbon combination may be incorrect. Contact a
Media Representative.
The printhead or printhead cable(s) may be loose; power
‘Off’ the printer then reconnect.
Ensure that the printer is at READY.
Observe the Front Panel, if the READY light does not flash as you send the format check the protocol and port settings between the printer and host.
Ensure the interface cable meets the requirements found in Section 2.1.2.
Chapter 6 – Troubleshooting 69
If experiencing this problem…
Poor print quality:
Skips labels when printing:
Try this solution…
The printhead may need cleaning; see Section 5.2.
Adjust the Heat and Print Speed settings through the Front
Panel or by host commands, see Section 4.5.)
The media/ribbon combination may not be compatible; contact a Media Representative.
The Media Width Adjustment may be incorrectly adjusted; see Section 5.3.
The Platen Roller may be dirty or worn; clean or call for service.
Media Calibration may be needed; see Section 3.4.
The Media Sensor may be out of position; readjust the position; see Section 2.3.
The format may be within 1/8 inch of the label’s trailing edge. Try reducing or moving the format slightly.
Unable to print rotated text:
The characters may be formatted outside the label dimensions. Ensure the row/column values provide enough room for the height of the characters or bar code to be printed. See the Programmer’s Manual for details.
Chapter 6 – Troubleshooting 70
6 .
.
.
2 H e x D u m p M o d e
The Hex Dump Mode is a useful tool for diagnosing problems, including communication and DPL syntax errors, allowing a comparison of input strings (sent by host) to output data (received by printer). To decode this information, the Programmer’s Manual is an essential reference. This output can be used for debugging the label format. In addition, by repeatedly sending a format, this mode can uncover handshaking problems (if they exist). Handshaking problems are identified by sections of missing data in the character string.
To print the Hex Dump Label:
To begin, go to the Diagnostics menu and enable Hex Dump Mode; see Section 4.5. Exit the menu and save the changes. Now, ‘HEX DUMP MODE’ will be indicated by the display and all data sent to the printer will now be output in hexadecimal code, along with the printable ASCII equivalents, as shown below. To exit Hex Dump Mode, re-enter the Diagnostics Menu and disable the Hex Dump
Mode, exit the menu, then save the changes.
The figure below is a sample Hex Dump Label. After sending a label format to the printer, the hex code output will be immediate. As a final note, many software programs use bit mapping to construct the label, making diagnosis difficult. Contact Datamax-O’Neil Technical Support with any questions.
Chapter 6 – Troubleshooting 71
Chapter 6 – Troubleshooting 72
A
S p e c i i i f f i i i c a t i i i o n s
Mechanical
Width 12.62
Depth
Height
Weight
Operating Temperature
Humidity
18.60 inches (472.5 mm)
12.70 inches (322.6 mm)
45 pounds (20.5 kg)
32 F to 100 F (0 C to 38 C)
10% 95% non-condensing
AC Input Voltage 90 – 132 or 180 – 264 VAC @ 47–63 Hz, auto-ranging.
Printing
Print Method
Print Speed
Resolution
Tear Bar
DRAM Memory
FLASH Memory
Direct Thermal; Thermal Transfer (optional)
2 – 12 IPS (51 – 305 MMPS): I-4212e
2 – 10 IPS (51 – 254 MMPS): I-4310e
2 – 6 IPS (51 – 152 MMPS): I-4606
203 dpi (8 dots/mm): I-4212e
300 dpi (11.8 dots/mm):I-4310e
600 DPI (23.6 dots/mm): I-4606e
Tear Down
32MB
64MB
Appendix A – Specifications 73
Media/Ribbon
Media Types
Max. Media Width
Min. Media Width
Max. Print Width
Print Length Range
Media Thickness Range
Media Supply Roll Capacity
Ribbon Width Range
Ribbon Roll Capacity
Ribbon Core:
Communications
Interface
Baud Speed
Handshaking
Parity
Stop Bits
Data Bits
Roll-Fed, Die-Cut, Continuous, Fan-Fold
4.65" (118 mm)
1.0" (25 mm)
4.10” (104.0 mm): I-4212e
4.16” (105.7 mm): I-4310e & I-4606e
.25 - 99" (6 - 2475 mm); with Cutter min. 1.25” (31.8mm); with peel and Present min. 1.50” (38mm)
.0025 - .01" (.064 mm - .254 mm)
8" (203 mm) O.D. on a 3.0" (76.2 mm) or 1.5” (38mm) core
1.0 - 4.5" (25 - 114 mm)
Matched to media: approx. 1968’ (600 m) long
1.010” .006” (25.6 mm .2 mm) inner diameter.
USB, RS-232 (DB-9), and IEEE 1284 Compliant Centronics Parallel
600 to 38,400 bits per second (BPS)
Xon/Xoff, CTS, DTR
Even, Odd, or None
1 or 2
7 or 8
Embedded Fonts and Barcodes
The printer is equipped with the most popular industry fonts and bar codes; see the Programmer’s
Manual for full listings and detailed information.
9 Bit Map Fonts; rotated 0, 90, 180, 270 degrees.
10 smooth bitmap fonts 6pt – 48pt
AGFA Scalable Font Engine featuring CG Triumvirate™ regular and bold-condensed scalable fonts with dynamic font attributes.
Appendix A – Specifications 74
Approved Media
To achieve optimum print quality and maximum printhead life, Datamax-O’Neil specifies the use of
Datamax-O’Neil brand media and ribbons. These supplies are specially formulated for use in our printers; use of non-Datamax-O’Neil supplies may affect the print quality, performance, and life of the printer or its components.
For a current list of approved media and ribbons for use in direct thermal and thermal transfer applications, please contact a Media Representative at (407) 523-5650.
Side View Top View
G
F
I
H
E
J
D
K
Designator
B
C
A
C
B
Media Dimensional Requirements
Description
Liner width
Gap (or notch) between labels [3]
Minimum [1]
1.00
1.00
Maximum [1]
4.65
4.65
.0025
.20
.20
.010
.500
2.25 G
H
Media edge to sensor aperture distance
Reflective (black) mark width [2]
I
J
Distance between reflective marks [3]
Reflective mark length [3]
K Label repeat distance [3]
[1] Units of measure are given in inches and referenced by the direction of label feed.
[2] The reflective (black) mark must be carbon based, placed on the backside of the stock, and the reflectance shall be less than 10% at wavelengths of 950 and 640 nm.
[3] The maximum allowable length of the combined label and gap (or mark) measurement cannot exceed 99.99 inches.
Appendix A – Specifications 75
Appendix A – Specifications 76
B W i i i
W r i i i e r l l l e
B .
.
.
1 N e t t w o r r k C a r r d S e t t u p e d s s
L a
A n
N d
S e t u p
Whether a wired or wireless connection is intended, it is recommend to establish a wired connection to the printer first. This will allow access to the printers internal web pages to configure the settings necessary for a typical wireless connection. If a wired connection is not or can not be achieved all connection parameters can also be set using the NETira CT configuration utility, see section 3.3.
The printer makes IP requests at power-up, so before making a network connection to the printer consider how your IP addressing needs to be assigned. The IP addressing of the printer can be configured in one of two ways: Using a static IP Address or Using IP Discovery (DHCP, BootP, or
RARP). At factory default settings IP DISCOVERY is ENABLED (DHCP).
1. With Printer Off, connect the network cable then turn on Printer.
2. The printer will now search for a DHCP server. Once the printer has obtained an IP address the icon will be displayed signifying that an IP address has been obtained. Allow up to 90 seconds for the printer to retrieve an IP address.
3. At this point it is recommended to print a Network Report.
This Network Report is generated by the printer and lists important default information such as the IP and MAC
Addresses as well as SSID for wireless equipped cards. To print the ‘Network Report’: Press the PAUSE, FEED,
CANCEL buttons at the same time.
4. Verify the printer has obtained a valid IP address for your network. If a valid IP address was not obtained or you wish to use a different static address this can be set via the printer’s front panel. The information on this label will vary depending on your configuration and firmware version.
Enter the printer’s menu and navigate to the Communications/Network Interface/Wired
Ethernet menu branch.
Set the “IP Discovery” menu item to “Use Static Addresses”.
Set the “IP Address” menu item to desired value, continue the same procedure with
“Subnet Mask” and “Default Gateway” menu items if necessary. Exit the printers menu.
Cycle power to the printer, upon start-up the printer will connect to the network using the new parameters you provided.
Once the previous steps have been successfully completed you may now use the IP Address to:
If your printer is equipped with wireless capabilities, browse to the printer’s internal web pages for wireless/advanced configuration. See section B.2, Wireless Setup.
-or-
Install a printer driver, and start printing from your Windows applications. See section B.3,
Installing the Printer Driver.
Appendix B – Wireless and Wired LAN Setup 77
B .
.
.
2 W i i i r r e l l l e s s S e t t u p
1. Open your web browser. Type in the IP Address assigned to the printer. The printers default IP address is: 192.168.10.26.
If a different IP Address has been assigned to the printer, make sure to enter the correct IP address.
The following page will appear:
The printer’s internal web pages are divided into 10 pages that are accessible via the navigation bar on the left-hand side.
Most of the items on these pages mimic the printer's internal menu. For more information on the function of these settings see the corresponding function in Chapter 4.
You must provide a password to change any settings, the default password is “sysadm”.
If any address parameters were changed such as IP address, subnet or gateway, the printer might not be viewable from the current host if they are no longer on the same subnet.
Appendix B – Wireless and Wired LAN Setup 78
B.2.1 Wireless Setup – Infrastructure
After a successful setup is made via a wired connection, the Wireless connection (if equipped) can now be configured in infrastructure mode using a static or DHCP issued IP address.
1. Open your web browser. Type in the IP
Address of the printer. The Default IP is:
192.168.10.26.
If a different IP Address has been assigned to the printer, make sure to enter the correct IP address.
A page similar to the right will appear:
2. Click on the “Wireless Ethernet Settings” menu item on the left side of the screen. Locate and set the following items:
In the “Acquire Address Method” section, select the “Use DHCP” radio button.
For static IP setup:
In the “Acquire Address Method” section, select the “Use Static Addresses” radio button.
In the “Static IP Addresses” section, enter valid static IP addresses for Printer IP
Address, Printer Subnet Mask, and Printer Gateway.
3. Scroll down the page to “Network Type”, select “infrastructure” from the drop down box.
4. In the SSID field type the name of the SSID of your access point.
5. Under the “WIFI Security and Authentication”, set any security/authentication settings necessary for your network.
6. Scroll down to the bottom of the page, enter the password (default is “sysadm”) and click
Apply.
7. Click on the “General Network Settings” menu item on the left side of the screen. Locate and set the following items:
8. In the “Network Interface”, select the “Wireless Ethernet” radio button
9. Scroll down to the bottom of the page, enter the password (default is “sysadm”) and click
Apply.
10. Click on the “Restore Defaults/Restart” menu item on the left side of the screen. Be sure that
Restart Printer is displayed in the “Action to Execute:” drop down box. Enter the password at the top of the page (default is “sysadm”) and click Execute to restart the printer.
Appendix B – Wireless and Wired LAN Setup 79
Once the printer has restarted the
icon will be displayed signifying that an IP address has been obtained. Allow up to 90 seconds for the printer to retrieve an IP address.
At this point it is recommended to print a Network Report. This
Network Report is generated by the printer and lists important default information such as the IP and MAC Addresses as well as SSID for wireless connections. To print the ‘Network
Report’: Press the PAUSE, FEED, CANCEL buttons at the same time.
Once the previous steps have been successfully completed you may now use the IP Address to install a printer driver, and start printing from your Windows applications. See section
B.3, Installing the Printer Driver.
The information on this label will vary depending on your configuration and firmware version.
B.2.1 Wireless Setup – Ad-Hoc
After a successful setup is made via a wired connection, the Wireless connection (if equipped) can now be configured in ad-hoc mode using a static IP address. To configure the wireless card in Adhoc mode, you must configure your host computer to match the IP settings of the printer. Refer to your operating system’s or your wireless network card documentation for information on how to configure your computer.
1. Open your web browser. Type in the IP
Address of the printer. The Default IP is:
192.168.10.26.
If a different IP Address has been assigned to the printer, make sure to enter the correct IP address.
A page similar to the right will appear:
2. Click on the “Wireless Ethernet Settings” menu item on the left side of the screen. Locate and set the following items:
In the “Acquire Address Method” section, select the “Use Static Addresses” radio button.
In the “Static IP Addresses” section, enter valid static IP addresses for Printer IP
Address, Printer Subnet Mask, and Printer Gateway.
3. Scroll down the page to “Network Type”, select “Ad-hoc” from the drop down box.
Appendix B – Wireless and Wired LAN Setup 80
4. In the SSID field type the name of the SSID you wish to assign to the printer.
5. Under the “WIFI Security and Authentication”, set any security/authentication settings necessary for your network.
6. Scroll down to the bottom of the page, enter the password (default is “sysadm”) and click
Apply.
7. Click on the “General Network Settings” menu item on the left side of the screen. Locate and set the following items:
8. In the “Network Interface”, select the “Wireless Ethernet” radio button
9. Scroll down to the bottom of the page, enter the password (default is “sysadm”) and click
Apply.
10. Click on the “Restore Defaults/Restart” menu item on the left side of the screen. Be sure that
Restart Printer is displayed in the “Action to Execute:” drop down box. Enter the password at the top of the page (default is “sysadm”) and click Execute to restart the printer.
11. Once the printer has restarted the
icon will be displayed signifying that an wireless connection has been obtained. Allow up to 90 seconds for the printer to make a connection.
12. From Windows, you may now “View
Wireless Networks”. From the list of available wireless networks select the printer that you wish to connect to and then click on the Connect button.
If you do not see your printer listed be sure you have the host computer configured for Ad-hoc wireless networks.
This process will vary depending on your wireless device installed in your host computer and your operating system version.
Once the previous steps have been successfully completed you may now use the IP Address assigned to the printer to install a printer driver, and start printing from your Windows applications. See section B.3, Installing the Printer Driver.
Appendix B – Wireless and Wired LAN Setup 81
B .
.
.
3 I n s t t a l l l l l l i i i n g t t h e P r r i i i n t t e r r D r r i i i v e r r
The following screen shots are taken from Windows 2000, other Windows versions will be similar.
1
Start the Windows
“Add Printer Wizard”.
The following screen should appear, click
‘Next>’.
2
Make sure that
‘Local Printer’ is selected and then click ‘Next’.
3
Select on ‘Create a new port:’ and then select ‘Standard
TCP/IP Port’ from the drop down menu.
Click ‘Next’
5
In the ‘Printer Name or IP Address:’ field enter the IP address or NetBIOS name of your printer. The ‘Port
Name’ field does not need to be changed.
When finished click
‘Next’.
7
Confirm your settings and then click ‘Finish’.
4
Click ‘Next’.
6
Make sure
‘Standard’ is selected and then click ‘Next’.
8
Click on ‘Have Disk’.
Appendix B – Wireless and Wired LAN Setup 82
9
Insert the Accessories
CD-Rom and click
‘Browse’.
11
Click ‘OK’.
13
Name your printer in the ‘Printer name:’ field. Next select whether or not to set this printer as your default printer. Then
Click ‘Next’.
15
Select ‘No’ then Click
‘Next’.
17
If prompted with the
"Digital Signature Not
Found" window, click
‘Yes’ to continue installation.
Appendix B – Wireless and Wired LAN Setup
10
Browse to the
“\DRIVERS\Seagull” folder on the CD-
ROM, make sure the file “for 95, 98, me,
2000, and xp.inf” is selected and click
‘OK’.
12
Choose your printer from the list and then click ‘Next’.
14
Select whether or not to share this printer on your network.
Then Click ‘Next’
16
Confirm your settings and then click ‘Finish’.
18
Your computer will now copy the necessary files from the CD-ROM.
The driver and port installation is now complete. The printer can be selected through any Window’s application.
83
Appendix B – Wireless and Wired LAN Setup 84
C
M e n u L a n g u
C .
.
.
1 C h a n g i i i n g t t h e M e n u L a n g u a g e a g e
Different languages and / or Datamax-O’Neil-provided translations can be downloaded to replace the standard (English) menu of the printer by changing the spreadsheet that defines the system dictionary. To change the language you will add a new language column (or modify the existing column) in the spreadsheet, click on the “Generate DPL file(s)” radio button, and then send that file(s) to the printer.
Software requirements for modifying the menu language are as follows:
• Microsoft ® Excel must be purchased by user;
• Img2dl.exe (provided at ftp://ftp.datamax-oneil.com/Printer%20Firmware/EFIGS-
A.I.M.W.Class/) is a program used during the process to create the DPL file; and,
• Common.xls (also provided at the web site above) is the Menu Dictionary.
Place Img2dl.exe and Common.xls in the same directory.
Create a Menu Language by following these steps:
A. Invoke Excel and open the Common.xls file. After the file opens, the following screen appears:
Appendix C – Menu Language 85
B. Click the “Enable Macro” box. The following screen appears:
C. Click on Column J and enter the new language, or modify an existing one. Some tips on this process:
• Message Size – When entering new messages, reference the “MAX” column: this is the maximum number of characters allowed for this field. (Warnings are displayed when the number of characters is exceeded, or when trying to modify the MAX value; however, if
“cutting and pasting” fields, this warning system may be defeated.)
• Two Line Messages – Some of the message are displayed as two lines. These are indicated in the comment fields.
• Comments – This field can be modified with no effect.
D. After editing is complete, highlight all of the columns to be created by pressing the letter above the column (more than one column can be selected).
E. Press the Generate DPL File(s) radio button. A file will be generated for each of the selected columns and Excel will provide confirmation (for example, as shown below, small.ls).
Appendix C – Menu Language 86
F. Download the generated files to the printer – one method is the DOS copy command: copy small.ls lpt1: /b
G. Reset the printer by pressing and holding the CANCEL Key for approximately four seconds.
H. After resetting, verify operation by printing a Configuration Label (see Section 4.4). New language information will be printed under SYSTEM INFORMATION / OPTIONAL LANGUAGES.
(Also, the new language will appear on the display as a menu item in SYSTEM SETTINGS /
MENU LANGUAGE. These are the only methods to determine a successful download.)
Enable the new language. Enter the menu system and go to SYSTEM SETTINGS / MENU
LANGUAGE and select the new language. Next select the desired font for the language. Save the changes when prompted. (A reset will occur as font validation is performed.)
An error has occurred if the printer displays the new language selection, but all messages remain in English. In this case, re-check your process or contact Datamax-O’Neil Technical
Support (be ready to provide the Common.xls and DPL download files created). Other error messages are also possible:
Menu Language Error Message
Please select the entire column(s) or the desired language(s), by clicking on the column letter(s)
Description
After pressing the Generate DPL File(s) radio button, the languages to convert were not correctly selected.
Message text may not exceed MAX = xx designated characters for this MID
The entered message exceeds the number of characters specified in column C. You may not modify this number.
I. Repeat Steps A – H using the filename misc.xls to translate printer option items. This will output small20.ls.
Appendix C – Menu Language 87
C .
.
.
2 A d v a n c e d F i i i l l l e H a n d l l l i i i n g I n f f o r r m a t t i i i o n
•
The standard printer leaves the factory with EFIGS loaded into Module Y. At this point, Module
Y is LOCKED and will only accept additional language downloads.
•
After downloading a language update, Module Y is left UNLOCKED until the printer is reset or power is cycled. In this state, Module Y will accept font, image and label format downloads.
The module will also honor the Clear Module request. Therefore, following an update it is recommended that a reset be performed to lock the module; otherwise, a software package may “Clear All Modules” thus destroying the new menu language(s).
•
Module Y can be UNLOCKED by sending this DPL string: <STX>KpY0
•
To restore the factory generated EFIGS image, download the file *832296.01A to the printer.
This file is located on the Datamax-O’Neil FTP site. The letter at the end of the file name (e.g.,
A) specifies the revision. The latest revision will be available on the FTP site.
•
Downloading the same language twice will automatically delete the first occurrence, but will not free the memory space.
•
Deletion of the selected language will reset the printer to English. The total number of languages that the printer can now accept is limited to 10, but this number is dependent upon the size of each language translation. The translation size will vary with the number of messages that are translated for that particular language. Current complete language files are about 7,000 bytes each; but with product growth, the total number of languages is expected to drop to five.
Appendix C – Menu Language 88
The screen shot below is an example of Unicode defined languages, Chinese & Russian.
Note the only additional information required is the “double” in row 1.
Appendix C – Menu Language 89
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 7 Introduction
- 7 Unpacking
- 9 Printer Connections
- 9 Power Connection
- 10 Interface Connection
- 11 USB Connection
- 15 Loading Media
- 17 Media Sensor Adjustment
- 18 Loading Ribbon
- 21 OPTImedia
- 22 Internal Rewinder
- 25 Front Panel
- 26 3.1.1 Display Icons
- 27 Windows Driver
- 28 Important Notes
- 29 Printer Configuration Utility (NETira CT)
- 31 Media Calibration
- 31 Quick Calibration
- 31 Empty Calibration
- 32 Standard Calibration
- 34 Advanced Entry Calibration
- 41 Menu System Overview
- 42 The User Menu
- 42 The Advanced Menu
- 43 The Test Menu
- 43 User-Defined Label
- 43 Menu Details
- 65 Cleaning Intervals
- 66 Cleaning the Printhead
- 68 Media Width Adjustment
- 69 Printhead Pressure Adjustment
- 70 Printhead Replacement
- 71 Resetting the Printer
- 71 Upgrading Firmware
- 73 Problem Resolution
- 77 Hex Dump Mode
- 83 Network Card Setup
- 84 Wireless Setup
- 85 Wireless Setup – Infrastructure
- 86 Wireless Setup – Ad-Hoc
- 88 Installing the Printer Driver
- 91 Changing the Menu Language
- 94 Advanced File Handling Information
