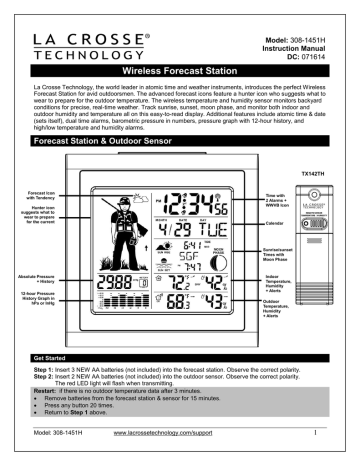

Model: 308-1451H
Instruction Manual
DC: 071614
Wireless Forecast Station
La Crosse Technology, the world leader in atomic time and weather instruments, introduces the perfect Wireless
Forecast Station for avid outdoorsmen. The advanced forecast icons feature a hunter icon who suggests what to wear to prepare for the outdoor temperature. The wireless temperature and humidity sensor monitors backyard conditions for precise, real-time weather. Track sunrise, sunset, moon phase, and monitor both indoor and outdoor humidity and temperature all on this easy-to-read display. Additional features include atomic time & date
(sets itself), dual time alarms, barometric pressure in numbers, pressure graph with 12-hour history, and high/low temperature and humidity alarms.
Forecast Station & Outdoor Sensor
Forecast Icon with Tendency
Hunter icon suggests what to wear to prepare for the current outdoor temperature.
Time with
2 Alarms +
WWVB Icon
Calendar
Sunrise/sunset
Times with
Moon Phase
Absolute Pressure
+ History
12-hour Pressure
History Graph in hPa or InHg
Indoor
Temperature,
Humidity
+ Alerts
Outdoor
Temperature,
Humidity
+ Alerts
Get Started
Step 1: Insert 3 NEW AA batteries (not included) into the forecast station. Observe the correct polarity.
Step 2: Insert 2 NEW AA batteries (not included) into the outdoor sensor. Observe the correct polarity.
The red LED light will flash when transmitting.
Restart: if there is no outdoor temperature data after 3 minutes.
Remove batteries from the forecast station & sensor for 15 minutes.
Press any button 20 times.
Return to Step 1 above.
TX142TH
Model: 308-1451H www.lacrossetechnology.com/support
1
Table of Contents
Forecast Station & Outdoor Sensor
Install Batteries in the Forecast Station & Sensor
1
1
2
3
City Selection: Sunrise/Sunset Times
Backlight
Set Temperature Alarms 2 and 3
Temperature Trend Indicators
Absolute Barometric Pressure Number
Low Battery Indicator
Weather Forecast & Hunter Icons
10
Weather Forecast (Snow, Sun, Partial Sun, Cloud, Rain) 10
Hunter Clothing Index
10
10
9
9
9
9
8
8
8
9
8
8
8
7
7
7
7
7
6
6
6
7
5
5
5
6
4
4
4
4
3
3
4
4
Channel Selection and Auto-scroll
City Codes
11
11
11
12
12
12
12
13
13
14
14
15
Model: 308-1451H www.lacrossetechnology.com/support
2
Features
Forecast icons change with barometric pressure (Snow, Sun, Partial Sun, Clouds and Rain)
Advanced Hunter icon reacts to changes in outdoor temperature
Barometric pressure with 12 hour history graph (InHg or hPa)
Atomic 12/24 hour time and calendar: day, month, date (manual set option)
Sun rise/set, moon phase for 250 pre-selected US cities
Indoor temperature (ºF/ºC)
Indoor humidity (%RH)
Outdoor temperature (ºF/ºC)
Outdoor humidity (%RH)
Temperature and frost alarm icons
Time alarm with snooze
Indoor comfort level icon
Temperature and humidity trend arrows
Blue LED backlight
Low battery indicators
Monitor up to 3 separate sensors (sold separately)
Install Batteries in the Forecast Station & TX142TH Sensor
Forecast Station:
1. Remove battery cover. Slide tab to the right and pull out to remove battery cover.
2. Install three new AA batteries according to the polarity markings.
Do Not Mix Old and New Batteries
Do Not Mix Alkaline, Lithium, Standard or Rechargeable
Batteries
Outdoor Sensor:
1. Slide the battery cover down, then lift off the front of the TX142TH sensor.
Note: Be careful not to break the tabs on the battery cover.
2. Confirm the channel selector switch is on channel 1.
3. Insert two new AA batteries into the sensor.
Observe the correct polarity (see marking inside battery compartment).
4. Keep sensor 5-10 ft. from the forecast station during setup.
5. After 15 minutes, if the outdoor temperature shows on the forecast station, move the outdoor sensor outside to a shaded location within range of the forecast station.
Function Buttons (on back of forecast station)
Model: 308-1451H www.lacrossetechnology.com/support
3
Program Menu (sets time, calendar, 12/24 hour time, °F/°C, and WWVB reception)
The SET button will moves through the items in the program menu. The
+
or
- button will change these values.
WWVB reception ON or OFF
Time Zone (Seven Time Zones)
Daylight Saving Indicator
12/24 hour time format
Fahrenheit/Celsius selection
Manual time set (Hour, Minutes, Seconds)
Calendar set (Year, Month, Date)
WWVB Time Reception
The WWVB time reception defaults to ON. To turn the WWVB reception OFF:
1. Hold the SET button for 5 seconds.
2. WWVB and ON will flash in the time display.
3. Press and release the + or - button to turn this OFF.
4. Confirm with the SET button and move to the Time Zone.
Time Zone
This station offers seven time zones listed in letter format (default is EST):
1. EST will flash next to the date.
2. Press and release the + or - button to select a different Time Zone.
3. Confirm with the SET button and move to Daylight Saving Indicator.
DST Indicator
SET
WWVB
On
TIME ZONE
EST
DST will default to the ON position as most of the country observes the DST change. The DST indicator should stay on all year so the forecast station knows when to switch into or out of daylight saving time. If you live in an area does not observe the DST change, switch this to the OFF position.
1. DST and ON will flash in the time display.
DST
2. Press and release the + or - button to turn DST to OFF.
3. Confirm with the SET button and move to 12/24 hour time format.
On
12/24 Hour Time Format
The time may be displayed in 12-hour or 24-hour format. Default is 12-hour time.
Note: When in 12-hour format AM or PM will show in front of the hour.
1. 12Hr will flash in the time display.
2. Press and release the + or - button to select 24-hour time.
3. Confirm with the SET button and move to Fahrenheit/Celsius.
Fahrenheit/Celsius
Select the temperature to display in Fahrenheit or Celsius. Default is Fahrenheit.
1. °F will flash in the time display.
2. Press and release the + or - button to select Celsius.
3. Confirm with the SET button and move to Set Time.
12Hr
°F
Model: 308-1451H www.lacrossetechnology.com/support
4
Set Time
To set the time manually:
1. The hour digit will flash.
2. Press and release the + or - button to select the hour.
3. Press and release the SET button to move to the minutes.
4. The
minute’s digit will flash.
5. Press and release the + or - button to set the minutes.
6. Press and release the SET button to move to the seconds.
7. The
second’s digit will flash.
8. Press and release the + or - button to reset the seconds to zero.
9. Confirm with the SET button and move to Set Calendar.
Set Calendar
To set the calendar:
1. The year will flash.
2. Press and release the + or - button to set the year (between year 2010-2039).
3. Press the SET button again to confirm and to enter the month setting.
4. The month will flash.
5. Press and release the + or - button to set the month.
6. Press the SET button again to confirm and enter the date setting.
7. The date will flash.
8. Press and release the + or - button to set the date.
9. Confirm all calendar settings with the SET button to confirm and exit the program menu.
Note: If no buttons are pressed for 20 seconds, set mode will time out and return to live display mode, reflecting whatever adjustments were made before it timed out.
Note: Press the + or - button once to adjust by 1 unit or hold for fast scroll adjustment.
City Selection: Sun rise/set Times
Note: Preset city abbreviations are at the end of this manual.
Choose the city closest to you in a north/south direction.
This will provide the most accurate sunrise/sunset times.
CITY
To select a city location: Select your country, state, and then city location.
1. Hold the CITY button for 5 seconds.
2. USA will flash next to the sunrise/sunset time.
3. Press and release the + or - button to select USA, CAN or MEX as your country.
USA
4. Press the CITY button to confirm the country and select a state.
Note: When either Canada or Mexico is chosen, you will move directly to city selection.
5. The state will flash. Press and release the + or - button to select a state.
6. Press the CITY button to confirm the state and select a city.
7. The city location will flash.
8. Press and release the + or - button to select a city from the list at the end of this manual.
AK
9. Press the CITY button to confirm and exit.
After a short calculation time, the forecast station shows the times for sunrise and sunset, moon
ANC
phase and lunar tide.
Note: When DST is in affect the forecast station will need to receive the WWVB time signal to make the adjustment for DST. The WWVB signal includes an embedded bit to tell the station to adjust for DST. Until that signal is received the first time, the sunrise/sunset times will be one hour off.
Model: 308-1451H www.lacrossetechnology.com/support
5
Tide
The tides reflected on this station are based on the ebb and neap tides of the lunar month rather than the daily high and low tides. When the sun, moon and earth are lined up at new and full phases of the moon, tides will be higher. When the moon is at right angles to the sun and Earth at the first and last quarter, the tides are weaker.
Full & new moon = spring tide (TIDE HI)
Quarter = neap tide (TIDE LO)
Other = mean water level (TIDE MID)
Moon Phase
The LCD Moon phase is divided by 6 sections, showing a total of 12 phases of the moon.
Note: With the moon shown against a light colored background, the phases will show opposite to a paper calendar. The segments that are highlighted portray the part of the moon that is lit. For instance, the moon will be blank during a new moon and dark during a full moon.
New Moon occurs when the moon is between the earth and sun so the illuminated portion of the moon is on the back side facing the sun and we cannot see it. After a new moon, the illuminated (visible) portion will increase or wax until the full moon occurs.
Full Moon occurs when the earth, moon and sun are in approximate alignment, with the moon and the sun on opposite sides of the earth. The illuminated portion of the moon faces the earth, giving us complete visibility of one side of the entire moon. After a full moon, the illuminated portion will decrease or wane until the new moon occurs.
First Quarter and Last Quarter moons occur when the moon is at a 90 degree angle to the earth and sun.
So we see half of the moon illuminated and half is in shadow.
Waxing means growing or expanding illumination and happens after a new moon.
Waning means decreasing illumination and occurs after a full moon.
Crescent refers to the moon being less than half illuminated. Crescents can be waning or waxing.
Gibbous describes a moon phase when more than half is illuminated. Gibbous can be waxing or waning.
Comfort Statement
The comfort statement is based on the indoor humidity.
WET: Humidity is above 64%
COMFORTABLE:
DRY:
Humidity is between 43% and 64%
Humidity is below 42%
Backlight
Press the SNOOZE/LIGHT button on the top of the forecast station to activate the blue
LED backlight for 5 seconds.
SNOOZE/LIGHT
Model: 308-1451H www.lacrossetechnology.com/support
6
Alarms (Time, Temperature, Frost)
There are 9 different alarms that may be individually set on this forecast station:
1. Time Alarm #1
With additional TX142TH or TX14TH sensors:
2. Time Alarm #2
6. High Temperature Alarm CH #2
3. Frost Alarm
7. Low Temperature Alarm CH #2
4. High Temperature Alarm CH #1
8. High Temperature Alarm CH #3
5. Low Temperature Alarm CH #1
9. Low Temperature Alarm CH #3
Time Alarms
This forecast station has two individual time alarms:
Press and release the ALARM button to enter Alarm mode.
Alarm 1 (A1) will show after the alarm time.
Press and release the ALARM button again and Alarm 2 (A2) will show after the alarm time.
Set Time Alarm 1
ALARM
Press and release the ALARM button once to enter Alarm 1 mode.
The Alarm Time and A1 will show.
1. HOUR: Hold the ALARM button for 3 seconds. The Hour will flash. Use the + or - button to set the Hour. Be sure to set the Hour correctly for AM or PM. Press and release the ALARM button once.
2. MINUTES: The Minutes will flash. Use the + or - button to set the Minutes. Press and release the
ALARM button once.
3. ACTIVATE: Press and release the ALARM button to enter the correct Alarm mode. Press and release the + button and the alarm icon will appear (above the time, alarm 1, below the time, alarm
2). The number in the bell icon indicates which alarm is active.
4. DEACTIVATE: Press and release the ALARM button to enter the correct Alarm mode. Press and release the + button and the alarm icon(s) will disappear indicating alarm 1 and/or alarm 2 is off.
Set Time Alarm 2
Press and release the ALARM button twice to enter Alarm 2 mode.
The Alarm Time and A2 will show. Follow steps 1-4 above to program alarm 2.
Snooze
Alarm
Icon
Press the SNOOZE/LIGHT button on the top of the forecast station once to activate the snooze feature for 10 minutes when either alarm sounds. The alarm icon and the snooze icon
Zz
will flash when the snooze is active.
Press any button to deactivate the snooze feature.
Frost Alarm
The Frost Alarm when active will sound when the outdoor temperature drops to 34°F (1.1 °C).
1. ACTIVATE: Press and release the TEMP ALERT button to activate the Frost Alarm on all channels (when multiple sensors in use). The Frost Alarm icon will appear in the outdoor temperature area when active.
TEMP
ALERT
2. DEACTIVATE: Press and release the TEMP ALERT button until the Frost Alarm icon no longer shows.
Frost
Alert icon
Model: 308-1451H www.lacrossetechnology.com/support
7
Outdoor Temperature Alarms
TEMP
ALERT
CH
A high and low outdoor temperature alarm may be set on the forecast station.
Note: When multiple sensors are connected on different channels, a high and/or low temperature alarms may be set for each channel.
SET
Set Temperature Alarm Channel 1
1. Press and release the CH button to select channel 1 (when multiple sensors in use).
2. Hold the TEMP ALERT button until the High Temp Alert icon appears and the temperature will flash. Use the + or - button to select your High Temp alarm value. Press and release the SET button to move to the Low Temp alarm.
3. The Low Temp Alert icon will appear and the temperature will flash. Use the + or - button to select your Low Temp alarm value. Press and release the SET button to confirm and exit to current temperature.
Temp
Alert
Icon
4. The Temp Alert icon will show in the outdoor temperature area when a temperature alarm is active. When the temperature alarm sounds, the Temp Alert icon and the temperature value will flash. Press any button to silence the alarm temporarily.
Set Temperature Alarm Channel 2 & 3
Use the CH button to select the channel. Follow steps 2-4 above to set temperature alarms on other channels.
DEACTIVATE TEMPERATURE ALARM: Press and release the TEMP ALERT button 3 times to deactivate all temperature alarms. The alert icons will disappear.
Temperature/Humidity Trend Indicators (arrows)
The temperature (2°F/1°C) and humidity (3% RH) trend indicators update every 30 minutes or less.
Temperature has risen in the past 3 hours.
Humidity has risen in the past 3 hours.
Temperature has not changed in the past 3 hours.
Humidity has not changed in the past 3 hours.
Temperature has fallen in the past 3 hours.
Humidity has fallen in the past 3 hours.
Pressure Readings
Absolute Barometric Pressure Number
Barometric pressure is read by the forecast station. The numeric pressure value adjusts automatically as the forecast station reads changes in air pressure. Since this number is absolute pressure, it may not be the same as a local reporting station that reads in relative pressure.
Note: The number cannot be calibrated.
Absolute Pressure is measured in a vacuum without the influences of terrain, weather, water, foliage and elevation. The air pressure it would be consistent at every elevation and decrease as it went higher.
Relative Pressure is a combination of air pressure and altitude. Relative air pressure will make readings in local areas relative to each other to allow for proper forecasting.
Model: 308-1451H www.lacrossetechnology.com/support
8
Pressure Unit of Measurement (InHg or hPa)
Hold the HISTORY button for 5 seconds to switch from InHg (inches or mercury) or
HISTORY
hPa (Hectopascal) for the numeric pressure display and the pressure graph.
Inches of Mercury is common for weather reports and aviation in the United States.
Hectopascal is equivalent to millibar and commonly used to measure atmospheric pressure outside the
United States.
Pressure History
Press and release the HISTORY button to view the past 12-hours of numeric pressure history.
In the small box to the right of the numeric pressure a number from 0 to -12 will appear.
0 is current pressure. -1 through -12 reflects the history in one-hour increments.
Note: The history graph and forecast icons will not change when you view pressure history.
Pressure History Graph
The bar chart indicates the air pressure history trend over the last 12 hours in 5 steps, 0h, -1h, -2h, -3h, -6h & -12h.
The columns represent the change in pressure readings (InHg or hPa) at specific times.
The “0” in the middle of this scale is equal to the current pressure and each bar represents how high or low the past pressure was compared to the current pressure.
Read the graph from left to right. If the bars are rising, it means that the weather will improve. If the bars go down, it means the air pressure has dropped and the weather is expected to degrade.
Note: The bar graph will scroll continually to prevent LCD burnout.
MIN/MAX Data
The forecast station will show the daily minimum and maximum temperatures each day starting at midnight
(12:00 AM). The forecast station automatically resets the min/max temperatures at midnight (12:00 AM).
View MIN/MAX data: Press and release the MAX/MIN button to view the Maximum, Minimum,
CH
then Current Indoor and Outdoor Temperatures.
MAX/MIN
Multiple Sensors: Press and release the CH button to select the desired outdoor channel to view the
Minimum and Maximum Outdoor Temperatures. Press and release the MAX/MIN button to view the
Maximum, Minimum then Current Temperatures for that channel.
Reset all MIN/MAX data: Hold the MAX/MIN button for 5 seconds and the Indoor and all Outdoor Minimum and Maximum Temperatures will be reset manually to Current temperatures.
Low Battery Indicator
When the low battery icon appears in the indoor (IN) reading section, replace the batteries in the forecast station.
When the low battery icon appears in the outdoor (OUT) readings section, replace the batteries in the outdoor sensor.
Low
Battery icon
Model: 308-1451H www.lacrossetechnology.com/support
9
Weather Forecast & Hunter Icons
Weather Forecast Icons (Sun, Partial Sun, Clouds, Rain and Snow)
The icons in the top right corner shown below forecast the weather for the next 12-24 hours. The icon is a prediction of the weather in terms of getting better or worse based on rising and falling barometric pressure.
INTELLIGENT WEATHER FORECAST
This station learns. Please allow 3 to 4 weeks for barometric calibration. This will ensure an accurate personal forecast for your location.
Weather Tendency Indicators (up and down arrows)
Working together with the weather forecast icons are the weather tendency indicators. When the indicator points upwards, the Air Pressure is increasing; weather is expected to improve. When indicator points downwards, Air Pressure is falling; weather is expected to degrade. An arrow to the right means no change.
Hunter Icon Clothing Index Based on Outdoor Temperature
The hunter’s clothing updates with changes in the measured Outdoor Temperature from the sensor on
channel 1.
The hunter icon represents CURRENT TRENDS in Temperature.
Model: 308-1451H www.lacrossetechnology.com/support
10
Channel Selection and Auto-scroll
Channels: When more than one sensor is used, set each sensor to a different channel number then hold the CH button for 5 seconds to search for the sensors.
View Channels: Press the CH button to select Ch1, Ch2, Ch3 or auto-channel scroll.
Auto scroll-channel will show a circling arrow below the channel number and will rotate through each channel approximately every 5-8 seconds
Setup with Multiple Outdoor Sensors
The forecast station will accommodate up to three remote outdoor sensors (TX142TH or TX14TH). The channel selection button allows you to easily see the temperatur e in various locations: outdoors, baby’s room, greenhouse, basement, etc. Monitor remote temperature in up to 3 locations within a 200 ft. wireless range of the forecast station.
To connect multiple remote sensors to the forecast station:
CH
1. Remove the battery cover from all the sensors (Leave battery covers off until all sensors are received by the forecast station).
2. Set the first outdoor sensor to Channel 1 and insert 2 AA batteries.
3. Set the second outdoor sensor to Channel 2 and insert 2 AA batteries.
4. Set the third outdoor sensor to Channel 3 and insert 2 AA batteries.
5. Press and hold the CH button on the forecast station for 5 seconds. The forecast station will search for all outdoor sensors.
6. Press the TX button on each outdoor sensor to transmit RF signal.
7. When RF connection is established, the respective temperature & humidity for each of the selected channels will appear on the main unit.
8. Allow the sensors and the forecast station to stay 5-10 feet apart for 15 minutes to establish a solid connection.
9. Install the battery covers on each sensor.
10. After 15 minutes place the remote sensor s in appropriate locations (see “position the outdoor sensor”).
Press and release the CH button to view channel 1, 2 or 3 on the forecast station when multiple sensors are used.
Note: You cannot change channels if only one sensor is connected.
Channel Scroll
Press and release the CH button until you see appear in the outdoor data area. The forecast station will automatically rotate through the channels for all connected sensors.
Press and release the CH button to lock the forecast station into one channel. Then view channels individually with a press of the CH button.
WWVB Radio-controlled Time
The NIST radio station, WWVB, is located in Ft. Collins, Colorado, and transmits the exact time signal continuously throughout the United States at 60 kHz. The signal can be received up to 2,000 miles away through the internal antenna in the forecast station
. However, due to the nature of the Earth’s Ionosphere, reception is very limited during daylight hours.
The forecast station will search for a signal every night when reception is best. The WWVB radio station derives its signal from the NIST Atomic Clock in Boulder, Colorado. A team of atomic physicists continually measures every second of every day to an accuracy of ten billionths of a second a day. These physicists have created an international standard, measuring a second as 9,192,631,770 vibrations of a Cesium 133 atom in a vacuum.
This atomic clock regulates the WWVB sensor.
Model: 308-1451H www.lacrossetechnology.com/support
11
WWVB Reception Icon
Reception icon with full signal strength will appear on screen in front of the date when the reception of time is successful.
The tower icon will show solid when the forecast station has received the WWVB signal.
No tower icon is shown. The forecast station was unable to receive a signal at this time.
Reposition the forecast station for better signal reception or try again at bedtime.
The forecast station will start searching at UTC: 07:00 and if no reception on the first attempt they will try again at 08:00, 09:00, 10:00 and 11:00. Each attempt will be at least 2 minutes and the most will be 10 minutes.
If there is no signal or too much interference the receiver will only be on for 2 minutes.
If the signal is good it may catch a signal in ABOUT 2-3 minutes.
If the signal is marginal it will try to catch a signal for up to 10 minutes.
WWVB Manual Signal Search
Normal mode: Hold the + and - buttons together for 3 seconds to enter manual search.
Reception mode: Hold the + and - buttons together for 3 seconds to exit searching for the WWVB signal.
Recommended distance to any interfering sources like computer monitors or TV sets is a minimum of 6 feet
(2 meters).
Within ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window and/ or point its front or back towards the Fort
Collins, Colorado, sensor.
During nighttime, the atmospheric disturbances are usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation below 1 second.
Note: In case the forecast station is not able to detect the WWVB-signal (disturbances, transmitting distance, etc.), the time and date can be manually set (see “program menu”).
Care and Maintenance
Do not mix old and new batteries
Do not mix Alkaline, Standard, Lithium or Rechargeable Batteries
Always purchase the correct size and grade of battery most suitable for intended use.
Replace all batteries of a set at the same time.
Clean the battery contacts and also those of the device prior to battery installation.
Ensure the batteries are installed with correct polarity (+and -).
Remove batteries from equipment which is not to be used for an extended period of time.
Remove expired batteries promptly.
Do not expose the forecast station to extreme temperatures, vibration or shock. Keep dry.
Clean forecast station with a soft damp cloth. Do not use solvents or scouring agents.
The forecast station is not a toy. Keep it out of reach of children.
The forecast station is not to be used for medical purpose or for public information. It is for home use only.
The specifications of this forecast station may change without prior notice.
Improper use or unauthorized opening of housing will void the warranty.
If the forecast station does not work properly, change the batteries and/or check the a/c cord connection
.
Position the Outdoor Sensor
Once the forecast station shows the outdoor temperature/humidity, place it and the sensor in the desired locations and wait approximately one hour before permanently mounting the sensor to ensure that there is proper reception. The sensor should be mounted vertically, in a shaded, protected area, where direct sunlight cannot reach the outdoor sensor, at least 6 feet from the ground to avoid damage and ensure accurate
Model: 308-1451H www.lacrossetechnology.com/support
12
readings. The sensor is water resistant, not waterproof and should not be placed anywhere it will become submerged in water or subject to standing water or snow.
Choose a location for the sensor that is within range of the forecast station and under an overhang for accuracy. The maximum transmitting range in open air is over 200 feet (60 meters).
Option 1:
Install one mounting screw (not included) into a wall leaving approximately ½ of an inch
(12.7mm) extended.
Place the sensor onto the screw, using the hanging hole on the backside.
Gently pull the sensor down to lock the screw into place.
Option 2:
Insert the mounting screw (not included) through the front of the sensor and into the wall.
Tighten the screw to snug (do not over tighten).
The maximum transmitting range in open air is over 200 feet (60 meters). Obstacles such as walls, windows, stucco, concrete and large metal objects can reduce the range.
Position the Forecast Station
1. The forecast station has a wide base to sit on a desk or table.
2. Choose a location 6 feet or more from electronics such as cordless phones, gaming systems, televisions, microwaves, routers etc.
3. Place within range of the outdoor sensor.
4. The maximum transmitting range in open air is 200 feet (60 meters). Obstacles such as walls, windows, stucco, concrete and large metal objects can reduce the range.
5. For best WWVB reception orientate the forecast station with the front of the back facing Ft. Collins,
Colorado.
Specifications
Indoor
Temperature Range:
Humidity Range:
Interval:
Outdoor
Temperature Range:
Humidity Range:
Distance:
Interval:
Barometric Pressure
Range:
Interval:
Power Requirements
Wireless Forecast Station:
TX142TH/TX14TH Sensor:
Battery Life
+32°F to +122°F (0°C to 50°C)
1%-99% (RH)
About every 30 seconds
-
40°F to 140°F (-40°C to 60°C)
1%-99% (RH)
Over 200 ft. (60 meters) RF 433MHz (open air)
About every 50 seconds
23.62 to 32.48 InHg (800mb to 1100mb)
About every 12 minutes
3-AA, IEC, LR6 batteries (not included)
2-AA, IEC, LR6 batteries (not included)
TX142TH Sensor: Battery life is over 24 months when using reputable battery brands.
Wireless Forecast Station: Battery life is over 24 months when using reputable battery brands.
Dimensions
Wireless Forecast Station: 5.12" L x 2.36" W x 5.12" H (130 x 60 x 130 mm)
TX142TH Sensor: 1.58" L x .83" W x 5.08" H (40.132 x 21.082 x 129.032 mm)
Model: 308-1451H www.lacrossetechnology.com/support
13
Warranty Information
La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship.
View full warranty details online at:
www.lacrossetechnology.com/warranty_info.pdf
For warranty work, technical support or other information contact:
La Crosse Technology, Ltd
2830 South 26th St
La Crosse, WI 54601
Contact Support:
1-608-782-1610
Product Registration:
www.lacrossetechnology.com/support/register
Online Product Support:
www.lacrossetechnology.com/support
Protected under U.S. Patents:
5,978,738 | 6,076,044 | RE43903
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device must not be co-located or operating in conjunction with any other antenna or transmitter.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Caution!
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.
All rights reserved. This manual may not be reproduced in any form, even in part, or duplicated or processed using electronic, mechanical or chemical process without the written permission of the publisher.
This booklet may contain errors or misprints. The information it contains is regularly checked and corrections are included in subsequent editions. We disclaim any responsibility for any technical error or printing error, or their consequences.
All trademarks and patents are recognized.
Model: 308-1451H www.lacrossetechnology.com/support
14
City Codes
AK ALASKA
ANC ANCHORAGE
FAI FAIRBANKS
AJN JUNEAU
OME NOME
AL ALABAMA
BHM BIRMINGHAM
GAD GADSDEN
MGM MONTGOMERY
MOB MOBILE
AR ARKANSAS
FSM FORT SMITH
LIT LITTLE ROCK
TXK TEXARKANA
AZ ARIZONA
FLG FLAGSTAFF
PHX PHOENIX
TUS TUCSON
YUM YUMA
CA CALIFORNIA
BFL BAKERSFIELD
BLH BLYTHE
EKA EUREKA
FAT FRESNO
FTB FORT BRAGG
LAX LOS ANGELES
ROD REDDING
SAC SACRAMENTO
SAN SAN DIEGO
SBD SAN BERNADINO
SFO SAN FRANCISCO
CO COLORADO
DEN DENVER
DRO DURANGO
FNL FT COLLINS
GJT GRAND JUNCTION
ITR BURLINGTON
PUB PUEBLO
CT CONNECTICUT
HFD HARTFORD
DC DISTRICT OF COLUMBIA
DCA WASHINGTON
DE DELAWARE
ON5 DOVER
FL FLORIDA
JAX JACKSONVILLE
MIA MIAMI
ORL ORLANDO
PNS PENSACOLA
TLH TALLAHASSEE
TPA TAMPA
GA GEORGIA
ABY ALBANY
AGS AUGUSTA
ATL ATLANTA
CSG COLUMBUS
MAC MACON
SAV SAVANNAH
HI HAWAII
HNL HONOLULU
ITO HILO
OCG KAHULUI
WAI WAIMEA
IA IOWA
ALO WATERLOO
DSM DES MOINES
DVN DAVENPORT
SUX SIOUX CITY
ID IDAHO
BOI BOISE
GIB GIBBONSVILLE
PIH POCATELLO
SZT SAND POINT
IL ILLINOIS
CMI CHAMPAIGN
ORD CHICAGO
SPI SPRINGFIELD
IN INDIANA
EVV EVANSVILLE
HUF TERRE HAUTE
IND INDIANAPOLIS
SBN SOUTH BEND
KS KANSAS
DDC DODGE CITY
K32 WICHITA
KCK KANSA CITY
OH1 WAKEENEY
TOP TOPEKA
KY KENTUCKY
FFT FRANKFORT
LEX LEXINGTON
LOU LOUISVILLE
LA LOUISIANA
BTR BATON ROUGE
CWF LAKE CHARLES
IER NATCHITOCHES
NEW NEW ORLEANS
SHV SHREVEPORT
MA MASSACHUSETTS
BOS BOSTON
MD MARYLAND
BWI BALTIMORE
ME MAINE
AUG AUGUSTA
BGR BANGOR
CAR CARIBOU
PWM PORTLAND
MI MICHIGAN
AZO KALAMAZOO
DET DETROIT
FNT FLINT
LAN LANSING
PZQ ROGERS CITY
SAW MARQUETTE
TVC TRAVERSE CITY
Model: 308-1451H www.lacrossetechnology.com/support
15
MN MINNESOTA
AEL ALBERT LEA
BJI BEMIDJI
DLH DULUTH
GPO GRAND PORTAGE
INL INTERNATIONAL FALLS
STP SAINT PAUL
MO MISSOURI
JEF JEFFERSON CITY
MKC KANSA CITY
MPH MEMPHIS
POF POPLAR BLUFF
SGF SPRINGFIELD
STL ST LOUIS
MS MISSISSIPPI
GWO GREENWOOD
HUV HUNTSVILLE
JAN JACKSON
TUP TUPELO
MT MONTANA
BIL BILLINGS
FTP FORT PECK
GFT GREAT FALLS
HLN HELENA
SDY SIDNEY
WTF WHITEFISH
NC NORTH CAROLINA
AVL ASHEVILLE
CLT CHARLOTTE
FAY FAYETTEVILLE
ILM WILMINGTON
INT WINSTON-SALEM
MCZ WILLIAMSTON
RDU RALEIGH
ND NORTH DAKOTA
BIS BISMARCK
BWB BOWBELLS
FAR FARGO
GFK GRAND FORKS
NE NEBRASKA
GRI GRAND ISLAND
LNK LINCOLN
OMA OMAHA
SNY SYDNEY
VTN VALENTINE
NH NEW HAMPSHIRE
CON CONCORD
NJ NEW JERSEY
EWR NEWARK
TTN TRENTON
NM NEW MEXICO
ABQ ALBUQUERQUE
MAG MAGDALENE
ROW ROSWELL
RTN RATON
SAF SANTA FE
NV NEVADA
AIN AUSTIN
CXP CARSON CITY
ELY ELY
LAS LAS VEGAS
LWL WELLS
RNO RENO
NY NEW YORK
ALB ALBANY
BUF BUFFALO
JFK NEW YORK CITY
LKP LAKE PLACID
SYR SYRACUSE
OH OHIO
CLE CLEVELAND
CMH COLUMBUS
ISZ CINNCINATI
TOL TOLEDO
YNG YOUNGSTOWN
OK OKLAHOMA
17K BOISE CITY
LAW LAWTON
OKC OKLAHOMA CITY
TUL TULSA
OR OREGON
BNO BURNS
EUG EUGENE
MFR MEDFORD
PDX PORTLAND
SLE SALEM
PA PENNSYLVANIA
CXY HARRISBURG
PHL PHILADELPHIA
PIT PITTSBURGH
SCR SCRANTON
PR PUERTO RICO
SJU SAN JUAN
RI RHODE ISLAND
PVD PROVIDENCE
SC SOUTH CAROLINA
CHS CHARLESTON
CUB COLUMBIA
GMU GREENVILLE
SD SOUTH DAKOTA
FSD SIOUX FALLS
PIR PIERRE
RAP RAPID CITY
TN TENNESSEE
BNA NASHVILLE
CHA CHATTANOOGA
DKK KNOXVILLE
MEM MEMPHIS
TX TEXAS
ABI ABILENE
AMA AMARILLO
AUS AUSTIN
BRO BROWNSVILLE
DFW DALLAS/FT. WORTH
ELP EL PASO
HOU HOUSTON
LRD LAREDO
ODO ODESSA
SAT SAN ANTONIO
UT UTAH
SAL SALINE
SGU ST GEORGE
SLC SALT LAKE CITY
TSN THOMPSON
VA VIRGINIA
DON VIENNA
LYH LYNCHBURG
ORF NORFOLK
RIC RICHMOND
ROA ROANOKE
VT VERMONT
BTV BURLINGTON
MPR MONTPELIER
WA WASHINGTON
ABE ABERDEEN
ALW WALLA WALLA
KTF KETTLE FALLS
MVN MT VERNON
OLM OLYMPIA
SEA SEATTLE
SFF SPOKANE
TON TONASKET
YKM YAKIMA
WI WISCONSIN
AUW WAUSAU
GRB GREEN BAY
LSE LA CROSSE
MSN MADISON
MWC MILWAUKEE
SSQ SPOONER
WV WEST VIRGINIA
CRW CHARLESTON
HLG WHEELING
WY WYOMING
BYG BUFFALO
CPR CASPER
CYS CHEYENNE
LAA LITTLE AMERICA
WYE WEST YELLOWSTONE
CANADA CITY LISTING
EDM EDMONTON
ALB CALGARY
VAN VANCOUVER
WIN WINNIPEG
FRE FREDERICTON
HAL HALIFAX
YEL YELLOWKNIFE
OTT OTTAWA
SUD SUDBURY
THU THUNDER BAY
TOR TORONTO
CHT CHARLOTTE TOWN
MON MONTREAL
QUE QUEBEC
REG REGINA
WHI WHITEHORSE
MEXICO CITY LISTING
CHH CHIHUAHUA
DUR DURANGO
MEX MEXICO CITY
GUA GUADALUPE
HER HERMOSILLO
Model: 308-1451H www.lacrossetechnology.com/support
16
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
Frequently Answers and Questions
How do I set the time manually on the La Crosse 308-1451H weather station?
How do I change the temperature units from Fahrenheit to Celsius?
How do I select my city for accurate sunrise/sunset times?
What is the 'Hunter Icon' and how does it work?
How do I set temperature alarms on the La Crosse 308-1451H?
advertisement
