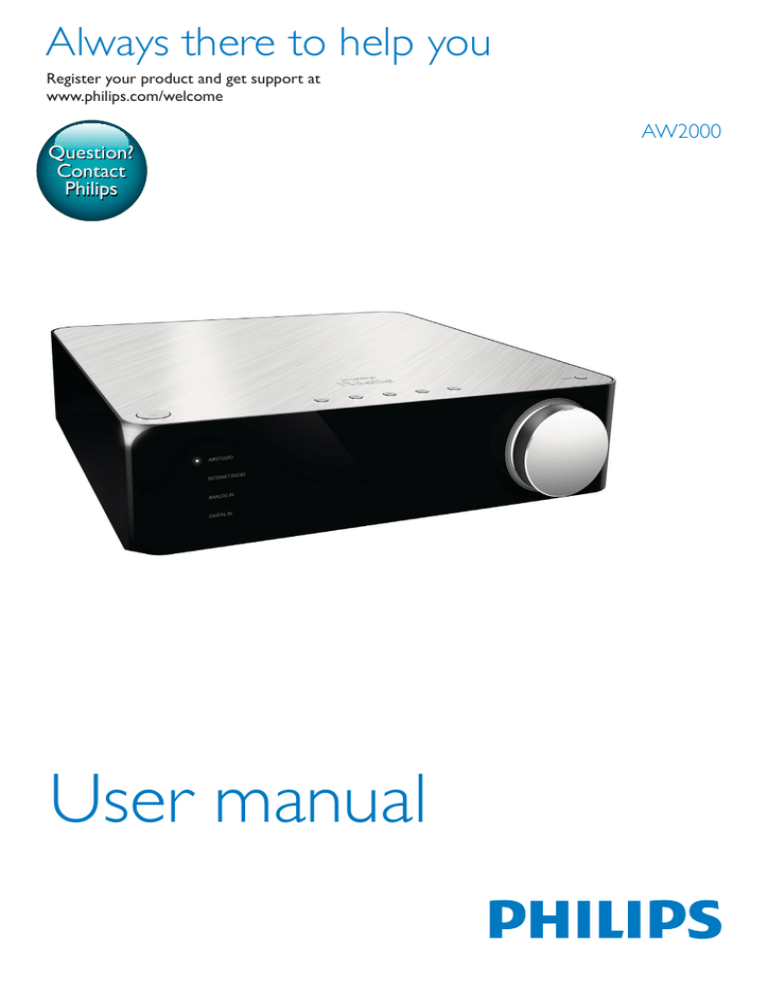

Philips Fidelio A2 wireless Hi-Fi receiver AW2000

Always there to help you
Register your product and get support at
www.philips.com/welcome
Question?
Contact
Philips
User manual
AW2000
English
Contents
1Important2
Safety2
Notice3
2 Your Wireless Hi-Fi Receiver4
Introduction4
What's in the box
4
What else you need
4
Overview of the main unit
5
3Prepare6
Connect to an existing speaker system
Connect power and switch on
6
6
4 Connect AW2000 to your home
Wi-Fi network7
Option 1: Set up wired connection
Option 2: Set up wireless connection
7
8
5Play10
Stream audio to AW2000
Listen to Internet radio stations
through AW2000
Play from an external device
10
11
12
6 Upgrade firmware13
7 Product information14
Specifications
14
8Troubleshooting15
EN
1
1Important
i Do not expose the product to dripping /
splashing water, rain or high humidity.
j Keep this product away from direct
sunlight, naked flames or heat.
Safety
Information for Europe:
Know these safety symbols
k Do not install near any heat sources
such as radiators, heat registers, stoves,
or other electrical equipment (including
amplifiers).
l Do not place any other electrical
equipment on the product.
m Do not place any sources of danger
on the product (e.g. objects containing
liquids, burning candles).
n Where the mains plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
The 'exclamation mark' calls attention to
features for which you should carefully read the
supplied literature to prevent operating and
maintenance problems.
The 'lightening bolt' symbol indicates
uninsulated components within the product
that can cause an electric shock.
To reduce the risk of fire or electric shock, do
not expose the product to rain or moisture and
do not place any objects filled with liquids, such
as vases, on the product.
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this product near water.
f Clean only with dry cloth.
g Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
h Do not remove the casing of this product.
2
EN
Warning
•• Never remove the casing of this apparatus.
•• Never lubricate any part of this apparatus.
•• Never place this apparatus on other electrical
equipment.
•• Keep this apparatus away from direct sunlight, naked
flames or heat.
•• Ensure that you always have easy access to the power
cord, plug or adaptor to disconnect this apparatus from
the power.
Risk of overheating! Never install this apparatus
in a confined space. Always leave a space of
at least four inches around this apparatus for
ventilation. Ensure curtains or other objects
never cover the ventilation slots on this
apparatus.
This product complies with the radio
interference requirements of the European
Community.
This product complies with the requirement of
the 1999/5/EC directive.
Modifications
Modifications not authorized by the
manufacturer may void user's authority to
operate this product.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Android is a trademark of Google Inc. Use of
this trademark is subject to Google permissions.
Class II equipment symbol:
CLASS II apparatus with double insulation, and
no protective earth provided.
Note
•• The type plate is located on the bottom of the
apparatus.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC.
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment and
human health.
EN
3
English
Notice
2 Your Wireless
Hi-Fi Receiver
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
bottom of the apparatus. Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Introduction
With this wireless Hi-Fi receiver connected to
an existing speaker system, you can:
• stream audio from your iOS or
Android device.
• listen to Internet radio stations.
• stream audio from a PC/Mac installed
with Media Manager downloaded from
www.philips.com/mediamanager.
• play music from other audio devices
through the AUX IN (L/R), MP3-LINK,
COAXIAL or OPTICAL socket.
What's in the box
Check and identify the contents of your
package:
• Wireless Hi-Fi receiver with built-in
Wi-Fi
• 2 x AC power cords
• Quick start guide
• Safety sheet
4
EN
What else you need
Note
•• To enjoy music, connect AW2000 to an existing
speaker system through the SPEAKER CONNECTOR
L/R (+/-) sockets.
•• To have better sound effect, you can also connect a
subwoofer to the SUBWOOFER socket on the back
of AW2000.
To stream audio wirelessly to AW2000, you
need:
• a certified Wi-Fi router
• an iOS or Android device, such as an
iPod touch/iPhone/iPad or an Android
phone or tablet; or a PC/Mac enabled
with Wi-Fi
• the Philips AirStudio app available on
Apple App Store (for iOS devices)
or Google Play Store (for Android
devices)
Connect AW2000 to the same local network
as your iOS/Android device or PC/Mac through
the Wi-Fi router.
English
Overview of the main unit
p on m
a
e f g
d
b
c
a Power indicator/button
• Show the current status of the unit.
• Turn the unit on/off.
b Source indicators
• Lights up when the corresponding
source is selected.
c Volume knob
• Adjust volume.
d SOURCE button
• Press repeatedly to select an audio
source.
e Numeric keys (1 to 5)
• Select an Internet radio station.
f AC IN ~ socket
• Connect the power cord.
g SPEAKER CONNECTOR L/R (+/-)
sockets
• Connect AW2000 to an existing
speaker system.
h
socket
• Connect a headphone.
i AUX IN L/R sockets
• Connect an external audio device
through RCA audio cables (red/white;
not supplied).
h i jkl
j OPTICAL socket
• Connect an external audio device to
AW2000 through an optical cable (not
supplied).
k ETHERNET socket
• (Optional) Connect to a wireless
router through an Ethernet cable (not
supplied).
l WI-FI SETUP button
• Connect the unit to a Wi-Fi network.
m ANTENNA socket
• Connect the supplied Wi-Fi antenna.
n COAXIAL
• Connect an external audio device to
AW2000 through a coaxial cable (not
supplied).
o MP3-LINK
• Connect an external audio device to
AW2000 through a 3.5mm audio cable
(not supplied).
p SUBWOOFER socket
• Connect a subwoofer for better sound
effect.
EN
5
3Prepare
Always follow the instructions in this chapter in
sequence.
Connect to an existing
speaker system
Connect power and switch
on
Caution
•• Risk of product damage! Make sure that the power
supply voltage matches the voltage printed on the
bottom of the unit.
•• Risk of electric shock! When you unplug the AC cord,
always pull the plug from the socket. Never pull the
cord.
•• Before you connect the AC cord, make sure that you
have completed all the other connections.
AC IN
1
2
Unscrew the speaker connectors.
3
Screw the left red (+) connector to secure
the cable.
4
Insert fully the end of a speaker cable
without red mark into the left black (-)
connector.
5
Screw the left black (-) connector to
secure the cable.
6
Repeat steps 2-5 to insert the other
speaker cable into the right connectors.
6
Insert fully the end of a speaker cable with
red mark into the left red (+) connector.
EN
•
~
Connect the AC power cord to:
• the AC IN ~ socket on the back of
the unit.
• the wall power socket.
»» The unit switches on automatically.
»» The power indicator blinks amber, and
after a while turns to solid amber.
•
To switch the unit to normal standby
mode, press .
»» The power indicator turns green.
•
To switch the unit to Eco power standby
mode, press and hold .
•
To switch the unit on from normal or Eco
power standby mode, press again.
There are two options for you to set up
connection between AW2000 and your existing
home Wi-Fi network.
• Wired connection
Use an Ethernet cable (not supplied) to
connect AW2000 to your home Wi-Fi router
directly. After successful connection, you can
enjoy wireless streaming to AW2000 through
your home Wi-Fi network.
English
4Connect
AW2000 to
your home WiFi network
Before connection of AW2000 to your home
Wi-Fi network, make sure that:
ayour Wi-Fi router is powered on and
working properly.
bAW2000 is powered on and the
power indicator stays amber steadily.
Option 1: Set up wired
connection
12V=1A
• Wireless connection
Apply your home Wi-Fi settings to AW2000
from an iOS or Android device. Once
connected successfully, AW2000 will remember
your home Wi-Fi settings. Then you can enjoy
wireless streaming whenever AW2000 is
powered on and connected to your home WiFi network automatically.
ETHER
NET
•
To Modem
LAN4
LAN3
LAN2
LAN1
Reset
ETHER
NET
Connect an Ethernet cable (not supplied)
to:
• the ETHERNET socket on the back of
the unit
• one of the Ethernet ports on your
home Wi-Fi router
EN
7
Option 2: Set up wireless
connection
1
Tap Setup a new speaker, read the general
setup steps, then tap Next to continue.
3
Check the power-on status of your
AW2000 as instructed, then tap Next to
continue.
(For iPod touch/iPhone/iPad users) Install
Philips AirStudio from Apple App Store
and run the app.
• (For users of Android smartphones or
tablets) Install Philips AirStudio from
Android Market and run the app.
8
2
EN
Follow the on-screen instructions until
successful setup of Wi-Fi connection
between AW2000 and your home Wi-Fi
network.
English
4
EN
9
5Play
3
Tap the icon of your device to show music
available for streaming.
4
Select a song from the list to start play.
Stream audio to AW2000
Note
•• Make sure that your iOS/Android device or PC/Mac is
connected to the same Wi-Fi network as AW2000.
Stream from your iOS or Android
smartphone or tablet
1
Run Philips AirStudio on your iOS or
Android smartphone or tablet.
2
Hold and drag the icon of your device
towards the speaker to set up Wi-Fi
connection.
10
EN
To stream music from your PC/Mac to
AW2000, first install a media sharing software
(such as Media Manager available on www.
philips.com/mediamanager) onto your PC/Mac.
In this way, your PC/Mac can work as a media
sharing server that streams music to compliant
players.
1
Download Media Manager from www.
philips.com/mediamanager.
2
Install Media Manager onto your PC/Mac
with the license key available on the quick
start guide.
3
Run Philips AirStudio on your iOS or
Android smartphone or tablet.
4
Hold and drag the icon of your PC/
Mac towards the speaker to set up Wi-Fi
connection.
5
Tap the icon of your PC/Mac to show
music available for streaming.
6
Select a song from the list to start play.
Listen to Internet radio
stations through AW2000
1
Run Philips AirStudio on your iOS or
Android smartphone or tablet.
2
Tap Services -> Philips AW2000.
3
Tap Internet Radio to select the Internet
radio source.
English
Stream from your PC/Mac
Tip
•• You can also control music play from the media sharing
software on your PC/Mac.
EN
11
4
Follow the on-screen instructions to tune
to your favorite radio stations.
2
Press SOURCE on AW2000 repeatedly
(or tap MP3Link on the home screen of
the app) to select the 3.5mm audio input
source.
3
Use the controls on your audio device to
control music play.
Connect through the
OPTICALorCOAXIALsocket:
1
Connect an optical or coaxial cable (not
supplied) to:
• the OPTICAL or COAXIAL socket on
the back of the unit.
• the corresponding digital output socket
on an external audio device.
2
Tip
•• You can add your favorite stations to the preset list
as instructed on the app. Then, you can press the
numeric keys (1-5) on AW2000 directly to tune to the
corresponding radio station.
Play from an external device
3
Use the controls on your audio device to
control music play.
Connect through the AUX IN L/Rsockets:
1
Connect a 3.5mm audio cable (not
supplied) to:
• the audio output sockets on an
external audio device.
2
Press SOURCE on AW2000 repeatedly
(or tap AUX-IN on the home screen of
the app) to select the AUX IN L/R audio
input source.
3
Use the controls on your audio device to
control music play.
• the MP3-LINK socket on the back of
the unit.
• the headphone socket on an external
audio device.
MP3 LINK
12
EN
Connect a pair of RCA audio cables (red/
white; not supplied) to:
• the AUX IN L/R sockets on the back
of the unit.
You can also listen to an external audio device
through the unit.
Connect through the MP3-LINKsocket:
1
Press SOURCE on AW2000 repeatedly
(or tap Digital-In Coaxial or Digital-In
Optical on the home screen of the app)
to select the optical or coaxial audio input
source.
4
Tap Firmware upgrade -> Check Online
to check for new firmware.
5
If a new firmware is available, tap OK to
start download and installation of the new
firmware until completion of the process.
To improve the performance of AW2000,
Philips may offer you new firmware for upgrade
of your AW2000.
Warning
•• Always connect your AW2000 to AC power for
firmware upgrade. Never power off your AW2000
during firmware upgrade.
1
Make sure that AW2000 is powered on
and connected to the same Wi-Fi network
as your smartphone or tablet.
2
Run Philips AirStudio on your iOS or
Android smartphone or tablet.
3
Tap Services -> Philips AW2000.
EN
13
English
6Upgrade
firmware
7Product
information
Note
•• Product information is subject to change without prior
notice.
Specifications
Amplifier
Rated Output Power
Frequency Response
Signal to Noise Ratio
MP3 Link
2 X 80 W RMS
80 Hz - 18 kHz, ±3
dB
> 87 dB
600 mV RMS 20
kohm
Wireless
Wireless
standard
Wireless
security
Frequency
range
PBC (one
button push)
802.11b/g
WEP (64 or 128 bit),
WPA/WPA2 (8-63 characters)
2412 - 2462 MHz (CH1-CH11)
(for /79, /37, /55, /97)
2412 - 2472 MHz (CH1-CH13)
(for /12, /10, /05)
Yes
General information
AC power
Operation Power
Consumption
14
EN
220 - 240 V
~ 50 Hz
50 W
Power Consumption in
Standby Mode
Dimensions
- Main Unit (W x D x H)
Weight
- With Packing
- Main Unit
< 0.5 W
220 x 264 x
122.5 mm
2.3 kg
1.3 kg
Warning
•• Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/support). When you contact Philips,
ensure that the apparatus is nearby and the
model number and serial number are available.
No power
•• Make sure that the AC power plug of the
device is connected properly.
•• Make sure that there is power at the AC
outlet.
No sound or poor sound
•• Adjust volume on the Philips AirStudio
app, AW2000, or the existing audio system
connected to AW2000.
•• If you have selected the wired connection,
check whether the Ethernet cable has
been connected properly and securely
(see 'Option 1: Set up wired connection'
on page 7).
•• Check the Wi-Fi network connection.
Set up the network again if needed (see
'Option 2: Set up wireless connection' on
page 8).
•• If the audio source is an external audio
player, adjust volume on the audio player
directly.
No response from the unit
•• Restart AW2000, and then set up the WiFi network for AW2000 again (see 'Option
2: Set up wireless connection' on page 8).
•• Disconnect and reconnect the AC power
plug, and then switch on the device again.
Wi-Fi network connection failed
•• Check if your Wi-Fi router is Wi-Fi
802.11b/g certified. This device is only
compatible with Wi-Fi 802.11b/g certified
routers.
•• If your Wi-Fi router is Wi-Fi 802.11n
certified, make sure to enable the
802.11b/g mode. AW2000 does not
support connection to routers with
802.11n only.
•• This device does not support the WPSPIN method.
•• Enable SSID broadcast on the Wi-Fi router.
•• Keep away from potential sources of
interference which may affect Wi-Fi signal,
such as microwave ovens.
•• Make sure that the SSID name of your
home router consists of alphanumeric
characters, with no space or special
characters like %/#/* inserted.
•• If you choose to rename your AW2000
manually on the Philips AirStudio app, do
not use special characters or symbols.
•• For some new types of Wi-Fi routers, a
network name (SSID) may be created
automatically when you use WPS for
connection. Always change the default
network name (SSID) to a simple one that
consists of alphanumerical characters, and
also change the Wi-Fi security mode to
secure your network.
EN
15
English
8Troubleshooting
Occasional breaking of music streaming
Do one or all of the following:
•• Move AW2000 closer to your Wi-Fi router.
•• Remove any obstacles between AW2000
and your Wi-Fi router.
•• Avoid using Wi-Fi channel which is
overlapped by the nearby Wi-Fi network.
•• Check if your network speed is fast enough
(in cases where multiple devices share the
same router, the wireless performance may
be affected). Turn off the other devices
connected to your home router.
•• Enable the Quality of Service (QoS)
option (if available on the Wi-Fi router).
•• Turn off other Wi-Fi routers.
Music streaming failed with PC/Mac
•• Temporarily disable the firewall and
security software to see whether it blocks
the ports that the media sharing software
(Media Manager) uses to stream content.
See the help documentation of your
firewall and security software on how to
unblock the ports used by wireless media
sharing.
•• When you use iPod Touch/iPhone/iPad/PC/
Mac for music streaming, if the music play
breaks or stops, try to restart your iPod
Touch/iPhone/iPad, media sharing software,
or AW2000.
•• Video streaming or FTP downloads may
overload your router and therefore may
cause interruptions during music streaming.
Try to reduce the load of your router.
16
EN
EN
17
Specifications are subject to change without notice
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
AW2000_10_UM_V1.0
