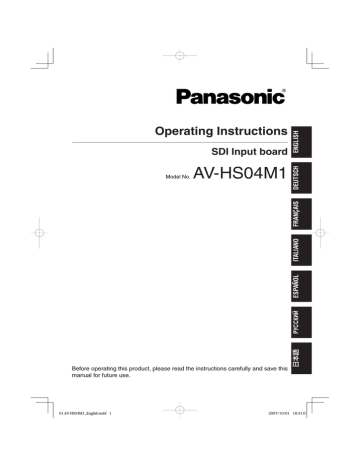

AV-HS04M1
Before operating this product, please read the instructions carefully and save this
manual for future use.
01.AV-HS04M1_English.indd 1
日本語
РУССКИЙ
ESPAÑOL
ITALIANO
FRANÇAIS
Model No.
ENGLISH
SDI Input board
DEUTSCH
Operating Instructions
2007/10/01 18:31:01
ENGLISH VERSION
Safety precautions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER TO SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(service) instructions in the literature accompanying the appliance.
WARNING:
• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPARATUS TO RAIN OR MOISTURE.
• THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING
AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL
BE PLACED ON THE APPARATUS.
CAUTION:
TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD AND ANNOYING
INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.
CAUTION:
TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, REFER CHANGES OF
SWITCH SETTINGS INSIDE THE UNIT TO QUALIFIED SERVICE PERSONNEL.
indicates safety information.
1 (E)
01.AV-HS04M1_English.indd Sec1:1
2007/10/01 18:31:21
For CANADA
This class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme
NMB-003 du Canada.
FCC Note:
This equipment has been tested and found to comply with the limits for a class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy, and if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
ENGLISH
Safety precautions
Warning:
To assure continued FCC emission limit compliance, the user must use
only shielded interface cables when connecting to external units. Also, any
unauthorized changes or modifications to this equipment could void the user’s
authority to operate it.
indicates safety information.
2 (E)
01.AV-HS04M1_English.indd Sec1:2
2007/10/01 18:31:21
Safety precautions
IMPORTANT SAFETY
INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety
instructions on the unit and the applicable safety instructions listed below. Keep
these operating instructions handy for future reference.
10) Protect the power cord form being
walked on or pinched particularly
at plugs, convenience receptacles,
and the point where they exit from
the apparatus.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near
water.
6) Clean only with dry cloth.
7) Do not block any ventilation
openings. Install in accordance with
the manufacturer's instructions.
8) Do not install near any heat sources
such as radiators, heat registers,
stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose
of the polarized or grounding-type
plug. A polarized plug has two
blades with one wider than the
other. A grounding-type plug has
two blades and a third grounding
prong. The wide blade or the third
prong are provided for your safety.
If the provided plug does not fit into
your outlet, consult an electrician for
replacement of the obsolete outlet.
11) Only use attachments/accessories
specified by the manufacturer.
12) Use only with the cart,
stand, tripod, bracket,
or table specified by
the manufacturer, or
sold with the apparatus.
When a cart is used, use caution
when moving the cart/apparatus
combination to avoid injury from tipover.
13) Unplug this apparatus during
lightning storms or when unused for
long periods of time.
14) Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such
as power-supply cord or plug is
damaged, liquid has been spilled
or objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does
not operate normally, or has been
dropped.
indicates safety information.
3 (E)
01.AV-HS04M1_English.indd Sec1:3
2007/10/01 18:31:21
Safety precautions
This symbol on the products and/or accompanying documents means that used
electrical and electronic products should not be mixed with general household
waste.
For proper treatment, recovery and recycling, please take these products to
designated collection points, where they will be accepted on a free of charge
basis. Alternatively, in some countries you may be able to return your products to
your local retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any
potential negative effects on human health and the environment which could otherwise arise
from inappropriate waste handling.
Please contact your local authority for further details of your nearest designated collection
point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national
legislation.
ENGLISH
Information on Disposal for Users of Waste Electrical & Electronic Equipment
(private households)
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or
supplier for further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for
the correct method of disposal.
4 (E)
01.AV-HS04M1_English.indd Sec1:4
2007/10/01 18:31:21
Contents
Safety precautions .........................
Introduction .....................................
Accessory .......................................
Precautions for use ........................
Name of each part ..........................
1
5
5
6
7
Mounting ......................................... 8
Connections .................................. 11
Appearance ................................... 12
Specifications ............................... 13
Introduction
When this board is installed in the AV-HS400N/E multi format line switcher, it enables two
SDI input lines to be supported.
An up-converter function is also incorporated in each of the two SDI input lines for
converting SD format signals into HD format signals.
Accessory
Operating instructions .................. 1
5 (E)
01.AV-HS04M1_English.indd Sec1:5
2007/10/01 18:31:22
Precautions for use
 Handle carefully.
 Use the product in an ambient temperature of 32 °F to 104 °F
(0 °C to 40 °C).
Avoid using the product at a cold place below 32 °F (0 °C) or at a hot place above
104 °F (40 °C) because extremely low or high temperature will adversely affect the
parts inside.
ENGLISH
Do not drop the product, or subject it to strong shock or vibration.
 Power off before connecting or disconnecting cables.
Before plugging or unplugging the cables, be sure to switch power off.
 Avoid humidity and dust.
Avoid using the product at a humid, dusty place because much humidity and dust will
cause damage to the parts inside.
 When the product is to be discarded
When the product is to be discarded at the end of its service life, ask a specialized
contractor to dispose of it properly in order to protect the environment.
6 (E)
01.AV-HS04M1_English.indd Sec1:6
2007/10/01 18:31:22
Name of each part
SDI INPUTS
OUT
IN
OUT

IN

 SDI input connectors [SDI INPUTS]
IN: SDI signal input connector; OUT: active through output connector
When connected to the SLOT1 option input connector: INPUT5
When connected to the SLOT2 option input connector: INPUT7
 SDI input connectors [SDI INPUTS]
IN: SDI signal input connector; OUT: active through output connector
When connected to the SLOT1 option input connector: INPUT6
When connected to the SLOT2 option input connector: INPUT8
 Setting switches
1
2
3
4
5
6
7
8
O
N
<Setting switch table>
Switch no.
1
2
3
4
5
6
7
8
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Off
On
Factory setting
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Off
Off
Off
Off
Off
Off
Off
Off
Use switches no. 1 to 8 at the “off” (factory setting) position.
7 (E)
01.AV-HS04M1_English.indd Sec1:7
2007/10/01 18:31:22
Mounting
<Notes>
 Be sure to ask the store or dealer where you purchased the product for assistance
with mounting and removal.
 Set to OFF and unplug the power connector before mounting and removal.
 Before handling this board, touch a metal part of the AV-HS400N/E to discharge the
static electricity from the human body.
An anti-static wrist strap is recommended for safety. Failures may be caused if you
touch this board while you are still charged with static electricity.
 Keep the metal parts of this board free of contact with other metal parts.
 Be sure to mount the blank panel installed with the AV-HS400N/E, after removing this
board.
 When installing or removing this board, take care not to hurt yourself on the edges
and metal parts of the boards.
ENGLISH
Install this board in the multi-format live switcher AV-HS400N/E.
 Turn off the power of the AV-HS400N/E, and unplug the power cord.
 Loosen the two screws of SLOT1 or SLOT2 on the input side at the rear of the AVHS400N/E, and remove the blank panel.
SLOT2
SLOT1
Blank panel
Screw
Screw
8 (E)
01.AV-HS04M1_English.indd Sec1:8
2007/10/01 18:31:23
Mounting
 Align the board with the guide rails, and insert it slowly.
Insert it all the way in. Take care not to use force to insert the board because the
connectors may be damaged in the process.
 Attach the board using the two screws.
Screw
Screw
 After connecting the necessary cables, plug in the power cord, and turn on the power.
9 (E)
01.AV-HS04M1_English.indd Sec1:9
2007/10/01 18:31:24
Mounting
Turn on the power of the AV-HS400N/E, and use the menu used to display the statuses of
the option boards to check that the board has been mounted correctly.
 Press the [FUNC] button to light its indicator, and press the [SYSTEM] button to
display the SYSTEM menu.
ENGLISH
Checking that the board has been mounted correctly
 Turn [F1] to display the OptVer sub menu.
<Menu display>
OptVer
14/14
Select Board
Version

IN-SL1
SDI
 Turn [F2] to select the option slot (IN-SL1 or IN-SL2) using the Select item.
If the board has been mounted correctly, “SDI” will appear at the Board item.
If it has not been mounted correctly, “None” will appear at the Board item.
For details on the input signal settings and operating methods, refer to the operating
instructions of the AV-HS400N/E.
4-1. Setting the SDI input signals and analog input signals
4-2. Setting the up-converter
5-2. Setting the crosspoints
Removal procedure
Remove this board by following the procedures for mounting it in reverse.
10 (E)
01.AV-HS04M1_English.indd Sec1:10
2007/10/01 18:31:25
Connections
Connections when not implementing gen-lock (frame synchronizer ON)
HD SDI
HD SDI monitor
HD SDI
HD camera
HD SDI
HD SDI
HD SDI monitor
POWER
UTIL OUTPUTS
INPUTS
SLOT2 UTIL6 UTIL5
SLOT1 UTIL4 UTIL3
8
6
HD camera
SLOT2
SLOT1
7
5
ON
DVI INPUTS
PC OUTPUTS
OFF
SLOT
2
SLOT
2
Y
Pb
Y
Pb
DVI-I
DVI-I
Pr
DVI-I
㨪IN
ANALOG OUTPUTS
ANALOG
INPUTS
SDI INPUTS
OUT
IN
OUT
IN
SLOT
1
SLOT
1
Y
Pr
Pb
Pr
SDI OUTPUTS
Y
Pb
IN
OUT
Pr
Y
Pb
Pr
SDI INPUTS
PGM
UTIL2
UTIL1
2
1
3
4
OUT
IN
OUT
2
IN
OUT
SIGNAL
GND
1
IN
ETHERNET
RS422
REF
TALLY
GPI
Multi-format live switcher
AV-HS400N/E
Power cord
HD SDI
HD SDI
HD camera
VTR
HD SDI
HD camera
HD SDI
HD camera
 Make the connection with this board while the power is off.
 For details on connecting individual devices, refer to the respective operating instructions.
 For details on operating individual devices, refer to the respective operating instructions.
11 (E)
01.AV-HS04M1_English.indd Sec1:11
2007/10/01 18:31:25
Appearance
ENGLISH
OUT
SDI INPUTS
OUT
IN
5-2/16 (130)
IN
Unit: Inch (mm)
1-1/16 (27)
6 (152.5)
12 (E)
01.AV-HS04M1_English.indd Sec1:12
2007/10/01 18:31:26
Specifications
Signal formats
SD: 480/59.94i, 576/50i
HD: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
SDI inputs
HD [SMPTE 292M (BTA S-004B) standard complied with]
• 0.8 Vp-p 10 % (75 )
• Input return loss
More than 15 dB (5 MHz to 750 MHz)
More than 10 dB (750 MHz to 1.5 GHz)
• Automatic equalizer More than 100 m (5C-FB)
SD [SMPTE 259M standard complied with]
• 0.8 Vp-p 10 % (75 )
• Input return loss
More than 15 dB (5 MHz to 270 MHz)
• Automatic equalizer 200 m (5C-2V)
BNC ×2, (with active through)
Ambient operating 32 °F to 104 °F (0 °C to 40 °C)
temperature
Humidity
10 % to 90 % (no condensation)
Power supply
DC 12 V (supplied from the AV-HS400N/E)
Power consumption
?? W
Dimensions
(W  H  D)
6˝ × 1-1/16˝ × 5-2/16˝ (152.5 × 27 × 130 mm)
Weight
0.4 lbs. (0.2 kg)
13 (E)
01.AV-HS04M1_English.indd Sec1:13
2007/10/01 18:31:27
ENGLISH
Memo
14 (E)
01.AV-HS04M1_English.indd Sec1:14
2007/10/01 18:31:27
