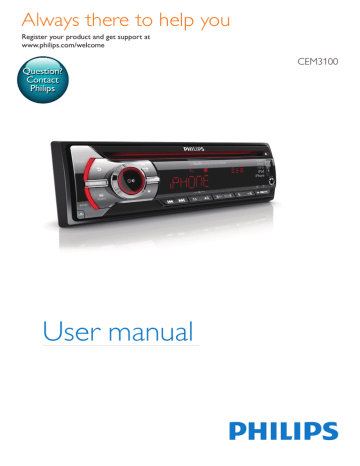

User manual
CEM3100
2
Contents
7 Adjust system settings
1Important
2
Safety2
Notice2
2 Your car audio system
4
Introduction4
What's in the box
4
Overview of the main unit
5
Overview of the remote control
6
3 Get started
Install the car audio
Install remote control battery
Turn on
Set clock
7
7
10
10
10
4 Listen to radio
11
11
11
11
12
5 Play audio files
14
14
14
14
16
16
Tune to a radio station
Store radio stations in memory
Tune to a preset station
Play with RDS
Play a disc
Play from USB
Play from iPod/iPhone
Play options
Connect external sound source
18
Turn beep sound on/off
18
Select blackout setting
18
Turn demo mode on/off
18
Dimmer19
Dance19
Rear Aux
19
LCD Color
19
Audiobook19
Reset20
8 Additional information
Detach the front panel
Replace fuse
Remove the unit
20
20
20
21
9 Product information
21
10Troubleshooting
22
6 Adjust sound
17
Adjust volume
17
Mute17
Turn Dynamic Bass Boost (DBB) on/off 17
Turn on/off MAX sound
17
Select preset equalizer
17
Switch music listening zone
17
Turn on/off full sound
17
Other sound settings
18
EN
1
1Important
Safety
•
•
•
•
•
•
•
•
•
•
•
•
Read and understand all instructions
before you use your apparatus. If damage is
caused by failure to follow instructions, the
warranty does not apply.
This apparatus is designed for negative
ground (earth) 12 V DC operation only.
To ensure safe driving, adjust the volume to
a safe and comfortable level.
Improper fuses can cause damage or
fire. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware
for a safe and secure installation.
To avoid short circuit, do not expose the
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation
slots or other openings on the apparatus.
Clean the apparatus and frame with a soft,
damp cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
Never place any objects other than discs
into the apparatus.
Never use solvents such as benzene,
thinner, cleaners available commercially, or
anti-static sprays intended for discs.
Visible and invisible laser radiation when
open. Avoid exposure to beam.
Risk of damage to the apparatus screen!
Never touch, push, rub or strike the screen
with any object.
Caution
•• Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
2
EN
•
•
The apparatus shall not be exposed to
dripping or splashing.
Do not place any sources of danger on the
apparatus (e.g. liquid filled objects, lighted
candles).
Notice
Any changes or modifications made to this
device that are not expressly approved by
WOOX Innovations may void the user’s
authority to operate the equipment.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
The making of unauthorized copies of copyprotected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
This apparatus includes this label:
2014 © WOOX Innovations Limited. All rights
reserved.
Specifications are subject to change without
notice. WOOX reserves the right to change
products at any time without being obliged to
adjust earlier supplies accordingly.
Windows Media and the Windows logo
are trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
"Made for iPod" and "Made for iPhone"
mean that an electronic accessory has been
designed to connect specifically to iPod, or
iPhone respectively, and has been certified by
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod, or iPhone
may affect wireless performance.
EN
3
2 Your car audio
system
What's in the box
Check and identify the contents of your
package:
aMain unit (with a sleeve)
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
bRemote control
cFront panel
dTrim plate
Introduction
eCarrying case for front panel
With the in-car audio system, you can enjoy
your drive while listening to:
• FM or AM (MW) radio
• Audio from CD or MP3 disc
• Audio from USB devices
• Audio from iPod/iPhone
• Audio from other external devices
The unit supports the following media format:
gScrew x 1 pc
fRubber cushion
hDisassembly tools x 2 pcs
iUser manual
jQuick start guide
b
a
c
f
i
4
EN
g
j
h
Overview of the main unit
a
r
b
q
c
d
e
p
f
o
n
m
l
t
a SOURCE
• Select audio source.
• Display LCD color.
b MENU
• Access system menu.
c
• Return to previous menu.
• Access music search in iPod/iPhone
mode.
k
g
j i h
s
d
e
•
•
•
•
•
•
•
•
•
/
Turn the unit on or off.
Confirm selection.
Mute or unmute sound.
Rotate to adjust volume.
/
Select tuner band.
Select MP3/WMA folder.
Switch music listening zone.
Turn on or off full sound.
Enter iPod/iPhone control mode.
EN
5
f
g
• Eject disc.
Overview of the remote
control
• USB socket.
a
h MP3 LINK
• Connect external audio device.
i
6281'
b
• Turn on or off Maximizing volume.
• View clock.
c
j DBB
• Turn on or off Dynamic Bass Boost
(DBB) sound.
• Access to tuner auto store.
k
d
e
• Select preset radio station No.6.
• Start play.
• Pause or resume play.
f
l REP / SHUF
• Access to repeat play.
• Access to shuffle play.
• Select preset radio station No.3/4.
m
/
• Select preset radio station No.1/2.
• Search for track/folder.
n
/
• Tune for radio station.
• Skip/search for track.
• Fast backward/forward playback.
o DISP
• Display current status.
• Turn the dimmer on and off.
p EQ / AUDIO
• Select equalizer (EQ) setting.
• Access audio setting menu.
q
• Unlock the panel.
r BAND
• Select tuner band.
s RESET
• Restore default settings.
t Disc slot
6
EN
a VOL +/• Adjust volume.
b
/
• Select tuner band.
• Scroll up/down menu.
• Select MP3/WMA folder.
c
/
• Tune to a radio station
• Skip track.
• Fast backward/forward playback
d SOURCE
• Select audio source.
e EQ
• Select equalizer (EQ) settings.
f OFF / /
• Turn the unit on or off.
• Mute or restore volume.
3 Get started
Caution
•• Use the controls only as stated in this user manual.
Always follow the instructions in this chapter in
sequence.
If you contact the Consumer Care, you will
be asked for the model and serial number of
this apparatus. The model number and serial
number are on the bottom of your apparatus.
Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Note on the power supply lead (yellow)
• When you connect other devices to this
apparatus, ensure that the rating of the car
circuit is higher than the total fuse value of
all the connected devices.
Notes on speaker connection
• Never connect speaker wires to the metal
body or chassis of the car.
• Never connect speaker wires with stripes
to one another.
Connection: for cars with ISO
connectors
Caution
•• Ensure that all loose leads are insulated with electrical
tape.
Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any question regarding installation kits, consult
your local retailer.
Note
•• Consult a professional to connect CEM3100 as
instructed below.
•• The ISO male connectors are not supplied.
1 Connect the male connector to the unit.
Caution
•• This unit is designed for negative ground (earth) 12 V
DC operation only.
•• Always install this unit in the car dashboard. Other
locations can be dangerous as the rear of the unit heats
up during use.
•• To avoid short-circuit: before you connect, ensure that
the ignition is off.
•• Ensure that you connect the yellow and red power
supply leads after all other leads are connected.
•• Ensure that all loose leads are insulated with electrical
tape.
•• Ensure that the leads do not get caught under screws
orin parts that will move (e.g. seat rail).
•• Ensure that all ground (earth) leads are run to a
common ground (earth) point.
•• Use only the supplied mounting hardware for a safe
and secure installation.
•• Improper fuses can cause damage or fire. When you
need to change the fuse, consult a professional.
2 Check the car's wiring carefully and
connect them to the the male connector.
Note
•• Risk of danger! Please consult a professional to perform
the below steps!
EN
7
1
2
3
4
5
6
7
1
e
Green/black
strip
White/black strip
Gray/black strip
Purple/black
strip
Red
f
Blue
g
White-edged
blue strip
Black
Yellow
2
3
4
h
i
Left speaker (Rear)
Left speaker (Front)
Right speaker (Front)
Right speaker (Rear)
Ignition key +12V DC
when ON/ACC
Motor/electric antenna
relay control lead
Amplifier relay control
lead
Ground
To the +12V car battery
which is energized at all
times
3 Connect the antenna and amplifier as
illustrated, if applicable.
h
f
5 5( $5$8;
/
/
5
5($5
)5217
ji
8
EN
g
8
9
10
Connector
ANTENNA
FRONT LINE OUT R
(Socket)
FRONT LINE OUT L
(Socket)
REAR LINE OUT R
(Socket)
REAR LINE OUT L
(Socket)
OE REMOTE (Purple)
TEL MUTING (Blue)
SUBWOOFER (Blue)
REAR AUX LINE
OUT R
REAR AUX LINE
OUT L
Connect to
Antenna
Front right
speaker
Front left
speaker
Rear right
speaker
Rear left speaker
OE Remote
To cellular phone
system
Subwoofer
Rear Aux right
Rear Aux left
Tip
•• The pin arrangement for the ISO connectors depends
on the type of vehicle you drive. Be sure to make
proper connections to prevent damage to the unit.
Mount into the dashboard
1 If the car does not have an on-board drive
or navigation computer, disconnect the
negative terminal of the car battery.
• If you disconnect the car battery in
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.
• If the car battery is not disconnected,
to avoid short-circuit, ensure that the
bare wires do not touch each other.
2 Ensure that car dashboard opening is
within these measurements:
m
18
53.5 mm
5m
3m
mm
53mm
183
m
5 Place the supplied rubber cushion over the
3 Remove the mounting sleeve with the
end of the mounting bolt.
supplied disassembly tools.
6 Slide the unit into the dashboard until you
hear a click sound.
4 Install the sleeve into the dashboard and
bend the tabs outward to fix the sleeve.
Note
•• If the unit is not fixed by sleeve but by the supplied
screws, skip this step.
7 Reconnect the negative terminal of the car
battery.
EN
9
Attach the front panel
1 Attach the trim plate.
2 Insert the right side of the panel in the
chassis until it is correctly engaged.
3 Press the left side of the panel until the
mechanism locks it into place.
Turn on
To turn on the unit,
• Press .
To turn off the unit,
• press and hold
turned off.
until the unit is
Set clock
Install remote control battery
Caution
•• Risk of explosion! Keep batteries away from heat,
sunshine or fire. Never discard batteries in fire.
•• Risk of decreased battery life! Never mix different
brands or types of batteries.
•• Risk of product damage! When the remote control is
2
3
4
5
is flashed.
Rotate
Press
to set hour.
to confirm.
Rotate
Press
to set minute.
to confirm.
not used for long periods, remove the batteries.
Set clock format
www.dtsc.ca.gov/hazardouswaste/perchlorate.
1 Press MENU.
2 Press or repeatedly until [CLOCK
•• Perchlorate Material - special handling may apply. See
For first-time use:
Remove the protective tab to activate the
remote control battery.
To replace the remote control battery:
1 Open the battery compartment.
2 Insert one CR2025 battery with correct
polarity (+/-) as indicated.
3 Close the battery compartment.
10
1 Press MENU repeatedly until current time
EN
FORMAT] is displayed.
3 Rotate
to select a setting:
• [CLOCK 12H]
• [CLOCK 24H]
View clock
In any mode, press and hold MAX SOUND
until the clock is displayed.
• Press any key to cancel the clock display.
4 Listen to radio
Tune to a radio station
1 Press SOURCE repeatedly to select radio
mode.
2 Press BAND or
/ repeatedly to select
band: [FM1], [FM2], [FM3], [AM1], or
[AM2] .
3 Press and hold
or
until the
frequency digit is flashed.
4 Press
or
to tune to a radio station
manually.
»» The radio station is broadcast.
•
To search for a radio station automatically,
press
or .
Select tuner sensitivity
To receive more radio stations or only stations
with strong signal, you can adjust the tuner
sensitivity.
1 Press MENU repeatedly until [LOCAL] is
displayed.
2 Rotate
to select a setting:
[LOCAL ON] (local on): Only
stations with strong signal can be
broadcast.
• [LOCAL OFF] (local off): Stations
with strong and weak signals can be
broadcast.
•
Store radio stations in memory
You can store up to 6 stations in each band.
Store stations automatically
Select tuner region
1 In Radio mode, press and hold DBB until
You can select suitable country/region of the
radio.
2 Press
1 Press SOURCE to select radio mode.
2 Press MENU repeatedly until [AREA] is
displayed..
3 Rotate
•
•
•
•
•
•
•
to select:
[USA] (United States)
[LATIN] (Latin America)
[EUROPE] (Western Europe)
[M-EAST] (Middle East)
[ASIA] (Asia Pacific)
[JAP] (Japan)
[AUST] (Australia)
4 Press
[STORE - - -] is displayed.
to confirm.
»» The six strongest stations of the
selected band are saved in preset
channel automatically.
Store stations manually
1 Tune to a station that you want to store
(see 'Tune to a radio station' on page 12).
2 Press a numeric button for 3 seconds.
»» The station is saved in the selected
channel.
to confirm.
Tune to a preset station
1 Press BAND to select band.
2 Press a numeric key to select a preset
station.
EN
11
7
Play with RDS
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, the station name are displayed.
Turn on RDS
Note
•• The default setting for RDS is on.
1 Press MENU.
2 Press or repeatedly until [RDS] is
displayed.
3 Rotate
to select [RDS ON].
»» The RDS function is turned on.
Select program type
Before tuning to RDS stations, you can select
program type and let the unit search only for
programs of the selected category.
1 Press MENU.
2 Press or repeatedly until [PTY] is
displayed.
3 Press to confirm.
4 Rotate to select a type, then press
confirm.
Item
1
2
Program
type
NEWS
AFFAIRS
3
INFO
4
5
SPORT
EDUCATE
6
DRAMA
12
EN
to
Description
News services
Politics and current
affairs
Special information
programs
Sports
Education and advanced
training
Radio plays and
literature
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
CULTURE
Culture, religion and
society
SCIENCE
Science
VARIED
Entertainment programs
POP M
Pop music
ROCK M
Rock music
EASY M
Light music
LIGHT M
Light classical music
CLASSICS
Classical music
OTHER M
Special music programs
WEATHER
Weather
FINANCE
Finance
CHILDREN Children’s programs
SOCIAL
Social Affairs
RELIGION
Religion
PHONE IN
Phone In
TRAVEL
Travel
LEISURE
Leisure
JAZZ
Jazz Music
COUNTRY Country Music
NATION M National Music
OLDIES
Oldies Music
FOLK M
Folk Music
DOCUMENT Documentary
TEST
Alarm Test
ALARM
Alarm
Select alternate frequencies
If the radio signal is poor, turn on AF (Alternate
Frequency) to search for another station with
stronger signal.
1 Press MENU.
2 Press or repeatedly until [AF] is
displayed.
3 Rotate
to select a setting:
• [AF ON]: turn AF mode on.
• [AF OFF]: turn AF mode off.
Set region for AF tuning
You can define AF tuning region:
[REG
ON]
[REG
OFF]
Only stations in current region can
be tuned to automatically.
All stations can be tuned to
automatically.
1 Press MENU.
2 Press or repeatedly until [REG] is
displayed.
3 Rotate
to select a setting.
Receive traffic announcement
If you do not want to miss traffic
announcement when enjoying music, turn on
the TA (Traffic Announcement) function.
Set RDS clock
You can use time signal that is broadcast
together with the RDS signal to set the clock of
the unit automatically.
1 Press MENU.
2 Press or repeatedly until [CT] is
displayed.
3 Rotate
to select a setting:
• [CT ON]: turn on the RDS clock. Time
shown on the unit synchronizes with
that on the RDS station.
• [CT OFF]: turn off the RDS clock.
Tip
•• The accuracy of the transmitted time depends on the
RDS station that transmits the time signal.
1 Press MENU.
2 Press or repeatedly until [TA] is
displayed.
3 Rotate
to select a setting:
• [TA ON]: when there is traffic
announcement, the unit switches to
the tuner mode (regardless of the
current mode) and begins to broadcast
the traffic conditions. When the traffic
announcement is over, it returns to the
previous mode.
• [TA OFF]: traffic announcement does
not cut in.
Note
•• If the current received TA signal remains weak for
over 120 seconds, the unit will activate TA Seek mode
automatically. The TA Seek will seek for other station
with good condition of TA signal.
Tip
•• When a traffic announcement cuts in, user can short
press
to terminate the traffic announcement, and
the unit will resume to previous playback mode.
EN
13
5 Play audio files
Note
•• Ensure that the disc or device contains playable files.
Play from USB
Note
•• Ensure that the USB device contains playable music.
Insert the USB device
Play a disc
Note
•• You cannot play CDs encoded with copyright
protection technologies.
1 Slide the USB socket cover marked
the left.
to
2 Insert the USB device into the USB socket.
»» The unit starts playing from the USB
device automatically.
You can play commercially available audio CDs
and these discs:
• CD-Recordables (CD-R)
• CD-Re-writables (CD-RW)
• MP3 CDs
• WMA CDs
Note
•• Ensure that the disc contains playable content.
Insert a CD with the printed side facing up.
»» Play starts automatically.
•
•
•
To pause CD play, press
.
To resume CD play, press
again.
To skip to the previous/next track, press
or .
• To search backward/forward rapidly within
the current track, press
or
for 3
seconds.
Remove the CD
To take out the CD, press on the front panel.
Tip
•• If the disc is blocked in the disc compartment, press and
hold
14
EN
until the disc comes out.
Remove the USB device
1 Press to turn off the unit.
2 Remove the USB device.
Play from iPod/iPhone
You can enjoy audio from iPod/iPhone through
this unit.
Compatible iPod/iPhone
Apple iPod and iPhone models with a 30-pin
dock connector:
Made for:
• iPod nano (2nd generation)
• iPod nano (3rd generation 4GB)
• iPod nano (3rd generation 8GB)
• iPod nano (4th generation)
• iPod nano (5th generation)
• iPod nano (6th generation)
• iPod classic (1st generation)
3 Press repeatedly to toggle between the
• iPod classic (2nd generation)
• iPod touch (1st generation)
• iPod touch (2nd generation)
• iPod touch (3rd generation)
• iPod video (30GB & 80GB)
Works with:
• iPhone
• iPhone 3G
• iPhone 3GS
• iPhone 4
• iPhone 4S
Connect iPod/iPhone
1 Slide the USB socket cover marked
the left.
to
2 Insert USB adaptor on one end of iPod/
iPhone cable to the USB socket on the
main unit.
3 Insert the other end of the iPod/iPhone
cable to the iPod/iPhone socket.
»» The unit starts playing from the iPod/
iPhone automatically.
two control modes:
• iPod control mode: Use the buttons/
touch screen on iPod/iPhone to
control the music.
• Audio control mode: Use the control
buttons on car audio to control the
music.
To control playback under audio control
mode:
• To pause/resume play, press .
• To skip to a track, press
/ .
• To search during play, press and hold
/ , then release to resume
normal play.
• To navigate the menu, press , rotate
to select, then press to confirm.
Search for a track
1 Press SOURCE repeatedly to select iPod
mode.
2 Press to browse iPod/iPhone menu.
3 Rotate to select the Artist search mode,
and press
to confirm.
4 Press DISP to search alphabetically.
5 Rotate to select desired artist, then
press
6 Rotate
album.
7 Press
to confirm.
to select desired song in current
to start play.
Note
•• User cannot control the music via iPod/iPhone under
audio control mode.
Control music playback on iPod/
iPhone
1 Ensure that the iPod/iPhone is connected
correctly.
2 Press SOURCE to select iPod USB mode.
EN
15
2 Rotate
Play options
•
Search for an MP3/WMA track
•
Search within the current folder
•
1 Press .
»» The name of the current track is
displayed.
2 Rotate
folder.
to select anther track in current
to select a setting.
[REPEAT TRK] (repeat one track): play
current track repeatedly.
[REPEAT FLD] (repeat a folder): play all
tracks in the current folder repeatedly.
[REPEAT ALL] (repeat all tracks): play all
tracks repeatedly.
Shuffle play
You can play the tracks in random order:
3 Press
1 During play, press SHUF.
1 Press .
2 Rotate
to confirm.
Search in other folder
»» [SHUFFLE] is displayed.
»» The name of the current folder is
displayed.
2 Rotate to navigate through all folders.
3 Press to access the selected folder.
»» The unit starts playing the first song
from the selected folder automatically.
Tip
•• To go back to upper level of a folder, press
.
to select a setting:
• [SHUFFLE FLD]: start random play for
all tracks in the current folder.
• [SHUFFLE ALL]: start random play for
all tracks.
• [SHUFFLE OFF] : cancel shuffle play.
Connect external sound
source
1 Connect the external sound source to
MP3 LINK socket with a 3.5 mm cable.
View play information
During playing, press DISP repeatedly to view:
• Track number and elapsed play time
• Folder
• File
• Album
• Artist
• Title
Repeat play
1 During play, press REP.
»» [REPEAT] is displayed.
16
EN
2 Press SOURCE repeatedly until [MP3
LINK] is displayed.
3 Operate the external component (refer to
the instructions supplied with the external
component).
6 Adjust sound
Select preset equalizer
1 Press EQ / AUDIO.
»» Current Equalizer setting is displayed.
Adjust volume
Turn clockwise/counterclockwise to increase/
decrease volume.
Mute
You can turn off the sound of your audio.
During play, press .
• To resume sound, press again.
Turn Dynamic Bass Boost
(DBB) on/off
1 Press DBB and the current setting is
displayed:
»» [DBB ON]: Dynamic Bass Boost
(DBB) function is on.
»» [DBB OFF]: Dynamic Bass Boot (DBB)
function is off.
2 Press DBB again to change the DBB
setting.
Turn on/off MAX sound
1 Press
2 Press EQ / AUDIO again to select a preset
EQ setting:
• [OPTIMAL] (optimal)
• [FLAT] (flat)
• [POP] (pop)
• [USER] (user)
• [TECHNO] (techno)
• [ROCK] (rock)
• [CLASSIC] (classic)
• [JAZZ] (jazz)
Switch music listening zone
Philips’ innovative Zone technology enables
driver or passengers to enjoy music with the
best speakers balance and experience more
vivid spacial effect as the artist is intended to
create. You can switch the music listening zone
from driver to passengers for the best speaker
sound settings in car.
1 Press and hold ZONE.
»» The current setting is displayed.
2 Press
•
•
•
•
/ to select a setting:
[ALL]
[FRONT LEFT] (Front left)
[FRONT RIGHT] (Front right)
[FRONT]
6281'.
»» The current setting displays
Turn on/off full sound
• [MAX ON]: The maximum sound
(MAX sound) function is on.
• [MAX OFF]: The maximum sound
function is off.
1 Press and hold
2 Press
6281'
again to select an option.
.
»» The current setting displays:
• [FULL ON] : The full sound function
is on.
• [FULL OFF] : The full sound function
is off.
2 Press
again to select an option.
EN
17
Other sound settings
You can also adjust the preset EQ / AUDIO
settings.
7 Adjust system
settings
1 Press EQ / AUDIO for 3 seconds.
2 Press or repeatedly to select the item
to be adjusted:
• [SUBWOOFER ON/OFF] : Rotate
to turn on or off the subwoofer.
• [SUBWOOFER] range: 0 to 12.
• [SUBWOOFER LPF] (Subwoofer low
pass filter) range: 80, 120, 160.
• [BALANCE] range: 12L to 12R. (L=left
speaker, R=right speaker)
• [FADER] range: 12R to 12F. (R=rear
speaker, F=front speaker)
• [BASS] range: -7 to +7.
• [BASS CFQ] (bass center frequency)
range: 60, 80, 100, 200.
• [MIDDLE] range: -7 to +7.
• [MIDDLE CFQ] (middle center
frequency) range: 0.5k, 1.0k, 1.5k, 2.5k.
• [TREBLE] range: -7 to +7.
• [TREBLE CFQ] (treble center
frequency) range: 10.0k, 12.5k, 15.0k,
17.5k.
• [RESUME] : Resume the preset EQ
value to factory default value.
3 Rotate
to select a value.
Turn beep sound on/off
Each time you press a button, the unit beeps.
You can turn off/on this beep sound.
1 Press MENU.
2 Press or repeatedly until [BEEP] is
displayed.
3 Rotate
to select a setting:
• [BEEP ON]: Turn on the beep sound.
• [BEEP OFF]: Turn off the beep sound.
Select blackout setting
You can set the screen to turn off automatically
after the unit is idle for 10 or 20 seconds.
1 Press MENU.
2 Press or repeatedly until [BLACK
OUT] is displayed.
3 Rotate
to select a setting:
• [BLK OUT 10 S] : Turn off the screen
automatically 10 seconds after last
operation.
• [BLK OUT 20 S] : Turn off the screen
automatically 20 seconds after last
operation.
• [BLK OUT OFF] : Never turn off the
screen.
Turn demo mode on/off
1 Press MENU.
2 Press or repeatedly until [DEMO] is
displayed.
»» The screen shows current Demo
mode setting.
18
EN
3 Rotate
to select a setting:
• [DEMO ON]: Turn on the demo
mode. When the unit is idle for more
than 120 seconds, all functions are
displayed.
• [DEMO OFF]: Turn off the demo
mode.
Dimmer
1 Press MENU.
2 Press or repeatedly until [DIMMER]
Note
•• To support telephone call with this unit, connect TEL
MUTING wire to your hands-free kit and audio out
jack to the REAR AUX in jack of the unit.
LCD Color
You can select your desired LCD color on this
car audio.
is displayed.
1 Press MENU.
2 Press or repeatedly until [LCD
to select a setting:
• [DIMM HIGH] (dimmer high)
• [DIMM LOW] (dimmer low)
3 Press .
4 Rotate to select a setting:
3 Rotate
Dance
You can turn on or off the spectrum on the
LCD display.
1 Press MENU.
2 Press or repeatedly until [DANCE] is
displayed.
3 Rotate
to select a setting:
• [DANCE ON] : Turn on the spectrum.
• [DANCE OFF] : Turn off the spectrum.
Rear Aux
1 Press MENU.
2 Press or repeatedly until [TEL MUTE]
is displayed.
3 Rotate
to select a setting:
• [NORMAL] : Mute the telephone,
[MUTE] is displayed.
• [REAR AUX] : Mute the telephone,
[PHONE IN] is displayed.
COLOR] is displayed.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
[DEFAULT] (default setting)
[COLOR SCAN] (color scan)
[WHITE] (white)
[GREEN 1] (green 1)
[GREEN 2] (green 2)
[GREEN 3] (green 3)
[AMBER] (amber)
[PINK 1] (pink 1)
[PINK 2] (pink 2)
[PURPLE 1] (purple 1)
[PURPLE 2] (purple 2)
[BLUE 1] (blue 1)
[BLUE 2] (blue 2)
[USER COLOR] (user color)
Audiobook
In iPod/iPhone mode, you can set the
audiobook playback speed on this car audio.
1 Press MENU.
2 Press or repeatedly until
[AUDIOBOOK] is displayed.
3 Rotate
to select a setting:
• [FAST]
• [SLOW]
• [NORMAL]
EN
19
Reset
You can reset the unit to its default setting.
1 Detach the front panel.
2 Press the reset button by using a ball-point
pen or a similar tool.
»» Preset adjustments such as preset
channels and sound adjustments are
erased.
8Additional
information
Detach the front panel
You can detach the front panel to deter theft.
1 Press to release the panel.
2 Pull the panel towards you to disengage it
from the classis.
3 Store the panel in the supplied carrying
case to protect it from dirt or damage.
Replace fuse
If the fuse is damaged,
1 Check the electric connection.
2 Buy a fuse that matches the voltage of the
damaged fuse.
3 Replace the fuse.
20
EN
Note
•• If the new fuse gets damaged again, there may be an
internal malfunction. Consult your dealer.
9Product
information
Note
Remove the unit
You can remove the unit from the dashboard.
1 Detach the front panel.
2 Pull out the unit by using the disassembly
tools.
•• Product information is subject to change without prior
notice.
Power supply
Fuse
Suitable speaker
impedance
Maximum power
output
Continuous
power output
Pre-Amp output
voltage
Aux-in level
Dimensions
(W x H x D)
Weight
12 V DC (11 V - 16 V),
negative ground
15 A
4-8
50 W x 4 channels
24 W x 4 RMS (4
T.H.D.)
2.5V
10%
500 mV
181.5 x 52 x 191.4 mm
1.32 kg
Radio
Frequency range
- FM
Frequency range AM(MW)
Usable sensitivity
- FM
Usable sensitivity AM(MW) (S/N =
20 dB)
87.5 - 108.0 MHz
(100 kHz per step in auto
search and 50 kHz per
step in manual search)
522 - 1620 KHz (9 kHz)
530 - 1710 kHz (10 kHz)
8 µV
30 µV
Compatible USB devices:
• USB flash memory: USB 1.1 host with
interface reading all speed support
(1.1, 2.0)
• USB flash players: USB 1.1 host with
interface reading all speed support
(1.1, 2.0)
EN
21
Supported formats:
• USB or memory file format: FAT16,
FAT32
• MP3 bit rate (data rate): 32-320 Kbps
and variable bit rate
• WMA V4, V7, V8, V9 (L1, L2)
• ISO9660, Joliet
• Supported sampling frequencies: 2 kHz,
44.1 kHz, 48 kHz
• Supported Bit-rates: 2~256 (kbps),
variable bit rates
• Directory nesting up to a maximum of
8 levels
• Number of albums/ folders: CD
maximum 99, USB maximum 99
• Number of tracks/titles: maximum 999
• ID3 tag v2.0 or later
Unsupported formats:
• Empty albums: an empty album is an
album that does not contain MP3/
WMA files, and is not be shown in the
display.
• Unsupported file formats are skipped.
For example, Word documents (.doc)
or MP3 files with extension .dlf are
ignored and not played.
• AAC, WAV, PCM audio files
• DRM protected WMA files (.wav, .m4a,
.m4p, .mp4, .aac)
• WMA files in Lossless format
22
EN
10Troubleshooting
Caution
•• Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/support). When you contact the
Consumer Care, make sure that the product
is nearby and the model number and serial
number are available.
No power or no sound.
•• Car engine is not on. Turn the car engine
on.
•• Cable is not correctly connected. Check
connections.
•• Fuse is burnt. Replace fuse.
•• Volume is too low. Adjust volume.
•• If the above solutions cannot help, press
the RESET button.
•• Ensure that the track played is of a
compatible format.
Noise in broadcasts.
•• Signals are too weak. Select other stations
with stronger signals.
•• Check the connection of the car antenna.
•• Change broadcast from Stereo to mono.
Cannot play disc
•• Ensure that the disc label is inserted with
the printed side facing up.
•• Wipe the disc with fibre cleaning cloth
from the centre to the edge in a straight
line.
•• This disc may be defective. Play another
disc.
•• Ensure that the CD is a finalised CD/
CD-R/CD-RW.
•• Ensure that the CD is not encoded with
copyright protection technologies.
The CD skips tracks
•• Ensure that the CD is not damaged or
dirty.
•• Ensure that random mode is deactivated.
Disc cannot be ejected
•• Press and hold .
Preset stations lost.
•• Battery cable is not correctly connected.
Connect the battery cable to the terminal
that is always live.
Display show ERR-12
•• USB data error. Check the USB device.
EN
23
11Glossary
M
MP3
A file format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3. With the MP3 format, one CD-R or
CD-RW can contain about 10 times more data
than a regular CD.
W
WMA (Windows Media Audio)
An audio format owned by Microsoft, is a
part of Microsoft Windows Media technology.
Includes Microsoft Digital Rights Management
tools, Windows Media Video encoding
technology, and Windows Media Audio
encoding technology.
24
EN
EN
25
2014 © WOOX Innovations Limited. All rights reserved.
Philips and the Philips’ Shield Emblem are registered
trademarks of Koninklijke Philips N.V. and are used by WOOX
Innovations Limited under license from Koninklijke Philips N.V.
CEM3100_12_UM_V4.0
