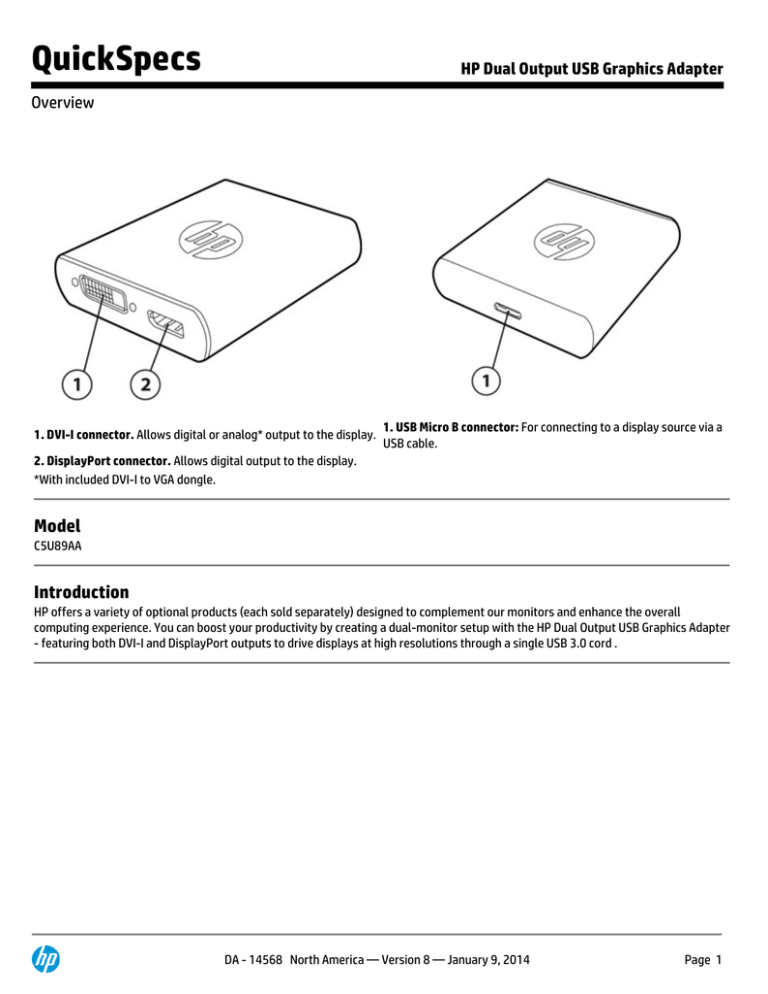

QuickSpecs
HP Dual Output USB Graphics Adapter
Overview
1. DVI-I connector. Allows digital or analog* output to the display.
1. USB Micro B connector: For connecting to a display source via a
USB cable.
2. DisplayPort connector. Allows digital output to the display.
*With included DVI-I to VGA dongle.
Model
C5U89AA
Introduction
HP offers a variety of optional products (each sold separately) designed to complement our monitors and enhance the overall
computing experience. You can boost your productivity by creating a dual-monitor setup with the HP Dual Output USB Graphics Adapter
- featuring both DVI-I and DisplayPort outputs to drive displays at high resolutions through a single USB 3.0 cord .
DA - 14568 North America — Version 8 — January 9, 2014
Page 1
QuickSpecs
HP Dual Output USB Graphics Adapter
Overview
Compatibility & Exceptions
See minimum system requirements below.
Compatible with the HP ElitePad with the Z2760 Atom processor and the ElitePad Expansion Jacket, Productivity Jacket and Docking
Station.
Note: Please note the exceptions below.
SIS graphics cards are not supported
Matrox graphics cards are not supported
NVidia SLI graphics cards in SLI mode are not supported
ATI Crossfire graphics cards are not supported
SLI graphics cards not in SLI mode are not supported
Cannot support Multiple WDDM graphics drivers that are active at the same time
Hosts with Intel 3600 or 4600 graphics engines are not supported
The solution may not work if there are multiple graphics cards installed on the host PC.
A variety of uses
Review documents side by side, read emails on one screen while multitasking on another, and keep more apps open at the same
time. The HP Dual Output USB Graphics Adapter lets you divide tasks between your monitors so you can see more, and do more.
Enhance your on-screen graphics presentation with two digital outputs, including DisplayPort. Support DVI-I resolutions
up to 1920 x 1200 and DisplayPort resolutions up to 2560 x 1600.1
Experience high-speed USB 3.0 technology. The USB 3.0 technology on the HP Dual Output USB Graphics Adapter not only
expands your productivity with two external monitors, but also provides faster transfer speeds than USB 2.0.
Many PCs and notebooks have a USB 3.0 connector. The USB 3.0 connection on the HP Dual Output USB Graphics Adapter
is also compatible with older models -- it is backwards compatible with USB 2.0 .
Setup is quick and easy with a USB plug-and-play design and one-time driver installation. Support your entire dualmonitor environment through a single USB 3.0 cord . Less hassle. Less stress.
Create a true hot-desk atmosphere and provide a dual-monitor station for workers when and as needed - ideal for office
spaces shared by multiple workers on different shifts.
More cost- effective and energy-efficient than many docking stations and graphics cards.
1Two displays with resolutions up to 1920 x 1200 or 2048 x 1152 can operate on both outputs simultaneously; however connecting a
display with a resolution higher than 1920 x 1200 or 2048 x 1152 to the DisplayPort output will disable the DVI output.
DA - 14568 North America — Version 8 — January 9, 2014
Page 2
QuickSpecs
HP Dual Output USB Graphics Adapter
Technical Specifications
Host Interface
USB 3.0 (backwards compatible to 2.0)
Video interface
DisplayPort; DVI-I or VGA
Connectors
Connectivity
Video output: 1) DisplayPort and 2) DVI-I 24pin + 5pin Female Connector or VGA HDDE 15pin Female
Connector Host upstream link: USB Micro B Type Female Connector
Host upstream link: USB 3.0 Micro B Connector
Up to 6 monitors can be supported with 3 adapters on a computer
Power Mode
Bus-powered
Supported Modes
Extend, Mirror, Primary Display
Supported resolutions DVI-I: Up to 1920 x 1200 or 2048 x 1152
DisplayPort: Up to 2560 x 1600
NOTE: Two displays with resolutions up to 1920 x 1200 or 2048 x 1152 can operate on both outputs
simultaneously; however connecting a display with a resolution higher than 1920 x 1200 or 2048 x 1152 to
the DisplayPort output will disable the DVI output.
USB Cable
USB 3.0 Y cable , 1,8 m (6 ft)
Operating Temperature 0-40° C (32-104° F)
Storage Temperature
-10~70° C (14~158° F)
Operating Humidity
20% to 80%
Non-Operating
Humidity
5% to 95%
Minimum System
Software
Requirements
(For dual displays up to Hardware:
1920x1080, 1920x1200
or 2048x1152 each or a
single display up to
2560 x 1600 resolution)
Windows 8 (32-bit and 64-bit)
Microsoft® Windows® 7 (32-bit or 64-bit)
Minimum Requirements
Recommended Requirements
(Office, Productivity, Web)
(Full-Screen Video Playback)
Overall WEI Score: 4.5 or better
Overall WEI Score: 6 or better
Processor: 2.4 GHz Core 2 Duo or
better*
Memory: 2 GB
Processor: Core i5 or i7 2+ GHz
Memory: 4 GB
Video Card: Intel GMA X4500, ATI Video Card: Intel GMA HD Graphics
Radeon HD3xxx, NVIDIA GeForce
2000/3000, ATI Radeon HD5/6xxx, NVIDIA
9xxx or better
GeForce 4xxM or better
*Any Core 2 Quad, i3, i5 or i7 will also meet the processor spec.
Display Driver
Windows Display Driver Model (WDDM 1.1)
Mechanical
Dimensions
(H x W x L)
Unpackaged:
Packaged:
0.79 x 3.2 x 3.72 in
(2.01 x 8.14 x 9.45 cm)
2 x 5.79 x 8.39 in
(5.11 x 14.7 x 21.3 cm)
Agency Approvals
FCC, CE, VCCI, KC, C-Tick, UL
What's in the Box?
HP Dual Output USB Graphics Adaptor, USB Y-Cable, DVI-I to VGA Adapter, Driver and Documentation CD,
Quick Installation Guide
Your Option Limited Warranty is a one (1) year (HP Option Limited Warranty Period) parts replacement
warranty on any HP-branded or Compaq-branded options (HP Options). Certain restrictions and exclusions
apply.
Limited warranty
DA - 14568 North America — Version 8 — January 9, 2014
Page 3
QuickSpecs
HP Dual Output USB Graphics Adapter
Technical Specifications
