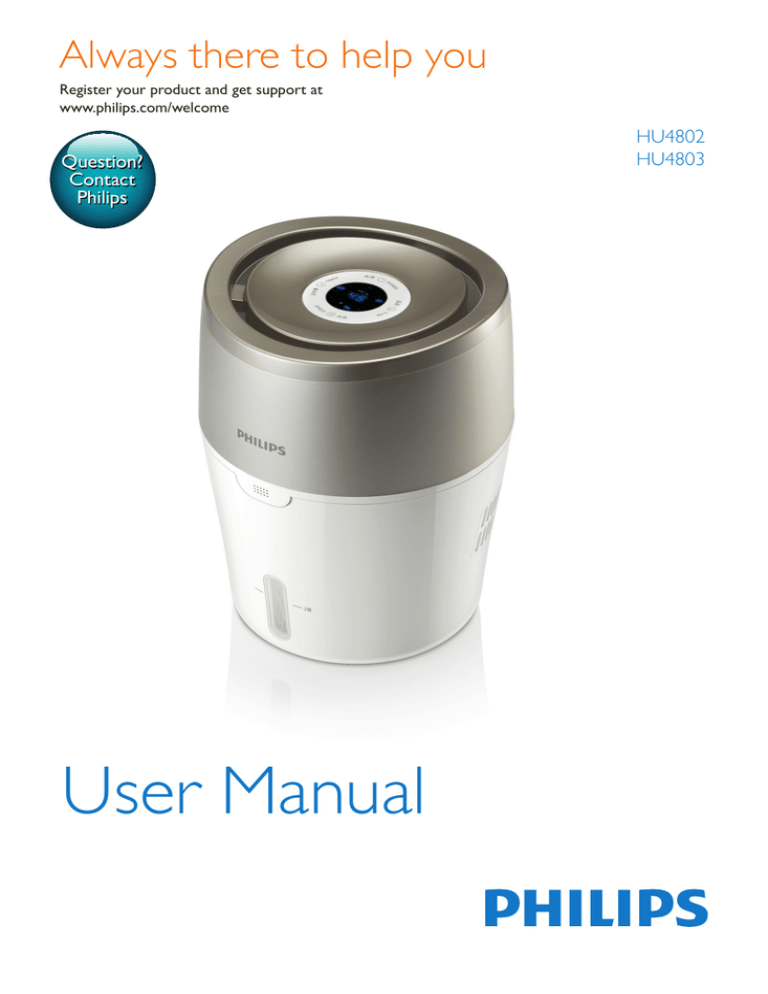

Philips HU4803/00 humidifier

Always there to help you
Register your product and get support at
www.philips.com/welcome
Question?
Contact
Philips
User Manual
HU4802
HU4803
Contents
4
4
2 Your humidifier 5
5
3 Get started 6
6
4 Use the humidifier 7
7
What's in the box Prepare for humidification Understand the humidity indication Understand the healthy air protect
alert and lock Switch the humidifier on and off Change the fan speed Set the timer Set the humidity level Refill water 12
12
12
6 Clean the humidification filter 13
Rinse the humidification filter and
filter support Descale the humidification filter 22
22
22
Electromagnetic fields (EMF) Recycling 13
14
7 Replace the filters 16
16
17
8 Troubleshooting 19
Replace the humidification filter Replace the anti-bacterial filter 10 Notices 7
7
8
10
10
11
5 Clean your humidifier Clean the body of the humidifier Clean the water tank 21
21
Order parts or accessories 1 Important Safety 9 Guarantee and service EN
3
1Important
Safety
Read this user manual carefully before you use
the humidifier, and save it for future reference.
Danger
•• Do not spray any flammable materials such as
insecticides or fragrance around the humidifier.
•• The water in the water tank is not suitable for drinking.
Do not drink this water and do not use it to feed
animals or to water plants. When you empty the water
tank, pour the water down the drain.
Warning
•• Check if the voltage indicated on the bottom of the
humidifier corresponds to the local power voltage
before you connect the humidifier.
•• If the power cord is damaged, you must have it replaced
by Philips, a service center authorized by Philips, or
similarly qualified persons in order to avoid a hazard.
•• Do not use the humidifier if the plug, the power cord,
or the humidifier itself is damaged.
•• This humidifier is not intended for use by persons
(including children) with reduced physical sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the humidifier by a
person responsible for their safety.
•• Children should be supervised to ensure that they do
not play with the humidifier.
•• Do not block the air inlet and outlet, e.g. by placing
items on the air outlet or in front of the air inlet.
4
EN
Caution
•• If the power socket used to power the humidifier has
poor connections, the plug of the humidifier becomes
hot. Make sure that you plug the humidifier into a
properly connected power socket.
•• Always place and use the humidifier on a dry, stable,
level, and horizontal surface.
•• Do not place anything on top of the humidifier and do
not sit on the humidifier.
•• Make sure that the humidifier is well assembled/
connected every time after you clean it or after you
remove the upper cover and/or water tank for refilling.
The humidifier must be properly assembled to deliver a
good and safe performance.
•• Only use the original Philips filter specially intended for
this humidifier. Do not use any other filter.
•• Avoid knocking against the humidifier (the air inlet and
outlet in particular) with hard objects.
•• Do not insert your fingers or objects into the air
outlet or the air inlet to prevent physical injury or
malfunctioning of the humidifier.
•• Do not use this humidifier when you have used indoor
smoke-type insect repellents or in places with oily
residues, burning incense, or chemical fumes.
•• Do not use the humidifier near gas appliances, heating
devices or fireplaces.
•• Always unplug the humidifier after use and before you
clean it.
•• Do not fill water from the air outlets on top of the
humidifier.
•• Place the humidifier properly to prevent children from
knocking it over.
•• Do not use the humidifier in a room with major
temperature changes, as this may cause condensation
inside the humidifier.
•• When the humidifier is not used for a long time,
bacteria may grow on the filters. Check the filters after
a long period of disuse. If the filter is very dirty, replace
it (see the chapter ‘Replace the filter’).
•• Do not wash the filter in a washing machine or dish
washer, otherwise the filter will be deformed.
•• The humidifier is only intended for household use
under normal operating conditions.
•• Clean the water tank every week to keep it clean.
•• Only fill the water tank with cold tap water. Do not use
ground water or hot water.
•• Do not put any substance other than water in the
water tank. Do not add fragrance or chemical substance
into the water. Use only water (tap, purified, mineral,
any sort of potable water).
•• If you do not use the humidifier for a long time, clean
the water tank and dry the humidification filter..
•• If you need to move the humidifier, disconnect the
humidifier from the power supply first. Then empty the
water tank, and carry the humidifier horizontally.
•• Keep the humidity sensor dry. If the sensor gets wet, it
could miscalculate the humidity level, and the humidifier
could stop working due to miscalculated humidity level.
2 Your humidifier
Congratulations on your purchase, and
welcome to Philips!
To fully benefit from the support that Philips
offers, register your product at www.Philips.
com/welcome.
The Philips humidifier brings fresh, humidified
air to your house for the health of your family.
It offers you an advanced evaporation system
for a perfect and comfortable humidification
of the dry air in your home. It retains bacteria,
calcium and other particles from the water.
It delivers only healthy humidified air in your
home. No more dry air in the winter season or
from the air conditioning.
We hope that you enjoy using this appliance as
much as we enjoyed creating it.
Read this user manual carefully before you
install and use the humidifier. Save it for future
reference.
What's in the box
Check and identify the contents of your package:
Upper unit
Humidification
filter (HU4102)
Filter support
Float
Anti-bacterial
filter - HU4112
(only available
for HU4803)
Water tank
www.philips.com/welcome
HD4932
HD4953
User manual
User manual
www.philips.com/welcome
www.philips.com/welcome
HD4932
HD4953
Warranty
Warranty
HD4932
HD4953
Quick start guide
Quick start guide
EN
5
3 Get started
Prepare for humidification
1
2
Hold by both sides of the upper unit to
lift it up.
Fill the water tank with cold tap water until
water reaches the maximum water level
indication.
ʰᬀ
3
6
Place the upper unit back onto the water
tank.
EN
4 Use the
humidifier
Note
•• The humidity indicator light is only available on HU4802.
•• The humidifier is equipped with built-in humidity sensor.
Understand the humidity
indication
The humidifier is equipped with a built-in
humidity sensor. For HU4802, you can set the
target humidity level at 40%RH, 50%RH and
60%RH. The color of the humidity indicator
light shows whether the set target is reached
or not. For HU4803, the actual humidity level
is displayed on the center of the control panel
from 20%RH to 95%RH.
HU4802
HU4803
Note
When the desired humidity level is reached, the color
of the humidity indicator light is in blue. When the
humidity level is not reached, the color of the humidity
indicator light becomes red.
Understand the healthy air
protect alert and lock
The healthy air protect alert gives you a timely
warning when the water tank needs refilling.
When the water in the tank starts getting low, a
red indicator on the control panel starts blinking
to tell you that it is time to refill the tank. It blinks
for 30 minutes. After that, the indicator remains on
before the water tank is refilled with water.
The healthy air protect lock always ensures that
your humidifier does not work without water
in the tank. When the water tank is empty and
needs to be refilled, the healthy air protect lock
shuts off the humidifier after 30 minutes and a
red indicator lights up. When you refill the water
tank properly, the humidifier is turned on again.
Note
•• A comfortable humidity level is from 40RH% to 60RH%.
•• The accuracy of the humidity indication is
approximately ±10%.
•• It takes some time to measure the humidity level in
the room.
Color of the humidity
indicator light (HU4802 only)
Humidity level
Blue
target achieved
Red
below target
•• In sleep mode, the red indicator does not blink, it turns
on when the water level is low.
Switch the humidifier on and off
1 Plug the humidifier into the power supply.
The humidity indicator light automatically goes
on when the humidifier is switched on.
EN
7
2
Press the button to switch on the
humidifier.
3
Press the
button to switch off the humidifier.
Note
•• If the water level in the tank is getting very low, the
humidifier stops humidifying. The red indicator light
first starts blinking and then remains on.
•• The humidifier releases very fine invisible mist, so it is
normal that you cannot see the mist.
»» For HU4802, the humidity indicator
light is on.
Change the fan speed
Auto
Note
•• AUTO mode is only available for HU4803.
»» For HU4803, the current humidity
level is shown.
The automatic mode uses the digital sensor
to constantly monitor the air humidity. It turns
your humidifier on and off whenever needed
to ensure the humidity level is constantly at
the right level. The default humidity level of the
automatic mode is set at 50RH%, but you can
change to your desired humidity level for the
automatic mode. Next time when you switch
on the humidifier, it will remember your last
set humidity level, unless you have unplugged
wall socket. Then the default humidity level of
50RH% is set again.
1
»» The current fan speed is shown.
8
EN
Press the button to switch on the
humidifier.
2
Press the SPEED button to select the
AUTO mode.
Tip
•• AUTO and modes are only available for HU4803.
•• For HU4802 and non-auto modes of HU4803: if the
desired humidity level is reached, you can change to a
lower fan speed. However, if the desired humidity level
is not reached, you can select a higher fan speed to
humidify the air quickly.
Sleep mode
In sleep mode, the humidifier operates quietly
with dimmed light for your undisturbed sleep.
1
Tip
•• If the desired humidity level is reached, the humidifier
changes to a lower fan speed automatically.
•• In AUTO mode, the fan speed only varies between
and
Press the button to switch on the
humidifier.
.
Manual
You can manually select the desired fan speed.
1
Press the
button to switch on the humidifier.
2
2
Press the SPEED button once or more
times to select sleep mode. In sleep mode,
only the speed light is on.
Press the SPEED button once or more
times to select the desired fan speed
(AUTO, , or ).
3
To change to another fan speed, simply
press the SPEED button again.
Note
•• Sleep mode only works at speed .
•• In sleep mode, the red indicator does not blink, but
remains on when the water level gets low.
•• In sleep mode, you can only set the timer; the humidity
level cannot be set, and the humidity light is off.
EN
9
Set the timer
With the timer function, you can let the
humidifier operate for a set number of hours.
When the set time has elapsed, the humidifier
automatically switches off.
1
2
Press the button to switch on the
humidifier.
Set the humidity level
Note
•• Make sure that the water tank is filled with water
before the humidifier can function (see the chapter
'Get started', section 'Prepare for humidification').
•
Press the HUMI button once or more
times to set the desired air humidity to 40,
50, 60 percent or no preset level.
»» The humidity light (40, 50 or 60) of the
set humidity level turns on.
Press the TIMER button to activate the
timer.
»» The TIMER light (1H, 4H or 8H) goes on.
»» For HU4802,The humidity indicator
light is in red if the desired humidity
level is not reached. It turns blue when
the desired humidity level is reached.
For HU4803, the actual humidity level is
displayed on the center of the control
panel.
Tip
3
Press the TIMER button repeatedly to
choose the number of hours you want the
humidifier to operate. The corresponding
TIMER light goes on.
To deactivate the timer function, press the
TIMER button repeatedly until the TIMER light
(1H, 4H or 8H) is off.
10
EN
•• A comfortable humidity level is from 40RH% to 60RH%.
You can choose the preferred humidity level at 40%RH,
50%RH or 60%RH..
Note
•• If no preset humidity level is selected, the humidifier will
stop working when the humidity level reaches 70RH%
in non-auto modes and 50RH% in auto mode; for
HU4802, the humidity indication light will be off.
Water level
2
When there is not enough water in the water
tank:
• the water level drops and the red
indicator light starts blinking.
3
Remove the upper unit by holding it at
both sides.
Fill the water tank with cold tap water
until water reaches the maximum water
indication level.
•
the humidifier continues to work for 30
minutes and then stops working.
You have to refill water into the water tank.
ʰᬀ
Note
•• The humidifier stops humidifying if you do not refill the
water after 30 minutes. The red indicator light stops
blinking and remains on.
•• If the water tank is empty when the humidifier is
plugged in and switched on, the red indicator light
blinks for 2 minutes and then remains on before the
water tank is refilled with water.
•• It is normal to find some water left in the tank.
Note
•• When filling water, do not exceed the maximum water
Refill water
Water level can be observed through the
transparent water tank window.
1
Switch off the humidifier and unplug it.
level, or water might leak from the drain hole and air
inlets.
•• Do not shake the water tank when moving it, or water
might leak from the drain hole and air inlets.
•• Do not fill water through the air outlets on top of the
humidifier.
4
Place the upper unit back onto the water
tank.
EN
11
5 Clean your
humidifier
Our Philips designers have created a bestin-class design for cleanability, empowering
consumers to take control of the hygiene
of their humidifiers in an easy way. Cleaning
humidifiers inside and out – especially the water
tank and the air outlet – has never been easier.
Note
•• Always unplug the humidifier before you clean it.
•• When pouring water from the water tank, make sure
to pour water from the opposite side of the drain hole
and air inlets.
•• Never use abrasive, aggressive, or flammable cleaning
agents such as bleach or alcohol to clean any part of
the humidifier.
Clean the body of the
humidifier
Regularly clean the inside and outside of the
humidifier to prevent dust from collecting.
1
2
Wipe away dust with a soft dry cloth from
the body of the humidifier.
Clean the air inlet and the air outlet with a
soft dry cloth.
Clean the water tank
Clean the water tank every week to keep it
hygienic.
1
2
3
4
5
12
Take out the humidification filter and the
filter support.
Fill the water tank for 1/3 with water.
Add some mild washing-up liquid to the
water in the water tank.
Clean the inside of the water tank with a
soft clean cloth.
Empty the water tank into a sink.
EN
6
Put the humidification filter and the filter
support back into the water tank.
6 Clean the
humidification
filter
3
Take out the humidification filter and the
filter support from the water tank.
Rinse the humidification filter every week and
descale it every two weeks to keep it hygienic.
Rinse the humidification filter
and filter support
1
4
Switch off the humidifier and unplug it.
5
2
Remove the humidification filter from the
filter support.
Rinse the filter and the filter support under
a slowly running tap.
Remove the upper unit by holding it at
both sides.
6
Clean the filter support with a brush.
EN
13
7
Assemble the humidification filter round
the filter support.
Descale the humidification
filter
Note
•• It is important to descale the humidifying filter to avoid
scale build-up, which seriously affects the humidifying
performance.
•• Descale the humidifying filter every two weeks.
1
8
Put the humidification filter and the filter
support back into the water tank.
Mix white vinegar with an equal amount
of tap water in a container that is large
enough to soak the humidification filter in.
Water : Vinegar
1:1
1 hour
9
Put the upper unit back onto the water
tank.
Note
•• The white vinegar is composed with of 5% acetic acid.
•• If there are white deposits (scale) on the filter, make
sure that the side with the white deposits is immersed
in the water.
2
3
4
14
EN
Let the humidification filter soak in the
solution for one hour.
Discard the water-vinegar solution.
Rinse the humidification filter under the
tap to rinse away vinegar residues. During
rinsing, turn the humidification filter so that
both the front and back sides are rinsed.
5
6
7
8
Let excess water drip off the
humidification filter.
Assemble the humidification filter round
the filter support.
Put the humidification filter and the filter
support back into the water tank.
Put the upper unit back onto the water tank.
Note
•• Do not squeeze or wring the filter. This might damage
the filter and impact humidification performance.
•• Do not dry the filter under direct sunlight, unless it is
assembled back onto the filter support
EN
15
7 Replace the
filters
3
Take out the humidification filter and the
filter support from the water tank.
Replace the humidification filter
Replace the humidification filter every three
months for optimal performance. If the filter is
in good condition, you could use it for a longer
period of time. But make sure to replace the
humidification filter at least once a year.
4
Note
Remove the humidification filter from the
filter support.
•• Use only Philips original humidification filter HU4102.
Tip
•• Register your product at www.Philips.com for further
information on how to replace your filter.
1
Switch off the humidifier and unplug it.
5
2
16
Remove the upper unit by holding it at
both sides.
EN
Remove the packaging material from the
new humidification filter.
6
Assemble the new humidification filter
around the filter support.
Replace the anti-bacterial
filter
Note
•• The anti-bacterial filter is only available for HU4803.
•• Use only Philips original anti-bacterial filter HU4112.
Replace the anti-bacterial filter at least once a
year to prevent the bacteria from growing in
the water tank.
7
8
Put the filter and the filter support back
into the water tank.
1
2
Put the upper unit back onto the water
tank.
3
Switch off the humidifier and unplug it.
Remove the upper unit by holding it at
both sides.
Take out the filter support from the water
tank and remove the filter.
Tip
•• You can easily find more information about how to
replace the filter in our web page or by calling our
Consumer Care Center.
EN
17
4
5
6
7
18
Pull and remove the old anti-bacterial filter
from the filter support. Then, discard it.
Push the new anti-bacterial filter to the filter
support.
Assemble the filter around the filter support.
Put the filter and the filter support back into
the water tank.
EN
8
Put the upper unit back onto the water tank.
8Troubleshooting
This chapter summarizes the most common problems you could encounter with the humidifier. If you are
unable to solve the problem with the information below, contact the Consumer Care Center in your country.
Problem
The humidifier does not work.
Possible solution
Make sure that there is power supply to the humidifier.
The water tank leaks.
Make sure that the water tank is filled with water and the upper
unit is placed properly onto the water tank.
Make sure that the water tank is filled with water and the upper
unit is placed properly onto the water tank.
The humidifier will stop working if the current humidity level
reaches 70%RH. Humidity level above 70%RH does not make users
feel comfortable, so the humidifier automatically turns off to ensure
optimal humidification performance.
Make sure that the humidifier is not overfilled with water.
I do not see the current
humidity indication change.
Make sure that the humidifier is well assembled/connected every
time after you clean it or after you remove the upper unit and/or
water tank for refilling.
Make sure that the water tank is properly placed. If the problem
persists, contact the Consumer Care Center in your country.
Make sure that you have assembled the humidification filter round
the filter support.
There is no air humidification.
The humidification filter is dirty. Rinse and/or descale the
humidification filter (see the chapter ‘Clean the humidification filter’).
Your room might have too much ventilation. Please close doors and
windows.
Your room size is too big. The recommended room size is 25m² for
both HU4802 and HU4803.
There are some white deposits The white deposits are called scale and they consist of minerals
on the humidification filter.
from the water. Scale on the humidification filter affects the
humidifying performance. Therefore you have to descale the
humidification filter regularly (See the chapter ‘‘Clean the
humidification filter’).
The filter turns yellowish after The yellow color is caused by scale and some dirt which is present
some time.
in the air. When the air passes through the humidification filter, the
dirt and scale will stick to the filter and pure water is evaporated
in to the air. Scale and dirt on the humidification filter affects
the humidifying performance. Therefore you have to descale
the humidification filter regularly (See the chapter ‘‘Clean the
humidification filter’).
EN
19
There is unpleasant smell
Make sure that the water tank is filled with water.
coming out from the humidifier. Clean the humidification filter (see the chapter ‘Clean the
humidification filter’).
No air comes out of the air
Plug the humidifier into the power supply and switch on.
outlet.
I do not see visible mist coming When mist is very fine, it is invisible. This humidifier has a specially
out of the humidifier. Is it
designed humidification filter that produces very fine mist.
working?
Therefore, you cannot see the mist.
I want to check whether the
Gently blow moist air into the humidity sensor. After a while, the
humidity sensor works or not. humidity indication changes. Note that for HU4802, if the initial
humidity indication is already 60 percent, the humidity indication
light stays blue when you blow moist air towards the sensor; for
HU4803, the indication can show the actual humidity level from
20%RH to 95%RH.
20
EN
9 Guarantee and
service
If you need information or if you have a
problem, please visit the Philips website at www.
philips.com or contact the Philips Consumer
Care Center in your country (you will find its
phone number in the worldwide guarantee
leaflet). If there is no Consumer Care Centre in
your country, go to your local Philips dealer.
Order parts or accessories
If you have to replace a part or want to
purchase an additional part, go to your Philips
dealer or visit www.philips.com/support.
If you have problems obtaining the parts, please
contact the Philips Consumer Care Center in
your country (you will find its phone number in
the worldwide guarantee leaflet).
EN
21
10Notices
Recycling
Electromagnetic fields (EMF)
This Philips appliance complies with all
standards regarding electromagnetic fields
(EMF). If handled properly and according to the
instructions in this user manual, the appliance is
safe to use based on scientific evidence available
today.
Compliance with EMF
Koninklijke Philips Electronics N.V. manufactures
and sells many products targeted at consumers,
which, like any electronic apparatus, in
general have the ability to emit and receive
electromagnetic signals.
One of Philips’ leading Business Principles is to
take all necessary health and safety measures
for our products, to comply with all applicable
legal requirements and to stay well within
the EMF standards applicable at the time of
producing the products.
Philips is committed to develop, produce and
market products that cause no adverse health
effects. Philips confirms that if its products are
handled properly for their intended use, they
are safe to use according to scientific evidence
available today.
Philips plays an active role in the development
of international EMF and safety standards,
enabling Philips to anticipate further
developments in standardization for early
integration in its products.
22
EN
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
Specifications are subject to change without notice
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
HU4802_HU4803_UM_EN_V1.0_120910
4241 210 05041
