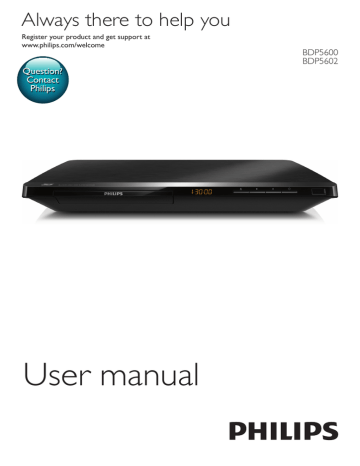

Always there to help you
Register your product and get support at www.philips.com/welcome
Contact
Philips
BDP5600
BDP5602
User manual
2
Before you connect this Blu-ray disc/ DVD player, read and understand all accompanying instructions.
1
User manual
PC & Mac
HDMI OUT
( )
3
4
2
1 HDMI
HDMI VIDEO COAXIAL AUDIO LINE OUT
HDMI
2 VIDEO+AUDIO LINE OUT
HDMI
VIDEO COAXIAL
AUDIO LINE OUT
3 COAXIAL
HDMI VIDEO COAXIAL AUDIO LINE OUT
4 AUDIO LINE OUT
HDMI VIDEO COAXIAL
AUDIO LINE OUT
AUDIO LINE OUT
5
3
4
1
5
6
2
SOURCE
TV
6
3
4
2
BD
BD 3D
DVD/VCD/CD
DivX Plus HD/MKV
MP3 / JPEG
1
USB
1
2
3
7
Contents
1 Hookup and play
2 Use your Blu-ray disc/ DVD player
Video, audio and picture options
Stream media from an Android device 16
3 Change settings
Network (installation, Smart TV...)
Preference (languages, parental control...) 18
Advanced options (clear memory...) 19
4 Update software
Update software via the Internet
5 Specifications
6 Troubleshooting
7 Safety and important notice
EN 8
9 EN
2 Use your Bluray disc/ DVD player
Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers (e.g. product software upgrade), register your product at www.philips.com/welcome.
Basic play control
During play, press the following buttons to control.
Button Action
Turn on the player, or switch to standby.
Access the home menu.
Stop play.
Pause play.
Press repeatedly to slow forward frame by frame.
/
/
AUDIO
Start or resume play.
Skip to the previous or next track, chapter or file.
Fast backward or forward.
Press repeatedly to change the search speed.
Press once, and then press
to slow forward.
Select an audio language or channel.
Select a subtitle language.
Access or exit the disc menu.
SUBTITLE
DISC MENU
/ POP-UP
MENU
TOP MENU
Color buttons
OK
Alphanumeric buttons
SMART TV
Access the main menu of a video disc.
Select tasks or options for
Blu-ray discs.
Navigate the menus.
Press to rotate a picture clockwise or counter-clockwise during slideshow.
Confirm a selection or entry.
Return to a previous display menu.
Access more options during play.
Select an item to play.
Enter values.
Enter letters via SMS style entry.
Select to connect to Smart TV.
Open or close the disc compartment.
Video, audio and picture options
More options are available for video or picture play from a disc or USB storage device.
Video options
2
3
1
Access more options during video play.
• [Audio Language]: Select an audio language.
• [Subtitle Language]: Select a subtitle language.
• [Subtitle Shift]: Change the subtitle position on the screen. Press to change the subtitle position.
• [Info]: Display play information.
• [Character Set]: Select a character set that supports the DivX video subtitle (only for
DivX videos).
• [Time Search]: Skip to a specific time via the numeric buttons on the remote control.
• [2nd Audio Language]: Select the second audio language (only for Blu-ray discs that support BonusView).
• [2nd Subtitle Language]: Select the second subtitle language (only for Blu-ray discs that support BonusView).
• [Titles]: Select a title.
• [Chapters]: Select a chapter.
• [Angle List]: Select a camera angle.
• [Menus]: Display a disc menu.
• [PIP Selection]: Display a picture-in-picture window (only for Blu-ray discs that support
BonusView).
• [Zoom]: Zoom into a video picture. Press
to select a zoom factor.
• [Repeat]: Repeat a chapter or title.
• [Repeat A-B]: Mark two points within a chapter for repeat play, or turn off repeat mode.
EN 10
• [Picture Settings]: Select a predefined color setting.
11 EN
Note
2
3
1
• Available video options depend on the video source.
Picture options
Access more options during slideshow.
• [Rotate +90]: Rotate a picture 90 degrees clockwise.
• [Rotate -90]: Rotate a picture 90 degrees counter-clockwise.
• [Zoom]: Zoom into a picture. Press to select a zoom factor.
• [Info]: Display picture information.
• [Duration per slide]: Set a display interval for a slideshow.
• [Slide Animation]: Select a transition effect for a slideshow.
• [Picture Settings]: Select a predefined color setting.
• [Repeat]: Repeat a selected folder.
Audio options
Press repeatedly to cycle through the following options.
• Repeat the current track.
• Repeat all the tracks on the disc or folder.
• Play audio tracks in a random loop.
• Turn off a repeat mode.
DivX videos
You can play DivX videos from a disc, a USB storage device, or an online video store (see
"Rent online videos).
VOD code for DivX
• Before you purchase DivX videos and play them on this player, register this player on www.divx.com using the DivX VOD code.
• Display the DivX VOD code: press , and select [Setup] > [Advanced] > [DivX ®
VOD Code].
DivX subtitles
• Press SUBTITLE to select a language.
• If the subtitle is not displayed correctly, change the character set that supports the
DivX subtitle. Select a character set: press
, and select [Character set].
Character set
Languages
[Standard] English, Albanian, Danish,
Dutch, Finnish, French, Gaelic,
German, Italian, Kurdish (Latin),
Norwegian, Portuguese, Spanish,
Swedish, and Turkish
[Central
Europe]
Albanian, Croat, Czech, Dutch,
English, German, Hungarian, Irish,
Polish, Romanian, Slovak, Slovene, and Serbian
[Cyrillic]
[Greek]
[Baltic]
Bulgarian, Belorussian, English,
Macedonian, Moldavian, Russian,
Serbian, and Ukrainian
Greek
Northern Europe
Note
• To play DivX DRM protected files from a USB storage device, or an online video store, connect this player to a
TV through HDMI.
• To use the subtitles, make sure that the subtitle file has the same name as the DivX video file name. For example, if the DivX video file is named “movie.avi", save the subtitle file as “movie.srt”, or “movie.sub”.
• This player can play subtitle files in the following formats: .srt, .sub, .txt, .ssa, and .smi.
Play a musical slideshow
Play music and pictures simultaneously to create a musical slideshow.
1
From a disc or connected USB storage device, play a music file.
2
Press , and go to the picture folder.
3
Select a picture from the same disc or
USB, and press OK to start slideshow.
4
Press to stop slideshow.
5
Press again to stop music play.
BonusView on Blu-ray
View special content (such as commentaries) in a small screen window.
This feature is only applicable to Blu-ray discs compatible with BonusView (also known as picture in picture).
1
During play, press .
» The options menu is displayed.
2
Select [PIP selection] > [PIP], and press
OK.
» PIP options [1]/[2] depend on the video contents.
» The secondary video window is displayed.
3
Select [2nd audio language] or [2nd
Subtitle Language], and press OK.
BD-Live on Blu-ray
Access exclusive online services, such as movie trailers, games, ringtones and other bonus contents.
This feature is only applicable to Blu-ray discs that are BD-Live enabled.
1
Prepare the Internet connection and set up a network (see "Set up a network").
2
Connect a USB storage device to the
(USB) connector on this player.
• A USB storage device is used to store the downloaded BD-Live content.
• To delete the BD-Live previously downloaded on the USB storage device for memory release, press and select [Setup] > [Advanced] >
[Clear memory].
3
Play a disc that is BD-Live enabled.
4
On the disc menu, select the BD-Live icon, and press OK.
» BD-Live starts to load. The loading time depends on the disc and the
Internet connection.
5
On the BD-Live interface, select an item to access.
Note
• BD-Live services vary from discs and countries.
• When you use BD-Live, data on the disc and this player are accessed by the content provider
• Use a USB storage device with at least 1GB of free space to store the download.
• If a USB hub is used with this player, do not overload the USB hub with many USB devices to avoid insufficient USB power.
EN 12
13 EN
Play a Blu-ray 3D video
What you need
• A 3D compliant TV
• This player is connected to the TV through
HDMI
• 3D glasses compatible with the TV
• 3D Blu-ray disc
1
Make sure that 3D output is turned on: press , and select [Setup] > [Video]
>[Watch 3D video] > [Auto].
2
Play a Blu-ray 3D video.
3
Put on the 3D glasses for 3D effects.
• To play 3D video in 2D, turn off Blu-ray
3D output (press , and select [Setup]
> [Video] > [Watch 3D video] >
[Off]).
Set up a network
Connect this player to a computer network and the Internet to access the services:
• Browse PC (DLNA): play photos, music, and video files streamed from your computer.
• Internet services: access online services, such as pictures, music and video stores.
• Update software: update the software of this player via the Internet.
• BD-Live: access online bonus features
(applicable to Blu-ray discs that are BD-
Live enabled).
1
Connect this player to a computer network and the Internet, through wired
(Ethernet) or wireless connection.
• For wired connection, connect a network cable (not supplied) to the
LAN port on the back panel of this player.
PC (DLNA)
PC (DLNA)
• This player has a built-in Wi-Fi for a wireless connection.
2
Perform the network installation.
1) Press .
2) Select [Setup], and press OK.
3) Select [Network] > [Network installation], and press OK.
4) Follow the instructions on the TV screen to complete the installation.
Caution
• Before you connect to a network, familiarize yourself with the network router, media server software for
DLNA, and networking principles. If necessary, read documentation accompanying network components.
Philips is not responsible for lost, damaged, or corrupt data.
Smartphone control
Use a smartphone to browse, control and play media files from this player.
What you need
• An iPhone (iOS 3.1.3 and above) or
Android based device (Android 2.1 and above)
• On your smartphone, download Philips
MyRemote application
• For iPhone, search for the application in App Store
• For Android based device, search for the application in Android Market
Before you start
• Connect this player to a home network
(see "Set up a network").
• Connect your smartphone to the same home network (see the user manual of the smartphone for details).
• Turn on this player
Control your player
Use a smartphone to browse, control and play media files from this player.
1
Insert a data disc or USB storage device into this player.
2
On your smartphone, tap the MyRemote icon from the home screen.
» The name of this player is displayed on the smartphone.
3
Select this player from the smartphone screen.
» The smartphone used as a virtual remote control is enabled.
4
On the smartphone, tap the Media
(Media) tab, and then select the disc or
USB source.
» The folders in the data disc or USB storage device are displayed.
5
Open a folder, and select a file to play.
• To access the remote control, return to the previous smartphone screen, and then tap the Remote (Remote) tab. Only the relevant control buttons are enabled.
6
Tap the control buttons on the smartphone to control play.
• To access more control buttons, swipe the screen to the left or right.
• To exit the application, press the home button on the smartphone.
Browse PC through DLNA
Through this player, you can stream and play video, music and photo from a computer on your TV.
Before you start
• On your PC, install a DLNA-compliant media server application (such as Windows
Media Player 11 or higher)
• On your PC, enable media sharing and file sharing (see the "Help" document in the media server application)
1
Connect this player and your PC in the same home network (see "Set up a network").
• For better video quality, use wired network connection whenever possible.
2
Press .
» The home menu is displayed on the
TV screen.
3
Select [browse PC], and press OK.
» A content browser is displayed.
EN 14
4
Select a file, and press OK to play.
• Use the remote control to control play.
Browse Smart TV
You can access variety of Internet applications and specially adapted Internet websites.
Note
• Koninklijke Philips Electronics N.V. bears no responsibility for content provided by Smart TV service providers.
1
Connect this player to the Internet (see
"Set up a network").
2
Press .
» The home menu is displayed on the
TV screen.
3
Select [Smart TV], and press OK.
4
Follow the onscreen instructions to confirm the onscreen message.
» The online services available in your country are displayed.
5
Use the remote control to navigate and select an Internet application.
Button
OK
Alphanumeric buttons
TOP MENU
Action
Navigate and select an a service or item.
Confirm a selection.
Return to a previous page, or delete input text.
Access options related to a current activity.
Input text (such as an email address, web URL and password).
Return to the home screen.
To remove the passwords and cookies from this player, see the section: Change settings >
Network (installation, Smart TV...).
15 EN
Rent online videos
Rent videos from online stores through this player.
What you need
• A high-speed Internet connection to this player.
• An HDMI connection between this player and the TV.
• A USB storage device, with at least 1 GB memory.
Note
• Use a blank USB storage device. Formatting a USB storage device erases any content on the USB storage device.
• This service is country dependent.
1
Connect this player to the Internet (see
"Set up a network").
2
Insert a blank USB storage device into the
USB connector located on the rear panel of this player.
3
Press .
4
Select [Smart TV], and press OK.
» The online services available in your country are displayed.
5
Select a video store, and follow the onscreen instructions to rent and watch a video.
» The video is downloaded to the USB storage device. You can watch it now or at any time within the rental period.
» For the downloaded video on the USB storage device, you can watch it only on this player.
6
Use the remote control to play and control the video.
Stream media from an
Android device
With Philips SimplyShare, through this player you can stream media files from an Android based device on your TV. For details, visit www.philips.com/support
Use Philips EasyLink
This player supports Philips EasyLink which uses the HDMI CEC (Consumer Electronics
Control) protocol. You can use a single remote control to control EasyLink compliant devices that are connected through HDMI. Philips does not guarantee 100% interoperability with all
HDMI CEC devices.
1
Connect the HDMI CEC compliant devices through HDMI, and turn on the HDMI
CEC operations on the TV and other connected devices (see the user manual of the TV or other devices for details).
2
Press .
3
Select [Setup]> [EasyLink].
4
Select [On] under the options: [EasyLink],
[One Touch Play] and [One Touch
Standby].
» EasyLink function is turned on.
One Touch Play
When a video disc is in the disc compartment, press to wake up the TV from standby, and then play a disc.
One Touch Standby
When a connected device (for example TV) is put to standby with its own remote control, this player is put to standby automatically.
EN 16
17 EN
This section helps you change the settings of this player.
1
2
3
Note
3 Change settings
TV type
Watch 3D video
PAL
• You cannot change a menu option that is grayed out.
• To return to the previous menu, press . To exit the menu, press .
1
Press .
2
Select [Setup] > [Video] to access the video setup options.
• [TV type]: Select a color system to fit your
TV.
• [TV display]: Select a picture display format to fit the TV screen.
• [HDMI video]: Select an HDMI video resolution.
• [HDMI Deep Color]: Display colors with more shades and hues when the video content is recorded in Deep Color and the
TV supports this feature.
• [Picture settings]: Select a predefined color setting.
• [Watch 3D video]: Set to 3D or 2D output when playing a Blu-ray 3D disc.
The player must be connected to a 3D TV through HDMI.
Note
• If you change a setting, make sure that the TV supports the new setting.
• For settings related to HDMI, the TV must be connected through HDMI.
• For the composite connection (via the VIDEO connector), select a video resolution of 480i/576i or 480p/576p under [HDMI video] to enable video output.
Sound
1
Press .
2
Select [Setup] > [Audio] to access the audio setup options.
• [Night mode]: Select quiet or full dynamic sound. Night mode decreases the volume of loud sound and increases the volume of soft sound (such as speech).
• [Neo 6]: Enable or disable a surround sound effect which is converted from 2.0 channel audio.
• [HDMI Audio]: Set an HDMI audio format when this player is connected through
HDMI.
• [Digital Audio]: Select an audio format for the sound output when this player is connected through a digital connector
(coaxial).
• [PCM Downsampling]: Set the sampling rate for PCM audio output when this player is connected through a digital connector (coaxial).
Note
• For settings related to HDMI, the TV must be connected through HDMI.
• Night mode is only available for Dolby encoded DVD and Blu-ray discs.
Network (installation, Smart
TV...)
1
Press .
2
Select [Setup] > [Network] to access the network setup options.
• [Network installation]: Start a wired or wireless installation to make the network work.
• [View network settings]: Display the current network status.
• [View wireless settings]: Display the current Wi-Fi status.
• [Clear Smart TV memory]: Clear the history of Smart TV browser (such as cookies).
• [Name your Product:]: Re-name this player for identification in a home network.
Preference (languages, parental control...)
1
Press .
2
Select [Setup] > [Preference] to access the preference setup options.
• [Menu language]: Select an onscreen display menu language.
• [Audio]: Select an audio language for video.
• [Subtitle]: Select a subtitle language for video.
• [Disc Menu]: Select a menu language for a video disc.
• [Parental Control]: Restrict access to discs that are encoded with ratings. Input "0000" to access the restriction options. To play all discs irrespective of the rating, select level
"8".
• [Screen Saver]: Enable or disable screen saver mode. If enabled, the screen enters idle mode after 10 minutes of inactivity (for example, in pause or stop mode).
• [Auto Subtitle Shift]: Enable or disable subtitle shift. If enabled, the subtitle position is changed automatically to fit the TV screen (this feature works with some
Philips TVs only).
• [Change Password]: Set or change a password to play a restricted disc. Input
"0000" if you do not have a password or if you have forgotten your password.
• [Display Panel]: Change the brightness of the display panel of the player.
• [Auto Standby]: Enable or disable auto standby. If enabled, the player switches to standby after 30 minutes of inactivity (for example, in pause or stop mode).
• [Fast wake up]: Enable or disable the player to wake up faster from standby. If fast wakeup is turned off, less power is consumed during standby.
• [VCD PBC]: Display or skip the content menu for VCD and SVCD.
Note
• If your preferred language is not available for disc language, audio or subtitle, you can select [Other] from the menu options and input 4-digit language code which can be found at the back of this user manual.
• If you select a language which is not available on a disc, this player uses the default language of the disc.
EN 18
Advanced options (clear memory...)
1
Press .
2
Select [Setup] > [Advanced] to access the advanced setup options.
• [BD-Live security]: Restrict or allow access to BD-Live (only for non-commercial, usercreated BD-Live discs).
• [Downmix mode]: Control 2-channel stereo audio output.
• [Software update]: Select to update software from a network or from USB storage device.
• [Clear memory]: Delete the previous BD-
Live download on the USB storage device.
A "BUDA" folder is automatically created to store the BD-Live download.
• [DivX ® VOD Code]: Display the DivX ® registration code or the deregistration code for this player.
• [Netflix ESN]: Display ESN (Electronic
Serial Number) for this player.
• [Deactivation]: Cancel Netflix activation on this player.
• [Version information]: Display the software version of this player.
• [Restore default settings]: Reset this player to the default settings made at the factory, except for password and parental control level.
Note
• You cannot restrict Internet access on commercial
Blu-ray discs.
• Before you purchase DivX videos and play them on this player, register this player on www.divx.com with the
DivX VOD code.
19 EN
4 Update software
Before you update the software of this player, check the current software version:
• Press , and then select [Setup] >
[Advanced] > [Version information], and press OK.
Update software via the
Internet
1
Connect the player to the Internet (see
"Set up a network").
2
Press , and select [Setup].
3
Select [Advanced] > [Software update]>
[Network].
» If an upgrade media is detected, you are prompted to start the update.
4
Follow the instructions on the TV screen to update the software.
» When the update is complete, this player automatically turns off and on again.
Update software via USB
1
Check the latest software version on www.
philips.com/support.
• Search for your model and click on
"Software and drivers".
2
Download the software into a USB storage device.
a Unzip the download, and make sure that the unzipped folder is named
"UPG_ALL".
b Put the "UPG_ALL" folder in the root directory.
3
Connect the USB storage device to the
(USB) connector on this player.
4
Press , and select [Setup].
5
Select [Advanced] > [Software update]>
[USB].
» If an upgrade media is detected, you are prompted to start the update.
6
Follow the instructions on the TV screen to update the software.
» When the update is complete, this player automatically turns off and on again.
Caution
• Do not turn off the power or remove the USB storage device when the software update is in progress because you might damage this player.
EN 20
5 Specifications
Note
• Specifications are subject to change without notice
Region code
This player can play discs with the following region codes.
DVD Blu-ray
B
Countries
Europe, United
Kingdom
Playable media
• BD-Video, BD 3D
• DVD-Video, DVD+R/+RW, DVD-R/-RW,
DVD+R/-R DL (Dual Layer)
• VCD/SVCD
• Audio CD, CD-R/CD-RW, MP3 media,
WMA media, JPEG files
• DivX (Ultra)/DivX Plus HD media, MKV media
• USB storage device
File format
• Video: .avi, .divx, .mp4, .mkv
• Audio: .mp3, .wma, .wav
• Picture: .jpg, .gif, .png
Video
• Signal system: PAL / NTSC
• Composite video output: 1 Vp-p (75 ohm)
• HDMI output: 480i/576i, 480p/576p, 720p,
1080i, 1080p, 1080p/24Hz
Audio
• 2 Channel analog output
• Audio Front L&R : 2 Vrms (> 1 kohm)
• Digital output: 0.5 Vp-p (75 ohm)
• Coaxial
• HDMI output
• Sampling frequency:
• MP3: 32 kHz, 44.1 kHz, 48 kHz
• WMA: 44.1 kHz, 48 kHz
• Constant bit rate:
• MP3: 112 kbps - 320 kpbs
• WMA: 48 kpbs - 192 kpbs
USB
• Compatibility: Hi-Speed USB (2.0)
• Class support: USB Mass Storage Class
• File system: FAT16, FAT32
• USB port: 5V , 500mA (for each port)
• Support HDD (a portable hard disc drive): an external power source may be needed.
Main unit
• Power supply rating: 220-240V~, 50-60 Hz
• Power consumption: 16 W
• Power consumption in standby mode (fast wakeup disabled): < 0.5 W
• Dimensions (w x h x d): 360 x 42 x 219
(mm)
• Net Weight: 1.18 kg
Accessories supplied
• Remote control and batteries
• User manual
• CD-ROM built in multi-lingual user manual
(Continental Europe only)
Laser Specification
• Laser Type (Diode): AlGaInN (BD), AlGaInP
(DVD/CD)
• Wave length: 405+7nm/-7nm (BD),
660+10nm/-10nm (DVD), 785+10/-10nm
(CD)
• Output power: 1mW (BD), 0.26mW
(DVD), 0.3mW (CD)
Operating Temperature & Humidity
• 0°C to 45°C, 5% to 90% Humidity for all climates.
Storage Temperature & Humidity
• -40 °C to 70 °C, 5% to 95%
21 EN
6 Troubleshooting
Note
• For identification and supply ratings, see the type plate at the back or bottom of the product.
• Before you make or change any connections, make sure that all devices are disconnected from the power outlet.
Warning
• Risk of electric shock. Never remove the casing of the player.
To keep the warranty valid, never try to repair the player yourself.
If you have problems using this player, check the following points before you request service. If you still have a problem, register your player and get support at www.philips.com/support.
If you contact Philips, you will be asked for the model and serial number of this player. The model number and serial number are on the back of this player. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Main unit
The buttons on this player do not work.
• Disconnect this player from the power supply for a few minutes, and then reconnect.
No picture.
• Make sure that the TV is switched to the correct source input for this player.
• For the composite connection (via the
VIDEO connector) to the TV, on this player select a video resolution of 480i/576i or
480p/576p to enable video output (press
, and select [Setup] > [Video] > [HDMI video]) .
No picture on HDMI connection.
• Make sure that the HDMI cable is not faulty. If it is faulty, replace with a new
HDMI cable.
• On the remote control, press and then press “731” (numeric buttons) to recover picture display. Or wait for 10 seconds for auto recovery.
• If this player is connected to an unauthorized display device with an HDMI cable, the audio and video signals may not be output.
The disc does not play high-definition video.
• Make sure that the disc contains highdefinition video.
• Make sure that the TV supports highdefinition video.
Sound
No audio output from the TV.
• Make sure that the audio cables are connected to the audio input of the TV.
• Make sure that the TV is switched to the correct source input for this player.
No audio output from the loudspeakers of the external audio device (home theater or amplifier).
• Make sure that the audio cables are connected to the audio input of the audio device.
• Switch the external audio device to the correct audio source input.
No sound on HDMI connection.
• You may not hear any sound from the
HDMI output if the connected device is non-HDCP compliant or only DVIcompatible.
EN 22
No secondary audio output for Picture-in-
Picture feature.
• When [Bitstream] under the [HDMI
Audio] or [Digital Audio] menu is selected, interactive sound like secondary sound for
Picture-in-Picture feature is muted. Deselect [Bitstream].
Play
Cannot play a disc.
• Clean the disc.
• Make sure that the disc is correctly loaded.
• Make sure that this player supports the disc. See "Specifications".
• Make sure that this player supports the region code of the DVD or BD.
• For DVD±RW or DVD±R, make sure that the disc is finalized.
Cannot play DivX video files.
• Make sure that the DivX video file is complete.
• Make sure that the video file name extension is correct.
• To play DivX DRM protected files from a
USB storage device or a network, connect this player to a TV through HDMI.
DivX subtitles do not display correctly.
• Make sure that the subtitle file has the same name as the DivX video file.
• Make sure that the subtitle file has an extension name supported by this player
(.srt, .sub, .txt, .ssa, or .smi).
Cannot read the contents of a connected USB storage.
• Make sure that the format of the USB storage device is compatible with this player.
• Make sure that the file system on the USB storage device is supported by this player.
• For a USB HDD (a portable hard disc drive), an external power source may be needed.
'No entry' or 'x' sign is displayed on the TV.
• The operation is not possible.
EasyLink feature does not work.
• Make sure that this player is connected to the Philips brand EasyLink TV, and the
EasyLink option is turned on (see "Use your Blu-ray disc/ DVD player" > "Use
Philips EasyLink").
Cannot access BD-Live features.
• Make sure that this player is connected to the network (see "Use your Blu-ray disc/
DVD player" > "Set up a network").
• Make sure that the network installation is made (see "Use your Blu-ray disc/ DVD player" > "Set up a network").
• Make sure that the Blu-ray disc supports
BD-Live features.
• Clear memory storage (see "Change settings" > "Advanced options (BD-Live security, clear memory...)").
Cannot download video from an online video store.
• Make sure that this player is connected to the network (see “Use your Blu-ray disc/
DVD player” > “Set up a network”).
• Make sure that this player is connected to the TV through an HDMI cable.
• Make sure that you have paid for the video, and it is within the rental period.
Network
Wireless network is not found or distorted.
• Make sure that the network is correctly connected (see "Use your Blu-ray disc/
DVD player" > "Set up a network").
• Make sure that the network installation is made (see "Use your Blu-ray disc/ DVD player" > "Set up a network").
• Make sure that the wireless network is not disturbed by microwave ovens, DECT phones, or other neighboring Wi-Fi devices.
• If the wireless network does not work properly, try a wired network installation
(see "Use your Blu-ray disc/ DVD player" >
"Set up a network").
23 EN
Smart TV does not work.
• Make sure that the network is correctly connected (see "Use your Blu-ray disc/
DVD player" > "Set up a network").
• Make sure that the network installation is made (see "Use your Blu-ray disc/ DVD player" > "Set up a network").
• Check the router connection (refer to the user manual for the router).
Browse PC and Smart TV work slowly.
• Look in your wireless router’s user manual for information on indoor range, transfer rate, and other factors of signal quality.
• You need a high speed Internet connection for your router.
3D videos
Cannot see 3D effects
• Make sure that 3D output is turned on(see
"Use your Blu-ray disc/ DVD player" >
"Play a Blu-ray 3D video").
• Make sure that the disc title being played is
Blu-ray 3D compliant.
• Make sure that the TV is 3D and HDMI compliant, and the TV is set to 3D mode
(refer to the TV's user manual).
• Make sure that the 3D glasses are activated
(refer to the TV’s user manual).
EN 24
7 Safety and important notice
Read and understand all instructions before you use this Blu-ray disc/ DVD player. If damage is caused by failure to follow the instructions, the warranty does not apply.
Safety
Risk of electric shock or fire!
• Never expose the product and accessories to rain or water. Never place liquid containers, such as vases, near the product.
If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact Philips Consumer
Care to have the product checked before use.
• Never place the product and accessories near naked flames or other heat sources, including direct sunlight.
• Never insert objects into the ventilation slots or other openings on the product.
• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
• Disconnect the product from the power outlet before lightning storms.
• When you disconnect the power cord, always pull the plug, never the cable.
Risk of short circuit or fire!
• Before you connect the product to the power outlet, ensure that the power voltage matches the value printed on the back or bottom of the product. Never
25 EN connect the product to the power outlet if the voltage is different.
Risk of injury or damage to the product!
• Visible and invisible laser radiation when open. Avoid exposure to beam.
• Do not touch the disc optical lens inside the disc compartment.
• Never place the product or any objects on power cords or on other electrical equipment.
• If the product is transported in temperatures below 5°C, unpack the product and wait until its temperature matches room temperature before connecting it to the power outlet.
Risk of overheating!
• Never install this product in a confined space. Always leave a space of at least four inches around the product for ventilation.
Make sure that curtains or other objects never cover the ventilation slots on the product.
Risk of contamination!
• Do not mix batteries (old and new or carbon and alkaline, etc.).
• Remove batteries if they are exhausted or if the remote control is not to be used for a long time.
• Batteries contain chemical substances, they should be disposed of properly.
Risk of swallowing batteries!
• The product/remote control may contain a coin type battery, which can be swallowed.
• Keep the battery out of reach of children at all times!
Class II equipment symbol:
This symbol indicates that this product has a double insulation system.
CLASS 1
LASER PRODUCT
3D health warning
• If you or your family has a history of epilepsy or photosensitive seizures, consult a medical professional before exposing yourself to flashing light sources, rapid image sequences or 3D viewing.
• To avoid discomfort such as dizziness, headache or disorientation, we recommend not watching 3D for extended periods of time. If you experience any discomfort, stop watching 3D and do not immediately engage in any potentially hazardous activity (for example driving a car) until your symptoms have disappeared.
If symptoms persist, do not resume watching 3D without consulting a medical professional first.
• Parents should monitor their children during 3D viewing and ensure they do not experience any discomfort as mentioned above. Watching 3D is not recommended for children under 6 years of age as their visual system is not fully developed yet.
Care for your product
• Do not insert any objects other than discs into the disc compartment.
• Do not insert warped or cracked discs into the disc compartment.
• Remove discs from the disc compartment if you are not using the product for an extended period of time.
• Only use microfiber cloth to clean the product.
Care of the environment
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/
EC. Please inform yourself about the local separate collection system for electrical and electronic products.
Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot be disposed with normal household waste.
Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.
This product complies with the radio interference requirements of the European
Community.
Hereby, Philips Consumer Lifestyle, declares that this product is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
EN 26
A copy of the EC declaration of Conformity is available in the Portable Document Format
(PDF) version of the user manual at www.philips.com/support.
Copyright
This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of
Rovi Corporation. Reverse engineering and disassembly are prohibited.
Open source software
Philips Electronics Singapore Pte Ltd hereby offers to deliver, upon request, a copy of the complete corresponding source code for the copyrighted open source software packages used in this product for which such offer is requested by the respective licenses.
This offer is valid up to three years after product purchase to anyone in receipt of this information. To obtain source code, please contact [email protected]. If you prefer not to use email or if you do not receive confirmation receipt within a week after mailing to this email address, please write to "Open
Source Team, Philips Intellectual Property &
Standards, P.O. Box 220, 5600 AE Eindhoven,
The Netherlands." If you do not receive timely confirmation of your letter, please email to the email address above.
This product incorporates proprietary technology under license from Verance
Corporation and is protected by U.S. Patent
7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of
Verance Corporation. Copyright 2004-2010
Verance Corporation. All rights reserved by
Verance. Reverse engineering or disassembly is prohibited.
27 EN
Cinavia notice
This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted.
More information about Cinavia technology is provided at the Cinavia Online Consumer
Information Center at http://www.cinavia.com.
To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information
Center, P.O. Box 86851, San Diego, CA, 92138,
USA.
Trademarks
‘Blu-ray ’, ‘Blu-ray Disc ’, ‘Blu-ray Disc ’ logo, ‘Blu-ray 3D ’ and ‘Blu-ray 3D ’ logo are the trademarks of Blu-ray Disc Association.
HDMI, and HDMI logo and High-Definition
Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC in the United States and other countries.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
ABOUT DIVX VIDEO: DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX
Certified ® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This
DivX Certified ® device must be registered in order to play purchased DivX Video-on-
Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.
DivX Certified ® and DivX Plus ® to play DivX ®
HD (H.264/MKV) video up to 1080p HD including premium content.
DivX ® , DivX Certified ® , DivX Plus ® HD and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
Manufactured under license under U.S. Patent
Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535;
7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks
& DTS-HD Master Audio is a trademark of
DTS, Inc. Product includes software. © DTS, Inc.
All Rights Reserved.
BONUSVIEW™
'BD LIVE ' and 'BONUSVIEW ' are trademarks of Blu-ray Disc Association.
'DVD Video' is a trademark of DVD Format/
Logo Licensing Corporation.
Java and all other Java trademarks and logos are trademarks or registered trademarks of Sun
Microsystems, Inc. in the United States and/or other countries.
EN 28
Language Code
Abkhazian
Afar
Afrikaans
Amharic
Arabic
Armenian
Assamese
Avestan
Aymara
Azerhaijani
Bahasa Melayu
Bashkir
Belarusian
Bengali
Bihari
7783
6665
6669
6678
6672
Bislama 6673
Bokmål, Norwegian 7866
Bosanski
Brezhoneg
Bulgarian
6683
6682
6671
6566
6565
6570
6577
6582
7289
6583
6569
6589
6590
Burmese
Castellano, Español
Catalán
Chamorro
Chechen
7789
6983
6765
6772
6769
Chewa; Chichewa; Nyanja 7889
9072
Chuang; Zhuang 9065
Church Slavic; Slavonic 6785
Chuvash 6786
Corsican
Česky
Dansk
Deutsch
Dzongkha
English
Esperanto
Estonian
Euskara
6779
6783
6865
6869
6890
6978
6979
6984
6985
6976
Faroese
Français
7079
7082
Frysk
Fijian
7089
7074
Gaelic; Scottish Gaelic 7168
Gallegan
Georgian
Gikuyu; Kikuyu
Guarani
Gujarati
7176
7565
7573
7178
7185
Hausa
Herero
Hindi
Hiri Motu
Hrwatski
7265
7290
7273
7279
6779
Ido 7379
Interlingua (International)7365
Interlingue
Inuktitut
7365
7385
29
Inupiaq
Irish
Íslenska
Italiano
Ivrit
Japanese
Javanese
Kalaallisut
Kannada
Kashmiri
Kazakh
Kernewek
Khmer
Kinyarwanda
Kirghiz
Komi
Korean
7576
7578
7583
7575
7587
7577
8287
7589
7586
7579
Kuanyama; Kwanyama 7574
Kurdish 7585
7375
7165
7383
7384
7269
7465
7486
Lao
Latina
Latvian
7679
7665
7686
Letzeburgesch; 7666
Limburgan; Limburger 7673
Lingala
Lithuanian
Luxembourgish;
7678
7684
7666
Macedonian
Malagasy
Magyar
Malayalam
Maltese
Manx
Maori
Marathi
Marshallese
Moldavian
Mongolian
Nauru
Navaho; Navajo
Ndebele, North
Ndebele, South
Ndonga
Nederlands
Nepali
7775
7771
7285
7776
7784
7186
7773
7782
7772
7779
7778
7865
7886
7868
7882
7871
7876
7869
Norsk
Northern Sami
7879
8369
North Ndebele 7868
Norwegian Nynorsk; 7878
Occitan; Provencal 7967
Old Bulgarian; Old Slavonic 6785
Oriya 7982
Oromo
Ossetian; Ossetic
Pali
Panjabi
Persian
Polski
Português
7977
7983
8073
8065
7065
8076
8084
Tsonga
Tswana
Türkçe
Turkmen
Twi
Uighur
Ukrainian
Urdu
Uzbek
Vietnamese
Volapuk
Walloon
Welsh
Wolof
Xhosa
Yiddish
Yoruba
Zulu
Pushto
Russian
Quechua
Samoan
Sango
Sanskrit
Sardinian
Serbian
Shona
Shqip
Sindhi
Sinhalese
Slovensky
Slovenian
Raeto-Romance
Romanian
Rundi
Somali
Sotho; Southern
South Ndebele
Sundanese
Suomi
Swahili
Swati
Svenska
Tagalog
Tahitian
Tajik
Tamil
Tatar
Telugu
Thai
8471
8465
8484
8469
8472
Tibetan
Tigrinya
6679
8473
Tonga (Tonga Islands) 8479
8379
8384
7882
8385
7073
8387
8383
8386
8476
8489
8371
8365
8367
8382
8378
8381
8368
8373
8373
8376
8083
8285
8185
8277
8279
8278
8377
8679
8765
6789
8779
8872
8973
8979
9085
8483
8478
8482
8475
8487
8571
8575
8582
8590
8673
Philips Consumer Lifestyle B.V.
HK-1319-BDP5600;BDP5600K
.................................................................
(Document No. / Numéro du document)
2013/02
..............................................................................................
(Year, Month (yyyy/mm) in which the CE mark is affixed /
Année/mois (aaaa/mm) au cours de laquelle le marquage
CE a été apposé)
EUROPEAN DECLARATION OF CONFORMITY
(DECLARATION DE CONFORMITE CE)
We / Nous, PHILIPS CONSUMER LIFESTYLE B.V.
(Company name / Nom de l’entreprise)
TUSSENDIEPEN 4, 9206 AD DRACHTEN, THE NETHERLANDS
(address / adresse) declare under our responsibility that the product(s):
(déclarons sous notre propre responsabilité que le(s) produit(s))
Philips
.............................................................................
(brand name, nom de la marque)
Blu-ray Disc/DVD Player
.............................................................................
( product description, description du produit)
BDP5600/05,/12,/51; BDP5600K/51;BDP5602/12
...........................................................................
(Type version or model, référence ou modèle) to which this declaration relates is in confirmity with the following harmonized standards:
(auquel cette déclaration se rapporte, est conforme aux normes harmonisées suivantes)
(title, number and date of issue of the standard / titre, numéro et date de parution de la norme)
EN 60065:2006+A1:2006+A11:2008+A2:2010+A12:2011
EN55013:2001+A1:2003+A2:2006 EN55020:2007+A11:2011
EN61000-3-2:2006+A1:2009+A2:2009 EN61000-3-3:2008
EN55022:2010 EN55024:2010
EN301489-1 V1.9.2 :2011 EN301489-17 V2.1.1 : 2009
EN300328 V1.7.1:2006 EN50564:2011
EN62311:2008 EN50581:2012 following the provisions of :
(conformément aux exigences essentielles et autres dispositions pertinentes de:)
2006/95/EC (Low Voltage Directive)
2004/108/EC (EMC directive)
1999/5/EC (R&TTE Directive)
2011/65/EU (RoHS Directive)
2009/125/EC (Eco Design) - EC/278/2009
And are produced under a quality scheme at least in conformity with ISO 9001 or CENELEC Permanent Documents
(Et sont fabriqués conformément à une qualité au moins conforme à la norme ISO 9001 ou aux Documents Permanents CENELEC)
Only for Medical Devices and R&TTE products:
The Notified Body:
(L’Organisme Notifié)
Telification/CE0560
..................................................
(Name and number/ nom et numéro) ( performed:
NB a effectué)
................................................................................
(description of intervention / description de ’intervention) and issued the certificate: 13214030/AA/01
............................................................
(et a délivré le certificat) (certificate number / numéro du certificat)
Drachten, Netherlands, May 14, 2013 A.Speelman, CL Compliance Manager
.........................................................
(place,date / lieu, date)
.........................................................
(signature, name and function / signature, nom et fonction)
Philips Consumer Lifestyle B.V.
template AMB 544-9056
30
Specifications are subject to change without notice
© 2013 Koninklijke Philips Electronics N.V.
All rights reserved.
BDP5600/5602_12_UM_V1.0
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 10 Video options
- 11 Picture options
- 11 Audio options
- 14 Control your player
- 22 Main unit
- 22 Picture
- 22 Sound
- 23 Play
- 23 Network
- 24 3D videos
