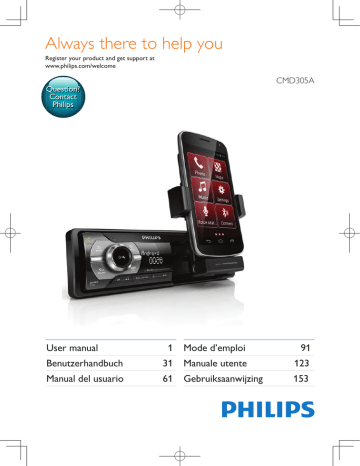

Philips CarStudio Car media docking system CMD305A

Always there to help you
Register your product and get support at
www.philips.com/welcome
CMD305A
Question?
Contact
Philips
User manual
1
Mode d’emploi
91
Benutzerhandbuch
31
Manuale utente
123
Manual del usuario
61
Gebruiksaanwijzing
153
1 Important
2
2
2 Your car audio system
3
3
3
4
3 Install the car audio system
6
6
8
Safety
Introduction
What's in the box
Overview of the system
Connect wires
Mount into the dashboard
4 Get started
Power on
Change system settings
Set the clock
Select a source
5 Listen to radio
Select a radio region
Select a tuner sensitivity
Tune to a radio station
Store radio stations in memory
Tune to a preset station
Play with RDS
6 Use Bluetooth devices
Pair a device
Play audio from a connected device
Make a call
7 Play from a USB storage device
Control play
8 Listen to an external device
9
9
9
9
9
10
10
10
11
11
11
11
13
13
14
14
15
16
16
9 Use the dock
17
17
17
17
19
20
21
22
22
22
10 Adjust sound
23
23
23
23
23
23
24
24
24
11 Adjust system settings
24
12 Additional information
25
25
25
13 Product information
26
14 Troubleshooting
27
27
27
15 Notice
28
28
28
29
29
Compatible with Android™
Prepare for docking
Connect your phone
Adjust the dock bracket
Install the CarStudio application
Use the CarStudio application
Charge your phone
Undock your phone
Store the dock bracket
Adjust the volume level
Mute sound
Use the DBB sound effect
Enable the max sound
Select a listening zone
Enable the full-range sound
Select a preset sound equalizer
Other sound settings
Reset the system
Replace the fuse
General
About Bluetooth device
Compliance
Care of the environment
Copyright
Trademark notice
EN
1
English
Contents
1 Important
Safety
Read and understand all instructions before you
use the device. If damage is caused by failure to
follow instructions, the warranty does not apply.
• Modificationoftheproductcouldresult
in hazardous radiation of EMC or other
unsafe operation.
• The device is designed for negative ground
(earth) 12 V DC operation only.
• Toreducetheriskoftrafficaccidents,do
not pick up or make a phone call, nor
watch video when driving.
• To ensure safe driving, adjust the volume to
a safe and comfortable level.
• Improper fuses can cause damage or
fire.Whenyouneedtochangethefuse,
consult a professional.
• Use only the supplied mounting hardware
for a safe and secure installation.
• To avoid short circuits, do not expose the
device to rain or water.
• The device shall not be exposed to
dripping or splashing.
• Do not place any sources of danger on
thedevice(e.g.liquidfilledobjects,lighted
candles).
• Never insert objects into the ventilation
slots or other openings on the device.
• Clean the device with soft, damp cloth.
Never use substances such as alcohol,
chemicals or household cleaners on the
device.
• The dock is designed for Android-powered
mobile phones only. Do not connect any
other device to it.
• Risk of damage to the dock bracket: Do
not place or hang any object on it.
• Riskoffiringordamagetothecaraudio
system: Do not place any other object into
the compartment for dock bracket.
2
EN
•
Risk of damage to your phone: Unload
your Android-powered mobile phone
from the dock before you store the dock
bracket.
Congratulations on your purchase, and
welcometoPhilips!Tofullybenefitfromthe
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this system, you can:
• enjoy audio from USB storage devices,
Android-powered mobile phones, and
other external devices,
• listen to radio stations,
• charge your Android-powered mobile
phone, and
• make phone calls.
You can enrich sound output with these sound
effects:
• Dynamic bass boost (DBB)
• Automatic loudness control
Playable media:
• USB storage device
• Compatibility: USB 2.0, USB 1.1
• Class support: MSC (Mass Storage
Class)
• File system: FAT16, FAT32
• Maximum capacity: 32 GB
• Files: .mp3, .wma V4, V7, V8, V9 (L1, L2)
• Sampling frequencies
MP3: 32 kHz, 44.1 kHz, 48 kHz
WMA: 44.1 kHz, 48 kHz
• Bitrates
MP3: 8-320 kbps and variable bitrates
WMA: 64-192 kbps and variable
bitrates
• ID3 tag
v2.0 or later
• Maximum number of albums/folders: 99
• Maximumnumberoftracks/files:999
• Maximum level of directory: 8
•
• Unsupported formats
AAC,WAV,PCMaudiofiles
DRMprotectedWMAfiles(.wav,.m4a,
.m4p, .mp4, .aac)
WMAfilesinLosslessformat
Android-powered phones
• Android version: V2.2 or above
• Bluetooth version: V2.1 or above
• Charging through the micro USB
connector/socket
• Width: between 52 mm and 73 mm
What's in the box
Check and identify the contents of the package:
a
b
c
d
e
f
g
h
Quick start guide
1
3
5
7
Main unit and front
panel (with a sleeve)
Rubber cushion
Disassembly tool X 2
User manual
2
Trim plate
4
6
8
Screw X 1
USB cable
Quick start
guide
EN
3
English
2 Your car audio
system
Overview of the system
u t sr
q
p
on
a
b
c
d
ef
jk
ghi
a
b
c
d
e
4
• Press to answer or redial a call.
• Press to hang up a call.
l
f
• Tune to a radio station.
• Press to skip to the previous track.
• Press and hold to rewind a track.
• Press to enable or disable the full
sound.
• Press and hold to access the sound
setting menu.
• Press repeatedly to select a source.
• Press and hold to activate the selection
of listening zones.
• In radio mode, press to select the
preset radio station of No. 1.
• In radio mode, press and hold to store
the current radio station at channel
No. 1.
• For .wma/.mp3 tracks, press to select
the next album/folder.
EN
g
h
m
• In radio mode, press to select the
preset radio station of No. 2.
• In radio mode, press and hold to store
the current radio station at channel
No. 2.
• For .wma/.mp3 tracks, press to select
the previous album or folder.
• Press to enable or disable the
maximum volume.
• Press and hold to enable or disable
the DBB (dynamic bass boost) sound
effect.
• In radio mode, press to select the
preset radio station of No. 3.
• In radio mode, press and hold to store
the current radio station at channel
No. 3.
• For tracks, press to select a repeat
mode: repeat the current track, or
repeat all tracks in the current album
or folder.
j
k
• In radio mode, press to select the
preset radio station of No. 4.
• In radio mode, press and hold to store
the current radio station at channel
No. 4.
• For tracks, press to start playing all
tracks in the current album or folder
randomly.
• In radio mode, press to select the
preset radio station of No. 5.
• In radio mode, press and hold to store
the current radio station at channel
No. 5.
• In radio mode, press to select the
preset radio station of No. 6.
• In radio mode, press and hold to store
the current radio station at channel
No. 6.
• Start, pause, or resume the play of
tracks.
• Press and hold to access the system
menu.
s
English
i
• Press to turn on the system.
• Press and hold to turn off the system.
• Press to mute the system or release it
from mute status.
• Presstoconfirmanoption.
• Rotate to switch between menu
options.
• Rotate to adjust the volume level.
t MIC
• Integrated microphone.
u
• Press to exit the current menu.
• Press repeatedly to select a tuner band.
• Press and hold to transfer a call.
l Dock for Android-powered phone
m AUDIO-IN
• Connect to the audio output socket
(usually the headphone socket) of an
external device.
n USB
• Connect to a USB storage device.
o RESET
• Press to reset the system to factory
default settings.
p
• Press to eject the dock bracket.
q LCD screen
r
• Press once to display the system clock.
EN
5
3 Install the car
audio system
Connect wires
Note
Caution
• Use the controls only as stated in this user manual.
Always follow the instructions in this chapter in
sequence.
These instructions are for a typical installation.
However, if your car has different requirements,
make the adjustment accordingly. If you have
any question regarding installation kits, consult
your local retailer.
Note
• This system is designed for negative ground (earth) 12V
DC operation only.
• Always install this system in the car dashboard. Other
•
•
•
•
•
•
•
•
•
•
6
locations can be dangerous as the rear of the system
heats up during use.
To avoid short-circuit: before you connect, make sure
that the ignition is off.
Make sure that you connect the yellow and red power
supply leads after all other leads are connected.
Make sure that all loose leads are insulated with
electrical tape.
Make sure that the leads do not get caught under
screws iron parts that will move (e.g. seat rail).
Make sure that all ground (earth) leads are run to a
common ground (earth) point.
Use only the supplied mounting hardware for a safe
and secure installation.
Improperfusescancausedamageorfire.Whenyou
need to change the fuse, consult a professional.
When you connect other devices to this system, make
sure that the rating of the car circuit is higher than the
total fuse value of all the connected devices.
Never connect speaker wires to the metal body or
chassis of the car.
Never connect speaker wires with stripes to one
another.
EN
• The ISO male connector is not supplied.
• Consult a professional to connect wires as instructed
below.
1
Check the car's wiring carefully, and then
connect them to the ISO male connector.
h
a
b
c
g
d
f
e
ISO male
connector
1
2
3
Yellow
wire
Blue/
White
wire
Connects to
The +12V car battery which is
live at all times
The electric antenna control
lead or power supply lead of
the antenna booster. If there is
no electric antenna or antenna
booster, or it is manually
operated telescopic antenna,
it is unnecessary to connect
this lead.
Black wire A metal surface of the car.
Connect the black ground
(earth) lead before connecting
the yellow and red power
supply leads.
5
6
7
8
Connects to
Red wire
The +12V power terminal
which is live in the accessory
(ACC) position of the ignition
switch. If there is no accessory
position, connect to the +12V
car battery terminal that is
always live. Make sure that the
black ground (earth) lead is
connected to a metal surface
ofthecarfirst.
Left speaker (rear)
Green
and green/
black wires
White
Left speaker (front)
and white/
black wires
Gray and Right speaker (front)
gray/black
wires
Right speaker (rear)
Purple
and
purple/
black
wires
2
Connect the ISO male connector and
other wires to the car audio system.
English
4
ISO male
connector
a
b
SUB-W
L
R
REAR LINE OUT
f
c
e
d
g
h
1
2
3
4
5
6
7
8
Connector or socket
Connects to
ANTENNA
(Black connector)
External Mic
(Black connector)
Antenna for
radio
An external
microphone
for phone call
Subwoofer
SUBWOOFER
(Blue socket)
REAR LINE OUT L
(White socket)
REAR LINE OUT R (Red
socket)
OE REMOTE (Brown strip)
FRONT LINE OUT L
(White connector)
FRONT LINE OUT R
(Red connector)
Rear left
speaker
Rear right
speaker
OE remote
Front left
speaker
Front right
speaker
Tip
• The pin arrangement for the ISO connectors depends
on the type of vehicle you drive. Be sure to make
proper connections to prevent damage to the system.
EN
7
Mount into the dashboard
3
Place the supplied rubber cushion over the
end of the mounting bolt.
Note
• If your car has no an on-board drive or navigation
•
•
1
computer, disconnect the negative terminal of the car
battery.
If your car has an on-board drive or navigation
computer, the computer may lose its memory when
you disconnect the car battery.
If the car battery is not disconnected, to avoid shortcircuit, make sure that bare wires do not touch each
other.
4
Make sure that the car dashboard opening
is within these measurements.
Slide the system into the dashboard until
you hear a "click".
m
5m
mm
53mm
183
2
5
Attach the trim plate.
Install the sleeve into the dashboard and
bendthetabsoutwardtofixthesleeve.
Note
• Ifthesystemisnotfixedbysleevebutbythesupplied
screws, skip this step.
6
3m
53.5 mm
18
8
EN
m
Reconnect the negative terminal of the car
battery.
4 Get started
1
2
Power on
Press
.
» [WELCOME] scrolls.
• To power off the system, press and
hold
until [GOODBYE] is
displayed.
Change system settings
1
2
3
Press and hold
menu.
to access the system
Press
repeatedly to select an option.
• [BT RECON]/[DISCONNECTED]
• [RDS]
• [PTY >]
• [RDS AF]
• [RDS TA]
• [TP STORE]
• [RDS REG]
• [RDS CT]
• [STORE >]
• [AREA]
• [LOCAL]
• [CLOCK]
• [CLOCK 12H]
• [BEEP]
• [BKO]
• [DIMMER]
• [DEMO]
Rotate
to select a setting.
• To exit the setting, press
.
3
4
5
6
Press and hold
menu.
English
Set the clock
to access the system
Press
repeatedly until [CLOCK] and
the current time are displayed.
» If the clock is not set before, [--:--] is
displayed.
Rotate
Press
Rotate
Press
to set the hour.
toconfirm.
to set the minute.
toconfirm.
Set the clock format
1
2
3
Press and hold
menu.
to access the system
Press
repeatedly until [CLOCK 12H]or
[CLOCK 24H] is displayed.
Rotate
to select a setting.
• [CLOCK 12H]: 12-hour time format
• [CLOCK 24H]: 24-hour time format
Display the clock
Press
to display the clock.
• To exit, press any button.
Select a source
Note
• When all other sources are unavailable, the system
switches the source to [RADIO] automatically.
Press
repeatedly to select a source.
• [RADIO]: FM/MW radio
• [AUDIO-IN]: the audio that is transferred
through the AUDIO-IN socket
• [BT AUDIO]: the audio that is transferred
from a Bluetooth device
EN
9
•
[USB]: When a USB storage device is
connected and recognized, you can select
thissourcetoplayaudiofilesthatare
stored on it.
5 Listen to radio
Select a radio region
You can select a radio region that matches your
location.
1
2
3
Press and hold
menu.
to access the system
Press
repeatedly until [AREA] is
displayed.
Rotate
to select an option.
• [USA] (United States)
• [EUR] (Western Europe)
• [RUS] (Russia)
• [AUS] (Australia)
• [EAS] (Middle East)
• [ASI](AsiaPacific)
• [JAP] (Japan)
• [LAT] (Latin America)
Select a tuner sensitivity
To receive stations with strong signals only or
more radio stations, you can change the tuner
sensitivity.
1
2
3
10
EN
Press and hold
menu.
to access the system
Press
repeatedly until [LOCAL] is
displayed.
Rotate
to select a setting.
• [LOCAL ON] (local on): Search for
stations with strong signals only.
• [LOCAL OFF] (local off): Search for
stations with strong and weak signals.
1
2
3
4
Press
repeatedly to switch the source
to [RADIO].
Press
repeatedly to select a band:
[FM1], [FM2], [FM3], [MW1], or [MW2].
Press and hold
or
frequency digits blink.
until the
Press
or
repeatedly to tune to a
radio station manually.
» The radio station is broadcast.
• To search for a radio station
automatically, press
or
.
Store radio stations in
memory
Repeat steps 2 and 3 to store more radio
stations.
• To replace a radio station, store
another one in its channel.
Tune to a preset station
1
2
Press
repeatedly to select a band.
Press a numeric key to select a preset
station.
Play with RDS
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, the station name is displayed.
Enable the RDS function
Note
• You can store a maximum of six stations in each band.
Note
• The RDS function is enabled by default.
Store stations automatically
1
2
3
Press and hold
menu.
to access the system
2
Press
repeatedly until [STORE >] is
displayed.
3
Press
toconfirm.
» The strongest stations of the selected
band are saved in preset channels
automatically.
Store stations manually
1
2
3
1
Press
repeatedly to select a band.
Tune to a radio station that you want to store.
Press and hold a numeric button for three
seconds.
» The station is saved in the selected channel.
Press and hold
menu.
to access the system
Press
repeatedly until [RDS] is
displayed.
Rotate
to select [RDS ON].
» The RDS function is enabled.
• To disable the RDS function, rotate
to select [RDS OFF].
Select a program type
Before tuning to RDS stations, you can select
a program type to search for programs of the
selected category only.
1
2
Press and hold
menu.
to access the system
Press
repeatedly until [PTY >] is
displayed.
EN
11
English
4
Tune to a radio station
3
4
Press
toconfirm.
Rotate
then press
Item
Program
type
1
2
NEWS
AFFAIRS
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
12
to select a program type, and
toconfirm.
Description
News services
Politics and current
affairs
INFO
Special information
programs
SPORT
Sports
EDUCATE
Education and advanced
training
DRAMA
Radio plays and
literature
CULTURE
Culture, religion and
society
SCIENCE
Science
VARIED
Entertainment programs
POP M
Pop music
ROCK M
Rock music
EASY M
Light music
LIGHT M
Light classical music
CLASSICS
Classical music
OTHER M
Special music programs
WEATHER
Weather
FINANCE
Finance
CHILDREN Children’s programs
SOCIAL
Social Affairs
RELIGION
Religion
PHONE IN
Phone In
TRAVEL
Travel
LEISURE
Leisure
JAZZ
Jazz Music
COUNTRY Country Music
NATION M National Music
OLDIES
Oldies Music
FOLK M
Folk Music
DOCUMENT Documentary
TEST
Alarm Test
ALARM
Alarm
EN
Use alternate frequencies
If the signal of an RDS station is poor, enable the
AF (Alternate Frequency) function to search for
another station that transmits the same program.
1
2
3
Press and hold
menu.
to access the system
Press
repeatedly until [RDS AF] is
displayed.
Rotate
to select a setting:
• [AF ON]: Enable the AF function.
• [AF OFF]: Disable the AF function.
Set the region for AF tuning
You can set the region for AF tuning:
[REG ON]
[REG OFF]
1
2
3
Only RDS stations in current
region can be tuned to
automatically.
All RDS stations can be tuned to
automatically.
Press and hold
menu.
to access the system
Press
repeatedly until [RDS REG] is
displayed.
Rotate
to select a setting.
Receive traffic announcement
Ifyoudonotwanttomisstraffic
announcement,enabletheTA(Traffic
Announcement) function.
1
2
3
Press and hold
to access the system menu.
Press
repeatedly until [RDS TA] is
displayed.
Rotate
to select a setting:
• [TA ON]:Whenatraffic
announcement is on air, the system
automatically switches to the tuner
mode and begins to broadcast the
trafficannouncement.Whenthetraffic
announcement is over, the system
returns to the previous mode.
• [TA OFF]:Trafficannouncementdoes
not cut in.
• Whenatrafficannouncementcutsin,youcanpress
to switch the system to the previous mode.
Receive traffic programs only
Ifyouwanttoreceivetrafficannouncements
only,usetheTP(TrafficProgram)function.
1
2
3
Press and hold
menu.
to access the system
Press
repeatedly until [TP STORE] is
displayed.
Press
to start searching for and
storing stations that regularly broadcast
trafficannouncements.
» Afterthesearchiscomplete,thefirst
stored station starts broadcasting.
Synchronize the system clock
You can synchronize the system clock with an
RDS station that transmits time signals.
1
2
3
Press and hold
menu.
to access the system
Press
repeatedly until [RDS CT] is
displayed.
Rotate
to select a setting:
• [CT ON]: Synchronize the system
clock with the RDS station.
• [CT OFF]: Do not synchronize the
system clock.
Tip
6 Use Bluetooth
devices
English
Tip
With this car audio system, you can listen to
audio from a player or make a call through
Bluetooth.
Pair a device
Note
• Philips does not guarantee the compatibility with all
Bluetooth devices.
• Before pairing a device with this system, read its user
•
•
•
•
manual for Bluetooth compatibility. Make sure that the
BluetoothfirmwareversionofthedeviceisV2.1or
later.
Make sure that Bluetooth function is enabled on your
device, and your device is set as visible to all other
Bluetooth devices.
The operational range between this system and a
Bluetooth device is approximately 3 meters (10 feet).
Any obstacle between this system and a Bluetooth
device can reduce the operational range.
Keep away from any other electronic device that may
cause interference.
On your device, follow the steps below.
1
2
3
• The accuracy of time depends on the RDS station that
transmits the time signal.
Enable it to search for other Bluetooth
devices.
In the device list, select CMD305A.
Enter the default password "0000".
» If the pairing is successful, [PAIR OK]
is displayed.
Disconnect a device
1
2
Press and hold
displayed.
until [BT DISCO] is
Press
toconfirm.
» [DISCONNECTED] scrolls.
EN
13
Tip
Note
• You can also disable the Bluetooth function on this
connected device.
profile,controlplayontheconnecteddevice.
Reconnect a device
1
2
3
Press and hold
displayed.
• If the connected device does not support the AVRCP
until [BT RECON] is
Press
toconfirm.
• If the auto connection between
CMD305A and this device is
authorized, CMD305A reconnects to
this device automatically. If not, perform
step 3.
On this device, accept the connection
request from CMD305A.
» [CONNECTED] scrolls.
Make a call
Note
• Keep the Bluetooth connection active between the
system and your mobile.
Call a number
On your mobile, call a number.
» [CALL---] is displayed.
Play audio from a connected
device
Redial the last called number
If the connected Bluetooth device supports
AdvancedAudioDistributionProfile(A2DP),
you can listen to tracks that are stored on the
device through the system. If the device also
supportsAudioVideoRemoteControlProfile
(AVRCP)profile,youcancontrolplayonthe
system.
2
1
2
Connect the Bluetooth device to this
system via Bluetooth.
Press
repeatedly to switch the source
to [BT AUDIO].
» Play starts automatically.
• If play does not start, press
.
• To pause play, press
again.
• To skip to the previous or next track,
press
/
.
14
EN
1
Press .
» [REDIAL] is displayed.
Press
toconfirm.
» [CALL---] is displayed.
Pick up an incoming call
When the system receives an incoming call, the
phone number or [PHONE IN] is displayed.
Press to answer the call.
Reject an incoming call
Press and hold
until [END] is displayed.
End a call
To end an on-going call, press .
By default, voice comes from the loudspeakers
during a call.
1
2
Press and hold
until [TRANSFER] is
displayed.
» The loudspeakers are muted, and the
voice comes from your mobile phone
only.
Take up your mobile phone for the
conversation.
7 Play from a USB
storage device
Thissystemcanplay.mp3and.wmafilesthatare
copied onto a compatible USB storage device.
Note
• Philips does not guarantee compatibility with all USB
storage devices.
• NTFS(NewTechnologyFileSystem)filesystemisnot
supported.
1
2
Connect the USB storage device to the
socket.
Press
repeatedly until [USB] is
displayed.
» Play starts automatically.
If play does not start automatically,
1
2
3
Press
Press
Press
/
to select a folder.
/
toselectafile.
to start play.
EN
15
English
Transfer a phone call to mobile phone
Control play
During play, follow the instructions below to
control play.
Buttons
Functions
Pause or resume play.
/
/
16
EN
Skip to the previous or next track.
Press and hold to rewind a track
or search forward fast within a
track.
Skip to the previous or next
folder when one or more folders
exist.
Select a repeat mode.
• [REPEAT TRACK]: repeat the
current track
• [REPEAT ALL]: repeat all tracks
• [REPEAT FOLDER]: repeat all
tracks in the current folder
Enableordisableshuffleplay.
• [SHUF FOLDER]: play all tracks
in the current folder randomly
• [SHUF ALL]: play all tracks
randomly
• [SHUF OFF]: play tracks in
sequence
8 Listen to an
external device
You can use the system to amplify the audio
input that is transferred from an external
device, for example, MP3 player.
1
2
3
Press
repeatedly to switch the source
to [AUDIO-IN].
Connect the MP3 link cable to
• the AUDIO-IN socket on the system,
and
• the audio output socket (usually the
headphone socket) on the external
device.
Play audio on the external device (refer to
its user manual).
2
An application Philips CarStudio is available
on Google Play Store for this car audio system.
To enjoy full features, download and install the
application to your Android-powered phone.
Pull out the dock bracket until you see the
yellow lines and hear a "click".
K
CLIC
Compatible with Android™
Before using the dock, check your Androidpowered phone and make sure that it meets
the following requirements:
• With Android operating system V2.2 or
later,
• With a micro USB socket, and
• With a width between 52 mm and 73 mm.
For other Android-powered devices with a
micro USB socket, you can use the dock to
• Charge your device through the supplied
USB cable.
Prepare for docking
1
Press
3
Flip the dock bracket upwards.
4
Press RELEASE to loosen the hooks.
to eject the dock bracket.
52 - 73 mm
EN
17
English
9 Use the dock
Connect your phone
3
You can connect your phone to the dock
directly or though the supplied USB cable.
Connect your phone to the dock with its
screen facing you.
• To match the USB socket of your
phone, turn the USB connector by
180° as illustrated if necessary.
Dock your phone
Note
• Make sure that the width of your phone is between 52
mm and 73 mm.
• Before docking your phone, make sure that the dock
bracket is in portrait position.
1
Flip out the USB connector or hide it in
the dock.
• If the USB socket of your phone is on
itsbottom,flipouttheUSBconnector.
• Otherwise,fliptheUSBconnector
inwards to hide it in the dock.
4
Pinch the hooks to secure your phone.
Use the USB cable
2
18
Switch the cushions to make sure that no
buttons on the side of the phone are to be
covered.
EN
If the USB socket of your phone is not on its
bottom or the width of your phone exceeds
the range from 52 mm to 73 mm, use the
supplied USB cable for connection.
Adjust the viewing angle.
English
2
Connect the USB cable between
• the USB socket of your phone, and
• the USB socket in the dock.
Switch to portrait mode
1
Adjust the dock bracket
Turn the dock bracket clockwise by 90
degrees.
Caution
• When the dock bracket is in portrait position, do not
turn it clockwise.
• When the dock bracket is in landscape position, do not
turn it anti-clockwise.
Switch to landscape mode
1
2
Adjust the viewing angle.
Turn the dock bracket anti-clockwise by 90
degrees.
EN
19
Install the CarStudio
application
2
Tap
3
Type in CarStudio and then tap Search.
to display the search interface.
Note
• Make sure that the internet connection is active on
your phone.
1
Run the Google Play Store application on
your phone.
CarStudio
20
EN
5
Tap Philips CarStudio in the search result
list.
1
Tap the icon of CarStudio application to
run it on your phone.
» The main interface is displayed.
English
4
Tap Install and then Accept & download
to start the download and installation.
» After the download and installation
is complete, the CarStudio icon is
displayed in the list of applications.
Use the CarStudio application
Note
• To use the hands-free function or play audio through
•
•
the dock, connect your phone with the car audio
systemviaBluetoothfirst.
To enjoy the latest features, update the application on
your phone when an update message prompts.
After update, the interface and features may be
different from the description in this section. Follow the
actual operations.
2
• To switch the interface for more
features, swipe on the screen.
Tap an icon to access its feature or change
settings.
•
•
(phone): Make a phone call
(map): Run the map application that
is installed on your phone.
•
(music): Play music
•
(radio): Listen to radio
•
(Voice Search): Run the Voice Search
application that is installed on your
phone.
•
/
(Bluetooth connection): Search
for Bluetooth devices or break the
current connection.
EN
21
•
(external audio input): Switch
the source to the audio input that is
transferred through the AUDIO-IN
socket.
•
(USB): Switch the source to USB
storage device.
•
(settings): Change settings
•
: Return to the main interface
2
Slide up the phone to disconnect from the
dock.
•
: Add a shortcut of an application
onto the current interface. Tap to
display the dialog box, tap Application
on the dialog box to display all
applications that are installed on your
phone, and then tap an application
name to create a shortcut.
• To remove an icon from the interface,
tap and hold it until a dialog box is
displayed, and then tap
.
Tip
• For the safety of your property, undock your phone
before leaving your car.
Store the dock bracket
Charge your phone
Once your phone is connected and recognized,
the charging starts.
Undock your phone
Note
• Before you undock your phone, make sure that the
dock bracket is in portrait position.
1
Press RELEASE to loosen the hooks.
22
EN
Note
• Before storage, make sure that you have unloaded your
phone and pinched the hooks.
1
Flip the dock bracket downwards until you
hear a "click".
» You can see the indication line on top
of the dock panel. If not, pull the dock
panel outwards until you see it.
Push the dock panel inwards until you hear
a "click".
10 Adjust sound
English
2
The following operations are applicable to all
compatible media.
CLICK
3
Adjust the volume level
Rotate
clockwise or anti-clockwise.
Flip up the cover.
Mute sound
Press
.
• To restore sound, press
again.
Use the DBB sound effect
Press and hold
until one of the following
settings is displayed.
• [DBB ON]: Dynamic bass boost (DBB) is
enabled.
• [DBB OFF]: DBB is disabled.
Enable the max sound
Press
repeatedly to select one of the
following settings.
• [MAX ON]: Use the maximum sound.
• [MAX OFF]: Return to the customized
sound.
Select a listening zone
1
2
Press and hold
until one of the
following settings is displayed.
• [ALL]: For all passengers
• [FRONT-L]: For the front-left seat only
• [FRONT-R]: For the front-right seat only
• [FRONT]: For front passengers only
Rotate
to select a setting.
EN
23
Enable the full-range sound
Press
repeatedly to select one of the
following settings.
• [FULL ON]: Enable the full-range sound
• [FULL OFF]: Use the preset equalizer that
you select
Select a preset sound
equalizer
1
2
Press and hold
until [EQ] and the
name of current equalizer are displayed.
Rotate
to select one of the preset
sound equalizers.
• [FLAT](flat)
• [POP] (pop)
• [ROCK] (rock)
• [JAZZ] (jazz)
• [CLASSIC] (classic)
• [TECHNO] (techno)
• [OPTIMAL] (optimal)
• [USER] (user settings)
Other sound settings
1
2
3
24
Press and hold
1
2
3
Press and hold
menu.
Rotate
clockwise or anti-clockwise
to change the setting.
to access the system
Press
repeatedly until one of the
following settings is displayed.
• [BEEP], [BKO], [DIMMER], or [DEMO]
Rotate
[BEEP]
[BKO]
[DIMMER]
until [EQ] is displayed.
Press
repeatedly to select a setting.
• [BALANCE]: Balance of sound from
left and right speakers (12L to 12R)
• [FADER]: Fade of sound from front
and rear speakers (12R to 12F)
• [BASS]: Bass level (-7 to +7)
• [TREBLE]: Treble level (-7 to +7)
• [SUBW]: Enable or mute the
subwoofer
EN
11 Adjust system
settings
[DEMO]
to change the setting.
[BEEP
ON]
[BEEP
OFF]
[BKO
10S]
Enable the beep
sound of buttons.
Disable the beep
sound of buttons.
Turn off the screen
automatically 10
seconds after the last
operation.
[BKO
Turn off the screen
20S]
automatically 20
seconds after the last
operation.
[BKO
Never turn off the
OFF]
screen automatically.
[DIMMER Increase the
HIGH]
brightness level of the
screen.
[DIMMER Decrease the
LOW]
brightness level of the
screen.
[DEMO Demonstrate all
ON]
features after the
system stays inactive
for 120 seconds.
[DEMO Disable the demo
OFF]
mode.
4
Insert a new fuse with the same
specifications(15A).
English
12 Additional
information
SUB-W
L
R
REAR LINE OUT
Reset the system
You can reset the system to factory default
settings.
Note
1
2
• If the fuse gets damaged immediately after it is replaced,
Open the protective cover for the USB
socket, MP3-LINK socket, and RESET
button.
an internal malfunction may occur. In this case, consult
your Philips retailer.
Press RESET with the tip of a ball-point
pen or toothpick.
» The system is reset.
Replace the fuse
If there is no power, check the fuse and replace
it if it is damaged.
1
2
3
Detach the system from dashboard.
Check the electric connection.
Remove the damaged fuse from the rear
panel.
EN
25
13 Product
information
Note
• Product information is subject to change without prior
notice.
General
Power supply
Fuse
Suitable speaker
impedance
Maximum power
output
Continuous power
output
Pre-Amp output
voltage
Aux-in level
Dimensions
(W x H x D)
Weight
12 V DC (11V - 16V),
negative ground
15 A
4-8
50 W x 4 channels
22 W x 4 RMS
(4 10% T.H.D.)
2.5 V
500 mV
188 x 58 x 199.5 mm
1.32 kg
Radio
Frequency range
- FM
Frequency range AM(MW)
Usable sensitivity
- FM
Usable sensitivity AM(MW)
(S/N = 20 dB)
26
EN
87.5-108.0 MHz (100
kHz per step in auto
search and 50 kHz per
step in manual search)
522-1620 kHz (9 kHz)
530-1710 kHz (10 kHz)
8 µV
30 µV
Bluetooth
Output power
Frequency
band
Range
Standard
0 dBm (Class 2)
2.4000 GHz - 2.4835 GHz
ISM Band
3 meters (10 feet in free
space)
V2.0
Warning
• Never remove the casing of this product.
To keep the warranty valid, never try to repair
the product yourself.
If you encounter problems when using this
product, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page (www.
philips.com/support). When you contact Philips,
make sure that the product is nearby and the
model number and serial number are available.
General
No power or no sound
•
The power supply from car battery is cut
off, or the car battery runs out of energy.
Power the system with car battery.
•
Car engine is not on. Turn the car engine
on.
•
Cable is not correctly connected. Check
connections.
•
Fuse is burnt. Replace fuse.
•
Volume is too low. Adjust volume.
•
If the above solutions cannot help, press
the RESET button.
•
Make sure that the current track is in a
compatible format.
Noise in broadcasts
•
Signals are too weak. Select other stations
with stronger signals.
•
Check the connection of the car antenna.
•
Change the broadcast setting from stereo
to mono.
Preset stations are lost.
•
Battery cable is not correctly connected.
Connect the battery cable to the terminal
that is always live.
Display shows ERR-12.
•
USB data error. Check the USB storage
device.
GPS signal reception of the phone is poor.
• Remove the phone from the dock, and
place it in another location for better signal
reception.
About Bluetooth device
Cannot pair the Bluetooth enabled device
with the car audio system.
•
Thedevicedoesnotsupporttheprofiles
required for the system.
•
The Bluetooth function of the device is not
enabled. Refer to the user manual of the
device for how to enable the function.
The audio quality is poor after connection
with a Bluetooth-enabled device.
•
The microphone is not correctly
positioned. Adjust the position of the
microphone. For example, stick the
microphone onto the dashboard where
close to the driver.
•
The Bluetooth reception is poor. Move the
device closer to the car audio system or
remove any obstacle between the device
and the system.
Music playback is unavailable on the system
even after successful Bluetooth connection.
• The device cannot be used with the
system to play music.
The paired mobile phone connects and
disconnects constantly.
•
The Bluetooth reception is poor. Move
the mobile phone closer to the car audio
system or remove any obstacle between
the mobile phone and the system.
•
Some mobile phones may connect and
disconnect constantly when you make
or end calls. This does not indicate any
malfunction of the system.
EN
27
English
14 Troubleshooting
•
For some mobile phones, the Bluetooth
connection may be deactivated
automatically as a power-saving feature.
This does not indicate any malfunction of
the system.
15 Notice
Anychangesormodificationsmadetothis
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Compliance
1177
This product complies with the radio
interference requirements of the European
Community.
Care of the environment
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local
separate collection system for electrical and
electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste.
Correct disposal of your old product helps to
prevent potential negative consequences for the
environment and human health.
28
EN
English
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Copyright
2012 © Koninklijke Philips Electronics N.V.
Specificationsaresubjecttochangewithout
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
Trademark notice
Windows Media and the Windows logo
are trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips is
under license.
Android is a trademark of Google Inc. Use of
this trademark is subject to Google permissions.
Other trademarks and trade names are those
of their respective owners.
EN
29
Specifications are subject to change without notice
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
CMD305A_12_UM_V1.0
