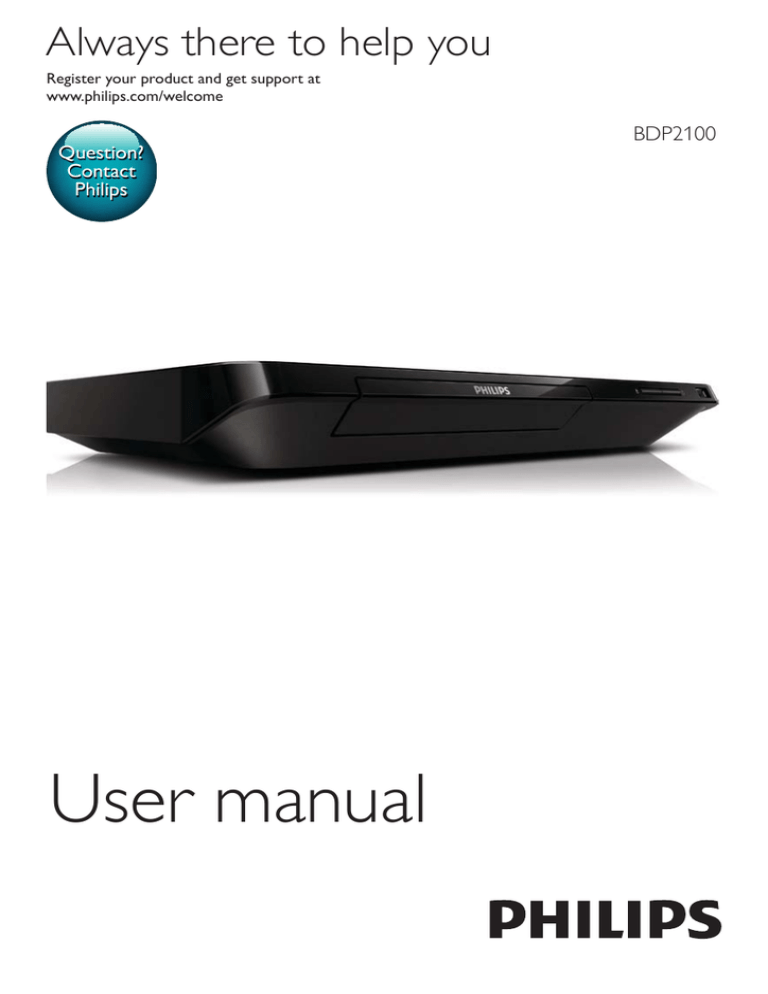

Philips Blu-ray Disc/ DVD player BDP2100

Always there to help you
Register your product and get support at
www.philips.com/welcome
Question?
Contact
Philips
User manual
BDP2100
Before you connect this Blu-ray disc/ DVD player, read and understand all accompanying instructions.
2
Register your product and get support at
www.philips.com/welcome
BDP2100
PC & Mac
1
HDMI
(
)
COAXIAL
A
3
2
1 HDMI
HDMI VIDEO COAXIAL AUDIO LINE OUT
HDMI
2 COAXIAL
HDMI VIDEO COAXIAL AUDIO LINE OUT
COAXIA
COAXIAL
A AL
4
3
4
5
1
2
SOURCE
TV
5
6
2
BD
DVD/VCD/CD
DivX Plus HD/MKV
MP3 / JPEG
1
3
4
1
USB
2
3
6
Contents
1 Hookup and play 2-6
2 Use your Blu-ray disc/ DVD player 8
Basic play control Video, audio and picture options DivX videos Play a musical slideshow BonusView on Blu-ray BD-Live on Blu-ray Set up a network Smartphone control Browse PC through DLNA Use Philips EasyLink 3 Change settings Picture Sound Network (installation, status...) Preference (languages, parental
control...) Advanced options (clear memory...) 8
9
10
11
11
11
11
12
13
13
14
14
14
15
15
15
4 Update software 17
17
17
5 Specifications 18
6 Troubleshooting 19
7 Safety and important notice 21
Update software via the Internet Update software via USB EN
7
2 Use your Bluray disc/ DVD
player
Basic play control
Congratulations on your purchase, and
welcome to Philips! To fully benefit from
the support that Philips offers (e.g. product
software upgrade), register your product at
www.philips.com/welcome.
During play, press the following buttons to
control.
Button
/
8
EN
Action
Turn on the player, or switch
to standby.
Access the home menu.
Stop play.
Press and hold (more than 4
seconds) to open or close the
disc compartment.
/
/
AUDIO
SUBTITLE
DISC MENU
/ POP-UP
MENU
TOP MENU
Color
buttons
OK
Alphanumeric
buttons
Pause play.
Press repeatedly to slow
forward frame by frame.
Start or resume play.
Skip to the previous or next
track, chapter or file.
Fast backward or forward.
Press repeatedly to change the
search speed.
Press once, and then press
to slow forward.
Select an audio language or
channel.
Select a subtitle language.
Access or exit the disc menu.
Access the main menu of a
video disc.
Select tasks or options for
Blu-ray discs.
Navigate the menus.
Press
to rotate a picture
clockwise or counter-clockwise
during slideshow.
Confirm a selection or entry.
Return to a previous display
menu.
Access more options during
play.
Select an item to play.
Enter values.
Enter letters via SMS style
entry.
Video, audio and picture
options
More options are available for video or picture
play from a disc or USB storage device.
Video options
2
3
1
Access more options during video play.
• [Audio Language]: Select an audio
language.
• [Subtitle Language]: Select a subtitle
language.
• [Subtitle Shift]: Change the subtitle
position on the screen. Press
to
change the subtitle position.
• [Info]: Display play information.
• [Character Set]: Select a character set that
supports the DivX video subtitle (only for
DivX videos).
• [Time Search]: Skip to a specific time via
the numeric buttons on the remote control.
• [2nd Audio Language]: Select the second
audio language (only for Blu-ray discs that
support BonusView).
• [2nd Subtitle Language]: Select the second
subtitle language (only for Blu-ray discs that
support BonusView).
• [Titles]: Select a title.
• [Chapters]: Select a chapter.
• [Angle List]: Select a camera angle.
• [Menus]: Display a disc menu.
• [PIP Selection]: Display a picture-in-picture
window (only for Blu-ray discs that support
BonusView).
• [Zoom]: Zoom into a video picture. Press
to select a zoom factor.
• [Repeat]: Repeat a chapter or title.
• [Repeat A-B]: Mark two points within a
chapter for repeat play, or turn off repeat
mode.
• [Picture Settings]: Select a predefined
color setting.
EN
9
Note
•• Available video options depend on the video source.
Picture options
2
3
1
Access more options during slideshow.
• [Rotate +90]: Rotate a picture 90 degrees
clockwise.
• [Rotate -90]: Rotate a picture 90 degrees
counter-clockwise.
• [Zoom]: Zoom into a picture. Press
to
select a zoom factor.
• [Info]: Display picture information.
• [Duration per slide]: Set a display interval
for a slideshow.
• [Slide Animation]: Select a transition effect
for a slideshow.
• [Picture Settings]: Select a predefined
color setting.
• [Repeat]: Repeat a selected folder.
Audio options
DivX videos
You can play DivX videos from a disc or a USB
storage device.
VOD code for DivX
• Before you purchase DivX videos and play
them on this player, register this player on
www.divx.com using the DivX VOD code.
• Display the DivX VOD code: press , and
select [Setup] > [Advanced] > [DivX®
VOD Code].
DivX subtitles
• Press SUBTITLE to select a language.
• If the subtitle is not displayed correctly,
change the character set that supports the
DivX subtitle. Select a character set: press
, and select [Character Set].
Character
set
[Standard]
[Central
Europe]
[Cyrillic]
[Greek]
[Baltic]
Languages
English, Albanian, Danish,
Dutch, Finnish, French, Gaelic,
German, Italian, Kurdish (Latin),
Norwegian, Portuguese, Spanish,
Swedish, and Turkish
Albanian, Croat, Czech, Dutch,
English, German, Hungarian, Irish,
Polish, Romanian, Slovak, Slovene,
and Serbian
Bulgarian, Belorussian, English,
Macedonian, Moldavian, Russian,
Serbian, and Ukrainian
Greek
Northern Europe
Note
•• To play DivX DRM protected files from a USB storage
device, connect this player to a TV through HDMI.
•• To use the subtitles, make sure that the subtitle file
Press
repeatedly to cycle through the
following options.
• Repeat the current track.
• Repeat all the tracks on the disc or folder.
• Play audio tracks in a random loop.
• Turn off a repeat mode.
10
EN
has the same name as the DivX video file name. For
example, if the DivX video file is named “movie.avi",
save the subtitle file as “movie.srt”, or “movie.sub”.
•• This player can play subtitle files in the following
formats: .srt, .sub, .txt, .ssa, and .smi.
Play a musical slideshow
2
Play music and pictures simultaneously to create
a musical slideshow.
1
2
3
4
5
From a disc or connected USB storage
device, play a music file.
Press , and go to the picture folder.
Select a picture from the same disc or
USB, and press OK to start slideshow.
Press
to stop slideshow.
Press
again to stop music play.
BonusView on Blu-ray
View special content (such as commentaries) in
a small screen window.
This feature is only applicable to Blu-ray discs
compatible with BonusView (also known as
picture in picture).
1
2
3
During play, press .
»» The options menu is displayed.
Select [PIP Selection] > [PIP], and press
OK.
»» PIP options [1]/[2] depend on the
video contents.
»» The secondary video window is
displayed.
Select [2nd Audio Language] or [2nd
Subtitle Language], and press OK.
BD-Live on Blu-ray
Access exclusive online services, such as movie
trailers, games, ringtones and other bonus
contents.
This feature is only applicable to Blu-ray discs
that are BD-Live enabled.
1
3
4
5
Connect a USB storage device to this
player.
• A USB storage device is used to store
the downloaded BD-Live content.
• To delete the BD-Live previously
downloaded on the USB storage
device for memory release, press
and select [Setup] > [Advanced] >
[Clear memory].
Play a disc that is BD-Live enabled.
On the disc menu, select the BD-Live icon,
and press OK.
»» BD-Live starts to load. The loading
time depends on the disc and the
Internet connection.
On the BD-Live interface, select an item
to access.
Note
•• BD-Live services vary from discs and countries.
•• When you use BD-Live, data on the disc and this player
are accessed by the content provider
•• Use a USB storage device with at least 1GB of free
space to store the download.
Set up a network
Connect this player to the Internet to access
the services:
• BD-Live: access online bonus features
(applicable to Blu-ray discs that are BDLive enabled)
• Update software: update the software of
this player via the Internet.
• Browse PC (DLNA): play photos, music,
and video files streamed from your
computer.
Prepare the Internet connection and set
up a network (see "Set up a network").
EN
11
Note
•• For wireless connection, you need to use an optional
Philips Wi-Fi USB adapter (named WUB1110).
•• Te Wi-Fi USB Adapter (WUB1110) is not included. To
purchase this adapter, visit shop.philips.com. If the Philips
online shop is not available in your country, please
contact Philips customer service. For contact details, go
to www.philips.com/support.
1
Connect this player to the Internet through
wired (Ethernet) or wireless connection.
• For wired connection, connect a
network cable (not supplied) to the
LAN port on the back panel of this
player.
2
Perform the network installation.
1) Press .
2) Select [Setup], and press OK.
3) Select [Network] > [Network
installation], and press OK.
4) Follow the instructions on the TV screen to
complete the installation. If necessary, use the
alphanumeric buttons on the remote control
to enter a password.
Caution
•• Before you connect to a network, familiarize yourself
with the network router, and networking principles. If
necessary, read documentation accompanying network
components. Philips is not responsible for lost, damaged
or corrupt data.
PC (DLNA)
Smartphone control
• For Wi-Fi, connect a Philips Wi-Fi USB
adapter (named WUB1110) to the
(USB) connector on the front
panel of this player.
PC (DLNA)
Use a smartphone to browse, control and play
media files from this player.
What you need
• An iPhone (iOS 3.1.3 and above) or
Android based device (Android 2.1 and
above)
• On your smartphone, download Philips
MyRemote application
• For iPhone, search for the application
in App Store
• For Android based device, search for
the application in Android Market
Before you start
• Connect this player to a home network
(see "Set up a network").
• Connect your smartphone to the same
home network (see the user manual of the
smartphone for details).
• Turn on this player
Control your player
Use a smartphone to browse, control and play
media files from this player.
12
EN
1
2
3
4
5
6
Insert a data disc or USB storage device
into this player.
On your smartphone, tap the MyRemote
icon from the home screen.
»» The name of this player is displayed on
the smartphone.
Select this player from the smartphone
screen.
»» The smartphone used as a virtual
remote control is enabled.
On the smartphone, tap the Media
(Media) tab, and then select the disc or
USB source.
»» The folders in the data disc or USB
storage device are displayed.
Open a folder, and select a file to play.
• To access the remote control, return
to the previous smartphone screen,
and then tap the Remote (Remote)
tab. Only the relevant control buttons
are enabled.
Tap the control buttons on the
smartphone to control play.
• To access more control buttons, swipe
the screen to the left or right.
• To exit the application, press the home
button on the smartphone.
Browse PC through DLNA
Through this player, you can stream and play
video, music and photo from a computer on
your TV.
Before you start
• On your PC, install a DLNA-compliant
media server application (such as Windows
Media Player 11 or higher)
• On your PC, enable media sharing and file
sharing (see the "Help" document in the
media server application)
1
Connect this player and your PC in the
same home network (see "Set up a
network").
2
3
4
• For better video quality, use wired
network connection whenever
possible.
Press .
»» The home menu is displayed on the
TV screen.
Select [browse PC], and press OK.
»» A content browser is displayed.
Select a file, and press OK to play.
• Use the remote control to control play.
Use Philips EasyLink
This player supports Philips EasyLink which
uses the HDMI CEC (Consumer Electronics
Control) protocol. You can use a single remote
control to control EasyLink compliant devices
that are connected through HDMI. Philips does
not guarantee 100% interoperability with all
HDMI CEC devices.
1
2
3
4
Connect the HDMI CEC compliant devices
through HDMI, and turn on the HDMI
CEC operations on the TV and other
connected devices (see the user manual of
the TV or other devices for details).
Press
.
Select [Setup]> [EasyLink].
Select [On] under the options: [EasyLink],
[One Touch Play] and [One Touch
Standby].
»» EasyLink function is turned on.
One Touch Play
When a video disc is in the disc compartment,
press to wake up the TV from standby, and
then play a disc.
One Touch Standby
When a connected device (for example TV)
is put to standby with its own remote control,
this player is put to standby automatically.
EN
13
3 Change settings
Note
•• If you change a setting, make sure that the TV supports
the new setting.
This section helps you to change the settings of
this player.
•• For settings related to HDMI, the TV must be
connected through HDMI.
•• For the composite connection (via the VIDEO
connector), select a video resolution of 480i/576i
or 480p/576p under [HDMI Video] to enable video
output.
1
2
Sound
1
2
3
•
•
Note
•• You cannot change a menu option that is grayed out.
•• To return to the previous menu, press . To exit the
menu, press
.
•
1
2
•
•
•
•
14
Press
.
Select [Setup] > [Video] to access the
video setup options.
[TV Display]: Select a picture display
format to fit the TV screen.
[HDMI Video]: Select an HDMI video
resolution.
[HDMI Deep Color]: Display colors with
more shades and hues when the video
content is recorded in Deep Color and the
TV supports this feature.
[Picture Settings]: Select a predefined
color setting.
EN
•
Press
.
Select [Setup] > [Audio] to access the
audio setup options.
[Night Mode]: Select quiet or full dynamic
sound. Night mode decreases the volume
of loud sound and increases the volume of
soft sound (such as speech).
[HDMI Audio]: Set an HDMI audio format
when this player is connected through
HDMI.
[Digital Audio]: Select an audio format
for the sound output when this player is
connected through a digital connector
(coaxial).
[PCM Downsampling]: Set the sampling
rate for PCM audio output when this
player is connected through a digital
connector (coaxial).
Note
•• For settings related to HDMI, the TV must be
connected through HDMI.
•• Night mode is only available for Dolby encoded DVD
and Blu-ray discs.
Network (installation,
status...)
1
2
•
•
•
•
Press
.
Select [Setup] > [Network] to access the
network setup options.
[Network installation]: Start a wired or
wireless installation to make the network
work.
[View network settings]: Display the
current network status.
[View wireless settings]: Display the
current Wi-Fi status.
[Name your Product:]: Re-name this
player for identification in a home network.
Preference (languages,
parental control...)
1
2
•
•
•
•
•
•
•
Press
.
Select [Setup] > [Preference] to access
the preference setup options.
[Menu language]: Select an onscreen
display menu language.
[Audio]: Select an audio language for video.
[Subtitle]: Select a subtitle language for
video.
[Disc Menu]: Select a menu language for a
video disc.
[Parental Control]: Restrict access to discs
that are encoded with ratings. Input "0000"
to access the restriction options. To play all
discs irrespective of the rating, select level
"8".
[Screen Saver]: Enable or disable screen
saver mode. If enabled, the screen enters
idle mode after 10 minutes of inactivity (for
example, in pause or stop mode).
[Auto Subtitle Shift]: Enable or disable
subtitle shift. If enabled, the subtitle position
is changed automatically to fit the TV
screen (this feature works with some
Philips TVs only).
•
•
•
[Change Password]: Set or change a
password to play a restricted disc. Input
"0000" if you do not have a password or if
you have forgotten your password.
[Auto Standby]: Enable or disable auto
standby. If enabled, the player switches to
standby after 30 minutes of inactivity (for
example, in pause or stop mode).
[VCD PBC]: Display or skip the content
menu for VCD and SVCD.
Note
•• If your preferred language is not available for disc
language, audio or subtitle, you can select [Other]
from the menu options and input 4-digit language code
which can be found at the back of this user manual.
•• If you select a language which is not available on a disc,
this player uses the default language of the disc.
Advanced options (clear
memory...)
1
2
•
•
•
•
•
•
Press
.
Select [Setup] > [Advanced] to access the
advanced setup options.
[BD-Live security]: Restrict or allow access
to BD-Live (only for non-commercial, usercreated BD-Live discs).
[Downmix mode]: Control 2-channel
stereo audio output.
[Software update]: Select to update
software from a network or from USB
storage device.
[Clear memory]: Delete the previous BDLive download on the USB storage device.
A "BUDA" folder is automatically created
to store the BD-Live download.
[DivX® VOD Code]: Display the DivX®
registration code or the deregistration
code for this player.
[Version information]: Display the
software version of this player.
EN
15
•
[Restore default settings]: Reset this player
to the default settings made at the factory,
except for password and parental control
level.
Note
•• You cannot restrict Internet access on commercial
Blu-ray discs.
•• Before you purchase DivX videos and play them on this
player, register this player on www.divx.com with the
DivX VOD code.
16
EN
4 Update software
Before you update the software of this player,
check the current software version:
• Press , and then select [Setup] >
[Advanced] > [Version Info.], and press
OK.
Update software via the
Internet
1
2
3
4
Connect the player to the Internet (see
"Set up a network").
Press
, and select [Setup].
Select [Advanced] > [Software Update]>
[Network].
»» If an upgrade media is detected, you
are prompted to start the update.
3
4
5
6
Connect the USB storage device to the
(USB) connector on this player.
Press
, and select [Setup].
Select [Advanced] > [Software Update]>
[USB].
»» If an upgrade media is detected, you
are prompted to start the update.
Follow the instructions on the TV screen
to update the software.
»» When the update is complete, this
player automatically turns off and on
again.
Caution
•• Do not turn off the power or remove the USB storage
device when the software update is in progress because
you might damage this player.
Follow the instructions on the TV screen
to update the software.
»» When the update is complete, this
player automatically turns off and on
again.
Update software via USB
1
2
Check the latest software version on
www.philips.com/support.
• Search for your model and click on
"Software and drivers".
Download the software into a USB storage
device.
aUnzip the download, and make sure
that the unzipped folder is named
"UPG_ALL".
bPut the "UPG_ALL" folder in the root
directory.
EN
17
5Specifications
Note
•• Specifications are subject to change without notice
Region code
This player can play discs with the following
region codes.
DVD
Blu-ray
B
Countries
Europe, United
Kingdom
Playable media
• BD-Video
• DVD-Video, DVD+R/+RW, DVD-R/-RW,
DVD+R/-R DL (Dual Layer)
• VCD/SVCD
• Audio CD, CD-R/CD-RW, MP3 media,
WMA media, JPEG files
• DivX (Ultra)/DivX Plus HD media, MKV
media
• USB storage device
File format
• Video: .avi, .divx, .mp4, .mkv
• Audio: .mp3, .wma, .wav
• Picture: .jpg, .gif, .png
Video
• Signal system: PAL / NTSC
• HDMI output: 480i/576i, 480p/576p, 720p,
1080i, 1080p, 1080p/24Hz
Audio
• Digital output: 0.5 Vp-p (75 ohm)
• Coaxial
• HDMI output
• Sampling frequency:
• MP3: 32 kHz, 44.1 kHz, 48 kHz
• WMA: 44.1 kHz, 48 kHz
• Constant bit rate:
• MP3: 112 kbps - 320 kpbs
• WMA: 48 kpbs - 192 kpbs
18
EN
USB
• Compatibility: Hi-Speed USB (2.0)
• Class support: USB Mass Storage Class
• File system: FAT16, FAT32
• USB port: 5V , 500mA
• Support HDD (a portable hard disc drive):
an external power source may be needed.
Main unit
• Power supply rating: 220-240V~, 50Hz
-60Hz
• Power consumption: 10 W
• Power consumption in standby mode: <
0.5 W
• Dimensions (w x h x d): 310 x 39.5 x
217.7 (mm)
• Net Weight: 1.12 kg
Accessories supplied
• Remote control and batteries
• Quick start guide
• CD-ROM built in multi-lingual user manual
(Continental Europe only)
Optional accessory
• A wireless Philips USB adapter(named
WUB1110, sold separately)
• Multimedia connections: Wi-Fi
802.11b/g/n
• Connectivity: Rear connection (USB)
• Ambient temperature: 5 deg C to 40
deg C.
• Dongle dimensions (W x H x D): 28.4
x 82 x 13.4 mm
Laser Specification
• Laser Type (Diode): AlGaInN (BD), AlGaInP
(DVD/CD)
• Wave length: 398nm to 413nm
(BD),645nm to 664nm (DVD), 770nm to
800nm(CD)
• Output power: 1.7mW (BD),
0.19mW(DVD), 0.25mW (CD)
6Troubleshooting
Note
•• For identification and supply ratings, see the type plate
at the back or bottom of the product.
•• Before you make or change any connections, make sure
that all devices are disconnected from the power outlet.
Warning
•• Risk of electric shock. Never remove the casing of the
player.
To keep the warranty valid, never try to repair
the player yourself.
If you have problems using this player, check the
following points before you request service. If
you still have a problem, register your player and
get support at www.philips.com/support.
If you contact Philips, you will be asked for the
model and serial number of this player. The
model number and serial number are on the
back of this player. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Main unit
The buttons on this player do not work.
• Disconnect this player from the power
supply for a few minutes, and then
reconnect.
No picture.
• Make sure that the TV is switched to the
correct source input for this player.
• For the composite connection (via the
VIDEO connector) to the TV, on this player
select a video resolution of 480i/576i or
480p/576p under [HDMI Video] to enable
video output.
No picture on HDMI connection.
• Make sure that the HDMI cable is not
faulty. If it is faulty, replace with a new
HDMI cable.
• On the remote control, press and then
press “731” (numeric buttons) to recover
picture display. Or wait for 10 seconds for
auto recovery.
• If this player is connected to an
unauthorized display device with an HDMI
cable, the audio and video signals may not
be output.
The disc does not play high-definition video.
• Make sure that the disc contains highdefinition video.
• Make sure that the TV supports highdefinition video.
Sound
No audio output from the TV.
• Make sure that the audio cables are
connected to the audio input of the TV.
• Make sure that the TV is switched to the
correct source input for this player.
No audio output from the loudspeakers of
the external audio device (home theater or
amplifier).
• Make sure that the audio cables are
connected to the audio input of the audio
device.
• Switch the external audio device to the
correct audio source input.
No sound on HDMI connection.
• You may not hear any sound from the
HDMI output if the connected device
is non-HDCP compliant or only DVIcompatible.
No secondary audio output for picture-inpicture feature.
EN
19
•
When [Bitstream] under the [HDMI
Audio] or [Digital Audio] menu is selected,
interactive sound like secondary sound
for picture-in-picture feature is muted.
Deselect [Bitstream].
Play
Cannot play a disc.
• Clean the disc.
• Make sure that the disc is correctly loaded.
• Make sure that this player supports the
disc. See "Specifications".
• Make sure that this player supports the
region code of the DVD or BD.
• For DVD±RW or DVD±R, make sure that
the disc is finalized.
Cannot play DivX video files.
•• Make sure that the DivX video file is
complete.
•• Make sure that the video file name
extension is correct.
•• To play DivX DRM protected files from a
USB storage device, connect this player to
a TV through HDMI.
DivX subtitles do not display correctly.
•• Make sure that the subtitle file has the
same name as the DivX video file.
•• Make sure that the subtitle file has an
extension name supported by this player
(.srt, .sub, .txt, .ssa, or .smi).
Cannot read the contents of a connected USB
storage.
•• Make sure that the format of the USB
storage device is compatible with this
player.
•• Make sure that the file system on the USB
storage device is supported by this player.
•• For a USB HDD (a portable hard disc
drive), an external power source may be
needed.
'No entry' or 'x' sign is displayed on the TV.
•• The operation is not possible.
EasyLink feature does not work.
20
EN
•
Make sure that this player is connected
to the Philips brand EasyLink TV, and the
EasyLink option is turned on (see "Use
your Blu-ray disc/ DVD player" > "Use
Philips EasyLink").
Cannot access BD-Live features.
• Make sure that this player is connected to
the network (see "Use your Blu-ray disc/
DVD player" > "Set up a network").
• Make sure that the network installation is
made (see "Use your Blu-ray disc/ DVD
player" > "Set up a network").
• Make sure that the Blu-ray disc supports
BD-Live features.
• Clear memory storage (see "Change
settings" > "Advanced options (BD-Live
security, clear memory...)").
Network
Wireless network is not found or distorted.
• Make sure that the network is correctly
connected (see "Use your Blu-ray disc/
DVD player" > "Set up a network").
• Make sure that the network installation is
made (see "Use your Blu-ray disc/ DVD
player" > "Set up a network").
• Make sure that the wireless network is
not disturbed by microwave ovens, DECT
phones, or other neighboring Wi-Fi devices.
• If the wireless network does not work
properly, try a wired network installation
(see "Use your Blu-ray disc/ DVD player" >
"Set up a network").
Browse PC works slowly.
• Look in your wireless router’s user manual
for information on indoor range, transfer
rate, and other factors of signal quality.
• You need a high speed Internet connection
for your router.
7 Safety and
important
notice
Read and understand all instructions before you
use this Blu-ray disc/ DVD player. If damage is
caused by failure to follow the instructions, the
warranty does not apply.
Safety
Risk of electric shock or fire!
• Never expose the product and accessories
to rain or water. Never place liquid
containers, such as vases, near the product.
If liquids are spilt on or into the product,
disconnect it from the power outlet
immediately. Contact Philips Consumer
Care to have the product checked before
use.
• Never place the product and accessories
near naked flames or other heat sources,
including direct sunlight.
• Never insert objects into the ventilation
slots or other openings on the product.
• Where the mains plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
• Batteries (battery pack or batteries
installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
• Disconnect the product from the power
outlet before lightning storms.
• When you disconnect the power cord,
always pull the plug, never the cable.
Risk of short circuit or fire!
• Before you connect the product to the
power outlet, ensure that the power
voltage matches the value printed on the
back or bottom of the product. Never
connect the product to the power outlet if
the voltage is different.
Risk of injury or damage to the product!
• Visible and invisible laser radiation when
open. Avoid exposure to beam.
• Do not touch the disc optical lens inside
the disc compartment.
• Never place the product or any objects
on power cords or on other electrical
equipment.
• If the product is transported in
temperatures below 5°C, unpack the
product and wait until its temperature
matches room temperature before
connecting it to the power outlet.
Risk of overheating!
• Never install this product in a confined
space. Always leave a space of at least four
inches around the product for ventilation.
Make sure that curtains or other objects
never cover the ventilation slots on the
product.
Risk of contamination!
• Do not mix batteries (old and new or
carbon and alkaline, etc.).
• Remove batteries if they are exhausted or
if the remote control is not to be used for
a long time.
• Batteries contain chemical substances, they
should be disposed of properly.
Risk of swallowing batteries!
• The product/remote control may contain a
coin type battery, which can be swallowed.
• Keep the battery out of reach of children
at all times!
CLASS 1
LASER PRODUCT
EN
21
Care for your product
•
•
•
•
Do not insert any objects other than discs
into the disc compartment.
Do not insert warped or cracked discs into
the disc compartment.
Remove discs from the disc compartment
if you are not using the product for an
extended period of time.
Only use microfiber cloth to clean the
product.
consequences for the environmental and
human health.
This product complies with the radio
interference requirements of the European
Community.
Compliance
Care of the environment
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local
separate collection system for electrical and
electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment and
human health.
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed with normal household waste.
Please inform yourself about the local rules
on separate collection of batteries because
correct disposal helps to prevent negative
22
EN
This is CLASS II apparatus with double
insulation, and no protective earth provided.
Copyright
This item incorporates copy protection
technology that is protected by U.S. patents
and other intellectual property rights of
Rovi Corporation. Reverse engineering and
disassembly are prohibited.
Open source software
Philips Electronics Singapore Pte Ltd hereby
offers to deliver, upon request, a copy of the
complete corresponding source code for the
copyrighted open source software packages
used in this product for which such offer is
requested by the respective licenses.
This offer is valid up to three years after
product purchase to anyone in receipt of this
information. To obtain source code, please
contact open.source@philips.com. If you prefer
not to use email or if you do not receive
confirmation receipt within a week after mailing
to this email address, please write to "Open
Source Team, Philips Intellectual Property &
Standards, P.O. Box 220, 5600 AE Eindhoven,
The Netherlands." If you do not receive timely
confirmation of your letter, please email to the
email address above.
This product incorporates proprietary
technology under license from Verance
Corporation and is protected by U.S. Patent
7,369,677 and other U.S. and worldwide
patents issued and pending as well as copyright
and trade secret protection for certain aspects
of such technology. Cinavia is a trademark of
Verance Corporation. Copyright 2004-2010
Verance Corporation. All rights reserved by
Verance. Reverse engineering or disassembly is
prohibited.
Cinavia notice
This product uses Cinavia technology to
limit the use of unauthorized copies of some
commercially-produced film and videos and
their soundtracks. When a prohibited use of an
unauthorized copy is detected, a message will
be displayed and playback or copying will be
interrupted.
More information about Cinavia technology
is provided at the Cinavia Online Consumer
Information Center at http://www.cinavia.com.
To request additional information about Cinavia
by mail, send a postcard with your mailing
address to: Cinavia Consumer Information
Center, P.O. Box 86851, San Diego, CA, 92138,
USA.
Trademarks
'Blu-ray Disc ' and 'Blu-ray Disc ' logo are
trademarks of Blu-ray Disc Association.
HDMI, and HDMI logo and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI licensing LLC in
the United States and other countries.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent
#’s: 5,451,942;5,956,674; 5,974,380; 5,978,762;
6,487,535 & other U.S. and worldwide patents
issued & pending. DTS and the Symbol are
registered trademarks, & DTS 2.0+ Digital Out
and the DTS logos are trademark of DTS, Inc.
Product includes software. © DTS, Inc. All Rights
Reserved.
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, LLC, a subsidiary
of Rovi Corporation. This is an official DivX
Certified® device that plays DivX video. Visit
divx.com for more information and software
tools to convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This
DivX Certified® device must be registered
in order to play purchased DivX Video-onDemand (VOD) movies. To obtain your
registration code, locate the DivX VOD section
in your device setup menu. Go to vod.divx.com
for more information on how to complete your
registration.
DivX Certified® to play DivX® and DivX Plus®
HD (H.264/MKV) video up to 1080p HD
including premium content.
DivX®, DivX Certified®, DivX Plus® HD
and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used
under license.
EN
23
BONUSVIEW™
'BD LIVE ' and 'BONUSVIEW ' are
trademarks of Blu-ray Disc Association.
Java and all other Java trademarks and logos are
trademarks or registered trademarks of Sun
Microsystems, Inc. in the United States and/or
other countries.
24
EN
Language Code
Abkhazian
Afar
Afrikaans
Amharic
Arabic
Armenian
Assamese
Avestan
Aymara
Azerhaijani
Bahasa Melayu
Bashkir
Belarusian
Bengali
Bihari
Bislama
Bokmål, Norwegian
Bosanski
Brezhoneg
Bulgarian
Burmese
Castellano, Español
Catalán
Chamorro
Chechen
Chewa; Chichewa; Nyanja
6566
6565
6570
6577
6582
7289
6583
6569
6589
6590
7783
6665
6669
6678
6672
6673
7866
6683
6682
6671
7789
6983
6765
6772
6769
7889
9072
Chuang; Zhuang
9065
Church Slavic; Slavonic 6785
Chuvash
6786
Corsican
6779
Česky
6783
Dansk
6865
Deutsch
6869
Dzongkha
6890
English
6978
Esperanto
6979
Estonian
6984
Euskara
6985
6976
Faroese
7079
Français
7082
Frysk
7089
Fijian
7074
Gaelic; Scottish Gaelic 7168
Gallegan
7176
Georgian
7565
Gikuyu; Kikuyu
7573
Guarani
7178
Gujarati
7185
Hausa
7265
Herero
7290
Hindi
7273
Hiri Motu
7279
Hrwatski
6779
Ido
7379
Interlingua (International)7365
Interlingue
7365
Inuktitut
7385
Inupiaq
Irish
Íslenska
Italiano
Ivrit
Japanese
Javanese
Kalaallisut
Kannada
Kashmiri
Kazakh
Kernewek
Khmer
Kinyarwanda
Kirghiz
Komi
Korean
Kuanyama; Kwanyama
Kurdish
Lao
Latina
Latvian
Letzeburgesch;
Limburgan; Limburger
Lingala
Lithuanian
Luxembourgish;
Macedonian
Malagasy
Magyar
Malayalam
Maltese
Manx
Maori
Marathi
Marshallese
Moldavian
Mongolian
Nauru
Navaho; Navajo
Ndebele, North
Ndebele, South
Ndonga
Nederlands
Nepali
Norsk
Northern Sami
North Ndebele
Norwegian Nynorsk;
Occitan; Provencal
Old Bulgarian; Old Slavonic
Oriya
Oromo
Ossetian; Ossetic
Pali
Panjabi
Persian
Polski
Português
7375
7165
7383
7384
7269
7465
7486
7576
7578
7583
7575
7587
7577
8287
7589
7586
7579
7574
7585
7679
7665
7686
7666
7673
7678
7684
7666
7775
7771
7285
7776
7784
7186
7773
7782
7772
7779
7778
7865
7886
7868
7882
7871
7876
7869
7879
8369
7868
7878
7967
6785
7982
7977
7983
8073
8065
7065
8076
8084
Pushto
Russian
Quechua
Raeto-Romance
Romanian
Rundi
Samoan
Sango
Sanskrit
Sardinian
Serbian
Shona
Shqip
Sindhi
Sinhalese
Slovensky
Slovenian
Somali
Sotho; Southern
South Ndebele
Sundanese
Suomi
Swahili
Swati
Svenska
Tagalog
Tahitian
Tajik
Tamil
Tatar
Telugu
Thai
Tibetan
Tigrinya
Tonga (Tonga Islands)
Tsonga
Tswana
Türkçe
Turkmen
Twi
Uighur
Ukrainian
Urdu
Uzbek
Vietnamese
Volapuk
Walloon
Welsh
Wolof
Xhosa
Yiddish
Yoruba
Zulu
8083
8285
8185
8277
8279
8278
8377
8371
8365
8367
8382
8378
8381
8368
8373
8373
8376
8379
8384
7882
8385
7073
8387
8383
8386
8476
8489
8471
8465
8484
8469
8472
6679
8473
8479
8483
8478
8482
8475
8487
8571
8575
8582
8590
8673
8679
8765
6789
8779
8872
8973
8979
9085
Specifications are subject to change without notice
© 2013 Koninklijke Philips Electronics N.V.
All rights reserved.
BDP2100_12_EN_UM_V1.0
