Sony BRCH700P surveillance camera

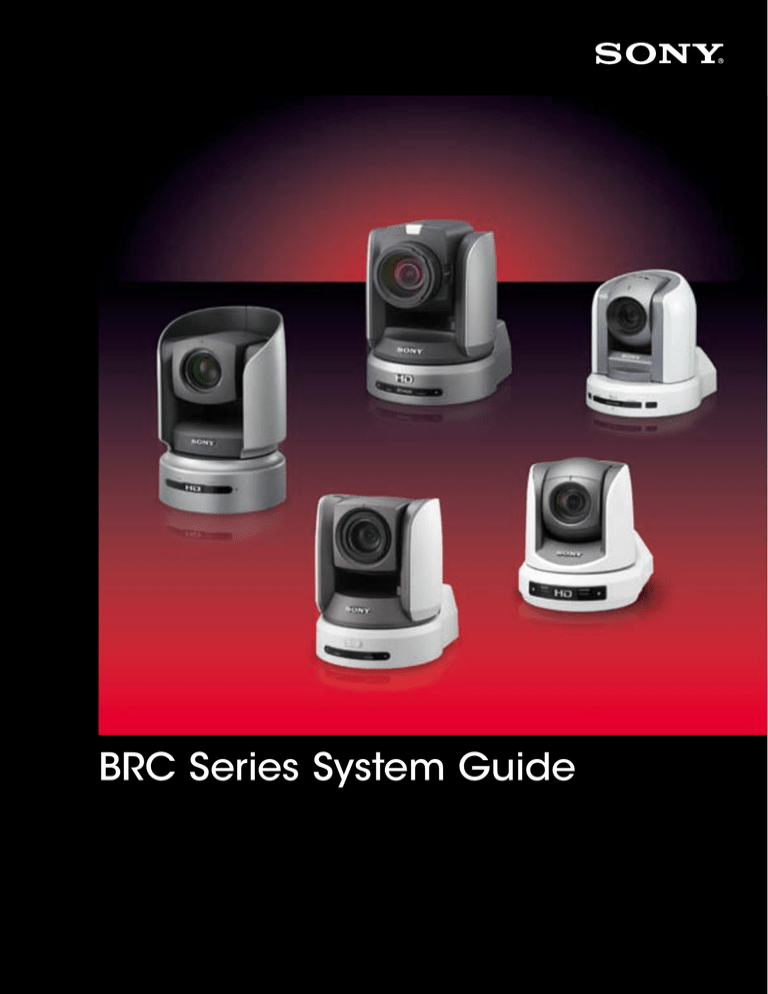

BRC Series System Guide
2
Table of contents
1 What is the BRC Series?.................................4
2 Product Lineup..................................................7
3 Key Features.......................................................8
4 System Configuration....................................12
5 Location and Function of Parts.................14
5.1 BRC Series of Cameras.................................14
5.1.1 BRC-H900 ...............................................14
5.1.2 BRC-H700 ...............................................16
5.1.3 BRC-Z700 ...............................................17
5.1.4 BRC-Z330.................................................19
5.1.5 BRC-300/300P.........................................20
5.2 Optical Multiplex Units..................................21
5.2.1BRU-SF10 HD Optical Multiplex Unit for
use with the BRC-H900 and BRC-Z330....21
5.2.2BRU-H700 HD Optical Multiplex Unit
for use with the BRC-H700 and BRCZ700 ..........................................................23
5.2.3BRU-300/300P SD Optical Multiplex
Unit for use with the BRC-300/300P ......24
5.3 Optical Multiplex Cards and Optional Video
Cards..............................................................24
5.3.1 BRBK-H700 HD Optical Multiplex Card ...24
5.3.2 HFBK-HD1 HD Interface Board ...............25
5.3.3 HFBK-SD1 SD Interface Board ................25
5.3.4 HFBK-XG1 XGA Interface Board ............25
5.3.5 HFBK-TS1 HDV Interface Board ..............25
5.3.6 BRBK-MF1 HD Optical Multiplex Card ...26
5.3.7 BRBK-HSD1 HD/SD-SDI Output Card .....26
5.3.8 BRBK-HD2 HD-SDI Output Card .............26
5.3.9 BRBK-303 Optical Multiplex Card ..........26
5.3.10BRBK-301 Analog RGB Component
Card .....................................................26
5.3.11BRBK-302 SDI Card ..............................26
5.3.12BRBK-304 DV Card ..............................27
5.3.13BRBK-HSD2 HD/SD-SDI Output Card....27
5.3.14BRBK-SA1 Analog SD Output Card......27
5.3.15BRBK-SF1 HD Optical Multiplex Card...28
5.4 IP Control Cards.............................................28
5.4.1BRBK-IP10 for use with the BRC-H900
and BRC-Z330.........................................28
5.4.2BRBK-IP7Z for use with the BRC-Z700......28
6 Basic Set-up and Operation.......................30
6.1 Connections..................................................30
6.2 Monitor Set-up................................................30
7 Remote Operation.........................................31
8 Operation with the RM-IP10 IP Remote
Controller...........................................................43
8.1 Required Equipment......................................43
8.2 System Configuration....................................44
9 Operation with the BRS-200 Remote
Camera Operating Switcher......................45
9.1 System Configuration....................................45
9.2 CAM mode/Switcher mode.........................45
9.3 C
onnecting the BRC Series with the BRS-200
(RS-422)..........................................................46
10 Operation with the AWS-G500 Series
Anycast Station...............................................47
10.1 C
ontrolling cameras with the AWS-G500
Series Anycast Station.................................47
10.2 C
ontrolling the camera with VISCA
support.........................................................48
10.3 O
perating the PGM and NEXT Selection
buttons from the RM-BR300.........................49
11 Using the BRC Series Cameras as a
Second Camera for the Sony Video
Conferencing Systems..................................50
12 Specifications..................................................51
13 Dimensions.......................................................52
14 Techinical Appendix.....................................59
14.1 Color Adjustment .......................................59
14.2 Color Detail .................................................59
14.3 Color AE .......................................................59
14.4 KNEE/GAMMA Adjustment.........................59
14.5 Sync Lock Setting.........................................60
14.6 Audio Configuration....................................60
14.7 Function priority...........................................61
14.8 Using the VISCA RS-422 Connector Plug....61
14. 9 Wiring Diagram...........................................62
14.9.1Wiring Diagram of VISCA RS-422
Connection for the RM-BR300 and
RM-IP10.................................................62
14.9.2Wiring Diagram of VISCA RS-422
Connection for the BRS-200................63
15 Installing the Camera in a High Position....64
7.1 IR Remote Commander Unit.........................31
7.2 RM-BR300 Remote Control Unit.....................32
7.2.1 Features.......................................................... 32
7.2.2 Operation....................................................... 33
3
1
What is the BRC Series?
The BRC Series consists of five Pan/Tilt/Zoom (P/T/Z) cameras – the BRC-H900, BRC-H700, BRC-Z700,
BRC-Z330, and BRC-300/300P. They offer wide and smooth pan/tilt/zoom capabilities together with
exceptional picture quality from SD to Full HD images. You can remotely control these cameras using the
RM-BR300 Remote Control Unit. As a flagship model, the BRC-H900 delivers greatest sensitivity (F10) and
horizontal resolution (more than 1,000 TV lines in HD-SDI output) to meet the needs of highly qualityconscious applications. The BRC Series is perfect for a variety of remote video shooting applications, and
each camera integrates easily into a wide range of indoor and outdoor systems.
These features enable more and more users to enjoy the benefits of BRC Series cameras, particularly in
education, broadcast, bridal, and corporate applications. And with their advanced remote capabilities,
these cameras also enable a reduction in manned operation.
Video Out
Switcher, Recorder, Monitor, Projector, etc.
Control
Remote Control Unit
P/T/Z Color Video Cameras
Added Functionality
with
Optional Accessories
Optical Multiplex Units
Optional Video Cards
Optical Fiber Cables
*The RM-IP10 is compatible with the BRC-H900, BRC-Z700, and BRC-Z330 only.
4
What is the BRC Series?
Applications
Corporate/Boardroom
City Council
BRC Series cameras are excellent for various
business communication applications, such as
videoconferencing, corporate training, and
transmission of managers’ regular speeches. Each
of the cameras in this series offers particular
features and advantages, providing a variety of
cameras for any application. The cameras are
easy to operate and can be quickly reset after
each use simply by touching a button on the
supplied controller – which recalls pre-specified
positions for capturing speech and switching
scenes.
Remotely controlled by the RM-BR300, BRC Series
cameras quickly capture all of the actions at
council meetings or trials. Each camera provides
simple, streamlined operation by offering multiple
presets which pre-define P/T/Z positions.
Sports Events
Auditorium/Concert Hall
With its pan/tilt/zoom (P/T/Z) capability, a single
camera can capture a wide shooting range
during an entire live performance, including
audience shots. Therefore, with the BRC Series,
fewer cameras and camera operators are
required, resulting in huge cost savings. These
cameras make it easy to get close-ups of
performers from locations that are typically difficult
for a camera operator to reach. Additionally, each
camera’s compact size and quiet movement
doesn’t distract the audience from the
performance.
With high-speed and extremely smooth pan/tilt
movement, BRC Series cameras can follow the
quick, spontaneous flow of sports action. With
cameras installed in high positions, operators can
obtain extensive views of each event, and capture
shots at unique angles, typically very difficult to
achieve with conventional shooting. Also, optical
fiber connection (max. 2,000 m) achieves longdistance data transfer and enables single-operator
broadcasting.
What is the BRC Series?
5
Studio
Houses of Worship
The BRC Series is also ideal for use in the
broadcast industry. The BRC-H900, BRC-H700,
BRC-Z700, and BRC-Z330 can output HD-SDI
signals*1 – a necessity for highly demanding
broadcasters who seek uncompromising picture
quality. With flexible installation, these cameras
can be easily integrated into a working studio with
tripods or ceiling brackets. For the wide angles
required in studio shooting, wide conversion lenses
are available*2. And there are numerous other
benefits, including quiet and smooth P/T/Z
movement, a tally indicator, cost-efficiency, and
more.
By using large screens in combination with highly
sensitive BRC Series cameras, clear video images
can be delivered with accurate color
reproduction. Attendees can become more
involved in the service and follow ongoing events
better than ever before. With a variety of
peripheral components, a range of user-friendly
systems can be designed to suit the size and
budget of every organization.
*1The BRC-H700, BRC-Z700, and BRC-Z330 require optional
video cards.
*2Wide conversion lenses are available for the BRC-Z700
and BRC-300.
Weddings
Education
By deploying BRC Series cameras, teachers can
offer students new educational opportunities
anytime and anywhere. With the real-time
distribution of lectures and other educational
content, academic institutions can deliver
e-learning classes, and professors can efficiently
share their opinions and collaborate via networked
communication.
6
What is the BRC Series?
Pre-installed BRC Series cameras are ideal for
capturing wedding ceremonies since their silent
movement will not disturb the ceremony. With
high picture performance and zooming
capabilities, these cameras can capture natural
facial expressions and, for example, the graceful
movements of the bride. Also, due to their
compact and sleek design, these cameras blend
easily into the surrounding environment.
2
Product Lineup
BRC-H900
The BRC-H900 is a flagship model, equipped with three 1/2-type
“Exmor” 3CMOS sensor. This camera offers greatest performance of
minimum illumination, as low as four lux, among BRC series cameras.*
Therefore it delivers excellent quality HD and SD picture even in dark
environment. Furthermore, with the use of RM-IP10 Remote Controller
and BRBK-IP10 IP Control Card, the camera can be controlled through
IP network. This flexibility of installation enables to install up to 112 units
of cameras and up to five units of RM-IP10 controller depending on
customer’s requirements.
* At 50IRE, F1.9, +24 dB.
BRC-H700
Equipped with three 1/3-type HD CCDs, the BRC-H700 offers excellent
picture quality with high sensitivity and a high resolution of 1,070,000
effective pixels. This camera has the best sensitivity of the BRC Series; it
therefore delivers superior performance in dimly lit environments, such
as concert or wedding halls. Moreover, the camera offers the widest
viewing angle of the BRC Series, delivering wider images of each
scene and providing a complete picture of ongoing events.
BRC-Z700
The BRC-Z700 offers a resolution of 1,040,000 effective pixels by
deploying three 1/4-type ClearVid™ CMOS image sensors in
combination with Sony-developed DSP technology. This camera
includes a 20x optical auto-focus zoom lens with an optical image
stabilizer. The perfect choice for long-distance-shooting applications,
such as sporting coverage, this camera provides dual SD/HD outputs,
enabling users to smoothly shift towards adopting a total HD system.
BRC-Z330
Equipped with single 1/3-type 2-megapixel CMOS image sensor, the
BRC-Z330 delivers stunning HD images and SD images. This camera
enables 1080i and 720p to be integrated in various HD systems. It also
outputs SD signals simultaneously for further system flexibility; this is
particularly useful when instigating a system upgrade. Added to this,
the camera’s quiet movement, compact size, light weight, and stylish
design broaden the options when developing ideal applications.
BRC-300/300P
The standard-definition BRC-300 comes equipped with three 1/4.7type Advanced HAD™ CCD sensors. This camera delivers dependable
picture quality and is the best for costefficient SD applications. It can
capture images in 4:3 and 16:9 aspect ratios, the latter providing a
wider viewing angle.
Product Lineup
7
3
Key Features
All-in-one P/T/Z Design
Stylish design suitable for most
environments
Cost Efficiency
While each camera in the BRC Series
incorporates CCD or CMOS image sensor, 12x
to 20x zoom lenses, and P/T/Z movements, they
are also reasonably priced, and are ideal for
remote video shooting
applications.
The sleek design can complement almost any
environment, including the interior décor of
houses of worship, wedding halls, public
spaces, and more.
Unobtrusive design ideal for reality
shows and live events
The unobtrusive design of the BRC Series allows
speakers and audiences to concentrate on
discussions and lectures without being
distracted. These inconspicuous cameras help
to capture natural expressions and behavior.
With outstanding functionality and a large number
of peripheral components to choose from, you
can design a variety of user-friendly systems.
Long-distance Operation Using an Optical Fiber Cable
Uncompressed digital data – including video,
external sync, and camera control signals – can
be transmitted over a long distance using an
optical multiplex unit, an optical multiplex card,
and an optical fiber cable. The maximum distance
between the optical multiplex unit and the
camera is 2000 m for the BRC-H900 and BRC-Z330,
1000 m for the BRC-H700 and BRC-Z700, and 500 m
for the BRC-300/300P.
Optical Multiplex Unit
(BRU-SF10, BRU-H700, BRU-300/300P)
Optical multiplex card
Optical fiber cable
Video out
Max. 2km
(BRC-H900/BRC-Z330)
The BRC-H900
The BRC-H700
The BRC-Z700
The BRC-Z330
The BRC-300/300P
Max. 1km
(BRC-H700/BRC-Z700)
Max. 500 m
(BRC-300/300P)
RM-BR300 Remote Control Unit
Note When using an optical fiber connection, optional video cards are used with the optical multiplex unit to provide a variety
of video signals. In this configuration, camera video outputs are also available from the camera unit itself. When you use
an optional multiplex card inserted into the camera, you cannot control the camera directly by the RM-BR300. You can
control the camera only from the RM-BR300 through the BRU-SF10, BRU-H700 or BRU-300/300P.
8
Key Features
Versatile Video Outputs
By using optional video cards with the BRC Series, a variety of video signals can be output, enabling a wide
range of system configurations.
HD/SD-SDI, HD Component (Y/Pb/Pr), RGB, Composite, Y/C
HD/SD-SDI, Down Converted SD
BRU-SF10
BRBK Series
HD/SD-SDI
The BRC-H900
BRBK-HSD2
HD Component (Y/Pb/Pr), RGB
HD-SDI, i.LINK (HDV), WXGA, XGA, VGA, Down Converted SD
The BRC-H700
BRU-H700
HFBK Series
HD Component (Y/Pb/Pr), RGB, Composite, Y/C
HD-SDI, i. LINK (HDV), WXGA, XGA, VGA, Down Converted SD
BRU-H700
HFBK Series
HD/SD-SDI
The BRC-Z700
BRBK-HSD1
HD Component (Y/Pb/Pr), RGB, Composite, Y/C
HD/SD-SDI, Down Converted SD
BRU-SF10
BRBK Series
HD/SD-SDI
BRC-Z330
BRBK-HSD2
Composite, Y/C
RGB, SD Component (Y/Cb/Cr), SD-SDI, i. LINK (DV)
BRU-300/300P
BRBK Series
The BRC-300/300P
Key Features
9
Simultaneous Control of Multiple Cameras
The RM-IP10 Remote Control Unit can operate up to 112 units of BRC cameras (BRC-H900, BRC-Z700, and
BRC-Z330) though an IP network. The BRS-200 Remote Camera Operating Switcher and the RM-BR300
Remote Control Unit can be used to operate up to seven cameras.
RM-IP10
RM-BR300
BRS-200
Remote Control Unit (IP)
Remote Control Unit (VISCA)
Remote Camera
Operating Switcher
Other Features
Flexible installation
The BRC Series can be placed on a desktop, mounted on the ceiling, used with a tripod, or
installed in an outdoor housing kit, depending on your applications.
Flat surface
Ceiling Mount
Placed on a tripod
Note BRC Series cameras can be ceiling-mounted with a supplied ceiling
bracket and screws. For use with a tripod, the camera has a standard
¼-20 UNC receptor. For the tripod and the outdoor housing kit, please
contact to the regional headquarters.
Outdoor Housing Kit
1/4
-20UNC
= 4.5 – 7 mm
= 0.18 – 0.27 inches
Multiple presets
The BRC-H900, BRC-H700, BRC-Z700, and, the BRC-Z330 each have sixteen presets and the BRC-300/300P
has six presets to which pre-defined pan/tilt/zoom positions and other parameters can be allocated.
These presets can be recalled at the touch of a button of the BRS-200, the RM-BR300, or the IR remote
commander unit to easily capture video from pre-specified areas.
10
Key Features
IP Control
The BRC-H900, BRC-Z700, and BRC-Z330 can be controlled though an IP network with the use of an RM-IP10
IP Remote Controller and BRBK-IP10 or BRBK-IP7Z IP Control Card. This functionality allows for flexible
configurations, and enables the installation of up to 112 units of BRC cameras and up to five units of RMIP10 controller depending on customer requirements.
BRC-H900, Z330, Z700
(No. 1)
BRBK-IP10 or IP7Z
BRC-H900, Z330, Z700
(No. 2)
BRC-H900, Z330, Z700
(No. 3)
BRBK-IP10 or IP7Z
BRC-H900, Z330, Z700
(No. 112)
BRBK-IP10 or IP7Z
BRBK-IP10 or IP7Z
Switching HUB
PC (for System Setting)
RM-IP10
(No. 1)
RM-IP10
(No. 2)
RM-IP10
(No. 3)
RM-IP10
(No. 4)
RM-IP10
(No. 5)
RM-IP10*1
BRBK-IP10*2
BRBK-IP7Z*3
IP Remote Controller
IP Control Card
IP Control Card
•Comfortable P/T/Z operation with
the optical three-axis joystick.
•Versatile camera adjustment by
simple panel operation.
•The use of IP technology allows
flexible installation and easy
operation.
• Preset feature saves camera
settings (up to 16 positions).
•The camera can be controlled by IP
connection using the RM-IP10 IP
Remote Controller.
•Output of images shot by the
camera as HD-SDI signals that
conform to the SMPTE292M serial
digital interface standards or as
down-converted SD-SDI signals that
conform to the SMPTE259M serial
digital interface standards.
•The camera can be controlled by IP
connection using the RM-IP10 IP
Remote Controller.
•Output of images shot by the
camera as HD-SDI signals that
conform to the SMPTE292M serial
digital interface standards or as
down-converted SD-SDI signals that
conform to the SMPTE259M serial
digital interface standards.
*2:The BRBK-IP10 is compatible with the
BRC-H900 and BRC-Z330 only.
*3:The BRBK-IP7Z is compatible with the
BRC-Z700 only.
*1:The RM-IP10 is compatible with the
BRC-H900, BRC-Z700, and BRC-Z330 only.
Key Features
11
4
System Configuration
You can configure a variety of systems to meet your application needs by choosing HD and/or SD components.
Users can choose either HD or SD system components.
BRC and BRU System
BRC-H900
BRC-H700
BRC-Z700
BRC-Z330
—
—
—
—
Wide Conversion
Lens
Optical Multiplex
Card (inserted to
the BRC Series)
BRBK-SF1
BRBK-H700
BRBK-MF1
BRC-300/300P
VCL-0737W
BRBK-SF1
BRBK-303
Optical Fiber CCFC-S200
(Single-mode)
Cable
CCFC-M100HG
CCFC-S200
CCFC--M100
(Multi-mode)
(Single-mode)
(Multi-mode)
Optical
Multiplex
Unit
BRU-SF10
BRU-H700
BRU-SF10
(Supports
Single-mode optical fiber)
(Supports
Multi-mode optical fiber)
(Supports
Single-mode optical fiber)
BRU-300/
300P
HFBK-HD1
Optional
Video Card (inserted to
the BRC
Series)
BRBK-301
BRBK-HSD2
HD-SDI, HD Component
(Y/Pb/Pr), RGB
BRBK-HSD2
HD/SD-SDI
HFBK-SD1
HD/SD-SDI
SD-SDI, Composite, Y/C,
SD Component (Y/Cb/Cr), RGB BRBK-HSD1
HD-SDI, SD-SDI
Analog SD Output
i.LINK (HDV)
Composite, Y/C, S D Component
(Y/Cb/Cr), RGB
BRBK-302
SD-SDI
HFBK-TS1
BRBK-SA1
(Supports Multi-mode optical fiber)
BRBK-SA1
Analog SD Output
HFBK-XG1
BRBK-304
i.LINK (DV)
WXGA, XGA, VGA
IP Control
Card
BRBK-IP10
—
BRBK-IP7Z
BRBK-IP10
—
Remote
Control Unit
(IP)
RM-IP10
—
RM-IP10
RM-IP10
—
Remote
Control Unit
(VISCA)
12
System Configuration
RM-BR300
Live Broadcast_01
RM-BR300
Video
Audio
Control (VISCA)
Monitor (PGM)
Monitor (MV)
Video Switcher with
Audio Mixer
BRC Cameras
Recorder
Broadcast/Streaming
Presentation Material (PC)
PA
Audio Source
Live Broadcast_02
* There are two types of optical fiber cable (single-mode/Multi-mode). Please refer to the specifications.
Optical
multiplex card
BRC Cameras
Optical fiber
cable*
Optical
Multiplex
Unit
Optional
video card
RM-BR300
Monitor (PGM)
Monitor (MV)
Video Switcher with
Audio Mixer
Presentation Material (PC)
Recorder
Broadcast/Streaming
Audio Source
PA
Presentation_01
RM-BR300
Monitor (PGM)
Monitor (AUX1)
BRC Cameras
Video Switcher with
Audio Mixer
Monitor (MV)
Presentation Material (PC)
Projector (PGM)
Audio Source
Projector (PGM)
PA
System Configuration
13
5
Location and Function of Parts
5.1 BRC Series of Cameras
The following is a summary of the location and function of BRC-H900, BRC-H700, BRC-Z700, BRC-Z330, and
BRC-300/300P parts.
5.1.1 BRC-H900
6
RGB/COMPONENT connector
Pin No.
Rear
1
2 3 4
1 2 3
1 2 3 4 5 6 7 8 9
5
6
R
IR SELECT
VISCA RS-422
IN VISCA
7
RS-232 OUT
8
OFF
EXT SYNC IN
75
ON
VIDEO
HD
S VIDEO
SD
RGB/COMPONENT
SDI OUT
DC IN 12V
9 10 11 12 13 14
1
VISCA RS-422 connector
2
75 Ω termination switch
This switch is used when an external sync signal
is used. Set it to OFF when this camera is in the
middle of a daisy-chain connection of multiple
cameras. Set it to ON when the camera is at the
end of a daisy-chain connection or when
nothing is connected to the EXT SYNC IN
connector on the camera.
3
IR SELECT switch
Select the camera number when you operate
multiple cameras with the same Remote
Commander.
4
Remote sensor
This is the sensor for the supplied Remote
Commander.
This remote sensor does not function when IMG
FLIP is set to ON in the SYSTEM menu.
5
7
8
Location and Function of Parts
Signal
1Pr/R 9NC
2Y/G 10GND
3Pb/B 11GND
4GND 12NC
5GND 13HD-OUT
6GND 14
7GND 15NC
8GND
Tri-level Sync/Bi-level VD
VISCA RS-232C IN connector
VISCA RS-232C OUT connector
When you connect multiple cameras, connect
it to the VISCA RS-232C IN connector of the next
camera in a daisy-chain connection.
9
EXT SYNC IN connector
10
VIDEO connector
11
S VIDEO connector
12
SDI connector
Outputs the video signal from the camera as
an HD/SD-SDI signal.
Supplies down-converted SD-SDI signals that
conform to the SMPTE 259M serial digital
interface standards, or HD-SDI signals that
conform to the SMPTE 292 serial digital interface
standards. Select HD-SDI or SD-SDI signals with
the HD/SD select switch.
Outputs an SD-SDI signal from the SDI
connector when the switch is set to SD, or an
HD-SDI signal from the SDI connector when the
switch is set to HD.
14
Pin No.
Connect to the RM-BR300 Remote Control Unit
(not supplied). When you connect multiple
cameras, connect it to the VISCA RS-232C OUT
connector of the previous camera in a daisychain connection.
HD/SD select switch
Note Set the switch before turning the camera on.
Signal
13
Card slot
14
DC IN 12V connector
Bottom
4
15
16
17
Switch 1, 2, 3 (Camera address selectors)
Set the address of the camera.
Normally set to “0”. With this setting, addresses
are assigned to the cameras automatically in
the connected order by pressing the POWER
button while holding down the RESET button on
the RM-BR300 Remote Control Unit.
You can assign the camera address “1” to “7”
manually by setting these selectors as follows:
15
Ceiling bracket mounting screw holes
16
Tripod screw holes (1/4-20UNC)
17
BOTTOM switches
5
Camera
address
0
Switch 1
Switch 2
Switch 3
1
2
3
4
5
6
7
OFF
ON
OFF
ON
OFF
OFF
ON
ON
OFF
ON
OFF
ON
OFF
OFF
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
Switch 4 (Infrared signal output switch)
Set to ON to enable an infrared signal output,
or OFF to disable the output.
Note Please note that the same camera address
cannot be assigned to two or more different
cameras. Furthermore, you must set the switches
before you turn on camera power.
Setting of the BOTTOM switches
1
1
2
3
4
O
N
1
2
3
4
O
N
2
3
1
4
5
Switch 1, 2 (signal format selector)
Depending on the setting of the Switch 1, 2, the
signal format is changed as follows:
Signal
format
2
1080/
59.94i
1080/50i
720/
59.94p
720/50p
Switch 1
OFF
ON
OFF
ON
Switch 2
OFF
OFF
ON
ON
Switch 3 (RS-232C/RS-422 selector)
Set to ON for RS-422, or OFF for RS-232C.
3
Switch 4 (Communication baud rate
selector)
Set to ON for 38,400 bps, or OFF for 9,600 bps.
Location and Function of Parts
15
5.1.2 BRC-H700
10
Pin No.
Rear
1
2
3
4
5
With the cable cover attached
123456789
123456789
OFF
VISCA RS-422
IN VISCA RS-232C OUT
6
7
75
EXT SYNC IN
8
ON
OFF
1 2 3
DC IN 12V
R
9
RGB/COMPONENT
IR SELECT
OFF
ON
DATA MIX
VISCA RS-422
IN VISCA RS-232C OUT
75
ON
EXT SYNC IN
10 11
1
VISCA RS-422 connector
2
75 Ω termination switch
1 2 3
DC IN 12V
R
RGB/COMPONENT
IR SELECT
OFF
ON
DATA MIX
12
This switch is used when an external sync signal
is utilized. Set it to OFF when the camera is in
the middle of a daisy-chain connection of
multiple cameras. Set it to ON when the
camera is at the end of a daisy-chain
connection.
3
RGB/COMPONENT
11
Signal
connector
Pin No.
Signal
1Pr/R 9NC
2Y/G 10GND
3Pb/B 11GND
4GND 12NC
5GND 13HD-OUT
6GND 14
7GND 15NC
8GND
Tri-level Sync/Bi-level VD
DATA MIX switch
Set the switch to ON to overlap the menu with
the video signal output from the installed
interface board. Set it to OFF not to overlap the
menu.
12
Cable cover
Bottom
13
14
15
Remote sensor
This is the sensor for the supplied IR Remote
Commander Unit.
4
DC IN 12V connector
5
IR SELECT switch
6
Selects the camera number when you operate
multiple cameras with the same IR Remote
Commander Unit.
13
Ceiling bracket mounting screw holes
14
Tripod screw holes (1/4-20UNC)
VISCA RS-232C IN connector
15
BOTTOM switches
Connects to the RM-BR300 Remote Control Unit.
When you join multiple cameras, connect it to
the VISCA RS-232C OUT connector of the
previous camera in the daisy chain.
7
Setting of the BOTTOM switches
1
VISCA RS-232C OUT connector
When you join multiple cameras, connect it to
the VISCA RS-232C IN connector of the next
camera in the daisy chain.
8
EXT SYNC IN connector
9
Card slot
1
2
3
4
O
N
1
2
3
4
O
N
2
3
4
1
5
Switch 1 (59.94i/50i signal format selector)
Set to ON for output of 50i signal format, or OFF
for output of 59.94i signal format.
2
Switch 2 (RS-232C/RS-422 selector)
Set to ON for RS-422, or OFF for RS-232C.
3
Switch 3 (Communication baud rate selector)
Set to ON for 38400 bps, or OFF for 9600 bps.
4
Switch 4 (Infrared signal output switch)
Set to ON to enable an infrared signal output,
or OFF to disable the output.
16
Location and Function of Parts
5
Camera address selectors
Set the address of the camera. Normally set to
0. With this setting, addresses are assigned to
the cameras automatically in the connected
order by pressing the POWER button while
holding down the RESET button on the
RM-BR300 Remote Control Unit. You can assign
the camera address, 1 to 7, manually by setting
these selectors as follows:
5.1.3 BRC-Z700
Rear
1
2
3
123456789
VISCA RS-422
OFF
4
R
ON
1 2 3
DATA MIX
OFF
75
5
6
IR SELECT
ON
RGB/COMPONENT
IN VISCA
Camera 01234567
address
7
Switch 1
OFFONOFFONOFFONOFFON
RS-232C OUT EXT SYNC IN
8
9
VIDEO
S VIDEO
DC IN 12V
10 11 12 13
Switch 2OFFOFF ON ON OFFOFF ON ON
1
VISCA RS-422 connector
Switch 3
OFFOFFOFFOFFON ON ON ON
Switch 4 is not used.
2
75 Ω termination switch
This switch is used when an external sync signal
is utilized. Set it to OFF when this camera is in
the middle of a daisy-chain connection of
multiple cameras. Set it to ON when the
camera is at the end of a daisy-chain
connection or when nothing is connected to
the EXT SYNC IN connector on the camera.
Note Please note that the same camera address
cannot be assigned to two or more different
cameras. Furthermore, you must set the switches
before you turn on camera power.
3
DATA MIX switch
Set the switch to ON to overlap the menu with
the video signal output from the installed
interface board. Set it to OFF not to overlap the
menu.
4
Remote sensor
This is the sensor for the supplied IR Remote
Commander Unit. This remote sensor does not
function when IMGFLIP is set to ON in the
SYSTEM menu.
5
IR SELECT switch
Selects the camera number when you operate
multiple cameras with the same IR Remote
Commander Unit.
6
RGB/COMPONENT connector
Pin No.
7
Signal
Pin No.
Signal
1Pr/R 9NC
2Y/G 10GND
3Pb/B 11GND
4GND 12NC
5GND 13HD-OUT
6GND 14
7GND 15NC
8GND
Tri-level Sync/Bi-level VD
VISCA RS-232C IN connector
Connects to the RM-BR300 Remote Control Unit.
When you join multiple cameras, connect it to
the VISCA RS-232C OUT connector of the
previous camera in the daisy chain.
Location and Function of Parts
17
8
VISCA RS-232C OUT connector
When you join multiple cameras, connect it to
the VISCA RS-232C IN connector of the next
camera in the daisy chain.
9
EXT SYNC IN connector
10
VIDEO connector (Composite out)
11
S-VIDEO connector
12
Card slot
13
DC IN 12V connector
5
Camera address selectors
Set the address of the camera. Normally set to
0. With this setting, addresses are assigned to
the cameras automatically in the connected
order by pressing the POWER button while
holding down the RESET button on the
RM-BR300 Remote Control Unit. You can assign
the camera address, 1 to 7, manually by setting
these selectors as follows:
Camera 01234567
address
Switch 1
OFFONOFFONOFFONOFFON
Bottom
14
15
16
Switch 2OFFOFF ON ON OFFOFF ON ON
Switch 3
OFFOFFOFFOFFON ON ON ON
Switch 4 is not used.
Note Please note that the same camera address
cannot be assigned to two or more different
cameras. Furthermore, you must set the switches
before you turn on camera power.
14
Ceiling bracket mounting screw holes
15
Tripod screw holes (1/4-20UNC)
16
BOTTOM switches
Setting of the BOTTOM switches
1
1
2
3
4
O
N
1
2
3
4
O
N
2
3
4
1
5
Switch 1 (59.94i/50i signal format selector)
Set to ON for output of 50i signal format, or OFF
for output of 59.94i signal format.
2
Switch 2 (RS-232C/RS-422 selector)
Set to ON for RS-422, or OFF for RS-232C.
3
Switch 3 (Communication baud rate selector)
Set to ON for 38400 bps, or OFF for 9600 bps.
4
Switch 4 (Infrared signal output switch)
Set to ON to enable an infrared signal output,
or OFF to disable the output.
18
Location and Function of Parts
5.1.4 BRC-Z330
Rear
1
2
8
Pin No.
3 4
5 6 7
9 10 11 12 13
1
DC IN 12V connector
2
VISCA RS-422 connector
3
IR SELECT switch
Signal
Pin No.
Signal
1Pr/R 9NC
2Y/G 10GND
3Pb/B 11GND
4GND 12NC
5GND 13HD-OUT
6GND 14
7GND 15NC
8GND
Bottom
14
Tri-level Sync/Bi-level VD
15
16
Select the camera number when you operate
multiple cameras with the same Remote
Commander Unit.
4
Remote sensor
This is the sensor for the supplied Remote
Commander Unit.
5
DATA MIX switch
Set the switch to ON to overlap the menu with
the video signal output from the installed
interface board. Set it to OFF not to overlap the
menu.
6
Ceiling bracket mounting screw holes
* The BRC-Z330 has one Tripod screw hole unlike other
BRC cameras.
15
Tripod screw hole (1/4-20UNC)
16
BOTTOM switches
75 Ω termination switch
This switch is used when an external sync signal
is used. Set it to OFF when this camera is in the
middle of a daisy chain connection of multiple
cameras. Set it to ON when the camera is at the
end of a daisy chain connection or when
nothing is connected to the EXT SYNC IN
connector on the camera.
7
EXT SYNC IN connector
8
VISCA RS-232C IN connector
Connect to the RM-BR300 Remote Control Unit.
When you connect multiple cameras, connect
it to the VISCA RS-232C OUT connector of the
previous camera in the daisy chain
connection.
9
14
VISCA RS-232C OUT connector
When you connect multiple cameras, connect
it to the VISCA RS-232C IN connector of the next
camera in the daisy chain connection.
10
S VIDEO connector
11
T VIDEO connector
12
Card slot
13
RGB/COMPONENT connector
Setting of the BOTTOM switches
1
1
2
3
4
5
6
7
8
9
10
O
N
2
3
4
1
B
5
6
7
1
Switch 1 (59.94/50 signal format selector)
Set to ON for output in 1080/50i (720/50P)
signal format, OFF for output in 1080/59.94i
(720/ 59.94P) signal format.
2
Switch 2 (1080i/720p signal format selector)
Set to ON for output in 720p signal format, OFF
for output in 1080i signal format.
3
Switch 3 (RS-232C/RS-422 selector)
Set to ON for RS-422, or OFF for RS-232C.
4
Switch 4 (Communication baud rate selector)
Set to ON for 38400 bps, or OFF for 9600 bps.
Location and Function of Parts
19
5
Switches 5-7 (Camera address selector)
Set the address of the camera. Normally set to
“0”. With this setting, addresses are assigned to
the cameras automatically in the connected
order by pressing the POWER button while
holding down the RESET button on the
RM-BR300 Remote Control Unit. You can assign
the camera address “1” to “7” manually by
setting these selectors as follows:
5.1.5 BRC-300/300P
Rear
Camera 01234567
address
1
2
3
4
R
123456789
1 2 3
OFF
ON
IR SELECT
75
VISCA RS-422
Switch 5
OFFONOFFONOFFONOFFON
EXT SYNC IN
Switch 6OFFOFF ON ON OFFOFF ON ON
VIDEO
S VIDEO
IN VISCA RS-232C OUT
!
DC IN
12V
Switch 7
OFFOFFOFFOFFON ON ON ON
Switch 4 is not used.
5
6
Switch 8 (Infrared signal output switch)
Set to ON to enable an infrared signal output,
or OFF to disable the output.
7
1
7
8
9
10
11
75 Ω termination switch
This switch is used when an external sync signal
is utilized. Set it to OFF when this camera is in
the middle of a daisy-chain connection of
multiple cameras. Set it to ON when the
camera is at the end of a daisy-chain
connection.
Switches 9, 10
These switches are not used.
Note Please note that the same camera address
cannot be assigned to two or more different
cameras. Furthermore, you must set the switches
before you turn on camera power.
6
2
IR SELECT switch
Selects the camera number when you operate
multiple cameras with the same IR Remote
Commander Unit.
3
Remote sensor
This is the sensor for the supplied IR Remote
Commander Unit.
4
VISCA RS-422 connector
5
EXT SYNC IN connector
6
VIDEO connector (Composite out)
7
S-VIDEO connector
8
VISCA RS-232C IN connector
Connects to the RM-BR300 Remote Control Unit.
When you join multiple cameras, connect it to
the VISCA RS-232C OUT connector of the
previous camera in the daisy chain.
9
VISCA RS-232C OUT connector
When you join multiple cameras, connect it to
the VISCA RS-232C IN connector of the next
camera in the daisy chain.
20
Location and Function of Parts
10
DC IN 12V connector
11
Card slot
Bottom
12
13
2
14
Switch 2 (RS-232C/RS-422 selector)
Set to ON for RS-422, or OFF for RS-232C.
3
4
Switch 3 (Communication baud rate selector)
Set to ON for 38400 bps, or OFF for 9600 bps.
Switch 4 (Infrared signal output switch)
Set to ON to enable an infrared signal output,
or OFF to disable the output.
5
12
Ceiling bracket mounting screw holes
13
Tripod screw holes (1/4-20UNC)
14
BOTTOM switches
Camera address selectors
Set the address of the camera. Normally set to
0. With this setting, addresses are assigned to
the cameras automatically in the connected
order by pressing the POWER button while
holding down the RESET button on the
RM-BR300 Remote Control Unit. You can assign
the camera address, 1 to 7, manually by setting
these selectors as follows:
Setting of the BOTTOM switches
Camera 01234567
address
1
2
O
N
1
2
3
4
Switch 1
OFFONOFFONOFFONOFFON
3
Switch 2OFFOFF ON ON OFFOFF ON ON
4
O
N
1
2
3
4
1
Switch 3
OFFOFFOFFOFFON ON ON ON
Switch 4 is not used.
5
Note Please note that the same camera address
cannot be assigned to two or more different
cameras. Furthermore, you must set the switches
before you turn on camera power.
Switch 1 (No connection)
Always keep it OFF.
5.2 Optical Multiplex Units
The following provides information on the location and function of BRU-SF10, BRU-H700 and BRU-300/300P
parts.
With these optical multiplex units, you can transmit uncompressed digital data including video, external
sync, and camera control signals.
5.2.1 B RU-SF10 HD Optical Multiplex
Unit for use with the BRC-H900
and BRC-Z330
Rear
1
2
IN
CAMERA
3
4
OUT
EXT SYNC
5
IN
RGB/COMPONENT
6
OUT
VISCA
7
AUDIO OUT
FUNCTION
1
R
10
DC 12V
11
10
2
EXT SYNC IN connector
3
EXT SYNC OUT connector
4
RGB/COMPONENT connector
Pin No.
VISCA RS422
L
CAMERA connector
8
1 2 3 4 5 6 7 8 9
RS232C
1
9
Signal
Pin No.
Signal
1Pr/R 9NC
2Y/G 10GND
3Pb/B 11GND
4GND 12NC
5GND 13HD-OUT
6GND 14
7GND 15NC
8GND
Tri-level Sync/Bi-level VD
Location and Function of Parts
21
5
VISCA RS-232C IN connector
Connect to the RM-BR300 Remote Control Unit
(not supplied). When you connect multiple
cameras, connect it to the VISCA RS-232C OUT
connector of the previous camera in a daisychain connection.
6
7
VISCA RS-422 connector
8
AUDIO OUT L/R jacks
Loop through output of the audio line signal
input from the AUDIO IN jacks on the BRBK-SF1
HD Optical Multiplex Card inserted into the
camera via the Optical Fiber Cable.
9
VISCA FUNCTION switches
These switches are used for the VISCA
communication settings.
Switch 1 (RS-232C/RS-422 selector)
Set to ON for RS-422, or OFF for RS-232C.
Switch 2 (Communication baud rate
selector)
Set to ON for 38,400 bps, or OFF for 9,600 bps.
Switches 3 to 5 (Camera address
selectors)
Set the address of the camera.
Normally set to “0”. With this setting, addresses
are assigned to the cameras automatically in
the connected order by pressing the POWER
button while holding down the RESET button on
the RM-BR300 Remote Control Unit (not
supplied).
You can assign the camera address “1” to “7’
manually by setting these selectors as follows:
Camera
address
0
Switch 3
Switch 4
Switch 5
1
2
3
4
5
6
7
OFF
ON
OFF
ON
OFF
OFF
ON
ON
OFF
ON
OFF
ON
OFF
OFF
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
Note Please note that the same camera address
cannot be assigned to two or more different
cameras.
22
Location and Function of Parts
Switches 7 to 10
Not used. Set them to OFF.
Note Please further note that you must set the switches
before you turn on power to the multiplex unit.
VISCA RS-232C OUT connector
When you connect multiple cameras, connect
it to the VISCA RS-232C IN connector of the next
camera in a daisy-chain connection.
Switch 6 (59.94/50 signal format selector)
Set to ON for output of 50 signal format, or OFF
for output of 59.94 signal format.
10
DC 12 V connector
11
Card slot
5.2.2 BRU-H700 HD Optical Multiplex
Unit for use with the BRC-H700
and BRC-Z700
Rear
1
2
11
VISCA FUNCTION switches
Switch 1 (RS-232C/RS-422 selector)
Set to ON for RS-422, or OFF for RS-232C.
Switch 2 (Communication baud rate selector)
3
Set to ON for 38400 bps, or OFF for 9600 bps.
Switches 3 to 5 (Camera address selectors)
AUDIO OUT
L
R
FUNCTION
1
6
~AC IN
VISCA RS-422
CAMERA
4
IN EXT SYNC OUT
5
6
RGB/COMPONENT
7
1
Card slot
2
AUDIO OUT L/R jacks
IN VISCA RS-232C OUT
8
9
10
11
Camera 01234567
address
Loop through output of the audio line signal
input from the AUDIO IN jacks on the BRBK-H700
HD Optical Multiplex Card or BRBK-MF1 HD
Optical Multiplex Card inserted into the camera
via an optical fiber cable.
3
~AC IN connector
4
CAMERA connector
5
EXT SYNC IN connector
6
EXT SYNC OUT connector
7
RGB/COMPONENT connector
Pin No.
8
Signal
Set the address of the camera. Normally set to
0. With this setting, addresses are assigned to
the cameras automatically in the connected
order by pressing the POWER button while
holding down the RESET button on the
RM-BR300 Remote Control Unit. You can assign
the camera address, 1 to 7, manually by setting
these selectors as follows:
Switch 3
OFFONOFFONOFFONOFFON
Switch 4OFFOFF ON ON OFFOFF ON ON
Switch 5
OFFOFFOFFOFFON ON ON ON
Note Please note that the same camera address
cannot be assigned to two or more different
cameras.
Switch 6 (59.94i/50i signal format selector)
Pin No.
Set to ON for output of 50i signal format, or OFF
for output of 59.94i signal format.
Note Please further note that you must set the switches
before you turn on power to the multiplex unit.
Signal
1Pr/R 9NC
2Y/G 10GND
3Pb/B 11GND
4GND 12NC
5GND 13HD-OUT
6GND 14
7GND 15NC
8GND
Tri-level Sync/Bi-level VD
VISCA RS-232C IN connector
Connect to the RM-BR300 Remote Control Unit.
When you join multiple cameras, connect it to
the VISCA RS-232C OUT connector of the previous camera in the daisy chain.
9
VISCA RS-232C OUT connector
When you join multiple cameras, connect it to
the VISCA RS-232C IN connector of the next
camera in the daisy chain.
10
VISCA RS-422 connector
Location and Function of Parts
23
5.2.3 BRU-300/300P SD Optical
Multiplex Unit for use with the
BRC-300/300P
Rear
1
Switches 3 to 5 (Camera address selectors)
Set the address of the camera. Normally set to
0. With this setting, addresses are assigned to
the cameras automatically in the connected
order by pressing the POWER button while
holding down the RESET button on the
RM-BR300 Remote Control Unit. You can assign
the camera address, 1 to 7, manually by setting
these selectors as follows:
2
~
AC IN
VISCA RS-422
IN EXT SYNC OUT
FUNCTION
6
1
S VIDEO
IN
Camera 01234567
address
OUT
VISCA RS-232C
CAMERA
Switch 3
OFFONOFFONOFFONOFFON
3
4
5
6
7
8
Switch 4OFFOFF ON ON OFFOFF ON ON
9 10 11
Switch 5
OFFOFFOFFOFFON ON ON ON
Switch 6 is not used.
1
Card slot
2
AC IN connector
3
EXT SYNC IN connector
4
EXT SYNC OUT connector
5
Composite video output connector
6
S-VIDEO connector
7
VISCA RS-422 connector
8
VISCA FUNCTION switches
Note Please note that the same camera address
cannot be assigned to two or more different
cameras.
9
Connect to the RM-BR300 Remote Control Unit.
When you join multiple cameras, connect it to
the VISCA RS-232C OUT connector of the
previous camera in the daisy chain.
10
Set to ON for RS-422, or OFF for RS-232C.
Set to ON for 38400 bps, or OFF for 9600 bps.
VISCA RS-232C OUT connector
When you join multiple cameras, connect it to
the VISCA RS-232C IN connector of the next
camera in the daisy chain.
Switch 1 (RS-232C/RS-422 selector)
Switch 2 (Communication baud rate selector)
VISCA RS-232C IN connector
11
CAMERA connector
5.3 Optical Multiplex Cards and Optional Video Cards
The following provides information on the location and function of optical multiplex card parts and
optional video cards and optional video cards. The BRC Series allows you to choose from a wide range of
optional video cards. This versatility enables you to create flexible analog and digital system configurations.
5.3.1 BRBK-H700 HD Optical
Multiplex Card
1
1
Input an audio signal (stereo) that is output
from the AUDIO OUT jacks on the BRU-H700 HD
Optical Multiplex Unit via an optical fiber cable.
The audio input on this board accepts audio
line signals only. When you input audio signals
from a microphone or similar device, it should
be connected with a microphone amplifier so
that audio signals with an
appropriate audio level can be input.
2
2
24
Location and Function of Parts
AUDIO IN L/R jacks (phono-type)
Optical connector
5.3.2 HFBK-HD1 HD Interface Board
1
1 MONITOR
Pin No.
2
2
4
Supplies down-converted SD-SDI signals that
conform to SMPTE259M (for 59.94i signal
format) and ITU-R BT.656 (for 50i signal format)
serial digital interface standards. The aspect
ratio can be selected with the camera’s DOWN
CONVERTER menu.
3
connector (D-sub 15-pin)
Signal
Pin No.
1
R/Pr (X)
9
NC
2
G/ Y (X)
10
GND
3
B/Pb (X)
11
NC
4
NC
12
NC
5
GND
13
HD
6
R/Pr (G)
14
VD/SYNC
7
G/Y (G)
15
NC
8
B/Pb (G)
Signal
5.3.4 HFBK-XG1 XGA Interface Board
1
1
DIP switches (inside the cap)
HD-SDI connector (BNC-type)
Supplies HD-SDI signals that conform to the
SMPTE292M serial digital interface standard.
The two connectors output the same signal.
2
2
3
2
connector (D-sub 15-pin)
Signal
Pin No.
Signal
1
R (X)
9
NC
2
G (X)
10
GND
3
B (X)
11
NC
4
NC
12
NC
5
GND
13
HD
6
R (G)
14
VD
7
G (G)
15
NC
8
B (G)
DIP switches (inside the cap)
When this interface board is inserted into the
camera or the BRU-H700 HD Optical Multiplex
Unit, the DIP switches cannot be used.
The parameters can be set from the menu of
the camera.
5.3.3 HFBK-SD1 SD Interface Board
1
MONITOR
Pin No.
When this interface board is inserted into the
camera or the BRU-H700 HD Optical Multiplex
Unit, the DIP switches cannot be used.
The parameters can be set from the menu of
the camera.
3
SD-SDI connector (BNC-type)
4
5.3.5 HFBK-TS1 HDV Interface Board
1
MONITOR
connector (D-sub 9-pin)
Pin No.
2
1
Signal
Pin No.
Signal
1
GND
6
Composite/Y
2
GND
7
SYNC
3
R/Cr
8
GND
4
G/ Y
9
-/C
5
B/Cb
VIDEO connector (BNC-type)
Supplies analog composite signals. The aspect
ratio can be selected in the camera’s DOWN
CONVERTER menu.
3
AUDIO L/R jacks (phono-type)
Input audio signals (stereo). The input audio
signals are converted into signals that comply
with HDV standards. The time difference
between image and audio can be adjusted by
up to 240 minutes in 10 increments.
DIP switches (inside the cap)
When this interface board is inserted into the
camera or the BRU-H700 HD Optical Multiplex
Unit, the DIP switches cannot be used.
The parameters can be set from the menu of
the camera.
3
1
2
2
DIP switches (inside the cap)
When this interface board is inserted into the
camera or the BRU-H700 HD Optical Multiplex
Unit, the DIP switches cannot be used.
The parameters can be set from the menu of
the camera.
3 i.LINK
(HDV) OUT connector (i.LINK 6-pin)
Location and Function of Parts
25
5.3.6 BRBK-MF1 HD Optical
Multiplex Card
1
1
1
2
AUDIO IN L/R jacks (phono-type)
Input an audio signal (stereo), which is output
from the AUDIO OUT jacks on the BRU-H700 HD
Optical Multiplex Unit via an optical fiber cable.
The time difference between video and audio
can be adjusted by up to 240 ms by 10
ncrements.
Note The audio input on this board accepts audio line
signals only. When you input audio signals from a
microphone or similar device, it should be
connected with a microphone amplifier so that
audio signals with an appropriate audio level
can be input.
2
5.3.8 BRBK-HD2 HD-SDI Output
Card
1
SDI OUTPUT connectors (BNC-type)
The Card allows output of an HD-SDI signal
conforming to SMPTE292M serial digital interface
standards. No audio signal is output from the
card.
5.3.9 BRBK-303 Optical Multiplex
Card
1
Optical connector
1
5.3.7 BRBK-HSD1 HD/SD-SDI Output
Card
1
2
Optical connector
5.3.10 B
RBK-301 Analog RGB
Component Card
BRBK-HSD1
SD
1
HD
SDI OUTPUT
1
SDI OUTPUT connectors (BNC-type)
Supplies down-converted SD-SDI signals that
conform to SMPTE259M (for 59.94i signal
format) and ITU-R BT.656 (50i signal format)
serial digital interface standards, and HD-SDI
signals that conform to the SMPTE292M serial
digital interface standard. Select HD-SDI or
SD-SDI signals with the HD/SD select switch.
2
1 RGB/SYNC
Pin No.
HD/SD select switch
Set the switch to SD to supply SD-SDI signals
and HD to supply HD-SDI signals.
Note • SD-SDI and HD-SDI signals cannot be supplied
simultaneously.
• Set the SD/HD select switch before turning on
the camera.
connector
Signal
Pin No.
Signal
1
GND
6
Composite/Y
2
GND
7
SYNC
3
R/Cr
8
GND
4
G/ Y
9
-/C
5
B/Cb
5.3.11 BRBK-302 SDI Card
1
1
SDI connector
Supplies a signal conforming to the SMPTE259M
serial digital interface standard.
26
Location and Function of Parts
5.3.12 BRBK-304 DV Card
1
1
BRBK-HSD2 panel
switch
i.LINK (DV) OUT connector (i.LINK 6-pin)
5.3.13 B
RBK-HSD2 HD/SD-SDI
Output Card
1
BRBK-HSD2 MONITOR
2
1
2
ON
HD
OFF
SD
SDI MONITOR OUT connector (BNC type)
Outputs down-converted SD-SDI signals that
conform to SMPTE 259M serial digital interface
standards, and down-converted HD-SDI signals
that conform to SMPTE 292 serial digital
interface standards.
2
Middle position
HD/DATA MIX: OFF
(HD-SDI output)
Right position SD
(SD-SDI output)
Note •SD-SDI and HD-SDI signals cannot be supplied
simultaneously.
•Set the panel switch before turning on the
camera.
Images when menu display is ON
When a BRBK-HSD2 is installed in the BRCH900 card slot
BRBK-HSD2 panel
switch
/
MONITOR
connector
SDI connectors 1, 2
Left position HD/
DATA MIX: ON
(HD-SDI output)
Middle position
HD/DATA MIX: OFF
(HD-SDI output)
Right position SD
(SD-SDI output)
: Menu is superimposed on image
×: Menu is not superimposed on image
1)
: Menu is superimposed on image
×: Menu is not superimposed on image
1) When the DATA MIX switch on the front panel of the
BRU-SF10 HD Optical Multiplex Unit is set to ON, the menu
display is overlapped on all images output from the card.
When the DATA MIX switch is set to OFF, the menu is not
displayed.
5.3.14 BRBK-SA1 Analog SD
Output Card
1
2
3
BRBK-SA1
VIDEO
1
S-VIDEO
RGB/SYNC
VIDEO connector (BNC type)
Supplies analog composite signals. The aspect
ratio can be configured in the SD menu of the
camera.
Panel switch
Switch between SD-SDI signals and HD-SDI
signals.
SDI connectors 1,
2
Left position HD/
DATA MIX: ON
(HD-SDI output)
SDI connectors 1, 2 (BNC type)
Outputs down-converted SD-SDI signals that
conform to SMPTE 259M serial digital interface
standards, and down-converted HD-SDI signals
that conform to SMPTE 292 serial digital
interface standards.
3
MONITOR
connector
3
SDI OUT
1
When a BRBK-HSD2 is installed in the BRUSF10 card slot
2
S VIDEO connector (4-pin mini-DIN)
Outputs S-Video signals. You can configure the
aspect ratio with the SD menu of the camera.
3
RGB/SYNC connector (D-sub 9-pin)
Pin No.
Signal
Pin No.
Signal
1
GND
6
Composite/Y
2
GND
7
SYNC
3
R/Cr
8
GND
9
-/C
4
G/ Y
5
B/Cb
Note •When a BRBK-SA1 Analog SD Output Card is
installed in the BRC-H900 HD Color Video
Camera and menu display for the camera is
turned ON, the menu display is overlapped with
the image.
•When a BRBK-SA1 Analog SD Output Card is
installed in a BRU-SF10 HD Optical Multiplex Unit
on which the front panel DATA MIX switch is set
to ON and menu display for the camera is
turned ON, the menu display is overlapped with
the image. When the DATA MIX switch is set to
OFF, the menu will not be displayed on the
image, even if menu display for the camera is
turned ON.
Location and Function of Parts
27
5.3.15 B
RBK-SF1 HD Optical
Multiplex Card
1
2
R
L
AUDIO IN
BRU
1
AUDIO IN L/R jacks (phono type)
Input an audio signal (stereo), which is output
from the AUDIO OUT jacks on the BRU-SF10 HD
Optical Multiplex Unit via the Optical Fiber
Cable.
BRBK-SF1
Note The audio input on this card accepts audio line
signals only. When you input audio signals from a
microphone, etc., it should be connected with a
microphone amplifier so that audio signals with
an appropriate audio level can be input.
2
Optical connector
5.4 IP Control Cards
The following provides information on the location and function of IP control card parts.
5.4.1 B
RBK-IP10 for use with the
BRC-H900 and BRC-Z330
1
2
1
BRBK-IP10
LAN
1
3
DATA MIX
OFF
ON
HD
SD
LAN connector (RJ-45 8-pin)
Connect to a switching HUB that is compatible
with 10BASE-T/100BASE-TX using a LAN cable
(category 5 or higher, straight).
When a link is established, the green indicator
lights, and it flashes during communication.
While connected with 100BASE-TX, the yellow
indicator also lights.
Note When the IP control card BRBK-IP10 is inserted into
the camera, the RS-232C and RS-422 connectors
cannot be used.
2
Reset switch
If you press down this switch with a pointed tip
for about five seconds, the camera will reboot
and the IP control card BRBK-IP10 will return to
the factory setting.
Factory settings for BRBK-IP10
•IP address: 192.168.0.100
•Subnet mask: 255.255.255.0
•Name: CAM1
3
SDI 1, 2 connector (BNC type)
Outputs down-converted SD-SDI signals that
conform to SMPTE 259M serial digital interface
standards, or HD-SDI signals that conform to
SMPTE 292 serial digital interface standards.
When the menu display for the camera is
turned ON, you can use the 4 HD/SD select
switch to output the menu display signal that
overlaps the images, from this connector.
28
Location and Function of Parts
HD/SD select switch
Switches between SD-SDI signals and HD-SDI
signals.
When outputting HD-SDI signals, you can select
whether to overlap the menu display with the
image output from SDI connectors 1 and 2.
•“HD/DATA MIX: ON” Outputs HD-SDI signal and
the menu display is overlapped.
•“HD/DATA MIX: OFF” Outputs HD-SDI signal and
the menu display is not overlapped.
•“SD”: Outputs SD-SDI signal and the menu
display is overlapped.
4
2
SDI OUT
4
Note •SD-SDI and HD-SDI signals cannot be supplied
simultaneously.
•Set the HD/SD select switch before turning on
the camera.
•Do not push the switch forcibly with a screwdriver, etc.
5.4.2 BRBK-IP7Z for use with the
BRC-Z700
1
2
3
1
BRBK-IP7Z
4
2
HD
LAN
1
SD
SDI OUT
LAN connector (RJ-45 8-pin)
Connect to a switching HUB that is compatible
with 10BASE-T/100BASE-TX using a LAN cable
(category 5 or higher, straight).
When a link is established, the green indicator
lights, and it flashes during communication.
While connected with 100BASE-TX, the yellow
indicator also lights.
Note When the IP control card BRBK-IP7Z is inserted into
the camera, the RS-232C and RS-422 connectors
cannot be used.
2
Reset switch
If you press down this switch with a pointed tip
for about five seconds, the camera will reboot
and the IP control card BRBK-IP7Z will return to
the factory setting.
Factory settings for BRBK-IP7Z
•IP address: 192.168.0.100
•Subnet mask: 255.255.255.0
•Name: CAM1
3
SDI 1, 2 connectors (BNC type)
Supplies down-converted SD-SDI signals that
conform to the SMPTE259M serial digital
interface standards, or HD-SDI signals that
conform to the SMPTE292 serial digital interface
standards. Select HD-SDI or SD-SDI signals with
the 4 HD/SD select switch.
4
HD/SD select switch
The SD setting supplies SD-SDI signals and the
HD setting supplies HD-SDI signals.
Note •SD-SDI and HD-SDI signals cannot be supplied
simultaneously.
•Set the SD/HD select switch before turning on
the camera.
•Do not push the switch forcibly with a screwdriver, etc.
Location and Function of Parts
29
6
Basic Set-up and Operation
6.1 Connections
These are the basic connections of the cameras and monitor prior to a demonstration.
Connecting a monitor
Monitor with SDI input
1 2 3
1 2 3 4 5 6 7 8 9
Connecting the optical multiplex unit
R
OFF
75
IN VISCA RS-232 OUT EXT SYNC IN
ON
VIDEO
HD
SD
S VIDEO
Monitor with SDI input
1 2 3
1 2 3 4 5 6 7 8 9
IR SELECT
VISCA RS-422
R
IR SELECT
RGB/COMPONENT
SDI OUT
VISCA RS-422
OFF
75
ON
HD
SD
RGB/COMPONENT
DC IN 12V
IN VISCA
RS-232 OUT
EXT SYNC IN
VIDEO
S VIDEO
DC IN 12V
SDI OUT
BRBK-SF1
R
L
AUDIO IN
BRU
Camera
Camera with Optical
Multiplex Card
BNC cable
Optical Fiber
cable
BNC cable
RS-232C cable
IN
CAMERA
OUT
OUT
IN
RGB/COMPONENT
EXT SYNC
BRBK-HSD2 MONITOR
1
VISCA RS232C
2
ON
SDI OUT
HD
OFF
1 2 3 4 5 6 7 8 9
VISCA RS422
L
SD
AUDIO OUT
FUNCTION
R
1
10
Optical Multiplex Unit
with SDI Output Card
DC IN 12V
RM-BR300 Remote Control Unit
RS-232C cable
RM-BR300 Remote Control Unit
6.2 Monitor Set-up
The BRC-H900, the BRC-H700, the BRC-Z700, and the BRC-Z330 come equipped with a Color Bar Output
mode, allowing you to precisely adjust the monitor. For the BRC-300/300P, it is suggested that you use the
Auto Set-up function of the monitor.
30
Basic Set-up and Operation
7
Remote Operation
7.1 IR Remote Commander Unit
The following provides information on the function and location of the parts.
6
5
Hold down this button and press the REV button
to change camera movement to the opposite
direction indicated by the arrow of the B/b
buttons. To reset the camera movement
direction, press the STD button while holding
down this button.
1
2
3
7
8
6
4
5
1
CAMERA SELECT buttons
7
2
8
3
DATA SCREEN button
Press this button to display the Main menu. Press
it again to turn off the menu. If you press the
button when a lower-level menu is selected, the
display goes back to a higher-level menu.
Note Pan/tilt and zoom operations are disabled when
the menu is displayed.
4
POSITION buttons
Hold down the PRESET button and press a
number button from 1 to 6 to store the current
Camera Direction, Zoom, Focus Adjustment,
and Backlight Compensation setting in the
memory of the pressed number button. To erase
this memory, hold down the RESET button and
press the same number button. For the BRCH900, BRC-H700, BRC-Z700 and BRC-Z330, preset
positions from 7 to 16 are not available.
9
PAN/TILT RESET button
Press this button to reset the pan/tilt position.
FOCUS buttons
Used for focus adjustment. Press the AUTO
button to adjust the focus automatically. To
adjust the focus manually, press the MANUAL
button, and adjust it with the FAR and NEAR
buttons.
BACK LIGHT button
Press this button to enable the Backlight
Compensation function. Press it again to
disable Backlight Compensation.
Press the button corresponding to the camera
you want to operate with the IR Remote
Commander Unit. The camera number can be
set using the IR SELECT switch on the rear of the
camera.
Note If two or more cameras are adjacent and have
the same camera number, they are operated
simultaneously with the same IR Remote Commander Unit. If you are installing cameras close
to each other, make sure you allocate a different
camera number to each one.
POWER switch
Press this button to turn on/off the camera
when the camera is connected to an AC outlet.
9
10
L/R DIRECTION SET button
10
ZOOM buttons
Use the SLOW button to zoom slowly, and the
FAST button to zoom quickly. Press the T
(telephoto) side of the button to zoom in, and
the W (wide angle) side to zoom out.
Installing batteries
Two R6 (size AA) batteries (not supplied)
PAN/TILT buttons
Press the arrow buttons to perform panning and
tilting. Press the HOME button to face the
camera back to the front. When the menu is
displayed, use V or v to select the menu items
and B or b to change the set values.
Caution To avoid risk of explosion, use R6 (size AA)
manganese or alkaline batteries.
Remote Operation
31
7.2 RM-BR300 Remote Control Unit
7.2.1 Features
Improvement of joystick operation
(BRC-H900/BRC-H700/BRC-Z700/BRC-Z330/BRC-300/300P)
Effective control of up to seven
cameras
The RM-BR300 Remote Control Unit achieves
remote operation of up to seven cameras in a
daisy-chain configuration, allowing only one
operator to manage multiple camera systems.
Various Camera Presets
Various camera settings can be adjusted within
the menu. The BRC-H900/BRC-H700/BRC-Z700/
BRC-Z330 have sixteen presets each and the
BRC-300/300P has six presets to which predefined P/T/Z positions and other various
camera settings can be allocated.
RS-232C/RS-422 Interface
RS-422 cables as well as a supplied RS-232C
cable are available to connect the camera to
an optical multiplex unit for long-distance
operation.
TALLY/CONTACT selector
If you select TALLY on the TALLY/CONTACT
selector, you can control the camera selected
by the switcher. If you select CONTACT on the
TALLY/CONTACT selector, you can operate the
camera selected by the RM-BR300 Remote
Control Unit. By selecting CONTACT (TALLY) on
the TALLY/CONTACT selector, you can control
the camera selected by the switcher and also
light the camera tally.
In addition to the features mentioned in 7.2.1, the
following features are now available.
Improved functionality with the
RM-BR300/4
Model Name
Destination
Serial No.
UC7
110001-
RM-BR300/4 Remote Control Unit
J1
310001-
RM-BR300/4 Remote Control Unit
CE3
410001-
RM-BR300/4 Remote Control Unit
The following features can be achieved with the
RM-BR300/4 and after.
32
Remote Operation
The pan/tilt speed can be adjusted in seven
levels by inclining the joystick to its maximum
angle, and pan/tilt operation can be
controlled easily at low speed. Only the
maximum pan/tilt speed can be set with the
previous version.
To select a speed level, hold down the SHIFT
button and PAN/TILT RESET button at the same
time for a few seconds, and the CAMERA switch
lamp on the RM-BR300 starts to flash. Select
between 1 and 7: 1 for the lowest speed and 7
is for the highest speed.
Addition of Bright Volume Control mode
(BRC-H900/BRC-H700/BRC-Z700/BRC-Z330)
Iris can be controlled independently in Bright
Volume Control mode, selected with a DIP
Switch(3) on the bottom of the RM-BR300/4. Iris
and Gain can be adjusted in combination with
the previous version of the RM-BR300.
Improved Pan/Tilt joystick operation
(BRC-H900/BRC-Z700/BRC-Z330)
• Shortens the time lag of the Pan/Tilt joystick.
• Enables fine direction control by the Pan/Tilt
joystick.
Improved AF operation
(BRC-H900/BRC-Z700/BRC-Z330)
While one object is in focus, you can get the
next object (Far/Near) into focus by adjusting
the Focus Volume (Far/Near), when AF and AF
Assist are set to ON.
Improved Color Shift operation
(BRC-H900/BRC-Z700/BRC-Z330)
R and B can be adjusted separately with R/B
Gain Volume when in AWB mode.
Improved Focus Volume operation
(BRC-H900/BRC-Z700/BRC-Z330)
You can adjust to focus another subject in a
forward or backward location with the FOCUS
control when AF MODE is AUTO and AF ASSIST is
on.
2. Set the Tally/Contact switch to Tally
Improved functionality with the
RM-BR300/5
Model Name
Destination
Serial No.
RM-BR300/5 Remote Control Unit
UC7
120001-
RM-BR300/5 Remote Control Unit
J1
320001-
RM-BR300/5 Remote Control Unit
CE3
420001-
3. P
ress the On/Off switch to turn on the unit,
while simultaneously holding down the
Mode button, Camera button 4, and
Position button 4
The following feature can be achieved with the
RM-BR300/5 and after.
ON-Air Tally Mode
On-Air Tally Mode is newly incorporated to the
RM-BR300/5. You can set the On-Air Tally Mode
by taking the following steps:
1. Press the On/Off switch to turn off the
RM-BR300/5
When On-Air Tally Mode is selected, the tally
lamp of the camera lights up depending on
the selected port of the Tally/Contact connector
on the RM-BR300/5, regardless of the camera
selection on the RM-BR300/5. For example, if
you press camera 1 on the switcher, camera 4
on the RM-BR300/5 remains unchanged. This is
because the switcher and the RM-BR300/5
operate independently in this mode.
The tally lamp of camera 1 will light up, and
camera 4 will remain controllable.
VISCA
Tally out
Tally/Contact
1 2 34 5 6 7
1 2 34 5 6 78
RM-BR300/5
Camera 1: Controllable
Camera 1
Camera 2
Tally lamp is on
Camera is controllable
Switcher
Camera 1: Tally on
Camera 3
Camera 4
Tally lamp is off
Camera is controllable
7.2.2 Operation
The following information enables easy camera system operation with the benefit of functions such as
pan/tilt/zoom operation, preset memory, and more.
Note Before operating, check that the camera, the
RM-BR300 Remote Control Unit, and peripheral devices are properly installed and connected.
Turning on the power
1 Connect the camera to an AC outlet using the
1 2
RESET
PANEL LIGHT
supplied AC power adaptor and power cord.
When the power is turned on, the POWER lamp
lights. The camera will automatically pan and tilt,
and be reset to the position stored in POSITION 1
(Pan/Tilt Reset action).
2 Press the ON/OFF switch on the RM-BR300
Remote Control Unit to turn it on.
3 Turn on the peripheral devices.
POWER
CAMERA
Remote Operation
33
Note Be sure to turn on the power of the camera before
the power of the RM-BR300 Remote Control Unit.
Otherwise, the RM-BR300 cannot recognize the
connected camera.
Camera 01234567
address
Switch 1
OFFONOFFONOFFONOFFON
Switch 2OFFOFF ON ON OFFOFF ON ON
To turn on/off the camera using the
RM-BR300 Remote Control Unit
While holding down the POWER button, press the
CAMERA button corresponding to the required
camera. When you turn the power off using the
RM-BR300 Remote Control Unit, the POWER lamp
turns off and the STANDBY lamp lights on the
camera.
STANDBY lights.
To illuminate the panel of the RM-BR300
Remote Control Unit
Press the PANEL LIGHT button.
Operating multiple cameras
To assign camera addresses automatically:
1 Make sure that the camera address selector on
the bottom of each camera is set to 0.
2 Turn on the power of all the connected cameras
Switch 3
OFFOFFOFFOFFON ON ON ON
Switch 4 is not used.
Pan/tilt/zoom operation
L/R DIRECTION
1 STD
POWER
REV
PAN-TILT RESET
2
3
1 Press the CAMERA button corresponding to the
camera you want to operate.
2 Operate the joystick to pan or tilt the camera.
While checking the picture on the screen, incline
the joystick in the desired direction.
The panning/tilting speed changes according
to the angle at which you incline the joystick.
Release the joystick to stop panning/tilting.
To return the camera to facing forwards
Press the button on top of the joystick for one or
two seconds.
Press for 1 or 2 seconds.
and the RM-BR300 Remote Control Unit.
3 Hold down the RESET button and press the
POWER button on the RM-BR300. The RM-BR300
recognizes the connected cameras and assigns
them camera addresses, 1 to 7, automatically in
the connected order.
4 To confirm, press the POWER button on the
RM-BR300 and check that the CAMERA buttons
light.
To assign camera addresses manually
Set one of the camera addresses, 1 to 7, using the
camera address selectors on the bottom of each
camera.
Camera address selectors
Set the address of the camera. This is normally set
to 0. With this setting, addresses are assigned to
the cameras automatically in the connected order
by pressing the POWER button while holding down
the RESET button on the RM-BR300 Remote Control
Unit. You can assign the camera address, 1 to 7,
manually by setting these selectors as follows:
34
Remote Operation
If you accidentally move the camera with
your hand
Press the PAN/TILT RESET button to perform the
Pan/Tilt Reset action.
If the camera moves in a different direction
from that you intended
The camera is preset to face towards the right
whenever the joystick is inclined to the right. You
might wish to face the camera towards a direction
that is opposite to the direction you inclined the
joystick. For example, you may want to change the
direction of the camera while checking the picture
on the screen. In this case, press the POSITION 2
(REV) button while holding down the L/R
DIRECTION button. To reset the setting, press the
POSITION 1 (STD) button while holding down the
L/R DIRECTION button.
Joystick
Movement of the
camera
Setting
Adjusting the camera
MODE
While holding down
Incline to the right.
SHIFT
VALUE/R
ONE PUSH AWB
BACK LIGHT
Press.
While holding down
Incline to the right.
FOCUS
BRIGHT/B
AUTO/MANUAL
ONE PUSH AF
Focusing on a subject
Press.
Note The setting above only changes the signal emitted
from the RM-BR300 Remote Control Unit, and does
not change any camera settings.
To focus the camera on a subjec
automatically
Press the AUTO/MANUAL button so that the AUTO
Indicator lights.
Note
If the STANDBY lamp of the camera flashes
When the camera is moved or turned by hand or
by external shock, the microcomputer inside the
camera my not be able to memorize the pan/tilt
position properly. To reset the pan/tilt position,
press the PAN/TILT RESET button.
The camera focuses on the subject in the center of
the screen automatically.
To focus the camera on a subject manually
Press the AUTO/MANUAL button so that the
MANUAL Indicator lights. Then turn the FOCUS
control clockwise or counterclockwise to make the
camera focus on the subject.
Focusing on a near
subject
Focusing on a far
subject
STANDBY flashes.
One-push auto focusing during manual
focus adjustment
Zooming
Turn the dial on the upper part of the joystick.
Subject appears
farther away.
(Wide angle)
Subject appears
closer. (Telephoto)
Note When you perform a pan/tilt operation with a
camera in Telephoto mode, the screen image may
move at an uneven speed.
Press the ONE PUSH AF button. The camera focuses
on the subject in the center of the screen
automatically.
Backlight Compensation function
When you shoot a subject with a light source
behind it, press the BACK LIGHT button. To cancel
this function, press the BACK LIGHT button again.
Note
The Backlight Compensation function is not effective
if the mode is set to MANUAL in the camera’s
EXPOSURE menu.
Remote Operation
35
Spotlight Compensation function
Hold down the SHIFT button and press the BACK
LIGHT button. To cancel this function, hold down
the SHIFT button and press the BACK LIGHT button
again.
Note The Backlight and Spotlight Compensation functions
cannot be used simultaneously.
BRC-Z700
WHITE BALANCE setting
MANUAL
AUTO 1/2, ONE PUSH
Note Before adjusting the white balance, shoot a white
object under the same lighting conditions as the
subject you want to shoot, and zoom it in on the
screen. (You can use a white wall, etc., instead of the
object.)
To adjust the white balance automatically
1 Set White Balance to ONE PUSH in the camera’s
COLOR menu.
2 Press the ONE PUSH AWB button. The white
balance is adjusted automatically.
B control
Blue gain control
WB R. SHIFT control WB B. SHIFT control
BRC-Z330
WHITE BALANCE setting
MANUAL
AUTO 1/2, ONE PUSH
Adjusting the white balance
R control
Red gain control
R control
B control
Red gain control
Blue gain control
WB R. SHIFT control WB B. SHIFT control
Adjusting the brightness
1 Set the mode to SHUTTER Pri, IRIS Pri, GAIN Pri, or
MANUAL in the camera’s EXPOSURE menu.
2 Press the MODE button so that the VALUE and
BRIGHT indicators on the VALUE/R and BRIGHT/B
controls light (Brightness Adjustment mode).
3 Adjust the brightness with the VALUE/R or
BRIGHT/B control.
To adjust the white balance manually
1 Set White Balance to MANUAL in the camera’s
Turn toward – for darkening
the picture by changing
shutter speed, gain level or
F-number.
Turn toward + for brightening
the picture by changing
shutte speed, gain level or
F- number.
COLOR menu.
2 Press the MODE button so that the R and B
indicators on the VALUE/R and BRIGHT/B controls
light (White Balance Adjustment mode).
3 Adjust the red gain with the R control and the
blue gain with the B control.
Turn toward + for
emphasizing red.
Turn toward – for
weakening blue.
Turn toward + for
emphasizing blue.
Functions of the R and B controls
When White Balance Adjustment mode is selected
with the MODE button on the RM-BR300 Remote
Control Unit, the functions of the R control and B
control change according to the White Balance
setting in the camera’s COLOR menu.
BRC-H900
MANUAL
AUTO 1/2, ONE PUSH
R control
B control
Red gain control
Blue gain control
WB R. SHIFT control WB B. SHIFT control
BRC-H700
WHITE BALANCE setting
Turn toward + for brightening
the picture by changing
exposure compensation level,
F- number or gain level.
Functions of the VALUE and BRIGHT controls
Turn toward – for
weakening red.
WHITE BALANCE setting
Turn toward – for darkening
the picture by changing
exposure compensation level,
F-number or gain level.
R control
B control
MANUAL
Red gain control
Blue gain control
AUTO, ONE PUSH
WB SHIFT control
WB SHIFT control
The functions of the VALUE control and the BRIGHT
control change according to the mode setting in
the EXPOSURE menu, as follows:
BRC-H900
MODE setting
Function of
VALUE control
Function of
BRIGHT control
FULL AUTO
Not used
Exposure compensation
level control*
SHUTTER Priority
Shutter speed control
Exposure compensation
level control*
IRIS
Priority
F-number control
Exposure compensation
level control*
GAIN
Priority
Gain control
Exposure compensation
level control*
MANUAL
Shutter speed control
•F-number and gain
controls (when the DIP
switch 3 at the bottom of
the Remote Control Unit is
set to ON)
•F-number control (when
the DIP switch 3 at the
bottom of the Remote
Control Unit is set to OFF)
* When EX-COMP is ON in the EXPOSURE menu.
36
Remote Operation
BRC-H700
MODE setting
BRC-Z330
Function of
VALUE control
Function of
BRIGHT control
MODE setting
FULL AUTO
Not used
Exposure compensation
level control*
FULL AUTO
Not used
Exposure compensation
level control*
SHUTTER Priority
Shutter speed control
Exposure compensation
level control*
SHUTTER Priority
Shutter speed control
Exposure compensation
level control*
IRIS
Priority
F-number control
Exposure compensation
level control*
IRIS
Priority
F-number control
Exposure compensation
level control*
GAIN Priority
Gain control
Not used
MANUAL
Shutter speed control
F-number and gain
control
GAIN
Priority
Gain control
Exposure compensation
level control*
MANUAL
Shutter speed control
•F-number and gain
controls (when the DIP
switch 3 at the bottom of
the Remote Control Unit is
set to ON)
* When EX-COMP is ON in the EXPOSURE menu.
BRC-Z700
MODE setting
Function of
VALUE control
Function of
BRIGHT control
FULL AUTO
Not used
Exposure compensation
level control*
SHUTTER Priority
Shutter speed control
Exposure compensation
level control*
IRIS
Priority
F-number control
Exposure compensation
level control*
GAIN
Priority
Gain control
Exposure compensation
level control*
MANUAL
Shutter speed control
•F-number and gain
controls (when the DIP
switch 3 at the bottom of
the Remote Control Unit is
set to ON)
Function of
VALUE control
Function of
BRIGHT control
•F-number control (when
the DIP switch 3 at the
bottom of the Remote
Control Unit is set to OFF)
* When EX-COMP is ON in the EXPOSURE menu.
•F-number control (when
the DIP switch 3 at the
bottom of the Remote
Control Unit is set to OFF)
* When EX-COMP is ON in the EXPOSURE menu.
BRC-300/300P
MODE setting
Function of
VALUE control
Function of
BRIGHT control
FULL AUTO
Not used
Exposure compensation
level control*
SHUTTER Priority
Exposure compensation
level control*
Shutter speed control
IRIS
Iris control
Priority Exposure compensation
level control*
BRIGHT
Not used
Brightness level control
MANUAL
Shutter speed control
Iris control
* When EX-COMP is ON in the EXPOSURE menu.
Remote Operation
37
Storing the Camera Setting in
Memory
While holding down (for POSITION 1 to 8)
Press a POSITION button.
Storing camera settings:
Memory Preset feature
To store the camera settings
Lights for positions 1 to 8.
Lights for positions 9 to 16.
RESET
4
Note Important note:
• When the power is turned on, the camera starts
with the settings stored in POSITION 1.
• If you want to retain the previous pan and tilt
position when the power is turned off and turned
on again, store those positions in POSITION 1.
• When you are storing or canceling the settings in
one position, you cannot call up, store or cancel
the settings in another position.
1
camera.
2 Press the PAN/TILT RESET button to reset the pan/
tilt position.
3 Adjust the position, zooming, focusing, and
backlighting of the selected camera.
4 While holding down the PRESET button (for
positions 1 to 8) or the SHIFT and PRESET buttons
(for positions 9 to 16), press any of the POSITION
buttons in which you want to store settings.
While holding down (for POSITION 1 to 8)
Press a POSITION button.
While holding down (for POSITION 9 to 16)
Settings are stored in the memory of the camera.
The pressed button flashes during storing. Flashing stops when storing is completed.
To recall the stored settings
Press any of the POSITION buttons in which you
have stored the settings. For positions 9 to 16, hold
down the SHIFT button and press any of the
POSITION buttons.
To cancel the preset memory
While holding down the RESET button (for positions
1 to 8) or the SHIFT and RESET buttons (for positions
9 to 16), press the POSITION button from which you
want to cancel the settings.
Remote Operation
The pressed button flashes while settings are
being cancelled. Flashing stops when the
settings have been canceled.
4 2
1 Press the CAMERA button to select the required
38
While holding down (for POSITION 9 to 16)
Setting the speed of the camera
moving to a preset position
You can select the panning/tilting speed when
the camera moves to a preset position.
1 Press the CAMERA button to select the required
camera.
2 Press the POSITION button for which you want to
set the speed for more than one second. All of
the CAMERA buttons, 1 to 7, flash.
3 Press one of the CAMERA buttons to select the
speed.
CAMERA button
Panning/tilting speed
1
1 degree/sec.
2
2.2 degree/sec.
3
4.8 degree/sec.
4
11 degree/sec.
5
23.3 degree/sec.
6
43 degree/sec.
7
60 degrees/sec. (default)
Now the camera will move to the position preset
to the pressed POSITION button with the selected
speed.
To set the speed of the camera moving to a
preset position between 9 and 16
Hold down the SHIFT button and press the
corresponding POSITION button for more than one
second. The POSITION 1 to 8 buttons can be used
for positions 9 to 16.
Preset memory
General presetting items
(BRC-H900)
The following setting items can be stored in the
memory of the camera.
:Setting items are stored in memory. When the
power is turned on, the camera starts with
these settings.
:Setting items are stored in memory. Recall the
settings by selecting the preset number.
:Setting items are stored in memory. Because
only one memory is available for this item, the
last preset setting is stored regardless of the
preset number, and recalled when the power
is turned on. This setting cannot be reset.
When the item setting is changed, the new
setting is applied, even if the preset is recalled.
:Setting items are stored in memory. When the
power is turned on, the camera starts with
these settings. This setting cannot be reset by
pressing the RESET button. When the item
setting is changed, the new setting is applied,
even if the preset is recalled.
:Setting items are not stored.
Presetting item
Presetting position number
1
2 – 16
Pan/tilt position
ZOOM position
FOCUS position (only when MODE in the
EXPOSURE menu set to MANUAL)
Presetting menu items
Presetting item
Presetting position number
1
2 – 16
EXPOSURE MODE
AE SPEED
AE LEVEL
AGC
AGC LIMIT
AGC POINT
AUTO SHUTTER
SHUTTER LIMIT
SHUTTER POINT
GAIN
(only when MODE in the EXPOSURE menu
set to MANUAL)
SHUTTER
(only when MODE in the EXPOSURE menu
set to MANUAL)
IRIS
(only when MODE in the EXPOSURE menu
set to MANUAL)
SHUTTER
(only when MODE in the EXPOSURE menu
set to SHUTTER Pri)
IRIS
(only when MODE in the EXPOSURE menu
set to IRIS Pri)
WHITE BALANCE MODE
SPEED
OFFSET
MATRIX
SELECT
LEVEL (MATRIX)
PHASE
R-G
R-B
G-R
G-B
B-R
B-G
R.GAIN
(only when MODE in the EXPOSURE menu
set to MANUAL)
B.GAIN
(only when MODE in the EXPOSURE menu
set to MANUAL)
DETAIL SETTING
LEVEL (DETAIL)
FREQUENCY
CRISPENING
H/V RATIO
WHITE LIMITER
BLACK LIMITER
V DTL CREATION
KNEE APT LEVEL
COLOR DETAIL SETTING
LEVEL (COLOR DETAIL)
Remote Operation
39
Presetting item
AREA INDICATION
Presetting position number
1
2 – 16
–*1
Presetting menu items while the Interface
Card is inserted into BRU-SF10 connected
with the camera
SATURATION
Presetting item
PHASE
WIDTH
Menu items displayed only when the
HFBK-SA1 is installed
DSUB OUTPUT 1
KNEE SETTING
AUTO KNEE
POINT
SLOPE
GAMMA SELECT
LEVEL (GAMMA)
BLACK
1
2 – 16
–
ADD SYNC
–
DSUB OUTPUT 2
–
IMG SIZE*1
SETUP
(not available for 50i output signal)
Menu items displayed only when the
HFBK-HSD2 is installed
IMG SIZE*1
KNEE SAT LEVEL
Presetting position number
–
–
–
BLACK GAMMA
FLICKER CANCEL MODE
FREQUENCY
FOCUS MODE
PAN LIMIT
–
LEFT
–
RIGHT
–
TILT LIMIT
–
DOWN
–
UP
–
RAMP CURVE
–
IR RECEIVE
–
IMG FLIP*2
–
PAN REVERSE
–
TILT REVERSE
–
DISPLAY INFO
–
SYNC MASTER
–
HPHASE
–
HPHASE FINE
–
–
STEADY SHOT
COLOR BAR
–*1
TALLY MODE
–
FORMAT (HD OUTPUT)
–
ADD SYNC
–
SYNC TYPE
–
IMG SIZE (SD OUTPUT)
–
SETUP*3 (SD OUTPUT)
–
Note *1The item is set to OFF automatically when the
power is turned off and on again even if the item
is set to ON while you preset.
*2The current setting of IMG FLIP is recalled regardless of presetting operations.
*3The item cannot be stored for 1080/50i or 720/50p
output signal.
40
Remote Operation
Note *1When installed in the BRC-H900 and in use, the
IMG SIZE setting is linked with the VIDEO OUT
setting.
When two BRBK-SA1 cards are installed in the
BRU-SF10, or when a BRBK-SA1 and BRBK-HSD2 are
used as SD-SDI, the IMG SIZE settings for both
option cards are linked. When two BRBK-HSD2
cards are installed in the BRU-SF10, or when a
BRBK-SA1 and BRBK-HSD2 are used as SD-SDI, the
IMG SIZE settings for both option cards are linked.
Preset memory
(BRC-H700, BRC-Z700, BRC-Z330, BRC-300/300P)
Preset Memory 1: All of the configurations can be
stored.
Preset Memory 2 to 16: Frequently-changed
configurations can be stored.
Infrequently-changed configurations cannot be
stored.
Note Before you turn off the camera, you might want to
save various camera settings in Preset Memory 1.
Otherwise, the camera start operating with the
factory settings.
Category Mode/
Position
Pan/Tilt
Zoom
Focus
WB
Color
EXPOSURE
BRC-H700
BRC-Z700
BRC-Z330
BRC-300
BRC-300P
Yes
Category Mode/
Position
BRC-H700
BRC-Z700
BRC-Z330
—
BRC-300
BRC-300P
Yes
Pan/Tilt position
Yes
Yes
Yes
Effect Mode
—
—
Pan limit position
Yes
Yes
Yes
Yes
Wide
—
—
—
Yes
Tilt limit position
Yes
Yes
Yes
Yes
Aperture (Detail)
Yes
Yes
Yes
Yes
Ramp Curve
Yes
Yes
Yes
—
B&W
Yes
Yes
Yes
—
Zoom position
Yes
Yes
Yes
Yes
Skintone detail
Yes
—
—
—
Digital zoom limit
Yes
Yes
Yes
Yes
Gamma
Yes
Yes
Yes
—
auto/manual
Yes
Yes
Yes
Yes
Flicker cancel
Yes
Yes
Yes
—
normal/interval/
zoom trig
—
—
—
Yes
Steady shot
Yes
Yes
—
—
Color bar
No
No
No
—
near limit
—
Yes
Yes
—
Color detail mode
—
Yes*2
Yes*2
—
Color detail phase
—
Yes
Yes
—
Data mix
—
—
—
Yes
Ir receive
Yes
Yes
Yes
Yes
Img flip
Yes
Yes
Yes
Yes
Pan reverse
Yes
Yes
Yes
Yes
Tilt reverse
Yes
Yes
Yes
Yes
Display info
Yes
Yes
Yes
Yes
Analog out
Yes
Yes
Yes
—
Add sync
Yes
Yes
Yes
—
Sync type
Yes
Yes
Yes
—
Sync master
Yes
Yes
Yes
—
H phase
—
Yes
Yes
—
Output 1
—
—
—
Yes
Sync (Output 1)
—
—
—
Yes
Output 2
—
—
—
Yes
D-Sub out 1
Yes
Yes
—
—
Yes
Yes
—
—
—
af assist
—
Yes
Yes
—
WB mode
Yes
Yes
Yes
Yes
Auto WB Sense
Yes
Yes
Yes
—
Auto WB Shift
Yes
Yes
Yes
—
One Push WB Shift
Yes
Yes
Yes
—
Manual WB R Gain
Yes
Yes
Yes
Yes
Manual WB B Gain
Yes
Yes
Yes
Yes
Gain
Yes
Yes
Yes
—
Hue
Yes
—
Yes
—
Color matrix
—
Yes
Yes
—
R.enhance
—
Yes
Yes
—
G.enhance
—
Yes
Yes
—
B.enhance
—
Yes
Yes
—
YL.enhance
—
Yes
Yes
—
CY.enhance
—
Yes
Yes
—
MG.enhance
—
Yes
Yes
—
Mode
Yes
Yes
Yes
Yes
AE Speed
(Full Auto)
Yes
Yes
Yes
—
AGC limit
(Full Auto)
Yes
Yes
Yes
—
Iris limit (Full Auto)
Yes
Yes
Yes
—
Gain (Manual)
Yes
Yes
Yes
Yes
Gain (Gain Pri)
Yes
Yes
Yes
—
Shutter (Manual)
Yes
Yes
Yes
Yes
Shutter
(Shutter Pri)
Yes
Yes
Yes
Yes
Iris (Manual)
Yes
Yes
Yes
Yes
Iris (Iris Pri)
Yes
Yes
Yes
Yes
Bright level
—
—
—
Yes
Yes
Back light
Yes
Yes
Yes
Spot light
Yes
Yes
Yes
—
Ex-comp mode
Yes
Yes
Yes
Yes
Ex-comp level
Yes
Yes
Yes
Yes
Spot AE
—
—
—
Yes
Color AE
—
—
Yes
—
ND Filter
—
—
Yes
—
System
ANALOG
OUT*3
Add sync
DOWN
(D-sub out1)
CON*4
VERTER
D-Sub out 2
HD-SDI*5
Yes
Yes
—
Img-size
Yes
Yes
—
—
Analog out
Yes
Yes
—
—
Sync/vd
Yes
Yes
—
—
Add sync
Yes
Yes
—
—
Img size
Yes
Yes
—
—
Yes
Yes
—
—
Yes
Yes
—
—
PCSync
OUTPUT*6
Vd
HDV*7
Audio delay
Yes
Yes
—
—
SD-SDI*8
IMG-SIZE
—
Yes
—
—
Remote Operation
41
Category Mode/
Position
Pan/Tilt
Zoom
Focus
WB
Color
EXPOSURE
BRC-300
BRC-300P*1
Yes
BRC-H700
BRC-Z700
BRC-Z330
Pan/Tilt position
Yes
Yes
Yes
Pan limit position
No
No
No
No
Tilt limit position
No
No
No
Category Mode/
Position
BRC-300
BRC-300P*1
No
BRC-H700
BRC-Z700
BRC-Z330
Effect Mode
—
—
—
Wide
—
—
—
No
No
Aperture (Detail)
Yes
Yes
Yes
Yes
Ramp Curve
No
No
No
—
B&W
Yes
Yes
Yes
—
Zoom position
Yes
Yes
Yes
Yes
Skintone detail
Yes
—
—
—
Digital zoom limit
Yes
Yes
Yes
Yes
Gamma
Yes
Yes
Yes
—
auto/manual
Yes
Yes
Yes
Yes
Flicker cancel
Yes
Yes
Yes
—
Steady shot
Yes
Yes
—
—
Color bar
No
No
No
—
—
normal/interval/
zoom trig
—
—
—
—
near limit
—
Yes
Yes
—
Color detail mode
—
Yes*2
Yes*2
af assist
—
Yes
Yes
—
Color detail phase
—
Yes
Yes
—
WB mode
Yes
Yes
Yes
Yes
Data mix
—
—
—
No
Auto WB Sense
Yes
Yes
Yes
—
Ir receive
No
No
No
No
Auto WB Shift
Yes
Yes
Yes
—
Img flip
No
No
No
No
One Push WB Shift
Yes
Yes
Yes
—
Pan reverse
No
No
No
No
Manual WB R Gain
Yes
Yes
Yes
Yes
Tilt reverse
No
No
No
No
Manual WB B Gain
Yes
Yes
Yes
Yes
Display info
No
No
No
No
Gain
Yes
Yes
Yes
—
Analog out
No
No
No
—
Hue
Yes
—
Yes
—
Add sync
No
No
No
—
Color matrix
—
Yes
Yes
—
Sync type
No
No
No
—
R.enhance
—
Yes
Yes
—
Sync master
No
No
No
—
G.enhance
—
Yes
Yes
—
H phase
—
No
No
—
B.enhance
—
Yes
Yes
—
Output 1
—
—
—
No
YL.enhance
—
Yes
Yes
—
—
—
—
No
CY.enhance
—
Yes
Yes
—
—
—
—
No
MG.enhance
—
Yes
Yes
—
No
No
—
—
Mode
Yes
Yes
Yes
Yes
AE Speed
(Full Auto)
Yes
Yes
Yes
—
No
No
—
—
AGC limit
(Full Auto)
No
No
—
—
Yes
Yes
Yes
—
Img-size
No
No
—
—
Iris limit (Full Auto)
Yes
Yes
Yes
—
Analog out
No
No
—
—
Gain (Manual)
Yes
Yes
Yes
Yes
No
No
—
—
Gain (Gain Priority)
Yes
Yes
Yes
—
Add sync
No
No
—
—
Shutter (Manual)
Yes
Yes
Yes
Yes
Img size
No
No
—
—
Sync
No
No
—
—
Vd
No
No
—
—
Audio delay
No
No
—
—
—
No
—
—
System
ANALOG
Sync (Output 1)
OUT*3
Output 2
D-Sub out 1
DOWN Add sync
(D-sub out1)
CONVERTER*4 D-Sub out 2
HD-SDI*5 Sync/vd
Shutter
(Shutter Priority)
Yes
Yes
Yes
Yes
PCOUTPUT*6
Iris (Manual)
Yes
Yes
Yes
Yes
HDV*7
Iris (Iris Priority)
Yes
Yes
Yes
Yes
SD-SDI*8 IMG-SIZE
Bright level
—
—
—
Yes
Back light
Yes
Yes
Yes
Yes
Spot light
Yes
Yes
Yes
—
Ex-comp mode
Yes
Yes
Yes
Yes
Ex-comp level
Yes
Yes
Yes
Yes
Spot AE
—
—
—
No
Color AE
—
—
Yes
—
ND Filter
—
—
Yes
—
Note *1: For the BRC-300, the preset memories from 7 to 16 are not available.
*2: You cannot save ‘CHECK’ in color detail mode.
*3: This function is available when BRBK-301 is inserted to the BRC-300/300P or BRU-300/300P.
*4: This function is available when HFBK-SD1 is inserted to the BRC-H700 or the BRU-H700.
*5: This function is available when HFBK-HD1 is inserted to the BRC-H700 or the BRU-H700.
*6:This function is available when HFBK-XG1 is inserted to the BRC-H700 or the BRU-H700.
*7: This function is available when HFBK-TS1 is insereted to the BRC-H700 or the BRU-H700.
*8: This function is available when using the BRBK-HSD1 and the optional video card’s HD/SD switch is set to SD side.
42
Remote Operation
8
Operation with the RM-IP10 IP Remote
Controller
The BRC-H900, BRC-Z700 and BRC-Z330 can be controlled by the RM-IP10 IP Remote Controller.
8.1 Required Equipment
IP remote controller: RM-IP10
You can control up to 112 cameras that are compatible with IP connection, and you can add up to five IP remote controllers in the same
network.
The joystick of the IP remote controller allows comfortable pan/tilt and
zoom operations.
You can also select the RS-232C or RS-422 connection and operate up
to seven cameras.
Note Select the LAN, RS-232C or RS-422 connection. You cannot use multiple
communication methods simultaneously.
IP control card: BRBK-IP10 (for BRC-H900 or BRC-Z330)
By inserting this card into BRC-H900/Z330, the camera can use an IP
connection.
This card outputs an HD-SDI signal conforming to SMPTE 292 serial digital
interface standards, or outputs an SD-SDI signal conforming to SMPTE
259M serial digital interface standards. An audio signal is not output
from the card.
IP control card: BRBK-IP7Z (for BRC-Z700)
By inserting this card into BRC-Z700, the camera can use an IP connection.
This card outputs an HD-SDI signal conforming to SMPTE 292 serial digital
interface standards, or outputs an SD-SDI signal conforming to SMPTE
259M serial digital interface standards. An audio signal is not output
from the card.
Operation with the RM-IP10 IP Remote Controller
43
8.2 System Configuration
HD video monitor
Camera
BRC-H900, BRC-Z700,
BRC-Z330
IP control card
BRBK-IP10, BRBK-IP7Z
Camera
BRC-H900, BRC-Z700,
BRC-Z330
IP control card
BRBK-IP10, BRBK-IP7Z
Video switcher
Camera
BRC-H900, BRC-Z700,
BRC-Z330
*
IP control card
BRBK-IP10, BRBK-IP7Z
IP remote controller RM-IP10*
PC for the setting
Switching hub
IP remote controller RM-IP10*
Video signal
Remote control (LAN) signal
Tally/contact signal
,
Signal flow
*Connect the tally connector (outputs the camera number that is on-air) of the video switcher to the TALLY/CONTACT connector of RM-IP10. If there are multiple RM-IP10s, connect the same signal to all the TALLY/CONTACT connectors. In this case, set the
TALLY/CONTACT switch (DIP 1 switch 4 and 5) to the ON AIR TALLY mode for all RM-IP10s. When a camera is on-air, the CAMERA
button on RM-IP10 lights in red. (This function will be supported by version 2.0 or later).
For details of connection and settings, refer to the operating instructions of the IP remote controller.
Note • You cannot use the RS-232C and RS-422 connections when using the IP connection. When BRBK-IP10/IP7Z is attached
to the camera, the RS-232C/RS-422 connector does not work.
• When outputting an HD-SDI signal from BRBK-IP7Z, the signal delays about 4H in comparison with a Y/Pb/Pr or RGB
signal that is output from the camera.
44
Operation with the RM-IP10 IP Remote Controller
9
Operation with the BRS-200 Remote
Camera Operating Switcher
The BRC Series can be remotely controlled by the BRS-200 Remote Camera Operating Switcher.
Note Connection with the BRC-H900 is not guaranteed to operate.
9.1 System Configuration
BRC-series cameras with the HD-SDI
output card attached
Monitor for the multi-viewer
display (LMD-series monitor, etc.)
+
–
+
–
+
–
+
–
+
–
+
–
SDI IN 3
DVI-I OUT
SDI IN 2
ON
OFF
POWER
Control cable
(supplied)
SDI
7
8
9
4
5
6
1
2
3
0
.
FOCUS
BRIGHT
F1
CAM
ZOOM
F2
PGM1
PAN/TILT
F3
F4
CAM
SW
CAMERA
DSK
AUTO
DSK/AUX
N/R
PGM
1
2
3
4
5
6
7
8
9
10
11
12
NEXT
1
2
3
4
5
6
7
8
9
10
11
12
PIP
AUTO
REV
MX
WIPE
AUTO
TRANS
CUT
Recorder
(HVR-1500A, etc.)
HD-SDI cable
DVI cable
RS-232C/RS422 VISCA cable
9.2 CAM mode/Switcher mode
CAM mode: Camera menu selection
CAM mode: Position presets, Recall
SW mode: P in P position selection
SW mode: Snapshot presets, Recall
CAM mode: Camera selection
CAM mode: PGM/NEXT bus control
CAM mode: PTZ control
SW mode: DSK/AUX bus selection
SW mode: PGM/NEXT bus control
SW mode: P in P position/Size selection
Operation with the BRS-200 Remote Camera Operating Switcher
45
9.3 Connecting the BRC Series with the BRS-200 (RS-422)
Up to seven cameras of the BRC Series can be connected to the BRS-200. This connection is one example
using the RS-422 connection.
BRSA-20HSD1 HD/SD-SDI input board
(not supplied)
IN1
5
1
6
2
7
SDI IN
3
SDI IN
8
4
IN2
PGM1
OUT
PGM2
AUX1
AUX2
GPI I/O
~AC IN
DVI-I OUT
PANEL
LAN(10/100)
REMOTE
REF IN
REF OUT
GENLOCK
SDI OUT
RS-232C
RS-422
VISCA
to SDI IN 1 to 4
VISCA RS-422
connector plug
(supplied)
First camera
VISCA RS-422 connecting
cable
to VISCA RS-422
HD/SD-SDI
output card
to SDI OUTPUT
to AC power adaptor
to VISCA RS-422
VISCA RS-422 connecting cable
to VISCA RS-422
Second camera
to AC power adaptor
to VISCA RS-422
to SDI OUTPUT
VISCA RS-422 connecting cable
to VISCA RS-422
Third camera
to SDI OUTPUT
46
Operation with the BRS-200 Remote Camera Operating Switcher
to AC power adaptor
10
Operation with the AWS-G500 Series
Anycast Station
The BRC Series can be remotely controlled by the AWS-G500 Series Anycast Station.
Note Connection with the BRC-H900 is not guaranteed to operate.
10.1 C
ontrolling cameras with the AWS-G500 Series
Anycast Station
You can set and select a maximum of six camera presets, such as the Pan, Tilt, Zoom, and Focus settings, and
more. For the BRC-H700, the BRC-Z700, and the BRC-Z330, preset positions from 7 to 16 are not available.
Move the positioner for pan (which moves the camera
shooting direction horizontally) control and tilt (which
moves the camera shooting direction vertically) control.
Hold down the SHIFT button and turn the jog dial to adjust
the iris (aperture). Turning clockwise opens the iris, and
turning counterclockwise stops down the iris (when setting
manually).
Turn the jog dial to adjust the focus. Turning clockwise
focuses further away and turning counterclockwise focuses
closer (when setting manually).
Turn the shuttle dial to control the zoom. Turning clockwise
zooms in (telephoto) and turning counterclockwise zooms out
(wide angle)
Note The camera number selected by the AWS-G500
Series Anycast Station does not correspond to the
camera number assigned manually by DIP switches.
Live Event Venue with Dual Screen
Streaming
Projector
BRBK-HSD1/
BRBK-HD2
Wireless Microphone
D-Sub
15pin
BRC-Z700/
BRC-Z330
HD-SDI
D-Sub
15pin
VISCA
HFBK-HD1
HD-SDI
BRC-H700
BKAW550
PC for presentation
Projector
Anycast StationTMHD System
AWS-G500 Series
www.sony.com/anycaststation
HD-SD1
Audio
Live-in
HVR-1500A
PMW-EX30
RGB I/F Module
Wireless Microphone Tuner
For more detailed information, please refer to the operation manual of the AWS-G500 Series
Operation with the AWS-G500/G500HD Anycast Station
47
System Configuration
HD-SDI
HVR-1500A
1
HD-SDI
u
x
z
PMW-EX30
1
HD-SDI
HD-SDI
u
x
z
PMW-EX30
Remote Camera
(BRC Series)
HD-SDI
RS232C/RS422
RM-BR300
Remote Control Unit
HVR-1500A
*For the connection between QWS-G500HD and the RM-BR300. please refer to 9.3.
10.2 Controlling the camera with VISCA support
Color video camera
BRC-H700, BRC-Z700,
BRC-Z330, BRC-300
VISCA OUT
VISCA IN
VIDEO OUT
BNC
cable
VISCA cable
Note When connecting a BRC-300/300P camera, connect to the DV, RGB, and SDI input connectors in accordance with the
camera’s option board.
When an HD Video Interface module is Connected (BRC-H700, BRC-Z700/BRC-Z330)
VISCA OUT
VISCA IN
VIDEO OUT
VISCA cable
To VISCA
connector
HD
RGB
cable
To HD analog
input
connector
To HD analog
input connector
Note • VISCA cables up to 15 m (50 ft) are recommended to operate correctly.
• When connecting a BRC-H700/BRC-Z700/BRC-Z330 camera, connect to the RGB, SDI, and HD analog input connectors
in accordance with the camera’s option board.
48
Operation with the AWS-G500/G500HD Anycast Station
10.3 O
perating the PGM and NEXT Selection buttons from
the RM-BR300
When you connect the RM-BR300 to the FACTORY USE connector on the AWS-G500, you can
perform switching for the PGM and NEXT selection buttons from the RM-BR300.
Refer to the following diagram to prepare the cables.
Sample Circuit diagram
TALLY/CONTACT connector
FACTORY USE connector
Open-collector output
TTL output
For details, consult your dealer or your Sony service representative.
Caution • Pull-up of all signal lines is necessary.
• Set TRIGGER to LOW LEVEL (this section is made in Remote Switching in the Video utility)
• On the RM-BR300, set the TALLY/CONTACT switch to CONTACT.
1 Connect the RM-BR300 to the FACTORY USE
connector.
2 Press the MENU button.
3 In the top menu, select [Video Utility]
4 (1) select [Remote Switching], and confirm;
(2) select the buttons to be controlled by the
RM-BR300, and confirm.
(1)
(2)
Caution Connect the RM-BR300 before configuring this
setting.
Note When [Remote Switching] is
enables, the following icon
appears.
Example: When [PGM] is
selected.
Icon
5 (1) Select [Trigger], and confirm;
(2) select an input level, and confirm.
(1)
(2)
The functions of the setting items are as follows.
[Off]: Disables switching from the RM-BR300.
The functions of the setting items are as follows.
[PGM]: Enables switching operations for PGM
selection buttons 1 to 6 from the RM-BR300.
[Low Level]: Triggers remote switching when input
levels become low.
[NEXT]: Enables switching operations for NEXT
selection buttons 1 to 6 from the RM-BR300.
Use this to perform VISCA camera control.
When the KEY button is lit, you can make
key source selections.
[High Level]: Triggers remote switching when input
levels become high.
6 Press the MENU button to close the menu.
Operation with the AWS-G500/G500HD Anycast Station
49
11
Using the BRC Series Cameras as a Second Camera
for the Sony Video Conferencing Systems
Using the BRC Series Cameras as a Second
Camera for the PCS-XG100/PCS-XG77 Video
Conferencing Systems
Select “DVI-I 1” in “Second Camera Input" of the
Camera setup menu.
To switch the picture shot by two cameras
You can connect the BRC-H900/BRC-H700/
BRC-Z700/BRC-Z330 to the PCS-XG100/PCS-XG77.
When the camera input selection is available, the
instruction “F2: Switches to the first camera.” Or “F2:
Switches to the second camera.” is displayed at
the bottom of the monitor screen. Each press of
the F2 button on the Remote commander
changes the picture shot by each camera.
Connection example for a second camera
Connect the video output connector on the
BRC-H900/BRC-H700/BRC-Z700/BRC-Z330 to the
“DVI-I 1” on the Codec unit using conversion cable.
Note PCS-XG80 and PCS-XG55 support BRC-H700/
BRC-Z700/BRC-Z330 as a second camera.
First camera
BRC-H900/BRC-H700/
BRC-Z700/BRC-Z330
VISCA cable (not supplied)
<Rear side>
to VISCA OUT
to VISCA IN
to Video
output
(YPbPr)
to VIDEO OUT,
VISCA IN,
DC IN
to CAMERA
Conversion cable (not supplied)
to DVI-I 1 IN
CAMERA
DVI-I 1
MIC(A1)
DVI-I 2(PC)
HDMI
I
N
1(R)
2(R)
3(R)
4(L)
5(L)
6(L)
R
L
AUDIO 1 IN
O
U
T
HDMI-2
DVI-I OUT
2
ISDN UNIT
<Rear side>
1080 60P
ONLINE
PCS-XG100/PCS-XG77
50
L
R
AUDIO OUT
1
HDMI-1
LAN1-ALERT-LAN2
R
AUDIO 2 IN
Using the BRC Series Cameras as a Second Camera for the Sony Video Conferencing Systems
AUX CONTROL
MAINTENANCE
L
R
REC OUT
L
12 Specifications
Camera
Image Sensor
Image Sensor (Number of
Effective Pixels)
Signal System
BRC-H900
BRC-H700
BRC-Z700
BRC-Z330
BRC-300
1/2-type Exmor CMOS x3
Approx. 2.07 Megapixels
1/3-type IT CCD x3
Approx. 1.07 Megapixels
1/4-type CMOS x3
Approx. 1.04 Megapixels
1/3-type CMOS
Approx. 2.16 Megapixels
1/4.7-type IT Advanced HAD CCD x3
Approx. 1.02 Megapixels
60 Hz: 1080/59.94i
50 Hz: 1080/50i
NA
6 lx (50IRE, F1.6, +18 dB)
60 Hz: 1080/59.94i, NTSC
50 Hz: 1080/50i, PAL
60 Hz: 1080/59.94i, 720/59.94P, NTSC
50 Hz: 1080/50i, 720/50P, PAL
NTSC
PAL
NA
7 lx (25IRE, F1.6, +18dB)
7 lx (25IRE, F1.6, +18dB)
60 Hz: 1080/59.94i, 720/59.94P, NTSC
50 Hz: 1080/50i, 720/50P, PAL
Sensitivity
F10
Minimum Illumination (50IRE) 4 lx (50IRE, F1.9, +24 dB)
Minimum Illumination (25IRE) NA
Horizontal Resolution
>1,000 TV line (in HD-SDI output) (center)
S/N Ratio
50 dB
Gain
Auto/Manual (-3 dB to +24 dB)
Auto/Manual
Auto/Manual
(0 dB to +18 dB and Hyper Gain) (0 to +24 dB and Hyper Gain)
1/8,000 s to 1/60 s or 1/8,000 s to 1/50 s 1/10,000 s to 1/60 s or 1/10,000 s to 1/50 s
Auto, Manual, Priority mode (shutter priority & Auto, Manual, Priority mode (shutter priority, Gain priority & iris priority),
iris priority), Back light, Spot light
EV compensation
Shutter Speed
Exposure Control
Color AE Function
White Balance
Optical Zoom
Digital Zoom
Focusing System
Horizontal Viewing Angle
Focal Length
Minimum Object Distance
Pan/Tilt Angle
No
Auto/Indoor/Outdoor/One-push/Manual
14x
–
Auto/Manual
59.6°(Wide-end)
f=5.8 mm to 81.2 mm
F1.9 (Wide), F2.8 (Tele)
800mm
Preset Position
Image Stabilization
Image Flip
ND Filter
Gamma
Interface
HD Video Output
SD Video Output
Camera Control Interface
External Sync. Input
General
Power Requirements
Power Consumption
Operating Temperature
Storage Temperature
Dimensions (W x H x D)
Mass
Supplied Accessories
55.2°(Wide-end)
f = 3.9 mm to 78 mm
F1.6 (Wide), F2.8 (Tele)
10 mm (Wide, Limiter Off)
500 mm (Wide, Limiter On)
800 mm (Tele)
Pan: 0.25° to 60°/s
Tilt: 0.25° to 60°/s
Pan: 0.22° to 60°/s
Tilt: 0.22° to 60°/s
55.1°(Wide-end)
f=4.6 mm to 82.8 mm
F1.6 (Wide), F2.2 (Tele)
100 mm (Wide, Limiter Off)
500 mm (Wide, Limiter On)
1,500 mm (Tele)
Pan: ±175°
Tilt: +90°/-30°
Pan: 0.25° to 60°/s
Tilt: 0.25° to 60°/s
On/Off (Optical)
On/Off
Off/ND1/ND2
Normal/Cinema
On/Off (Optical)
On/Off
No
Normal/Cinema
No
On/Off
Off/ 1/4 / 1/16 switchable in menu
Normal/Cinema
BRU-SF10
Auto/Manual (-3 dB to +18 dB, 3 dB steps) switchable
NTSC: 1/10,000 s to 1/4 s
PAL: 1/10,000 s to 1/3 s
Auto, Manual, Priority mode (shutter priority & iris priority),
Bright, spot AE
No
Auto/Indoor/Outdoor/One-push/Manual
12x
4x
4:3 mode: 37.8°, 16:9 mode: 45.4°(Wide end)
f = 3.6 mm to 43.2 mm
F1.6 (Wide), F2.8 (Tele)
300 mm (Wide)
800 mm (Tele)
Pan: ±170°
Tilt: +90°/-30°
Pan: 0.25° to 60°/s
Tilt: 0.25° to 60°/s
6
No
On/Off
No
No
—
VBS, Y/C
DC 10.8 V to 13.2 V
Max 28.8 W (without optional cards)
Max 24 W (without optional cards) Max 28.8 W (without optional cards) Max 18 W (without optional cards)
0 °C to 40 °C (32 °F to 104 °F)
-20 °C to +60 °C (-4 °F to +140 °F)
198 x 260 x 238mm
207 x 310.8 x 207 mm
198 x 247 x 238 mm
160.8 x 186 x 193.4mm
(7 7/8 x 10 1/4 x 9 3/8 inch)
(8 1/4 x 12 1/4 x 8 1/4 inches) (7 7/8 x 9 3/4 x 9 3/8 inches)
(6 3/8 x 7 3/8 x 7 5/8 inches)
5.0 kg (11 lb 0.37 oz)
4.5 kg (9 lb 15 oz)
4.5 kg (9 lb 15 oz)
1.9 kg (4 lb 4 oz)
IR Remote Commander Unit (1), AC power adaptor (1), AC power cord (1), RS-422 connector plug (1), Ceiling bracket (2), Wire rope (1), Screws (M3 x 8) (7),
Screws (M4 x 8) (1), Operating instructions (1)
BRU-300
DC 12 V
21.6 W (without optional cards)
180 x 210.1 x 205 mm (7 1/8 x 8 3/8 x 8 1/8 inches)
2.5 kg (5 lb 8 oz)
IR Remote Commander Unit (1), AC power adaptor (1), AC
power cord (1), RS-422 connector plug (1), Ceiling bracket
(2), Wire rope (1), Screws (7), Operating instructions (1)
BRU-300P
LC Duplex Fiber Connector
Multi-mode
Single-mode
Multi-mode
Multi-mode
D-Sub 15 pin: Component (Y/Pb/Pr) or RGB, HD, VD or SYNC
—
—
BNC: Composite (NTSC), Mini DIN 4 pin: Y/C
BNC: Composite (PAL), Mini DIN 4 pin: Y/C
BNC
BNC
Phono jack x2 (L/R)
—
Mini DIN 8 pin: RS-232C (VISCA IN), Mini DIN 8 pin: RS-232C (VISCA OUT), Connector plug 9 pin: RS-422 (VISCA IN/OUT)
2 slots
2 slots (When both slots are used simultaneously, the interface cards must be of two different types.)
0 °C to 40 °C (32 ºF to 104 ºF)
-20 °C to +60 °C (-4 ºF to +140 ºF)
AC 100 V to 240 V (50/60 Hz)
DC 12 V
Max. 10 W (without optional cards) Max. 15.6 W (without optional cards)
210 x 86 x 240 mm (8 3/8 x 3 1/2 x 9 1/2 inches)
2.4 kg (5 lb 5 oz)
2.0 kg (4 lb 7 oz)
AC power cord, RS-422 connector AC adapter, Power cord, DC-cord secure connection
attachment, RS-232C connecting cable, RS-422
plug, RS-232C cable (3 m, Mini
DIN 8 pin), Operating instructions connector plug, Operationg Instructions
HFBK-HD1
HFBK-SD1
BRBK-301
BRBK-302
D-Sub 15 pin: Component (Y/
Pb/Pr) or RGB, HD, VD or SYNC
BNC x2: HD-SDI
Audio line input —
D-Sub 9 pin: Component (Y/Pb/Pr)
or RGB, Composite or Y/C, SYNC
BNC: Composite BNC: SD-SDI
—
D-Sub 9 pin: Component (Y/ BNC: SD-SDI
Pb/Pr) or RGB, Composite or
Y/C, SYNC
Audio line input —
—
Video output
60.3°(Wide-end)
f = 4.5 mm to 54 mm
F1.6 (Wide), F2.8 (Tele)
500 mm (Wide)
800mm (Tele)
HD/SD-SDI(switchable)
Component (Y/Pb/Pr) or RGB, HD, VD or SYNC
Component (Y/Pb/Pr) or RGB, HD, VD or SYNC
Composite, Y/C
No
Composite, Y/C
RS-232C/RS-422 (VISCA)
Yes
BRU-H700
Interfaces
Optical fiber connector
Optical cable type
HD video output
SD video output
External sync input
External sync output
Audio line output
Camera control
Optional card slots
General
Operating temperature
Storage temperature
Power requirements
Power consumption
Dimensions (W x H x D)
Mass
Supplied accessories
Auto/Manual
(-3 dB to +24 dB and Hyper Gain)
Auto, Manual, Priority mode (shutter
priority, Gain priority & iris priority),
EV compensation, Color AE
Off/Narrow/STD/Wide switchable in menu
Auto1/Auto2/Indoor/Outdoor/One-push/Manual
20x
18x
4x
4x
12x
4x
Pan: ±170°
Tilt: +90°/-30°
Pan: 0.22° to 60°/s
Tilt: 0.22° to 60°/s
16
On/Off (Optical)
On/Off
No
STD1/STD2/STD3/STD4/CINE1/CINE2/CINE3/
CINE4
Pan/Tilt Speed
Video output
6 lx (50 IRE, F1.6, +24 dB)
NA
BRC-300P
BRBK-304
AC 100 V to 240 V (50/60 Hz)
Max. 9 W (without optional cards)
212 x 88 x 210 mm (8 3/8 x 3 1/2 x 8 3/8 inches)
2.1 kg (4 lb 10 oz)
AC power cord, RS-422 connector plug, RS-232C cable (3 m, Mini DIN 8 pin), Operating instructions
HFBK-XG1
HFBK-TS1
BRBK-MF1
BRBK-HSD2
BRBK-SA1
BRBK-SF1
D-Sub 15 pin: RGB, i.LINK 6 pin: HDV OUT
HD, VD (WXGA/XGA/ (IEEE1394 S100)
VGA)
—
Phono jack x2 (L/R)
i.LINK 6 pin: DV BNC x3, HD-SDI or
OUT (IEEE1394 SD-SDI
S100)
—
—
LC Duplex Fiber
Connector
BRBK-HSD1
BRBK-HD2
BRBK-303
—
—
BNC x2: HD-SDI or HD-SDI
SD-SDI
Phono jack x2 (L/R) —
BRBK-IP10
BNC x2: HD-SDI or SD-SDI*
BNC x1: VIDEO, Mini DIN LC Duplex Fiber
4pin x1: S VIDEO, D-sub Connector
9pin x1: RGB/SYNC
—
Phono jack x2 (L/R) RJ-45 x1: 10Base-T/
100Base-TXAuto
LC Duplex Fiber
Connector
BRBK-IP7Z
BNC x2: HD-SDI or SD-SDI
RJ-45 x1: 10Base-T/
100Base-TXAuto
* DATA MIX ON/OFF selectable in HD-SDI
Specifications
51
13 Dimensions
BRC-H900
SIDE
5 (7/32)
260 (10 1/4)
FRONT
198
(7 7/8)
99 (4)
102 Tripod screw hole
(4 1/8)
BOTTOM
238 (9 3/8)
149 (5 7/8)
58
(2 3/8)
51
98 (3 7/8) (2 1/8)
4-M3
Units: mm (inches)
98 (3 7/8)
BRC-H700
80
(3 1/4)
5 (7/32)
103.5 (4 1/8)
ø 207 (8 1/4)
43.5
112 (4 1/2) (1 3/4)
66 (2 5/8)
75 (3)
110 (4 3/8)
Dimensions
ø 207 (8 1/4)
1/4 - 20 UNC
BOTTOM
52
219 (8 5/8)
SIDE
310.8 (12 1/4)
FRONT
Units: mm (inches)
BRC-Z700
56
(2 1/4)
5 (7/32)
190 (7 1/2)
SIDE
247 (9 3/4)
FRONT
99 (4)
198
(7 7/8)
48.2
(1 15/16)
238 (9 3/8)
102
(4 1/8)
149 (5 7/8)
58
68.2
(2 3/8) (2 3/4)
BOTTOM
1/4 - 20 UNC
98
(3 7/8)
Units: mm (inches)
BRC-Z330
5 (7/32)
46
(1 13/16)
129.5 (5 1/8)
SIDE
186 (7 3/8)
FRONT
113 (4 1/2)
160.8
(6 3/8)
1.1
(1/16)
193.4 (7 5/8)
11
(7/16)
BOTTOM
Dep
131
(5 1/4)
th 5
93
14
(3 3/4) (9/16)
ø5
19
(3/4)
Tripod Screw 1/4-20 UNC
88 (3 1/2)
152.8 (6 1/8)
Units: mm (inches)
Dimensions
53
BRC-300/300P
45
(1 13/16)
5.5 (7/32)
147 (5 7/8)
SIDE
210.2 (8 3/8)
FRONT
90 (3 5/8)
180
(7 1/8)
205 (8 1/8)
9.6
(13/32)
75
(3)
143 (5 3/4)
68.8
(2 3/4)
40.8
(1 5/8)
BOTTOM
1/4 - 20 UNC
106 (4 1/4)
147.6 (5 7/8)
Units: mm (inches)
BRS-200
222 (8 3/4)
Control panel
8 (11/32)
160 (6 3/8)
70 (2 7/8)
424 (16 3/4)
310 (12 1/4)
462 (18 1/4)
480 (19)
Rear
54
Dimensions
60
(2 3/8)
10 (13/32)
60
(2 3/8)
6 (1/4)
32
(1 5/16)
44
(1 3/4)
6 (1/4)
Processor
49
(1 15/16)
320 (12 5/8)
61
(2 1/2)
RM-BR300
145.9 (5 3/4)
137.2 (5 1/2)
Top
391.3 (15 1/2)
Side
30
30
165 (6 1/2)
Front
45.9
(1 13/16)
Bottom
DIP switches
Units: mm (inches)
Rear
RM-IP10
JOYSTICK
VALUE
LOCK
KNOB
BLACK
LIGHT
GROUP
POSITION
PAN-TILT
RESET
ONE PUSH
AWB
145.9 (5 3/4)
137.2 (5 1/2)
Top
MENU
RESET
–
+
R
MODE
BRIGHT
SHIFT
–
GROUP
PRESET
POSITION
1
9
2
10
3
11
1
2
3
4
12
5
13
6
14
7
15
5
6
7
8
16
GROUP
+
B
SELECT
CAMERA
AUTO
FOCUS
NEAR
FAR
AUTO
MANUAL
POWER
4
ONE PUSH
AF
391.3 (15 1/2)
Side
30
30
165 (6 1/2)
Front
45.9
(1 13/16)
Bottom
DIP switches
Units: mm (inches)
Rear
MODE
LAN
RS-232C
VISCA
1
RS-422
9
TALLY/CONTACT
1
9
DC 12V
Dimensions
55
BRU-SF10
Top
240 (9 1/2)
Side
210 (8 3/8)
86 (3 1/2)
94 (3 3/4)
86 (3 1/2)
Front
Units: mm (inches)
BRU-H700
Top
240 (9 1/2)
Side
86 (3 1/2)
210 (8 3/8)
94 (3 3/4)
86 (3 1/2)
Front
Units: mm (inches)
56
Dimensions
BRU-300/300P
Top
233 (9 1/4)
210 (8 3/8)
Side
212 (8 3/8)
94.5 (3 3/4)
88 (3 1/2)
Front
Units: mm (inches)
Ceiling Bracket (B) for BRC-H900 and BRC-Z700
10
5°
20
21.5
8.4
±8
°
4
86
ø1 172
ø
50
4
1
R8.
5
50
ø16
45°
ø1
(30)
16
16
50
30°
30°
7
2-R3
90
20
20
50
°
20°
°
° ±8
105
78
16
Ceiling Bracket (B) for BRC-H700
23.1
10
20
16
4
30
4
95
45°
ø1
4
ø16
50
R8.
5
50
ø1
ø180
4
16
120° ±8’
50
30°
C
20
50
30°
2-R3
90
B
20
°
ø120
16
20°
80
101.6±0.2
Dimensions
57
2
XXX
R5
12
1
0°
10
ø121.2
ø107.3
ø88.9
ø83
.5
Ceiling Bracket (B) for BRC-Z330
10-XXX
0.5
4
4
°
100
° 10
.5°
12
6
3
140°
120°
60°
40°
83.5
45°
3XXXX
2-R
4-ø4.5 XXX
20-R
2.25
12
60
46
16
°
60
ø83
.5
ø16 ±0.2
ø1 0
40
20-R2.25
ø172
Ceiling Bracket (B) for BRC-300/300P
16
4
90°
60°
88.2
±0.2
±0.2
83.5 ±0.2
88.2
.2
.2 ±0
2-R3
A
°
16
60°
88.2 ±0.2
46 ±0.2
Dimensions
±0.2
7.3
ø10
ø121
60
58
0.2
.9 ±
ø88
14 Techinical Appendix
14.1 Color Adjustment
(BRC-H900, BRC-Z700, BRC-Z330)
The BRC-H900, BRC-Z700 and BRC-Z330 can enhance or
reduce a specific color region without changing the white
balance. Both of these cameras adjust the saturation of six
colors independently, and the BRC-H700 is able to modulate
six colors simultaneously.
14.2 Color Detail
(BRC-H900, BRC-Z700, BRC-Z330)
The BRC-H900, BRC-Z700 and BRC-Z330 can adjust the image
enhancer of a specific color, which is an enhancement over
the conventional skin tone detail function. This allows you to
adjust not only skin tone color but also all other colors.
14.3 Color AE
(BRC-H900, BRC-Z330)
The BRC-H900, BRC-Z330 is equipped with a Color AE function.
This camera detects a particular color and adjusts exposure
specifically for this color. This feature is useful when shooting
objects located in front of a single-colored background.
14.4 KNEE/GAMMA Adjustment
(BRC-H900)
The BRC-H900 can adjustment “KNEE” and “GAMMA” on the
camera menu.
Techinical Appendix
59
14.5 Sync Lock Setting
In order to match output signal timing to the input signal, the Sync Master setting is required on the Main
menu. To achieve this, select Menu, System, and then Sync Master.
BRC-H900
When HD output signal from BRC-H900 main unit
[STD [HD]]
When SD output signal from BRC-H900 main unit
[STD [SD]]
BRC-H700
Output signal to be matched with input signal
When using HFBK-HD1
[ HD1 ]
When using HFBK-SD1
[ SD1 ]
Output from main unit BRC-H700
[ STD ]
BRC-Z700
When HD output signal from BRC-Z700 main unit
[STD [HD]]
When SD output signal from BRC-Z700 main unit
[STD [SD]]
When connecting with BRU-H700
Output signal from BRU-H700 [STD [HD]]
When using HFBK-HD1 with BRU-H700[ HD1 ]
When using HFBK-SD1 with BRU-H700 [SD1]
BRC-Z330
When HD output signal from BRC-Z330 main unit
[STD [HD]]
When SD output signal from BRC-Z330 main unit
[STD [SD]]
14.6 Audio Configuration
The BRC-H700 and BRC-Z700 have three and two audio configurations, respectively. In the first configuration
with the HFBK-TS1 (illustrated below), you can mix audio signals and video signals and output them as HDV.
In the second configuration, you can input the audio signal to the BRBK-H700 or the BRBK-MF1 and transmit
it via an optical fiber cable. The output signal from the BRU-H700 is an analog audio signal and a selected
video signal generated from a compatible optional video card. The third configuration adds even more
convenience, allowing you to input the output signal to the HFBK-TS1. As a result, you can output the final
data as HDV.
(1) The BRC-H900/
BRC-Z330
BRBK-SF1
HD optical multiplex card
BRU-SF10
Optical fiber cable
Audio out
Audio in
(2) The BRC-H700
HFBK-TS1
(HDV Card)
i LINK (HDV)
Audio&Video
(Audio delay is adjustable)
Audio in
(3) The BRC-H700/
BRC-Z700
BRBK-H700 for BRC-H700
BRBK-MF1 for BRC-Z700
HD optical multiplex card
BRU-H700
Optical fiber cable
Audio out
Audio in
(4) The BRC-H700/
BRC-Z700
BRBK-H700 for BRC-H700
BRBK-MF1 for BRC-Z700
HD optical multiplex card
BRU-H700
HFBK-TS1
(HDV Card)
Optical fiber cable
Audio in
60
Techinical Appendix
Audio out
Audio in
i LINK (HDV)
Audio&Video
(Audio delay is
adjustable)
14.7 Function priority
This table shows which setting takes priority over the other in each function when the
BRC-H900/BRC-H700/BRC-Z700/BRC-Z330/BRC-300/300P is connected to the BRU-SF10/BRU-H700/BRU300/300P.
BRC cameras
BRU
RS-232C/RS-422 control
disable
enable
DATA MIX setting
disable
enable
VISCA ID setting
disable*
enable
VIDEO OUT
enable
enable
*The camera number setting at camera unit should be 0 (Auto).
To assign VISCA ID to each camera, please set it on BRU side.
14.8 Using the VISCA RS-422 Connector Plug
1 Insert a wire (AWG Nos. 28 to 18) into the desired
wire opening on the VISCA RS-422 connector
plug, and tighten the screw for that wire using a
flathead screwdriver.
To remove the connector plug
Grasp both ends of the VISCA RS-422 connector
plug and pull it out as shown in the illustration.
Flat-head screwdriver
Wire
2 Insert the VISCA RS-422 connector plug into the
VISCA RS-422 connector.
Note • In order to stabilize the voltage level of the signal,
connect both ends to GND.
• When you make connections using VISCA RS-422
connectors, the VISCA RS-232C connection is not
available.
• The maximum connection distance with VISCA RS-422 connection is approximately 1,200 m
(3,937 ft).
Techinical Appendix
61
14. 9 Wiring Diagram
14.9.1 W
iring Diagram of VISCA RS-422 Connection for the RM-BR300
and RM-IP10
Third to Seventh BRC or BRU
VISCA RS-422 connector
1
2
3
4
5
6
7
8
9
RXD OUT –
RXD OUT +
TXD OUT –
TXD OUT +
GND
RXD IN –
RXD IN +
TXD IN –
TXD IN +
Second BRC or BRU
VISCA RS-422 connector
1
2
3
4
5
6
7
8
9
RM-BR300 and RM-IP10
Remote Control Unit
First BRC or BRU
VISCA RS-422 connector
VISCA RS-422 connector
1
2
3
4
5
6
7
8
9
NC
NC
NC
NC
GND
RXD OUT –
RXD OUT +
TXD OUT –
TXD OUT +
NC = No Connection
62
RXD OUT –
RXD OUT +
TXD OUT –
TXD OUT +
GND
RXD IN –
RXD IN +
TXD IN –
TXD IN +
Techinical Appendix
1
2
3
4
5
6
7
8
9
RXD OUT –
RXD OUT +
TXD OUT –
TXD OUT +
GND
RXD IN –
RXD IN +
TXD IN –
TXD IN +
14.9.2 Wiring Diagram of VISCA RS-422 Connection for the BRS-200
Third to seventh VISCA
cameras
VISCA RS-422 Connector
1
2
3
4
5
6
7
8
RXD OUT –
RXD OUT +
TXD OUT –
TXD OUT +
GND
RXD IN –
RXD IN +
TXD IN –
9
TXD IN +
Second VISCA cameras
VISCA RS-422 Connector
1
2
3
4
5
6
7
8
RXD OUT –
RXD OUT +
TXD OUT –
TXD OUT +
GND
RXD IN –
RXD IN +
TXD IN –
9
TXD IN +
First VISCA cameras
VISCA RS-422 Connector
Processor Unit of the
BRS-200
VISCA RS-422 Connector
1
2
3
4
5
GND
RXD –
RXD +
TXD –
TXD +
1
2
3
4
5
6
7
8
9
RXD OUT –
RXD OUT +
TXD OUT –
TXD OUT +
GND
RXD IN –
RXD IN +
TXD IN –
TXD IN +
Techinical Appendix
63
15 Installing the Camera in a High Position
Using the supplied ceiling brackets, wire rope and
screws, and the attachment materials (not supplied),
you can attach the camera to a ceiling or on a
shelf, etc. in a high position. When you install the
camera, always install it on a level ceiling or shelf,
etc. If you have to install it on an incline, make sure
that the inclination is within ± 15 degrees, so that
the pan/tilt performance is guaranteed.
Installation on a ceiling (example)
1 Set IMG-FLIP to ON in the SYSTEM menu.
2 Remove the four screws on the bottom of the
camera to remove the four feet.
Caution • When you attach the camera to a ceiling or shelf,
etc. in a high position, entrust the installation to
an experienced contractor or installer.
• Attach the camera to the ceiling or shelf, etc.
firmly, after making sure the ceiling, shelf, etc. and
the attachment materials (not including the
supplied accessories) are strong enough to bear
a weight of 60 kg (132 lb 4 oz). If the ceiling or
shelf, etc. is not strong enough, the camera may
fall and cause serious injury.
• Be sure to attach the supplied wire rope to
prevent the camera from falling.
• Check periodically, at least once a year, to
ensure that the connection has not loosened. If
conditions warrant, make this periodic check
more frequently.
Before installation
After deciding the shooting direction, make the
required holes for the ceiling bracket (B) and
connecting cables on the ceiling or shelf, etc. For
the dimensions of the ceiling bracket (B), see
page 42.
3 Attach the ceiling bracket (A) to the bottom of
the camera using the supplied four screws (3M3
× 8). Position the a hole for screwing on the
ceiling bracket (A) to the front of the camera as
illustrated, align the screw holes on the ceiling
bracket with those on the bottom of the camera,
then attach the bracket to the camera.
Note • The connecting cables cannot be passed through
the ceiling bracket (A). A hole for the wiring is
required in the ceiling or on a shelf, etc. behind
where the camera is to be installed.
• Do not attach any object other than the camera to
the ceiling brackets.
• The ceiling bracket cannot be attached to the
junction box when installing the camera on a
ceiling.
M3 x 8 (supplied)
Ceiling
bracket (A)
Front of
camera
Note For attaching the camera to the ceiling bracket, use
only the supplied screws. Using other screws may
damage the camera.
64
Installing the Camera in a High Position
4 Attach the attachment materials (not supplied)
to the ceiling bracket (B), and install the bracket
on the ceiling. Align the hole on the ceiling
bracket (B) in the direction where the front of the
camera will be positioned later.
Caution For attaching the wire rope to the bracket, use only
the supplied screw. Using another screw may
disable the function of the wire rope.
7 Insert the protrusions on the ceiling bracket (A)
into the spaces prepared in the ceiling bracket
(B) with the hole in the front of the ceiling
bracket (A) aligned with the hole on the ceiling
bracket (B), and temporarily attach them by
turning the ceiling bracket (A) with the camera
clockwise.
Attachment materials
Ceiling
hole
Ceiling bracket (B)
5 Attach the wire rope to the materials near the
ceiling. Use an M5 (3/16 inch) hexagon socket
head cap screw (not supplied). Attach the wire
rope to an area independent of the area where
the ceiling bracket is attached.
Ceiling
Ceiling bracket (B)
Wire rope (supplied)
1
Align.
Attachment materials
Ceiling
bracket (A)
2
Ceiling
M5 (3/16 inch)
hexagon socket head
cap screw
Ceiling bracket (B)
6 Attach the wire rope to the ceiling bracket (A).
Pass the wire rope through the fixing hole and
attach its end to the attachment hole on the
bracket using the supplied one screw (3M4 × 8).
8 Secure the ceiling brackets (A) and (B) using
the supplied three screws (3M3 × 8).
Ceiling
Wire rope (supplied)
M4 x 8 (supplied)
Fixing hole for wire rope
Ceiling bracket (A)
M3 x 8
(supplied)
Installing the Camera in a High Position
65
9 Connect the cables to the connectors on the
rear of the camera.
Ceiling
2 Attach the ceiling bracket (A) to the bottom of
the camera using the supplied four screws (3M3
× 8). Position the hole for screwing on the ceiling
bracket (A) to the front of the camera as
illustrated, align the screw holes on the ceiling
bracket with those on the bottom of the camera,
then attach the bracket to the camera.
M3 x 8 (supplied)
Ceiling
bracket (A)
Front of
camera
Note Take the proper steps to ensure that the load of the
cables connected does not cause problems.
10 The SONY and/or HD nameplates can be
turned upside down, if necessary.
To remove the camera
1 Remove the three screws used to attach the
camera in step 8 of “Installation on a ceiling
(example).”
2 Turn the camera with the bracket
counterclockwise to remove.
Installation on a shelf, etc. in a high position
(example)
1 Remove the four screws on the bottom of the
camera to remove the four feet.
Note For attaching the camera to the ceiling bracket, use
only the supplied screws. Using other screws may
damage the camera.
3 Attach the supplied wire rope to the ceiling
bracket (A). Pass the wire rope through the fixing
hole and attach its end to the attachment hole
on the bracket using the supplied one screw
(3M4 × 8).
Wire rope (supplied)
M4 x 8 (supplied)
Fixing hole for wire rope
Ceiling bracket (A)
Caution For attaching the wire rope to the bracket, use only
the supplied screw. Using another screw may
disable the function of the wire rope.
66
Installing the Camera in a High Position
4 Attach the ceiling bracket (B) to a shelf, etc. on
6 Insert the protrusions on the ceiling bracket (A)
which the camera is to be installed. Use four
screws (not supplied) appropriate for the
materials of the shelf, etc. Align the hole on the
ceiling bracket (B) in the direction where the
front of the camera will be positioned later.
into the spaces prepared in the ceiling bracket
(B) with the a hole in the front of the ceiling
bracket (A) aligned with the hole on the ceiling
bracket (B), and temporarily attach them by
turning the ceiling bracket (A) with the camera
counterclockwise.
Wall
Screws (4)
Ceiling
bracket (B)
hole
Shelf, etc.
Hole for
connecting cables
Ceiling bracket (A)
Align.
5 Attach the other end of the wire rope to the
material near the shelf, etc. Use an M5 (3/16
inch) hexagon socket head cap screw (not
supplied). Attach the wire rope to the material
independent of the shelf, etc. where the ceiling
bracket (B) is attached.
Ceiling bracket (B)
7 Secure the ceiling brackets (A) and (B) using
the supplied three screws (3M3 × 8).
Wire rope
(supplied)
M5 (3/16 inch) hexagon socket
head cap screw
M3 x 8
(supplied)
Installing the Camera in a High Position
67
8 Connect the cables to the connectors on the
rear of the camera.
Note Take the proper steps to ensure that the load of the
cables connected does not cause problems.
To remove the camera
1 Remove the three screws used to attach the
camera in step 7 of “Installation on a shelf, etc. in
a high position (example).”
2 Turn the camera with the bracket clockwise to
remove.
68
Installing the Camera in a High Position
Installing the Camera in a High Position
69
Distributed by
©2013 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
The values for weight and dimension are approximate.
Some images in this brochure are simulated.
“SONY”, “make.believe” and “Exmor” are registered trademarks of Sony
Corporation.
All other trademarks are the property of their respective owners.
This RM-IP10 includes software designed for use with an MS Windows®
operating system (OS). U.S. export control regulations may require an export
license for export/re-export of the Windows OS (for details, contact Microsoft
Corporation).
MK10557V3YIT13MAR
