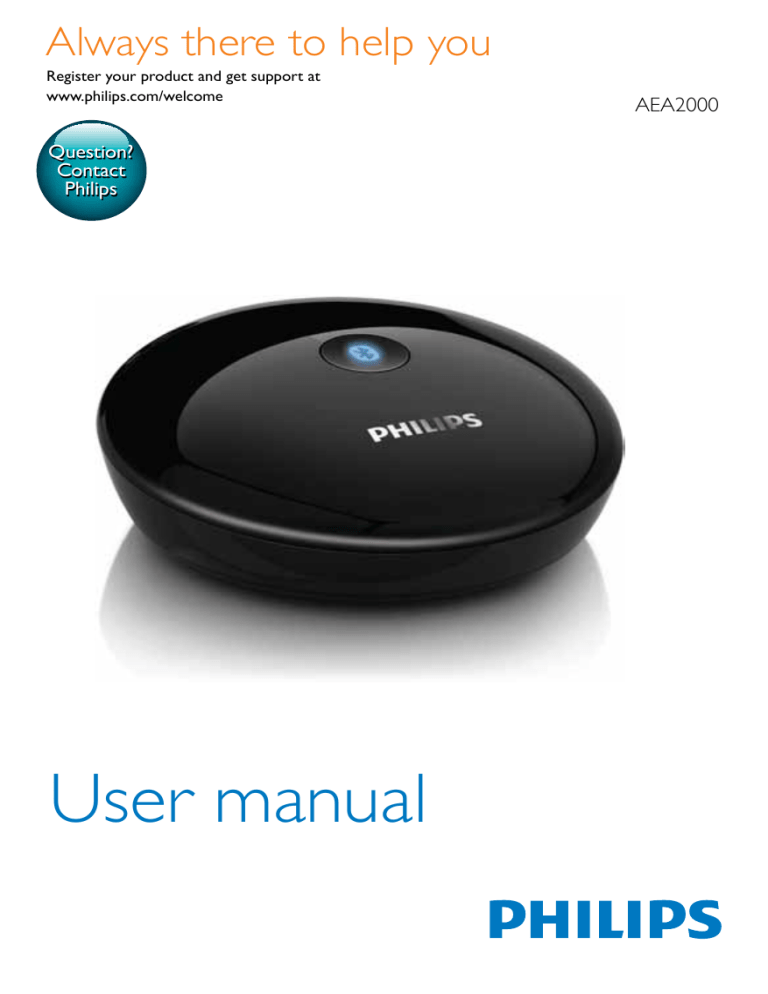

Always there to help you
Register your product and get support at
www.philips.com/welcome
Question?
Contact
Philips
User manual
AEA2000
Register online at www.philips.com/welcome today to
get the very most from your purchase.
Register online at www.philips.com/welcome to ensure:
Congratulations on your purchase,
and welcome to the “family!”
Dear PHILIPS product owner:
P.S. To get the most from your PHILIPS purchase, be
sure to register online at:
www.philips.com/welcome
This “bolt of lightning” indicates uninsulated material within your unit may
cause an electrical shock. For the safety of
everyone in your household, please do not
remove product covering.
The “exclamation point” calls attention to features for which you should
read the enclosed literature closely to prevent operating and maintenance problems.
WARNING: To reduce the risk of fire or
electric shock, this apparatus should not be
exposed to rain or moisture and objects
filled with liquids, such as vases, should not
be placed on this apparatus.
CAUTION: To prevent electric shock,
match wide blade of plug to wide slot, fully
insert.
ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la
fiche dans la borne correspondante de la
prise et pousser jusqu’au fond.
For Customer Use
Enter below the Serial No. which is located on the rear of the cabinet. Retain this
information for future reference.
Model No.__________________________
Serial No. ________________________
Contents
1Important2
Important Safety Instructions
2
2 Your Bluetooth Adapter3
Introduction3
What's in the box
3
3Play4
Connect audio cables
Connect power
Enter pairing mode
Play from Bluetooth-enabled devices
4
4
4
5
4 Product information6
Amplifier
6
Bluetooth6
General information
6
5Troubleshooting7
About Bluetooth device
7
6Notice8
Compliance8
Disposal of your old product
8
Copyright9
EN
1
1Important
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
h Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
i Protect the power cord from being
walked on or pinched, particularly at
plugs, convenience receptacles, and the
point where they exit from the apparatus.
j Only use attachments/accessories
specified by the manufacturer.
k Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
2
EN
l Unplug this apparatus during lightning
storms or when unused for long periods
of time.
m Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
n Apparatus shall not be exposed to
dripping or splashing.
o Do not place any sources of danger on
the apparatus (e.g. liquid filled objects,
lighted candles).
p This product may contain lead and
mercury. Disposal of these materials
may be regulated due to environmental
considerations. For disposal or recycling
information, please contact your local
authorities or the Electronic Industries
Alliance: www.eiae.org.
q Where the plug of the Direct Plug-in
Adapter is used as the disconnect device,
the disconnect device shall remain readily
operable.
Warning
•• Never remove the casing of this apparatus.
•• Never place this apparatus on other electrical
equipment.
•• Ensure that you always have easy access to the power
cord, plug or adaptor to disconnect the apparatus from
the power.
2 Your Bluetooth
Adapter
Introduction
By connecting the Bluetooth adapter to your
Hi-Fi speaker system, you can enjoy audio from
your Bluetooth-enabled device on your Hi-Fi
system through Bluetooth wireless connection.
What's in the box
Check and identify the contents of your
package:
• Main unit
• AC power adaptor
• RCA audio cable
• User manual
EN
3
3Play
Connect power
Always follow the instructions in this chapter in
sequence.
Connect audio cables
There are two ways to connect the Bluetooth
adaptor to your Hi-Fi system. Select one fit for
the Hi-Fi system.
Option 1 (Fig. A)
R
Caution
•• Risk of product damage! Make sure that the power
supply voltage matches the voltage printed on the
bottom of the unit.
•• Risk of electric shock! Hold the plug securely when
unplugging the device.
Note
•• The type plate is located on the bottom of the
Bluetooth adaptor.
Connect the power adaptor to:
• the DC IN socket at the back of the
Bluetooth adapter.
• the wall outlet.
L
AUDIO IN
DC IN
Option 2 (Fig. B)
Enter pairing mode
LINE OUT
4
EN
R
L
When connected to power, the Bluetooth
adaptor goes to Bluetooth pairing mode
automatically.
• If your Bluetooth device has not been
paired with the Bluetooth adapter
before, you need pair with the
Bluetooth adapter first, then play audio
on the device (See the section “Play
from Bluetooth-enabled devices”).
• If your Bluetooth device has been
paired with the Bluetooth adapter
before, press .
»» The Bluetooth adapter attempts to
connect the previously connected
Bluetooth device. If it fails, the adapter
returns to the pairing mode.
1
2
Tip
•• If the Bluetooth adapter fails to pair with a Bluetooth
device, the Bluetooth adapter exits the pairing mode
in 2 minutes, and the LED light becomes dim. You can
press to return to pairing mode.
LED indications
Solid blue
Flashing blue
Dim light
Description
The Bluetooth adapter and
your Bluetooth-enabled
device are connected.
The Bluetooth adapter is
waiting to be paired with a
Bluetooth-enabled device.
The Bluetooth adapter is
neither in connection with a
Bluetooth device nor in the
pairing mode.
Play from Bluetooth-enabled
devices
Note
•• The effective operating range between the Bluetooth
adapter and the paired device is approximately 10
meters (30 feet).
•• Keep this Bluetooth adapter away from other electronic
devices that may cause interference.
•• Compatibility with all Bluetooth devices is not
guaranteed.
•• Make sure that the Bluetooth adapter is connected to
the powered Hi-Fi system correctly.
•• Make sure that your Hi-Fi system is in Audio-in or
line-in mode.
3
On your Bluetooth device, turn on
Bluetooth function and search for
Bluetooth devices (refer to the device's
user manual).
When [PhilipsBT] (Philips Bluetooth
adapter) is displayed on your device,
select it to start pairing and connection. If
necessary, enter default password “0000”.
»» If connection is successful, the
Bluetooth indicator becomes solid
blue.
Play audio on your device.
»» Audio streams from your device to
your Hi-Fi system.
Note
•• If your Bluetooth device has been paired with AEA2000
before, you just need to find out [PhilipsBT] on your
Bluetooth menu, then start the connection.
•• This Bluetooth adaptor can memorize up to 8
previously paired devices.
To disconnect the Bluetooth-enabled device:
• Press again;
• Tap [PhilipsBT] on the Bluetooth menu
again;
• Deactivate Bluetooth function on your
device; or
• Move the device beyond the
communication range.
To connect another Bluetooth device:
1
2
Disconnect the previously connected
device.
Pair with your selected Bluetooth device.
To clear pairing history in the Bluetooth
adapter:
Press and hold for 7 seconds.
»» The Bluetooth indicator stays in solid
blue for 2 seconds, then returns to the
previous status.
EN
5
4Product
information
Note
•• Product information is subject to change without prior
notice.
Amplifier
Output Voltage
Signal to Noise Ratio
Total Harmonic Distortion
1000 mV RMS
> 62 dBA
<2%
Bluetooth
Standard
Frequency Band
Range
Bluetooth Standard Version
2.1+EDR
2.402~2.480 GHz
10m (Free space)
General information
AC Power
Operation Power
Consumption
Dimensions - Main
Unit (W x H x D)
Weight - Main Unit
6
EN
Model: AS030-090EA033 (Philips);
Input: 100-240 V ~,
50/60 Hz, 0.15 A;
Output: 9 V 0.33 A
< 3W
74 x 28 x 72 mm
0.04 kg
5Troubleshooting
Warning
•• Never remove the casing of this product.
To keep the warranty valid, never try to repair
the product yourself.
If you encounter problems when using this
device, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page (www.
philips.com/support). When you contact the
Consumer Care, make sure that the product
is nearby and the model number and serial
number are available.
No power
•• Make sure that the AC power adapter is
connected properly.
•• Make sure that there is power at the AC
outlet.
Cannot connect with the device.
•• The Bluetooth function of the device is not
enabled. Refer to the user manual of the
device for how to enable the function.
•• The adapter is already connected with
another Bluetooth-enabled device.
Disconnect that device and then try again.
The paired device connects and disconnects
constantly.
•• The Bluetooth reception is poor. Move the
device closer to the Bluetooth adapter or
remove any obstacle between the device
and the adapter.
•• For some devices, the Bluetooth
connection may be deactivated
automatically as a power-saving feature.
This does not indicate any malfunction of
the system.
No sound from your Hi-Fi system
•• Check if the Hi-Fi system is connected to
power.
•• Make sure that the system is connected
with the Bluetooth adapter properly.
•• Make sure that the Bluetooth wireless
connection is successful.
•• Adjust the volume of your system and
Bluetooth device.
•• Make sure that the Hi-Fi system is in
Audio-in or line-in mode.
About Bluetooth device
The audio quality is poor after connection
with a Bluetooth-enabled device.
•• The Bluetooth reception is poor. Move the
device closer to the Bluetooth adaptor or
remove any obstacle between the device
and the adaptor.
EN
7
6Notice
Any changes or modifications made to this
device that are not expressly approved by
WOOX Innovations may void the user’s
authority to operate the equipment.
Compliance
Notice for the USA
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses, and can radiate radio frequency energy
and, if not installed and used in accordance
with the instruction manual, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged
to try to correct the interference by one or
more of the following measures:
• Relocate the receiving antenna.
• Increase the separation between
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
Warning
•• Changes or modifications made to this equipment not
expressly approved by WOOX Innovations many void
the FCC authorization to operate this equipment.
8
EN
This equipment complies with FCC’s and IC's
RF radiation exposure limits set forth for an
uncontrolled environment. The antenna(s)
used for this transmitter must be installed and
operated to provide a separation distance of
at least 20 cm from all persons and must not
be collocated or operating in conjunction with
any other antenna or transmitter. Installers must
ensure that 20cm separation distance will be
maintained between the device (excluding its
handset) and users.
This Class B digital apparatus complies with
Canadian ICES-003.
This device complies with Industry Canada
license-exempt RSS standard(s).
The set complies with the FCC-Rules, Part
15. Operation is subject to the following two
conditions:
• This device may not cause harmful
interference, and
• This device must accept any interference
received, including interference that may
cause undesired operation.
Disposal of your old product
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products and batteries.
The correct disposal of these products helps
prevent potentially negative consequences on
the environment and human health.
Please visit www.recycle.philips.com for
additional information on a recycling center in
your area.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Copyright
2014 © WOOX Innovations Limited. All rights
reserved.
Philips and the Philips’ Shield Emblem are
registered trademarks of Koninklijke Philips N.V.
and are used by WOOX Innovations Limited
under license from Koninklijke Philips N.V.”
Specifications are subject to change without
notice. WOOX reserves the right to change
products at any time without being obliged to
adjust earlier supplies accordingly.
EN
9
P&F USA Inc.
PO Box 2248
Alpharetta, GA 30023-2248
Phone 1 866 309 0845
Meet Philips at the Internet
http://www.philips.com/welcome
2014 © WOOX Innovations Limited.
All rights reserved.
This product was brought to the market by WOOX Innovations Limited or one
of its affiliates, further referred to in this document as WOOX Innovations, and is
the manufacturer of the product. P&F is the warrantor in relation to the product
with which this booklet was packaged. Philips and the Philips Shield Emblem are
registered trademarks of Koninklijke Philips N.V.
AEA2000_37_UM_V2.0
