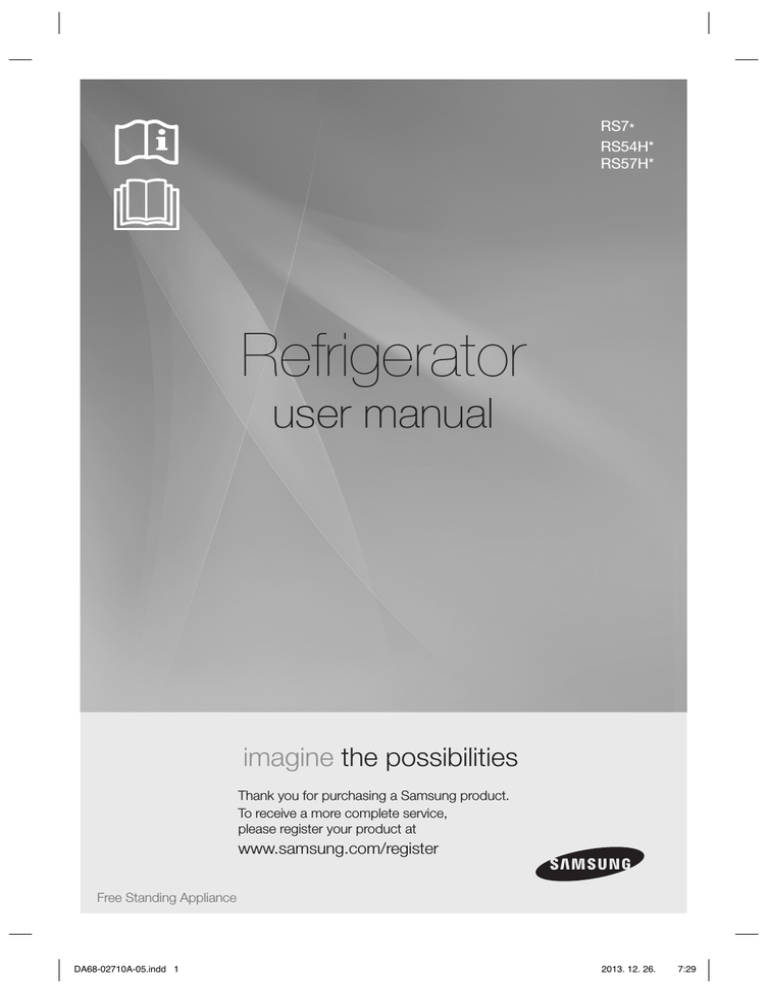

RS7*
RS54H*
RS57H*
Refrigerator
user manual
imagine the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/register
Free Standing Appliance
DA68-02710A-05.indd 1
2013. 12. 26.
7:29
contents
SAFETY INFORMATION ················································································· 2
SETTING UP YOUR SIDE-BY-SIDE REFRIGERATOR ···································14
OPERATING THE SAMSUNG SIDE-BY-SIDE REFRIGERATOR ····················24
TROUBLESHOOTING ·····················································································34
safety information
SAFETY INFORMATION
of the appliance by a person
responsible for their safety.
• Before operating the
• Warnings and Important
appliance, please read this
Safety Instructions in this
manual thoroughly and
manual do not cover all
retain it at a safe place near
possible conditions and
the appliance for your future
situations that may occur. It
reference.
is your responsibility to use
• Use this appliance only for
common sense, caution,
its intended purpose as
and care when installing,
described in this instruction
maintaining, and operating
manual. This appliance is not
your appliance.
intended for use by persons
• Because these following
(including children) with
operating instructions
reduced physical, sensory
cover various models, the
or mental capabilities, or
characteristics of your
lack of experience and
refrigerator may differ slightly
knowledge, unless they have
from those described in this
been given supervision or
manual and not all warning
instruction concerning use
signs may be applicable.
English - 2
DA68-02710A-05.indd 2
2013. 12. 26.
7:29
If you have any questions
or concerns, contact your
nearest service center or find
help and information online
at www.samsung.com.
These warning signs are
here to prevent injury to you
and others.
Please follow them
carefully.
After reading this section,
keep it in a safe place for
future reference.
Important safety symbols
and precautions :
WARNING
CAUTION
Call the contact
center for help.
Note.
Hazards or unsafe
practices that may
result in severe
personal injury or
death.
Hazards or unsafe
practices that may
result in minor
personal injury or
property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions
carefully.
Unplug the power
plug from the wall
socket.
Make sure the
machine is grounded
to prevent electric
shock.
CE Notice
This product has been
determined to be in
compliance with the Low
Voltage Directive (2006/95/
EC), the Electromagnetic
Compatibility Directive
(2004/108/EC), RoHS Directive
(2011/65/EU), Commission
Delegated Regulation (EU)
No 1060/2010 and the EcoDesign Directive(2009/125/EC)
implemented by Regulation
(EC) No 643/2009 of the
European Union. (For products
sold in European Countries
only)
English - 3
DA68-02710A-05.indd 3
2013. 12. 26.
7:29
WARNING
SEVERE WARNING
SIGNS FOR
TRANSPORTATION
AND SITE
be 1 m³ in size for every 8 g
of R600a refrigerant inside
the appliance.
The amount of refrigerant in
your particular appliance is
shown on the identification
plate inside the appliance.
• When transporting and
installing the appliance,
care should be taken to
ensure that no parts of
the refrigerating circuit
are damaged.
- Refrigerant leaking from the
SEVERE WARNING
WARNING
pipe work could ignite or
SIGNS FOR
cause an eye injury.
INSTALLATION
If a leak is detected, avoid
• Do not install the
any naked flames or
refrigerator in a damp
potential sources of ignition
place or place where it
and air the room in which
may come in contact
the appliance is standing for
with water.
several minutes.
- Deteriorated insulation of
• In order to avoid the
electrical parts may cause
creation of a flammable gasan electric shock or fire.
air mixture if a leak in the
• Do not place this refrigerator
refrigerating circuit occurs,
in direct sunlight or expose
the size of the room in which
to the heat from stoves,
the appliance may be sited
room heaters or other
depends on the amount of
appliance.
refrigerant used.
• Never start up an appliance • Do not plug several
appliances into the same
showing any signs of
multiple power board.
damage.
The refrigerator should
If in doubt, consult your
always be plugged into its
dealer. The room where the
own individual electrical
refrigerator will be sited must
which has a voltage rating
English - 4
DA68-02710A-05.indd 4
2013. 12. 26.
7:29
-
•
•
•
•
-
that matched the rating
plate.
This provides the best
performance and also
prevents overloading house
wiring circuits, which could
cause a fire hazard from
overheated wires.
If the wall socket is loose, do
not insert the power plug.
There is a risk of electric
shock of fire.
Do not use a cord that
shows cracks or abrasion
damage along its length or
at either end.
Do not bend the power cord
excessively or place heavy
articles on it.
Do not use aerosols near the
refrigerator.
Aerosols used near the
refrigerator may cause an
explosion or fire.
• This refrigerator
must be properly
installed and located
in accordance with
the manual before it is
used.
• Connect the power plug in
proper position with the cord
-
•
•
•
hanging down.
If you connect the power
plug upside down, wire can
get cut off and cause fire or
electric shock.
Make sure that the power
plug is not squashed or
damaged by the back of the
refrigerator.
When moving the refrigerator,
be careful not to roll over or
damage the power cord.
This constitutes a fire hazard.
The appliance must be
positioned so that the plug is
accessible after installation.
• The refrigerator must
be grounded.
- You must ground the
refrigerator to prevent any
power leakages or electric
shocks caused by current
leakage from the refrigerator.
• Never use gas pipes,
telephone lines or other
potential lightening rods as
ground.
- Improper use of the ground
plug can result in electric
shock.
• If the power cord is
English - 5
DA68-02710A-05.indd 5
2013. 12. 26.
7:29
damaged, have it
replaced immediately
by the manufacturer or
its service agent.
• The fuse on the refrigerator
must be changed by a
qualified technician or
service company.
- Failing to do so may result
in electric shock or personal
injury.
WARNING
•
-
•
-
CAUTION
CAUTION SIGNS FOR •
INSTALLATION
• Keep ventilation
opening in the
appliance enclosure
or mounting structure
clear of obstruction.
• Allow the appliance to stand
for 2 hours after installation.
•
-
•
-
SEVERE WARNING
SIGNS FOR USING
• Do not insert the power
plug with wet hands.
Do not store articles on the
top of the appliance.
When you open or close the
door, the articles may fall
and cause personal injury
and/or material damage.
Do not put items filled with
water on the refrigerator.
If spilled, there is a risk of fire
or electric shock.
Do not let children hang on
the door.
Failure to do so may cause
serious personal injury.
Do not leave the doors of
the refrigerator open while
the refrigerator is unattended
and do not let children enter
inside of the refrigerator.
There is a risk of children
entrapment and serious
personal injury because of
low temperature.
Never put fingers or other
objects into the dispenser
hole.
Failure to do so may cause
personal injury or material
damage.
English - 6
DA68-02710A-05.indd 6
2013. 12. 26.
7:29
• Do not store volatile or
flammable substances such
as benzene, thinner, alcohol,
ether or LP gas in the
refrigerator.
- The storage of any of
such products may cause
explosions.
-
•
•
-
• Do not store low
temperature-sensitive
pharmaceuticals
products, scientific
materials or other low
temperature-sensitive
products in the
refrigerator.
Products that require
strict temperature controls
must not be stored in the
refrigerator.
Do not place or use
electrical appliance inside
the refrigerator, unless they
are of a type recommended
by the manufacturer.
Do not use a hair dryer to dry
the inside of the refrigerator.
Do not place a lighted
candle in the refrigerator for
removing bad odors.
This may result in electric
shock or fire.
• Do not touch the inside walls
of the freezer or products
stored in the freezer with wet
hands.
- This may cause frostbite.
• Do not use mechanical
devices or any other means
to accelerate the defrosting
process, other than those
recommended by the
manufacturer.
• Do not damage the
refrigerant circuit.
•
•
•
•
• This product is intended
only for the storage
of food in a domestic
environment.
Bottles should be stored
tightly together so that they
do not fall out.
If a gas leak is detected,
avoid any naked flames or
potential sources of ignition
and air the room in which
the appliance is standing for
several minutes.
Use only the LED Lamps
provided by manufacturer or
service agents.
Children should be
supervised to ensure that
they do not play with and/or
English - 7
DA68-02710A-05.indd 7
2013. 12. 26.
7:29
climb into the appliance.
- Please contact your service
agents.
• Do not disassemble or • If any dust or water is in
refrigerator, pull out power
repair the refrigerator by
plug and contact your
yourself.
Samsung Electronics service
- You run risk of causing a fire,
center.
malfunction and/or personal
- There is a risk of fire.
injury.
In case of malfunction,
please contact your service
agents.
• If the appliance
generates a strange
noise, a burning
or smell or smoke,
unplug the power
plug immediately and
contact your nearest
service center.
- Failing to do so may result
in electric or fire hazards.
Keep ventilation opening in
the appliance enclosure or
mounting structure clear of
obstruction.
• If you experience difficulty
when changing the light,
contact service agents.
• If the products equipped
with LED Lamp, do not
disassemble Lamp Cover
and LED Lamp by yourself.
CAUTION
-
-
•
-
CAUTION SIGNS FOR
USING
• To get best
performance of
product,
Do not place foods too
closely in front of the vents
at the rear of the appliance
as it can obstruct free air
circulation in the refrigerator
compartment.
Wrap the food up properly or
place it in airtight containers
before put it into the
refrigerator.
Do not place carbonated
or fizzy drinks in the freezer
compartment.
Do not put bottles or glass
containers in the freezer.
When the contents freeze,
the glass may break and
English - 8
DA68-02710A-05.indd 8
2013. 12. 26.
7:29
•
-
•
-
-
•
•
cause personal injury and
property damage.
Do not change the
functionality of or modify the
refrigerator.
Changes or modifications
may result in personal injury
and/or property damage.
Any changes or
modifications performed by a
3 rd party on this completed
appliance is neither covered
under Samsung warranty
service, nor is Samsung
responsible for safety issues
and damages that result
from 3 rd party modifications.
Do not block air holes.
If the air holes are blocked,
especially with a plastic bag,
the refrigerator can be over
cooled. If this cooling period
lasts too long, the water filter
may break and cause water
leakage.
Do not put any newly
introduced food for freezing
near to already food.
Please observe maximum
storage times and expiry
dates of frozen goods.
Fill water tank, ice tray, water
cubes only with potable
water.
• Use only the ice maker
provided with the refrigerator.
• The water supply to this
refrigerator must only be
installed/connected by a
suitably qualified person and
connect to a potable water
supply only.
• In order to operate the
ice maker properly, water
pressure of 138 ~ 862
kPa(19.9 ~ 125.1 psi) is
required.
CAUTION
•
•
CAUTION SIGNS
FOR CLEANING AND
MAINTENANCE
• Do not directly spray
water inside or outside
the refrigerator.
There is a risk of fire or
electric shock.
Do not spray inflammable
gas near the refrigerator.
There is a risk of explosion
or fire.
Do not spray cleaning
products directly on the
display.
English - 9
DA68-02710A-05.indd 9
2013. 12. 26.
7:29
- Printed letters on the display
may come off.
• Remove any foreign matter
or dust from the power plug
pins.
But do not use a wet or
damp cloth when cleaning
the plug, remove any foreign
material or dust from the
power plug pins.
- Otherwise there is a risk of
fire or electric shock.
• Never put fingers or other
objects into the dispenser
hole and ice chute.
- It may cause personal injury
or material damage.
• Unplug the refrigerator
before cleaning
and performing
maintenance.
WARNING
SEVERE WARNING
SIGNS FOR
DISPOSAL
• Ensure that none of
the pipes on the back
of the appliance are
damaged prior to
disposal.
• R600a or R134a is used as
a refrigerant.
Check the compressor label
on the rear of the appliance
or the rating label inside the
refrigerator to see which
refrigerant is used for your
refrigerator.
When this product contains
flammable gas (Refrigerant
R600a), contact your local
authority in regard to safe
disposal of this product.
Cyclopentane is used as a
insulation blowing gas.
The gases in insulation
material require special
disposal procedure.
Please contact your local
authorities in regard to the
environmentally safe disposal
of this product.
Ensure that none of the
pipes on the back of the
appliances are damaged
prior to disposal.
English - 10
DA68-02710A-05.indd 10
2013. 12. 26.
7:29
The pipes shall be broke in
the open space.
• If the appliance contains isobutane refrigerant (R600a),
a natural gas with high
environmental compatibility
that is, however, also
combustible.
When transporting and
installing the appliance,
care should be taken to
ensure that no parts of
the refrigerating circuit are
damaged.
• When disposing of
this product or other
refrigerators, remove the
door/door seals, door latch
so that small children or
animals cannot become
trapped inside.
Leave the shelves in place
so that children may not
easily climb inside.
Children should be
supervised to ensure that
they do not play with the old
appliance.
• Please dispose of the
packaging material for this
product in an environmentally
friendly manner.
ADDITIONAL TIPS
FOR PROPER
USAGE
• In the event of a power
failure, call the local office
of your Electricity Company
and ask how long it is going
to last.
- Most power failures that are
corrected within an hour
or two will not affect your
refrigerator temperatures.
However, you should
minimize the number of door
openings while the power is
off.
- Should the power failure last
more than 2 hours, remove
all ice in the Ice Bucket.
- Should the power failure last
more than 24 hours, remove
all frozen food.
• If keys are provided with the
refrigerator, the keys should
be kept out of the reach of
children and not in vicinity of
the appliance.
• The appliance might
not operate consistently
(possibility of temperature
becoming too warm in
refrigerator) when sited
for an extended period of
English - 11
DA68-02710A-05.indd 11
2013. 12. 26.
7:29
•
•
•
•
time below the cold end of
the range of temperature
for which the refrigerating
appliance is designed.
Do not store food which
spoils easily at low
temperature, such as
bananas, melons.
Your appliance is frost free,
which means there is no
need to manually defrost
your appliance, as this will
be carried out automatically.
Temperature rising during
the defrost can comply with
ISO requirement. But if you
want to prevent an undue
rise in the temperature of the
frozen food while defrosting
the appliance, please wrap
the frozen food in several
layers of newspaper.
Any increase in temperature
of frozen food during
defrosting can shorten its
storage life.
Saving Energy Tips
- Install the appliance in a
cool, dry room with adequate
ventilation.
Ensure that it is not exposed
to direct sunlight and never
put it near a direct source of
heat (radiator, for example).
- Never block any vents or
grilles on the appliance.
- Allow warm food to cool
down before placing it in the
appliance.
- Put frozen food in the
refrigerator to thaw.
You can then use the low
temperatures of the frozen
products to cool food in the
refrigerator.
- Do not keep the door of
the appliance open for too
long when putting food in or
taking food out.
The shorter time for which
the door is open, the less ice
will form in the freezer.
- Clean the rear of the
refrigerator regularly.
Dust increases energy
consumption.
- Do not set temperature
colder than necessary.
- Ensure sufficient air exhaust
English - 12
DA68-02710A-05.indd 12
2013. 12. 26.
7:29
at the refrigerator base
and at the back wall of the
refrigerator.
Do not cover air vent
openings.
- Allow clearance to the right,
left, back and top when
installing.
This will help reduce power
consumption and keep your
energy bills lower.
- For the most efficient use
of energy, please keep the
all inner fittings such as
baskets, drawers, shelves
on the position supplied by
manufacturer.
English - 13
DA68-02710A-05.indd 13
2013. 12. 26.
7:29
setting up your side-by-side
refrigerator
777 mm
160º
Selecting the best location for the
refrigerator
160º
1724 mm
• Select a location with easy access to the water
supply.
• Select a location without direct exposure to
sunlight.
• Select a location with level (or nearly level) flooring.
• Select a location with enough space for the
refrigerator doors to open easily.
• Overall space required in use. Refer to drawing and
dimension as below.
• Please ensure that appliance can be moved freely
in the event of maintenance & service.
25 mm
at least 50 mm
732 mm
Congratulations on the purchase of your Samsung
Side-By-Side Refrigerator. We hope you will enjoy the
many state-of-the-art features and efficiencies that
this new appliance has to offer.
1027 mm
at least 50 mm
1155 mm
GETTING READY TO INSTALL
THE REFRIGERATOR
Spacer
Spacer
Spacer(gray block) installation
For better performance, please certainly fix the
spacer on the rear of unit when installing the
refrigerator. It is improving refrigerator performance.
Assembly Method
50 mm
1. Take out packed spacer from the lowest guard of
the fridge.
2. Check assembly location at the rear of Refrigerator
like picture
3. Locate spacer assembly location and put spacer
on the rear plate of Refrigerator.
English - 14
DA68-02710A-05.indd 14
2013. 12. 26.
7:29
Leg
CAUTION
01 SETTING UP
When moving your
refrigerator
To prevent floor damage be
sure the front levelling legs are
in the up position (above the
floor).
Refer to ‘Levelling the
refrigerator’ in the manual (at
page 19).
To protect the finish of the
flooring, place the protection
sheet such as packing carton
under the refrigerator.
Screw Driver
When installing, servicing or cleaning
behind the refrigerator, be sure to pull the
unit straight out and push back in straight
after finishing.
English - 15
DA68-02710A-05.indd 15
2013. 12. 26.
7:29
REMOVING THE REFRIGERATOR
DOORS
If your entrance won’t allow the refrigerator to pass
easily through it, you can remove the doors.
1. With the Freezer door closed, remove the upper
hinge cover 1 using a screwdriver, and then
disconnect the wires by gently pulling them apart
2 .
1. Removing the Front Leg Cover
1
2
First, open both the freezer and refrigerator doors,
and then take off the front leg cover by removing the
three screws counter-clockwise.
2. Remove hinge screws 3 by turning counterclockwise, and take off the upper hinge 4 . Be
careful that the door does not fall on you as you
are removing it.
3
Separating the Water Supply Line from
the Refrigerator
1. Remove the water line by pressing the coupler 1
and pulling the water line 2 away.
4
3. Next, remove the door from the lower hinge 5 by
carefully lifting the door straight up 6 .
6
Be careful
that the
water tube match
same colour.
5
Be careful not to pinch the water tubing and
wire harness on the door.
1
4. Remove the lower hinge 7 from the bracket 8
by gently lifting the lower hinge upwards.
2
2. Removing the freezer door
7
A few things to mention first.
• Make sure that you lift the door straight up so the
hinges are not bent or broken.
• Be careful not to pinch the water tubing and wire
harness on the door.
• Place doors on a protected surface to prevent
scratching or damage.
8
English - 16
DA68-02710A-05.indd 16
2013. 12. 26.
7:29
Removing the Fridge Door
1. With the door closed, remove the upper hinge
cover 1 using a screwdriver.
1
REATTACHING THE
REFRIGERATOR DOORS
Once you have safely placed your refrigerator where
you plan for it to stay, it is time to put the doors back
on.
2. Remove hinge screws 2 and the ground screw
3 by turning counter-clockwise, and take off the
upper hinge 4 . Be careful that the door does not
fall on you as you are removing it
1. Replace the freezer door by inserting the water
line 1 back into the lower corner of the door and
then into the hole on the lower hinge 2 .
Gently pull the water line back down so that it runs
straight, with no kinks or bends.
01 SETTING UP
Reattaching the Freezer Door
1
2
2
3
4
3. Remove the door from the lower hinge 5 by
lifting the door straight up 6 .
2. Insert the upper hinge shaft 3 into the hole on
the corner of the freezer door 4 .
Make sure the hinge is level between the upper
hinge hole 5 and the hole of the cabinet 6
and reattach the hinge screws 7 by turning in a
clockwise direction.
Reconnect the wires.
7
4. Remove the lower hinge 7 from the bracket 8
by gently lifting the lower hinge upwards.
5
3
6
4
3. Place the front part of the upper hinge cover 8
on the front of the upper hinge 9 and reattach
with the screw.
9
8
English - 17
DA68-02710A-05.indd 17
2013. 12. 26.
7:29
Reattaching the Fridge Door
Reattaching the Water Supply Line
1. Insert the lower hinge 1 back into the lower
hinge bracket 2 .
1. Insert the water line 2 into the coupler 1
.
1
2
2. Fit the hole in the corner of the fridge door 3
over the lower hinge 4 .
1
2
3
2. The Water Line must be fully Inserted to the center
of transparent coupler to prevent water leakage
from the dispenser.
3. Insert the 2 clips in the install pack and check that
each clip holds the line firmly.
4
Center of transparent
coupler
3. Insert the upper hinge shaft 5 into the hole
on the hinge 6 . Make sure the hinge is level
between the upper hinge hole 7 and the hole on
the top of the cabinet 8 . Then, reattach hinge
screws 9 and the ground screw 10 by turning it
in a clock wise direction.
clip A (1/4 in.)
(6.35 mm)
Do not cut the water line.
Gently separate it from the coupler.
Reattaching the Front Leg Cover
Before attaching the cover, check water
connector for leakage.
Replace the front leg cover by turning the three
screws clockwise, as shown in the figure.
4. Place the front part of the upper hinge cover 11
on the front of the upper hinge 12 and reattach it
with the screw.
12
11
English - 18
DA68-02710A-05.indd 18
2013. 12. 26.
7:29
LEVELLING THE REFRIGERATOR
Now that the doors are back on the refrigerator, you
will want to make sure the refrigerator is level so you
can then make final adjustments. If the refrigerator
is not level, it will not be possible to get the doors
perfectly even.
MAKING MINOR ADJUSTMENTS
TO THE DOORS
Remember, a level refrigerator is necessary for getting
the doors perfectly even. If you need help, review the
previous section on levelling the refrigerator.
01 SETTING UP
When the door of the freezer
is higher than the fridge
The front of the refrigerator is also adjustable.
When the Freezer door is lower than
the fridge
Insert a flat-blade screwdriver into a notch on the
Leg, turn it clockwise or counter clockwise to level
the freezer.
Adjustment
part
In the process for adjusting both the doors is the
same. Open the doors and adjust them, one at a
time, as follows:
1. Unscrew the
nut 1 from the
lower hinge until
it reaches the
upper end of the
bolt 2 .
Leg
Screw Driver
When the Freezer door is higher than
the fridge
Insert a flat-blade screwdriver into a notch on the
Leg, turn it clockwise or counter clockwise to level
the fridge.
Screw Driver
Refer to the next section for the best way to
make very minor adjustments to the doors.
Wrench
1
Nut
2
Bolt
When you release the nut 1 , make sure that
you use the Allen wrench provided 3 to loosen
the bolt 2 in a counter-clockwise direction.
You should then be able to unscrew the nut 1
with your fingers.
2. Adjust the
height difference
between the
doors by turning
the bolt 2
clockwise
or counter clockwise
Leg
3
When you turn clockwise
move up.
3
Wrench
2
Bolt
.
, the door will
3. After adjusting
the doors, turn
3 Wrench
the nut 1
2 Bolt
clockwise
1 Nut
until it reaches
the lower end
of the bolt, then
tighten the bolt again with the wrench 3 to fix
the nut in place 1 .
If you do not secure the nut firmly, the bolt may
release.
English - 19
DA68-02710A-05.indd 19
2013. 12. 26.
7:29
CHECKING THE WATER
DISPENSER LINE (OPTIONAL)
- When ICE OFF blinks on the display panel,
reinsert the bucket and/or make sure it’s
installed properly.
- When the door is open, the Ice and water
dispenser do not work.
- If you close the door hard, it may cause
water spilling over the ice maker.
- To prevent dropping the ice bucket, use
both hands when removing it.
- To prevent injury, be sure to clean up any
ice or water that may have dropped on
the floor.
- Do not let children hang on the ice dispenser
or on the bucket.
They may get hurt.
- Be sure not to put your hand or any object
into the ice chute.
It may cause personal injury or damage
mechanical parts.
CAUTION
A water dispenser is just one of the helpful features
on your new Samsung refrigerator. To help promote
better health, the Samsung water filter removes
unwanted particles from your water. However, it
does not sterilize or destroy microorganisms. You
will need to purchase a water purifying system to do
that. In order for the icemaker to operate properly,
water pressure of 138 ~862 kPa is required. Under
normal conditions, a 170 cc paper cup can be filled
in 10 seconds. If the refrigerator is installed in an area
with low water pressure (below 138 kPa), you can
install a booster pump to compensate for the low
pressure. Make sure the water storage tank inside
the refrigerator is properly filled. To do this, press the
water dispenser lever until the water runs from the
water outlet. When using the Water Dispenser, Slight
noises can be generated from supplying water.
Water Line installation Kits are included. You can
find it in one of the freezer drawers.
USING THE ICE MAKER (OPTIONAL)
(RS77*, RS54H*)
To Remove the Ice Bucket
- Hold the handle as shown in figure1.
- Slightly pull up the bottom part.
- Take out the ice bucket slowly.
1. Lift up the icemaker cover and gently pull out.
2. When you press the Test button for 3 seconds,
the ice cube container is filled with water from the
water supply tap. Check to make sure the amount
of water is correct (see the illustration below).
If the water level is too low, the ice cubes will be
small. This is a water pressure problem from with
in the main water pipes, not the refrigerator.
To Refit The Ice Bucket
- Assemble it in the reverse
order of disassembly.
- Push the bucket in firmly until
you hear a clicking sound.
- When the bucket does not fit
into its place, turn the gear
handle on its back by 90
degrees and reinstall it again
as shown in figure 2.
Check the amount of water supplied
to the ice tray. (RS757*/ RS756*)
1
Figure1
Normal Operation
- Any sounds you hear when the ice
maker dumps ice into the bucket
are part of normal operation.
- Not dispensing ice for long
periods may cause ice
clumps in the ice bucket.
Remove the remaining ice
and empty the bucket.
- When ice does not come out,
Check for any ice stuck in the
chute and remove it.
- The first batch of ice cubes may
be small due to air in the pipe
after connection, any air will be
purged during normal use.
Ice maker
Figure2
Feeler Arm
Check the water level
Ice Chute
2
Test button
English - 20
DA68-02710A-05.indd 20
2013. 12. 26.
7:29
INSTALLING THE WATER
DISPENSER LINE
3. Join the two pipes together using the compression
joint from the install kit ensuring that the joint is
water tight.
4. Join the other end of the install pipe to the main
water supply and turn on the water to check for
leaks.
For Interior model
Parts for water line Installation
2
Water line fixer and screws
Pipe connector
Loosen a
01 SETTING UP
1
Remove
cap
Water Line
from unit
3
4
Water line
Clip
5
Water Filter
No gap
Water Line
from Kit
Connecting to the water supply line
1. first, shut off the main water supply line.
2. locate the nearest cold, drinking water line.
3. follow the Water line Installation Instructions in the
installation kit.
CAUTION
The water line must be connected
to the cold water pipe. If it is connected
to the hot water pipe, it may cause the
purifier to malfunction.
CAUTION
Before being used, the leakage in
these places should be examined
• Samsung Warranty does not cover WATER LINE
INSTALLATION.
• The cost of connection to a water supply is at the
customer expense, unless included in the delivery
charge (refer to the delivery agreement with the
seller)
• Please contact Plumber or Authorized Installer for
the installation if needed.
• If Water leakage occurs due to improper
installation, Please contact installer.
Close Main
Water pipe
Close Main
Water pipe
Only connect the water line to a drinkable water
source.
If you have to repair or disassemble the water
line, cut off 6.5 mm of the plastic tubing to
make sure you get a snug, leak-free connection.
NO GAP
4. After connecting the water supply to the water
filter, turn your main water supply back on and
dispense about 1 L to clear and prime the water
filter.
Connecting the water line to the
refrigerator
1. Remove the dust cap from the water line on the
rear of the unit and fit a compression nut from the
install kit.
2. Remove the water pipe from the install kit and fit a
compression nut to one end.
English - 21
DA68-02710A-05.indd 21
2013. 12. 26.
7:29
Remove any residual matter inside
the purifier. (Model with the coolselect
zone)
1. Turn ON the main water supply.
2. Run water through the dispenser until the water
runs clear (approximate 3 liter).
The initial dark discoloration of water and ice is
normal
select the location where the purifier is to
install. (Model with the purifier)
- If you wish to reassemble the water inlet and outlet
sides of the purifier during purifier installation, see
the reference illustration.
- Cut the water line attached to the purifier to the
appropriate place after measuring the distance
between the purifier and the cold water tap.
COUPLER “A”
INSTALLING THE WATER
DISPENSER LINE
For Exterior model
Parts for water line Installation
TAP
LINE OUTLET
Pipe connector
Water line fixer and screws
90 degree
SIDE OF
PURIFIER
CAUTION
PURIFIER WATER
Water line
Purifier lock-clip
Purifier
WATER INLET
SIDE OF PURIFIER
COUPLER
Insert Locking Clip After
tube seated
Locking Clip
Connecting to the water supply line
Connect the water pipe with coupler and tap.
1. Close the main water tap.
2. Connect coupler “A” to the tap.
CAUTION
The water line must be connected to the cold
water pipe. If it is connected to the hot water
pipe, it may cause the purifier to malfunction.
WARRANTY INFORMATION
This water line installation is not covered by the
refrigerator or ice maker manufacturer’s warranty.
Follow these instructions carefully to minimise the risk of
expensive water damage.
Note:
If the coupler does not fit on the current tap, go
the nearest authorized service dealer and purchase the
right couplers fittings.
English - 22
DA68-02710A-05.indd 22
2013. 12. 26.
7:29
Connect the water line to the
refrigerator.
- Open the main water tap to check whether water
is running through the water tube on the water inlet
side of the purifier.
- If water does not come out through the line, check
whether the tap is open.
- Leave the tap open until clean water is running
out and any residual matter that built up during
manufacturing has been removed.
- Remove the compressor cover of the refrigerator.
- Connect the water line to the valve, as shown in
the figure.
- When connected, check if there is any leakage.
If any, repeat the connection.
- Reattach the compressor cover of the refrigerator.
OUTLET SIDE
OF PURIFIER
WATER
WATER LINE
CONNECTION NUT
PURIFIER
01 SETTING UP
Remove any residual matter inside the
purifier. (Model with the purifier)
WATER LINE
INSTRUCTIONS
COMPRESSOR COVER OF
REFRIGERATOR
The initial dark discoloration of water and ice is
normal.
Attach the purifier lock-clip.
- Hold the purifier lock-clip in the appropriate position
(under the sink for example) and fix it tightly into
place where to screw.
- Using clip ”A”, fix the water
line to the wall (the back of
refrigerator).
- When the water line is
secure, make sure whether
the water line is not
excessively bent, pinched or
squashed.
CLIP A
WATER LINE
Removing any residual matter inside
the water supply line after installing
filter.
PURIFIER LOCK-CLIP
CAUTION
Secure the water line.
Do not fix the purifier on the refrigerator
or rear of refrigerator, it may cause
material damage.
1. Turn ON the main water supply & turn OFF the
valve to the water supply line.
2. Run water through the dispenser until the water
runs clear (approximate 3 liter). This will clean the
water supply system and remove air from the lines.
Secure the purifier in position.
3. Additional flushing may be required in some
households.
- Fix the purifier in position, as shown in the figure on
the right.
4. Open the refrigerator door and make sure there
are no water leaks coming from the water filter.
WATER TUBE
PURIFIER LOCK-CLIP
A newly installed water filter cartridge may cause
water to briefly spurt from the water dispenser.
This is due to air getting into the line. It should
pose no problem to operation.
PURIFIER
English - 23
DA68-02710A-05.indd 23
2013. 12. 26.
7:29
operating the SAMSUNG
side-by-side refrigerator
OPERATING THE REFRIGERATOR
3
USING THE CONTROL PANEL /
DIGITAL DISPLAY
ICE TYPE
BUTTON
FILTER
4 CHANGE
BUTTON
COOLSELECT MODEL
8
5
1
VACATION
BUTTON
CHILD
LOCK
FUNCTION
By pressing the Vacation
button and the Fridge button
simultaneously for 3 seconds,
all buttons will be locked. The
Water dispenser lever and
the Ice lever will not work
either. To cancel this function,
Press these two buttons for 3
seconds again.
FRIDGE
BUTTON
Press the Fridge button to
set the fridge to your desired
temperature.
You can set temperature
between 1 °C and 7 °C (34 °F
and 46 °F).
7
3
4
5
DISPENSER MODEL
NORMAL MODEL
6
7
1
POWER
FREEZE
BUTTON
FREEZER
2
BUTTON
Speeds up the time needed
to freeze products in the
freezer. This can be helpful
if you need to quickly freeze
items that spoil easily or if the
temperature in the freezer
has warmed dramatically (For
example, if the door was left
open).
8
When you change the filter,
press this button for 3
seconds to reset the filter
schedule.
If you are going on vacation
or business trip or you do not
need to use the refrigerator,
press the Vacation button.
When you select vacation
button for fridge compartment
off, display LED of Vacation will
be on.
It is strongly requested to
remove foods in the freshfood compartment and do
not leave the door open
when you select Vacation
function.
6
2
Use this button to choose
Cubed, Crushed or to turn the
Ice feature off.
DOOR
OPEN
FUNCTION
Press the Freezer button to
set the freezer to your desired
temperature, You can set the
temperature between -15 °C
(6 °F) and -23 ºC (-10 °F).
1. If the fridge or the freezer
door is open, the "Door
Open" icon is lit.
2. If the condition that
generates a door alarm is
satisfied because the fridge
or the freezer door is open,
the "Door Open" icon blinks.
English - 24
DA68-02710A-05.indd 24
2013. 12. 26.
7:29
When you place the SHELF-BOTTOM instead of
Bottom drawer, the SHELF-BOTTOM is two star
section (All models). The Bottom door guard in
the freezer is two star section.
(RSH7, RS77, RS7528, RS7527, RS54H,
RS57H models).
So, the Temperature in the two star sections are
slightly higher than other freezer compartment.
Display Off Function
To energy conservation the Panel Display turns off
automatically under the following conditions:
When no button has been pressed, when no doors
are open, or when no Dispenser Lever has been
pushed.
However, the icon indicating your Vacation or Cubed
/ Crushed / Ice Off, will stay on.
When you press a button, open a door, or push
Dispenser Lever, the Panel Display will turn on again.
Except for the Ice Type button, all function buttons
will become operational after you remove your finger
from the button you are currently pressing.
CONTROLLING THE
TEMPERATURE
CONTROLLING THE FREEZER
TEMPERATURE
The freezer temperature can be set between -15 °C
(6 °F) and -23 ºC (-10 °F) to suit your particular
needs. Press the Freezer button repeatedly until the
desired temperature is shown in the temperature
display. Keep in mind that foods like ice cream may
melt at -16 ºC (4 °F).
The temperature display will move sequentially from
-15 °C (6 °F) and -23 ºC (-10 °F). When the display
reaches -23 ºC (-10 °F), it will begin again at -15 ºC
(6 °F).
Five seconds after the new temperature is set the
display will again show the actual current freezer
temperature. However, this number will change as
the Freezer adjusts to the new temperature.
CONTROLLING THE FRIDGE
TEMPERATURE
02 OPERATING
When you use Power Freeze the energy
consumption of the refrigerator will increase.
Remember to turn it off when you don’t
need it and return the freezer to your original
temperature setting.
If you need to freeze large amount of food stuff,
activate Power Freeze function at least 20 hours
before.
The refrigerator temperature can be set between 7 ºC
(46 °F) and 1 ºC (34 °F) to suit your particular
needs. Press the Fridge button repeatedly until the
desired temperature is shown in the temperature
display.
The temperature control process for the Fridge works
just like the Freezer process.
Press the Fridge button to set your desired
temperature.
After a few seconds, the Fridge will begin tracking
towards the newly set temperature.
This will be reflected in the digital display.
The temperature of the freezer or the refrigerator
may rise from opening the doors too frequently,
or if a large amount of warm or hot food is
placed in either side.
This may cause the digital display to blink.
Once the freezer and refrigerator return to their
normal set temperatures the blinking will stop.
If the blinking continues, you may need to “reset”
the refrigerator.
Try unplugging the appliance, wait about 10
minutes and then plug back in.
English - 25
DA68-02710A-05.indd 25
2013. 12. 26.
7:29
USING THE ICE AND COLD
WATER DISPENSER
Using the Water Dispenser
Press the Ice Type button to select the type of ice
you want
Place a glass underneath the water outlet and
push gently against the water dispenser lever with
your glass. Make sure the glass is in line with the
dispenser to prevent the water from splashing out.
WARNING
No Ice
Select this if you want to
turn off the icemaker
Ice is made in cubes. When you select
“Crushed”, the icemaker grinds the ice cubes
into crushed ice.
CAUTION
Dispensing ice
Place your glass underneath the ice outlet and push
gently against the ice dispenser lever with your glass.
Make sure the glass is in line with the dispenser to
prevent the ice from bouncing out.
• Do not put your fingers, hands or any
other unsuitable objects in the chute or
ice-maker bucket.
- It may result in personal injury or material
damage.
• Never put finger or any other objects in
the dispenser opening.
- It may cause injury.
• Use only the ice maker provided with the
refrigerator.
• The water supply to this refrigerator must
only be installed/connected by a suitably
qualified person and connect to a potable
water supply only.
• In order to operate the ice maker properly,
water pressure of 138 ~ 862 kPa is
required.
• If you have a long vacation or business
trip and won’t use water or ice
dispensers, close the water valve.
- Otherwise, water leakage may occur.
• Wipe excess moisture from the inside and
leave the doors open.
- Otherwise, odor and mold may develop.
English - 26
DA68-02710A-05.indd 26
2013. 12. 26.
7:29
<RS757*/ RS756*>
( 5 )
( 6 )
02 OPERATING
( 1 )
( 7 )
( 8 )
( 2 )
( 9 )
( 10 )
( 3 )
( 11 )
( 4 )
<RS77* / RS54H*>
( 5 )
( 12 )
( 6 )
( 7 )
( 8 )
( 2 )
( 9 )
( 3 )
( 10 )
( 11 )
( 4 )
English - 27
DA68-02710A-05.indd 27
2013. 12. 26.
7:29
<RS772*/RS752*/RS57H*>
( 5 )
( 6 )
( 7 )
( 2 )
( 9 )
( 3 )
( 10 )
( 11 )
( 4 )
English - 28
DA68-02710A-05.indd 28
2013. 12. 26.
7:29
( 1 )
Ice Chute
WARNING
Shelves
( 9 )
Can be used to store all types of frozen food.
( 3 )
Beverage Station (Optional)
Can be used to store the frequently used items,
such as canned beverages and snacks and
allows access to these items without opening
the refrigerator door.
Moving Shelf (Optional)
Designed to move with foods easily.
It can be used to store all types food and drinks
need to move often.
Door Bins
Can be used for small packages of frozen food.
( 10 ) Fruit & Vegetable Drawer
( 4 )
Used to preserve the freshness of your stored
vegetables and fruits.
It has been specifically designed to control the
level of humidity within the drawer.
Drawers
Best used to store meats or dry foods.
Stored food should be wrapped securely using
foil or other suitable wrapping materials or
containers.
( 5 )
02 OPERATING
( 2 )
( 8 )
Do not put your fingers, hands or any
other objects in the ice chute or the
ice maker bucket. This may result in
personal injury or material damage.
( 11 ) Door Bins
Designed to handle large, bulky items such
as gallons of milk or other large bottles and
containers.
Dairy Bin
Can be used to store smaller dairy items like
butter or margarine, yogurt or cream-cheese
bricks.
( 12 ) Ice Maker Bucket
Designed to store lots of ice easily.
( 6 )
Shelves
Designed to be crack-resistant.
They can be used to store all types of food and
drinks. Circular marks on the glass surface are a
normal phenomenon and can usually be wiped
clean with a damp cloth.
( 7 )
WARNING
Do not put your fingers, hands or any
other objects in the ice chute or the
ice maker bucket. This ma y result in
personal injury or material damage.
Egg Tray
Best place to keep eggs.
Place the Egg Tray on the shelf for easy access.
English - 29
DA68-02710A-05.indd 29
2013. 12. 26.
7:29
For more space, you can store food with Guard
FRE-UPP instead of the ice bucket, and remove
the COVER-ICE MAKER.
If you remove the ice bucket, ICE OFF will blink
on the display panel.
Furthermore, you can remove the freezer Upper
drawer and Bottom drawer and locate the
‘SHELF-BOTTOM’ on the bottom of the freezer
since it does not affect thermal and mechanical
characteristics.
A declared storage volume of frozen food
storage compartment is calculated with "Guard
FRE-UPP", "SHELF-BOTTOM" positioned
and "COVER-ICE MAKER", "Upper Drawer",
"Bottom Drawer" removed.
USING THE COOLSELECT
ZONE™ DRAWER (OPTIONAL)
Quick Cool
• You can use the Quick Cool feature with the
CoolSelect ZoneTM.
• “Quick Cool” allows 1~3 canned beverages to cool
within 60 min.
• To cancel this function, press the “Quick Cool”
button again. CoolSelect ZoneTM returns to the
previous temperature.
• When “Quick Cool” ends, it returns to the “Cool”
temperature setting.
Thaw
GUARD FRE-UPP (Optional)
COVER-ICE MAKER
• Drips loss and quality deterioration of meats
reduces the freshness of foods.
• After “Thaw” is selected, warm and cold air is
alternately supplied into the CoolSelect ZoneTM
Drawer.
• Depending on the weight of meat, thawing time
can be selected for 4 hrs, 6 hrs, 10 hrs, and 12 hrs
sequentially.
• When “Thaw” ends, CoolSelect ZoneTM display
returns to “Zero Zone” condition.
• When “Thaw “ ends, there are no juice in the meats
and they are half-freezed condition so it is easy to
cut them for cooking.
• To cancel this option, press any button except
“Thaw”.
• The approximate thawing time of meat and fish are
shown below. (Based on 1 inch thickness)
SHELF-BOTTOM (Optional)
THAW TIME
WEIGHT
4 hours
363 g (0.8 Ib)
6 hours
590 g (1.3 Ib)
10 hours
771 g (1.7 Ib)
12 hours
1000 g (2.2 Ib)
English - 30
DA68-02710A-05.indd 30
2013. 12. 26.
7:29
Depending on the size and thickness of meat
and fish, the thawing time may vary.
The above weight represents the total weight of
food in the CoolSelect ZoneTM Drawer.
Ex) The total thawing time for 400 g frozen beef
and 600 g frozen chicken will be 10 hours.
Cleaning and rearranging the interior of the freezer is
simple.
1. Remove the Glass shelf by pulling the shelf out as
far as it will go. Then, gently lift it up and remove it.
Zero Zone (0 ºC)
• When “Zero Zone” is chosen, the temperature
of the CoolSelect ZoneTM Drawer is kept at 0 ºC
regardless of the set refrigerator temperature.
• “Zero Zone” temperature helps keep meat or fish
fresh longer.
02 OPERATING
With the “Thaw” option, food which is not
needed to thaw in the CoolSelect ZoneTM
WARNING
Drawer should be removed.
REMOVING THE FREEZER
ACCESSORIES
2. Remove the door bin by holding the door bin with
both hands and then gently lift it up.
Cool
• When “Cool” is chosen, the temperature will be the
same as the set temperature of the refrigerator.
The digital panel shows the same temperature as
that of the display panel.
• The CoolSelect ZoneTM Drawer allows extra
refrigerator space.
3. Remove the Plastic drawer by pulling it out and
slightly lifting it up.
Depending on the beverages, the cool-down
time may vary.
WARNING
For “Quick Cool” option, food stored in
the CoolSelect ZoneTM Drawer should be
removed.
4. ice bucket (freezer)
Remove the Icemaker
Bucket by lifting up and
pulling it out slowly.
• Grip the handle as
shown in the figure
• Lift the low part slightly
• Take the ice bucket out
slowly.
Do not use excessive force when removing the
cover.
Otherwise, the cover may break and cause
injury.
English - 31
DA68-02710A-05.indd 31
2013. 12. 26.
7:29
REMOVING THE FRIDGE
ACCESSORIES
CLEANING THE REFRIGERATOR
1. Remove the spill Proof Glass Shelf by pulling the
shelf out as far as it will go. Then, gently lift it up
and gently remove it.
WARNING
CAUTION
2. Remove the Vegetable & Fruit Drawer by
pressing on the indentations found on the inside
left and right sides of the Veggie Box/Dry Box
cover and remove by
pulling forward.
Holding the drawer with
one hand, lift it up a
little bit while pulling it
forward and take it out
of the refrigerator.
3. Remove the Gallon Door Bin by holding the bin
with both hands and gently lifting it up.
Before removing any accessories, make sure that
no food is in the way.
When possible, remove the food altogether to
reduce the risk of accidents.
Do not use Benzene, Thinner or Clorox™
for cleaning. They may damage the surface
of the appliance and can create a risk of
fire.
Do not spray the refrigerator with water
while it is plugged in, as it may cause an
electric shock.
Do not clean the refrigerator with benzene,
thinner or car detergent for risk of fire.
REPLACING THE INTERIOR
LIGHT
For LED lamp, please contact service engineer
to replace it.
CHANGING THE WATER FILTER
To reduce risk of water damage to your
property DO NOT use generic brands of
WARNING
water filers in your SAMSUNG Refrigerator.
USE ONLY SAMSUNG BRAND WATER
FILTERS. SAMSUNG will not be legally
responsible for any damage, including, but
not limited to property damage caused by
water leakage from use of a generic water
filter.
SAMSUNG Refrigerators are designed to
work ONLY WITH SAMSUNG Water Filter.
The “Filter Indicator” light lets you know when it is
time to change your water filter cartridge.
When the filter indicator light changes to red, it is time
to change the filter.
To give you some time to get a new filter, the light will
come on up just before the capacity of the current
filter runs out.
Changing the filter on time provides you with the
freshest, cleanest water from your fridge.
For Internal model
1. Remove the water filter from the box and put a
month indicator sticker on the filter as shown.
2. Place a sticker on the filter that dates six months
in the future. For example, if you are replacing the
water filter in March, put the “SEP” (September)
sticker on the filter to remind you to replace in
September. Normally filter life is about every 6
months.
English - 32
DA68-02710A-05.indd 32
2013. 12. 26.
7:29
Cover filter
1
2
Sticker
(month
indicator)
7. Lastly, Dispense 1 L of water through water
dispenser and throw away. Make sure that water
flows clearly again before drinking.
A newly installed water filter cartridge may
cause water to briefly spurt from the water
dispenser. This is due to air getting into the line.
It should pose no problem to operation.
02 OPERATING
3. Next, remove the fixed cap by turning it counter
clockwise.
4. Remove the new filter’s protective cap and
remove the old filter.
5. Position and insert the new filter into the filter
housing. Slowly turn the water filter clockwise
90º to align with the indication mark on the cover,
locking the filter in position. Make sure that the
indicator is lined up with the “lock” position. Do
not over tighten.
4
Ordering replacement filters
3
5
Align the
indication
mark with
lock position
To order more water filter cartridges, contact your
authorized Samsung dealer.
- Internal Filter - HAFIN2/EXP
- External Filter - HAFEX/EXP
For Exterior model
1. Shut off water supply.
2. Note the Flow direction on the filter.
3. Insert water supply tube into the inlet side of the
filter until the tube stop.
FLOW DIRECTION
WATER SUPPLY
INLET SIDE
PERMEAT
Note : You must also ensure
that the cut is square
and not at any sort
of angle as this could
cause a leak
4. After inserting tube, put together the clip strongly.
The Clip fix the tube.
5. Turn on the water and check for leaks. If leaks
occur, repeat step 1,2,3,4. If leaks persist,
discontinue use and call your supporting dealer.
6. Once you have completed this process, hold the
Ice Type button for 3 seconds to reset the filter
schedule.
English - 33
DA68-02710A-05.indd 33
2013. 12. 26.
7:29
troubleshooting
PROBLEM
SOLUTION
The refrigerator
does not work at all
or it does not chill
sufficiently.
•
•
•
•
The food in the fridge is •
frozen.
•
•
You hear unusual
noises or sounds.
•
•
•
•
The front corners of
the appliance are hot
and condensation is
occurring.
•
Ice is not dispensing.
•
•
•
•
•
•
You can hear water
bubbling in the
refrigerator.
There is a bad smell in
the refrigerator.
Check that the power plug is properly connected.
Is the temperature control on the display panel set to the correct
temperature? Try setting it to a lower temperature.
Is the refrigerator in direct sunlight or located too near a heat source?
Is the back of the refrigerator too close to the wall and therefore keeping air
from circulating?
Is the temperature control on the display panel set to the correct
temperature? Try setting it to a warmer temperature.
Is the temperature in the room very low?
Did you store the food with a high water content in the coldest part of the
fridge? Try moving those items into the body of the fridge instead of keeping
them in the CoolSelect Zone™ drawer.
Check that the refrigerator is level and stable.
Is the back of the refrigerator too close to the wall and therefore keeping air
from circulating?
Was anything dropped behind or under the refrigerator?
A “ticking” sound is heard from inside the refrigerator. This is normal and
occurs because various accessories are contracting or expanding in relation
to the temperature of the refrigerator interior.
Some heat is normal as anti-condensators are installed in the front corners
of the refrigerator to prevent condensation.
Is the refrigerator door ajar? Condensation can occur when you leave the
door open for a long time.
Did you wait for 12 hours after installation of the water supply line before
making ice?
Is the water line connected and the shut-off valve open?
Did you manually stop the ice making function? Make sure Ice Type is set to
Cubed or Crushed.
Is there any ice blocked within the ice maker bucket?
Is the freezer temperature too warm? Try setting the freezer temperature
lower.
•
This is normal. The bubbling comes from the refrigerant coolant liquid
circulating through the refrigerator.
•
•
Has a food item spoiled?
Make sure that strong smelling food (for example, fish) is wrapped so that it
is airtight.
Clean out your freezer periodically and throw away any spoiled or suspect
food.
•
Frost forms on the
walls of the freezer.
•
•
•
Is the air vent blocked? Remove any obstructions so air can circulate freely.
Allow sufficient space between the foods stored for efficient air circulation.
Is the freezer door closed properly?
Water dispenser is not
functioning.
•
•
Is the water line connected and the shut-off valve open?
Has the water supply line tubing been crushed or kinked?
Make sure the tubing is free and clear of any obstruction.
Is the water tank frozen because the refrigerator temperature is too low?
Try selecting a warmer setting on the main display panel.
•
English - 34
DA68-02710A-05.indd 34
2013. 12. 26.
7:29
memo
DA68-02710A-05.indd 35
2013. 12. 26.
7:29
Ambient Room Temperature Limits
This refrigerator is designed to operate in ambient temperatures specified by its temperature
class marked on the rating plate.
Class
Symbol
Extended Temperate
SN
Ambient Temperature range (°C)
+10 to +32
Temperate
N
+16 to +32
Subtropical
ST
+16 to +38
Tropical
T
+16 to +43
Internal temperatures may be affected by such factors as the location of the refrigerator, ambient
temperature and the frequency with which you open the door. Adjust the
temperature as required to compensate for these factors.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
English
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.
COUNTRY
CALL
Web site
AUSTRALIA
www.samsung.com/au
EIRE
1300 362 603
01 8000 112 112
Bogotá 600 12 72
0818 717 100
HONG KONG
(852) 3698-4698
COLOMBIA
INDIA
MALAYSIA
NEW ZEALAND
PANAMA
PHILIPPINES
SINGAPORE
SOUTH AFRICA
U.K
VIETNAM
1800 3000 8282
1800 266 8282
1800-88-9999
0800 SAMSUNG (0800 726 786)
800-7267
1-800-10-7267864 [PLDT]
1-800-8-7267864 [Globe landline and Mobile]
02-4222111 [Other landline]
1800-SAMSUNG (726-7864)
0860-SAMSUNG (726-7864)
0330 SAMSUNG (726-7864)
1 800 588 889
www.samsung.com/co
www.samsung.com
www.samsung.com/hk
www.samsung.com/hk_en/
www.samsung.com/in
www.samsung.com/my
www.samsung.com/nz
www.samsung.com/latin (Spanish)
www.samsung.com/latin_en (English)
www.samsung.com/ph
www.samsung.com/sg
www.samsung.com
www.samsung.com
www.samsung.com
DA68-02710A-05
DA68-02710A-05.indd 36
2013. 12. 26.
7:29
